Configuring DHCP Services for Accounting and Security
Cisco IOS software supports several capabilities that enhance DHCP security, reliability, and accounting in Public Wireless LANs (PWLANs). This functionality can also be used in other network implementations. This module describes the concepts and tasks needed to configure DHCP services for accounting and security.
Module History
This module was first published on May 2, 2005, and last updated on February 27, 2006.
Finding Feature Information in This Module
Your Cisco IOS software release may not support all features. To find information about feature support and configuration, use the "Feature Information for DHCP Services for Accounting and Security" section
Contents
•
Prerequisites for Configuring DHCP Services for Accounting and Security
•
•
•
•
Prerequisites for Configuring DHCP Services for Accounting and Security
Before you configure DHCP services for accounting and security, you should understand the concepts documented in the "DHCP Overview" module.
Information About DHCP Services for Accounting and Security
Before you configure DHCP services for accounting and security, you should understand the following concepts:
•
•
•
•
DHCP Operation in Public Wireless LANs
The configuration of DHCP in a public wireless LAN (PWLAN) simplifies the configuration of wireless clients and reduces the overhead necessary to maintain the network. DHCP clients are leased IP addresses by the DHCP server and then authenticated by the Service Selection Gateway (SSG), which allows the clients to access network services. The DHCP server and client exchange DHCP messages for IP address assignments. When a DHCP server assigns an IP address to a client, a DHCP binding is created. The IP address is leased to the client until the client explicitly releases the IP address and disconnects from the network. If the client disconnects without releasing the address, the server terminates the lease after the lease time is over. In either case, the DHCP server removes the binding and the IP address is returned to the pool.
Security Vulnerabilities in Public Wireless LANs
As more people start using PWLANs, security becomes an important concern. Most implementations of PWLANs rely on DHCP for users to obtain an IP address while in a hot spot (such as a coffee shop, airport terminal, hotel, and so on) and use this IP address provided by the DHCP server throughout their session.
IP spoofing is a common technique used by hackers to spoof IP addresses. For example, customer A obtains an IP address from DHCP and has already been authenticated to use the PWLAN, but a hacker spoofs the IP address of customer A and uses this IP address to send and receive traffic. Customer A will still be billed for the service even though he or she is not using the service.
Address Resolution Protocol (ARP) table entries are dynamic by design. Request and reply ARP packets are sent and received by all the networking devices in a network. In a DHCP network, the DHCP server stores the leased IP address to the MAC address or the client-identifier of the client in the DHCP binding. But as ARP entries are learned dynamically, an unauthorized client can spoof the IP address given by the DHCP server and start using that IP address. The MAC address of this unauthorized client will replace the MAC address of the authorized client in the ARP table allowing the unauthorized client to freely use the spoofed IP address.
DHCP Services for Security and Accounting Overview
DHCP security and accounting features have been designed and implemented to address the security concerns in PWLANs but also can be used in other network implementations.
DHCP accounting provides authentication, authorization, and accounting (AAA) and Remote Authentication Dial-In User Service (RADIUS) support for DHCP. The AAA and RADIUS support improves security by sending secure START and STOP accounting messages. The configuration of DHCP accounting adds a layer of security that allows DHCP lease assignment and termination to be triggered for the appropriate RADIUS START and STOP accounting records so that the session state is properly maintained by upstream devices, such as an SSG. This additional security can help to prevent unauthorized clients or hackers from gaining illegal entry to the network by spoofing authorized DHCP leases.
Three other features have been designed and implemented to address the security concerns in PWLANs. The first feature secures ARP table entries to DHCP leases in the DHCP database. The secure ARP functionality prevents IP spoofing by synchronizing the database of the DHCP server with the ARP table to avoid address hijacking. Secure ARP adds an entry to the ARP table for a client when an address is allocated that can be deleted by the DHCP server only when a binding expires.
The second feature is DHCP authorized ARP. This functionality provides a complete solution by addressing the need for DHCP to explicitly know when a user logs out. Before the introduction of DHCP authorized ARP, there was no mechanism to inform the DHCP server if a user had left the system ungracefully, which could result in excessive billing for a customer that had logged out but the system had not detected the log out. To prevent this problem, DHCP authorized ARP sends periodic ARP messages on a per-minute basis to determine if a user is still logged in. Only authorized users can respond to the ARP request. ARP responses from unauthorized users are blocked at the DHCP server providing an extra level of security.
In addition, DHCP authorized ARP disables dynamic ARP learning on an interface. The address mapping can be installed only by the authorized component specified by the arp authorized interface configuration command. DHCP is the only authorized component currently allowed to install ARP entries.
The third feature is ARP Auto-logoff, which adds finer control for probing when authorized users log out. The arp probe interval command specifies when to start a probe (the timeout), how frequent a peer is probed (the interval), and the maximum number of retries (the count).
DHCP Lease Limit per ATM RBE Unnumbered Interface
This feature allows an Internet service provider (ISP) to globally limit the number of leases available to clients per household or connection. This lease limit can be configured on ATM routed bridge encapsulation (RBE) or serial unnumbered interfaces.
How to Configure DHCP Services for Accounting and Security
This section contains the following tasks:
•
•
•
•
•
•
Configuring AAA and RADIUS for DHCP Accounting
Perform this task to configure AAA and RADIUS for DHCP accounting.
RADIUS provides the accounting capability for the transmission of secure START and STOP messages. AAA and RADIUS are enabled prior to the configuration of DHCP accounting but can also be enabled to secure an insecure DHCP network. The configuration steps in this section are required for configuring DHCP accounting in a new or existing network.
RADIUS Accounting Attributes
DHCP accounting introduces the attributes shown in Table 1. These attributes are processed directly by the RADIUS server when DHCP accounting is enabled. These attributes can be monitored in the output of the debug radius command. The output will show the status of the DHCP leases and specific configuration details about the client. The accounting keyword can be used with the debug radius command to filter the output and display only DHCP accounting messages.
Table 1 RADIUS Accounting Attributes
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
DETAILED STEPS
Troubleshooting Tips
To monitor and troubleshoot the configuration of RADIUS accounting, use the following command:
Configuring DHCP Accounting
Perform this task to configure DHCP accounting.
DHCP Accounting
DHCP accounting is enabled with the accounting DHCP pool configuration command. This command configures DHCP to operate with AAA and RADIUS to enable secure START and STOP accounting messages. This configuration adds a layer of security that allows DHCP lease assignment and termination to be triggered for the appropriate RADIUS START and STOP accounting records so that the session state is properly maintained by upstream devices, such as the SSG.
DHCP accounting is configured on a per-client or per-lease basis. Separate DHCP accounting processes can be configured on a per-pool basis.
Prerequisites
You must configure an SSG for client authentication. AAA and RADIUS must be enabled before DHCP accounting will operate.
Restrictions
The following restrictions apply to DHCP accounting:
•
•
SUMMARY STEPS
1.
2.
3.
4.
DETAILED STEPS
Step 1
enable
Example:Router> enable
Enables privileged EXEC mode.
•
Step 2
configure terminal
Example:Router# configure terminal
Enters global configuration mode.
Step 3
ip dhcp pool pool-name
Example:Router(config)# ip dhcp pool WIRELESS-POOL
Configures a DHCP address pool and enters DHCP pool configuration mode.
Step 4
accounting method-list-name
Example:Router(dhcp-config)# accounting RADIUS-GROUP1
Enables DHCP accounting if the specified server group is configured to run RADIUS accounting.
•
Verifying DHCP Accounting
Perform this task to verify the DHCP accounting configuration.
The debug radius, debug ip dhcp server events, debug aaa accounting, debug aaa id commands do not need to be issued together or in the same session as there are differences in the information that is provided. These commands, however, can be used to display DHCP accounting start and stop events, AAA accounting messages, and information about AAA and DHCP hosts and clients. See the "RADIUS Accounting Attributes" section of this document for a list of AAA attributes that have been introduced by DHCP accounting. The show running-config | begin dhcp command can be used to display the local DHCP configuration including the configuration of DHCP accounting.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
DETAILED STEPS
Securing ARP Table Entries to DHCP Leases
Perform this task to secure ARP table entries to DHCP leases in the DHCP database.
When the update arp command is used, ARP table entries and their corresponding DHCP leases are secured automatically for all new leases and DHCP bindings. However, existing active leases are not secured. These leases are still insecure until they are renewed. When the lease is renewed, it is treated as a new lease and will be secured automatically. If this command is disabled on the DHCP server, all existing secured ARP table entries will automatically change to dynamic ARP entries.
SUMMARY STEPS
1.
2.
3.
4.
DETAILED STEPS
Configuring DHCP Authorized ARP
Perform this task to configure DHCP authorized ARP, which disables dynamic ARP learning on an interface.
ARP Probing Behavior
DHCP authorized ARP has a limitation in supporting accurate one-minute billing. DHCP authorized ARP probes for authorized users once or twice, 30 seconds apart. In a busy network the possibility of missing reply packets increases, which can cause a premature log off. If you need a more accurate and finer control for probing of the authorized user, configure the arp probe interval command. This command specifies when to start a probe, the interval between unsuccessful probes, and the maximum number of retries before triggering an automatic log off.
Restrictions
If both static and authorized ARP are installing the same ARP entry, static configuration overrides authorized ARP. You can install a static ARP entry by using the arp global configuration command. You can only remove a nondynamic ARP entry by the same method in which it was installed.
The ARP timeout period should not be set to less than 30 seconds. The feature is designed to send out an ARP message every 30 seconds, beginning 90 seconds before the ARP timeout period specified by the arp timeout command. This behavior allows probing for the client at least three times before giving up on the client. If the ARP timeout is set to 60 seconds, an ARP message is sent twice, and if it is set to 30 seconds, an ARP message is sent once. An ARP timeout period set to less than 30 seconds can yield unpredictable results.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
DETAILED STEPS
Step 1
enable
Example:Router> enable
Enables privileged EXEC mode.
•
Step 2
configure terminal
Example:Router# configure terminal
Enters global configuration mode.
Step 3
interface type number
Example:Router(config)# interface ethernet 1
Configures an interface type and enters interface configuration mode.
Step 4
ip address ip-address mask
Example:Router(config-if)# ip address 168.71.6.23 255.255.255.0
Sets a primary IP address for an interface.
Step 5
arp authorized
Example:Router(config-if)# arp authorized
Disables dynamic ARP learning on an interface.
•
Step 6
arp timeout seconds
Example:Router(config-if)# arp timeout 60
Configures how long an entry remains in the ARP cache.
•
Step 7
arp probe interval seconds count number
Example:Router(config-if)# arp probe interval 5 count 30
(Optional) Specifies an interval, in seconds, and number of probe retries.
The arguments are as follows:
•
•
Note
Step 8
end
Example:Router(config-if)# end
Exits the configuration mode and returns to privileged EXEC mode.
Step 9
show arp
Example:Router# show arp
(Optional) Displays the entries in the ARP table.
Configuring a DHCP Lease Limit
Perform this task to limit the number of DHCP leases allowed on ATM RBE unnumbered interfaces or serial unnumbered interfaces.
DHCP Lease Limit per ATM RBE Unnumbered Interface Feature Design
This feature allows an ISP to globally limit the number of leases available to clients per household or connection.
If this feature is enabled on a Cisco IOS DHCP relay agent connected to clients through unnumbered interfaces, the relay agent keeps information about the DHCP leases offered to the clients per subinterface. When a DHCPACK message is forwarded to the client, the relay agent increments the number of leases offered to clients on that subinterface. If a new DHCP client tries to obtain an IP address and the number of leases has already reached the configured lease limit, DHCP messages from the client will be dropped and will not be forwarded to the DHCP server.
If this feature is enabled on the Cisco IOS DHCP server directly connected to clients through unnumbered interfaces, the server allocates addresses and increments the number of leases per subinterface. If a new client tries to obtain an IP address, the server will not offer an IP address if the number of leases on the subinterface has already reached the configured lease limit.
Restrictions for the DHCP Lease Limit
This feature is not supported on numbered interfaces. The lease limit can be applied only to ATM with RBE unnumbered interfaces or serial unnumbered interfaces.
SUMMARY STEPS
1.
2.
3.
DETAILED STEPS
Troubleshooting Tips
You can use the debug ip dhcp server packet and debug ip server events commands to troubleshoot the DHCP lease limit.
Configuration Examples for DHCP Services for Accounting and Security
This section provides the following configuration examples:
•
•
AAA and RADIUS for DHCP Accounting: Example
The following example shows how to configure AAA and RADIUS for DHCP accounting:
aaa new-modelaaa group server radius RGROUP-1server 10.1.1.1 auth-port 1645 acct-port 1646exitaaa accounting network RADIUS-GROUP1 start-stop group RGROUP-1aaa session-id commonip radius source-interface Ethernet0radius-server host 10.1.1.1 auth-port 1645 acct-port 1646radius-server retransmit 3exitDHCP Accounting: Example
DHCP accounting is configured on a per-client or per-lease basis. Separate DHCP accounting processes can be configured on a per-pool basis. The following example shows how to configure DHCP accounting START and STOP messages to be sent if RADIUS-GROUP1 is configured as a start-stop group.
ip dhcp pool WIRELESS-POOLaccounting RADIUS-GROUP1exitVerifying DHCP Accounting: Example
DHCP accounting is enabled after both RADIUS and AAA for DHCP are configured. DHCP START and STOP accounting generation information can be monitored with the debug radius accounting and debug ip dhcp server events commands. See the "RADIUS Accounting Attributes" section of this document for a list of AAA attributes that have been introduced by DHCP accounting.
The following is sample output from the debug radius accounting command. The output shows the DHCP lease session ID, the MAC address, and the IP address of the client interface.
00:00:53: RADIUS: Pick NAS IP for uid=2 tableid=0 cfg_addr=10.0.18.3 best_addr=0.0.0.0 00:00:53: RADIUS(00000002): sending 00:00:53: RADIUS(00000002): Send to unknown id 21645/1 10.1.1.1 :1646, Accounting-Request, len 76 00:00:53: RADIUS: authenticator C6 FE EA B2 1F 9A 85 A2 - 9A 5B 09 B5 36 B5 B9 27 00:00:53: RADIUS: Acct-Session-Id [44] 10 "00000002" 00:00:53: RADIUS: Framed-IP-Address [8] 6 10.0.0.10 00:00:53: RADIUS: Calling-Station-Id [31] 16 "00000c59df76" 00:00:53: RADIUS: Acct-Status-Type [40] 6 Start [1] 00:00:53: RADIUS: Service-Type [6] 6 Framed [2] 00:00:53: RADIUS: NAS-IP-Address [4] 6 10.0.18.3 00:00:53: RADIUS: Acct-Delay-Time [41] 6 0The following is sample output from the debug ip dhcp server events command. The output was generated on a DHCP server and shows an exchange of DHCP messages between the client and server to negotiate a DHCP lease. The acknowledgment that confirms to the DHCP server that the client has accepted the assigned IP address triggers the accounting START message. It is shown in the last line of the following output:
00:45:50:DHCPD:DHCPDISCOVER received from client0063.6973.636f.2d30.3030.312e.3432.6339.2e65.6337.352d.4574.31 oninterface Ethernet0.00:45:52:DHCPD:assigned IP address 10.10.10.16 to client0063.6973.636f.2d30.3030.312e.3432.6339.2e65.6337.352d.4574.31.00:45:52:DHCPD:Sending DHCPOFFER to client0063.6973.636f.2d30.3030.312e.3432.6339.2e65.6337.352d.4574.31(10.10.10.16)00:45:52:DHCPD:broadcasting BOOTREPLY to client 0001.42c9.ec75.00:45:52:DHCPD:DHCPREQUEST received from client0063.6973.636f.2d30.3030.312e.3432.6339.2e65.6337.352d.4574.31.00:45:52:DHCPD:Sending DHCPACK to client0063.6973.636f.2d30.3030.312e.3432.6339.2e65.6337.352d.4574.31(10.10.10.16).00:45:52:DHCPD:broadcasting BOOTREPLY to client 0001.42c9.ec75.00:45:52:DHCPD:triggered Acct Start for 0001.42c9.ec75 (10.10.10.16).The following is sample output from the debug ip dhcp server events command. The output was generated on a DHCP server and shows the receipt of an explicit release message from the DHCP client. The DHCP server triggers an accounting STOP message and then returns the IP address to the DHCP pool. Information about the accounting STOP message is shown in the third line of the following output:
00:46:26:DHCPD:DHCPRELEASE message received from client0063.6973.636f.2d30.3030.312e.3432.6339.2e65.6337.352d.4574.31 (10.10.10.16)00:46:26:DHCPD:triggered Acct Stop for (10.10.10.16).00:46:26:DHCPD:returned 10.10.10.16 to address pool WIRELESS-POOL.DHCP Authorized ARP: Example
Router 1 is the DHCP server that assigns IP addresses to the routers that are seeking IP addresses, and Router 2 is the DHCP client configured to obtain its IP address through the DHCP server. Because the update arp DHCP pool configuration command is configured on Router 1, it will install a secure ARP entry in its ARP table. The arp authorized command stops any dynamic ARP on that interface. Router 1 will send periodic ARPs to Router 2 to make sure that the client is still active. Router 2 responds with an ARP reply. Unauthorized clients cannot respond to these periodic ARPs. The unauthorized ARP responses are blocked at the DHCP server. The timer for the entry is refreshed on Router 1 upon receiving the response from the authorized client.
See Figure 1 for an example topology.

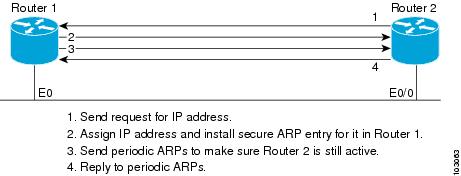

Figure 1 Example Topology for DHCP Authorized ARP
Router 1 (DHCP Server)
ip dhcp pool name1network 10.0.0.0 255.255.255.0lease 0 0 20update arp!interface Ethernet0ip address 10.0.0.1 255.255.255.0half-duplexarp authorizedarp timeout 60! optional command to adjust the periodic ARP probes sent to the peerarp probe interval 5 count 15Router 2 (DHCP Client)
interface Ethernet0/0ip address dhcphalf-duplexVerifying DHCP Authorized ARP: Example
The following is sample output for the show arp command on Router 1:
Router1# show arpProtocol Address Age (min) Hardware Addr Type InterfaceInternet 10.0.0.3 0 0004.dd0c.ffcb ARPA Ethernet01Internet 10.0.0.1 - 0004.dd0c.ff86 ARPA Ethernet0The following is the output for the show arp command on Router 2:
Router2# show arpProtocol Address Age (min) Hardware Addr Type InterfaceInternet 10.0.0.3 - 0004.dd0c.ffcb ARPA Ethernet0/02Internet 10.0.0.1 0 0004.dd0c.ff86 ARPA Ethernet0/0DHCP Lease Limit: Example
In the following example, if more than three clients try to obtain an IP address from interface ATM4/0.1, the DHCPDISCOVER packets will not be forwarded to the DHCP server. If the DHCP server resides on the same router, DHCP will not reply to more than three clients.
ip dhcp limit lease per interface 3!interface loopback0ip address 10.1.1.129 255.255.255.192!interface ATM4/0.1no ip address!interface ATM4/0.1 point-to-pointip helper-address 172.16.1.2ip unnumbered loopback0atm route-bridged ippvc 88/800encapsulation aal5snapAdditional References
The following sections provide references related to configuring DHCP services for accounting and security.
Related Documents
Standards
MIBs
RFCs
No new or modified RFCs are supported by this feature, and support for existing RFCs has not been modified by this feature.
—
Technical Assistance
Feature Information for DHCP Services for Accounting and Security
Table 2 lists the features in this module and provides links to specific configuration information. Only features that were introduced or modified in Cisco IOS Releases 12.2(1) or later appear in the table.
Not all commands may be available in your Cisco IOS software release. For details on when support for specific commands was introduced, see the command reference documents.
For information on a feature in this technology that is not documented here, see the "DHCP Features Roadmap".
Cisco IOS software images are specific to a Cisco IOS software release, a feature set, and a platform. Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.
Note
Table 2 Feature Information for DHCP Services for Accounting and Security
ARP Auto-logoff
12.3(14)T
The ARP Auto-logoff feature enhances DHCP authorized ARP by providing finer control and probing of authorized clients to detect a log off.
The following sections provide information about this feature:
•
•
The following command was introduced by this feature: arp probe interval.
DHCP Authorized ARP
12.3(4)T
DHCP authorized ARP enhances the DHCP and ARP components of the Cisco IOS software to limit the leasing of IP addresses to mobile users to authorized users. This feature enhances security in PWLANs by blocking ARP responses from unauthorized users at the DHCP server.
The following sections provide information about this feature:
•
•
The following command was introduced by this feature: arp authorized.
DHCP Lease Limit per ATM RBE Unnumbered Interface
12.3(2)T
12.2(28)SB
This feature limits the number of DHCP leases per subinterface offered to DHCP clients connected from an ATM RBE unnumbered interface or serial unnumbered interface of the DHCP server or DHCP relay agent.
The following section provides information about this feature:
•
The following command was introduced by this feature: ip dhcp limit lease per interface.
DHCP Accounting
12.2(15)T
12.2(28)SB
12.2(33)SRB
DHCP accounting introduces AAA and RADIUS support for DHCP configuration.
The following sections provide information about this feature:
•
The following command was introduced by this feature: accounting.
DHCP Secured IP Address Assignment
12.2(15)T
12.2(28)SB
DHCP secure IP address assignment provides the capability to secure ARP table entries to DHCP leases in the DHCP database. This feature secures and synchronizes the MAC address of the client to the DHCP binding, preventing unauthorized clients or hackers from spoofing the DHCP server and taking over a DHCP lease of an authorized client.
The following sections provide information about this feature:
•
•
The following command was introduced by this feature: update arp.
The following command was modified by this feature: show ip dhcp server statistics.
Any Internet Protocol (IP) addresses used in this document are not intended to be actual addresses. Any examples, command display output, and figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses in illustrative content is unintentional and coincidental.
Copyright © 2006 Cisco Systems, Inc. All rights reserved.
This module first published May 2, 2005. Last updated February 27, 2006.
