debug fax dmsp

To troubleshoot the fax Document Media Service Provider (DMSP), use the debug fax dmsp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fax dmsp [all | default | detail | error [call [informational] | software [informational]] | event | function | inout]

no debug fax dmsp

Syntax Description

all	(Optional) Displays all fax DMSP debugging messages.
default	(Optional) Displays fax DMSP error and inout information. This option also runs if no keywords are added.
detail	(Optional) Displays fax DMSP background messages.
error	(Optional) Displays fax DMSP error messages.
call	(Optional) Displays call processing errors.
informational	(Optional) Displays minor errors and major errors. Without the informational keyword, only major errors are displayed.
software	(Optional) Displays software errors.
event	(Optional) Displays fax DMSP events.
function	(Optional) Displays fax DMSP functions.
inout	(Optional) Displays fax DMSP in/out functions.

Defaults

Debugging is not enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command replaces the debug dmsp doc-to-fax and debug dmsp fax-to-doc commands.

Examples

The following is sample output from the debug fax dmsp all command:

Router# debug fax dmsp all

2d07h: //70/67D6061D8012/DMSP/docmsp_call_setup_request:

   ramp data dir=ONRAMP, conf dir=DEST

2d07h: //70/67D6061D8012/DMSP/docmsp_caps_ind:

   cid(0x46), srcCallID(0x44)

2d07h: //70/67D6061D8012/DMSP/docmsp_bridge:

   conf id(0x33), srcCallID(0x46), dstCallID(0x44),

   ramp data dir=ONRAMP, conf dir=DEST, encode out=1

2d07h: //70/67D6061D8012/DMSP/docmsp_bridge:

   Bridge done

2d07h: //70/67D6061D8012/DMSP/docmsp_bridge:

   conf id(0x34), srcCallID(0x46), dstCallID(0x45),

   ramp data dir=ONRAMP, conf dir=SRC, encode out=1

2d07h: //70/67D6061D8012/DMSP/docmsp_bridge:

   Bridge done

2d07h: //70/67D6061D8012/DMSP/docmsp_xmit:

   srcCallID(0x44), dstCallID(0x46), direction=0

2d07h: //68/67D6061D8012/DMSP/docmsp_process_rcv_data:

   evID=0, proto_flag=3, srcCallID(0x44), dstCallID(0x46)

2d07h: //70/67D6061D8012/DMSP_ON/docmsp_tiff_writer_data_process:

   START_OF_CONNECTION

2d07h: //70/67D6061D8012/DMSP_ON/docmsp_tiff_writer_data_process:

   START_OF_FAX_PAGE

2d07h: //70/67D6061D8012/DMSP_ON/docmsp_tiff_writer_get_buffer_callback:

   tiff_segment=0x63A88ECC

2d07h: //70/67D6061D8012/DMSP_ON/docmsp_tiff_writer_get_buffer_callback:

   tiff_segment=0x63D58944

2d07h: //70/67D6061D8012/DMSP/docmsp_process_rcv_data:

   Done

Table 76 describes the significant fields shown in the display.

Table 76 debug fax dmsp Field Descriptions

Field	Description
//70/67D6061D8012/DMSP/ docmsp_call_setup_request:	The format of this message is //callid/GUID/DMSP/function name: •CallEntry ID is 70. This indicates a unique call leg. •GUID is 67D6061D8012. This identifies the call. •DMSP is the module name. •The docmsp_call_setup_request field shows that the DMSP is requesting a call setup.
ramp data dir	Indicates if the data direction is on-ramp or off-ramp.
conf dir	Indicates if the data is from the source or destination.
docmsp_bridge:	Indicates that the DMSP is setting up a bridge to the destination.
docmsp_xmit:	Indicates that the DMSP is transmitting.
docmsp_process_rcv_data:	Indicates that the DMSP is starting the process to receive data.
docmsp_tiff_writer_data_process:	Indicates the process that is being started.
docmsp_tiff_writer_get_buffer_ callback:	Indicates the segment for the DMSP TIFF writer get_buffer_callback parameter.

debug fax fmsp

To troubleshoot the Fax Media Service Provider (FMSP), use the debug fax fmsp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fax fmsp [all | default | detail | error [call [informational] | software [informational]] | event | function | inout | receive | send]

no debug fax fmsp

Syntax Description

all	(Optional) Displays all fax FMSP debugging messages.
default	(Optional) Displays fax FMSP error and inout information. This option also runs if no keywords are added.
detail	(Optional) Displays fax FMSP background messages.
error	(Optional) Displays fax FMSP error messages.
call	(Optional) Displays call processing errors.
informational	(Optional) Displays minor errors and major errors. Without the informational keyword, only major errors are displayed.
software	(Optional) Displays software errors.
event	(Optional) Displays fax FMSP events.
function	(Optional) Displays fax FMSP functions.
inout	(Optional) Displays fax FMSP in/out functions.
receive	(Optional) Receives T.30 or T.38 debugs.
send	(Optional) Sends T.30 or T.38 debugs.

Defaults

Debugging is not enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command replaces the debug fmsp receive and debug fmsp send commands.

Examples

The following is sample output from the debug fax fmsp all command:

Router# debug fax fmsp all

2d08h: //76/90A52CB88014/FMSP/faxmsp_call_setup_request:

   session(0x63A8A474), vdbPtr(0x62CA45A8),data dir=ONRAMP, conf dir=DEST

2d08h: //76/90A52CB88014/FMSP/faxmsp_bridge:

   confID(0x38), srcCID(0x4C), dstCID(0x4B)

2d08h: //76/90A52CB88014/FMSP/faxmsp_bridge:

   ramp data dir=ONRAMP, conf dir=DEST

2d08h: //76/90A52CB88014/FMSP/faxmsp_bridge:

   Explicit caps ind. done; Wait for registry cap ind

2d08h: //76/90A52CB88014/FMSP/faxmsp_caps_ind:

   per_bridge_info(0x63D52FD8), cap_ind_state(0x6)

2d08h: //76/90A52CB88014/FMSP/faxmsp_caps_ind[1617]:

2d08h: //76/90A52CB88014/FMSP/faxmsp_caps_ack:

   direction=0, srcCID(0x4B), dstCID(0x0)

2d08h: //76/90A52CB88014/FMSP/faxmsp_codec_download_done:

   per_bridge_info(0x63D52FD8), application_data(0x63C54698), state(0x2), direction=2

2d08h: //76/90A52CB88014/FMSP/faxMsp_get_tx_buffer:

   event(0x402897C0), bufferBegin(0x63A86B5C), dataBegin(0x402897EC)

2d08h: //76/90A52CB88014/FMSP/faxMsp_get_tx_buffer:

   event(0x40289B50), bufferBegin(0x63C55794), dataBegin(0x40289B7C)

2d08h: //76/90A52CB88014/FMSP/faxMsp_get_tx_buffer:

   event(0x40851E58), bufferBegin(0x63D4EAE4), dataBegin(0x40851E84)

2d08h: //76/90A52CB88014/FMSP/faxmsp_xmit:

   srcCallID(0x4B), dstCallID(0x4C)

2d08h: //76/90A52CB88014/FMSP/faxmsp_xmit[1813]:

2d08h: //76/90A52CB88014/FMSP/faxmsp_process_rcv_data:

   state(0x1), evID=918065, evProtoFlag=2

2d08h: //76/90A52CB88014/FMSP/t38_rx_buffer:

   t38 rx msg dump (size=6):

   00 00 01 00 00 00

2d08h: //76/90A52CB88014/FMSP/faxmsp_process_rcv_data[1994]:

2d08h: //76/90A52CB88014/FMSP/fax2_phaseB_receive:

   CSI_PACKET(8881111)

   DIS_PACKET(speed=5, resolution=1, encoding=1)

2d08h: //76/90A52CB88014/FMSP/faxMsp_get_tx_buffer:

   event(0x40289690), bufferBegin(0x63A7E798), dataBegin(0x402896BC)

2d08h: //76/90A52CB88014/FMSP/faxMsp_get_tx_buffer:

   event(0x4028858C), bufferBegin(0x63B89AC0), dataBegin(0x402885B8)

2d08h: //76/90A52CB88014/FMSP/t38_tx_command:

   t38 tx msg dump (size=47):

   00 04 2A C0 04 80 00 16 FF C0 02 8C 8C 8C 8C 1C 1C 1C 04 04

   04 04 04 04 04 04 04 04 04 04 04 28 00 09 FF C8 01 00 77 1F

   01 01 19 80 40 00 00

2d08h: //76/90A52CB88014/FMSP/fax2_phaseB_receive:

   fax2_response_receive, PROCESSING

Table 77 describes the significant fields shown in the display.

Table 77 debug fax fmsp all Field Descriptions

Field	Description
//76/90A52CB88014/FMSP/ faxmsp_call_setup_request:	The format of this message is //callid/GUID/FMSP/function name •CallEntry ID is 76. This indicates a unique call leg. •GUID is 90A52CB88014. This identifies the call. •FMSP is the module name. •The faxmsp_call_setup_request field shows that the FMSP is requesting a call setup.
ramp data dir	Indicates if the data direction is on-ramp or off-ramp.
conf dir	Indicates if the data is from the source or destination.
faxmsp_bridge:	Indicates that the FMSP is setting up a bridge to the destination.
faxmsp_xmit:	Indicates that the FMSP is transmitting data.
faxmsp_process_rcv_data:	Indicates that the FMSP is beginning the process to receive data.
t38_rx_buffer:	Shows the contents of the T.38 transmit buffer.
t38_tx_command:	Shows the T.38 transmit command.

debug fax foip

To troubleshoot fax mail, use the debug fax foip command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fax foip [all | default | detail | error [call [informational] | software [informational]] | event | function | inout]

no debug fax foip

Syntax Description

all	(Optional) Displays all fax mail debugging messages.
default	(Optional) Displays fax mail error and inout information. This option also runs if no keywords are added.
detail	(Optional) Displays fax mail background messages.
error	(Optional) Displays fax mail error messages.
call	(Optional) Displays call processing errors.
informational	(Optional) Displays minor errors and major errors. Without the informational keyword, only major errors are displayed.
software	(Optional) Displays software errors.
event	(Optional) Displays fax mail events.
function	(Optional) Displays fax mail functions.
inout	(Optional) Displays fax mail in/out functions.

Defaults

Debugging is not enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command replaces the debug foip off-ramp and debug foip on-ramp commands.

Examples

The following is sample output from the debug fax foip all command:

Router# debug fax foip all

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_call_handoff:

   Authentication:

     Id: 0

     Method: IVR or unknown

     Status: SUCCESS

     Enabled: FALSE

     Template:

     List: fax

     MailtoAddress: Calling Oct3A=0x0

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_conference_vtsp_fmsp:

   Begin Conferencing VTSP and FMSP

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_conference_vtsp_fmsp[887]:

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_change_state:

   Old State=0, New State=1

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_call_handoff[2953]:

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_validate_context[930]:

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_conference_created:

   VTSP and FMSP Are Conferenced;

   Waiting for FMSP Call Detail Event

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_change_state:

   Old State=1, New State=2

2d07h: %ISDN-6-CONNECT: Interface Serial2:30 is now connected to unknown

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_validate_context[930]:

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_msp_event:

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_setup_mspi:

   Prepare MSPI Call Setup Request

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_setup_mspi:

   Envelope From=FAX=7771111@cisco.com

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_setup_mspi:

   Envelope To=jdoe@server.cisco.com

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_setup_mspi:

   RFC822 To Comment=dileung

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_setup_mspi:

   Faxmail Subject=hagar-c5300-bw12 subject line here

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_setup_mspi:

   Disposition Notification=

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_setup_mspi:

   Originator TSI=RFC822 From Comment=

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_setup_mspi:

   Auth/Account ID: `0'

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_setup_mspi:

   Call Setup Request To MSPI

2d07h: //37/67E715B7800A/FOIP_ON/lapp_on_setup_mspi[748]:

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_conference_fmsp_dmsp:

    Starting Conference with FMSP and DMSP

2d07h: //35/67E715B7800A/FOIP_ON/lapp_on_conference_fmsp_dmsp:

   Tiff File Created; Time=2003:06:05 22:46:48

Table 78 describes the significant fields shown in the display.

Table 78 debug fax foip all Field Descriptions

Field	Description
//35/67E715B7800A/FOIP_ON/ lapp_on_call_handoff:	The format of this message is //callid/GUID/FOIP_ON/function name: •CallEntry ID is 35. This indicates a unique call leg. •GUID is 67E715B7800A. This identifies the call. •FOIP_ON identifies the fax mail onramp call leg. FOIP_OFF would identify an offramp call leg. •The lapp_on_call_handoff field shows that the fax mail is initiating a call handoff.
lapp_on_conference_vtsp_fmsp:	Indicates that fax mail is starting a conference for VTSP and FMSP.
lapp_on_change_state	Indicates that the fax mail is changing state.
lapp_on_conference_created	Indicates that the conference is working properly between the VTSP and FMSP.
lapp_on_setup_mspi:	Indicates that fax mail is displaying an MPSI event.
lapp_on_conference_fmsp_dmsp:	Indicates that fax mail is starting a conference for FMSP and DMSP.

debug fax mmoip aaa

To display output relating to authentication, authorization, and accounting (AAA) services using multimedia mail over IP (MMoIP) for the Store and Forward Fax feature, use the debug fax mmoip aaa command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fax mmoip aaa [all | default | error [call [informational] | software [informational]] | inout]

no debug fax mmoip aaa

Syntax Description

all	(Optional) Displays all MMoIP AAA debugging messages.
default	(Optional) Displays MMoIP AAA error and inout information. This option also runs if no keywords are added.
error	(Optional) Displays MMoIP AAA error messages.
call	(Optional) Displays call processing errors.
informational	(Optional) Displays minor errors and major errors. Without the informational keyword, only major errors are displayed.
software	(Optional) Displays software errors.
inout	(Optional) Displays MMoIP AAA in/out functions.

Defaults

Debugging is not enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command replaces the debug mmoip aaa command.

Examples

The following example shows output from the debug fax mmoip aaa all command for an onramp fax connection:

Router# debug fax mmoip aaa all

16:22:04: //3/D9242FD08002/MMOIP_AAA_ON/mmoip_aaa_accounting_onramp:

   UID=3

16:22:04: //3/D9242FD08002/MMOIP_AAA_ON/mmoip_aaa_accounting_onramp:

   fax_account_id_origin=NONE_ID

16:22:04: //3/D9242FD08002/MMOIP_AAA_ON/mmoip_aaa_accounting_onramp:

   fax_msg_id=00012003151904623@Router.cisco.com, Length=39

16:22:04: //3/D9242FD08002/MMOIP_AAA_ON/mmoip_aaa_accounting_onramp:

   fax_pages=0

16:22:04: //3/D9242FD08002/MMOIP_AAA_ON/mmoip_aaa_accounting_onramp:

   fax_connect_speed=disable bps

16:22:04: //3/D9242FD08002/MMOIP_AAA_ON/mmoip_aaa_accounting_onramp:

   fax_mdn_flag=FALSE

16:22:04: //3/D9242FD08002/MMOIP_AAA_ON/mmoip_aaa_accounting_onramp:

   fax_auth_status=USER NOT AUTHENTICATED

16:22:04: //3/D9242FD08002/MMOIP_AAA_ON/mmoip_aaa_accounting_onramp:

   email_server_address=172.19.140.112

16:22:04: //3/D9242FD08002/MMOIP_AAA_ON/mmoip_aaa_accounting_onramp:

   email_server_ack_flag=TRUE

16:22:04: //3/D9242FD08002/MMOIP_AAA_ON/mmoip_aaa_accounting_onramp:

   gateway_id=Router.cisco.com

16:22:04: //3/D9242FD08002/MMOIP_AAA_ON/mmoip_aaa_accounting_onramp:

   call_type=Fax Receive

16:22:04: //3/D9242FD08002/MMOIP_AAA_ON/mmoip_aaa_accounting_onramp:

   abort_cause=10

Table 79 describes the significant fields shown in the display.

Table 79 debug fax mmoip aaa all Field Descriptions

Field	Description
//3/D9242FD08002/ MMOIP_AAA_ON/ mmoip_aaa_accounting_onramp	The format of this message is //callid/GUID/module name/function name: •CallEntry ID is 3. This indicates a unique call leg. •GUID is D9242FD08002. This identifies the call. •MMOIP_AAA_ON identifies the fax mail onrampMMOIP AAA call leg. MMOIP_AAA_OFF would identify the offramp call leg. •The mmoip_aaa_accounting_onramp field shows that the accounting for an onramp fax is active.
fax_msg_id=00012003151904623 @Router.cisco.com	Displays the fax message ID.
gateway_id=Router.cisco.com	Displays the name of the router.
call_type=Fax Receive	Indicates that the fax is being received.

debug fax mspi

To troubleshoot the fax Mail Service Provider Interface (MSPI), use the debug fax mspi command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fax mspi [all | default | detail | error [call [informational] | software [informational]] | event | function | inout]

no debug fax mspi

Syntax Description

all	(Optional) Displays all fax MSPI debugging messages.
default	(Optional) Displays fax MSPI error and inout information. This option also runs if no keywords are added.
detail	(Optional) Displays fax MSPI background messages.
error	(Optional) Displays fax MSPI error messages.
call	(Optional) Displays call processing errors.
informational	(Optional) Displays minor errors and major errors. Without the informational keyword, only major errors are displayed.
software	(Optional) Displays software errors.
event	(Optional) Displays fax MSPI events.
function	(Optional) Displays fax MSPI functions.
inout	(Optional) Displays fax MSPI in/out functions.

Defaults

Debugging is not enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command replaces the debug mspi receive and debug mspi send commands.

Examples

The following is sample output from the debug fax mspi all command:

Router# debug fax mspi all

Router#

2d07h: %ISDN-6-CONNECT: Interface Serial2:30 is now connected to unknown

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_call_setup_request:

   Outgoing Peer Tag=22

   Envelope From=FAX=5550121@cisco.com

   Envelope To=jdoe@server.cisco.com

   Mime Outer Type=2

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_check_connect:

   MMccb(Count=0)

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_check_connect:

   SMTP Connected To The Server !

2d07h: //41/ACF704FA800B/MSPI/mspi_bridge:

   MMccb(State=CONNECTED, Type=Onramp), Destination Call Id=0x2A

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_xmit:

   MMccb(State=CONFERENCED, Type=Onramp, Buffer Count=0), Source Call Id=0x2A

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_xmit:

   MMccb(State=CONFERENCED, Type=Onramp, Buffer Count=1), Source Call Id=0x2A

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_xmit:

   MMccb(State=CONFERENCED, Type=Onramp, Buffer Count=2), Source Call Id=0x2A

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_xmit:

   MMccb(State=CONFERENCED, Type=Onramp, Buffer Count=3), Source Call Id=0x2A

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_onramp_buff_finished_callback:

   MMccb(Call State=CONFERENCED, Buffer Count=9)

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_onramp_buff_finished_callback:

   MMccb(Call State=CONFERENCED, Buffer Count=8)

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_onramp_buff_finished_callback:

   MMccb(Call State=CONFERENCED, Buffer Count=7)

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_onramp_buff_finished_callback:

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_xmit:

   MMccb(State=CONFERENCED, Type=Onramp, Buffer Count=0), Source Call Id=0x2A

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_xmit:

   MMccb(State=CONFERENCED, Type=Onramp, Buffer Count=1), Source Call Id=0x2A

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_xmit:

   MMccb(State=CONFERENCED, Type=Onramp, Buffer Count=2), Source Call Id=0x2A

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_xmit:

   MMccb(State=CONFERENCED, Type=Onramp, Buffer Count=3), Source Call Id=0x2A

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_xmit:

   MMccb(State=CONFERENCED, Type=Onramp, Buffer Count=4), Source Call Id=0x2A

2d07h: //41/ACF704FA800B/MSPI_ON/mspi_xmit:

   MMccb(State=CONFERENCED, Type=Onramp, Buffer Count=5), Source Call Id=0x2A

Router#

Table 80 describes the significant fields shown in the display.

Table 80 debug fax mspi all Field Descriptions

Field	Description
/41/ACF704FA800B/MSPI_ON/mspi_call_setup_request:	The format of this message is //callid/GUID/module name/function name: •CallEntry ID is 41. This indicates a unique call leg. •GUID is ACF704FA800B. This identifies the call. •MSPI_ON identifies the fax mail onramp MSPI call leg. MSPI_OFF would identify the offramp call leg. •The mspi_call_setup_request field shows that the MSPI is requesting a call setup.
Outgoing Peer Tag=22	Indicates the unique dial peer tag.
Envelope From=FAX=5550121@cisco.com	Indicates the sender of the fax mail message.
Envelope To=jdoe@server.cisco.com	Indicates the receiver of the fax mail message.
mspi_xmit:	Indicates that the MSPI is transmitting data.
State=CONFERENCED	Describes the MPSI state.
Type=Onramp	Describes whether the fax is on-ramp or off-ramp.
Buffer Count=0	Indicates the buffer count.
Source Call Id=0x2A	Identifies the source call ID.

debug fax mta

To troubleshoot the fax Mail Transfer Agent (MTA), use the debug fax mta command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fax mta [all | default | detail | error [call [informational] | software [informational]] | event | function | inout]

no debug fax mta

Syntax Description

all	(Optional) Displays all fax MTA debugging messages.
default	(Optional) Displays fax MTA error and inout information. This option also runs if no keywords are added.
detail	(Optional) Displays fax MTA background messages.
error	(Optional) Displays fax MTA error messages.
call	(Optional) Displays call processing errors.
informational	(Optional) Displays minor errors and major errors. Without the informational keyword, only major errors are displayed.
software	(Optional) Displays software errors.
event	(Optional) Displays fax MTA events.
function	(Optional) Displays fax MTA functions.
inout	(Optional) Displays fax MTA in/out functions.

Defaults

Debugging is not enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(8)T	This command replaces the debug mta receive all, debug mta send all, and debug mta send rcpt-to commands.

Examples

The following is sample output from the debug fax mta all command:

Router# debug fax mta all

2d07h: %ISDN-6-CONNECT: Interface Serial2:30 is now connected to unknown

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_new_context_guid[2177]:

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_open:

   from=FAX=7771111@cisco.com, to=jdoe@server.cisco.com

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_open[1868]:

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_add_headers:

   from_comment=

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_work_routine:

   socket 0 readable for first time

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 220 vip2-das.cisco.com ESMTP Sendmail 8.9.3/8.9.3; Thu, 5 Jun 2003 23:24:54 -0700

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_writeln:

   (C)S: EHLO Router.cisco.com

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_write:

   return code=0

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 250-vip2-das.cisco.com Hello [172.19.140.108], pleased to meet you

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 250-EXPN

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 250-VERB

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 250-8BITMIME

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 250-SIZE

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 250-DSN

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 250-ONEX

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 250-ETRN

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 250-XUSR

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 250 HELP

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_writeln:

   (C)S: MAIL FROM:<FAX=7771111@cisco.com>

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_write:

   return code=0

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 250 <FAX=7771111@cisco.com>... Sender ok

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_writeln:

   (C)S: RCPT TO:<jdoe@server.cisco.com>

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_write:

   return code=0

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 250 <jdoe@server.cisco.com>... Recipient ok

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_write:

   return code=0

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_getln:

   (C)R: 354 Enter mail, end with "." on a line by itself

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_writeln:

   (C)S: Received:  by Router.cisco.com for <jdoe@server.cisco.com> (with Cisco NetWorks);
Thu, 05 Jun 2003 23:11:09 +0000

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_write:

   return code=0

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_writeln:

   (C)S: To: "jdoe" <jdoe@server.cisco.com>

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_write:

   return code=0

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_writeln:

   (C)S: Message-ID: <00222003231109198@Router.cisco.com>

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_write:

   return code=0

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_writeln:

   (C)S: Date: Thu, 05 Jun 2003 23:11:09 +0000

2d07h: //-1/CEB9FA0B800E/SMTPC/esmtp_client_engine_write:

   return code=0

Table 81 describes the significant fields shown in the display.

Table 81 debug fax mta all Field Descriptions

Field	Description
//-1/CEB9FA0B800E/SMTPC/ esmtp_client_engine_open:	The format of this message is //callid/GUID/module name/function name: •CallEntry ID is -1. This indicates that a call leg has not been identified. •GUID is CEB9FA0B800E. This identifies the call. •SMTPC is the module name. •The esmtp_client_engine_open field shows that the fax mail client engine is opening a session.
from=FAX=7771111@cisco.com	Indicates the sender of the fax mail message.
to=jdoe@server.cisco.com	Indicates the receiver of the fax mail message.
esmtp_client_engine_writeln:	Indicates that the fax mail client engine is writing data.
esmtp_client_engine_getln:	Indicates that the fax mail client engine is receiving data.

debug fax relay t30

To display debugging messages for T.30 real-time fax, use the debug fax relay t30 command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fax relay t30 {all | calling-number string | called-number string}

no debug fax relay t30

Syntax Description

all	Enables debugging for all incoming and outgoing calls.
calling-number	Enables debugging for incoming numbers that begin with a specified string of digits.
called-number	Enables debugging for outgoing numbers that begin with a specified string of digits.
string	Digits that specify the incoming or outgoing number.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(2)XB1	The debug fax relay t30 command was introduced on Cisco AS5350, Cisco AS5400, and Cisco AS5850 access servers.
12.2(11)T	This command was integrated into Cisco IOS Release 12.2(11)T for the Cisco AS5350, Cisco AS5400, and Cisco AS5850 access servers.

Usage Guidelines

The incoming or outgoing numbers must be a valid E.164 destination. The period symbol (.) as a wildcard should not be used. Instead of a wildcard, leave the space blank to indicate that any numbers can be valid.

There are no limits to the number of debug entries. The number entered generates a match if the calling or called number matches up to the final number of the debug entry. For example, the 408555 entry would match 408555, 4085551, 4085551212, or any other number starting with 408555.

Examples

The following command enables debugging for any incoming calls that start with 408555:

Router# debug fax relay t30 calling-number 408555

Debugging fax relay t30 from 408555

The following command enables debugging for any calls received to a number starting with 555-1212:

Router# debug fax relay t30 called-number 4155551212

Debugging fax relay t30 to 4155551212

The following command displays all debug entries:

Router# debug fax relay t30 all

Debugging fax relay t30 from 408555

Debugging fax relay t30 to 4155551212

debug fddi smt-packets

To display information about Station Management (SMT) frames received by the router, use the debug fddi smt-packets command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fddi smt-packets

no debug fddi smt-packets

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Examples

The following is sample output from the debug fddi smt-packets command. In this example, an SMT frame has been output by FDDI 1/0. The SMT frame is a next station addressing (NSA) neighbor information frame (NIF) request frame with the parameters as shown.

Router# debug fddi smt-packets

SMT O: Fddi1/0, FC=NSA, DA=ffff.ffff.ffff, SA=00c0.eeee.be04,

 class=NIF, type=Request, vers=1, station_id=00c0.eeee.be04, len=40

 - code 1, len 8 -- 000000016850043F

 - code 2, len 4 -- 00010200

 - code 3, len 4 -- 00003100

 - code 200B, len 8 -- 0000000100000000

Table 82 describes the significant fields shown in the display.

Table 82 debug fddi smt-packets Field Descriptions

Field	Description
SMT O	SMT frame was sent from FDDI interface 1/0. Also, SMT I indicates that an SMT frame was received on the FDDI interface 1/0.
Fddi1/0	Interface associated with the frame.
FC	Frame control byte in the MAC header.
DA, SA	Destination and source addresses in FDDI form.
class	Frame class. Values can be echo frame (ECF), neighbor information frame (NIF), parameter management frame (PMF), request denied frame (RDF), status information frame (SIF), and status report frame (SRF).
type	Frame type. Values can be Request, Response, and Announce.
vers	Version identification. Values can be 1 or 2.
station_id	Station identification.
len	Packet size.
code 1, len 8 -- 000000016850043F	Parameter type X'0001—upstream neighbor address (UNA), parameter length in bytes, and parameter value. SMT parameters are described in the SMT specification ANSI X3T9.

debug filesystem

To enable ATA ROM monitor library (monlib) debugging messages, use the debug filesystem command in privileged EXEC mode. To disable ATA monlib debugging messages, use the no form of this command.

debug filesystem {disk0 | disk1}

no debug filesystem {disk0 | disk1}

Syntax Description

disk0	Selects disk 0 as the disk on which to enable or disable debugging.
disk1	Selects disk 1 as the disk on which to enable or disable debugging.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(7)T	This command was introduced.
12.2(25)S	This command was integrated into Cisco IOS Release 12.2(25)S.

Usage Guidelines

The debug filesystem command enables the display of ATA monlib debugging messages during boot operations.

To display the debugging messages when ROMMON accesses the PCMCIA disk, the ROMMON must have disk support. In other words, if a dev command is entered in ROMMON mode, the output should display the supported disks as shown in the following example:

rommon 1> dev

Devices in device table:

id  name

bootflash:  boot flash

slot0:  PCMCIA slot 0

slot1:  PCMCIA slot 1

disk0:  PCMCIA slot 0

disk1:  PCMCIA slot 1

eprom:  eprom

Examples

The following example shows how to enable ATA monlib debugging messages on disk 0, reboot the router to view ATA monlib debugging messages, and then disable ATA monlib debugging messages:

Router# debug filesystem disk0

rommon 1> boot disk0:c7200-is-mz.123-5.7.PI3a

Initializing ATA monitor library.......

ATA_read_sector:dev = 0

ATA_data_xfer:1:dev = 0, command = 32, nsecs = 8, sector = 3, cyl_low = 0,

                cyl_high = 0, head = 171

ATA_read_sector:dev = 0, retval = 0

dfs_openfile:Using monlib version 2

dfs_openfile:Using version info 1

dfs_openfile:finding file.. /c7200-is-mz.123-5.7.PI3a

ATA_read_sector:dev = 0

ATA_data_xfer:1:dev = 0, command = 32, nsecs = 1, sector = 15, cyl_low = 0,

                cyl_high = 0, head = 163

ATA_read_sector:dev = 0, retval = 0

ATA_read_sector:dev = 0

ATA_data_xfer:1:dev = 0, command = 32, nsecs = 128, sector = 35, cyl_low = 0,

                cyl_high = 0, head = 171

ATA_read_sector:dev = 0, retval = 0

dfs_openfile:opened file.. /c7200-is-mz.123-5.7.PI3a with fd = 0

DFSLIB_read:reading file.. fd = 0, byte_count = 4

DFSLIB_read:read from.. fd = 0, byte_count = 4, retval = 4

DFSLIB_read:reading file.. fd = 0, byte_count = 52

DFSLIB_read:read from.. fd = 0, byte_count = 52, retval = 52

DFSLIB_read:reading file.. fd = 0, byte_count = 40

DFSLIB_read:read from.. fd = 0, byte_count = 40, retval = 40

.

.

.

DFSLIB_read:reading file.. fd = 0, byte_count = 40

DFSLIB_read:read from.. fd = 0, byte_count = 40, retval = 40

DFSLIB_read:reading file.. fd = 0, byte_count = 19539160

ATA_read_sector:dev = 0

ATA_data_xfer:1:dev = 0, command = 32, nsecs = 1, sector = 15, cyl_low = 0,

                cyl_high = 0, head = 163

ATA_read_sector:dev = 0, retval = 0

ATA_read_sector:dev = 0

.

.

.

ATA_read_sector:dev = 0

ATA_data_xfer:1:dev = 0, command = 32, nsecs = 19, sector = 1, cyl_low = 38,

                cyl_high = 0, head = 169

ATA_read_sector:dev = 0, retval = 0

DFSLIB_read:read from.. fd = 0, byte_count = 19539160, retval = 19539160

Self decompressing the image
:#####################################################################

##########################################################################################
##########

############################################################### [OK]

Router# no debug filesystem disk0

Table 83 describes the significant fields shown in the display.

Table 83 debug filesystem Field Descriptions

Field	Description
dev =	The number of the device being accessed.
command =	The operation that is being executed.
nsecs =	The number of sectors on the device.
sector =	The starting sector.
cyl_low =, cyl_high =	The starting cylinder, low and high.
head =	The head number.
retval =	The status of the operation being executed.

debug flow-sampler

To enable debugging output for NetFlow sampler activity, use the debug flow-sampler command in privileged EXEC mode. To disable debugging output for NetFlow sampler activity, use the no form of this command.

debug flow-sampler {class-based | events | ipc | match}

no debug flow-sampler {class-based | events | ipc | match}

Syntax Description

class-based	Displays debug messages for class-based NetFlow samplers.
events	Displays debug messages when a NetFlow sampler map is added, deleted, or applied to an interface.
ipc	Displays NetFlow sampler-related debug messages for interprocess communications (IPC) between the route processor and line cards.
match	Displays debug messages when a packet is sampled (is matched with a NetFlow sampler).

Defaults

Debugging output for NetFlow sampler activity is disabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.3(2)T	This command was introduced.
12.2(18)S	This command was integrated into Cisco IOS Release 12.2(18)S.
12.0(26)S	This command was integrated into Cisco IOS Release 12.0(26)S.
12.3(4)T	The class-based keyword was added.

Usage Guidelines

Because debugging output is assigned high priority in the CPU process, you should use debug commands only to troubleshoot specific problems or during troubleshooting sessions with Cisco technical support staff. Moreover, you should use debug commands during periods of lower network traffic and fewer users. Debugging during these periods decreases the likelihood that increased debug command processing overhead will affect system use.

Examples

The following is sample output from the debug flow-sampler events command:

Router# debug flow-sampler events

Flow sampler events debugging is on

Router# configure terminal

Router(config# no flow-sampler mysampler2

Router(config)#

5d00h:  Flow: Sampler mysampler2 detached from FastEthernet0/1

5d00h: Flow: Sampler mysampler2 deleted

The following is sample output from the debug flow-sampler match command:

Router# debug flow-sampler match

Flow sampler match debugging is on

Router#

4d23h: Flow: Packet matched sampler mysampler1 on interface FastEthernet0/0

Router#

4d23h: Flow: Packet matched sampler mysampler1 on interface FastEthernet0/0

Router#

4d23h: Flow: Packet matched sampler mysampler1 on interface FastEthernet0/0

Router#

4d23h: Flow: Packet matched sampler mysampler1 on interface FastEthernet0/0

Table 84 describes the significant fields shown in the display.

Table 84 debug flow-sampler Field Descriptions

Field	Description
Sampler	Name of the NetFlow sampler.
id	Unique ID of the NetFlow sampler.
packets matched	Number of packets matched (sampled) for the NetFlow sampler.
mode	NetFlow sampling mode.
sampling interval is	NetFlow sampling interval (in packets).

Related Commands

Command	Description
flow-sampler	Enables a Random Sampled NetFlow sampler.
flow-sampler-map	Defines a Random Sampled NetFlow sampler map.
ip flow-export	Enables the export of NetFlow data to a collector. (To enable version 9 data export, use ip flow-export version 9; to export NetFlow sampler templates, use ip flow-export template options sampler.)
mode (flow sampler map)	Specifies a Random Sampled NetFlow sampling mode and sampling rate.
netflow-sampler	Enables a class-based NetFlow sampler.
show flow-sampler	Displays attributes (including mode, sampling rate, and number of sampled packets) of one or all Random Sampled NetFlow samplers.
show ip flow export	Displays the statistics for the NetFlow data export.

debug fmsp receive

---

Note Effective with release 12.3(8)T, the debug fmsp receive command is replaced by the debug fax fmsp command. See the debug fax fmsp command for more information.

---

To display debugging messages for Fax Media Services Provider (FMSP) receive, use the debug fmsp receive command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fmsp receive [t30 | t38]

no debug fmsp receive [t30 | t38]

Syntax Description

t30	(Optional) Specifies the T.30 fax protocol.
t38	(Optional) Specifies the T.38 fax protocol.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.1(3)XI	This command was introduced on the Cisco AS5300 access server.
12.2(8)T	This command was implemented on the Cisco 1751 access routers, Cisco 3725 access routers, and Cisco 3745 access routers.
12.2(13)T	Support for this command was implemented in Cisco 7200 series images.
12.3(8)T	This command was replaced by the debug fax fmsp command.

Examples

The following is sample output from the debug fmsp receive command:

Router# debug fmsp receive

*Oct 16 08:31:33.243: faxmsp_call_setup_request: call id=28

*Oct 16 08:31:33.243: faxmsp_call_setup_request: ramp data dir=ONRAMP, conf dir=DEST

*Oct 16 08:31:33.243: faxmsp_bridge(): cfid=19, srccid=28, dstcid=27

*Oct 16 08:31:33.243: faxmsp_bridge():  ramp data dir=ONRAMP, conf dir=DEST

*Oct 16 08:31:33.243: faxmsp_bridge(): Explicit caps ind. done; will wait for registry
caps ind

*Oct 16 08:31:33.243: faxmsp_caps_ind: call id=28, src=27

*Oct 16 08:31:33.243: faxmsp_caps_ack: call id src=27

*Oct 16 08:31:33.279: faxmsp_call_setup_request: call id=29

*Oct 16 08:31:33.279: faxmsp_call_setup_request: ramp data dir=OFFRAMP, conf dir=SRC

*Oct 16 08:31:33.283: faxmsp_bridge(): cfid=20, srccid=29, dstcid=26

*Oct 16 08:31:33.283: faxmsp_bridge():  ramp data dir=OFFRAMP, conf dir=SRC

*Oct 16 08:31:33.283: faxmsp_bridge(): Explicit caps ind. done; will wait for registry
caps ind

*Oct 16 08:31:33.283: faxmsp_caps_ind: call id=29, src=26

*Oct 16 08:31:33.283: faxmsp_caps_ack: call id src=26

*Oct 16 08:31:33.635: faxmsp_codec_download_done: call id=29

*Oct 16 08:31:33.635: faxmsp_codec_download_done: call id=28

*Oct 16 08:31:33.643: faxmsp_xmit: callid src=26, dst=29

*Oct 16 08:31:33.643: faxmsp_xmit: callid src=27, dst=28

*Oct 16 08:31:33.643: faxmsp_process_rcv_data: call id src=26, dst=29

Related Commands

Command	Description
debug fmsp send	Displays debugging messages for FMSP send.

debug fmsp send

---

Note Effective with release 12.3(8)T, the debug fmsp send command is replaced by the debug fax fmsp command. See the debug fax fmsp command for more information.

---

To display debugging messages for Fax Media Services Provider (FMSP) send, use the debug fmsp send command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fmsp send [t30 | t38]

no debug fmsp send [t30 | t38]

Syntax Description

t30	(Optional) Specifies the T.30 fax protocol.
t38	(Optional) Specifies the T.38 fax protocol.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.1(3)XI	This command was introduced on the Cisco AS5300 access server.
12.2(8)T	This command was implemented on the Cisco 1751 access routers, Cisco 3725 access routers, and Cisco 3745 access routers.
12.2(13)T	This feature was implemented on the Cisco 7200 series routers.
12.3(8)T	This command was replaced by the debug fax fmsp command.

Examples

The following is sample output from the debug fmsp send command:

Router# debug fmsp send

Jan  1 05:02:56.782: faxmsp_call_setup_request: call id=21

Jan  1 05:02:56.782: faxmsp_call_setup_request: ramp data dir=OFFRAMP, conf dir=SRC

Jan  1 05:02:56.782: faxmsp_bridge(): cfid=7, srccid=21, dstcid=20

Jan  1 05:02:56.782: faxmsp_bridge():  ramp data dir=OFFRAMP, conf dir=SRC

Jan  1 05:02:56.782: faxmsp_bridge(): Explicit caps ind. done; will wait for registry caps
ind

Jan  1 05:02:56.782: faxmsp_caps_ind: call id=21, src=20

Jan  1 05:02:56.782: faxmsp_caps_ack: call id src=20

Jan  1 05:02:57.174: faxmsp_codec_download_done: call id=21

Jan  1 05:02:57.174: faxMsp_tx_buffer callID=21

Jan  1 05:02:57.178: faxMsp_tx_buffer callID=21

Jan  1 05:02:57.178: faxMsp_tx_buffer callID=21

Jan  1 05:02:57.178: faxMsp_tx_buffer callID=21

Jan  1 05:02:57.182: faxmsp_xmit: callid src=20, dst=21

Jan  1 05:02:57.182: faxmsp_process_rcv_data: call id src=20, dst=21

Jan  1 05:03:01.814: faxmsp_xmit: callid src=20, dst=21

Jan  1 05:03:01.814: faxmsp_process_rcv_data: call id src=20, dst=21

Jan  1 05:03:01.814: faxMsp_tx_buffer callID=21

Jan  1 05:03:02.802: faxmsp_xmit: callid src=20, dst=21

Jan  1 05:03:02.802: faxmsp_process_rcv_data: call id src=20, dst=21

Jan  1 05:03:02.822: faxmsp_xmit: callid src=20, dst=21

Jan  1 05:03:02.822: faxmsp_process_rcv_data: call id src=20, dst=21

Jan  1 05:03:02.854: faxmsp_xmit: callid src=20, dst=21

Jan  1 05:03:02.854: faxmsp_process_rcv_data: call id src=20, dst=21

Related Commands

Command	Description
debug fax relay t30	Displays debugging messages for FMSP receive.

debug foip off-ramp

---

Note Effective with release 12.3(8)T, the debug foip off-ramp command is replaced by the debug fax foip command. See the debug fax foip command for more information.

---

To display debugging messages for off-ramp fax mail, use the debug foip off-ramp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug foip off-ramp

no debug foip off-ramp

Syntax Description

This command has no arguments or keywords.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.1(3)XI	This command was introduced on the Cisco AS5300 access server.
12.2(8)T	This command was introduced on the Cisco 1751 access routers, Cisco 3725 access routers, and Cisco 3745 access routers.
12.2(13)T	This feature was implemented on the Cisco 7200 series routers.
12.3(8)T	This command was replaced by the debug fax foip command.

Examples

The following is sample output from the debug foip off-ramp command:

Router# debug foip off-ramp

Jan  1 02:31:17.539: lapp off: CC_EV_CALL_HANDOFF, cid(0xB)

Jan  1 02:31:17.539: loffHandoff: called number=5271714, callid=0xB

Jan  1 02:31:17.543: loffSetupPeer: cid1(0xB)

Jan  1 02:31:17.543:  destPat(5271714),matched(1),pref(5),tag(20),encap(1)

Jan  1 02:31:22.867: lapp off: CC_EV_CALL_CONNECTED, cid(0xC)

Jan  1 02:31:22.867:  st=CALL_SETTING cid(0xB,0x0,0x0,0xC),cfid(0x0,0x0,0x0)

Jan  1 02:31:22.867: loffConnected

Jan  1 02:31:22.867: loffFlushPeerTagQueue cid(11) peer list: (empty)

Jan  1 02:31:22.867: lapp off: CC_EV_CONF_CREATE_DONE, cid(0xC), cid2(0xD), cfid(0x1)

Jan  1 02:31:22.867:  st=CONFERENCING3 cid(0xB,0x0,0xD,0xC),cfid(0x0,0x0,0x1)

Jan  1 02:31:22.867: loffConfDone3

Jan  1 02:31:30.931: lapp off: CC_EV_FROM_FMSP_ON_CALL_DETAIL, cid(0xD)

Jan  1 02:31:30.931:  st=WAIT_SESS_INFO cid(0xB,0x0,0xD,0xC),cfid(0x0,0x0,0x1)

Jan  1 02:31:30.931: loffSessionInfo

Jan  1 02:31:30.931:  encd=2, resl=2, spd=26, min_scan_len=0, csid=          4085271714

Jan  1 02:31:30.931: lapp off: CC_EV_CONF_CREATE_DONE, cid(0xD), cid2(0xE), cfid(0x2)

Jan  1 02:31:30.931:  st=CONFERENCING2 cid(0xB,0xE,0xD,0xC),cfid(0x0,0x2,0x1)

Jan  1 02:31:30.931: loffConfDone2

Related Commands

Command	Description
debug foip on-ramp	Displays debugging messages for on-ramp fax mail.

debug foip on-ramp

---

Note Effective with release 12.3(8)T, the debug foip on-ramp command is replaced by the debug fax foip command. See the debug fax foip command for more information.

---

To display debugging messages for on-ramp fax mail, use the debug foip on-ramp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug foip on-ramp

no debug foip on-ramp

Syntax Description

This command has no arguments or keywords.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.1(3)XI	This command was introduced on the Cisco AS5300 access server.
12.2(8)T	This command was introduced on the Cisco 1751 access routers, Cisco 3725 access routers, and Cisco 3745 access routers.
12.2(13)T	This feature was implemented on the Cisco 7200 series routers.
12.3(8)T	This command was replaced by the debug fax foip command.

Examples

The following is sample output from the debug foip on-ramp command:

Router# debug foip on-ramp

*Oct 16 08:07:01.947: lapp_on_application: Incoming Event: (15 = CC_EV_CALL_HANDOFF),
CID(11), DISP(0)

*Oct 16 08:07:01.947: lapp_on_call_handoff: Authentication enabled = FALSE

*Oct 16 08:07:01.947: lapp_on_call_handoff: Authentication ID = 0

*Oct 16 08:07:01.947: lapp_on_call_handoff: Authentication ID source = IVR or unknown

*Oct 16 08:07:01.947: lapp_on_call_handoff: Authentication status = SUCCESS

*Oct 16 08:07:01.947: lapp_on_call_handoff: Accounting enabled  = FALSE

*Oct 16 08:07:01.947: lapp_on_call_handoff: Accounting method list  = fax

*Oct 16 08:07:01.947: lapp_on_conference_vtsp_fmsp: Begin conferencing VTSP and FMSP...

*Oct 16 08:07:01.951: lapp_on_change_state: old state(0) new state(1)

*Oct 16 08:07:01.951: lapp_on_application: Incoming Event: (29 = CC_EV_CONF_CREATE_DONE),
CID(11), DISP(0)

*Oct 16 08:07:01.951: lapp_on_application: Current call state = 1

*Oct 16 08:07:01.951: lapp_on_conference_created: The VTSP and the FMSP are conferenced

*Oct 16 08:07:01.951: lapp_on_conference_created: Wait for FMSP call detail event

Related Commands

Command	Description
debug foip off-ramp	Displays debugging messages for off-ramp fax mail.

debug frame-relay

To display debugging information about the packets received on a Frame Relay interface, use the debug frame-relay command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay

no debug frame-relay

Syntax Description

This command has no arguments or keywords.

Defaults

This command is disabled by default.

Command Modes

Privileged EXEC

Command History

Release	Modification
9.00	This command was introduced.
12.2(13)T	Support for Banyan VINES was removed.

Usage Guidelines

This command helps you analyze the packets that have been received. However, because the debug frame-relay command generates a substantial amount of output, use it only when the rate of traffic on the Frame Relay network is less than 25 packets per second.

To analyze the packets that have been sent on a Frame Relay interface, use the debug frame-relay packet command.

Examples

The following is sample output from the debug frame-relay command:

Router# debug frame-relay

Serial0(i): dlci 500(0x7C41), pkt type 0x809B, datagramsize 24

Serial1(i): dlci 1023(0xFCF1), pkt type 0x309, datagramsize 13

Serial0(i): dlci 500(0x7C41), pkt type 0x809B, datagramsize 24

Serial1(i): dlci 1023(0xFCF1), pkt type 0x309, datagramsize 13

Serial0(i): dlci 500(0x7C41), pkt type 0x809B, datagramsize 24

Table 85 describes the significant fields shown in the display.

Table 85 debug frame-relay Field Descriptions

Field	Description
Serial0(i):	Indicates that serial interface 0 has received this Frame Relay datagram as input.
dlci 500(0x7C41)	Indicates the value of the data-link connection identifier (DLCI) for this packet in decimal (and q922). In this case, 500 has been configured as the multicast DLCI.
pkt type 0x809B	Indicates the packet type code. Possible supported signalling message codes are as follows: •0x308—Signalling message; valid only with a DLCI of 0 •0x309—LMI message; valid only with a DLCI of 1023 Possible supported Ethernet type codes are: •0x0201—IP on a 3 MB net •0x0201—Xerox ARP on 10 MB networks •0xCC—RFC 1294 (only for IP) •0x0600—XNS •0x0800—IP on a 10 MB network •0x0806—IP ARP •0x0808—Frame Relay Address Resolution Protocol (ARP) Possible High-Level Data Link Control (HDLC) type codes are as follows: •0x6001—DEC Maintenance Operation Protocol (MOP) booting protocol •0x6002—DEC MOP console protocol •0x6003—DECnet Phase IV on Ethernet •0x6004—DEC LAT on Ethernet •0x8005—HP Probe •0x8035—RARP •0x8038—DEC spanning tree •0x809b—Apple EtherTalk •0x80f3—AppleTalk ARP •0x8019—Apollo domain •0x8137—Internetwork Packet Exchange (IPX) •0x9000—Ethernet loopback packet IP •0x1A58—IPX, standard form •0xFEFE—Connectionless Network Service (CLNS) •0xEFEF—End System-to-Intermediate System (ES-IS) •0x1998—Uncompressed TCP •0x1999—Compressed TCP •0x6558—Serial line bridging
datagramsize 24	Indicates size of this datagram (in bytes).

debug frame-relay adjacency

To display information pertaining to an adjacent node that has one or more Frame Relay permanent virtual circuit (PVC) bundles, use the debug frame-relay adjacency command in privileged EXEC mode. To stop displaying the adjacent node information, use the no form of this command.

debug frame-relay adjacency {pvc [dlci] | vc-bundle [vc-bundle-name]}

no debug frame-relay adjacency {pvc [dlci] | vc-bundle [vc-bundle-name]}

Syntax Description

pvc	Displays information regarding the adjacent PVC only.
dlci	(Optional) Data-link connection identifier for a specific PVC.
vc-bundle	Displays information regarding the adjacent PVC bundle and its members.
vc-bundle-name	(Optional) Name of the PVC bundle.

Defaults

No default behaviors or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(13)T	This command was introduced.

Usage Guidelines

Use this command to monitor adjacency activity and status for an adjacent node.

---

Note Debug messages that are prefixed with "FR_ADJ" (instead of "FR-ADJ") indicate serious failures in the Frame Relay PVC bundle performance. Contact the Cisco Technical Assistance Center (TAC) if you see debugging messages with this prefix.

---

Examples

The following sample output from the debug frame-relay adjacency vc-bundle command shows PVC bundle "MP-4-dynamic" going down. Each bundle member PVC is marked for removal from the CEF adjacency table, and then the adjacency for the PVC bundle itself is marked for removal. The adjacencies are actually removed from the table later when a background clean-up process runs.

Router# debug frame-relay adjacency vc-bundle MP-4-dynamic

00:46:35: FR-ADJ: vcb MP-4-dynamic: ip 14.2.2.2: member 400: removing adj

00:46:35: FR-ADJ: vcb MP-4-dynamic: ip 14.2.2.2: member 401: removing adj

00:46:35: FR-ADJ: vcb MP-4-dynamic: ip 14.2.2.2: member 402: removing adj

00:46:35: FR-ADJ: vcb MP-4-dynamic: ip 14.2.2.2: member 403: removing adj

00:46:35: FR-ADJ: vcb MP-4-dynamic: ip 14.2.2.2: member 404: removing adj

00:46:35: FR-ADJ: vcb MP-4-dynamic: ip 14.2.2.2: member 405: removing adj

00:46:35: FR-ADJ: vcb MP-4-dynamic: ip 14.2.2.2: member 406: removing adj

00:46:35: FR-ADJ: vcb MP-4-dynamic: ip 14.2.2.2: member 407: removing adj

00:46:35: FR-ADJ: vcb MP-4-dynamic: ip 14.2.2.2: removing primary adj

Related Commands

Command	Description
debug frame-relay vc-bundle	Displays information pertaining to all the PVC bundles configured on the router.

debug frame-relay callcontrol

To display Frame Relay Layer 3 (network layer) call control information, use the debug frame-relay callcontrol command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay callcontrol

no debug frame-relay callcontrol

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Usage Guidelines

The debug frame-relay callcontrol command is used specifically for observing FRF.4/Q.933 signalling messages and related state changes. The FRF.4/Q.933 specification describes a state machine for call control. The signalling code implements the state machine. The debug statements display the actual event and state combinations.

The Frame Relay switched virtual circuit (SVC) signalling subsystem is an independent software module. When used with the debug frame-relay networklayerinterface command, the debug frame-relay callcontrol command provides a better understanding of the call setup and teardown sequence. The debug frame-relay networklayerinterface command provides the details of the interactions between the signalling subsystem on the router and the Frame Relay subsystem.

Examples

State changes can be observed during a call setup on the calling party side. The debug frame-relay networklayerinterface command shows the following state changes or transitions:

STATE_NULL -> STATE_CALL_INITIATED -> STATE_CALL_PROCEEDING->STATE_ACTIVE

The following messages are samples of output generated during a call setup on the calling side:

6d20h: U0_SetupRequest: Serial0

6d20h: L3SDL: Ref: 1, Init: STATE_NULL, Rcvd: SETUP_REQUEST, Next: STATE_CALL_INITIATED
6d20h: U1_CallProceeding: Serial0

6d20h: L3SDL: Ref: 1, Init: STATE_CALL_INITIATED, Rcvd: MSG_CALL_PROCEEDING, Next:

     STATE_CALL_PROCEEDING

6d20h: U3_Connect: Serial0

6d20h: L3SDL: Ref: 1, Init: STATE_CALL_PROCEEDING, Rcvd: MSG_CONNECT, Next: STATE_ACTIVE
6d20h:

The following messages are samples of output generated during a call setup on the called party side. Note the state transitions as the call goes to the active state:

STATE_NULL -> STATE_CALL_PRESENT-> STATE_INCOMING_CALL_PROCEEDING->STATE_ACTIVE

1w4d: U0_Setup: Serial2/3

1w4d: L3SDL: Ref: 32769, Init: STATE_NULL, Rcvd: MSG_SETUP, Next: STATE_CALL_PRESENT 1w4d:
L3SDL: Ref: 32769, Init: STATE_CALL_PRESENT, Rcvd: MSG_SETUP, Next:

     STATE_INCOMING_CALL_PROC 1w4d: L3SDL: Ref: 32769, Init: STATE_INCOMING_CALL_PROC,

     Rcvd: MSG_SETUP, Next: STATE_ACTIVE

Table 86 explains the possible call states.

Table 86 Frame Relay Switched Virtual Circuit Call States

Call State	Description
Null	No call exists.
Call Initiated	User has requested the network to establish a call.
Outgoing Call Proceeding	User has received confirmation from the network that the network has received all call information necessary to establish the call.
Call Present	User has received a request to establish a call but has not yet responded.
Incoming Call Proceeding	User has sent acknowledgment that all call information necessary to establish the call has been received (for an incoming call).
Active	On the called side, the network has indicated that the calling user has been awarded the call. On the calling side, the remote user has answered the call.
Disconnect Request	User has requested that the network clear the end-to-end call and is waiting for a response.
Disconnect Indication	User has received an invitation to disconnect the call because the network has disconnected the call.
Release Request	User has requested that the network release the call and is waiting for a response.

Related Commands

Command	Description
debug fax relay t30	Displays debugging information about the packets that are received on a Frame Relay interface.
debug frame-relay networklayerinterface	Displays NLI information.

debug frame-relay events

To display debugging information about Frame Relay Address Resolution Protocol (ARP) replies on networks that support a multicast channel and use dynamic addressing, use the debug frame-relay events command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay events

no debug frame-relay events

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Command History

Release	Modification
11.3	This command was introduced.
12.0(23)S	This command was integrated into Cisco IOS Release 12.0(23)S for the Frame Relay over MPLS feature.
12.2(14)S	This command was integrated into Cisco IOS Release 12.2(14)S.
12.2(15)T	This command was integrated into Cisco IOS Release 12.2(15)T.

Usage Guidelines

This command is useful for identifying the cause of end-to-end connection problems during the installation of a Frame Relay network or node.

---

Note Because the debug frame-relay events command does not generate much output, you can use it at any time, even during periods of heavy traffic, without adversely affecting other users on the system.

---

Examples

The following is sample output from the debug frame-relay events command:

Router# debug frame-relay events

Serial2(i): reply rcvd 172.16.170.26 126

Serial2(i): reply rcvd 172.16.170.28 128

Serial2(i): reply rcvd 172.16.170.34 134

Serial2(i): reply rcvd 172.16.170.38 144

Serial2(i): reply rcvd 172.16.170.41 228

Serial2(i): reply rcvd 172.16.170.65 325

As the output shows, the debug frame-relay events command returns one specific message type. The first line, for example, indicates that IP address 172.16.170.26 sent a Frame Relay ARP reply; this packet was received as input on serial interface 2. The last field (126) is the data-link connection identifier (DLCI) to use when communicating with the responding router.

For Frame Relay over MPLS, the following is sample output for the debug frame-relay events command. The command output shows the status of the VCs.

Router# debug frame-relay events

Frame Relay events debugging is on

This example shows the messages that are displayed when you shut the core-facing interface on a provider edge (PE) router:

04:40:38:%SYS-5-CONFIG_I: Configured from console by consolenf t

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)# interface hssi2/0

Router(config-if)# shut

04:40:43:%OSPF-5-ADJCHG: Process 10, Nbr 12.12.12.12 on Hssi2/0 from FULL to DOWN,
Neighbor Down: Interface down or detached

04:40:43: FRoMPLS [12.12.12.12, 100]: PW pvc_status set INACTIVE

04:40:43: FRoMPLS [12.12.12.12, 100]: Setting pw segment DOWN

04:40:43: FRoMPLS [12.12.12.12, 100]: Setting connection DOWN

04:40:43: FRoMPLS [12.12.12.12, 101]: PW pvc_status set INACTIVE

04:40:43: FRoMPLS [12.12.12.12, 101]: Setting pw segment DOWN

04:40:43: FRoMPLS [12.12.12.12, 101]: Setting connection DOWN

04:40:45:%LINK-5-CHANGED: Interface Hssi2/0, changed state to administratively down

04:40:46:%LINEPROTO-5-UPDOWN: Line protocol on Interface Hssi2/0, changed state to down

This example shows the messages that are displayed when you enable the core-facing interface on a PE router:

Router(config-if)# no shut

04:40:56:%LINK-3-UPDOWN: Interface Hssi2/0, changed state to up

04:40:57:%LINEPROTO-5-UPDOWN: Line protocol on Interface Hssi2/0, changed state to up

04:41:06:%OSPF-5-ADJCHG: Process 10, Nbr 12.12.12.12 on Hssi2/0 from LOADING to FULL,
Loading Done

04:41:19: FRoMPLS [12.12.12.12, 100]: PW pvc_status set ACTIVE

04:41:19: FRoMPLS [12.12.12.12, 100]: Setting pw segment UP

04:41:19: FRoMPLS [12.12.12.12, 101]: PW pvc_status set ACTIVE

04:41:19: FRoMPLS [12.12.12.12, 101]: Setting pw segment UP

This example shows the messages that are displayed when you shut the edge-facing interface on a PE router:

Router(config)# interface pos4/0

Router(config-if)# shut

04:42:50: FRoMPLS [12.12.12.12, 100]: acmgr_circuit_down

04:42:50: FRoMPLS [12.12.12.12, 100]: Setting connection DOWN

04:42:50: FRoMPLS [12.12.12.12, 100]: PW pvc_status set INACTIVE

04:42:52:%LINK-5-CHANGED: Interface POS4/0, changed state to administratively down

04:42:53:%LINEPROTO-5-UPDOWN: Line protocol on Interface POS4/0, changed state to down

This example shows the messages that are displayed when you enable the edge-facing interface on a PE router:

Router(config)# interface pos4/0

Router(config-if)# no shut

04:43:20:%LINK-3-UPDOWN: Interface POS4/0, changed state to up

c72-33-2(config-if)#

04:43:20: FRoMPLS [12.12.12.12, 100]: Local up, sending acmgr_circuit_up

04:43:20: FRoMPLS [12.12.12.12, 100]: PW nni_pvc_status set ACTIVE

04:43:20: FRoMPLS [12.12.12.12, 100]: PW pvc_status set ACTIVE

04:43:20: FRoMPLS [12.12.12.12, 100]: Setting pw segment UP

debug frame-relay foresight

To observe Frame Relay traces relating to traffic shaping with router ForeSight enabled, use the debug frame-relay foresight command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay foresight

no debug frame-relay foresight

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Examples

The following is sample output that shows the display message returned in response to the debug frame-relay foresight command:

Router# debug frame-relay foresight

FR rate control for DLCI 17 due to ForeSight msg

This message indicates the router learned from the ForeSight message that data-link connection identifier (DLCI) 17 is now experiencing congestion. The output rate for this circuit should be slowed down, and in the router this DLCI is configured to adapt traffic shaping in response to foresight messages.

Related Commands

Command	Description
show frame-relay pvc	Displays statistics about PVCs for Frame Relay interfaces.

debug frame-relay fragment

To display information related to Frame Relay fragmentation on a permanent virtual circuit (PVC), use the debug frame-relay fragment command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay fragment [event | interface type number dlci]

no debug frame-relay fragment [event | interface type number dlci]

Syntax Description

event	(Optional) Displays event or error messages related to Frame Relay fragmentation.
interface	(Optional) Displays fragments received or sent on the specified interface.
type	(Optional) The interface type for which you wish to display fragments received or sent.
number	(Optional) The Interface number.
dlci	(Optional) The data-link connection identifier (DLCI) value of the PVC for which you wish to display fragments received or sent.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.0(3)XG	This command was introduced.

Usage Guidelines

This command will display event or error messages related to Frame Relay fragmentation; it is only enabled at the PVC level on the selected interface.

This command is not supported on the Cisco MC3810 networking device for fragments received by a PVC configured via the voice-encap command.

Examples

The following is sample output from the debug frame-relay fragment command:

Router# debug frame-relay fragment interface serial 0/0 109

This may severely impact network performance.

You are advised to enable 'no logging console debug'. Continue?[confirm]

Frame Relay fragment/packet debugging is on

Displaying fragments/packets on interface Serial0/0  dlci 109 only

Serial0/0(i): dlci 109, rx-seq-num 126, exp_seq-num 126, BE bits set, frag_hdr 04 C0 7E

Serial0/0(o): dlci 109, tx-seq-num 82, BE bits set, frag_hdr 04 C0 52

The following is sample output from the debug frame-relay fragment event command:

Router# debug frame-relay fragment event

This may severely impact network performance.

You are advised to enable 'no logging console debug'. Continue?[confirm]

Frame Relay fragment event/errors debugging is on

Frame-relay reassembled packet is greater than MTU size, packet dropped on serial 0/0

      dlci 109

Unexpected B bit  frame rx on serial0/0 dlci 109, dropping pending segments

Rx an out-of-sequence packet on serial 0/0 dlci 109, seq_num_received 17

      seq_num_expected 19

Related Commands

Command	Description
debug ccfrf11 session	Displays the ccfrf11 function calls during call setup and teardown.
debug ccsip all	Displays the ccswvoice function calls during call setup and teardown.
debug ccsw voice vofr-session	Displays the ccswvoice function calls during call setup and teardown.
debug voice vofr	Displays Cisco trunk and FRF.11 trunk call setup attempts; shows which dial peer is used in the call setup.
debug vpm error	Displays the behavior of the Holst state machine.
debug vtsp port	Displays the behavior of the VTSP state machine.
debug vtsp vofr subframe	Displays the first 10 bytes (including header) of selected VoFR subframes for the interface.

debug frame-relay informationelements

To display information about Frame Relay Layer 3 (network layer) information element parsing and construction, use the debug frame-relay informationelements command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay informationelements

no debug frame-relay informationelements

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Usage Guidelines

Within the FRF.4/Q.933 signalling specification, messages are divided into subunits called information elements. Each information element defines parameters specific to the call. These parameters can be values configured on the router, or values requested from the network.

The debug frame-relay informationelements command shows the signalling message in hexadecimal format. Use this command to determine parameters being requested and granted for a call.

---

Note Use the debug frame-relay informationelements command when the debug frame-relay callcontrol command does not explain why calls are not being set up.

---

---

Caution The debug frame-relay informationelements command displays a substantial amount of information in bytes. You must be familiar with FRF.4/Q.933 to decode the information contained within the debug output.

---

Examples

The following is sample output from the debug frame-relay informationelements command. In this example, each information element has a length associated with it. For those with odd-numbered lengths, only the specified bytes are valid, and the extra byte is invalid. For example, in the message "Call Ref, length: 3, 0x0200 0x0100," only "02 00 01" is valid; the last "00" is invalid.

lw0d# debug frame-relay informationelements

Router: Outgoing MSG_SETUP

Router: Dir: U --> N, Type: Prot Disc, length: 1, 0x0800

Router: Dir: U --> N, Type: Call Ref, length: 3, 0x0200 0x0100

Router: Dir: U --> N, Type: Message type, length: 1, 0x0500

Router: Dir: U --> N, Type: Bearer Capability, length: 5, 0x0403 0x88A0 0xCF00

Router: Dir: U --> N, Type: DLCI, length: 4, 0x1902 0x46A0

Router: Dir: U --> N, Type: Link Lyr Core, length: 27, 0x4819 0x090B 0x5C0B 0xDC0A

Router:                  0x3140 0x31C0 0x0B21 0x4021

Router:                  0xC00D 0x7518 0x7598 0x0E09

Router:                  0x307D 0x8000

Router: Dir: U --> N, Type: Calling Party, length: 12, 0x6C0A 0x1380 0x3837 0x3635

Router:                  0x3433 0x3231

Router: Dir: U --> N, Type: Calling Party Subaddr, length: 4, 0x6D02 0xA000

Router: Dir: U --> N, Type: Called Party, length: 11, 0x7009 0x9331 0x3233 0x3435

Router:                  0x3637 0x386E

Router: Dir: U --> N, Type: Called Party Subaddr, length: 4, 0x7102 0xA000

Router: Dir: U --> N, Type: Low Lyr Comp, length: 5, 0x7C03 0x88A0 0xCE65

Router: Dir: U --> N, Type: User to User, length: 4, 0x7E02 0x0000

Table 87 explains the information elements shown in the example.

Table 87 Information Elements in a Setup Message

Information Element	Description
Prot Disc	Protocol discriminator.
Call Ref	Call reference.
Message type	Message type such as setup, connect, and call proceeding.
Bearer Capability	Coding format such as data type, and Layer 2 and Layer 3 protocols.
DLCI	Data-link connection identifier.
Link Lyr Core	Link-layer core quality of service (QoS) requirements.
Calling Party	Type of source number (X121/E164) and the number.
Calling Party Subaddr	Subaddress that originated the call.
Called Party	Type of destination number (X121/E164) and the number.
Called Party Subaddr	Subaddress of the called party.
Low Lyr Comp	Coding format, data type, and Layer 2 and Layer 3 protocols intended for the end user.
User to User	Information between end users.

Related Commands

Command	Description
debug frame-relay callcontrol	Displays Frame Relay Layer 3 (network layer) call control information.

debug frame-relay ip tcp header-compression

To display debugging information about TCP/IP header compression on Frame Relay interfaces, use the debug frame-relay ip tcp header-compression command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay ip tcp header-compression

no debug frame-relay ip tcp header-compression

Syntax Description

This command has no arguments or keywords.

Defaults

Disabled

Command Modes

Privileged EXEC

Command History

Release	Modification
10.0	This command was introduced.

Usage Guidelines

The debug frame-relay ip tcp header-compression command shows the control packets that are passed to initialize IP header compression (IPHC) on a permanent virtual circuit (PVC). For Cisco IPHC, typically two packets are passed: one sent and one received per PVC. (Inverse Address Resolution Protocol (InARP) packets are sent on PVCs that do not have a mapping defined between a destination protocol address and the data-link connection identifier (DLCI) or Frame Relay PVC bundle that connects to the destination address.)

Debug messages are displayed only if the IPHC control protocol is renegotiated (for an interface or PVC state change or for a configuration change).

Examples

The following is sample output from the debug frame-relay ip tcp header-compression command when Cisco IPHC is configured in the IPHC profile:

Router# debug frame-relay ip tcp header-compression

*Nov 14 09:22:07.991: InARP REQ: Tx compr_flags 43 *Nov 14 09:22:08.103: InARP RSP: Rx
compr_flags: 43

Table 88 describes the significant fields shown in the display.

Table 88 debug frame-relay ip tcp header-compression Field Descriptions

Field	Description
InARP REQ: Tx	Indicates that an InARP request was sent or received. Following are the possible values: •InARP REQ Tx—An InARP request was sent. •InARP REQ Rx—An InARP request was received.
InARP RSP: Rx	Indicates that an InARP response was sent or received. Following are the possible values: •InARP REQ Tx—An InARP response was sent. •InARP REQ Rx—An InARP response was received.
compr_flags: 43	Compression flags that Frame Relay peers use to negotiate Cisco IPHC options. It consists of a bit mask, and the number is displayed in hexadecimal format. Following are the bits: •0x0001—TCP IPHC •0x0002—RTP IPHC •0x0004—Passive TCP compression •0x0008—Passive RTP compression •0x0040—Frame Relay IPHC options

debug frame-relay lapf

To display Frame Relay switched virtual circuit (SVC) Layer 2 information, use the debug frame-relay lapf command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay lapf

no debug frame-relay lapf

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Usage Guidelines

Use the debug frame-relay lapf command to troubleshoot the data-link control portion of Layer 2 that runs over data-link connection identifier (DLCI) 0. Use this command only if you have a problem bringing up Layer 2. You can use the show interface serial command to determine the status of Layer 2. If it shows a Link Access Procedure, Frame Relay (LAPF) state of down, Layer 2 has a problem.

Examples

The following is sample output from the debug frame-relay lapf command. In this example, a line being brought up indicates an exchange of set asynchronous balanced mode extended (SABME) and unnumbered acknowledgment (UA) commands. A SABME is initiated by both sides, and a UA is the response. Until the SABME gets a UA response, the line is not declared to be up. The p/f value indicates the poll/final bit setting. TX means send, and RX means receive.

Router# debug frame-relay lapf

Router: *LAPF Serial0 TX -> SABME Cmd p/f=1

Router: *LAPF Serial0 Enter state 5

Router: *LAPF Serial0 RX <- UA Rsp p/f=1

Router: *LAPF Serial0 lapf_ua_5

Router: *LAPF Serial0 Link up!

Router: *LAPF Serial0 RX <- SABME Cmd p/f=1

Router: *LAPF Serial0 lapf_sabme_78

Router: *LAPF Serial0 TX -> UA Rsp p/f=1

In the following example, a line in an up LAPF state should see a steady exchange of RR (receiver ready) messages. TX means send, RX means receive, and N(R) indicates the receive sequence number.

Router# debug frame-relay lapf

Router: *LAPF Serial0 T203 expired, state = 7

Router: *LAPF Serial0 lapf_rr_7

Router: *LAPF Serial0 TX -> RR Rsp p/f=1, N(R)= 3

Router: *LAPF Serial0 RX <- RR Cmd p/f=1, N(R)= 3

Router: *LAPF Serial0 lapf_rr_7

Router: *LAPF Serial0 TX -> RR Rsp p/f=1, N(R)= 3

Router: *LAPF Serial0 RX <- RR Cmd p/f=1, N(R)= 3

Router: *LAPF Serial0 lapf_rr_7

debug frame-relay lmi

To display information on the local management interface (LMI) packets exchanged by the router and the Frame Relay service provider, use the debug frame-relay lmi command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay lmi [interface name]

no debug frame-relay lmi [interface name]

Syntax Description

interface name

(Optional) The name of interface.

Command Modes

Privileged EXEC

Usage Guidelines

You can use this command to determine whether the router and the Frame Relay switch are sending and receiving LMI packets properly.

---

Note Because the debug frame-relay lmi command does not generate much output, you can use it at any time, even during periods of heavy traffic, without adversely affecting other users on the system.

---

Examples

The following is sample output from the debug frame-relay lmi command:

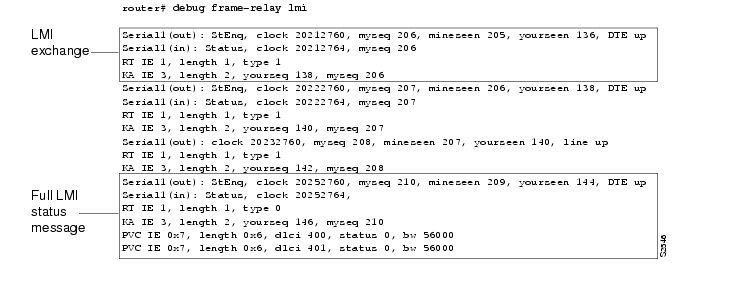

The first four lines describe an LMI exchange. The first line describes the LMI request the router has sent to the switch. The second line describes the LMI reply the router has received from the switch. The third and fourth lines describe the response to this request from the switch. This LMI exchange is followed by two similar LMI exchanges. The last six lines consist of a full LMI status message that includes a description of the two permanent virtual circuits (PVCs) of the router.

Table 89 describes the significant fields shown in the first line of the display.

Table 89 debug frame-relay lmi Field Descriptions

Field	Description
Serial1(out)	Indicates that the LMI request was sent out on serial interface 1.
StEnq	Command mode of message, as follows: •StEnq—Status inquiry •Status—Status reply
clock 20212760	System clock (in milliseconds). Useful for determining whether an appropriate amount of time has transpired between events.
myseq 206	Myseq counter maps to the CURRENT SEQ counter of the router.
yourseen 136	Yourseen counter maps to the LAST RCVD SEQ counter of the switch.
DTE up	Line protocol up/down state for the DTE (user) port.

Table 90 describes the significant fields shown in the third and fourth lines of the display.

Table 90 debug frame-relay lmi Field Descriptions

Field	Description
RT IE 1	Value of the report type information element.
length 1	Length of the report type information element (in bytes).
type 1	Report type in RT IE.
KA IE 3	Value of the keepalive information element.
length 2	Length of the keepalive information element (in bytes).
yourseq 138	Yourseq counter maps to the CURRENT SEQ counter of the switch.
myseq 206	Myseq counter maps to the CURRENT SEQ counter of the router.

Table 91 describes the significant fields shown in the last line of the display.

Table 91 debug frame-relay lmi Field Descriptions

Field	Description
PVC IE 0x7	Value of the PVC information element type.
length 0x6	Length of the PVC IE (in bytes).
dlci 401	DLCI decimal value for this PVC.
status 0	Status value. Possible values include the following: •0x00—Added/inactive •0x02—Added/active •0x04—Deleted •0x08—New/inactive •0x0a—New/active
bw 56000	Committed information rate (in decimal) for the DLCI.

debug frame-relay multilink

To display debug messages for multilink Frame Relay bundles and bundle links, use the debug frame-relay multilink command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay multilink [control [mfr number | serial number]]

no debug frame-relay multilink

Syntax Description

control	(Optional) Displays incoming and outgoing bundle link control messages and bundle link status changes.
mfr number	(Optional) Specific bundle interface for which information will be displayed.
serial number	(Optional) Specific bundle link interface for which information will be displayed.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.0(17)S	This command was introduced.
12.0(24)S	This command was introduced on VIP-enabled Cisco 7500 series routers.
12.2(8)T	This command was integrated into Cisco IOS Release 12.2(8)T.
12.3(4)T	This command was integrated into Cisco IOS Release 12.3(4)T.

Usage Guidelines

---

Caution Using the debug frame-relay multilink command without the control keyword could severely impact router performance and is not recommended.

---

Using the debug frame-relay multilink without the mfr or serial keywords will display error conditions occurring at the bundle layer.

Examples

The following example shows output from the debug frame-relay multilink command for bundle "MFR0", which has three bundle links:

Router# debug frame-relay multilink control MFR0

00:42:54:Serial5/3(o):msg=Add_link, Link=Serial5/3, Bundle=MFR0, Link id=Serial5/3,
BL state=Idle

E1 00 01 01 07 4D 46 52 30 00

00:42:54:Serial5/2(o):msg=Add_link, Link=Serial5/2, Bundle=MFR0, Link id=Serial5/2,
BL state=Idle

E1 00 01 01 07 4D 46 52 30 00

00:42:54:Serial5/1(o):msg=Add_link, Link=Serial5/1, Bundle=MFR0, Link id=Serial5/1,
BL state=Idle

E1 00 01 01 07 4D 46 52 30 00

00:42:54:%LINK-3-UPDOWN:Interface MFR0, changed state to down

00:42:54:Serial5/3(i):msg=Add_link_ack, Link=Serial5/3, Bundle=MFR0, Link id=Serial5/3,
BL state=Add_sent

E1 00 02 01 07 4D 46 52 30 00

00:42:54:Serial5/2(i):msg=Add_link_ack, Link=Serial5/2, Bundle=MFR0, Link id=Serial5/2,
BL state=Add_sent

E1 00 02 01 07 4D 46 52 30 00

00:42:54:Serial5/1(i):msg=Add_link_ack, Link=Serial5/1, Bundle=MFR0, Link id=Serial5/1,
BL state=Add_sent

E1 00 02 01 07 4D 46 52 30 00

00:42:54:%SYS-5-CONFIG_I:Configured from console by console

00:43:00:Serial5/1(i):msg=Add_link, Link=Serial5/1, Bundle=MFR0, Link id=Serial5/1,
BL state=Ack_rx

E1 00 01 01 07 4D 46 52 30 00

00:43:00:Serial5/1(o):msg=Add_link_ack, Link=Serial5/1, Bundle=MFR0, Link id=Serial5/1,
BL state=Ack_rx

E1 00 02 01 07 4D 46 52 30 00

00:43:00:%LINK-3-UPDOWN:Interface MFR0, changed state to up

00:43:00:Serial5/1(i):msg=Hello, Link=Serial5/1, Bundle=MFR0, Linkid=Serial5/1, BL
state=Up

E1 00 04 03 06 30 A7 E0 54 00

00:43:00:Serial5/1(o):msg=Hello_ack, Link=Serial5/1, Bundle=MFR0, Link id=Serial5/1, BL
state=Up

E1 00 05 03 06 90 E7 0F C2 06

00:43:01:Serial5/2(i):msg=Add_link, Link=Serial5/2, Bundle=MFR0, Link id=Serial5/2,
BL state=Ack_rx

E1 00 01 01 07 4D 46 52 30 00

00:43:01:Serial5/2(o):msg=Add_link_ack, Link=Serial5/2, Bundle=MFR0, Link id=Serial5/2,
BL state=Ack_rx

E1 00 02 01 07 4D 46 52 30 00

00:43:01:Serial5/2(i):msg=Hello, Link=Serial5/2, Bundle=MFR0, Linkid=Serial5/2, BL
state=Up

E1 00 04 03 06 30 A7 E0 54 00

00:43:01:Serial5/2(o):msg=Hello_ack, Link=Serial5/2, Bundle=MFR0, Link id=Serial5/2,
BL state=Up

E1 00 05 03 06 90 E7 0F C2 06

00:43:01:%LINEPROTO-5-UPDOWN:Line protocol on Interface Serial5/1, changed state to up

00:43:01:Serial5/3(i):msg=Add_link, Link=Serial5/3, Bundle=MFR0, Link id=Serial5/3,
BL state=Ack_rx

E1 00 01 01 07 4D 46 52 30 00

00:43:01:Serial5/3(o):msg=Add_link_ack, Link=Serial5/3, Bundle=MFR0, Link id=Serial5/3,
BL state=Ack_rx

E1 00 02 01 07 4D 46 52 30 00

00:43:01:Serial5/3(i):msg=Hello, Link=Serial5/3, Bundle=MFR0, Linkid=Serial5/3, BL
state=Up

E1 00 04 03 06 30 A7 E0 54 00

00:43:01:Serial5/3(o):msg=Hello_ack, Link=Serial5/3, Bundle=MFR0, Link id=Serial5/3,
BL state=Up

E1 00 05 03 06 90 E7 0F C2 06

00:43:02:%LINEPROTO-5-UPDOWN:Line protocol on Interface Serial5/2 , changed state to up

00:43:02:%LINEPROTO-5-UPDOWN:Line protocol on Interface Serial5/3 , changed state to up

Table 92 describes the significant fields shown in the display.

Table 92 debug frame-relay multilink Field Descriptions

Field	Description
msg	Type of bundle link control message that was sent or received.
Link	Interface number of the bundle link.
Bundle	Bundle with which the link is associated.
Link id	Bundle link identification name.
BL state	Operational state of the bundle link.

Related Commands

Command	Description
show frame-relay multilink	Displays configuration information and statistics about multilink Frame Relay bundles and bundle links.

debug frame-relay networklayerinterface

To display Network Layer Interface (NLI) information, use the debug frame-relay networklayerinterface command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay networklayerinterface

no debug frame-relay networklayerinterface

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Usage Guidelines

The Frame Relay switched virtual circuit (SVC) signaling subsystem is decoupled from the rest of the router code by means of the NLI intermediate software layer.

The debug frame-relay networklayerinterface command shows activity within the network-layer interface when a call is set up or torn down. All output that contains an NL relates to the interaction between the Q.933 signaling subsystem and the NLI.

---

Note The debug frame-relay networklayerinterface command has no significance to anyone not familiar with the inner workings of the Cisco IOS software. This command is typically used by service personnel to debug problem situations.

---

Examples

The following is sample output from the debug frame-relay networklayerinterface command. This example displays the output generated when a call is set up. The second example shows the output generated when a call is torn down.

Router# debug frame-relay networklayerinterface

Router: NLI STATE: L3_CALL_REQ, Call ID 1 state 0

Router: NLI: Walking the event table 1

Router: NLI: Walking the event table 2

Router: NLI: Walking the event table 3

Router: NLI: Walking the event table 4

Router: NLI: Walking the event table 5

Router: NLI: Walking the event table 6

Router: NLI: Walking the event table 7

Router: NLI: Walking the event table 8

Router: NLI: Walking the event table 9

Router: NLI: NL0_L3CallReq

Router: NLI: State: STATE_NL_NULL, Event: L3_CALL_REQ, Next: STATE_L3_CALL_REQ

Router: NLI: Enqueued outgoing packet on holdq

Router: NLI: Map-list search: Found maplist bermuda

Router: daddr.subaddr 0, saddr.subaddr 0, saddr.subaddr 0

Router: saddr.subaddr 0, daddr.subaddr 0, daddr.subaddr 0

Router: nli_parameter_negotiation

Router: NLI STATE: NL_CALL_CNF, Call ID 1 state 10

Router: NLI: Walking the event table 1

Router: NLI: Walking the event table 2

Router: NLI: Walking the event table 3

Router: NLI: NLx_CallCnf

Router: NLI: State: STATE_L3_CALL_REQ, Event: NL_CALL_CNF, Next: STATE_NL_CALL_CNF

Router: Checking maplist "junk"

Router: working with maplist "bermuda"

Router: Checking maplist "bermuda"

Router: working with maplist "bermuda"

Router: NLI: Emptying holdQ, link 7, dlci 100, size 104

Router# debug frame-relay networklayerinterface

Router: NLI: L3 Call Release Req for Call ID 1

Router: NLI STATE: L3_CALL_REL_REQ, Call ID 1 state 3

Router: NLI: Walking the event table 1

Router: NLI: Walking the event table 2

Router: NLI: Walking the event table 3

Router: NLI: Walking the event table 4

Router: NLI: Walking the event table 5

Router: NLI: Walking the event table 6

Router: NLI: Walking the event table 7

Router: NLI: Walking the event table 8

Router: NLI: Walking the event table 9

Router: NLI: Walking the event table 10

Router: NLI: NLx_L3CallRej

Router: NLI: State: STATE_NL_CALL_CNF, Event: L3_CALL_REL_REQ, Next: STATE_L3_CALL_REL_REQ

Router: NLI: junk: State: STATE_NL_NULL, Event: L3_CALL_REL_REQ, Next: STATE_NL_NULL

Router: NLI: Map-list search: Found maplist junk

Router: daddr.subaddr 0, saddr.subaddr 0, saddr.subaddr 0

Router: saddr.subaddr 0, daddr.subaddr 0, daddr.subaddr 0

Router: nli_parameter_negotiation

Router: NLI STATE: NL_REL_CNF, Call ID 1 state 0

Router: NLI: Walking the event table 1

Router: NLI: Walking the event table 2

Router: NLI: Walking the event table 3

Router: NLI: Walking the event table 4

Router: NLI: Walking the event table 5

Router: NLI: Walking the event table 6

Router: NLI: Walking the event table 7

Router: NLI: NLx_RelCnf

Router: NLI: State: STATE_NL_NULL, Event: NL_REL_CNF, Next: STATE_NL_NULL

Table 93 describes the significant states and events shown in the display.

Table 93 NLI State and Event Descriptions

State and Event	Description
L3_CALL_REQ	Internal call setup request. Network layer indicates that an SVC is required.
STATE_NL_NULL	Call in initial state—no call exists.
STATE_L3_CALL_REQ	Setup message sent out and waiting for a reply. This is the state the network-layer state machine changes to when a call request is received from Layer 3 but no confirmation has been received from the network.
NL_CALL_CNF	Message sent from the Q.933 signalling subsystem to the NLI asking that internal resources be allocated for the call.
STATE_L3_CALL_CNF	Q.933 state indicating that the call is active. After the network confirms a call request using a connect message, the Q.933 state machine changes to this state.
STATE_NL_CALL_CNF	Internal software state indicating that software resources are assigned and the call is up. After Q.933 changes to the STATE_L3_CALL_CNF state, it sends an NL_CALL_CNF message to the network-layer state machine, which then changes to the STATE_NL_CALL_CNF state.
L3_CALL_REL_REQ	Internal request to release the call.
STATE_L3_CALL_REL_REQ	Internal software state indicating the call is in the process of being released. At this point, the Q.933 subsystem is told that the call is being released and a disconnect message goes out for the Q.933 subsystem.
NL_REL_CNF	Indication from the Q.933 signalling subsystem that the signalling subsystem is releasing the call. After receiving a release complete message from the network indicating that the release process is complete, the Q.933 subsystem sends an NL_REL_CNF event to the network-layer subsystem.

Related Commands

Command	Description
debug frame-relay callcontrol	Displays Frame Relay Layer 3 (network layer) call control information.

debug frame-relay packet

To display information on packets that have been sent on a Frame Relay interface, use the debug frame-relay packet command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay packet [interface name [dlci value]]

no debug frame-relay packet [interface name [dlci value]]

Syntax Description

interface name	(Optional) Name of interface or subinterface.
dlci value	(Optional) Data-link connection indentifier (DLCI) decimal value.

Command Modes

Privileged EXEC

Usage Guidelines

This command helps you analyze the packets that are sent on a Frame Relay interface. Because the debug frame-relay packet command generates a substantial amount of output, only use it when traffic on the Frame Relay network is fewer than 25 packets per second. Use the options to limit the debugging output to a specific DLCI or interface.

To analyze the packets received on a Frame Relay interface, use the debug frame-relay command.

Examples

The following is sample output from the debug frame-relay packet command:

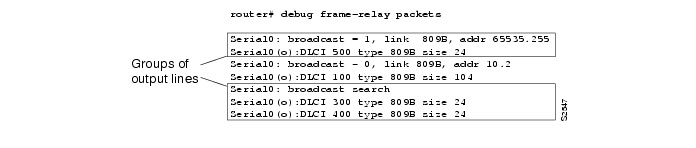

The debug frame-relay packet output consists of groups of output lines; each group describes a Frame Relay packet that has been sent. The number of lines in the group can vary, depending on the number of DLCIs on which the packet was sent. For example, the first two pairs of output lines describe two different packets, both of which were sent out on a single DLCI. The last three lines describe a single Frame Relay packet that was sent out on two DLCIs.

Table 94 describes the significant fields shown in the display.

Table 94 debug frame-relay packet Field Descriptions

Field	Description
Serial0:	Interface that has sent the Frame Relay packet.
broadcast = 1	Destination of the packet. Possible values include the following: •broadcast = 1—Broadcast address •broadcast = 0—Particular destination •broadcast search—Searches all Frame Relay map entries for this particular protocol that include the broadcast keyword.
link 809B	Link type, as documented in the debug frame-relay command.
addr 65535.255	Destination protocol address for this packet. In this case, it is an AppleTalk address.
Serial0(o):	(o) indicates that this is an output event.
DLCI 500	Decimal value of the DLCI.
type 809B	Packet type, as documented under the debug frame-relay command.
size 24	Size of this packet (in bytes).

The following lines describe a Frame Relay packet sent to a particular address; in this case AppleTalk address 10.2:

Serial0: broadcast - 0, link 809B, addr 10.2

Serial0(o):DLCI 100 type 809B size 104

The following lines describe a Frame Relay packet that went out on two different DLCIs, because two Frame Relay map entries were found:

Serial0: broadcast search

Serial0(o):DLCI 300 type 809B size 24

Serial0(o):DLCI 400 type 809B size 24

The following lines do not appear. They describe a Frame Relay packet sent to a true broadcast address.

Serial1: broadcast search

Serial1(o):DLCI 400 type 800 size 288

debug frame-relay ppp

To display debugging information, use the debug frame-relay ppp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay ppp

no debug frame-relay ppp

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Usage Guidelines

This command displays error messages for link states and Local Management Interface (LMI) status changes for PPP over Frame Relay sessions.

To debug process-switched packets, use the debug frame-relay packet or debug ppp packet commands. To analyze the packets that have been sent on a Frame Relay interface, use the debug frame-relay packet command.

The debug frame-relay ppp command is generated from process-level switching only and is not CPU intensive.

Examples

The following shows output from the debug frame-relay ppp command where the encapsulation failed for VC 100.

Router# debug frame-relay ppp

FR-PPP: encaps failed for FR VC 100 on Serial0 down

FR-PPP: input- Serial0 vc or va down, pak dropped

The following shows the output from the debug frame relay ppp and debug frame-relay packet commands. This example shows a virtual interface (virtual interface 1) establishing a PPP connection over PPP.

Router# debug frame-relay ppp

Router# debug frame-relay packet

Vi1 LCP: O CONFREQ [Closed] id 1 len 10

Vi1 LCP:    MagicNumber 0xE0638565 (0x0506E0638565)

Serial2/1(o): dlci 201(0x3091), NLPID 0x3CF(PPP), datagramsize 16

Vi1 PPP: I pkt type 0xC021, datagramsize 14

Vi1 LCP: I CONFACK [REQsent] id 1 len 10

Vi1 LCP:    MagicNumber 0xE0638565 (0x0506E0638565)

Vi1 PPP: I pkt type 0xC021, datagramsize 14

Vi1 LCP: I CONFREQ [ACKrcvd] id 6 len 10

Vi1 LCP:    MagicNumber 0x000EAD99 (0x0506000EAD99)

Vi1 LCP: O CONFACK [ACKrcvd] id 6 len 10

Vi1 LCP:    MagicNumber 0x000EAD99 (0x0506000EAD99)

Serial2/1(o): dlci 201(0x3091), NLPID 0x3CF(PPP), datagramsize 16

Vi1 IPCP: O CONFREQ [Closed] id 1 len 10

Vi1 IPCP:    Address 170.100.9.10 (0x0306AA64090A)

Serial2/1(o): dlci 201(0x3091), NLPID 0x3CF(PPP), datagramsize 16

Vi1 PPP: I pkt type 0x8021, datagramsize 14

Vi1 IPCP: I CONFREQ [REQsent] id 1 len 10

Vi1 IPCP:    Address 170.100.9.20 (0x0306AA640914)

Vi1 IPCP: O CONFACK [REQsent] id 1 len 10

Vi1 IPCP:    Address 170.100.9.20 (0x0306AA640914)

Serial2/1(o): dlci 201(0x3091), NLPID 0x3CF(PPP), datagramsize 16

Vi1 PPP: I pkt type 0x8021, datagramsize 14

Vi1 IPCP: I CONFACK [ACKsent] id 1 len 10

Vi1 IPCP:    Address 170.100.9.10 (0x0306AA64090A)

Vi1 PPP: I pkt type 0xC021, datagramsize 16

Vi1 LCP: I ECHOREQ [Open] id 1 len 12 magic 0x000EAD99

Vi1 LCP: O ECHOREP [Open] id 1 len 12 magic 0xE0638565

Serial2/1(o): dlci 201(0x3091), NLPID 0x3CF(PPP), datagramsize 18

Vi1 LCP: O ECHOREQ [Open] id 1 len 12 magic 0xE0638565

Serial2/1(o): dlci 201(0x3091), NLPID 0x3CF(PPP), datagramsize 18

Vi1 LCP: echo_cnt 4, sent id 1, line up

The following shows the output for the debug frame-relay ppp and debug frame-relay packet commands that report a failed PPP over Frame Relay session. The problem is due to a challenge handshake authentication protocol (CHAP) failure.

Router# debug frame-relay ppp

Router# debug frame-relay packet

Vi1 LCP: O CONFREQ [Listen] id 24 len 10

Vi1 LCP:    MagicNumber 0xE068EC78 (0x0506E068EC78)

Serial2/1(o): dlci 201(0x3091), NLPID 0x3CF(PPP), datagramsize 16

Vi1 PPP: I pkt type 0xC021, datagramsize 19

Vi1 LCP: I CONFREQ [REQsent] id 18 len 15

Vi1 LCP:    AuthProto CHAP (0x0305C22305)

Vi1 LCP:    MagicNumber 0x0014387E (0x05060014387E)

Vi1 LCP: O CONFACK [REQsent] id 18 len 15

Vi1 LCP:    AuthProto CHAP (0x0305C22305)

Vi1 LCP:    MagicNumber 0x0014387E (0x05060014387E)

Serial2/1(o): dlci 201(0x3091), NLPID 0x3CF(PPP), datagramsize 21

Vi1 PPP: I pkt type 0xC021, datagramsize 14

Vi1 LCP: I CONFACK [ACKsent] id 24 len 10

Vi1 LCP:    MagicNumber 0xE068EC78 (0x0506E068EC78)

Vi1 PPP: I pkt type 0xC223, datagramsize 32

Vi1 CHAP: I CHALLENGE id 12 len 28 from "krishna"

Vi1 LCP: O TERMREQ [Open] id 25 len 4

Serial2/1(o): dlci 201(0x3091), NLPID 0x3CF(PPP), datagramsize 10

Vi1 PPP: I pkt type 0xC021, datagramsize 8

Vi1 LCP: I TERMACK [TERMsent] id 25 len 4

Serial2/1(i): dlci 201(0x3091), pkt type 0x2000, datagramsize 303

%SYS-5-CONFIG_I: Configured from console by console

Vi1 LCP: TIMEout: Time 0x199580 State Listen

debug frame-relay switching

To display debugging messages for switched Frame Relay permanent virtual circuits (PVCs), use the debug frame-relay switching command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug frame-relay switching interface interface dlci [interval interval]

no debug frame-relay switching

Syntax Description

interface interface	The name of the Frame Relay interface.
dlci	The DLCI number of the switched PVC to be debugged.
interval interval	(Optional) Interval in seconds at which debugging messages will be updated.

Defaults

The default interval is 1 second.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.0(12)S	This command was introduced.
12.1(5)T	This command was integrated into Cisco IOS Release 12.1(5)T.

Usage Guidelines

The debug frame-relay switching command can be used only on switched Frame Relay PVCs, not terminated PVCs.

Debug statistics are displayed only if they have changed.

---

Note Although statistics are displayed at configured intervals, there may be a delay between the occurrence of a debug event (such as a packet drop) and the display of that event. The delay may be as much as the configured interval plus 10 seconds.

---

Examples

The following is sample output from the debug frame-relay switching command:

Router# debug frame-relay switching interface s2/1 1000 interval 2

 Frame Relay switching debugging is on

 Display frame switching debug on interface Serial2/1 dlci 1000

 1d02h: Serial2/1 dlci 1000: 32 packets switched to Serial2/0 dlci 1002

 1d02h: Serial2/1 dlci 1000: 1800 packets output

 1d02h: Serial2/1 dlci 1000: 4 packets dropped - outgoing PVC inactive

 1d02h: Serial2/1 dlci 1000: Incoming PVC status changed to ACTIVE

 1d02h: Serial2/1 dlci 1000: Outgoing PVC status changed to ACTIVE

 1d02h: Serial2/1 dlci 1000: Incoming interface hardware module state changed to UP

 1d02h: Serial2/1 dlci 1000: Outgoing interface hardware module state changed to UP

debug frame-relay vc-bundle

To display information about the Frame Relay permanent virtual circuit (PVC) bundles that are configured on a router, use the debug frame-relay vc-bundle command in privileged EXEC mode. To stop the display, use the no form of this command.

debug frame-relay vc-bundle {detail | state-change} [vc-bundle-name]

no debug frame-relay vc-bundle {detail | state-change} [vc-bundle-name]

Syntax Description

detail	Displays detailed information about the members of the bundle specified by vc-bundle-name. Displays detailed information about the members of all PVC bundles if vc-bundle-name is not specified.
state-change	Displays information pertaining only to the state changes of the PVC bundle and PVC bundle members specified by vc-bundle-name. Displays state-change information for all PVC bundles and bundle members if vc-bundle-name is not specified.
vc-bundle-name	(Optional) Specifies a particular PVC bundle.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(13)T	This command was introduced.

Usage Guidelines

Use this command to monitor state changes and Inverse ARP activity for one or all of the PVC bundles and bundle members configured on a router.

---

Note Debugging messages that are prefixed with "FR_VCB" (instead of "FR-VCB") indicate serious failures in the Frame Relay PVC bundle performance. Contact the Cisco Technical Assistance Center (TAC) if you see debugging messages with this prefix.

---

Examples

The following is sample output from the debug frame-relay vc-bundle command that shows Inverse ARP information for the PVC bundle. PVC bundle member 406 is the only PVC in the bundle to handle Inverse ARP packets. The Inverse ARP packets coming in on other bundle member PVCs are dropped.

Router# debug frame-relay vc-bundle

00:23:48:FR-VCB:MP-4-dynamic:inarp received on elected member 406

00:23:48:FR-VCB:MP-4-dynamic:installing dynamic map

00:23:48:FR-VCB:MP-4-dynamic:dropping inarp received on member 407

00:23:52:FR-VCB:MP-4-dynamic:sending inarp pkt on member 406

In the following example the PVC bundle goes down because the protected group goes down. All information about active transmission on each PVC is removed.

00:58:27:FR-VCB:MP-4-dynamic:member 402 state changed to DOWN

00:58:27:FR-VCB:MP-4-dynamic:protected group is DOWN

00:58:27:FR-VCB:MP-4-dynamic:state changed to DOWN

00:58:27:FR-VCB:MP-4-dynamic:active table reset

The following is sample output from the debug frame-relay vc-bundle detail command. State change and Inverse ARP activity is displayed for all PVC bundles and bundle members on the router.

Router# debug frame-relay adjacency vc-bundle detail

00:33:40: FR-VCB: MP-4-dynamic: member 404 state changed to UP

00:33:40: FR-VCB: MP-4-dynamic: active table update

00:33:40: FR-VCB: MP-3-static: sending inarp pkt on member 300

00:33:41: FR-VCB: MP-3-static: inarp received on elected member 300

00:33:48: FR-VCB: MP-3-static: inarp received on elected member 300

00:33:48: FR-VCB: MAIN-1-static: dropping inarp received on member 100

00:33:48: FR-VCB: MP-4-dynamic: dropping inarp received on member 404

00:33:48: FR-VCB: MP-4-dynamic: dropping inarp received on member 405

00:33:48: FR-VCB: P2P-5: dropping inarp received on member 507

00:33:48: FR-VCB: MP-3-static: dropping inarp received on member 303

00:33:48: FR-VCB: MAIN-2-dynamic: dropping inarp received on member 202

00:33:48: FR-VCB: MAIN-1-static: dropping inarp received on member 107

00:33:48: FR-VCB: MP-3-static: dropping inarp received on member 305

00:33:48: FR-VCB: MAIN-1-static: dropping inarp received on member 105

00:33:49: FR-VCB: P2P-5: dropping inarp received on member 505

00:33:49: FR-VCB: P2P-5: dropping inarp received on member 504

00:33:49: FR-VCB: P2P-5: dropping inarp received on member 503

00:33:49: FR-VCB: P2P-5: dropping inarp received on member 502

00:33:49: FR-VCB: P2P-5: dropping inarp received on member 501

Related Commands

Command	Description
debug frame-relay adjacency	Displays information pertaining to an adjacent node that has one or more Frame Relay PVC bundles.

debug frame-relay virtual

To display debugging messages for the virtual Frame Relay interface, use the debug frame-relay virtual command in privileged EXEC mode.

debug frame-relay virtual destination interface

Syntax Description

destination interface

Enables the debugging messages for that specific interface.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(2)T	This command was introduced.

Usage Guidelines

Use the debug frame-relay virtual command to display debugging messages for the virtual Frame Relay interface. The debug frame-relay virtual command produces output only when problems occur.

Examples

The following example shows the output if one of the routers has not been configured. This output occurs when the other end is trying to send the receiving box Frame Relay packets.

VFR: Radio1/0 has no VFR for 00:00:C068:6F:AA

Related Commands

Command	Description
frame-relay over radio	Links the virtual Frame Relay interface to the specified radio interface and destination MAC address.
interface virtual-framerelay	Defines the virtual interface and then associates the interface with a specific wireless connection.
show virtual-framerelay	Shows the output of the interface virtual-frame relay command.

debug fras error

To display information about Frame Relay access support (FRAS) protocol errors, use the debug fras error command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fras error

no debug fras error

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Usage Guidelines

For complete information on the FRAS process, use the debug fras message along with the debug fras error command.

Examples

The following is sample output from the debug fras error command. This example shows that no logical connection exists between the local station and remote station in the current setup.

Router# debug fras error

FRAS: No route, lmac 1000.5acc.7fb1 rmac 4fff.0000.0000, lSap=0x4, rSap=0x4

FRAS: Can not find the Setup

Related Commands

Command	Description
debug cls message	Displays information about CLS messages.
debug fras message	Displays general information about FRAS messages.
debug fras state	Displays information about FRAS data-link control state changes.

debug fras-host activation

To display the Logical Link Control, Type 2 (LLC2) session activation and deactivation frames (such as XID, SABME, DISC, UA) that are being handled by the Frame Relay access support (FRAS) host, use the debug fras-host activation command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fras-host activation

no debug fras-host activation

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Usage Guidelines

If many LLC2 sessions are being activated or deactivated at any time, this command may generate a substantial amount of output to the console.

Examples

The following is sample output from the debug fras-host activation command:

Router# debug fras-host activation

FRHOST: Snd      TST C to HOST, DA = 4001.3745.1088 SA = 400f.dddd.001e DSAP = 0x00 SSAP =
0x04

FRHOST: Fwd  BNN   XID to HOST, DA = 4001.3745.1088 SA = 400f.dddd.001e DSAP = 0x04 SSAP =
0x04

FRHOST: Fwd HOST   XID to  BNN, DA = 400f.dddd.001e SA = 4001.3745.1088 DSAP = 0x04 SSAP =
0x05

FRHOST: Fwd  BNN   XID to HOST, DA = 4001.3745.1088 SA = 400f.dddd.001e DSAP = 0x04 SSAP =
0x04

FRHOST: Fwd HOST SABME to  BNN, DA = 400f.dddd.001e SA = 4001.3745.1088 DSAP = 0x04 SSAP =
0x04

FRHOST: Fwd  BNN    UA to HOST, DA = 4001.3745.1088 SA = 400f.dddd.001e DSAP = 0x04 SSAP =
0x05

The first line indicates that the FRAS Host sent a TEST Command to the host. In the second line, the FRAS Host forwards an XID frame from a BNN device to the host. In the third line, the FRAS Host forwards an XID from the host to the BNN device.

Table 95 describes the significant fields shown in the display.

Table 95 debug fras-host activation Field Descriptions

Field	Description
DA	Destination MAC address of the frame.
SA	Source MAC address of the frame.
DSAP	Destination SAP of the frame.
SSAP	Source SAP of the frame.

debug fras-host error

To enable the Frame Relay access support (FRAS) Host to send error messages to the console, use the debug fras-host error command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fras-host error

no debug fras-host error

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Examples

The following is sample output from the debug fras-host error command when the I-field in a TEST Response frame from a host does not match the I-field of the TEST Command sent by the FRAS Host:

Router# debug fras-host error

FRHOST: SRB TST R Protocol Violation - LLC I-field not maintained.

debug fras-host packet

To see which Logical Link Control, type 2 (LLC2) session frames are being handled by the Frame Relay access support (FRAS) Host, use the debug fras-host packet command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fras-host packet

no debug fras-host packet

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Usage Guidelines

Use this command with great care. If many LLC2 sessions are active and passing data, this command may generate a substantial amount of output to the console and impact device performance.

Examples

The following is sample output from the debug fras-host packet command:

Router# debug fras-host packet

FRHOST: Snd      TST C to HOST, DA = 4001.3745.1088 SA = 400f.dddd.001e DSAP = 0x00 SSAP =
0x04

FRHOST: Fwd  BNN   XID to HOST, DA = 4001.3745.1088 SA = 400f.dddd.001e DSAP = 0x04 SSAP =
0x04

FRHOST: Fwd HOST   XID to  BNN, DA = 400f.dddd.001e SA = 4001.3745.1088 DSAP = 0x04 SSAP =
0x05

FRHOST: Fwd  BNN   XID to HOST, DA = 4001.3745.1088 SA = 400f.dddd.001e DSAP = 0x04 SSAP =
0x04

FRHOST: Fwd HOST SABME to  BNN, DA = 400f.dddd.001e SA = 4001.3745.1088 DSAP = 0x04 SSAP =
0x04

FRHOST: Fwd  BNN    UA to HOST, DA = 4001.3745.1088 SA = 400f.dddd.001e DSAP = 0x04 SSAP =
0x05

FRHOST: Fwd HOST LLC-2 to  BNN, DA = 400f.dddd.001e SA = 4001.3745.1088 DSAP = 0x04 SSAP =
0x04

FRHOST: Fwd  BNN LLC-2 to HOST, DA = 4001.3745.1088 SA = 400f.dddd.001e DSAP = 0x04 SSAP =
0x05

FRHOST: Fwd HOST LLC-2 to  BNN, DA = 400f.dddd.001e SA = 4001.3745.1088 DSAP = 0x04 SSAP =
0x04

FRHOST: Fwd  BNN LLC-2 to HOST, DA = 4001.3745.1088 SA = 400f.dddd.001e DSAP = 0x04 SSAP =
0x04

The debug fras-host packet output contains all of the output from the debug fras-host activation command and additional information. The first six lines of this sample display are the same as the output from the debug fras-host activation command. The last lines show LLC-2 frames being sent between the Frame Relay Boundary Network Node (BNN) device and the host.

Table 96 describes the significant fields shown in the display.

Table 96 debug fras-host packet Field Descriptions

Field	Description
DA	Destination MAC address of the frame.
SA	Source MAC address of the frame.
DSAP	Destination service access point (SAP) of the frame.
SSAP	Source SAP of the frame.

debug fras-host snmp

To display messages to the console describing Simple Network Management Protocol (SNMP) requests to the Frame Relay access support (FRAS) Host MIB, use the debug fras-host snmp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fras-host snmp

no debug fras-host snmp

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Usage Guidelines

Use of this command may result in a substantial amount of output to the screen. Only use this command for problem determination.

Examples

The following is sample output from the debug fras-host snmp command. In this example, the MIB variable k_frasHostConnEntry_get() is providing SNMP information for the FRAS host.

Router# debug fras-host snmp

k_frasHostConnEntry_get(): serNum = -1, vRingIfIdx = 31, frIfIdx = 12

Hmac = 4001.3745.1088, frLocSap = 4, Rmac = 400f.dddd.001e, frRemSap = 4

Table 97 describes the significant fields shown in the display.

Table 97 debug fras-host snmp Field Descriptions

Field	Description
serNum	Serial number of the SNMP request.
vRingIfIdx	Interface index of a virtual Token Ring.
frIfIdx	Interface index of a Frame Relay serial interface.
Hmac	MAC address associated with the host for this connection.
frLocSap	SAP associated with the host for this connection.
Rmac	MAC address associated with the FRAD for this connection.
frRemSap	LLC 2 SAP associated with the FRAD for this connection.

debug fras message

To display general information about Frame Relay access support (FRAS) messages, use the debug fras message command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fras message

no debug fras message

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Usage Guidelines

For complete information on the FRAS process, use the debug fras error command along with the debug fras message command.

Examples

The following is sample output from the debug fras message command. This example shows incoming Cisco Link Services (CLS) primitives.

Router# debug fras message

FRAS: receive 4C23

FRAS: receive CC09

Related Commands

Command	Description
debug cls message	Limits output for some debugging commands based on the interfaces.
debug fras error	Displays information about FRAS protocol errors.
debug fras state	Displays information about FRAS data-link control state changes.

debug fras state

To display information about Frame Relay access support (FRAS) data-link control link-state changes, use the debug fras state command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug fras state

no debug fras state

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Examples

The following is sample output from the debug fras state command. This example shows the state changing from a request open station is sent state to an exchange XID state.

Possible states are the following: reset, request open station is sent, exchange xid, connection request is sent, signal station wait, connection response wait, connection response sent, connection established, disconnect wait, and number of link states.

Router# debug fras state

FRAS: TR0 (04/04) oldstate=LS_RQOPNSTNSENT, input=RQ_OPNSTN_CNF

FRAS: newstate=LS_EXCHGXID

Related Commands

Command	Description
debug cls message	Limits output for some debug commands based on the interfaces.
debug fras error	Displays information about FRAS protocol errors.
debug fras message	Displays general information about FRAS messages.

debug ftpserver

To display information about the FTP server process, use the debug ftpserver command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug ftpserver

no debug ftpserver

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Examples

The following is sample output from the debug ftpserver command:

Router# debug ftpserver

Mar  3 10:21:10: %FTPSERVER-6-NEWCONN: FTP Server - new connection made.

-Process= "TCP/FTP Server", ipl= 0, pid= 53

Mar  3 10:21:10: FTPSRV_DEBUG:FTP Server file path: 'disk0:'

Mar  3 10:21:10: FTPSRV_DEBUG:(REPLY)  220

Mar  3 10:21:10: FTPSRV_DEBUG:FTProuter IOS-FTP server (version 1.00) ready.

Mar  3 10:21:10: FTPSRV_DEBUG:FTP Server Command received: 'USER aa'

Mar  3 10:21:20: FTPSRV_DEBUG:(REPLY)  331

Mar  3 10:21:20: FTPSRV_DEBUG:Password required for 'aa'.

Mar  3 10:21:20: FTPSRV_DEBUG:FTP Server Command received: 'PASS aa'

Mar  3 10:21:21: FTPSRV_DEBUG:(REPLY)  230

Mar  3 10:21:21: FTPSRV_DEBUG:Logged in.

Mar  3 10:21:21: FTPSRV_DEBUG:FTP Server Command received: 'SYST'

Mar  3 10:21:21: FTPSRV_DEBUG:(REPLY)  215

Mar  3 10:21:21: FTPSRV_DEBUG:Cisco IOS Type: L8 Version: IOS/FTP 1.00

Mar  3 10:21:21: FTPSRV_DEBUG:FTP Server Command received: 'PWD'

Mar  3 10:21:35: FTPSRV_DEBUG:(REPLY)  257

Mar  3 10:21:39: FTPSRV_DEBUG:FTP Server Command received: 'CWD disk0:/syslogd.d'r/'

Mar  3 10:21:45: FTPSRV_DEBUG:FTP Server file path: 'disk0:/syslogd.dir'

Mar  3 10:21:45: FTPSRV_DEBUG:(REPLY)  250

Mar  3 10:21:45: FTPSRV_DEBUG:CWD command successful.

Mar  3 10:21:45: FTPSRV_DEBUG:FTP Server Command received: 'PORT 171,69,30,20,22',32

Mar  3 10:21:46: FTPSRV_DEBUG:(REPLY)  200

Mar  3 10:21:46: FTPSRV_DEBUG:PORT command successful.

Mar  3 10:21:46: FTPSRV_DEBUG:FTP Server Command received: 'LIST'

Mar  3 10:21:47: FTPSRV_DEBUG:FTP Server file path: 'disk0:/syslogd.dir/.'

Mar  3 10:21:47: FTPSRV_DEBUG:(REPLY)  220

Mar  3 10:23:11: FTPSRV_DEBUG:Opening ASCII mode data connection for file list.

Mar  3 10:23:11: FTPSRV_DEBUG:(REPLY)  226

Mar  3 10:23:12: FTPSRV_DEBUG:Transfer complete.

Mar  3 10:23:12: FTPSRV_DEBUG:FTP Server Command received: 'TYPE I'

Mar  3 10:23:14: FTPSRV_DEBUG:(REPLY)  200

Mar  3 10:23:14: FTPSRV_DEBUG:Type set to I.

Mar  3 10:23:14: FTPSRV_DEBUG:FTP Server Command received: 'PORT 171,69,30,20,22',51

Mar  3 10:23:20: FTPSRV_DEBUG:(REPLY)  200

Mar  3 10:23:20: FTPSRV_DEBUG:PORT command successful.

Mar  3 10:23:20: FTPSRV_DEBUG:FTP Server Command received: 'RETR syslogd.1'

Mar  3 10:23:21: FTPSRV_DEBUG:FTP Server file path: 'disk0:/syslogd.dir/syslogd.1'

Mar  3 10:23:21: FTPSRV_DEBUG:FTPSERVER: Input path passed Top-dir(disk0:/syslogd.dir/)
test.

Mar  3 10:23:21: FTPSRV_DEBUG:(REPLY)  150

Mar  3 10:23:21: FTPSRV_DEBUG:Opening BINARY mode data connection for syslogd.1 (607317
bytes).

Mar  3 10:23:21: FTPSRV_DEBUG:(REPLY)  226

Mar  3 10:23:29: FTPSRV_DEBUG:Transfer complete.

The sample output corresponds to the following FTP client session. In this example, the user connects to the FTP server, views the contents of the top-level directory, and gets a file.

FTPclient% ftp FTProuter

Connected to FTProuter.cisco.com.

220 FTProuter IOS-FTP server (version 1.00) ready.

Name (FTProuter:me): aa

331 Password required for 'aa'.

Password:

230 Logged in.

Remote system type is Cisco.

ftp> pwd

257 "disk0:/syslogd.dir/" is current directory.

ftp> dir

200 PORT command successful.

150 Opening ASCII mode data connection for file list.

syslogd.1

syslogd.2

syslogd.3

syslogd.4

syslogd.5

syslogd.6

syslogd.7

syslogd.8

syslogd.9

syslogd.cur

226 Transfer complete.

ftp> bin

200 Type set to I.

ftp> get syslogd.1

200 PORT command successful.

150 Opening BINARY mode data connection for syslogd.1 (607317 bytes).

226 Transfer complete.

607317 bytes received in 7.7 seconds (77 Kbytes/s)

ftp>

The following debug ftpserver command output indicates that no top-level directory is specified. Therefore, the client cannot access any location on the FTP server. Use the ftp-server topdir command to specify the top-level directory.

Mar  3 10:29:14: FTPSRV_DEBUG:(REPLY)  550

Mar  3 10:29:14: FTPSRV_DEBUG:Access denied to 'disk0:'

debug gatekeeper gup

To display the Gatekeeper Update Protocol (GUP) events or Abstract Syntax Notation 1 (ASN.1) details, use the debug gatekeeper gup command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug gatekeeper gup {events | asn1}

no debug gatekeeper gup {events | asn1}

Syntax Description

events	Displays a message whenever a GUP announcement is sent or received. GUP is the protocol used between individual gatekeepers in a cluster, which keeps all the gatekeepers synchronized with all endpoints registered on the cluster.
asn1	ASN.1 library. ASN.1 is an International Telecommunication Union (ITU) standard for protocol syntax and message encoding. Entering this keyword causes a packet dump of all GUP announcement messages.

Defaults

Debugging is not enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.1(5)XM	This command was introduced.
12.2(2)T	This command was integrated into Cisco IOS Release 12.2(2)T.
12.2(2)XB1	This command was implemented on the Cisco AS5850 universal gateway.

Examples

The following example shows how to enable a packet dump of all GUP announcement messages:

Router# debug gatekeeper gup asn1

00:10:21:ENCODE BUFFER::= 00 0A2A8648 86F70C0A 00000120 001E8001

86A08001 86A00547 656E6576 614E0000 00000142 80004700 65006E00 65007600

61080050 00610072 00690073 00000000 0000

00:10:21:

00:10:21:PDU ::=

value GUP_Information ::=

protocolIdentifier { 1 2 840 113548 10 0 0 1 }

message announcementIndication :

announcementInterval 30

endpointCapacity 100000

callCapacity 100000

hostName '47656E657661'H

percentMemory 39

percentCPU 0

currentCalls 0

currentEndpoints 0

zoneInformation

gatekeeperIdentifier {"Geneva"}

altGKIdentifier {"Paris"}

totalBandwidth 0

interzoneBandwidth 0

remoteBandwidth 0

RAW_BUFFER::=

00 0A2A8648 86F70C0A 00000120 001E800B 858A8001 86A00144 80007400 6F007200 6E006100
64006F00 2D006700 6B120063 00790063 006C006F 006E0065 002D0067 006B0000 00000000

*Mar  3 15:40:31:

*Mar  3 15:40:31:Sending GUP ANNOUNCEMENT INDICATION to 172.18.195.140RAW_BUFFER::=

00 0A2A8648 86F70C0A 00000120 001E800A EF8A8001 86A00144 80006300 79006300 6C006F00
6E006500 2D006700 6B120074 006F0072 006E0061 0064006F 002D0067 006B0000 00000000

*Mar  3 15:40:31:PDU DATA = 60EAB248

value GUP_Information ::=

protocolIdentifier { 1 2 840 113548 10 0 0 1 }

message announcementIndication :

{

announcementInterval 30

endpointCapacity 716682

callCapacity 100000

zoneInformation

gatekeeperIdentifier {"cyclone-gk"}

altGKIdentifier {"tornado-gk"}

totalBandwidth 0

interzoneBandwidth 0

remoteBandwidth 0

Mar  3 15:40:31:Received GUP ANNOUNCEMENT INDICATION from 172.18.195.140

u all

All possible debugging has been turned off

Related Commands

Command	Description
load-balance	Configures load balancing.

debug gatekeeper load

To display gatekeeper load-balancing debug events, use the debug gatekeeper load command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug gatekeeper load {events}

no debug gatekeeper load {events}

Syntax Description

events

Displays a message whenever a load-balancing message is sent or received.

Defaults

Debugging is not enabled.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.1(5)XM	This command was introduced.
12.2(2)T	This command was integrated into Cisco IOS Release 12.2(2)T.
12.2(2)XB1	This command was implemented on the Cisco AS5850 universal gateway.

Examples

The following is sample output for the debug gatekeeper load command.

---

Note The following output examples are independent of each other and would not ordinarily be seen at the same time.

---

Router# debug gatekeeper load

Router#

Router# show debugging

gk load-balancing debug level = Events

Router#

gk_load_overloaded:Overloaded, 5-second CPU utilization too high

gk_load_overloaded:Overloaded due to excessive calls/endpoints

gk_load_balance_endpt_request:load balance occurred. New load_balance_count=2

Related Commands

Command	Description
load-balance	Configures load balancing.

debug gatekeeper server

To trace all the message exchanges between the Cisco IOS Gatekeeper and the external applications, use the debug gatekeeper server command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug gatekeeper server

no debug gatekeeper server

Syntax Description

This command has no arguments or keywords.

Defaults

Disabled

Command Modes

Privileged EXEC

Command History

Release	Modification
12.1(1)T	This command was introduced.

Usage Guidelines

Use this command to see information about a Gatekeeper server. This command shows any errors that occur in sending messages to the external applications or in parsing messages from the external applications.

Examples

The following example shows debugging information about a Gatekeeper server:

Router# debug gatekeeper servers

Router# show debug

  Gatekeeper:

    Gatekeeper Server Messages debugging is on

To turn the Gatekeeper server debugging message off, see the following examples:

Router# no debug all

Router# no debug gatekeeper servers

Related Commands

Command	Description
show gatekeeper server	Displays information about the Gatekeeper servers configured on your network by ID.

debug glbp errors

To display debugging messages about Gateway Load Balancing Protocol (GLBP) error conditions, use the debug glbp errors command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug glbp errors

no debug glbp errors

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(14)S	This command was introduced.
12.2(15)T	This command was integrated into Cisco IOS Release 12.2(15)T.

Examples

The following is sample output from the debug glbp errors command:

Router# debug glbp errors

GLBP Errors debugging is on

1d19h: GLBP: Fa0/0 API active virtual address 10.21.8.32 not found

1d19h: GLBP: Fa0/0 API active virtual address 10.21.8.32 not found

1d19h: GLBP: Fa0/0 API active virtual address 10.21.8.32 not found

Related Commands

Command	Description
debug condition glbp	Displays debugging messages about GLBP that match specific conditions.

debug glbp events

To display debugging messages about Gateway Load Balancing Protocol (GLBP) events that are occurring, use the debug glbp events command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug glbp events [all | detail | terse]

no debug glbp events [all | detail | terse]

Syntax Description

all	(Optional) Displays all debugging output about GLBP events.
detail	(Optional) Displays detailed debugging output about GLBP events.
terse	(Optional) Displays a limited range of debugging output about GLBP events.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(14)S	This command was introduced.
12.2(15)T	This command was integrated into Cisco IOS Release 12.2(15)T.

Examples

The following is sample output from the debug glbp events command when the terse keyword is specified:

Router# debug glbp events terse

GLBP Events debugging is on

    (protocol, redundancy, track)

Related Commands

Command	Description
debug condition glbp	Displays debugging messages about GLBP that match specific conditions.

debug glbp packets

To display summary information about Gateway Load Balancing Protocol (GLBP) packets being sent or received, use the debug glbp packets command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug glbp packets [all | detail | hello | reply | request | terse]

no debug glbp packets [all | detail | hello | reply | request | terse]

Syntax Description

all	(Optional) Displays all debugging output about GLBP packets.
detail	(Optional) Displays detailed debugging output about GLBP packets.
hello	(Optional) Displays debugging output about GLBP hello packets.
reply	(Optional) Displays debugging output about GLBP reply packets.
request	(Optional) Displays debugging output about GLBP request packets.
terse	(Optional) Displays a limited range of debugging output about GLBP packets.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(14)S	This command was introduced.
12.2(15)T	This command was integrated into Cisco IOS Release 12.2(15)T.

Examples

The following sample output from the debug glbp packets command shows debugging output about GLBP hello packets:

Router# debug glbp packets hello

GLBP Packets debugging is on

    (Hello)

1d19h: GLBP: Fa0/0 Grp 10 Hello  out 10.21.8.32 VG Active  pri 254 vIP 10.21.8.10 1

1d19h: GLBP: Fa0/0 Grp 10 Hello  out 10.21.8.32 VG Active  pri 254 vIP 10.21.8.10 1

1d19h: GLBP: Fa0/0 Grp 10 Hello  out 10.21.8.32 VG Active  pri 254 vIP 10.21.8.10 1

1d19h: GLBP: Fa0/0 Grp 10 Hello  out 10.21.8.32 VG Active  pri 254 vIP 10.21.8.10 1

Related Commands

Command	Description
debug condition glbp	Displays debugging messages about GLBP that match specific conditions.

debug glbp terse

To display a limited range of debugging messages about Gateway Load Balancing Protocol (GLBP) errors, events, and packets, use the debug glbp terse command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug glbp terse

no debug glbp terse

Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(14)S	This command was introduced.
12.2(15)T	This command was integrated into Cisco IOS Release 12.2(15)T.

Examples

The following is sample output from the debug glbp terse command:

Router# debug glbp terse

GLBP:

  GLBP Errors debugging is on

  GLBP Events debugging is on

    (protocol, redundancy, track)

  GLBP Packets debugging is on

    (Request, Reply)

Related Commands

Command	Description
debug condition glbp	Displays debugging messages about GLBP that match specific conditions.
debug glbp errors	Displays debugging messages about GLBP errors.
debug glbp events	Displays debugging messages about GLBP events.
debug glbp packets	Displays debugging messages about GLBP packets.

debug gprs charging

To display information about general packet radio service (GPRS) charging functions on the gateway GPRS support node (GGSN), use the debug gprs charging command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug gprs charging {events | packets}

no debug gprs charging {events | packets}

Syntax Description

events	Displays events related to GPRS charging processing on the GGSN.
packets	Displays GPRS charging packets that are sent between the GGSN and the charging gateway.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.1(1)GA	This command was introduced.
12.1(3)T	This command was integrated into Cisco IOS Release 12.1(3)T.
12.2(4)MX	This command was integrated into Cisco IOS Release 12.2(4)MX.
12.2(8)YD	This command was integrated into Cisco IOS Release 12.2(8)YD.
12.2(8)B	This command was integrated into Cisco IOS Release 12.2(8)B.
12.2(8)YY	This command was integrated into Cisco IOS Release 12.2(8)YY.
12.3(4)T	This command was integrated into Cisco IOS Release 12.3(4)T.

Usage Guidelines

This command is useful for system operators if problems are encountered with GPRS charging functions.

---

Caution Because the debug gprs charging command generates a substantial amount of output, use it only when traffic on the GPRS network is low, so other activity on the system is not adversely affected.

---

Examples

The following example enables the display of events related to GPRS charging events on the GGSN:

Router# debug gprs charging events

The following example enables the display of GPRS charging packets sent between the GGSN and the charging gateway:

Router# debug gprs charging events

debug gprs dfp

To display debug messages for general packet radio service (GPRS) DFP weight calculation, use the debug gprs dfp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug gprs dfp

no debug gprs dfp

Syntax Description

This command has no arguments or keywords.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.1(9)E	This command was introduced.
12.2(4)MX	This command was integrated into Cisco IOS Release 12.2(4)MX.
12.2(8)YD	This command was integrated into Cisco IOS Release 12.2(8)YD.
12.2(8)B	This command was integrated into Cisco IOS Release 12.2(8)B.
12.2(8)YY	This command was integrated into Cisco IOS Release 12.2(8)YY.
12.3(4)T	This command was integrated into Cisco IOS Release 12.3(4)T.

Usage Guidelines

---

Caution Because debugging output is assigned high priority in the CPU process, it can render the system unusable. For this reason, use debug commands only to troubleshoot specific problems or during troubleshooting sessions with Cisco technical support staff. Moreover, it is best to use debug commands during periods of lower network flows and fewer users. Debugging during these periods reduces the effect these commands have on other users on the system.

---

This command displays debug messages for GPRS DFP weight calculation. To display debug messages for the DFP agent subsystem, use the debug ip dfp agent command.

Examples

The following example configures a debug session to check all GPRS DFP weight calculation:

Router# debug gprs dfp

GPRS DFP debugging is on

Router#

The following example stops all debugging:

Router# no debug all

All possible debugging has been turned off

Router#

debug gprs dhcp

To display information about Dynamic Host Configuration Protocol (DHCP) processing on the gateway GPRS support node (GGSN), use the debug gprs dhcp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug gprs dhcp

no debug gprs dhcp

Syntax Description

This command has no arguments or keywords.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(4)MX	This command was introduced.
12.2(8)YD	This command was integrated into Cisco IOS Release 12.2(8)YD.
12.2(8)B	This command was integrated into Cisco IOS Release 12.2(8)B.
12.2(8)YY	This command was integrated into Cisco IOS Release 12.2(8)YY.
12.3(4)T	This command was integrated into Cisco IOS Release 12.3(4)T.

Usage Guidelines

This command is useful for system operators and development engineers if problems are encountered with DHCP processing on the GGSN. To display standard debug messages between the DHCP client on the router and a DHCP server, you can also use the debug dhcp or debug dhcp detail commands with the debug gprs dhcp command.

---

Caution Because the debug gprs dhcp command generates a significant amount of output, use it only when traffic on the GPRS network is low, so other activity on the system is not adversely affected.

---

Examples

The following example shows sample output for DHCP processing on the GGSN:

Router# debug gprs dhcp

2d13h: GPRS:DHCP req:TID 1111111100000099, Req 1

2d13h: GPRS:Requesting IP address for pdp 1111111100000099 from server 172.16.0.8

tableid 0

2d13h: GPRS:DHCP ip allocation pass (10.88.17.43) for pdp 1111111100000099

2d13h: GPRS:Using DHCP ip address 10.88.17.43 for pdp 1111111100000099

The following example shows sample output for standard debug messaging for DHCP processing on the router between the DHCP client and a DHCP server:

2d13h: DHCP: proxy allocate request

2d13h: DHCP: new entry. add to queue

2d13h: DHCP: SDiscover attempt # 1 for entry:

2d13h: DHCP: SDiscover: sending 283 byte length DHCP packet

2d13h: DHCP: SDiscover with directed serv 172.16.0.8, 283 bytes

2d13h: DHCP: XID MATCH in dhcpc_for_us()

2d13h: DHCP: Received a BOOTREP pkt

2d13h: DHCP: offer received from 172.16.0.8

2d13h: DHCP: SRequest attempt # 1 for entry:

2d13h: DHCP: SRequest- Server ID option: 172.16.0.8

2d13h: DHCP: SRequest- Requested IP addr option: 10.88.17.43

2d13h: DHCP: SRequest placed lease len option: 604800

2d13h: DHCP: SRequest: 301 bytes

2d13h: DHCP: SRequest: 301 bytes

2d13h: DHCP: XID MATCH in dhcpc_for_us()

2d13h: DHCP: Received a BOOTREP pkt

2d13h: DHCP Proxy Client Pooling: ***Allocated IP address: 10.88.17.43

Related Commands

Command	Description
debug dhcp	Displays debug messages between the DHCP client on the router and a DHCP server.

debug gprs gtp

To display information about the general packet radio service (GPRS) Tunneling Protocol (GTP), use the debug gprs gtp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug gprs gtp {events | messages | packets | ppp {details | events}}

no debug gprs gtp {events | messages | packets | ppp {details | events}}

Syntax Description

events	Displays events related to GTP processing on the gateway GPRS support node (GGSN).
messages	Displays GTP signaling messages that are sent between the SGSN and GGSN.
packets	Displays GTP packets that are sent between the SGSN and GGSN.
ppp {details | events}	Displays GTP Point-to-Point Protocol (PPP) packets that are sent between the SGSN and GGSN. The details keyword generates more extensive debug output. The events keyword generates output specific to certain conditions that are occurring, which helps qualify the output being received using the details option.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.1(1)GA	This command was introduced.
12.1(5)T	This command was integrated into Cisco IOS Release 12.1(5)T.
12.2(4)MX	This command was integrated into Cisco IOS Release 12.2(4)MX, and the ppp {details | events} option was added.
12.2(8)YD	This command was integrated into Cisco IOS Release 12.2(8)YD.
12.2(8)B	This command was integrated into Cisco IOS Release 12.2(8)B.
12.2(8)YY	This command was integrated into Cisco IOS Release 12.2(8)YY.
12.3(4)T	This command was integrated into Cisco IOS Release 12.3(4)T.

Usage Guidelines

This command is useful for system operators and development engineers if problems are encountered with communication between the GGSN and the SGSN using GTP.

---

Caution Because the debug gprs gtp command generates a significant amount of output, use it only when traffic on the GPRS network is low, so other activity on the system is not adversely affected.

---

Examples

The following example enables the display of events related to GTP processing on the GGSN:

Router# debug gprs gtp events

The following example enables the display of GTP signaling messages:

Router# debug gprs gtp messages

The following example enables the display of GTP packets sent between the SGSN and GGSN:

Router# debug gprs gtp packets

The following example enables the display of GTP PPP events between the SGSN and GGSN:

Router# debug gprs gtp ppp events

The following example enables the display of detailed GTP PPP debug output along with GTP PPP events between the SGSN and GGSN:

Router# debug gprs gtp ppp details

Router# debug gprs gtp ppp events

debug gprs gtp-director

To display information about the general packet radio service (GPRS) Tunneling Protocol (GTP) Director Module (GDM), use the debug gprs gtp-director command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug gprs gtp-director {events | packets}

no debug gprs gtp-director {events | packets}

Syntax Description

events	Displays events related to GDM processing.
packets	Displays packets that are sent between GDM and a gateway GPRS support node (GGSN).

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(4)MX	This command was introduced.
12.2(8)YD	This command was integrated into Cisco IOS Release 12.2(8)YD.
12.2(8)B	This command was integrated into Cisco IOS Release 12.2(8)B.
12.2(8)YY	This command was integrated into Cisco IOS Release 12.2(8)YY.
12.3(4)T	This command was integrated into Cisco IOS Release 12.3(4)T.

Usage Guidelines

This command is useful for system operators and development engineers if problems are encountered with communication between GDM and an SGSN, or between GDM and a GGSN.

---

Caution Because the debug gprs gtp-director command generates a significant amount of output, use it only when traffic on the GPRS network is low, so other activity on the system is not adversely affected.

---

Examples

The following debug examples provide sample output for a create PDP context request, delete PDP context request, and clear PDP context using PPP regeneration on the GGSN. The first three examples show output related to debug events messaging only. The last three examples show output while both debug events and details are enabled on the GGSN.

Example 1

The following example displays events related to PPP regeneration processing for a create PDP context requested received by the GGSN:

Router# debug gprs gtp-director events

*Mar  1 00:02:42.787: GPRS:1111110000000000:Authen: PAP username: user@pdn.com

*Mar  1 00:02:42.787: GPRS:1111110000000000:Processing Initiate PPP regen from reqQ

*Mar  1 00:02:42.787: GPRS:1111110000000000:got event [REQUEST PPP REGEN] in state [IDLE]

*Mar  1 00:02:42.787: GPRS:1111110000000000:state [IDLE->AUTHORIZING] on event

[REQUEST PPP REGEN]

*Mar  1 00:02:42.787: GPRS:1111110000000000:Got VPN authorization info

*Mar  1 00:02:42.787: GPRS:1111110000000000:got event [AUTHOR SUCCESS] in state

[AUTHORIZING]

*Mar  1 00:02:42.787: GPRS:1111110000000000:state [AUTHORIZING->VPDN CONNECTING]

on event [AUTHOR SUCCESS]

*Mar  1 00:02:42.787: GPRS:1111110000000000:Author succeeded, establishing the tunnel

*Mar  1 00:02:42.787: GPRS:1111110000000000:Create/Clone vaccess to negotiate PPP

*Mar  1 00:02:42.791: GPRS:1111110000000000:MS no static IP addr. Get one via IPCP

*Mar  1 00:02:42.827: GPRS:1111110000000000:VPDN to inform PPP regen: CONNECTED

*Mar  1 00:02:42.827: GPRS:1111110000000000:got event [VPDN CONNECTED] in state

[VPDN CONNECTING]

*Mar  1 00:02:42.827: GPRS:1111110000000000:state [VPDN CONNECTING->PPP NEGOTIATING]

on event [VPDN CONNECTED]

*Mar  1 00:02:42.827: GPRS:1111110000000000:Start PPP negotiations on vaccess

*Mar  1 00:02:42.831: %LINK-3-UPDOWN: Interface Virtual-Access3, changed state to up

*Mar  1 00:02:42.835: GPRS:1111110000000000:IPCP is up

*Mar  1 00:02:42.835: GPRS:1111110000000000:IP addr 10.10.1.187 is negotiated for MS

*Mar  1 00:02:42.835: GPRS:1111110000000000:DNS - Primary: 10.3.0.1 Secondary: 0.0.0.0

NetBios - Primary: 0.0.0.0, Secondary: 0.0.0.0

*Mar  1 00:02:42.835: GPRS:1111110000000000:PPP connected

*Mar  1 00:02:42.835: GPRS:1111110000000000:got event [PPP NEGOTIATED] in state

[PPP NEGOTIATING]

*Mar  1 00:02:42.835: GPRS:1111110000000000:state [PPP NEGOTIATING->PPP CONNECTED]

on event [PPP NEGOTIATED]

*Mar  1 00:02:42.835: GPRS:1111110000000000:PPP succeeded negotiation, session established

*Mar  1 00:02:43.835: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access3,

changed state to up

Example 2

The following example displays events related to PPP regeneration processing for a delete PDP context requested received by the GGSN:

Router# debug gprs gtp-director events

*Mar  1 00:03:18.331: GPRS:1111110000000000:GTP disconnecting the PPP regen session

*Mar  1 00:03:18.331: GPRS:1111110000000000:Processing Disconnect PPP regen from reqQ

*Mar  1 00:03:18.331: GPRS:1111110000000000:got event [CANCEL REGEN'ED PPP] in state

[PPP CONNECTED]

*Mar  1 00:03:18.331: GPRS:1111110000000000:state [PPP CONNECTED->PPP TERMINATING]

on event [CANCEL REGEN'ED PPP]

*Mar  1 00:03:18.331: GPRS:1111110000000000:Cancel request after VPND tunnel is up

*Mar  1 00:03:18.335: GPRS:1111110000000000:PPP down

*Mar  1 00:03:18.335: GPRS:1111110000000000:got event [PPP FAILED] in state

[PPP TERMINATING]

*Mar  1 00:03:18.339: GPRS:1111110000000000:state [PPP TERMINATING->IDLE] on event

[PPP FAILED]

*Mar  1 00:03:18.339: GPRS:1111110000000000:PPP failed negotiation

*Mar  1 00:03:18.339: GPRS:1111110000000000:got event [CLEANUP CONTEXT] in state [IDLE]

*Mar  1 00:03:18.339: GPRS:1111110000000000:VPDN to inform PPP regen: DISCONNECTED

*Mar  1 00:03:18.339: GPRS:1111110000000000:got event [VPDN DISCONNECTED] in state [IDLE]

*Mar  1 00:03:18.339: GPRS:1111110000000000:state [IDLE->IDLE] on event [CLEANUP CONTEXT]

*Mar  1 00:03:18.339: GPRS:1111110000000000:Freeing context structure

*Mar  1 00:03:18.339: %LINK-3-UPDOWN: Interface Virtual-Access3, changed state to down

*Mar  1 00:03:19.331: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access3,

changed state to down

Example 3

The following example displays events related to PPP regeneration processing as the GGSN clears a PDP context request:

Router# debug gprs gtp-director events

*Mar  1 00:04:50.083: GPRS:1111110000000000:GTP disconnecting the PPP regen session

*Mar  1 00:04:50.083: GPRS:1111110000000000:Processing Disconnect PPP regen from reqQ

*Mar  1 00:04:50.083: GPRS:1111110000000000:got event [CANCEL REGEN'ED PPP] in state

[PPP CONNECTED]

*Mar  1 00:04:50.083: GPRS:1111110000000000:state [PPP CONNECTED->PPP TERMINATING]

on event [CANCEL REGEN'ED PPP]

*Mar  1 00:04:50.083: GPRS:1111110000000000:Cancel request after VPND tunnel is up

*Mar  1 00:04:50.087: GPRS:1111110000000000:PPP down

*Mar  1 00:04:50.087: GPRS:1111110000000000:got event [PPP FAILED] in state

[PPP TERMINATING]

*Mar  1 00:04:50.091: GPRS:1111110000000000:state [PPP TERMINATING->IDLE] on event

[PPP FAILED]

*Mar  1 00:04:50.091: GPRS:1111110000000000:PPP failed negotiation

*Mar  1 00:04:50.091: GPRS:1111110000000000:got event [CLEANUP CONTEXT] in state [IDLE]

*Mar  1 00:04:50.091: GPRS:1111110000000000:VPDN to inform PPP regen: DISCONNECTED

*Mar  1 00:04:50.091: GPRS:1111110000000000:got event [VPDN DISCONNECTED] in state [IDLE]

*Mar  1 00:04:50.091: GPRS:1111110000000000:state [IDLE->IDLE] on event [CLEANUP CONTEXT]

*Mar  1 00:04:50.091: GPRS:1111110000000000:Freeing context structure

*Mar  1 00:04:50.091: %LINK-3-UPDOWN: Interface Virtual-Access4, changed state to down

*Mar  1 00:04:51.083: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access4,

changed state to down

Example 4

The following example displays both debug events and details related to PPP regeneration processing for a create PDP context requested received by the GGSN:

Router# debug gprs gtp-director events

Router# debug gprs gtp-director details

*Mar  1 00:05:21.083: PPP-REGEN state counters: pending counter is 0

*Mar  1 00:05:21.083:           State[IDLE] counter is 0

*Mar  1 00:05:21.083:           State[AUTHORIZING] counter is 0

*Mar  1 00:05:21.083:           State[VPDN CONNECTING] counter is 0

*Mar  1 00:05:21.083:           State[PPP NEGOTIATING] counter is 0

*Mar  1 00:05:21.083:           State[PPP CONNECTED] counter is 0

*Mar  1 00:05:21.083:           State[PPP TERMINATING] counter is 0

*Mar  1 00:05:21.087: PPP-REGEN state counters: pending counter is 1

*Mar  1 00:05:21.087:           State[IDLE] counter is 1

*Mar  1 00:05:21.087:           State[AUTHORIZING] counter is 0

*Mar  1 00:05:21.087:           State[VPDN CONNECTING] counter is 0

*Mar  1 00:05:21.087:           State[PPP NEGOTIATING] counter is 0

*Mar  1 00:05:21.087:           State[PPP CONNECTED] counter is 0

*Mar  1 00:05:21.087:           State[PPP TERMINATING] counter is 0

*Mar  1 00:05:21.087: GPRS:1111110000000000:Authen: PAP username: user@pdn.com

*Mar  1 00:05:21.087: GPRS:1111110000000000:Session timer started

*Mar  1 00:05:21.087: GPRS:1111110000000000:Processing Initiate PPP regen from reqQ

*Mar  1 00:05:21.087: GPRS:1111110000000000:got event [REQUEST PPP REGEN] in state [IDLE]

*Mar  1 00:05:21.087: PPP-REGEN state counters: pending counter is 1

*Mar  1 00:05:21.087:           State[IDLE] counter is 0

*Mar  1 00:05:21.087:           State[AUTHORIZING] counter is 1

*Mar  1 00:05:21.087:           State[VPDN CONNECTING] counter is 0

*Mar  1 00:05:21.087:           State[PPP NEGOTIATING] counter is 0

*Mar  1 00:05:21.087:           State[PPP CONNECTED] counter is 0

*Mar  1 00:05:21.087:           State[PPP TERMINATING] counter is 0

*Mar  1 00:05:21.087: GPRS:1111110000000000:state [IDLE->AUTHORIZING] on event

[REQUEST PPP REGEN]

*Mar  1 00:05:21.087: GPRS:1111110000000000:Got VPN authorization info

*Mar  1 00:05:21.087: GPRS:1111110000000000:got event [AUTHOR SUCCESS]

in state [AUTHORIZING]

*Mar  1 00:05:21.087: PPP-REGEN state counters: pending counter is 1

*Mar  1 00:05:21.087:           State[IDLE] counter is 0

*Mar  1 00:05:21.087:           State[AUTHORIZING] counter is 0

*Mar  1 00:05:21.087:           State[VPDN CONNECTING] counter is 1

*Mar  1 00:05:21.087:           State[PPP NEGOTIATING] counter is 0

*Mar  1 00:05:21.087:           State[PPP CONNECTED] counter is 0

*Mar  1 00:05:21.087:           State[PPP TERMINATING] counter is 0

*Mar  1 00:05:21.087: GPRS:1111110000000000:state [AUTHORIZING->VPDN CONNECTING]

on event [AUTHOR SUCCESS]

*Mar  1 00:05:21.087: GPRS:1111110000000000:Author succeeded, establishing the tunnel

*Mar  1 00:05:21.087: GPRS:1111110000000000:Create/Clone vaccess to negotiate PPP

*Mar  1 00:05:21.091: GPRS:1111110000000000:MS no static IP addr. Get one via IPCP

*Mar  1 00:05:21.127: GPRS:1111110000000000:VPDN to inform PPP regen: CONNECTED

*Mar  1 00:05:21.127: GPRS:1111110000000000:got event [VPDN CONNECTED] in state

[VPDN CONNECTING]

*Mar  1 00:05:21.127: PPP-REGEN state counters: pending counter is 1

*Mar  1 00:05:21.127:           State[IDLE] counter is 0

*Mar  1 00:05:21.127:           State[AUTHORIZING] counter is 0

*Mar  1 00:05:21.127:           State[VPDN CONNECTING] counter is 0

*Mar  1 00:05:21.127:           State[PPP NEGOTIATING] counter is 1

*Mar  1 00:05:21.127:           State[PPP CONNECTED] counter is 0

*Mar  1 00:05:21.127:           State[PPP TERMINATING] counter is 0

*Mar  1 00:05:21.127: GPRS:1111110000000000:state [VPDN CONNECTING->PPP NEGOTIATING]

on event [VPDN CONNECTED]

*Mar  1 00:05:21.127: GPRS:1111110000000000:Start PPP negotiations on vaccess

*Mar  1 00:05:21.131: %LINK-3-UPDOWN: Interface Virtual-Access5, changed state to up

*Mar  1 00:05:22.135: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access5,

changed state to up

*Mar  1 00:05:23.143: GPRS:1111110000000000:IPCP is up

*Mar  1 00:05:23.143: GPRS:1111110000000000:LNS allocates 10.10.1.187 for MS

*Mar  1 00:05:23.143: GPRS:1111110000000000:IP addr 10.10.1.187 is negotiated for MS

*Mar  1 00:05:23.143: GPRS:1111110000000000:DNS - Primary: 10.3.0.1 Secondary: 0.0.0.0

NetBios - Primary: 0.0.0.0, Secondary: 0.0.0.0

*Mar  1 00:05:23.143: GPRS:1111110000000000:PPP connected

*Mar  1 00:05:23.143: GPRS:1111110000000000:got event [PPP NEGOTIATED] in state

[PPP NEGOTIATING]

*Mar  1 00:05:23.143: PPP-REGEN state counters: pending counter is 0

*Mar  1 00:05:23.143:           State[IDLE] counter is 0

*Mar  1 00:05:23.143:           State[AUTHORIZING] counter is 0

*Mar  1 00:05:23.143:           State[VPDN CONNECTING] counter is 0

*Mar  1 00:05:23.143:           State[PPP NEGOTIATING] counter is 0

*Mar  1 00:05:23.143:           State[PPP CONNECTED] counter is 1

*Mar  1 00:05:23.143:           State[PPP TERMINATING] counter is 0

*Mar  1 00:05:23.143: GPRS:1111110000000000:state [PPP NEGOTIATING->PPP CONNECTED]

on event [PPP NEGOTIATED]

*Mar  1 00:05:23.143: GPRS:1111110000000000:PPP succeeded negotiation, session established

*Mar  1 00:05:23.143: GPRS:1111110000000000:Session timer stopped

Example 5

The following example displays both debug events and details related to PPP regeneration processing for a delete PDP context requested received by the GGSN:

Router# debug gprs gtp-director events

Router# debug gprs gtp-director details

*Mar  1 00:05:52.399: PPP-REGEN state counters: pending counter is 0

*Mar  1 00:05:52.399:           State[IDLE] counter is 0

*Mar  1 00:05:52.399:           State[AUTHORIZING] counter is 0

*Mar  1 00:05:52.399:           State[VPDN CONNECTING] counter is 0

*Mar  1 00:05:52.399:           State[PPP NEGOTIATING] counter is 0

*Mar  1 00:05:52.399:           State[PPP CONNECTED] counter is 1

*Mar  1 00:05:52.399:           State[PPP TERMINATING] counter is 0

*Mar  1 00:05:52.399: GPRS:1111110000000000:PPP regen current state PPP CONNECTED

*Mar  1 00:05:52.399: GPRS:1111110000000000:GTP disconnecting the PPP regen session

*Mar  1 00:05:52.399: GPRS:1111110000000000:Processing Disconnect PPP regen from reqQ

*Mar  1 00:05:52.399: GPRS:1111110000000000:got event [CANCEL REGEN'ED PPP] in state

[PPP CONNECTED]

*Mar  1 00:05:52.399: PPP-REGEN state counters: pending counter is 1

*Mar  1 00:05:52.399:           State[IDLE] counter is 0

*Mar  1 00:05:52.399:           State[AUTHORIZING] counter is 0

*Mar  1 00:05:52.399:           State[VPDN CONNECTING] counter is 0

*Mar  1 00:05:52.399:           State[PPP NEGOTIATING] counter is 0

*Mar  1 00:05:52.399:           State[PPP CONNECTED] counter is 0

*Mar  1 00:05:52.399:           State[PPP TERMINATING] counter is 1

*Mar  1 00:05:52.399: GPRS:1111110000000000:state [PPP CONNECTED->PPP TERMINATING]

on event [CANCEL REGEN'ED PPP]

*Mar  1 00:05:52.399: GPRS:1111110000000000:Cancel request after VPND tunnel is up

*Mar  1 00:05:52.403: GPRS:1111110000000000:PPP down

*Mar  1 00:05:52.403: GPRS:1111110000000000:got event [PPP FAILED] in state

[PPP TERMINATING]

*Mar  1 00:05:52.407: PPP-REGEN state counters: pending counter is 1

*Mar  1 00:05:52.407:           State[IDLE] counter is 1

*Mar  1 00:05:52.407:           State[AUTHORIZING] counter is 0

*Mar  1 00:05:52.407:           State[VPDN CONNECTING] counter is 0

*Mar  1 00:05:52.407:           State[PPP NEGOTIATING] counter is 0

*Mar  1 00:05:52.407:           State[PPP CONNECTED] counter is 0

*Mar  1 00:05:52.407:           State[PPP TERMINATING] counter is 0

*Mar  1 00:05:52.407: GPRS:1111110000000000:state [PPP TERMINATING->IDLE] on event

[PPP FAILED]

*Mar  1 00:05:52.407: GPRS:1111110000000000:PPP failed negotiation

*Mar  1 00:05:52.407: GPRS:1111110000000000:got event [CLEANUP CONTEXT] in state [IDLE]

*Mar  1 00:05:52.407: GPRS:1111110000000000:VPDN to inform PPP regen: DISCONNECTED

*Mar  1 00:05:52.407: GPRS:1111110000000000:got event [VPDN DISCONNECTED] in state [IDLE]

*Mar  1 00:05:52.407: GPRS:1111110000000000:state [IDLE->IDLE] on event [CLEANUP CONTEXT]

*Mar  1 00:05:52.407: GPRS:1111110000000000:Freeing context structure

*Mar  1 00:05:52.407: GPRS:1111110000000000:Session timer stopped

*Mar  1 00:05:52.407: PPP-REGEN state counters: pending counter is 0

*Mar  1 00:05:52.407:           State[IDLE] counter is 0

*Mar  1 00:05:52.407:           State[AUTHORIZING] counter is 0

*Mar  1 00:05:52.407:           State[VPDN CONNECTING] counter is 0

*Mar  1 00:05:52.407:           State[PPP NEGOTIATING] counter is 0

*Mar  1 00:05:52.407:           State[PPP CONNECTED] counter is 0

*Mar  1 00:05:52.407:           State[PPP TERMINATING] counter is 0

*Mar  1 00:05:52.407: GPRS:1111110000000000:PPP regen context 0x6219F4BC released

*Mar  1 00:05:52.407: GPRS:GTP-PPP-REGEN context magic(0x619D4FBC) invalid

*Mar  1 00:05:52.407: %LINK-3-UPDOWN: Interface Virtual-Access5, changed state to down

*Mar  1 00:05:53.399: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access5,

changed state to down

Example 6

The following example displays both debug events and details related to PPP regeneration processing as the GGSN clears a PDP context request:

Router# debug gprs gtp-director events

Router# debug gprs gtp-director details

*Mar  1 00:06:34.907: PPP-REGEN state counters: pending counter is 0

*Mar  1 00:06:34.907:           State[IDLE] counter is 0

*Mar  1 00:06:34.907:           State[AUTHORIZING] counter is 0

*Mar  1 00:06:34.907:           State[VPDN CONNECTING] counter is 0

*Mar  1 00:06:34.907:           State[PPP NEGOTIATING] counter is 0

*Mar  1 00:06:34.907:           State[PPP CONNECTED] counter is 1

*Mar  1 00:06:34.907:           State[PPP TERMINATING] counter is 0

*Mar  1 00:06:34.907: GPRS:1111110000000000:PPP regen current state PPP CONNECTED

*Mar  1 00:06:34.907: GPRS:1111110000000000:GTP disconnecting the PPP regen session

*Mar  1 00:06:34.907: GPRS:1111110000000000:Processing Disconnect PPP regen from reqQ

*Mar  1 00:06:34.907: GPRS:1111110000000000:got event [CANCEL REGEN'ED PPP] in state

[PPP CONNECTED]

*Mar  1 00:06:34.907: PPP-REGEN state counters: pending counter is 1

*Mar  1 00:06:34.907:           State[IDLE] counter is 0

*Mar  1 00:06:34.907:           State[AUTHORIZING] counter is 0

*Mar  1 00:06:34.907:           State[VPDN CONNECTING] counter is 0

*Mar  1 00:06:34.907:           State[PPP NEGOTIATING] counter is 0

*Mar  1 00:06:34.907:           State[PPP CONNECTED] counter is 0

*Mar  1 00:06:34.907:           State[PPP TERMINATING] counter is 1

*Mar  1 00:06:34.907: GPRS:1111110000000000:state [PPP CONNECTED->PPP TERMINATING]

on event [CANCEL REGEN'ED PPP]

*Mar  1 00:06:34.907: GPRS:1111110000000000:Cancel request after VPND tunnel is up

*Mar  1 00:06:34.911: GPRS:1111110000000000:PPP down

*Mar  1 00:06:34.911: GPRS:1111110000000000:got event [PPP FAILED] in state

[PPP TERMINATING]

*Mar  1 00:06:34.915: PPP-REGEN state counters: pending counter is 1

*Mar  1 00:06:34.915:           State[IDLE] counter is 1

*Mar  1 00:06:34.915:           State[AUTHORIZING] counter is 0

*Mar  1 00:06:34.915:           State[VPDN CONNECTING] counter is 0

*Mar  1 00:06:34.915:           State[PPP NEGOTIATING] counter is 0

*Mar  1 00:06:34.915:           State[PPP CONNECTED] counter is 0

*Mar  1 00:06:34.915:           State[PPP TERMINATING] counter is 0

*Mar  1 00:06:34.915: GPRS:1111110000000000:state [PPP TERMINATING->IDLE] on event

[PPP FAILED]

*Mar  1 00:06:34.915: GPRS:1111110000000000:PPP failed negotiation

*Mar  1 00:06:34.915: GPRS:1111110000000000:got event [CLEANUP CONTEXT] in state [IDLE]

*Mar  1 00:06:34.915: GPRS:1111110000000000:VPDN to inform PPP regen: DISCONNECTED

*Mar  1 00:06:34.915: GPRS:1111110000000000:got event [VPDN DISCONNECTED] in state [IDLE]

*Mar  1 00:06:34.915: GPRS:1111110000000000:state [IDLE->IDLE] on event [CLEANUP CONTEXT]

*Mar  1 00:06:34.915: GPRS:1111110000000000:Freeing context structure

*Mar  1 00:06:34.915: GPRS:1111110000000000:Session timer stopped

*Mar  1 00:06:34.915: PPP-REGEN state counters: pending counter is 0

*Mar  1 00:06:34.915:           State[IDLE] counter is 0

*Mar  1 00:06:34.915:           State[AUTHORIZING] counter is 0

*Mar  1 00:06:34.915:           State[VPDN CONNECTING] counter is 0

*Mar  1 00:06:34.915:           State[PPP NEGOTIATING] counter is 0

*Mar  1 00:06:34.915:           State[PPP CONNECTED] counter is 0

*Mar  1 00:06:34.915:           State[PPP TERMINATING] counter is 0

*Mar  1 00:06:34.915: GPRS:1111110000000000:PPP regen context 0x62196E10 released

*Mar  1 00:06:34.915: GPRS:GTP-PPP-REGEN context magic(0x619D4FBC) invalid

*Mar  1 00:06:34.915: %LINK-3-UPDOWN: Interface Virtual-Access3, changed state to down

*Mar  1 00:06:35.907: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access3,

changed state to down

debug gprs gtp parsing

To display information about the parsing of general packet radio service (GPRS) Tunneling Protocol (GTP) information elements (IEs) in signaling requests, use the debug gprs gtp parsing command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug gprs gtp parsing

no debug gprs gtp parsing

Syntax Description

This command has no arguments or keywords.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(4)MX	This command was introduced.
12.2(8)YD	This command was integrated into Cisco IOS Release 12.2(8)YD.
12.2(8)B	This command was integrated into Cisco IOS Release 12.2(8)B.
12.2(8)YY	This command was integrated into Cisco IOS Release 12.2(8)YY.
12.3(4)T	This command was integrated into Cisco IOS Release 12.3(4)T.

Usage Guidelines

This command is useful for system operators and development engineers to verify parsing of GTP IEs in signaling requests that are received by GDM or by the gateway GPRS support node (GGSN). If the packet is parsed successfully, you will receive a message along with the tunnel identifier (TID) for the packet as shown in the following example:

GPRS:TID:7300000000000000:Packet Parsed successfully

The debug gprs gtp parsing command can be used to verify GDM or GGSN processing of IEs.

---

Caution Because the debug gprs gtp parsing command generates a significant amount of output, use it only when traffic on the GPRS network is low, so other activity on the system is not adversely affected.

---

Examples

The following example enables the display of debug messages that occur while GDM or the GGSN parses GTP IEs:

Router# debug gprs gtp parsing

debug gprs gtp ppp

To display information about Point-to-Point Protocol (PPP) packet data protocol (PDP) type processing on the gateway GPRS support node (GGSN), use the debug gprs gtp ppp command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug gprs gtp ppp {events | details}

no debug gprs gtp ppp {events | details}

Syntax Description

events	Displays messages specific to certain conditions that are occurring during PPP PDP type processing.
details	Displays more extensive and lower-level messages related to PPP PDP type processing.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(4)MX	This command was introduced.
12.2(8)YD	This command was integrated into Cisco IOS Release 12.2(8)YD.
12.2(8)B	This command was integrated into Cisco IOS Release 12.2(8)B.
12.2(8)YY	This command was integrated into Cisco IOS Release 12.2(8)YY.
12.3(4)T	This command was integrated into Cisco IOS Release 12.3(4)T.

Usage Guidelines

This command is useful for system operators and development engineers if problems are encountered with PPP PDP type processing on the GGSN.

You can enable both forms of the debug gprs gtp ppp command at the same time as separate command line entries. The events keyword generates output specific to certain conditions that are occurring, which helps qualify the output being received using the details option.

---

Caution Because the debug gprs gtp ppp command generates a significant amount of output, use it only when traffic on the GPRS network is low, so other activity on the system is not adversely affected.

---

Examples

The following debug examples provide sample output for a create PDP context request and clear PDP context using PPP PDP type on the GGSN. The examples show output while both debug events and details are enabled on the GGSN.

Example 1

The following example displays details and events output related to PPP PDP context processing for a create PDP context requested received by the GGSN:

Router# debug gprs gtp ppp events

GTP PPP events display debugging is on

Router# debug gprs gtp ppp details

GTP PPP details display debugging is on

tb9-7200b#

3d23h: GPRS:

3d23h: GTP-PPP Fa1/0: Create new gtp_ppp_info

3d23h: GPRS:

3d23h: GTP-PPP: domain gprs.cisco.com not in any VPDN group

3d23h: GPRS:

3d23h: GTP-PPP: aaa-group accounting not configured under APN gprs.cisco.com

3d23h: GPRS:GTP-PPP: Don't cache internally generated pak's header

3d23h: %LINK-3-UPDOWN: Interface Virtual-Access2, changed state to up

3d23h: GPRS:

3d23h: GTP-PPP Vi2: gtp_ppp_cstate_react changing states

3d23h: GPRS:GTP-PPP: pdp_entry 0x62F442A4, recv ppp data pak

3d23h: GPRS:GTP-PPP Vi2: proc_udp_input pak's linktype = 30

3d23h: GPRS:GTP-PPP: pdp_entry 0x62F442A4, recv ppp data pak

3d23h: GPRS:GTP-PPP Vi2: proc_udp_input pak's linktype = 30

3d23h: GPRS:GTP-PPP: pdp_entry 0x62F442A4, recv ppp data pak

3d23h: GPRS:GTP-PPP Vi2: proc_udp_input pak's linktype = 30

3d23h: GPRS:

3d23h: GTP-PPP: Vi2: Concat names user00 & gprs.cisco.com

3d23h: GPRS:

3d23h: GTP-PPP: New username after concat: user00@gprs.cisco.com

3d23h: GPRS:

3d23h: GTP-PPP: Vi2: Concat names user00@gprs.cisco.com & gprs.cisco.com

3d23h: GPRS:

3d23h: GTP-PPP: New username after concat: user00@gprs.cisco.com

3d23h: GPRS:GTP-PPP: pdp_entry 0x62F442A4, recv ppp data pak

3d23h: GPRS:GTP-PPP Vi2: proc_udp_input pak's linktype = 30

3d23h: GPRS:GTP-PPP: pdp_entry 0x62F442A4, recv ppp data pak

3d23h: GPRS:GTP-PPP Vi2: proc_udp_input pak's linktype = 30

3d23h: GPRS:GTP-PPP: pdp_entry 0x62F442A4, recv ppp data pak

3d23h: GPRS:GTP-PPP Vi2: proc_udp_input pak's linktype = 30

3d23h: GPRS:GTP-PPP: pdp_entry 0x62F442A4, recv ppp data pak

3d23h: GPRS:GTP-PPP Vi2: proc_udp_input pak's linktype = 30

3d23h: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access2, changed state to

up

3d23h: GPRS:GTP-PPP: pdp_entry 0x62F442A4, recv ppp data pak

3d23h: GPRS:GTP-PPP Vi2: proc_udp_input pak's linktype = 30

3d23h: GPRS:GTP-PPP: pdp_entry 0x62F442A4, recv ppp data pak

3d23h: GPRS:GTP-PPP Vi2: proc_udp_input pak's linktype = 30

3d23h: GPRS:

3d23h: GTP-PPP Vi2: gtp_ppp_protocol_up is notified about intf UP

3d23h: GPRS:

3d23h: GTP-PPP Vi2: PDP w/ MS addr 98.102.0.1 inserted into IP radix tree

Example 2

The following example displays both details and events related to PPP PDP type processing after clearing PDP contexts on the GGSN:

Router# clear gprs gtp pdp-context all

3d23h: GPRS:GTP-PPP: pdp_entry 0x62F442A4, recv ppp data pak

3d23h: GPRS:GTP-PPP Vi2: proc_udp_input pak's linktype = 30

3d23h: GPRS:GTP-PPP: pdp_entry 0x62F442A4, recv ppp data pak

3d23h: GPRS:GTP-PPP Vi2: proc_udp_input pak's linktype = 30

3d23h: GPRS:

3d23h: GTP-PPP Vi2: gtp_ppp_pdp_terminate shutting down the vaccess

3d23h: GPRS:

3d23h: GTP-PPP Vi2: gtp_ppp_pdp_shut_va shutting down intf

3d23h: %LINK-3-UPDOWN: Interface Virtual-Access2, changed state to down

3d23h: GPRS:

3d23h: GTP-PPP Vi2: gtp_ppp_cstate_react changing states

3d23h: GPRS:

3d23h: GTP-PPP Vi2: gtp_ppp_free_va resetting intf vectors

3d23h: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access2, changed state

to down

debug gprs gtp ppp-regeneration

To display information about Point-to-Point Protocol (PPP) regeneration processing on the gateway GPRS support node (GGSN), use the debug gprs gtp ppp-regeneration command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug gprs gtp ppp-regeneration {events | details}

no debug gprs gtp ppp-regeneration {events | details}

Syntax Description

events	Displays messages specific to certain conditions that are occurring during PPP regeneration processing.
details	Displays more extensive and lower-level messages related to PPP regeneration processing.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release	Modification
12.2(4)MX	This command was introduced.
12.2(8)YD	This command was integrated into Cisco IOS Release 12.2(8)YD.
12.2(8)B	This command was integrated into Cisco IOS Release 12.2(8)B.
12.2(8)YY	This command was integrated into Cisco IOS Release 12.2(8)YY.
12.3(4)T	This command was integrated into Cisco IOS Release 12.3(4)T.

Usage Guidelines

This command is useful for system operators and development engineers if problems are encountered with communication between GDM and a GGSN.

You can enable both forms of the debug gprs gtp ppp-regeneration command at the same time as separate command line entries. The events keyword generates output specific to certain conditions that are occurring, which helps qualify the output being received using the details option.

---

Caution Because the debug gprs gtp ppp-regeneration command generates a significant amount of output, use it only when traffic on the GPRS network is low, so other activity on the system is not adversely affected.

---

Examples

The following debug examples provide sample output for a create PDP context request and clear PDP context using PPP regeneration on the GGSN. The examples show output while both debug events and details are enabled on the GGSN.

Example 1

The following example displays details and events output related to PPP regeneration processing for a create PDP context requested received by the GGSN:

Router# debug gprs gtp ppp-regeneration details

GTP PPP regeneration details display debugging is on

Router# debug gprs gtp ppp-regeneration events

GTP PPP regeneration events display debugging is on

06:24:02: PPP-REGEN state counters: pending counter is 0

06:24:02:               State[IDLE] counter is 0

06:24:02:               State[AUTHORIZING] counter is 0

06:24:02:               State[VPDN CONNECTING] counter is 0

06:24:02:               State[PPP NEGOTIATING] counter is 0

06:24:02:               State[PPP CONNECTED] counter is 0

06:24:02:               State[PPP TERMINATING] counter is 0

06:24:02: PPP-REGEN state counters: pending counter is 1

06:24:02:               State[IDLE] counter is 1

06:24:02:               State[AUTHORIZING] counter is 0

06:24:02:               State[VPDN CONNECTING] counter is 0

06:24:02:               State[PPP NEGOTIATING] counter is 0

06:24:02:               State[PPP CONNECTED] counter is 0

06:24:02:               State[PPP TERMINATING] counter is 0

06:24:02: GPRS:1011111111500001:Authen: PAP username: tomy1@corporate_1.com

06:24:02: GPRS:1011111111500001:Session timer started

06:24:02: GPRS:Processing PPP regen reqQ

06:24:02: GPRS:1011111111500001:Processing Initiate PPP  regen from reqQ

06:24:02: GPRS:1011111111500001:got event [REQUEST PPP REGEN] in state [IDLE]

06:24:02: PPP-REGEN state counters: pending counter is 1

06:24:02:               State[IDLE] counter is 0

06:24:02:               State[AUTHORIZING] counter is 1

06:24:02:               State[VPDN CONNECTING] counter is 0

<
