WebVPN
The Cisco WebVPN feature provides remote access to enterprise sites by users from anywhere on the Internet. The Secure Socket Layer (SSL) Virtual Private Network (VPN) provides users with secure access to specific enterprise applications, such as e-mail and web browsing, without requiring them to have VPN client software installed on their end-user devices.
Note
The WebVPN Enhancements feature, released in Cisco IOS Release 12.4(6)T, obsoletes the commands and configuration described in this document. If you are using a platform that is not supported in 12.4(6)T, you can continue to use 12.3T and 12.4 mainline images. The WebVPN Enhancements feature expands SSLVPN functionality in Cisco IOS Software. For more information about Cisco IOS WebVPN Enhancements, see the following document: http://www.cisco.com/en/US/customer/products/ps6441/products_feature_guide09186a00805eeaea.html
Feature History for WebVPN
12.3(14)T
This feature was introduced.
12.4(6)T
This feature was replaced by the WebVPN Enhancements feature.
Finding Support Information for Platforms and Cisco IOS Software Images
Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.
Contents
•
Prerequisites for WebVPN
•
–
–
–
–
•
Restrictions for WebVPN
•
•
•
•
Information About WebVPN
To configure the WebVPN feature, you should understand the following concept:
WebVPN
The WebVPN feature provides end users with unrestricted, secure remote access to enterprise sites without having VPN installed on their end devices. Users can access the enterprise sites from anywhere on the Internet and can access enterprise applications such as e-mail and web browsing.
This feature provides for an administrator interface and an end-user interface.
Administrator Interface
Enterprise administrators can enable WebVPN functionality for their end users through the command-line-interface (CLI) on their Cisco IOS routers. See the section "Configuring WebVPN."
End User Interface
A user whose enterprise has configured WebVPN can access the enterprise network by launching a browser and connecting to the WebVPN gateway that is hosted by the enterprise network. The user will present his or her credentials, be authenticated, and see the portal page (home page) of the enterprise site. The portal page will display those functionalities (for example, e-mail and Web browsing) to which the user has access on the basis of his or her credentials. If the user has access to all functionalities of the WebVPN gateway, the home page will provide links to all those functionalities.
Note
The following sections explain the user interface in more detail:
•
Page Flow
This section describes the page flow that an end user will see as he or she uses a WebVPN session. The user first enters the Hypertext Transfer Protocol Secure (HTTPS) URL (https://address) into his or her browser. The user is redirected to https://address/index.html, where the login page is located.
Figure 1 illustrates the flow of pages that the user may expect to see.
Figure 1 Page Flow
Initial Connection
If the user enters the HTTP URL, the browser will be redirected to the equivalent HTTPS URL. Depending on the configuration of the browser, this redirection may cause a warning in the browser of the user indicating that he or she is being redirected to a secure connection.
On establishment of the HTTPS connection, the user may receive a warning about the SSL/TLS certificate. The user should install this certificate. The user does not receive a warning if the administrator has installed a certificate that the browser of the user trusts or if the user had previously installed the certificate.
The user will then be connected to the login page.
Login Page
The login page is where the user will be prompted to enter his or her credentials. The credentials consist of a username and password, which are entered into an HTML form. If an authentication failure occurs, the user will be presented with the login page again but with an error message.

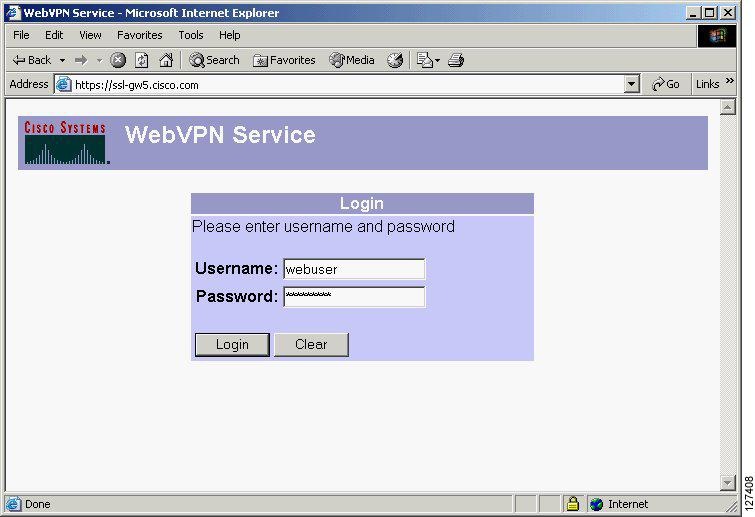

Figure 2 illustrates a default login page.
Figure 2 Default Login Page
Note
The login page has logos, titles, messages, and colors that may be customized by administrators.
Certificate Authentication
Client certificate authentication is not supported. Only username and password authentication is needed.
Logout Page
If the user clicks the logout link, or if his or her session terminates because of an idle timeout or maximum connection time, the user is presented with the logout page.

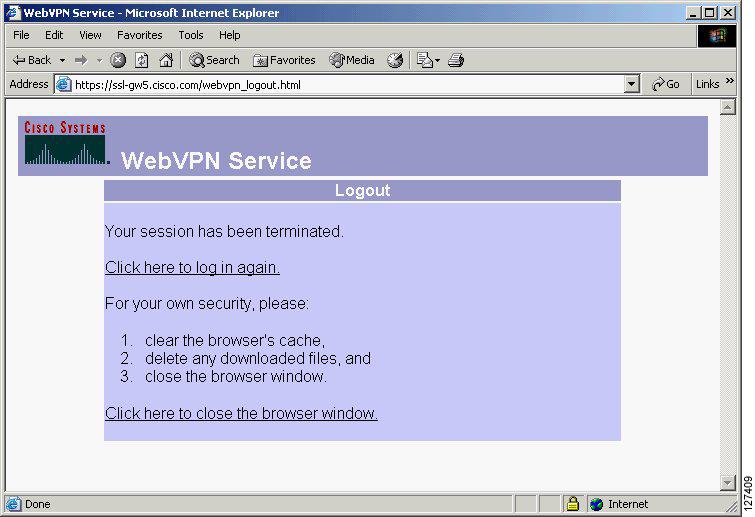

Figure 3 illustrates a logout page.
Figure 3 Logout Page
Portal Page
The portal page is the main page for the WebVPN functionality. This page is a customizable page that contains the following:
•
•
•
•
•
•
•
•
•
Items that have not been configured will not be displayed on the portal page.
Note

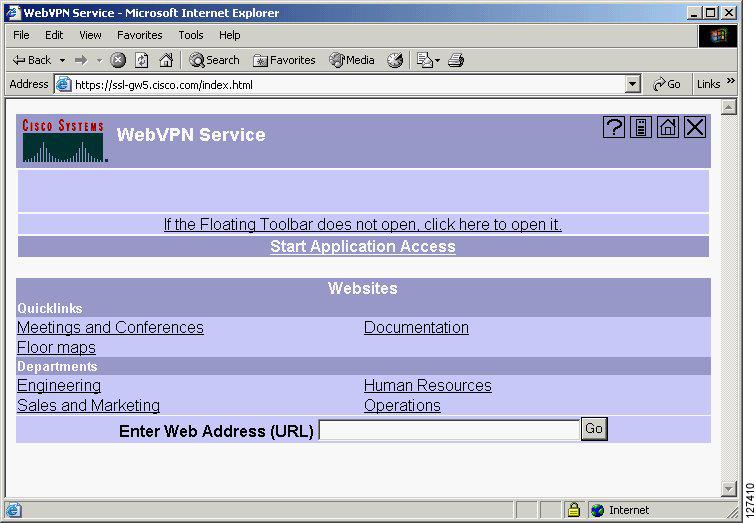

Figure 4 illustrates a portal page.
Figure 4 Portal Page
Remote Servers
An end user may enter an address or URL path of a website to which he or she wants to visit either in the text box on the portal page or in the text box on the floating toolbar. Pages from the remote server will be displayed in the browser window. The user can then browse to other links on the page normally.

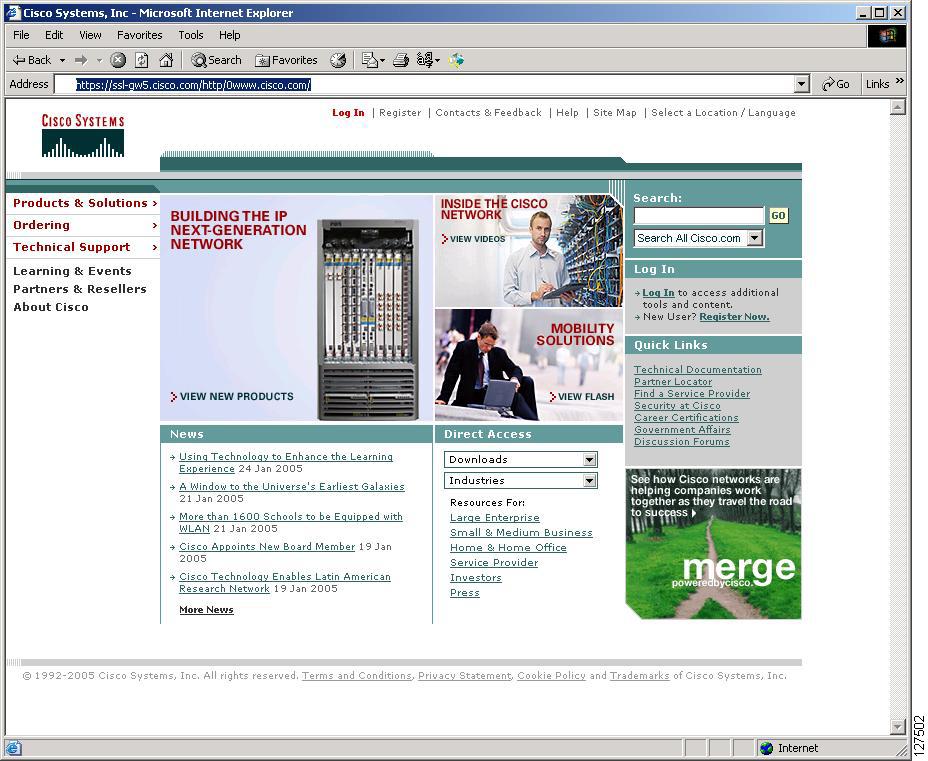

Figure 5 illustrates the portal page of a typical website. By clicking the home icon button on the floating toolbar (see Figure 6), the user can go back to the portal page.
Figure 5 Website with a Toolbar
Figure 6 Floating Toolbar
DNS and Connection Errors
If a user specifies a remote server to which he or she cannot connect because of domain naming system (DNS) or other connection errors, the user is presented with a friendly error, as shown in Figure 7. Because of TCP timeouts, it may take a while for connection errors to be returned to the user.

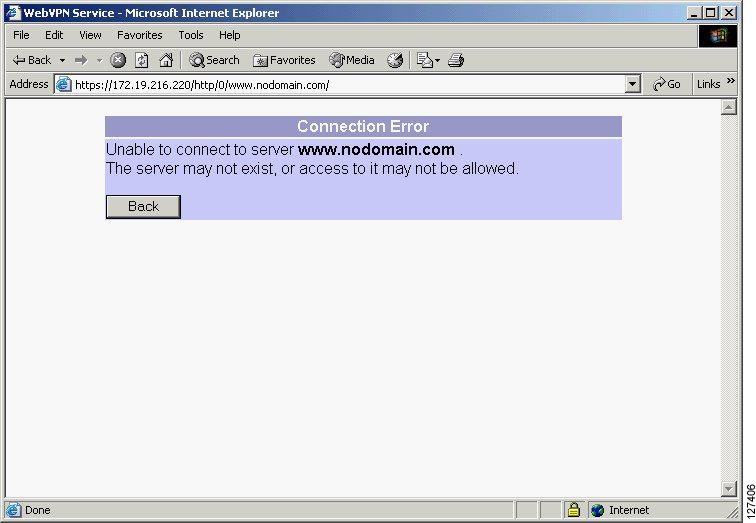

Figure 7 DNS Errors
Session Timeout
Users will be warned when their sessions are about to expire because of inactivity. The user will be presented with a small, centered window as shown in Figure 8. The user will receive a warning approximately 1 minute before the session expires and another warning when the session expires. The time of the workstation will be displayed to indicate when the message was displayed.
The first message will be one of the following:
•
Clicking the [Close] button on the idle warning message will reset the inactivity timer.
The last message, as shown below, will be displayed when time runs out (depending on whether the reason of the session termination is known):
•

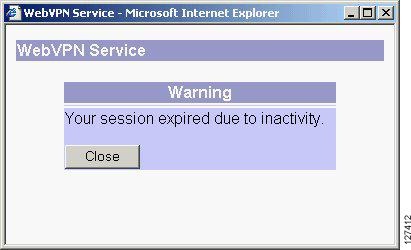

Figure 8 Session Inactivity or Timeout Window
TCP Port Forwarding and Application Access
When the Application Access link is clicked, a new window is displayed. This window initiates the downloading of a port-forwarding applet. Another window is then displayed. This window asks the user to verify the certificate with which this applet is signed. When the user accepts the certificate, the applet starts running, and port-forwarding entries are displayed. The administrator should have configured IP addresses, DNS names, and port numbers for the e-mail servers. The user can then launch Email Client, which is configured to contact the above e-mail servers and have them send and receive e-mails. Point of Presence3 (POP3), Internet Message Access Protocol (IMAP), and Simple Mail Transfer Protocol (SMTP) protocols are supported.
This feature will require the Java 1.4 Java Virtual Machine (JVM) to properly support SSL connections. The number of active connections and bytes that are sent and received is also listed on this window. The user may then open the client programs and connect to the local port. This window should not be subject to advertisement or popup blockers.
An attempt will be made to have this window close automatically if the user is logged out using JavaScript. If the session of the user is terminated and a new port forwarding connection is established, the applet will indicate the error.
Figure 9 illustrates a typical port forwarding page.
Figure 9 TCP Port Forwarding Page
How to Configure WebVPN
This section contains the following procedures:
•
•
•
•
•
•
Configuring WebVPN: Prerequisites
Before configuring WebVPN, an administrator must configure and install the following:
AAA-Related Configuration
Before configuring WebVPN for a AAA-related configuration, an administrator must create user accounts using either local authentication or authentication via AAA (RADIUS and TACACS+ servers) and configure AAA-related commands.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
DETAILED STEPS
DNS-Related Configuration
Before configuring WebVPN, an administrator must configure DNS-related commands, such as the following.
SUMMARY STEPS
1.
2.
3.
4.
DETAILED STEPS
Certificates and Trustpoints
Before configuring WebVPN, an administrator must install certificates and configure trustpoints. To load the certificate, perform the following steps.
SUMMARY STEPS
1.
2.
3.
DETAILED STEPS
Examples
After configuring the crypto pki import pkcs command, an administrator will see something like the following on his or her console:
Router(config)# crypto pki import SSLVPN pkcs12 tftp: ciscoAddress or name of remote host []? 10.1.1.1Source filename [SSLVPN]? cert/SSLVPN.certLoading cert/SSLVPN.cert from 10.1.1.1 (via Ethernet1/0):!Router(config)#The above would generate the crypto-specific commands, as shown in the following sample show running-config command output:
crypto pki trustpoint SSLVPNrevocation-check crlrsakeypair SSLVPNcrypto pki certificate chain SSLVPNcertificate 77220E6A00000000130E...Configuring WebVPN
To configure WebVPN functionality on your router, perform the following steps. All steps except Step 1 and Step 2 are optional.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
DETAILED STEPS
Defining Encryption Algorithms for the SSL Protocol
To define the encryption algorithms that the SSL protocol will use, perform the following steps.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
DETAILED STEPS
Displaying URL Entries on the Portal Page
To display a list of URLs on the portal page from which users may access common resources, perform the following steps.
SUMMARY STEPS
1.
2.
3.
4.
5.
6.
7.
DETAILED STEPS
Maintaining and Monitoring Your WebVPN Functionality
To maintain and monitor your WebVPN functionality, you may use the following debug and show commands. The enable command is required for each debug and show command.
SUMMARY STEPS
1.
2.
3.
4.
DETAILED STEPS
Examples
The following examples show debug webvpn output for various WebVPN sessions:
Router# debug webvpn*Jan 19 03:05:22.796: SSLVPN: Entering APPL with Context: 0x0D2B1EB0,Data buffer(buffer: 0x0D2EF888, data: 0x1A7E756C, len: 335, offset: 0, domain: 0)*Jan 19 03:05:22.796: SSLVPN: http request: / with domain cookie*Jan 19 03:05:22.796: SSLVPN: [Q]Client side Chunk data written..buffer=0x0D2EF748 total_len=1600 bytes=1600 tcb=0x0C5920C8*Jan 19 03:05:22.796: SSLVPN: Client side Chunk data written..buffer=0x0D2EF8A8 total_len=1167 bytes=1167 tcb=0x0C5920C8*Jan 19 03:05:22.836: SSLVPN: Entering APPL with Context: 0x0D2B1EB0,Data buffer(buffer: 0x0D2EF888, data: 0x1A7E836C, len: 383, offset: 0, domain: 0)*Jan 19 03:05:22.836: SSLVPN: http request: /paramdef.js with domain cookie*Jan 19 03:05:22.836: SSLVPN: Created 323 byte content data to send to external client*Jan 19 03:05:22.836: SSLVPN: Client side Chunk data written..buffer=0x0D2EF8A8 total_len=440 bytes=440 tcb=0x0C5920C8*Jan 19 03:05:22.860: SSLVPN: Entering APPL with Context: 0x0D2B1EB0,Data buffer(buffer: 0x0D2EF888, data: 0x1A7E916C, len: 381, offset: 0, domain: 0)*Jan 19 03:05:22.860: SSLVPN: http request: /shared.js with domain cookie*Jan 19 03:05:22.860: SSLVPN: [Q]Client side Chunk data written..buffer=0x0D2EF8A8 total_len=1600 bytes=1600 tcb=0x0C5920C8*Jan 19 03:05:22.860: SSLVPN: Client side Chunk data written..buffer=0x0D2EF748 total_len=986 bytes=986 tcb=0x0C5920C8*Jan 19 03:05:22.896: SSLVPN: Entering APPL with Context: 0x0D2B1EB0,Data buffer(buffer: 0x0D2EF888, data: 0x1A7E9F6C, len: 384, offset: 0, domain: 0)*Jan 19 03:05:22.896: SSLVPN: http request: /img/logo.gif with domain cookie*Jan 19 03:05:22.896: SSLVPN: Created 552 byte content data to send to external client*Jan 19 03:05:22.896: SSLVPN: Client side Chunk data written..buffer=0x0D2EF748 total_len=669 bytes=669 tcb=0x0C5920C8The following is sample output when authentication has failed and when authentication has passed:
Router# debug webvpn*Jan 19 03:08:28.428: SSLVPN: AAA authentication request sent for user: "cisco"*Jan 19 03:08:28.428: SSLVPN: AAA Authentication Failed !*Jan 19 03:08:42.148: SSLVPN: AAA authentication request sent for user: "cisco"*Jan 19 03:08:42.148: SSLVPN: AAA Authentication Passed !The following sample output displays WebVPN cookie output during login:
Router# debug webvpn cookie*Jan 19 03:10:38.880: SSLVPN: ipaddr: 172.107.163.142, index: 11, time: 3315093038, random: 210936245*Jan 19 03:10:38.880: SSLVPN: Created gateway cookie: 2154537870@11@3315093038@210936245@ssl-vpn*Jan 19 03:10:38.900: SSLVPN: Gateway cookie 2154537870@11@3315093038@210936245@ssl-vpn is converted to ip: 128.107.163.142, gw_index: 11, time: 3315093038, rand: 210936245, context_name: ssl-vpn*Jan 19 03:10:39.348: SSLVPN: Gateway cookie 2154537870@11@3315093038@210936245@ssl-vpn is converted to ip: 172.107.163.142, gw_index: 11, time: 3315093038, rand: 210936245, context_name: ssl-vpnThe following sample output displays WebVPN cookie information during the browsing of a website that is serving cookies:
Router# debug webvpn cookie*Jan 19 03:12:10.480: SSLVPN: Enter Cookie mangler with Context: 0x0D2B1FA0,buffer: 0x0D2EF728, buffer->data: 0x1A8BBF6C, buffer->len: 510,cookie: 0x1A8BBFB5, length: 152*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: Set-Cookie*Jan 19 03:12:10.480: SSLVPN: Enter Cookie mangler with Context: 0x0D2B1FA0,buffer: 0x0D2EF728, buffer->data: 0x1A8BBF6C, buffer->len: 510,cookie: 0x1A8BBFC1, length: 140*Jan 19 03:12:10.480: SSLVPN: Unlimited cookie parser element display: PREF*Jan 19 03:12:10.480: SSLVPN: Unlimited cookie parser element display: ID=1554661243d89be2:TM=1106105034:LM=1106105034:S=CqAJHwx2xudAY1YM*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: expires*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: Sun, 17-Jan-2038 19:14:07 GMT*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: path*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: /*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: domain*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: .google.com*Jan 19 03:12:10.480: SSLVPN: Saved cookie name: PREF*Jan 19 03:12:10.480: SSLVPN: Created internal cookie: 11@73@3315093130@3318152330*Jan 19 03:12:10.480: SSLVPN: Saved cookie domain: .google.com*Jan 19 03:12:10.480: SSLVPN: Saved cookie name: PREF*Jan 19 03:12:10.480: SSLVPN: Created internal cookie: 11@73@3315093130@3318152330*Jan 19 03:12:10.480: SSLVPN: Saved cookie domain: .google.com*Jan 19 03:12:10.484: SSLVPN: Enter Cookie unmangler with Context: 0x0D2B1EB0,buffer: 0x0D2EF728, buffer->data: 0x1A8BCD6C, buffer->len: 589,cookie: 0x1A8BCEA3, length: 276*Jan 19 03:12:10.484: SSLVPN: Limited cookie parser element display: Cookie*Jan 19 03:12:10.484: SSLVPN: Unlimited cookie parser element display: PREF*Jan 19 03:12:10.484: SSLVPN: Unlimited cookie parser element display: 11@73@3315093130@3318152330*Jan 19 03:12:10.484: SSLVPN: Received internal cookie 11@73@3315093130@3318152330 is converted to gw-index: 11, int-index: 73, time: 3315093130, rand: 3318152330*Jan 19 03:12:10.484: SSLVPN: Limited cookie parser element display: .google.com*Jan 19 03:12:10.484: SSLVPN: Cookie domain- unmangled request matched*Jan 19 03:12:10.484: SSLVPN: Unlimited cookie parser element display: ID=1554661243d89be2:TM=1106105034:LM=1106105034:S=CqAJHwx2xudAY1YM*Jan 19 03:12:10.488: SSLVPN: Unlimited cookie parser element display: CP_GUTC=128.107.163.142.1100045930344008*Jan 19 03:12:10.488: SSLVPN: Not a mangled internal cookie - ignore*Jan 19 03:12:10.488: SSLVPN: Limited cookie parser element display: 2154537870@11@3315093038@210936245@ssl-vpn*Jan 19 03:12:10.488: SSLVPN: Gateway cookie 2154537870@11@3315093038@210936245@ssl-vpn is converted to ip: 128.107.163.142, gw_index: 11, time: 3315093038, rand: 210936245, context_name: ssl-vpnThe following sample output displays WebVPN HTTP during browsing:
Router# debug webvpn http*Jan 19 03:16:15.164: Original client request*Jan 19 03:16:15.164: GET /http/0/gmail.google.com/gmail/help/about.html HTTP/1.1*Jan 19 03:16:15.164:*Jan 19 03:16:15.164: SSLVPN: HTTP Header parsing complete*Jan 19 03:16:15.164: SSLVPN: * HTTP request complete*Jan 19 03:16:15.200: Original server response*Jan 19 03:16:15.200: HTTP/1.1 200 OK*Jan 19 03:16:15.200:*Jan 19 03:16:15.200: SSLVPN: Content type requires mangling*Jan 19 03:16:15.236: Original client request*Jan 19 03:16:15.236: GET /http/0/gmail.google.com/gmail/help/images/logo.gif HTTP/1.1 *Jan 19 03:16:15.236:*Jan 19 03:16:15.236: SSLVPN: HTTP Header parsing complete*Jan 19 03:16:15.236: SSLVPN: * HTTP request complete*Jan 19 03:16:15.264: Original server response*Jan 19 03:16:15.264: HTTP/1.1 200 OK*Jan 19 03:16:15.264:*Jan 19 03:16:15.264: SSLVPN: Contents need no mangling, parse no more*Jan 19 03:16:15.264: All contents seen in HTTP_RES_PARSE_NOMORE*Jan 19 03:16:15.264: SSLVPN: Deallocating HTTP info*Jan 19 03:16:15.276: Original client request*Jan 19 03:16:15.276: GET/http/0/gmail.google.com/gmail/help/images/corner_tl_sharp.gif HTTP/1.1 *Jan 19 03:16:15.276:*Jan 19 03:16:15.276: SSLVPN: HTTP Header parsing complete*Jan 19 03:16:15.276: SSLVPN: * HTTP request complete*Jan 19 03:16:15.296: Original server response*Jan 19 03:16:15.296: HTTP/1.1 200 OK*Jan 19 03:16:15.296:*Jan 19 03:16:15.296: SSLVPN: Contents need no mangling, parse no more*Jan 19 03:16:15.296: *** Parsing of response body over*Jan 19 03:16:15.296: SSLVPN: Deallocating HTTP infoThe following sample output displays WebVPN web service information:
Router# debug webvpn webservice*Jan 19 03:18:39.060: SSLVPN: Date: Wed, 19 Jan 2005 03:18:39 GMT, Expires: Wed, 19 Jan 2005 02:18:39 GMT*Jan 19 03:18:39.060: SSLVPN: Created 2608 byte content data to send to external client for requested file: /webvpn.html*Jan 19 03:18:39.100: SSLVPN: Date: Wed, 19 Jan 2005 03:18:39 GMT, Expires: Wed, 19 Jan 2005 02:18:39 GMT*Jan 19 03:18:39.120: SSLVPN: Date: Wed, 19 Jan 2005 03:18:39 GMT, Expires: Wed, 19 Jan 2005 02:18:39 GMT*Jan 19 03:18:39.120: SSLVPN: Created 2459 byte content data to send to external client for requested file: /shared.js*Jan 19 03:18:39.152: SSLVPN: Date: Wed, 19 Jan 2005 03:18:39 GMT, Expires: Wed, 19 Jan 2005 02:18:39 GMT*Jan 19 03:18:47.496: SSLVPN: Date: Wed, 19 Jan 2005 03:18:47 GMT, Expires: Wed, 19 Jan 2005 02:18:47 GMT*Jan 19 03:18:47.496: SSLVPN: Created 1375 byte content data to send to external client for requested file: /logon.html*Jan 19 03:18:47.516: SSLVPN: HTTP request: 0, path: /paramdef.js*Jan 19 03:18:47.516: SSLVPN: Date: Wed, 19 Jan 2005 03:18:47 GMT, Expires: Wed, 19 Jan 2005 02:18:47 GMT*Jan 19 03:18:48.036: SSLVPN: HTTP request: 0, path: /index.html*Jan 19 03:18:48.036: SSLVPN: Date: Wed, 19 Jan 2005 03:18:48 GMT, Expires: Wed, 19 Jan 2005 02:18:48 GMT*Jan 19 03:18:48.036: SSLVPN: Created 8269 byte content data to send to external client for requested file: /index.html*Jan 19 03:18:48.220: SSLVPN: HTTP request: 0, path: /toolbarframe.html*Jan 19 03:18:48.220: SSLVPN: Date: Wed, 19 Jan 2005 03:18:48 GMT, Expires: Wed, 19 Jan 2005 02:18:48 GMT*Jan 19 03:18:48.220: SSLVPN: Created 1312 byte content data to send to external client for requested file: /toolbarframe.html*Jan 19 03:18:48.256: SSLVPN: HTTP request: 0, path: /img/logo.gif*Jan 19 03:18:48.256: SSLVPN: Date: Wed, 19 Jan 2005 03:18:48 GMT, Expires: Wed, 19 Jan 2005 02:18:48 GMT*Jan 19 03:18:48.268: SSLVPN: HTTP request: 0, path: /test.html*Jan 19 03:18:48.268: SSLVPN: Date: Wed, 19 Jan 2005 03:18:48 GMT, Expires: Wed, 19 Jan 2005 02:18:48 GMT*Jan 19 03:18:48.268: SSLVPN: Created 684 byte content data to send to external client for requested file: /test.html*Jan 19 03:18:48.316: SSLVPN: HTTP request: 0, path: /toolbar.html*Jan 19 03:18:48.316: SSLVPN: Date: Wed, 19 Jan 2005 03:18:48 GMT, Expires: Wed, 19 Jan 2005 02:18:48 GMT*Jan 19 03:18:48.316: SSLVPN: Created 2618 byte content data to send to external client for requested file: /toolbar.html*Jan 19 03:18:48.364: SSLVPN: HTTP request: 0, path: /tools.html*Jan 19 03:18:48.364: SSLVPN: Date: Wed, 19 Jan 2005 03:18:48 GMT, Expires: Wed, 19 Jan 2005 02:18:48 GMT*Jan 19 03:18:48.364: SSLVPN: Created 2284 byte content data to send to external client for requested file: /tools.htmlTroubleshooting WebVPN
The following situations may occur when using the WebVPN feature:
The user is unable to establish an SSL connection to the WebVPN gateway.Verify whether the TCP listeners are correctly created using the show tcp brief all command. The listener on port 80 is used for redirecting HTTP connections to HTTPS connections. The listener on port 443 is an HTTPS listener.
Router# show tcp brief allTCB Local Address Foreign Address (state)652998D8 *.80 *.* LISTEN64CDDE00 *.443 *.* LISTEN6548B37C *.5060 *.* LISTEN652D3928 *.1723 *.* LISTENIf services that use an HTTP secure server are enabled along with WebVPN on the same router, WebVPN must be enabled with the gateway-addr keyword option of the webvpn enable command by specifying the IP address to enable web VPN service. Two TCP listeners can be seen in the output of the show tcp brief all command as follows:Router# show tcp brief allTCB Local Address Foreign Address (state)652998D8 *.80 *.* LISTEN64CDDE00 *.443 *.* LISTEN6548B37C *.5060 *.* LISTEN652D3928 *.1723 *.* LISTEN632988C8 10.1.1.1.80 *.* LISTEN63CDDE1F 10.1.1.1.443 *.* LISTENIn the above example, TCP traffic for port 443, which is destined for this router and not on IP address 10.1.1.1, is handled by TCB listener 64CDDE00. Web VPN traffic is handled by TCB listener 63CDDE1F.
If a cookie is not enabled properly on a browser, WebVPN may not work. For example, if a cookie is set to "High" in Internet Explorer (at Tools>Internet Options>Privacy), a user cannot log into WebVPN. In this situation, the cookie has to be set no higher than "Medium High."
Configuration Examples for WebVPN
This section provides the following configuration examples:
•
•
WebVPN Enabled Globally: Example
The following is sample running configuration for WebVPN that is enabled globally (on all IP addresses in the system).
Router# show running-configwebvpn enable!webvpnlogo file flash:/mylogo.giftitle-color #FF9933text-color blackssl encryption 3des-sha1 rc4-md5ssl trustpoint WebVPNurl-list "quicklinks"heading "Quicklinks"url-text "Meetings and Conferences" url-value "http://www.mydomain.com/resources/meetings.html"url-text "Floor maps" url-value "http://www.mydomain.com/resources/floormaps.html"url-text "Documentation" url-value "http://www.mydomain.com/eng/documents"url-list "Departments"url-text "Engineering" url-value "http://www.mydomain.com/eng"url-text "Human Resources" url-value "http://www.mydomain.com/HR"url-text "Sales and Marketing" url-value "http://www.mydomain.com/sandm"url-text "Operations" url-value "http://www.mydomain.com/ops"login-message "Enter your email-id and password"!WebVPN Enabled on a Specific IP Address: Example
The following is sample output from a running configuration for WebVPN that is enabled on IP address 10.1.1.1. This configuration also enables e-mail.
Router# show running-configaccess via port-forwarding.!webvpn enable gateway-addr 10.1.1.1!webvpnlogo file flash:/mylogo.giftitle-color #FF9933text-color blackssl encryption 3des-sha1 rc4-md5ssl trustpoint WebVPNurl-list "Search"heading "Search Engines"url-text "Google" url-value "http://www.google.com"url-text "Altavista" url-value "http://www.altavista.com"url-text "Ask Jeeves" url-value "http://www.askjeeves.com"login-message "Enter your email-id and password"port-forward list IMAP local-port 60013 remote-server mail.yourdomain.com remote-port 143port-forward list POP3 local-port 60014 remote-server mail.yourdomain.com remote-port 25port-forward list SMTP local-port 60015 remote-server mail.yourdomain.com remote-port 110Additional References
The following sections provide references related to WebVPN.
Related Documents
Standards
No new or modified standards are supported by this feature, and support for existing standards has not been modified by this feature.
—
MIBs
RFCs
No new or modified RFCs are supported by this feature, and support for existing RFCs has not been modified by this feature.
—
Technical Assistance
Command Reference
This section documents new commands. All other commands used with this feature are documented in the Cisco IOS Release 12.3T command reference publications.
•
debug webvpn
To enable Web VPN session monitoring, use the debug webvpn command in privileged EXEC mode. To disable the Web VPN session monitoring, use the no form of this command.
debug webvpn [aaa | cookie | dns | http | port-forward | webservice]
no debug webvpn [aaa | cookie | dns | http | port-forward | webservice]
Syntax Description
Command Modes
Privileged EXEC
Command History
Examples
The following examples show debug webvpn output for various WebVPN sessions:
Router# debug webvpn*Jan 19 03:05:22.796: SSLVPN: Entering APPL with Context: 0x0D2B1EB0,Data buffer(buffer: 0x0D2EF888, data: 0x1A7E756C, len: 335, offset: 0, domain: 0)*Jan 19 03:05:22.796: SSLVPN: http request: / with domain cookie*Jan 19 03:05:22.796: SSLVPN: [Q]Client side Chunk data written..buffer=0x0D2EF748 total_len=1600 bytes=1600 tcb=0x0C5920C8*Jan 19 03:05:22.796: SSLVPN: Client side Chunk data written..buffer=0x0D2EF8A8 total_len=1167 bytes=1167 tcb=0x0C5920C8*Jan 19 03:05:22.836: SSLVPN: Entering APPL with Context: 0x0D2B1EB0,Data buffer(buffer: 0x0D2EF888, data: 0x1A7E836C, len: 383, offset: 0, domain: 0)*Jan 19 03:05:22.836: SSLVPN: http request: /paramdef.js with domain cookie*Jan 19 03:05:22.836: SSLVPN: Created 323 byte content data to send to external client*Jan 19 03:05:22.836: SSLVPN: Client side Chunk data written..buffer=0x0D2EF8A8 total_len=440 bytes=440 tcb=0x0C5920C8*Jan 19 03:05:22.860: SSLVPN: Entering APPL with Context: 0x0D2B1EB0,Data buffer(buffer: 0x0D2EF888, data: 0x1A7E916C, len: 381, offset: 0, domain: 0)*Jan 19 03:05:22.860: SSLVPN: http request: /shared.js with domain cookie*Jan 19 03:05:22.860: SSLVPN: [Q]Client side Chunk data written..buffer=0x0D2EF8A8 total_len=1600 bytes=1600 tcb=0x0C5920C8*Jan 19 03:05:22.860: SSLVPN: Client side Chunk data written..buffer=0x0D2EF748 total_len=986 bytes=986 tcb=0x0C5920C8*Jan 19 03:05:22.896: SSLVPN: Entering APPL with Context: 0x0D2B1EB0,Data buffer(buffer: 0x0D2EF888, data: 0x1A7E9F6C, len: 384, offset: 0, domain: 0)*Jan 19 03:05:22.896: SSLVPN: http request: /img/logo.gif with domain cookie*Jan 19 03:05:22.896: SSLVPN: Created 552 byte content data to send to external client*Jan 19 03:05:22.896: SSLVPN: Client side Chunk data written..buffer=0x0D2EF748 total_len=669 bytes=669 tcb=0x0C5920C8The following is sample output when authentication has failed and when authentication has passed:
Router# debug webvpn*Jan 19 03:08:28.428: SSLVPN: AAA authentication request sent for user: "cisco"*Jan 19 03:08:28.428: SSLVPN: AAA Authentication Failed !*Jan 19 03:08:42.148: SSLVPN: AAA authentication request sent for user: "cisco"*Jan 19 03:08:42.148: SSLVPN: AAA Authentication Passed !The following sample output displays WebVPN cookie output during login:
Router# debug webvpn cookie*Jan 19 03:10:38.880: SSLVPN: ipaddr: 172.107.163.142, index: 11, time: 3315093038, random: 210936245*Jan 19 03:10:38.880: SSLVPN: Created gateway cookie: 2154537870@11@3315093038@210936245@ssl-vpn*Jan 19 03:10:38.900: SSLVPN: Gateway cookie 2154537870@11@3315093038@210936245@ssl-vpn is converted to ip: 128.107.163.142, gw_index: 11, time: 3315093038, rand: 210936245, context_name: ssl-vpn*Jan 19 03:10:39.348: SSLVPN: Gateway cookie 2154537870@11@3315093038@210936245@ssl-vpn is converted to ip: 172.107.163.142, gw_index: 11, time: 3315093038, rand: 210936245, context_name: ssl-vpnThe following sample output displays WebVPN cookie information during the browsing of a website that is serving cookies:
Router# debug webvpn cookie*Jan 19 03:12:10.480: SSLVPN: Enter Cookie mangler with Context: 0x0D2B1FA0,buffer: 0x0D2EF728, buffer->data: 0x1A8BBF6C, buffer->len: 510,cookie: 0x1A8BBFB5, length: 152*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: Set-Cookie*Jan 19 03:12:10.480: SSLVPN: Enter Cookie mangler with Context: 0x0D2B1FA0,buffer: 0x0D2EF728, buffer->data: 0x1A8BBF6C, buffer->len: 510,cookie: 0x1A8BBFC1, length: 140*Jan 19 03:12:10.480: SSLVPN: Unlimited cookie parser element display: PREF*Jan 19 03:12:10.480: SSLVPN: Unlimited cookie parser element display: ID=1554661243d89be2:TM=1106105034:LM=1106105034:S=CqAJHwx2xudAY1YM*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: expires*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: Sun, 17-Jan-2038 19:14:07 GMT*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: path*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: /*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: domain*Jan 19 03:12:10.480: SSLVPN: Limited cookie parser element display: .google.com*Jan 19 03:12:10.480: SSLVPN: Saved cookie name: PREF*Jan 19 03:12:10.480: SSLVPN: Created internal cookie: 11@73@3315093130@3318152330*Jan 19 03:12:10.480: SSLVPN: Saved cookie domain: .google.com*Jan 19 03:12:10.480: SSLVPN: Saved cookie name: PREF*Jan 19 03:12:10.480: SSLVPN: Created internal cookie: 11@73@3315093130@3318152330*Jan 19 03:12:10.480: SSLVPN: Saved cookie domain: .google.com*Jan 19 03:12:10.484: SSLVPN: Enter Cookie unmangler with Context: 0x0D2B1EB0,buffer: 0x0D2EF728, buffer->data: 0x1A8BCD6C, buffer->len: 589,cookie: 0x1A8BCEA3, length: 276*Jan 19 03:12:10.484: SSLVPN: Limited cookie parser element display: Cookie*Jan 19 03:12:10.484: SSLVPN: Unlimited cookie parser element display: PREF*Jan 19 03:12:10.484: SSLVPN: Unlimited cookie parser element display: 11@73@3315093130@3318152330*Jan 19 03:12:10.484: SSLVPN: Received internal cookie 11@73@3315093130@3318152330 is converted to gw-index: 11, int-index: 73, time: 3315093130, rand: 3318152330*Jan 19 03:12:10.484: SSLVPN: Limited cookie parser element display: .google.com*Jan 19 03:12:10.484: SSLVPN: Cookie domain- unmangled request matched*Jan 19 03:12:10.484: SSLVPN: Unlimited cookie parser element display: ID=1554661243d89be2:TM=1106105034:LM=1106105034:S=CqAJHwx2xudAY1YM*Jan 19 03:12:10.488: SSLVPN: Unlimited cookie parser element display: CP_GUTC=128.107.163.142.1100045930344008*Jan 19 03:12:10.488: SSLVPN: Not a mangled internal cookie - ignore*Jan 19 03:12:10.488: SSLVPN: Limited cookie parser element display: 2154537870@11@3315093038@210936245@ssl-vpn*Jan 19 03:12:10.488: SSLVPN: Gateway cookie 2154537870@11@3315093038@210936245@ssl-vpn is converted to ip: 128.107.163.142, gw_index: 11, time: 3315093038, rand: 210936245, context_name: ssl-vpnThe following sample output displays WebVPN HTTP during browsing:
Router# debug webvpn http*Jan 19 03:16:15.164: Original client request*Jan 19 03:16:15.164: GET /http/0/gmail.google.com/gmail/help/about.html HTTP/1.1*Jan 19 03:16:15.164:*Jan 19 03:16:15.164: SSLVPN: HTTP Header parsing complete*Jan 19 03:16:15.164: SSLVPN: * HTTP request complete*Jan 19 03:16:15.200: Original server response*Jan 19 03:16:15.200: HTTP/1.1 200 OK*Jan 19 03:16:15.200:*Jan 19 03:16:15.200: SSLVPN: Content type requires mangling*Jan 19 03:16:15.236: Original client request*Jan 19 03:16:15.236: GET /http/0/gmail.google.com/gmail/help/images/logo.gif HTTP/1.1 *Jan 19 03:16:15.236:*Jan 19 03:16:15.236: SSLVPN: HTTP Header parsing complete*Jan 19 03:16:15.236: SSLVPN: * HTTP request complete*Jan 19 03:16:15.264: Original server response*Jan 19 03:16:15.264: HTTP/1.1 200 OK*Jan 19 03:16:15.264:*Jan 19 03:16:15.264: SSLVPN: Contents need no mangling, parse no more*Jan 19 03:16:15.264: All contents seen in HTTP_RES_PARSE_NOMORE*Jan 19 03:16:15.264: SSLVPN: Deallocating HTTP info*Jan 19 03:16:15.276: Original client request*Jan 19 03:16:15.276: GET/http/0/gmail.google.com/gmail/help/images/corner_tl_sharp.gif HTTP/1.1 *Jan 19 03:16:15.276:*Jan 19 03:16:15.276: SSLVPN: HTTP Header parsing complete*Jan 19 03:16:15.276: SSLVPN: * HTTP request complete*Jan 19 03:16:15.296: Original server response*Jan 19 03:16:15.296: HTTP/1.1 200 OK*Jan 19 03:16:15.296:*Jan 19 03:16:15.296: SSLVPN: Contents need no mangling, parse no more*Jan 19 03:16:15.296: *** Parsing of response body over*Jan 19 03:16:15.296: SSLVPN: Deallocating HTTP infoThe following sample output displays WebVPN web service information:
Router# debug webvpn webservice*Jan 19 03:18:39.060: SSLVPN: Date: Wed, 19 Jan 2005 03:18:39 GMT, Expires: Wed, 19 Jan 2005 02:18:39 GMT*Jan 19 03:18:39.060: SSLVPN: Created 2608 byte content data to send to external client for requested file: /webvpn.html*Jan 19 03:18:39.100: SSLVPN: Date: Wed, 19 Jan 2005 03:18:39 GMT, Expires: Wed, 19 Jan 2005 02:18:39 GMT*Jan 19 03:18:39.120: SSLVPN: Date: Wed, 19 Jan 2005 03:18:39 GMT, Expires: Wed, 19 Jan 2005 02:18:39 GMT*Jan 19 03:18:39.120: SSLVPN: Created 2459 byte content data to send to external client for requested file: /shared.js*Jan 19 03:18:39.152: SSLVPN: Date: Wed, 19 Jan 2005 03:18:39 GMT, Expires: Wed, 19 Jan 2005 02:18:39 GMT*Jan 19 03:18:47.496: SSLVPN: Date: Wed, 19 Jan 2005 03:18:47 GMT, Expires: Wed, 19 Jan 2005 02:18:47 GMT*Jan 19 03:18:47.496: SSLVPN: Created 1375 byte content data to send to external client for requested file: /logon.html*Jan 19 03:18:47.516: SSLVPN: HTTP request: 0, path: /paramdef.js*Jan 19 03:18:47.516: SSLVPN: Date: Wed, 19 Jan 2005 03:18:47 GMT, Expires: Wed, 19 Jan 2005 02:18:47 GMT*Jan 19 03:18:48.036: SSLVPN: HTTP request: 0, path: /index.html*Jan 19 03:18:48.036: SSLVPN: Date: Wed, 19 Jan 2005 03:18:48 GMT, Expires: Wed, 19 Jan 2005 02:18:48 GMT*Jan 19 03:18:48.036: SSLVPN: Created 8269 byte content data to send to external client for requested file: /index.html*Jan 19 03:18:48.220: SSLVPN: HTTP request: 0, path: /toolbarframe.html*Jan 19 03:18:48.220: SSLVPN: Date: Wed, 19 Jan 2005 03:18:48 GMT, Expires: Wed, 19 Jan 2005 02:18:48 GMT*Jan 19 03:18:48.220: SSLVPN: Created 1312 byte content data to send to external client for requested file: /toolbarframe.html*Jan 19 03:18:48.256: SSLVPN: HTTP request: 0, path: /img/logo.gif*Jan 19 03:18:48.256: SSLVPN: Date: Wed, 19 Jan 2005 03:18:48 GMT, Expires: Wed, 19 Jan 2005 02:18:48 GMT*Jan 19 03:18:48.268: SSLVPN: HTTP request: 0, path: /test.html*Jan 19 03:18:48.268: SSLVPN: Date: Wed, 19 Jan 2005 03:18:48 GMT, Expires: Wed, 19 Jan 2005 02:18:48 GMT*Jan 19 03:18:48.268: SSLVPN: Created 684 byte content data to send to external client for requested file: /test.html*Jan 19 03:18:48.316: SSLVPN: HTTP request: 0, path: /toolbar.html*Jan 19 03:18:48.316: SSLVPN: Date: Wed, 19 Jan 2005 03:18:48 GMT, Expires: Wed, 19 Jan 2005 02:18:48 GMT*Jan 19 03:18:48.316: SSLVPN: Created 2618 byte content data to send to external client for requested file: /toolbar.html*Jan 19 03:18:48.364: SSLVPN: HTTP request: 0, path: /tools.html*Jan 19 03:18:48.364: SSLVPN: Date: Wed, 19 Jan 2005 03:18:48 GMT, Expires: Wed, 19 Jan 2005 02:18:48 GMT*Jan 19 03:18:48.364: SSLVPN: Created 2284 byte content data to send to external client for requested file: /tools.htmlThe field descriptions in the above displays are self-explanatory.
Related Commands
heading
To set the heading that is displayed above all URLs on the portal page of a Secure Sockets Layer Virtual Private Network (SSLVPN), use the heading command in Web VPN URL configuration mode. To remove the heading, use the no form of this command.
heading heading-name
no heading heading-name
Syntax Description
Defaults
A URL list is not configured.
Command Modes
Web VPN URL configuration
Command History
Usage Guidelines
This command sets the headings that are displayed above all URLs on the portal page.
Examples
The following example shows that the heading has been set to "Engineering":
Router (config) webvpnRouter (config-webvpn)# url-list englistRouter (config-webvpn-url)# heading EngineeringRelated Commands
url-list
Configures the list of URLs to which a user has access on the portal page of a SSLVPN and enters URL configuration mode
webvpn
Enters Web VPN configuration mode.
idle-timeout
To set the default idle timeout for a Secure Sockets Layer Virtual Private Network (SSLVPN) if no idle timeout has been defined or if the idle timeout is zero (0), use the idle-timeout command in Web VPN configuration mode. To revert to the default value, use the no form of this command.
idle-timeout [never | seconds]
no idle-timeout [never | seconds]
Syntax Description
never
(Optional) The idle timeout function is disabled.
seconds
(Optional) Idle timeout in seconds. The values are from 180 seconds (3 minutes) to 86400 seconds (24 hours).
Defaults
If command is not configured, the default idle timeout is 1800 seconds (30 minutes).
Command Modes
Web VPN configuration
Command History
Usage Guidelines
Configuring this command prevents stale sessions.
Examples
The following example shows that the idle timeout has been set for 1200 seconds:
Router (config)# webvpnRouter (config-webvpn)# idle-timeout 1200The following example shows that the idle timeout function is disabled:Router (config)# webvpnRouter (config-webvpn)# idle-timeout neverRelated Commands
login-message
To configure a message for a user login text box on the login page, use the login-message command in Web VPN configuration mode. To reset the value to the default, use the no form of this command.
login-message message-string
no login-message message-string
Syntax Description
Defaults
Message will be "Please enter your username and password."
Command Modes
Web VPN configuration
Command History
Usage Guidelines
If you type the login-message command and then press the Enter key, no login message will be displayed.
Examples
The following example shows that the login message to be displayed is "Please enter your login credentials."
Router (config-webvpn)# login-message "Please enter your login credentials."Related Commands
logo
To specify the custom logo image that is displayed on the login and portal pages of a Secure Sockets Layer Virtual Private Network (SSLVPN), use the logo command in Web VPN configuration mode. To remove the logo, use the no form of this command.
logo [file filename | none]
no logo [file filename | none]
Syntax Description
Defaults
No logo is displayed.
Command Modes
Web VPN configuration
Command History
Examples
The following example shows that a logo file (mylogo.gif) is being configured in flash: media:
logo file flash:/mylogo.gifThe following example shows that no logo is to be displayed in the login or portal pages:
logo noneThe following example shows that the logo is set to the default logo, which is the Cisco logo:
no logoRelated Commands
port-forward
To list the set of forwarded ports to which a user has access, use the port-forward command in Web VPN configuration mode. To remove ports, use the no form of this command.
port-forward {list list-name} {local-port port-number} {remote-server server-name-or-IP-address} {remote-port port-number}
no port-forward {list list-name} {local-port port-number} {remote-server server-name-or-IP-address} {remote-port port-number}
Syntax Description
Defaults
None
Command Modes
Web VPN configuration
Command History
Usage Guidelines
This command is used for TCP port forwarding.
Examples
The following example shows that the list name is POP3, the local port is 60002, the remote server is mail.youremail.com, and the remote port number is 25:
Router (config)# webvpnRouter (config-webvpn)# port-forward list POP3 local-port 60002 remote-server mail.youremail.com remote-port 25Related CommandsRout
secondary-color
To specify the color of the secondary title bars on the login and portal pages of a Secure Sockets Layer Virtual Private Network (SSLVPN), use the secondary-color command in Web VPN configuration mode. To remove the color, use the no form of this command.
secondary-color color
no secondary-color color
Syntax Description
Defaults
Purple
Command Modes
Web VPN configuration
Command History
Usage Guidelines
If a new color is configured, it will override the color that was already configured.
Examples
The following examples show three ways that a secondary color may be configured:
secondary-color darkseagreensecondary-color #8FBC8Fsecondary-color 143,188,143Related Commands
secondary-text-color
To specify the color of the text on the secondary bars of a Secure Sockets Layer Virtual Private Network (SSLVPN), use the secondary-text-color command in Web VPN configuration mode. To revert to the default color, use the no form of this command.
secondary-text-color [black | white]
no secondary-text-color [black | white]
Syntax Description
black
(Optional) Color of the text is black. This is the default value.
white
(Optional) Color of the text is white.
Defaults
Color of the text is black.
Command Modes
Web VPN configuration
Command History
Usage Guidelines
The color of the text on the secondary bars must be aligned with the color of the text on the title bar.
Examples
The following example shows that the secondary text color has been set to white:
secondary-text-color whiteRelated Commands
show webvpn sessions
To display information about Web VPN sessions, use the show webvpn sessions command in privileged EXEC mode.
show webvpn sessions
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Examples
The following output example displays information about a WebVPN session:
Router# show webvpn sessionsWebVPN domain name: cisco.comClient Login Name Client IP Address Number of Connectionswebuser 172.107.163.142 4Created 00:14:25, Last-used 00:00:10Client Port: 2366Client Port: 2386Client Port: 2396Client Port: 2486browseruser 172.107.163.142 2Created 00:00:09, Last-used 00:00:08Client Port: 2431Client Port: 2432Table 1 describes the significant fields shown in the display.
Table 1 show webvpn sessions Command Field Descriptions
Related Commands
show webvpn statistics
To display WebVPN statistics, use the show webvpn statistics command in privileged EXEC mode.
show webvpn statistics
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Command History
Examples
The following is sample output using the show webvpn statistics command:
Router# show webvpn statisticsActive user sessions: 2Active user TCP connections: 6Authentication failures: 3Terminated user sessions: 0Table 2 describes the significant fields shown in the display.
Table 2
show webvpn statistics Command Field Descriptions
Related Commands
ssl encryption
To specify the encryption algorithms that the Secure Sockets Layer (SSL) protocol will use for a SSL Virtual Private Network (SSLVPN), use the ssl encryption command in Web VPN configuration mode. To remove an algorithm, use the no form of this command.
ssl encryption [3des-sha1] [des-sha-1] [rc4-md5]
no ssl encryption [3des-sha1] [des-sha-1] [rc4-md5]
Syntax Description
3des-sha1
(Optional) Encryption algorithm type is 3 DES-SHA1.
des-sha-1
(Optional) Encryption algorithm type is DES-SHA-1.
rc4-md5
(Optional) Encryption algorithm type is RC4-MD5.
Defaults
All algorithms are available in the order shown above.
Command Modes
Web VPN configuration
Command History
Usage Guidelines
Configuring this command allows administrators to restrict the encryption algorithms that SSL uses in Cisco IOS software. The ordering of the algorithms specifies the preference. If you specify this command after you have specified an algorithm, the previous setting is overridden.
Examples
The following example shows that 3 DES-SHA1 has been specified as the encryption algorithm:
ssl encryption 3des-sha1Related Commands
ssl trustpoint
To specify the certificate trustpoint, use the ssl trustpoint command in Web VPN configuration mode. To remove the trustpoint association, use the no form of this command.
ssl trustpoint trustpoint-name
no ssl trustpoint trustpoint-name
Syntax Description
Defaults
The trustpoint name is SSLVPN.
Command Modes
Web VPN configuration
Command History
Usage Guidelines
No configuration is required if the trustpoint name is SSLVPN.
Examples
The following example shows that the trustpoint name is Mytrustpoint:
ssl trustpoint MytrustpointRelated Commands
text-color
To set the color of the text on the title bars of a Secure Sockets Layer Virtual Private Network (SSLVPN), use the text-color command in Web VPN configuration mode. To revert to the default color, use the no form of this command.
text-color [black | white]
no text-color [black | white]
Syntax Description
black
(Optional) Color of the text is black. This is the default value
white
(Optional) Color of the text is white.
Defaults
Color of the text is black.
Command Modes
Web VPN configuration
Command History
Usage Guidelines
This command is limited to only two values to limit the number of icons that are on the toolbar.
Examples
The following example shows that the text color will be white:
text-color whiteRelated Commands
title
To enter the HTML title string that is shown in the browser title and on the title bar for a Secure Sockets Layer Virtual Private Network (SSLVPN), use the title command in Web VPN configuration mode. To remove the title, use the no form of this command.
title [title-string]
no title [title-string]
Syntax Description
Defaults
If the title command is not configured, "WebVPN Service" is displayed in the browser of the user.
Command Modes
Web VPN configuration
Command History
Usage Guidelines
If you type the title command and then press the Enter key, a title will not be displayed on the browser.
If the no form of this command is used, the default title string "WebVPN Service" is displayed in the browser of the user.
Examples
The following example shows the title will be "Secure Corporate Access: Unauthorized users prohibited."
Router (config)# webvpnRouter (config-webvpn)# title "Secure Corporate Access: Unauthorized users prohibited."Syntax Description
title-color
To specify the color of the title bars on the login and portal pages of a Secure Sockets Layer Virtual Private Network (SSLVPN), use the title-color command in Web VPN configuration mode. To remove the color, use the no form of this command.
title-color color
no title-color color
Syntax Description
Defaults
Purple
Command Modes
Web VPN configuration
Command History
Usage Guidelines
If a new color is configured, it will override the color that was already configured.
Examples
The following examples show three ways to configure the title color.
title-color darkseagreentitle-color #8FBC8Ftitle-color 143,188,143Related Commands
url-list
To configure the list of URLs to which a user has access on the portal page of a Secure Sockets Layer Virtual Private Network (SSLVPN) and to enter URL configuration mode, use the url-list command in Web VPN configuration mode. To remove a URL, use the no form of this command.
url-list list-name
no url-list list-name
Syntax Description
Defaults
A URL is not shown on the portal page.
Command Modes
Web VPN configuration
Command History
Examples
The following example shows that the URL list name is Mylist:
url-list MylistRelated Commands
url-text
To set the text of the link that is to be displayed on the portal page and the URL that is under the link, use the url-text command in Web VPN URL configuration mode. To remove the text and URL or the text or URL, use the no form of this command.
url-text text url-value URL
no url-text text url-value URL
Syntax Description
Command Modes
Web VPN URL configuration
Command History
Usage Guidelines
There is no checking performed on the URL text or URL value before it is added to the URL list. It is up to the administrator to verify the effect of this command on the portal page.
Examples
The following example shows that the text for the link to be displayed on the portal page is "ENG" and that the URL is "Mycompany.com":
Router (config)# webvpnRouter (config-webvpn)# url-list englistRouter (config-webvpn-url)# heading EngineeringRouter (config-webvpn-url)# url-text ENG url-value http://www.Mycompany.comRelated Commands
webvpn
To enter Web VPN configuration mode, use the webvpn command in global configuration mode. To remove all commands that were entered in Web VPN configuration mode, use the no form of this command.
webvpn
no webvpn
Syntax Description
This command has no arguments or keywords.
Defaults
WebVPN configuration mode is not entered.
Command Modes
Global configuration
Command History
Examples
The following example shows that Web VPN configuration mode has been entered:
Router (config)# webvpnRouter (config-webvpn)#Related Commands
webvpn enable
To enable WebVPN in the system, use the webvpn enable command in global configuration mode. To disable WebVPN in the system, use the no form of this command.
webvpn enable [gateway-addr ip-address]
no webvpn enable [gateway-addr ip-address]
Syntax Description
gateway-addr ip-address
(Optional) Enables WebVPN on only the IP address that is specified. If this keyword and argument are not configured, WebVPN is enabled globally on all IP addresses.
Defaults
WebVPN is disabled in the system.
Command Modes
Web VPN configuration
Command History
Usage Guidelines
This command initializes the required system data structures, initializes TCP sockets, and performs other startup tasks related to WebVPN.
Examples
The following example shows that WebVPN has been enabled in the system:
webvpn enableRelated Commands
Copyright © 2005 Cisco Systems, Inc. All rights reserved.
