Video Applications
This chapter describes how to configure video support. It contains the following sections:
•
Video Applications Overview
•Video Applications Prerequisite Tasks and Restrictions
•Video Applications Configuration Task List
•Video Applications Configuration Examples
Note This chapter does not describe how to configure Multimedia Conference Manager. For more information, see the "Configuring H.323 Gatekeepers and Proxies" chapter.
For a complete description of the video application commands used in this chapter, refer to the
Cisco IOS Voice Command Reference, Release 12.3. To locate documentation for other commands that appear in this chapter, use the command reference master index or search online.
Finding Support Information for Platforms and Cisco IOS Software Images
Use Cisco Feature Navigator to find information about platform support and CiscoIOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.
Video Applications Overview
This section contains the following subsections:
•Cisco Video Support by Platform
•Multimedia Conference Manager with Voice Gateway Image and RSVP to ATM SVC Mapping
•ATM Nonreal-Time VBR SVC Support for Video
Cisco Video Support by Platform
Cisco video support for various applications is listed by platform in the following sections:
•Cisco MC3810 Multiservice Concentrator
•Cisco 2600 Series, 3600 Series, and 7200 Series Router and MC3810 Multiservice Concentrator
•Cisco 3600 Series Router
Cisco MC3810 Multiservice Concentrator
The Cisco MC3810 multiservice concentrator supports video traffic within a data stream in the following ways:
•Video in pass-through mode—By this method, video traffic received from a video codec connected to a universal I/O serial port can be transported on a dedicated time slot between systems using the time-division multiplexing (TDM) functionality of the T1/E1 trunk.
•Video over ATM adaptation layer 1 (AAL1)—A serial stream from a video codec connected to a Cisco MC3810 on serial port 0 or 1 can be converted to ATM and transported across an ATM network using AAL1 circuit emulation services (CES) encapsulation.

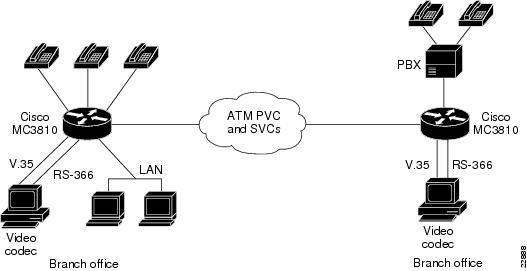

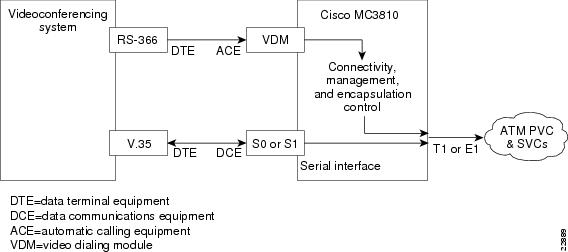

•Video over ATM permanent virtual circuits (PVCs) and switched virtual circuits (SVCs)—A serial stream from a video codec connected to a Cisco MC3810 using the plug-in video dialing module (VDM) can be converted to ATM and transported across an ATM network using AAL1 CES encapsulation.
Note Before configuring your MC3810 multiservice concentrator to support video traffic, you must first configure the clock source for the Cisco MC3810 interfaces. For more information, refer to the "Configuring Synchronized Clocking" appendix.
Note Only V.35 cable is supported for video traffic over serial port 0 or 1.
Cisco 2600 Series, 3600 Series, and 7200 Series Router and MC3810 Multiservice Concentrator
Cisco 2600 series, 3600 series, and 7200 series routers and the MC3810 multiservice concentrator support Multimedia Conference Manager with voice gateway image and Resource Reservation Protocol (RSVP) to ATM SVC mapping. Multimedia Conference Manager delivers H.323 gatekeeper, proxy, and voice gateway solutions with routing as a single Cisco IOS image. In addition, Multimedia Conference Manager enables H.323 RSVP reservations to be mapped to ATM nonreal-time variable bit rate (nRTVBR) SVCs to guarantee quality of service (QoS) for video applications over ATM backbones.
Cisco 3600 Series Router
Circuit emulation is a service based on ATM Forum standards that allows communications to occur between AAL1 CES and ATM user network interfaces (UNIs), that is, between non-ATM telephony devices (such as classic PBXs or time-division multiplexers) and ATM devices (such as Cisco 3600 series routers). Thus, a Cisco 3600 series router equipped with an OC-3/STM-1 ATM CES network module offers a migration path from classic T1/E1 data communications service to emulated CES T1/E1 unstructured (clear channel) services or structured (N x 64) services in an ATM network.
The OC-3/STM-1 ATM CES network module uses the CES clock and passes the clocking information to the T1 and E1 controller and to the ATM interface.
For specific information regarding OC-3/STM-1 ATM CES network module configurations, refer to the Cisco IOS Wide-Area Networking Configuration Guide and the Cisco IOS Quality of Service Solutions Configuration Guide.
Multimedia Conference Manager with Voice Gateway Image and RSVP to ATM SVC Mapping
Multimedia Conference Manager with voice gateway image and RSVP to ATM SVC mapping is implemented on Cisco IOS software. Multimedia Conference Manager is supported on the Cisco 2600 series , 3600 series, and 7200 series routers and on the MC3810 multiservice concentrator.
Multimedia Conference Manager with voice gateway image and RSVP to ATM SVC mapping enables you to limit the H.323 traffic on the LAN and WAN; it provides user accounting for records based on the service use; it guarantees QoS for the H.323 traffic generated by applications such as Voice over IP (VoIP), data conferencing, and videoconferencing; and it guarantees the implementation of security for H.323 communications. In addition, this new and separate image also incorporates Cisco voice gateway and routing functionalities in the same image.
With voice gateway image and RSVP to ATM SVC mapping, you can stipulate bandwidth limits for each videoconferencing connection and an aggregate bandwidth limit for all videoconferencing sessions. This voice gateway image allows you to provide bandwidth limitation to the endpoints.
Additional benefits include the following:
•The proxy can forward T.120 connections, which enhances real-time data conferencing capabilities.
•The gatekeeper can perform load-balancing functionality for external H.323 Version 2 gateways.
•The gatekeeper supports call accounting for proxied calls. Proxied calls are recorded into call history to provide additional call detail information.
Multimedia Conference Manager is recommended for multiple Cisco CallManagers or CallManager cluster domains. Multimedia Conference Manager provides critical connection admission control (CAC) between domains to guarantee that the number of calls between locations does not exceed available bandwidth.
For more detailed information about Multimedia Conference Manager, see the "Configuring H.323 Gatekeepers and Proxies" chapter.
ATM Nonreal-Time VBR SVC Support for Video
ATM nonreal-time variable bit rate (nRTVBR) SVC service operates much like X.25 SVC service although ATM allows much higher throughput. Virtual circuits are created and released dynamically, providing user bandwidth on demand. This service requires a signaling protocol between the router and the switch. Each ATM node is required to establish a separate connection to every other node in the ATM network with which it needs to communicate. All such connections are established using a PVC or an SVC with an ATM signaling mechanism.
Using ATM nRTVBR SVC for video on an ATM backbone guarantees that video sessions will traverse that backbone with QoS features enabled. The Cisco IOS image takes H.323 RSVP reservations and maps them to ATM nRTVBR SVCs that are dynamically established and torn down when video sessions are established and terminated. End-to-end IP routing across the network backbone is no longer required to guarantee video QoS.
ATM nonreal-time nRTVBR SVC service is supported on the Cisco 2600 series, 3600 series, and 7200 series routers and on the MC3810 multiservice access server.
For more information on configuring ATM, refer to the Cisco IOS Wide-Area Networking Configuration Guide.
Video Applications Prerequisite Tasks and Restrictions
The following prerequisites and restrictions apply when using Multimedia Conference Manager with voice gateway image and RSVP to ATM SVC mapping:
•Permanent virtual pathways (PVPs) are supported only on OC-3 cards and DS3/E3 cards. Neither the T1-IMA cards nor the T1 interface on the Cisco MC3810 supports PVPs.
•T.120 proxy has been tested and proved to work with Microsoft NetMeeting 3.01. Based on testing, T.120 proxying does not work with VCON endpoints. T.120 proxy works only with endpoints that can connect to ports other than the default port of 1503. Microsoft NetMeeting 3.01 can do this, but VCON cannot.
•Some older H.323 endpoint implementations, especially those used in videoconferencing, may not be able to connect to an H.225 call setup port number other than 1720. If you have to use those endpoints with the H.323 gatekeeper proxy feature, consider using an image without the Cisco H.323 VoIP gateway (an -ix- image).
•ATM-25 cards have not been tested for interoperability with this feature.
•For Multimedia Conference Manager with voice gateway image and RSVP to ATM SVC mapping to function properly, you must have 16 megabytes of Flash memory and 64 megabytes of DRAM memory. For the Cisco 3660 router and for the Cisco 7200 series router, 96 megabytes of DRAM are required.
Video Applications Configuration Task List
Video applications require different tasks. To configure video support, perform one of the following:
•Configuring Video in Pass-Through Mode
•Configuring Video over ATM AAL1
–Tuning Circuit Emulation Services Settings
•Configuring Video over ATM PVCs and SVCs
–Configuring Network Clocks and Controllers
–Configuring Serial Interfaces to Support the Video Codec
–Configuring ATM Interfaces to Support Video over PVCs and SVCs
–Configuring Video Dial Peers
–Troubleshooting Video over ATM SVCs and PVCs
•Configuring the CES Clock
•Configuring Structured CES
•Configuring the Proxy and T.120
•Configuring the Gatekeeper to Support Zone Bandwidth
•Configuring RSVP-ATM QoS Interworking
Configuring Video in Pass-Through Mode
Video in pass-through mode is supported on the Cisco MC3810 multiservice concentrator.
To configure support for video in pass-through mode, use the following commands beginning in global configuration mode:
| |
Command
|
Purpose
|
Step 1
|
Router(config)# network-clock base-rate {56k | 64k}
|
Configures the network clock base rate. The default is 56 kbps.
|
Step 2
|
Router(config)# interface serial number {multipoint
| point-to-point}
|
Enters serial interface configuration mode for either serial port 0 or 1.
•multipoint—Assumes that there is a fully meshed network.
•point-to-point—Specifies that a video connection will be over a point-to-point network.
|
Step 3
|
Router(config-if)# encapsulation clear-channel
|
Configures the serial interface to be in clear-channel mode for pass-through traffic.
|
Step 4
|
Router(config-if)# clock rate network-clock rate
|
Configures the network clock speed for serial port 0 or 1 in DCE mode on the MC3810 multiservice access server. The rate argument is the network clock speed in bits per second. The range is from 56 kbps to 2048 kbps. The value entered should be a multiple of the value set for the network-clock base-rate command. The maximum rate supported is 2048 Mbps.
|
Step 5
|
Router(config-if)# exit
|
Exits interface configuration mode.
|
Step 6
|
Router(config)# controller t1 0
|
Enters controller configuration mode for controller T1 0.
|
Step 7
|
Router(config-controller)# tdm-group tdm-group-no
timeslot timeslot-list [type {e&m | fxs [loop-start
| ground-start] | fxo [loop-start |
ground-start] | fxs-melcas | fxo-melcas |
e&m-melcas}
|
Configures a list of time slots for creating clear channel groups (pass-through) for time-division multiplexing (TDM) cross-connect.
The keywords and arguments are as follows:
•tdm-group-no—Specifies the TDM group number.
•timeslot—Specifies the timeslot number.
•timeslot-list—Specifies the timeslot list. The valid range is from 1 to 24 for T1, and it is from 1 to 15 and 17 to 31 for E1.
•type—(Optional) (Valid only when the mode cas command is enabled.) Specifies the voice signaling type of the voice port. If configuring a TDM group for data traffic only, do not specify the type keyword.
Choose from one of the following options:
–e&m—Specifies E&M signaling.
–fxs—Specifies Foreign Exchange Office (FXO) signaling. (Optionally, you can also specify loop-start or ground-start.)
–fxo—Specifies Foreign Exchange Station (FXS) signaling. (Optionally, you can also specify loop-start or ground-start.)
–fxs-melcas—Specifies FXS Mercury Exchange Limited (MEL) Channel Associated Signaling (CAS).
–fxo-melcas—Specifies FXO MEL CAS.
•e&m-melcas—Specifies ear and mouth (E&M) MEL CAS.
|
Step 8
|
Router(config-controller)# exit
|
Exits controller configuration mode.
|
Step 9
|
Router(config)# cross-connect id controller-1
tdm-group-no-1 controller-2 tdm-group-no-2
|
Cross-connects two groups of digital signal level 0s (DS0s) from two controllers on the Cisco MC3810 or cross-connects the Universal I/O (UIO) serial port for pass-through traffic to a trunk controller.
Configures cross-connect pass-through from Universal I/O (UIO) serial port 0 or 1 to a controller. The arguments are as follows:
•id—Specifies the unique identification (ID) assigned to this cross-connection. The valid range is from 0 to 31.
•controller-1—Specifies the type of the first controller (T1 0, T1 1, or E1).
•tdm-group-no-1—Specifies the time-division multiplexing (TDM) group number assigned to the first controller.
•controller-2—Specifies the type of the second controller (T1, E1 0, or E1 1).
•tdm-group-no-2—Specifies the TDM group number assigned to the second controller.
|
Configuring Video over ATM AAL1
This section describes how to configure video over ATM AAL1 PVCs using CES. This functionality does not use the VDM, and SVCs are not supported. This section describes the video functionality supported on the MC3810 multiservice concentrator.
To configure video support over ATM AAL1 PVCs on a Cisco 3600 series router, see the "Configuring Structured CES" configuration task table in this chapter and refer to the Cisco IOS Wide-Area Networking Configuration Guide or the OC-3/STM-1 ATM Circuit Emulation Service Network Module.
To configure support for video streaming data over ATM AAL1 encapsulation using CES, use the following commands beginning in global configuration mode:
| |
Command
|
Purpose
|
Step 1
|
Router(config)# network-clock base-rate {56k | 64k }
|
Configures the network clock base rate.
The keywords are as follows:
•56k—Sets the network clock to 56 kbps.
•64k—Sets the network clock to 64 kbps.
|
Step 2
|
Router(config)# controller {t1 | e1} 0
|
Selects T1/E1 controller 0. ATM is supported only on controller 0.
|
Step 3
|
Router(config-controller)# mode atm
|
Specifies that the controller will support ATM encapsulation and creates virtual ATM interface 0, which you will use to create the ATM permanent virtual circuits (PVCs).
|
Step 4
|
Router(config-controller)# exit
|
Exits controller configuration mode.
|
Step 5
|
Router(config)# interface atm 0 {multipoint |
point-to-point}
|
Enters interface configuration mode to configure ATM interface.
•0—Indicates the ATM port number. Because the ATM interface processor (AIP) and all ATM port adapters have a single ATM interface, the port number is always 0.
•multipoint | point-to-point—Specifies a multipoint or point-to-point subinterface.
|
Step 6
|
Router(config-if)# pvc [name] vpi/vci
[ilmi | qsaal | smds]
|
Creates an ATM permanent virtual circuit (PVC) and enters ATM PVC configuration mode.
The keywords and arguments are as follows:
•name—(Optional) Specifies the name of the PVC or map. The name can be as many as 16 characters long.
•vpi/—Specifies the ATM network VPI for the PVC that you named.
The ATM network VPI of this PVC is an 8-bit field in the header of the ATM cell. The vpi value is unique only on a single link, not throughout the ATM network, because it has local significance only. The vpi value must match that of the switch. Valid values are from 0 to 255, but the value is usually 0 for ILMI communications. If a value is not specified, the vpi value is set to 0.
Note You cannot set both vpi and vci to 0; if one is 0, the other cannot be 0.
•vci—Specifies the ATM network VCI for the PVC you named. The VCI is a 16-bit field in the header of the ATM cell. The VCI value is unique only on a single link, not throughout the ATM network, because it has only local significance. The vci value ranges from 0 to 1 less than the maximum value set for this interface by the atm vc-per-vp command.
Note Typically, the low vci values 0 to 31 are reserved for specific traffic (for example, F4 operations, administration, and maintenance [OAM]; SVC signaling; and ILMI). Do not use them for other PVCs.
|
| |
|
•ilmi—(Optional) Sets up communication with the ILMI; the associated vpi and vci values ordinarily are 0 and 16, respectively.
•qsaal—(Optional) Specifies a signaling-type PVC used for setting up or tearing down SVCs; the associated vpi and vci values ordinarily are 0 and 5, respectively.
•smds—(Optional) A signaling-type PVC used for setting up or tearing down SVCs; the associated vpi and vci values ordinarily are 0 and 5, respectively.
|
Step 7
|
Router(config-if-atm-pvc)# encapsulation aal1
|
Sets the PVC to support ATM adaptation layer 1 (AAL1) encapsulation for video.
|
Step 8
|
Router(config-if-atm-pvc)# cbr rate
|
Configures the CBR for the ATM circuit emulation service (CES) for an ATM PVC on the Cisco MC3810 multiservice concentrator. By default, the rate argument used is the value configured with the vc-class command. The valid rate is from 56 to 10,000 kbps. The formula to calculate the CBR is 1.14 times the clock rate on the serial port.
|
Step 9
|
Router(config-if-atm-pvc)# exit
|
Exits ATM PVC configuration mode.
|
Step 10
|
Router(config)# interface serial number {multipoint
| point-to-point}
|
Enters interface configuration mode for either serial port 0 or 1.
For a full explanation of the keywords and argument, see Step 2 in the "Configuring Video in Pass-Through Mode" configuration task table in this chapter.
|
Step 11
|
Router(config-if)# clock rate network-clock rate
|
Configures the network clock speed for serial ports 0 or 1 in data circuit-terminating equipment (DCE) mode on the Cisco MC3810 multiservice concentrator. The rate argument is the network clock speed in bits per second. The range is from 56 kbps to 2048 kbps. The value entered should be a multiple of the value set for the network-clock base-rate command. The maximum rate supported is 2048 Mbps.
|
Step 12
|
Router(config-if)# encapsulation atm-ces
|
Enables CES ATM encapsulation on the Cisco MC3810.
|
Step 13
|
Router(config-if)# ces connect atm-interface pvc
[name | [vpi/]vci]
|
Maps the CES service to the PVC.
The keywords and arguments are as follows:
•atm-interface—Specifies the number of the ATM interface. The only valid option on the
Cisco MC3810 multiservice concentrator is ATM0.
•pvc—Specifies that the connection is to an ATM PVC.
•name—(Optional) The name of the ATM PVC.
•vpi/—(Optional) The virtual path identifier value.
•vci—(Optional) The virtual channel identifier value.
|
Tuning Circuit Emulation Services Settings
Video streaming traffic over AAL1 uses CES. The default CES settings are sufficient for most configurations. However, you can tune the CES settings as needed.
To change the CES settings, use the following commands, beginning in interface configuration mode:
| |
Command
|
Purpose
|
Step 1
|
Router(config-if)# ces initial-delay bytes
|
Configures the maximum size of the CES circuit transmit buffer. The bytes argument specifies the size of the receive buffer of the CES circuit. The valid range is from 1 to 16,000 bytes. This command is used to accommodate cell jitter on the network. Bytes received from the ATM network are buffered by this amount before being sent to the CES port.
|
Step 2
|
Router(config-if)# ces partial-fill octet
|
Configures the number of user octets per cell for CES. The octet argument specifies the number of user octets per cell for the CES. Possible values of octet range from 0 to 47. Setting this number to zero disables partial cell fill and causes all cells to be completely filled before they are sent.
|
Configuring Video over ATM PVCs and SVCs
Video over ATM SVCs enables the Cisco MC3810 multiservice concentrator to provide dynamic and flexible videoconferencing system support. Using a plug-in VDM to provide an EIA/TIA-366 dialing interface to an H.320 video codec, the Cisco MC3810 automatically accepts dial-out requests from the video system. The codec connects to one of the Cisco MC3810 serial ports and also to the Cisco MC3810 EIA/TIA-366 dialup port.
This feature permits automatic PVC connections through a serial port. Each codec must place a call to the other videoconferencing system prior to the expiration of the video codec timeout period (set on the codec, usually 1 minute). Using a video dial map, each system reconciles the dialed number with a PVC that has already been configured, allowing fast connectivity.
This section describes the video functionality supported on the Cisco MC3810 and contains the following sections:
•Configuring Network Clocks and Controllers
•Verifying Network Clock and Controller Configuration
•Configuring Serial Interfaces to Support the Video Codec
•Verifying Serial Interface Configuration for Video Codecs
•Configuring ATM Interfaces to Support Video over PVCs and SVCs
•Verifying ATM Interface Configuration for Video over PVCs and SVCs
•Configuring Video Dial Peers
•Verifying Video Dial-Peer Configuration
•Troubleshooting Video over ATM SVCs and PVCs
Service providers, educational organizations, and enterprises can combine video streams and packet data on a single high-speed ATM link. A separate ATM access multiplexer is not needed. Features of the Cisco ATM SVC implementation include the following:
•AAL1 and CES encapsulation is used to transport video traffic to the destination using a single CBR virtual circuit that includes multiple ATM SVCs.
•The implementation adheres to the required features of the ATM Forum UNI specification, version 4.0, which simultaneously supports PVCs and SVCs.
•Video over ATM SVCs support codec speeds of 128, 384, 768, and 1152 kbps.
•The Cisco MC3810, responding to the design of many leading H.320-based video systems, receives the called-party information from the EIA/TIA-366 interface and then reconciles the dialed address with a standard 20-octet ATM network service access point (NSAP) address.
Figure 137 shows a sample ATM video application.
Figure 137 Sample ATM Video Application
Figure 138 shows how the physical interfaces interact with software, the codec, and video data to handle connectivity and video functionality. The VDM automatic calling equipment (ACE) provides the EIA/TIA-366 interface to the video codec, and one of the Cisco MC3810 serial interfaces connects to the video codec DTE interface. The Video Call Manager (ViCM) software manages video calls that travel over a T1 or E1 facility through the Cisco MC3810 multiflex trunk (MFT) interface.
Figure 138 Physical Interfaces and Their Functions
The following restrictions apply to video over ATM using SVCs:
•Point-to-point connectivity for ATM SVC video does not support tandem switching and network (local) hunting.
•You can connect only one video codec to a Cisco MC3810.
•For video SVCs, the ATM service class is not configurable. It is automatically set to CBR, which is the standard service class for video.
The following special hardware is required for this feature:
•A Cisco MC3810 video dialing module VDM and an MFT module for ATM network connectivity
•Two cables:
–A new Cisco serial V.35 DCE cable (product number 72-1721-01) that includes a ringing indicator (RI) conductor. This cable carries the video stream between the Cisco MC3810 and the video equipment. Videoconferencing equipment often uses the V.35 RI as the incoming call-alerting signal. Cisco standard serial V.35 cables do not include the RI conductor.
–A Cisco EIA/TIA-366 ACE cable (product number 72-1722-01) to connect the VDM to the videoconferencing equipment EIA/TIA-366 dialup DTE port.
For additional information about installation and other hardware considerations, refer to the Cisco MC3810 Multiservice Concentrator Hardware Installation Guide.
Configuring Network Clocks and Controllers
Because real-time video communications require a continuous and tightly meshed data stream to avoid loss of information, you must synchronize source and destination devices to a single master clock. In the following example, the clock source is derived from a device attached to T1 controller 0; then it is distributed to the devices attached to the local Cisco MC3810 serial ports and to T1 controller 1. Clock source decisions should be based on the network configuration, and a hierarchy of clock sources can be set up so that backup clock sources are available. For details, see the "Configuring Synchronized Clocking" appendix.
To configure network clocks and the controller to support real-time video, use the following commands beginning in global configuration mode:
| |
Command
|
Purpose
|
Step 1
|
Router(config)# controller {T1 | E1} number
|
Enters controller configuration mode for controller T1/E1 0. The number argument indicates the network module number. The range is from 0 to 2. ATM traffic is supported on controller T1/E1 0 only.
|
Step 2
|
Router(config-controller)# clock source
{line | internal | loop-timed}
|
Configures controller T1/E1 0 to obtain its clocking from the internal network clock PLL. (Use the internal keyword.)
Keyword definitions are as follows:
•line—Specifies that the DS1 link uses the recovered clock. The line value is the default clock source used when the multiflex trunk module (MFT) is installed.
•internal—Specifies that the DS1 link uses the internal clock. The internal value is the default clock source used when the digital voice module (DVM) is installed.
|
| |
|
•loop-timed—Specifies that the T1/E1 controller will take the clock from the Rx (line) and use it for Tx. This setting decouples the controller clock from the system-wide clock set with the network-clock-select command. The loop-timed clock enables the DVM to connect to a PBX and to connect the MFT to a central office when both the PBX and the central office function as DCE clock sources. This situation assumes that the PBX also takes the clocking from the central office, thereby synchronizing the clocks on the DVM and the MFT.
|
Step 3
|
Router(config-controller)# no shutdown
|
Activates the controller.
|
Step 4
|
Router(config)# controller {T1 | E1} 1
|
Enters controller configuration mode for controller T1/E1 1. The number argument indicates the network module number. The range is from 0 to 2.
|
Step 5
|
Router(config-controller)# clock source {line |
internal | loop-timed}
|
Sets the T1/E1 line clock source.
For an explanation of the keywords, see Step 2 in this configuration task table.
|
Step 6
|
Router(config-controller)# no shutdown
|
Activates the controller.
|
Step 7
|
T1 Line
Router(config-controller)# framing {sf | esf}
E1 Line
Router(config-controller)# framing {crc4 | no-crc4}
[australia]
|
Sets the framing for the E1 or T1 data line.
The keywords are as follows:
•sf—Specifies Super Frame as the T1 frame type.
•esf—Specifies Extended Super Frame as the T1 frame type. This frame type is required for ATM on T1 lines. This setting is automatic for T1 when ATM mode is set.
•crc4—Specifies CRC4 frame as the E1 frame type. This frame type is required for ATM on E1 lines. This setting is automatic for E1 when the ATM mode is set.
•no-crc4—Specifies no CRC4 frame as the E1 frame type.
•australia—(Optional) Specifies the E1 frame type used in Australia.
|
Step 8
|
Router(config-controller)# linecode {ami | b8zs |
hdb3}
|
Selects the line-code type for T1 or E1 lines.
The keywords are as follows:
•ami—Specifies alternate mark inversion (AMI) as the line-code type. It is valid for T1 or E1 controllers. This is the default for T1 lines.
•b8zs—Specifies binary 8-zero substitution (B8ZS) as the line-code type. It is required for ATM on T1 lines. This setting is automatic for T1 when the ATM mode is set.
•hdb3—Specifies high-density bipolar 3 (HDB3) as the line-code type. It is required for ATM on E1 lines. This setting is automatic for E1 when the ATM mode is set.
Note When the E1 controller is specified, you must also configure scrambling on the ATM 0 interface. See Step 3 of the "Configuring ATM Interfaces to Support Video over PVCs and SVCs" configuration task table in this chapter.
|
Step 9
|
Router(config-controller)# mode {atm | cas}
|
Sets the mode of the T1/E1 controller and enters specific configuration commands for each mode type.
The keywords are as follows:
•atm—Sets the controller into ATM mode and creates an ATM interface (ATM 0) on the Cisco MC3810. When ATM mode is enabled, no channel groups, channel-associated signaling (CAS) groups, common channeling signaling (CCS) groups, or clear channels are allowed because ATM occupies all the DS0s on the T1/E1 trunk.
When you set the controller to ATM mode, the controller framing is automatically set to ESF for T1 or CRC4 for E1. The line code is automatically set to B8ZS for T1 or HDBC for E1. When you remove ATM mode by entering the no mode atm command, ATM interface 0 is deleted.
ATM mode is supported only on controller 0 (T1 or E1 0).
•cas—Sets the controller into CAS mode, which allows you to create channel groups, CAS groups, and clear channels (both data and CAS modes).
CAS mode is supported on both controllers 0
and 1.
|
Step 10
|
Router(config-controller)# exit
|
Exits controller configuration mode.
|
Step 11
|
Router(config)# network-clock base-rate {56k | 64k}
|
Sets the network clock base rate for the serial ports. For video stream rates of 384, 768, 1.152, or 1.28 kbps, set the rate to 64 kbps. The default is 56 kbps. (see Step 1 in the "Configuring Video over ATM AAL1" configuration task table in this chapter.)
Note At this point, you can also configure network protocol settings, such as IP hosts. For more information, see the
Cisco IOS IP Configuration Guide.
|
Verifying Network Clock and Controller Configuration
To verify the configuration of network clock sources and controller settings, complete the following steps:
Step 1 Enter the show network-clocks privileged EXEC command to see the status of clock source settings. In this example, the "inactive config" clock setting is the current configuration:
Router# show network-clocks
Priority 1 clock source(inactive config): T1 0
Priority 1 clock source(active config): T1 0
T1 0 is clocking system bus for 9319 seconds.
Run Priority Queue: controller0
Step 2 Enter the show controllers t1 or show controllers e1 privileged EXEC commands to see the status of T1 or E1 controllers, as in the following example:
Router# show controller t1 1
Applique type is Channelized T1
Cablelength is long gain36 0db
Slot 4 CSU Serial #07789650 Model TEB HWVersion 4.70 RX level = 0DB
Framing is ESF, Line Code is B8ZS, Clock Source is Internal.
Data in current interval (819 seconds elapsed):
0 Line Code Violations, 0 Path Code Violations
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
0 Line Code Violations, 0 Path Code Violations
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
0 Line Code Violations, 0 Path Code Violations
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
0 Line Code Violations, 0 Path Code Violations
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
Total Data (last 24 hours)
0 Line Code Violations, 0 Path Code Violations,
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins,
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
Router# show controllers E1 1
Applique type is Channelized E1 - balanced
Slot 4 Serial #06868949 Model TEB HWVersion 3.80
Framing is CRC4, Line Code is HDB3, Clock Source is Internal.
Data in current interval (292 seconds elapsed):
0 Line Code Violations, 0 Path Code Violations
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
Total Data (last 66 15 minute intervals):
9 Line Code Violations, 0 Path Code Violations,
1 Slip Secs, 0 Fr Loss Secs, 4 Line Err Secs, 0 Degraded Mins,
5 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
Configuring Serial Interfaces to Support the Video Codec
The configuration of serial interfaces to support the video codec is supported only on the Cisco MC3810 multiservice concentrator.
To configure the serial interfaces, use the following commands beginning in global configuration mode:
| |
Command
|
Purpose
|
Step 1
|
Router(config)# interface serial {0 | 1}
|
Enters interface configuration mode for either for serial 0 or serial 1, depending on where the video codec is connected.
|
Step 2
|
Router(config-if)# clock rate network rate
|
Configures the network clock speed for DCE mode, in bits per second, corresponding to the video stream rate you are using. The rate must be a multiple of the value set with the network-clock base-rate command in Step 11 of the "Configuring Network Clocks and Controllers" configuration task table in this chapter. Make sure this setting is 384000, 768000, or 1152000. 768000 is a common setting.
|
Step 3
|
Router(config-if)# encapsulation atm-ces
|
Configures the interface for ATM encapsulation circuit emulation service (CES), which is required for video codec support.
|
Step 4
|
Router(config-if)# serial restart-delay count
|
Sets the amount of time that the router waits before trying to bring up a serial interface when the interface goes down. The router resets the hardware each time the restart timer expires. This command is often used with dial backup and with the pulse-time command, which sets the amount of time to wait before redialing when a data terminal ready (DTR) dialed device fails to connect.
The count argument is a value from 0 to 900 in seconds. This is the frequency at which the hardware is reset. A value of 0 means that the hardware is not reset when down. If the interface is used to answer a call, it does not cause the DTR circuit to drop. If the DTR circuit drops, the modem can disconnect.
|
Verifying Serial Interface Configuration for Video Codecs
To see the status of all serial interfaces or of a specific serial interface, enter the privileged EXEC command show interfaces serial as shown in the example below. You can use this command to check the encapsulation, scrambling, and serial restart delay settings:
Router# show interface serial0
Serial0 is down, line protocol is down
Hardware is PQUICC Serial Trans
MTU 1500 bytes, BW 1544 Kbit, DLY 20000 usec,
reliability 255/255, txload 65/255, rxload 1/255
Encapsulation CES-ATM, loopback not set
Last input never, output never, output hang never
Last clearing of "showshow interface" counters 5d13h
Output queue 0/100, 101 drops; input queue 0/75, 0 drops
5 minute input rate 0 bits/sec, 0 packets/sec
5 minute output rate 0 bits/sec, 0 packets/sec
13452224 packets input, 1526136219 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
215189699 packets output, 1654453088 bytes, 0 underruns
0 output errors, 0 collisions, 1 interface resets
0 output buffer failures, 0 output buffers swapped out
Cable attached: V.35 (DCE)
Hardware config: V.35; DCE; PLL nx64K;
DSR = UP DTR = DOWN RTS = DOWN CTS = DOWN DCD = DOWN
Configuring ATM Interfaces to Support Video over PVCs and SVCs
This section demonstrates how to set up the ATM interface and how to configure the ATM interface to support video over PVCs and SVCs. The video NSAP addressing commands specify session target information for SVC video communications.
This feature is supported only on the Cisco MC3810 multiservice concentrator.
To configure ATM interfaces to support video over PVCs and SVCs (including configuring a dial PVC for videoconferencing), use the following commands beginning in global configuration mode:
| |
Command
|
Purpose
|
Step 1
|
Router(config)# interface atm
slot/port.subinterface-number {multipoint |
point-to-point}
|
Enters interface configuration mode.
The keywords and arguments are as follows:
•slot—Specifies the backplane slot number on your router. The value ranges from 0 to 4, depending on what router you are configuring. Refer to your router hardware documentation.
•/0—ATM port number. Because the ATM Interface Processor (AIP) and all ATM port adapters have a single ATM interface, the port number is always 0.
•.subinterface-number—Specifies a subinterface number in the range from 1 to 4294967293.
•multipoint—Specifies that your network is fully meshed and you want to communicate with multiple routers.
•point-to-point—Configures the subinterface for communication with one router, as in a hard-wired connection. There is no default for this parameter.
|
Step 2
|
Router(config-if)# ip address ip-address mask
[secondary]
|
For IP protocol communications, assigns the IP address and subnet mask to the interface.
The keywords and arguments are as follows:
•ip-address—IP address.
•mask—Mask for the associated IP subnet.
•secondary—(Optional) Specifies that the configured address is a secondary IP address. If this keyword is omitted, the configured address is the primary IP address.
|
Step 3
|
Router(config-if)# atm scramble-enable
|
(E1 configuration only) Helping to ensure reliability, scrambling randomizes the ATM cell payload frames to avoid continuous nonvariable bit patterns and to improve the efficiency of ATM cell delineation algorithms.
|
Step 4
|
Router(config-if)# atm video aesa
{default |esi-address}
|
Sets the unique ATM end-station address (AESA) for an ATM video interface that is using switched virtual circuit (SVC) mode.
The keywords and arguments are as follows:
•default—Automatically creates a network service access point (NSAP) address for the interface, based on a prefix from the ATM switch (26 hexadecimal characters), the MAC address (12 hexadecimal characters) as the end system identifier (ESI), and a selector byte (two hexadecimal characters).
•esi-address—Requires that you enter 12 hexadecimal characters as the ESI. The ATM switch provides the prefix, and the video selector byte provides the remaining characters.
You can view the assigned address by using the show atm video-voice address command.
|
Step 5
|
Router(config-if)# pvc [name] vpi/vci
[ilmi | qsaal | smds]
|
Creates or assigns a name to an ATM permanent virtual circuit (PVC), specifies the encapsulation type on an ATM PVC, and enters interface-ATM-VC configuration mode.
Note To set up communication with the Integrated Local Management Interface (ILMI), enter the ilmi keyword for ATM adaptation layer encapsulation; the associated vpi and vci values are ordinarily 0 and 16, respectively.
Note To enable the signaling for setup and teardown of SVCs, specify the Q.SAAL (signaling ATM adaptation layer) encapsulation as the name; the associated vpi and vci values are ordinarily 0 and 5, respectively. You cannot create this PVC on a subinterface.
|
| |
|
Complete keyword and argument definitions are as follows:
•name—(Optional) Specifies a unique label that can be up to 16 characters long. It identifies to the processor the virtual path identifier-virtual channel identifier (VPI-VCI) pair to use for a particular packet.
•vpi/—Specifies the ATM network VPI for the PVC that you named. The absence of the "/" and a vpi value defaults the vpi value to 0.
The ATM network VPI of this PVC is an 8-bit field in the header of the ATM cell. The vpi value is unique only on a single link, not throughout the ATM network, because it has local significance only. The vpi value must match that of the switch. Valid values are from 0 to 255, but the value is usually 0 for ILMI communications. If a value is not specified, the vpi value is set to 0.
Note You cannot set both vpi and vci to 0; if one is 0, the other cannot be 0.
•vci—Specifies the ATM network VCI for the PVC you named. The VCI is a 16-bit field in the header of the ATM cell. The VCI value is unique only on a single link, not throughout the ATM network, because it has only local significance. The vci value ranges from 0 to 1 less than the maximum value set for this interface by the atm vc-per-vp command.
Note Typically, the low vci values 0 to 31 are reserved for specific traffic (for example, F4 operations, administration, and maintenance [OAM]; SVC signaling; and ILMI). Do not use them for other PVCs.
•ilmi—(Optional) Sets up communication with the ILMI; the associated vpi and vci values ordinarily are 0 and 16, respectively.
|
| |
|
•qsaal—(Optional) Specifies a signaling-type PVC used for setting up or tearing down SVCs; the associated vpi and vci values ordinarily are 0 and 5, respectively.
•smds—(Optional) Specifies encapsulation for switched multimegabit data service (SMDS) networks. If you are configuring an ATM PVC on the ATM Interface Processor (AIP), you must configure AAL3/4SMDS using the atm aal aal3/4 command before specifying smds encapsulation. If you are configuring an ATM network processor module (NPM), the atm aal aal3/4 command is not required. SMDS encapsulation is not supported on the ATM port adapter.
|
Step 6
|
Router(config-if-atm-pvc)# protocol protocol
{protocol-address | inarp} [[no] broadcast]
|
Configures a static map for an ATM permanent PVC, SVC, or virtual circuit (VC) class or enables Inverse Address Resolution Protocol (ARP) or Inverse ARP broadcasts on an ATM PVC.
The keywords and arguments are as follows:
•protocol—Specifies one of the following:
–aarp—AppleTalk ARP
–apollo—Apollo domain
–appletalk—AppleTalk
–arp—IP ARPbridge—bridging
–bstun—block serial tunnel
–cdp—Cisco Discovery Protocol
–clns—ISO Connectionless Network Service (CLNS)
–clns_es—ISO CLNS end system
–clns_is—ISO CLNS intermediate systemcmns—ISO Connection-Mode Network Service (CMNS)
–compressedtcp—Compressed TCP
–decnet—DECnetdecnet_node—DECnet node
–decnet_prime_router—DECnet prime router
–decnet_router-l1—DECnet router L1
–decnet_router-l2—DECnet router L2
|
| |
|
–dlsw—data link switchin
–ip—IP
–ipx—Novell IPX
–llc2—llc2
–pad—Packet assembler/disassembler (PAD) links
–qllc—Qualified Logical Link Control protocol
–rsrb—remote source-route bridging
–snapshot—snapshot routing support
–stun—serial tunnel
–vines—Banyan VINES
–xns—Xerox Network Systems protocol
•protocol-address—Specifies the destination address that is being mapped to a PVC.
•inarp—(Valid only for IP and IPX protocols on PVCs) Enables Inverse ARP on an ATM PVC. If you specify protocol-address instead of inarp, Inverse ARP is automatically disabled for that protocol.
•[no] broadcast—(Optional) broadcast indicates that this map entry is used when the corresponding protocol sends broadcast packets to the interface (for example, Interior Gateway Routing Protocol [IGRP] updates. Pseudobroadcasting is supported. The broadcast keyword of the protocol command takes precedence if you previously configured the broadcast command on the ATM PVC or SVC.
|
Step 7
|
Router(config-if-atm-pvc)# cbr rate
|
Configures the CBR for the ATM circuit emulation service (CES) for an ATM PVC on the Cisco MC3810 multiservice concentrator. By default, the rate argument used is the value configured with the vc-class command. The valid rate is from 56 to 10,000 kbps. The formula for calculating the CBR is 1.14 times the clock rate on the serial port.
|
Step 8
|
Router(config-if-atm-pvc)# encapsulation aal1
|
Configures ATM adaptation layer 1 (AAL1) encapsulation necessary for videoconferencing using PVCs.
|
Verifying ATM Interface Configuration for Video over PVCs and SVCs
To verify ATM interface configuration, complete the following steps:
Step 1 Enter the show atm pvc command with the VPI/VCI specified to see the PVCs that are set up for ILMI management and Q.SAAL signaling, as in the following examples:
ATM0: VCD: 2, VPI: 0, VCI: 5, Connection Name: SAAL
AAL5-SAAL, etype:0x4, Flags: 0x26, VCmode: 0x0
OAM frequency: 0 second(s), OAM retry frequency: 1 second(s), OAM retry frequency: 1
second(s)
OAM up retry count: 3, OAM down retry count: 5
OAM Loopback status: OAM Disabled
OAM VC state: Not Managed
ILMI VC state: Not Managed
InPkts: 2044, OutPkts: 2064, InBytes: 20412, OutBytes: 20580
InPRoc: 2044, OutPRoc: 2064, Broadcasts: 0
InFast: 0, OutFast: 0, InAS: 0, OutAS: 0
F5 InEndloop: 0, F5 InSegloop: 0, F5 InAIS: 0, F5 InRDI: 0
F4 InEndloop: 0, F4 InSegloop: 0, F4 InAIS: 0, F4 InRDI: 0
F5 OutEndloop: 0, F5 OutSegloop: 0, F5 OutRDI: 0
F4 OutEndloop: 0, F4 OutSegloop: 0, F4 OutRDI: 0
Status: INACTIVE, State: NOT_IN_SERVICE
Router# show atm pvc 0/16
ATM0: VCD: 1, VPI: 0, VCI: 16, Connection Name: ILMI
AAL5-ILMI, etype:0x0, Flags: 0x27, VCmode: 0x0
OAM frequency: 0 second(s), OAM retry frequency: 1 second(s), OAM retry frequency: 1
second(s)
OAM up retry count: 3, OAM down retry count: 5
OAM Loopback status: OAM Disabled
OAM VC state: Not Managed
ILMI VC state: Not Managed
InPkts: 398, OutPkts: 421, InBytes: 30493, OutBytes: 27227
InPRoc: 398, OutPRoc: 421, Broadcasts: 0
InFast: 0, OutFast: 0, InAS: 0, OutAS: 0
F5 InEndloop: 0, F5 InSegloop: 0, F5 InAIS: 0, F5 InRDI: 0
F4 InEndloop: 0, F4 InSegloop: 0, F4 InAIS: 0, F4 InRDI: 0
F5 OutEndloop: 0, F5 OutSegloop: 0, F5 OutRDI: 0
F4 OutEndloop: 0, F4 OutSegloop: 0, F4 OutRDI: 0
Status: INACTIVE, State: NOT_IN_SERVICE
Step 2 Enter the show interface atm 0 privileged EXEC command to see information about the ATM interface, as in the following example:
Router# show interface atm 0
ATM0 is up, line protocol is up
Internet address is 9.1.1.6/8
MTU 1500 bytes, sub MTU 1500, BW 1536 Kbit, DLY 20000 usec,
reliability 255/255, txload 22/255, rxload 11/255
NSAP address: 47.0091810000000002F26D4901.000011116666.06
292553397 packets input, 3437519137 bytes
164906758 packets output, 1937663833 bytes
0 OAM cells input, 0 OAM cells output, loopback not set
Encapsulation(s):, PVC mode
1024 maximum active VCs, 28 current VCCs
VC idle disconnect time: 300 seconds
Signalling vc = 1, vpi = 0, vci = 5
UNI Version = 4.0, Link Side = user
Last input 00:00:00, output 2d05h, output hang never
Last clearing of "show interface" counters never
Input queue: -1902/75/0 (size/max/drops); Total output drops: 205
Queueing strategy: weighted fair
Output queue: 0/1000/64/0 (size/max total/threshold/drops)
Conversations 0/0/256 (active/max active/max total)
Reserved Conversations 0/0 (allocated/max allocated)
5 minute input rate 67000 bits/sec, 273 packets/sec
5 minute output rate 136000 bits/sec, 548 packets/sec
76766014 packets input, 936995443 bytes, 0 no buffer
Received 0 broadcasts, 0 runts, 0 giants, 0 throttles
0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
367264676 packets output, 3261882795 bytes, 0 underruns
0 output errors, 0 collisions, 2 interface resets
0 output buffer failures, 0 output buffers swapped out
Step 3 Enter the show atm vc privileged EXEC command to see how SVCs and PVCs are set up, as in the following example:
Interface Name VPI VCI Type Encaps SC Kbps Kbps Cells Sts
0 1 0 5 PVC SAAL UBR 56 UP
0 2 0 16 PVC ILMI UBR 56 UP
0 3 34 35 PVC AAL1 CBR 768 768 UP
0 4 38 39 SVC CES CBR 768 768 UP
Step 4 Enter the show atm video-voice address privileged EXEC command to see information about the ATM interface address, which is particularly helpful because the address is assigned automatically through the atm voice aesa command. The following example also confirms that the ILMI status is confirmed—the ILMI PVC is set up to allow SVC management:
Router# show atm video-voice address
nsap address type ilmi status
47.0091810000000002F26D4901.00107B4832E1.FE VOICE_AAL5 Confirmed
47.0091810000000002F26D4901.00107B4832E1.C8 VIDEO_AAL1 Confirmed
Configuring Video Dial Peers
The video dial peer feature is supported on only the Cisco MC3810 multiservice concentrator.
To configure video dial peers, use the following commands beginning in global configuration mode:
| |
Command
|
Purpose
|
Step 1
|
Router(config)# port signal slot/port
|
Specifies the slot where the video dialing module (VDM) is located and the port for the EIA/TIA-366 interface.
The arguments are as follows:
•slot—Indicates that the value of the VDM is either 1 or 2.
•port—Enters the port location of the RS-366 interface. The Cisco MC3810 VDM has only one video port, so the port value is 0.
|
Step 2
|
Router(config)# dial-peer video tag {videocodec |
videoatm}
|
Defines a video ATM dial peer for the remote system and enters dial-peer configuration mode. Video dial peers are persistent and exist until they are specifically removed with the no form of the dial-peer video command.
The keywords and arguments are as follows:
•tag—Identifies the dial peer and must be unique on the Cisco MC3810. Do not duplicate a specific tag number. Valid values are from 1 to 10000.
•videocodec—Specifies a local video codec connected to the router.
•videoatm—Specifies a remote video codec on the ATM network.
|
Step 3
|
Router(config-dial-peer)# destination-pattern [+]
string [T]
|
Specifies the E.164 address associated with this dial peer.
The keywords and arguments are as follows:
•+—(Optional) Specifies a character indicating an E.164 standard number. The plus sign (+) is not supported on the Cisco MC3810.
•string—Indicates a series of digits that specify the E.164 or private dialing plan telephone number. Valid entries are the digits 0 through 9, the letters A through D, and the following special characters:
–The asterisk (*) and pound sign (#)—Indicate the keys that appear on standard touch-tone dial pads.
|
| |
|
–Comma (,)—Inserts a pause between digits.
–Period (.)—Matches any entered digit (this character is used as a wildcard).
–Percent sign (%)—Indicates that the preceding digit or pattern occurred zero or multiple times, similar to the wildcard in the regular expression.
–Plus sign (+)—Specifies a sequence of one or more of the character or pattern.
Note The plus sign used as part of the digit string is different from the plus sign that can be used in front of the digit string to indicate that the string is an E.164 standard number.
–Circumflex accent (^)—Indicates a match to the beginning of the string.
–Dollar sign ($)—Matches the null string at the end of the input string.
–Backslash symbol (\)—Indicates a character followed by a single character matching the first character or by a single character having no other significance.
–Question mark (?)— Indicates that the preceding digit occurred zero or one time.
–Brackets ([])—Indicate a range of digits. A range is a sequence of characters enclosed in the brackets; only numeric characters from 0 to 9 are allowed in the range. This is similar to a regular expression rule.
–Parentheses ( )—Indicate a pattern and are the same as the regular expression rule, for example, 408(555). Parentheses are used in conjunction with symbols ?, %, and +.
For more information on applying wildcard symbols to destination patterns and the dial strings that result, see the "Configuring Dial Plans, Dial Peers, and Digit Manipulation" chapter.
•T—(Optional) Control character indicating that the destination-pattern value is a variable-length dial string.
|
Step 4
|
Cisco MC3810 Multiservice Concentrator
Router(config-dial-peer)# session target {serial |
atm} interface {svc nsap nsap-address | pvc {name|
vpi/vci | vci}
|
Configures the ATM session target for the dial peer.
The keywords and arguments are as follows:
•serial—Specifies the serial interface for the dial-peer address.
•atm—Specifies the ATM interface number. The only valid number is 0.
•interface—Specifies the interface number.
•svc nsap—Specifies the switched virtual circuit (SVC) network service access point (NSAP) address.
•nsap-address—Specifies a 40-digit hexadecimal number for the session target NSAP.
•pvc—Specifies a permanent virtual circuit (pvc).
•name—Specifies the name of the session target ATM PVC.
•vpi/vci—Specifies the ATM network virtual path identifier (VPI) and virtual channel identifier (VCI) of this PVC.
•vci—Specifies the ATM network VCI of this PVC.
Note If you are using PVCs to send video data, you can also specify a PVC defined on the ATM interface as a session target by using a name or a VPI-VCI combination.
|
Step 5
|
Router(config-dial-peer)# exit
|
Exits dial peer configuration mode.
|
Step 6
|
Router(config)# dial-peer video tag {videocodec |
videoatm}
|
Defines a video ATM dial peer for the local video codec.
The keywords and arguments are as follows:
•tag—Defines the dial peer and assigns the protocol type to the peer. Valid entries are from 1 to 10000. The tag must be unique on the router.
•videocodec—Specifies a local video codec connected to the router.
•videoatm—Specifies a remote video codec on the ATM network.
|
Step 7
|
Router(config-dial-peer)# destination-pattern [+]
string [T]
|
Specifies the E.164 address associated with this dial peer.
For an explanation of the keywords and arguments, see Step 3 of this configuration task table.
|
Step 8
|
Router(config-dial-peer)# port signal slot/port
|
Specifies the slot where the VDM is located and the port for the EIA/TIA-366 interface.
For an explanation of the arguments, see Step 1 in this configuration task table.
|
Step 9
|
Router(config-dial-peer)# port media interface
|
Specifies the serial interface where the local video codec is connected for a local video dial peer. The interface argument indicates the serial interface where the local codec is connected. Valid entries are the numbers 1 or 0.
|
Step 10
|
Router(config-dial-peer)# nsap nsap-address
|
Specifies the NSAP address for the codec. The nsap-address argument is a 40-digit hexadecimal number that must be unique on the device.
|
Verifying Video Dial-Peer Configuration
To verify the dial-peer configuration, enter the show dial-peer video privileged EXEC command. In the following example, note that the third dial peer uses a PVC specified with a VPI-VCI value while the second uses an SVC. The first dial peer is for the local codec.
Router# show dial-peer video
type = videocodec, destination-pattern = 111
port signal = 1/0, port media = Serial1
nsap = 47.0091810000000050E201B101.00107B09C6F2.C8
type = videoatm, destination-pattern = 222
session-target = ATM0 svc nsap 47.0091810000000050E201B101.00E01E92ADC2.C8
type = videoatm, destination-pattern = 333
session-target = ATM0 pvc 70/70
Troubleshooting Video over ATM SVCs and PVCs
When problems occur with video over ATM PVCs or SVCs on the Cisco MC3810 multiservice concentrator, perform the following steps to find the source of your problems. Common problems are addressed before more complex problems:
Note If you are using dial PVCs (rather than SVCs) for video communications, ensure that both parties dial one another within the timeout period that is set on the codec. This timeout period is usually one minute.
Step 1 Check the LEDs on the EIA/TIA-366 interface. If the green LED is not lit, there may be a hardware problem, or the correct image may not be loaded. For more information, see the Cisco MC3810 Multiservice Concentrator Hardware Installation Guide.
Step 2 Make sure that the ATM interface, serial ports, and controllers are set to no shutdown.
Step 3 Check the serial interface configuration.
•If you are using dial PVCs for video, do not include the ces connect serial interface command because this command does not provide mapping to the ATM interface for PVCs (or SVCs) for the dial video feature. Instead, create dial PVCs under ATM interface configuration. If the ces connect command has been configured, it appears in show running-config command output under serial interface 0 or 1.
•Enter the show interfaces serial privileged EXEC command. Ensure that the serial interface communications circuitry is operational, as shown in the last line of the show interfaces serial command output:
DSR = UP DTR = UP RTS = UP CTS = UP DCD = UP
Step 4 (For SVCs only) On both Cisco MC3810 multiservice concentrators, make sure that ILMI and Q.SAAL PVCs are set up to allow SVC communications. The show atm pvc privileged EXEC command displays information about configured PVCs, including the ILMI and Q.SAAL PVCs.
Interface Name VPI VCI Type Encaps SC Kbps Kbps Cells Sts
0 1 0 5 PVC SAAL UBR 56 UP
0 2 0 16 PVC ILMI UBR 56 UP
Step 5 (For dial PVCs only) On both Cisco MC3810 multiservice concentrators, make sure that PVCs are set up to allow dial PVC connections and that CBR is the configured service class (SC). In addition, the bit rate must correspond to the rate set on the serial interface. The show atm pvc privileged EXEC command displays information about configured PVCs.
Interface Name VPI VCI Type Encaps SC Kbps Kbps Cells Sts
0 3 38 35 PVC AAL1 CBR 384 384 UP
Step 6 (For SVCs only) Ensure that NSAP addresses are set up and confirmed as operational under the ATM interfaces of the Cisco MC3810 multiservice concentrators on both sides of the communication. Enter the show atm video-voice address or show atm ilmi-status privileged EXEC commands, as shown in the following example. The show atm ilmi-status command provides more details about the ILMI PVC than does the show atm video-voice address command.
Router# show atm video-voice address
nsap address type ilmi status
47.0091810000000002F26D4901.00107B4832E1.FE VOICE_AAL5 Confirmed
47.0091810000000002F26D4901.00107B4832E1.C8 VIDEO_AAL1 Confirmed
Router# show atm ilmi-status
Interface : ATM0 Interface Type : Private UNI (User-side)
ILMI VCC : (0, 16) ILMI Keepalive : Enabled (5 Sec 4 Retries)
Peer IP Addr: 10.1.1.11 Peer IF Name: ATM1/0/0
Peer MaxVPIbits: 8 Peer MaxVCIbits: 14
47.0091.8100.0000.0002.f26d.4901
End-System Registered Address(s) :
47.0091.8100.0000.0002.f26d.4901.0000.1111.5555.05(Confirmed)
47.0091.8100.0000.0002.f26d.4901.0010.7b48.32e1.fe(Confirmed)
47.0091.8100.0000.0002.f26d.4901.0010.7b48.32e1.c8(Confirmed)
Step 7 Check for clocking problems. Enter the show controllers t1 or show controllers e1 privileged EXEC command to check for slip errors, as shown in the following excerpt from the command output:
Data in current interval (819 seconds elapsed):
0 Line Code Violations, 0 Path Code Violations
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
0 Line Code Violations, 0 Path Code Violations
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
0 Line Code Violations, 0 Path Code Violations
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
0 Line Code Violations, 0 Path Code Violations
0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
A few slip errors may not indicate a problem with clocking. However, if there are numerous errors, check the following possibilities:
•The network clocks are not set to the same clock rate. Enter the show network-clocks command on the devices to ensure that these clock rates match.
•The Cisco MC3810 multiservice concentrators may not be using the same clock source. For example, if there are two back-to-back Cisco MC3810 multiservice concentrators and one is using an internal clock source, the other must use the line clock source to obtain clocking from the same device. Enter the show network-clocks and show controllers t1 or show controllers e1 commands to see the clock source settings. For additional guidance, see the "Configuring Synchronized Clocking" appendix.
Step 8 Check the functionality of the Service-Specific Connection-Oriented Protocol (SSCOP). Enter the show sscop privileged EXEC command. See the following excerpt from the command output:
SSCOP details for interface ATM0
Current State = Data Transfer Ready
Interpretation of the command output requires familiarity with SSCOP, so unless you are familiar with the protocol, just use the command to ensure that the protocol is in a state of readiness. If you need to make changes, see the Cisco IOS Wide-Area Networking Configuration Guide.
Note If you plan to adjust SSCOP parameters, you may wish to complete the rest of the troubleshooting steps before doing so.
Step 9 Enter the show dial-peer video command on the local and remote concentrators to verify that each has been configured properly to communicate with the other:
Router1# show dial-peer video
dial-peer video 111 videocodec
nsap 47.0091810000000002F26D4901.00107B4832E1.C8
dial-peer video 221 videoatm
session target ATM0 svc nsap 47.0091810000000002F26D4901.00107B09C645.C8
Router2# show dial-peer video
dial-peer video 111 videocodec
nsap 47.0091810000000002F26D4901.00107B09C645.C8
dial-peer video 121 videoatm
session target ATM0 svc nsap 47.0091810000000002F26D4901.00107B4832E1.C8
Step 10 Enter the show video call summary command to quickly check the status of calls on the local and remote multiservice access concentrators. "ViCM" is the internal video call manager.
When no call is in progress, the output looks like this:
Router# show video call summary
Serial0:ViCM = Idle, Codec Ready
When a call is starting, the output looks like this:
Router# show video call summary
Serial0:ViCM = Call Connected
When a call is disconnecting, the output looks like this:
Router# show video call summary
Step 11 Enter the privileged EXEC show call history video record command to see information about current and recent video calls, allowing analysis of possible problems:
Router# show call history video record
CallDuration = n/a - call is in progress
DisconnectText = n/a - call is in progress
Remote NSAP = 47.0091810000000002F26D4901.00107B09C645.C8
Local NSAP = 47.0091810000000002F26D4901.00107B4832E1.C8
vcd = 414, vpi = 0, vci = 158
VideoSlot = 1, VideoPort = 0
CallDuration = 557 seconds
DisconnectText = local hangup
Remote NSAP = 47.0091810000000002F26D4901.00107B09C645.C8
Local NSAP = 47.0091810000000002F26D4901.00107B4832E1.C8
vcd = 364, vpi = 0, vci = 108
VideoSlot = 1, VideoPort = 0
CalledNumber = n/a - incoming call
CallDuration = 125 seconds
DisconnectText = local hangup
Local NSAP = 47.0091810000000002F26D4901.00107B4832E1.C8
vcd = 264, vpi = 0, vci = 273
VideoSlot = 1, VideoPort = 0
CalledNumber = n/a - incoming call
CallDuration = 171651 seconds
DisconnectText = remote hangup
Local NSAP = 47.0091810000000002F26D4901.00107B4832E1.C8
vcd = 7, vpi = 0, vci = 39
VideoSlot = 1, VideoPort = 0
Step 12 Enter the debug video vicm command to follow in-progress calls carefully. Comments are framed in asterisks (*):
Video ViCM FSM debugging is on
***** Starting Video call *****
Router# SVC HANDLE in rcvd:0x80001B:
00:42:55:ViCM - current state = Idle, Codec Ready
00:42:55:ViCM - current event = SVC Setup
00:42:55:ViCM - new state = Call Connected
00:42:55:ViCM - current state = Call Connected
00:42:55:ViCM - current event = SVC Connect Ack
00:42:55:ViCM - new state = Call Connected
*****Video Call Disconnecting*****
00:43:54:ViCM - current state = Call Connected
00:43:54:ViCM - current event = SVC Release
00:43:54:ViCM - new state = Remote Hangup
00:43:54:ViCM - current state = Remote Hangup
00:43:54:ViCM - current event = SVC Release Complete
00:43:54:ViCM - new state = Remote Hangup
mc3810_video_lw_periodic:Codec is not ready
mc3810_video_lw_periodic:sending message
00:43:55:ViCM - current state = Remote Hangup
00:43:55:ViCM - current event = DTR Deasserted
00:43:55:ViCM - new state = Idle
mc3810_video_lw_periodic:Codec is ready
mc3810_video_lw_periodic:sending message
00:43:55:ViCM - current state = Idle
00:43:55:ViCM - current event = DTR Asserted
00:43:55:ViCM - new state = Idle, Codec Ready
Configuring the CES Clock
The OC-3/STM-1 ATM CES network module uses the CES clock and passes the clocking information to the T1 controller and to the ATM interface. The clock must be set up on the CES interface, and then the T1 controller and ATM interface must be configured to use either its own physical loop or the clocking information that is passed. Some examples of the CES clock settings are shown at the end of this section.
To configure video support over ATM AAL1 PVCs, it is also necessary to perform the tasks in the "Configuring Structured CES" configuration task table in this chapter.
This feature is supported on the Cisco 3600 series routers.
To configure the CES clock, use the following commands beginning in global configuration mode:
| |
Command
|
Purpose
|
Step 1
|
Router(config)# ces slot/port
|
Configures Circuit Emulation Service (CES) on a router port and enters CES configuration mode. The slot/port argument indicates the backplane slot number and port number on the interface. The port value is always 0 because the interface configuration applies to all ports in the slot.
|
Step 2
|
Router(config-ces)# clock-select priority-no
interface slot/port
|
Establishes the sources and priorities of the requisite clocking signals for the OC-3/STM-1 ATM CES network module.
The arguments are as follows:
•priority-no—Indicates the priority of the clock source. The values are from 1 (high priority) to 4 (low priority).
•interface—Specifies the interface that will supply the clock source.
•slot/port—Specifies the backplane slot number and port number on the interface.
|
Step 3
|
|
Exits CES configuration mode.
|
Step 4
|
Router(config)# controller {T1 | E1} slot/port
|
Enters controller configuration mode for the T1 or E1 controller at the specified slot/port location. The prompt changes again to show that you are in controller configuration mode.
|
Step 5
|
Router(config-controller)# clock source {line {primary
| secondary} | internal}
|
Specifies which end of the circuit provides clocking for the T1 or E1 interface.
The keywords are as follows:
•line—Specifies that the interface will clock its transmitted data from a clock recovered from the line's receive data stream. This is the default.
•primary—Specifies the source of primary line clocking. The default primary TDM clock source is from the T0 controller.
•secondary—Specifies the source of secondary line clocking. The default secondary TDM clock source is from the T1 controller.
•internal—Specifies that the interface will clock its transmitted data from its internal clock.
Note The clock source should be set to use internal clocking when the installed video WAN interface card (VWIC) uses the clocking designated by the CES clock setting.
|
Step 6
|
Router(config-controller)# exit
|
Exits controller configuration mode.
|
Step 7
|
Router(config)# interface atm slot/port
|
Configures the clocking on the ATM interface and enters interface configuration mode.
The slot/port arguments are as follows:
•slot—Specifies the backplane slot number on the router. The value ranges from 0 to 4, depending on what router you are configuring. Refer to your router hardware documentation.
•port—Specifies the port number. The number depends on the number of ports on the network module.
|
Step 8
|
Router(config-if)# atm clock internal
|
Specifies which end of the circuit provides clocking for the ATM interface. The clock source should be set to use internal clocking when the CES clock is set to anything other than ATM. The no atm clock internal command should be set if using the ATM physical loop for clocking
|
Configuring Structured CES
Structured CES allows you to allocate bandwidth in a highly flexible and efficient manner. With structured services, you use only the bandwidth actually required to support the active structured circuits that you configure.
Structured CES is supported on Cisco 3600 series routers for video over AAL1 using the OC-3/STM-1 ATM CES network module.
For information on configuring unstructured CES service and channel-associated signaling for structured CES, refer to the Cisco IOS Wide-Area Networking Configuration Guide.
To configure the T1/E1 port for structured CES, use the following commands beginning in global configuration mode:
| |
Command
|
Purpose
|
Step 1
|
Router(config)# controller {T1 | E1} slot/port
|
Enters controller configuration mode for the T1 or E1 controller at the specified slot/port location. The prompt changes again to show that you are in controller configuration mode.
|
Step 2
|
Router(config-controller)# clock source {line {primary
| secondary} | internal}
|
Specifies which end of the circuit provides clocking for the T1 or E1 interface.
The keywords are as follows:
•line—Specifies that the interface will clock its transmitted data from a clock recovered from the line's receive data stream. This is the default.
•primary—Specifies the source of primary line clocking. The default primary TDM clock source is from the T0 controller.
•secondary—Specifies the source of secondary line clocking. The default secondary TDM clock source is from the T1 controller.
•internal—Specifies that the interface will clock its transmitted data from its internal clock.
The clock source should be set to use internal clocking when the installed video WAN interface card (VWIC) uses the clocking designated by the CES clock setting.
|
Step 3
|
T1 Line
Router(config-controller)# framing {sf | esf}
E1 Line
Router(config-controller)# framing {crc4 | no-crc4}
[australia]
|
Sets the framing for the E1 or T1 data line.
The keywords are as follows:
•sf—Specifies Super Frame as the T1 frame type.
•esf—Specifies Extended Super Frame as the T1 frame type. This frame type is required for ATM on T1 lines. This setting is automatic for T1 when ATM mode is set.
•crc4—Specifies CRC4 frame as the E1 frame type. This frame type is required for ATM on E1 lines. This setting is automatic for E1 when the ATM mode is set.
•no-crc4—Specifies no CRC4 frame as the E1 frame type.
•australia—(Optional) Specifies the E1 frame type used in Australia.
|
Step 4
|
Router(config-controller)# linecode {ami | b8zs |hdb3}
|
Selects the line-code type for T1 or E1 lines.
The keywords are as follows:
•ami—Specifies alternate mark inversion (AMI), which is available for T1 or E1 lines. It represents zeros using a 01 within each bit cell, and ones are represented by 11 or 00, alternately, within each bit cell. AMI requires that the sending device maintain ones density. Ones density is not maintained independently of the data stream.
•b8zs—Sets the line encoding according to your service provider's instructions. Bipolar-8 zero substitution (B8ZS), available only for T1 lines, encodes a sequence of eight zeros in a unique binary sequence to detect line coding violations.
•hdb3—Specifies high-density bipolar 3 (HDB3) as the line-code type. It is required for ATM on E1 lines. This setting is automatic for E1 when the ATM mode is set.
Note When the E1 controller is specified, you must also configure scrambling on the ATM 0 interface. (See Step 3 of the configuration task table in the "Configuring ATM Interfaces to Support Video over PVCs and SVCs" section.)
|
Step 5
|
Router(config-controller)# ces-clock [adaptive | srts
| synchronous]
|
Specifies the type of clocking used for T1 interfaces using structured CES.
The keywords are as follows:
•adaptive—Adjusts output clock on a received AAL1 on first-in, first-out basis. Use in unstructured mode.
•srts—Sets the clocking mode to synchronous residual time stamp.
•synchronous—Configures the timing recovery to synchronous for structured mode.
Note Only synchronous clocking can be used with structured CES.
|
Step 6
|
Router(config-controller)# tdm-group tdm-group-no
timeslot timeslot-list [type {e&m | fxs [loop-start |
ground-start] | fxo [loop-start |
ground-start] | fxs-melcas | fxo-melcas | e&m-melcas}
|
Configures a list of time slots for creating clear channel groups (pass-through) for time-division multiplexing (TDM) cross-connect.
For an explanation of the keywords and arguments, see Step 7 in the "Configuring Video in Pass-Through Mode" configuration task table in this chapter.
|
Step 7
|
Router(config-controller)#exit
|
Exits controller configuration mode.
|
Step 8
|
Router(config)#connect connection-name atm slot/port-1
[name of PVC/SVC | vpi/vci] {T1 | E1} slot/port-2
TDM-group-number
|
Defines the connections between T1 or E1 controller ports and the ATM interface.
The keywords and arguments are as follows:
•connection-name—Specifies a name for this connection.
•atm—Specifies the ATM interface.
•slot/port-1—Specifies the location of the ATM controller to be connected.
•name of PVC/SVC—Specifies the permanent or switched virtual circuit.
•vpi/vci—Specifies a virtual path identifier (VPI) and virtual channel identifier (VCI).
•T1—Specifies a T1 port.
•E1—Specifies an E1 port.
|
| |
|
•slot/port-2—Specifies the location of the T1 or E1 controller to be connected.
•TDM-group-number—Specifies the number identifier of the time-division multiplexing (TDM) group associated with the T1 or E1 controller port and created by using the tdm-group command. Valid values are from 0 to 23 for T1 and from 0 to 30 for E1
|
Configuring the Proxy and T.120
To configure the Multimedia Conference Manager for voice, video, and data traffic, see the "Configuring H.323 Gatekeepers and Proxies" chapter in this configuration guide.
Note This feature is supported on the Cisco 2600 series, 3600 series, and 7200 series routers and on the Cisco MC3810 multiservice concentrator.
To configure Multimedia Conference Manager for this feature, follow these steps beginning in global configuration mode:
| |
Command
|
Purpose/Comment
|
Step 1
|
Router(config)# proxy h323
|
Enables the proxy feature on your router.
|
Step 2
|
Router(config)# ip routing
|
Makes sure that Fast Switching, which is required for the T.120 feature, is enabled.
|
Step 3
|
Router(config)# interface type number [name-tag]
|
Configures an interface type and enters interface configuration mode.
The keywords and arguments are as follows:
•type—Specifies the type of interface to be configured. (For a list of the interface type keywords, see Table 57, which follows this configuration task table.)
•number—Specifies the port, connector, or interface card number. On a Cisco 4000 series router, specifies the network process monitor (NPM) number. The numbers are assigned at the factory at the time of installation or when added to a system, and they can be displayed with the show interfaces command.
•name-tag—(Optional) Specifies the logical name to identify the server configuration so that multiple entries of server configuration can be entered. This optional argument is for use with the Redundant Link Manager (RLM) feature.
|
Step 4
|
Router(config-if)# ip route-cache same-interface
|
Tells the proxy that when sending the packets out, it should use the same interface that the packets came in on. The packets are sent within the interrupt service context. Otherwise, the packets are queued for processing by the Cisco IOS, which is slower and may lead to packet loss.
|
Step 5
|
Router(config-if)# h323 interface [port number]
|
Selects an interface whose IP address will be used by the proxy to register with the gatekeeper. The port number argument specifies the port number on which the proxy will listen for incoming call setup requests.
The range is from 1 to 65,356. The default port number for the proxy is 11,720 in -isx- or -jsx- Cisco IOS images.
The default port number for the proxy is 1720 in -ix- Cisco IOS images that do not contain the Voice over IP (VoIP) gateway.
To use the default port, enter the no h323 interface command and then the h323 interface command.
|
Step 6
|
Router(config-if)# h323 h323-id
|
Specifies the name of the proxy being registered with the gatekeeper.
The h323-id argument specifies the name of the proxy. It is recommended that this be a fully qualified e-mail identification (ID), with the domain name being the same as that of its gatekeeper.
If the proxy has registered successfully on a Cisco gatekeeper, you can see the name of the proxy when you enter the show gatekeeper endpoints command.
|
Step 7
|
Router(config-if)# h323 gatekeeper [id gatekeeper-id]
{ipaddr ipaddr [port] | multicast}
|
Specifies the gatekeeper associated with a proxy and controls how the gatekeeper is discovered.
The keywords and arguments are as follows:
•id gatekeeper-id—(Optional) Specifies the gatekeeper name. Typically, this is a Domain Name System (DNS) name, but it can also be a raw IP address in dotted form. If this parameter is specified, gatekeepers that have either the default or explicit flags set for the proxy's subnet will respond. If this parameter is not specified, only those gatekeepers with the default subnet flag will respond.
•ipaddr ipaddr [port]—Specifies that the gatekeeper discovery message will be unicast to this address and, optionally, to the port specified.
•multicast—Specifies that the gatekeeper discovery message will be multicast to the well-known Registration, Authentication, and Status (RAS) multicast address and port.
|
Step 8
|
Router(config-if)# h323 t120 {bypass | proxy}
|
Enables the T.120 capabilities on the router and specifies bypass or proxy mode.
The keywords are as follows:
•bypass—Specifies that the H.245 Open Logical Channel messages for T.120 data channels are passed unmodified through the proxy and that TCP connections for T.120 are established directly between the two endpoints of the H.323 call.
•proxy—Sets proxy mode. In this mode, T.120 features function properly.
|
The following table lists the interface types that may be used for the type argument with the interface command.
Table 57 Interface "Type" Keywords
Keyword
|
Interface Type
|
async
|
Port line used as an asynchronous interface.
|
atm
|
ATM interface.
|
bri
|
ISDN BRI. This interface configuration is propagated to each of the B channels. B channels cannot be individually configured. The interface must be configured with dial-on-demand commands for calls to be placed on that interface.
|
dialer
|
Dialer interface.
|
ethernet
|
Ethernet IEEE 802.3 interface.
|
fastethernet
|
100-Mbps Ethernet interface on the Cisco 4500, Cisco 4700, Cisco 7000, and Cisco 7500 series routers.
|
fddi
|
Fiber Distributed Data Interface (FDDI).
|
group-async
|
Master asynchronous interface.
|
hssi
|
High-Speed Serial Interface (HSSI).
|
lex
|
LAN Extender (LEX) interface.
|
loopback
|
Software-only loopback interface that emulates an interface that is always up. It is a virtual interface supported on all platforms. The interface number is the number of the loopback interface that you want to create or configure. There is no limit on the number of loopback interfaces you can create.
|
null
|
Null interface.
|
port-channel
|
Port channel interface.
|
pos
|
Packet OC-3 interface on the Packet over SONET Interface Processor.
|
serial
|
Serial interface.
|
switch
|
Switch interface.
|
tokenring
|
Token Ring interface.
|
tunnel
|
Tunnel interface; a virtual interface. The number is the number of the tunnel interface that you want to create or configure. There is no limit on the number of tunnel interfaces you can create.
|
vg-anylan
|
100VG-AnyLAN port adapter.
|
Configuring the Gatekeeper to Support Zone Bandwidth
Gatekeeper support for zone bandwidth is supported on the Cisco 2600 series, 3600 series, and 7200 series routers and on the MC3810 multiservice concentrator.
For more information on configuring gatekeepers to support zone bandwidth, refer to the document Configuring H.323 VoIP Gatekeeper for Cisco Access Platforms.
To configure the gatekeeper to support zone bandwidth, use the following commands beginning in gatekeeper configuration mode:
| |
Command
|
Purpose/Comment
|
Step 1
|
Router(config)# gatekeeper
|
Enters gatekeeper configuration mode.
|
Step 2
|
Router(config-gk)# bandwidth {interzone | total |
session} {default | zone zone-name} bandwidth-size
|
Specifies the maximum aggregate bandwidth for H.323 traffic.
The keywords and arguments are as follows:
•interzone—Specifies the maximum bandwidth for H.323 traffic between one zone and another zone.
•total—Specifies the maximum bandwidth for H.323 traffic within a zone and between zones (intrazone and interzone).
•session—Specifies the maximum bandwidth allowed for a single session in a specific zone or in all zones.
•default—Specifies the maximum bandwidth for all applicable zones, depending on the keyword with which it is used.
•zone—Specifies a particular zone.
•zone-name—Names the particular zone.
•bandwidth-size—Specifies maximum bandwidth. For interzone and total, the range is from 1 to 10,000,000 kbps. For session, the range is from 1 to 5000 kbps.
|
Step 3
|
Router(config-gk)# bandwidth remote bandwidth-size
|
Specifies the total bandwidth for H.323 traffic between this gatekeeper and another gatekeeper. The bandwidth-size argument specifies the maximum bandwidth. The range is from 1 to 10,000,000 kbps.
|
Configuring RSVP-ATM QoS Interworking
RSVP-ATM QoS interworking provides support for controlled load service using RSVP over an ATM core network. This feature requires the ability to signal for establishment of SVCs across the ATM cloud in response to RSVP reservation messages. To meet this requirement, RSVP over ATM supports mapping of RSVP sessions to ATM SVCs. Refer to the document RSVP-ATM QoS Interworking for information on how to configure RSVP over an ATM core network.
RSVP-ATM QoS interworking is supported on the Cisco 2600 series, 3600 series, and 7200 series routers and on the MC3810 multiservice concentrator.
Verifying RSVP-ATM QoS Interworking Configuration
Step 1 To see information about the remote bandwidth, enter the show gatekeeper status command.
Router# show gatekeeper status
Maximum Remote Bandwidth:
Current Remote Bandwidth:0 kbps
Step 2 To display bandwidth information for all zones, enter the show gatekeeper zone status command.
Router# show gatekeeper zone status
GK name Domain Name RAS Address PORT FLAGS
------- ----------- ----------- ----- -----
DVM1 dvm1.com 172.28.129.50 1719 LS
BANDWIDTH INFORMATION (kbps) :
Maximum interzone bandwidth :
Current interzone bandwidth : 0
Maximum total bandwidth :
Current total bandwidth : 0
Maximum session bandwidth :
All Other Subnets :(Enabled)
PROXY USAGE CONFIGURATION :
Inbound Calls from DVM2 :
to terminals in local zone DVM1 :use proxy
to gateways in local zone DVM1 :do not use proxy
from terminals in local zone DVM1 :use proxy
from gateways in local zone DVM1 :use proxy
Inbound Calls from all other zones :
to terminals in local zone DVM1 :use proxy
to gateways in local zone DVM1 :do not use proxy
Outbound Calls to all other zones :
from terminals in local zone DVM1 :use proxy
from gateways in local zone DVM1 :do not use proxy
DVM2 dvm2.com 172.28.129.50 1719 LS
BANDWIDTH INFORMATION (kbps) :
Maximum interzone bandwidth :
Current interzone bandwidth : 0
Maximum total bandwidth :
Current total bandwidth : 0
Maximum session bandwidth :
All Other Subnets :(Enabled)
PROXY USAGE CONFIGURATION :
Inbound Calls from all other zones :
to terminals in local zone DVM2 :use proxy
to gateways in local zone DVM2 :do not use proxy
Outbound Calls to all other zones :
from terminals in local zone DVM2 :use proxy
from gateways in local zone DVM2 :do not use proxy
test1 cisco.com 172.28.129.50 1719 LS
BANDWIDTH INFORMATION (kbps) : Maximum session bandwidth :
All Other Subnets :(Enabled)
PROXY USAGE CONFIGURATION :
Inbound Calls from all other zones :
to terminals in local zone test1 :use proxy
to gateways in local zone test1 :do not use proxy
Outbound Calls to all other zones :
from terminals in local zone test1 :use proxy
from gateways in local zone test1 :do not use proxy
TEST2 test2.com 172.28.129.54 1719 RS
Maximum interzone bandwidth :
Current interzone bandwidth : 0
Step 3 To display information about the proxy, such as the T.120 mode and what port is being used, enter the show proxy h323 status command.
Router# show proxy h323 status
H.323 Proxy Feature:Enabled
Proxy interface = Ethernet0:UP
Proxy IP address = 172.28.129.50
Application Specific Routing:Disabled
RAS Initialization:Complete
Proxy aliases configured:
Proxy aliases assigned by Gatekeeper:
Gatekeeper multicast discovery:Disabled
Gatekeeper registration succeeded
Number of calls in progress:0
Video Applications Configuration Examples
This section provides the following configuration examples:
•Video over ATM PVCs and SVCs Configuration Examples
•CES Video Traffic on the Cisco MC3810 Multiservice Concentrator Configuration Example
•Video Traffic on a Cisco 3600 Series Router Configuration Example
•Cisco IP/VC 3510 Multipoint Control Unit with Cisco IOS Gatekeeper/Proxy Configuration Example
•CES Clock Configuration Examples
Video over ATM PVCs and SVCs Configuration Examples
The configuration excerpts in this section illustrate how two Cisco MC3810 multiservice concentrators communicate back-to-back as shown in Figure 139.
These examples focus on the specific requirements of ATM video SVCs and PVCs rather than on the complete ATM setup.
Figure 139 Two Cisco MC3810s Using ATM SVCs or PVCs for Videoconferencing
Initially, the network clocks are set up on each multiservice access concentrator so that video codecs can operate at a multiple of 64 kbps:
Hostname MC3810A
network-clock base-rate 64k
ip host router 225.255.255.254
ipx routing 1111.0045.0005
|
Hostname MC3810B
network-clock base-rate 64k
ip host router 225.255.255.254
ipx routing 1111.0045.0002
|
The following commands show the configuration of the T1 0 controller, which is for ATM service. Extended Superframe (ESF) framing and B8ZS are required for ATM. The default clock source is line, and the default for the T1 1 controller automatically becomes internal.
Hostname MC3810A
|
Hostname MC3810B
|
Serial interface 0 connects to the local video codec. The restart delay is set to 0 minutes so that the hardware is not reset when it goes down. The clock rate of 384 kbps is the speed at which the video images are sent.
Hostname MC3810A
|
Hostname MC3810B
|
The following commands show how to configure the ATM interface and set up PVCs to supply Q.SAAL signaling and ILMI management for SVC communications. Note that you can also specify the NSAP address by using the atm video aesa command with an ESI value.
Hostname MC3810A
ip address 10.1.1.5 255.0.0.0
|
Hostname MC3810B
ip address 10.1.1.6 255.0.0.0
|
The following examples show dial PVCs for video communications. CBR is required for reliable video. The CBR speed is set at 117 percent of the video data rate of 384 kbps, which is configured on serial interface 0.
Hostname MC3810A
|
Hostname MC3810B
|
The following examples show dial peers set up for SVC video. Specify local peers through the port signal command, which indicates the slot location of the VDM and the port location of the EIA/TIA-366 interface. Enter the port media command to specify the serial interface for the codec connection. The two configurations are shown one after the other rather than side by side.
The commands are as follows for MC3810A:
dial-peer video 111 videocodec
nsap 47.0091810000000002F26D4901.00107B4832E1.C8
dial-peer video 221 videoatm
session target ATM0 svc nsap 47.0091810000000002F26D4901.00107B09C645.C8
The commands are as follows for MC3810B:
dial-peer video 111 videocodec
nsap 47.0091810000000002F26D4901.00107B09C645.C8
dial-peer video 121 videoatm
session target ATM0 svc nsap 47.0091810000000002F26D4901.00107B4832E1.C8
CES Video Traffic on the Cisco MC3810 Multiservice Concentrator Configuration Example
The following is an example of configuring video traffic over ATM AAL1 using CES on a Cisco MC3810 multiservice concentrator:
network-clock base-rate 64k
interface Serial0 point-to-point
clockrate network-clock 768000
ces connect 25 atm0 pvc 25/100
interface ATM0 point-to-point
ip address 223.223.224.229 255.255.255.0
ip 223.223.224.228 atm-vc 26 broadcast
Video Traffic on a Cisco 3600 Series Router Configuration Example
In the following example, the OC-3/STM-1 ATM CES network module is configured for video traffic. This feature is configurable on the Cisco 3600 series routers.
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
tdm-group 0 timeslots 1-6
ip address 1.2.60.127 255.255.0.0
ip broadcast-address 1.2.255.255
ip default-gateway 1.2.0.1
ip route 223.255.254.0 255.255.255.0 1.2.0.1
connect video-1 ATM1/0 0/41 T1 1/0 0
Cisco IP/VC 3510 Multipoint Control Unit with Cisco IOS Gatekeeper/Proxy Configuration Example
The Cisco IP/VC 3510 multipoint control unit with Cisco IOS gatekeeper/proxy is configurable on the Cisco 2600 series, 3600 series, and 7200 series routers and on the Cisco MC3810 multiservice concentrator.
The following example shows an interzone calling configuration with two zones defined as Aspen and Vail.
Figure 140 Interzone Calling Configuration with Two Zones
The terminals are H.323 terminals.
The definitions for the above are as follows:
•Aspen Terminal A has an E.164 address of 31.
•Aspen Terminal B has an E.164 address of 32.
•Aspen Terminal C has an E.164 address of 33.
•Aspen IP/VC 3510 multipoint control unit (MCU) has an IP address of 10.0.0.2.
•Aspen IP/VC 3510 MCU has three conference prefixes defined 60, 61, and 62.
•Aspen H.323 Gatekeeper (MCM) Proxy has an IP Address of 10.0.0.1.
•Domain is cisco.com.
Vail Terminal A has an E.164 address of 21. The following is the configuration for Aspen MCM GK Proxy:
Hostname Aspen_MCM_GK_Proxy
ip address 10.0.0.1 255.0.0.0
h323 gatekeeper id aspen ipaddr 10.0.0.1
zone local aspen cisco.com 10.0.0.1
zone remote vail cisco.com 12.0.0.1
use-proxy aspen default outbound-from gateway
The following is the configuration for Vail MCM GK Proxy:
Hostname Vail_MCM_GK_Proxy
ip address 10.0.0.1 255.0.0.0
h323 gatekeeper id vail ipaddr 12.0.0.1
zone local vail cisco.com 12.0.0.1
zone remote aspen cisco.com 10.0.0.1
gw-type-prefix 60 hopoff aspen
gw-type-prefix 61 hopoff aspen
gw-type-prefix 62 hopoff aspen
use-proxy aspen default outbound-from gateway
In this example, any terminal registered with the Aspen or Vail gatekeeper may participate in a multiparty call with any participant in either zone. For example, Aspen Terminal A could have a conference with Aspen Terminal C and Vail Terminal A by dialing 61555**33**1221. The conference prefix is 61, the conference password is 555, the invite is **, the E.164 address of Aspen Terminal C is 33, the zone prefix to reach the Vail zone is 12, and the E.164 address of Vail Terminal A is 21.
Alternatively, each terminal could independently dial 61555 to join the conference.
CES Clock Configuration Examples
Table 58 shows allowable combinations for CES clocking configuration.
Table 58 CES Clock Configuration Combinations
T1 Controller
|
ATM Interface
|
CES Clock
|
Network Module Status
|
clock source internal
|
no atm clock internal
|
clock-select 1 ATM x/0
|
slave to ATM
|
clock source internal
|
atm clock internal
|
clock-select 2 T1 x/0
|
slave to T1
|
clock source internal
|
atm clock internal
|
clock-select 1 Local Oscillator
|
master clock
|
The following sample configurations can be used for CES clock settings.
Network Module As Slave to T1 Clock
In this example the OC-3/STM-1 ATM CES network is using the T1 clock.
Network Module As Master Clock
In this example the OC-3/STM-1 ATM CES network module is providing the clock.
clock-select 1 Local Oscillator
Network Module As Slave to ATM Clock
In this example the OC-3/STM-1 ATM CES network module is using the ATM clock.
