Telephony Gateway Registration Protocol on Cisco IOS Gateways

The Telephony Gateway Registration Protocol (TGREP) on Cisco IOS Gateways feature allows gateways to send routing information to call-control agents, such as Cisco SIP Proxy Servers.TGREP is an auxiliary protocol for Telephony Routing over IP (TRIP), which is a protocol for interdomain exchange of telephone routing information.

Feature Specifications for the Telephone Routing over IP for Cisco IOS Gateways

Feature History

Release

Modification

12.3(1)

This feature was introduced.

Supported Platforms

For platforms supported in Cisco IOS Release 12.3.(1), consult Cisco Feature Navigator.

Finding Support Information for Platforms and Cisco IOS Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.

Contents

•Prerequisites for TGREP on Cisco IOS Gateways

•Restrictions for TGREP on Cisco IOS Gateways

•Information About TGREP on Cisco IOS Gateways

•How to Configure TGREP on Cisco IOS Gateways

•Configuration Example for TGREP on IOS Gateways

•Where to Go Next

•Additional References

•Command Reference

•Glossary

Prerequisites for TGREP on Cisco IOS Gateways

•Your gateway must have a voice image that is configurable for SIP.

•Establish a working IP network.

For more information about configuring IP, refer to the Cisco IOS IP Configuration Guide.

•Configure VoIP.

For more information about configuring VoIP, refer to the Cisco IOS Voice, Video, and Fax Configuration Guide.

Restrictions for TGREP on Cisco IOS Gateways

TGREP can be used to advertise reachable routes on SIP networks only.

Information About TGREP on Cisco IOS Gateways

To configure TGREP on Cisco IOS gateways, you must understand the following concepts:

•TRIP and TGREP

•Address Family Hierarchy

•Trunk Group Resources

•Destination Pattern Conversion

TRIP and TGREP

Telephony Routing over IP (TRIP) is a protocol for interdomain exchange of telephone routing information. TRIP can be used for the discovery of reachable routes and gateway capabilities from gateways in a Voice over IP (VoIP) network. With TRIP, gateways can provide dynamic routing information to associated call-control agents, such as gatekeepers, routing servers, or proxy servers. On these call-control agents, the element that communicates TRIP information is the location server. TRIP allows the gateway to export routes to the location server and also to provide resource information so the location server can perform load balancing.

Location servers exchange routing information to build a graph of the IP Telephony Administrative Domain (ITAD). The ITAD consists of gateways, location servers, and other network elements under the control of a single administrative authority. TRIP works between elements of the ITAD, with the location servers exchanging information between each other to prevent routing loops, exchange attributes necessary to enforce policies, and select routes based on path or gateway characteristics. A sample topology is shown in Figure 1.

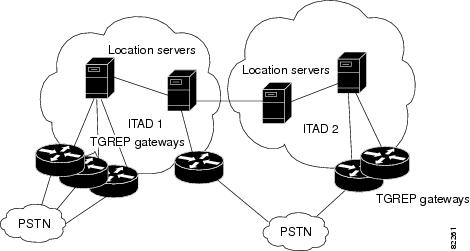

Figure 1 Sample TRIP Topology

TRIP is modeled after Border Gateway Protocol 4 (BGP-4) and enhanced with some link state features, as in Open Shortest Path First (OSPF) protocol, Intermediate System-to-Intermediate System (IS-IS), and Server Cache Synchronization Protocol (SCSP). TRIP uses BGP's interdomain transport mechanism, BGP's peer communication, BGP's finite state machine, and formats and attributes similar to those of BGP. Unlike BGP, TRIP permits generic intradomain location server topologies, which simplifies configuration and increases scalability in contrast to BGP's full mesh requirement of internal BGP speakers. TRIP uses an intradomain flooding mechanism similar to that used in OSPF, IS-IS, and SCSP. Intradomain flooding keeps the telephony routing information synchronized between TRIP devices.

TRIP Operation

A TRIP database exchange begins when two peer location servers form a transport protocol connection between one another. They exchange messages to open and confirm the connection parameters, and negotiate the capabilities of each location server as well as the type of information to be advertised over this connection.

Keep-alive messages are sent periodically to ensure that adjacent peers are operational. Notification messages are sent in response to errors or special conditions. If a connection encounters an error condition, a Notification message is sent and the connection is closed.

Once the peer connection has been established, the initial data flow is a dump of all routes relevant to the new peer. Incremental updates are sent as the TRIP routing tables change. TRIP does not require periodic refresh of the routes. Therefore, a location server must retain the current version of all routing entries.

If a particular ITAD has multiple location servers and is providing transit service for other ITADs, then care must be taken to ensure a consistent view of routing within the ITAD. When synchronized, the TRIP routing tables of all internal peers are identical.

TRIP routes are advertised between a pair of location servers in UPDATE messages. The destination addresses and other attributes such as path or egress gateway are included in the UPDATE message.

TGREP in the TRIP Network

TGREP on Cisco IOS gateways works with TRIP and has similar procedures for session establishment. TGREP shares the same format for messages and a subset of attributes with TRIP. TGREP allows the gateway to convey a set of telephone routes to a location server, which resides on a Cisco SIP proxy server. The gateway only sends information because it is only interested in advertising its reachability and is not interested in learning about the reachability of other gateways and other domains.The telephone routes are represented by telephone number prefixes along with attributes that can express resource availability. With TGREP, the routing tables are exchanged once and only change when updates are sent.

TGREP Operation

The TGREP gateway establishes a peer session with a location server within its ITAD. Once the peer session has been established, the gateway sends update messages to the TRIP location server with the gateway's reachability. The gateway also sends any attributes associated with the routes. If the gateway's reachability changes at any point in time, the gateway generates update messages with the change.

Keep-alive messages are periodically exchanged over the peer session between the TGREP gateway and the TRIP location server.

For simple intradomain calls, the gateway sends the route information to the Cisco SIP proxy server. The Cisco SIP Proxy Server performs functions such as address expansion and translation. The Cisco SIP Proxy Server finds an appropriate path and passes the call to the egress gateway, as shown in Figure 2.

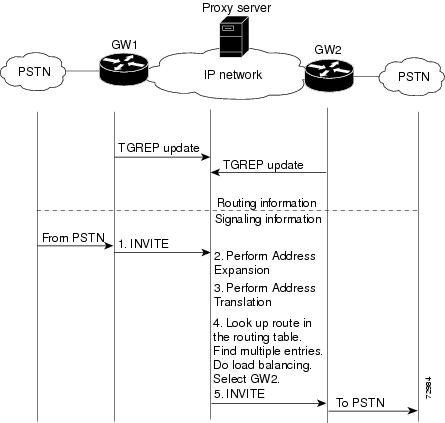

Figure 2 Intradomain Calls Using TGREP on IOS Gateways

Calls can also be routed between call-control agents within a domain, as shown in Figure 3. TRIP location servers can dynamically exchange routes.

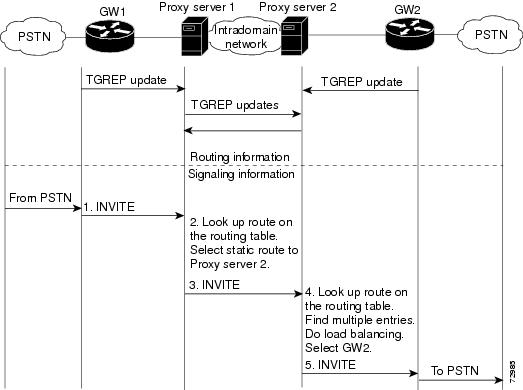

Figure 3 Calls Routed Between Call-Control Agents Using TGREP on IOS Gateways

Address Family Hierarchy

In typical telephony environments, the E.164 address family is used to process a call. With TRIP, additional addressing is performed with carrier and trunk groups. This level of granularity provides additional flexibility in managing gateway resources, reduces potential update traffic between the gateway and the call control agent, and provides a framework for a scalable architecture. Voice over IP gateways using TGREP can interconnect with network facilities from different carriers and can advertise the carrier information in addition to the telephony destinations, to the call control agent. The address families can be ordered into a hierarchy, as follows:

•The prefixes used in E.164 addressing point to specific telephony destinations.

•Trunk groups can terminate calls to several telephony destinations, the information for which is provisioned on the gateway.

•Trunks of the same carrier may be grouped based on geographical considerations or on the basis of different grades of service that are offered by the carrier to its customers.

Advertisement, reporting, and capacity can be performed on each level of this hierarchy. An illustration of the address family hierarchy is shown in Figure 4.

Figure 4 Address Family Hierarchy

The E. 164 address family is used if the telephony network is a public telephony network. Decimal and pentadecimal options can be used to advertise private dial plans. For example if a company wants to use TRIP in within their enterprise telephony network using 5-digit extensions, then the gateway would advertise the beginning digits of their private numbers as a decimal address family. These calls cannot be sent out of the company's private telephony network because they are not E.164-compliant.

E.164 addresses cannot be more than 15 digits long and can be any of the following types of numbers:

•A geographic number, where the country code is 1 to 3 digits and the national number is 15-n (where n is 1 to 3). Individual countries can partition the national number into a subscriber number and a an area code subject to the 15-n total length maximum.

•A global number with a 3 digit country code for global services, and a global subscriber number with up to 12 digits.

•An international public telecommunication number with a country code of 3 digit, an ID code of 1 to 4 digits, and a subscriber number of 12-x digits (where x=1 to 4).

Trunk Group Resources

Using trunk groups simplifies the task of configuring dial peers and also enables the dynamic selection of interfaces as needed in the gateway. If you have trunk groups configured under the dial peer, all trunk group resources are aggregated for the total circuits (TC) and available circuits (AC) attributes. If the trunk group is shut down and multiple trunk groups are configured, the TC and AC attributes are adjusted.

Destination Pattern Conversion

When the destination pattern is configured on the dial peer, TGREP converts the destination pattern to a TRIP prefix. The TRIP prefix contains only E.164 digits. If symbol or alphabetic characters are used, there is information loss when the conversion happens.

For example, a destination pattern "123..." means that any 6 digits starting with "123" can be terminated by this dial peer. However, TGREP advertises the prefix as "123", so the information about the three additional wildcards is lost. Similarly, if destination pattern is "123T", then TGREP advertises the prefix "123" only. In this case, the information about terminating calls starting with "123" but with any length is lost. When using a location server, the server routes the call to this gateway as long as the DNIS of the call starts with "123", the length of the DNIS does not matter.

Some destination patterns may not qualify as TRIP prefixes and cannot be advertised. Table 1 shows some examples.

Table 1 Examples of Destination Pattern to TRIP Prefix Conversion

Destination pattern

TRIP prefix

123...

123

1234T

1234

12(3)%

12

12(3)+

123

12[3-4]

123

124

123

123

12(3)%4

Invalid for TRIP

12(3)+4

Invalid for TRIP

123*

Invalid for TRIP

.T

Invalid for TRIP

Note that for destination pattern "*" means the actual character "*" and "%" has the same meaning as "*" in regular expressions

How to Configure TGREP on Cisco IOS Gateways

This section contains the following procedures. Each procedure is identified as either required or optional.

•Configuring a Local ITAD and TRIP Neighbor Connections (Required)

•Configuring the Global Carrier ID (Optional)

•Configuring the Trunk Groups (Required)

•Configuring a POTS Dial Peer for TGREP (Required)

•Configuring Voice Call Parameters (Optional)

•Verifying the TGREP Configuration on Cisco IOS Gateways (Optional)

•DETAILED STEPSTroubleshooting TGREP Configuration on Cisco IOS Gateways (Optional)

Configuring a Local ITAD and TRIP Neighbor Connections

Configure the TRIP connections to start the TRIP processes, configure neighbors in the Internet Telephony Administrative Domain (ITAD), and specify address families.

SUMMARY STEPS

1. enable

2. configure {terminal | memory | network}

3. tgrep local-itad string

4. neighbor ip-address

5. advertise {e164 | decimal | penta-decimal | trunk-group | carrier}[csr][ac][tc][trunk-group | carrier]

6. address-family {e164 | decimal | penta-decimal}

7. exit

8. end

DETAILED STEPS
Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.
Step 3
tgrep local-itad itad_number
Example:

Router(config)# tgrep local-itad 1234
Enters TGREP configuration mode and define an ITAD.

•itad_number—ITAD number associated with the gateway. The value can be from 1 to 232-1.
Step 4
neighbor ip-address
Example:

Router(config-tgrep)# neighbor 192.168.255.255
Creates a TRIP session with the device at the specified IP address.

•ip-address—IP address of a peer device with which TGREP information will be exchanged.
Step 5
advertise {e164 | decimal | penta-decimal |
trunk-group | carrier}[csr][ac][tc][trunk-group
| carrier]
Example:

Router(config-tgrep)#advertise e164 csr ac tc trunk-group
Turns on the reporting for a particular attribute for any address family.

•e164—E.164 address family

•decimal—Decimal address family

•penta-decimal—Penta-decimal address family

•trunk-group—Trunk group address family

•carrier—Carrier code address family

•csr—Call success rate

•ac—Available circuits

•tc—Total circuits

If you specify e164, decimal or penta-decimal for the address family, you can specify whether the related carrier or trunk-group parameters are advertised. If you specify carrier or trunk-group for the address family, you can specify that the related address family prefix is advertised. If you specify carrier or trunk-group for the address family, you cannot specify carrier or trunk-group attributes for advertising.

When the no version of this command is used, it turns off the advertisement of that particular address family altogether.

The default is to advertise none of the attributes for address families.
Step 6

address-family {e164 | decimal | penta-decimal}
Example:

Router(config-tgrep)# address-family e164

(Optional) Sets the global address family to be used by all of the dial peers. Address families configured on locally on dial peers override this global configuration.

•e164—E.164 address family.

•decimal—Digital address family

•penta-decimal—Pentadecimal address family

Step 7

exit
Example:

Router(config-tgrep)# exit

Exits TGREP configuration mode.

Step 8

end
Example:

Router(config)# end

Exits to privileged EXEC mode.
What to Do Next

Proceed to the "Configuring the Global Carrier ID" section.

Configuring the Global Carrier ID

The carrier ID for the trunk groups can be set at the global level. Carrier IDs configured locally on the trunk group supersede this global setting.

SUMMARY STEPS

1. enable

2. configure {terminal | memory | network}

3. carrier-id string [cic]

4. end

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.

Step 3

carrier-id string [cic]
Example:

Router(config)# carrier-id 101 cic

(Optional) The carrier ID for the trunk groups can be set at the global level. Carrier IDs configured locally on the trunk group supersede this global setting.

•string—Identifier for the carrier ID. Must be 4-digit numeric carrier identification code to be advertised as a TRIP carrier family but can be alphanumeric if used otherwise.

•cic—Specifies that the carrier ID is a circuit identification code. To advertise the carrier as a TRIP carrier family, the cic keyword must be used. When cic is used, only numeric values can be accepted for the string value. If cic is not used, the string value can be alphanumeric but is not advertised to TRIP location servers.

Step 4

end
Example:

Router(config)# end

Exits to privileged EXEC mode.

What to Do Next

Proceed to the "Configuring the Trunk Groups" section.

Configuring the Trunk Groups

For complete information about trunk group configuration, see the "Configuring Network Side ISDN PRI Signaling, Trunking, and Switching" chapter in the Cisco IOS Dial Technologies Configuration Guide:

SUMMARY STEPS

1. enable

2. configure {terminal | memory | network}

3. trunk group group-number

4. tgrep advertise {trunk-group | carrier} [csr] [ac] [tc] [prefix] [disable]

5. carrier-id string [cic]

6. capacity update interval seconds

7. exit

8. end

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.

Step 3

trunk group group-number
Example:

Router(config)# trunk group 10

Defines the trunk group globally.

•group-number—A value from 0 to 23 that identifies the trunk group.

Step 4

tgrep advertise {trunk-group | carrier} [csr] [ac] [tc] [disable]
Example:

Router(config-trunkgroup)# tgrep advertise trunk-group csr ac tc

Turns on the advertisement of this trunk group.

•trunk-group—Specifies advertisement for the trunk group family.

•carrier—Specifies advertisement for the carrier defined under this trunk group.

•csr—Call success rate.

•ac—Available circuits.

•tc—Total circuits.

•disable—Disables advertisement on the trunk group.

Note Use tgrep advertise disable to turn off advertisement for this trunk group. When the no tgrep advertise command is used, the global setting takes effect.

•When only tgrep advertise is entered, the trunk group is advertised without any other attribute. This command sets the attributes to be advertised for the trunk group or carrier or to disable advertisement of the this trunk group or carrier.

Note This command overrides the attributes set for advertisement using the global advertise (tgrep) command.

Step 5

carrier-id string [cic]
Example:

Router(config-trunkgroup)# carrier-id 101 cic

(Optional) The carrier ID can be set locally for the trunk group. Carrier IDs configured locally on the trunk group supersede the global setting.

•string—Identifier for the carrier ID. Must be 4-digit numeric carrier identification code to be advertised as a TRIP carrier family but can be alphanumeric if used otherwise.

•cic—Specifies that the carrier ID is a circuit identification code. To advertise the carrier as a TRIP carrier family, the cic keyword must be used. When cic is used, only numeric values can be accepted for the string value. If cic is not used, the string value can be alphanumeric but is not advertised to TRIP location servers.

Step 6

capacity update interval seconds
Example:

Router(config-trunkgroup)# capacity update interval 50

(Optional) Changes the capacity update for this trunk group.

•seconds—Interval, in seconds, between the sending of periodic capacity updates. This can be a number in the range 10 to 1000. The default value is 25 seconds.

Step 7

exit
Example:

Router(config-trunkgroup)# exit

Exits trunk group configuration mode.

Step 8

end
Example:

Router(config)# end

Exits to privileged EXEC mode.

What to Do Next

Proceed to the "Configuring a POTS Dial Peer for TGREP" section.

Configuring a POTS Dial Peer for TGREP

To configure a POTS dial peer for TGREP, you must do the following:

•Identify the dial peer by assigning it a unique tag number.

•Define its destination telephone number or range of telephone numbers.

•Associate it with a voice port or trunk group through which calls are established.

Under most circumstances, the default values for the remaining dial peer configuration commands are sufficient to establish connections.

For complete information about configuring dial peers, see the "Configuring Dial Plans, Dial Peers, and Digit Manipulation" chapter in the Cisco IOS Voice, Video, and Fax Configuration Guide.

SUMMARY STEPS

1. enable

2. configure {terminal | memory | network}

3. dial-peer voice number pots

4. destination-pattern string [T]

5. port location

6. tgrep address family {e164 | decimal | penta-decimal}

7. tgrep advertise [csr] [ac] [tc] [carrier | trunk-group] [disable]

8. capacity update interval seconds

9. exit

10. end

DETAILED STEPS
Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.

Step 3

dial-peer voice number pots
Example:

Router(config)# dial-peer voice 10 pots

Enters dial-peer configuration mode and defines a local dial peer that connects to a POTS.

•interface.number—Digits that define a particular dial peer. Valid entries are from 1 to 2147483647.
Step 4
destination-pattern string
Example:
Router(config-dial-peer)# destination-pattern
408555....
Matches dialed digits to a telephony device.

•string—A series of digits that specify the E.164 or private dialing plan telephone number. Valid entries are the numbers 0 through 9 and the letters A through D.

See the"Destination Pattern Conversion" section for more information about valid destination pattern entries for TGREP.
Step 5

port location
Example:

Router(config-dial-peer)# port 1/0/0

Maps the dial peer to a specific logical interface.

•The port command syntax is platform-specific. For more information about the syntax of this command, see the chapter "Configuring Voice Ports" in the Cisco IOS Voice, Video, and Fax Configuration Guide.

Step 6

tgrep address family {e164 | decimal | penta-decimal}
Example:

Router(config-dial-peer)# tgrep address family e164

Sets the address family to be used by the dial peer.

•Configuring the address family on this dial peer overrides the global address family configuration:

•e164—E.164 address family.

•decimal—Digital address family

•penta-decimal—Pentadecimal address family

Step 7

tgrep advertise [csr] [ac] [tc] [carrier | trunk-group] [disable]
Example:

Router(config-dial-peer)# tgrep advertise csr ac tc carrier

Turns on the prefix advertisement or any particular attribute of this dial peer.

•csr—Call success rate.

•ac—Available circuits.

•tc—Total circuits.

•trunk-group—Specifies advertisement for the trunk group address family attributes.

•carrier—Specifies advertisement for the carrier address family attributes.

•disable—Disables advertisement on the trunk group.

Note Use tgrep advertise disable to turn off advertisement for this dial peer. When the no tgrep advertise command is used, the global setting takes effect.

•When only tgrep advertise is entered, the dial peer is advertised without any other attribute. This command sets the attributes to be advertised for the trunk group or carrier or to disable advertisement of the this trunk group or carrier.

Note This command overrides the attributes set for advertisement using the global advertise (tgrep) command.

Step 8

capacity update interval seconds
Example:

Router(config-dial-peer)# capacity update interval 50

(Optional) Changes the capacity update for prefixes related to this dial peer.

•seconds—Interval, in seconds, between the sending of periodic capacity updates. This can be a number in the range 10 to 1000. The default value is 25 seconds.

Step 9

exit
Example:

Router(config-dial-peer)# exit

Exits dial peer configuration mode.

Step 10

end
Example:

Router(config)# end

Exits to privileged EXEC mode.
What to Do Next

Proceed to the "Configuring Voice Call Parameters" section.

Configuring Voice Call Parameters

Different options for configuring voice call parameters can be used depending on what kind of data is to be sent.

Because the available circuit (AC) attribute of a destination is very dynamic, reporting of this attribute should be handled carefully. AC should be reported as frequently as possible so that the location server has current information about the resources. However, the location server should not be overwhelmed with too many updates.

A smoothing algorithm is applied to the quantity of AC reports. The algorithm eliminates reporting of noise. The degree of smoothing can be configured with the voice call capacity mir stw command. This command sets the smoothing transition time for weight (STW). STW is the time it takes for the current smoothed value of AC to come halfway between the current smoothed value and the current instantaneous value of AC. Lower STW values speed the smoothed value of AC as it approaches the instantaneous value of AC. When STW is set to 0, the smoothed value is always equal to the instantaneous value of AC.

Instantaneous and smoothed values of AC are shown in Figure 5. Note that the instantaneous values, which are a sample at a particular moment in time, can spike, while the smoothed value takes the sample averaged over time.

Figure 5 Instantaneous and Smoothed Values for AC

For the reporting interval, a periodic timer called the capacity update timer handles periodic updates of AC and can be configured using the voice call capacity timer interval command. For example, if AC has changed since the last reporting, the AC is again reported when the capacity update timer expires. In addition, AC is reported when any of the following events happens:

•Absolute percent change is above a threshold. This can be configured with the voice call trigger hwm percent-change command.

•Value of AC falls below a threshold, called the low water mark. This can be configured with the voice call trigger hwm lwm command.

•Value of AC goes above a threshold, called the high water mark. This can be configured with the voice call trigger hwm hwm command.

•The smoothed curve of AC has a maximum or a minimum. This represents a change in the direction of the call rate. This can be configured with the voice call capacity reporting maxima command. This reporting is off by default.

•The smoothed curve of AC has an inflection point. This represents the rate of call rate has changed sign.This can be configured with the voice call capacity reporting inflection command. This reporting is off by default.

Maximum, minimum and inflection points are illustrated in Figure 6.

Figure 6 Maximum, Minimum, and Inflection Points for Available Capacity

All of the AC reporting, called the interesting point of AC, will be done if the specified event happens within the minimum interval between reporting (mir) time since last reporting. The mir parameter, configured in the voice call capacity mir mir command, sets the amount of time used for the interval to control the number of interesting points that are reported so not to overwhelm the location server with too many AC updates.

SUMMARY STEPS

1. enable

2. configure {terminal | memory | network}

3. voice call {carrier | trunkgroup | prefix} capacity {mir | stw} value

4. voice call {carrier | trunkgroup | prefix} capacity reporting {maxima | inflection}

5. voice call {carrier | trunkgroup | prefix} capacity timer interval value

6. voice call {carrier | trunkgroup | prefix} csr data-points value

7. voice call {carrier | trunkgroup | prefix} csr recording interval value

8. voice call {carrier | trunkgroup | prefix} csr reporting interval value

9. voice call {carrier | trunkgroup | prefix} trigger {percent-change | lwm | hwm} value

10. end

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.

Step 3

voice call {carrier | trunkgroup | prefix} capacity {mir|stw} value
Example:

Router(config)# voice call prefix capacity mir 25

(Optional) Sets the minimum interval between reporting (mir) and smoothing time for weight (stw).

•carrier—Carrier code address family

•trunk-group—Trunk group address family

•prefix—E.164 prefix

•mir—Minimum interval between reporting

•stw—Smoothing transition time for weight is the time it takes for current smoothed value of AC to come half way between the current smoothed value and the current instantaneous value of AC. Lower stw values speed the smoothed value of AC as it approaches the instantaneous value of AC. When stw is set to 0, the smoothed value will be always equal to the instantaneous value of AC.

•value—If mir is selected, the value can be from 1 to 3600 seconds with a default of 10. This value cannot be set higher than the time configured for the capacity update interval.

If stw is selected, the value can be from 0 to 60 seconds with a default of 10.

Step 4

voice call {carrier | trunkgroup | prefix} capacity reporting {maxima | inflection}
Example:

Router(config)# voice call trunkgroup capacity reporting inflection

(Optional) Turns on the reporting of maxima (first derivative) or inflection (second derivative) points in available circuits.

•carrier—Carrier code address family

•trunk-group—Trunk group address family

•prefix—E.164 prefix

•maxima—Maxima (first derivative) point in available capacity

•inflection—Inflection (second derivative) point in available capacity

Step 5

voice call {carrier | trunkgroup | prefix} capacity timer interval value
Example:

Router(config)# voice call trunkgroup capacity timer interval 100

(Optional) Sets the periodic reporting capacity from the carrier, trunk group, or prefix database.

•carrier—Carrier code address family

•trunk-group—Trunk group address family

•prefix—E.164 prefix

•value—10 to 3600 seconds with the default at 25

Step 6

voice call {carrier | trunkgroup | prefix} csr data-points value
Example:

Router(config)# voice call carrier csr data-points 15

(Optional) Turns on the number of call success rate (CSR) history data points:

•carrier—Carrier code address family

•trunk-group—Trunk group address family

•prefix—E.164 prefix

•value—10 to 50 data points with the default at 30

Step 7

voice call {carrier | trunkgroup | prefix} csr recording interval value
Example:

Router(config)# voice call trunkgroup csr recording interval 45

(Optional) Turns on the call success rate (CSR) recording interval.

•carrier—Carrier code address family

•trunk-group—Trunk group address family

•prefix—E.164 prefix

•value—10 to 1000 minutes with the default at 60.

Step 8

voice call {carrier | trunkgroup | prefix} csr reporting interval value
Example:

Router(config)# voice call prefix csr reporting interval 60

(Optional) Turns on the call success rate (CSR) reporting interval.

•carrier—Carrier code address family

•trunk-group—Trunk group address family

•prefix—E.164 prefix

•value—10 to 10000 seconds with the default at 25

Step 9

voice call {carrier | trunkgroup | prefix} trigger {percent-change | lwm | hwm} value
Example:

Router(config)# voice call carrier trigger lwm 25

(Optional) Sets the value for percentage change, low-water mark (lwm) or high-water mark (hwm) of available circuits in a carrier, trunk group, or prefix database:

•carrier—Carrier code address family

•trunk-group—Trunk group address family

•prefix—E.164 prefix

•percent-change—Trigger when the percent change is reached.

•lwm—Trigger when the low water mark is reached.

•hwm—Trigger when the high water mark is reached.

•value—If percent-change is selected, value can be 0 to 100 percent with a default of 30. If set to 0, this trigger will be turned off.

If lwm is selected, value can be 0 to 30 percent with a default of 10. If set to 0, this trigger will be turned off.

If hwm is selected, value can be 50 to 100 percent with a default of 80. If set to 100, this trigger will be turned off.

Step 10

end
Example:

Router(config)# end

Exits to privileged EXEC mode.

What to Do Next

If, after you have performed the preceding tasks, the output from the optional show commands does not appear to be accurate, proceed to the "DETAILED STEPSTroubleshooting TGREP Configuration on Cisco IOS Gateways" task.

Verifying the TGREP Configuration on Cisco IOS Gateways

To verify that the TGREP on Cisco IOS Gateways feature is working, perform the following optional steps:

•Monitor TGREP Status

•Clear and Reset TGREP Attributes

Monitor TGREP Status

To display information about TGREP, perform these tasks:

SUMMARY STEPS

1. enable

2. show tgrep neighbors {* |ip_address}

3. show voice eddri prefix [prefix_number]

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

show tgrep neighbors {* |ip_address}
Example:

Router# show tgrep neighbors *

Displays configured TRIP neighbors.

•The * keyword displays all neighbors, or an individual neighbor can be specified by its IP address.

Step 3

show voice eddri prefix [prefix_number]
Example:

Router# show voice eddri prefix 4

Displays applicable prefixes.

•If no prefix is specified, all configured prefixes appear.

•The Event Dispatcher and Data Repository Interface (EDDRI) notifies TGREP when an attribute changes on some subsystems. EDDRI interacts with the dial peer subsystem, the trunk group subsystems, CCAPI subsystem and the CRM subsystem to notify changes in particular attributes. EDDRI is responsible for creating the prefix database.

The following example displays all neighbors:
Router# show tgrep neighbors *
There are 1 nbrs configured
------------------ NBR:16.1.1.202----------------------
TIMERS:
        Keepalive :  Timer Stopped
        Hold Timer :  Timer Stopped
        Connect Retry :  Running, time remaining in ms, 20698
SYNC IN PROGRESS
STATE: TRIPS_IDLE
QUEUES:
        writeQ : 0
        sec_writeQ : 0
        readQ : 0
SOCKET FDs:
prim socket -1, sec socket -1
tgrep_update_version : 0
LAST RESET: USER_INITIATED
Router#
Router#!!!! Trip Connection is setup here...
------------------------ OPEN DUMP BEGINS ------------------------
 0x1 0xFFFFFFFF 0x0 0xFFFFFFB4 0x0
 0x0 0x4 0x58 0x6 0x7
 0xFFFFFF98 0xFFFFFFA9 0x0 0xC 0x0
 0x1 0x0 0x8 0x0 0x2
 0x0 0x4 0x0 0x0 0x0
 0x3
        Version    :1
        Hold Time    :180
        My ITAD      :1112
        TRIP ID      :101161129
                 Option Paramater #1
                 Param Type: Capability
                 Length 8
                         Cap Code :Send Receive Capability
                         Cap Len  :4
                                Send Rec Cap: RCV ONLY MODE
        -->All route types supported
------------------------ OPEN DUMP ENDS ------------------------
Step 1 The following example displays applicable prefixes:
Router# show voice eddri prefix 4
prefix 4 address family decimal
advertise flag 0x27 ac 24 tc 24 capacity timer 25 sec
AC_avg 24, FD_avg 0, SD_avg 0
succ_curr 0 tot_curr 0
succ_report 0 tot_report 0
changed 0 replacement position 0
trunk group castg2
dial peer tag 1001
Clear and Reset TGREP Attributes

To clear TGREP attributes, use the following commands:

SUMMARY STEPS

1. enable

2. clear tgrep counters [csr | ac] [{dial-peer | trunk-group | carrier} {value | *}] [*]

3. clear tgrep neighbor {ip_address | *}

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

clear tgrep counters [csr | ac] [{dial-peer | trunk-group | carrier} {value | *}] [*]
Example:

Router# clear tgrep counters csr dial-peer *

Clears the counters for call success rate (csr) and available circuits (ac) for all (*) or for a particular dial peer or trunk group.

Step 3

clear tgrep neighbor {ip_address | *}
Example:

Router# clear tgrep neighbor 170.10.10.255

Resets the specified neighbor or all (*) neighbors.

Troubleshooting TGREP Configuration on Cisco IOS Gateways

To debug TGREP activity, events, and operations, use these commands in privileged EXEC mode. Use the no version of each command to turn off debugging:

SUMMARY STEPS

1. enable

2. configure {terminal | memory | network}

3. debug tgrep error

4. debug tgrep events

5. debug tgrep fsm

6. debug tgrep io

7. debug tgrep msgdump

8. debug tgrep msgs

9. debug tgrep timer-event

10. debug tgrep timers

11. debug tgrep tripr

12. debug voip eddri {event | timers | prefix | all}

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password if prompted.

Step 2

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.

Step 3

debug tgrep error
Example:

Router# debug tgrep errors

Shows any errors in functioning.

Step 4

debug tgrep events
Example:

Router# debug tgrep events

Shows main events occurring throughout the subsystem.

Step 5

debug tgrep fsm
Example:

Router# debug tgrep fsm

Shows Finite State Machine (FSM) activity.

Step 6

debug tgrep io
Example:

Router# debug tgrep io

Shows detailed socket level activities.

Step 7

debug tgrep msgdump
Example:

Router# debug tgrep msgdump

Shows the dump of the details of TGREP messages.

Step 8

debug tgrep messages
Example:

Router# debug tgrep messages

Shows the movement of TGREP messages.

Step 9

debug tgrep timer-events
Example:

Router# debug tgrep timer-events

Shows events that are related to the timer.

Step 10

debug tgrep timers
Example:

Router# debug tgrep timers

Shows timer activity.

Step 11

debug tgrep tripr
Example:

Router# debug tgrep tripr

Enables debugs from the TRIP Reporter.

Step 12

debug voip eddri {event | timers | prefix | all}
Example:

Router# debug voip eddri all

Enables debugs from the EDDRI.

The following example shows any errors in functioning:
Router# debug tgrep errors
Errors : Process socket event has an invalid fd to work on
Errors : Process socket event has an invalid fd to work on
Errors : Process socket event has an invalid fd to work on
Errors : Process socket event has an invalid fd to work on
------------------------ OPEN DUMP BEGINS ------------------------
 0x1 0xFFFFFFFF 0x0 0xFFFFFFB4 0x0
 0x0 0x4 0x58 0x6 0x7
 0xFFFFFF98 0xFFFFFFA9 0x0 0xC 0x0
 0x1 0x0 0x8 0x0 0x2
 0x0 0x4 0x0 0x0 0x0
 0x3
        Version    :1
        Hold Time    :180
        My ITAD      :1112
        TRIP ID      :101161129
                 Option Paramater #1
                 Param Type: Capability
                 Length 8
                         Cap Code :Send Receive Capability
                         Cap Len  :4
                                Send Rec Cap: RCV ONLY MODE
        -->All route types supported
------------------------ OPEN DUMP ENDS ------------------------
We already have connection with such itad/tripid combo in progress
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
Error: Active connection to the nbr failed NBR:16.1.1.203
Errors : Process socket event has an invalid fd to work on
Errors : Process socket event has an invalid fd to work on
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
Errors : Process socket event has an invalid fd to work on
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
The following example shows main events occurring throughout the subsystem:
Router# debug tgrep events
tgrep-gw-1-02#Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
The following example shows FSM activity:
Router# debug tgrep fsm
Generic routes combined : 0x61FA38B4, 13 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x2 0x0 0x9 0x0
 0x5 0x0 0x0 0x0 0x3
 0x6D 0x63 0x69
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 NEXT HOP SERVER : 0x61FA38C1, 10 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x3 0x0 0x6 0x0
 0x0 0x4 0xFFFFFFD2 0x0 0x0
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 AD RD PATH : 0x61FA38CB, 10 bytes
++++++++++++++++++++Getting a major event 4 on I/O
Received a TRIP_IO_WRITEQ_BOOLEAN event 313
The peer connection check for fd 1 is success
Writing some pending stuff first NBR:14.1.1.210
Moving ahead with more reading rc = 4
-->Starting regular write for nbr NBR:14.1.1.210
The queuesize before we start is 1
Selected primary socket for NBR:14.1.1.210
The peer connection check for fd 1 is success
Dequeued 1 message (left 0) for NBR:14.1.1.210 for writing to socket
A socket has gulped all that we fed it NBR:14.1.1.210 -- 92 bytes
Dequeued 0 message (left 0) for NBR:14.1.1.210 for writing to socket
Wrote out the whole socket buffer or Q in 2 attempts NBR:14.1.1.210 rc 4 was
NBR:14.1.1.210 Starting keepalive timer after writing something
Getting a major event 512 on I/O
Received an event on a socket for some nbr
Received Mask event of 0x1 for fd 1
Looking for fd match on nbr NBR:14.1.1.210
Recieved READ_EVENT for  for nbr NBR:14.1.1.210
Read 3 bytes from that network for nbr NBR:14.1.1.210
+++++++++++++++++++++++++++++++++++++
 This is what we READ : 0x63E79090, 3 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x3 0x4
-----------------------------------
NBR:14.1.1.210 Re-starting hold timer after a message is read
tmsg malloc total memory allocated is 95
Allocated another buffer for TRIP message
TRIP Messages Read so far 1
+++++++++++++++++++++++++++++++++++++
 Enqueing this tmsg : 0x691D09DC, 3 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x3 0x4
-----------------------------------
Enqueuing a message into the ReadQ of nbr: NBR:14.1.1.210
Read -1 bytes from that network for nbr NBR++++++++++++++++++
 0x0 0x4 0x0 0x6 0x2
 0x1 0x0 0x0 0x4 0xFFFFFFD2
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 AD RD PATH : 0x61FA38D5, 10 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x5 0x0 0x6 0x2
 0x1 0x0 0x0 0x4 0xFFFFFFD2
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 LOCAL PREF : 0x61FA38DF, 8 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x7 0x0 0x4 0x0
 0x0 0x0 0x5
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 Available Ckts : 0x61FA38E7, 8 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0xF 0x0 0x4 0x0
 0x0 0x0 0x17
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 TOTAL CIRCUITS : 0x61FA38EF, 8 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x10 0x0 0x4 0x0
 0x0 0x0 0x17
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 CALL SUCCESS RATE : 0x61FA38F7, 12 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x11 0x0
tgrep-gw-1-02#
tgrep-gw-1-02#und al:14.1.1.210
Getting a major event 512 on I/O
Errors : Process socket event has an invalid fd to work on
l 0x8 0x0
 0x0 0x0 0x78 0x0 0x0
 0x0 0x7F
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 PREFIX_ATTRIBUTE : 0x61FA3903, 64 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x12 0x0 0x3C 0x0
 0x4 0x31 0x31 0x32 0x38
 0x0 0x4 0x31 0x31 0x32
 0x37 0x0 0x4 0x31 0x31
 0x32 0x36 0x0 0x4 0x31
 0x31 0x32 0x35 0x0 0x4
 0x31 0x31 0x32 0x34 0x0
 0x4 0x31 0x31 0x32 0x33
 0x0 0x4 0x31 0x31 0x32
 0x32 0x0 0x5 0x39 0x39
 0x39 0x39 0x39 0x0 0x9
 0x31 0x32 0x33 0x34 0x35
 0x36
The following example shows detailed socket level activities:
Router# debug tgrep io
Dispatching a TRIP_EV_NBR_IO_ASYNC_RESET to I/O for NBR:16.1.1.202
Dispatching a TRIP_EV_NBR_IO_ASYNC_RESET to I/O for NBR:16.1.1.203
A socket has gulped all that we fed it NBR:16.1.1.202 -- 5 bytes
Closing all the fds for NBR:16.1.1.202
NBR:16.1.1.202 is not eligible to write, no non(-1) fd yet
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
A Socket error has caused a write failure NBR:16.1.1.203 errno 13
Closing all the fds for NBR:16.1.1.203
NBR:16.1.1.202 is not eligible to write, no non(-1) fd yet
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Going to initiate a connect to 16.1.1.202
Called a socket_connect with errno 11, confirmation later
Initiated a Async connect call for nbr NBR:16.1.1.202 fd 1
Received Mask event of 0x1 for fd 1
Recieved WRITE_EVENT for  for nbr NBR:16.1.1.202
Only Active Open Succeeded
Post connect succeded for the nbr NBR:16.1.1.202, fd 1
A socket has gulped all that we fed it NBR:16.1.1.202 -- 29 bytes
Wrote out the whole socket buffer or Q in 2 attempts NBR:16.1.1.202 rc 4 was
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read 3 bytes from that network for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Errors : Process socket event has an invalid fd to work on
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read 29 bytes from that network for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Errors : Process socket event has an invalid fd to work on
------------------------ OPEN DUMP BEGINS ------------------------
 0x1 0xFFFFFFFF 0x0 0xFFFFFFB4 0x0
 0x0 0x4 0x58 0x6 0x7
 0xFFFFFF98 0xFFFFFFA9 0x0 0xC 0x0
 0x1 0x0 0x8 0x0 0x2
 0x0 0x4 0x0 0x0 0x0
 0x3
        Version    :1
        Hold Time    :180
        My ITAD      :1112
        TRIP ID      :101161129
                 Option Paramater #1
                 Param Type: Capability
                 Length 8
                         Cap Code :Send Receive Capability
                         Cap Len  :4
                                Send Rec Cap: RCV ONLY MODE
        -->All route types supported
------------------------ OPEN DUMP ENDS ------------------------
Doing fd reassignment for nbr NBR:16.1.1.202
Moving ahead with more reading rc = 4
A socket has gulped all that we fed it NBR:16.1.1.202 -- 3 bytes
Wrote out the whole socket buffer or Q in 2 attempts NBR:16.1.1.202 rc 4 was
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read 3 bytes from that network for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Moving ahead with more reading rc = 4
A socket has gulped all that we fed it NBR:16.1.1.202 -- 598 bytes
Wrote out the whole socket buffer or Q in 2 attempts NBR:16.1.1.202 rc 4 was
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read 3 bytes from that network for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Errors : Process socket event has an invalid fd to work on
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read 15 bytes from that network for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Errors : Process socket event has an invalid fd to work on
Going to initiate a connect to 16.1.1.203
Called a socket_connect with errno 11, confirmation later
Initiated a Async connect call for nbr NBR:16.1.1.203 fd 2
Received Mask event of 0x1 for fd 2
Recieved WRITE_EVENT for  for nbr NBR:16.1.1.203
The Active connect never succeded, no passive yet, resetting NBR:16.1.1.203
Error: Active connection to the nbr failed NBR:16.1.1.203
A Socket error has caused a write failure NBR:16.1.1.203 errno 13
Closing all the fds for NBR:16.1.1.203
Post connect succeded for the nbr NBR:16.1.1.203, fd -1
Moving ahead with more reading rc = 4
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
Going to initiate a connect to 16.1.1.203
Called a socket_connect with errno 11, confirmation later
Initiated a Async connect call for nbr NBR:16.1.1.203 fd 2
Received Mask event of 0x1 for fd 2
Recieved WRITE_EVENT for  for nbr NBR:16.1.1.203
The Active connect never succeded, no passive yet, resetting NBR:16.1.1.203
Error: Active connection to the nbr failed NBR:16.1.1.203
A Socket error has caused a write failure NBR:16.1.1.203 errno 13
Closing all the fds for NBR:16.1.1.203
Post connect succeded for the nbr NBR:16.1.1.203, fd -1
Moving ahead with more reading rc = 4
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read 3 bytes from that network for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Errors : Process socket event has an invalid fd to work on
Going to initiate a connect to 16.1.1.203
Called a socket_connect with errno 11, confirmation later
Initiated a Async connect call for nbr NBR:16.1.1.203 fd 2
Received Mask event of 0x1 for fd 2
Recieved WRITE_EVENT for  for nbr NBR:16.1.1.203
The Active connect never succeded, no passive yet, resetting NBR:16.1.1.203
Error: Active connection to the nbr failed NBR:16.1.1.203
A Socket error has caused a write failure NBR:16.1.1.203 errno 13
Closing all the fds for NBR:16.1.1.203
Post connect succeded for the nbr NBR:16.1.1.203, fd -1
Moving ahead with more reading rc = 4
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
Router#
Router#clear trip nei *
Router#Dispatching a TRIP_EV_NBR_IO_ASYNC_RESET to I/O for NBR:16.1.1.202
Dispatching a TRIP_EV_NBR_IO_ASYNC_RESET to I/O for NBR:16.1.1.203
A socket has gulped all that we fed it NBR:16.1.1.202 -- 5 bytes
Closing all the fds for NBR:16.1.1.202
NBR:16.1.1.202 is not eligible to write, no non(-1) fd yet
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
A Socket error has caused a write failure NBR:16.1.1.203 errno 13
Closing all the fds for NBR:16.1.1.203
NBR:16.1.1.202 is not eligible to write, no non(-1) fd yet
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
The following example shows the dump of the details of TGREP messages:
Router# debug tgrep msgdump
tgrep-gw-1-02#Received an KEEPALIVE NBR:14.1.1.210
+++++++++++++++++++++++++++++++++++++
 TMSG datagramstart : 0x69188648, 150 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0xFFFFFF96 0x2 0x0 0x1
 0x0 0x0 0x0 0x2 0x0
 0x9 0x0 0x5 0x0 0x0
 0x0 0x3 0x6D 0x63 0x69
 0x0 0x3 0x0 0x6 0x0
 0x0 0x4 0xFFFFFFD2 0x0 0x0
 0x0 0x4 0x0 0x6 0x2
 0x1 0x0 0x0 0x4 0xFFFFFFD2
 0x0 0x5 0x0 0x6 0x2
 0x1 0x0 0x0 0x4 0xFFFFFFD2
 0x0 0x7 0x0 0x4 0x0
 0x0 0x0 0x5 0x0 0xF
 0x0 0x4 0x0 0x0 0x0
 0x16 0x0 0x10 0x0 0x4
 0x0 0x0 0x0 0x17 0x0
 0x11 0x0 0x8 0x0 0x0
 0x0 0x74 0x0 0x0 0x0
 0x7B 0x0 0x12 0x0 0x3C
 0x0 0x4 0x31 0x31 0x32
 0x38 0x0 0x4 0x31 0x31
 0x32 0x37 0x0 0x4 0x31
 0x31 0x32 0x36 0x0 0x4
 0x31 0x31 0x32 0x35 0x0
 0x4 0x31 0x31 0x32 0x34
 0x0 0x4 0x31 0x31 0x32
 0x33 0x0 0x4 0x31 0x31
 0x32 0x32 0x0 0x5 0x39
 0x39 0x39 0x39 0x39 0x0
 0x9 0x31 0x32 0x33 0x34
 0x35 0x36 0x37 0x38 0x39
-----------------------------------
Received an KEEPALIVE NBR:14.1.1.210
+++++++++++++++++++++++++++++++++++++
 TMSG datagramstart : 0x691B0CA0, 92 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x5C 0x2 0x0 0x1
 0x0 0x0 0x0 0x2 0x0
 0xF 0x0 0x3 0x0 0x0
 0x0 0x9 0x31 0x32 0x33
 0x34 0x35 0x36 0x37 0x38
 0x39 0x0 0x3 0x0 0x6
 0x0 0x0 0x4 0xFFFFFFD2 0x0
 0x0 0x0 0x4 0x0 0x6
 0x2 0x1 0x0 0x0 0x4
 0xFFFFFFD2 0x0 0x5 0x0 0x6
 0x2 0x1 0x0 0x0 0x4
 0xFFFFFFD2 0x0 0x7 0x0 0x4
 0x0 0x0 0x0 0x5 0x0
 0xF 0x0 0x4 0x0 0x0
 0x0 0x17 0x0 0x10 0x0
 0x4 0x0 0x0 0x0 0x17
 0x0 0x11 0x0 0x8 0x0
 0x0 0x0 0x75 0x0 0x0
 0x0 0x78
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 TMSG datagramstart : 0x691885EC, 150 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0xFFFFFF96 0x2 0x0 0x1
 0x0 0x0 0x0 0x2 0x0
 0x9 0x0 0x5 0x0 0x0
 0x0 0x3 0x6D 0x63 0x69
 0x0 0x3 0x0 0x6 0x0
 0x0 0x4 0xFFFFFFD2 0x0 0x0
 0x0 0x4 0x0 0x6 0x2
 0x1 0x0 0x0 0x4 0xFFFFFFD2
 0x0 0x5 0x0 0x6 0x2
 0x1 0x0 0x0 0x4 0xFFFFFFD2
 0x0 0x7 0x0 0x4 0x0
 0x0 0x0 0x5 0x0 0xF
 0x0 0x4 0x0 0x0 0x0
 0x16 0x0 0x10 0x0 0x4
 0x0 0x0 0x0 0x17 0x0
 0x11 0x0 0x8 0x0 0x0
 0x0 0x75 0x0 0x0 0x0
 0x7C 0x0 0x12 0x0 0x3C
 0x0 0x4 0x31 0x31 0x32
 0x38 0x0 0x4 0x31 0x31
 0x32 0x37 0x0 0x4 0x31
 0x31 0x32 0x36 0x0 0x4
 0x31 0x31 0x32 0x35 0x0
 0x4 0x31 0x31 0x32 0x34
 0x0 0x4 0x31 0x31 0x32
 0x33 0x0 0x4 0x31 0x31
 0x32 0x32 0x0 0x5 0x39
 0x39 0x39 0x39 0x39 0x0
 0x9 0x31 0x32 0x33 0x34
 0x35 0x36 0x37 0x38 0x39
-----------------------------------
Received an KEEPALIVE NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
The following example shows the movement of TGREP messages:
Router# debug tgrep messages
tgrep-gw(config-tgrep)#Received an OPEN NBR:14.1.1.210
------------------------ OPEN DUMP BEGINS ------------------------
 0x1 0x0 0x0 0xFFFFFFB4 0x0
 0x0 0x0 0x19 0x0 0x0
 0x45 0x67 0x0 0x0
        Version    :1
        Hold Time    :180
        My ITAD      :25
        TRIP ID      :17767
        No optional parameters -- hence all route types supported.
        Send-Recv capability in effect
------------------------ OPEN DUMP ENDS ------------------------
Enqueued a Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Received Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Received Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Received Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Received Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Received Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Received Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Received Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Received Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Received Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Received Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Received Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Received Keepalive for NBR:14.1.1.210
The following example shows events that are related to the timer:
Router# debug tgrep timer-events
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Entering trip_reset_nbr_timers to reset timers
Starting the CONNECT timer for nbr NBR:16.1.1.202 for value of 30 seconds
Stopping hold timer and keepalive timer while resetting NBR:16.1.1.202
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Router#clear trip nei *
Router#Entering trip_reset_nbr_timers to reset timers
Starting the CONNECT timer for nbr NBR:16.1.1.202 for value of 30 seconds
Stopping hold timer and keepalive timer while resetting NBR:16.1.1.202
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
IO_CONNECT TIMER for nbr NBR:16.1.1.202 has expired
NBR:16.1.1.202 -Restarting the connect timer
NBR:16.1.1.202 starting the holder timer after post connect with large value
------------------------ OPEN DUMP BEGINS ------------------------
 0x1 0xFFFFFFFF 0x0 0xFFFFFFB4 0x0
 0x0 0x4 0x58 0x6 0x7
 0xFFFFFF98 0xFFFFFFA9 0x0 0xC 0x0
 0x1 0x0 0x8 0x0 0x2
 0x0 0x4 0x0 0x0 0x0
 0x3
        Version    :1
        Hold Time    :180
        My ITAD      :1112
        TRIP ID      :101161129
                 Option Paramater #1
                 Param Type: Capability
                 Length 8
                         Cap Code :Send Receive Capability
                         Cap Len  :4
                                Send Rec Cap: RCV ONLY MODE
        -->All route types supported
------------------------ OPEN DUMP ENDS ------------------------
NBR:16.1.1.202 Starting keepalive timer after writing something
NBR:16.1.1.202 Re-starting hold timer after a message is read
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPNBR:16.1.1.202 Starting keepalive timer after writing so
mething
NBR:16.1.1.202 Re-starting hold timer after a message is read
D timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIIO_CONNECT TIMER for nbr NBR:16.1.1.202 has expired
NBR:16.1.1.202 -Stopping the connect timer, no need anynore
MER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
NBR:16.1.1.202 Re-starting hold timer after a message is read
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
 Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
NBR:16.1.1.202 Received a Keepalive timer time out
NBR:16.1.1.202 Starting keepalive timer after writing something
NBR:16.1.1.202 Re-starting hold timer after a message is read
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
clear trip nei *
Router#Entering trip_reset_nbr_timers to reset timers
Starting the CONNECT timer for nbr NBR:16.1.1.202 for value of 30 seconds
Stopping hold timer and keepalive timer while resetting NBR:16.1.1.202
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
The following example shows timer activity:
Router# debug tgrep timers
tgrep-gw-1-02#Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
clReceived a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
tgrep-gw-1-02#Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
tgrep-gw-1-02#und aReceived a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
The following example enables debugs from the TRIP Reporter:
Router# debug tgrep tripr
20:51:11: tripr_build_triprtr_prefix_destination_ev : got the ev id 1 reason 64 num_prefix
1 advertise 0x2prefix 1128 addrFam 4
20:51:11: tripr_build_triprtr_prefix_destination_ev ac 22 tc 23 ac_avg 22
20:51:11: tripr_build_triprtr_prefix_destination_ev csr success 0 total 0
20:51:11:
20:51:11: --------------------------------
20:51:11: attrib 0x4002
20:51:11: ******* REACHABLE ROUTE ******
20:51:11: TRIP_AF_E164 1128
20:51:11:  ac: 22
20:51:11:
20:51:11: =======================================
20:51:11: tripr_build_triprtr_prefix_destination_ev : got the ev id 1 reason 64 num_prefix
1 advertise 0x27prefix 123456789 addrFam 4
20:51:11: tripr_build_triprtr_prefix_destination_ev ac 22 tc 23 ac_avg 22
20:51:11: tripr_build_triprtr_prefix_destination_ev csr success 117 total 120
20:51:11:  tg mci cc mci
20:51:11: tripr_build_triprtr_prefix_destination_ev tg mci cic 0 carrier mci
20:51:11:
20:51:11: --------------------------------
20:51:11: attrib 0x1C002
20:51:11: ******* REACHABLE ROUTE ******
20:51:11: TRIP_AF_E164 123456789
20:51:11:  csr: tot 120 succ 117
20:51:11:  ac: 22tc: 23
20:51:11:
20:51:11: =======================================
20:51:11: tripr_build_triprtr_prefix_destination_ev : got the ev id 1 reason 64 num_prefix
1 advertise 0x27prefix 99999 addrFam 4
20:51:11: tripr_build_triprtr_prefix_destination_ev ac 22 tc 23 ac_avg 22
20:51:11: tripr_build_triprtr_prefix_destination_ev csr success 0 total 0
20:51:11:  tg mci cc mci
20:51:11: tripr_build_triprtr_prefix_destination_ev tg mci cic 0 carrier mci
20:51:11:
20:51:11: --------------------------------
20:51:11: attrib 0x1C002
20:51:11: ******* REACHABLE ROUTE ******
20:51:11: TRIP_AF_E164 99999
20:51:11:  csr: tot 0 succ 0
20:51:11:  ac: 22tc: 23
20:51:11:
20:51:11: =======================================
The following example enables debugs from the EDDRI:
Router# debug voip eddri all
21:00:53: eddri_interesting_ac_pt: new AC_curr 22 FD_curr -5 SD_curr -5
21:00:53: eddri_interesting_ac_pt: percent trigger diff 4
21:00:53: eddri_interesting_ac_pt: Interesting Point
21:00:53: eddri_send_prefix_event_to_clients : reason 0x40 num_prefix 1
21:00:53: eddri_send_prefix_event_to_clients attr 0xFF ev_id 1 qid 0x64209230 reason 0x40
eddri_dequeue_event : dequeue event
21:00:53: eddri_interesting_ac_pt : tc 23 IAC 22 lwm 5 hwm 50 pct_trigger 2 oneMinusW 933
21:00:53: eddri_interesting_ac_pt: old AC_curr 23 FD_curr 0 SD_curr 0
21:00:53: eddri_interesting_ac_pt: new AC_curr 22 FD_curr -5 SD_curr -5
21:00:53: eddri_interesting_ac_pt: percent trigger diff 4
21:00:53: eddri_interesting_ac_pt: Interesting Point
21:00:53: eddri_send_prefix_event_to_clients : reason 0x40 num_prefix 1
21:00:53: eddri_send_prefix_event_to_clients attr 0xFF ev_id 1 qid 0x64209230 reason 0x40
eddri_dequeue_event : dequeue event
21:00:53: eddri_interesting_ac_pt : tc 23 IAC 22 lwm 5 hwm 50 pct_trigger 2 oneMinusW 933
21:00:53: eddri_interesting_ac_pt: old AC_curr 23 FD_curr 0 SD_curr 0
21:00:53: eddri_interesting_ac_pt: new AC_curr 22 FD_curr -5 SD_curr -5
21:00:53: eddri_interesting_ac_pt: percent trigger diff 4
21:00:53: eddri_interesting_ac_pt: Interesting Point
21:00:53: eddri_send_prefix_event_to_clients : reason 0x40 num_prefix 1
21:00:53: eddri_send_prefix_event_to_clients attr 0xFF ev_id 1 qid 0x64209230 reason 0x40
eddri_dequeue_event : dequeue event
21:00:53: eddri_interesting_ac_pt : tc 23 IAC 22 lwm 5 hwm 50 pct_trigger 2 oneMinusW 933
21:00:53: eddri_interesting_ac_pt: old AC_curr 23 FD_curr 0 SD_curr 0
21:00:53: eddri_interesting_ac_pt: new AC_curr 22 FD_curr -5 SD_curr -5
21:00:53: eddri_interesting_ac_pt: percent trigger diff 4
21:00:53: eddri_interesting_ac_pt: Interesting Point
21:00:53: eddri_send_prefix_event_to_clients : reason 0x40 num_prefix 1
21:00:53: eddri_send_prefix_event_to_clients attr 0xFF ev_id 1 qid 0x64209230 reason 0x40
eddri_dequeue_event : dequeue event
21:00:53: eddri_interesting_ac_pt : tc 23 IAC 22 lwm 5 hwm 50 pct_trigger 2 oneMinusW 933
21:00:54: eddri_interesting_ac_pt: old AC_curr 23 FD_curr 0 SD_curr 0
21:00:54: eddri_interesting_ac_pt: new AC_curr 22 FD_curr -5 SD_curr -5
21:00:54: eddri_interesting_ac_pt: percent trigger diff 4
21:00:54: eddri_interesting_ac_pt: Interesting Point
21:00:54: eddri_send_prefix_event_to_clients : reason 0x40 num_prefix 1
21:00:54: eddri_send_prefix_event_to_clients attr 0xFF ev_id 1 qid 0x64209230 reason 0x40
eddri_dequeue_event : dequeue event
21:00:54: eddri_interesting_ac_pt : tc 23 IAC 22 lwm 5 hwm 50 pct_trigger 2 oneMinusW 933
21:00:54: eddri_interesting_ac_pt: old AC_curr 23 FD_curr 0 SD_curr 0
21:00:54: eddri_interesting_ac_pt: new AC_curr 22 FD_curr -5 SD_curr -5
21:00:54: eddri_interesting_ac_pt: percent trigger diff 4
21:00:54: eddri_interesting_ac_pt: Interesting Point
21:00:54: eddri_send_prefix_event_to_clients : reason 0x40 num_prefix 1
21:00:54: eddri_send_prefix_event_to_clients attr 0xFF ev_id 1 qid 0x64209230 reason 0x40
eddri_dequeue_event : dequeue event
21:00:54: eddri_interesting_ac_pt : tc 23 IAC 22 lwm 5 hwm 50 pct_trigger 2 oneMinusW 933
21:00:54: eddri_interesting_ac_pt: old AC_curr 23 FD_curr 0 SD_curr 0
21:00:54: eddri_interesting_ac_pt: new AC_curr 22 FD_curr -5 SD_curr -5
21:00:54: eddri_interesting_ac_pt: percent trigger diff 4
21:00:54: eddri_interesting_ac_pt: Interesting Point
21:00:54: eddri_send_prefix_event_to_clients : reason 0x40 num_prefix 1
21:00:54: eddri_send_prefix_event_to_clients attr 0xFF ev_id 1 qid 0x64209230 reason 0x40
eddri_dequeue_event : dequeue event
21:00:54: eddri_interesting_ac_pt : tc 23 IAC 22 lwm 5 hwm 50 pct_trigger 2 oneMinusW 933
21:00:54: eddri_interesting_ac_pt: old AC_curr 23 FD_curr 0 SD_curr 0
21:00:54: eddri_interesting_ac_pt: new AC_curr 22 FD_curr -5 SD_curr -5
21:00:54: eddri_interesting_ac_pt: percent trigger diff 4
21:00:54: eddri_interesting_ac_pt: Interesting Point
21:00:54: eddri_send_prefix_event_to_clients : reason 0x40 num_prefix 1
21:00:54: eddri_send_prefix_event_to_clients attr 0xFF ev_id 1 qid 0x64209230 reason 0x40
eddri_dequeue_event : dequeue event
21:00:58: eddri_send_crm_or_tg_event_to_clients : reason 0x8 subsys 3
21:00:58: eddri_send_crm_or_tg_event_to_clients : reason 0x8 subsys 1
21:00:58: eddri_send_crm_or_tg_event_to_clients attr 0x7F ev_id 2 qid 0x64209230 reason
0x8
eddri_dequeue_event : dequeue event
Configuration Example for TGREP on IOS Gateways

This configuration example shows TGREP enabled on a Cisco AS5300 gateway:
version 12.2
no service pad
service timestamps debug uptime
service timestamps log uptime
no service password-encryption
service internal
!
hostname Router
!
!
username all
spe 2/0 2/23
 firmware location feature_card_flash
!
!
resource-pool disable
clock timezone GMT 0
!
ip subnet-zero
ip host CALLGEN-SECURITY-V2 10.96.8.90 10.78.0.0
ip host dirt 192.168.254.254
!
Note The global carrier ID is set here. Carrier IDs configured locally on the trunk group supersede this global setting.
carrier-id 33
!
!
Note The trunk groups are defined here. These trunk groups are defined as TGREP carriers and are advertised to TRIP location servers, as the cic keyword is used in each trunk group. Note that in the trunk group att, the capacity update interval for that particular carrier ID has been set.
trunk group  att
 carrier-id 444 cic
 capacity carrier update interval 90
!
!
trunk group  mci
 carrier-id 16 cic
!
!
trunk group  404
 carrier-id 2 cic
!
!
trunk group  101
 capacity trunk-group update interval 90
!
isdn switch-type primary-ni
!
!
Note The capacity timer interval has been set globally for trunk groups.
voice call trunkgroup capacity timer interval 100
!
voice service pots
!
!
!
no voice hpi capture buffer
no voice hpi capture destination
!
fax interface-type modem
mta receive maximum-recipients 0
!
controller E1 0
 clock source line primary
 pri-group timeslots 1-31
!
controller E1 1
 ds0-group 1 timeslots 1-2 type e&m-fgb dtmf dnis
 ds0-group 2 timeslots 3-5 type e&m-fgb dtmf dnis
 ds0-group 3 timeslots 6-10 type e&m-fgb dtmf dnis
 cas-custom 1
 trunk-group att
 cas-custom 2
 trunk-group mci
 cas-custom 3
!
controller E1 2
 pri-group timeslots 1-24
!
controller E1 3
 shutdown
 clock source line secondary 3
 ds0-group 0 timeslots 1-15,17-24 type e&m-immediate-start
 cas-custom 0
!
gw-accounting h323
gw-accounting h323 vsa
gw-accounting voip
!
!
interface Ethernet0
 ip address 10.8.56.13 255.255.0.0
 ip directed-broadcast
 no ip route-cache
 no ip mroute-cache
 fair-queue 64 256 32
 ip rsvp bandwidth 1000 1000
!
interface Serial0:15
 no ip address
 trunk-group 101
 isdn switch-type primary-ni
 isdn incoming-voice modem
 no cdp enable
!
interface Serial2:15
 no ip address
 shutdown
 isdn switch-type primary-ni
 isdn protocol-emulate network
 no isdn T309-enable
 no cdp enable
!
interface FastEthernet0
 ip address 172.16.140.117 255.255.0.0
 no ip route-cache
 no ip mroute-cache
 duplex auto
 speed auto
!
ip classless
ip route 0.0.0.0 0.0.0.0 1.8.0.1
ip route 172.16.0.0 255.0.0.0 172.16.140.1
no ip http server
ip pim bidir-enable
!
!
dialer-list 1 protocol ip permit
dialer-list 1 protocol ipx permit
!
!
radius-server host 10.7.157.1 auth-port 1645 acct-port 1646
radius-server retransmit 1
radius-server key cisco
radius-server authorization permit missing Service-Type
radius-server vsa send accounting
radius-server vsa send authentication
call rsvp-sync
!
voice-port 0:D
!
voice-port 1:1
 compand-type a-law
!
voice-port 1:2
 compand-type a-law
!
voice-port 1:3
 compand-type a-law
!
voice-port 2:D
!
voice-port 3:0
 compand-type a-law
!
!
mgcp profile default
!
Note The local ITAD is configured in the following steps. Note that each type of address family is defined using separate advertise commands. If an address family is not defined, it is not advertised.
tgrep local-itad 1
 neighbor 2.3.4.5
 nexthop 1.1.1 advertise e164 csr ac tc trunk-group
 advertise decimal csr ac tc carrier
 advertise penta-decimal csr ac tc carrier
 advertise trunk-group ac tc
 advertise carrier csr tc
 address-family e164
 !
 tgrep 1
 !
 dial-peer cor custom
!
!
!
dial-peer voice 1 voip
 destination-pattern T
 session target ipv4:1.8.56.12
!
Note The POTS dial peers are configured here. Note that for dial peers 101 and 105, the address families are defined and override the global setting.
dial-peer voice 101 pots
 trunkgroup 101
 trunkgroup mci
 shutdown
 tgrep address-family decimal
 destination-pattern 510888....
 no digit-strip
 direct-inward-dial
 forward-digits all
!
dial-peer voice 102 pots
 trunk-group-label source 101
 direct-inward-dial
!
dial-peer voice 103 pots
 trunkgroup 101
 trunkgroup mci
 shutdown
 destination-pattern 567
!
dial-peer voice 104 pots
 trunkgroup 404
 shutdown
 destination-pattern 76[5-7]
!
dial-peer voice 105 pots
 trunkgroup 101
 tgrep address-family penta-decimal
 destination-pattern 766
!
!
line con 0
 exec-timeout 0 0
 logging synchronous
line 1 24
 no flush-at-activation
 modem Host
 no modem ibc
line aux 0
line vty 0 4
 password lab
!
scheduler interval 1000
end
Where to Go Next

If you now want to further configure TRIP on Cisco IOS gateways, refer to Cisco.com and choose the following path: Cisco > Service & Support > Technical Assistance Center > Technologies > ??

Additional References

For additional information related to TGREP on Cisco IOS gateways, refer to the following references:

Related Documents

Related Topic

Document Title

VoIP configuration tasks

Cisco IOS Voice, Video, and Fax Configuration Guide, Cisco IOS Release 12.2

Additional VoIP commands: complete command syntax, command mode, defaults, usage guidelines, and examples

Cisco IOS Voice, Video, and Fax Command Reference, Cisco IOS Release 12.2

Cisco SIP Proxy Server configuration and administration tasks

Cisco SIP Proxy Server Administrator Guide

Standards

Standards¹

Title

IETF draft

Usage of TRIP in Gateways for Exporting Phone Routes

¹Not all supported standards are listed.

MIBs

MIBs¹

MIBs Link

No new or modified MIBs are supported by this feature, and support for existing MIBs has not been modified by this feature.

To obtain lists of supported MIBs by platform and Cisco IOS release, and to download MIB modules, go to the Cisco MIB website on Cisco.com at the following URL:

http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml

¹Not all supported MIBs are listed.

To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://tools.cisco.com/ITDIT/MIBS/servlet/index

If Cisco MIB Locator does not support the MIB information that you need, you can also obtain a list of supported MIBs and download MIBs from the Cisco MIBs page at the following URL:

http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml

To access Cisco MIB Locator, you must have an account on Cisco.com. If you have forgotten or lost your account information, send a blank e-mail to cco-locksmith@cisco.com. An automatic check will verify that your e-mail address is registered with Cisco.com. If the check is successful, account details with a new random password will be e-mailed to you. Qualified users can establish an account on Cisco.com by following the directions found at this URL:

http://www.cisco.com/register

RFCs

RFCs¹

Title

RFC 3219

Telephony Routing over IP (TRIP)

¹Not all supported RFCs are listed.

Technical Assistance

Description

Link

Technical Assistance Center (TAC) home page, containing 30,000 pages of searchable technical content, including links to products, technologies, solutions, technical tips, tools, and lots more. Registered Cisco.com users can log in from this page to access even more content.

http://www.cisco.com/public/support/tac/home.shtml

Command Reference

This section documents new commands. All other commands used with this feature are documented in the Cisco IOS Release 12.3(1) command reference publications.

•address-family

•advertise (tgrep)

•capacity update interval (dial peer)

•capacity update interval (trunk group)

•carrier-id (global)

•carrier-id (trunk group)

•debug tgrep error

•debug tgrep events

•debug tgrep fsm

•debug tgrep io

•debug tgrep messages

•debug tgrep msgdump

•debug tgrep timer-event

•debug tgrep timers

•debug tgrep tripr

•debug voip eddri

•neighbor

•show tgrep neighbors

•show voice eddri prefix

•tgrep address-family

•tgrep advertise (dial peer)

•tgrep advertise (trunk group)

•tgrep local-itad

•voice call capacity mir

•voice call capacity stw

•voice call capacity reporting

•voice call capacity timer interval

•voice call csr data-points

•voice call csr recording interval

•voice call csr reporting interval

•voice call trigger hwm

•voice call trigger lwm

•voice call trigger percent-change

address-family

To set the global address family to be used on all dial peers, use the address-family command in TGREP configuration mode. To change back to the default address family, use the no form of this command.

address family {e164 | decimal | penta-decimal}
no address family {e164 | decimal | penta-decimal}
Syntax Description

e164

E.164 address family.

decimal

Digital address family

penta-decimal

Pentadecimal address family

Defaults

E.164 address family

Command Modes

TGREP configuration

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

The E. 164 address family is used if the telephony network is a public telephony network. Decimal and pentadecimal options can be used to advertise private dial plans. For example if a company wants to use TRIP in within their enterprise telephony network using 5-digit extensions, then the gateway would advertise the beginning digits of their private numbers as a decimal address family. These calls cannot be sent out of the company's private telephony network because they are not E.164-compliant.

The pentadecimal family allows numbers 0 through 9 and alphabetic characters A through E and can be used in countries where letters are also carried in the called number.

Examples

The following example shows that the address family for ITAD 1234 is set for E.164 addresses:
Router(config)# tgrep local-itad 1234
Router(config-tgrep)# address family e164
Related Commands

Command

Description

tgrep local-itad

Enters TGREP configuration mode and defines an ITAD.

advertise (tgrep)

To turn on reporting for a specified address family, use the advertise command in TGREP configuration mode. To turn off reporting for a specified address family, use the no form of this command.

advertise {e164 | decimal | penta-decimal }[csr][ac][tc][trunk-group | carrier]
advertise {trunk-group | carrier}[csr][ac][tc]
no advertise {e164 | decimal | penta-decimal | trunk-group | carrier}
Syntax Description

e164

E.164 address family.

decimal

Decimal address family

penta-decimal

Penta-decimal address family (what is this?)

trunk-group

Trunk group address family

carrier

Carrier code address family

csr

Call success rate

ac

Available circuits

tc

Total circuits

Defaults

No attributes for address families are advertised.

Command Modes

TGREP configuration

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

If you specify e164, decimal or penta-decimal for the address family, you can stipulate whether the related carrier or trunk-group parameters are advertised. If you stipulate carrier or trunk-group for the address family, you can stipulate that the related address family prefix is advertised. If you stipulate carrier or trunk-group for the address family, you cannot stipulate carrier or trunk-group attributes for advertising.

When the no version of this command is used, it turns off the advertisement of that particular address family altogether.

Examples

The following example shows that the E.164 address family with call success rate, available circuits, total circuits, and trunk group attributes is being advertised for ITAD 1234:
Router(config)# tgrep local-itad 1234
Router(config-tgrep)# advertise e164 csr ac tc trunk-group
Related Commands

Command

Description

tgrep local-itad

Enters TGREP configuration mode and defines an ITAD.

capacity update interval (dial peer)

To change the capacity update for prefixes associated with this dial peer, use the capacity update interval command in dial peer configuration mode. To return to the default, use the no form of this command.

capacity update interval seconds
no capacity update interval seconds
Syntax Description

seconds

Interval, in seconds, between the sending of periodic capacity updates. This can be a number in the range 10 to 1000. The default value is 25 seconds.

Defaults

25 seconds

Command Modes

Dial peer configuration

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

The update interval should be set depending on the number of updates that are sent. Updates are sent more often when more calls are coming in, which can lead to data getting out of sync. If the interval is too short for the amount of updates, the location server can be overwhelmed. If this dial peer gets too much traffic, set the seconds argument to a higher value.

Examples

The following example shows that POTS dial peer 10 is having the capacity update occur every 35 seconds:
Router(config)# dial-peer voice 10 pots
Router(config-dial-peer)# capacity update interval 35
Related Commands

Command

Description

dial-peer voice

Enters dial-peer configuration mode and specifies the method of voice-related encapsulation.

capacity update interval (trunk group)

To change the capacity update for carriers or trunk groups, use the capacity update interval command in trunk group configuration mode. To return to the default, use the no form of this command.

capacity {carrier | trunk-group} update interval seconds
no capacity {carrier | trunk-group} update interval seconds
Syntax Description

carrier

Carrier capacity.

trunk-group

Trunk group capacity.

seconds

Interval, in seconds, between the sending of periodic capacity updates. This can be a number in the range 10 to 1000. The default value is 25 seconds.

Defaults

25 seconds

Command Modes

Trunk group configuration

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

The update interval should be set depending on the number of updates that are sent. Updates are sent more often when more calls are coming in, which can lead to data getting out of sync. If the interval is too short for the amount of updates, the location server can be overwhelmed. If this trunk group or carrier group gets too much traffic, set the seconds argument to a higher value.

Examples

The following example sets the capacity update for trunk group 101 to occur every 45 seconds:
Router(config)# trunk group 101
Router(config-trunkgroup)# capacity trunk-group update interval 45
Related Commands

Command

Description

trunk group

Defines the trunk group and enters trunk group configuration mode.

carrier-id (global)

To set the carrier ID for trunk groups when a local carrier ID is not configured, use the carrier-id command in global configuration mode. To disable the carrier ID, use the no form of this command.

carrier-id name [cic]
no carrier-id name[cic]
Syntax Description

name

Identifier for the carrier ID. Must be 4-digit numeric carrier identification code to be advertised as a TRIP carrier family but can be alphanumeric if used otherwise.

cic

Specifies that the carrier ID is a circuit identification code(CIC).

Defaults

No default behavior or values

Command Modes

Global configuration

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

To advertise the carrier as a TRIP carrier family, the cic keyword must be used. When cic is used, only numeric values can be accepted for the name value. If cic is not used, the name value can be alphanumeric but is not advertised to TRIP location servers.

Examples

The following example shows a carrier ID using the circuit identification code:
Router(config)# carrier-id 1234 cic
Related Commands

Command

Description

carrier-id (trunk group)

Configures the carrier ID locally on the trunk group.
carrier-id (trunk group)

To specify the carrier associated with a trunk group, use the carrier-id command in trunk group configuration mode. To delete the source carrier ID, use the no form of this command.

carrier-id name [cic]
no carrier-id name [cic]
Syntax Description

name

Specifies the ID of the carrier to use for the call. Valid carrier IDs contain a maximum of 127 alphanumeric characters.

To be advertised as a TRIP carrier family, this must be set to a 4-digit numeric carrier identification code.

cic

Specifies that the carrier ID is a circuit identification code.

Defaults

No default behavior or values

Command Modes

Trunk group configuration

Command History

Release

Modification

12.2(11)T

This command was introduced.

12.3(1)

The cic keyword was added.

Usage Guidelines

In a network, calls are routed over incoming trunk groups and outgoing trunk groups. The name arguments identifies the carrier that handles the calls for a specific trunk group. In some cases, the same trunk group may be used to carry both incoming calls and outgoing calls.

The carrier ID configured locally on the trunk group supersedes the globally configured carrier ID.

To advertise the carrier as a TRIP carrier family, the cic keyword must be used. When cic is used, only numeric values can be accepted for the name value. If cic is not used, the name value can be alphanumeric but is not advertised to TRIP location servers.

Examples

The following example indicates that carrier "alpha1" carries calls for trunk group 5:
Router(config)# trunk group 5
Router(config-trunk-group)# carrier-id alpha1
The following example shows that the carrier with circuit identification code 1234 carries calls for trunk group 101. This trunk group can carry TRIP advertisements:
Router(config)# trunk group 101
Router(config-trunk-group)# carrier-id 1234 cic
Related Commands

Command

Description

carrier-id (global)

Configures the carrier ID globally for all trunk groups.

translation-profile (trunk group)

Associates a translation profile with a trunk group.

trunk group

Initiates the definition of a trunk group.
debug tgrep error

To turn on debugging for any TGREP errors, use the debug tgrep error command in privileged EXEC mode. To turn off debugging, use the no form of this command.

debug tgrep error
no debug tgrep error
Defaults

Debug is not enabled

Command Modes

Privileged EXEC

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

There is always a performance penalty when using debug commands.

The "We already have connection with such itad/tripid combo in progress" message appears when an error occurs where two location servers with the same ITAD and TripID initiate a TRIP connection to the gateway. When the second OPEN message arrives at the gateway, the debug trip error command displays the message.

Examples

The following example shows output from the debug tgrep error command:
Errors : Process socket event has an invalid fd to work on
Errors : Process socket event has an invalid fd to work on
Errors : Process socket event has an invalid fd to work on
Errors : Process socket event has an invalid fd to work on
After the errors are reported, the open dump begins. The ITAD is identified in the dump.
------------------------ OPEN DUMP BEGINS ------------------------
 0x1 0xFFFFFFFF 0x0 0xFFFFFFB4 0x0
 0x0 0x4 0x58 0x6 0x7
 0xFFFFFF98 0xFFFFFFA9 0x0 0xC 0x0
 0x1 0x0 0x8 0x0 0x2
 0x0 0x4 0x0 0x0 0x0
 0x3
        Version    :1
        Hold Time    :180
        My ITAD      :1112
        TRIP ID      :101161129
                 Option Paramater #1
                 Param Type: Capability
                 Length 8
                         Cap Code :Send Receive Capability
                         Cap Len  :4
                                Send Rec Cap: RCV ONLY MODE
        -->All route types supported
------------------------ OPEN DUMP ENDS ------------------------
The "We already have connection with such itad/tripid combo in progress" message appears when an error occurs where two location servers with the same ITAD and TripID initiate a TRIP connection to the gateway.
We already have connection with such itad/tripid combo in progress
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
Error: Active connection to the nbr failed NBR:16.1.1.203
Errors : Process socket event has an invalid fd to work on
Errors : Process socket event has an invalid fd to work on
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
Errors : Process socket event has an invalid fd to work on
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
Related Commands

Command

Description

debug tgrep events

Turns on debugging for main events occurring throughout the subsystem.

debug tgrep fsm

Turns on debugging for FSM activity.

debug tgrep io

Turns on debugging for detailed socket level activities.

debug tgrep msgdump

Turns on debugging for the dump of the details of TGREP messages.

debug tgrep messages

Turns on debugging for the movement of TGREP messages.

debug tgrep timer-event

Turns on debugging for events that are related to the timer.

debug tgrep timers

Turns on debugging for timer activity.

debug tgrep tripr

Turns on debugging for the TRIP Reporter.

debug voip eddri

Turns on debugging for the EDDRI.

debug tgrep events

To turn on debugging for main events occurring throughout the subsystem, use the debug tgrep events command in privileged EXEC mode. To turn off debugging, use the no form of this command.

debug tgrep events
no debug tgrep events
Defaults

Debug is not enabled

Command Modes

Privileged EXEC

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

There is always a performance penalty when using debug commands.

Examples

The following example shows output from the debug tgrep events command:
tgrep-gw-1-02#Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Table 2 describes the significant fields shown in the display.

Table 2 debug tgrep events Field Descriptions

Field

Description

Received a TGREP_UPD_TIMER timeout

This event shows that a TREP update timer timeout event occurred.

The bulkSyncQ size is 0 at this time

This event indicates the size of bulk sync queue.

The tgrepQ size is 0 at this time

This event indicates the size of TGREP queue.

Related Commands

Command

Description

debug tgrep error

Turns on debugging for any errors in functioning.

debug tgrep fsm

Turns on debugging for FSM activity.

debug tgrep io

Turns on debugging for detailed socket level activities.

debug tgrep msgdump

Turns on debugging for the dump of the details of TGREP messages.

debug tgrep messages

Turns on debugging for the movement of TGREP messages.

debug tgrep timer-event

Turns on debugging for events that are related to the timer.

debug tgrep timers

Turns on debugging for timer activity.

debug tgrep tripr

Turns on debugging for the TRIP Reporter.

debug voip eddri

Turns on debugging for the EDDRI.

debug tgrep fsm

To turn on debugging for Finite State Machine (FSM) events, use the debug tgrep fsm command in privileged EXEC mode. To turn off debugging, use the no form of this command.

debug tgrep fsm
no debug tgrep fsm
Defaults

Debug is not enabled

Command Modes

Privileged EXEC

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

There is always a performance penalty when using debug commands.

Examples

The following example shows output from the debug tgrep fsm command:
Generic routes combined : 0x61FA38B4, 13 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x2 0x0 0x9 0x0
 0x5 0x0 0x0 0x0 0x3
 0x6D 0x63 0x69
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 NEXT HOP SERVER : 0x61FA38C1, 10 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x3 0x0 0x6 0x0
 0x0 0x4 0xFFFFFFD2 0x0 0x0
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 AD RD PATH : 0x61FA38CB, 10 bytes
++++++++++++++++++++Getting a major event 4 on I/O
Here, a write event occurs. Note how the finite state machine details each step of the writing process.
Received a TRIP_IO_WRITEQ_BOOLEAN event 313
The peer connection check for fd 1 is success
Writing some pending stuff first NBR:14.1.1.210
Moving ahead with more reading rc = 4
-->Starting regular write for nbr NBR:14.1.1.210
The queuesize before we start is 1
Selected primary socket for NBR:14.1.1.210
The peer connection check for fd 1 is success
Dequeued 1 message (left 0) for NBR:14.1.1.210 for writing to socket
A socket has gulped all that we fed it NBR:14.1.1.210 -- 92 bytes
Dequeued 0 message (left 0) for NBR:14.1.1.210 for writing to socket
Wrote out the whole socket buffer or Q in 2 attempts NBR:14.1.1.210 rc 4 was
NBR:14.1.1.210 Starting keepalive timer after writing something
Getting a major event 512 on I/O
Received an event on a socket for some nbr
Received Mask event of 0x1 for fd 1
Looking for fd match on nbr NBR:14.1.1.210
Now a read event occurs. After this event, the total number of TRIP messages read is displayed.
Recieved READ_EVENT for  for nbr NBR:14.1.1.210
Read 3 bytes from that network for nbr NBR:14.1.1.210
+++++++++++++++++++++++++++++++++++++
 This is what we READ : 0x63E79090, 3 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x3 0x4
-----------------------------------
NBR:14.1.1.210 Re-starting hold timer after a message is read
tmsg malloc total memory allocated is 95
Allocated another buffer for TRIP message
TRIP Messages Read so far 1
+++++++++++++++++++++++++++++++++++++
 Enqueing this tmsg : 0x691D09DC, 3 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x3 0x4
-----------------------------------
Enqueuing a message into the ReadQ of nbr: NBR:14.1.1.210
Read -1 bytes from that network for nbr NBR++++++++++++++++++
 0x0 0x4 0x0 0x6 0x2
 0x1 0x0 0x0 0x4 0xFFFFFFD2
-----------------------------------
Statistics for available circuits, total circuits, and call success rate are displayed.
+++++++++++++++++++++++++++++++++++++
 AD RD PATH : 0x61FA38D5, 10 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x5 0x0 0x6 0x2
 0x1 0x0 0x0 0x4 0xFFFFFFD2
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 LOCAL PREF : 0x61FA38DF, 8 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x7 0x0 0x4 0x0
 0x0 0x0 0x5
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 Available Ckts : 0x61FA38E7, 8 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0xF 0x0 0x4 0x0
 0x0 0x0 0x17
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 TOTAL CIRCUITS : 0x61FA38EF, 8 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x10 0x0 0x4 0x0
 0x0 0x0 0x17
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 CALL SUCCESS RATE : 0x61FA38F7, 12 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x11 0x0
tgrep-gw-1-02#
tgrep-gw-1-02#und al:14.1.1.210
Getting a major event 512 on I/O
Errors : Process socket event has an invalid fd to work on
l 0x8 0x0
 0x0 0x0 0x78 0x0 0x0
 0x0 0x7F
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 PREFIX_ATTRIBUTE : 0x61FA3903, 64 bytes
++++++++++++++++++++++++++++++++++++++
The prefix is shown here in hex format.
 0x0 0x12 0x0 0x3C 0x0
 0x4 0x31 0x31 0x32 0x38
 0x0 0x4 0x31 0x31 0x32
 0x37 0x0 0x4 0x31 0x31
 0x32 0x36 0x0 0x4 0x31
 0x31 0x32 0x35 0x0 0x4
 0x31 0x31 0x32 0x34 0x0
 0x4 0x31 0x31 0x32 0x33
 0x0 0x4 0x31 0x31 0x32
 0x32 0x0 0x5 0x39 0x39
 0x39 0x39 0x39 0x0 0x9
 0x31 0x32 0x33 0x34 0x35
 0x36
Related Commands

Command

Description

debug tgrep error

Turns on debugging for any errors in functioning.

debug tgrep events

Turns on debugging for main events occurring throughout the subsystem.

debug tgrep io

Turns on debugging for detailed socket level activities.

debug tgrep msgdump

Turns on debugging for the dump of the details of TGREP messages.

debug tgrep messages

Turns on debugging for the movement of TGREP messages.

debug tgrep timer-event

Turns on debugging for events that are related to the timer.

debug tgrep timers

Turns on debugging for timer activity.

debug tgrep tripr

Turns on debugging for the TRIP Reporter.

debug voip eddri

Turns on debugging for the EDDRI.

debug tgrep io

To turn on debugging for detailed socket-level activities, use the debug tgrep io command in privileged EXEC mode. To turn off debugging, use the no form of this command.

debug tgrep io
no debug tgrep io
Defaults

Debug is not enabled

Command Modes

Privileged EXEC

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

There is always a performance penalty when using debug commands.

Examples

The following example shows output from the debug tgrep io command:
Dispatching a TRIP_EV_NBR_IO_ASYNC_RESET to I/O for NBR:16.1.1.202
Dispatching a TRIP_EV_NBR_IO_ASYNC_RESET to I/O for NBR:16.1.1.203
A socket has gulped all that we fed it NBR:16.1.1.202 -- 5 bytes
Closing all the fds for NBR:16.1.1.202
NBR:16.1.1.202 is not eligible to write, no non(-1) fd yet
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
A Socket error has caused a write failure NBR:16.1.1.203 errno 13
Closing all the fds for NBR:16.1.1.203
NBR:16.1.1.202 is not eligible to write, no non(-1) fd yet
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
At this point, the connection is initiated.
Going to initiate a connect to 16.1.1.202
Called a socket_connect with errno 11, confirmation later
Initiated a Async connect call for nbr NBR:16.1.1.202 fd 1
Received Mask event of 0x1 for fd 1
Recieved WRITE_EVENT for  for nbr NBR:16.1.1.202
Only Active Open Succeeded
Post connect succeded for the nbr NBR:16.1.1.202, fd 1
A socket has gulped all that we fed it NBR:16.1.1.202 -- 29 bytes
Wrote out the whole socket buffer or Q in 2 attempts NBR:16.1.1.202 rc 4 was
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read 3 bytes from that network for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Errors begin to appear here.
Errors : Process socket event has an invalid fd to work on
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read 29 bytes from that network for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Errors : Process socket event has an invalid fd to work on
After the errors are detected, a dump occurs. The ITAD and TRIP ID are displayed.
------------------------ OPEN DUMP BEGINS ------------------------
 0x1 0xFFFFFFFF 0x0 0xFFFFFFB4 0x0
 0x0 0x4 0x58 0x6 0x7
 0xFFFFFF98 0xFFFFFFA9 0x0 0xC 0x0
 0x1 0x0 0x8 0x0 0x2
 0x0 0x4 0x0 0x0 0x0
 0x3
        Version    :1
        Hold Time    :180
        My ITAD      :1112
        TRIP ID      :101161129
                 Option Paramater #1
                 Param Type: Capability
                 Length 8
                         Cap Code :Send Receive Capability
                         Cap Len  :4
                                Send Rec Cap: RCV ONLY MODE
        -->All route types supported
------------------------ OPEN DUMP ENDS ------------------------
Doing fd reassignment for nbr NBR:16.1.1.202
Moving ahead with more reading rc = 4
A socket has gulped all that we fed it NBR:16.1.1.202 -- 3 bytes
Wrote out the whole socket buffer or Q in 2 attempts NBR:16.1.1.202 rc 4 was
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read 3 bytes from that network for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Moving ahead with more reading rc = 4
A socket has gulped all that we fed it NBR:16.1.1.202 -- 598 bytes
Wrote out the whole socket buffer or Q in 2 attempts NBR:16.1.1.202 rc 4 was
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read 3 bytes from that network for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Errors : Process socket event has an invalid fd to work on
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read 15 bytes from that network for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Errors : Process socket event has an invalid fd to work on
Going to initiate a connect to 16.1.1.203
Called a socket_connect with errno 11, confirmation later
Initiated a Async connect call for nbr NBR:16.1.1.203 fd 2
Received Mask event of 0x1 for fd 2
Recieved WRITE_EVENT for  for nbr NBR:16.1.1.203
The Active connect never succeded, no passive yet, resetting NBR:16.1.1.203
Error: Active connection to the nbr failed NBR:16.1.1.203
A Socket error has caused a write failure NBR:16.1.1.203 errno 13
Closing all the fds for NBR:16.1.1.203
Post connect succeded for the nbr NBR:16.1.1.203, fd -1
Moving ahead with more reading rc = 4
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
Going to initiate a connect to 16.1.1.203
Called a socket_connect with errno 11, confirmation later
Initiated a Async connect call for nbr NBR:16.1.1.203 fd 2
Received Mask event of 0x1 for fd 2
Errors continue to occur. Note that the router still attempts to write, but the connection is not active.
Recieved WRITE_EVENT for  for nbr NBR:16.1.1.203
The Active connect never succeded, no passive yet, resetting NBR:16.1.1.203
Error: Active connection to the nbr failed NBR:16.1.1.203
A Socket error has caused a write failure NBR:16.1.1.203 errno 13
Closing all the fds for NBR:16.1.1.203
Post connect succeded for the nbr NBR:16.1.1.203, fd -1
Moving ahead with more reading rc = 4
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
Received Mask event of 0x1 for fd 1
Recieved READ_EVENT for  for nbr NBR:16.1.1.202
Read 3 bytes from that network for nbr NBR:16.1.1.202
Read -1 bytes from that network for nbr NBR:16.1.1.202
Errors : Process socket event has an invalid fd to work on
Going to initiate a connect to 16.1.1.203
Called a socket_connect with errno 11, confirmation later
Initiated a Async connect call for nbr NBR:16.1.1.203 fd 2
Received Mask event of 0x1 for fd 2
Recieved WRITE_EVENT for  for nbr NBR:16.1.1.203
The Active connect never succeded, no passive yet, resetting NBR:16.1.1.203
Error: Active connection to the nbr failed NBR:16.1.1.203
A Socket error has caused a write failure NBR:16.1.1.203 errno 13
Closing all the fds for NBR:16.1.1.203
Post connect succeded for the nbr NBR:16.1.1.203, fd -1
Moving ahead with more reading rc = 4
NBR:16.1.1.203 is not eligible to write, no non(-1) fd yet
Errors : Process socket event has an invalid fd to work on
Related Commands

Command

Description

debug tgrep error

Turns on debugging for any errors in functioning.

debug tgrep events

Turns on debugging for main events occurring throughout the subsystem.

debug tgrep fsm

Turns on debugging for FSM activity.

debug tgrep msgdump

Turns on debugging for the dump of the details of TGREP messages.

debug tgrep messages

Turns on debugging for the movement of TGREP messages.

debug tgrep timer-event

Turns on debugging for events that are related to the timer.

debug tgrep timers

Turns on debugging for timer activity.

debug tgrep tripr

Turns on debugging for the TRIP Reporter.

debug voip eddri

Turns on debugging for the EDDRI.

debug tgrep messages

To turn on debugging for movement of TGREP messages, use the debug tgrep messages command in privileged EXEC mode. To turn off debugging, use the no form of this command.

debug tgrep messages
no debug tgrep messages
Defaults

Debug is not enabled

Command Modes

Privileged EXEC

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

There is always a performance penalty when using debug commands.

Examples

The following example shows output from the debug tgrep messages command:
tgrep-gw(config-tgrep)#Received an OPEN NBR:14.1.1.210
------------------------ OPEN DUMP BEGINS ------------------------
 0x1 0x0 0x0 0xFFFFFFB4 0x0
 0x0 0x0 0x19 0x0 0x0
 0x45 0x67 0x0 0x0
        Version    :1
        Hold Time    :180
        My ITAD      :25
        TRIP ID      :17767
        No optional parameters -- hence all route types supported.
        Send-Recv capability in effect
------------------------ OPEN DUMP ENDS ------------------------
After the dump occurs, the TRGREP messages are displayed. In this case, keepalive messages are being received by this gateway.
Enqueued a Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Received Keepalive for NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Related Commands

Command

Description

debug tgrep error

Turns on debugging for any errors in functioning.

debug tgrep events

Turns on debugging for main events occurring throughout the subsystem.

debug tgrep fsm

Turns on debugging for FSM activity.

debug tgrep io

Turns on debugging for detailed socket level activities.

debug tgrep msgdump

Turns on debugging for the dump of the details of TGREP messages.

debug tgrep timer-event

Turns on debugging for events that are related to the timer.

debug tgrep timers

Turns on debugging for timer activity.

debug tgrep tripr

Turns on debugging for the TRIP Reporter.

debug voip eddri

Turns on debugging for the EDDRI.

debug tgrep msgdump

To turn on debugging for the dump of the details of TGREP messages, use the debug tgrep msgdump command in privileged EXEC mode. To turn off debugging, use the no form of this command.

debug tgrep msgdump
no debug tgrep msgdump
Defaults

Debug is not enabled

Command Modes

Privileged EXEC

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

There is always a performance penalty when using debug commands.

Examples

The following example shows output from the debug tgrep msgdump command:
tgrep-gw-1-02#Received an KEEPALIVE NBR:14.1.1.210
+++++++++++++++++++++++++++++++++++++
 TMSG datagramstart : 0x69188648, 150 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0xFFFFFF96 0x2 0x0 0x1
 0x0 0x0 0x0 0x2 0x0
 0x9 0x0 0x5 0x0 0x0
 0x0 0x3 0x6D 0x63 0x69
 0x0 0x3 0x0 0x6 0x0
 0x0 0x4 0xFFFFFFD2 0x0 0x0
 0x0 0x4 0x0 0x6 0x2
 0x1 0x0 0x0 0x4 0xFFFFFFD2
 0x0 0x5 0x0 0x6 0x2
 0x1 0x0 0x0 0x4 0xFFFFFFD2
 0x0 0x7 0x0 0x4 0x0
 0x0 0x0 0x5 0x0 0xF
 0x0 0x4 0x0 0x0 0x0
 0x16 0x0 0x10 0x0 0x4
 0x0 0x0 0x0 0x17 0x0
 0x11 0x0 0x8 0x0 0x0
 0x0 0x74 0x0 0x0 0x0
 0x7B 0x0 0x12 0x0 0x3C
 0x0 0x4 0x31 0x31 0x32
 0x38 0x0 0x4 0x31 0x31
 0x32 0x37 0x0 0x4 0x31
 0x31 0x32 0x36 0x0 0x4
 0x31 0x31 0x32 0x35 0x0
 0x4 0x31 0x31 0x32 0x34
 0x0 0x4 0x31 0x31 0x32
 0x33 0x0 0x4 0x31 0x31
 0x32 0x32 0x0 0x5 0x39
 0x39 0x39 0x39 0x39 0x0
 0x9 0x31 0x32 0x33 0x34
 0x35 0x36 0x37 0x38 0x39
After each event occurs, a dump of the message appears. The entire dump of each keepalive is being displayed.
-----------------------------------
Received an KEEPALIVE NBR:14.1.1.210
+++++++++++++++++++++++++++++++++++++
 TMSG datagramstart : 0x691B0CA0, 92 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0x5C 0x2 0x0 0x1
 0x0 0x0 0x0 0x2 0x0
 0xF 0x0 0x3 0x0 0x0
 0x0 0x9 0x31 0x32 0x33
 0x34 0x35 0x36 0x37 0x38
 0x39 0x0 0x3 0x0 0x6
 0x0 0x0 0x4 0xFFFFFFD2 0x0
 0x0 0x0 0x4 0x0 0x6
 0x2 0x1 0x0 0x0 0x4
 0xFFFFFFD2 0x0 0x5 0x0 0x6
 0x2 0x1 0x0 0x0 0x4
 0xFFFFFFD2 0x0 0x7 0x0 0x4
 0x0 0x0 0x0 0x5 0x0
 0xF 0x0 0x4 0x0 0x0
 0x0 0x17 0x0 0x10 0x0
 0x4 0x0 0x0 0x0 0x17
 0x0 0x11 0x0 0x8 0x0
 0x0 0x0 0x75 0x0 0x0
 0x0 0x78
-----------------------------------
+++++++++++++++++++++++++++++++++++++
 TMSG datagramstart : 0x691885EC, 150 bytes
++++++++++++++++++++++++++++++++++++++
 0x0 0xFFFFFF96 0x2 0x0 0x1
 0x0 0x0 0x0 0x2 0x0
 0x9 0x0 0x5 0x0 0x0
 0x0 0x3 0x6D 0x63 0x69
 0x0 0x3 0x0 0x6 0x0
 0x0 0x4 0xFFFFFFD2 0x0 0x0
 0x0 0x4 0x0 0x6 0x2
 0x1 0x0 0x0 0x4 0xFFFFFFD2
 0x0 0x5 0x0 0x6 0x2
 0x1 0x0 0x0 0x4 0xFFFFFFD2
 0x0 0x7 0x0 0x4 0x0
 0x0 0x0 0x5 0x0 0xF
 0x0 0x4 0x0 0x0 0x0
 0x16 0x0 0x10 0x0 0x4
 0x0 0x0 0x0 0x17 0x0
 0x11 0x0 0x8 0x0 0x0
 0x0 0x75 0x0 0x0 0x0
 0x7C 0x0 0x12 0x0 0x3C
 0x0 0x4 0x31 0x31 0x32
 0x38 0x0 0x4 0x31 0x31
 0x32 0x37 0x0 0x4 0x31
 0x31 0x32 0x36 0x0 0x4
 0x31 0x31 0x32 0x35 0x0
 0x4 0x31 0x31 0x32 0x34
 0x0 0x4 0x31 0x31 0x32
 0x33 0x0 0x4 0x31 0x31
 0x32 0x32 0x0 0x5 0x39
 0x39 0x39 0x39 0x39 0x0
 0x9 0x31 0x32 0x33 0x34
 0x35 0x36 0x37 0x38 0x39
-----------------------------------
Received an KEEPALIVE NBR:14.1.1.210
Received an KEEPALIVE NBR:14.1.1.210
Related Commands

Command

Description

debug tgrep error

Turns on debugging for any errors in functioning.

debug tgrep events

Turns on debugging for main events occurring throughout the subsystem.

debug tgrep fsm

Turns on debugging for FSM activity.

debug tgrep io

Turns on debugging for detailed socket level activities.

debug tgrep messages

Turns on debugging for the movement of TGREP messages.

debug tgrep timer-event

Turns on debugging for events that are related to the timer.

debug tgrep timers

Turns on debugging for timer activity.

debug tgrep tripr

Turns on debugging for the TRIP Reporter.

debug voip eddri

Turns on debugging for the EDDRI.

debug tgrep timer-event

To turn on debugging for events that are related to the timer, use the debug tgrep timer-event command in privileged EXEC mode. To turn off debugging, use the no form of this command.

debug tgrep timer-event
no debug tgrep timer-event
Defaults

Debug is not enabled

Command Modes

Privileged EXEC

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

There is always a performance penalty when using debug commands.

Examples

The following example shows output from the debug tgrep timer-event command:
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
The TRIP timer registers timeouts until the next event occurs. Here, the timers are reset.
Entering trip_reset_nbr_timers to reset timers
Starting the CONNECT timer for nbr NBR:16.1.1.202 for value of 30 seconds
Stopping hold timer and keepalive timer while resetting NBR:16.1.1.202
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Timeouts are again reported until the next event.
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Here, the TRIP neighbor is cleared, which causes the timer to reset.
Router#clear trip nei *
Router#Entering trip_reset_nbr_timers to reset timers
Starting the CONNECT timer for nbr NBR:16.1.1.202 for value of 30 seconds
Stopping hold timer and keepalive timer while resetting NBR:16.1.1.202
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 3 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
IO_CONNECT TIMER for nbr NBR:16.1.1.202 has expired
NBR:16.1.1.202 -Restarting the connect timer
NBR:16.1.1.202 starting the holder timer after post connect with large value
------------------------ OPEN DUMP BEGINS ------------------------
 0x1 0xFFFFFFFF 0x0 0xFFFFFFB4 0x0
 0x0 0x4 0x58 0x6 0x7
 0xFFFFFF98 0xFFFFFFA9 0x0 0xC 0x0
 0x1 0x0 0x8 0x0 0x2
 0x0 0x4 0x0 0x0 0x0
 0x3
        Version    :1
        Hold Time    :180
        My ITAD      :1112
        TRIP ID      :101161129
                 Option Paramater #1
                 Param Type: Capability
                 Length 8
                         Cap Code :Send Receive Capability
                         Cap Len  :4
                                Send Rec Cap: RCV ONLY MODE
        -->All route types supported
------------------------ OPEN DUMP ENDS ------------------------
NBR:16.1.1.202 Starting keepalive timer after writing something
NBR:16.1.1.202 Re-starting hold timer after a message is read
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPNBR:16.1.1.202 Starting keepalive timer after writing so
mething
NBR:16.1.1.202 Re-starting hold timer after a message is read
D timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIIO_CONNECT TIMER for nbr NBR:16.1.1.202 has expired
NBR:16.1.1.202 -Stopping the connect timer, no need anynore
MER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
NBR:16.1.1.202 Re-starting hold timer after a message is read
Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Related Commands

Command

Description

debug tgrep error

Turns on debugging for any errors in functioning.

debug tgrep events

Turns on debugging for main events occurring throughout the subsystem.

debug tgrep fsm

Turns on debugging for FSM activity.

debug tgrep io

Turns on debugging for detailed socket level activities.

debug tgrep msgdump

Turns on debugging for the dump of the details of TGREP messages.

debug tgrep messages

Turns on debugging for the movement of TGREP messages.

debug tgrep timers

Turns on debugging for timer activity.

debug tgrep tripr

Turns on debugging for the TRIP Reporter.

debug voip eddri

Turns on debugging for the EDDRI.

debug tgrep timers

To turn on debugging for detailed socket level activities, use the debug tgrep timers command in privileged EXEC mode. To turn off debugging, use the no form of this command.

debug tgrep timers
no debug tgrep timers
Defaults

Debug is not enabled

Command Modes

Privileged EXEC

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

There is always a performance penalty when using debug commands.

Examples

The following example shows output from the debug tgrep timers command:
tgrep-gw-1-02#Received a TGREP_UPD_TIMER timeout
The bulkSyncQ size is 0 at this time
The tgrepQ size is 0 at this time
Restarting the router UPD timer after expiry
Table 4 describes the significant fields in the display.

Table 3 debug tgrep timers Field Descriptions

Field

Description

Received a TGREP_UPD_TIMER timeout

This indicates that a timeout was received.

The bulkSyncQ size is 0 at this time

This indicates the size of the bulk sync queue.

The tgrepQ size is 0 at this time

This indicates the size of the TGREP queue.

Restarting the router UPD timer after expiry

This indicates that the timer has been reset.

Related Commands

Command

Description

debug tgrep error

Turns on debugging for any errors in functioning.

debug tgrep events

Turns on debugging for main events occurring throughout the subsystem.

debug tgrep fsm

Turns on debugging for FSM activity.

debug tgrep io

Turns on debugging for detailed socket level activities.

debug tgrep msgdump

Turns on debugging for the dump of the details of TGREP messages.

debug tgrep messages

Turns on debugging for the movement of TGREP messages.

debug tgrep timer-event

Turns on debugging for events that are related to the timer.

debug tgrep tripr

Turns on debugging for the TRIP Reporter.

debug voip eddri

Turns on debugging for the EDDRI.

debug tgrep tripr

To turn on debugging from the TRIP Reporter, use the debug tgrep tripr command in privileged EXEC mode. To turn off debugging, use the no form of this command.

debug tgrep tripr
no debug tgrep tripr
Defaults

Debug is not enabled

Command Modes

Privileged EXEC

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

There is always a performance penalty when using debug commands.

A watched queue is used to inform the TRIP Reporter (TRIPR) process about changes in any of the interesting attributes of dial peer that potentially could trigger TRIP update. A dial peer attribute change manifest into a prefix attribute change and is deposited into the watched queue of TRIPR by the Event Dispatcher. The trunk group system also does the same.

Examples

The following example shows output from the debug tgrep tripr command:
20:51:11: tripr_build_triprtr_prefix_destination_ev : got the ev id 1 reason 64 num_prefix
1 advertise 0x2prefix 1128 addrFam 4
20:51:11: tripr_build_triprtr_prefix_destination_ev ac 22 tc 23 ac_avg 22
20:51:11: tripr_build_triprtr_prefix_destination_ev csr success 0 total 0
20:51:11:
20:51:11: --------------------------------
20:51:11: attrib 0x4002
20:51:11: ******* REACHABLE ROUTE ******
20:51:11: TRIP_AF_E164 1128
20:51:11:  ac: 22
20:51:11:
20:51:11: =======================================
20:51:11: tripr_build_triprtr_prefix_destination_ev : got the ev id 1 reason 64 num_prefix
1 advertise 0x27prefix 123456789 addrFam 4
20:51:11: tripr_build_triprtr_prefix_destination_ev ac 22 tc 23 ac_avg 22
20:51:11: tripr_build_triprtr_prefix_destination_ev csr success 117 total 120
20:51:11:  tg mci cc mci
20:51:11: tripr_build_triprtr_prefix_destination_ev tg mci cic 0 carrier mci
20:51:11:
20:51:11: --------------------------------
20:51:11: attrib 0x1C002
20:51:11: ******* REACHABLE ROUTE ******
20:51:11: TRIP_AF_E164 123456789
20:51:11:  csr: tot 120 succ 117
20:51:11:  ac: 22tc: 23
20:51:11:
20:51:11: =======================================
20:51:11: tripr_build_triprtr_prefix_destination_ev : got the ev id 1 reason 64 num_prefix
1 advertise 0x27prefix 99999 addrFam 4
20:51:11: tripr_build_triprtr_prefix_destination_ev ac 22 tc 23 ac_avg 22
20:51:11: tripr_build_triprtr_prefix_destination_ev csr success 0 total 0
20:51:11:  tg mci cc mci
20:51:11: tripr_build_triprtr_prefix_destination_ev tg mci cic 0 carrier mci
20:51:11:
20:51:11: --------------------------------
20:51:11: attrib 0x1C002
20:51:11: ******* REACHABLE ROUTE ******
20:51:11: TRIP_AF_E164 99999
20:51:11:  csr: tot 0 succ 0
20:51:11:  ac: 22tc: 23
20:51:11:
20:51:11: =======================================
Table 4 describes the significant fields in the display.

Table 4 debug tgrep tripr Field Descriptions

Field

Description

ev id

This field can contain the following entries:

•1 - Prefix regular event

•2 - Trunk group regular event

•3 - Carrier regular event

•4 - Prefix sync event

•5 - Trunk group sync event

•6 - Carrier sync event

•7 - Null sync event

reason: (for a prefix family event)

This field can contain the following entries:

•1 - Prefix down

•2 - Prefix up

•4 - Prefix trunk group attribute changed

•8 - Prefix available circuits changed

•16- Prefix total circuits changed

•32 - Prefix CSR changed

•64 - Prefix AC interesting point

•128 - Prefix carrier attributes changed

•256 - Prefix stop advertise configured

•512 - Prefix start advertise configured

reason: (for a trunk group family event)

This field can contain the following entries:

•1 - Trunk group down

•2 - Trunk group up

•4 - Trunk group prefix attribute changed

•8 - Trunk group available circuits changed

•16 - Trunk group total circuits changed

•32 - Trunk group CSR changed

•64 - Trunk group AC interesting point

•128 - Trunk group stop advertise configured

•256 - Trunk group start advertise configured

reason: (for a carrier family event)

This field can contain the following entries:

•1 - Carrier down

•2 - Carrier up

•4 - Carrier prefix attribute changed

•8 - Carrier available circuits changed

•16 - Carrier total circuits changed

•32 - Carrier CSR changed

•64 - Carrier AC interesting point

•128 - Carrier stop advertise configured

•256 - Carrier start advertise configured

Related Commands

Command

Description

debug tgrep error

Turns on debugging for any errors in functioning.

debug tgrep events

Turns on debugging for main events occurring throughout the subsystem.

debug tgrep fsm

Turns on debugging for FSM activity.

debug tgrep io

Turns on debugging for detailed socket level activities.

debug tgrep msgdump

Turns on debugging for the dump of the details of TGREP messages.

debug tgrep messages

Turns on debugging for the movement of TGREP messages.

debug tgrep timer-event

Turns on debugging for events that are related to the timer.

debug tgrep timers

Turns on debugging for timer activity.

debug voip eddri

Turns on debugging for the EDDRI.

debug voip eddri

To turn on debugging for the event dispatcher and data repository interface (EDDRI), use the debug voip eddri command in privileged EXEC mode. To turn off debugging, use the no form of this command.

debug voip eddri {event | timers | prefix | all}
no debug voip eddri {event | timers | prefix | all}
Syntax Description

event

Turns on debugging for EDDRI events.

timers

Turns on debugging for EDDRI timers.

prefix

Turns on debugging for the prefix database.

all

Turns on debugging all EDDRI activities.

Defaults

Debug is not enabled

Command Modes

Privileged EXEC

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

There is always a performance penalty when using debug commands.

The event dispatcher and data repository interface (EDDRI) notifies TGREP when an attribute changes on some subsystems. EDDRI interacts with the dial peer subsystem, the trunk group subsystems, call control API (CCAPI) subsystem and the customer relationship management (CRM) subsystem to notify changes in particular attributes. EDDRI is responsible for creating the prefix database.

Examples

The following example shows output from the debug voip eddri command:
21:00:53: eddri_interesting_ac_pt: new AC_curr 22 FD_curr -5 SD_curr -5
21:00:53: eddri_interesting_ac_pt: percent trigger diff 4
21:00:53: eddri_interesting_ac_pt: Interesting Point
21:00:53: eddri_send_prefix_event_to_clients : reason 0x40 num_prefix 1
With the send prefix event the available circuits value and the triggers for reporting are updated.
21:00:53: eddri_send_prefix_event_to_clients attr 0xFF ev_id 1 qid 0x64209230 reason 0x40
eddri_dequeue_event : dequeue event
21:00:53: eddri_interesting_ac_pt : tc 23 IAC 22 lwm 5 hwm 50 pct_trigger 2 oneMinusW 933
21:00:53: eddri_interesting_ac_pt: old AC_curr 23 FD_curr 0 SD_curr 0
21:00:53: eddri_interesting_ac_pt: new AC_curr 22 FD_curr -5 SD_curr -5
21:00:53: eddri_interesting_ac_pt: percent trigger diff 4
21:00:53: eddri_interesting_ac_pt: Interesting Point
21:00:53: eddri_send_prefix_event_to_clients : reason 0x40 num_prefix 1
Related Commands

Command

Description

debug tgrep error

Turns on debugging for any errors in functioning.

debug tgrep events

Turns on debugging for main events occurring throughout the subsystem.

debug tgrep fsm

Turns on debugging for FSM activity.

debug tgrep io

Turns on debugging for detailed socket level activities.

debug tgrep msgdump

Turns on debugging for the dump of the details of TGREP messages.

debug tgrep messages

Turns on debugging for the movement of TGREP messages.

debug tgrep timer-event

Turns on debugging for events that are related to the timer.

debug tgrep timers

Turns on debugging for timer activity.

debug tgrep tripr

Turns on debugging for the TRIP Reporter.

show voice eddri prefix

Shows applicable prefixes for the EDDRI.

neighbor

To create a TGREP session with another device, use the neighbor command in TGREP configuration mode. To disable a TRIP connection, use the no form of this command.

neighbor ip_address
no neighbor ip_address
Syntax Description

ip_address

IP address of a peer device with which TGREP information will be exchanged.

Defaults

No neighboring devices are defined

Command Modes

TGREP configuration

Command History

Release

Modification

12.3(1)

This command was introduced.

Examples

The following example shows that the gateway with the IP address 192.116.56.10 is defined as a neighbor for ITAD 1234:
Router(config)# tgrep local-itad 1234
Router(config-tgrep)# neighbor 192.116.56.10
Related Commands

Command

Description

tgrep local-itad

Enters TGREP configuration mode and defines an ITAD.

show tgrep neighbors

To show configured TGREP neighbors, use the show tgrep neighbors command in privileged EXEC mode.

show tgrep neighbors {* | ip_address}
Syntax Description

*

Displays all neighbors

ip_address

Individual neighbor can be specified by its IP address

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Command History

Release

Modification

12.3(1)

This command was introduced.

Examples

The following example shows output for the show tgrep neighbors command:
There are 1 nbrs configured
------------------ NBR:16.1.1.202----------------------
TIMERS:
        Keepalive :  Timer Stopped
        Hold Timer :  Timer Stopped
        Connect Retry :  Running, time remaining in ms, 20698
SYNC IN PROGRESS
STATE: TRIPS_IDLE
QUEUES:
        writeQ : 0
        sec_writeQ : 0
        readQ : 0
SOCKET FDs:
prim socket -1, sec socket -1
tgrep_update_version : 0
LAST RESET: USER_INITIATED
Router#
Router#!!!! Trip Connection is setup here...
------------------------ OPEN DUMP BEGINS ------------------------
 0x1 0xFFFFFFFF 0x0 0xFFFFFFB4 0x0
 0x0 0x4 0x58 0x6 0x7
 0xFFFFFF98 0xFFFFFFA9 0x0 0xC 0x0
 0x1 0x0 0x8 0x0 0x2
 0x0 0x4 0x0 0x0 0x0
 0x3
        Version    :1
        Hold Time    :180
        My ITAD      :1112
        TRIP ID      :101161129
                 Option Paramater #1
                 Param Type: Capability
                 Length 8
                         Cap Code :Send Receive Capability
                         Cap Len  :4
                                Send Rec Cap: RCV ONLY MODE
        -->All route types supported
------------------------ OPEN DUMP ENDS ------------------------
Related Commands

Command

Description

neighbor

Creates a TGREP session with another device.

show voice eddri prefix

To show applicable prefixes for the event dispatcher and data repository interface (EDDRI), use the show voice eddri prefix command in privileged EXEC mode.

show voice eddri prefix [prefix_number]
Syntax Description

all

Displays all neighbors

prefix_number

(Optional) Specified EDDRI prefix

Defaults

No default behavior or values.

Command Modes

Privileged EXEC

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

If no prefix is specified, all configured prefixes appear.

The event dispatcher and data repository interface (EDDRI) notifies TGREP when an attribute changes on some subsystems. EDDRI interacts with the dial peer subsystem, the trunk group subsystems, call control API (CCAPI) subsystem and the customer relationship management (CRM) subsystem to notify changes in particular attributes. EDDRI is responsible for creating the prefix database.

Examples

The following example shows output for the show voice eddri prefix command:
prefix 4 address family decimal
advertise flag 0x27 ac 24 tc 24 capacity timer 25 sec
AC_avg 24, FD_avg 0, SD_avg 0
succ_curr 0 tot_curr 0
succ_report 0 tot_report 0
changed 0 replacement position 0
trunk group castg2
dial peer tag 1001
Related Commands

Command

Description

debug voip eddri

Turns on debugging for the EDDRI.

tgrep address-family

To set the address family to be used on a local dial peer, use the tgrep address-family command in dial peer configuration mode. To return to the global setting, use the no form of this command.

tgrep address family {e164 | decimal | penta-decimal}
no tgrep address family {e164 | decimal | penta-decimal}
Syntax Description

e164

E.164 address family.

decimal

Decimal address family

penta-decimal

Penta-decimal address family

Defaults

No default behavior or values.

Command Modes

Dial peer configuration

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

The E. 164 address family is used if the telephony network is a public telephony network. Decimal and pentadecimal options can be used to advertise private dial plans. For example if a company wants to use TRIP in within their enterprise telephony network using 5-digit extensions, then the gateway would advertise the beginning digits of their private numbers as a decimal address family. These calls cannot be sent out of the company's private telephony network because they are not E.164-compliant.

The pentadecimal family allows numbers 0 through 9 and alphabetic characters A through E and can be used in countries where letters are also carried in the called number.

Examples

The following example shows that POTS dial peer 10 has the address family set for E.164 addresses:
Router(config)# dial-peer voice pots 10
Router(config-dial-peer)# tgrep address family e164
Related Commands

Command

Description

dial-peer voice

Enters dial-peer configuration mode and specifies the method of voice-related encapsulation.

tgrep advertise (dial peer)

To set the attributes for advertisement of the prefix on this dial peer or to disable advertisement on this dial peer altogether, use the tgrep advertise command in dial peer configuration mode. To return to using the global setting, use the no form of this command.

tgrep advertise [csr] [ac] [tc] [carrier | trunk-group] [disable]
no tgrep advertise [csr] [ac] [tc] [carrier | trunk-group] [disable]
Syntax Description

csr

Call success rate

ac

Available circuits

tc

Total circuits

carrier

Carrier code address family

trunk-group

Trunk group address family

disable

Disables advertisement of this dial peer

Defaults

Prefix advertisement is not sent.

Command Modes

Dial peer configuration

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

When only tgrep advertise is entered, the dial peer is advertised without any other attribute.

When no tgrep advertise is used on the dial peer, the dial peer inherits the attributes set in the global advertise command.

When the global no advertise command is used, it forbids advertisement of that particular address family altogether. The tgrep advertise command has no effect until the advertisement of the address family is enabled globally.

Examples

The following example shows a TGREP advertisement that sends call success rate, available circuits, total circuits, and carrier address family attribute information:
Router(config)# dial-peer voice pots 10
Router(config-dial-peer)# tgrep advertise csr ac tc carrier
Related Commands

Command

Description

dial-peer voice

Enters dial-peer configuration mode and specifies the method of voice-related encapsulation.

tgrep advertise (trunk group)

To turn on the advertisement of this trunk group for resource availability and other carrier information, use the tgrep advertise command in trunk group configuration mode. To turn off local trunk group advertisement and use the global setting, use the no form of this command.

tgrep advertise [csr] [ac] [tc] [disable]
no tgrep advertise [csr] [ac] [tc] [disable]
Syntax Description

csr

Call success rate.

ac

Available circuits.

tc

Total circuits.

disable

Disables advertisement on the trunk group.

Defaults

Trunk group advertisement is not sent

Command Modes

Trunk group configuration

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

When only tgrep advertise is entered, the trunk group is advertised without any other attribute. When no tgrep advertise is used, the trunk group uses the global setting configured with the advertise command in TGREP configuration mode. To turn off advertisement of this trunk group, the disable keyword should be used.

There is a subtle difference between the no form of this command and the no form of the global advertise command. When no tgrep advertise is used on the trunk group, the trunk group inherits the attributes set in the global advertise command.

When the global no advertise command is used, it forbids advertisement of that particular address family altogether. The tgrep advertise command has no effect until the advertisement of the address family is enabled globally.

When the carrier keyword is used, the carrier defined under the trunk group assumes the configuration. Because multiple trunk groups can have the same carrier defined, the same configuration will show up under all trunk groups that have the same carrier defined. When the no tgrep advertise carrier command is used to revert to the global carrier configuration for the carrier under this trunk group, the same will happen to all the trunk groups who have the same carrier defined under them.

Note This command overrides the attributes set for advertisement using the global advertise (tgrep) command.

Examples

The following example shows that trunk group 101 has been configured to send a TGREP advertisement that sends call success rate, available circuits, total circuits, and prefix attribute information:
Router(config)# trunk group 101
Router(config-dial-peer)# tgrep advertise csr ac tc carrier
Related Commands

Command

Description

trunk group

Defines the trunk group and enters trunk group configuration mode.

tgrep local-itad

To enable TGREP on the gateway and enter TGREP configuration mode, use the tgrep local-itad command in global configuration mode. To disable TRIP on the gateway, use the no form of this command.

tgrep local-itad itad_number
no tgrep local-itad itad_number
Syntax Description

itad_number

ITAD number associated with the gateway. The value can be from 1 to 4294967295.

Defaults

TGREP is not enabled on the gateway.

Command Modes

Global configuration

Command History

Release

Modification

12.3(1)

This command was introduced.

Examples

The following example shows TGREP being enabled for ITAD number 1234:
Router(config)# tgrep local-itad 1234
Related Commands

Command

Description

address-family

Sets the global address family to be used on all dial peers.

advertise (tgrep)

Turns on reporting for a specified address family.

neighbor

Creates a TGREP session with another device.

voice call capacity mir

To set the value for the minimum interval between reporting (MIR), use the voice call capacity mir command in global configuration mode. To turn off these attributes, use the no form of this command.

voice call {carrier | trunk-group | prefix} capacity mir seconds
no voice call {carrier | trunk-group | prefix} capacity mir
Syntax Description

carrier

Carrier code address family

trunk-group

Trunk group address family

prefix

E.164 prefix

value

Minimum interval, in seconds, with a range of 1 to 3600 seconds and a default of 10. This value cannot be set higher than the time configured for the capacity update interval.

Defaults

10 seconds.

Command Modes

Global configuration.

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

Because the available circuit (AC) attribute of a destination is very dynamic, reporting of this attribute should be handled carefully. AC should be reported as frequently as possible so that the location server has better information about the resources. However, the location server should not be overwhelmed with too many updates.

All of the AC reporting, called the interesting point of AC, is performed when the specified event happens within the minimum interval between reporting (MIR) time since last reporting. This command sets the amount of time used for the interval to control the number of interesting points that are reported so not to overwhelm the location server with too many AC updates.

The seconds argument cannot be set higher than the time configured for the capacity update interval.

Examples

The following example shows the minimum interval between reporting for the carrier address family set to 25 seconds:
Router(config)# voice call carrier capacity mir 25
Related Commands

Command

Description

capacity update interval (dial peer)

Changes the capacity update for prefixes associated with a dial peer.

capacity update interval (trunk group)

Change the capacity update for carriers or trunk groups.

voice call capacity stw

Set the value for STW.

voice call capacity stw

To set the value for smoothing transition time for weight (STW), use the voice call capacity stw command in global configuration mode. To turn off these attributes, use the no form of this command.

voice call {carrier | trunk-group | prefix} capacity stw seconds
no voice call {carrier | trunk-group | prefix} capacity stw
Syntax Description

carrier

Carrier code address family

trunk-group

Trunk group address family

prefix

E.164 prefix

seconds

Transitions time can be from 0 to 60 seconds with a default of 10.

Defaults

10 seconds.

Command Modes

Global configuration.

Command History

Release

Modification

12.3(1)

This command was introduced.

Usage Guidelines

Because the available circuit (AC) attribute of a destination is very dynamic, reporting of this attribute should be handled carefully. AC should be reported as frequently as possible so that the location server has better information about the resources. However, the location server should not be overwhelmed with too many updates.

A smoothing algorithm is applied to the quantity of AC being reported. This algorithm eliminates reporting of noise. The degree of smoothing can be configured with the voice call capacity stw command. This command sets the smoothing transition time for weight, which is the time it takes for current smoothed value of AC to come half way between the current smoothed value and the current instantaneous value of AC. Lower stw values speed the smoothed value of AC as it approaches the instantaneous value of AC. When stw is set to 0, the smoothed value is always equal to the instantaneous value of AC.

Examples

The following example shows the smoothing time for weight for the carrier address family set to 25 seconds:
Router(config)# voice call carrier capacity stw 25
Related Commands

Command

Description

capacity update interval (dial peer)

Changes the capacity update for prefixes associated with a dial peer.

capacity update in

Hierarchical Navigation

Cisco IOS Software Releases 12.3 Mainline

Telephony Gateway Registration Protocol on Cisco IOS Gateways

Downloads

Table Of Contents

Telephony Gateway Registration Protocol on Cisco IOS Gateways

Contents

Prerequisites for TGREP on Cisco IOS Gateways

Restrictions for TGREP on Cisco IOS Gateways

Information About TGREP on Cisco IOS Gateways

TRIP and TGREP

TRIP Operation

TGREP in the TRIP Network

TGREP Operation

Address Family Hierarchy

Trunk Group Resources

Destination Pattern Conversion

How to Configure TGREP on Cisco IOS Gateways

Configuring a Local ITAD and TRIP Neighbor Connections

SUMMARY STEPS

DETAILED STEPS

What to Do Next

Configuring the Global Carrier ID

SUMMARY STEPS

DETAILED STEPS

What to Do Next

Configuring the Trunk Groups

SUMMARY STEPS

DETAILED STEPS

What to Do Next

Configuring a POTS Dial Peer for TGREP

SUMMARY STEPS

DETAILED STEPS

What to Do Next

Configuring Voice Call Parameters

SUMMARY STEPS

DETAILED STEPS

What to Do Next

Verifying the TGREP Configuration on Cisco IOS Gateways

Monitor TGREP Status

SUMMARY STEPS

DETAILED STEPS

Clear and Reset TGREP Attributes

SUMMARY STEPS

DETAILED STEPS

Troubleshooting TGREP Configuration on Cisco IOS Gateways

SUMMARY STEPS

DETAILED STEPS

Configuration Example for TGREP on IOS Gateways

Where to Go Next

Additional References

Related Documents

Standards

MIBs

RFCs

Technical Assistance

Command Reference

address-family

Syntax Description

Defaults

Command Modes

Command History

Usage Guidelines

Examples

Related Commands

advertise (tgrep)

Syntax Description

Defaults

Command Modes

Command History

Usage Guidelines

Examples

Related Commands

capacity update interval (dial peer)

Syntax Description

Defaults

Command Modes

Command History

Usage Guidelines

Examples
