debug ip dvmrp
To display information on Distance Vector Multiprotocol Routing Protocol (DVMRP) packets received and sent, use the debug ip dvmrp command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip dvmrp [detail [access-list] [in | out]]
no debug ip dvmrp [detail [access-list] [in | out]]
Syntax Description
Command Modes
Privileged EXEC
Usage Guidelines
Use the debug ip dvmrp detail command with care. This command generates a substantial amount of output and can interrupt other activity on the router when it is invoked.
Examples
The following is sample output from the debug ip dvmrp command:
Router# debug ip dvmrpDVMRP: Received Report on Ethernet0 from 172.19.244.10DVMRP: Received Report on Ethernet0 from 172.19.244.11DVMRP: Building Report for Ethernet0 224.0.0.4DVMRP: Send Report on Ethernet0 to 224.0.0.4DVMRP: Sending IGMP Reports for known groups on Ethernet0DVMRP: Received Report on Ethernet0 from 172.19.244.10DVMRP: Received Report on Tunnel0 from 192.168.199.254DVMRP: Received Report on Tunnel0 from 192.168.199.254DVMRP: Received Report on Tunnel0 from 192.168.199.254DVMRP: Received Report on Tunnel0 from 192.168.199.254DVMRP: Received Report on Tunnel0 from 192.168.199.254DVMRP: Received Report on Tunnel0 from 192.168.199.254DVMRP: Building Report for Tunnel0 224.0.0.4DVMRP: Send Report on Tunnel0 to 192.168.199.254DVMRP: Send Report on Tunnel0 to 192.168.199.254DVMRP: Send Report on Tunnel0 to 192.168.199.254DVMRP: Send Report on Tunnel0 to 192.168.199.254DVMRP: Radix tree walk suspensionDVMRP: Send Report on Tunnel0 to 192.168.199.254The following lines show that the router received DVMRP routing information and placed it in the mroute table:
DVMRP: Received Report on Ethernet0 from 172.19.244.10DVMRP: Received Report on Ethernet0 from 172.19.244.11The following lines show that the router is creating a report to send to another DVMRP router:
DVMRP: Building Report for Ethernet0 224.0.0.4DVMRP: Send Report on Ethernet0 to 224.0.0.4Table 87 provides a list of internet multicast addresses supported for host IP implementations.
The following lines show that a protocol update report has been sent to all known multicast groups. Hosts use IGMP reports to communicate with routers and to request to join a multicast group. In this case, the router is sending an IGMP report for every known group to the host, which is running mrouted. The host the responds as though the router was a host on the LAN segment that wants to receive multicast packets for the group.
DVMRP: Sending IGMP Reports for known groups on Ethernet0The following is sample output from the debug ip dvmrp detail command:
Router# debug ip dvmrp detailDVMRP: Sending IGMP Reports for known groups on Ethernet0DVMRP: Advertise group 224.2.224.2 on Ethernet0DVMRP: Advertise group 224.2.193.34 on Ethernet0DVMRP: Advertise group 224.2.231.6 on Ethernet0DVMRP: Received Report on Tunnel0 from 192.168.199.254DVMRP: Origin 150.166.53.0/24, metric 13, distance 0DVMRP: Origin 150.166.54.0/24, metric 13, distance 0DVMRP: Origin 150.166.55.0/24, metric 13, distance 0DVMRP: Origin 150.166.56.0/24, metric 13, distance 0DVMRP: Origin 150.166.92.0/24, metric 12, distance 0DVMRP: Origin 150.166.100.0/24, metric 12, distance 0DVMRP: Origin 150.166.101.0/24, metric 12, distance 0DVMRP: Origin 150.166.142.0/24, metric 8, distance 0DVMRP: Origin 150.166.200.0/24, metric 12, distance 0DVMRP: Origin 150.166.237.0/24, metric 12, distance 0DVMRP: Origin 150.203.5.0/24, metric 8, distance 0The following lines show that this group is available to the DVMRP router. The mrouted process on the host will forward the source and multicast information for this group through the DVMRP cloud to other members.
DVMRP: Advertise group 224.2.224.2 on Ethernet0The following lines show the DVMRP route information:
DVMRP: Origin 150.166.53.0/24, metric 13, distance 0DVMRP: Origin 150.166.54.0/24, metric 13, distance 0The metric is the number of hops the route has covered, and the distance is the administrative distance.
debug ip eigrp
To display information on Enhanced Interior Gateway Routing Protocol (EIGRP) protocol packets, use the debug ip eigrp command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip eigrp
no debug ip eigrp
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
This command helps you analyze the packets that are sent and received on an interface. Because the debug ip eigrp command generates a substantial amount of output, only use it when traffic on the network is light.
Examples
The following is sample output from the debug ip eigrp command:
Router# debug ip eigrpIP-EIGRP: Processing incoming UPDATE packetIP-EIGRP: Ext 192.168.3.0 255.255.255.0 M 386560 - 256000 130560 SM 360960 - 256000 104960IP-EIGRP: Ext 192.168.0.0 255.255.255.0 M 386560 - 256000 130560 SM 360960 - 256000 104960IP-EIGRP: Ext 192.168.3.0 255.255.255.0 M 386560 - 256000 130560 SM 360960 - 256000 104960IP-EIGRP: 172.69.43.0 255.255.255.0, - do advertise out Ethernet0/1IP-EIGRP: Ext 172.69.43.0 255.255.255.0 metric 371200 - 256000 115200IP-EIGRP: 192.135.246.0 255.255.255.0, - do advertise out Ethernet0/1IP-EIGRP: Ext 192.135.246.0 255.255.255.0 metric 46310656 - 45714176 596480IP-EIGRP: 172.69.40.0 255.255.255.0, - do advertise out Ethernet0/1IP-EIGRP: Ext 172.69.40.0 255.255.255.0 metric 2272256 - 1657856 614400IP-EIGRP: 192.135.245.0 255.255.255.0, - do advertise out Ethernet0/1IP-EIGRP: Ext 192.135.245.0 255.255.255.0 metric 40622080 - 40000000 622080IP-EIGRP: 192.135.244.0 255.255.255.0, - do advertise out Ethernet0/1Table 88 describes the significant fields shown in the display.
debug ip eigrp notifications
To display Enhanced Interior Gateway Routing Protocol (EIGRP) events and notifications in the console of the router, use the debug ip eigrp notifications command in privileged EXEC mode. To disable debugging, use the no form of this command.
debug ip eigrp notifications
no debug ip eigrp notifications
Syntax Description
This command has no arguments or keywords.
Defaults
No default behavior or values.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
The output from the debug ip eigrp notifications command displays EIGRP events and notifications.
Examples
The foll owing example output shows that the NSF-aware router has received the restart notification. The NSF-aware router will now wait for EOT to be sent from the restarting neighbor (NSF-capable).
Router# debug ip eigrp notifications*Oct 4 11:39:18.092:EIGRP:NSF:AS2. Rec RS update from 135.100.10.1,00:00:00. Wait for EOT.*Oct 4 11:39:18.092:%DUAL-5-NBRCHANGE:IP-EIGRP(0) 2:Neighbor135.100.10.1 (POS3/0) is up:peer NSF restartedRelated Commands
timers nsf-route-hold
Sets the route-hold timer for NSF-aware routers that run EIGRP.
debug ip ftp
To activate the debugging option to track the transactions submitted during an FTP session, use the debug ip ftp command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip ftp
no debug ip ftp
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
The debug ip ftp command is useful for debugging problems associated with FTP.
Examples
The following is an example of the debug ip ftp command:
Router# debug ip ftpFTP transactions debugging is onThe following is sample output from the debug ip ftp command:
FTP: 220 ProFTPD 1.2.0pre8 Server (DFW Nostrum FTP Server) [defiant.dfw.nostrum.com]Dec 27 22:12:09.133: FTP: ---> USER routerDec 27 22:12:09.133: FTP: 331 Password required for router.Dec 27 22:12:09.137: FTP: ---> PASS WQHK5JY2Dec 27 22:12:09.153: FTP: 230 Anonymous access granted, restrictions apply.Dec 27 22:12:09.153: FTP: ---> TYPE IDec 27 22:12:09.157: FTP: 200 Type set to I.Dec 27 22:12:09.157: FTP: ---> PASV..............Dec 27 22:12:09.173: FTP: ---> QUITDec 27 22:12:09.181: FTP: 221 Goodbye.
debug ip http all
To enable debugging output for all Hypertext Transfer Protocol (HTTP) processes on the system, use the debug ip http all command in privileged EXEC mode. To disable HTTP debugging output, use the no form of this command.
debug ip http all
no debug ip http all
Syntax Description
This command has no arguments or keywords.
Defaults
Disabled
Command Modes
Privileged EXEC
Command History
Usage Guidelines
This command enables debugging messages for all HTTP processes and activity. Issuing this command is equivalent to issuing the following commands:
•
debug ip http authentication
•
•
•
•
•
Examples
For sample output and field descriptions of this command, see the documentation of the commands listed in the Usage Guidelines section.
Related Commands
debug ip http authentication
To troubleshoot HTTP authentication problems, use command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip http authentication
no debug ip http authentication
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
The debug ip http authentication command displays the authentication method the router attempted and authentication-specific status messages.
Examples
The following is sample output from the debug ip http authentication command:
Router# debug ip http authenticationAuthentication for url `/' `/' level 15 privless `/'Authentication username = `local15' priv-level = 15 auth-type = localTable 89 describes the significant fields shown in the display.
debug ip http ssl error
To enable debugging messages for the HTTP secure (HTTPS) web server and client, use the debug ip http ssl error command in privileged EXEC mode. To disable debugging messages for the HTTP secure web server and client, use the no form of this command.
debug ip http ssl error
no debug ip http ssl error
Syntax Description
This command has no arguments or keywords.
Defaults
Debugging message output is disabled.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
None.
Examples
None.Related Commands
debug ip http ezsetup
To display the configuration changes that occur during the EZ Setup process, use the debug ip http ezsetup command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip http ezsetup
no debug ip http ezsetup
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Use the debug ip http ezsetup command to verify the EZ Setup actions without changing the configuration of the router.
EZ Setup is a form you fill out to perform basic router configuration from most HTML browsers.
Examples
The following is sample output from the debug ip http ezsetup that shows the configuration changes for the router when the EZ Setup form has been submitted:
Router# debug ip http ezsetupservice timestamps debugservice timestamps logservice password-encryption!hostname router-name!enable secret router-pwline vty 0 4password router-pw!interface ethernet 0ip address 172.69.52.9 255.255.255.0no shutdownip helper-address 172.31.2.132ip name-server 172.31.2.132isdn switch-type basic-5essusername Remote-name password Remote-chapinterface bri 0ip unnumbered ethernet 0encapsulation pppno shutdowndialer map ip 192.168.254.254 speed 56 name Remote-name Remote-numberisdn spid1 spid1isdn spid2 spid2ppp authentication chap callindialer-group 1!ip classlessaccess-list 101 deny udp any any eq snmpaccess-list 101 deny udp any any eq ntpaccess-list 101 permit ip any anydialer-list 1 list 101ip route 0.0.0.0 0.0.0.0 192.168.254.254ip route 192.168.254.254 255.255.255.255 bri 0logging bufferedsnmp-server community public ROip http serverip classlessip subnet-zero!endRelated Commands
Displays individual tokens parsed by the HTTP server.
Displays HTTP server transaction processing.
Displays the URLs accessed from the router.
debug ip http ssi
To display information about the HTML SSI EXEC command or HTML SSI ECHO command, use the debug ip http ssi command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip http ssi
no debug ip http ssi
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Examples
The following is sample output from the debug ip http ssi command:
Router# debug ip http ssiHTML: filtered command `exec cmd="show users"'HTML: SSI command `exec'HTML: SSI tag `cmd' = "show users"HTML: Executing CLI `show users' in mode `exec' doneThe following line shows the contents of the SSI EXEC command:
HTML: filtered command `exec cmd="show users"'The following line indicates the type of SSI command that was requested:
HTML: SSI command `exec'The following line shows the argument show users assigned to the tag cmd:
HTML: SSI tag 'cmd' = "show users"The following line indicates that the
show users command is being executed in EXEC mode:
HTML: Executing CLI `show users' in mode `exec' donedebug ip http token
To display individual tokens parsed by the HTTP server, use the debug ip http token command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip http token
no debug ip http token
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Use the debug ip http token command to display low-level HTTP server parsings. To display high-level HTTP server parsings, use the debug ip http transaction command.
Examples
The following is part of a sample output from the debug ip http token command. In this example, the browser accessed the router's home page http://router-name/. The output gives the token parsed by the HTTP server and its length.
Router# debug ip http tokenHTTP: token len 3: 'GET'HTTP: token len 1: ' 'HTTP: token len 1: '/'HTTP: token len 1: ' 'HTTP: token len 4: 'HTTP'HTTP: token len 1: '/'HTTP: token len 1: '1'HTTP: token len 1: '.'HTTP: token len 1: '0'HTTP: token len 2: '\15\12'HTTP: token len 7: 'Referer'HTTP: token len 1: ':'HTTP: token len 1: ' 'HTTP: token len 4: 'http'HTTP: token len 1: ':'HTTP: token len 1: '/'HTTP: token len 1: '/'HTTP: token len 3: 'www'HTTP: token len 1: '.'HTTP: token len 3: 'thesite'HTTP: token len 1: '.'HTTP: token len 3: 'com'HTTP: token len 1: '/'HTTP: token len 2: '\15\12'HTTP: token len 10: 'Connection'HTTP: token len 1: ':'HTTP: token len 1: ' 'HTTP: token len 4: 'Keep'HTTP: token len 1: '-'HTTP: token len 5: 'Alive'HTTP: token len 2: '\15\12'HTTP: token len 4: 'User'HTTP: token len 1: '-'HTTP: token len 5: 'Agent'HTTP: token len 1: ':'HTTP: token len 1: ' 'HTTP: token len 7: 'Mozilla'HTTP: token len 1: '/'HTTP: token len 1: '2'HTTP: token len 1: '.'...Related Commands
Displays the configuration changes that occur during the EZ Setup process.
Displays HTTP server transaction processing.
Displays the URLs accessed from the router.
debug ip http transaction
To display HTTP server transaction processing, use the debug ip http transaction command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip http transaction
no debug ip http transaction
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Use the debug ip http transaction command to display what the HTTP server is parsing at a high level. To display what the HTTP server is parsing at a low level, use the debug ip http token command.
Examples
The following is sample output from the debug ip http transaction command. In this example, the browser accessed the router's home page http://router-name/.
Router# debug ip http transactionHTTP: parsed uri '/'HTTP: client version 1.0HTTP: parsed extension RefererHTTP: parsed line http://www.company.com/HTTP: parsed extension ConnectionHTTP: parsed line Keep-AliveHTTP: parsed extension User-AgentHTTP: parsed line Mozilla/2.01 (X11; I; FreeBSD 2.1.0-RELEASE i386)HTTP: parsed extension HostHTTP: parsed line router-nameHTTP: parsed extension AcceptHTTP: parsed line image/gif, image/x-xbitmap, image/jpeg, image/HTTP: parsed extension AuthorizationHTTP: parsed authorization type BasicHTTP: received GET ''Table 90 lists describes some of the fields in the output.
Related Commands
Displays the configuration changes that occur during the EZ Setup process.
Displays individual tokens parsed by the HTTP server.
Shows the URLs accessed from the router.
debug ip http url
To show the URLs accessed from the router, use the debug ip http url command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip http url
no debug ip http url
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Use the debug ip http url command to keep track of the URLs that are accessed and to determine from which hosts the URLs are accessed.
Examples
The following output is from the debug ip http url command. In this example, the HTTP server accessed the URLs and /exec. The output shows the URL being requested and the IP address of the host requesting the URL.
Router# debug ip http urlHTTP: processing URL '/' from host 172.31.2.141HTTP: processing URL '/exec' from host 172.31.2.141Related Commands
Displays the configuration changes that occur during the EZ Setup process.
Displays individual tokens parsed by the HTTP server.
Displays HTTP server transaction processing.
debug ip icmp
To display information on Internal Control Message Protocol (ICMP) transactions, use the debug ip icmp command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip icmp
no debug ip icmp
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
This command helps you determine whether the router is sending or receiving ICMP messages. Use it, for example, when you are troubleshooting an end-to-end connection problem.
Note
Examples
The following is sample output from the debug ip icmp command:
Router# debug ip icmpICMP: rcvd type 3, code 1, from 10.95.192.4ICMP: src 10.56.0.202, dst 172.69.16.1, echo replyICMP: dst (10.120.1.0) port unreachable rcv from 10.120.1.15ICMP: src 172.69.12.35, dst 172.69.20.7, echo replyICMP: dst (255.255.255.255) protocol unreachable rcv from 10.31.7.21ICMP: dst (10.120.1.0) port unreachable rcv from 10.120.1.15ICMP: dst (255.255.255.255) protocol unreachable rcv from 10.31.7.21ICMP: dst (10.120.1.0) port unreachable rcv from 10.120.1.15ICMP: src 10.56.0.202, dst 172.69.16.1, echo replyICMP: dst (10.120.1.0) port unreachable rcv from 10.120.1.15ICMP: dst (255.255.255.255) protocol unreachable rcv from 10.31.7.21ICMP: dst (10.120.1.0) port unreachable rcv from 10.120.1.15Table 91 describes the significant fields shown in the display.
Table 92 describes the significant fields in the second line of the display.
Other messages that the debug ip icmp command can generate follow.
When an IP router or host sends out an ICMP mask request, the following message is generated when the router sends a mask reply:
ICMP: sending mask reply (255.255.255.0) to 172.69.80.23 via Ethernet0The following two lines are examples of the two forms of this message. The first form is generated when a mask reply comes in after the router sends out a mask request. The second form occurs when the router receives a mask reply with a nonmatching sequence and ID. Refer to Appendix I of RFC 950, Internet Standard Subnetting Procedures, for details.
ICMP: mask reply 255.255.255.0 from 172.69.80.31ICMP: unexpected mask reply 255.255.255.0 from 172.69.80.32The following output indicates that the router sent a redirect packet to the host at address 172.69.80.31, instructing that host to use the gateway at address 172.69.80.23 in order to reach the host at destination address 172.69.1.111:
ICMP: redirect sent to 172.69.80.31 for dest 172.69.1.111 use gw 172.69.80.23The following message indicates that the router received a redirect packet from the host at address 172.69.80.23, instructing the router to use the gateway at address 172.69.80.28 in order to reach the host at destination address 172.69.81.34:
ICMP: redirect rcvd from 172.69.80.23 -- for 172.69.81.34 use gw 172.69.80.28The following message is displayed when the router sends an ICMP packet to the source address (172.69.94.31 in this case), indicating that the destination address (172.69.13.33 in this case) is unreachable:
ICMP: dst (172.69.13.33) host unreachable sent to 172.69.94.31The following message is displayed when the router receives an ICMP packet from an intermediate address (172.69.98.32 in this case), indicating that the destination address (172.69.13.33 in this case) is unreachable:
ICMP: dst (172.69.13.33) host unreachable rcv from 172.69.98.32Depending on the code received (as Table 91 describes), any of the unreachable messages can have any of the following "strings" instead of the "host" string in the message:
netprotocolportfrag. needed and DF setsource route failedprohibitedThe following message is displayed when the TTL in the IP header reaches zero and a time exceed ICMP message is sent. The fields are self-explanatory.
ICMP: time exceeded (time to live) send to 10.95.1.4 (dest was 172.69.1.111)The following message is generated when parameters in the IP header are corrupted in some way and the parameter problem ICMP message is sent. The fields are self-explanatory.
ICMP: parameter problem sent to 128.121.1.50 (dest was 172.69.1.111)Based on the preceding information, the remaining output can be easily understood:
ICMP: parameter problem rcvd 172.69.80.32ICMP: source quench rcvd 172.69.80.32ICMP: source quench sent to 128.121.1.50 (dest was 172.69.1.111)ICMP: sending time stamp reply to 172.69.80.45ICMP: sending info reply to 172.69.80.12ICMP: rdp advert rcvd type 9, code 0, from 172.69.80.23ICMP: rdp solicit rcvd type 10, code 0, from 172.69.80.43debug ip igmp
To display Internet Group Management Protocol (IGMP) packets received and sent, and IGMP-host related events, use the debug ip igmp command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip igmp [vrf vrf-name]
no debug ip igmp [vrf vrf-name]
Syntax Description
vrf
(Optional) Supports the Multicast Virtual Private Network (VPN) routing and forwarding (VRF) instance.
vrf-name
(Optional) Name assigned to the VRF.
Defaults
No default behavior or values.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
This command helps discover whether the IGMP processes are functioning. In general, if IGMP is not working, the router process never discovers that another host is on the network that is configured to receive multicast packets. In dense mode, this situation will result in packets being delivered intermittently (a few every 3 minutes). In sparse mode, packets will never be delivered.
Use this command in conjunction with the debup ip pim and debug ip mrouting commands to observe additional multicast activity and to learn the status of the multicast routing process, or why packets are forwarded out of particular interfaces.
Examples
The following is sample output from the debug ip igmp command:
Router# debug ip igmpIGMP: Received Host-Query from 172.16.37.33 (Ethernet1)IGMP: Received Host-Report from 172.16.37.192 (Ethernet1) for 224.0.255.1IGMP: Received Host-Report from 172.16.37.57 (Ethernet1) for 224.2.127.255IGMP: Received Host-Report from 172.16.37.33 (Ethernet1) for 225.2.2.2The messages displayed by the debug ip igmp command show query and report activity received from other routers and multicast group addresses.
The following is sample output from the debug ip igmp command when SSM is enabled. Because IGMP Version 3 lite (IGMP v3lite) requires the host to send IGMP Version 2 (IGMPv2) packets, IGMPv2 host reports also will be displayed in response to the router IGMPv2 queries. If SSM is disabled, the word "ignored" will be displayed in the debug ip igmp command output.
IGMP:Received v3-lite Report from 10.0.119.142 (Ethernet3/3), group count 1IGMP:Received v3 Group Record from 10.0.119.142 (Ethernet3/3) for 232.10.10.10IGMP:Update source 224.1.1.1IGMP:Send v2 Query on Ethernet3/3 to 224.0.0.1IGMP:Received v2 Report from 10.0.119.142 (Ethernet3/3) for 232.10.10.10IGMP:Update source 224.1.1.1Related Commands
debug ip mrm
Displays MRM control packet activity.
debug ip pim
Displays PIM packets received and sent and PIM-related events.

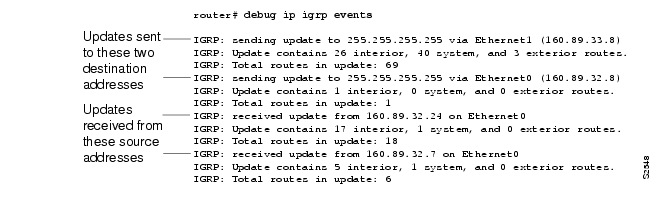

debug ip igrp events
To display summary information on Interior Gateway Routing Protocol (IGRP) routing messages that indicate the source and destination of each update, and the number of routes in each update, use the debug ip igrp events privileged EXEC command. To disable debugging output, use the no form of this command.
debug ip igrp events [ip-address]
no debug ip igrp events [ip-address]
Syntax Description
Command Modes
Privileged EXEC
Usage Guidelines
If the IP address of an IGRP neighbor is specified, the resulting debug ip igrp events output includes messages describing updates from that neighbor and updates that the router broadcasts toward that neighbor. Messages are not generated for each route.
This command is particularly useful when there are many networks in your routing table. In this case, using debug ip igrp transactions could flood the console and make the router unusable. Use debug ip igrp events instead to display summary routing information.
Examples
The following is sample output from the debug ip igrp events command:
This shows that the router has sent two updates to the broadcast address 255.255.255.255. The router also received two updates. Three lines of output describe each of these updates.
The first line indicates whether the router sent or received the update packet, the source or destination address, and the interface through which the update was sent or received. If the update was sent, the IP address assigned to this interface is shown (in parentheses).
IGRP: sending update to 255.255.255.255 via Ethernet1 (160.89.33.8)The second line summarizes the number and types of routes described in the update:
IGRP: Update contains 26 interior, 40 system, and 3 exterior routes.The third line indicates the total number of routes described in the update:
IGRP: Total routes in update: 69debug ip igrp transactions
To display transaction information on Interior Gateway Routing Protocol (IGRP) routing transactions, use the debug ip igrp transactions privileged EXEC command. To disable debugging output, use the no form of this command.
debug ip igrp transactions [ip-address]
no debug ip igrp transactions [ip-address]
Syntax Description
Command Modes
Privileged EXEC
Usage Guidelines
If the IP address of an IGRP neighbor is specified, the resulting debug ip igrp transactions output includes messages describing updates from that neighbor and updates that the router broadcasts toward that neighbor.
When many networks are in your routing table, the debug ip igrp transactions command can flood the console and make the router unusable. In this case, use the debug ip igrp events command instead to display summary routing information.
Examples

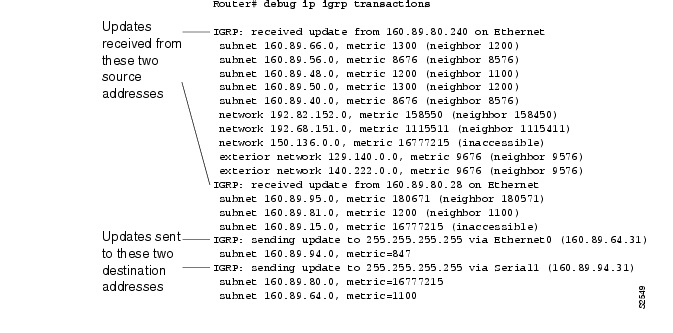

The following is sample output from the debug ip igrp transactions command:
The output shows that the router being debugged has received updates from two other routers on the network. The router at source address 160.89.80.240 sent information about ten destinations in the update; the router at source address 160.89.80.28 sent information about three destinations in its update. The router being debugged also sent updates—in both cases to the broadcast address 255.255.255.255 as the destination address.
On the second line the first field refers to the type of destination information: "subnet" (interior), "network" (system), or "exterior" (exterior). The second field is the Internet address of the destination network. The third field is the metric stored in the routing table and the metric advertised by the neighbor sending the information. "Metric... inaccessible" usually means that the neighbor router has put the destination in a hold down state.
The entries show that the router is sending updates that are similar, except that the numbers in parentheses are the source addresses used in the IP header. A metric of 16777215 is inaccessible.
Other examples of output that the debug ip igrp transactions command can produce follow.
The following entry indicates that the routing table was updated and shows the new edition number (97 in this case) to be used in the next IGRP update:
IGRP: edition is now 97Entries such as the following occur on startup or when some event occurs such as an interface making a transition or a user manually clearing the routing table:
IGRP: broadcasting request on Ethernet0IGRP: broadcasting request on Ethernet1The following type of entry can result when routing updates become corrupted between sending and receiving routers:
IGRP: bad checksum from 172.69.64.43An entry such as the following should never appear. If it does, the receiving router has a bug in the software or a problem with the hardware. In either case, contact your technical support representative.
IGRP: system 45 from 172.69.64.234, should be system 109debug ip inspect
To display messages about Cisco IOS firewall events, use the debug ip inspect command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip inspect {function-trace | object-creation | object-deletion | events | timers | protocol | detailed}
no debug ip inspect detailed
Syntax Description
function-trace
Displays messages about software functions called by the Cisco IOS firewall.
object-creation
Displays messages about software objects being created by the Cisco IOS firewall. Object creation corresponds to the beginning of Cisco IOS firewall-inspected sessions.
object-deletion
Displays messages about software objects being deleted by the Cisco IOS firewall. Object deletion corresponds to the closing of Cisco IOS firewall-inspected sessions.
events
Displays messages about Cisco IOS firewall software events, including information about Cisco IOS firewall packet processing.
timers
Displays messages about Cisco IOS firewall timer events such as when the Cisco IOS firewall idle timeout is reached.
protocol
Displays messages about Cisco IOS firewall-inspected protocol events, including details about the packets of the protocol. Table 93 provides a list of protocol keywords.
detailed
Displays detailed information for all the other enabled Cisco IOS firewall debugging. Use this form of the command in conjunction with other Cisco IOS firewall debugging commands.
Command Modes
Privileged EXEC
Command History
Examples
The following is sample output from the debug ip inspect function-trace command:
Router# debug ip inspect function trace*Mar 2 01:16:16: CBAC FUNC: insp_inspection*Mar 2 01:16:16: CBAC FUNC: insp_pre_process_sync*Mar 2 01:16:16: CBAC FUNC: insp_find_tcp_host_entry addr 40.0.0.1 bucket 41*Mar 2 01:16:16: CBAC FUNC: insp_find_pregen_session*Mar 2 01:16:16: CBAC FUNC: insp_get_idbsb*Mar 2 01:16:16: CBAC FUNC: insp_get_idbsb*Mar 2 01:16:16: CBAC FUNC: insp_get_irc_of_idb*Mar 2 01:16:16: CBAC FUNC: insp_get_idbsb*Mar 2 01:16:16: CBAC FUNC: insp_create_sis*Mar 2 01:16:16: CBAC FUNC: insp_inc_halfopen_sis*Mar 2 01:16:16: CBAC FUNC: insp_link_session_to_hash_table*Mar 2 01:16:16: CBAC FUNC: insp_inspect_pak*Mar 2 01:16:16: CBAC FUNC: insp_l4_inspection*Mar 2 01:16:16: CBAC FUNC: insp_process_tcp_seg*Mar 2 01:16:16: CBAC FUNC: insp_listen_state*Mar 2 01:16:16: CBAC FUNC: insp_ensure_return_traffic*Mar 2 01:16:16: CBAC FUNC: insp_add_acl_item*Mar 2 01:16:16: CBAC FUNC: insp_ensure_return_traffic*Mar 2 01:16:16: CBAC FUNC: insp_add_acl_item*Mar 2 01:16:16: CBAC FUNC: insp_process_syn_packet*Mar 2 01:16:16: CBAC FUNC: insp_find_tcp_host_entry addr 40.0.0.1 bucket 41*Mar 2 01:16:16: CBAC FUNC: insp_create_tcp_host_entry*Mar 2 01:16:16: CBAC* FUNC: insp_fast_inspection*Mar 2 01:16:16: CBAC* FUNC: insp_inspect_pak*Mar 2 01:16:16: CBAC* FUNC: insp_l4_inspection*Mar 2 01:16:16: CBAC* FUNC: insp_process_tcp_seg*Mar 2 01:16:16: CBAC* FUNC: insp_synrcvd_state*Mar 2 01:16:16: CBAC* FUNC: insp_fast_inspection*Mar 2 01:16:16: CBAC* FUNC: insp_inspect_pak*Mar 2 01:16:16: CBAC* FUNC: insp_l4_inspection*Mar 2 01:16:16: CBAC* FUNC: insp_process_tcp_seg*Mar 2 01:16:16: CBAC* FUNC: insp_synrcvd_state*Mar 2 01:16:16: CBAC FUNC: insp_dec_halfopen_sis*Mar 2 01:16:16: CBAC FUNC: insp_remove_sis_from_host_entry*Mar 2 01:16:16: CBAC FUNC: insp_find_tcp_host_entry addr 40.0.0.1 bucket 41This output shows the functions called by the Cisco IOS firewall as a session is inspected. Entries with an asterisk (*) after the word "CBAC" are entries when the fast path is used; otherwise, the process path is used.
The following is sample output from the debug ip inspect object-creation and debug ip inspect object-deletion command:
Router # debug ip inspect object-creationRouter# debug ip inspect object-deletion*Mar 2 01:18:30: CBAC OBJ_CREATE: create pre-gen sis 25A3574*Mar 2 01:18:30: CBAC OBJ_CREATE: create acl wrapper 25A36FC -- acl item 25A3634*Mar 2 01:18:30: CBAC OBJ_CREATE: create sis 25C1CC4*Mar 2 01:18:30: CBAC OBJ_DELETE: delete pre-gen sis 25A3574*Mar 2 01:18:30: CBAC OBJ_CREATE: create host entry 25A3574 addr 10.0.0.1 bucket 31*Mar 2 01:18:30: CBAC OBJ_DELETE: delete sis 25C1CC4*Mar 2 01:18:30: CBAC OBJ_DELETE: delete create acl wrapper 25A36FC -- acl item 25A3634*Mar 2 01:18:31: CBAC OBJ_DELETE: delete host entry 25A3574 addr 10.0.0.1The following is sample output from the debug ip inspect object-creation, debug ip inspect object-deletion, and debug ip inspect events commands:
Router# debug ip inspect object-creationRouter# debug ip inspect object-deletionRouter# debug ip inspect events*Mar 2 01:18:51: CBAC OBJ_CREATE: create pre-gen sis 25A3574*Mar 2 01:18:51: CBAC OBJ_CREATE: create acl wrapper 25A36FC -- acl item 25A3634*Mar 2 01:18:51: CBAC Src 10.1.0.1 Port [1:65535]*Mar 2 01:18:51: CBAC Dst 10.0.0.1 Port [46406:46406]*Mar 2 01:18:51: CBAC Pre-gen sis 25A3574 created: 10.1.0.1[1:65535] 30.0.0.1[46406:46406]*Mar 2 01:18:51: CBAC OBJ_CREATE: create sis 25C1CC4*Mar 2 01:18:51: CBAC sis 25C1CC4 initiator_addr (10.1.0.1:20) responder_addr (30.0.0.1:46406) initiator_alt_addr (40.0.0.1:20) responder_alt_addr (10.0.0.1:46406)*Mar 2 01:18:51: CBAC OBJ_DELETE: delete pre-gen sis 25A3574*Mar 2 01:18:51: CBAC OBJ_CREATE: create host entry 25A3574 addr 10.0.0.1 bucket 31*Mar 2 01:18:51: CBAC OBJ_DELETE: delete sis 25C1CC4*Mar 2 01:18:51: CBAC OBJ_DELETE: delete create acl wrapper 25A36FC -- acl item 25A3634*Mar 2 01:18:51: CBAC OBJ_DELETE: delete host entry 25A3574 addr 10.0.0.1The following is sample output from the debug ip inspect timers command:
Router# debug ip inspect timers*Mar 2 01:19:15: CBAC Timer Init Leaf: Pre-gen sis 25A3574*Mar 2 01:19:15: CBAC Timer Start: Pre-gen sis 25A3574 Timer: 25A35D8 Time: 30000 milisecs*Mar 2 01:19:15: CBAC Timer Init Leaf: sis 25C1CC4*Mar 2 01:19:15: CBAC Timer Stop: Pre-gen sis 25A3574 Timer: 25A35D8*Mar 2 01:19:15: CBAC Timer Start: sis 25C1CC4 Timer: 25C1D5C Time: 30000 milisecs*Mar 2 01:19:15: CBAC Timer Start: sis 25C1CC4 Timer: 25C1D5C Time: 3600000 milisecs*Mar 2 01:19:15: CBAC Timer Start: sis 25C1CC4 Timer: 25C1D5C Time: 5000 milisecs*Mar 2 01:19:15: CBAC Timer Stop: sis 25C1CC4 Timer: 25C1D5CThe following is sample output from the debug ip inspect tcp command:
Router# debug ip inspect tcp*Mar 2 01:20:43: CBAC* sis 25A3604 pak 2541C58 TCP P ack 4223720032 seq 4200176225(22) (10.0.0.1:46409) => (10.1.0.1:21)*Mar 2 01:20:43: CBAC* sis 25A3604 ftp L7 inspect result: PROCESS-SWITCH packet*Mar 2 01:20:43: CBAC sis 25A3604 pak 2541C58 TCP P ack 4223720032 seq 4200176225(22) (10.0.0.1:46409) => (10.1.0.1:21)*Mar 2 01:20:43: CBAC sis 25A3604 ftp L7 inspect result: PASS packet*Mar 2 01:20:43: CBAC* sis 25A3604 pak 2544374 TCP P ack 4200176247 seq 4223720032(30) (10.0.0. 1:46409) <= (10.1.0.1:21)*Mar 2 01:20:43: CBAC* sis 25A3604 ftp L7 inspect result: PASS packet*Mar 2 01:20:43: CBAC* sis 25A3604 pak 25412F8 TCP P ack 4223720062 seq 4200176247(15) (10.0.0. 1:46409) => (10.1.0.1:21)*Mar 2 01:20:43: CBAC* sis 25A3604 ftp L7 inspect result: PASS packet*Mar 2 01:20:43: CBAC sis 25C1CC4 pak 2544734 TCP S seq 4226992037(0) (10.1.0.1:20) => (10.0.0.1:46411)*Mar 2 01:20:43: CBAC* sis 25C1CC4 pak 2541E38 TCP S ack 4226992038 seq 4203405054(0) (10.1.0.1:20) <= (10.0.0.1:46411)This sample shows TCP packets being processed and lists the corresponding acknowledge (ACK) packet numbers and sequence (SEQ) numbers. The number of data bytes in the TCP packet is shown in parentheses—for example, (22). For each packet shown, the addresses and port numbers are shown separated by a colon. For example, (10.1.0.1:21) indicates an IP address of 10.1.0.1 and a TCP port number of 21.
Entries with an asterisk (*) after the word "CBAC" are entries when the fast path is used; otherwise, the process path is used.
The following is sample output from the debug ip inspect tcp and debug ip inspect detailed commands:
Router# debug ip inspect tcpRouter# debut ip inspect detailed*Mar 2 01:20:58: CBAC* Pak 2541E38 Find session for (30.0.0.1:46409) (40.0.0.1:21) tcp*Mar 2 01:20:58: P ack 4223720160 seq 4200176262(22)*Mar 2 01:20:58: CBAC* Pak 2541E38 Addr:port pairs to match: (30.0.0.1:46409) (40.0.0.1:21)*Mar 2 01:20:58: CBAC* sis 25A3604 SIS_OPEN*Mar 2 01:20:58: CBAC* Pak 2541E38 IP: s=30.0.0.1 (Ethernet0), d=40.0.0.1 (Ethernet1), len 76,proto=6*Mar 2 01:20:58: CBAC sis 25A3604 Saving State: SIS_OPEN/ESTAB iisn 4200176160 i_rcvnxt 4223720160 i_sndnxt 4200176262 i_rcvwnd 8760 risn 4223719771 r_rcvnxt 4200176262 r_sndnxt 4223720160 r_rcvwnd 8760*Mar 2 01:20:58: CBAC* sis 25A3604 pak 2541E38 TCP P ack 4223720160 seq 4200176262(22) (30.0.0.1:46409) => (40.0.0.1:21)*Mar 2 01:20:58: CBAC* sis 25A3604 pak 2541E38 SIS_OPEN/ESTAB TCP seq 4200176262(22) Flags: ACK 4223720160 PSH*Mar 2 01:20:58: CBAC* sis 25A3604 pak 2541E38 --> SIS_OPEN/ESTAB iisn 4200176160 i_rcvnxt 4223720160 i_sndnxt 4200176284 i_rcvwnd 8760 risn 4223719771 r_rcvnxt 4200176262 r_sndnxt 4223720160 r_rcvwnd 8760*Mar 2 01:20:58: CBAC* sis 25A3604 L4 inspect result: PASS packet 2541E38 (30.0.0.1:46409) (40.0.0.1:21) bytes 22 ftp*Mar 2 01:20:58: CBAC sis 25A3604 Restoring State: SIS_OPEN/ESTAB iisn 4200176160 i_rcvnxt 4223720160 i_sndnxt 4200176262 i_rcvwnd 8760 risn 4223719771 r_rcvnxt 4200176262 r_sndnxt 4223720160 r_rcvwnd 8760*Mar 2 01:20:58: CBAC* sis 25A3604 ftp L7 inspect result: PROCESS-SWITCH packet*Mar 2 01:20:58: CBAC* sis 25A3604 ftp L7 inspect result: PROCESS-SWITCH packet*Mar 2 01:20:58: CBAC* Bump up: inspection requires the packet in the process path(30.0.0.1) (40.0.0.1)*Mar 2 01:20:58: CBAC Pak 2541E38 Find session for (30.0.0.1:46409) (40.0.0.1:21) tcp*Mar 2 01:20:58: P ack 4223720160 seq 4200176262(22)*Mar 2 01:20:58: CBAC Pak 2541E38 Addr:port pairs to match: (30.0.0.1:46409) (40.0.0.1:21)*Mar 2 01:20:58: CBAC sis 25A3604 SIS_OPEN*Mar 2 01:20:58: CBAC Pak 2541E38 IP: s=30.0.0.1 (Ethernet0), d=40.0.0.1 (Ethernet1), len 76, proto=6The following is sample output from the debug ip inspect icmp and debug ip inspect detailed commands:
Router# debug ip inspect icmpRouter# debug ip inspect detailed1w6d:CBAC sis 81073F0C SIS_CLOSED1w6d:CBAC Pak 80D2E9EC IP:s=192.168.133.3 (Ethernet1), d=0.0.0.0 (Ethernet0), len 98, proto=11w6d:CBAC ICMP:sis 81073F0C pak 80D2E9EC SIS_CLOSED ICMP packet (192.168.133.3:0) => (0.0.0.0:0) datalen 561w6d:CBAC ICMP:start session from 192.168.133.31w6d:CBAC sis 81073F0C --> SIS_OPENING (192.168.133.3:0) (0.0.0.0:0)1w6d:CBAC sis 81073F0C L4 inspect result:PASS packet 80D2E9EC (192.168.133.3:0) (0.0.0.0:0) bytes 56 icmp1w6d:CBAC sis 81073F0C SIS_OPENING1w6d:CBAC Pak 80E72BFC IP:s=0.0.0.0 (Ethernet0), d=192.168.133.3 (Ethernet1), len 98, proto=11w6d:CBAC ICMP:sis 81073F0C pak 80E72BFC SIS_OPENING ICMP packet (192.168.133.3:0) <= (0.0.0.0:0) datalen 561w6d:CBAC sis 81073F0C --> SIS_OPEN (192.168.133.3:0) (0.0.0.0:0)1w6d:CBAC sis 81073F0C L4 inspect result:PASS packet 80E72BFC (0.0.0.0:0) (192.168.133.3:0) bytes 56 icmp1w6d:CBAC* sis 81073F0C SIS_OPEN1w6d:CBAC* Pak 80D2F2C8 IP:s=192.168.133.3 (Ethernet1), d=0.0.0.0 (Ethernet0), len 98, proto=11w6d:CBAC* ICMP:sis 81073F0C pak 80D2F2C8 SIS_OPEN ICMP packet (192.168.133.3:0) => (0.0.0.0:0) datalen 561w6d:CBAC* sis 81073F0C --> SIS_OPEN (192.168.133.3:0) (0.0.0.0:0)1w6d:CBAC* sis 81073F0C L4 inspect result:PASS packet 80D2F2C8 (192.168.133.3:0) (0.0.0.0:0) bytes 56 icmp1w6d:CBAC* sis 81073F0C SIS_OPEN1w6d:CBAC* Pak 80E737CC IP:s=0.0.0.0 (Ethernet0), d=192.168.133.3 (Ethernet1), len 98, proto=11w6d:CBAC* ICMP:sis 81073F0C pak 80E737CC SIS_OPEN ICMP packet (192.168.133.3:0) <= (0.0.0.0:0) datalen 561w6d:CBAC* sis 81073F0C --> SIS_OPEN (192.168.133.3:0) (0.0.0.0:0)1w6d:CBAC* sis 81073F0C L4 inspect result:PASS packet 80E737CC (0.0.0.0:0) (192.168.133.3:0) bytes 56 icmp1w6d:CBAC* sis 81073F0C SIS_OPEN1w6d:CBAC* Pak 80F554F0 IP:s=192.168.133.3 (Ethernet1), d=0.0.0.0 (Ethernet0), len 98, proto=11w6d:CBAC* ICMP:sis 81073F0C pak 80F554F0 SIS_OPEN ICMP packet (192.168.133.3:0) => (0.0.0.0:0) datalen 561w6d:CBAC* sis 81073F0C --> SIS_OPEN (192.168.133.3:0) (0.0.0.0:0)1w6d:CBAC* sis 81073F0C L4 inspect result:PASS packet 80F554F0 (192.168.133.3:0) (0.0.0.0:0) bytes 56 icmp1w6d:CBAC* sis 81073F0C SIS_OPEN1w6d:CBAC* Pak 80E73AC0 IP:s=0.0.0.0 (Ethernet0), d=192.168.133.3 (Ethernet1), len 98, proto=11w6d:CBAC* ICMP:sis 81073F0C pak 80E73AC0 SIS_OPEN ICMP packet (192.168.133.3:0) <= (0.0.0.0:0) datalen 561w6d:CBAC* sis 81073F0C --> SIS_OPEN (192.168.133.3:0) (0.0.0.0:0)1w6d:CBAC* sis 81073F0C L4 inspect result:PASS packet 80E73AC0 (0.0.0.0:0) (192.168.133.3:0) bytes 56 icmpdebug ip mbgp dampening
To log route flap dampening activity related to multiprotocol Border Gateway Protocol (BGP), use the debug ip mbgp dampening command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip mbgp dampening [access-list-number]
no debug ip mbgp dampening [access-list-number]
Syntax Description
access-list-number
(Optional) The number of an access list in the range from 1 to 99. If an access list number is specified, debugging occurs only for the routes permitted by the access list.
Defaults
Logging for route flap dampening activity is not enabled.
Command Modes
Privileged EXEC
Command History
Examples
The following example shows sample debug ip mbgp dampening output:
Router# debug ip mbgp dampeningBGP: charge penalty for 173.19.0.0/16 path 49 with halflife-time 15 reuse/suppress 750/2000BGP: flapped 1 times since 00:00:00. New penalty is 1000BGP: charge penalty for 173.19.0.0/16 path 19 49 with halflife-time 15 reuse/suppress 750/2000BGP: flapped 1 times since 00:00:00. New penalty is 1000debug ip mbgp updates
To log multiprotocol Border Gateway Protocol (BGP)-related information passed in BGP update messages, use the debug ip mbgp updates command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip mbgp updates
no debug ip mbgp updates
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Defaults
Logging for multiprotocol BGP-related information in BGP update messages is not enabled.
Command History
Examples
The following example shows sample debug ip mbgp updates output:
Router# debug ip mbgp updatesBGP: NEXT_HOP part 1 net 200.10.200.0/24, neigh 171.69.233.49, next 171.69.233.34BGP: 171.69.233.49 send UPDATE 200.10.200.0/24, next 171.69.233.34, metric 0, path 33 34 19 49 109 65000 297 3561 6503BGP: NEXT_HOP part 1 net 200.10.202.0/24, neigh 171.69.233.49, next 171.69.233.34BGP: 171.69.233.49 send UPDATE 200.10.202.0/24, next 171.69.233.34, metric 0, path 33 34 19 49 109 65000 297 1239 1800 3597BGP: NEXT_HOP part 1 net 200.10.228.0/22, neigh 171.69.233.49, next 171.69.233.34BGP: 171.69.233.49 rcv UPDATE about 222.2.2.0/24, next hop 171.69.233.49, path 49 109 metric 0BGP: 171.69.233.49 rcv UPDATE about 131.103.0.0/16, next hop 171.69.233.49, path 49 109 metric 0BGP: 171.69.233.49 rcv UPDATE about 206.205.242.0/24, next hop 171.69.233.49, path 49 109 metric 0BGP: 171.69.233.49 rcv UPDATE about 1.0.0.0/8, next hop 171.69.233.49, path 49 19 metric 0BGP: 171.69.233.49 rcv UPDATE about 198.1.2.0/24, next hop 171.69.233.49, path 49 19 metric 0BGP: 171.69.233.49 rcv UPDATE about 171.69.0.0/16, next hop 171.69.233.49, path 49 metric 0BGP: 171.69.233.49 rcv UPDATE about 172.19.0.0/16, next hop 171.69.233.49, path 49 metric 0BGP: nettable_walker 172.19.0.0/255.255.0.0 calling revise_routeBGP: revise route installing 172.19.0.0/255.255.0.0 -> 171.69.233.49BGP: 171.69.233.19 computing updates, neighbor version 267099, table version 267100, starting at 0.0.0.0BGP: NEXT_HOP part 1 net 172.19.0.0/16, neigh 171.69.233.19, next 171.69.233.49BGP: 171.69.233.19 send UPDATE 172.19.0.0/16, next 171.69.233.49, metric 0, path 33 49BGP: 1 updates (average = 46, maximum = 46)BGP: 171.69.233.19 updates replicated for neighbors : 171.69.233.34, 171.69.233.49, 171.69.233.56BGP: 171.69.233.19 1 updates enqueued (average=46, maximum=46)BGP: 171.69.233.19 update run completed, ran for 0ms, neighbor version 267099, start version 267100, throttled to 267100, check point net 0.0.0.0debug ip mcache
To display IP multicast fast-switching events, use the debug ip mcache command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip mcache [vrf vrf-name] [hostname | group-address]
no debug ip mcache [vrf vrf-name] [hostname | group-address]
Syntax Description
Defaults
No default behavior or values.
Command Modes
Privileged EXEC
Command History
11.0
This command was introduced.
12.0(23)S
The vrf keyword and vrf-name argument were added.
12.2(13)T
The vrf keyword and vrf-name argument were added.
Usage Guidelines
Use this command when multicast fast switching appears not to be functioning.
Examples
The following is sample output from the debug ip mcache command when an IP multicast route is cleared:
Router# debug ip mcacheIP multicast fast-switching debugging is onRouter# clear ip mroute *MRC: Build MAC header for (172.31.60.185/32, 224.2.231.173), Ethernet0MRC: Fast-switch flag for (172.31.60.185/32, 224.2.231.173), off -> on, caller ip_mroute_replicate-1MRC: Build MAC header for (172.31.191.10/32, 224.2.127.255), Ethernet0MRC: Build MAC header for (172.31.60.152/32, 224.2.231.173), Ethernet0Table 94 describes the significant fields shown in the display.
Related Commands
debug ip mds ipc
To debug MDS interprocessor communication, that is, synchronization between the MFIB on the line card and the multicast routing table in the RP, use the debug ip mds ipc command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip mds ipc {event | packet}
no debug ip mds ipc {event | packet}
Syntax Description
Command Modes
Privileged EXEC
Usage Guidelines
Use this command on the line card or RP.
Examples
The following is sample output from the debug ip mds ipc packet command:
Router# debug ip mds ipc packetMDFS ipc packet debugging is onRouter#MDFS: LC sending statistics message to RP with code 0 of size 36MDFS: LC sending statistics message to RP with code 1 of size 680MDFS: LC sending statistics message to RP with code 2 of size 200MDFS: LC sending statistics message to RP with code 3 of size 152MDFS: LC sending window message to RP with code 36261 of size 8MDFS: LC received IPC packet of size 60 sequence 36212The following is sample output from the debug ip mds ipc event command:
Router# debug ip mds ipc eventMDFS: LC received invalid sequence 21 while expecting 20debug ip mds mevent
To debug MFIB route creation, route updates, and so on, use the debug ip mds mevent command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip mds mevent
no debug ip mds mevent
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Use this command on the line card.
Examples
The following is sample output from the debug ip mds mevent command:
Router# debug ip mds meventMDFS mroute event debugging is onRouter#clear ip mdfs for *Router#MDFS: Create (*, 239.255.255.255)MDFS: Create (192.168.1.1/32, 239.255.255.255), RPF POS2/0/0MDFS: Add OIF for mroute (192.168.1.1/239.255.255.255) on Fddi0/0/0MDFS: Create (*, 224.2.127.254)MDFS: Create (192.168.1.1/32, 224.2.127.254), RPF POS2/0/0MDFS: Add OIF for mroute (192.168.1.1/224.2.127.254) on Fddi0/0/0MDFS: Create (128.9.160.67/32, 224.2.127.254), RPF POS2/0/0debug ip mds mpacket
To debug multicast distributed switching (MDS) events such as packet drops, interface drops, and switching failures, use the debug ip mds mpacket command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip mds mpacket
no debug ip mds mpacket
Syntax Description
This command has no arguments or keywords.
Command Modes
Privileged EXEC
Usage Guidelines
Use this command on the line card.
Examples
The following is sample output from the debug ip mds mpacket command:
Router# debug ip mds mpacketdebug ip mds process
To debug line card process level events, use the debug ip mds process command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip mds process
no debug ip mds process
Usage Guidelines
Use this command on the line card or RP.
Command Modes
Privileged EXEC
Examples
The following is sample output from the debug ip mds process command:
Router# debug ip mds processMDFS process debugging is onMar 19 16:15:47.448: MDFS: RP queueing mdb message for (210.115.194.5, 224.2.127.254) to all linecardsMar 19 16:15:47.448: MDFS: RP queueing midb message for (210.115.194.5, 224.2.127.254) to all linecardsMar 19 16:15:47.628: MDFS: RP servicing low queue for LC in slot 0Mar 19 16:15:47.628: MDFS: RP servicing low queue for LC in slot 2Mar 19 16:15:48.229: MDFS: RP queueing mdb message for (171.68.224.10, 224.2.127.254) to all linecardsMar 19 16:15:48.229: MDFS: RP queueing mdb message for (171.68.224.10, 224.2.127.254) to all linecardsMar 19 16:15:48.229: MDFS: RP queueing mdb message for (171.69.67.106, 224.2.127.254) to all linecardsMar 19 16:15:48.229: MDFS: RP queueing mdb message for (171.69.67.106, 224.2.127.254) to all linecardsMar 19 16:15:48.229: MDFS: RP queueing mdb message for (206.14.154.181, 224.2.127.254) to all linecardsMar 19 16:15:48.229: MDFS: RP queueing mdb message for (206.14.154.181, 224.2.127.254) to all linecardsMar 19 16:15:48.233: MDFS: RP queueing mdb message for (210.115.194.5, 224.2.127.254) to all linecardsdebug ip mhbeat
To monitor the action of the heartbeat trap, use the debug ip mhbeat command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip mhbeat
no debug ip mhbeat
Syntax Description
This command has no keywords or arguments.
Defaults
Debugging is not enabled.
Command Modes
Privileged EXEC
Command History
Examples
The following is output from the debug ip mhbeat command.
Router# debug ip mhbeatIP multicast heartbeat debugging is onRouter# debug snmp packetsSNMP packet debugging is on!Router(config)# ip multicast heartbeat intervals-of 10Dec 23 13:34:21.132: MHBEAT: ip multicast-heartbeat group 224.0.1.53 port 0source 0.0.0.0 0.0.0.0 at-least 3 in 5 intervals-of 10 secondsdRouter#Dec 23 13:34:23: %SYS-5-CONFIG_I: Configured from console by consoleDec 23 13:34:31.136: MHBEAT: timer ticked, t=1,i=1,c=0Dec 23 13:34:41.136: MHBEAT: timer ticked, t=2,i=2,c=0Dec 23 13:34:51.136: MHBEAT: timer ticked, t=3,i=3,c=0Dec 23 13:35:01.136: MHBEAT: timer ticked, t=4,i=4,c=0Dec 23 13:35:11.136: MHBEAT: timer ticked, t=5,i=0,c=0Dec 23 13:35:21.135: Send SNMP Trap for missing heartbeatDec 23 13:35:21.135: SNMP: Queuing packet to 171.69.55.12Dec 23 13:35:21.135: SNMP: V1 Trap, ent ciscoExperiment.2.3.1, addr 4.4.4.4, gentrap 6, spectrap 1ciscoIpMRouteHeartBeat.1.0 = 224.0.1.53ciscoIpMRouteHeartBeat.2.0 = 0.0.0.0ciscoIpMRouteHeartBeat.3.0 = 10ciscoIpMRouteHeartBeat.4.0 = 5ciscoIpMRouteHeartBeat.5.0 = 0ciscoIpMRouteHeartBeat.6.0 = 3Related Commands
ip multicast heartbeat
Monitors the health of multicast delivery, and alerts when the delivery fails to meet certain parameters.
debug ip mobile
To display IP mobility activities, use the debug ip mobile command in privileged EXEC mode.
debug ip mobile [advertise | host [access-list-number] | local-area | standby]
Syntax Description
Defaults
No default behavior or values.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
Use the debug ip mobile standby command to troubleshoot redundancy problems.
No per user debugging output is shown for mobile nodes using the network access identifier (NAI) for the debug ip mobile host command. Debugging of specific mobile nodes using an IP address is possible through the access list.
Examples
The following is sample output from the debug ip mobile command when foreign agent reverse tunneling is enabled:
MobileIP:MN 14.0.0.30 deleted from ReverseTunnelTable of Ethernet2/1(Entries 0)The following is sample output from the debug ip mobile advertise command:
Router# debug ip mobile advertiseMobileIP: Agent advertisement sent out Ethernet1/2: type=16, len=10, seq=1, lifetime=36000,flags=0x1400(rbhFmGv-rsv-),Care-of address: 68.0.0.31Prefix Length ext: len=1 (8 )FA Challenge value:769C808DTable 95 describes the significant fields shown in the display.
The following is sample output from the debug ip mobile host command:
Router# debug ip mobile hostMobileIP: HA received registration for MN 20.0.0.6 on interface Ethernet1 using COA68.0.0.31 HA 66.0.0.5 lifetime 30000 options sbdmgvTMobileIP: Authenticated FA 68.0.0.31 using SPI 110 (MN 20.0.0.6)MobileIP: Authenticated MN 20.0.0.6 using SPI 300MobileIP: HA accepts registration from MN 20.0.0.6MobileIP: Mobility binding for MN 20.0.0.6 updatedMobileIP: Roam timer started for MN 20.0.0.6, lifetime 30000MobileIP: MH auth ext added (SPI 300) in reply to MN 20.0.0.6MobileIP: HF auth ext added (SPI 220) in reply to MN 20.0.0.6MobileIP: HA sent reply to MN 20.0.0.6The following is sample output from the debug ip mobile standby command. In this example, the active home agent receives a registration request from mobile node 20.0.0.2 and sends a binding update to peer home agent 1.0.0.2:
MobileIP:MN 20.0.0.2 - sent BindUpd to HA 1.0.0.2 HAA 20.0.0.1MobileIP:HA standby maint started - cnt 1MobileIP:MN 20.0.0.2 - sent BindUpd id 3780410816 cnt 0 elapsed 0adjust -0 to HA 1.0.0.2 in grp 1.0.0.10 HAA 20.0.0.1In this example, the standby home agent receives a binding update for mobile node 20.0.0.2 sent by the active home agent:
MobileIP:MN 20.0.0.2 - HA rcv BindUpd from 1.0.0.3 HAA 20.0.0.1debug ip mobile router
To display debug messages for the mobile router, use the debug ip mobile router command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip mobile router [detail]
no debug ip mobile router [detail]
Syntax Description
Defaults
No default behavior or values.
Command Modes
Privileged EXEC
Command History
12.2(4)T
This command was introduced.
12.2(13)T
This command was enhanced to display information about the addition and deletion of mobile networks.
Usage Guidelines
The mobile router operations can be debugged. The following conditions trigger debugging messages:
•
•
•
•
•
Debugging messages are prefixed with "MobRtr" and detail messages are prefixed with "MobRtrX".
Examples
The following example provides output from the debug ip mobile router command:
Router# debug ip mobile routerMobileRouter: New FA 27.0.0.12 coa 27.0.0.12 int Ethernet0/1 MAC 0050.50c1.c8552w2d: MobileRouter: Register reason: isolated2w2d: MobileRouter: Snd reg request agent 27.0.0.12 coa 27.0.0.12 home 9.0.0.1 ha 29.0.0.4 lifetime 36000 int Ethernet0/1 flag sbdmgvt cnt 0 id B496B69C.55E779742w2d: MobileRouter: Status Isolated -> PendingThe following example provides output from the debug ip mobile router detail command.
Router# debug ip mobile router detail1d09h: MobRtr: New agent 20.0.0.2 coa 30.0.0.2 int Ethernet3/1 MAC 00b0.8e35.a0551d09h: MobRtr: Register reason: left home1d09h: MobRtrX: Extsize 18 add 1 delete 01d09h: MobRtrX: Add network 20.0.0.0/8MobileIP: MH auth ext added (SPI 100) to HA 100.0.0.31d09h: MobRtr: Register to fa 20.0.0.2 coa 30.0.0.2 home 100.0.0.1 ha 100.0.0.3 life 120 int Ethernet3/1 flag sbdmgvt cnt 0 id BE804340.447F50A41d09h: MobRtr: Status Isolated -> Pending1d09h: MobRtr: MN rcv accept (0) reply on Ethernet3/1 from 20.0.0.2 lifetime 120MobileIP: MN 100.0.0.3 - authenticating HA 100.0.0.3 using SPI 100MobileIP: MN 100.0.0.3 - authenticated HA 100.0.0.3 using SPI 1001d09h: MobRtr: Status Pending -> Registered1d09h: MobRtr: Add default gateway 20.0.0.2 (Ethernet3/1)1d09h: MobRtr: Add default route via 20.0.0.2 (Ethernet3/1)Related Commands
debug ip mpacket
To display IP multicast packets received and sent, use the debug ip mpacket command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip mpacket [vrf vrf-name] [detail | fastswitch] [access-list] [group]
no debug ip mpacket [vrf vrf-name] [detail | fastswitch] [access-list] [group]
Syntax Description
Defaults
The debug ip mpacket command displays all IP multicast packets switched at the process level.
Command Modes
Privileged EXEC
Command History
Usage Guidelines
This command displays information for multicast IP packets that are forwarded from this router. Use the access-list or group argument to limit the display to multicast packets from sources described by the access list or a specific multicast group.
Use this command with the debug ip packet command to display additional packet information.
Note
Examples
The following is sample output from the debug ip mpacket command:
Router# debug ip mpacket 224.2.0.1IP: s=10.188.34.54 (Ethernet1), d=224.2.0.1 (Tunnel0), len 88, mforwardIP: s=10.188.34.54 (Ethernet1), d=224.2.0.1 (Tunnel0), len 88, mforwardIP: s=10.188.34.54 (Ethernet1), d=224.2.0.1 (Tunnel0), len 88, mforwardIP: s=10.162.3.27 (Ethernet1), d=224.2.0.1 (Tunnel0), len 68, mforwardTable 96 describes the significant fields shown in the display.
Related Commands
debug ip mrm
To display Multicast Routing Monitor (MRM) control packet activity, use the debug ip mrm command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip mrm
no debug ip mrm
Syntax Description
This command has no arguments or keywords.
Defaults
Debugging for MRM is not enabled.
Command Modes
Privileged EXEC
Command History
Examples
The following example is sample output for the debug ip mrm command on the different devices:
On Manager
*Feb 28 16:25:44.009: MRM: Send Beacon for group 239.1.1.1, holdtime 86100 seconds*Feb 28 16:26:01.095: MRM: Receive Status Report from 10.1.4.2 on Ethernet0*Feb 28 16:26:01.099: MRM: Send Status Report Ack to 10.1.4.2 for group 239.1.1.1*Feb 28 16:26:01.103: IP MRM status report -- Test:test2 Receiver:10.1.4.2*Feb 28 16:26:01.107: Sender:10.1.1.10 Pkt Loss:4(16%) Ehsr:1380The last two lines of output on the manager are not part of the debug output; they appeared because an error report was received.
On Test-Sender
MRM: Receive Test-Sender Request/Local trigger from 1.1.1.1 on Ethernet0MRM: Send TS request Ack to 1.1.1.1 for group 239.1.2.3MRM: Send test packet src:2.2.2.2 dst:239.1.2.3 manager:1.1.1.1On Test-Receiver
MRM: Receive Test-Receiver Request/Monitor from 1.1.1.1 on Ethernet0MRM: Send TR request Ack to 1.1.1.1 for group 239.1.2.3MRM: Receive Beacon from 1.1.1.1 on Ethernet0MRM: Send Status Report to 1.1.1.1 for group 239.1.2.3MRM: Receive Status Report Ack from 1.1.1.1 on Ethernet0debug ip mrouting
To display changes to the multicast route (mroute) table, use the debug ip mrouting command in privileged EXEC mode. To disable debugging output, use the no form of this command.
debug ip mrouting [vrf vrf-name] [rpf-events] [group]
no debug ip mrouting [vrf vrf-name] [rpf-events] [group]
Syntax Description
Defaults
No default behavior or values
Command Modes
Privileged EXEC
Command History
Usage Guidelines
This command indicates when the router has made changes to the mroute table. Use the debug ip pim and debug ip mrouting commands consecutively to obtain additional multicast routing information. In addition, use the debug ip igmp command to learn why an mroute message is being displayed.
This command generates a substantial amount of output. Use the optional group argument to limit the output to a single multicast group.
Examples
The following is sample output from the debug ip mrouting command:
Router# debug ip mrouting 224.2.0.1MRT: Delete (10.0.0.0/8, 224.2.0.1)MRT: Delete (10.4.0.0/16, 224.2.0.1)MRT: Delete (10.6.0.0/16, 224.2.0.1)MRT: Delete (10.9.0.0/16, 224.2.0.1)MRT: Delete (10.16.0.0/16, 224.2.0.1)MRT: Create (*, 224.2.0.1), if_input NULLMRT: Create (224.69.15.0/24, 225.2.2.4), if_input Ethernet0, RPF nbr 224.69.61.15MRT: Create (224.69.39.0/24, 225.2.2.4), if_input Ethernet1, RPF nbr 0.0.0.0MRT: Create (10.0.0.0/8, 224.2.0.1), if_input Ethernet1, RPF nbr 224.0.0.0MRT: Create (10.4.0.0/16, 224.2.0.1), if_input Ethernet1, RPF nbr 224.0.0.0MRT: Create (10.6.0.0/16, 224.2.0.1), if_input Ethernet1, RPF nbr 224.0.0.0MRT: Create (10.9.0.0/16, 224.2.0.1), if_input Ethernet1, RPF nbr 224.0.0.0MRT: Create (10.16.0.0/16, 224.2.0.1), if_input Ethernet1, RPF nbr 224.0.0.0The following lines show that multicast IP routes were deleted from the routing table:
MRT: Delete (10.0.0.0/8, 224.2.0.1)MRT: Delete (10.4.0.0/16, 224.2.0.1)MRT: Delete (10.6.0.0/16, 224.2.0.1)The (*, G) entries are generally created by receipt of an Internet Group Management Protocol (IGMP) host report from a group member on the directly connected LAN or by a Protocol Independent Multicast (PIM) join message (in sparse mode) that this router receives from a router that is sending joins toward the RP. This router will in turn send a join toward the Route Processor (RP) that creates the shared tree (or RP tree).
MRT: Create (*, 224.2.0.1), if_input NULLThe following lines are an example of creating an (S, G) entry that shows that an IP multicast packet (mpacket) was received on Ethernet interface 0. The second line shows a route being created for a source that is on a directly connected LAN. The RPF means "Reverse Path Forwarding," whereby the router looks up the source address of the multicast packet in the unicast routing table and determines which interface will be used to send a packet to that source.
MRT: Create (224.69.15.0/24, 225.2.2.4), if_input Ethernet0, RPF nbr 224.69.61.15MRT: Create (224.69.39.0/24, 225.2.2.4), if_input Ethernet1, RPF nbr 224.0.0.0The following lines show that multicast IP routes were added to the routing table. Note the 224.0.0.0 as the RPF, which means the route was created by a source that is directly connected to this router.
MRT: Create (10.9.0.0/16, 224.2.0.1), if_input Ethernet1, RPF nbr 224.0.0.0MRT: Create (10.16.0.0/16, 224.2.0.1), if_input Ethernet1, RPF nbr 224.0.0.0If the source is not directly connected, the neighbor address shown in these lines will be the address of the router that forwarded the packet to this router.
The shortest path tree state maintained in routers consists of source (S), multicast address (G), outgoing interface (OIF), and incoming interface (IIF). The forwarding information is referred to as the multicast forwarding entry for (S, G).
An entry for a shared tree can match packets from any source for its associated group if the packets come through the proper incoming interface as determined by the RPF lookup. Such an entry is denoted as
(*, G). A (*, G) entry keeps the same information a (S, G) entry keeps, except that it saves the rendezvous point address in place of the source address in sparse mode or as 24.0.0.0 in dense mode.Table 97 describes the significant fields shown in the display.
Table 97 debug ip mrouting Field Descriptions
MRT
Multicast route table.
RPF
Reverse Path Forwarding.
nbr
Neighbor.
Related Commands
