Malicious Caller Identification Invocation Support for Enterprise Networks

The Malicious Caller Identification (MCID) Invocation Support for Enterprise Networks feature enables Cisco voice gateways to support MCID service in the PSTN. The recipient of a malicious call invokes MCID by pressing a configurable sequence of dual tone multifrequency (DTMF) digits on the telephone, which trigger a Tool Command Language (TCL) interactive voice response (IVR) script. The script initiates the MCID process resulting in the calling number information being forwarded to a law enforcement agency. This feature is supported in both H.323 and Session Initiation Protocol (SIP) voice gateways and on all telephones.

Feature History for MCID Invocation Support for Enterprise Networks

Release

Modification

12.2(15)T

This feature was introduced.

12.3(14)T

Support was added for the new Cisco IOS command structure for voice applications in the HTTP Client API for TCL IVR feature.

Finding Support Information for Platforms and Cisco IOS Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.

Contents

•Prerequisites for MCID Invocation Support for Enterprise Networks

•Restrictions for MCID Invocation Support for Enterprise Networks

•Information About MCID Invocation Support for Enterprise Networks

•How to Configure MCID Invocation Support for Enterprise Networks

•Configuration Examples for MCID Invocation Support for Enterprise Networks

•Additional References

•Command Reference

Prerequisites for MCID Invocation Support for Enterprise Networks

Enterprise Network

All telephones in the enterprise network must generate DTMF tones to invoke the MCID functionality.

PSTN Network

The service provider on the time-division multiplexing (TDM) side of the PSTN must have MCID functionality configured and enabled.

ISDN

The ISDN interface on the Cisco gateway must use the NET5 switch type and it must be configured to operate in user-side mode. See the isdn switch-type and isdn protocol-emulate commands in the Cisco IOS Dial Technologies Command Reference, Release 12.3T.

TCL IVR

•Hardware platform must support TCL IVR 2.0.

•You must either use the script app_mcid.2.0.0.40.tcl or a later version, or write your own TCL IVR 2.0 script that implements MCID.

–To download the script, go to the Software Download web site at http://www.cisco.com/cgi-bin/tablebuild.pl/tclware.

Note You must have a Cisco.com login to access this site. Qualified users can establish an account on Cisco.com by following the directions at http://www.cisco.com/register. If you have forgotten or lost your account information, send a blank e-mail to cco-locksmith@cisco.com. An automatic check will verify that your e-mail address is registered with Cisco.com. If the check is successful, account details with a new random password will be e-mailed to you.

–To write your own script, see the Tcl IVR API Version 2.0 Programming Guide.

•If an MCID service log in RADIUS is required, you can write a script that supports the RADIUS service and uses the aaa accounting update command to generate an accounting record.

Restrictions for MCID Invocation Support for Enterprise Networks

•MCID functionality is configurable only at the ISDN interface level.

•MCID cannot be invoked if the calling party is within the enterprise network.

•The results of any MCID invocation are not recorded by a Simple Network Management Protocol (SNMP) MIB. The TCL IVR 2.0 application can record the results of MCID invocations using syslog and the TCL IVR 2.0 "log" command.

•The gateway cannot send an MCID request across a VoIP network using an H.323 or SIP message.

Information About MCID Invocation Support for Enterprise Networks

To configure the MCID Invocation Support for Enterprise Networks feature, you should understand the following concepts:

•MCID Using DTMF

•TCL IVR Enhancements

•RADIUS Accounting

MCID Using DTMF

The MCID Invocation Support for Enterprise Networks feature enables a called party to request that a calling number from outside the enterprise network be forwarded to a law enforcement agency. The following describes the sequence of events for a malicious call (see Figure 1):

1. The recipient of a malicious call requests the notification by pressing a sequence of keys on a telephone.

2. The DTMF tones are transmitted to the Cisco voice gateway at the edge of the IP network.

3. A TCL IVR application running on the gateway recognizes the DTMF sequence and initiates an ISDN Facility message containing the MCID request.

4. The gateway sends the MCID request over its ISDN interface to the adjacent PSTN switch, which is responsible for implementing MCID service.

5. The PSTN switch notifies the appropriate law enforcement agency and sends a Facility acknowledgement to the voice gateway with the MCID response.

Note The calling party can hear the DTMF tones if MCID is invoked during a call.

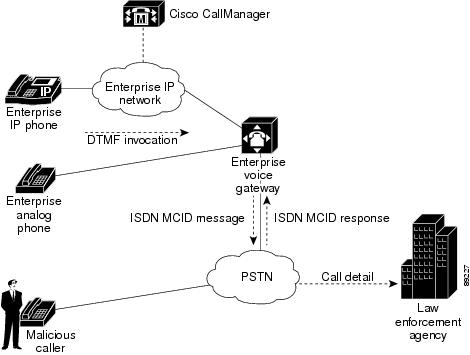

Figure 1 MCID Invocation and Response

The t-activate command can be used to start a timer when the voice gateway sends a Facility message to the PSTN. If a response is not received within the specified time, the TCL IVR script is notified. Depending on how the script is written, it could reinvoke MCID or perform some other action, such as playing a message if the MCID attempt fails.

TCL IVR Enhancements

TCL IVR 2.0 commands, infotags, and events for MCID are used by a TCL IVR script to provide the called party with the ability to invoke MCID using a configured DTMF digit sequence. The TCL IVR script reads the MCID configuration parameters, collects digits (DTMF) from the called party, and determines if MCID should be invoked. You can use the TCL IVR script that is available from Cisco or write your own. Each script can have script-specific parameters. The TCL IVR script can record the MCID invocation and status by using syslog and the TCL IVR 2.0 "log" command.

For more information, see the TCL IVR API Version 2.0 Programming Guide.

RADIUS Accounting

The Cisco MCID script does not send an interim update to the RADIUS server when MCID is invoked. If you create your own custom TCL IVR script, an MCID notification event can be sent in a RADIUS interim accounting message to the RADIUS server. With each Facility message (or timeout waiting for a Facility message), the TCL IVR script communicates the event to the RADIUS server using a vendor-specific attribute (VSA) in an interim-update message.

For more information, see the TCL IVR API Version 2.0 Programming Guide.

How to Configure MCID Invocation Support for Enterprise Networks

See the following sections for configuration tasks for the MCID Invocation Support for Enterprise Networks feature.

•Configuring the ISDN Interface for MCID

•Configuring MCID on the Voice Gateway (Cisco IOS Release 12.3(14)T) (required)

•Configuring MCID on the Voice Gateway (Cisco IOS Release 12.2(15)T) (required)

Configuring the ISDN Interface for MCID

Perform this task to enable the ISDN interface to send MCID requests and to set the timer.

SUMMARY STEPS

1. enable

2. configure terminal

3. interface serial slot/port:timeslot

4. isdn switch-type primary-net5

5. isdn incoming-voice {data | modem | voice}

6. isdn supp-serv mcid

7. isdn t-activate msec

8. end

9. show isdn status

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password when prompted.

Step 2

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.

Step 3

interface serial slot/port:timeslot
Example:

Router(config)# interface serial 2/1:23

Enters interface configuration mode and specifies a serial interface created on a channelized E1 or channelized T1 controller (for ISDN PRI, channel-associated signaling or robbed-bit signaling).

Step 4

isdn switch type primary-net5
Example:

Router(config-if)# isdn switch-type primary-net5

Specifies the user-side switch as primary-net5.

Note The switch type must be set as primary-net5 and configured for the user side.

Step 5

isdn incoming-voice {data | modem | voice}
Example:

Router(config-if)# isdn incoming-voice modem

Routes incoming voice calls to voice, data, or modems.

Step 6

isdn supp-serv mcid
Example:

Router(config-if)# isdn supp-serv mcid

Configures the ISDN interface to send the MCID invocation and response on the specified serial interface.

Step 7

isdn t-activate msec
Example:

Router(config-if)# isdn t-activate 6000

(Optional) Specifies how long the gateway waits for a response from the PSTN after sending the MCID request.

•If the timer expires, the TCL script is notified and depending on the TCL script, the expiration event may trigger an announcement or initiate another attempt.

•Range is 1000 to 15000 ms. Default is 4000.

Step 8

end
Example:

Router(config-if)# end

Exits the configuration.

Step 9

show isdn status
Example:

Router# show isdn status

Displays the ISDN interface to verify the configuration.

Configuring MCID on the Voice Gateway (Cisco IOS Release 12.3(14)T)

Use this procedure to define the MCID application on a voice gateway that is running Cisco IOS Release 12.3(14)T or later. To verify your release, use the show version command. The following procedure uses the script provided by Cisco.

SUMMARY STEPS

1. enable

2. configure terminal

3. application

4. service mcid location

5. param mcid-dtmf string

6. param mcid-release-timer seconds

7. param retry-count number

8. exit

9. dial-peer voice tag pots

10. service mcid

11. incoming called-number string

12. direct-inward-dial

13. port

14. exit

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password when prompted.

Step 2

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.

Step 3

application
Example:

Router(config)# application

Enters application configuration mode.

Step 4

service mcid flash:app_mcid.2.0.0.40.tcl
Example:

Router(config-app)# service mcid flash:app_mcid.2.0.0.40.tcl

Specifies the name and location of the MCID script.

Step 5

param mcid-dtmf string
Example:

Router(config-app-param)# param mcid-dtmf 678

(Optional) DTMF sequence that the called party enters to invoke MCID. Valid characters are *, #, and 0 to 9. Length is 3 to 5 characters.

Step 6

param mcid-release-timer seconds
Example:

Router(config-app-param)# param mcid-release-timer 30

(Optional) Number of seconds the script waits before releasing both call legs after it receives a disconnect message. Default is 60 seconds.

Step 7

param retry-count number
Example:

Router(config-app-param)# param retry-count 3

(Optional) Maximum number of times the called party can trigger MCID if all previous attempts failed. Default is 0, which means the user can invoke MCID as many times as needed.

Step 8

exit
Example:

Router(config-app-param)# exit

Exits to global configuration mode.

Step 9

dial-peer voice tag pots
Example:

Router(config)# dial-peer voice 250 pots

Configures the incoming dial peer and enters dial-peer configuration mode.

Step 10

service mcid
Example:

Router(config-dial-peer)# service mcid

Configures the incoming dial peer to use the MCID application.

Step 11

incoming called-number string
Example:

Router(config-dial-peer)# incoming called-number 555....

Configures the incoming called number for the MCID application.

Step 12

direct-inward-dial
Example:

Router(config-dial-peer)# direct-inward-dial

Configures direct-inward-dial (DID) for the MCID application.

Step 13

port slot/port:timeslot
Example:

Router(config-dial-peer)# port 3/0:23

Configures the port for the MCID application.

Note The syntax of the port command is platform-specific. For information on the specific syntax for your platform, see the Cisco IOS Voice Command Reference, Release 12.3T.

Step 14

exit
Example:

Router(config-dial-peer)# exit

Exits to global configuration mode.

Configuring MCID on the Voice Gateway (Cisco IOS Release 12.2(15)T)

Use this procedure to define the MCID application on a voice gateway that is running a release prior to Cisco IOS Release 12.3(14)T. To verify your release, use the show version command. The following procedure uses the script provided by Cisco.

SUMMARY STEPS

1. enable

2. copy tftp://yourhost/yourdrive/audiofile.au flash

3. configure terminal

4. call application voice application-name location

5. call application voice application-name parameter value

6. dial-peer voice tag pots

7. application application-name

8. incoming called-number string

9. direct-inward-dial

10. port slot/port

11. exit

DETAILED STEPS

Command or Action

Purpose

Step 1

enable
Example:

Router> enable

Enables privileged EXEC mode.

•Enter your password when prompted.

Step 2

copy tftp://yourhost/yourdrive/audiofile.au flash
Example:

Router# copy tftp://abchost/abcdir/ mcid_fail_init.au flash

Copies the audio files to system flash memory. Copy all of the following audio files to system flash memory:

•mcid_fail_init.au

•mcid_succ_init.au

•caller_hungup.au

•mcid_in_process.au

•mcid_time_out.au

•init_mcid.au

•mcid_no_more.au

•mcid_wait.au

Note The audio files are available with the TCL IVR script and a ReadMe file on Cisco.com at http://www.cisco.com/cgi-bin/tablebuild.pl/tclware

Step 3

configure terminal
Example:

Router# configure terminal

Enters global configuration mode.

Step 4

call application voice application-name location
Example:

Router(config)# call application voice mcid tftp://abc/app_mcid.2.0.0.40.tcl

Specifies the name and location of the TCL IVR script used for MCID.

Step 5

call application voice application-name parameter value
Example:

Router(config)# call application voice mcid mcid-dtmf *39#
Example:

Router(config)# call application voice mcid mcid-release-timer 30
Example:

Router(config)# call application voice mcid mcid-retry-limit 3

Configures the MCID attribute-value (AV) pairs. Valid parameter and value arguments are as follows:

•mcid-dtmf—DTMF sequence that the called party enters to invoke MCID. Valid characters are *, #, and 0 to 9. Length is 3 to 5 characters.

•mcid-release-timer—(Optional) Starts a timer when a DISC or DISC progress indicator (PI) message is received by the script. The script releases both call legs when the timer expires. Default is 60 seconds. Maximum is 120 seconds.

•mcid-retry-limit—(Optional) Maximum number of times the called party can trigger MCID if all previous attempts failed. Default is 0, which means the user can invoke MCID as many times as needed.

Step 6

dial-peer voice tag pots
Example:

Router(config)# dial-peer voice 250 pots

Enters dial-peer configuration mode.

Step 7

application application-name
Example:

Router(config-dial-peer)# application mcid

Associates the MCID application with the incoming dial peer.

Step 8

incoming called-number string
Example:

Router(config-dial-peer)# incoming called-number 222....

Specifies the incoming called number for the MCID application.

Step 9

direct-inward-dial
Example:

Router(config-dial-peer)# direct-inward-dial

Sets direct-inward-dial (DID) for the MCID application.

Step 10

port slot/port
Example:

Router(config-dial-peer)# port 1:D

Specifies the port for incoming calls to the MCID application.

Step 11

exit
Example:

Router(config)# exit

Exits global configuration mode and enters privileged EXEC mode.

Troubleshooting Tips

Use the debug isdn q931, debug cdapi events, and debug cdapi detail commands to ensure that a Facility message "ETSI Supplementary Service, Invoke, Malicious Call ID" is being sent, and that a Facility message "ETSI Supplementary Service, Return Result" is received from the PSTN. You can also make sure you see "MCID Response = serviceSucceeded."

The following sample output displays the log from a debug session:
*Mar 7 07:57:52.159: CDAPI: cdapi_create_msg(): CDAPI Pool Count: 159, Raw Length = 0
*Mar 7 07:57:52.159: Se7/4:23 CDAPI: TX -> CDAPI_MSG_SUBTYPE_MCID_REQ to ISDN call = 0x1
*Mar 7 07:57:52.159: 	From Appl/Stack = TSP CDAPI Application Voice
*Mar 7 07:57:52.159: 	Call Type    = VOICE
*Mar 7 07:57:52.159: 	B Channel    = 0
*Mar 7 07:57:52.159: 	dslId        = 0
*Mar 7 07:57:52.159: 	Idb          = 647BDBE4
*Mar 7 07:57:52.159: 	BChanIdb     = 0
*Mar 7 07:57:52.159: 	Handle       = 0
*Mar 7 07:57:52.159: 	RPA          = 0
*Mar 7 07:57:52.159: 	Cause        = 0
*Mar 7 07:57:52.159: 	ApplCause    = 0
*Mar 7 07:57:52.159: 	ApplSpecData = 0
*Mar 7 07:57:52.159: 	Overlap = 0
*Mar 7 07:57:52.163: CDAPI-ISDN Se7/4:23: RX <- CDAPI_MSG_SS_REQ from TSP CDAPI
Application Voice call = 0x1
*Mar 7 07:57:52.163: 	Sub Msg   = CDAPI_MSG_SUBTYPE_MCID_REQ
*Mar 7 07:57:52.163: 	Call Type = VOICE
*Mar 7 07:57:52.163: 	B Channel = 0
*Mar 7 07:57:52.163: 	Cause     = 0
*Mar 7 07:57:52.163: CDAPI-ISDN: Se7/4:23 : Calling_oct3a = 0x0 Calling_oct3 = 0x0
Called_oct3 = 0x80
*Mar 7 07:57:52.163: 	Progress_oct3 = 0x0 Progress_oct4 = 0x0
*Mar 7 07:57:52.163: 	ieID = -1 typeOfNumber = -1
*Mar 7 07:57:52.163: 	numberingPlanID = -1 presentationIndicator = -1
*Mar 7 07:57:52.163: 	screeningIndicator = -1 reasonForRedirection = -1
*Mar 7 07:57:52.163: CDAPI: cdapi_free_msg(): Raw Length = 0, freeRaw = 1, Raw Msg = 0x0
*Mar 7 07:57:52.163: CDAPI: cdapi_free_msg(): CDAPI Pool Count: 160
*Mar 7 07:57:52.163: ISDN Se7/4:23 Q931: TX -> FACILITY pd = 8 callref = 0x8001
	Facility i = 0x91A106020107020103
	- ETSI Supplementary Service, Invoke, Malicious Call ID
*Mar 7 07:57:52.183: ISDN Se7/4:23 Q931: RX <- FACILITY pd = 8 callref = 0x01
	Facility i = 0x91A203020107
	- ETSI Supplementary Service, Return Result
*Mar 7 07:57:52.183: ISDN Se7/4:23 EVENT: process_rxstate: ces/callid 1/0x1 calltype 2
CALL_FACILITY_INVOKE
*Mar 7 07:57:52.183: cdapi_map_isdn_to_cdapi p_pkg (size=14) :
*Mar 7 07:57:52.183: 61 0 1 0 1 0 1C 6 91 A2 3 2 1 7
*Mar 7 07:57:52.187:
*Mar 7 07:57:52.187: CDAPI: cdapi_create_msg(): CDAPI Pool Count: 159, Raw Length = 8
*Mar 7 07:57:52.187: CDAPI: cdapi_create_raw_msg(): Created raw message buffer, Length =
8, Pool count: 160 Raw Msg = 0x6476A524, Buff = 0x6476A52C
*Mar 7 07:57:52.187: CDAPI: cdapi_create_msg(): Copied raw message of length 8, Msg =
0x6476A524, Raw = 0x6476A52C
*Mar 7 07:57:52.187: Se7/4:23 CDAPI: TX -> CDAPI_MSG_SUBTYPE_MCID_RESP to TSP CDAPI
Application Voice call = 0x1
*Mar 7 07:57:52.187: 	From Appl/Stack = ISDN
*Mar 7 07:57:52.187: 	Call Type    = VOICE
*Mar 7 07:57:52.187: 	B Channel    = 38736
*Mar 7 07:57:52.187: 	dslId        = 0
*Mar 7 07:57:52.187: 	Idb          = 647BDBE4
*Mar 7 07:57:52.187: 	BChanIdb     = 0
*Mar 7 07:57:52.187: 	Handle       = 0
*Mar 7 07:57:52.187: 	RPA          = 0
*Mar 7 07:57:52.187: 	Cause        = 0
*Mar 7 07:57:52.187: 	ApplCause    = 0
*Mar 7 07:57:52.187: 	ApplSpecData = 0
*Mar 7 07:57:52.187: 	Overlap = 0
*Mar 7 07:57:52.187: 	MCID Response = serviceSucceeded
*Mar 7 07:57:52.187: CDAPI: cdapi_free_msg(): Raw Length = 8, freeRaw = 0, Raw Msg =
0x6476A524
*Mar 7 07:57:52.187: CDAPI: cdapi_free_msg(): CDAPI Pool Count: 160
*Mar 7 07:57:52.187: CDAPI: cdapi_free_raw_msg_buf(): Type = SMALL
*Mar 7 07:57:52.187: CDAPI: cdapi_free_raw_msg(): Raw Msg = 0x6476A524, Type = SMALL
*Mar 7 07:57:52.187: CDAPI: cdapi_free_raw_msg(): Freed raw message buffer, Type = SMALL,
Pool count: 161
If the PSTN returns a Facility message "ETSI Supplementary Service, Return Error," then you should look at CDAPI debugs (output below) to see the reason for the error. The following is sample output from an unsuccessful attempt where the PSTN returns an error:
*Mar 7 07:53:51.787: Se7/4:23 CDAPI: TX -> CDAPI_MSG_SUBTYPE_MCID_RESP to TSP CDAPI
Application Voice call = 0x1
*Mar 7 07:53:51.787:   From Appl/Stack = ISDN
*Mar 7 07:53:51.787:   Call Type    = VOICE
*Mar 7 07:53:51.787:   B Channel    = 38736
*Mar 7 07:53:51.787:   dslId        = 0
*Mar 7 07:53:51.787:   Idb          = 647BDBE4
*Mar 7 07:53:51.787:   BChanIdb     = 0
*Mar 7 07:53:51.787:   Handle       = 0
*Mar 7 07:53:51.787:   RPA          = 0
*Mar 7 07:53:51.787:   Cause        = 0
*Mar 7 07:53:51.787:   ApplCause    = 0
*Mar 7 07:53:51.787:   ApplSpecData = 0
*Mar 7 07:53:51.787:   Overlap = 0
*Mar 7 07:53:51.787:   MCID Response = notAvailable
In the output above, the error message "MCID Response = notAvailable" indicates that the MCID service is not available from the PSTN.

Configuration Examples for MCID Invocation Support for Enterprise Networks

This section provides the following configuration examples:

•Configuring MCID in Cisco IOS Release 12.3(14)T: Example

•Configuring MCID in Cisco IOS Release 12.2(15)T: Example

Configuring MCID in Cisco IOS Release 12.3(14)T: Example
Current configuration : 1552 bytes
!
version 12.3
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname router_2801
!
boot-start-marker
boot-end-marker
!
no logging console
!
no aaa new-model
!
resource manager
!
network-clock-participate wic 2
mmi polling-interval 60
no mmi auto-configure
no mmi pvc
mmi snmp-timeout 180
ip subnet-zero
ip cef
!
!
no ip dhcp use vrf connected
!
!
no ip domain lookup
no ftp-server write-enable
isdn switch-type primary-net5
!
voice-card 0
!
!
!
application
 service mcid flash:app_mcid.2.0.0.40.tcl
  param mcid-dtmf 678
!
!
controller T1 0/2/0
 framing esf
 linecode b8zs
 pri-group timeslots 1-24
!
controller T1 0/2/1
 framing esf
 linecode b8zs
!
!
!
interface FastEthernet0/0
 ip address 30.0.0.1 255.0.0.0
 duplex auto
 speed auto
!
interface FastEthernet0/1
 no ip address
 shutdown
 duplex auto
 speed auto
!
interface Serial0/2/0:23
 no ip address
 isdn switch-type primary-net5
 isdn incoming-voice modem
 isdn supp-service mcid
 isdn T-Activate 5000
 no cdp enable
!
ip default-gateway 1.5.0.1
ip classless
ip route 0.0.0.0 0.0.0.0 1.5.0.1
!
ip http server
!
disable-eadi
!
!
control-plane
!
!
!
voice-port 0/2/0:23
!
!
!
dial-peer voice 222 pots
 service mcid
 incoming called-number 555555
 no digit-strip
 direct-inward-dial
 port 0/2/0:23
!
dial-peer voice 333 voip
 destination-pattern 555555
 session target ipv4:30.0.0.2
 dtmf-relay h245-signal h245-alphanumeric
!
!
line con 0
 exec-timeout 0 0
line aux 0
line vty 0 4
 login
!
end
Configuring MCID in Cisco IOS Release 12.2(15)T: Example
!
controller e1 0
 clock source line primary
 pri-group timeslots 1-31
!
interface serial0:23
 isdn switch-type primary-net5
 ip address 10.10.10.0. 255.255.255.0
 isdn incoming-voice modem
 isdn supp-serv mcid
 isdn T-Activate 6000
!
!
call application voice mcid flash:app_mcid.2.0.0.40.tcl
call application voice mcid mcid-dtmf *39#
call application voice mcid mcid-release-timer 30
call application voice mcid mcid-retry-limit 3
!
!
dial-peer voice 1 pots
 application mcid
 destination-pattern 2010
 incoming called-number 2000
 direct-inward-dial
 port 3/0:23
 forward-digits all
!
Additional References

The following sections provide references related to the Malicious Caller Identification Invocation Support for Enterprise Networks feature.

Related Documents

Related Topic

Document Title

Overview of TCL IVR applications

Cisco IOS TCL IVR and VoiceXML Application Guide

TCL IVR scripting

Tcl IVR API Version 2.0 Programming Guide

Cisco IOS Release 12.3(14)T commands for voice applications

HTTP Client API for TCL IVR

Additional Cisco IOS Voice Configuration Library documents, including library preface and glossary

Cisco IOS Debug Command Reference, Release 12.3T

Cisco IOS Voice Configuration Library

Cisco IOS voice command reference

Cisco IOS Voice Command Reference, Release 12.3T

Standards

Standards¹

Title

Q.951.7

Stage 3 description for number identification supplementary services using DSS1: Malicious Call Identification (MCID)

I.251.7

Malicious Call Identification

¹Not all supported standards are listed.

MIBs

MIBs

MIBs Link

None

To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://www.cisco.com/go/mibs

RFCs

RFCs

Title

None

—

Technical Assistance

Description

Link

Technical Assistance Center (TAC) home page, containing 30,000 pages of searchable technical content, including links to products, technologies, solutions, technical tips, tools, and lots more. Registered Cisco.com users can log in from this page to access even more content.

http://www.cisco.com/public/support/tac/home.shtml

Command Reference

This section documents new commands.

•isdn supp-service mcid

•isdn t-activate

isdn supp-service mcid

To enable an ISDN serial interface for Malicious Caller Identification (MCID), use the isdn supp-service mcid command in interface configuration mode. To disable MCID functionality, use the no form of this command.

isdn supp-service mcid
no isdn supp-service mcid
Syntax Description

This command has no arguments or keywords.

Defaults

Disabled

Command Modes

Interface configuration

Command History

Release

Modification

12.2(15)T

This command was introduced.

Usage Guidelines

The ISDN interface must use the NET5 switch type, which is set using the isdn switch-type primary-net5 command. Protocol emulation must be set to user, which is the default for the isdn protocol-emulate command. This command is valid only at the ISDN interface level.

Examples

The following configuration example shows MCID enabled for the PRI:
interface serial0:23
 isdn switch-type primary-net5
 ip address 10.10.10.0. 255.255.255.0
 isdn supp-service mcid
 isdn T-Activate 5000
Related Commands

Command

Description

interface serial

Specifies a serial interface created on a channelized E1 or channelized T1 controller for ISDN PRI, channel-associated signaling, or robbed-bit signaling.

isdn protocol-emulate

Configures the PRI interface to serve as either the primary slave (user) or the primary master (network).

isdn switch-type

Specifies the central office switch type on the ISDN interface.

isdn t-activate

Specifies how long the ISDN serial interface must wait for the malicious caller to be identified.

isdn t-activate

To specify how long the gateway waits for a response from the PSTN after sending a MCID request, use the isdn t-activate command in interface configuration mode. To disable the timer, use the no form of this command.

isdn t-activate ms
no isdn t-activate ms
Syntax Description

ms

Number of milliseconds (ms). Range is 1000 to 15000. Default is 4000; 5000 is recommended.

Defaults

4000 ms

Command Modes

Interface configuration

Command History

Release

Modification

12.2(15)T

This command was introduced.

Usage Guidelines

This command starts a timer when the voice gateway sends a Facility message to the PSTN. If a response is not received within the specified time, the Tcl IVR script for MCID is notified. Depending on how the script is written, it could reinvoke MCID or perform some other action, such as playing a message if the MCID attempt fails. This command is valid only at the ISDN interface level. The ISDN interface must use the NET5 switch type, which is set using the isdn switch-type primary-net5 command. Protocol emulation must be set to user, which is the default for the isdn protocol-emulate command.

Examples

The following example shows the configuration of the timer on serial interface 0:23:
interface serial0:23
 isdn switch-type primary-net5
 ip address 10.10.10.0 255.255.255.0
 isdn suppserv mcid
 isdn T-Activate 5000
Related Commands

Command

Description

interface serial

Specifies a serial interface created on a channelized E1 or channelized T1 controller for ISDN PRI, channel-associated signaling, or robbed-bit signaling.

isdn protocol-emulate

Configures the PRI interface to serve as either the primary slave (user) or the primary master (network).

isdn switch-type

Specifies the central office switch type on the ISDN interface.

isdn suppserv mcid

Configures an ISDN serial interface for MCID.

Hierarchical Navigation

Cisco IOS Software Releases 12.2 T

Malicious Caller Identification Invocation Support for Enterprise Networks

Downloads

Table Of Contents

Malicious Caller Identification Invocation Support for Enterprise Networks

Contents

Prerequisites for MCID Invocation Support for Enterprise Networks

Restrictions for MCID Invocation Support for Enterprise Networks

Information About MCID Invocation Support for Enterprise Networks

MCID Using DTMF

TCL IVR Enhancements

RADIUS Accounting

How to Configure MCID Invocation Support for Enterprise Networks

Configuring the ISDN Interface for MCID

SUMMARY STEPS

DETAILED STEPS

Configuring MCID on the Voice Gateway (Cisco IOS Release 12.3(14)T)

SUMMARY STEPS

DETAILED STEPS

Configuring MCID on the Voice Gateway (Cisco IOS Release 12.2(15)T)

SUMMARY STEPS

DETAILED STEPS

Troubleshooting Tips

Configuration Examples for MCID Invocation Support for Enterprise Networks

Configuring MCID in Cisco IOS Release 12.3(14)T: Example

Configuring MCID in Cisco IOS Release 12.2(15)T: Example

Additional References

Related Documents

Standards

MIBs

RFCs

Technical Assistance

Command Reference

isdn supp-service mcid

Syntax Description

Defaults

Command Modes

Command History

Usage Guidelines

Examples

Related Commands

isdn t-activate

Syntax Description

Defaults

Command Modes

Command History

Usage Guidelines

Examples

Related Commands
