Configuring SNA Switching Services

---

This chapter describes SNA Switching Services (SNASw), which supersedes all functionality previously available in the Advanced Peer-to-Peer Networking (APPN) feature in the Cisco IOS software. SNASw configuration will not accept the previous APPN configuration commands. Previous APPN users should use this chapter to configure APPN functionality using the new SNASw commands.

For a complete description of the SNASw commands mentioned in this chapter, refer to the "SNA Switching Services Commands" chapter of the Cisco IOS Bridging and IBM Networking Command Reference, Volume II. To locate documentation of other commands that appear in this chapter, use the command reference master index or search online.

This chapter contains the following sections:

•Technical Overview

•Configuring SNASw

•Verifying SNASw

•Monitoring and Maintaining SNASw

•Troubleshooting Tips

•SNASw Configuration Examples

Technical Overview

SNASw provides an easier way to design and implement networks with Systems Network Architecture (SNA) routing requirements. Previously, this network design was accomplished using APPN with full network node (NN) support in the Cisco router. This type of support provided the SNA routing functionality needed, but was inconsistent with the trends in Enterprise networks today. The corporate intranet is replacing the SNA WAN. Enterprises are replacing their traditional SNA network with an IP infrastructure that supports traffic from a variety of clients, using a variety of protocols, requiring access to applications on a variety of platforms, including SNA applications on enterprise servers.

While SNA routing is still required when multiple servers must be accessed, the number of nodes required to perform this function is decreasing as the IP infrastructure grows and as the amount of native SNA traffic in the network decreases.

SNASw enables an enterprise to develop their IP infrastructure, while meeting SNA routing requirements.

The number of NNs in the network and the amount of broadcast traffic are reduced. Configuration is simplified, and SNA data traffic can be transported within the IP infrastructure. The following features provide this functionality:

•High Performance Routing (HPR)-Capable SNA Routing Services

•Branch Extender

•Enterprise Extender (HPR/IP)

•Usability Features

•Management Enhancements

•LAN and IP-Focused Connection Types

High Performance Routing (HPR)-Capable SNA Routing Services

SNASw provides the following SNA routing functions:

•Routes SNA sessions between clients and target SNA data hosts.

•Supports full SNA class of service (COS) features.

•Controls SNA traffic in a multiprotocol environment in conjunction with other Cisco IOS quality of service (QOS) features.

•Supports networks with a high proportion of SNA traffic and multiple enterprise servers, especially those that continue to support the traditional SNA endstation platform and new client types.

•Supports all types of SNA application traffic including traditional 3270 and peer LU 6.2.

•Supports an OS/390 Parallel Sysplex configuration, working in conjunction with the IBM Communications Server for S/390 (formerly VTAM) and the MVS Workload Manager, to provide higher availability in the data center using the HPR feature.

•Supports System Services Control Point (SSCP) services to downstream SNA devices using the Dependent LU Requester (DLUR) feature.

•Provides dynamic link connectivity using connection networks (CNs), which eliminates much of the configuration required in networks with numerous data hosts.

Branch Extender

The Branch Extender (BEX) function enhances scalability and reliability of SNA routing nodes by eliminating topology updates and broadcast directory storms that can cause network instability. BEX appears as an NN to downstream end node (EN), low-entry networking (LEN) node, and PU 2.0 devices, while also appearing as an EN to upstream devices. The BEX function eliminates APPN topology and APPN broadcast search flows between SNASw nodes and the SNA data hosts in the network. This feature is key to providing a reliable turn-key installation because the network administrator no longer needs to develop in-depth knowledge of the level and characteristics of broadcast directory search and topology update traffic in the network. Such knowledge and analysis was commonly required to build successful networks utilizing NN technology without BEX.

SNASw enables BEX functionality by default. SNASw treats all defined links as BEX "uplinks" and all dynamic links created by stations connecting into SNASw as Branch Extender "downlinks." No specific configuration is necessary to enable BEX functionality.

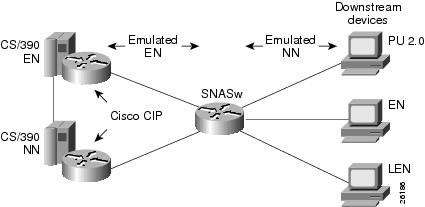

Figure 222 illustrates the BEX functionality.

Figure 222 BEX Functionality

Enterprise Extender (HPR/IP)

SNASw also supports the Enterprise Extender (EE) function. EE offers SNA HPR support directly over IP networks. EE also uses connectionless User Datagram Protocol (UDP) transport. SNA COS and transmission priority are maintained by mapping the transmission priority to the IP precedence and by mapping transmission priority to separate UDP port numbers, allowing the IP network to be configured based on these elements. Cisco's IP prioritization technologies, such as weighted fair queuing (WFQ), prioritize the traffic through the IP network. EE support on the IBM Communications Server for S/390 allows users to build highly reliable SNA routed networks that run natively over an IP infrastructure directly to the Enterprise servers. These network designs reduce points of failure in the network and provide reliable SNA networks.

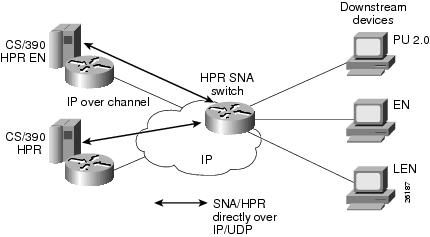

Figure 223 illustrates the EE functionality.

Figure 223 EE Functionality

Usability Features

SNASw contains the following usability features designed to make SNA networks easier to design and maintain:

•Dynamic CP Name Generation Support

•Dynamic SNA BTU Size

•DLUR Connect-Out

•Responsive Mode Adaptive Rate-Based Flow Control

•User-Settable Port Limits

Dynamic CP Name Generation Support

When scaling the SNASw function to hundreds or thousands of nodes, many network administrators find that defining a unique control point (CP) name on each node generates unnecessary configuration overhead. Dynamic CP name generation offers the ability to use the Cisco IOS hostname as the SNA CP name or to generate a CP name from an IP address. These facilities reuse one SNASw configuration across many routers and eliminate the specific configuration coordination previously required to configure a unique CP name for each SNA node in the network. Administrators can still explicitly configure the CPname within the SNASw configuration.

Dynamic SNA BTU Size

SNASw analyzes the maximum transmission unit (MTU) size of router interfaces configured for native LAN interfaces such as Token Ring, Ethernet and FDDI, and dynamically assigns the best MTU values for that specific port. For other interface types, SNASw provides the maximum BTU parameter in the port configuration. For server-dependent PU 2.0 devices, SNASw uses the downstream MAXDATA value from the host and then dynamically sets the SNA BTU for that device to the MAXDATA value.

DLUR Connect-Out

SNASw can receive connect-out instructions from the IBM Communications Server for S/390. This function allows the system to dynamically connect-out to devices that are configured on the host with the appropriate connect-out definitions. This feature allows connectivity to SNA devices in the network that were traditionally configured for connect-out from the host.

---

Note DLUR connect-out can be performed over any supported data-link type.

---

Responsive Mode Adaptive Rate-Based Flow Control

Early HPR implementations failed to perform well in environments subject to packet loss (for example, Frame Relay, IP transport) and performed poorly when combined with other protocols in multiprotocol networks. SNASw implements the second-generation HPR flow-control architecture, called Responsive Mode Adaptive Rate-Based (ARB) architecture. Responsive Mode ARB addresses all the drawbacks of the earlier ARB implementation, providing faster ramp-up, better tolerance of lost frames, and better tolerance of multiprotocol traffic.

User-Settable Port Limits

SNASw offers full control over the number of devices supported by a specific port. The max-links configuration on the SNASw port controls the number of devices that are served by this port. When the max-links limit is reached, SNASw no longer responds to test frames attempting to establish new connections. SNASw allows load sharing among different SNASw nodes that offer service to the same SNA MAC addresses.

Management Enhancements

SNASw contains the following enhanced tools for managing SNA networks:

•Console Message Archiving

•Data-Link Tracing

•Interprocess Signal Tracing

•Trap MIB Support for Advanced Network Management Awareness

Console Message Archiving

Messages issued by SNASw are archived in a buffer log that is queried and searched at the console or transferred to a file server for analysis. Each message has a single line that identifies the nature of the event that occurred. The buffer log also maintains more detailed information about the message issued.

Data-Link Tracing

SNA frames entering or leaving SNASw are traced to the console or to a cyclic buffer. These frames are analyzed at the router or transferred to a file server for analysis. The trace is sent to a file server in a SNA-formatted text file or in binary format readable by existing traffic analysis applications.

Interprocess Signal Tracing

The SNASw internal information is traced in binary form, offering valuable detailed internal information to Cisco support personnel. This information helps diagnose suspected defects in SNASw.

Trap MIB Support for Advanced Network Management Awareness

SNASw supports the APPN Trap Management Information Base (MIB), which proactively sends traps with information about changes in SNA resource status. This implementation reduces the frequency of SNMP polling necessary to manage SNA devices in the network.

LAN and IP-Focused Connection Types

SNASw supports several connection types to serve all SNA connectivity options, including the following types:

•Token Ring, Ethernet, and FDDI

•Virtual Token Ring

•Virtual Data-Link Control

•Native IP Data-Link Control (HPR/IP)

Token Ring, Ethernet, and FDDI

SNASw natively supports connectivity to Token Ring, Ethernet, and FDDI networks. In this configuration mode, the MAC address used by SNASw is the locally configured or default MAC address of the interface.

Virtual Token Ring

Using virtual Token Ring allows SNASw access to a source-route bridging (SRB) network, which allows the following configuration:

•Attachment to Local LANs

•Connection to Frame Relay Transport Technologies

•Connection to Channel Interface Processor and Channel Port Adapter

Attachment to Local LANs

Virtual Token Ring allows you to connect to local LAN media through SRB technology. Virtual Token Ring and SRB allow SNASw to respond to multiple MAC addresses over the same physical interface. Because there is no limit to the number of virtual Token Ring interfaces that can connect to a specific LAN, you can configure multiple MAC addresses, which respond to SNA requests over the same LAN. When using native LAN support, SNASw responds only to requests that target the MAC address configured on the local interface.

Connection to Frame Relay Transport Technologies

Virtual Token Ring and SRB connect SNASw to a SNA Frame Relay infrastructure. FRAS host and SRB Frame Relay are configured to connect virtual Token Ring interfaces that offer SNASw support for Frame Relay boundary access node (BAN) or boundary network node (BNN) technology.

Connection to Channel Interface Processor and Channel Port Adapter

Virtual Token Ring and SRB can be used to connect SNASw to the Channel Interface Processor (CIP) or Channel Port Adapter (CPA) in routers that support those interfaces.

Virtual Data-Link Control

SNASw uses Virtual Data-Link Control (VDLC) to connect to data-link switching plus (DLSw+) transport and local switching technologies. VDLC is used for a number of connectivity options, including the following two:

•Transport over DLSw+ Supported Media

•DLC Switching Support for Access to SDLC and QLLC

Transport over DLSw+ Supported Media

Using VDLC, SNASw gains full access to the DLSw+ transport facilities, including DLSw+ transport over IP networks, DLSw+ transport over direct interfaces, and DLSw+ support of direct Frame Relay encapsulation (without using IP).

DLC Switching Support for Access to SDLC and QLLC

Through VDLC, SNASw gains access to devices connecting through synchronous data link control (SDLC) and qualified logical link control (QLLC). This access allows devices connecting through SDLC and QLLC access to SNASw.

Native IP Data-Link Control (HPR/IP)

SNASw support for the EE function provides direct HPR over UDP connectivity. This support is configured for any interface that has a configured IP address. HPR/IP uses the interface IP address as the source address for IP traffic originating from this node.

Benefits of SNASw

SNASw provides the following benefits:

Scalable APPN Networks

With the BEX function, the number of network nodes and the amount of broadcast traffic are reduced.

IP Infrastructure Support

Limiting SNASw routers to the data center and using the BEX function eliminates SNA broadcasts from the IP network. With EE, SNA traffic is routed using the IP routing infrastructure while maintaining end-to-end SNA services.

Reduced Configuration Requirements

By eliminating NNs and using the BEX function, configuration tasks are minimized. Additionally, Cisco has enhanced its auto-configuration capability to eliminate previously required commands.

Network Design Simplicity

By placing all SNA routers in the data center, fewer SNA routers are required, and they can be easily configured using virtually identical configurations.

Improved Availability

By adding Cisco-unique capabilities to connect-out and distribute traffic across multiple ports, access to resources is improved. Additionally, by supporting the newest HPR ARB flow control algorithm, bandwidth management for SNA traffic is improved.

Increased Management Capabilities

Two new traces, interprocess and data-link, provide an easier way to view SNASw activity. The APPN Trap MIB allows the user to notify the operator in event of a debilitating problem. Console message archiving provides better tracking of network activity. The ability to format traces so that they are readable by other management products simplifies network management because results are more readily available.

Architectural Compliance

SNASw interfaces with SNA implementations on the market: upstream NNs, ENs, LENs and PU 2.0. It also provides full DLUR support to allow dependent PU and LU traffic to flow over the APPN network to SNA data hosts.

Configuring SNASw

To configure SNASw in your network, perform the tasks discussed in the following sections. Because of the hierarchical nature of SNASw definitions, configure SNASw in the order specified. Definition of an SNASw CP name and at least one SNASw port are required. The other tasks are optional. Depending on your network, the optional tasks might need to be performed.

•Defining an SNASw Control Point Name (Required)

•Configuring a DLUS (Optional)

•Configuring DLC Support (Optional)

•Defining an SNASw Port (Required)

•Defining an SNASw Link (Optional)

•Defining an SNASw Partner LU Location (Optional)

•Starting SNASw and SNASw Ports and Links (Optional)

•Stopping SNASw and SNASw Ports and Links (Optional)

Defining an SNASw Control Point Name

An SNASw CP definition is required to use SNASw. This definition adds the fully-qualified CP name for the node. The fully-qualified CP name for the node is a combination of a network identifier and a CP name. The network identifier is typically configured to match the identifier configured in the SNA hosts in the network. The CP name identifies this node uniquely within the particular subnetwork.

To define an SNASw CP name, use the following command in global configuration mode:

Command	Purpose
Router# snasw cpname netid.cpname [hostname] [ip-address interface-name]	Defines an SNASw CP name.



---

Note Configuring a CP name activates SNASw. Conversely, removing a CP name definition deactivates it.

---

Configuring a DLUS

If you plan to provide services to dependent LUs connecting to this SNASw node, you will be using the DLUR functionality within SNASw. SNASw defaults to using its current active upstream Network Node Server (NNS) as the preferred Dependent LU Server (DLUS) for the node. To override this default and explicitly configure the DLUS name, configure the snasw dlus command. In addition, you can configure node-wide defaults for the DLUS and backup DLUS that this node contacts.

To specify DLUR or DLUS services for this CP name, use the following command in SNASw control point configuration mode:

Command	Purpose
Router# snasw dlus primary-dlus-name [backup backup-dlus-name] [prefer-active] [retry interval count] [once]	Specifies the parameters related to DLUR/DLUS functionality.

Configuring DLC Support

There are several ways that SNASw enables connectivity over different interface types. In the simplest cases, using automatically configured real LAN interfaces enables default interface definitions. SNASw is also capable of connecting to virtual interfaces that are not preconfigured on the router.

Virtual Token Ring interfaces are useful for connections to a CIP/CPA in the same router and for connectivity to Frame Relay transport solutions via SRB. Multiple virtual Token Ring interfaces allow SNASw to respond to multiple MAC addresses through the same real router LAN interface. Use the following commands to configure a virtual interface:

	Command	Purpose
Step 1	Router# interface Virtual-TokenRing number	Configures a virtual Token Ring interface to connect to an SRB infrastructure.
Step 2	Router# source-bridge vring bridge ring-group	Associates a virtual Token Ring interface with a source-route bridge group.
Step 3	Router# source-bridge spanning	Indicates this interface should respond to spanning-tree explorers.
Step 4	Router# mac-address mac-address	Configures a MAC address on a real or virtual LAN interface.

Defining an SNASw Port

An SNASw port definition associates SNA capabilities with a specific interface that SNASw will use. Each interface that is used for SNASw communications requires an SNASw port definition statement.

---

Note SNASw ports do not dynamically adjust to interface configuration changes that are made when SNASw is active. For example, if you change an interface MAC address or MTU, SNASw may not recognize the new value. If you want to make changes to an interface and want SNASw to adjust to the new interface changes, you may need to either delete and redefine the port that is using that interface or stop and restart SNASw.

---

A port can also be associated with the VDLC or HPR/IP features. The VDLC feature enables SNASw to send and receive traffic to other Cisco IOS software features such as DLSw+. If a port is associated with a VDLC interface, that port does not take an interface name as generally required by the snasw port command.

The HPR/IP feature establishes SNASw links over IP networks. If a port is associated with an HPR/IP interface, then you must configure the hpr-ip keyword first, followed by the interface name.

To associate a port with a specific interface, use the following command in global configuration mode:

Command	Purpose
Router# snasw port portname [hpr-ip | vdlc vring mac mac-address] [interfacename] [conntype nohpr | len | dyncplen] [dlus-required] [hpr-sap hpr-sap-value] [max-links link-limit-value] [sap sap-value] [vnname virtual-node-name] [nostart]	Specifies the DLCs used by SNASw.

---

Note The interface must be defined before the ports that use them are defined and activated.

---

---

Note SNASw analyzes the maximum transmission unit (MTU) size of router interfaces configured for native LAN interfaces such as Token Ring, Ethernet and FDDI, and dynamically assigns the best MTU values for that specific port. For other interface types, SNASw provides the maximum BTU parameter in the port configuration. For server-dependent PU 2.0 devices, SNASw uses the downstream MAXDATA value from the host and then dynamically sets the SNA BTU for that device to the MAXDATA value.

---

---

Caution Changing active SNASw interfaces might interrupt SNASw connections.

---

Defining an SNASw Link

In many cases, if the partner node is initiating the connection, a link definition is not necessary. A link definition is built dynamically when the partner node initiates the connection. Links typically need to be defined for upstream connectivity. Downstream devices initiate connectivity into SNASw; therefore, links should not be defined on SNASw to downstream devices.

In SNASw link configuration, you must associate the link with the SNASw port that it will use. For all traditional links, the snasw link command must be associated with a remote MAC address. The MAC address identifies the partner address to which SNASw attempts to establish a link. For all HPR/IP links, the command is associated with a remote IP address. The IP address identifies the partner address to which SNASw attempts to establish a link.

To define an SNASw logical link, use the following command in global configuration mode:

Command	Purpose
Router# snasw link linkname port portname [rmac mac-address | ip-dest ip-address] [rsap sap-value] [nns] [tgp [high | low | medium]] [nostart]	Defines an SNASw logical link.

Defining an SNASw Partner LU Location

The SNASw directory stores names of resources and their owners. Usually this information is learned dynamically using Locate searches. You might want to manually define the location of specific resources. SNASw is known for its dynamic capabilities, not its need for system definition. For this reason, and for easier management, define location names only when necessary.

When a LEN node connects into an SNASw node, SNASw dynamically learns the CP name of the LEN and places it in its directory. In addition, SNASw dynamically learns the LU names of all LUs on the LEN that initiate independent sessions. Only define the location when an ILU on a LEN device is not sharing the node's CP name and does not initiate the first session. In all other cases the LU's location will be learned dynamically.

To define a resource location, use the following command in global configuration mode:

Command	Purpose
Router# snasw location resource-name owning-cp cpname	Configures the location of a resource.

---

Note You must configure an owning CP for each partner LU configured. The owning CP is the CP name for the LEN node on which the partner resource resides. Location definitions are never required for resources located on NNs or NNs.

---

Starting SNASw and SNASw Ports and Links

SNASw starts automatically when a CP name is configured. SNASw ports and links are also automatically started once they are configured. If stopped, they can be restarted using one of the following privileged EXEC commands:

Command	Purpose
Router# snasw start	Starts SNASw.
Router# snasw start link linkname	Activates the specified SNASw link.
Router# snasw start port portname	Activates the specified SNASw port.

Stopping SNASw and SNASw Ports and Links

Unless otherwise defined with the nostart operand, SNASw and SNASw port and link definitions are started automatically when SNASw starts. To stop SNASw or to stop SNASw ports and links when making configuration changes or when resetting the ports or links, use one of the following commands in privileged EXEC mode:

Command	Purpose
Router# snasw stop	Deactivates SNASw.
Router# snasw stop link linkname	Deactivates the specified SNASw link.
Router# snasw stop port portname	Deactivates the specified SNASw port.

---

Note Removing a CP name definition stops SNASw.

---

Verifying SNASw

To verify that you have connectivity between SNASw and other nodes supporting APINGD transaction program, issue the ping sna command. To start an independent LU-LU session and send simple APINGD test data traffic, also issue the ping sna command.

Monitoring and Maintaining SNASw

You can monitor the status and configuration of SNASw by issuing any of the following commands in privileged EXEC mode:

Command	Purpose
Router# ping sna [-1] [-c consecutive packets] [-i number-iterations] [-m mode] [-n] [-r] [-s size][-t tpname] [-u userid -p password] destination	Initiates APPC session and executes the APING transaction program.
Router# show snasw class-of-service [brief | detail]	Displays the predefined COS definitions.
Router# show snasw connection-network [brief | detail]	Displays the connection networks (virtual nodes) currently known to SNASw.
Router# show snasw directory [name resourcenamefilter] [brief | detail]	Displays the SNASw directory entries.
Router# show snasw dlus [brief | detail]	Displays the SNASw DLUS objects.
Router# show snasw link [brief | detail] [cpname cpnamefilter] [name linknamefilter] [port portnamefilter] [rmac macfilter] [xid xidfilter]	Displays the SNASw link objects.
Router# show snasw lu [brief | detail][name luname] [pu puname]	Displays the SNASw dependent LUs.
Router# show snasw mode	Displays modes predefined to SNASw.
Router# show snasw node	Displays details of the SNASw operation.
Router# show snasw port [brief | detail] [name portnamefilter]	Displays the SNASw port objects.
Router# show snasw pu [brief | detail] [dlus dlusfilter] [name punamefilter]	Displays the SNASw PUs.
Router# show snasw rtp [brief | detail] [class-of-service cosname] [name connectionnamefilter] [tcid tcidconnection]	Displays the SNASw RTP connections.

Troubleshooting Tips

You can troubleshoot SNASw by issuing any of the following commands in privileged EXEC mode:

Command	Purpose
Router# ping sna netidid.remotelocationname	Initiates LU6.2 sessions with a named partner node.
Router# show snasw dlctrace [all | last | next] [brief | detail] [filter filter-string] [id recordid]	Displays the captured DLC trace information to the console.
Router# show snasw ipstrace [all | next | last] [filter filterstring] [id recordid]	Displays interprocess signal trace on the router console.
Router# show snasw pdlog [brief | detail] [all] [last] [next] [filter filterstring] [id recordid]	Displays entries in the cyclical problem determination log to the console.
Router# show snasw summary-ipstrace [id recordid] [last number-records | filter number-records | all | next | last]	Displays the special "footprint" summary interprocess signal trace on the router console.
Router# snasw dump	Initiates file transfer of SNASw trace files from internal buffers to a file server.

You can also troubleshoot SNASw by issuing any of the following commands in global configuration mode:

Command	Purpose
Router# snasw dlcfilter [link linkname] [port portname] [rmac mac-address-value] [rtp rtpname] [[type [cls] [hpr-cntl] [hpr-data] [isr] [xid]] [session session address]	Filters frames captured by the snasw dcltrace or debug snasw dlc commands.
Router# snasw dlctrace [buffer-size buffer-size-value] [file filename] [frame-size frame-size-value] [format brief | detail | analyzer]	Traces frames arriving at and leaving SNASw.
Router# snasw event [cpcp] [dlc] [implicit-ls] [port]	Indicates which events are logged to the console.
Router# snasw ipsfilter [as] [asm] [bm] [ch] [cpc] [cs] [di] [dlc] [dma] [dr] [ds] [es] [ha] [hpr] [hs] [lm] [mds] [ms] [nof] [pc] [ps] [pu] [px] [rm] [rtp] [ru] [scm] [sco] [sm] [spc] [ss] [trs]	Filters interprocess signal trace elements being traced via the snasw ipstrace or debug snasw ips commands.
Router# snasw ipstrace [buffer-size buffer-size-value] [file filename]	Sets up a trace buffer and begins tracing IPS trace elements.
Router# snasw pdlog [problem | error | info] [buffer-size buffer-size-value] [file filename]	Controls logging of messages to the console and the SNA problem determination log cyclic buffer.

SNASw Configuration Examples

This section provides the following configuration examples:

•SNASw over Token Ring without HPR Configuration Example

•SNASw over Token Ring with HPR Configuration Example

•SNASw Connecting to a CIP over Virtual Token Ring with SRB Configuration Example

•SNASw over HPR/IP Configuration Example

•SNASw Using Local Switching with QLLC Configuration Example

•SNASw using Local Switching with SDLC Configuration Example

•SNASw with Ethernet LAN Emulation over ATM Configuration Example

•SNASw with SRB Frame Relay (Frame Relay BAN Support) Configuration Example

•SNASw with FRAS Host (Downstream Frame Relay BNN Support) Configuration Example

•SNASw Connecting VTAM to the CIP Using CMPC Configuration Example vs APPN Connecting VTAM to the CIP Using CMPC Configuration Example

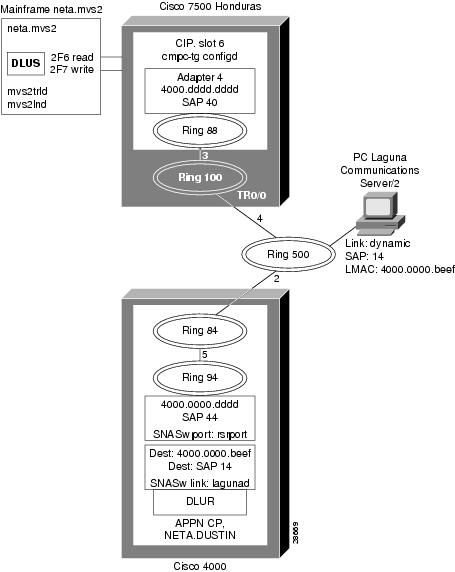

•SNASw Connecting to VTAM on a Remote Router with DLUR Using CMPC vs APPN Connecting to VTAM on a Remote Router with DLUR Using CMPC Example

•SNASw Dial-out to a DLUR Downstream Configuration Example

SNASw over Token Ring without HPR Configuration Example

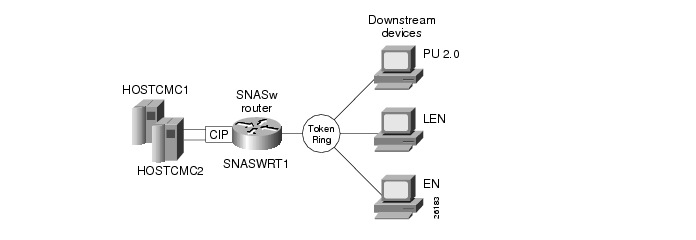

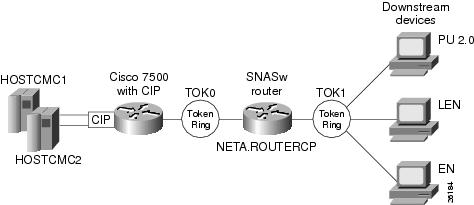

Figure 224 illustrates a basic SNASw link over Token Ring without HPR. In this figure, Port TOK0 is used for upstream links toward the host, and Port TOK1 is used for downstream devices connecting to SNASw. These devices are configured to connect to 4000.1234.abcd. The conntype nohpr operand is designed to turn off HPR capabilities on upstream and downstream links.

Figure 224 SNASw over Token Ring without HPR

The configuration for SNASw over Token Ring without HPR is as follows:

interface TokenRing0/0

 no ip address

 no ip directed-broadcast

 no ip route-cache

 no ip mroute-cache

 ring-speed 16

interface TokenRing0/1

 mac-address 4000.1234.abcd

 no ip address

 no ip directed-broadcast

 no ip route-cache

 no ip mroute-cache

 ring-speed 16

snasw cpname NETA.ROUTERCP

snasw dlus NETA.HOSTCMC1 backup NETA.HOSTCMC2

snasw port TOK0 TokenRing0/0 conntype nohpr

snasw port TOK1 TokenRing0/1 conntype nohpr

snasw link HOSTCMC1 port TOK0 rmac 4000.aaaa.cccc

snasw link HOSTCMC2 port TOK0 rmac 4000.aaaa.dddd

SNASw over Token Ring with HPR Configuration Example

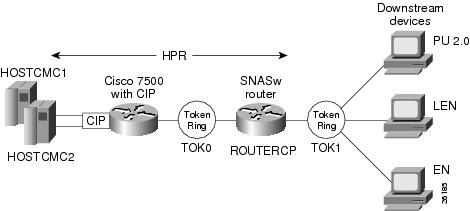

Figure 225 illustrates a basic SNASw link over Token Ring with HPR support. In this figure, Port TOK0 is used for upstream links toward the host, and Port TOK1 is used for downstream devices connecting to SNASw. These devices are configured to connect to 4000.1234.abcd.

Figure 225 SNASw over Token Ring with HPR

The configuration for SNASw over Token Ring allowing HPR is as follows:

interface TokenRing0/0

 no ip address

 no ip directed-broadcast

 no ip route-cache

 no ip mroute-cache

 ring-speed 16

interface TokenRing0/1

 mac-address 4000.1234.abcd

 no ip address

 no ip directed-broadcast

 no ip route-cache

 no ip mroute-cache

 ring-speed 16

snasw cpname NETA.ROUTERCP

snasw dlus NETA.HOSTCMC1 backup NETA.HOSTCMC2

snasw port TOK0 TokenRing0/0

snasw port TOK1 TokenRing0/1

snasw link HOSTCMC1 port TOK0 rmac 4000.aaaa.cccc

snasw link HOSTCMC2 port TOK0 rmac 4000.aaaa.dddd

SNASw Connecting to a CIP over Virtual Token Ring with SRB Configuration Example

In Figure 226, SNASw co-exists with CSNA CIP channel support in the same router. Two adapters are opened on the CIP, one from HOSTCMC1 on adapter 1 and one from HOSTCMC2 on adapter 2. SNASw is configured to connect these two hosts through port CIP via the SRB infrastructure. In addition, SNASw has two ports configured for downstream devices. Using this configuration, SNASw responds to downstream clients connecting to 4000.1234.1088 and 4000.1234.1089 through a single Token Ring interface (Token Ring 0/0). The router's hostname is used to derive an SNASw CP name, which is NETA.SNASWRT1.

Figure 226 SNASw Connecting to a CIP over Virtual Token Ring with SRB

The configuration for SNASw connecting to a CIP over virtual Token Ring with SRB is as follows:

hostname snaswrt1

!

source-bridge ring-group 100

source-bridge ring-group 200

!

interface Channel2/1

 no ip address

 no keepalive

 csna E040 70

 csna E020 72

!

interface Channel2/2

 no ip address

 no keepalive

 lan TokenRing 0

 source-bridge 101 1 100

 adapter 0 4000.0000.cccc

 adapter 1 4000.0000.dddd

!

interface TokenRing0/0

 no ip address

 ring-speed 16

 source-bridge 201 1 200

 source-bridge spanning

!

interface Virtual-TokenRing0

 no ip address

 no ip directed-broadcast

 ring-speed 16

 source-bridge 102 1 100

 source-bridge spanning

!

interface Virtual-TokenRing1

 mac-address 4000.1234.1088

 no ip address

 no ip directed-broadcast

 ring-speed 16

 source-bridge 202 1 200

 source-bridge spanning

!

interface Virtual-TokenRing2

 mac-address 4000.1234.1089

 no ip address

 no ip directed-broadcast

 ring-speed 16

 source-bridge 203 1 200

!

snasw cpname NETA hostname

snasw dlus NETA.HOSTCMC1 backup NETA.HOSTCMC2

snasw port CIP Virtual-TokenRing0

snasw port DOWNSTRM Virtual-TokenRing1 conntype no-hpr

snasw port DOWNSTRM Virtual-TokenRing2 conntype no-hpr

snasw link HOSTCMC1 port CIP rmac 4000.0000.cccc

snasw link HOSTCMC2 port CIP rmac 4000.0000.dddd

SNASw over HPR/IP Configuration Example

Figure 227 illustrates a basic SNASw link over HPR/IP on the upstream connections to the host. The downstream devices connect through Token Ring 0/0.

Figure 227 SNASw over HPR/IP

The configuration for SNASw over HPR/IP is as follows:

interface Ethernet1/0

 ip address 172.18.49.28 255.255.255.0

 no ip directed-broadcast

 no ip route-cache

 no ip mroute-cache

!

interface TokenRing0/0

 mac-address 4000.1234.1088

 no ip address

 no ip directed-broadcast

 no ip route-cache

 no ip mroute-cache

 ring-speed 16

!

snasw cpname NETA.ROUTERCP

snasw dlus NETA.HOSTCMC1 backup NETA.CMCHOST2

snasw port HPRIP hpr-ip Ethernet1/0

snasw port TOK0 TokenRing0/0

snasw link HOSTCMC1 port HPRIP ip-dest 172.18.51.1

snasw link HOSTCMC2 port HPRIP ip-dest 172.18.51.2

SNASw Using Local Switching with QLLC Configuration Example

Figure 228 illustrates a basic SNASw link using local switching with QLLC.

Figure 228 SNASw using Local Switching with QLLC

---

Note This figure and example show only the configuration related to the downstream QLLC device. Upstream connectivity is not shown in this configuration.

---

The configuration for SNASw link using Local Switching with QLLC is as follows:

!

source-bridge ring-group 70

dlsw local-peer

!

interface Serial4/0

 no ip address

 no ip directed-broadcast

 encapsulation x25

 no ip mroute-cache

 no keepalive

 qllc accept-all-calls

 clockrate 19200

 qllc dlsw vmacaddr 4000.1111.1111 partner 4000.2222.2222

!

snasw cpname NETA.ROUTERCP

snasw port VDLCP vdlc 70 mac 4000.2222.2222 conntype nohpr

SNASw using Local Switching with SDLC Configuration Example

Figure 229 illustrates a basic SNASw link using local switching with SDLC.

Figure 229 SNASw using Local Switching with SDLC

---

Note This figure and example show only the configuration related to the downstream SDLC device. Upstream connectivity is not shown in this configuration.

---

The configuration for SNASw link using local switching with SDLC is as follows:

!

source-bridge ring-group 1689

dlsw local-peer

!

interface Serial1

 no ip address

 no ip directed-broadcast

 encapsulation sdlc

 no ip route-cache

 no ip mroute-cache

 no keepalive

 clockrate 9600

 sdlc role primary

 sdlc vmac 4000.3174.0000

 sdlc address C2

 sdlc sdlc-largest-frame C2 521

 sdlc xid C2 05DABBBA

 sdlc partner 4000.4500.00f0 C2

 sdlc dlsw C2

!

snasw cpname NETA.ROUTERCO

snasw port SDLC vdlc 1689 mac 4000.4500.00f0

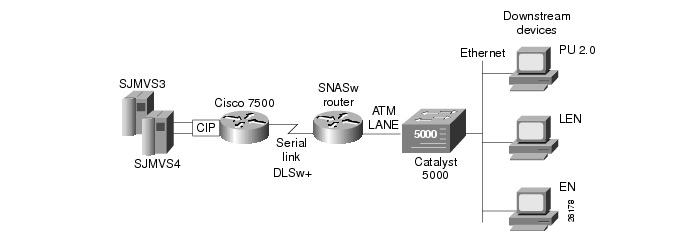

SNASw with Ethernet LAN Emulation over ATM Configuration Example

In Figure 230, downstream devices connect in SNASw over Asynchronous Transfer Mode (ATM) Ethernet LANE. Upstream connectivity is achieved using DLSw+ for connections to the host systems. Downstream devices connect to the standby MAC address on the ATM sub-interface.

Figure 230 SNASw with Ethernet LANE over ATM

The configuration for SNASw with Ethernet LANE over ATM is as follows:

!

source-bridge ring-group 111

dlsw local-peer peer-id 10.56.56.1 keepalive 10 promiscuous

dlsw remote-peer 0 tcp 10.56.56.2

!

interface ATM2/0

 mtu 1500

 no ip address

 no ip directed-broadcast

 atm clock INTERNAL

 atm pvc 1 0 5 qsaal

 atm pvc 2 0 16 ilmi

 atm pvc 60 1 36 aal5nlpid

 no atm ilmi-keepalive

!

interface ATM2/0.1 multipoint

 no ip directed-broadcast

 lane client ethernet RED

 no cdp enable

!

interface ATM2/0.2 multipoint

 ip address 10.10.50.60 255.255.255.0

 no ip redirects

 no ip directed-broadcast

 lane client ethernet BLUE

 no cdp enable

 standby 1 priority 200 preempt

 standby 1 authentication xxxx

 standby 1 mac-address 000b.e291.0000

 standby 1 ip 10.10.50.70

!

interface Serial3/1

 ip address 10.56.56.1 255.255.255.0

 no ip directed-broadcast

 encapsulation ppp

 no keepalive

 no fair-queue

 clockrate 56000

!

snasw cpname NETA.ROUTERCP

snasw dlus NETA.SJMVS3 backup NETA.HOSTCMC2

snasw port ATM202 ATM2/0.2 conntype nohpr

snasw port DLSWP vdlc 111 mac 4000.0189.0016 conntype nohpr

snasw link HOSTCMC1 port DLSWP rmac 4000.aaaa.cccc

snasw link HOSTCMC2 port DLSWP rmac 4000.aaaa.dddd

!

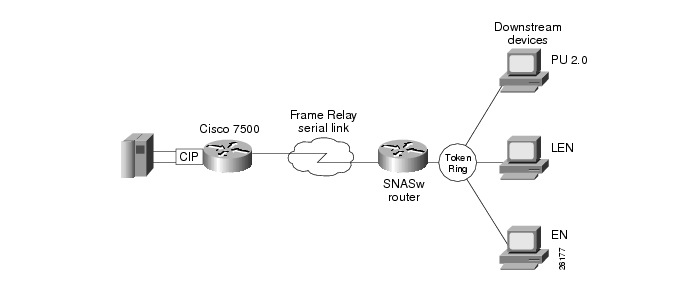

SNASw with SRB Frame Relay (Frame Relay BAN Support) Configuration Example

Figure 231 illustrates how to combine SNASw and SRB over Frame Relay functionality to provide native RFC 1490 connectivity over Frame Relay BAN. The host is configured to respond to 4000.aaaa.cccc through the Frame Relay connection over Serial1. Downstream would be configured to connect into Virtual TokenRing0.

Figure 231 SNASw with SRB Frame Relay (Frame Relay BAN Support)

The configuration for SNASw with SRB Frame Relay (Frame Relay BAN Support) is as follows:

source-bridge ring-group 100

source-bridge ring-group 200

!

interface TokenRing0

no ip address

no ip directed-broadcast

ring-speed 16

source-bridge 202 1 200

!

interface Virtual-TokenRing0

mac-address 4000.1234.1001

no ip address

no ip directed-broadcast

ring-speed 16

source-bridge 201 1 200

!

interface Serial1

 encapsulation frame-relay

!

interface serial 1.1 point-to-point

 frame-relay interface-dlci 30 ietf

 source-bridge 101 1 100

!

interface Virtual-TokenRing1

 mac-address 4000.1111.2222

 no ip address

 no ip directed-broadcast

 ring-speed 16

 source-bridge 102 1 100

 source-bridge spanning

!

snasw cpname NETA.ROUTERCP

snasw port frame virtual tokenring 1 conntype nohpr

snasw link HOSTFRAM port FRAME rmac 4000.aaaa.cccc

On the CIP router, configure the following:

source-bridge ring-group 300

interface serial 1/0

 encapsulation frame-relay

!

interface serial 1/0.1 point-to-point

 frame-relay interface 30 ieft

 source-bridge 101 1 300

!

interface channel 2/1

 no ip-address

 no keep alive

 csna E040 70

!

interface serial channel 2/2

 no ip-address

 no keep alive

lan tokenring 0

 source-bridge 301 1 300

 adapter 0 4000.aaaa.cccc

SNASw with FRAS Host (Downstream Frame Relay BNN Support) Configuration Example

Figure 232 illustrates how to connect a downstream Frame Relay BNN device (Frame Relay Access Device) over native RFC 1490 in SNASw.

Figure 232 SNASw with FRAS Host (Downstream Frame Relay BNN Support)

---

Note This figure and example show only the configuration related to downstream Frame Relay BNN Support. Upstream connectivity is not shown in this configuration segment.

---

The configuration SNASw with FRAS Host (Downstream Frame Relay BNN Support) is as follows:

source-bridge ring-group 200

interface serial 1/2

 no ip-address

 encapsulation frame-relay letf

 frame-relay map llc2 17

!

interface virtual-tokenring 0

 mac-address 4000.1234.1001

 ring-speed 16

 source-bridge 201 1 200

!

interface virtual-tokenring 1

 ring-speed 16

 source-bridge 202 1 200

 fras-host bnn serial 1/2 fr-lsap 04 umac 4000.1234.2002 hmac 4000.1234.1001

SNASw Connecting VTAM to the CIP Using CMPC Configuration Example vs APPN Connecting VTAM to the CIP Using CMPC Configuration Example

The following section compares the configuration of SNASw vs APPN connecting VTAM to the CIP using CMPC.

---

Note SNASw supersedes all functionality previously available in the APPN feature in the Cisco IOS software. SNASw configuration will not accept the previous APPN configuration commands and APPN is no longer supported. Previous APPN users should use this chapter to configure APPN functionality using the new SNASw commands.

---

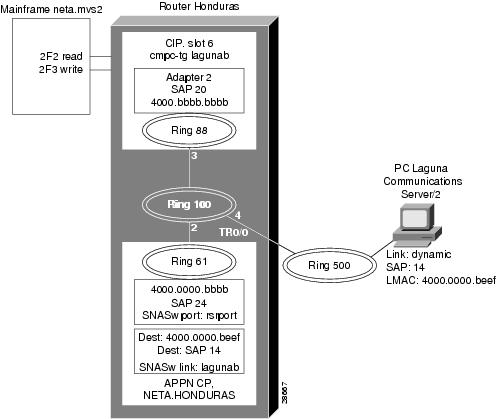

Figure 233 illustrates the VTAM connecting to SNASw on the CIP using CMPC.

Figure 233 Topology for VTAM-to-SNASw Connection on the CIP

Configuration for TRL Node LAGTRLB

LAGTRB   VBUILD TYPE=TRL

LAGTRLB  TRLE  LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0,                        X

               READ=(2F2),                                             X

               WRITE=(2F3)

Local SNA Major Node LAGLNB

LAGNNB   VBUILD TYPE=LOCAL

LAGPUB   PU    TRLE=LAGTRLB,                                           X

               ISTATUS=ACTIVE,                                         X

               XID=YES,CONNTYPE=APPN,CPCP=YES

Honduras Router

source-bridge ring-group 100

!

interface Channel6/1

 no ip address

 no keepalive

 cmpc C020 F2 LAGUNAB READ

 cmpc C020 F3 LAGUNAB WRITE

!

interface Channel6/2

 no ip address

 no keepalive

 lan TokenRing 0

  source-bridge 88 3 100

  adapter 2 4000.bbbb.bbbb

 lan TokenRing 2

 tg LAGUNAB  llc token-adapter 2  20 rmac 4000.0000.bbbb rsap 24

!

!

interface Virtual-TokenRing0

 mac-address 4000.0000.bbbb

 no ip address

 no ip directed-broadcast

 ring-speed 16

 source-bridge 61 2 100

!

snasw cpname NETA.HONDURAS

snasw port VTOK Virtual-TokenRing0

snasw link MVS2D port VTOK rmac 4000.bbbb.bbbb

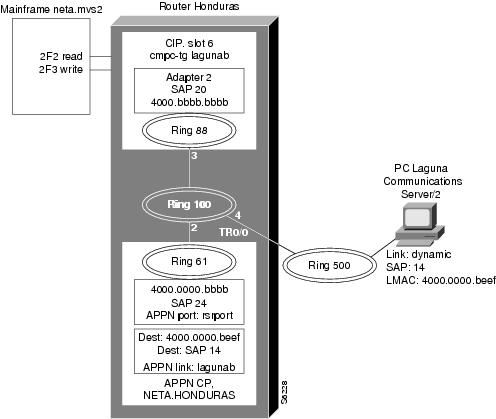

By comparison, Figure 234 illustrates the VTAM connecting to the APPN NN on the CIP using CMPC.

Figure 234 Topology for VTAM-to-APPN NN Configuration on the CIP

Configuration for TRL Node LAGTRLB

LAGTRB   VBUILD TYPE=TRL

LAGTRLB  TRLE  LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0,                        X

               READ=(2F2),                                             X

               WRITE=(2F3)
