Configuring the Cisco AS5300 Network Access Server

Network Topology, Hardware, and Software Parameters

Overview of Tasks

Task 1—Setting Up Basic Configuration Parameters

Step 1—Verifying the Startup Configuration

Step 2—Configuring the Host Name, Password, and Time Stamps

Verifying the Host Name, Password, and Time Stamp Configuration

Step 3—Configuring Local AAA Security

Verifying Local AAA Security Configuration

Task 2—Setting Up Asynchronous Shell Services

Step 1—Configuring the Fast Ethernet 100BaseT Interface

Verifying the Fast Ethernet 100BaseT Interface

Step 2—Configuring the T1 Controllers

Verifying the T1 Controller Configuration

Step 3—Configuring the Serial Channels to Let Modem Calls Come In

Verifying the Serial Channel Configuration

Step 4—Configuring the Modems and Lines

Verifying the Modem and Line Configuration

Step 5—Testing Async Shell Connections

Task 3—Setting Up Asynchronous PPP Services

Step 1—Setting Up IP Address Pools

Verifying IP Address Pool Configuration

Step 2—Configuring the Group-Async Interface

Verifying the Group-Async Interface Configuration

Step 3—Testing Async PPP Connections

Task 4—Setting Up Synchronous PPP Services

Step 1—Configuring Dial-on-Demand Routing

Verifying DDR Configuration

Step 2—Configuring Parameters for Remote LAN Sites

Verifying Remote LAN Site Definitions

Step 3—Configuring a Default Gateway (Backhaul) Routing Protocol

Verifying the Default Gateway (Backhaul) Routing Protocol Configuration

Step 4—Confirming the Final Running Configuration

Step 5—Saving the Configuration

Step 6—Testing Sync PPP Connections to Remote LANs

Step 7—Adding More Remote LAN Sites as Needed

Configuring the Cisco AS5300 Network Access Server

This chapter describes how to configure the Cisco AS5300 network access server (NAS) to receive calls from the Cisco 1604, Cisco 766, and remote modem users as presented in Chapter 1, "Dial Case Study Overview".

Network Topology, Hardware, and Software Parameters

In the network topology shown in Figure 2-1, the PRI telephone number assigned to the Cisco AS5300 at the central headquarters site (hq-sanjose) is 4085551234. This number is often called the hunt group number, which distributes calls among the available B channels. All four PRI trunks on the Cisco AS5300 are assigned to this number by the PRI provider. The directory numbers for the remote devices are configured on the Cisco AS5300 and then, subsequently configured on the remote devices themselves.

The subnet 10.1.2.0 255.255.255.0 is configured on the Cisco AS5300 and is used for the loopback interface and the local IP address pools as described in Chapter 1, "Dial Case Study Overview".

Figure 2-1 Case Study Scenario Network Topology from the Perspective of the Cisco AS5300

Table 2-1 provides detailed information about each end of the connection. This is the network administrator's top-level design table and is used in conjunction with the network topology diagram shown in Figure 2-1 for planning and organizing the network.

Table 2-1 Case Study Network Device Characteristics

Site Hardware

WAN IP Address

Ethernet IP Address

Assigned Phone Number

Host Name/

User Name

Username
Password

Cisco AS5300

10.1.254.1 255.255.255.0
Dialer Interface

10.1.1.10 255.255.255.0

4085551234

hq-sanjose

hq-sanjose-pw

Cisco AS5300

10.1.2.0
255.255.255.0
Loopback Interface

Cisco 1604

10.1.254.4 255.255.255.0

10.1.4.1 255.255.255.0

Directory number = 5125554433

robo-austin

austin-pw

Cisco 766

10.1.254.3 255.255.255.0

10.1.3.1 255.255.255.0

Directory number = 5305558084

soho-tahoe

tahoe-pw

Note Be sure to use your own host names and passwords. For example, hq-sanjose, soho-tahoe, and tahoe-pw are for this case study only.

Overview of Tasks

Do the following tasks to configure the Cisco AS5300 network access server (NAS):

Task 1—Setting Up Basic Configuration Parameters:

Step 1—Verifying the Startup Configuration

Step 2—Configuring the Host Name, Password, and Time Stamps

Step 3—Configuring Local AAA Security

Task 2—Setting Up Asynchronous Shell Services:

Step 1—Configuring the Fast Ethernet 100BaseT Interface

Step 2—Configuring the T1 Controllers

Step 3—Configuring the Serial Channels to Let Modem Calls Come In

Step 4—Configuring the Modems and Lines

Step 5—Testing Async Shell Connections

Task 3—Setting Up Asynchronous PPP services:

Step 1—Setting Up IP Address Pools

Step 2—Configuring the Group-Async Interface

Step 3—Testing Async PPP Connections

Task 4—Setting Up Synchronous PPP Services:

Step 1—Configuring Dial-on-Demand Routing

Step 2—Configuring Parameters for Remote LAN Sites

Step 3—Configuring a Default Gateway (Backhaul) Routing Protocol

Step 4—Confirming the Final Running Configuration

Step 5—Saving the Configuration

Step 6—Testing Sync PPP Connections to Remote LANs

Step 7—Adding More Remote LAN Sites as Needed

Task 1—Setting Up Basic Configuration Parameters

When you first power up the Cisco AS5300, it will have to be configured to your particular needs. Verify that you have a blank startup configuration, and configure it to your particular site needs by doing the following steps:

Step 1—Verifying the Startup Configuration

If the startup configuration running inside the Cisco AS5300 is blank, the following screen appears at bootup. The automatic setup script is engaged.
Copyright (c) 1994-1999 by cisco Systems, Inc.
AS5300 processor with 32768 Kbytes of main memory
program load complete, entry point: 0x80008000, size: 0xf4b10
Self decompressing the image : #################################################
################################################################################
################################################################################
################################################################################
################################################################################
################## [OK]
		Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
           cisco Systems, Inc.
           170 West Tasman Drive
           San Jose, California 95134-1706
Cisco Internetwork Operating System Software
IOS (tm) 5300 Software (C5300-JS-M), Version 12.0(5)
Copyright (c) 1986-1999 by cisco Systems, Inc.
Compiled Tue 07-Nov-99 15:26 by xxxx
Image text-base: 0x600088E8, data-base: 0x608F4000
cisco AS5300 (R4K) processor (revision A.04) with 32768K/8192K bytes of memory.
Processor board ID 04614948
R4700 processor, Implementation 33, Revision 1.0 (512KB Level 2 Cache)
Bridging software.
X.25 software, Version 3.0.0.
SuperLAT software copyright 1996 by Meridian Technology Corp).
TN3270 Emulation software.
Primary Rate ISDN software, Version 1.1.
Backplane revision 1
Manufacture Cookie is not programmed.
1 Ethernet/IEEE 802.3 interface(s)
1 FastEthernet/IEEE 802.3 interface(s)
96 terminal line(s)
4 Channelized T1/PRI port(s)
128K bytes of non-volatile configuration memory.
16384K bytes of processor board System flash (Read/Write)
4096K bytes of processor board Boot flash (Read/Write)
Cisco Internetwork Operating System Software
IOS (tm) 5300 Software (C5300-JS-M), Version 12.0(5),
Copyright (c) 1986-1999 by cisco Systems, Inc.
Compiled Tue 07-Nov-99 15:26 by xxx
00:00:50: %MICA-5-BOARDWARE_RUNNING: Slot 2 is running boardware version 2.5.0.8
--- System Configuration Dialog ---
At any point you may enter a question mark '?' for help.
Use ctrl-c to abort configuration dialog at any prompt.
Default settings are in square brackets '[]'.
Would you like to enter the initial configuration dialog? [yes]: no
Press RETURN to get started!
Router>
Enter no when you are asked the question, "Would you like to enter the initial configuration dialog? [yes]: "
Would you like to enter the initial configuration dialog? [yes]: no
Press RETURN to get started!
Router>
In this case study, the Cisco AS5300 is manually configured by using the Cisco IOS software. The automatic setup script is not used.

Note Enter the show version command to see if the access server is recognizing all its modem cards. For example, the output field "96 terminal line(s)" indicates that the chassis can find all 96 integrated modems.

Step 2—Configuring the Host Name, Password, and Time Stamps

Assign a host name to the Cisco AS5300, enable basic security, and turn on timestamping.

•Assigning a host name helps you to distinguish between different network devices.

•Enabling passwords helps you to prevent unauthorized configuration changes.

•Setting time stamps helps you to trace debug output for testing connections. Not knowing exactly when an event occurs hinders you from examining background processes.

To configure the host name, enable password, and time stamps, use the following steps beginning in user EXEC mode:

Step 1 Enter privileged EXEC mode.
Router> enable
Step 2 Enter global configuration mode. If the logging output generated by the access server interferes with your terminal screen, redisplay your current command line by using the Tab key.
Router# configure terminal
Enter configuration commands, one per line. End
with CNTL/Z.
Step 3 Assign a host name to the access server. The router prompt changes from Router(config)# to hq-sanjose(config)#. This host name is typically used during authentication with PPP peers.
Router(config)# hostname hq-sanjose
Step 4 Enter a secret enable password that secures privileged EXEC mode. Make sure to change "letmein" to your own secret password.
hq-sanjose(config)# enable secret letmein
Step 5 Encrypt passwords in the configuration file for greater security.
hq-sanjose(config)# service password-encryption
Step 6 Enable millisecond time stamping on debug and logging output. Time stamps are useful for detailed access troubleshooting.
hq-sanjose(config)# service timestamps debug datetime msec
hq-sanjose(config)# service timestamps log datetime msec
Verifying the Host Name, Password, and Time Stamp Configuration

Log in with your new enable password.

Step 1 Exit out of privileged EXEC mode by using the disable command. The prompt changes from hq-sanjose# to hq-sanjose>.

Step 2 Enter the enable command followed by your password.

Step 3 Enter the show privilege command to show the current security privilege level:
hq-sanjose# disable
hq-sanjose> enable
Password: letmein
hq-sanjose# show privilege
Current privilege level is 15
hq-sanjose#
Step 4 Enter the show running command to show the current running configuration:
hq-sanjose# show running
Building configuration...
Current configuration:
!
version 12.0(5)
service timestamps debug datetime msec
service timestamps log datetime msec
service password-encryption
!
hostname hq-sanjose
!
enable secret 5 $1$.voA$9/8.Zoil3jeWJMP6hEE6U0
!
----- snip ----
Tips

If you have trouble:

•Make sure the Caps Lock key is off.

•Make sure you have entered the correct passwords. Passwords are case sensitive.

•Password protection is very important. Enter the show tech-support command to report system configuration information to Cisco TAC:
hq-sanjose# show tech-support ?
  ipmulticast  IP multicast related information
  page         Page through output
  password     Include passwords
  rsvp         IP RSVP related information
  <cr>
Step 3—Configuring Local AAA Security

The Cisco IOS security model to use on all Cisco devices is authentication, authorization, and accounting (AAA). AAA provides the primary framework through which you set up access control on the access server.

•Authentication—Who are you?

•Authorization—What can you do?

•Accounting—What did you do?

In this case study, the same authentication method is used on all interfaces. AAA is set up to use the local database configured on the Cisco AS5300. This local database is created with the username configuration commands.

Note Although configuring your local AAA is not required here, it is considered "best practices" to do so when first setting up your router. Setting up this local AAA prevents unauthorized access and configuration changes.

To configure local AAA security, enter the following commands beginning in global configuration mode:

Note Make sure to change "joe-admin" to your own username and "joe-password" to your own password.

Step 1 Create a local login database and username for yourself. This step also prevents you from getting locked out of the access server.

hq-sanjose(config)# username joe-admin password joe-password

Step 2 Initiate the AAA access control system. This step immediately locks down login and PPP authentication.

hq-sanjose(config)# aaa new-model

Step 3 Configure AAA to perform login authentication by using the local username database. The login keyword authenticates shell/EXEC users.

hq-sanjose(config)# aaa authentication login default local

Step 4 Configure PPP authentication to use the local database if the session was not already authenticated by login.

hq-sanjose(config)# aaa authentication ppp default if-needed local

Note After you finish setting up basic security, you can enhance the security solution by extending it to an external TACACS+ or RADIUS server. This case study describes only local AAA security.

Verifying Local AAA Security Configuration

Step 1 Log in with your username:password.

Step 2 Enter the login command at the EXEC shell prompt. If you get in, the login authentication is working with your local username. Do not disconnect your access server session until you can log in successfully. (If you get locked out, recover your password by rebooting the access server.)
hq-sanjose# login
User Access Verification
Username: joe-admin
Password: joe-password
hq-sanjose#
Step 3 Enter the show running command to view the current configuration of the AAA parameters:
hq-sanjose# show running
Building configuration...
Current configuration:
!
version 12.0(5)
service timestamps debug datetime msec
service timestamps log datetime msec
service password-encryption
!
hostname hq-sanjose
!
aaa new-model
aaa authentication login default local
aaa authentication ppp default if-needed local
enable secret 5 $1$.voA$9/8.Zoil3jeWJMP6hEE6U0
!
username joe-admin password 7 <removed>
!
----- snip ----
Task 2—Setting Up Asynchronous Shell Services

When you have configured the preliminary parameters such as your host name, password, timestamps and local AAA security on the Cisco AS5300, you can then move on to setting up the asynchronous shell services, which provide access through the Cisco IOS CLI EXEC shell to terminal services (no PPP) for the following tasks:

•Changing passwords

•Accessing menus

•Troubleshooting modem connections

•Accessing other network resources with Telnet

Step 1—Configuring the Fast Ethernet 100BaseT Interface

Assign an IP address, line speed, and duplex mode to the Cisco AS5300's Fast Ethernet interface, which supports 10- and 100-Mbps speeds.

The default priority search order for autonegotiating the line speed is as follows:

1. 100Base-TX full duplex

2. 100Base-TX half duplex

3. 10Base-T full duplex

4. 10Base-T half duplex

To configure the Fast Ethernet 100Base-TX interface, enter the following commands beginning in global configuration mode:

Step 1 Configure the IP address and subnet mask on the Fast Ethernet interface.
hq-sanjose(config)# interface fastethernet 0
hq-sanjose(config-if)# ip address 10.1.1.10 255.255.255.0
Step 2 Set autonegotiation for the line speed based on the peer routers, hubs, and switch media.
hq-sanjose(config-if)# speed auto
Step 3 Set autonegotiation for duplex mode.
hq-sanjose(config-if)# duplex auto
Step 4 Bring up the interface. This command changes the state of the interface from administratively down to up.
hq-sanjose(config-if)# no shutdown
%LINK-3-UPDOWN: Interface FastEthernet0, changed state to up
Verifying the Fast Ethernet 100BaseT Interface

Step 1 Enter the show ip interface brief command to view the interface's status. The "up" field appears under the Status and Protocol columns in the displayed output. The fields "down" or "administratively down" indicate a connection problem:
hq-sanjose# show ip interface brief fastethernet 0
Interface          IP-Address       OK?       Method       Status        Protocol
FastEthernet0     10.1.1.10         YES       manual       up            up
Step 2 Ping a device in your network, such as a default gateway (backhaul router) or the backbone gateway:
hq-sanjose# ping 10.1.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.1.1.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 4/5/8 ms
Step 3 Enter the show interface fastethernet 0 command to see detailed interface information. Look for the display field "FastEthernet 0 is up, line protocol is up." This means that the access server sees its own sent and received keepalives.
hq-sanjose# show interface fastethernet 0
FastEthernet0 is up, line protocol is up
  Hardware is DEC21140AE, address is 00e0.1e6b.2ffb (bia 00e0.1e6b.2ffb)
  Internet address is 10.1.1.10 /24
  MTU 1500 bytes, BW 100000 Kbit, DLY 100 usec, rely 255/255, load 1/255
  Encapsulation ARPA, loopback not set, keepalive set (10 sec), auto duplex,
  100BaseTX/FX, auto speed
  ARP type: ARPA, ARP Timeout 04:00:00
  Last input 00:00:05, output 00:00:05, output hang never
  Last clearing of "show interface" counters never
  Queueing strategy: fifo
  Output queue 0/40, 0 drops; input queue 0/120, 0 drops
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 0 bits/sec, 0 packets/sec
     282 packets input, 68476 bytes, 0 no buffer
     Received 282 broadcasts, 0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
     0 watchdog, 0 multicast
     0 input packets with dribble condition detected
     176 packets output, 16936 bytes, 0 underruns
     0 output errors, 0 collisions, 0 interface resets
     0 babbles, 0 late collision, 0 deferred
     0 lost carrier, 0 no carrier
     0 output buffer failures, 0 output buffers swapped out
Step 4 Enter the show running command to view the current configuration of the FastEthernet 100BaseT interface:
hq-sanjose# show running
Building configuration...
Current configuration:
!
----- snip ----
!
interface FastEthernet0
 ip address 10.1.1.10 255.255.255.0
 no ip directed-broadcast
 no ip route-cache
 no ip mroute-cache
 duplex auto
 speed auto
!
----- snip ----
Tips

If you have trouble:

•Make sure the cable connections are not loose or disconnected.

•Make sure you are using the correct IP address.

•An auto-configuration of the Fast Ethernet interface may not work as expected if the Cisco device is connected to a third-party switch. Using the step-by-step configuration described above may be a good work-around if you have problems getting the interface to work.

Step 2—Configuring the T1 Controllers

Configure the Cisco AS5300's T1 controllers to allow calls to come into the NAS from the public switched telephone network (PSTN) cloud. You must specify the following information for each controller:

•Framing type

•Line code type

•Clock source

•Timeslot assignments

To configure the controllers, enter the following commands beginning in global configuration mode:

Step 1 Enter your telephone company's switch type. This example uses primary national ISDN 1.

hq-sanjose(config)# isdn switch-type primary-ni

Step 2 Enter controller configuration mode for the first T1 controller, which is 0. The controller ports are labeled 0 through 3 on the quad T1/PRI card.
hq-sanjose(config)# controller t1 0
Step 3 Enter the T1 framing type. This example uses extended super frame.
hq-sanjose(config-controller)# framing esf
Step 4 Enter the T1 line code type. This example uses B8ZS.
hq-sanjose(config-controller)# linecode b8zs
Step 5 Configure the access server to get its primary clock (timing signal) from the T1 line assigned to controller 0. Line clocking comes from the remote switch.
hq-sanjose(config-controller)# clock source line primary
Step 6 Assign all 24 T1 timeslots as ISDN PRI channels. After you enter this command, a D-channel serial interface is instantly created (for example S0:23, S1:23, and so on) in the configuration file and the individual B-channel serial interfaces (for example S0:0, S0:1, ...). The D-channel interface functions like a dialer for all the 23 B channels using the controller.
hq-sanjose(config-controller)# pri-group timeslots 1-24
Step 7 Exit back to global configuration mode.
hq-sanjose(config-controller)# exit
Step 8 Configure the second controller, controller T1 1. Set the clocking to secondary 1. If the line clocking from controller T1 0 fails, the Cisco AS5300 will receive its clocking from controller T1 1.
hq-sanjose(config#) controller t1 1
hq-sanjose(config-controller)# framing esf
hq-sanjose(config-controller)# linecode b8zs
hq-sanjose(config-controller)# clock source line secondary 1
hq-sanjose(config-controller)# pri-group timeslots 1-24
hq-sanjose(config-controller)# exit
Step 9 Configure the remaining two controllers. Cisco IOS Release 12.0 and later releases support use of the clock source line secondary x command. This enables the Cisco AS5300 to continue to receive clock (timing signal) from the telephone company or the next remaining controller if a previous controller goes down. This would not be possible if the remaining T1 controllers were set to internal.
hq-sanjose(config#) controller t1 2
hq-sanjose(config-controller)# framing esf
hq-sanjose(config-controller)# linecode b8zs
hq-sanjose(config-controller)# clock source line secondary 2
hq-sanjose(config-controller)# pri-group timeslots 1-24
hq-sanjose(config-controller)# exit
hq-sanjose(config#) controller t1 3
hq-sanjose(config-controller)# framing esf
hq-sanjose(config-controller)# linecode b8zs
hq-sanjose(config-controller)# clock source line secondary 3
hq-sanjose(config-controller)# pri-group timeslots 1-24
hq-sanjose(config-controller)# exit
hq-sanjose(config#)
Verifying the T1 Controller Configuration

Step 1 Enter the show controller t1 command. The output from this command enables you to determine when and where errors occur.

Note the display field "Data in current interval":
hq-sanjose# show controller t1
T1 0 is up.
  No alarms detected.
  Version info of slot 0:  HW: 2, Firmware: 16, PLD Rev: 0
Manufacture Cookie Info:
 EEPROM Type 0x0001, EEPROM Version 0x01, Board ID 0x42,
 Board Hardware Version 1.0, Item Number 73-2217-4,
 Board Revision A0, Serial Number 07557185,
 PLD/ISP Version 0.0, Manufacture Date 17-Dec-1997.
  Framing is ESF, Line Code is B8ZS, Clock Source is Line Primary.
  Data in current interval (25 seconds elapsed):
     0 Line Code Violations, 0 Path Code Violations
     0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
     0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
  Total Data (last 24 hours)
     0 Line Code Violations, 0 Path Code Violations,
     0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins,
     0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
T1 1 is up.
  No alarms detected.
  Version info of slot 0:  HW: 2, Firmware: 16, PLD Rev: 0
Manufacture Cookie Info:
 EEPROM Type 0x0001, EEPROM Version 0x01, Board ID 0x42,
 Board Hardware Version 1.0, Item Number 73-2217-4,
 Board Revision A0, Serial Number 07557185,
 PLD/ISP Version 0.0, Manufacture Date 17-Dec-1997.
  Framing is ESF, Line Code is B8ZS, Clock Source is Line Secondary 1.
  Data in current interval (827 seconds elapsed):
     0 Line Code Violations, 0 Path Code Violations
     0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
     0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
  Total Data (last 24 hours)
     0 Line Code Violations, 0 Path Code Violations,
     0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins,
     0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
T1 2 is administratively down.
  Transmitter is sending remote alarm.
  Receiver has loss of signal.
  Version info of slot 0:  HW: 2, Firmware: 16, PLD Rev: 0
Manufacture Cookie Info:
 EEPROM Type 0x0001, EEPROM Version 0x01, Board ID 0x42,
 Board Hardware Version 1.0, Item Number 73-2217-4,
 Board Revision A0, Serial Number 07557185,
 PLD/ISP Version 0.0, Manufacture Date 17-Dec-1997.
  Framing is ESF, Line Code is B8ZS, Clock Source is Line Secondary 2.
  Data in current interval (868 seconds elapsed):
     3 Line Code Violations, 0 Path Code Violations
     0 Slip Secs, 868 Fr Loss Secs, 2 Line Err Secs, 0 Degraded Mins
     0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 868 Unavail Secs
  Total Data (last 24 hours)
     182 Line Code Violations, 0 Path Code Violations,
     1 Slip Secs, 86400 Fr Loss Secs, 125 Line Err Secs, 0 Degraded Mins,
     0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 86400 Unavail Secs
T1 3 is administratively down.
  Transmitter is sending remote alarm.
  Receiver has loss of signal.
  Version info of slot 0:  HW: 2, Firmware: 16, PLD Rev: 0
Manufacture Cookie Info:
 EEPROM Type 0x0001, EEPROM Version 0x01, Board ID 0x42,
 Board Hardware Version 1.0, Item Number 73-2217-4,
 Board Revision A0, Serial Number 07557185,
 PLD/ISP Version 0.0, Manufacture Date 17-Dec-1997.
  Framing is ESF, Line Code is B8ZS, Clock Source is Line Secondary 3.
  Data in current interval (142 seconds elapsed):
     0 Line Code Violations, 0 Path Code Violations
     0 Slip Secs, 142 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
     0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 142 Unavail Secs
  Total Data (last 24 hours)
     12 Line Code Violations, 0 Path Code Violations,
     0 Slip Secs, 86400 Fr Loss Secs, 8 Line Err Secs, 0 Degraded Mins,
     0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 86400 Unavail Secs
Step 2 Enter the show controller t1 number command to view the statistics for a particular T1 controller.

If counters are increasing on a specific T1 controller, see the error statistics. Error counters are recorded for a 24-hour period in 15-minute intervals. You must specify a specific controller number to see this detailed information. Focus on the current interval.

In the following example, note that the frame loss and line errors present in data intervals 1 through 4 cleared in the current data interval.

Note Errors are reported to the controller's counters each time there is an error. Therefore, clear the counters by using the clear controller t1 number command before you look for current error statistics. Error counters stop increasing when the controller is configured correctly.
hq-sanjose# show controller t1 0
T1 0 is up.
  No alarms detected.
  Version info of slot 0:  HW: 2, Firmware: 16, PLD Rev: 0
Manufacture Cookie Info:
 EEPROM Type 0x0001, EEPROM Version 0x01, Board ID 0x42,
 Board Hardware Version 1.0, Item Number 73-2217-4,
 Board Revision A0, Serial Number 07557185,
 PLD/ISP Version 0.0, Manufacture Date 17-Dec-1997.
  Framing is ESF, Line Code is B8ZS, Clock Source is Line Primary.
  Data in current interval (72 seconds elapsed):
     0 Line Code Violations, 0 Path Code Violations
     0 Slip Secs, 0 Fr Loss Secs, 0 Line Err Secs, 0 Degraded Mins
     0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 0 Unavail Secs
  Data in Interval 1:
     0 Line Code Violations, 0 Path Code Violations
     0 Slip Secs, 405 Fr Loss Secs, 14 Line Err Secs, 0 Degraded Mins
     0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 405 Unavail Secs
  Data in Interval 2:
     0 Line Code Violations, 0 Path Code Violations
     0 Slip Secs, 450 Fr Loss Secs, 1 Line Err Secs, 0 Degraded Mins
     0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 450 Unavail Secs
  Data in Interval 3:
     0 Line Code Violations, 0 Path Code Violations
     0 Slip Secs, 450 Fr Loss Secs, 1 Line Err Secs, 0 Degraded Mins
     0 Errored Secs, 0 Bursty Err Secs, 0 Severely Err Secs, 450 Unavail Secs
-------------------------------- snip ------------------------------------------
Step 3 Enter the show running command to see the current configuration of all of the Cisco AS5300 T1 controllers:
hq-sanjose# show running
Building configuration...
Current configuration:
!
----- snip ----
!
isdn switch-type primary-ni
!
controller T1 0
 framing esf
 clock source line primary
 linecode b8zs
 pri-group timeslots 1-24
!
controller T1 1
 framing esf
 clock source line secondary 1
 linecode b8zs
 pri-group timeslots 1-24
!
controller T1 2
 framing esf
 clock source line secondary 2
 linecode b8zs
 pri-group timeslots 1-24
!
controller T1 3
 framing esf
 clock source line secondary 3
 linecode b8zs
 pri-group timeslots 1-24
!
----- snip ----
Tips

If you have trouble:

•Make sure the controller reports "up."

•Check if errors are reported in the current interval.

Step 3—Configuring the Serial Channels to Let Modem Calls Come In

Configure the D channels to allow incoming voice calls to be routed to the Cisco AS5300's integrated modems. The D channel is the signalling channel that controls the calls coming in on the ISDN B channels.

Later, in the section "Step 1—Configuring Dial-on-Demand Routing" in Task 4, the D-channel configuration can be expanded to also accept ISDN synchronous PPP calls from the remote offices. However, Cisco recommends getting only modem users configured and running at this stage in the process.

To configure the serial channels, enter the following commands beginning in global configuration mode:

Step 1 Access the configuration mode for the D-channel serial interface that corresponds to controller T1 0. The behavior of B channels S0:0 through S0:22 is controlled by the configuration instructions provided for S0:23. This concept is also true for the other remaining D-channel configurations.
hq-sanjose(config)# interface serial 0:23
Step 2 Enable analog modem voice calls coming in over the B channels to be connected to the integrated modems.
hq-sanjose(config-if)# isdn incoming-voice modem
hq-sanjose(config-if)# no shutdown
Step 3 Return to global configuration mode.
hq-sanjose(config-if)# exit
Step 4 Configure the three remaining D channels with the same settings.
hq-sanjose(config)# interface serial 1:23
hq-sanjose(config-if)# isdn incoming-voice modem
hq-sanjose(config-if)# no shutdown
hq-sanjose(config-if)# exit
hq-sanjose(config)# interface serial 2:23
hq-sanjose(config-if)# isdn incoming-voice modem
hq-sanjose(config-if)# no shutdown
hq-sanjose(config-if)# exit
hq-sanjose(config)# interface serial 3:23
hq-sanjose(config-if)# isdn incoming-voice modem
hq-sanjose(config-if)# no shutdown
hq-sanjose(config-if)# exit
hq-sanjose(config)#
Verifying the Serial Channel Configuration

Step 1 Enter the show interface serial 0:23 command to display the serial channel interface configuration.
hq-sanjose# show interface serial 0:23
Serial0:23 is up, line protocol is up (spoofing)
  Hardware is DSX1
  MTU 1500 bytes, BW 64 Kbit, DLY 20000 usec, rely 255/255, load 1/255
  Encapsulation PPP, loopback not set
  DTR is pulsed for 1 seconds on reset
  Last input 00:00:12, output 00:00:12, output hang never
  Last clearing of "show interface" counters never
  Input queue: 0/75/0 (size/max/drops); Total output drops: 0
  Queueing strategy: weighted fair
  Output queue: 0/1000/64/0 (size/max total/threshold/drops)
     Conversations  0/1/256 (active/max active/max total)
     Reserved Conversations 0/0 (allocated/max allocated)
     5 minute input rate 0 bits/sec, 0 packets/sec
     5 minute output rate 0 bits/sec, 0 packets/sec
     937 packets input, 19612 bytes, 0 no buffer
     Received 0 broadcasts, 0 runts, 2 giants, 0 throttles
     2 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort
     945 packets output, 4263 bytes, 0 underruns
     0 output errors, 0 collisions, 4 interface resets
     0 output buffer failures, 0 output buffers swapped out
     3 carrier transitions
  Timeslot(s) Used:24, Transmitter delay is 0 flags
The term "spoofing" means that the interface is presenting itself to the Cisco IOS software as up and operational. This interface can now receive routes. There are 23 more channels behind this interface that you do not see (for example, S0:0, S0:1, and so on). The D channel decides which serial channel (B channel) to assign to an incoming call.

Note The packet counters shown by the interface serial 0:23 command are for signalling traffic only. Data traffic passes through S0:0 through S0:22.

Step 2 Enter the show isdn status command to view the ISDN layer information.

This output shows that Layer 1 and Layer 2 are enabled and active and that there are no active Layer 3 ISDN calls.
hq-sanjose# show isdn status
The current ISDN Switchtype = primary-ni
ISDN Serial0:23 interface
    Layer 1 Status:
        ACTIVE
    Layer 2 Status:
        TEI = 0, State = MULTIPLE_FRAME_ESTABLISHED
    Layer 3 Status:
        No Active Layer 3 Call(s)
    Activated dsl 0 CCBs = 0
    Total Allocated ISDN CCBs = 0
ISDN Serial1:23 interface
    Layer 1 Status:
        ACTIVE
    Layer 2 Status:
        TEI = 0, State = MULTIPLE_FRAME_ESTABLISHED
    Layer 3 Status:
        No Active Layer 3 Call(s)
    Activated dsl 1 CCBs = 0
    Total Allocated ISDN CCBs = 0
ISDN Serial2:23 interface
    Layer 1 Status:
        ACTIVE
    Layer 2 Status:
        TEI = 0, State = MULTIPLE_FRAME_ESTABLISHED
    Layer 3 Status:
        No Active Layer 3 Call(s)
    Activated dsl 2 CCBs = 0
    Total Allocated ISDN CCBs = 0
ISDN Serial3:23 interface
    Layer 1 Status:
        ACTIVE
    Layer 2 Status:
        TEI = 0, State = MULTIPLE_FRAME_ESTABLISHED
    Layer 3 Status:
        No Active Layer 3 Call(s)
    Activated dsl 3 CCBs = 0
    Total Allocated ISDN CCBs = 0
Note the following information:

•Layer 1 Status should be "Active."

•Layer 2 Status should be "Multiple_Frame_Established." (It might take several seconds for Layer 2 status to appear.)

•Layer 3 Status should be "No Active Layer 3 Call(s)."

Step 3 Enter the show isdn service command to determine which channels have active calls and if all the individual channels are in service. In this example, note that there are 8 serial channels under each D channel that calls cannot use. T1 lines are used in this case study (not E1):
hq-sanjose# show isdn service
PRI Channel Statistics:
ISDN Se0:23, Channel (1-31)
  Activated dsl 0
  State (0=Idle 1=Propose 2=Busy 3=Reserved 4=Restart 5=Maint)
  0 0 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3 3 3 3 3 3 3 3
  Channel (1-31) Service (0=Inservice 1=Maint 2=Outofservice)
  0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2 2 2 2 2 2 2 2
ISDN Se1:23, Channel (1-31)
  Activated dsl 0
  State (0=Idle 1=Propose 2=Busy 3=Reserved 4=Restart 5=Maint)
  0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3 3 3 3 3 3 3 3
  Channel (1-31) Service (0=Inservice 1=Maint 2=Outofservice)
  0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2 2 2 2 2 2 2 2
ISDN Se2:23, Channel (1-31)
  Activated dsl 0
  State (0=Idle 1=Propose 2=Busy 3=Reserved 4=Restart 5=Maint)
  0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3 3 3 3 3 3 3 3
  Channel (1-31) Service (0=Inservice 1=Maint 2=Outofservice)
  0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2 2 2 2 2 2 2 2
ISDN Se3:23, Channel (1-31)
  Activated dsl 0
  State (0=Idle 1=Propose 2=Busy 3=Reserved 4=Restart 5=Maint)
  0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 3 3 3 3 3 3 3 3
  Channel (1-31) Service (0=Inservice 1=Maint 2=Outofservice)
  0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 2 2 2 2 2 2 2 2
Step 4 Enter the show ip interface brief command to view the individual serial B channel interfaces. In the following example, Serial 0:0 through Serial 0:22 are B channels and are associated to D channel Serial 0:23:
hq-sanjose# show ip interface brief
Interface              IP-Address      OK? Method Status                Protocol
Ethernet0              unassigned      YES NVRAM  administratively down down
FastEthernet0          10.1.1.10       YES manual up                    up
Serial0:0              unassigned      YES unset  down                  down
Serial0:1              unassigned      YES unset  down                  down
Serial0:2              unassigned      YES unset  down                  down
Serial0:3              unassigned      YES unset  down                  down
Serial0:4              unassigned      YES unset  down                  down
Serial0:5              unassigned      YES unset  down                  down
Serial0:6              unassigned      YES unset  down                  down
Serial0:7              unassigned      YES unset  down                  down
Serial0:8              unassigned      YES unset  down                  down
Serial0:9              unassigned      YES unset  down                  down
Serial0:10             unassigned      YES unset  down                  down
Serial0:11             unassigned      YES unset  down                  down
Serial0:12             unassigned      YES unset  down                  down
Serial0:13             unassigned      YES unset  down                  down
Serial0:14             unassigned      YES unset  down                  down
Serial0:15             unassigned      YES unset  down                  down
Serial0:16             unassigned      YES unset  down                  down
Serial0:17             unassigned      YES unset  down                  down
Serial0:18             unassigned      YES unset  down                  down
Serial0:19             unassigned      YES unset  down                  down
Serial0:20             unassigned      YES unset  down                  down
Serial0:21             unassigned      YES unset  down                  down
Serial0:22             unassigned      YES unset  down                  down
Serial0:23             unassigned      YES unset  down                  down
Step 5 Enter the show running command to see the current configuration of the D channels for the serial interfaces:
hq-sanjose# show running
Building configuration...
Current configuration:
!
---- snip ----
!
interface Serial0:23
 no ip address
 no ip directed-broadcast
 isdn incoming-voice modem
!
interface Serial1:23
 no ip address
 no ip directed-broadcast
 isdn incoming-voice modem
!
interface Serial2:23
 no ip address
 no ip directed-broadcast
 isdn incoming-voice modem
!
interface Serial3:23
 no ip address
 no ip directed-broadcast
 isdn incoming-voice modem
!
---- snip ----
Tips

If you have trouble:

•Be sure you have configured the correct ISDN switch type.

•Make sure no wires or cables are loose.

•The framing or line code types you entered might not match your telco's settings. A Layer 2 error indicates that the access server cannot communicate with the telco.

•Make sure the show controller t1 command's current output shows no errors.

Step 4—Configuring the Modems and Lines

Configure the Cisco AS5300 internal modems and asynchronous lines after the ISDN channels are operational. Each modem is directly mapped to a dedicated async line in the access server. After this configuration is set up, the Cisco AS5300 is ready to take modem calls.

The modem speed 115200 bps and hardware flow control are the defaults for the integrated modems.

To configure the Cisco AS5300's modems and asynchronous lines, enter the following commands beginning in global configuration mode:

Step 1 Enter the range of modem lines to configure. In this example, the Cisco AS5300 has 96 integrated modems.
hq-sanjose(config)# line 1 96
Step 2 Enable remote PPP users to dial in, bypass the EXEC facility, and automatically launch PPP on the line. This and the next autoselect command provide for transparent launching of shell and PPP services on the same lines.
hq-sanjose(config-line)# autoselect ppp
Step 3 Enter the autoselect during-login command to display the username:password prompt after modems connect.
hq-sanjose(config-line)# autoselect during-login
Step 4 Set the modems to support incoming and outgoing modem calls.
hq-sanjose(config-line)# modem inout
Verifying the Modem and Line Configuration

Step 1 Enter the show running command to verify the configuration of the modems and lines:
hq-sanjose# show running
Building configuration...
Current configuration:
---- snip ----
!
line 1 96
 autoselect during-login
 autoselect ppp
 modem InOut
---- snip ----
Step 2 Send a voice call to the access server by using a standard POTS telephone. If you hear modem squelch (tone) from the access server's internal modem, the configuration works. See Figure 2-2.

Figure 2-2 Case Study Lab Environment for Testing an Incoming Voice Call

Step 5—Testing Async Shell Connections

Now you are ready to send the first modem call into the Cisco AS5300. This step shows you how to do the test and track the asynchronous data path taken by a single modem call.

Do this test by using a shell service, which verifies that the physical async data path is working. This is the most efficient way to get quick test results in a simple test environment.

At this step, do not try to make complex services such as PPP-based Web browsing work, because you still need to configure other elements first. This step is provided to ensure that the basic modem link is functioning, and that you can access the shell/EXEC prompt remotely. To avoid problems, take a layered approach to building a network.

Figure 2-3 shows a test PC running a terminal emulation program, such as HyperTerminal. This program enables the test PC to make a modem-to-modem connection with the Cisco AS5300 over the PSTN network.

Figure 2-3 Case Study Lab Environment for Testing Async Shell Connections

Step 1 Enter the following debug commands on the Cisco AS5300 to debug calls coming in to the integrated modems.

These commands capture the call-switching module and ISDN connection messages:
hq-sanjose# debug modem csm
Modem Management Call Switching Module debugging is on
hq-sanjose# debug isdn q931
ISDN Q931 packets debugging is on
hq-sanjose# terminal monitor
% Console already monitors
Note The command terminal monitor is not required on the console, but would be required if you were using a Telnet connection into the access servers. If you are not on a console, you will need to type terminal monitor here.

Step 2 After you are finished with the test, turn off all debugging with the undebug all command.

Note The ISDN Q.931 messages display call information coming into the access server. The modem call-switching module captures the calls getting routed to the internal modems. The terminal monitor ensures that your EXEC session is receiving the logging and debug output.

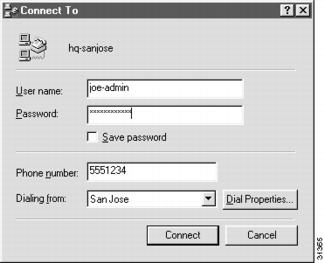

Step 3 From a terminal emulation program running on the test PC, enter atdt followed by the primary rate interface (PRI) phone number assigned to the Cisco AS5300. In this case test, 5551234 is used.

If the modem successfully connects, a connect message followed by the terminal service EXEC login prompt appears on the test PC.
atdt5551234
CONNECT 24000/REL - MNP
User Access Verification
Username: joe-admin
Password:
hq-sanjose>
Note The modem attached to the test PC sends out "CONNECT 24000/REL - MNP" The Cisco AS5300 sends out "User Access Verification," "Username:," and "Password:." These messages confirm that you have end-to-end async shell connectivity.

Interpret the debug messages that appear on the administrator's terminal screen as a result of Step 2. This debug output (shown after the comments) was created as the modem call came into the Cisco AS5300 NAS.

The following comments apply to the debug output example:

a. See 20:43:35.906 through 20:43:35.918.
The setup message is received. The bearer capability is a voice call as indicated by 0x8090A2. The calling party number is 5551111, the test PC's phone number. The called party number is 5551234, the NAS's dialed hunt group number.

b. See 20:43:35.938.
Modem 1/1 is assigned to the incoming voice call.

c. See 20:43:36.754 and 20:43:36.782.
The call successfully connects as indicated by the fields "TX -> CONNECT" and "RX <- CONNECT_ACK."

d. See 20:43:36.806.
The integrated modem waits to negotiate carrier with the remote modem.
*Mar  1 20:43:35.906: ISDN Se0:23: RX <-  SETUP pd = 8  callref = 0x0001
*Mar  1 20:43:35.906:         Bearer Capability i = 0x8090A2
*Mar  1 20:43:35.910:         Channel ID i = 0xA98381
*Mar  1 20:43:35.914:         Calling Party Number i = '!', 0x80, '5551111'
*Mar  1 20:43:35.918:         Called Party Number i = 0xA1, '5551234'
*Mar  1 20:43:35.934: EVENT_FROM_ISDN::dchan_idb=0x27C878, call_id=0xB, ces=0x1
   bchan=0x0, event=0x1, cause=0x0
*Mar  1 20:43:35.938: VDEV_ALLOCATE: slot 1 and port 1 is allocated.
*Mar  1 20:43:35.938: EVENT_FROM_ISDN:(000B): DEV_INCALL at slot 1 and port 1
*Mar  1 20:43:35.942: CSM_PROC_IDLE: CSM_EVENT_ISDN_CALL at slot 1, port 1
*Mar  1 20:43:35.946: Fast Ringing On at modem slot 1, port 1
*Mar  1 20:43:35.966: ISDN Se0:23: TX ->  CALL_PROC pd = 8  callref = 0x8001
*Mar  1 20:43:35.970:         Channel ID i = 0xA98381
*Mar  1 20:43:35.978: ISDN Se0:23: TX ->  ALERTING pd = 8  callref = 0x8001
*Mar  1 20:43:36.742: Fast Ringing Off at modem slot 1, port 1
*Mar  1 20:43:36.742: CSM_PROC_IC1_RING: CSM_EVENT_MODEM_OFFHOOK at slot 1, port 1
*Mar  1 20:43:36.754: ISDN Se0:23: TX ->  CONNECT pd = 8  callref = 0x8001
*Mar  1 20:43:36.782: ISDN Se0:23: RX <-  CONNECT_ACK pd = 8  callref = 0x0001
*Mar  1 20:43:36.798: EVENT_FROM_ISDN::dchan_idb=0x27C878, call_id=0xB, ces=0x1
   bchan=0x0, event=0x4, cause=0x0
*Mar  1 20:43:36.802: EVENT_FROM_ISDN:(000B): DEV_CONNECTED at slot 1 and port 1
*Mar  1 20:43:36.806: CSM_PROC_IC4_WAIT_FOR_CARRIER: CSM_EVENT_ISDN_CONNECTED at
 slot 1, port 1
Every Q.931 message indicates whether the message was transmitted by the Cisco AS5300 NAS (TX ->) or received by the NAS (RX <-). Table 2-2 shows the most common message types used for opening and closing connections. Information elements exist within each message type, as described in Table 2-3.

Table 2-2 Debug Q.931 ISDN Messages

Message Type

Description

SETUP

Indicates that a SETUP message has been received to initiate call establishment between PSTN end devices.

A key element to observe within the call setup message is the bearer capability.

CALL_PROC

Call proceeding. The network attempts to service the call. The switch is attempting to set up a call through the ISDN network backbone.

CONNECT

The called side transmits "CONNECT" when the connection is made. The side that transmits "CONNECT" is usually the side that receives the call, which is the called party.

CONNECT_ACK

Connect acknowledgment. Transmitted by the calling side to indicate that the "CONNECT" message was received.

DISCONNECT

Indicates that the transmitting side is ending the call. This messages indicates who dropped the call.

RELEASE

Indicates that the sending equipment is releasing the call and the associated channel.

RELEASE_COMP

Release complete. Indicates that the ISDN network has received the "RELEASE" message.

ISDN setup messages contain different information elements. See Table 2-3.

Table 2-3 Information Elements Within an ISDN Setup Message

Message

Description

Bearer Capability

Indicates what kind of service the caller is requesting. For example, a 64K data call is indicated by the bearer capability of 0x8890. An analog voice call is indicated by the value 0x8090A2.

pd

Indicates the protocol discriminator number, which is 8 for Q.931 messages.

callref

A number used by the access server and the switch to reference the call. Indicates the call reference number in hexadecimal format. The field value indicates the number of calls made from the router (outgoing calls) or the network (incoming calls). Note that the originator of the SETUP message sets the high-order bit of the call reference number to 0.

The destination of the connection sets the high-order bit to 1 in subsequent call control messages, such as the CONNECT message. For example, callref = 0x04 in the request becomes callref = 0x84 in the response.

Cause i

Indicates the Information Element Identifier. The value depends on the field with which it is associated. Refer to the ITU-T Q.931 specification for details about the possible values associated with each field for which this identifier is relevant.

Channel ID

Indicates the Channel Identifier. The value 83 indicates any channel, 89 indicates the B1 channel, and 8A indicates the B2 channel. For more information about the Channel Identifier, refer to ITU-T Recommendation Q.931.

Calling Party Number

Identifies the phone number of the device that initiated the call.

In this case study, 5551111 is the directory number assigned to the telephone line used by the test PC.

Called Party Number

Identifies the called phone number that is used to reach another device.

In this case study, 5551234 is the directory number assigned to the Cisco AS5300. The test PC dialed this number to make a modem connection.

Step 4 To determine the status of the modem call connected to the Cisco AS5300, enter the following modem management commands:

a. Enter the show user command to see which TTY line accepted the call:
hq-sanjose# show user
    Line     User         Host(s)                  Idle Location
*  0 con 0   joe-admin    idle                     0
   2 tty 2   joe-admin    Async interface          1
b. Enter the show line 2 command. Note that TTY 2 is associated with modem 1/1. The state is currently idle because this command was entered after the user disconnected:
hq-sanjose# show line 2
  Tty Typ     Tx/Rx     A Modem  Roty AccO AccI  Uses    Noise   Overruns
   2 TTY 115200/115200 - inout     -    -    -     0        0        0/0
Line 2, Location: "", Type: ""
Length: 24 lines, Width: 80 columns
Baud rate (TX/RX) is 115200/115200, no parity, 1 stopbits, 8 databits
Status: No Exit Banner
Capabilities: Hardware Flowcontrol In, Hardware Flowcontrol Out
  Modem Callout, Modem RI is CD
  Modem state: Idle
  modem(slot/port)=1/1, state=IDLE
  dsx1(slot/unit/channel)=NONE, status=VDEV_STATUS_UNLOCKED
Group codes:    0
Modem hardware state: CTS noDSR  DTR RTS
Special Chars: Escape  Hold  Stop  Start  Disconnect  Activation
                ^^x    none   -     -       none
Timeouts:      Idle EXEC    Idle Session   Modem Answer  Session   Dispatch
               00:10:00        never                        none     not set
                            Idle Session Disconnect Warning
                              never
                            Login-sequence User Response
                             00:00:30
                            Autoselect Initial Wait
   Tty Typ     Tx/Rx     A Modem  Roty AccO AccI  Uses    Noise   Overruns
                              not set
Modem type is unknown.
Session limit is not set.
Time since activation: never
Editing is enabled.
History is enabled, history size is 10.
DNS resolution in show commands is enabled
Full user help is disabled
Allowed transports are lat pad telnet rlogin v120.  Preferred is lat.
No output characters are padded
No special data dispatching characters
c. Enter the show modem log 1/1 command to view the information logged for modem 1/1. The time stamps show when the event occurred. The most current events begin at the bottom of the output:
hq-sanjose# show modem log 1/1
Modem 1/1 Events Log:
  20:40:45: Startup Response: Microcom (Managed)
            Modem (boot) firmware = 2.2(8) (1.0(5))
  ---- snip ----
  00:02:19: ISDN incoming calling number: 5551111
  00:02:19: ISDN incoming called number: 5551234
  00:02:13: Modem State event: Dialing/Answering
  00:02:13: Modem State event: Incoming ring
  00:02:13: Modem State event: Waiting for Carrier
  00:02:13: RS232 event: RTS  DTR  CTS  DSR  noDCD  noRI* noTST
  00:02:01: Modem State event: Connected
  00:02:01: Connection event: TX/RX Speed = 33600/33600, Modulation = V34
            Direction = Answer, Protocol = reliable/LAPM, Compression = V42bis
  00:02:02: RS232 event: RTS  DTR  CTS  DSR  DCD* noRI  noTST
  00:01:50: Modem Analog signal event: TX = -21, RX = -18, Signal to noise = 43
  00:00:15: DTR event: DTR Off
  00:00:15: Modem State event: Connected
  00:00:15: End connection event: Retransmits for EC block (TX/RX) = 0/0
            Duration = 0:01:43, Number of TX/RX char = 159/0
            Local Disc Reason = DTR Drop
            Remote Disc Reason = Unknown
  00:00:15: Modem State event: Disconnecting
  00:00:15: DTR event: DTR On
  00:00:15: RS232 event: RTS  DTR* CTS* DSR* noDCD* noRI* noTST*
d. Enter the show modem command. In the following example, the current active call is on modem 1/1, which is functioning properly at 100 percent. An active call is indicated by an asterisk (*):
hq-sanjose# show modem
                Inc calls     Out calls     Busied   Failed  No       Succ
  Mdm  Usage    Succ   Fail   Succ   Fail   Out      Dial    Answer   Pct.
  1/0     0%       0      0      0      0       0        0       0      0%
* 1/1     0%       1      0      0      0       0        0       0      100%
  1/2     0%       0      0      0      0       0        0       0      0%
  1/3     0%       0      0      0      0       0        0       0      0%
  1/4     0%       0      0      0      0       0        0       0      0%
  1/5     0%       0      0      0      0       0        0       0      0%
  1/6     0%       0      0      0      0       0        0       0      0%
  1/7     0%       0      0      0      0       0        0       0      0%
  1/8     0%       0      0      0      0       0        0       0      0%
  1/9     0%       0      0      0      0       0        0       0      0%
  1/10    0%       0      0      0      0       0        0       0      0%
  1/11    0%       0      0      0      0       0        0       0      0%
---- snip -----
e. Enter the show controller t1 0 call-counters command, which shows you the DS0 timeslot used to carry the modem call. This example shows that timeslot 1 has accepted one call for a total duration of 1 minute 30 seconds:
hq-sanjose# show controller t1 0 call-counters
T1 0:
  DS0's Active: 0
  DS0's Active High Water Mark: 0
  TimeSlot   Type   TotalCalls   TotalDuration
      1       pri           1       00:01:30
      2       pri           0       00:00:00
      3       pri           0       00:00:00
      4       pri           0       00:00:00
      5       pri           0       00:00:00
      6       pri           0       00:00:00
      7       pri           0       00:00:00
      8       pri           0       00:00:00
      9       pri           0       00:00:00
     10       pri           0       00:00:00
     11       pri           0       00:00:00
     12       pri           0       00:00:00
     13       pri           0       00:00:00
     14       pri           0       00:00:00
     15       pri           0       00:00:00
     16       pri           0       00:00:00
     17       pri           0       00:00:00
     18       pri           0       00:00:00
     19       pri           0       00:00:00
     20       pri           0       00:00:00
     21       pri           0       00:00:00
     22       pri           0       00:00:00
     23       pri           0       00:00:00
Total DS0's Active High Water Mark: 0
f. To further troubleshoot modem problems, connect to a modem's out-of-band management port:

–For Microcom modems, enter the modem at-mode slot/port command.

–For MICA modems, enter the show modem operational-status slot/port command and the show modem configuration slot/port command.
hq-sanjose# modem at-mode 2/15
You are now entering AT command mode on modem (slot 2 / port 15).
Please type CTRL-C to exit AT command mode.
at@e1
MNP Class 10 K56flex Modem
MODEM HW: OEM 2W United States
Firmware Rev 3.3.20/85
Bootstrap Rev 3.0.4
DSP C36 Part/Rev              3635 4241
DSP C58 Part/Rev              3635 2041
DSP Controller Rev            42
DSP Data Pump Rev             4.2
NET ADDR:      FFFFFFFFFFFF
Connect Time                  000:06:41
4 RTS 5 CTS 6 DSR 8 CD 20 DTR - RI
Disconnect  Remote -   Local -
Mod Type                      V.34
TX/RX Spd                     24000  26400 BPS
TX/RX Spd Mask                   NA  BFFF Hex
Symbol Rate                    3200 Hz
TX/RX Carrier Freq             1829  1829 Hz
TX/RX States                     16    16
TX/RX NLE                        ON    ON
TX/RX Precoding                  ON    ON
TX/RX Shaping                    ON    ON
TX Preemphasis Index              0
TX Lvl REG                     - 13 dBm
TX Lvl RAM                     -  0 dB
TX Lvl Reduct                     1 dB
TX Lvl                         - 14 dBm
RX Lvl                         - 19 dBm
S/NR                             42
S/DR                              0
EQM                            1C00 Hex
AVG EQM                        19BE Hex
Lower/Upper Edge                150  3675 Hz
Phase Jitter Freq               139 Hz
Phase Jitter Amp                0.0 deg
Far Echo Lvl                    138 N
Round Trip Delay                  0 msec
Dropouts > 5dB                    0
RTRNs Init/Accept                 0     0
RRENs Init/Accept                 0     0
BLER                           0000 Hex
RBS Counter                    0000 Hex
Digital Pad Detected           0 dB
Max SECRXB                     67
Max SECTXB                     67
V8BIS STATUS                  NAK
OK
Task 3—Setting Up Asynchronous PPP Services

Now that asynchronous shell services have been set up, you can set up the Cisco AS5300's asynchronous PPP services to provide IP and multiprotocol connectivity for remote node modem users and to support Internet applications available by using IP, such as:

•Email

•Web-browsing

•File Transfer Protocol (FTP)

•Telnet

Step 1—Setting Up IP Address Pools

To support remote nodes dialing in, create a pool of IP addresses on the Cisco AS5300. As remote node devices connect, they request an IP address from this central site.

Determine how your Internet/intranet backbone will route packets to the addresses in this IP address pool. There are several ways that this routing can be done, such as using addresses off a subnet defined on the Cisco AS5300 NAS (for example, on the loopback or Ethernet interface).

Note You can create a loopback interface and a new subnet if your existing Ethernet subnet has all its IP addresses already assigned. Loopback interfaces are very stable—they do not go up and down as LAN interfaces can.

To set up an IP address pool, enter the following commands in the Cisco AS5300 CLI beginning in global configuration mode:

Step 1 Create loopback interface 0.
hq-sanjose(config)# interface loopback 0
Step 2 Assign an IP subnet and address to loopback 0. This subnet is used to create your IP address pool and is now dedicated to the Cisco AS5300 for remote node support. You cannot use this subnet in other places in your network.
hq-sanjose(config-if)# ip address 10.1.2.1 255.255.255.0
Step 3 Return to global configuration mode.
hq-sanjose(config-if)# exit
Step 4 Create a pool of IP addresses for assignment to the remote nodes.
hq-sanjose(config)# ip local pool dialin_pool 10.1.2.2 10.1.2.97
Step 5 Specify the domain name servers on the network, which can be used for clients dialing in with PPP.
hq-sanjose(config)# async-bootp dns-server 10.2.2.3 10.2.3.1
Verifying IP Address Pool Configuration

Enter the show ip local pool command to verify the configuration:
hq-sanjose# show ip local pool
 Pool         Begin           End             Free    In use   Cache Size
 dialin_pool  10.1.2.2        10.1.2.97         96       0          20
Step 2—Configuring the Group-Async Interface

The group-async interface is a template that controls the configuration of all the async interfaces on the Cisco AS5300 NAS.

•Async interfaces are lines that are running in PPP mode.

•An async interface uses the same number as its corresponding line.

•Configuring the asynchronous interfaces as a group-async saves you time and configuration file size.

To configure the group-async interface, enter the following commands beginning in global configuration mode:

Step 1 Create the group-async interface.
hq-sanjose(config)# interface group-async 1
Step 2 To conserve IP address space, configure the asynchronous interfaces as unnumbered.
hq-sanjose(config-if)# ip unnumbered loopback 0
Step 3 Enable PPP.
hq-sanjose(config-if)# encapsulation ppp
Step 4 Configure the interactive mode on the asynchronous interfaces. Interactive means that users can dial in and get to a shell or PPP session on that line.
hq-sanjose(config-if)# async mode interactive
Step 5 Enable CHAP and PAP authentication on the interface during LCP negotiation. The Cisco AS5300 NAS first requests authentication with CHAP. If CHAP is rejected by the remote client, then PAP authentication is requested.
hq-sanjose(config-if)# ppp authentication chap pap
Step 6 Assign dial-in clients and IP addresses from the pool named dialin_pool.
hq-sanjose(config-if)# peer default ip address pool dialin_pool
Step 7 Disable the Cisco discovery protocol.
hq-sanjose(config-if)# no cdp enable
Step 8 Specify the range of asynchronous interfaces to include in the group, which is usually equal to the number of modems you have in the NAS.
hq-sanjose(config-if)# group-range 1 96
Verifying the Group-Async Interface Configuration

Enter the show running command to see the Cisco AS5300's current configuration. After completing Steps 1 through 8, the configuration looks like this:
hq-sanjose# show running
Building configuration...
Current configuration:
!
version 12.0
service timestamps debug datetime msec
service timestamps log datetime msec
service password-encryption
!
hostname hq-sanjose
!
aaa new-model
aaa authentication login default local
aaa authentication ppp default if-needed local
enable secret 5 $1$.voA$9/8.Zoil3jeWJMP6hEE6U0
!
username joe-admin password 7 <removed>
!
async-bootp dns-server 10.2.2.3 10.2.3.1
isdn switch-type primary-ni
!
!
controller T1 0
 framing esf
 clock source line primary
 linecode b8zs
 pri-group timeslots 1-24
!
controller T1 1
 framing esf
 clock source line secondary
 linecode b8zs
 pri-group timeslots 1-24
!
controller T1 2
 framing esf
 clock source internal
 linecode b8zs
 pri-group timeslots 1-24
!
controller T1 3
 framing esf
 clock source internal
 linecode b8zs
 pri-group timeslots 1-24
!
interface Loopback0
 ip address 10.1.2.1 255.255.255.0
 no ip directed-broadcast
!
interface Ethernet0
 no ip address
 no ip directed-broadcast
 no ip route-cache
 no ip mroute-cache
 shutdown
!
interface Serial0:23
 no ip address
 no ip directed-broadcast
 isdn incoming-voice modem
 no fair-queue
 no cdp enable
!
interface Serial1:23
 no ip address
 no ip directed-broadcast
 isdn incoming-voice modem
 no fair-queue
 no cdp enable
!
interface Serial2:23
 no ip address
 no ip directed-broadcast
 isdn incoming-voice modem
 no fair-queue
 no cdp enable
!
interface Serial3:23
 no ip address
 no ip directed-broadcast
 isdn incoming-voice modem
 no fair-queue
 no cdp enable
!
interface FastEthernet0
 ip address 10.1.1.10 255.255.255.0
 no ip directed-broadcast
 no ip route-cache
 no ip mroute-cache
 duplex auto
 speed auto
!
interface Group-Async1
 ip unnumbered Loopback0
 no ip directed-broadcast
 encapsulation ppp
 async mode interactive
 peer default ip address pool dialin_pool
 no cdp enable
 ppp authentication chap pap
 group-range 1 96
!
ip local pool dialin_pool 10.1.2.2 10.1.2.97
!
!
line con 0
line 1 96
 autoselect during-login
 autoselect ppp
 modem InOut
line aux 0
line vty 0 4
!
end
Step 3—Testing Async PPP Connections

Now you are ready to send the first async PPP modem call into the Cisco AS5300. Figure 2-4 shows a test PC making a PPP modem-to-modem connection with the Cisco AS5300 over the PSTN network.

Figure 2-4 Case Study Lab Environment for Testing Async PPP Connections

Step 1 Enter the following debug commands on the Cisco AS5300:

Note Debug only at the component level that you have built so far. Otherwise your terminal display will show all router signals, which at this stage will not provide much meaningful information.
hq-sanjose# debug ppp negotiation
PPP protocol negotiation debugging is on
hq-sanjose# debug ppp authentication
PPP authentication debugging is on
hq-sanjose# debug modem
Modem control/process activation debugging is on
hq-sanjose# debug ip peer
IP peer address activity debugging is on
hq-sanjose# show debug
General OS:
  Modem control/process activation debugging is on
Generic IP:
  IP peer address activity debugging is on
PPP:
  PPP authentication debugging is on
  PPP protocol negotiation debugging is on
hq-sanjose# terminal monitor
Step 2 From the dial-up networking software running on the test PC, use the "Connect to" dialog box to enter the telephone number assigned to the Cisco AS5300. In this example, 5551234 is used:

Figure 2-5 Dial Up Networking Dialog Box

Step 3 Press the Connect button to start the dial-in process.

Step 4 Interpret the debug messages that appear on your terminal screen as a result of Step 3. As the modem call comes into the Cisco AS5300 NAS, debug output is created.

Note When examining PPP between two remote peers, first check to see if both sides get through LCP negotiation. If they do, move on to check authentication. After authentication is successful, check IPCP negotiation.

The following comments apply to the debug output example that follows. Locate the time stamps in the debug output; then, interpret the call behavior.

a. See 21:34:56.958.
A modem call comes into the access server on TTY line 4.

b. See 21:34:59.722 through 21:34:59.734.
An incoming PPP frame is recognized, so PPP is sent on TTY line 4.

c. See 21:34:59.790.
The test PC gets assigned an IP address from the address pool set up on the NAS. The address is 10.1.2.2.

d. See 21:35:01.798.
Interface async 4 comes up. After PPP is sent, TTY line 4 becomes async interface 4.

e. See 21:35:02.718.
Incoming config request (I CONFREQ). The remote test PC requests a set of options to be negotiated. The PC asks the Cisco AS5300 to support the callback option.

f. See 21:35:02.738.
Outgoing config reject (O CONFREJ). The Cisco AS5300 rejects this option because the NAS is not configured to support Microsoft Callback in this case study.

g. See 21:35:02.850.
Incoming config request (I CONFREQ). The test PC requests a new set of options.

h. See 21:35:02.862.
Outgoing config acknowledgment (O CONFACK). The Cisco AS5300 accepts the new set of options.

i. See 21:35:03.978.
LCP is now open (LCP: State is Open). Both sides have acknowledged (CONFACK) the other side's configuration request (CONFREQ).

j. See 21:35:03.978.
After LCP negotiates, authentication starts. Authentication must happen before any network protocols, such as IP, are delivered. Both sides authenticate with the method negotiated during LCP. The Cisco AS5300 is authenticating the test PC by using CHAP. The test PC is not authenticating the Cisco AS5300 in this test case.

k. See 21:35:03.982.
Outgoing challenge from hq-sanjose.

l. See 21:35:04.162.
Incoming CHAP response from the test PC, which shows the username joe-admin.

m. See 21:35:04.182.
An outgoing success is sent from the NAS—authentication is successful.

n. See 21:35:04.186.
PPP is up. The Cisco AS5300 PPP link is now open and available to negotiate any network protocols supported by both peers.

o. See 21:35:04.314 through 21:35:04.322.
The test PC requests support for Microsoft Point-to-Point Compression (MPPC). The Cisco AS5300 rejects this request. The NAS's integrated modems already support hardware compression, and the Cisco IOS is not configured to support software compression.

p. See 21:35:07.274 through 21:35:07.478.
The primary and secondary DNS addresses are negotiated. At first, the test PC asks for 0.0.0.0. addresses. The Cisco AS5300 sends out a CONFNAK and supplies the correct values. Values include an IP address from the pool, the primary DNS address, and the backup DNS address.

q. See 21:35:07.426.
The test PC sends an incoming request saying that the new values are accepted. Whenever the Cisco AS5300 NAS sends out a CONFNAK that includes values, the test PC still needs to respond and report acceptance of the new values.

r. See 21:35:07.458 through 21:35:07.490.
An outgoing CONFACK is sent for IPCP. The state is open for IPCP. A route is negotiated for the IPCP peer, which is 10.1.2.2.
hq-sanjose#
*Mar  1 21:34:56.958: TTY4: DSR came up
*Mar  1 21:34:56.962: TTY4: Modem: IDLE->READY
*Mar  1 21:34:56.970: TTY4: EXEC creation
*Mar  1 21:34:56.978: TTY4: set timer type 10, 30 seconds
*Mar  1 21:34:59.722: TTY4: Autoselect(2) sample 7E
*Mar  1 21:34:59.726: TTY4: Autoselect(2) sample 7EFF
*Mar  1 21:34:59.730: TTY4: Autoselect(2) sample 7EFF7D
*Mar  1 21:34:59.730: TTY4: Autoselect(2) sample 7EFF7D23
*Mar  1 21:34:59.734: TTY4 Autoselect cmd: ppp negotiate
*Mar  1 21:34:59.746: TTY4: EXEC creation
*Mar  1 21:34:59.746: TTY4: create timer type 1, 600 seconds
*Mar  1 21:34:59.786: ip_get_pool: As4: using pool default
*Mar  1 21:34:59.790: ip_get_pool: As4: returning address = 10.1.2.2
*Mar  1 21:34:59.794: TTY4: destroy timer type 1 (OK)
*Mar  1 21:34:59.794: TTY4: destroy timer type 0
*Mar  1 21:35:01.798: %LINK-3-UPDOWN: Interface Async4, changed state to up
*Mar  1 21:35:01.834: As4 PPP: Treating connection as a dedicated line
*Mar  1 21:35:01.838: As4 PPP: Phase is ESTABLISHING, Active Open
*Mar  1 21:35:01.842: As4 LCP: O CONFREQ [Closed] id 1 len 25
*Mar  1 21:35:01.846: As4 LCP:    ACCM 0x000A0000 (0x0206000A0000)
*Mar  1 21:35:01.850: As4 LCP:    AuthProto CHAP (0x0305C22305)
*Mar  1 21:35:01.854: As4 LCP:    MagicNumber 0x64E923A8 (0x050664E923A8)
*Mar  1 21:35:01.854: As4 LCP:    PFC (0x0702)
*Mar  1 21:35:01.858: As4 LCP:    ACFC (0x0802)
*Mar  1 21:35:02.718: As4 LCP: I CONFREQ [REQsent] id 3 len 23
*Mar  1 21:35:02.722: As4 LCP:    ACCM 0x000A0000 (0x0206000A0000)
*Mar  1 21:35:02.726: As4 LCP:    MagicNumber 0x00472467 (0x050600472467)
*Mar  1 21:35:02.726: As4 LCP:    PFC (0x0702)
*Mar  1 21:35:02.730: As4 LCP:    ACFC (0x0802)
*Mar  1 21:35:02.730: As4 LCP:    Callback 6  (0x0D0306)
*Mar  1 21:35:02.738: As4 LCP: O CONFREJ [REQsent] id 3 len 7
*Mar  1 21:35:02.738: As4 LCP:    Callback 6  (0x0D0306)
*Mar  1 21:35:02.850: As4 LCP: I CONFREQ [REQsent] id 4 len 20
*Mar  1 21:35:02.854: As4 LCP:    ACCM 0x000A0000 (0x0206000A0000)
*Mar  1 21:35:02.854: As4 LCP:    MagicNumber 0x00472467 (0x050600472467)
*Mar  1 21:35:02.858: As4 LCP:    PFC (0x0702)
*Mar  1 21:35:02.858: As4 LCP:    ACFC (0x0802)
*Mar  1 21:35:02.862: As4 LCP: O CONFACK [REQsent] id 4 len 20
*Mar  1 21:35:02.866: As4 LCP:    ACCM 0x000A0000 (0x0206000A0000)
*Mar  1 21:35:02.870: As4 LCP:    MagicNumber 0x00472467 (0x050600472467)
*Mar  1 21:35:02.870: As4 LCP:    PFC (0x0702)
*Mar  1 21:35:02.874: As4 LCP:    ACFC (0x0802)
*Mar  1 21:35:03.842: As4 LCP: TIMEout: State ACKsent
*Mar  1 21:35:03.842: As4 LCP: O CONFREQ [ACKsent] id 2 len 25
*Mar  1 21:35:03.846: As4 LCP:    ACCM 0x000A0000 (0x0206000A0000)
*Mar  1 21:35:03.850: As4 LCP:    AuthProto CHAP (0x0305C22305)
*Mar  1 21:35:03.854: As4 LCP:    MagicNumber 0x64E923A8 (0x050664E923A8)
*Mar  1 21:35:03.854: As4 LCP:    PFC (0x0702)
*Mar  1 21:35:03.858: As4 LCP:    ACFC (0x0802)
*Mar  1 21:35:03.962: As4 LCP: I CONFACK [ACKsent] id 2 len 25
*Mar  1 21:35:03.966: As4 LCP:    ACCM 0x000A0000 (0x0206000A0000)
*Mar  1 21:35:03.966: As4 LCP:    AuthProto CHAP (0x0305C22305)
*Mar  1 21:35:03.970: As4 LCP:    MagicNumber 0x64E923A8 (0x050664E923A8)
*Mar  1 21:35:03.974: As4 LCP:    PFC (0x0702)
*Mar  1 21:35:03.974: As4 LCP:    ACFC (0x0802)
*Mar  1 21:35:03.978: As4 LCP: State is Open
*Mar  1 21:35:03.978: As4 PPP: Phase is AUTHENTICATING, by this end
*Mar  1 21:35:03.982: As4 CHAP: O CHALLENGE id 1 len 26 from "hq-sanjose"
*Mar  1 21:35:04.162: As4 CHAP: I RESPONSE id 1 len 26 from "joe-admin"
*Mar  1 21:35:04.170: As4 AUTH: Started process 0 pid 47
*Mar  1 21:35:04.182: As4 CHAP: O SUCCESS id 1 len 4
*Mar  1 21:35:04.186: As4 PPP: Phase is UP
*Mar  1 21:35:04.190: As4 IPCP: O CONFREQ [Not negotiated] id 1 len 10
*Mar  1 21:35:04.194: As4 IPCP:    Address 10.1.2.1 (0x03060A010201)
*Mar  1 21:35:04.282: As4 IPCP: I CONFREQ [REQsent] id 1 len 28
*Mar  1 21:35:04.282: As4 IPCP:    CompressType VJ 15 slots CompressSlotID (0x02
06002D0F01)
*Mar  1 21:35:04.286: As4 IPCP:    Address 0.0.0.0 (0x030600000000)
*Mar  1 21:35:04.290: As4 IPCP:    PrimaryDNS 0.0.0.0 (0x810600000000)
*Mar  1 21:35:04.298: As4 IPCP:    SecondaryDNS 0.0.0.0 (0x830600000000)
*Mar  1 21:35:04.306: As4 IPCP: O CONFREJ [REQsent] id 1 len 10
*Mar  1 21:35:04.310: As4 IPCP:    CompressType VJ 15 slots CompressSlotID (0x02
06002D0F01)
*Mar  1 21:35:04.314: As4 CCP: I CONFREQ [Not negotiated] id 1 len 15
*Mar  1 21:35:04.318: As4 CCP:    MS-PPC supported bits 0x00000001 (0x1206000000
01)
*Mar  1 21:35:04.318: As4 CCP:    Stacker history 1 check mode EXTENDED (0x11050
00104)
*Mar  1 21:35:04.322: As4 LCP: O PROTREJ [Open] id 3 len 21 protocol CCP
*Mar  1 21:35:04.326: As4 LCP:  (0x80FD0101000F12060000000111050001)
*Mar  1 21:35:04.330: As4 LCP:  (0x04)
*Mar  1 21:35:04.334: As4 IPCP: I CONFACK [REQsent] id 1 len 10
*Mar  1 21:35:04.338: As4 IPCP:    Address 10.1.2.1 (0x03060A010201)
*Mar  1 21:35:05.186: %LINEPROTO-5-UPDOWN: Line protocol on Interface Async4, ch
anged state to up
*Mar  1 21:35:07.274: As4 IPCP: I CONFREQ [ACKrcvd] id 2 len 22
*Mar  1 21:35:07.278: As4 IPCP:    Address 0.0.0.0 (0x030600000000)
*Mar  1 21:35:07.282: As4 IPCP:    PrimaryDNS 0.0.0.0 (0x810600000000)
*Mar  1 21:35:07.286: As4 IPCP:    SecondaryDNS 0.0.0.0 (0x830600000000)
*Mar  1 21:35:07.294: As4 IPCP: O CONFNAK [ACKrcvd] id 2 len 22
*Mar  1 21:35:07.298: As4 IPCP:    Address 10.1.2.2 (0x03060A010202)
*Mar  1 21:35:07.302: As4 IPCP:    PrimaryDNS 10.2.2.3 (0x81060A020203)
*Mar  1 21:35:07.310: As4 IPCP:    SecondaryDNS 10.2.3.1 (0x83060A020301)
*Mar  1 21:35:07.426: As4 IPCP: I CONFREQ [ACKrcvd] id 3 len 22
*Mar  1 21:35:07.430: As4 IPCP:    Address 10.1.2.2 (0x03060A010202)
*Mar  1 21:35:07.434: As4 IPCP:    PrimaryDNS 10.2.2.3 (0x81060A020203)
*Mar  1 21:35:07.442: As4 IPCP:    SecondaryDNS 10.2.3.1 (0x83060A020301)
*Mar  1 21:35:07.446: ip_get_pool: As4: validate address = 10.1.2.2
*Mar  1 21:35:07.450: ip_get_pool: As4: using pool default
*Mar  1 21:35:07.450: ip_get_pool: As4: returning address = 10.1.2.2
*Mar  1 21:35:07.454: set_ip_peer_addr: As4: address = 10.1.2.2 (3) is redundant
*Mar  1 21:35:07.458: As4 IPCP: O CONFACK [ACKrcvd] id 3 len 22
*Mar  1 21:35:07.462: As4 IPCP:    Address 10.1.2.2 (0x03060A010202)
*Mar  1 21:35:07.466: As4 IPCP:    PrimaryDNS 10.2.2.3 (0x81060A020203)
*Mar  1 21:35:07.474: As4 IPCP:    SecondaryDNS 10.2.3.1 (0x83060A020301)
*Mar  1 21:35:07.478: As4 IPCP: State is Open
*Mar  1 21:35:07.490: As4 IPCP: Install route to 10.1.2.2
hq-sanjose# undebug all
All possible debugging has been turned off
Step 5 After you finish testing, enter the undebug all command to turn off all debugging.

Task 4—Setting Up Synchronous PPP Services

Set up the synchronous PPP services to provide IP and multiprotocol connectivity for BRI and PRI attached remote sites and to support Internet applications available by using IP such as:

•Email

•Web-browsing

•File Transfer Protocol (FTP)

•Telnet

Note Terminal services through a shell are not available to synchronous link users (for example, ISDN routers and terminal adapters through a BRI channel).

Step 1—Configuring Dial-on-Demand Routing

Dial-on-demand routing (DDR):

•Provides a mechanism to establish and maintain connectivity over a circuit-switched network, such as the PSTN.

•Supports remote LANs by maintaining IP routes to the remote sites when they are not connected.

To configure the Cisco AS5300's dialer interfaces, enter the following commands beginning in global configuration mode:

Step 1 Create interface dialer 1 and enable IP routing.
hq-sanjose(config)# interface dialer 1
hq-sanjose(config-if)# ip address 10.1.254.1 255.255.255.0
Step 2 Exit back to global configuration mode.
hq-sanjose(config-if)# exit
Step 3 Group the serial 0 channel into dialer 1.
hq-sanjose(config)# interface serial 0:23
hq-sanjose(config-if)# dialer rotary-group 1
hq-sanjose(config-if)# exit
Step 4 Group the remaining serial channels into dialer 1.
hq-sanjose(config)# interface serial 1:23
hq-sanjose(config-if)# dialer rotary-group 1
hq-sanjose(config-if)# exit
hq-sanjose(config)# interface serial 2:23
hq-sanjose(config-if)# dialer rotary-group 1
hq-sanjose(config-if)# exit
hq-sanjose(config)# interface serial 3:23
hq-sanjose(config-if)# dialer rotary-group 1
hq-sanjose(config-if)# exit
Step 5 Return to dialer 1 with all the D channels grouped together.
hq-sanjose(config)# interface dialer 1
Step 6 Encapsulate the packets with PPP.
hq-sanjose(config-if)# encapsulation ppp
Step 7 Assign an address pool to interface dialer 1. This step supports remote node ISDN devices, such as those running Easy IP and PAT. These users will also need a username and password.
hq-sanjose(config-if)# peer default ip address pool dialin_pool
Step 8 Specify that this is an in-band dialer interface, which enables passing the phone number across the D channel.
hq-sanjose(config-if)# dialer in-band
Step 9 Configure the idle timeout, which is set to 1800 seconds (30 minutes) in this example. Other environments might require shorter timeouts. The default is 120 seconds.
hq-sanjose(config-if)# dialer idle-timeout 1800
Step 10 Define the interesting packets, which are packets that reset the idle timer or trigger calls. This dialer filter is defined by the dialer-list 2 command. See Step Step 17
hq-sanjose(config-if)# dialer-group 2
Step 11 Enable PPP multilink, which fragments and reassembles packets among bundled B channels.
hq-sanjose(config-if)# ppp multilink
Step 12 Enable CHAP and PAP authentication. CHAP is used first. PAP is the second choice.
hq-sanjose(config-if)# ppp authentication chap pap
Step 13 Disable fair queuing.
hq-sanjose(config-if)# no fair-queue
Step 14 Disable the Cisco discovery protocol—unless you are using it for a specific purpose.
hq-sanjose(config-if)# no cdp enable
Step 15 Turn off multicast route caching.
hq-sanjose(config-if)# no ip mroute-cache
Step 16 Return to global configuration mode.
hq-sanjose(config-if)# exit
Step 17 Define a DDR dialer-list to allow any IP traffic to maintain the connection. Any IP packet will maintain the DDR session. Minor or extensive tuning of your dialer list might be required to control costs in your environment. Use the same number for the dialer-group command and the dialer-list command. To monitor the idle timer value and the packets that reset it, enter the debug dialer packet and show dialer commands.
hq-sanjose(config)# dialer-list 2 protocol ip permit
Verifying DDR Configuration

To verify the DDR configuration:

1. Enter the show dialer command. This command shows you the state associated with each IP interface. Note that each individual serial channel is a dialer interface:
hq-sanjose# show dialer
Dialer1 - dialer type = IN-BAND SYNC NO-PARITY
Idle timer (1800 secs), Fast idle timer (20 secs)
Wait for carrier (30 secs), Re-enable (15 secs)
Dial String      Successes   Failures    Last called   Last status
Serial0:0 - dialer type = ISDN
Idle timer (1800 secs), Fast idle timer (20 secs)
Wait for carrier (30 secs), Re-enable (15 secs)
Dialer state is idle
Serial0:1 - dialer type = ISDN
Idle timer (1800 secs), Fast idle timer (20 secs)
Wait for carrier (30 secs), Re-enable (15 secs)
Dialer state is idle
Serial0:2 - dialer type = ISDN
Idle timer (1800 secs), Fast idle timer (20 secs)
Wait for carrier (30 secs), Re-enable (15 secs)
Dialer state is idle
----- snip -----
2. Enter the show running command to see the current configuration:
hq-sanjose# show running
Building configuration...
Current configuration:
!
---- snip ----
!
interface Serial0:23
 no ip address
 no ip directed-broadcast
 dialer rotary-group 1
 isdn incoming-voice modem
!
interface Serial1:23
 no ip address
 no ip directed-broadcast
 dialer rotary-group 1
 isdn incoming-voice modem
!
interface Serial2:23
 no ip address
 no ip directed-broadcast
 dialer rotary-group 1
 isdn incoming-voice modem
!
interface Serial3:23
 no ip address
 no ip directed-broadcast
 dialer rotary-group 1
 isdn incoming-voice modem
!
---- snip ----
!
interface Dialer1
 ip address 10.1.254.1 255.255.255.0
 no ip directed-broadcast
 encapsulation ppp
 no ip mroute-cache
 dialer in-band
 dialer idle-timeout 1800
 dialer-group 2
 peer default ip address pool dialin_pool
 no fair-queue
 no cdp enable
 ppp authentication chap pap
 ppp multilink
!
dialer-list 2 protocol ip permit
!
---- snip ----
Step 2—Configuring Parameters for Remote LAN Sites

You must configure additional parameters to enable synchronous PPP services for the remote sites. Each remote site must have the following three entries configured on the Cisco AS5300:

•Username and password

•Static route

•Dialer map to support IP connectivity with the remote peer

Table 2-4 summarizes the critical parameters used by DDR, which works primarily at the addressing layer. These IP address routes are stored in the routing table when the sites are not connected.

Table 2-4 Site Parameters

Site Hardware

WAN IP Address

Ethernet IP Address

Assigned Phone Number

Host Name/

User Name

Username
Password

Cisco AS5300

10.1.254.1 255.255.255.0
Dialer Interface

10.1.1.10 255.255.255.0

4085551234

hq-sanjose

hq-sanjose-pw

Cisco 1604

10.1.254.4 255.255.255.0

10.1.4.1 255.255.255.0

Directory number = 5125554433

robo-austin

austin-pw

Cisco 766

10.1.254.3 255.255.255.0

10.1.3.1 255.255.255.0

Directory number = 5305558084

soho-tahoe

tahoe-pw

In this case study, hq-sanjose does not dial out to the remote sites. The pound sign (#), shown in Steps 6 and 7 below and in the output of the show running command, is used to map the remote site's name to the IP address.

To enable the remote LANs to dial in to the Cisco AS5300, enter the following commands beginning in global configuration mode:

Note Be sure to use your own usernames and passwords for the remote sites.

Step 1 Specify the robo-austin username and password.
hq-sanjose(config)# username robo-austin password austin-pw
Step 2 Enable IP routing for the robo-austin subnet.
hq-sanjose(config)# ip route 10.1.4.0 255.255.255.0 10.1.254.4 permanent
Step 3 Specify the soho-tahoe username and password.
hq-sanjose(config)# username soho-tahoe password tahoe-pw
Step 4 Enable IP routing for the soho-tahoe subnet.
hq-sanjose(config)# ip route 10.1.3.0 255.255.255.0 10.1.254.3 permanent
Step 5 Enter interface dialer 1.
hq-sanjose(config)# interface dialer 1
Step 6 Create a dialer map entry to the robo-austin router.
hq-sanjose(config-if)# dialer map ip 10.1.254.4 name robo-austin #
Step 7 Create a dialer map entry to the soho-tahoe router.
hq-sanjose(config-if)# dialer map ip 10.1.254.3 name soho-tahoe #
Verifying Remote LAN Site Definitions

Enter the show running command to verify the configuration of the remote LAN site parameters:
hq-sanjose# show running
Building configuration...
Current configuration:
!
---- snip ----
!
username joe-admin password 7 <removed>
username robo-austin password 7 <removed>
username soho-tahoe password 7 <removed>
!
---- snip ----
!
interface Dialer1
 ip address 10.1.254.1 255.255.255.0
 no ip directed-broadcast
 encapsulation ppp
 no ip mroute-cache
 dialer in-band
 dialer idle-timeout 1800
 dialer map ip 10.1.254.3 name soho-tahoe #
 dialer map ip 10.1.254.4 name robo-austin #
 dialer-group 2
 peer default ip address pool dialin_pool
 no fair-queue
 no cdp enable
 ppp authentication chap pap
 ppp multilink
!
---- snip ----
!
ip local pool dialin_pool 10.1.2.2 10.1.2.97
ip route 10.1.3.0 255.255.255.0 10.1.254.3 permanent
ip route 10.1.4.0 255.255.255.0 10.1.254.4 permanent
!
dialer-list 2 protocol ip permit
!
---- snip ----
Tips

•Dialer mapping provides Layer 3 to Layer 2 address resolution for a telephone network. This is done by mapping a host name and IP address to a telephone number.

•To display the static and dynamic dialer maps, enter the show dialer map command on the Cisco AS5300.

Note If you want the Cisco AS5300 to initiate calls to the remote sites, you must define a dialer map phone number. This case study does not cover this option. See the Cisco IOS Dial Services Configuration Guides for more information.

Step 3—Configuring a Default Gateway (Backhaul) Routing Protocol

On the Cisco AS5300 NAS CLI, assign a default gateway (backhaul) routing protocol and configure its related parameters to integrate with the IP backbone. The dialer network uses static routing (assigned by the network administrator).

To configure the routing protocol, enter the following commands beginning in global configuration mode:

Step 1 Configure the Enhanced IGRP routing protocol, enable IP routing, turn off routing updates on the dialer interface, and advertise remote LAN static routes.
hq-sanjose(config)# router eigrp 10
hq-sanjose(config-router)# network 10.0.0.0
hq-sanjose(config-router)# passive-interface dialer 1
hq-sanjose(config-router)# redistribute static
hq-sanjose(config-router)# no auto-summary
hq-sanjose(config-router)# exit
Step 2 Configure a summary aggregate address on the Fast Ethernet interface 0. This step summarizes the IP addresses that are advertised to the backbone.
hq-sanjose(config)# interface fastethernet 0
hq-sanjose(config-if)# ip summary-address eigrp 10 10.1.2.0 255.255.255.0
Verifying the Default Gateway (Backhaul) Routing Protocol Configuration

To verify the configuration of the default gateway (backhaul) parameters:

1. Enter the show ip eigrp topology command on the Cisco AS5300 CLI to see the IP-EIGRP topology table parameters:
hq-sanjose# show ip eigrp topology
IP-EIGRP Topology Table for process 10
Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
       r - Reply status
P 10.1.3.0/24, 1 successors, FD is 46226176
         via Redistributed (46226176/0)
P 10.1.2.0/24, 1 successors, FD is 128256
         via Connected, Loopback0
P 10.1.4.0/24, 1 successors, FD is 46226176
         via Redistributed (46226176/0)
P 10.1.254.0/24, 1 successors, FD is 46226176
         via Connected, Dialer1
2. Enter the show running command on the Cisco AS5300 CLI to see the default gateway (backhaul) parameters:
hq-sanjose# show running
Building configuration...
Current configuration:
!
---- snip ----
!
router eigrp 10
 redistribute static
 passive-interface Dialer1
 network 10.0.0.0
 no auto-summary
!
---- snip ----
Step 4—Confirming the Final Running Configuration

Enter the show running command on the Cisco AS5300 NAS CLI to see the final running configuration:

Note Your configuration will not look like this example. You must customize your configuration for your own network environment. Additionally, most Cisco IOS software versions have different default settings. However, this final configuration provides a good basis for comparison.
hq-sanjose# show running
Building configuration...
Current configuration:
!
version 12.0
service timestamps debug datetime msec
service timestamps log datetime msec
service password-encryption
!
hostname hq-sanjose
!
aaa new-model
aaa authentication login default local
aaa authentication ppp default if-needed local
enable secret 5 $1$.voA$9/8.Zoil3jeWJMP6hEE6U0
!
username joe-admin password 7 <removed>
username robo-austin password 7 <removed>
username soho-tahoe password 7 <removed>
!
async-bootp dns-server 10.2.2.3 10.2.3.1
isdn switch-type primary-ni
!
!
controller T1 0
 framing esf
 clock source line primary
 linecode b8zs
 pri-group timeslots 1-24
!
controller T1 1
 framing esf
 clock source line secondary
 linecode b8zs
 pri-group timeslots 1-24
!
controller T1 2
 framing esf
 clock source internal
 linecode b8zs
 pri-group timeslots 1-24
!
controller T1 3
 framing esf
 clock source internal
 linecode b8zs
 pri-group timeslots 1-24
!
interface Loopback0
 ip address 10.1.2.1 255.255.255.0
 no ip directed-broadcast
!
interface Ethernet0
 no ip address
 no ip directed-broadcast
 no ip route-cache
 no ip mroute-cache
 shutdown
!
interface Serial0:23
 no ip address
 no ip directed-broadcast
 dialer rotary-group 1
 isdn incoming-voice modem
!
interface Serial1:23
 no ip address
 no ip directed-broadcast
 dialer rotary-group 1
 isdn incoming-voice modem
!
interface Serial2:23
 no ip address
 no ip directed-broadcast
 dialer rotary-group 1
 isdn incoming-voice modem
!
interface Serial3:23
 no ip address
 no ip directed-broadcast
 dialer rotary-group 1
 isdn incoming-voice modem
!
interface FastEthernet0
 ip address 10.1.1.10 255.255.255.0
 no ip directed-broadcast
 ip summary-address eigrp 10 10.1.2.0 255.255.255.0
 no ip route-cache
 no ip mroute-cache
 duplex auto
 speed auto
!
interface Group-Async1
 ip unnumbered Loopback0
 no ip directed-broadcast
 encapsulation ppp
 async mode interactive
 peer default ip address pool dialin_pool
 no cdp enable
 ppp authentication chap pap
 group-range 1 96
!
interface Dialer1
 ip address 10.1.254.1 255.255.255.0
 no ip directed-broadcast
 encapsulation ppp
 no ip mroute-cache
 dialer in-band
 dialer idle-timeout 1800
 dialer map ip 10.1.254.3 name soho-tahoe #
 dialer map ip 10.1.254.4 name robo-austin #
 dialer-group 2
 peer default ip address pool dialin_pool
 no fair-queue
 no cdp enable
 ppp authentication chap pap
 ppp multilink
!
router eigrp 10
 redistribute static
 passive-interface Dialer1
 network 10.0.0.0
 no auto-summary
!
ip local pool dialin_pool 10.1.2.2 10.1.2.97
ip route 10.1.3.0 255.255.255.0 10.1.254.3 permanent
ip route 10.1.4.0 255.255.255.0 10.1.254.4 permanent
!
dialer-list 2 protocol ip permit
!
!
line con 0
line 1 96
 autoselect during-login
 autoselect ppp
 modem InOut
line aux 0
line vty 0 4
!
end
Step 5—Saving the Configuration

Save the configuration to NVRAM by entering the copy running-config startup-config command.

Step 6—Testing Sync PPP Connections to Remote LANs

You must configure the remote ISDN routers before you can test DDR connections. For configuration tasks and end-to-end test examples, see the following chapters:

•Chapter 3, "Configuring the Cisco 1604"

•Chapter 4, "Configuring the Cisco 766"

Step 7—Adding More Remote LAN Sites as Needed

After you bring up your remote LANs and remote nodes, and if you decide to expand the solution to a larger dial implementation, configure the following key items on the Cisco AS5300 to support each additional remote LAN router:

•One dialer map

•One IP route

•One username:password

Note Replace the arguments (shown in italic) in Table 2-5 with the actual WAN IP address, host name, IP subnet address, subnet mask, and password for each additional remote LAN router.

Table 2-5 Required Commands for Adding More Sites Allowed to Access the Headquarters Network

Command

Purpose

dialer map ip peer-wan-addr name hostname telephone-number

A dialer map. Creates a user entity in the security database for the remote site, which is appended to a dialer map so the central site can dial out to the remote site.

ip route subnet mask wan-addr

Creates a static route that points to the dialer map IP address.

username hostname password password

Creates a username and password that matches the name on the dialer map.
