debug tarp events

Use the debug tarp events privileged EXEC command to display information on Target Identifier Address Resolution Protocol (TARP) activity. The no form of this command disables debugging output.

debug tarp events
no debug tarp events
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

For complete information on the TARP process, use the debug tarp packets command along with the debug tarp events command. Events are usually related to error conditions.

Examples

The following is sample output from the debug tarp events and debug tarp packets commands after the tarp resolve command was used to determine the NSAP address for the TARP target identifier (TID) artemis.
Router# debug tarp events
Router# debug tarp packets
Router# tarp resolve artemis
Type escape sequence to abort.
Sending TARP type 1 PDU, timeout 15 seconds...
 NET corresponding to TID artemis is 49.0001.1111.1111.1111.00
*Mar  1 00:43:59: TARP-PA: Propagated TARP packet, type 1, out on Ethernet0
*Mar  1 00:43:59:        Lft = 100, Seq = 11, Prot type = 0xFE, URC = TRUE
*Mar  1 00:43:59:        Ttid len = 7, Stid len = 8, Prot addr len = 10
*Mar  1 00:43:59:        Destination NSAP: 49.0001.1111.1111.1111.00
*Mar  1 00:43:59:        Originator's NSAP: 49.0001.3333.3333.3333.00
*Mar  1 00:43:59:        Target TID: artemis
*Mar  1 00:43:59:        Originator's TID: cerd
*Mar  1 00:43:59: TARP-EV: Packet not propagated to 49.0001.4444.4444.4444.00 on
         interface Ethernet0 (adjacency is not in UP state)
*Mar  1 00:43:59: TARP-EV: No route found for TARP static adjacency
         55.0001.0001.1111.1111.1111.1111.1111.1111.1111.00 - packet not sent
*Mar  1 00:43:59: TARP-PA: Received TARP type 3 PDU on interface Ethernet0
*Mar  1 00:43:59:        Lft = 100, Seq = 5, Prot type = 0xFE, URC = TRUE
*Mar  1 00:43:59:        Ttid len = 0, Stid len = 7, Prot addr len = 10
*Mar  1 00:43:59:        Packet sent/propagated by 49.0001.1111.1111.1111.af
*Mar  1 00:43:59:        Originator's NSAP: 49.0001.1111.1111.1111.00
*Mar  1 00:43:59:        Originator's TID: artemis
*Mar  1 00:43:59: TARP-PA: Created new DYNAMIC cache entry for artemis
Table 187 describes the significant fields in this display.

Table 187 debug tarp events Command Field Descriptions—TARP Resolve Command

Field

Descriptions

Sending TARP type 1 PDU

PDU requesting the NSAP of the specified TID.

timeout

Number of seconds the router will wait for a response from the Type 1 PDU. The timeout is set by the tarp t1-response-timer command.

NET corresponding to

NSAP address (in this case, 49.0001.1111.1111.1111.00) for the specified TID.

*Mar 1 00:43:59

Debug timestamp.

TARP-PA: Propagated

TARP packet: A Type 1 PDU was sent out on interface Ethernet 0.

Lft

Lifetime of the PDU (in hops).

Seq

Sequence number of the PDU.

Prot type

Protocol type of the PDU.

URC

Update remote cache bit.

Ttid len

Destination TID length.

Stid len

Source TID length.

Prot addr len

Protocol address length (bytes).

Destination NSAP

NSAP address that the PDU is being sent to.

Originator's NSAP

NSAP address that the PDU was sent from.

Target TID

TID that the PDU is being sent to.

Originator's TID

TID that the PDU was sent from.

TARP-EV: Packet not propagated

TARP event: The Type 1 PDU was not propagated on interface Ethernet 0 because the adjacency is not up.

TARP-EV: No route found

TARP event: The Type 1 PDU was not sent because no route was available.

TARP-PA: Received TARP

TARP packet: A Type 3 PDU was received on interface Ethernet 0.

Packet sent/propagated by

NSAP address of the router that sent or propagated the PDU.

TARP-PA: Created new DYNAMIC cache entry

TARP packet: A dynamic entry was made to the local TID cache.

Related Commands

Command

Description

debug tarp packets

Displays general information on TARP packets received, generated, and propagated on the router.

debug tarp packets

Use the debug tarp packets privileged EXEC command to display general information on TARP packets received, generated, and propagated on the router. The no form of this command disables debugging output.

debug tarp packets
no debug tarp packets
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

For complete information on the TARP process, use the debug tarp events command along with the debug tarp packet command. Events are usually related to error conditions.

Examples

The following is sample output from the debug tarp packet command after the tarp query command was used to determine the TID for the NSAP address 49.0001.3333.3333.3333.00:
Router# debug tarp packets
Router# debug tarp events
Router# tarp query 49.0001.3333.3333.3333.00
Type escape sequence to abort.
Sending TARP type 5 PDU, timeout 40 seconds...
 TID corresponding to NET 49.0001.3333.3333.3333.00 is cerdiwen
*Mar  2 03:10:11: TARP-PA: Originated TARP packet, type 5, to destination
49.0001.3333.3333.3333.00
*Mar  2 03:10:11: TARP-PA: Received TARP type 3 PDU on interface Ethernet0
*Mar  2 03:10:11:        Lft = 100, Seq = 2, Prot type = 0xFE, URC = TRUE
*Mar  2 03:10:11:        Ttid len = 0, Stid len = 8, Prot addr len = 10
*Mar  2 03:10:11:        Packet sent/propagated by 49.0001.3333.3333.3333.af
*Mar  2 03:10:11:        Originator's NSAP: 49.0001.3333.3333.3333.00
*Mar  2 03:10:11:        Originator's TID: cerdiwen
*Mar  2 03:10:11: TARP-PA: Created new DYNAMIC cache entry for cerdiwen
Table 188 describes the fields shown in the display.

Table 188 debug tarp packets Command Field Descriptions—TARP Query Command

Field

Descriptions

Sending TARP type 5 PDU

PDU requesting the TID of the specified NSAP.

timeout

Number of seconds the router will wait for a response from the Type 5 PDU. The timeout is set by the tarp arp-request-timer command.

TID corresponding to NET

TID (in this case cerdiwen) for the specified NSAP address.

*Mar 2 03:10:11

Debug timestamp.

TARP-PA: Originated TARP packet

TARP packet: A Type 5 PDU was sent.

TARP P-A: Received TARP

TARP packet: A Type 3 PDU was received.

Lft

Lifetime of the PDU (in hops).

Seq

Sequence number of the PDU.

Prot type

Protocol type of the PDU.

URC

The update remote cache bit.

Ttid len

Destination TID length.

Stid len

Source TID length.

Prot addr len

Protocol address length (bytes).

Packet sent/propagated

NSAP address of the router that sent or propagated the PDU.

Originator's NSAP

NSAP address that the PDU was sent from.

Originator's TID

TID that the PDU was sent from.

TARP-PA: Created new DYNAMIC cache entry

TARP packet: A dynamic entry was made to the local TID cache.

Related Commands

Command

Modification

debug tarp events

Displays information on TARP activity.

debug tdm

Use the debug tdm privileged EXEC command to display time division multiplexer (TDM) BUS CONNECTION information each time a connection is made on Cisco AS5300 access servers. Use the no form of this command to disable debugging output.

debug tdm [api | detail | dynamic | pri | test | tsi | vdev]
no debug tdm [api | detail | dynamic | pri | test | tsi | vdev]
Syntax Description

api

TDM subsystem API. Displays a debug message whenever the TDM subsystem API is invoked from another subsystem.

detail

TDM detail debugging. Displays detailed messages (i.e., trace messages) whenever the TDM software executes.

dynamic

TDM dynamic backplane timeslot allocation. Displays TDM debugging information whenever a backplane timeslot is allocated or deallocated.

pri

Routes modem back-to-back connections from the modem-to-PRI board to modem board. By default, the modem back-to-back connections route from modem board to motherboard to modem board.

test

TDM unit test option. Simulates the failure of allocating a TDM timeslot. Verifies that the software and TDM hardware recovers from the failure.

tsi

TSI Chip MT8980/MT90820 driver. Displays debugging information about the TSI Chip MT8980/MT90820 driver.

vdev

TDM per voice device debug <0-2> slot/port number (i.e., 0/1). Displays debug information whenever a modem board TDM connection is made.

Usage Guidelines

The debug tdm command output is to be used primarily by a Cisco technical support representative. The debug tdm command enables display of debugging messages for specific areas of code which execute.

Examples

The following examples show the turning on of the debug option, performing a modem call, and turning off the debug option:
5300# debug tdm api
TDM API debugging is on
5300#
23:16:04: TDM(vdev reg: 0x3C500100/PRI reg: 0x3C400100): two way connection requested.
23:16:04: TDM(reg: 0x3C500100): Close connection to STo8, channel 1
23:16:04: TDM(reg: 0x3C500100): Connect STi4, channel 1 to STo8, channel 1
23:16:04: TDM(reg: 0x3C500100): Close connection to STo4, channel 1
23:16:04: TDM(reg: 0x3C500100): Connect STi8, channel 1 to STo4, channel 1
23:16:04: TDM(reg: 0x3C400100): Close connection to STo12, channel 31
23:16:04: TDM(reg: 0x3C400100): Close connection to STo8, channel 31
23:16:04: TDM(reg: 0x3C400100): Connect STi12, channel 31 to STo4, channel 1
23:16:04: TDM(reg: 0x3C400100): Connect STi4, channel 1 to STo12, channel 31
23:18:22: TDM(reg: 0x3C500100): default RX connection requested.
23:18:22: TDM(reg: 0x3C500100): Close connection to STo8, channel 1
23:18:22: TDM(reg: 0x3C500100): default TX connection requested.
23:18:22: TDM(reg: 0x3C500100): Close connection to STo4, channel 1
23:18:22: TDM(reg: 0x3C500100): Close connection to STo8, channel 1
23:18:22: TDM(reg: 0x3C500100): Close connection to STo4, channel 1
23:18:22: TDM(reg: 0x3C400100): default RX connection requested.
23:18:22: TDM(reg: 0x3C400100): Close connection to STo4, channel 1
23:18:22: TDM(reg: 0x3C400100): Connect STi12, channel 31 to STo8, channel 31
23:18:22: TDM(reg: 0x3C400100): default TX connection requested.
23:18:22: TDM(reg: 0x3C400100): Close connection to STo12, channel 31
23:18:22: TDM(reg: 0x3C400100): Connect STi8, channel 31 to STo12, channel 31
5300# no debug tdm api
TDM API debugging is off
5300# debug tdm detail
TDM Detail Debug debugging is on
5300_2#show tdm pool
Dynamic Backplane Timeslot Pool:
Grp ST Ttl/Free Req(Cur/Ttl/Fail)       Queues(Free/Used)      Pool Ptr
 0 0-3  128 128   0   0        0        0x60CB6B30  0x60CB6B30  0x60CB6B28
 1 4-7  128 128   0   3        0        0x60CB6B40  0x60CB6B40  0x60CB6B2C
5300#
5300# no debug tdm detail
TDM Detail Debug debugging is off
5300# debug tdm dynamic
TDM Dynamic BP Allocation debugging is on
5300#
23:30:16: tdm_allocate_bp_ts(), slot# 1, chan# 3
23:30:16: TDM(reg: 0x3C500100): Open Modem RX ST8, CH3 to BP ST4 CH3
23:30:16: TDM(reg: 0x3C500100): Open Modem TX ST8, CH3 to BP ST4 CH3
23:30:16: TDM Backplane Timeslot Dump @ 0x60E6D244, tdm_free_bptsCount[1] = 127
 vdev_slot : 0x01     bp_stream : 0x04
 vdev_channel : 0x03    bp_channel : 0x03     freeQueue : 0x60CB6B40
23:30:16: TDM(PRI:0x3C400100):Close PRI framer st12 ch31
23:30:16: TDM(PRI:0x3C400100):Close HDLC controller st8 ch31
23:30:43: tdm_deallocate_bp_ts(), slot# 1, chan# 3
23:30:43: TDM(reg: 0x3C500100):Close Modem RX ST8, CH3 to BP ST4 CH3
23:30:43: TDM(reg: 0x3C500100):Close Modem TX ST8, CH3 to BP ST4 CH3
23:30:43: TDM Backplane Timeslot Dump @ 0x60E6D244, tdm_free_bptsCount[1] = 128
 vdev_slot : 0x01     bp_stream : 0x04
 vdev_channel : 0x03    bp_channel : 0x03     freeQueue : 0x60CB6B40
5300#
5300# no debug tdm dynamic
TDM Dynamic BP Allocation debugging is off
5300# debug tdm pri
TDM connectvia PRI feature board debugging is on
5300# no debug tdm pri
TDM connectvia PRI feature board debugging is off
5300# debug tdm test
TDM Unit Test debugging is on
23:52:01: Bad tdm_allocate_bp_ts() call, simulating error condition for vdev in slot 1
port 5
5300# no debug tdm test
TDM Unit Test debugging is off
5300# debug tdm tsi
TDM TSI debugging is on
5300#
23:56:40: MT90820(reg: 0x3C500100): Close connection to STi8, channel 9
23:56:40: MT90820(reg: 0x3C500100): Connect STi4, channel 10 to STo8, channel 9
23:56:40: MT90820(reg: 0x3C500100): Close connection to STi4, channel 10
23:56:40: MT90820(reg: 0x3C500100): Connect STi8, channel 9 to STo4, channel 10
23:56:40: MT90820(reg: 0x3C400100): Close connection to STi12, channel 31
23:56:40: MT90820(reg: 0x3C400100): Close connection to STi8, channel 31
23:56:40: MT90820(reg: 0x3C400100): Connect STi12, channel 31 to STo4, channel 10
23:56:40: MT90820(reg: 0x3C400100): Connect STi4, channel 10 to STo12, channel 31
23:57:03: MT90820(reg: 0x3C500100): Close connection to STi8, channel 9
23:57:03: MT90820(reg: 0x3C500100): Close connection to STi4, channel 10
23:57:03: MT90820(reg: 0x3C500100): Close connection to STi8, channel 9
23:57:03: MT90820(reg: 0x3C500100): Close connection to STi4, channel 10
23:57:03: MT90820(reg: 0x3C400100): Close connection to STi4, channel 10
23:57:03: MT90820(reg: 0x3C400100): Connect STi12, channel 31 to STo8, channel 31
23:57:03: MT90820(reg: 0x3C400100): Close connection to STi12, channel 31
23:57:03: MT90820(reg: 0x3C400100): Connect STi8, channel 31 to STo12, channel 31
5300#
5300# no debug tdm tsi
TDM TSI debugging is off
5300# debug tdm vdev ?
 <0-2>  Slot/port number (i.e. 0/1)
5300# debug tdm vdev 1/8
Enabling TDM debug for voice device in slot 0 port 1
5300#
23:55:00: TDM(vdev reg: 0x3C500100/PRI reg: 0x3C400100): two way connection requested.
23:55:00: tdm_allocate_bp_ts(), slot# 1, chan# 8
23:55:00: TDM(reg: 0x3C500100): Open Modem RX ST8, CH8 to BP ST4 CH9
23:55:00: TDM(reg: 0x3C500100): Open Modem TX ST8, CH8 to BP ST4 CH9
23:55:00: TDM Backplane Timeslot Dump @ 0x60E6D2D4, tdm_free_bptsCount[1] = 127
 vdev_slot : 0x01     bp_stream : 0x04
 vdev_channel : 0x08    bp_channel : 0x09     freeQueue : 0x60CB6B40
23:55:00: TDM(PRI:0x3C400100):Close PRI framer st12 ch31
23:55:00: TDM(PRI:0x3C400100):Close HDLC controller st8 ch31
23:55:31: TDM(reg: 0x3C500100): default RX connection requested.
23:55:31: TDM(reg: 0x3C500100): default TX connection requested.
23:55:31: tdm_deallocate_bp_ts(), slot# 1, chan# 8
23:55:31: TDM(reg: 0x3C500100):Close Modem RX ST8, CH8 to BP ST4 CH9
23:55:31: TDM(reg: 0x3C500100):Close Modem TX ST8, CH8 to BP ST4 CH9
23:55:31: TDM Backplane Timeslot Dump @ 0x60E6D2D4, tdm_free_bptsCount[1] = 128
 vdev_slot : 0x01     bp_stream : 0x04
 vdev_channel : 0x08    bp_channel : 0x09     freeQueue : 0x60CB6B40
5300#
5300# no debug tdm vdev 1/8
Disabling TDM debug for voice device in slot 0 port 1
5300#
debug telco-return msg

To display debug messages for telco-return events, use the debug cable telco-return msg privileged EXEC command. Use the no form of this command to disable debugging output.

debug cable telco-return msg
no debug cable telco-return msg
Syntax Description

This command has no arguments or keywords.

Defaults

Debugging for telco-return messages is not enabled.

Command History

Release

Modification

12.0(4)XI

This command was introduced.

Examples
ubr7223#debug cable telco-return msg
CMTS telco-return msg debugging is on
Related Commands

Command

Description

debug telco-return msg

Displays debug messages for telco-return events.

debug telnet

To display information about Telnet option negotiation messages for incoming Telnet connections to a Cisco IOS Telnet server, use the debug telnet command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug telnet
no debug telnet
Syntax Description

This command has no arguments or keywords.

Command Modes

Privileged EXEC

Command History

Release

Modification

8.1

This command was introduced.

Examples

The following is sample output from the debug telnet command:
Router# debug telnet
*Oct 28 21:31:12.035:Telnet1/00:1 1 251 1
*Oct 28 21:31:12.035:TCP1/00:Telnet sent WILL ECHO (1)
*Oct 28 21:31:12.035:Telnet1/00:2 2 251 3
*Oct 28 21:31:12.035:TCP1/00:Telnet sent WILL SUPPRESS-GA (3)
*Oct 28 21:31:12.035:Telnet1/00:4 4 251 0
*Oct 28 21:31:12.035:TCP1/00:Telnet sent WILL BINARY (0)
*Oct 28 21:31:12.035:Telnet1/00:40000 40000 253 0
*Oct 28 21:31:12.035:TCP1/00:Telnet sent DO BINARY (0)
*Oct 28 21:31:12.035:Telnet1/00:10000000 10000000 253 31
*Oct 28 21:31:12.035:TCP1/00:Telnet sent DO WINDOW-SIZE (31)
*Oct 28 21:31:12.035:TCP1/00:Telnet received WILL TTY-TYPE (24)
*Oct 28 21:31:12.035:TCP1/00:Telnet sent DO TTY-TYPE (24)
*Oct 28 21:31:12.035:Telnet1/00:Sent SB 24 1
*Oct 28 21:31:12.035:TCP1/00:Telnet received WILL TTY-SPEED (32) (refused)
*Oct 28 21:31:12.035:TCP1/00:Telnet sent DONT TTY-SPEED (32)
*Oct 28 21:31:12.035:TCP1/00:Telnet received DO SUPPRESS-GA (3)
*Oct 28 21:31:12.035:TCP1/00:Telnet received WILL SUPPRESS-GA (3)
*Oct 28 21:31:12.035:TCP1/00:Telnet sent DO SUPPRESS-GA (3)
*Oct 28 21:31:12.035:TCP1/00:Telnet received DO ECHO (1)
*Oct 28 21:31:12.035:TCP1/00:Telnet received DO BINARY (0)
*Oct 28 21:31:12.035:TCP1/00:Telnet received WILL BINARY (0)
*Oct 28 21:31:12.059:TCP1/00:Telnet received WILL COMPORT (44)
*Oct 28 21:31:12.059:TCP1/00:Telnet sent DO COMPORT (44)
*Oct 28 21:31:12.059:TCP1/00:Telnet received DO COMPORT (44)
*Oct 28 21:31:12.059:TCP1/00:Telnet sent WILL COMPORT (44)
*Oct 28 21:31:12.059:TCP1/00:Telnet received WONT WINDOW-SIZE (31)
*Oct 28 21:31:12.059:TCP1/00:Telnet sent DONT WINDOW-SIZE (31)
*Oct 28 21:31:12.059:Telnet1/00:recv SB 24 0
*Oct 28 21:31:12.091:Telnet1/00:recv SB 44 10 TTY1/00:Telnet COMPORT rcvd bad
suboption:0xA/0x1E
*Oct 28 21:31:12.091:Telnet1/00:recv SB 44 1
*Oct 28 21:31:12.091:Telnet_CP-1/00 baudrate index 0
*Oct 28 21:31:12.091:Telnet1/00:Sent SB 44 101 X.dctBXctBXctBX`W`P`>
*Oct 28 21:31:12.091:Telnet1/00:recv SB 44 2
*Oct 28 21:31:12.091:Telnet_CP-1/00 datasize index 8  8
*Oct 28 21:31:12.091:Telnet1/00:Sent SB 44 102X.dctBXctBXctBX`W`P`>
*Oct 28 21:31:12.091:Telnet1/00:recv SB 44 3
*Oct 28 21:31:12.091:Telnet_CP-1/00 parity index 1  0
*Oct 28 21:31:12.091:Telnet1/00:Sent SB 44 103 X.dctBXctBXctBX`W`P`>
*Oct 28 21:31:12.091:Telnet1/00:recv SB 44 4
*Oct 28 21:31:12.091:Telnet_CP-1/00 stopbits index 1
*Oct 28 21:31:12.091:Telnet1/00:Sent SB 44 104 X.dctBXctBXctBX`W`P`>
*Oct 28 21:31:12.091:Telnet1/00:recv SB 44 5
*Oct 28 21:31:12.091:Telnet_CP-1/00 HW flow on
*Oct 28 21:31:12.091:Telnet1/00:Sent SB 44 105 X.dctBXctBXctBX`W`P`>
*Oct 28 21:31:12.091:Telnet1/00:recv SB 44 11 nTTY1/00:Telnet COMPORT rcvd ba
d suboption:0xB/0xEE
*Oct 28 21:31:12.091:Telnet1/00:recv SB 44 5
*Oct 28 21:31:12.091:Telnet_CP-1/00 unimplemented option 0x10
*Oct 28 21:31:12.091:Telnet1/00:Sent SB 44 105
*Oct 28 21:31:12.091:Telnet1/00:recv SB 44 5
*Oct 28 21:31:12.091:Telnet_CP-1/00 DTR on
*Oct 28 21:31:12.091:Telnet1/00:Sent SB 44 105X.dctBXctBXctBX`W`P`>
*Oct 28 21:31:12.091:TCP1/00:Telnet received WONT WINDOW-SIZE (31)
*Oct 28 21:31:12.099:Telnet1/00:Sent SB 44 107 3
*Oct 28 21:31:12.099:COMPORT1/00:sending notification 0x33
Table 189 describes the significant fields shown in the display.

Table 189 debug telnet Field Descriptions

Field

Description

Telnet1/00: 1 1 251 1

Untranslated decimal option negotiations that are sent. 1/00 denotes the line number that the Telnet server is operating on.

TCP1/00:

Symbolically decoded option negotiations. 1/00 denotes the line number that the Telnet server is operating on. Telnet option negotiations are defined in the following RFCs:

•RFC 854—Telnet Protocol Specification

•RFC 856—Telnet Binary Transmission

•RFC 858—Telnet Suppress Go Ahead Option

•RFC 1091—Telnet Terminal-Type Option

•RFC 1123, sec. 3—Requirements for Internet Hosts—Application and Support

•RFC 2217—Telnet Com Port Control Option

Related Commands

Command

Description

debug ip tcp transactions

Displays information on significant TCP transactions such as state changes, retransmissions, and duplicate packets.

debug modem

Displays modem line activity on an access server.

debug tftp

Use the debug tftp privileged EXEC command to display Trivial File Transfer Protocol (TFTP) debugging information when encountering problems netbooting or using the copy tftp system:running-config or copy system:running-config tftp commands. The no form of this command disables debugging output.

debug tftp
no debug tftp
Syntax Description

This command has no arguments or keywords.

Examples

The following is sample output from the debug tftp command from the copy system:running-config tftp EXEC command:
Router# debug tftp
TFTP: msclock 0x292B4; Sending write request (retry 0), socket_id 0x301DA8
TFTP: msclock 0x2A63C; Sending write request (retry 1), socket_id 0x301DA8
TFTP: msclock 0x2A6DC; Received ACK for block 0,   socket_id 0x301DA8
TFTP: msclock 0x2A6DC; Received ACK for block 0,   socket_id 0x301DA8
TFTP: msclock 0x2A6DC; Sending block 1 (retry 0), socket_id 0x301DA8
TFTP: msclock 0x2A6E4; Received ACK for block 1,   socket_id 0x301DA8
Table 190 describes the significant fields in the first line of output.

Table 190 debug tftp Command Field Descriptions

Message

Description

TFTP:

TFTP packet.

msclock 0x292B4;

Internal timekeeping clock (in milliseconds).

Sending write request (retry 0)

TFTP operation.

socket_id 0x301DA8

Unique memory address for the socket for the TFTP connection.

debug token ring

Use the debug token ring privileged EXEC command to display messages about Token Ring interface activity. The no form of this command disables debugging output.

debug token ring
no debug token ring
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

This command reports several lines of information for each packet sent or received and is intended for low traffic, detailed debugging.

The Token Ring interface records provide information regarding the current state of the ring. These messages are only displayed when the debug token events command is enabled.

The debug token ring command invokes verbose Token Ring hardware debugging. This includes detailed displays as traffic arrives and departs the unit.

Caution It is best to use this command only on router and bridges with light loads.

Examples

The following is sample output from the debug token ring command:
Router# debug token ring
TR0: Interface is alive, phys. addr 5000.1234.5678
TR0:  in: MAC: acfc: 0x1105 Dst: c000.ffff.ffff Src: 5000.1234.5678 bf: 0x45
TR0:  in:      riflen 0, rd_offset 0, llc_offset 40
TR0: out: MAC: acfc: 0x0040 Dst: 5000.1234.5678 Src: 5000.1234.5678 bf: 0x00
TR0: out: LLC: AAAA0300 00009000 00000100 AAC00000 00000802 50001234 ln: 28
TR0:  in: MAC: acfc: 0x1140 Dst: 5000.1234.5678 Src: 5000.1234.5678 bf: 0x09
TR0:  in: LLC: AAAA0300 00009000 00000100 AAC0B24A 4B4A6768 74732072 ln: 28
TR0:   in:      riflen 0, rd_offset 0, llc_offset 14
TR0: out: MAC: acfc: 0x0040 Dst: 5000.1234.5678 Src: 5000.1234.5678 bf: 0x00
TR0: out: LLC: AAAA0300 00009000 00000100 D1D00000 FE11E636 96884006 ln: 28
TR0:  in: MAC: acfc: 0x1140 Dst: 5000.1234.5678 Src: 5000.1234.5678 bf: 0x09
TR0:  in: LLC: AAAA0300 00009000 00000100 D1D0774C 4DC2078B 3D000160 ln: 28
TR0:  in:      riflen 0, rd_offset 0, llc_offset 14
TR0: out: MAC: acfc: 0x0040 Dst: 5000.1234.5678 Src: 5000.1234.5678 bf: 0x00
TR0: out: LLC: AAAA0300 00009000 00000100 F8E00000 FE11E636 96884006 ln: 28
Table 191 describes the significant fields in the second line of output.

Table 191 debug token ring Command Field Descriptions

Message

Description

TR0:

Name of the interface associated with the Token Ring event.

in:

Indication of whether the packet was input to the interface (in) or output from the interface (out).

MAC:

Type of packet, as follows:

•MAC—Media Access Control

•LLC—Link Level Control

acfc: 0x1105

Access Control, Frame Control bytes, as defined by the IEEE 802.5 standard.

Dst: c000.ffff.ffff

Destination address of the frame.

Src: 5000.1234.5678

Source address of the frame.

bf: 0x45

Bridge flags for internal use by technical support staff.

Table 192 describes the significant fields shown in the third line of output.

Table 192 debug token ring Command Field Descriptions

Message

Description

TR0:

Name of the interface associated with the Token Ring event.

in:

Indication of whether the packet was input to the interface (in) or output from the interface (out).

riflen 0

Length of the RIF field (in bytes).

rd_offset 0

Offset (in bytes) of the frame pointing to the start of the RIF field.

llc_offset 40

Offset in the frame pointing to the start of the LLC field.

Table 193 describes the significant fields shown in the fifth line of output.

Table 193 debug token ring Command Field Descriptions

Message

Description

TR0:

Name of the interface associated with the Token Ring event.

out:

Indication of whether the packet was input to the interface (in) or output from the interface (out).

LLC:

Type of frame, as follows:

•MAC—Media Access Control

•LLC—Link Level Control

AAAA0300

This and the octets that follow it indicate the contents (hex) of the frame.

ln: 28

The length of the information field (in bytes).

debug tsp

The debug tsp privileged EXEC command is used to display information about the telephony service provider (TSP). Use the no form of this command to disable debugging output.

debug tsp {all | call | error | port}
no debug tsp {all | call | error | port}
Syntax Description

all

Enables all TSP debugging (except statistics)

call

Enables call debugging.

error

Error debugging.

port

Port debugging.

Defaults

Disabled

Command History

Release

Modification

12.0(6)T

This command was introduced.

Examples

The following example shows output for the debug tsp all command:
01:04:12:CDAPI TSP RX ===> callId=(32  ), Msg=(CDAPI_MSG_CONNECT_IND,1 )
Sub=(CDAPI_MSG_SUBTYPE_NULL,0 )cdapi_tsp_connect_ind
01:04:12:TSP CDAPI:cdapi_free_msg returns 1
01:04:13:tsp_process_event:[0:D, 0.1 , 3] tsp_cdapi_setup_ack tsp_alert
01:04:13:tsp_process_event:[0:D, 0.1 , 5] tsp_alert_ind
01:04:13:tsp_process_event:[0:D, 0.1 , 10]
01:04:14:tsp_process_event:[0:D, 0.1 , 10]
01:04:17:CDAPI TSP RX ===> callId=(32  ), Msg=(CDAPI_MSG_DISCONNECT_IND,7 )
Sub=(CDAPI_MSG_SUBTYPE_NULL,0 )cdapi_tsp_disc_ind
01:04:17:TSP CDAPI:cdapi_free_msg returns 1
01:04:17:tsp_process_event:[0:D, 0.1 , 27] cdapi_tsp_release_indtsp_disconnet_tdm
01:04:17:tsp_process_event:[0:D, 0.4 , 7] cdapi_tsp_release_comp
Related Commands

Command

Description

debug tsp

Displays information about the telephony service provider.

debug voip rawmsg

Displays the raw message owner, length, and pointer.

debug txconn all

Use the debug txconn all privileged EXEC command to turn on all debug flags for CTRC communications with CICS. These flags include appc, config, data, event, tcp, and timer. Use the no form of this command to disable all debugging output.

debug txconn all
no debug txconn all
Syntax Description

This command has no arguments or keywords.

Defaults

By default, debugging is not enabled for the txconn subsystem.

Command History

Release

Modification

12.0(5)XN

This command was introduced.

Examples

The following example shows the immediate output of the debug txconn all command. For examples of specific debugging messages, see the examples provided for the debug txconn appc, debug txconn config, debug txconn data, debug txconn event, debug txconn tcp, and debug txconn timer commands.
Router# debug txconn all
All possible TXConn debugging has been turned on
Related Commands

Command

Description

debug snasw

Displays debugging information related to SNA Switching Services.

debug txconn appc

Displays APPC-related trace or error messages for communications with CICS.

debug txconn config

Displays trace or error messages for CTRC configuration and control blocks for CICS communications.

debug txconn data

Displays CICS client and host data being handled by CTRC, in hexadecimal notation.

debug txconn event

Displays trace or error messages for CTRC events related to CICS communications.

debug txconn tcp

Displays error messages or traces for TCP/IP communications with CICS.

debug txconn timer

Displays performance information related to CICS communications.

show debugging

Displays the state of each debugging option.

debug txconn appc

Use the debug txconn privileged EXEC command to display APPC-related trace or error messages for communications with CICS. Use the no form of this command to disable debugging output.

debug txconn appc
no debug txconn appc
Syntax Description

This command has no arguments or keywords.

Defaults

By default, debugging is not enabled for the txconn subsystem.

Command History

Release

Modification

12.0(5)XN

This command was introduced.

Examples

The following example shows APPC debugging output from the debug txconn appc command:
01:18:05: TXCONN-APPC-622ADF38: Verb block =
01:18:05: TXCONN-APPC-622ADF38:   0001 0200 0300 0000  0400 0000 0000 0000
01:18:05: TXCONN-APPC-622ADF38:   0000 00FC 0000 0000  0000 0000 0000 0000
01:18:05: TXCONN-APPC-622ADF38:   0000 0000 0840 0007  0000 0000 0000 0000
01:18:05: TXCONN-APPC-622ADF38:   7BC9 D5E3 C5D9 4040  07F6 C4C2 4040 4040
01:18:05: TXCONN-APPC-622ADF38:   4040 4040 4040 4040  4040 4040 4040 4040
01:18:05: TXCONN-APPC-622ADF38:   4040 4040 4040 4040  4040 4040 4040 4040
01:18:05: TXCONN-APPC-622ADF38:   4040 4040 4040 4040  4040 4040 4040 4040
01:18:05: TXCONN-APPC-622ADF38:   4040 4040 4040 4040  0000 0000 0000 0000
01:18:05: TXCONN-APPC-622ADF38:   0000 0000 0000 0000  0000 0000 0000 0000
01:18:05: TXCONN-APPC-622ADF38:   0000 0000 0000 0000  0000 0000 0000 0000
01:18:05: TXCONN-APPC-622ADF38:   00E2 E3C1 D9E6 4BC7  C1E9 C5D3 D3C5 4040
01:18:05: TXCONN-APPC-622ADF38:   4040 0000 0000 0000  0000 0000
01:18:05: TXCONN-APPC-621E5730: Verb block =
01:18:05: TXCONN-APPC-621E5730:   0001 0200 0300 0000  0400 0000 0000 0000
01:18:05: TXCONN-APPC-621E5730:   0000 00FD 0000 0000  0000 0000 0000 0000
01:18:05: TXCONN-APPC-621E5730:   0000 0000 0840 0007  0000 0000 0000 0000
01:18:05: TXCONN-APPC-621E5730:   C9C2 D4D9 C4C2 4040  07F6 C4C2 4040 4040
01:18:05: TXCONN-APPC-621E5730:   4040 4040 4040 4040  4040 4040 4040 4040
01:18:05: TXCONN-APPC-621E5730:   4040 4040 4040 4040  4040 4040 4040 4040
01:18:05: TXCONN-APPC-621E5730:   4040 4040 4040 4040  4040 4040 4040 4040
01:18:05: TXCONN-APPC-621E5730:   4040 4040 4040 4040  0000 0000 0000 0000
01:18:05: TXCONN-APPC-621E5730:   0000 0000 0000 0000  0000 0000 0000 0000
01:18:05: TXCONN-APPC-621E5730:   0000 0000 0000 0000  0000 0000 0000 0000
01:18:05: TXCONN-APPC-621E5730:   00E2 E3C1 D9E6 4BE2  E3C5 D3D3 C140 4040
01:18:05: TXCONN-APPC-621E5730:   4040 0000 0000 0000  0000 0000
Related Commands

Command

Description

debug snasw

Displays debugging information related to SNA Switching Services.

debug txconn all

Displays all CTRC debugging information related to communications with CICS.

debug txconn config

Displays trace or error messages for CTRC configuration and control blocks for CICS communications.

debug txconn data

Displays CICS client and host data being handled by CTRC, in hexadecimal notation.

debug txconn event

Displays trace or error messages for CTRC events related to CICS communications.

debug txconn tcp

Displays error messages or traces for TCP/IP communications with CICS.

debug txconn timer

Displays performance information related to CICS communications.

show debugging

Displays the state of each debugging option.

debug txconn config

Use the debug txconn config privileged EXEC command to display trace or error messages for CTRC configuration and control blocks for CICS communications. Use the no form of this command to disable debugging output.

debug txconn config
no debug txconn config
Syntax Description

This command has no arguments or keywords.

Defaults

By default, debugging is not enabled for the txconn subsystem.

Command History

Release

Modification

12.0(5)XN

This command was introduced.

Examples

The following example shows output for the debug dbconn config command:
Router# debug txconn config
22:11:37: TXCONN-CONFIG: deleting transaction 61FCE414
22:11:37: TXCONN-CONFIG: deleting connection 61FB5CB0
22:11:37: TXCONN-CONFIG: server 62105D6C releases connection 61FB5CB0
22:11:44: TXCONN-CONFIG: new connection 61FB64A0
22:11:44: TXCONN-CONFIG: server 6210CEB4 takes connection 61FB64A0
22:11:44: TXCONN-CONFIG: new transaction 61E44B9C
22:11:48: TXCONN-CONFIG: deleting transaction 61E44B9C
22:11:53: TXCONN-CONFIG: new transaction 61E44B9C
22:11:54: TXCONN-CONFIG: deleting transaction 61E44B9C
Related Commands

Command

Description

debug snasw

Displays debugging information related to SNA Switching Services.

debug txconn all

Displays all CTRC debugging information related to communications with CICS.

debug txconn appc

Displays APPC-related trace or error messages for communications with CICS.

debug txconn data

Displays CICS client and host data being handled by CTRC, in hexadecimal notation.

debug txconn event

Displays trace or error messages for CTRC events related to CICS communications.

debug txconn tcp

Displays error messages or traces for TCP/IP communications with CICS.

debug txconn timer

Displays performance information related to CICS communications.

show debugging

Displays the state of each debugging option.

debug txconn data

To display a hexadecimal dump of CICS client and host data being handled by CTRC, plus information about certain CTRC internal operations, use the debug txconn data privileged EXEC command. Use the no form of this command to disable the debugging output.

debug txconn data
no debug txconn data
Syntax Description

This command has no arguments or keywords.

Defaults

By default, debugging is not enabled for the txconn subsystem.

Command History

Release

Modification

12.0(5)XN

This command was introduced.

Examples

The following example shows selected output from the debug txconn data command when a connection is established, data is received from the client via TCP/IP, data is sent to the client, and then the connection is closed.
Router# debug txconn data
TXConn DATA debugging is on
00:04:50: TXConn(62197464) Created
00:04:50: TXConn(62197464) State(0) MsgID(0) -> nextState(1)
00:04:50: TXConn(62197464) Client->0000 003A 0000 0002 000B 90A0
00:04:50: TXConn(62197464) Received LL 58 for session(0 0 2).
00:06:27: TXConn(62197464) Client<-0000 0036 0000 0003 000B 8001 0707 0864
00:06:53: TXConn(62175024) Deleted
The following lines show output when data is sent to the host:
00:04:50: TXTrans(id:62197910 conn:62197464 addr:2) LL(58) FMH5(0) CEBI(0)
00:04:50: TXTrans(id:62197910 conn:62197464 addr:2) State(0) MsgID(7844) -> nextState(1)
00:04:50: TXTrans(id:62197910 conn:62197464 addr:2) conversationType(mapped) syncLevel(1)
sec(0)
00:04:50: TXTrans(id:62197910 conn:62197464 addr:2) TPName CCIN
00:04:50: TXTrans(id:62197910 conn:62197464 addr:2) apDataLength(32) GDSID(12FF)
00:04:50: TXTrans(id:62197910 conn:62197464 addr:2) ->Host 0000 0008 03F4 F3F7 0000 0008
0401 0000
The following lines show output when data is received from the host:
00:05:01: TXTrans(id:62197910 conn:62197464 addr:2)  <-Host   0092 12FF 0000 000C  0102
0000 0000 0002
The following lines show CTRC generating an FMH7 error message indicating that a CICS transaction has failed at the host or has been cleared by a router administrator:
00:06:27: TXTrans(id:6219853C conn:62197464 addr:3) Generating FMH7.
00:06:27: %TXCONN-3-TXEXCEPTION: Error occurred from transaction 3 of client
157.151.241.10 connected to server CICSC, exception type is 9
The following line shows CTRC responding to an FMH7 error message sent by the CICS client program:
00:07:11: TXTrans(id:62197910 conn:62197464 addr:2) Generating FMH7 +RSP.
Related Commands

Command

Description

debug snasw

Displays debugging information related to SNA Switching Services.

debug txconn all

Displays all CTRC debugging information related to communications with CICS.

debug txconn appc

Displays APPC-related trace or error messages for communications with CICS.

debug txconn config

Displays trace or error messages for CTRC configuration and control blocks for CICS communications.

debug txconn event

Displays trace or error messages for CTRC events related to CICS communications.

debug txconn tcp

Displays error messages or traces for TCP/IP communications with CICS.

debug txconn timer

Displays performance information related to CICS communications.

show debugging

Displays the state of each debugging option.

debug txconn event

Use the debug txconn event privileged EXEC command to display trace or error messages for CTRC events related to CICS communications. Use the no form of this command to disable debugging output.

debug txconn event
no debug txconn event
Syntax Description

This command has no arguments or keywords.

Defaults

By default, debugging is not enabled for the txconn subsystem.

Command History

Release

Modification

12.0(5)XN

This command was introduced.

Examples

The following example shows output for the debug txconn event command:
Router# debug txconn event
TXConn event debugging is on
Router#
22:15:08: TXCONN-EVENT: [*] Post to 62146464(cn), from 6211E744(tc), msg
61FC6170, msgid 0x6372 'cr', buffer 6211289C.
22:15:08: TXCONN-EVENT: Dispatch to 62146464, from 6211E744, msg 61FC6170,
msgid 6372 'cr', buffer 6211289C.
22:15:08: TXCONN-EVENT: [*] Post to 61E44BA0(sn), from 62146464(cn), msg
621164D0, msgid 0x7844 'xD', buffer 0.
22:15:08: TXCONN-EVENT: [*] Post to 6211E744(tc), from 62146464(cn), msg
61FC6170, msgid 0x6347 'cG', buffer 0.
22:15:08: TXCONN-EVENT: Dispatch to 61E44BA0, from 62146464, msg 621164D0,
msgid 7844 'xD', buffer 0.
22:15:08: TXCONN-EVENT: Dispatch to 6211E744, from 62146464, msg 61FC6170,
msgid 6347 'cG', buffer 0.
22:15:08: TXCONN-EVENT: [*] Post to 62146464(cn), from 6211E744(tc), msg
61FC6170, msgid 0x6372 'cr', buffer 6211289C.
22:15:08: TXCONN-EVENT: Dispatch to 62146464, from 6211E744, msg 61FC6170,
msgid 6372 'cr', buffer 6211289C.
22:15:08: TXCONN-EVENT: [*] Post to 61E44BA0(sn), from 62146464(cn), msg
61FBFBF4, msgid 0x7844 'xD', buffer 0.
22:15:08: TXCONN-EVENT: [*] Post to 6211E744(tc), from 62146464(cn), msg
61FC6170, msgid 0x6347 'cG', buffer 0.
22:15:08: TXCONN-EVENT: Dispatch to 61E44BA0, from 62146464, msg 61FBFBF4,
msgid 7844 'xD', buffer 0.
22:15:08: TXCONN-EVENT: [*] Post to 61FC6394(ap), from 61E44BA0(sn), msg
621164D0, msgid 0x634F 'cO', buffer 0.
22:15:08: TXCONN-EVENT: Dispatch to 6211E744, from 62146464, msg 61FC6170,
msgid 6347 'cG', buffer 0.
Related Commands

Command

Description

debug snasw

Displays debugging information related to SNA Switching Services.

debug txconn all

Displays all CTRC debugging information related to communications with CICS.

debug txconn appc

Displays APPC-related trace or error messages for communications with CICS.

debug txconn config

Displays trace or error messages for CTRC configuration and control blocks for CICS communications.

debug txconn data

Displays CICS client and host data being handled by CTRC, in hexadecimal notation.

debug txconn tcp

Displays error messages or traces for TCP/IP communications with CICS.

debug txconn timer

Displays performance information related to CICS communications.

show debugging

Displays the state of each debugging option.

debug txconn tcp

Use the debug txconn tcp privileged EXEC command to display error messages and traces for TCP. Use the no form of this command to disable debugging output.

debug txconn tcp
no debug txconn tcp
Syntax Description

This command has no arguments or keywords.

Defaults

By default, debugging is not enabled for the txconn subsystem.

Command History

Release

Modification

12.0(5)XN

This command was introduced.

Examples

The following example displays output from the debug txconn tcp command:
Router# debug txconn tcp
TXCONN-TCP-63528473: tcpdriver_passive_open returned NULL
TXCONN-TCP-63528473: (no memory) tcp_reset(63829482) returns 4
TXCONN-TCP: tcp_accept(74625348,&error) returns tcb 63829482, error 4
TXCONN-TCP: (no memory) tcp_reset(63829482) returns 4
TXCONN-TCP-63528473: (open) tcp_create returns 63829482, error = 4
TXCONN-TCP-63528473: tcb_connect(63829482,1.2.3.4,2010) returns 4
TXCONN-TCP-63528473: (open error) tcp_reset(63829482) returns 4
TXCONN-TCP-63528473: tcp_create returns 63829482, error = 4
TXCONN-TCP-63528473: tcb_bind(63829482,0.0.0.0,2001) returns 4
TXCONN-TCP-63528473: tcp_listen(63829482,,) returns 4
TXCONN-TCP-63528473: (errors) Calling tcp_close (63829482)
Related Commands

Command

Description

debug ip

Displays debugging information related to TCP/IP communications.

debug snasw

Displays debugging information related to SNA Switching Services.

debug txconn all

Displays all CTRC debugging information related to communications with CICS.

debug txconn appc

Displays APPC-related trace or error messages for communications with CICS.

debug txconn config

Displays trace or error messages for CTRC configuration and control blocks for CICS communications.

debug txconn data

Displays CICS client and host data being handled by CTRC, in hexadecimal notation.

debug txconn event

Displays trace or error messages for CTRC events related to CICS communications.

debug txconn timer

Displays performance information related to CICS communications.

show debugging

Displays the state of each debugging option.

debug txconn timer

To display performance information regarding CTRC communications with CICS, use the debug txconn timer privileged EXEC command. Use the no form of this command to disable the debugging output.

debug txconn timer
no debug txconn timer
Syntax Description

This command has no arguments or keywords.

Defaults

By default, debugging is not enabled for the txconn subsystem.

Command History

Release

Modification

12.0(5)XN

This command was introduced.

Examples

The following example shows turnaround time and host response time in milliseconds for a CICS transaction requested through CTRC. Turnaround time is measured from when CTRC receives the first request packet for the transaction until CTRC sends the last response packet of the transaction to the client. Host response time is measured from when CTRC sends the last request packet for a transaction to the host until CTRC receives the first response packet from the host for that transaction.
Router# debug txconn timer
TXConn timer debugging is on
00:04:14: TXTrans(id:622F4350 conn:62175024 addr:1) Turnaround Time = 4536(msec)
HostResponseTime = 120(msec)
Related Commands

Command

Description

debug snasw

Displays debugging information related to SNA Switching Services.

debug txconn all

Displays all CTRC debugging information related to communications with CICS.

debug txconn appc

Displays APPC-related trace or error messages for communications with CICS.

debug txconn config

Displays trace or error messages for CTRC configuration and control blocks for CICS communications.

debug txconn data

Displays CICS client and host data being handled by CTRC, in hexadecimal notation.

debug txconn event

Displays trace or error messages for CTRC events related to CICS communications.

debug txconn tcp

Displays error messages or traces for TCP/IP communications with CICS.

show debugging

Displays the state of each debugging option.

debug udptn

To display debug messages for UDPTN events, use the debug udptn privileged EXEC command. Use the no form of this command to disable debugging output.

debug udptn
no debug udptn
Syntax Description

This command has no arguments or keywords.

Defaults

Disabled

Command History

Release

Modification

12.0(5)T

This command was introduced.

Examples
terrapin# debug udptn
terrapin# udptn 172.16.1.1
Trying 172.16.1.1 ... Open
*Mar  1 00:10:15.191:udptn0:adding multicast group.
*Mar  1 00:10:15.195:udptn0:open to 172.16.1.1:57 Loopback0jjaassdd
*Mar  1 00:10:18.083:udptn0:output packet w 1 bytes
*Mar  1 00:10:18.087:udptn0:Input packet w 1 bytes
terrapin# disconnect
Closing connection to 172.16.1.1 [confirm] y
terrapin#
*Mar  1 00:11:03.139:udptn0:removing multicast group.
Related Commands

Command

Description

udptn

Enables transmission or reception of UDP packets.

transport output

Defines the protocol that can be used for outgoing connections from a line.

debug v120 event

Use the debug v120 event privileged EXEC command to display information on V.120 activity. The no form of this command disables debugging output.

debug v120 event
no debug v120 event
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

V.120 is an ITU specification that allows for reliable transport of synchronous, asynchronous, or bit transparent data over ISDN bearer channels.

For complete information on the V.120 process, use the debug v120 packet command along with the debug v120 event command. V.120 events are activity events rather than error conditions.

Examples

The following is sample output from the debug v120 event command of V.120 starting up and stopping. Also included is the interface that V.120 is running on (BR 0) and where the V.120 configuration parameters are obtained from (default).
Router# debug v120 event
0:01:47: BR0:1-v120 started - Setting default V.120 parameters
0:02:00: BR0:1:removing v120
Related Commands

Command

Description

debug v120 packet

Displays general information on all incoming and outgoing V.120 packets.

debug v120 packet

Use the debug v120 packet privileged EXEC command to display general information on all incoming and outgoing V.120 packets. The no form of this command disables debugging output.

debug v120 packet
no debug v120 packet
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The debug v120 packet command shows every packet on the V.120 session. You can use this information to determine whether incompatibilities exist between Cisco's V.120 implementation and other vendors' V.120 implementations.

V.120 is an ITU specification that allows for reliable transport of synchronous, asynchronous, or bit transparent data over ISDN bearer channels.

For complete information on the V.120 process, use the debug v120 events command along with the debug v120 packet command.

Examples

The following is sample output from the debug v120 packet command for a typical session startup:
Router# debug v120 packet
0:03:27: BR0:1: I SABME:lli 256 C/R 0 P/F=1
0:03:27: BR0:1: O UA:lli 256 C/R 1 P/F=1
0:03:27: BR0:1: O IFRAME:lli 256 C/R 0 N(R)=0 N(S)=0 P/F=0 len 43
0x83 0xD 0xA 0xD 0xA 0x55 0x73 0x65
0x72 0x20 0x41 0x63 0x63 0x65 0x73 0x73
0:03:27: BR0:1: I RR:lli 256 C/R 1 N(R)=1 P/F=0
0:03:28: BR0:1: I IFRAME:lli 256 C/R 0 N(R)=1 N(S)=0 P/F=0 len 2
0x83 0x63
0:03:28: BR0:1: O RR:lli 256 C/R 1 N(R)=1 P/F=0
0:03:29: BR0:1: I IFRAME:lli 256 C/R 0 N(R)=1 N(S)=1 P/F=0 len 2
0x83 0x31
0:03:29: BR0:1: O RR:lli 256 C/R 1 N(R)=2 P/F=0
%LINEPROTO-5-UPDOWN: Line protocol on Interface BRI0: B-Channel 1, changed state to up
0:03:31: BR0:1: I IFRAME:lli 256 C/R 0 N(R)=1 N(S)=2 P/F=0 len 2
0x83 0x55
0:03:32: BR0:1: I IFRAME:lli 256 C/R 0 N(R)=1 N(S)=3 P/F=0 len 3
0x83 0x31 0x6F
0:03:32: BR0:1: O RR:lli 256 C/R 1 N(R)=3 P/F=0
0:03:32: BR0:1: I IFRAME:lli 256 C/R 0 N(R)=1 N(S)=4 P/F=0 len 2
0x83 0x73
0:03:32: BR0:1: O RR:lli 256 C/R 1 N(R)=5 P/F=0
0:03:32: BR0:1: I IFRAME:lli 256 C/R 0 N(R)=1 N(S)=5 P/F=0 len 2
0x83 0xA
0:03:32: BR0:1: O IFRAME:lli 256 C/R 0 N(R)=6 N(S)=1 P/F=0 len 9
0x83 0xD 0xA 0x68 0x65 0x66 0x65 0x72 0x3E
Table 194 describes the significant fields in the display.

Table 194 debug v.120 packet Command Field Descriptions

Field

Descriptions

BR0:1

Interface number associated with this debugging information.

I/O

Packet going into or out of the interface.

SABME, UA, IFRAME, RR

V.120 packet type. In this case:

•SABME—set asynchronous balanced mode, extended

•US—unnumbered acknowledgment

•IFRAME—information frame

•RR—receive ready

lli 256

Logical link identifier number.

C/R 0

Command or response.

P/F=1

Poll final.

N(R)=0

Number received.

N(S)=0

Number sent.

len 43

Number of data bytes in the packet.

0x83

Up to 16 bytes of data.

Related Commands

Command

Description

debug tarp events

Displays information on TARP activity.

debug vg-anylan

To monitor error information and 100VG connection activity, use the debug vg-anylan privileged EXEC command. The no form of this command disables debugging output.

debug vg-anylan
no debug vg-anylan
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

This command could create large amounts of command output.

Examples

The following is sample output from the debug vg-anylan command:
Router# debug vg-anylan
%HP100VG-5-LOSTCARR: HP100VG(2/0), lost carrier
Table 195 lists the possible messages that could be generated by this command.

Table 195 debug vg-anylan Command Command Message Descriptions

Message

Description

Action

%HP100VG-5-LOSTCARR: HP100VG(2/0), lost carrier

Lost carrier debug message. The VG controller detects that the link to the hub is down due to cable, hub, or VG controller problem.

Check, repair, or replace the cable or hub. If you determine that the cable and hub are functioning normally, repair or replace the 100VG-AnyLAN port adapter.

%HP100VG-5-CABLEERR: HP100VG(2/0), cable error, training failed

Bad cable error messages. Cable did not pass training.¹

Check, repair, or replace the cable or hub. If you determine that the cable and hub are functioning normally, repair or replace the 100VG-AnyLAN port adapter.

%HP100VG-5-NOCABLE: HP100VG(2/0), no tone detected, check cable, hub

No cable attached error message. The VG MAC cannot hear tones from the hub.1

Check, repair, or replace the cable or hub. If you determine that the cable and hub are functioning normally, repair or replace the 100VG-AnyLAN port adapter.

HP100VG-1-FAIL: HP100VG(2/0), Training Fail - unable to login to the hub

Training to the VG network failed. Login to the hub rejected by the hub.1

Take action based on the following error messages:

•%HP100VG-1-DUPMAC: HP100VG(2/0), A duplicate MAC address has been detected

•HP100VG-1-LANCNF: HP100VG(2/0), Configuration is not compatible with the network

•%HP100VG-1-ACCESS: HP100VG(2/0), Access to network is not allowed

%HP100VG-1-DUPMAC: HP100VG(2/0), A duplicate MAC address has been detected

Duplicate MAC address on the same VG network. Two VG devices on the same LAN segment have the same MAC address.

Check the router configuration to make sure that no duplicate MAC address is configured.

%HP100VG-1-LANCNF: HP100VG(2/0), Configuration is not compatible with the network

Configuration of the router is not compatible to the network.

Check that the configuration of the hub for Frame Format, Promiscuous, and Repeater bit indicates the proper configuration.

%HP100VG-1-ACCESS: HP100VG(2/0), Access to network is not allowed

Access to the VG network is denied by the hub.

Check the configuration of the hub.

%HP100VG-3-NOTHP100VG: Device reported 0x5101A

Could not find the 100VG PCI device on a 100VG-AnyLAN port adapter.

Make sure the 100VG-AnyLAN port adapter is properly seated in the slot. Otherwise repair or replace the 100VG-AnyLAN port adapter.

%HP100VG-1-DISCOVER: Only found 0 interfaces on bay 2, shutting down bay

No 100VG interface detected on a 100VG-AnyLAN port adapter in a slot.

Make sure the 100VG-AnyLAN port adapter is properly seated in the slot. Otherwise repair or replace the 100VG-AnyLAN port adapter.

¹This message might display when the total load on the cascaded hub is high. Wait at least 20 seconds before checking to see if the training really failed. Check if the protocol is up after 20 seconds before starting troubleshooting.

debug video vicm

To display debug messages for the Video Call Manager (ViCM) that handles video calls, enter the
debug video vicm privileged EXEC command. The no form of the command disables ViCM debugging.

debug video vicm
no debug video vicm
Syntax Description

This command has no arguments or keywords.

Defaults

Debugging for the ViCM is not enabled.

Command History

Release

Modification

12.0(5)XK

This command was introduced.

12.0(6)T

This command was modified.

Examples

The following example shows output when you use the debug video vicm command. Comments are enclosed in asterisks (*).
router# debug video vicm
Video ViCM FSM debugging is on
***** Starting Video call *****
router# SVC HANDLE in rcvd:0x80001B:
00:42:55:ViCM - current state = Idle, Codec Ready
00:42:55:ViCM - current event = SVC Setup
00:42:55:ViCM - new state = Call Connected
00:42:55:ViCM - current state = Call Connected
00:42:55:ViCM - current event = SVC Connect Ack
00:42:55:ViCM - new state = Call Connected
*****Video Call Disconnecting*****
router#
00:43:54:ViCM - current state = Call Connected
00:43:54:ViCM - current event = SVC Release
00:43:54:ViCM - new state = Remote Hangup
00:43:54:ViCM - current state = Remote Hangup
00:43:54:ViCM - current event = SVC Release Complete
00:43:54:ViCM - new state = Remote Hangup
mc3810_video_lw_periodic:Codec is not ready
mc3810_video_lw_periodic:sending message
00:43:55:ViCM - current state = Remote Hangup
00:43:55:ViCM - current event = DTR Deasserted
00:43:55:ViCM - new state = Idle
mc3810_video_lw_periodic:Codec is ready
mc3810_video_lw_periodic:sending message
00:43:55:ViCM - current state = Idle
00:43:55:ViCM - current event = DTR Asserted
00:43:55:ViCM - new state = Idle, Codec Ready
debug vines arp

Use the debug vines arp privileged EXEC command to display debugging information on all Virtual Integrated Network Service (VINES) Address Resolution Protocol (ARP) packets that the router sends or receives. The no form of this command disables debugging output.

debug vines arp
no debug vines arp
Syntax Description

This command has no arguments or keywords.

Examples

The following is sample output from the debug vines arp command:
Router# debug vines arp
VNSARP: received ARP type 0 from 0260.8c43.a7e4
VNSARP: sending ARP type 1 to 0260.8c43.a7e4
VNSARP: received ARP type 2 from 0260.8c43.a7e4
VNSARP: sending ARP type 3 to 0260.8c43.a7e4 assigning address 3001153C:8004
VSARP: received ARP type 0 from 0260.8342.1501
VSARP: sending ARP type 1 to 0260.8342.1501
VSARP: received ARP type 2 from 0260.8342.1501
VSARP: sending ARP type 3 to 0260.8342.1501 assigning address 3001153C:8005,
       sequence 143C, metric 2
In the sample output, the first four lines show a non-sequenced ARP transaction and the second four lines show a sequenced ARP transaction. Within the first group of four lines, the first line shows that the router received an ARP request (type 0) from indicated station address 0260.8c43.a7e4. The second line shows that the router is sending back the ARP service response (type 1), indicating that it is willing to assign VINES Internet addresses. The third line shows that the router received a VINES Internet address assignment request (type 2) from address 0260.8c43.a7e4. The fourth line shows that the router is responding (type 3) to the address assignment request from the client and assigning it the address 3001153C:8004.

Within the second group of four lines, the sequenced ARP packet also includes the router' current sequence number and the metric value between the router and the client.

Table 196 describes significant fields in the display.

Table 196 debug vines arp Command Field Descriptions

Field

Description

VNSARP:

Banyan VINES nonsequenced ARP message.

VSARP:

Banyan VINES sequenced ARP message.

received ARP type 0

ARP request of type 0 was received. Possible type values follow:

•0—Query request. The ARP client broadcasts a type 0 message to request an ARP service to respond.

•1—Service response. The ARP service responds with a type 1 message to an ARP client's query request.

•2—Assignment request. The ARP client responds to a service response with a type 2 message to request a VINES Internet address.

•3—Assignment response. The ARP service responds to an assignment request with a type 3 message that includes the assigned VINES Internet address.

from 0260.8c43.a7e4

Indicates the source address of the packet.

debug vines echo

Use the debug vines echo privileged EXEC command to display information on all MAC-level echo packets that the router sends or receives. Banyan VINES interface testing programs make use of these echo packets. The no form of this command disables debugging output.

debug vines echo
no debug vines echo
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

These echo packets do not include network layer addresses.

Examples

The following is sample output from the debug vines echo command:
Router# debug vines echo
VINESECHO: 100 byte packet from 0260.8c43.a7e4
Table 197 describes the significant fields in the display.

Table 197 debug vines echo Command Field Descriptions

Field

Description

VINESECHO

Indication that this is a debug vines echo message.

100 byte packet

Packet size in bytes.

from 0260.8c43.a7e4

Source address of the echo packet.

debug vines ipc

Use the debug vines ipc privileged EXEC command to display information on all transactions that occur at the VINES IPC layer, which is one of the two VINES transport layers. The no form of this command disables debugging output.

debug vines ipc
no debug vines ipc
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

You can use the debug vines ipc command to discover why an IPC layer process on the router is not communicating with another IPC layer process on another router or Banyan VINES server.

Examples

The following is sample output from the debug vines ipc command for three pairs of transactions. For more information about these fields or their values, refer to Banyan VINES documentation.
Router# debug vines ipc
VIPC: sending IPC Data to Townsaver port 7 from port 7
 r_cid 0, l_cid 1, seq 1, ack 0, length 12
VIPC: received IPC Data from Townsaver port 7 to port 7
 r_cid 51, l_cid 1, seq 1, ack 1, length 32
VIPC: sending IPC Ack to Townsaver port 0 from port 0
 r_cid 51, l_cid 1, seq 1, ack 1, length 0
Table 198 describes the significant fields in the display.

Table 198 debug vines ipc Command Field Descriptions

Field

Description

VIPC:

Indicates that this is output from the debug vines ipc command.

sending

Indicates that the router is either sending an IPC packet to another router or has received an IPC packet from another router.

IPC Data to

Indicates the type of IPC frame:

•Acknowledgment

•Data

•Datagram

•Disconnect

•Error

•Probe

Townsaver port 7

Indicates the machine name as assigned using the VINES host command, or IP address of the other router. Also indicates the port on that machine through which the packet has been transmitted.

from port 7

Indicates the port on the router through which the packet has been transmitted.

r_cid 0, l_cid 1, seq 1, ack 0, length 12

Indicates the values for various fields in the IPC layer header of this packet. Refer to Banyan VINES documentation for more information.

debug vines netrpc

Use the debug vines netrpc privileged EXEC command to display information on all transactions that occur at the VINES NetRPC layer, which is the VINES Session/Presentation layer. The no form of this command disables debugging output.

debug vines netrpc
no debug vines netrpc
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

You can use the debug vines netrpc command to discover why a NetRPC layer process on the router is not communicating with another NetRPC layer process on another router or Banyan server.

Examples

The following is sample output from the debug vines netrpc command. For more information about these fields or their values, refer to Banyan VINES documentation.
Router# debug vines netrpc
VRPC: sending RPC call to Townsaver
VRPC: received RPC return from Townsaver
Table 199 describes the fields shown in the first line of output.

Table 199 debug vines netrpc Command Field Descriptions

Field

Description

VRPC:

Indicates that this is output from the debug vines netrpc command.

sending RPC

Indicates that the router is either sending a NetRPC packet to another router or has received a NetRPC packet from another router.

call

Indicates the transaction type:

•abort

•call

•reject

•return

•return address

•search

•search all

Townsaver

Indicates the machine name as assigned using the VINES host command or IP address of the other router.

debug vines packet

Use the debug vines packet privileged EXEC command to display general VINES debugging information. This information includes packets received, generated, and forwarded, as well as failed access checks and other operations. The no form of this command disables debugging output.

debug vines packet
no debug vines packet
Syntax Description

This command has no arguments or keywords.

Examples

The following is sample output from the debug vines packet command:
Router# debug vines packet
VINES: s=30028CF9:1 (Ether2), d=FFFFFFFF:FFFF, rcvd w/ hops 0
VINES: s=3000CBD4:1 (Ether1), d=3002ABEA:1 (Ether2), g=3002ABEA:1, sent
VINES: s=3000CBD4:1 (Ether1), d=3000B959:1, rcvd by gw
VINES: s=3000B959:1 (local), d=3000CBD4:1 (Ether1), g=3000CBD4:1, sent
Table 200 describes the fields shown in the first line of output.

Table 200 debug vines packet Command Field Descriptions

Field

Description

VINES:

Indicates that this is a Banyan VINES packet.

s = 30028CF9:1

Indicates source address of the packet.

(Ether2)

Indicates the interface through which the packet was received.

d = FFFFFFFF:FFFF

Indicates that the destination is a broadcast address.

rcvd w/ hops 0

Indicates that the packet was received because it was a local broadcast packet. The remaining hop count in the packet was zero (0).

In the following line, the destination is the address 3002ABEA:1 associated with interface Ether2. Source address 3000CBD4:1 sent a packet to this destination through the gateway at address 3000ABEA:1.
VINES: s=3000CBD4:1 (Ether1), d=3002ABEA:1 (Ethernet2), g=3002ABEA:1, sent
In the following line, the router being debugged is the destination address (3000B959:1):
VINES: s=3000CBD4:1 (Ether1), d=3000B959:1, rcvd by gw
In the following line, (local) indicates that the router being debugged generated the packet:
VINES: s=3000B959:1 (local), d=3000CBD4:1 (Ether1), g=3000CBD4:1, sent
debug vines routing

Use the debug vines routing privileged EXEC command to display information on all VINES RTP update messages sent or received and all routing table activities that occur in the router. The no form of this command disables debugging output.

debug vines routing [verbose]
no debug vines routing [verbose]
Syntax Description

verbose

(Optional) Provides detailed information about the contents of each update.

Examples

The following is sample output from the debug vines routing command:

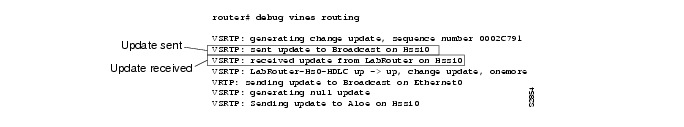

The following is sample output from the debug vines routing verbose command:
Router# debug vines routing verbose
VRTP: sending update to Broadcast on Ethernet0
    network 30011E7E, metric 0020 (0.4000 seconds)
    network 30015800, metric 0010 (0.2000 seconds)
    network 3003148A, metric 0020 (0.4000 seconds)
VSRTP: generating change update, sequence number 0002C795
    network Router9        metric 0010, seq 00000000, flags 09
    network RouterZZ       metric 0230, seq 00052194, flags 02
VSRTP: sent update to Broadcast on Hssi0
VSRTP: received update from LabRouter on Hssi0
    update: type 00, flags 07, id 000E, ofst 0000, seq 15DFC, met 0010
    network LabRouter from the server
    network Router9        metric 0020, seq 00000000, flags 09
VSRTP: LabRouter-Hs0-HDLC up -> up, change update, onemore
The output describes two VINES routing updates; the first includes two entries and the second includes three entries. Explanations for selected lines follow.

The following line shows that the router sent a periodic routing update to the broadcast address FFFFFFFF:FFFF through the Ethernet0 interface:
VRTP: sending update to Broadcast on Ethernet0
The following line indicates that the router knows how to reach network 30011E7E, which is a metric of 0020 away from the router. The value that follows the metric (0.4000 seconds) interprets the metric in seconds.
network 30011E7E, metric 0020 (0.4000 seconds)
The following lines show that the router sent a change routing update to the Broadcast addresses on the Hssi0 interface using the Sequenced Routing Update Protocol (SRTP) routing protocol:
VSRTP: generating change update, sequence number 0002C795
VSRTP: Sending update to Broadcast on Hssi0
The lines in between the previous two indicate that the router knows how to reach network Router9, which is a metric of 0010 (0.2000 seconds) away from the router. The sequence number for Router9 is zero, and according to the 0x08 bit in the flags field, is invalid. The 0x01 bit of the flags field indicates that Router9 is attached via a LAN interface.
network Router9        metric 0010, seq 00000000, flags 09
The next lines indicate that the router can reach network RouterZZ, which is a metric of 0230 (7.0000 seconds) away from the router. The sequence number for RouterZZ is 0052194. The 0x02 bit of the flags field indicates that RouterZZ is attached via a WAN interface.
network RouterZZ       metric 0230, seq 00052194, flags 02
The following line indicates that the router received a routing update from the router LabRouter through the Hssi0 interface:
VSRTP: received update from LabRouter on Hssi0
The following line displays all SRTP values contained in the header of the SRTP packet. This is a type 00 packet, which is a routing update, and the flags field is set to 07, indicating that this is a change update (0x04) and contains both the beginning (0x01) and end (0x02) of the update. This overall update is update number 000E from the router, and this fragment of the update contains the routes beginning at offset 0000 of the update. The sending router's sequence number is currently 00015DFC, and its configured metric for this interface is 0010.
update: type 00, flags 07, id 000E, ofst 0000, seq 00015DFC, met 0010
The following line implies that the server sending this update is directly accessible to the router (even though VINES servers do not explicitly list themselves in routing updates). Because this is an implicit entry in the table, the other information for this entry is taken from the previous line.
network LabRouter from the server
As the first actual entry in the routing update from LabRouter, the following line indicates that Router9 can be reached by sending to this server. This network is a metric of 0020 away from the sending server.
network Router9        metric 0020, seq 00000000, flags 09
debug vines service

Use the debug vines service privileged EXEC command to display information on all transactions that occur at the VINES Service (or applications) layer. The no form of this command disables debugging output.

debug vines service
no debug vines service
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

You can use the debug vines service command to discover why a VINES Service layer process on the router is not communicating with another Service layer process on another router or Banyan server.

Note Because the debug vines service command provides the highest level overview of VINES traffic through the router, it is best to begin debugging using this command, and then proceed to use lower-level VINES debug commands as necessary.

Examples

The following is sample output from the debug vines service command:

As the sample suggests, debug vines service lines of output appear as activity pairs—either a sent/response pair as shown, or as a received/sent pair.

Table 201 describes the fields shown in the second line of output. For more information about these fields or their values, refer to Banyan VINES documentation.

Table 201 debug vines service Command Field Descriptions

Field

Description

VSRV:

Indicates that this is output from the debug vines service command.

Get Time Info

Indicates one of three packet types:

•Get Time Info

•Time Set

•Time Sync

response from

Indicates whether the packet was sent to another router, a response from another router, or received from another router.

Townsaver

Indicates the machine name as assigned using the VINES host command, or IP address of the other router.

time: 01:47:54 PDT Apr 29 1993

Indicates the current time in hours:minutes:seconds and current date.

Table 202 describes the fields shown in the third line of output. This line is an extension of the first two lines of output. For more information about these fields or their values, refer to Banyan VINES documentation.

Table 202 debug vines service Command Field Descriptions

Field

Description

VSRV:

Output from the debug vines service command.

epoch

Line of output that describes a VINES epoch.

SS@Aloe@Servers-10

Epoch name.

age: 0:15:15

Epoch—elapsed time since the time was last set in the network.

debug vines state

Use the debug vines state privileged EXEC command to display information on the VINES SRTP state machine transactions. The no form of this command disables debugging output.

debug vines state
no debug vines state
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

This command provides a subset of the information provided by the debug vines routing command, showing only the transactions made by the SRTP state machine. Refer to the debug vines routing command for descriptions of output from the debug vines state command.

debug vines table

Use the debug vines table privileged EXEC command to display information on all modifications to the VINES routing table. The no form of this command disables debugging output.

debug vines table
no debug vines table
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

This command provides a subset of the information produced by the debug vines routing command, as well as some more detailed information on table additions and deletions.

Examples

The following is sample output from the debug vines table command:
Router# debug vines table
VINESRTP: create neighbor 3001153C:8004, interface Ethernet0
Table 203 describes the significant fields in the display.

Table 203 debug vines table Command Field Descriptions

Field

Description

VINESRTP:

Indicates that this is a debug vines routing or debug vines table message.

create neighbor 3001153C:8004

Indicates that the client at address 3001153C:8004 has been added to the Banyan VINES neighbor table.

interface Ethernet 0

Indicates that this neighbor can be reached through the router interface named Ethernet0.

debug vlan packet

Use the debug vlan packet privileged EXEC command to display general information on virtual LAN (VLAN) packets that the router received but is not configured to support. The no form of this command disables debugging output.

debug vlan packet
no debug vlan packet
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The debug vlan packet command displays only packets with a VLAN identifier that the router is not configured to support. This command allows you to identify other VLAN traffic on the network. Virtual LAN packets that the router is configured to route or switch are counted and indicated when you use the show vlans command.

Examples

The following is sample output from the debug vlan packet output. In this example, a VLAN packet with a VLAN ID of 1000 was received on FDDI 0 interface and this interface was not configured to route or switch this VLAN packet.
Router# debug vlan packet
vLAN: IEEE 802.10 packet bearing vLAN ID 1000 received on interface
      Fddi0 which is not configured to route/switch ID 1000.
debug voice all

Use the debug voice all privileged EXEC command to display debugging information for all components of the Voice Call Manager. The no form of this command disables debugging output.

debug voice all [slot/port]
no debug voice all [slot/port]
Syntax Description

slot/port

(Optional) The slot/port number of the voice port. If the slot/port is entered, then only debugging information for that voice port is displayed. If the slot/port is not entered, debugging information for all voice ports is displayed.

Usage Guidelines

This command is valid on the Cisco MC3810 only.

Examples

The debug voice all command output provides debug output for all the debug commands for the Voice Call Manager compiled into one display. For sample output of the individual commands, see the sample displays for the debug voice cp, debug voice eecm, debug voice protocol, debug voice signaling, and debug voice tdsm commands.

Related Commands

Command

Description

debug voip ccapi

Debugs the call control API.

debug voice eecm

Displays debugging information for the Voice End-to-End Call Manager.

debug voice protocol

Displays debugging information for the Voice Line protocol State machine.

debug voice signaling

Displays debugging information for the voice port signaling.

debug voice tdsm

Displays debugging information for the voice tandem switch.

debug voice cp

Use the debug voice cp privileged EXEC command to display debugging information for the Voice Call Processing State Machine. The no form of this command disables debugging output.

debug voice cp [slot/port]
no debug voice cp [slot/port]
Syntax Description

slot/port

(Optional) The slot/port number of the voice port. If the slot/port is entered, then only debugging information for that voice port is displayed.

Usage Guidelines

This command is valid on the Cisco MC3810 only.

Examples

The following is sample output from the debug voice cp command:
router# debug voice cp 1/1
Voice Call Processing State Machine debugging is on
1/1: CPD( ), idle gets event seize_ind
1/1: CPD( ), idle gets event dsp_ready
1/1: CPD( ), idle ==> collect
1/1: CPD(in), collect gets event digit
1/1: CPD(in), collect gets event digit
1/1: CPD(in), collect gets event digit
1/1: CPD(in), collect gets event digit
1/1: CPD(in), collect gets event addr_done
1/1: CPD(in), collect ==> request
1/1: CPD(in), request gets event call_proceeding
1/1: CPD(in), request ==> in_wait_answer
1/1: CPD(in), in_wait_answer gets event call_accept
1/1: CPD(in), in_wait_answer gets event call_answered
1/1: CPD(in), in_wait_answer ==> connected
1/1: CPD(in), connected gets event peer_onhook
1/1: CPD(in), connected ==> disconnect_wait
1/1: CPD(in), disconnect_wait gets event idle_ind
1/1: CPD(in), disconnect_wait ==> idle
Related Commands

Command

Description

debug voice all

Displays debugging information for all components of the Voice Call Manager.

debug voice eecm

Displays debugging information for the Voice End-to-End Call Manager.

debug voice protocol

Displays debugging information for the Voice Line protocol State machine.

debug voice signaling

Displays debugging information for the voice port signaling.

debug voice tdsm

Displays debugging information for the voice tandem switch.

debug voice eecm

Use the debug voice eecm privileged EXEC command to display debugging information for the Voice End-to-End Call Manager. The no form of this command disables debugging output.

debug voice eecm [slot/port]
no debug voice eecm [slot/port]
Syntax Description

slot/port

Slot/port number of the voice port. If the slot/port is entered, then only debugging information for that voice port is displayed.

Usage Guidelines

This command is valid on the Cisco MC3810 only.

Examples

The following is sample output from the debug voice eecm command:
router# debug voice eecm
1/1: EECM(in), ST_NULL             EV_ALLOC_DSP
1/1: EECM(in), ST_DIGIT_COLLECT    EV_PARSE_DIGIT    3
1/1: EECM(in), ST_DIGIT_COLLECT    EV_PARSE_DIGIT    7
1/1: EECM(in), ST_DIGIT_COLLECT    EV_PARSE_DIGIT    0
1/1: EECM(in), ST_DIGIT_COLLECT    EV_PARSE_DIGIT    2
1/1: EECM(in), ST_ADDRESS_DONE     EV_OUT_SETUP
-1/-1: EECM(out), ST_NULL          EV_IN_SETUP
1/1: EECM(in), ST_OUT_REQUEST      EV_IN_PROCEED
1/2: EECM(out), ST_SEIZE           EV_ALLOC_DSP
1/2: EECM(out), ST_SEIZE           EV_OUT_ALERT
1/1: EECM(in), ST_OUT_REQUEST      EV_IN_ALERT
1/1: EECM(in), ST_OUT_REQUEST      EV_OUT_ALERT_ACK
1/2  EECM(out), ST_IN_PENDING      EV_OUT_CONNECT
1/1: EECM(in), ST_WAIT_FOR_ANSWER  EV_IN_CONNECT
1/2: EECM(out), ST_ACTIVE          EV_OUT_REL
1/1: EECM(in), ST_ACTIVE           EV_IN_REL
1/1: EECM(in), ST_DISCONN_PENDING  EV_OUT_REL_ACK
Related Commands

Command

Description

debug voice all

Displays debugging information for all components of the Voice Call Manager.

debug voip ccapi

Debugs the call control API.

debug voice protocol

Displays debugging information for the Voice Line protocol State machine.

debug voice signaling

Displays debugging information for the voice port signaling.

debug voice tdsm

Displays debugging information for the voice tandem switch.

debug voice protocol

Use the debug voice protocol privileged EXEC command to display debugging information for the Voice Line protocol State machine. The no form of this command disables debugging output.

debug voice protocol [slot/port]
no debug voice protocol [slot/port]
Syntax Description

slot/port

(Optional) Slot/port number of the voice port. If the slot/port is entered, then only debugging information for that voice port is displayed.

Usage Guidelines

In the debugging display, the following abbreviations are used for the different signaling protocols:

LFXS

FXS trunk loop start protocol

LFXO

FXO trunk loop start protocol

GFXS

FXS trunk ground start protocol

GFXO

FXO trunk ground start protocol

E&M

E&M trunk protocol

Command History

This command is valid on the Cisco MC3810 only.

Examples

The following is sample output from the debug voice protocol command:
router# debug voice protocol
Voice Line protocol State machine debugging is on
1/1: LFXS( ), idle gets event offhook
1/1: LFXS( ), idle ==> seize
1/1: LFXS(in), seize gets event ready
1/1: LFXS(in), seize ==> dial_tone
1/1: LFXS(in), dial_tone gets event digit
1/1: LFXS(in), dial_tone ==> collect
1/1: LFXS(in), collect gets event digit
1/1: LFXS(in), collect gets event digit
1/1: LFXS(in), collect gets event digit
1/1: LFXS(in), collect gets event addr_done
1/1: LFXS(in), collect ==> call_progress
1/2: LFXS( ), idle gets event seize
1/2: LFXS( ), idle ==> ringing
1/2: LFXS(out), ringing gets event dial_tone
1/2: LFXS(out), ringing gets event offhook
1/2: LFXS(out), ringing ==> connected
1/1: LFXS(in), call_progress gets event answer
1/1: LFXS(in), call_progress ==> connected
1/2: LFXS(out), connected gets event onhook
1/2: LFXS(out), connected ==> disconnect_wait
1/2: LFXS(out), disconnected_wait gets event disconnect
1/2: LFXS(out), disconnect_wait ==> cpc
1/1: LFXS(in), connected gets event disconnect
1/2: LFXS(out), connected ==> cpc
1/2: LFXS(out), cpc gets event offhook
1/2: LFXS(out), cpc gets event timer1
1/2: LFXS(out), cpc ==> cpc_recover
1/2: LFXS(out), cpc gets event timer1
1/2: LFXS(out), cpc_recover ==> offhook_wait
1/1: LFXS(in), offhook_wait gets event onhook
1/1: LFXS(in), offhook_wait ==> idle
1/2: LFXS(out), offhook_wait gets event onhook
1/2: LFXS(out), offhook_wait ==> idle
Related Commands

Command

Description

debug voice all

Displays debugging information for the voice tandem switch.

debug voip ccapi

Debugs the call control API.

debug voice eecm

Displays debugging information for the Voice End-to-End Call Manager.

debug voice signaling

Displays debugging information for the voice port signaling.

debug voice tdsm

Displays debugging information for the voice tandem switch.

debug voice signaling

Use the debug voice signaling privileged EXEC command to display debugging information for the voice port signaling. The no form of this command disables debugging output.

debug voice signaling [slot/port]
no debug voice signaling [slot/port]
Syntax Description

slot/port

(Optional) Slot/port number of the voice port. If the slot/port is entered, then only debugging information for that voice port is displayed.

Usage Guidelines

This command is valid on the Cisco MC3810 only.

Examples

The following is sample output from the debug voice signaling command:
router# debug voice signaling
1/1: TIU, report_local_hook=1
1/2: TIU, set ring cadence=1
1/2: TIU, ringer on
1/2: TIU, ringer off
1/2: TIU, ringer on
1/2: TIU, report_local_hook=1
1/2: TIU, turning off ringer due to SW ringtrip
1/2: TIU, ringer off
1/2: TIU, set ring cadence=0
1/2: TIU, ringer off
1/2: TIU, set reverse battery=1
1/2: TIU, set reverse battery=1
1/1: TIU, report_local_hook=0
1/2: TIU, set reverse battery=0
1/2: TIU, set loop disabled=1
1/1: TIU, set reverse battery=0
1/1: TIU, set loop disabled=1
1/2: TIU, report_local_hook=1
1/1: TIU, report_lead_gnd grounded=1
1/1: TIU, report_lead_gnd grounded=0
1/2: TIU, set loop disabled=0
1/1: TIU, set loop disabled=0
1/1: TIU, report_local_hook=0
1/2: TIU, report_local_hook=0
1/1: TIU, report_local_hook=1
1/2: TIU, report_local_hook=1
1/1: TIU, report_local_hook=0
1/2: TIU, report_local_hook=0
1/1: TIU, set reverse battery=0
1/2: TIU, set reverse battery=0
Related Commands

Command

Description

debug voice all

Displays debugging information for all components of the Voice Call Manager.

debug voip ccapi

Debugs the call control API.

debug voice eecm

Displays debugging information for the Voice End-to-End Call Manager.

debug voice protocol

Displays debugging information for the Voice Line protocol State machine.

debug voice tdsm

Display debugging information for the voice tandem switch.

debug voice tdsm

Use the debug voice tdsm privileged EXEC command to display debugging information for the voice tandem switch. The no form of this command disables debugging output.

debug voice tdsm [slot/port]
no debug voice tdsm [slot/port]
Syntax Description

slot/port

(Optional) Slot/port number of the voice port. If the slot/port is entered, then only debugging information for that voice port is displayed.

Usage Guidelines

This command is valid on the Cisco MC3810 only.

Examples

The following is sample output from the debug voice tdsm command:
router# debug voice tdsm
Voice tandem switch debugging is on
-1/-1: TDSM(out), ref= -1, state NULL gets event OUT_SETUP
1/1: TDSM(in), ref=6, state CALL_INITIATED gets event IN_CALLPROC
1/1: TDSM(in), ref=6, state OUTG_CALLPROC gets event IN_ALERTING
1/1: TDSM(in), ref=6, state CALL_DELIVERED gets event IN_CONNECT
1/1: TDSM(out),ref=6, state CALL_ACTIVE send out conn. ack
1/1: TDSM(out),ref=6, state CALL_ACTIVE send out release, cause LOCAL_ONHOOK
1/1: TDSM(in), ref=6, state RELEASE_REQ gets event IN_REL_COMP, cause REMOTE_ONHOOK
-1/-1: TDSM(in), ref=-1, state NULL gets event IN_SETUP
-1/-1: TDSM(out), ref=6, state INC_CALLPROC gets event OUT_ALERTING
1/1: TDSM(out),ref=6, state CALL_RECEIVED gets event OUT_CONNECT
1/1: TDSM(in), ref-6, state CONNECT_REQ gets event IN_CONN_ACK
1/1: TDSM(out),ref-6, state CALL_ACTIVE send out release, cause LOCAL_ONHOOK
1/1: TDSM(in), ref=6, state RELEASE_REQ gets event IN_REL_COMP, cause REMOTE_ONHOOK
-1/-1:TDSM(out), ref=-1, state NULL gets event OUT_SETUP
1/1: TDSM(in), ref=7, state CALL_INITIATED gets event IN_CALLPROC
1/1: TDSM(in), ref=7, state OUTG_CALLPROC gets event IN_ALERTING
1/1: TDSM(in), ref=7, state CALL_DELIVERED gets event IN_CONNECT
1/1: TDSM(out),ref=7, state CALL_ACTIVE send out conn.ack
1/1: TDSM(out),ref=7, state CALL_ACTIVE send out release, cause LOCAL_ONHOOK
-1/-1: TDSM(in), ref=-1, state NULL gets event IN_SETUP
-1/-1: TDSM(out), ref=7, state INC_CALLPROC gets event OUT_ALERTING
1/1: TDSM(out),ref=7. state CALL_RECEIVED gets event OUT_CONNECT
1/1: TDSM(in), ref=7, state CONNECT_REQ gets event IN_CONN_ACK
1/1: TDSM(in), ref=7, state CALL_ACTIVE send out release, cause LOCAL_ONHOOK
1/1: TDSM(in), ref=7, state RELEASE_REQ gets event IN_REL_COMP, cause REMOTE_ONHOOK
-1/-1: TDSM(out), ref=-1, state NULL gets event OUT_SETUP
1/1: TDSM(in), ref=8, state CALL_INITIATED gets event IN_CALLPROC
1/1: TDSM(in), ref=8, state OUTG_CALLPROC gets event IN_ALERTINGbug all
Related Commands

Command

Description

debug voice all

Displays debugging information for all components of the Voice Call Manager.

debug voip ccapi

Debugs the call control API.

debug voice eecm

Displays debugging information for the Voice End-to-End Call Manager.

debug voice protocol

Displays debugging information for the Voice Line protocol State machine.

debug voice signaling

Displays debugging information for the voice port signaling.

debug voice vofr

To show Cisco trunk and FRF.11 trunk call setup attempts and to show which dial peer is used in the call setup, use the debug voice vofr privileged EXEC command. Use the no form of this command to turn off the debug function.

debug voice vofr
no debug voice vofr
Syntax Description

This command has no arguments or keywords.

Command History

Release

Modification

12.0(3)XG

This command was introduced.

Usage Guidelines

This command applies to Cisco trunks and FRF.11 trunks only; it does not apply to switched calls.

This command applies to VoFR, VoATM, and VoHDLC dial peers on the Cisco MC3810.

Examples

The following example shows sample output from the debug voice vofr command for a Cisco trunk:
router# debug voice vofr
1d05h: 1/1:VOFR, unconf ==> pending_start
1d05h: 1/1:VOFR,create VOFR
1d05h: 1/1:VOFR,search dial-peer 7100 preference 0
1d05h: 1/1:VOFR, pending_start ==> start
1d05h: 1/1:VOFR,
1d05h:voice_configure_perm_svc:
1d05h:dial-peer 7100 codec = G729A payload size = 30 vad = off dtmf relay = on
     seq num = off
1d05h:voice-port 1/1 codec = G729A payload size = 30 vad = off dtmf relay = on
     seq num = off
1d05h: 1/1:VOFR,SIGNAL-TYPE = cept
1d05h:init_frf11 tcid 0 master 0 signaltype 2
1d05h:Going Out Of Service on tcid 0  with sig state 0001
1d05h: 1/1:VOFR, start get event idle
1d05h: 1/1:VOFR, start get event
1d05h: 1/1:VOFR, start get event set up
1d05h: 1/1:VOFR, start ==> pending_connect
1d05h: 1/1:VOFR, pending_connect get event connect
1d05h: 1/1:VOFR, pending_connect ==> connect
1d05h: 1/1:VOFR,SIGNAL-TYPE = cept
1d05h:init_frf11 tcid 0 master 1 signaltype 2
1d05h:start_vofr_polling on port 0 signaltype 2
The following example shows sample output from the debug voice vofr command for an FRF.11 trunk:
router# debug voice vofr
1d05h: 1/1:VOFR,search dial-peer 7200 preference 2
1d05h: 1/1:VOFR,SIGNAL-TYPE = cept
1d05h:Launch Voice Trunk:signal-type 2
1d05h:calculated bandwidth = 10, coding = 6, size = 30
1d05h:%Voice-port 1/1 is down.
1d05h: 1/1:VOFR, pending_start get event idle
1d05h:Codec Type = 6 Payload Size = 30 Seq# off
1d05h:%Voice-port 1/1 is up.
1d05h:init_frf11 tcid 0 master 1 signaltype 2
1d05h:status OK :cid = 100
1d05h: 1/1:VOFR,
1d05h:start FRF11
1d05h: 1/1:VOFR, pending_start ==> frf11
1d05h: 1/1:VOFR,SIGNAL-TYPE = cept
Related Commands

Command

Description

debug ccfrf11 session

Displays the ccfrf11 function calls during call setup and teardown.

debug ccswvoice vofr-debug

Displays the ccswvoice function calls during call setup and teardown.

debug ccswvoice vofr-session

Displays the ccswvoice function calls during call setup and teardown.

debug frame-relay fragment

Displays information related to Frame Relay fragmentation on a PVC.

debug vpm port

Shows the behavior of the Holst state machine.

debug vtsp port

Shows the behavior of the VTSP state machine.

debug vtsp vofr subframe

Displays the first 10 bytes (including header) of selected VoFR subframes for the interface.

debug voip aaa

To enable debugging messages for gateway aaa to be output to the system console, use the debug voip aaa privileged EXEC command. Use the no form of this command to disable debugging output.

debug voip aaa
no debug voip aaa
Syntax Description

This command has no arguments or keywords.

Command History

Release

Modification

11.3(6)NA2

This command was introduced.

debug voip ccapi

To debug the call control API, use the debug voip ccapi privileged EXEC command. Use the no form of this command to disable debugging output.

debug voip ccapi
no debug voip ccapi
Syntax Description

This command has no arguments or keywords.

Command History

Release

Modification

11.3(6)NA2

This command was introduced.

Examples
Router# show debug
voip:
 voip ccAPI function enter/exit debugging is on
Oct 9 17:39:20.267:cc_api_call_setup_ind (vdbPtr=0x60ED5134,
callInfo={called=3001, calling=4004, fdest=0 peer_tag=1},
callID=0x6104B374)
Oct 9 17:39:20.275:cc_process_call_setup_ind (event=0x60D45CF0) handed
call to app "sess"
Oct 9 17:39:20.279:ccAppInitialize (name=App for callId 3
, appHandle=0x6103DD44)
Oct 9 17:39:20.279:ccCallSetContext (callID=0x3, context=0x6103DD3C)
Oct 9 17:39:20.279:ccCallSetupAck (callID=0x3)
Oct 9 17:39:20.279:ccGenerateTone (callID=0x3 tone=8)
Oct 9 17:39:20.279:ccCallApp (callID=0x3)
Oct 9 17:39:20.279:ccCallSetContext (callID=0x3, context=0x60DC4594)
00:11:31:%RADIUS-6-SERVERALIVE:Radius server 171.69.184.73 is
responding
again (previously dead).
Oct 9 17:39:22.808:cc_api_call_digit (vdbPtr=0x60ED5134, callID=0x3,
digit=1, mode=0)
Oct 9 17:39:23.069:cc_api_call_digit (vdbPtr=0x60ED5134, callID=0x3,
digit=1, mode=0)
Oct 9 17:39:23.399:cc_api_call_digit (vdbPtr=0x60ED5134, callID=0x3,
digit=5, mode=0)
Oct 9 17:39:23.652:cc_api_call_digit (vdbPtr=0x60ED5134, callID=0x3,
digit=1, mode=0)
Oct 9 17:39:24.041:cc_api_call_digit (vdbPtr=0x60ED5134, callID=0x3,
digit=0, mode=0)
Oct 9 17:39:24.294:cc_api_call_digit (vdbPtr=0x60ED5134, callID=0x3,
digit=0, mode=0)
Oct 9 17:39:24.294:ccCallAppReturn (callID=0x3)
Oct 9 17:39:24.294:ccCallApp (callID=0x3)
Oct 9 17:39:24.294:ccCallSetContext (callID=0x3, context=0x6105DC90)
Oct 9 17:39:24.294:ccCallProceeding (callID=0x3, prog_ind=0x0)
Oct 9 17:39:24.294:ccCallSetupRequest (peer=0x60FE4068, dest=,
params=0x6105DB70 mode=0, *callID=0x60D50978)
Oct 9 17:39:24.294:callingNumber=4004, calledNumber=115100,
redirectNumber=
Oct 9 17:39:24.294:accountNumber=, finalDestFlag=0,
guid=3c85.5d28.2861.0004.0000.0000.000a.8dfc
Oct 9 17:39:24.294:peer_tag=115
Oct 9 17:39:24.294:ccIFCallSetupRequest:(vdbPtr=0x60D4A268, dest=,
callParams={called=115100, calling=4004, fdest=0, voice_peer_tag=115},
mode=0x0)
Oct 9 17:39:24.294:ccCallSetContext (callID=0x4, context=0x6105DD78)
Oct 9 17:39:26.350:cc_api_call_alert(vdbPtr=0x60D4A268, callID=0x4,
prog_ind=0x8, sig_ind=0x0)
Oct 9 17:39:26.350:ccCallAlert (callID=0x3, prog_ind=0x8, sig_ind=0x0)
Oct 9 17:39:26.350:ccConferenceCreate (confID=0x60D509C8, callID1=0x3,
callID2=0x4, tag=0x0)
Oct 9 17:39:26.350:cc_api_bridge_done (confID=0x1, srcIF=0x60D4A268,
srcCallID=0x4, dstCallID=0x3, disposition=0, tag=0x0)
Oct 9 17:39:26.350:cc_api_bridge_done (confID=0x1, srcIF=0x60ED5134,
srcCallID=0x3, dstCallID=0x4, disposition=0, tag=0x0)
Oct 9 17:39:26.350:cc_api_caps_ind (dstVdbPtr=0x60D4A268,
dstCallId=0x4,srcCallId=0x3, caps={codec=0x7, fax_rate=0x7F, vad=0x3})
Oct 9 17:39:26.350:cc_api_caps_ind (dstVdbPtr=0x60ED5134,
dstCallId=0x3,srcCallId=0x4, caps={codec=0x4, fax_rate=0x2, vad=0x2})
Oct 9 17:39:26.350:cc_api_caps_ack (dstVdbPtr=0x60ED5134,
dstCallId=0x3,srcCallId=0x4, caps={codec=0x4, fax_rate=0x2, vad=0x2})
Oct 9 17:39:26.350:cc_api_caps_ack (dstVdbPtr=0x60D4A268,
dstCallId=0x4,srcCallId=0x3, caps={codec=0x4, fax_rate=0x2, vad=0x2})
Oct 9 17:39:26.430:cc_api_call_connected(vdbPtr=0x60D4A268,
callID=0x4)
Oct 9 17:39:26.430:ccCallConnect (callID=0x3)
Oct 9 17:39:26.430:ccCallAppReturn (callID=0x3)
Oct 9 17:39:26.430:ccCallSetContext (callID=0x4, context=0x6103DD3C)
Oct 9 17:39:30.683:cc_api_call_disconnected(vdbPtr=0x60D4A268,
callID=0x4, cause=0x10)
Oct 9 17:39:30.683:ccCallDisconnect (callID=0x4, cause=0x10 tag=0x0)
Oct 9 17:39:30.683:ccConferenceDestroy (confID=0x1, tag=0x0)
Oct 9 17:39:30.687:cc_api_bridge_done (confID=0x1, srcIF=0x60D4A268,
srcCallID=0x4, dstCallID=0x3, disposition=0 tag=0x0)
Oct 9 17:39:30.727:cc_api_call_disconnect_done(vdbPtr=0x60D4A268,
callID=0x4, disp=0, tag=0x0)
Oct 9 17:39:30.727:cc_api_bridge_done (confID=0x1, srcIF=0x60ED5134,
srcCallID=0x3, dstCallID=0x4, disposition=0 tag=0x0)
Oct 9 17:39:30.727:ccCallDisconnect (callID=0x3, cause=0x10 tag=0x0)
Oct 9 17:39:30.779:cc_api_call_disconnect_done(vdbPtr=0x60ED5134,
callID=0x3, disp=0, tag=0x0)
00:11:42:%LINK-3-UPDOWN:Interface Serial0:18, changed state to down
debug voip ccapi error

Use the debug voip ccapi error privileged EXEC command to trace error logs in the call control API. The no form of this command disables debugging output.

debug voip ccapi error
no debug voip ccapi error
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The debug voip ccapi error command traces the error logs in the call control API. Error logs are generated during normal call processing, when there are insufficient resources, or when there are problems in the underlying network-specific code, the higher call session application, or the call control API itself.

This debug command shows error events or unexpected behavior in system software. In most cases, no events will be generated.

debug voip ccapi inout

Use the debug voip ccapi inout privileged EXEC command to trace the execution path through the call control API. Use the no form of this command to disable debugging output.

debug voip ccapi inout
no debug voip ccapi inout
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The debug voip ccapi inout command traces the execution path through the call control API, which serves as the interface between the call session application and the underlying network-specific software. You can use the output from this command to understand how calls are being handled by the router.

This command shows how a call flows through the system. Using this debug level, you can see the call setup and teardown operations performed on both the telephony and network call legs.

Examples

Figure 36 shows the call setup indicated and accepted by the router:

Figure 36 Sample debug voip ccapi inout Command Output
router# debug voip ccapi inout
cc_api_call_setup_ind (vdbPtr=0x60BFB530, callInfo={called=, calling=, fdest=0},
callID=0x60BFAEB8)
cc_process_call_setup_ind (event=0x60B68478)
sess_appl: ev(14), cid(1), disp(0)
ccCallSetContext (callID=0x1, context=0x60A7B094)
ccCallSetPeer (callID=0x1, peer=0x60C0A868, voice_peer_tag=2, encapType=1,
dest-pat=+14085231001, answer=)
ccCallSetupAck (callID=0x1)
Figure 37 shows the caller entering DTMF digits until a dial-peer is matched:

Figure 37 Sample debug voip ccapi inout Command Output
cc_api_call_digit (vdbPtr=0x60BFB530, callID=0x1, digit=4, mode=0)
sess_appl: ev(8), cid(1), disp(0)
ssa: cid(1)st(0)oldst(0)cfid(-1)csize(0)in(1)fDest(0)
cc_api_call_digit (vdbPtr=0x60BFB530, callID=0x1, digit=1, mode=0)
sess_appl: ev(8), cid(1), disp(0)
ssa: cid(1)st(0)oldst(0)cfid(-1)csize(0)in(1)fDest(0)
cc_api_call_digit (vdbPtr=0x60BFB530, callID=0x1, digit=0, mode=0)
sess_appl: ev(8), cid(1), disp(0)
ssa: cid(1)st(0)oldst(0)cfid(-1)csize(0)in(1)fDest(0)
cc_api_call_digit (vdbPtr=0x60BFB530, callID=0x1, digit=0, mode=0)
sess_appl: ev(8), cid(1), disp(0)
ssa: cid(1)st(0)oldst(0)cfid(-1)csize(0)in(1)fDest(0)
cc_api_call_digit (vdbPtr=0x60BFB530, callID=0x1, digit=1, mode=0)
sess_appl: ev(8), cid(1), disp(0)
ssa: cid(1)st(0)oldst(0)cfid(-1)csize(0)in(1)fDest(0)
ccCallProceeding (callID=0x1, prog_ind=0x0)
ssaSetupPeer cid(1), destPat(+14085241001), matched(8), prefix(), peer(60C0E710)
Figure 38 shows the call setup over the IP network to the remote router:

Figure 38 Sample debug voip ccapi inout Command Output
ccCallSetupRequest (peer=0x60C0E710, dest=, params=0x60A7B0A8 mode=0, *callID=0x60B6C110)
ccIFCallSetupRequest: (vdbPtr=0x60B6C5D4, dest=, callParams={called=+14085241001,
calling=+14085231001, fdest=0, voice_peer_tag=104}, mode=0x0)
ccCallSetContext (callID=0x2, context=0x60A7B2A8)
Figure 39 shows the called party is alerted, a CODEC is negotiated, and voice path is cut through:

Figure 39 Sample debug voip ccapi inout Command Output
cc_api_call_alert(vdbPtr=0x60B6C5D4, callID=0x2, prog_ind=0x8, sig_ind=0x1)
sess_appl: ev(6), cid(2), disp(0)
ssa: cid(2)st(1)oldst(0)cfid(-1)csize(0)in(0)fDest(0)-cid2(1)st2(1)oldst2(0)
ccCallAlert (callID=0x1, prog_ind=0x8, sig_ind=0x1)
ccConferenceCreate (confID=0x60B6C150, callID1=0x1, callID2=0x2, tag=0x0)
cc_api_bridge_done (confID=0x1, srcIF=0x60B6C5D4, srcCallID=0x2, dstCallID=0x1,
disposition=0, tag=0x0)
cc_api_bridge_done (confID=0x1, srcIF=0x60BFB530, srcCallID=0x1, dstCallID=0x2,
disposition=0, tag=0x0)
cc_api_caps_ind (dstVdbPtr=0x60B6C5D4, dstCallId=0x2,srcCallId=0x1, caps={codec=0x7,
fax_rate=0x7F, vad=0x3})
cc_api_caps_ind (dstVdbPtr=0x60BFB530, dstCallId=0x1,srcCallId=0x2, caps={codec=0x4,
fax_rate=0x2, vad=0x2})
cc_api_caps_ack (dstVdbPtr=0x60BFB530, dstCallId=0x1,srcCallId=0x2, caps={codec=0x4,
fax_rate=0x2, vad=0x2})
cc_api_caps_ack (dstVdbPtr=0x60B6C5D4, dstCallId=0x2,srcCallId=0x1, caps={codec=0x4,
fax_rate=0x2, vad=0x2})
sess_appl: ev(17), cid(1), disp(0)
ssa: cid(1)st(3)oldst(0)cfid(1)csize(0)in(1)fDest(0)-cid2(2)st2(3)oldst2(1)
Figure 40 shows that the call is connected and voice is active:

Figure 40 Sample debug voip ccapi inout Conmand Output
cc_api_call_connected(vdbPtr=0x60B6C5D4, callID=0x2)
sess_appl: ev(7), cid(2), disp(0)
ssa: cid(2)st(4)oldst(1)cfid(1)csize(0)in(0)fDest(0)-cid2(1)st2(4)oldst2(3)
ccCallConnect (callID=0x1)
Figure 41 shows how the system processes voice statistics and monitors voice quality during the call:

Figure 41 Sample debug voip ccapi inout Command Output
ccapi_request_rt_packet_stats (requestorIF=0x60B6C5D4, requestorCID=0x2,
      requestedCID=0x1, tag=0x60A7C598)
cc_api_request_rt_packet_stats_done (requestedIF=0x60BFB530, requestedCID=0x1,
      tag=0x60A7A4C4)
ccapi_request_rt_packet_stats (requestorIF=0x60B6C5D4, requestorCID=0x2,
      requestedCID=0x1, tag=0x60A7C598)
cc_api_request_rt_packet_stats_done (requestedIF=0x60BFB530, requestedCID=0x1,
      tag=0x60C1FE54)
ccapi_request_rt_packet_stats (requestorIF=0x60B6C5D4, requestorCID=0x2,
      requestedCID=0x1, tag=0x60A7C598)
cc_api_request_rt_packet_stats_done (requestedIF=0x60BFB530, requestedCID=0x1,
      tag=0x60A7A5F4)
ccapi_request_rt_packet_stats (requestorIF=0x60B6C5D4, requestorCID=0x2,
      requestedCID=0x1, tag=0x60A7C598)
cc_api_request_rt_packet_stats_done (requestedIF=0x60BFB530, requestedCID=0x1,
      tag=0x60A7A6D8)
ccapi_request_rt_packet_stats (requestorIF=0x60B6C5D4, requestorCID=0x2,
      requestedCID=0x1, tag=0x60A7C598)
cc_api_request_rt_packet_stats_done (requestedIF=0x60BFB530, requestedCID=0x1,
      tag=0x60A7ACBC)
Figure 42 shows that disconnection is indicated from the calling party, call legs are torn down and disconnected:

Figure 42 Sample debug voip ccapi inout Command Output
cc_api_call_disconnected(vdbPtr=0x60BFB530, callID=0x1, cause=0x10)
sess_appl: ev(9), cid(1), disp(0)
ssa: cid(1)st(5)oldst(3)cfid(1)csize(0)in(1)fDest(0)-cid2(2)st2(5)oldst2(4)
ccConferenceDestroy (confID=0x1, tag=0x0)
cc_api_bridge_done (confID=0x1, srcIF=0x60B6C5D4, srcCallID=0x2, dstCallID=0x1,
disposition=0 tag=0x0)
cc_api_bridge_done (confID=0x1, srcIF=0x60BFB530, srcCallID=0x1, dstCallID=0x2,
disposition=0 tag=0x0)
sess_appl: ev(18), cid(1), disp(0)
ssa: cid(1)st(6)oldst(5)cfid(-1)csize(0)in(1)fDest(0)-cid2(2)st2(6)oldst2(4)
ccCallDisconnect (callID=0x1, cause=0x10 tag=0x0)
ccCallDisconnect (callID=0x2, cause=0x10 tag=0x0)
cc_api_call_disconnect_done(vdbPtr=0x60B6C5D4, callID=0x2, disp=0, tag=0x0)
sess_appl: ev(10), cid(2), disp(0)
ssa: cid(2)st(7)oldst(4)cfid(-1)csize(0)in(0)fDest(0)-cid2(1)st2(7)oldst2(6)
cc_api_call_disconnect_done(vdbPtr=0x60BFB530, callID=0x1, disp=0, tag=0x0)
sess_appl: ev(10), cid(1), disp(0)
ssa: cid(1)st(7)oldst(6)cfid(-1)csize(1)in(1)fDest(0)
debug voip ivr

To debug the IVR application, use the debug voip ivr privileged EXEC command. Use the no form of this command to disable debugging output.

debug voip ivr [states | error | all]
no debug voip ivr [states | error | all]
Syntax Description

states

(Optional) Displays verbose information about how IVR is handling each call.

error

(Optional) Displays information only if an error occurred.

all

(Optional) Displays both states and error messages.

Command History

Release

Modification

11.3(6)NA2

This command was introduced.

Usage Guidelines

IVR debug messages will be displayed when a call is being actively handled by the IVR scripts. Error output should only occur if something is not working or an error condition has been raised. States output supplies information about the current status of the IVR script and the different events which are occurring in that state.

debug voip ivr settlement

The debug voip ivr settlement privileged EXEC command is used to debug the IVR application.

debug voip ivr [states | error | settlement | dynamic | all]
Syntax Description

states

Displays verbose information about how IVR is handling each call.

error

Displays information only if an error occurs.

settlement

IVR settlement activities.

dynamic

IVR dynamic prompt play debug.

all

Displays both sates and error.

Command History

Release

Modification

11.3(6)NA2

This command was introduced.

Usage Guidelines

IVR debug messages appear when a call is handled by the IVR scripts. Error output should only occur if something is not working or an error condition has been raised. States output supplies information about the current status of the IVR script and the different events that occur in that state.

Note To see the complete description of the debug voip ivr command refer to Configuring Interactive Voice Response for Cisco Access Platforms.

Settlement output logs activities related to settlement when a call is processed.

Example On the Originating Gateway
Router # debug voip ivr settlement
ivr settlement activities debugging is on
as5300-04#
00:00:52:settlement_validate_token:cid(1), target=, tokenp=0x0
00:00:54:pcSettlementAuthorize:cid(1) authorizing using calling=408,
called=15125551212
00:00:54:pcSettlementAuthorize:cid(1) sending authorize request type=1
00:00:57:pcSettlementSetup:cid(1) settlement_curr_dest=0, num_dest=3
00:00:57:pcSettlementGetDestination:trans=0 gets error=0,
credit_time=14400
00:00:57:pcSettlementSetup:cid(1) placing call through
ip(1.14.115.85), calling(408),called(15125551212), digits(15125551212)
00:00:57:pcSettlementSetup:set settlement acct for cid(2) on
ip=1.14.115.85
as5300-04#
Example On the Terminating Gateway
Router # debug voip ivr settlement
ivr settlement activities debugging is on
as5300-05#
00:10:02:settlement_validate_token:cid(1), target=settlement,
tokenp=0x618386B
4
00:10:02:settlement_validate_token:cid(1) return 1, credit_time=14400
00:10:02:Set settlement acct on cid(1) for trans=0, prov=0
as5300-05#
debug voip rawmsg

The debug voip rawmsg privilege EXEC command is used to display the raw message owner, length, and pointer. Use the no form of this command to disable debugging output.

debug voip rawmsg [detail]
no debug voip rawmsg [detail]
Syntax Description

detail

Prints the contents of the raw message in hexadecimal.

Defaults

Disabled.

Command History

Release

Modification

12.0(6)T

This command was introduced.

Examples

The following example shows output when you use the debug voip rawmsg command.
as5300# debug voip rawmsg
00:57:40:Raw Message owner is 2, length is 69, ptr is 60FE4F5C, type is 0, protocol id is
0
00:57:40:Raw Message owner is 5, length is 69, ptr is 60FE4F5C, type is 0, protocol id is
0
0
The following example shows output when you use the debug voip rawmsg detail command.
as5300# debug voip rawmsg detail
00:57:40:Raw Message owner is 2, length is 69, ptr is 60FE4F5C, type is 0, protocol id is
0
00:57:40:Raw Message is :04 03 80 90 A2 18 03 A9 83 97 1C 27 9F AA 06 80 01 00 82 01 00
92 01 11 8B 01 00 A1 16 02 02 01 00 06 04 2B 0C 09 00 80 0A 4D 4F 4E 49 43 41 20 33 32 33
1E 02 81 83 6C 05 09 80 33 32 33 70 04 89 38 30 30 A1
00:57:40:Raw Message owner is 5, length is 69, ptr is 60FE4F5C, type is 0, protocol id is
0
00:57:40:Raw Message is :04 03 80 90 A2 18 03 A9 83 97 1C 27 9F AA 06 80 01 00 82 01 00
92 01 11 8B 01 00 A1 16 02 02 01 00 06 04 2B 0C 09 00 80 0A 4D 4F 4E 49 43 41 20 33 32 33
1E 02 81 83 6C 05 09 80 33 32 33 70 04 89 38 30 30 A1
Related Commands

Command

Description

debug cdapi

Displays information about the call distributor application programming interface

debug tsp

Displays information about the telephony service provider.

debug voip settlement all

Enter the debug voip settlement all privileged EXEC command to enable debugging in all Settlement areas. Use the no form of this command to disable debugging output.

debug voip settlement all
no debug voip settlement all
Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The debug voip settlement all command enables the following debug Settlement commands:

•debug voip settlement enter

•debug voip settlement error

•debug voip settlement exit

•debug voip settlement security

•debug voip settlement misc

•debug voip settlement security

•debug voip settlement transaction

debug voip settlement enter

Enter the debug voip settlement enter privileged EXEC command to show all the Settlement function entrances.

debug voip settlement enter
Syntax Description

This command has no arguments or keywords.

Command History

Release

Modification

12.0(4)XH

This command was introduced.

Usage Guidelines

The debug voip settlement enter command shows the Settlement function entrances.

Examples
00:43:40:OSP:ENTER:OSPPMimeMessageCreate()
00:43:40:OSP:ENTER:OSPPMimeMessageInit()
00:43:40:OSP:ENTER:OSPPMimeMessageSetContentAndLength()
00:43:40:OSP:ENTER:OSPPMimeMessageBuild()
00:43:40:OSP:ENTER:OSPPMimeDataFree()
00:43:40:OSP:ENTER:OSPPMimePartFree()
00:43:40:OSP:ENTER:OSPPMimePartFree()
00:43:40:OSP:ENTER:OSPPMsgInfoAssignRequestMsg()
00:43:40:OSP:ENTER:osppHttpSelectConnection
00:43:40:OSP:ENTER:OSPPSockCheckServicePoint() ospvConnected = <1>
00:43:40:OSP:ENTER:OSPPSockWaitTillReady()
00:43:40:OSP:ENTER:osppHttpBuildMsg()
00:43:40:OSP:ENTER:OSPPSSLSessionWrite()
00:43:40:OSP:ENTER:OSPPSockWrite()
00:43:40:OSP:ENTER:OSPPSockWaitTillReady()
debug voip settlement error

Enter the debug voip settlement error privileged EXEC command to show all the Settlement errors.

debug voip settlement error
Syntax Description

This command has no arguments or keywords.

Command History

Command

Modification

12.0(4)XH

This command was introduced.

Examples
00:45:50:OSP:OSPPSockProcessRequest:http recv init header failed
00:45:50:OSP:osppHttpSetupAndMonitor:attempt#0 on http=0x6141A514, limit=1 error=14310
Error Code Definitions
-1:OSP internal software error.
16:A bad service was chosen.
17:An invalid parameter was passed to OSP.
9010:Attempted to access an invalid pointer.
9020:A time related error occurred.
10010:OSP provider module failed initalization.
10020:OSP provider tried to access a NULL pointer.
10030:OSP provider could not fine transaction collection.
10040:OSP provider failed to obtain provider space.
10050:OSP provider tried to access an invalid handle.
10060:OSP provider has reached the maximum number of providers.
11010:OSP transaction tried to delete a transaction which was not allowed.
11020:OSP transaction tried a transaction which does not exist.
11030:OSP transaction tried to start a transaction, but data had already been delivered.
11040:OSP transaction could not identify the response given.
11050:OSP transaction failed to obtain transaction space.
11060:OSP transaction failed (possibly ran out) to allocate memory.
11070:OSP transaction tried to perform a transaction which is not allowed.
11080:OSP transaction found no more responses.
11090:OSP transaction could not find a specified value.
11100:OSP transaction did not have enough space to copy.
11110:OSP transaction - call id did not match destination.
11120:OSP transaction encountered an invalid entry.
11130:OSP transaction tried to use a token too soon.
11140:OSP transaction tried to use a token too late.
11150:OSP transaction - source is invalid.
11160:OSP transaction - destination is invalid.
11170:OSP transaction - calling number is invalid.
11180:OSP transaction - called number is invalid.
Error Codes Continued
11190:OSP transaction - call id is invalid.
11200:OSP transaction - authentication id is invalid.
11210:OSP transaction - call id was not found
11220:OSP transaction - The IDS of the called number was invalid.
11230:OSP transaction - function not implemented.
11240:OSP transaction tried to access an invalid handle.
11250:OSP transaction returned an invalid return code.
11260:OSP transaction reported an invalid status code.
11270:OSP transaction encountered an invalid token.
11280:OSP transaction reported a status which could not be identified.
11290:OSP transaction in now valid after it was not found.
11300:OSP transaction could not find the specified destination.
11310:OSP transaction is valid until not found.
11320:OSP transaction - invalid signaling address.
11330:OSP transaction could not find the ID of the transmitter.
11340:OSP transaction could not find the source number.
11350:OSP transaction could not find the destination number.
11360:OSP transaction could not find the token.
11370:OSP transaction could not find the list.
11380:OSP transaction was not allowed to accumulate.
11390:OSP transaction - transaction usage was already reported.
11400:OSP transaction could not find statistics.
11410:OSP transaction failed to create new statistics.
11420:OSP transaction made an invalid calculation.
11430:OSP transaction was not allowed to get the destination.
11440:OSP transaction could not fine the authorization request.
11450:OSP transaction - invalid transmitter ID.
11460:OSP transaction could not find any data.
11470:OSP transaction found no new authorization requests.
12010:OSP security did not have enough space to copy.
12020:OSP security received and invalid argument.
12030:OSP security could not find the private key.
12040:OSP security encountered an un-implemented function.
12050:OSP security ran out of memory.
12060:OSP security received an invalid signal.
12065:OSP security could not initalize the SSL database.
12070:OSP security could not find space for the certificate.
12080:OSP security has no local certificate info defined.
12090:OSP security encountered a zero length certificate.
12100:OSP security encountered a certificate that is too big.
12110:OSP security encountered an invalid certificate.
12120:OSP security encountered a NULL certificate.
12130:OSP security has too many certificates.
12140:OSP security has no storage provided.
12150:OSP security has no private key.
12160:OSP security encountered an invalid context.
12170:OSP security was unable to allocate space.
12180:OSP security - CA certificates do not match.
12190:OSP security found no authority certificates
12200:OSP security - CA certificate index overflow.
13010:OSP error message - failed to allocate memory.
13110:OSP MIME error - buffer is too small.
13115:OSP MIME error - failed to allocate memory.
13120:OSP MIME error - could not find variable.
13125:OSP MIME error - no input was found.
13130:OSP MIME error - invalid argument.
13135:OSP MIME error - no more space.
13140:OSP MIME error - received an invalid type.
13145:OSP MIME error - received an invalid subtype.
Error Codes Continued
13150:OSP MIME error - could not find the specified protocol.
13155:OSP MIME error - could not find MICALG.
13160:OSP MIME error - boundry was not found.
13165:OSP MIME error - content type was not found.
13170:OSP MIME error - message parts were not found.
13301:OSP XML error - received incomplete XML data.
13302:OSP XML error - bad encoding of XML data.
13303:OSP XML error - bad entity in XML data.
13304:OSP XML error - bad name in XML data.
13305:OSP XML error - bad tag in XML data.
13306:OSP XML error - bad attribute in XML data.
13307:OSP XML error - bad CID encoding in XML data.
13308:OSP XML error - bad element found in XML data.
13309:OSP XML error - no element found in XML data.
13310:OSP XML error - no attribute found in XML data.
13311:OSP XML error - OSP received invalid arguments.
13312:OSP XML error - failed to create a new buffer.
13313:OSP XML error - failed to get the size of a buffer.
13314:OSP XML error - failed to send the buffer.
13315:OSP XML error - failed to read a block from the buffer.
13316:OSP XML error - failed to allocate memory.
13317:OSP XML error - could not find the parent.
13318:OSP XML error - could not find the child.
13319:OSP XML error - data type not found in XML data.
13320:OSP XML error - failed to write a clock to the buffer.
13410:OSP data error - no call id preset.
13415:OSP data error - no token present.
13420:OSP data error - bad number presented.
13425:OSP data error - no destination found.
13430:OSP data error - no usage indicator present.
13435:OSP data error - no status present.
13440:OSP data error - no usage configured.
13445:OSP data error - no authentication indicator.
13450:OSP data error - no authentication request.
13455:OSP data error - no authentication response.
13460:OSP data error - no authentication configuration.
13465:OSP data error - no re-authentication request.
13470:OSP data error - no re-authentication response.
13475:OSP data error - invalid data type present.
13480:OSP data error - no usage information available.
13485:OSP data error - no token info present.
13490:OSP data error - invalid data present.
13500:OSP data error - no alternative info present.
13510:OSP data error - no statistics available.
13520:OSP data error - no delay present.
13610:OSP certificate error - memory allocation failed.
14010:OSP communications error - invalid communication size.
14020:OSP communications error - bad communication value.
14030:OSP communications error - parser error.
14040:OSP communications error - no more memory available.
14050:OSP communications error - communication channel currently in use.
14060:OSP communications error - invalid argument passed.
14070:OSP communications error - no service points present.
14080:OSP communications error - no service points available.
14085:OSP communications error - thread initalization failed.
14086:OSP communications error - communications is shutdown.
Error Codes Continued
14110:OSP message queue error - no more memory available.
14120:OSP message queue error - failed to add a request.
14130:OSP message queue error - no event queue present.
14140:OSP message queue error - invalid arguments passed.
14210:OSP HTTP error - 100 - bad header.
14220:OSP HTTP error - 200 - bad header.
14221:OSP HTTP error - 400 - bad request.
14222:OSP HTTP error - bas service port present.
14223:OSP HTTP error - failed to add a request.
14230:OSP HTTP error - invalid queue present.
14240:OSP HTTP error - bad message received.
14250:OSP HTTP error - invalid argument passed.
14260:OSP HTTP error - memory allocation failed.
14270:OSP HTTP error - failed to create a new connection.
14280:OSP HTTP error - server error.
14290:OSP HTTP error - HTTP server is shutdown.
14292:OSP HTTP error - failed to create a new SSL connection.
14295:OSP HTTP error - failed to create a new SSL context.
14297:OSP HTTP error - service unavailable.
14300:OSP socket error - socket select failed.
14310:OSP socket error - socket receive failed.
14315:OSP socket error - socket send failed.
14320:OSP socket error - failed to allocate memory for the receive buffer.
14320:OSP socket error - socket reset.
14330:OSP socket error - failed to create the socket.
14340:OSP socket error - failed to close the socket.
14350:OSP socket error - failed to connect the socket.
14360:OSP socket error - failed to block I/O on the socket.
14370:OSP socket error - failed to disable nagle on the socket.
14400:OSP SSL error - failed to allocate memory.
14410:OSP SSL error - failed to initalize the context.
14420:OSP SSL error - failed to retrieve the version.
14430:OSP SSL error - failed to initalize the session.
14440:OSP SSL error - failed to attach the socket.
14450:OSP SSL error - handshake failed.
14460:OSP SSL error - failed to close SSL.
14470:OSP SSL error - failed to read from SSL.
14480:OSP SSL error - failed to write to SSL.
14490:OSP SSL error - could not get certificate.
14495:OSP SSL error - no root certificate found.
14496:OSP SSL error - failed to set the private key.
14497:OSP SSL error - failed to parse the private key.
14498:OSP SSL error - failed to add certificates.
14499:OSP SSL error - failed to add DN.
15410:OSP utility error - not enough space for copy.
15420:OSP utility error - no time stamp has been created.
15430:OSP utility error - value not found.
15440:OSP utility error - failed to allocate memory.
15450:OSP utility error - invalid argument passed.
15500:OSP buffer error - buffer is empty.
15510:OSP buffer error - buffer is incomplete.
15980:OSP POW error.
15990:OSP Operating system conditional variable timeout.
Error Codes Continued
16010:OSP X509 error - serial number undefined.
16020:OSP X509 error - certificate undefined.
16030:OSP X509 error - invalid context.
16040:OSP X509 error - decoding error.
16050:OSP X509 error - unable to allocate space.
16060:OSP X509 error - invalid data present.
16070:OSP X509 error - certificate has expired.
16080:OSP X509 error - certificate not found.
17010:OSP PKCS1 error - tried to access invalid private key pointer
17020:OSP PKCS1 error - unable to allocate space.
17030:OSP PKCS1 error - invalid context found.
17040:OSP PKCS1 error - tried to access NULL pointer.
17050:OSP PKCS1 error - private key overflow.
18010:OSP PKCS7 error - signer missing.
18020:OSP PKCS7 error - invalid signature found.
18020:OSP PKCS7 error - unable to allocate space.
18030:OSP PKCS7 error - encoding error.
18040:OSP PKCS7 error - tried to access invalid pointer.
18050:OSP PKCS7 error - buffer overflow.
19010:OSP ASN1 error - tried to access NULL pointer.
19020:OSP ASN1 error - invalid element tag found.
19030:OSP ASN1 error - unexpected high tag found.
19040:OSP ASN1 error - invalid primitive tag found.
19050:OSP ASN1 error - unable to allocate space.
19060:OSP ASN1 error - invalid context found.
19070:OSP ASN1 error - invalid time found.
19080:OSP ASN1 error - parser error occurred.
19090:OSP ASN1 error - parsing complete.
19100:OSP ASN1 error - parsing defaulted.
19110:OSP ASN1 error - length overflow.
19120:OSP ASN1 error - unsupported tag found.
19130:OSP ASN1 error - object ID not found.
19140:OSP ASN1 error - object ID mismatch.
19150:OSP ASN1 error - unexpected int base.
19160:OSP ASN1 error - buffer overflow.
19170:OSP ASN1 error - invalid data reference ID found.
19180:OSP ASN1 error - no content value for element found.
19190:OSP ASN1 error - integer overflow.
20010:OSP Crypto error - invalid parameters found.
20020:OSP Crypto error - unable to allocate space.
20030:OSP Crypto error - could not verify signature.
20040:OSP Crypto error - implementation specific error.
20050:OSP Crypto error - tried to access invalid pointer.
20060:OSP Crypto error - not enough space to perform operation.
21010:OSP PKCS8 error - invalid private key pointer found.
21020:OSP PKCS8 error - unable to allocate space for operation.
12030:OSP PKCS8 error - invalid context found.
21040:OSP PKCS8 error - tried to access NULL pointer.
21050:OSP PKCS8 error - private key overflow.
22010:OSP Base 64 error - encode failed.
22020:OSP Base 64 error - decode failed.
22510:OSP audit error - failed to allocate memory.
156010:OSP RSN failure error - no data present.
156020:OSP RSN failure error - data is invalid.
debug voip settlement exit

Enter the debug voip settlement exit privileged EXEC command to show all the Settlement function exits.

debug voip settlement exit
Syntax Description

This command has no arguments or keywords.

Command History

Command

Modification

12.0(4)XH

This command was introduced.

Examples
01:21:10:OSP:EXIT :OSPPMimeMessageInit()
01:21:10:OSP:EXIT :OSPPMimeMessageSetContentAndLength()
01:21:10:OSP:EXIT :OSPPMimeMessageBuild()
01:21:10:OSP:EXIT :OSPPMimePartFree()
01:21:10:OSP:EXIT :OSPPMimePartFree()
01:21:10:OSP:EXIT :OSPPMimeDataFree()
01:21:10:OSP:EXIT :OSPPMimeMessageCreate()
01:21:10:OSP:EXIT :OSPPMsgInfoAssignRequestMsg()
01:21:10:OSP:EXIT :osppHttpSelectConnection
01:21:10:OSP:EXIT :OSPPSockCheckServicePoint() isconnected(1)
01:21:10:OSP:EXIT :osppHttpBuildMsg()
01:21:10:OSP:EXIT :OSPPSockWrite() (0)
01:21:10:OSP:EXIT :OSPPSSLSessionWrite() (0)
01:21:10:OSP:EXIT :OSPPSSLSessionRead() (0)
01:21:10:OSP:EXIT :OSPPSSLSessionRead() (0)
01:21:10:OSP:EXIT :OSPPHttpParseHeader
01:21:10:OSP:EXIT :OSPPHttpParseHeader
01:21:10:OSP:EXIT :OSPPSSLSessionRead() (0)
01:21:10:OSP:EXIT :OSPPUtilMemCaseCmp()
debug voip settlement misc

Enter the debug voip settlement misc privileged EXEC command to show the details on the code flow of each Settlement transaction.

debug voip settlement misc
Syntax Description

This command has no arguments or keywords.

Command History

Command

Modification

12.0(4)XH

This command was introduced.

Usage Guidelines

Enter the debug voip settlement misc command to see detailed information on how each Settlement transaction is processed.

Examples
00:52:03:OSP:osp_authorize:callp=0x6142770C
00:52:03:OSP:OSPPTransactionRequestNew:ospvTrans=0x614278A8
00:52:03:OSP:osppCommMonitor:major:minor=(0x2:0x1)
00:52:03:OSP:HTTP connection:reused
00:52:03:OSP:osppHttpSetupAndMonitor:HTTP=0x6141A514, QUEUE_EVENT from eventQ=0x6141A87C,
comm=0x613F16C4, msginfo=0x6142792C
00:52:03:OSP:osppHttpSetupAndMonitor:connected = <TRUE>
00:52:03:OSP:osppHttpSetupAndMonitor:HTTP=0x6141A514, build msginfo=0x6142792C, trans=0x2
00:52:04:OSP:osppHttpSetupAndMonitor:HTTP=0x6141A514, msg built and sent:error=0,
msginfo=0x6142792C
00:52:04:OSP:osppHttpSetupAndMonitor:monitor exit. errorcode=0
00:52:04:OSP:osppHttpSetupAndMonitor:msginfo=0x6142792C, error=0, shutdown=0
00:52:04:OSP:OSPPMsgInfoProcessResponse:msginfo=0x6142792C, err=0, trans=0x614278A8,
handle=2
00:52:04:OSP:OSPPMsgInfoChangeState:transp=0x614278A8, msgtype=12 current state=2
00:52:04:OSP:OSPPMsgInfoChangeState:transp=0x614278A8, new state=4
00:52:04:OSP:OSPPMsgInfoProcessResponse:msginfo=0x6142792C, context=0x6142770C, error=0
00:52:04:OSP:osp_get_destination:trans_handle=2, get_first=1, callinfop=0x614275E0
00:52:04:OSP:osp_get_destination:callinfop=0x614275E0 get dest=1.14.115.51,
validafter=1999-01-20T02:04:32Z, validuntil=1999-01-20T02:14:32Z
00:52:04:OSP:osp_parse_destination:dest=1.14.115.51
00:52:04:OSP:osp_get_destination:callinfop=0x614275E0, error=0, ip_addr=1.14.115.51,
credit=60
00:52:06:OSP:stop_settlement_ccapi_accounting:send report for callid=0x11, transhandle=2
00:52:06:OSP:osp_report_usage:transaction=2, duration=0, lostpkts=0, lostfrs=0,
lostpktr=0, lostfrr=0
debug voip settlement network

Enter the debug voip settlement network privileged EXEC command to show all the messages exchanged between a router and a Settlement provider.

debug voip settlement network
Syntax Description

This command has no arguments or keywords.

Command History

Command

Modification

12.0(4)XH

This command was introduced.

Usage Guidelines

Using the debug voip settlement network command shows the messages between the router and a Settlement provider. This debug output shows, in detail, the messages in HTTP and XML formats.

Examples

See the following screen output:
00:47:25:OSP:HTTP connection:reused
00:47:25:OSP:OSPPSockWaitTillReady:HTTPCONN=0x6141A514, fd=0
00:47:25:OSP:OSPPSockWaitTillReady:read=0, timeout=0, select=1
00:47:25:OSP:osppHttpBuildAndSend():http=0x6141A514 sending:
POST /scripts/simulator.dll?handler HTTP/1.1
Host:1.14.115.12
content-type:text/plain
Content-Length:439
Connection:Keep-Alive
Content-Type:text/plain
Content-Length:370
<?xml version="1.0"?><Message messageId="1" random="8896">
<AuthorisationRequest componentId="1">
<Timestamp>
1993-03-01T00:47:25Z</Timestamp>
<CallId>
<![CDATA[12]]></CallId>
<SourceInfo type="e164">
5551111</SourceInfo>
<DestinationInfo type="e164">
5552222</DestinationInfo>
<Service/>
<MaximumDestinations>
3</MaximumDestinations>
</AuthorisationRequest>
</Message>
00:47:25:OSP:OSPPSockWaitTillReady:HTTPCONN=0x6141A514, fd=0
00:47:25:OSP:OSPPSockWaitTillReady:read=0, timeout=1, select=1
00:47:25:OSP:OSPM_SEND:bytes_sent = 577
00:47:25:OSP:OSPPSockProcessRequest:SOCKFD=0, Expecting 100, got
00:47:25:OSP:OSPPSockWaitTillReady:HTTPCONN=0x6141A514, fd=0
00:47:25:OSP:OSPPSockWaitTillReady:read=1, timeout=1, select=1
00:47:25:OSP:OSPPSSLSessionRead() recving 1 bytes:
HTTP/1.1 100 Continue
Server:Microsoft-IIS/4.0
Date:Wed, 20 Jan 1999 02:01:54 GMT
00:47:25:OSP:OSPPSockProcessRequest:SOCKFD=0, Expecting 200, got
00:47:25:OSP:OSPPSockWaitTillReady:HTTPCONN=0x6141A514, fd=0
00:47:25:OSP:OSPPSockWaitTillReady:read=1, timeout=1, select=1
00:47:25:OSP:OSPPSSLSessionRead() recving 1 bytes:
HTTP/1.1 200 OK
Server:Microsoft-IIS/4.0
Date:Wed, 20 Jan 1999 02:01:54 GMT
Connection:Keep-Alive
Content-Type:multipart/signed; protocol="application/pkcs7-signature"; micalg=sha1;
boundary=bar
Content-Length:1689
00:47:25:OSP:OSPPSockProcessRequest:SOCKFD=0, error=0, HTTP response
00:47:25:OSP:OSPPSockWaitTillReady:HTTPCONN=0x6141A514, fd=0
00:47:25:OSP:OSPPSockWaitTillReady:read=1, timeout=1, select=1
00:47:25:OSP:OSPPSSLSessionRead() recving 1689 bytes:
--bar
Content-Type:text/plain
Content-Length:1510
<?xml version="1.0"?><Message messageId="1" random="27285">
<AuthorisationResponse componentId="1">
<Timestamp>
1999-01-20T02:01:54Z</Timestamp>
<Status>
<Description>
success</Description>
<Code>
200</Code>
</Status>
<TransactionId>
101</TransactionId>
<Destination>
<AuthorityURL>
http://www.myauthority.com</AuthorityURL>
<CallId>
<![CDATA[12]]></CallId>
<DestinationInfo type="e164">
5552222</DestinationInfo>
<DestinationSignalAddress>
1.14.115.51</DestinationSignalAddress>
<Token encoding="base64">
PD94bWwgdmVyc2lvbj0xLjA/PjxNZXNzYWdlIG1lc3NhZ2VJZD0iMSIgcmFuZG9tPSIxODM0OSI+PFRva2VuSW5mb
z48U291cmNlSW5mbyB0eXBlPSJlMTY0Ij41NTUxMTExPC9Tb3VyY2VJbmZvPjxEZXN0aW5hdGlvbkluZm8gdHlwZT
0iZTE2NCI+NTU1MjIyMjwvRGVzdGluYXRpb25JbmZvPjxDYWxsSWQ+PCFbQ0RBVEFbMV1dPjwvQ2FsbElkPjxWYWx
pZEFmdGVyPjE5OTgtMTItMDhUMjA6MDQ6MFo8L1ZhbGlkQWZ0ZXI+PFZhbGlkVW50aWw+MTk5OS0xMi0zMVQyMzo1
OTo1OVo8L1ZhbGlkVW50aWw+PFRyYW5zYWN0aW9uSWQ+MTAxPC9UcmFuc2FjdGlvbklkPjxVc2FnZURldGFpbD48Q
W1vdW50PjE0NDAwPC9BbW91bnQ+PEluY3JlbWVudD4xPC9JbmNyZW1lbnQ+PFNlcnZpY2UvPjxVbml0PnM8L1VuaX
Q+PC9Vc2FnZURldGFpbD48L1Rva2VuSW5mbz48L01lc3NhZ2U+</Token>
<UsageDetail>
<Amount>
60</Amount>
<Increment>
1</Increment>
<Service/>
<Unit>
s</Unit>
</UsageDetail>
<ValidAfter>
1999-01-20T01:59:54Z</ValidAfter>
<ValidUntil>
1999-01-20T02:09:54Z</ValidUntil>
</Destination>
<transnexus.com:DelayLimit critical="False">
1000</transnexus.com:DelayLimit>
<transnexus.com:DelayPreference critical="False">
1</transnexus.com:DelayPreference>
</AuthorisationResponse>
</Message>
--bar
Content-Type:application/pkcs7-signature
Content-Length:31
This is your response signature
--bar--
debug voip settlement security

Enter the debug voip settlement security privileged EXEC command to show all the tracing related to security, such as SSL or S/MIME.

debug voip settlement security
Syntax Description

This command has no arguments or keywords.

Command History

Command

Modification

12.0(4)XH

This command was introduced.

Usage Guidelines

The debug voip settlement security command shows the tracing at the SSL and S/MIME levels.

debug voip settlement transaction

Enter the debug voip settlement transaction privileged EXEC command to see all the attributes of the transactions on the settlement gateway.

debug voip settlement transaction
Syntax Description

This command has no arguments or keywords.

Command History

Command

Modification

12.0(4)XH

This command was introduced.

Examples

Sample output from the originating gateway:
00:44:54:OSP:OSPPTransactionNew:trans=0, err=0
00:44:54:OSP:osp_authorize:authorizing trans=0, err=0
as5300-04>
00:45:05:OSP:stop_settlement_ccapi_accounting:send report for
callid=7, trans
=0, calling=5710868, called=15125551212, curr_Dest=1
00:45:05:OSP:OSPPTransactionDelete:deleting trans=0
Sample output from the terminating gateway:
00:44:40:OSP:OSPPTransactionNew:trans=0, err=0
00:44:40:OSP:osp_validate:validated trans=0, error=0, authorised=1
