Table Of Contents

debug ip drp

debug ip dvmrp

debug ip eigrp

debug ip error

debug ip ftp

debug ip http authentication

debug ip http ezsetup

debug ip http ssi

debug ip http token

debug ip http transaction

debug ip http url

debug ip icmp

debug ip igmp

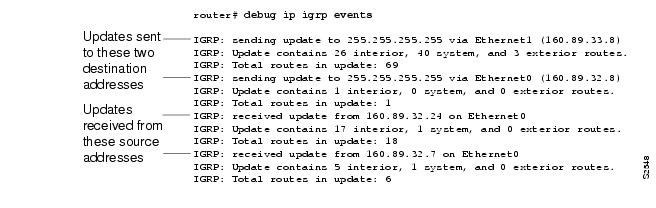

debug ip igrp events

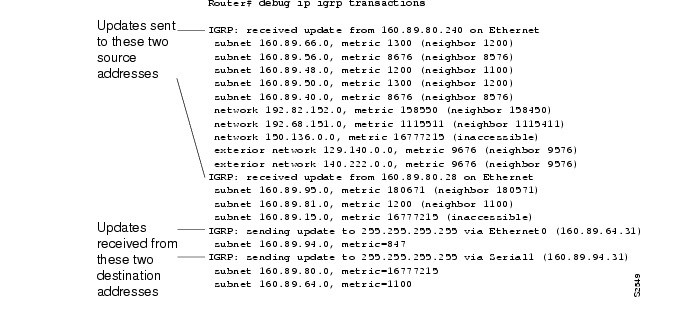

debug ip igrp transactions

debug ip inspect

debug ip mbgp dampening

debug ip mbgp updates

debug ip mcache

debug ip mds ipc

debug ip mds mevent

debug ip mds mpacket

debug ip mds process

debug ip mobile advertise

debug ip mobile host

debug ip mpacket

debug ip mrm

debug ip mrouting

debug ip msdp

debug ip msdp resets

debug ip nat

debug ip ospf events

debug ip ospf packet

debug ip packet

debug ip pgm router

debug ip drp

Use the debug ip drp privileged EXEC command to display Director Response Protocol (DRP) information. The no form of this command disables debugging output.

debug ip drp

no debug ip drp

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The debug ip drp command is used to debug the director response agent used by the Distributed Director product. The Distributed Director can be used to dynamically respond to Domain Name System (DNS) queries with the IP address of the "best" host based on various criteria.

Examples

The following is sample output from the debug ip drp command. This example shows the packet origination, the IP address that information is routed to, and the route metrics that were returned.

Router# debug ip drp

DRP: received v1 packet from 172.31.232.8, via Ethernet0

DRP: RTQUERY for 172.31.58.94 returned internal=0, external=0

Table 63 describes the fields in the output.

Table 63 debug ip drp Command Field Descriptions

Field	Description
DRP: received v1 packet from 172.31.232.8, via Ethernet0	Router received a version 1 DRP packet from the IP address shown, via the interface shown.
DRP: RTQUERY for 172.31.58.94	DRP packet contained two Route Query requests. The first request was for the distance to the IP address 171.69.113.50.
internal	If nonzero, the metric for the internal distance of the route that the router uses to send packets in the direction of the client. The internal distance is the distance within the router's autonomous system.
external	If nonzero, the metric for the Border Gateway Protocol (BGP) or external distance used to send packets to the client. The external distance is the distance outside the router's autonomous system.

debug ip dvmrp

Use the debug ip dvmrp privileged EXEC command to display information on Distance Vector Multiprotocol Routing Protocol (DVMRP) packets received and transmitted. The no form of this command disables debugging output.

debug ip dvmrp [detail [access-list] [in | out]]

no debug ip dvmrp [detail [access-list] [in | out]]

Syntax Description

detail	(Optional) Enables a more detailed level of output and displays packet contents.
access-list	(Optional) Causes the debug ip dvmrp command to restrict output to one access list.
in	(Optional) Causes the debug ip dvmrp command to output packets received in DVMRP reports.
out	(Optional) Causes the debug ip dvmrp command to output packets transmitted in DVMRP reports.

Usage Guidelines

Use the debug ip dvmrp detail command with care. This command generates a great deal of output and can interrupt other activity on the router when it is invoked.

Examples

The following is sample output from the debug ip dvmrp command:

Router# debug ip dvmrp

DVMRP: Received Report on Ethernet0 from 172.19.244.10

DVMRP: Received Report on Ethernet0 from 172.19.244.11

DVMRP: Building Report for Ethernet0 224.0.0.4

DVMRP: Send Report on Ethernet0 to 224.0.0.4

DVMRP: Sending IGMP Reports for known groups on Ethernet0

DVMRP: Received Report on Ethernet0 from 172.19.244.10

DVMRP: Received Report on Tunnel0 from 192.168.199.254

DVMRP: Received Report on Tunnel0 from 192.168.199.254

DVMRP: Received Report on Tunnel0 from 192.168.199.254

DVMRP: Received Report on Tunnel0 from 192.168.199.254

DVMRP: Received Report on Tunnel0 from 192.168.199.254

DVMRP: Received Report on Tunnel0 from 192.168.199.254

DVMRP: Building Report for Tunnel0 224.0.0.4

DVMRP: Send Report on Tunnel0 to 192.168.199.254

DVMRP: Send Report on Tunnel0 to 192.168.199.254

DVMRP: Send Report on Tunnel0 to 192.168.199.254

DVMRP: Send Report on Tunnel0 to 192.168.199.254

DVMRP: Radix tree walk suspension

DVMRP: Send Report on Tunnel0 to 192.168.199.254

The following lines show that the router received DVMRP routing information and placed it in the mroute table:

DVMRP: Received Report on Ethernet0 from 172.19.244.10

DVMRP: Received Report on Ethernet0 from 172.19.244.11

The following lines show that the router is creating a report to send to another DVMRP router:

DVMRP: Building Report for Ethernet0 224.0.0.4

DVMRP: Send Report on Ethernet0 to 224.0.0.4

Table 64 provides a list of internet multicast addresses supported for host IP implementations.

Table 64 Internet Multicast Addresses

Address	Description	RFC
224.0.0.0	Base address (Reserved)	RFC 1112
224.0.0.1	All systems on this subnet	RFC 1112
224.0.0.2	All routers on this subnet
224.0.0.3	Unassigned
224.0.0.4	DVMRP routers	RFC 1075
224.0.0.5	OSPFIGP all routers	RFC 1583

The following lines show that a protocol update report has been sent to all known multicast groups. Hosts use IGMP reports to communicate with routers and to request to join a multicast group. In this case, the router is sending an IGMP report for every known group to the host, which is running mrouted. The host the responds as though the router was a host on the LAN segment that wants to receive multicast packets for the group.

DVMRP: Sending IGMP Reports for known groups on Ethernet0

The following is sample output from the debug ip dvmrp detail command:

Router# debug ip dvmrp detail

DVMRP: Sending IGMP Reports for known groups on Ethernet0

DVMRP: Advertise group 224.2.224.2 on Ethernet0

DVMRP: Advertise group 224.2.193.34 on Ethernet0

DVMRP: Advertise group 224.2.231.6 on Ethernet0

DVMRP: Received Report on Tunnel0 from 192.168.199.254

DVMRP: Origin 150.166.53.0/24, metric 13, distance 0

DVMRP: Origin 150.166.54.0/24, metric 13, distance 0

DVMRP: Origin 150.166.55.0/24, metric 13, distance 0

DVMRP: Origin 150.166.56.0/24, metric 13, distance 0

DVMRP: Origin 150.166.92.0/24, metric 12, distance 0

DVMRP: Origin 150.166.100.0/24, metric 12, distance 0

DVMRP: Origin 150.166.101.0/24, metric 12, distance 0

DVMRP: Origin 150.166.142.0/24, metric 8, distance 0

DVMRP: Origin 150.166.200.0/24, metric 12, distance 0

DVMRP: Origin 150.166.237.0/24, metric 12, distance 0

DVMRP: Origin 150.203.5.0/24, metric 8, distance 0

The following lines show that this group is available to the DVMRP router. The mrouted process on the host will forward the source and multicast information for this group through the DVMRP cloud to other members.

DVMRP: Advertise group 224.2.224.2 on Ethernet0

The following lines show the DVMRP route information:

DVMRP: Origin 150.166.53.0/24, metric 13, distance 0

DVMRP: Origin 150.166.54.0/24, metric 13, distance 0

The metric is the number of hops the route has covered, and the distance is the administrative distance.

debug ip eigrp

Use the debug ip eigrp privileged EXEC command to display information on Enhanced Interior Gateway Routing Protocol (EIGRP) packets. The no form of this command disables debugging output.

debug ip eigrp

no debug ip eigrp

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

This command helps you analyze the packets that are sent and received on an interface. Because the debug ip eigrp command generates large amounts of output, only use it when traffic on the network is light.

Examples

The following is sample output from the debug ip eigrp command:

Router# debug ip eigrp

IP-EIGRP: Processing incoming UPDATE packet

IP-EIGRP: Ext 192.168.3.0 255.255.255.0 M 386560 - 256000 130560 SM 360960 - 256000
104960

IP-EIGRP: Ext 192.168.0.0 255.255.255.0 M 386560 - 256000 130560 SM 360960 - 256000
104960

IP-EIGRP: Ext 192.168.3.0 255.255.255.0 M 386560 - 256000 130560 SM 360960 - 256000
104960

IP-EIGRP: 172.24.43.0 255.255.255.0, - do advertise out Ethernet0/1

IP-EIGRP: Ext 172.24.43.0 255.255.255.0 metric 371200 - 256000 115200

IP-EIGRP: 192.135.246.0 255.255.255.0, - do advertise out Ethernet0/1

IP-EIGRP: Ext 192.135.246.0 255.255.255.0 metric 46310656 - 45714176 596480

IP-EIGRP: 172.24.40.0 255.255.255.0, - do advertise out Ethernet0/1

IP-EIGRP: Ext 172.24.40.0 255.255.255.0 metric 2272256 - 1657856 614400

IP-EIGRP: 192.135.245.0 255.255.255.0, - do advertise out Ethernet0/1

IP-EIGRP: Ext 192.135.245.0 255.255.255.0 metric 40622080 - 40000000 622080

IP-EIGRP: 192.135.244.0 255.255.255.0, - do advertise out Ethernet0/1

Table 65 describes significant fields in the debug messages.

Table 65 debug ip eigrp Command Field Descriptions

Field	Description
IP-EIGRP:	Indicates EIGRP packet information.
Ext	Indicates the following address is an external destination rather than an internal destination, which would be labeled as Int.
M	Shows the computed metric, which includes SM and the cost between this router and the neighbor. The first number is the composite metric. The next two numbers are the inverse bandwidth and the delay, respectively.
SM	Shows the metric as reported by the neighbor.

debug ip error

To display IP errors, use the debug ip error command in privileged EXEC mode. To disable debugging errors, use the no form of this command.

debug ip error access-list-number [detail] [dump]

no debug ip error

Syntax Description

access-list-number	(Optional) The IP access list number that you can specify. If the datagram is not permitted by that access list, the related debugging output (or IP error) is suppressed. Standard, extended, and expanded access lists are supported. The range of standard and extended access lists is from 1 to 199. The range of expanded access lists is from 1300 to 2699.
detail	(Optional) Displays detailed IP error debugging information.
dump	(Hidden) Displays IP error debugging information along with raw packet data in hexadecimal and ASCII forms. This keyword can be enabled with individual access lists and also with the detail keyword. Note The dump keyword is not fully supported and should be used only in collaboration with Cisco Technical Support. See the caution notes below, in the usage guidelines, for more specific information.

Defaults

No default behavior or values

Command Modes

Privileged EXEC

Usage Guidelines

This command is used for IP error debugging. The output displays IP errors which are locally detected by this router.

---

Caution Enabling this command will generate output only if IP errors occur. However, if the router starts to receive many packets that contain errors, substantial output may be generated and severely affect system performance. This command should be used with caution in production networks. It should only be enabled when traffic on the IP network is low, so other activity on the system is not adversely affected. Enabling the detail and dump keywords use the highest level of system resources of the available configuration options for this command, so a high level of caution should be applied when enabling either of these keywords.

---

---

Caution The dump keyword is not fully supported and should be used only in collaboration with Cisco Technical Support. Because of the risk of using significant CPU utilization, the dump keyword is hidden from the user and cannot be seen using the "?" prompt. The length of the displayed packet information may exceed the actual packet length and include additional padding bytes that do not belong to the IP packet. Also note that the beginning of a packet may start at different locations in the dump output depending on the specific router, interface type, and packet header processing that may have occurred before the output is displayed.

---

Examples

The following is sample output from the debug ip error command:

debug ip error

IP packet errors debugging is on

04:04:45:IP:s=10.8.8.1 (Ethernet0/1), d=10.1.1.1, len 28, dispose ip.hopcount

The IP error in the above output was caused when the router attempted to forward a packet with a time-to-live (TTL) value of 0. The "ip.hopcount" traffic counter is incremented when a packet is dropped because of an error. This error is also displayed in the output of the show ip traffic command by the "bad hop count" traffic counter.

Table 66 describes the significant fields shown in the display.

Table 66 debug ip error Field Descriptions

Field	Description
IP:s=10.8.8.1 (Ethernet0/1)	The packet source IP address and interface.
d=10.1.1.1, len 28	The packet destination IP address and prefix length.
dispose ip.hopcount	This traffic counter increments when an IP packet is dropped because of an error.

The following is sample output from the debug ip error command enabled with the detail keyword:

debug ip error detail

IP packet errors debugging is on (detailed)

1d08h:IP:s=10.0.19.100 (Ethernet0/1), d=10.1.1.1, len 28, dispose udp.noport

1d08h: UDP src=41921, dst=33434

1d08h:IP:s=10.0.19.100 (Ethernet0/1), d=10.2.2.2, len 28, dispose ip.hopcount

1d08h:    UDP src=33691, dst=33434

The detailed output includes layer 4 information in addition to the standard output. The IP error in the above output was caused when the router received a UDP packet when no application was listening to the UDP port. The "udp.noport" traffic counter is incremented when the router drops a UDP packet because of this error. This error is also displayed in the output of the show ip traffic command by the "no port" traffic counter under "UDP statistics."

Table 67 describes the significant fields shown in the display.

Table 67 debug ip error detail Field Descriptions

Field	Description
IP:s=10.0.19.100 (Ethernet0/1)	The IP packet source IP address and interface.
d=10.1.1.1, len 28	The IP packet destination and prefix length.
dispose udp.noport	The traffic counter that is incremented when a UDP packet is dropped because of this error.

The following is sample output from the debug ip error command enabled with the detail and dump keywords:

debug ip error detail dump

IP packet errors debugging is on (detailed) (dump)

1d08h:IP:s=10.0.19.100 (Ethernet0/1), d=10.1.1.1, len 28, dispose udp.noport

1d08h:    UDP src=37936, dst=33434

03D72360:                      0001 42AD4242            ..B-BB

03D72370:0002FCA5 DC390800 4500001C 30130000  ..|%\9..E...0...

03D72380:01116159 0A001364 0A010101 9430829A  ..aY...d.....0..

03D72390:0008C0AD                             ..@-

1d08h:IP:s=10.0.19.100 (Ethernet0/1), d=10.2.2.2, len 28, dispose ip.hopcount

1d08h:    UDP src=41352, dst=33434

03C01600:                      0001 42AD4242            ..B-BB

03C01610:0002FCA5 DC390800 4500001C 302A0000  ..|%\9..E...0*..

03C01620:01116040 0A001364 0A020202 A188829A  ..`@...d....!...

03C01630:0008B253                             ..2S

---

Note The dump keyword is not fully supported and should be used only in collaboration with Cisco Technical Support. See the caution in the usage guidelines section of this command reference page for more specific information.

---

The output from the debug ip error command, when the dump keyword is enabled, provides raw packet data in hexadecimal and ASCII forms. This addtional output is displayed in addition to the standard output. The dump keyword can be used with all of the available configuration options of this command.

The following table describes the standard output fields shown in the display.

                        debug ip error detail dump Field Descriptions

Field	Description
IP:s=10.0.19.100 (Ethernet0/1)	The IP packet source IP address and interface.
d=10.1.1.1, len 28	The IP packet destination and prefix length.
dispose udp.noport	The traffic counter that is incremented when a UDP packet is dropped because of this error.

Related Commands

Command	Description
show ip traffic	Displays statistics about IP traffic.

debug ip ftp

To activate the debugging option to track the transactions submitted during an FTP session, use the debug ip ftp privileged EXEC command. To disable debugging output, use the no form of this command.

debug ip ftp

no debug ip ftp

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

The debug ip ftp command is useful for debugging problems associated with File Transfer Protocol (FTP).

Examples

The following is an example of the debug ip ftp command:

Router# debug ip ftp

FTP transactions debugging is on

The following is sample output from the debug ip ftp command:

FTP: 220 ProFTPD 1.2.0pre8 Server (DFW Nostrum FTP Server) [defiant.dfw.nostrum.com]

Dec 27 22:12:09.133: FTP: ---> USER router

Dec 27 22:12:09.133: FTP: 331 Password required for router.

Dec 27 22:12:09.137: FTP: ---> PASS WQHK5JY2

Dec 27 22:12:09.153: FTP: 230 Anonymous access granted, restrictions apply.

Dec 27 22:12:09.153: FTP: ---> TYPE I

Dec 27 22:12:09.157: FTP: 200 Type set to I.

Dec 27 22:12:09.157: FTP: ---> PASV

.......

.......

Dec 27 22:12:09.173: FTP: ---> QUIT

Dec 27 22:12:09.181: FTP: 221 Goodbye.

debug ip http authentication

Use the debug ip http authentication privileged EXEC command to troubleshoot HTTP authentication problems. This command displays the authentication method the router attempted and authentication-specific status messages. The no form of this command disables debugging output.

debug ip http authentication

no debug ip http authentication

Syntax Description

This command has no arguments or keywords.

Examples

The following is sample output from the debug ip http authentication command:

Router# debug ip http authentication

Authentication for url `/' `/' level 15 privless `/'

Authentication username = `local15' priv-level = 15 auth-type = local

Table 68 describes the output fields created by the debug ip http authentication command.

Table 68 debug ip http authentication Command Descriptions

Field	Description
Authentication for url	Provides information about the URL in different forms.
Authentication username	Identifies the user.
priv-level	Indicates the user privilege level.
auth-type	Indicates the authentication method.

debug ip http ezsetup

Use the debug ip http ezsetup privileged EXEC command to display the configuration changes that occur during the EZ Setup process. The no form of this command disables debugging output.

debug ip http ezsetup

no debug ip http ezsetup

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

Use the debug ip http ezsetup command to verify the EZ Setup actions without changing the router's configuration.

EZ Setup is a form you fill out to perform basic router configuration from most HTML browsers.

Examples

The following is sample output from the debug ip http ezsetup that shows the configuration changes for the router when the EZ Setup form has been submitted:

Router# debug ip http ezsetup

service timestamps debug

service timestamps log

service password-encryption

!

hostname router-name

!

enable secret router-pw

line vty 0 4

password router-pw

!

interface ethernet 0

 ip address 172.21.52.9 255.255.255.0

 no shutdown

 ip helper-address 172.31.2.132

ip name-server 172.31.2.132

isdn switch-type basic-5ess

username Remote-name password Remote-chap

interface bri 0

 ip unnumbered ethernet 0

 encapsulation ppp

 no shutdown

 dialer map ip 192.168.254.254 speed 56 name Remote-name Remote-number

 isdn spid1 spid1

 isdn spid2 spid2

 ppp authentication chap callin

 dialer-group 1

!

ip classless

access-list 101 deny udp any any eq snmp

access-list 101 deny udp any any eq ntp

access-list 101 permit ip any any

dialer-list 1 list 101

ip route 0.0.0.0 0.0.0.0 192.168.254.254

ip route 192.168.254.254 255.255.255.255 bri 0

logging buffered

snmp-server community public RO

ip http server

ip classless

ip subnet-zero

!

end

Related Commands

Command	Description
debug ip http token	Displays individual tokens parsed by the HTTP server.
debug ip http transaction	Displays HTTP server transaction processing.
debug ip http url	Shows the URLs accessed from the router.

debug ip http ssi

Use the debug ip http ssi privileged EXEC command to display information about the HTML SSI EXEC command or HTML SSI ECHO command. The no form of this command disables debugging output.

debug ip http ssi

no debug ip http ssi

Syntax Description

This command has no arguments or keywords.

Examples

The following is sample output from the debug ip http ssi command:

Router# debug ip http ssi

HTML: filtered command `exec cmd="show users"'

HTML: SSI command `exec'

HTML: SSI tag `cmd' = "show users"

HTML: Executing CLI `show users' in mode `exec' done

The following line shows the contents of the Server Side Include (SSI) EXEC command:

HTML: filtered command `exec cmd="show users"'

The following line indicates the type of SSI command that was requested:

HTML: SSI command `exec'

The following line shows the argument "show users" assigned to the tag `cmd':

HTML: SSI tag 'cmd' = "show users"

The following line indicates that the Cisco IOS show users command is being executed in EXEC mode:

HTML: Executing CLI `show users' in mode `exec' done

debug ip http token

Use the debug ip http token privileged EXEC command to display individual tokens parsed by the HTTP server. The no form of this command disables debugging output.

debug ip http token

no debug ip http token

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

Use the debug ip http token command to display low-level HTTP server parsings. To display high-level HTTP server parsings, use the debug ip http transaction command.

Examples

The following is part of a sample output from the debug ip http token command. In this example, the browser accessed the router's home page http://router-name/. The output gives the token parsed by the HTTP server and its length.

Router# debug ip http token

HTTP: token len 3: 'GET'

HTTP: token len 1: ' '

HTTP: token len 1: '/'

HTTP: token len 1: ' '

HTTP: token len 4: 'HTTP'

HTTP: token len 1: '/'

HTTP: token len 1: '1'

HTTP: token len 1: '.'

HTTP: token len 1: '0'

HTTP: token len 2: '\15\12'

HTTP: token len 7: 'Referer'

HTTP: token len 1: ':'

HTTP: token len 1: ' '

HTTP: token len 4: 'http'

HTTP: token len 1: ':'

HTTP: token len 1: '/'

HTTP: token len 1: '/'

HTTP: token len 3: 'www'

HTTP: token len 1: '.'

HTTP: token len 3: 'thesite'

HTTP: token len 1: '.'

HTTP: token len 3: 'com'

HTTP: token len 1: '/'

HTTP: token len 2: '\15\12'

HTTP: token len 10: 'Connection'

HTTP: token len 1: ':'

HTTP: token len 1: ' '

HTTP: token len 4: 'Keep'

HTTP: token len 1: '-'

HTTP: token len 5: 'Alive'

HTTP: token len 2: '\15\12'

HTTP: token len 4: 'User'

HTTP: token len 1: '-'

HTTP: token len 5: 'Agent'

HTTP: token len 1: ':'

HTTP: token len 1: ' '

HTTP: token len 7: 'Mozilla'

HTTP: token len 1: '/'

HTTP: token len 1: '2'

HTTP: token len 1: '.'

...

Related Commands

Command	Description
debug ip http ezsetup	Displays the configuration changes that occur during the EZ Setup process.
debug ip http transaction	Displays HTTP server transaction processing.
debug ip http url	Shows the URLs accessed from the router.

debug ip http transaction

Use the debug ip http transaction privileged EXEC command to display HTTP server transaction processing. The no form of this command disables debugging output.

debug ip http transaction

no debug ip http transaction

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

Use the debug ip http transaction command to display what the HTTP server is parsing at a high level. To display what the HTTP server is parsing at a low level, use the debug ip http token command.

Examples

The following is sample output from the debug ip http transaction command. In this example, the browser accessed the router's home page http://router-name/.

Router# debug ip http transaction

HTTP: parsed uri '/'

HTTP: client version 1.0

HTTP: parsed extension Referer

HTTP: parsed line http://www.company.com/

HTTP: parsed extension Connection

HTTP: parsed line Keep-Alive

HTTP: parsed extension User-Agent

HTTP: parsed line Mozilla/2.01 (X11; I; FreeBSD 2.1.0-RELEASE i386)

HTTP: parsed extension Host

HTTP: parsed line router-name

HTTP: parsed extension Accept

HTTP: parsed line image/gif, image/x-xbitmap, image/jpeg, image/

HTTP: parsed extension Authorization

HTTP: parsed authorization type Basic

HTTP: received GET ''

Table 69 lists describes some of the fields in the output.

Table 69 debug ip http transaction Command Field Descriptions

Field	Description
HTTP: parsed uri '/'	Uniform resource identifier that is requested.
HTTP: client version 1.0	Client HTTP version.
HTTP: parsed extension Referer	HTTP extension.
HTTP: parsed line http://www.company.com/	Value of HTTP extension.
HTTP: received GET ''	HTTP request method.

Related Commands

Command	Description
debug ip http ezsetup	Displays the configuration changes that occur during the EZ Setup process.
debug ip http token	Displays individual tokens parsed by the HTTP server.
debug ip http url	Shows the URLs accessed from the router.

debug ip http url

Use the debug ip http url privileged EXEC command to show the uniform resource locators (URLs) accessed from the router. The no form of this command disables debugging output.

debug ip http url

no debug ip http url

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

Use the debug ip http url command to keep track of the URLs that are accessed and to determine from which hosts the URLs are accessed.

Examples

The following is sample output from the shows a partial sample of debug ip http url command. In this example, the HTTP server accessed the URLs and /exec. The output shows the URL being requested and the IP address of the host requesting the URL.

Router# debug ip http url

HTTP: processing URL '/' from host 172.31.2.141

HTTP: processing URL '/exec' from host 172.31.2.141

Related Commands

Command	Description
debug ip http ezsetup	Displays the configuration changes that occur during the EZ Setup process.
debug ip http token	Displays individual tokens parsed by the HTTP server.
debug ip http transaction	Displays HTTP server transaction processing.

debug ip icmp

Use the debug ip icmp privileged EXEC command to display information on Internal Control Message Protocol (ICMP) transactions. The no form of this command disables debugging output.

debug ip icmp

no debug ip icmp

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

This command helps you determine whether the router is sending or receiving ICMP messages. Use it, for example, when you are troubleshooting an end-to-end connection problem.

---

Note For more information about the fields in debug ip icmp output, see RFC-792, "Internet Control Message Protocol"; Appendix I of RFC-950, "Internet Standard Subnetting Procedure"; and RFC-1256, "ICMP Router Discovery Messages."

---

Examples

The following is sample output from the debug ip icmp command:

Router# debug ip icmp

ICMP: rcvd type 3, code 1, from 10.95.192.4

ICMP: src 10.56.0.202, dst 172.16.16.1, echo reply

ICMP: dst (10.120.1.0) port unreachable rcv from 10.120.1.15

ICMP: src 172.16.12.35, dst 172.16.20.7, echo reply

ICMP: dst (255.255.255.255) protocol unreachable rcv from 10.31.7.21

ICMP: dst (10.120.1.0) port unreachable rcv from 10.120.1.15

ICMP: dst (255.255.255.255) protocol unreachable rcv from 10.31.7.21

ICMP: dst (10.120.1.0) port unreachable rcv from 10.120.1.15

ICMP: src 10.56.0.202, dst 172.16.16.1, echo reply

ICMP: dst (10.120.1.0) port unreachable rcv from 10.120.1.15

ICMP: dst (255.255.255.255) protocol unreachable rcv from 10.31.7.21

ICMP: dst (10.120.1.0) port unreachable rcv from 10.120.1.15

Table 70 describes significant fields in the first line of debug ip icmp output.

Table 70 debug ip icmp Command Field Descriptions

Field	Description
ICMP:	Indication that this message describes an ICMP packet.
rcvd type 3	The type field can be one of the following: •0—Echo Reply •3—Destination Unreachable •4—Source Quench •5—Redirect •8—Echo •9—Router Discovery Protocol Advertisement •10—Router Discovery Protocol Solicitations •11—Time Exceeded •12—Parameter Problem •13—Timestamp •14—Timestamp Reply •15—Information Request •16—Information Reply •17—Mask Request •18—Mask Reply
code 1	This field is a code. The meaning of the code depends upon the type field value: •Echo and Echo Reply—The code field is always zero. •Destination Unreachable—The code field can have the following values: —0—Network unreachable —1—Host unreachable —2—Protocol unreachable —3—Port unreachable —4—Fragmentation needed and DF bit set —5—Source route failed •Source Quench—The code field is always 0. •Redirect—The code field can have the following values: —0—Redirect datagrams for the network —1—Redirect datagrams for the host —2—Redirect datagrams for the command mode of service and network —3—Redirect datagrams for the command mode of service and host •Router Discovery Protocol Advertisements and Solicitations—The code field is always zero.
	•Time Exceeded—The code field can have the following values: —0—Time to live exceeded in transit —1—Fragment reassembly time exceeded •Parameter Problem—The code field can have the following values: —0—General problem —1—Option is missing —2—Option missing, no room to add •Timestamp and Timestamp Reply—The code field is always zero. •Information Request and Information Reply—The code field is always zero. •Mask Request and Mask Reply—The code field is always zero.
from 10.95.192.4	Source address of the ICMP packet.

Table 71 describes significant fields in the second line of debug ip icmp output.

Table 71 debug ip icmp Command Field Descriptions

Field	Description
ICMP:	Indicates that this message describes an ICMP packet.
src 10.5610.120.0.202	Address of the sender of the echo.
dst 172.16.16.1	Address of the receiving router.
echo reply	Indicates the router received an echo reply.

Other messages that the debug ip icmp command can generate follow.

When an IP router or host sends out an ICMP mask request, the following message is generated when the router sends a mask reply:

ICMP: sending mask reply (255.255.255.0) to 172.21.80.23 via Ethernet0

The following two lines are examples of the two forms of this message. The first form is generated when a mask reply comes in after the router sends out a mask request. The second form occurs when the router receives a mask reply with a nonmatching sequence and ID. See Appendix I of RFC 950, "Internet Standard Subnetting Procedures," for details.

ICMP: mask reply 255.255.255.0 from 172.21.80.31

ICMP: unexpected mask reply 255.255.255.0 from 172.21.80.32

The following output indicates that the router sent a redirect packet to the host at address 172.21.80.31, instructing that host to use the gateway at address 172.21.80.23 in order to reach the host at destination address 172.16.1.111:

ICMP: redirect sent to 172.21.80.31 for dest 172.16.1.111 use gw 172.21.80.23

The following message indicates that the router received a redirect packet from the host at address 172.21.80.23, instructing the router to use the gateway at address 172.21.80.28 in order to reach the host at destination address 172.21.81.34:

ICMP: redirect rcvd from 172.21.80.23 -- for 172.21.81.34 use gw 172.21.80.28

The following message is displayed when the router sends an ICMP packet to the source address (172.21.94.31 in this case), indicating that the destination address (172.16.13.33 in this case) is unreachable:

ICMP: dst (172.16.13.33) host unreachable sent to 172.21.94.31

The following message is displayed when the router receives an ICMP packet from an intermediate address (172.21.98.32 in this case), indicating that the destination address (172.16.13.33 in this case) is unreachable:

ICMP: dst (172.16.13.33) host unreachable rcv from 172.21.98.32

Depending on the code received (as Table 70 describes), any of the unreachable messages can have any of the following "strings" instead of the "host" string in the message:

net

protocol

port

frag. needed and DF set

source route failed

prohibited

The following message is displayed when the TTL in the IP header reaches zero and a time exceed ICMP message is sent. The fields are self-explanatory.

ICMP: time exceeded (time to live) send to 10.95.1.4 (dest was 172.16.1.111)

The following message is generated when parameters in the IP header are corrupted in some way and the parameter problem ICMP message is sent. The fields are self-explanatory.

ICMP: parameter problem sent to 128.121.1.50 (dest was 172.16.1.111)

Based on the preceding information, the remaining output can be easily understood.

ICMP: parameter problem rcvd 172.21.80.32

ICMP: source quench rcvd 172.21.80.32

ICMP: source quench sent to 128.121.1.50 (dest was 172.16.1.111)

ICMP: sending time stamp reply to 172.21.80.45

ICMP: sending info reply to 172.21.80.12

ICMP: rdp advert rcvd type 9, code 0, from 172.21.80.23

ICMP: rdp solicit rcvd type 10, code 0, from 172.21.80.43

debug ip igmp

Use the debug ip igmp privileged EXEC command to display Internet Group Management Protocol (IGMP) packets received and transmitted, as well as IGMP-host related events. The no form of this command disables debugging output.

debug ip igmp

no debug ip igmp

Usage Guidelines

This command helps discover whether the IGMP processes are functioning. In general, if IGMP is not working, the router process never discovers that there is another host on the network that is configured to receive multicast packets. In dense mode this means the packets will be delivered intermittently (a few every 3 minutes). In sparse mode they will never be delivered.

Use this command in conjunction with debug ip pim and debug ip mrouting to observe additional multicast activity and to see what is happening to the multicast routing process, or why packets are forwarded out of particular interfaces.

Examples

The following is sample output from the debug ip igmp command:

Router# debug ip igmp

IGMP: Received Host-Query from 172.24.37.33 (Ethernet1)

IGMP: Received Host-Report from 172.24.37.192 (Ethernet1) for 224.0.255.1

IGMP: Received Host-Report from 172.24.37.57 (Ethernet1) for 224.2.127.255

IGMP: Received Host-Report from 172.24.37.33 (Ethernet1) for 225.2.2.2

The messages displayed by the debug ip igmp command show query and report activity received from other routers and multicast group addresses.

Related Commands

Command	Description
debug ip mrm	Displays MRM control packet activity.
debug ip pim	Displays PIM packets received and transmitted as well as PIM related events.

debug ip igrp events

Use the debug ip igrp events privileged EXEC command to display summary information on Interior Gateway Routing Protocol (IGRP) routing messages that indicates the source and destination of each update, as well as the number of routes in each update. Messages are not generated for each route. The no form of this command disables debugging output.

debug ip igrp events [ip-address]

no debug ip igrp events [ip-address]

Syntax Description

ip-address

(Optional) IP address of an IGRP neighbor.

Usage Guidelines

If the IP address of an IGRP neighbor is specified, the resulting debug ip igrp events output includes messages describing updates from that neighbor and updates that the router broadcasts toward that neighbor.

This command is particularly useful when there are many networks in your routing table. In this case, using debug ip igrp transactions could flood the console and make the router unusable. Use debug ip igrp events instead to display summary routing information.

Examples

The following is sample output from the debug ip igrp events command:

This shows that the router has sent two updates to the broadcast address 255.255.255.255. The router also received two updates. Three lines of output describe each of these updates.

The first line indicates whether the router sent or received the update packet, the source or destination address, and the interface through which the update was sent or received. If the update was sent, the IP address assigned to this interface is shown (in parentheses).

IGRP: sending update to 255.255.255.255 via Ethernet1 (160.89.33.8)

The second line summarizes the number and types of routes described in the update:

IGRP: Update contains 26 interior, 40 system, and 3 exterior routes.

The third line indicates the total number of routes described in the update:

IGRP: Total routes in update: 69

debug ip igrp transactions

Use the debug ip igrp transactions privileged EXEC command to display transaction information on Interior Gateway Routing Protocol (IGRP) routing transactions. The no form of this command disables debugging output.

debug ip igrp transactions [ip-address]

no debug ip igrp transactions [ip-address]

Syntax Description

ip-address

(Optional) IP address of an IGRP neighbor.

Usage Guidelines

If the IP address of an IGRP neighbor is specified, the resulting debug ip igrp transactions output includes messages describing updates from that neighbor and updates that the router broadcasts toward that neighbor.

When there are many networks in your routing table, debug ip igrp transactions can flood the console and make the router unusable. In this case, use debug ip igrp events instead to display summary routing information.

Examples

The following is sample output from the debug ip igrp transactions command:

The output shows that the router being debugged has received updates from two other routers on the network. The router at source address 160.89.80.240 sent information about ten destinations in the update; the router at source address 160.89.80.28 sent information about three destinations in its update. The router being debugged also sent updates—in both cases to the broadcast address 255.255.255.255 as the destination address.

On the second line the first field refers to the type of destination information: "subnet" (interior), "network" (system), or "exterior" (exterior). The second field is the Internet address of the destination network. The third field is the metric stored in the routing table and the metric advertised by the neighbor sending the information. "Metric... inaccessible" usually means that the neighbor router has put the destination in holddown.

The entries in show that the router is sending updates that are similar, except that the numbers in parentheses are the source addresses used in the IP header. A metric of 16777215 is inaccessible.

Other examples of output that the debug ip igrp transactions command can produce follow.

The following entry indicates that the routing table was updated and shows the new edition number (97 in this case) to be used in the next IGRP update:

IGRP: edition is now 97

Entries such as the following occur on startup or when some event occurs such as an interface transitioning or a user manually clearing the routing table:

IGRP: broadcasting request on Ethernet0

IGRP: broadcasting request on Ethernet1

The following type of entry can result when routing updates become corrupted between sending and receiving routers:

IGRP: bad checksum from 172.21.64.43

An entry such as the following should never appear. If it does, the receiving router has a bug in the software or a problem with the hardware. In either case, contact your technical support representative.

IGRP: system 45 from 172.21.64.234, should be system 109

debug ip inspect

To display messages about Context-Based Access Control (CBAC) events, use the debug ip inspect privileged EXEC command. The no form of this command disables debugging output.

debug ip inspect {function-trace | object-creation | object-deletion | events | timers | protocol | detailed}

no debug ip inspect detailed

Syntax Description

function-trace	Displays messages about software functions called by CBAC.
object-creation	Display messages about software objects being created by CBAC. Object creation corresponds to the beginning of CBAC-inspected sessions.
object-deletion	Displays messages about software objects being deleted by CBAC. Object deletion corresponds to the closing of CBAC-inspected sessions.
events	Displays messages about CBAC software events, including information about CBAC packet processing.
timers	Displays messages about CBAC timer events such as when a CBAC idle timeout is reached.
protocol	Displays messages about CBAC-inspected protocol events, including details about the protocol's packets. Table 3 provides a list of protocol keywords.
detailed	Use this form of the command in conjunction with other CBAC debugging commands. This causes detailed information to be displayed for all the other enabled CBAC debugging.

Table 72 Protocol Keywords for the debug ip inspect Command

Application Protocol	protocol keyword
Transport-layer Protocols
TCP	tcp
UDP	udp
Application-layer Protocols
CU-SeeMe	cuseeme
FTP commands and responses	ftp-cmd
FTP tokens (enables tracing of the FTP tokens parsed)	ftp-tokens
H.323 (version 1 and version 2)	h323
HTTP	http
Microsoft NetShow	netshow
UNIX r-commands (rlogin, rexec, rsh)	rcmd
RealAudio	realaudio
RPC	rpc
RTSP	rtsp
SMTP	smtp
SQL*Net	sqlnet
StreamWorks	streamworks
TFTP	tftp
VDOLive	vdolive

Command History

Release	Modification
11.2P	This command was introduced.
12.0(5)T	Introduced NetShow support.
12.0(7)T	Introduced H.323 V2 and RTSP protocol support.

Examples

The following is sample output from the debug ip inspect function-trace command:

*Mar  2 01:16:16: CBAC FUNC: insp_inspection

*Mar  2 01:16:16: CBAC FUNC: insp_pre_process_sync

*Mar  2 01:16:16: CBAC FUNC: insp_find_tcp_host_entry addr 40.0.0.1 bucket 41

*Mar  2 01:16:16: CBAC FUNC: insp_find_pregen_session

*Mar  2 01:16:16: CBAC FUNC: insp_get_idbsb

*Mar  2 01:16:16: CBAC FUNC: insp_get_idbsb

*Mar  2 01:16:16: CBAC FUNC: insp_get_irc_of_idb

*Mar  2 01:16:16: CBAC FUNC: insp_get_idbsb

*Mar  2 01:16:16: CBAC FUNC: insp_create_sis

*Mar  2 01:16:16: CBAC FUNC: insp_inc_halfopen_sis

*Mar  2 01:16:16: CBAC FUNC: insp_link_session_to_hash_table

*Mar  2 01:16:16: CBAC FUNC: insp_inspect_pak

*Mar  2 01:16:16: CBAC FUNC: insp_l4_inspection

*Mar  2 01:16:16: CBAC FUNC: insp_process_tcp_seg

*Mar  2 01:16:16: CBAC FUNC: insp_listen_state

*Mar  2 01:16:16: CBAC FUNC: insp_ensure_return_traffic

*Mar  2 01:16:16: CBAC FUNC: insp_add_acl_item

*Mar  2 01:16:16: CBAC FUNC: insp_ensure_return_traffic

*Mar  2 01:16:16: CBAC FUNC: insp_add_acl_item

*Mar  2 01:16:16: CBAC FUNC: insp_process_syn_packet

*Mar  2 01:16:16: CBAC FUNC: insp_find_tcp_host_entry addr 40.0.0.1 bucket 41

*Mar  2 01:16:16: CBAC FUNC: insp_create_tcp_host_entry

*Mar  2 01:16:16: CBAC* FUNC: insp_fast_inspection

*Mar  2 01:16:16: CBAC* FUNC: insp_inspect_pak

*Mar  2 01:16:16: CBAC* FUNC: insp_l4_inspection

*Mar  2 01:16:16: CBAC* FUNC: insp_process_tcp_seg

*Mar  2 01:16:16: CBAC* FUNC: insp_synrcvd_state

*Mar  2 01:16:16: CBAC* FUNC: insp_fast_inspection

*Mar  2 01:16:16: CBAC* FUNC: insp_inspect_pak

*Mar  2 01:16:16: CBAC* FUNC: insp_l4_inspection

*Mar  2 01:16:16: CBAC* FUNC: insp_process_tcp_seg

*Mar  2 01:16:16: CBAC* FUNC: insp_synrcvd_state

*Mar  2 01:16:16: CBAC FUNC: insp_dec_halfopen_sis

*Mar  2 01:16:16: CBAC FUNC: insp_remove_sis_from_host_entry

*Mar  2 01:16:16: CBAC FUNC: insp_find_tcp_host_entry addr 40.0.0.1 bucket 41

This output shows the functions called by CBAC as a session is inspected. Entries with an asterisk (*) after the word "CBAC" are entries when the fast path is used; otherwise, the process path is used.

The following is sample output from the debug ip inspect object-creation and debug ip inspect object-deletion command:

*Mar  2 01:18:30: CBAC OBJ_CREATE: create pre-gen sis 25A3574

*Mar  2 01:18:30: CBAC OBJ_CREATE: create acl wrapper 25A36FC -- acl item 25A3634

*Mar  2 01:18:30: CBAC OBJ_CREATE: create sis 25C1CC4

*Mar  2 01:18:30: CBAC OBJ_DELETE: delete pre-gen sis 25A3574

*Mar  2 01:18:30: CBAC OBJ_CREATE: create host entry 25A3574 addr 10.0.0.1 bucket 31

*Mar  2 01:18:30: CBAC OBJ_DELETE: delete sis 25C1CC4

*Mar  2 01:18:30: CBAC OBJ_DELETE: delete create acl wrapper 25A36FC -- acl item 25A3634

*Mar  2 01:18:31: CBAC OBJ_DELETE: delete host entry 25A3574 addr 10.0.0.1

The following is sample output from the debug ip inspect object-creation, debug ip inspect object-deletion, and debug ip inspect events commands:

*Mar  2 01:18:51: CBAC OBJ_CREATE: create pre-gen sis 25A3574

*Mar  2 01:18:51: CBAC OBJ_CREATE: create acl wrapper 25A36FC -- acl item 25A3634

*Mar  2 01:18:51: CBAC Src 10.1.0.1 Port [1:65535]

*Mar  2 01:18:51: CBAC Dst 10.0.0.1 Port [46406:46406]

*Mar  2 01:18:51: CBAC Pre-gen sis 25A3574 created: 10.1.0.1[1:65535]
30.0.0.1[46406:46406]

*Mar  2 01:18:51: CBAC OBJ_CREATE: create sis 25C1CC4

*Mar  2 01:18:51: CBAC sis 25C1CC4 initiator_addr (10.1.0.1:20) responder_addr
(30.0.0.1:46406) initiator_alt_addr (40.0.0.1:20) responder_alt_addr (10.0.0.1:46406)

*Mar  2 01:18:51: CBAC OBJ_DELETE: delete pre-gen sis 25A3574

*Mar  2 01:18:51: CBAC OBJ_CREATE: create host entry 25A3574 addr 10.0.0.1 bucket 31

*Mar  2 01:18:51: CBAC OBJ_DELETE: delete sis 25C1CC4

*Mar  2 01:18:51: CBAC OBJ_DELETE: delete create acl wrapper 25A36FC -- acl item 25A3634

*Mar  2 01:18:51: CBAC OBJ_DELETE: delete host entry 25A3574 addr 10.0.0.1

The following is sample output from the debug ip inspect timers command:

*Mar  2 01:19:15: CBAC Timer Init Leaf: Pre-gen sis 25A3574

*Mar  2 01:19:15: CBAC Timer Start: Pre-gen sis 25A3574 Timer: 25A35D8 Time: 30000
milisecs

*Mar  2 01:19:15: CBAC Timer Init Leaf: sis 25C1CC4

*Mar  2 01:19:15: CBAC Timer Stop: Pre-gen sis 25A3574 Timer: 25A35D8

*Mar  2 01:19:15: CBAC Timer Start: sis 25C1CC4 Timer: 25C1D5C Time: 30000 milisecs

*Mar  2 01:19:15: CBAC Timer Start: sis 25C1CC4 Timer: 25C1D5C Time: 3600000 milisecs

*Mar  2 01:19:15: CBAC Timer Start: sis 25C1CC4 Timer: 25C1D5C Time: 5000 milisecs

*Mar  2 01:19:15: CBAC Timer Stop: sis 25C1CC4 Timer: 25C1D5C

The following is sample output from the debug ip inspect tcp command:

*Mar  2 01:20:43: CBAC* sis 25A3604 pak 2541C58 TCP P ack 4223720032 seq 4200176225(22)
(10.0.0.1:46409) => (10.1.0.1:21)

*Mar  2 01:20:43: CBAC* sis 25A3604 ftp L7 inspect result: PROCESS-SWITCH packet

*Mar  2 01:20:43: CBAC sis 25A3604 pak 2541C58 TCP P ack 4223720032 seq 4200176225(22)
(10.0.0.1:46409) => (10.1.0.1:21)

*Mar  2 01:20:43: CBAC sis 25A3604 ftp L7 inspect result: PASS packet

*Mar  2 01:20:43: CBAC* sis 25A3604 pak 2544374 TCP P ack 4200176247 seq 4223720032(30)
(10.0.0. 1:46409) <= (10.1.0.1:21)

*Mar  2 01:20:43: CBAC* sis 25A3604 ftp L7 inspect result: PASS packet

*Mar  2 01:20:43: CBAC* sis 25A3604 pak 25412F8 TCP P ack 4223720062 seq 4200176247(15)
(10.0.0. 1:46409) => (10.1.0.1:21)

*Mar  2 01:20:43: CBAC* sis 25A3604 ftp L7 inspect result: PASS packet

*Mar  2 01:20:43: CBAC sis 25C1CC4 pak 2544734 TCP S seq 4226992037(0) (10.1.0.1:20) =>
(10.0.0.1:46411)

*Mar  2 01:20:43: CBAC* sis 25C1CC4 pak 2541E38 TCP S ack 4226992038 seq 4203405054(0)
(10.1.0.1:20) <= (10.0.0.1:46411)

This sample shows TCP packets being processed, and lists the corresponding acknowledge (ACK) packet numbers and sequence (SEQ) numbers. The number of data bytes in the TCP packet is shown in parentheses—for example, (22). For each packet shown, the addresses and port numbers are shown separated by a colon. For example, (10.1.0.1:21) indicates an IP address of 10.1.0.1 and a TCP port number of 21.

Entries with an asterisk (*) after the word "CBAC" are entries when the fast path is used; otherwise, the process path is used.

The following is sample output from the debug ip inspect tcp and debug ip inspect detailed commands:

*Mar  2 01:20:58: CBAC* Pak 2541E38 Find session for (30.0.0.1:46409) (40.0.0.1:21) tcp

*Mar  2 01:20:58:  P ack 4223720160 seq 4200176262(22)

*Mar  2 01:20:58: CBAC* Pak 2541E38 Addr:port pairs to match: (30.0.0.1:46409)
(40.0.0.1:21)

*Mar  2 01:20:58: CBAC* sis 25A3604 SIS_OPEN

*Mar  2 01:20:58: CBAC* Pak 2541E38 IP: s=30.0.0.1 (Ethernet0), d=40.0.0.1 (Ethernet1),
len 76,proto=6

*Mar  2 01:20:58: CBAC sis 25A3604 Saving State: SIS_OPEN/ESTAB iisn 4200176160 i_rcvnxt
4223720160 i_sndnxt 4200176262 i_rcvwnd 8760 risn 4223719771 r_rcvnxt 4200176262 r_sndnxt
4223720160 r_rcvwnd 8760

*Mar  2 01:20:58: CBAC* sis 25A3604 pak 2541E38 TCP P ack 4223720160 seq 4200176262(22)
(30.0.0.1:46409) => (40.0.0.1:21)

*Mar  2 01:20:58: CBAC* sis 25A3604 pak 2541E38 SIS_OPEN/ESTAB TCP seq 4200176262(22)
Flags: ACK 4223720160 PSH

*Mar  2 01:20:58: CBAC* sis 25A3604 pak 2541E38 --> SIS_OPEN/ESTAB iisn 4200176160
i_rcvnxt 4223720160 i_sndnxt 4200176284 i_rcvwnd 8760 risn 4223719771 r_rcvnxt 4200176262
r_sndnxt 4223720160 r_rcvwnd 8760

*Mar  2 01:20:58: CBAC* sis 25A3604 L4 inspect result: PASS packet 2541E38
(30.0.0.1:46409) (40.0.0.1:21) bytes 22 ftp

*Mar  2 01:20:58: CBAC sis 25A3604 Restoring State: SIS_OPEN/ESTAB iisn 4200176160
i_rcvnxt 4223

720160 i_sndnxt 4200176262 i_rcvwnd 8760 risn 4223719771 r_rcvnxt 4200176262 r_sndnxt
4223720160 r_rcvwnd 8760

*Mar  2 01:20:58: CBAC* sis 25A3604 ftp L7 inspect result: PROCESS-SWITCH packet

*Mar  2 01:20:58: CBAC* sis 25A3604 ftp L7 inspect result: PROCESS-SWITCH packet

*Mar  2 01:20:58: CBAC* Bump up: inspection requires the packet in the process
path(30.0.0.1) (40.0.0.1)

*Mar  2 01:20:58: CBAC Pak 2541E38 Find session for (30.0.0.1:46409) (40.0.0.1:21) tcp

*Mar  2 01:20:58:  P ack 4223720160 seq 4200176262(22)

*Mar  2 01:20:58: CBAC Pak 2541E38 Addr:port pairs to match: (30.0.0.1:46409)
(40.0.0.1:21)

*Mar  2 01:20:58: CBAC sis 25A3604 SIS_OPEN

*Mar  2 01:20:58: CBAC Pak 2541E38 IP: s=30.0.0.1 (Ethernet0), d=40.0.0.1 (Ethernet1),
len 76, proto=6

debug ip mbgp dampening

To log route flap dampening activity related to multiprotocol Border Gateway Protocol (BGP), use the debug ip mbgp dampening privileged EXEC command. To disable debugging output, use the no form of this command.

debug ip mbgp dampening [access-list-number]

no debug ip mbgp dampening [access-list-number]

Syntax Description

access-list-number

(Optional) Number of an access list in the range 1 to 99. If an access list number is specified, debugging occurs only for the routes permitted by the access list.

Defaults

Logging for route flap dampening activity is not enabled.

Command History

Release	Modification
11.1(20)CC	This command was introduced.

Examples

The following example shows sample debug ip mbgp dampening output:

Router# debug ip mbgp dampening

BGP: charge penalty for 173.19.0.0/16 path 49 with halflife-time 15 reuse/suppress
750/2000

BGP: flapped 1 times since 00:00:00. New penalty is 1000

BGP: charge penalty for 173.19.0.0/16 path 19 49 with halflife-time 15 reuse/suppress
750/2000

BGP: flapped 1 times since 00:00:00. New penalty is 1000

debug ip mbgp updates

To log multiprotocol Border Gateway Protocol (BGP)-related information passed in BGP Update messages, use the debug ip mbgp updates privileged EXEC command. To disable debugging output, use the no form of this command.

debug ip mbgp updates

no debug ip mbgp updates

Syntax Description

This command has no arguments or keywords.

Defaults

Logging for multiprotocol BGP-related information in BGP Update messages is not enabled.

Command History

Release	Modification
11.1(20)CC	This command was introduced.

Examples

The following example shows sample debug ip mbgp updates output:

Router# debug ip mbgp updates

BGP: NEXT_HOP part 1 net 200.10.200.0/24, neigh 171.69.233.49, next 171.69.233.34

BGP: 171.69.233.49 send UPDATE 200.10.200.0/24, next 171.69.233.34, metric 0, path 33 34
19 49 109 65000 297 3561 6503

BGP: NEXT_HOP part 1 net 200.10.202.0/24, neigh 171.69.233.49, next 171.69.233.34

BGP: 171.69.233.49 send UPDATE 200.10.202.0/24, next 171.69.233.34, metric 0, path 33 34
19 49 109 65000 297 1239 1800 3597

BGP: NEXT_HOP part 1 net 200.10.228.0/22, neigh 171.69.233.49, next 171.69.233.34

BGP: 171.69.233.49 rcv UPDATE about 222.2.2.0/24, next hop 171.69.233.49, path 49 109
metric 0

BGP: 171.69.233.49 rcv UPDATE about 131.103.0.0/16, next hop 171.69.233.49, path 49 109
metric 0

BGP: 171.69.233.49 rcv UPDATE about 206.205.242.0/24, next hop 171.69.233.49, path 49 109
metric 0

BGP: 171.69.233.49 rcv UPDATE about 1.0.0.0/8, next hop 171.69.233.49, path 49 19 metric
0

BGP: 171.69.233.49 rcv UPDATE about 198.1.2.0/24, next hop 171.69.233.49, path 49 19
metric 0

BGP: 171.69.233.49 rcv UPDATE about 171.69.0.0/16, next hop 171.69.233.49, path 49 metric
0

BGP: 171.69.233.49 rcv UPDATE about 172.19.0.0/16, next hop 171.69.233.49, path 49 metric
0

BGP: nettable_walker 172.19.0.0/255.255.0.0 calling revise_route

BGP: revise route installing 172.19.0.0/255.255.0.0 -> 171.69.233.49

BGP: 171.69.233.19 computing updates, neighbor version 267099, table version 267100,
starting at 0.0.0.0

BGP: NEXT_HOP part 1 net 172.19.0.0/16, neigh 171.69.233.19, next 171.69.233.49

BGP: 171.69.233.19 send UPDATE 172.19.0.0/16, next 171.69.233.49, metric 0, path 33 49

BGP: 1 updates (average = 46, maximum = 46)

BGP: 171.69.233.19 updates replicated for neighbors : 171.69.233.34, 171.69.233.49,
171.69.233.56

BGP: 171.69.233.19 1 updates enqueued (average=46, maximum=46)

BGP: 171.69.233.19 update run completed, ran for 0ms, neighbor version 267099, start
version 267100, throttled to 267100, check point net 0.0.0.0

debug ip mcache

Use the debug ip mcache command to display IP multicast fast-switching events. The no form of this command disables debugging output.

debug ip mcache [name | address]

no debug ip mcache [name | address]

Syntax Description

name	(Optional) Hostname.
address	(Optional) Group address.

Usage Guidelines

Use this command when multicast fast-switching appears not to be functioning.

Examples

The following is sample output from the debug ip mcache command when an IP multicast route is cleared:

Router# debug ip mcache

IP multicast fast-switching debugging is on

Router# clear ip mroute *

MRC: Build MAC header for (172.31.60.185/32, 224.2.231.173), Ethernet0

MRC: Fast-switch flag for (172.31.60.185/32, 224.2.231.173), off -> on, caller
ip_mroute_replicate-1

MRC: Build MAC header for (172.31.191.10/32, 224.2.127.255), Ethernet0

MRC: Build MAC header for (172.31.60.152/32, 224.2.231.173), Ethernet0

Table 73 provides explanations for representative lines of the debug ip mcache output.

Table 73 Debug ip mcache Command Field Descriptions

Field	Description
MRC	Multicast route cache.
Fast-switch flag	Route is fast-switched.
(address/32)	Host route with 32 bits of mask.
off -> on	State has changed.
caller string	The code function that activated the state change.

Related Commands

Command	Description
debug ip dvmrp	Displays information on DVMRP packets received and transmitted.
debug ip igmp	Displays IGMP packets received and transmitted, as well as IGMP-host related events.
debug ip igrp transactions	Displays transaction information on IGRP routing transactions.
debug ip mrm	Displays MRM control packet activity.
debug ip sd	Displays all SD announcements received.

debug ip mds ipc

To debug MDS interprocessor communication, that is, synchronization between the MFIB on the line card and the multicast routing table in the RP, use the debug ip mds ipc privileged EXEC command. The no form of this command disables debugging output.

debug ip mds ipc {event | packet}

no debug ip mds ipc {event | packet}

Syntax Description

event	Displays MDS events when there is a problem.
packet	Displays MDS packets.

Usage Guidelines

Use this command on the line card or RP.

Examples

The following is sample output from the debug ip mds ipc packet command:

VIP-Slot0# debug ip mds ipc packet

MDFS ipc packet debugging is on

VIP-Slot0#

MDFS: LC sending statistics message to RP with code 0 of size 36

MDFS: LC sending statistics message to RP with code 1 of size 680

MDFS: LC sending statistics message to RP with code 2 of size 200

MDFS: LC sending statistics message to RP with code 3 of size 152

MDFS: LC sending window message to RP with code 36261 of size 8

MDFS: LC received IPC packet of size 60 sequence 36212

The following is sample output from the debug ip mds ipc event command:

VIP-Slot0# debug ip mds ipc event

MDFS: LC received invalid sequence 21 while expecting 20

debug ip mds mevent

To debug MFIB route creation, route updates, and so on, use the debug ip mds mevent privileged EXEC command. The no form of this command disables debugging output.

debug ip mds mevent

no debug ip mds mevent

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

Use this command on the line card.

Examples

The following is sample output from the debug ip mds mevent command:

VIP-Slot0# debug ip mds mevent

MDFS mroute event debugging is on

VIP-Slot0#clear ip mdfs for *

VIP-Slot0#

MDFS: Create (*, 239.255.255.255)

MDFS: Create (192.168.1.1/32, 239.255.255.255), RPF POS2/0/0

MDFS: Add OIF for mroute (192.168.1.1/239.255.255.255) on Fddi0/0/0

MDFS: Create (*, 224.2.127.254)

MDFS: Create (192.168.1.1/32, 224.2.127.254), RPF POS2/0/0

MDFS: Add OIF for mroute (192.168.1.1/224.2.127.254) on Fddi0/0/0

MDFS: Create (128.9.160.67/32, 224.2.127.254), RPF POS2/0/0

debug ip mds mpacket

To debug multicast distributed switching (MDS) events, such as packet drops, interface drops, and switching failures, use the debug ip mds mpacket privileged EXEC command. The no form of this command disables debugging output.

debug ip mds mpacket

no debug ip mds mpacket

Syntax Description

This command has no arguments or keywords.

Usage Guidelines

Use this command on the line card.

Examples

Router# debug ip mds mpacket

debug ip mds process

To debug line card process level events, use the debug ip mds process privileged EXEC command. The no form of this command disables debugging output.

debug ip mds process

no debug ip mds process

Usage Guidelines

Use this command on the line card or RP.

Examples

The following is sample output from the debug ip mds process command:

Router# debug ip mds process

MDFS process debugging is on

Mar 19 16:15:47.448: MDFS: RP queueing mdb message for (210.115.194.5, 224.2.127.254) to
all linecards

Mar 19 16:15:47.448: MDFS: RP queueing midb message for (210.115.194.5, 224.2.127.254) to
all linecards

Mar 19 16:15:47.628: MDFS: RP servicing low queue for LC in slot 0

Mar 19 16:15:47.628: MDFS: RP servicing low queue for LC in slot 2

Mar 19 16:15:48.229: MDFS: RP queueing mdb message for (171.68.224.10, 224.2.127.254) to
all linecards

Mar 19 16:15:48.229: MDFS: RP queueing mdb message for (171.68.224.10, 224.2.127.254) to
all linecards

Mar 19 16:15:48.229: MDFS: RP queueing mdb message for (171.69.67.106, 224.2.127.254) to
all linecards

Mar 19 16:15:48.229: MDFS: RP queueing mdb message for (171.69.67.106, 224.2.127.254) to
all linecards

Mar 19 16:15:48.229: MDFS: RP queueing mdb message for (206.14.154.181, 224.2.127.254) to
all linecards

Mar 19 16:15:48.229: MDFS: RP queueing mdb message for (206.14.154.181, 224.2.127.254) to
all linecards

Mar 19 16:15:48.233: MDFS: RP queueing mdb message for (210.115.194.5, 224.2.127.254) to
all linecards

debug ip mobile advertise

Use the debug ip mobile advertise privileged EXEC command to display advertisement information.

debug ip mobile advertise

Syntax Description

This command has no arguments or keywords.

Command History

Release	Modification
12.0(1)T	This command was introduced.

Examples

The following is sample output from the debug ip mobile advertise command:

Router# debug ip mobile advertise

MobileIP: Agent advertisement sent out Ethernet1/2: type=16, len=10, seq=1,
lifetime=36000,

flags=0x1400(rbhFmGv-rsv-),

Care-of address: 68.0.0.31

Prefix Length ext: len=1 (8 )

Table 74 describes significant fields shown in the display.

Table 74 debug ip mobile advertise Command Field Descriptions

Field	Description
type	Type of advertisement.
len	Length of extension in bytes.
seq	Sequence number of this advertisement.
lifetime	Lifetime in seconds.
flags	Capital letters represent bits that are set, lower case letters represent unset bits.
Care-of address	IP address.
Prefix Length ext	Number of prefix lengths advertised. This is the bits in the mask of the interface sending this advertisement. Used for roaming detection.

debug ip mobile host

Use the debug ip mobile host privileged EXEC command to display IP mobility events.

debug ip mobile host acl

Syntax Description

acl	(Optional) Access list.

Command History

Release	Modification
12.0(1)T	This command was introduced.

Examples

The following is sample output from the debug ip mobile host command:

Router# debug ip mobile host

MobileIP: HA received registration for MN 20.0.0.6 on interface Ethernet1 using COA

68.0.0.31 HA 66.0.0.5 lifetime 30000 options sbdmgvT

MobileIP: Authenticated FA 68.0.0.31 using SPI 110 (MN 20.0.0.6)

MobileIP: Authenticated MN 20.0.0.6 using SPI 300

MobileIP: HA accepts registration from MN 20.0.0.6

MobileIP: Mobility binding for MN 20.0.0.6 updated

MobileIP: Roam timer started for MN 20.0.0.6, lifetime 30000

MobileIP: MH auth ext added (SPI 300) in reply to MN 20.0.0.6

MobileIP: HF auth ext added (SPI 220) in reply to MN 20.0.0.6

MobileIP: HA sent reply to MN 20.0.0.6

debug ip mpacket

Use the debug ip mpacket privileged EXEC command to display IP multicast packets received and transmitted. The no form of this command disables debugging output.

debug ip mpacket [detail] [access-list] [group]

no debug ip mpacket [detail] [access-list] [group]

Syntax Description

detail	(Optional) Causes the debug ip mpacket command to display IP header information as well as MAC address information.
access-list	(Optional) Access list number.
group	(Optional) Group name or address.

Usage Guidelines

This command displays information for multicast IP packets that are forwarded from this router. By using the access-list or group argument, you can limit the display to multicast packets from sources described by the access list or a specific multicast group.

Use this command with debug ip packet to observe additional packet information.

---

Caution The debug ip mpacket command generates a large number of messages. Use this command with care so that performance on the network is not affected by the debug message traffic.

---

Examples

The following is sample output from the debug ip mpacket command:

Router# debug ip mpacket 224.2.0.1

IP: s=10.188.34.54 (Ethernet1), d=224.2.0.1 (Tunnel0), len 88, mforward

IP: s=10.188.34.54 (Ethernet1), d=224.2.0.1 (Tunnel0), len 88, mforward

IP: s=10.188.34.54 (Ethernet1), d=224.2.0.1 (Tunnel0), len 88, mforward

IP: s=10.162.3.27 (Ethernet1), d=224.2.0.1 (Tunnel0), len 68, mforward

Table 75 defines fields in the output.

Table 75 debug ip mpacket Command Field Descriptions

Field	Description
IP	IP packet.
s=address	Source address of the packet.
(Ethernet1)	Name of the interface that received the packet.
d=address	Multicast group address that is the destination for this packet.
(Tunnel0)	Outgoing interface for the packet.
len 88	Number of bytes in the packet. This value will vary depending on the application and the media.
mforward	Packet has been forwarded.
not RPF interface	Interface is not a reverse packet forwarding interface. (See the debug ip mrouting command.)
RPF lookup failed	Reverse packet forwarding lookup failed. (See the debug ip mrouting command.)

Related Commands

Command	Description
debug ip dvmrp	Displays information on DVMRP packets received and transmitted.
debug ip igmp	Displays IGMP packets received and transmitted, as well as IGMP-host related events.
debug ip mrm	Displays MRM control packet activity.
debug ip packet	Displays general IP debugging information and IPSO security transactions.
debug ip sd	Displays all SD announcements received.

debug ip mrm

To display Multicast Routing Monitor (MRM) control packet activity, use the debug ip mrm privileged EXEC command. Use the no form of the command to disable debugging output.

debug ip mrm

no debug ip mrm

Syntax Description

This command has no arguments or keywords.

Defaults

Debugging for MRM is not enabled.

Command History

Release	Modification
12.0(5)S	This command was introduced.

Examples

The following example is sample output for the debug ip mrm command on the different devices:

On Manager

*Feb 28 16:25:44.009: MRM: Send Beacon for group 239.1.1.1, holdtime 86100 seconds

*Feb 28 16:26:01.095: MRM: Receive Status Report from 10.1.4.2 on Ethernet0

*Feb 28 16:26:01.099: MRM: Send Status Report Ack to 10.1.4.2 for group 239.1.1.1

*Feb 28 16:26:01.103: IP MRM status report -- Test:test2  Receiver:10.1.4.2

*Feb 28 16:26:01.107:   Sender:10.1.1.10        Pkt Loss:4(16%)  Ehsr:1380

The last two lines of output on the Manager are not part of the debug output; they appeared because an error report was received.

On Test-Sender

MRM: Receive Test-Sender Request/Local trigger from 1.1.1.1 on Ethernet0

MRM: Send TS request Ack to 1.1.1.1 for group 239.1.2.3

MRM: Send test packet src:2.2.2.2 dst:239.1.2.3 manager:1.1.1.1

On Test-Receiver

MRM: Receive Test-Receiver Request/Monitor from 1.1.1.1 on Ethernet0

MRM: Send TR request Ack to 1.1.1.1 for group 239.1.2.3

MRM: Receive Beacon from 1.1.1.1 on Ethernet0

MRM: Send Status Report to 1.1.1.1 for group 239.1.2.3

MRM: Receive Status Report Ack from 1.1.1.1 on Ethernet0

debug ip mrouting

Use the debug ip mrouting privileged EXEC command to display changes to the IP multicast routing table. The no form of this command disables debugging output.

debug ip mrouting [group]

no debug ip mrouting [group]

Syntax Description

group

(Optional) Group name or address to monitor a single group's packet activity.

Usage Guidelines

This command indicates when the router has made changes to the mroute table. Use the debug ip pim and debug ip mrouting commands at the same time to obtain additional multicast routing information. In addition, use the debug ip igmp command to see why an mroute message is being displayed.

This command generates a large amount of output. Use the optional group argument to limit the output to a single multicast group.

Examples

The following is sample output from the debug ip mrouting command:

Router# debug ip mrouting 224.2.0.1

MRT: Delete (10.0.0.0/8, 224.2.0.1)

MRT: Delete (10.4.0.0/16, 224.2.0.1)

MRT: Delete (10.6.0.0/16, 224.2.0.1)

MRT: Delete (10.9.0.0/16, 224.2.0.1)

MRT: Delete (10.16.0.0/16, 224.2.0.1)

MRT: Create (*, 224.2.0.1), if_input NULL

MRT: Create (172.24.15.0/24, 225.2.2.4), if_input Ethernet0, RPF nbr 172.16.61.15

MRT: Create (172.24.39.0/24, 225.2.2.4), if_input Ethernet1, RPF nbr 0.0.0.0

MRT: Create (10.0.0.0/8, 224.2.0.1), if_input Ethernet1, RPF nbr 0.0.0.0

MRT: Create (10.4.0.0/16, 224.2.0.1), if_input Ethernet1, RPF nbr 0.0.0.0

MRT: Create (10.6.0.0/16, 224.2.0.1), if_input Ethernet1, RPF nbr 0.0.0.0

MRT: Create (10.9.0.0/16, 224.2.0.1), if_input Ethernet1, RPF nbr 0.0.0.0

MRT: Create (10.16.0.0/16, 224.2.0.1), if_input Ethernet1, RPF nbr 0.0.0.0

The following lines show that multicast IP routes were deleted from the routing table:

MRT: Delete (10.0.0.0/8, 224.2.0.1)

MRT: Delete (10.4.0.0/16, 224.2.0.1)

MRT: Delete (10.6.0.0/16, 224.2.0.1)

The *,G entry in the following line is always null since it is a *,G. The *,G entries are generally created by receipt of an IGMP host-report from a group member on the directly connected LAN or by a PIM join message (in sparse mode) which this router receives from a router that is sending joins toward the RP. This router will in turn, send a join toward the RP which creates the shared tree (or RP tree).

MRT: Create (*, 224.2.0.1), if_input NULL

The following lines are an example of creating an S,G entry that show a mpacket was received on E0. The second line shows a route being created for a source that is on a directly connected LAN. The RPF means "reverse path forwarding," whereby the router looks up the source address of the multicast packet in the unicast routing table and asks which interface will be used to send a packet to that source.

MRT: Create (172.24.15.0/24, 225.2.2.4), if_input Ethernet0, RPF nbr 172.16.61.15

MRT: Create (172.24.39.0/24, 225.2.2.4), if_input Ethernet1, RPF nbr 0.0.0.0

The following lines show that multicast IP routes were added to the routing table. Note the 0.0.0.0 as the RPF, which means the route was created by a source that is directly connected to this router.

MRT: Create (10.9.0.0/16, 224.2.0.1), if_input Ethernet1, RPF nbr 0.0.0.0

MRT: Create (10.16.0.0/16, 224.2.0.1), if_input Ethernet1, RPF nbr 0.0.0.0

If the source is not directly connected, the nbr address shown in these lines will be the address of the router that forwarded the packet to this router.

The shortest path tree state maintained in routers consists of source (S), multicast address (G), outgoing interface (OIF), and incoming interface (IIF). The forwarding information is referred to as the multicast forwarding entry for (S,G).

An entry for a shared tree can match packets from any source for its associated group if the packets come through the proper incoming interface as determined by the RPF lookup. Such an entry is denoted as (*,G). A (*,G) entry keeps the same information a (S,G) entry keeps, except that it saves the rendezvous point (RP) address in place of the source address in sparse mode or 0.0.0.0 in dense mode.

Related Commands

Command	Description
debug ip dvmrp	Displays information on DVMRP packets received and transmitted.
debug ip igmp	Displays IGMP packets received and transmitted, as well as IGMP-host related events.
debug ip pim	Displays all SD announcements received.
debug ip packet	Displays general IP debugging information and IPSO security transactions.
debug ip sd	Displays all SD announcements received.

debug ip msdp

To debug MSDP activity, use the debug ip msdp privileged EXEC command.

debug ip msdp [peer-address | name] [detail] [routes]

Syntax Description

peer-address | name	(Optional) Logs debug events for that peer only.
detail	(Optional) Provides more detailed debugging information.
routes	(Optional) Displays the contents of Source-Active messages.

Command History

Release	Modification
12.0(7)T	This command was introduced.

Examples

The following is sample output of the debug ip msdp command:

Router# debug ip msdp

MSDP debugging is on

Router#

MSDP: 192.150.44.254: Received 1388-byte message from peer

MSDP: 192.150.44.254: SA TLV, len: 1388, ec: 115, RP: 137.39.3.92

MSDP: 192.150.44.254: Peer RPF check passed for 137.39.3.92, used EMBGP peer

MSDP: 192.150.44.250: Forward 1388-byte SA to peer

MSDP: 192.150.44.254: Received 1028-byte message from peer

MSDP: 192.150.44.254: SA TLV, len: 1028, ec: 85, RP: 137.39.3.92

MSDP: 192.150.44.254: Peer RPF check passed for 137.39.3.92, used EMBGP peer

MSDP: 192.150.44.250: Forward 1028-byte SA to peer

MSDP: 192.150.44.254: Received 1388-byte message from peer

MSDP: 192.150.44.254: SA TLV, len: 1388, ec: 115, RP: 137.39.3.111

MSDP: 192.150.44.254: Peer RPF check passed for 137.39.3.111, used EMBGP peer

MSDP: 192.150.44.250: Forward 1388-byte SA to peer

MSDP: 192.150.44.250: Received 56-byte message from peer

MSDP: 192.150.44.250: SA TLV, len: 56, ec: 4, RP: 205.167.76.241

MSDP: 192.150.44.250: Peer RPF check passed for 205.167.76.241, used EMBGP peer

MSDP: 192.150.44.254: Forward 56-byte SA to peer

MSDP: 192.150.44.254: Received 116-byte message from peer

MSDP: 192.150.44.254: SA TLV, len: 116, ec: 9, RP: 137.39.3.111

MSDP: 192.150.44.254: Peer RPF check passed for 137.39.3.111, used EMBGP peer

MSDP: 192.150.44.250: Forward 116-byte SA to peer

MSDP: 192.150.44.254: Received 32-byte message from peer

MSDP: 192.150.44.254: SA TLV, len: 32, ec: 2, RP: 137.39.3.78

MSDP: 192.150.44.254: Peer RPF check passed for 137.39.3.78, used EMBGP peer

MSDP: 192.150.44.250: Forward 32-byte SA to peer

Table 76 describes the significant fields in the display.

Table 76 debug ip msdp Command Field Descriptions

Field	Description
MSDP	Protocol being debugged.
192.150.44.254:	IP address of MSDP peer.
Received 1388-byte message from peer	MSDP event.

debug ip msdp resets

To debug MSDP peer reset reasons, use the debug ip msdp resets privileged EXEC command.

debug ip msdp resets

Syntax Description

This command has no arguments or keywords.

Command History

Release	Modification
12.0(7)T	This command was introduced.

debug ip nat

Use the debug ip nat privileged EXEC command to display information about IP packets translated by the IP network address translation (NAT) feature. The no form of this command disables debugging output.

debug ip nat [access-list | detailed]

no debug ip nat [access-list | detailed]

Syntax Description

access-list	(Optional) Standard IP access list number. If the datagram is not permitted by the specified access list, the related debugging output is suppressed.
detailed	(Optional) Displays debug information in a detailed format.

Usage Guidelines

The NAT feature reduces the need for unique, registered IP addresses. It can also save private network administrators from having to renumber hosts and routers that do not conform to global IP addressing.

Use the debug ip nat command to verify the operation of the NAT feature by displaying information about every packet that is translated by the router. The debug ip nat detailed command generates a description of each packet considered for translation. This command also outputs information about certain errors or exceptional conditions, such as the failure to allocate a global address.

---

Caution Because the debug ip nat command generates a significant amount of output, use it only when traffic on the IP network is low, so other activity on the system is not adversely affected.

---

Examples

The following is sample output from the debug ip nat command. In this example, the first two lines show the debugging output that a Domain Name System (DNS) request and reply produced. The remaining lines show the debugging output from a Telnet connection from a host on the inside of the network to a host on the outside of the network. All Telnet packets, except for the first packet, were translated in the fast path, as indicated by the asterisk (*).

Router# debug ip nat

NAT: s=192.168.1.95->172.31.233.209, d=172.31.2.132 [6825]

NAT: s=172.31.2.132, d=172.31.233.209->192.168.1.95 [21852]

NAT: s=192.168.1.95->172.31.233.209, d=172.31.1.161 [6826]

NAT*: s=172.31.1.161, d=172.31.233.209->192.168.1.95 [23311]

NAT*: s=192.168.1.95->172.31.233.209, d=172.31.1.161 [6827]

NAT*: s=192.168.1.95->172.31.233.209, d=172.31.1.161 [6828]

NAT*: s=172.31.1.161, d=172.31.233.209->192.168.1.95 [23313]

NAT*: s=172.31.1.161, d=172.31.233.209->192.168.1.95 [23325]

Table 77 describes the fields and messages.

Table 77 debug ip nat Command Field Descriptions

Field	Description
NAT:	Indicates that the packet is being translated by the network address translation feature. An asterisk (*) indicates the translation is occurring in the fast path. The first packet in a conversation always goes through the slow path (that is, process-switched). The remaining packets go through the fast path if a cache entry exists.
s=192.168.1.95->172.31.233.209	Source address of the packet and how it is being translated.
d=172.31.2.132	Destination address of the packet.
[6825]	IP identification number of the packet. Might be useful in the debugging process to correlate with other packet traces from protocol analyzers.

The following is sample output from the debug ip nat detailed command. In this example, the first two lines show the debugging output that a Domain Name System (DNS) request and reply produced. The remaining lines show the debugging output from a Telnet connection from a host on the inside of the network to a host on the outside of the network. In this example, the inside host 192.168.1.95 was assigned the global address 172.31.233.193.

Router# debug ip nat detailed

NAT: i: udp (192.168.1.95, 1493) -> (172.31.2.132, 53) [22399]

NAT: o: udp (172.31.2.132, 53) -> (172.31.233.193, 1493) [63671]

NAT*: i: tcp (192.168.1.95, 1135) -> (172.31.2.75, 23) [22400]

NAT*: o: tcp (172.31.2.75, 23) -> (172.31.233.193, 1135) [22002]

NAT*: i: tcp (192.168.1.95, 1135) -> (172.31.2.75, 23) [22401]

NAT*: i: tcp (192.168.1.95, 1135) -> (172.31.2.75, 23) [22402]

NAT*: o: tcp (172.31.2.75, 23) -> (172.31.233.193, 1135) [22060]

NAT*: o: tcp (172.31.2.75, 23) -> (172.31.233.193, 1135) [22071]

Table 78 describes the fields and messages shown in the output.

Table 78 debug ip nat Command Detailed Field Descriptions

Field	Description
NAT:	Indicates that the packet is being translated by the network address translation feature. An asterisk (*) indicates the translation is occurring in the fast path.
i:	Indicates that the packet is moving from a host inside the network to one outside the network.
o:	Indicates that the packet is moving from a host outside the network to one inside the network.
udp	Protocol of the packet.
(192.168.1.95, 1493) -> (172.31.2.132, 53)	Indicates that the packet is sent from IP address 192.168.1.95 port number 1493 to IP address 172.31.2.132 port number 53.
[22399]	IP identification number of the packet.

debug ip ospf events

Use the debug ip ospf events privileged EXEC command to display information onOpen Shortest Path First (OSPF)-related events, such as adjacencies, flooding information, designated router selection, and shortest path first (SPF) calculation. The no form of this command disables debugging output.

debug ip ospf events

no debug ip ospf events

Syntax Description

This command has no arguments or keywords.

Examples

The following is sample output from the debug ip ospf events command:

Router# debug ip ospf events

OSPF:hello with invalid timers on interface Ethernet0

hello interval received 10 configured 10

net mask received 255.255.255.0 configured 255.255.255.0

dead interval received 40 configured 30

The debug ip ospf events output shown might appear if any of the following occurs:

•The IP subnet masks for routers on the same network do not match.

•The OSPF hello interval for the router does not match that configured for a neighbor.

•The OSPF dead interval for the router does not match that configured for a neighbor.

If a router configured for OSPF routing is not seeing an OSPF neighbor on an attached network, do the following:

•Make sure that both routers have been configured with the same IP mask, OSPF hello interval, and OSPF dead interval.

•Make sure that both neighbors are part of the same area type.

In the following example line, the neighbor and this router are not part of a stub area (that is, one is a part of a transit area and the other is a part of a stub area, as explained in RFC 1247):

OSPF: hello packet with mismatched E bit

Related Commands

Command	Description
debug ip ospf packet	Displays information about each OSPF packet received.

debug ip ospf packet

Use the debug ip ospf packet privileged EXEC command to display information about each Open Shortest Path First (OSPF) packet received. The no form of this command disables debugging output.

debug ip ospf packet

no debug ip ospf packet

Syntax Description

This command has no arguments or keywords.

Examples

The following is sample output from the debug ip ospf packet command:

Router# debug ip ospf packet

OSPF: rcv. v:2 t:1 l:48 rid:200.0.0.117

      aid:0.0.0.0 chk:6AB2 aut:0 auk:

The debug ip ospf packet command produces one set of information for each packet received. The output varies slightly depending on which authentication is used. The following is sample output from the debug ip ospf packet command when MD5 authentication is used.

Router# debug ip ospf packet

OSPF: rcv. v:2 t:1 l:48 rid:200.0.0.116

      aid:0.0.0.0 chk:0 aut:2 keyid:1 seq:0x0

Table 79 describes the fields shown in the outputs.

Table 79 debug ip ospf packet Command Field Descriptions

Field	Description
v:	OSPF version.
t:	OSPF packet type. Possible packet types follow: •1—Hello •2—Data description •3—Link state request •4—Link state update •5—Link state acknowledgment
l:	OSPF packet length in bytes.
rid:	OSPF router ID.
aid:	OSPF area ID.
chk:	OSPF checksum.
aut:	OSPF authentication type. Possible authentication types follow: •0—No authentication •1—Simple password •2—MD5
auk:	OSPF authentication key.
keyid:	MD5 key ID.
seq:	Sequence number.

Related Commands

Command	Description
debug ip ospf events	Displays information on OSPF-related events, such as adjacencies, flooding information, designated router selection, and SPF calculation.

debug ip packet

To display general IP debugging information and IP security option (IPSO) security transactions, use the debug ip packet command in privileged EXEC mode. To disable debugging output, use the no form of this command.

debug ip packet [access-list-number] [detail] [dump]

no debug ip packet [access-list-number]

Syntax Description

access-list-number	(Optional) The IP access list number that you can specify. If the datagram is not permitted by that access list, the related debugging output is suppressed. Standard, extended, and expanded access lists are supported. The range of standard and extended access lists is from 1 to 199. The range of expanded access lists is from 1300 to 2699.
detail	(Optional) Displays detailed IP packet debugging information. This information includes the packet types and codes as well as source and destination port numbers.
dump	(Hidden) Displays IP packet debugging information along with raw packet data in hexadecimal and ASCII forms. This keyword can be enabled with individual access lists and also with the detail keyword. Note The dump keyword is not fully supported and should be used only in collaboration with Cisco Technical Support. See the caution notes below, in the usage guidelines, for more specific information.

Command Modes

Privileged EXEC

Usage Guidelines

If a communication session is closing when it should not be, an end-to-end connection problem can be the cause. The debug ip packet command is useful for analyzing the messages traveling between the local and remote hosts. IP packet debugging captures the packets that are process switched including received, generated and forwarded packets. IP packets that are switched in the fast path are not captured.

IPSO security transactions include messages that describe the cause of failure each time a datagram fails a security test in the system. This information is also sent to the sending host when the router configuration allows it.

---

Caution Because the debug ip packet command generates a substantial amount of output and uses a substantial amount of system resources, this command should be used with caution in production networks. It should only be enabled when traffic on the IP network is low, so other activity on the system is not adversely affected. Enabling the detail and dump keywords use the highest level of system resources of the available configuration options for this command, so a high level of caution should be applied when enabling either of these keywords.

---

---

Caution The dump keyword is not fully supported and should be used only in collaboration with Cisco Technical Support. Because of the risk of using significant CPU utilization, the dump keyword is hidden from the user and cannot be seen using the "?" prompt. The length of the displayed packet information may exceed the actual packet length and include additional padding bytes that do not belong to the IP packet. Also note that the beginning of a packet may start at different locations in the dump output depending on the specific router, interface type, and packet header processing that may have occurred before the output is displayed.

---

Examples

The following is sample output from the debug ip packet command:

debug ip packet

IP packet debugging is on

IP: s=172.69.13.44 (Fddi0), d=10.125.254.1 (Serial2), g=172.69.16.2, forward

IP: s=172.69.1.57 (Ethernet4), d=10.36.125.2 (Serial2), g=172.69.16.2, forward

IP: s=172.69.1.6 (Ethernet4), d=255.255.255.255, rcvd 2

IP: s=172.69.1.55 (Ethernet4), d=172.69.2.42 (Fddi0), g=172.69.13.6, forward

IP: s=172.69.89.33 (Ethernet2), d=10.130.2.156 (Serial2), g=172.69.16.2, forward

IP: s=172.69.1.27 (Ethernet4), d=172.69.43.126 (Fddi1), g=172.69.23.5, forward

IP: s=172.69.1.27 (Ethernet4), d=172.69.43.126 (Fddi0), g=172.69.13.6, forward

IP: s=172.69.20.32 (Ethernet2), d=255.255.255.255, rcvd 2

IP: s=172.69.1.57 (Ethernet4), d=10.36.125.2 (Serial2), g=172.69.16.2, access denied

The output shows two types of messages that the debug ip packet command can produce; the first line of output describes an IP packet that the router forwards, and the third line of output describes a packet that is destined for the router. In the third line of output, rcvd 2 indicates that the router decided to receive the packet.

Table 80 describes the significant fields shown in the output.

Table 80 debug ip packet Field Descriptions

Field	Description
IP:	Indicates that this is an IP packet.
s=172.69.13.44 (Fddi0)	Indicates the source address of the packet and the name of the interface that received the packet.
d=10.125.254.1 (Serial2)	Indicates the destination address of the packet and the name of the interface (in this case, S2) through which the packet is being sent out on the network.
g=172.69.16.2	Indicates the address of the next-hop gateway.
forward	Indicates that the router is forwarding the packet. If a filter denies a packet, "access denied" replaces "forward," as shown in the last line of output.

The following is sample output from the debug ip packet command enabled with the detail keyword:

debug ip packet detail

IP packet debugging is on (detailed)

001556: 19:59:30: CEF: Try to CEF switch 10.4.9.151 from FastEthernet0/0

001557: 19:59:30: IP: s=10.4.9.6 (FastEthernet0/0), d=10.4.9.151 (FastEthernet03

001558: 19:59:30:     TCP src=179, dst=11001, seq=3736598846, ack=2885081910, wH

001559: 20:00:09: CEF: Try to CEF switch 10.4.9.151 from FastEthernet0/0

001560: 20:00:09: IP: s=10.4.9.4 (FastEthernet0/0), d=10.4.9.151 (FastEthernet03

001561: 20:00:09:     TCP src=179, dst=11000, seq=163035693, ack=2948141027, wiH

001562: 20:00:14: CEF: Try to CEF switch 10.4.9.151 from FastEthernet0/0

001563: 20:00:14: IP: s=10.4.9.6 (FastEthernet0/0), d=10.4.9.151 (FastEthernet03

001564: 20:00:14:     ICMP type=8, code=0

001565: 20:00:14: IP: s=10.4.9.151 (local), d=10.4.9.6 (FastEthernet0/0), len 1g

001566: 20:00:14:     ICMP type=0, code=0

The format of the output with detail keyword provides additional information, such as the packet type, code, some field values, and source and destination port numbers.

Table 81 describes the significant fields shown in the output.

Table 81 debug ip packet detail Field Descriptions

Field	Description
CEF:	Indicates that the IP packet is being processed by CEF.
IP:	Indicates that this is an IP packet.
s=10.4.9.6 (FastEthernet0/0)	Indicates the source address of the packet and the name of the interface that received the packet.
d=10.4.9.151 (FastEthernet03)	Indicates the destination address of the packet and the name of the interface through which the packet is being sent out on the network.
TCP src=	Indicates the source TCP port number.
dst=	Indicates the destination TCP port number.
seq=	Value from the TCP packet sequence number field./
ack=	Value from the TCP packet acknowledgement field.
ICMP type=	Indicates ICMP packet type.
code=	Indicates ICMP return code.

The following is sample output from the debug ip packet command enabled with the dump keyword:

debug ip packet dump

IP packet debugging is on (detailed) (dump)

21:02:42: IP: s=10.4.9.6 (FastEthernet0/0), d=10.4.9.4 (FastEthernet0/0), len 13

07003A00:                       0005 00509C08            ...P..

07003A10: 0007855B 4DC00800 45000064 001E0000  ...[M@..E..d....

07003A20: FE019669 0A040906 0A040904 0800CF7C  ~..i..........O|

07003A30: 0D052678 00000000 0A0B7145 ABCDABCD  ..&x......qE+M+M

07003A40: ABCDABCD ABCDABCD ABCDABCD ABCDABCD  +M+M+M+M+M+M+M+M

07003A50: ABCDABCD ABCDABCD ABCDABCD ABCDABCD  +M+M+M+M+M+M+M+M

07003A60: ABCDABCD ABCDABCD ABCDABCD ABCDABCD  +M+M+M+M+M+M+M+M

07003A70: ABCDABCD ABCDABCD ABCDABCD           +M+M+M+M+M+M

21:02:42: IP: s=10.4.9.4 (local), d=10.4.9.6 (FastEthernet0/0), len 100, sending

07003A00:                       0005 00509C08            ...P..

07003A10: 0007855B 4DC00800 45000064 001E0000  ...[M@..E..d....

07003A20: FF019569 0A040904 0A040906 0000D77C  ...i..........W|

07003A30: 0D052678 00000000 0A0B7145 ABCDABCD  ..&x......qE+M+M

07003A40: ABCDABCD ABCDABCD ABCDABCD ABCDABCD  +M+M+M+M+M+M+M+M

07003A50: ABCDABCD ABCDABCD ABCDABCD ABCDABCD  +M+M+M+M+M+M+M+M

07003A60: ABCDABCD ABCDABCD ABCDABCD ABCDABCD  +M+M+M+M+M+M+M+M

07003A70: ABCDABCD ABCDABCD ABCDABCD           +M+M+M+M+M+M

21:02:42: CEF: Try to CEF switch 10.4.9.4 from FastEthernet0/0

21:02:42: IP: s=10.4.9.6 (FastEthernet0/0), d=10.4.9.4 (FastEthernet0/0), len 13

07003380:                       0005 00509C08            ...P..

07003390: 0007855B 4DC00800 45000064 001F0000  ...[M@..E..d....

070033A0: FE019668 0A040906 0A040904 0800CF77  ~..h..........Ow

070033B0: 0D062678 00000000 0A0B7149 ABCDABCD  ..&x......qI+M+M

070033C0: ABCDABCD ABCDABCD ABCDABCD ABCDABCD  +M+M+M+M+M+M+M+M

070033D0: ABCDABCD ABCDABCD ABCDABCD ABCDABCD  +M+M+M+M+M+M+M+M

070033E0: ABCDABCD ABCDABCD ABCDABCD ABCDABCD  +M+M+M+M+M+M+M+M

070033F0: ABCDABCD ABCDABCD ABCDABCD           +M+M+M+M+M+M

---

Note The dump keyword is not fully supported and should be used only in collaboration with Cisco Technical Support. See the caution in the usage guidelines section of this command reference page for more specific information.

---

The output from the debug ip packet command, when the dump keyword is enabled, provides raw packet data in hexadecimal and ASCII forms. This addtional output is displayed in addition to the standard output. The dump keyword can be used with all of the available configuration options of this command.

Table 82 describes the standard output fields shown.

Table 82 debug ip packet dump Field Descriptions

Field	Description
IP:	Indicates that this is an IP packet.
s=10.4.9.6 (FastEthernet0/0)	Indicates the source address of the packet and the name of the interface that received the packet.
d=10.4.9.4 (FastEthernet0/0) len 13	Indicates destination address and length of the packet and the name of the interface through which the packet is being sent out on the network.
sending	Indicates that the router is sending the packet.

The calculation on whether to send a security error message can be somewhat confusing. It depends upon both the security label in the datagram and the label of the incoming interface. First, the label contained in the datagram is examined for anything obviously wrong. If nothing is wrong, assume the datagram to be correct. If something is wrong, the datagram is treated as unclassified genser. Then the label is compared with the interface range, and the appropriate action is taken, as Table 83 describes.

Table 83 Security Actions

Classification	Authorities	Action Taken
Too low	Too low Good Too high	No Response No Response No Response
In range	Too low Good Too high	No Response Accept Send Error
Too high	Too low In range Too high	No Response Send Error Send Error

The security code can only generate a few types of Internet Control Message Protocol (ICMP) error messages. The only possible error messages and their meanings follow:

•ICMP Parameter problem, code 0—Error at pointer

•ICMP Parameter problem, code 1—Missing option

•ICMP Parameter problem, code 2—See Note that follows

•ICMP Unreachable, code 10—Administratively prohibited

---

Note The message "ICMP Parameter problem, code 2" identifies a specific error that occurs in the processing of a datagram. This message indicates that the router received a datagram containing a maximum length IP header but no security option. After being processed and routed to another interface, it is discovered that the outgoing interface is marked with "add a security label." Because the IP header is already full, the system cannot add a label and must drop the datagram and return an error message.

---

When an IP packet is rejected due to an IP security failure, an audit message is sent via Department of Defense Intelligence Information System Network Security for Information Exchange (DNSIX) Network Address Translation (NAT). Also, any debug ip packet output is appended to include a description of the reason for rejection. This description can be any of the following:

•No basic

•No basic, no response

•Reserved class

•Reserved class, no response

•Class too low, no response

•Class too high

•Class too high, bad authorities, no response

•Unrecognized class

•Unrecognized class, no response

•Multiple basic

•Multiple basic, no response

•Authority too low, no response

•Authority too high

•Compartment bits not dominated by maximum sensitivity level

•Compartment bits do not dominate minimum sensitivity level

•Security failure: extended security disallowed

•NLESO source appeared twice

•ESO source not found

•Postroute, failed xfc out

•No room to add IPSO

debug ip pgm router

To display debug messages for PGM, use the debug ip pgm router privileged EXEC command. Use the no form of the command to disable debugging output.

debug ip pgm router [spm | nak | data]

no debug ip pgm router [spm | nak | data]

Syntax Description

spm	(Optional) Enables debugging for Source Path Messages (SPMs).
nak	(Optional) Enables debugging for negative acknowledgments (NAKs), NAK confirmations (NCFs), and Null NAKs.
data	(Optional) Enables debugging for Retransmissions (RDATA).

Defaults

Debugging for PGM is is not enabled. If the debug ip pgm router command is used with no additional keywords, debugging is enabled for all PGM message types.

Command History

Release	Modification
12.0(5)T	This command was introduced.

Examples

The following example shows output of the debug ip pgm router command:

Router# debug ip pgm router

SPM debugging is on

NAK/NNAK/NCF debugging is on

RDATA debugging is on

The following example shows output of the debug ip pgm router command with the spm keyword:

Router# debug ip pgm router spm

PGM: Received SPM on Ethernet1/0/5 from 10.7.0.200 to 227.7.7.7 (52 bytes)

     SPM TSI 0A0700C85555-1000 data-dport 1001 csum CCCC tlen 52

     dsqn 3758096779 tsqn       1954 isqn       1979 lsqn       1990

     NLA 10.7.0.200

     SPM from source/RPF-neighbour 10.7.0.200 for 10.7.0.200 (SPT)

     Forwarded SPM from 10.7.0.200 to 227.7.7.7

The following is a debug message for a selective SPM:

Router# debug ip pgm router spm

PGM: Received SPM on Ethernet1/0/5 from 10.7.0.200 to 234.4.3.2 (52 bytes)

     SPM TSI 0A0700C85555-2000 data-dport 2001 csum CCCC tlen 52    Options  P N O

     dsqn 3758096768 tsqn       1986 isqn       1994 lsqn       2006

     NLA 10.7.0.200

     SPM from source/RPF-neighbour 10.7.0.200 for 10.7.0.200 (SPT)

     Forwarded SPM from 10.7.0.200 to 227.7.7.7

The "P N O" flags indicate which options are present in this packet.

•"P" indicates that this is a parity packet.

•"N" indicates options are network significant.

•"O" indicates options are present.

The following example shows output of the debug ip pgm router command with the nak keyword:

Router# debug ip pgm router nak

PGM: Received NAK on Ethernet1/0/0 from 10.1.0.4 to 10.1.0.2 (36 bytes)

     NAK TSI 0A0700C85555-1000 data-dport 1001 csum CCCC tlen 36

     dsqn       1990 data source 10.7.0.200 group 227.7.7.7

     NAK unicast routed to RPF neighbour 10.4.0.1

     Forwarding NAK from 10.1.0.4 to 10.4.0.1 for 10.7.0.200

PGM: Received NCF on Ethernet1/0/5 from 10.7.0.200 to 227.7.7.7 (36 bytes)

     NCF TSI 0A0700C85555-1000 data-dport 1001 csum CACC tlen 36

     dsqn       1990 data source 10.7.0.200 group 227.7.7.7

     NAK retx canceled for TSI 0A0700C85555-1000 dsqn       1990

     NAK elimination started for TSI 0A0700C85555-1000 dsqn       1990

PGM: Received NCF on Ethernet1/0/5 from 10.7.0.200 to 227.7.7.7 (36 bytes)

     NCF TSI 0A0700C85555-1000 data-dport 1001 csum CACC tlen 36

     dsqn       1991 data source 10.7.0.200 group 227.7.7.7

     No NAK retx outstanding for TSI 0A0700C85555-1000 dsqn       1991

     NAK anticipated for TSI 0A0700C85555-1000 dsqn       1991

The following example shows output of the debug ip pgm router command with the data keyword. The debug message is for an RDATA packet for which the router has only anticipated state, sqn 1991. Since it did not actually get a NAK, this RDATA is not forwarded by the PGM router.

Router# debug ip pgm router data

PGM: Received RDATA on Ethernet1/0/5 from 10.7.0.200 to 227.7.7.7 (70 bytes)

     RDATA TSI 0A0700C85555-1000 data-dport 1001 csum CCCC tlen 32

     tsqn       1954 dsqn       1990

     Marking Ethernet1/0/0 for forwarding

     Marking Serial5/0 for skipping

     Forwarded RDATA from 10.7.0.200 to 227.7.7.7

Debug message for RDATA packet corresponding to a NAK for sqn

1990. Since the NAK was received on Ethernet1/0/0, RDATA is forwarded

out only that interface and another interface in the multicast olist

Serial5/0 is skipped.

PGM: Received RDATA on Ethernet1/0/5 from 10.7.0.200 to 227.7.7.7 (70 bytes)

     RDATA TSI 0A0700C85555-1000 data-dport 1001 csum CCCC tlen 32

     tsqn       1954 dsqn       1991

     Eliminated RDATA (null oif) from 10.7.0.200 to 227.7.7.7

Related Commands

Command	Description
debug ip pgm router	Clears PGM traffic statistics.
ip pgm router	Enables the PGM Router Assist feature for the interface.
show ip pgm router	Displays PGM traffic statistics and TSI state.
