Configuration Examples

This section provides specific configuration examples for different VoFR connections and call type scenarios. This section includes the following examples:

Two Routers Using Frame Relay Fragmentation

Router Using a VoFR PVC to a Cisco 3600

Router Using a VoFR PVC to a Cisco MC3810

Tandem Configuration with Three Routers for Switched Calls


Note In the examples, some commands are shown with a boldface lowercase letter. These letters indicate command settings that must match on the different routers. For example, the frame-relay cir s value indicates that the committed information rate "s" must match on the routers as shown.


The examples do not provide complete configurations, but show the required commands to configure Voice over Frame Relay.

Two Routers Using Frame Relay Fragmentation

Figure 1 shows an example of Frame Relay fragmentation between two routers. This configuration uses FRF.12 fragmentation.

Figure 1 Two Routers Using Frame Relay Fragmentation

Router A (Cisco 3600)
Router B (Cisco 7500)
interface serial 0/0
interface serial 0/0/0
  encapsulation frame-relay
  encapsulation frame-relay
  frame-relay traffic shaping



interface serial 0/0.1 point-to-point
interface serial 0/0/0.1 point-to-point
frame-relay interface-dlci 100
frame-relay interface-dlci 100
  class frf12-class
class frf12-class


map-class frame-relay frf12-class
map-class frame-relay frf12-class
  frame-relay fragment y
frame-relay fragment y
  frame-relay cir s
service-policy output llq-shape
  frame-relay bc u



Note The examples in this document assume that a map-class called frf12-class was previously configured.
The service-policy output llq-shape command used on the Cisco 7500 series router in the above example assumes that the service policy called llq-shape was configured using low latency queuing and distributed traffic shaping. For information on low latency queueing on the VIP, see the Low Latency Queueing for the VIP feature module on CCO. For information on distributed traffic shaping, see the Distributed Traffic Shaping feature module on CCO.
The Configuration Examples section of this document assumes that the frf12-class map-class and the llq-shape service policy were previously configured.


Router Using a VoFR PVC to a Cisco 3600

This example shows an example of Frame Relay fragmentation between a Cisco 7500 series router with a VIP and a Cisco 3600 series router.

Router A (Cisco 3600)
Router B (Cisco 7500)
interface serial 0/0
interface serial 0/0/0
  encapsulation frame-relay
  encapsulation frame-relay
  frame-relay traffic shaping



interface serial 0/0.1 point-to-point
interface serial 0/0/0.1 point-to-point
frame-relay interface-dlci 100
frame-relay interface-dlci 100
vofr data 4 call 5
vofr data 4 call 5
class frf11-class
class frf11-class


map-class frame-relay frf11-class
map-class frame-relay frf11-class
  frame-relay fragment y
  frame-relay fragment y
  frame-relay voice-bandwidth t
  frame-relay voice-bandwidth t
  frame-relay cir s
service-policy llq-shape
  frame-relay bc u


Router Using a VoFR PVC to a Cisco MC3810

Figure 2 shows an example of a Cisco 7500 series router with a VIP with connections to a Cisco MC3810 using a VoFR PVC. In this example, the Voice over Frame Relay interface on the Cisco MC3810 is configured using the vofr cisco command.

This configuration uses FRF.11 Annex C fragmentation.

In this configuration, Low Latency Queuing is required in order to make a call. For information on configuring Low Latency Queueing, see the Low Latency Queueing for the VIP feature module on CCO.


Note When a Cisco MC3810 is on a VoFR network, the configuration for connections to and from the Cisco MC3810 is slightly different than for other routers that support VoFR.


Figure 2 Router Using a VoFR PVC to a Cisco MC3810

Router A (Cisco MC3810)
Router B (Cisco 7500)
interface serial 0/0
interface serial 0/0/0
  encapsulation frame-relay
  encapsulation frame-relay
  frame-relay traffic shaping



interface serial 0/0.1 point-to-point
interface serial 0/0/0.1 point-to-point
  frame-relay interface-dlci 100
frame-relay interface-dlci 100
  vofr cisco
vofr cisco
  class frf11-class
class frf11-class


map-class frame-relay frf11-class
map-class frame-realy frf11-class
  frame-relay fragment y
frame-relay fragment y
  frame-relay voice-bandwidth t
frame-relay voice-bandwidth t
  frame-relay cir s
service-policy llq-shape
  frame-relay bc u



Note The examples in this document assume that a map-class called frf11-class was previously configured.
The service-policy output llq-shape command used on the Cisco 7500 series router in the above example assumes that the service policy called llq-shape was configured using low latency queuing and distributed traffic shaping. For information on low latency queueing on the VIP, see the Low Latency Queueing for the VIP feature module on CCO. For information on distributed traffic shaping, see the Distributed Traffic Shaping feature module on CCO.
The Configuration Examples section of this document assumes that the frf-11 map-class and the llq-shape service policy were previously configured.


Tandem Configuration with Three Routers for Switched Calls

Figure 3 shows an example of a tandem configuration with a Cisco 3600 as one endpoint and a Cisco MC3810 as another endpoint. The Cisco 7500 series router with a VIP as a tandem node.

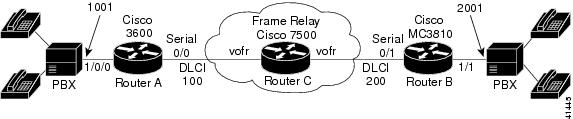

Figure 3 Tandem Configuration with Three Routers for Switched Calls

Router A (Cisco 3600) Endpoint
Router C (Cisco 7500)
Router B (Cisco MC3810) Endpoint
interface serial 0/0
interface serial 1/0/0
interface serial 0/1
  encapsulation frame-relay
  encapsulation
frame-relay
  encapsulation frame-relay
  frame-relay traffic-shaping
interface serial 1/0/0.1
point-to-point
  frame-relay traffic-shaping
  frame-relay interface-dlci 100
  frame-relay
interface-dlci 100
  frame-relay interface-dlci
200
  vofr data 4 call 5
  vofr data 4 call 5
  vofr cisco
  class voice
  class voice
  class voice







interface serial 1/0/0.2
point-to-point


frame-relay
interface-dlci 200


vofr cisco


class voice




map-class frame-relay voice
map-class frame-relay
voice
map-class frame-relay voice
  frame-relay fragment d
frame-relay fragment d
  frame-relay fragment d
  frame-relay voice bandwidth c
  frame-relay voice
bandwidth c
  frame-relay voice bandwidth
c
  frame-relay cir a
service-policy output
llq-shape
  frame-relay cir a
  frame-relay min-cir t

  frame-relay min-cir t
  frame-relay bc b

  frame-relay bc b



dial-peer voice 1 pots
dial-peer voice 1 vofr
dial-peer voice 1 vofr
  destination-pattern 1001
  destination-pattern
1001
  destination-pattern 1001
  port 1/0/0
  session target
serial 1/0/0 200
  session target serial 0/1
200



dial-peer voice 2 vofr
dial-peer voice 2 vofr
dial-peer voice 2 pots
  destination-pattern 2001
  destination-pattern
2001
  destination-pattern 2001
  session target serial 0/0 100
session target serial
1/0/0 200
port 1/0/0



voice-port 1/0/0

voice-port 1/0/0


Note The examples in this document assume that a map-class called frf11-class was previously configured.
The service-policy output llq-shape command used on the Cisco 7500 series router in the above example assumes that the service policy called llq-shape was configured using low latency queuing and distributed traffic shaping. For information on low latency queueing on the VIP, see the Low Latency Queueing for the VIP feature module on CCO. For information on distributed traffic shaping, see the Distributed Traffic Shaping feature module on CCO.
The Configuration Examples section of this document assumes that the frf-11 map-class and the llq-shape service policy were previously configured.


Tandem Configuration with a Cisco MC3810 Endpoint Node for Cisco-Trunk (Private Line) Calls

Figure 4 shows an example of a tandem configuration with a Cisco MC3810 acting as an endpoint node for Cisco-trunk (private line) calls.


Note When a Cisco MC3810 is on a VoFR network, the configuration for connections to and from the Cisco MC3810 is slightly different from that of other routers that support VoFR. The vofr cisco command is required for those connections.

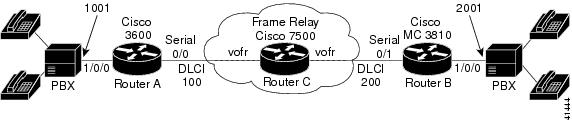

Figure 4 Tandem Configuration with a Cisco MC3810 Endpoint Node for Permanent Switched Call

Router A (Cisco 3600) Endpoint
Router C (Cisco 7500)
Router B (Cisco MC3810) Endpoint
interface serial 0/0
interface serial 1/0/0
interface serial 0/1
  encapsulation frame-relay
  encapsulation frame-relay
  encapsulation frame-relay
  frame-relay traffic-shaping
interface serial 1/0/0.1
point-to-point
  frame-relay traffic-shaping
  frame-relay interface-dlci
100
  frame-relay
interface-dlci 100
  frame-relay interface-dlci 200
  vofr data 4 call 5
  vofr data 4 call 5
  vofr cisco
  class voice
  class voice
  class voice







interface serial 1/0/0.2
point-to-point


frame-relay interface-dlci
200


vofr cisco


class voice




map-class frame-relay voice
map-class frame-relay voice
map-class frame-relay voice
  frame-relay fragment d
frame-relay fragment d
  frame-relay fragment d
  frame-relay voice bandwidth
c
  frame-relay voice
bandwidth c
  frame-relay voice bandwidth c
  frame-relay cir a
service-policy output
llq-shape
  frame-relay cir a
  frame-relay min-cir t

  frame-relay min-cir t
  frame-relay bc b

  frame-relay bc b



dial-peer voice 1 pots
dial-peer voice 1 vofr
dial-peer voice 1 vofr
  destination-pattern 1001
  destination-pattern 1001
  destination-pattern 1001
  port 1/0/0
  session target
serial 1/0/0 200
  session target serial 0/1 200



dial-peer voice 2 vofr
dial-peer voice 2 vofr
dial-peer voice 2 pots
  destination-pattern 2001
  destination-pattern 2001
  destination-pattern 2001
  session target serial 0/0
100
session target serial 1/0/0
200
port 1/0/0



voice-port 1/0/0

voice-port 1/1
connection trunk 2001A
answer-mode

connection trunk 1001A


Note The examples in this document assume that a map-class called frf12-class was previously configured.
The service-policy output llq-shape command used on the Cisco 7500 series router in the above example assumes that the service policy called llq-shape was configured using low latency queuing and distributed traffic shaping. For information on low latency queueing on the VIP, see the Low Latency Queueing for the VIP feature module on CCO. For information on distributed traffic shaping, see the Distributed Traffic Shaping feature module on CCO.
The Configuration Examples section of this document assumes that the frf-12 map-class and the llq-shape service policy were previously configured.
