Resource Pool Management with Direct Remote Services


This document contains the following sections:

Feature Overview

Benefits

Restrictions

Related Features and Technologies

Related Documents

Supported Platforms

Supported MIBs and RFCs

Prerequisites

Configuration Tasks

Configuration Examples

Command Reference

Feature Overview

Cisco Resource Pool Manager (RPM) enables telephone companies and Internet service providers (ISPs) to share dial resources for wholesale and retail dial network services in a single network access server (NAS) or across multiple NAS stacks. With Cisco RPM, service providers can count, control, and manage dial resources and provide accounting for shared resources when implementing different service-level agreements.

This document presents the single, standalone NAS version of Cisco RPM. For information on the Cisco Resource Pool Manager Server (RPMS) solution, see the Cisco Connection Online location at http://www.cisco.com/univercd/cc/td/doc/product/access/acs_soft/rpms/rpms_1-0/index.htm.

Cisco RPM is ideal for combining retail and wholesale dial services using Cisco AS5200, AS5300, and AS5800 network access servers. The Cisco RPM can be configured in one or more standalone Cisco NASs, or, optionally, across multiple NAS stacks by using one or more external Cisco Resource Pool Manager Servers (RPMSs). Call management and call discrimination can be configured to occur before the call is answered.

For call management, dial customers are differentiated by the use of configurable customer profiles. Each profile is based on the Dialed Number Information Service (DNIS) and the call type determined at the time of an incoming call.

When using call discrimination, the DNIS and call type are matched against a table of disallowed calls. When a call arrives at the NAS, if the DNIS and call type match an entry in this table, the call is rejected. Call discrimination can be used to manage the billing of calls to different types of resources.

When management by virtual private dialup network (VPDN) is configured, a VPDN group includes the information needed to set up or reject a VPDN session. VPDN setup can be based on the DNIS received during call setup, or on the domain name after the call is answered. Load balancing is used to achieve full usage of VPDN tunnels. The VPDN group can also serve as the "customer profile" when all calls are answered and sessions are identified and limited by domain name instead of DNIS.

To support data over voice bearer service (DoVBS), service providers use DNIS to direct calls to the appropriate resource. When a digital call arrives at the NAS through the voice network, it terminates on a High-Level Data Link Control (HDLC) controller rather than on a modem. In this application, the customer profile that the DNIS group is assigned has the associated call type of speech and the resource group directs the call to the HDLC controller.

Standalone Network Access Server (NAS)

A single NAS using Cisco RPM can provide:

wholesale virtual private dialup network (VPDN) dial service to corporate customers

direct remote services

retail dial service to end users

and show multiple connections to a Cisco AS5300 NAS. Incoming calls to the NAS can use ISDN Private Rate Interface (PRI) signaling, channel associated signaling (CAS), or SS7 signaling protocol. shows incoming calls that are authenticated locally for retail dial services, or forwarded through VPDN tunnels for wholesale dial services.


Note   This implementation does not use Cisco RPMS. If you are not using Cisco RPMS and you have more than one Cisco NAS, you must manually configure each NAS by using Cisco IOS commands. Resource usage information is not shared between NASs.


Figure 1 Retail Dial Service Using Resource Pool Management

shows a method of implementing wholesale dial services without using VPDN tunnels. This is done by creating individual customer profiles consisting of authentication, authorization, and accounting (AAA) groups and Point-to-Point Protocol (PPP) configurations. The AAA groups provide IP addresses of AAA servers for authentication and accounting. The PPP configurations enable you to set different PPP parameter values on each customer profile. A customer profile typically includes the following PPP parameters:

Applicable IP address pools or a default local list of IP addresses

Primary and secondary domain name server (DNS) or Windows internet naming service (WINS)

Authentication method (PAP, CHAP, MSCHAP)

Number of links allowed for each call using Multilink PPP


Note   The AAA and PPP integration applies to a single NAS environment; the external RPMS solution is not supported.


Figure 2 Resource Pool Management with Direct Remote Services

Components of Incoming and Outgoing Call Management

Cisco RPM manages both incoming calls and outgoing sessions. Cisco RPM differentiates dial customers through configured customer profiles based on the Dialed Number Information Service (DNIS) and call type determined when an incoming call comes in.

The components of incoming call management in the Cisco RPM are:

Customer profiles

DNIS groups

Call types

Resource groups

Resource services

The components of outgoing session management in the Cisco RPM are:

VPDN groups

VPDN profiles

Direct remote services

Customer Profiles

A customer profile defines how and when a call is answered. Customer profiles include the following components (see ):

Customer profile name

Session limits—Maximum number of standard sessions

Overflow limits—Maximum number of overflow sessions

DNIS groups

Resource groups

Resource services

VPDN profiles or groups

Direct remote services source template

Figure 3 Components of a Customer Profile

The following types of customer profiles can be used on a NAS:

DNIS-based customer profile—Associated with a specific DNIS group and used for a single NAS solution.

Default customer profile—Associated with the default DNIS group and also used for a single NAS solution. This is most useful with domain-based VPDN services and for combining retail dial services with VPDN services. You can use up to four default customer profiles, each differentiated by the call type (speech, digital, V.110, V.120).

Backup customer profile—Functionally the same as the two profiles above, except that the backup customer profile is applicable with an RPMS solution and is used only when connectivity between a NAS and the RPMS is lost. When the connection is restored, the call counters may not be synchronized.

See the RPMS documentation for a review of the RPMS fault tolerance and recovery mechanisms.

DNIS Groups

A DNIS group is a configured list of DNIS numbers that correspond to the numbers dialed to access particular customers, service offerings, or both. The Cisco RPM checks the DNIS number of inbound calls against the configured DNIS groups and selects a customer profile based on the following criteria:

If Cisco RPM finds a match, it uses the configured information in the customer profile to which the DNIS group is assigned.

If Cisco RPM does not find a match, it uses the configured information in the customer profile to which the default DNIS group is assigned.

The DNIS/call type sequence can only be associated with one customer profile.

Call Types

The following call types are supported in the Cisco RPM:

Speech

Digital

V.110

V.120


Note   Voice over IP, Fax over IP, and dial-out calls are not currently supported.


Call types are used within a customer profile to assign calls to the appropriate resource based on:

Q.931 bearer capability for ISDN PRI and SS7 calls

Static DNIS group configuration for CAS (CT1, CT3, and CE1) calls


Note   For information on SS7 implementation for RPM, see Cisco Resource Pool Manager Server 1.0 SS7 Implementation on Cisco Connection Online (CCO) at http://www.cisco.com/univercd/cc/td/doc/product/access/acs_soft/rpms/rpms_1-0/rpmsnote.htm.


Resource Groups

Resource groups represent groupings of similar hardware and/or firmware that are static and do not change on a per-call basis. Resource groups can be used to define resources that are port-based or non-port-based.

Port-based resources are identified by physical location, such as a range of port/slot numbers (for example, modems or terminal adapters).

Non-port-based resources are identified by a single size parameter (for example, HDLC framers or V.120 terminal adapters). Note that V.120 terminal adapters are currently implemented as part of the Cisco IOS software.

The Cisco RPM:

Enables you to configure resource groups on a Cisco NAS and apply them to a customer profile to maximize the use of available shared resources and thus support service-level agreements for various resource allocation schemes.

Allows you to combine your Cisco NAS resource groups with call types (speech, digital, V.110, and V.120) and optional resource modem services. Resource groups and services are assigned to incoming calls through DNIS groups and call types.


Note   Resources not configured in the NAS as part of a resource group and not assigned to a customer profile cannot be used by Cisco RPM or Cisco RPMS.



Note   To support ISDN Data over Voice Bearer Service (DoVBS), use a DNIS group and a configured customer profile to direct the speech call to the appropriate digital resource. The resource group assigned to this customer profile is digital resources with a call type of speech, so the call will terminate on an HDLC controller rather than on a modem.


Resource Services

A resource service contains a finite series of resource command strings that can be used to dynamically configure an incoming connection.

Services supported by a resource group are determined by the combination of hardware and firmware installed. Currently, resource services:

Can be configured and applied to resource groups containing only MICA modems.

Can be configured to affect minimum and maximum speed, modulation, error correction, and compression as shown in .

Table 1 Resource Services for Resource Groups Containing MICA Modems

Service
Options
Comments

min-speed

<300—56000>, any

Must be a V.90 increment

max-speed

<300—56000>, any

Must be a V.90 increment

modulation

k56flex, v22bis, v32bis, v34, v90, any



error-correction

1apm, mn14

Hidden command

compression

mnps, v42bis

Hidden command


VPDN Groups

A VPDN group contains the data required to build a VPDN tunnel from the Cisco RPM NAS L2TP Access Concentrator (LAC) to the L2TP Network Server (LNS). In the context of RPM, VPDN is authorized by first associating a customer profile with a VPDN group, and second by associating the VPDN group to the DNIS group used for that customer profile. VPDN groups are assigned to customer profiles as follows:

For DNIS-based VPDN dial services, VPDN groups are assigned to customer profiles based on the configured DNIS groups.

For domain-based VPDN dial services, VPDN groups are assigned to customer profiles with the default DNIS group and matching call-type assignment.

VPDN group data includes the endpoint IP addressses. Cisco RPM enables you to specify multiple IP endpoints for a VPDN group. If two or more IP endpoints are specified, Cisco RPM uses a load-balancing method to ensure traffic is distributed across the IP endpoints.

The VPDN group provides call management by allowing limits to be applied to both the number of multilink PPP bundles per tunnel and the number of links per multilink PPP bundle. Limits can also restrict the number of sessions per IP endpoint. If you require more granular control of VPDN counters, use VPDN profiles.

VPDN Profiles

VPDN profiles allow for session and overflow limits to be imposed for a particular customer profile. These limits are unrelated to the limits imposed by the customer profile. A customer profile is associated with a VPDN profile. A VPDN profile is associated with a VPDN group. VPDN profiles are required only when these additional counters are required for VPDN usage per customer profile.

Direct Remote Services

Direct remote services is an enhancement to Cisco resource pool management (RPM) implemented in Cisco IOS Release 12.0(7)T that enables service providers to implement wholesale dial services without using VPDN tunnels. A customer profile that has been preconfigured with a PPP template to define the unique PPP services for the wholesale dial customer is selected by the incoming DNIS and call type. At the same time, the DNIS is used to select AAA server groups for authentication/authorization and for accounting for the customer.

PPP Common Configuration Architecture (CCA) is the new component of the RPM customer profile that enables direct remote services. The full PPP command set available in Cisco IOS software is configurable per customer profile for wholesale dial applications. A customer profile typically includes the following PPP parameters:

Local or named IP address pools

Primary and secondary domain name server (DNS) or Windows internet naming service (WINS) addresses

Authentication method (PAP, CHAP, MS-CHAP)

Multilink PPP links per bundle limits

The AAA session information is selected by the incoming DNIS. AAA server lists provide the IP addresses of AAA servers for authentication, authorization, and accounting in the wholesale customer's local network. The server lists for both authentication and authorization and for accounting contain the server addresses, AAA server type, timeout, retransmission, and keys per server.

When direct remote services is implemented on a Cisco NAS, the following events occur:

1 The NAS sends an authorization request packet to the AAA server by using the authentication method (PAP, CHAP, MSCHAP) that has been configured through PPP.

2 The AAA server accepts the authorization request and returns one of the following items to the NAS:

(a) a specific IP address

(b) an IP address pool name

(c) nothing

3 Depending on the response from the AAA server, the NAS assigns one of the following items to the user through the DNS/WINS:

(a) the IP address returned by the AAA server

(b) an IP address randomly assigned from the named IP address pool

(c) an IP address from a pool specified in the customer profile template


Note   If the AAA server sends back to the NAS a named IP address pool and that name does not exist on the NAS, the request for service is denied. If the AAA server does not send anything back to the NAS and there is an IP address pool name configured in the customer profile template, an address from that pool is used for the session.


Processes of Incoming and Outgoing Call Management

This section describes the following topics:

Call Treatment

Call Discrimination

Base Session and Overflow Session Limits

VPDN Session and Overflow Session Limits

VPDN MLP Bundles and Links-Per-Bundle Limits

VPDN Tunnel Limits

Call Management Functional Descriptions

Call Treatment

Call treatment determines how calls are handled when certain events require the call to be rejected. For example, if the session and overflow limits for one of your customers has been exceeded, any additional calls receive a busy signal. summarizes the various call treatment options.

Table 2 Call Treatment Events and Options

Event
Call Treatment Option
Results

Customer profile not found

No answer (default)

The caller receives rings until the switch eventually times out. Implies that the NAS was appropriate, but resources were unavailable. The caller should try later.

Busy

The switch drops the call from the NAS and sends a busy signal back to the caller. The call is rejected based on not matching a DNIS group/call type and customer profile. Can be used to immediately reject the call and free up the circuit.

Customer profile limits exceeded

Busy

The switch drops the call from the NAS and sends a busy signal back to the caller.

NAS resource not available

Channel not available (default)

The switch sends the call to the next channel in the trunk group. The call can be answered, but the NAS does not have any available resources in the resource groups. Allows the switch to try additional channels until it gets to a different NAS in the same trunk group that has the available resources.

Busy

The switch drops the call from the NAS and sends a busy signal back to the caller. Can be used when the trunk group does not span additional NASs.

Call discriminator match

No answer

The caller receives rings until the switch eventually times out.


Call Discrimination

Resource pool management offers a call discrimination feature that rejects calls based on a DNIS group and a call type filter. When a call arrives at the NAS, the DNIS and the call type are matched against a table of disallowed calls. If the DNIS and call type match entries in this table, the call is rejected before it is assigned Cisco NAS resources, or before any other Cisco RPM processing occurs.

and show the sequence of call discrimination/call processing events which take place when an incoming call arrives at the Cisco NAS. shows the sequence for a Cisco NAS that is not using direct remote services. shows the sequence that occurs when direct remote services is being used.

Figure 4 RPM Call-Processing Flowchart for a Standalone NAS

Figure 5

RPM Call-Processing Flowchart for a Standalone NAS with Direct Remote Services

You can use call discrimination to manage billing of calls to different types of resources. If you have a different billing structure for modem calls and for digital calls, each call type is assigned a different DNIS. When a user calls the DNIS, the call type must be of the allowed call type or the call is rejected.

For example, to restrict a specific DNIS group to modem calls only, create call discrimination settings for the DNIS group and the other call types (digital, V.110, and V.120) as shown in .


Note   Supported call types are speech, digital, V.110, and V.120.

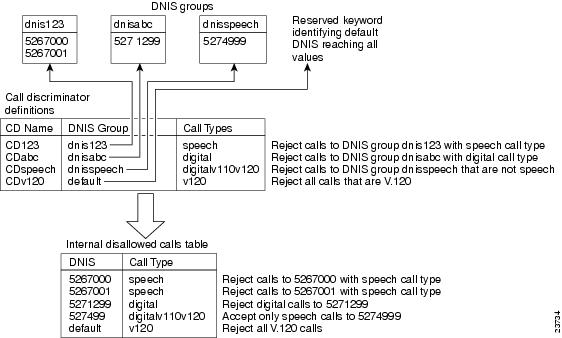

Figure 6 Call Discrimination

Base Session and Overflow Session Limits

The Cisco RPM enables you to set base and overflow session limits in each customer profile.

The base session limit determines the maximum number of non-overflow sessions supported for a customer profile. When the base session limit is reached, any new calls are rejected unless overflow sessions are enabled. If overflow sessions are enabled, new sessions up to the session overflow limit are processed and marked as overflow for call handling and accounting. The RPM call counters and AAA accounting records indicate whether a call is considered overflow for tracking and billing.

The overflow session limit determines the allowable number of sessions above the session limit. If the overflow session limit is greater than zero, overflow sessions are enabled. The maximum number of allowed sessions is the base session limit plus the overflow session limit. When the overflow session limit is reached, any new calls are rejected.

Enabling overflow sessions is useful for allocating extra sessions for preferred customers at premium rates. Overflow sessions can also be useful for encouraging customers to adequately forecast bandwidth usage or for special events when normal session usage is exceeded. For example, if a customer has a corporate-wide program and many people are expected to request remote access, you can enable many overflow sessions and charge a premium rate for the extra bandwidth used.


Note   An overflow call is a call received when the base session limit is exceeded and is in an overflow state. When a call is identified as an overflow call, the call maintains the overflow status throughout its duration—even if the number of current sessions returns below the base session limit.


.

Table 3 Effects of Session Limit and Session Overflow Limit Settings Combinations

Base Session Limit
Session Overflow Limit
Call Handling

0

0

Reject all calls.

10

0

Accept up to 10 sessions.

10

10

Accept up to 20 sessions and mark sessions 11 to 20 as overflow sessions.

0

10

Accept up to 10 sessions and mark session 1 to 10 overflow sessions.

All

0

Accept all calls.

0

All

Accept all calls and mark all calls as overflow.


VPDN Session and Overflow Session Limits

The Cisco RPM enables you to configure base and overflow session limits per VPDN profile for managing VPDN sessions.


Note   The VDPN session and overflow session limits are independent of the limits set in the customer profiles.


The base VPDN session limit determines the maximum number of non-overflow sessions supported for a VPDN profile. When the base VPDN session limit is reached, any new VPDN calls using the VPDN profile sessions are disconnected unless overflow sessions are enabled. If overflow sessions are enabled, new sessions up to the overflow session limit are processed and marked as overflow for VPDN accounting.

The VPDN overflow session limit determines the number of sessions above the base session limit allowed in the VPDN group. If the overflow session limit is greater than zero, overflow sessions are enabled. The maximum number of allowed sessions is the base session limit plus the overflow session limit. When the overflow session limit is reached, any new calls are disconnected.

VPDN MLP Bundles and Links-Per-Bundle Limits

To ensure resources are not consumed by a few users with multilink PPP (MLP) connections, the Cisco RPM also enables you to specify the maximum number of MLP bundles that can be opened in a VPDN group. In addition, you can specify the maximum number of links for each MLP bundle.

For example, if standard ISDN users access the VPDN profile, limit this setting to two links per bundle. If video conferencing is used, increase this setting to accommodate the necessary bandwidth (usually six links). These limits have no overflow options and are configured under the VPDN group component.

VPDN Tunnel Limits

For increased VPDN tunnel management, the Cisco RPM enables you to set an IP endpoint session limit for each IP endpoint. IP endpoints are configured for VPDN groups.

Call Management Functional Descriptions

and depict the processes of incoming and outgoing call management that have been described in the previous sections.

Figure 7 RPM Functional Description for Incoming Call Management

When a DNIS call comes in, the Cicco NAS chooses an authentication/authorization server and an accounting server.

For information on RADIUS multiple UDP ports support for RPM, see Configuring RADIUS for Multiple UDP Ports Support. For information on AAA server groups based on DNIS implementation for RPM, see Selecting AAA Server Groups Based on DNIS.

Incoming call management includes the following processes:

The incoming DNIS is mapped to a DNIS group; if there is no incoming DNIS number, or the DNIS number provided does not match any configured DNIS group, the DNIS group default is used.

The mapped DNIS group is checked against configured call discriminator profiles to confirm if this DNIS group/call type combination is disallowed. If there is a match, the call is immediately rejected.

Once a DNIS group or a default DNIS group is identified, the customer profile associated with that DNIS group and call type (from the bearer capability for ISDN calls; statically configured for CAS calls) is selected. If there is no corresponding customer profile, the call is rejected.

The customer profile includes a base session limit value and an overflow session limit value. If these thresholds have not already been met, the call is assigned the appropriate resource defined in the customer profile. If the thresholds have been met, the call is rejected.

If resources are available from the resource group defined in the customer profile, the call is answered. Otherwise, the call is rejected.

As sessions start and end, the session counters increase and decrease, so the customer profile call counters are kept current.

Outgoing call management is depicted in .

Figure 8 RPM Functional Description for Outgoing Call Management

Outgoing call management includes the following processes:

After the call is answered and if VPDN is enabled, the Cisco RPM checks the customer profile for an assigned VPDN group or profile.

If a VPDN profile is found, the limits for number of multilink bundles and number of links per bundle are checked:

If the limits have not been exceeded, the VPDN group data associated with that VPDN profile is used to build a VPDN tunnel.

If the VPDN limits have been exceeded, the call is disconnected.

If a VPDN group is found within the customer profile, the VPDN group data is used to build a VPDN tunnel:

If the VPDN group limits for number of multilink bundles and number of links per bundle have not been exceeded, a VPDN tunnel is built.

If the limits have been reached, the call is disconnected.

The outgoing session management of the customer profile directs the answered call to the appropriate destination:

To a PPP command set/feature set and AAA server group for direct remote services.

To a tunnel that is established between the NAS or L2TP Access Concentrator (LAC) and a wholesale (VPDN) dial customer's home gateway (HGW) or L2TP Network Server (LNS) using L2F or L2TP tunneling technology.

To a local AAA server of retail dial applications and Internet and intranet access.

If no VPDN profile is assigned to the customer profile and VPDN is enabled, non-RPM VPDN service is attempted. If this non-RPM VPDN service fails, the call is processed as a retail dial service call if local AAA service is available.

Accounting Data

You can generate accounting data for network dial service usage in NAS AAA attribute format. You can configure the Cisco NAS to generate AAA accounting records for access to an external AAA server. The accounting start and stop records in AAA attribute format are sent to the external AAA server by using either RADIUS or TACACS+ protocols for accounting data storage. lists the new fields in the AAA accounting packets.

Table 4 AAA Accounting Records

Accounting Start Record
Accounting Stop Record

Call-Type
CAS-Group-Name
Customer-Profile-Name
Customer-Profile-Active-Sessions
DNIS-Group-Name
Overflow
MLP-Session_ID
Modem-Speed-Receive
Modem-Speed-Transmit
VPDN-Domain-Name
VPDN-Tunnel-ID
VPDN-HomeGateway
VPDN-Group-Active-Sessions

Disconnect-Cause
Modem-Speed-Receive
Modem-Speed-Transmit
MLP-Session-ID


Data over Voice Bearer Services

Data over Voice Bearer Services (DoVBS) is a dial service that uses a customer profile and an associated resource group of digital resources to direct data calls with a speech call type to HDLC controllers.

To support ISDN DoVBS, use a DNIS group and a configured customer profile to direct the speech call to the appropriate digital resource.

The resource group assigned to this customer profile is digital resources; the call type is speech. The call terminates on an HDLC controller rather than on a modem.

Benefits

Cisco Resource Pool Manager with direct remote services gives data network service providers the capability to:

Manage customer use of shared resources, such as modems or HDLC controllers for data calls.

Offer advanced wholesale dial-up services directly to customers. Because the PPP and AAA feature sets are selected by the incoming DNIS, the service provider no longer needs tunneling technology to provide unique service-level agreements to wholesale dial customers.

Efficiently use resource groups, such as modems to offer differing over-subscription rates and dial service-level agreements.

Deploy Data over Voice Bearer Service (DoVBS).

Accept or reject a call based on the incoming DNIS number before answering the call.

Include local retail dial services in the same NAS with the wholesale dial customers.

The Cisco RPM customer profile template provides a strong, single NAS solution with the following benefits for providers of wholesale dial services:

Call acceptance is determined by the Cisco RPM before call answering by using the configured size limits and resource availability.

The answered call uses the PPP configuration defined in the template to initiate authentication, obtain an IP address, and select a DNS or WINS that is located at the customer's site.

The same DNIS that was used to choose the customer profile selects the servers for authentication/authorization and accounting that are located at the wholesale customer's site.

Restrictions

Ear and Mouth Feature Group B (E&M-FGB) is the only signaling type supported for channel associated signaling (CAS) on T1 and T3 facilities; R2 is supported for E1 facilities. Feature Group (FG) D is not currently supported.

The Cisco IOS software collects DNIS digits for E&M-FGB CAS signaling. For all other CAS signaling types, use the default DNIS group customer profiles.

The Resource Pool Manager application requires the NPE 300 processor when implemented on the Cisco AS5800.

Use resource pool management services with MICA modems only.

Modem pooling and resource pool management are not compatible.

Related Features and Technologies

Authentication, Authorization, and Accounting (AAA)

Point-to-Point Protocol (PPP)

Virtual Private Dial-up Network (VPDN)

SS7 Signaling

Related Documents

Cisco AS5200 Universal Access Server Software Configuration Guide
http://www.cisco.com/univercd/cc/td/doc/product/access/acs_serv/as5200/52swcfg2/index.htm

Cisco AS5300 Software Configuration Guide
http://www.cisco.com/univercd/cc/td/doc/product/access/acs_serv/5300/53swcf2/index.htm

Cisco AS5800 Access Server Software ICG
http://www.cisco.com/univercd/cc/td/doc/product/access/acs_serv/as5800/58sw_icg/index.htm

Cisco Access VPN Solutions Using Tunneling Technology
http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/vpn_soln/index.htm

Cisco Resource Pool Manager Server Configuration Guide
http://www.cisco.com/univercd/cc/td/doc/product/access/acs_soft/rpms/rpms_1-0/rpmsconf/index.htm

Cisco Resource Pool Manager Server Installation Guide
http://www.cisco.com/univercd/cc/td/doc/product/access/acs_soft/rpms/rpms_1-0/rpms_ins/index.htm

Cisco Resource Pool Manager Server Solutions Guide
http://www.cisco.com/univercd/cc/td/doc/product/access/acs_soft/rpms/rpms_1-0/rpms_sol/index.htm

Dial Solutions Quick Configuration Guide (Cisco IOS Release 12.0)
http://www.cisco.com/univercd/cc/td/doc/product/software/ios120/12supdoc/dsqcg3/index.htm

Redundant Link Manager
http://www.cisco.com/univercd/cc/td/doc/product/software/ios113ed/113aa/113aa_7/rlm_rel2.htm

Release Notes for Cisco Resource Pool Manager Server Release 1.0
http://www.cisco.com/univercd/cc/td/doc/product/access/acs_soft/rpms/rpms_1-0/rpmsnote.htm

SS7 Continuity Testing for Network Access Servers
http://www.cisco.com/univercd/cc/td/doc/product/software/ios113ed/113aa/113aa_5/cot.htm

SS7 Dial Solution System Integration
http://www.cisco.com/univercd/cc/td/doc/product/access/acs_serv/5300/iosinfo/ios_mods/5420.htm

Configuring RADIUS for Multiple User Datagram Protocol Ports
http://www.cisco.com/univercd/cc/td/doc/product/software/ios120/120newft/120t/120t7/rad_udp6.htm

Selecting AAA Server Groups Based on DNIS
http://www.cisco.com/univercd/cc/td/doc/product/software/ios120/120newft/120t/120t7/serdnis6.htm

Supported Platforms

The following platforms support resource pool management in NAS standalone and external server scenarios for this Cisco IOS release:

Cisco AS5200

Cisco AS5300

Cisco AS5800

Supported MIBs and RFCs

MIBs

CALL-RESOURCE-POOL-MIB

CISCO-VPDN-MANAGEMENT-MIB

For descriptions of supported MIBs and how to use MIBs, see Cisco's MIB web site on CCO at http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml.

RFCs

None

Prerequisites

For the Cisco AS5200 and Cisco AS5300, Cisco IOS Release 12.0(4)XI1 or later releases must be running on the NAS.

For the Cisco AS5800, Cisco IOS Release 12.0(5)T or later releases must be running on the NAS.

A minimum of 64 MB must be available on the DMM cards.

Before configuring resource pool management, verify the operation of the following features as described in the appropriate documentation listed in "Related Documents":

Ensure AAA operation (if enabled)

Ensure PPP operation

Ensure VPDN operation (if enabled)

See Configuring the NAS for Basic Dial Access for more information: http://www.cisco.com/univercd/cc/td/doc/cisintwk/intsolns/vpn_soln/l2fcase/l2ftask1.htm

Configuration Tasks

The following configuration tasks are used to configure a Cisco NAS for resource pool management:

Enabling Resource Pool Management

Configuring DNIS Groups

Configuring Discriminator Profiles

Configuring Resource Groups

Configuring Service Profiles

Configuring Customer Profiles

Configuring Customer Profile Templates

Configuring AAA Server Groups

Configuring VPDN Profiles

Configuring VPDN Groups

These tasks are described in the following sections:

Enabling Resource Pool Management

To enable resource pool management on a Cisco NAS, perform the following steps, beginning from global configuration mode.

Step
Command
Purpose

1

Router(config)# resource-pool {enable | disable}

Enable resource pool management (RPM).

2

Router(config)# resource-pool call treatment
resource {busy | channel-not-available}

Specify the desired call treatment when resource allocation fails to connect an incoming call.

3

Router(config)# resource-pool call treatment
profile {busy | no-answer	}

Specify the desired call treatment when profile authorization fails for an incoming call.

4

Router(config)# resource-pool aaa protocol (local | group name}

Specify the authentication/authorization and accounting protocol for RPM. Group name specifies an authorization method that is not local; for example, an external AAA server group.


Example

The following example shows the commands used to enable resource pool management and establish the call treatments for incoming calls when resource allocation fails to connect (channel-not-available) and when profile authorization fails (no-answer). It also shows that local AAA has been chosen for the RPM configuration:

Router(config)# resource-pool enable
Router(config)# resource-pool call treatment resource channel-not-available
Router(config)# resource-pool call treatment profile no-answer
Router(config)# resource-pool aaa protocol local

Note that with RPM disabled, the resource groups will still take effect (that is, modem pooling will not be possible).


Note   If you have an RPMS, you do not need to define VPDN groups and profiles, customer profiles, or DNIS groups on the NAS—you only need to define resource groups. Configure the remaining items by using the RPMS system.


Configuring DNIS Groups

This configuration task is optional. For default DNIS service, no DNIS group configuration is required. The following characteristics and restrictions apply to DNIS group configuration:

Each DNIS group/call type combination can apply to only one customer profile.

You can use up to four default DNIS groups (one for each call type).

You must statically configure CAS call types.

You can use x, X or . as wildcards within each DNIS number.

To configure DNIS groups for RPM implementations, perform the following steps, beginning from global configuration mode.

Step
Command
Purpose

1

Router(config)# dialer dnis group {dnis-group-name}

Create a DNIS group with a name of your choice. The name you specify in this step must be used when configuring the customer profile (see "Configuring Customer Profiles" on page 23).

2

Router(config-dnis-group)# call-type cas {digital | speech}

Statically set the call-type override for incoming CAS calls to either digital or speech.

3

Router(config-dnis-group)# number number

Add a DNIS number to the dialer DNIS group to be used in the customer profile. The DNIS number may have up to 65 characters; wildcards may be used.


Example

The following example shows the commands used to configure a DNIS group named cisco with a call type override for incoming CAS calls of speech and the DNIS numbers of 5552221210 through 5552221219:

Router(config)# dialer dnis group cisco
Router(config-dnis-group)# call-type cas speech
Router(config-dnis-group)# number 555222121x

Configuring Discriminator Profiles

Discriminator profiles enable you to process calls differently based on the call type and DNIS combination. To configure discriminator profiles for RPM implementation, perform the following steps, beginning from global configuration mode.

Step
Command
Purpose

1

Router(config)# resource-pool profile discriminator name

Create a call discriminator profile and assign it a name of up to 23 characters.

2

Router(config-call-discrimin)# call-type {all | digital | speech | v110 | v120}

Specify the type of calls you want to block. The NAS will not answer the call-type you specify.

3

Router(config-call-discrimin)# dnis group {dnis-group-name | default}

Enter the name of the DNIS group to be rejected by this call discriminator profile.



Note   To create a call discriminator profile, you must specify both a call-type and a DNIS group. Once a DNIS group is associated with a call type in a discriminator, it cannot be used in any other discriminator.


Example

The following example shows a call discriminator named blocked1 being created and configured to block speech calls from the DNIS group named remotephone:

Router(config)# resource-pool profile discriminator blocked1
Router(config-call-discrimin)# call-type speech
Router(config-call-discrimin)# dnis group remotephone

Configuring Resource Groups


Note   For external Cisco RPMS environments, configure resource groups on the NAS before defining them on external RPMS servers. For standalone NAS environments, first configure resource groups before using them in customer profiles.


Resource groups can apply to multiple customer profiles.

You can separate the physical resources into different resource groups.


Note   Do not put heterogenous resources in the same group. Do not put MICA modems in the same group as Microcom modems. Do not put modems and HDLC controllers in the same resource group. Do not configure "port" and "limit" parameters in the same resource group.


To configure resource groups for RPM implementations, perform the following steps, beginning from global configuration mode.

Step
Command
Purpose

1

Router(config)# resource-pool group resource name

Create a resource group and assign it a name of up to 23 characters.

2

Router(config-resource-group)# range {port {slot/port slot/port} | {limit number}

Associate a range of modems or other physical resources with this resource group.

For port-based resources, use the physical locations of the resources.

For non-port-based resources, use a single integer limit—Specify the maximum number of simultaneous connections supported by the resource group. Up to 192 connections may be supported depending on the hardware configuration of the access server.


Example

The following example shows the creation of a resource group modem1 with ports set ranging from 0 to 47:

Router(config)# resource-pool group resource modems1
Router(config-resource-group)# range port 1/0 1/47

The following example shows the creation of a resource group named hdlc1 supporting a range limit set for 48 simultaneous connections:

Router(config)# resource-pool group resource hdlc1
Router(config-resource-group)# range limit 48

Configuring Service Profiles

Service profiles are used to configure modem service parameters for MICA modems. Note the following characteristics of service profiles:

Service profiles apply only to MICA modems (speech or V.110).

Error-correction and compression are hidden parameters that may be included in a service profile. For more information, see "modem min-speed max-speed" on page 70.

To configure service profiles for RPM implementations, perform the following steps, beginning from global configuration mode.

Step
Command
Purpose

1

Router(config)# resource-pool profile service name

Create a service profile and assign it a name of up to 23 characters.

2

Router(config-service-profil)# modem {min-speed {speed | any}) {max-speed {speed | any}} [modulation (k56flex | v22bis | v32bis | v32terbo | v34 | v90 | any}] [error-correction {mnp4 | lapm | any | none}] [compression {mnp5 | v42bis | any | none}]

Specify the desired modem parameter values. The range for min-speed and max-speed is from 300 to 56000 bps.


Example

The following example shows the creation of a service profile named mica1. The minimum modem speed is set for 28800 bps; maximum speed is 56000 bps; the modulation is set to v32bis; error correction is not configured; compression is set to v42bis.

Router(config)# resource-pool profile service mica1
Router(config-service-profil)# modem min-speed 28800 max-speed 56000 modulation v32bis
			                                 compression v42bis

Configuring Customer Profiles

Customer profiles are used so that service providers can assign different service characteristics to different customers. Note the following characteristics of customer profiles:

Multiple resources of the same call type are used sequentially.

The limits imposed are per customer (DNIS)—not per resource.

A digital resource with a call type of speech allows for data over speech bearer service (DoSBS).

To configure customer profiles for RPM implementations, perform the following steps, beginning from global configuration mode.

Step
Command
Purpose

1

Router(config)# resource-pool profile customer name

Create a customer profile and assign it a name of up to 23 characters.

2

Router(config-customer-profi)# dnis group dnis-group-name

Assign a previously-created DNIS group to this customer profile (see "Configuring DNIS Groups" on page 20).

3

Router(config-customer-profi)# limit base-size {number | all}

Specify the maximum number of simultaneous base sessions to be allowed for this customer under the terms of the service-level agreement (SLA). The range is from 0 to 1000 sessions. If all sessions are to be designated as base sessions, specify all.

4

Router(config-customer-profi)# limit overflow-size {number | all}

Specify the maximum number of overflow sessions to be allowed for this customer under the terms of the service-level agreement (SLA). The range is from 0 to 1000. If all sessions are to be designated as overflow sessions, specify all.

5

Router(config-customer-profi)# resource WORD {digital | speech | v110 | v120} [service WORD]

Assign a name to a group of physical resources inside the customer profile. Select which type of calls this group of resources will accept. Specify the name of a service profile if you have configured a service profile for MICA modems.


Example

The following example shows a customer profile called corporate1 being created and configured. It is using the DNIS group named cisco with no limits on the base size or on the overflow size (accepting all sessions). The customer profile is set to use the configured resource modems1 for digital calls using the configured service named mica1:

Router(config)# resource-pool profile customer corporate1
Router(config-customer-profi)# dnis group cisco
Router(config-customer-profi)# limit base-size all
Router(config-customer-profi)# limit overflow-size all
Router(config-customer-profi)# resource modems1 digital service mica1

Configuring Customer Profile Templates

Customer profile templates provide a way to keep each customer's unique PPP configuration values separate for both security and accountability. This is an optional configuration.


Note   To configure a template and place it in a customer profile, ensure that all basic configurations including the resource pool management configurations have been completed and verified.


To configure a customer profile template for RPM implementations, perform the following steps, beginning from global configuration mode.

.

Step
Command
Purpose

1

Router(config)# template name

Create a customer profile template and assign a unique name that relates to the customer that will be receiving it.

Note   Steps 2, 3, and 4 are optional. Enter multilink, peer, and ppp commands appropriate to the customer's application requirements.

2

Router(config-template)# peer default ip address pool pool-name

Optional command. Specify that the customer profile to which this template is attached will use a local IP address pool with the specified name.

3

Router(config-template)# ppp authentication chap

Optional command. Set the PPP link authentication method.

4

Router(config-template)# ppp multilink

Optional command. Enable multilink PPP for this customer profile.

5

Router(config-template)# exit

Exit from template configuration mode; return to global configuration mode.

6

Router(config)# resource-pool profile customer name

Enter customer profile configuration mode for the customer to which you wish to assign this template.

7

Router(config-customer-profi)# source template name

Attach the customer profile template you have just configured to the customer profile.


When you create a customer profile template and enter template configuration mode, the following commands are available:

Router(config)# template acme_direct
Template Configuration Commands:
  default        Set a command to its defaults
  exit           Exit from resource-manager configuration mode
  multilink      Configure multilink parameters
  no             Negate a command or set its defaults
  peer           Peer parameters for point to point interfaces
  ppp            Point-to-Point Protocol

For more information about the PPP command set, refer to Release 12.0, Cisco IOS Dial Solutions Command Reference and Dial Solutions Configuration Guide.

Example

The following example shows the creation and configuration of a customer profile template named acme-direct and its subsequent assignment to the customer profile acme1:

Router(config)# template acme-direct
Router(config-template)# multilink max-fragments 10
Router(config-template)# peer match aaa-pools
Router(config-template)# peer default ip address pool acme-numbers
Router(config-template)# ppp ipcp dns 10.1.1.1  10.2.2.2
Router(config-template)# ppp multilink
Router(config-template)# exit
Router(config)# resource-pool profile customer acme1
Router(config-customer-profi)# source template acme-direct

Configuring AAA Server Groups

AAA server groups are lists of AAA server hosts of a particular type. The Cisco RPM currently supports Remote Authentication Dial In User Service (RADIUS) server hosts and Terminal Access Controller Access Control System Plus (TACACS+) server hosts. A AAA server group lists the IP addresses of the selected server hosts.

You can use a AAA server group to define a distinct list of AAA server hosts and apply this list to the Cisco RPM application. Note that the AAA server group feature works only when the server hosts in a group are of the same type.

To configure AAA server groups for RPM implementations, perform the following steps, beginning from global configuration mode.

Step
Command
Purpose

1

Router(config)# aaa new-model

Enable AAA on the NAS.

2

Router(config)# radius-server key key

or

Router(config)# tacacs-server key key

Set the authentication and encryption key used for all RADIUS or TACACS+ communications between the NAS and the RADIUS or TACACS+ daemon.

3

Router(config)# radius-server host {hostname | ip-address key} [auth-port port acct-port port]

or

Router(config)# tacacs-server host ip-address key

Specify the hostname or IP address of the server host before configuring the AAA server group. You can also specify the UDP destination ports for authentication and for accounting.

4

Router(config)# aaa group server {radius | tacacs+} group-name

Select the AAA server type you want to place into a server group and assign a server group name.

5

Router(config-sg radius)# server ip-address

Specify the IP address of the selected server type. This must be the same IP address that was assigned to the server host in Step 2.

6

Router(config-sg radius)# exit

Return to global configuration mode.

7

Router(config)# resource-pool profile customer name

Enter customer profile configuration mode for the customer to which you wish to assign this AAA server group.

8

Router(config-customer-profi)# aaa group-configuration group-name

Associate this AAA server group (named in Step 4) with the customer profile named in Step 7.


For more information about the AAA command set, refer to AAA Server Group, a Cisco IOS Release 12.0(5)T feature, and Release 12.0, Cisco IOS Dial Solutions Command Reference and Dial Solutions Configuration Guide.

Example

The following example shows a RADIUS AAA server group configured with a hostname of serverhostname for the customer profile named acmeprofile in the AAA group configuration of acme1:

Router(config)# aaa new-model
Router(config)# radius-server key key
Router(config)# radius-server host serverhostname
Router(config)# aaa group server radius acme1
Router(config-sg radius)# server ip-address
Router(config-sg radius)# exit
Router(config)# resource-pool profile customer acmeprofile1
Router(config-customer-profi)# aaa group-configuration acme1

Configuring VPDN Profiles

VPDN profiles are used to combine session counting for VPDN groups with session counting for DNIS groups. A VPDN profile is required only if you want to impose VPDN tunnel limits that are different from the base session and overflow session limits that are configured for the customer profile containing the VPDN sessions.

To configure VPDN profiles for RPM implementations, perform the following steps, beginning from global configuration mode.

Step
Command
Purpose

1

Router(config)# resource-pool profile vpdn profile-name

Create a VPDN profile and assign it a profile name.

2

Router(config-vpdn-profile)# limit base-size {number | all}

Specify the maximum number of simultaneous base VPDN sessions to be allowed for this VPDN group under the terms of the service-level agreement (SLA). The range is from 0 to 1000 sessions. If all sessions are to be designated as base VPDN sessions, specify all.

3

Router(config-vpdn-profile)# limit overflow-size {number | all}

Specify the maximum number of simultaneous overflow VPDN sessions to be allowed for this VPDN group under the terms of the service-level agreement (SLA). The range is from 0 to 1000 sessions. If all sessions are to be designated as overflow VPDN sessions, specify all.

4

Router(config-vpdn-profile)# exit

Return to global configuration mode.

5

Router(config)# resource-pool profile customer name

Enter customer profile configuration mode for the customer to which you wish to assign this VPDN group.

6

Router(config-customer-profi)# vpdn profile profile-name

or

Router(config-customer-profi)# vpdn group group-name

Attach the VPDN profile you have just configured to the customer profile to which it belongs, or, if the limits imposed by the VPDN profile are not required, attach VPDN group instead (see"Configuring VPDN Groups" on page 27).


Example

The following example shows the commands used to configure the VPDN profile cust1profile for the customer named cust1. The base-size limit has been set to 25, the overflow size limit has been set to 20. After the VPDN profile cust1profile has been configured, it is then assigned to the customer cust1:

Router(config)# resource-pool profile vpdn cust1profile
Router(config-vpdn-profile)# limit base-size 25
Router(config-vpdn-profile)# limit overflow-size 20
Router(config-vpdn-profile)# exit
Router(config)# resource-pool profile customer cust1
Router(config-customer-profi)# vpdn profile cust1profile

Configuring VPDN Groups

A VPDN group consists of VPDN sessions that are combined together and placed into a customer profile or a VPDN profile. Note the following characteristics of VPDN groups:

The dnis-group-name is required to authorize the VPDN group with RPM.

A VPDN group placed in a customer profile allows VPDN connections for the customer using that profile.

A VPDN group placed in a VPDN profile allows the session limits configured for that profile to apply to all of the VPDN sessions within that VPDN group.

VPDN data includes an associated domain name or DNIS, an endpoint IP address, the maximum number of MLP bundles, and the maximum number of links per MLP bundle; this data can optionally be on a AAA server.

To configure VPDN groups for RPM implementations, perform the following steps, beginning from global configuration mode.

Step
Command
Purpose

1

Router(config)# vpdn enable

Enable VPDN sessions on the NAS.

2

Router(config)# vpdn-group group-name

Create a VPDN group and assign it a unique name. Each VPDN group can have multiple endpoints (HGW/LNSs).

3

Router(config-vpdn)# request dialin {l2f | l2tp} {ip ip-address} {domain domain-name | dnis dnis-number}

Specify the tunneling protocol to be used to reach the remote peer defined by a specific IP address if a dial-in request is received for the specified domain name or DNIS number. The IP address that qualifies the session is automatically generated and does not need to be entered again.

4

Router(config-vpdn)# multilink {bundle number | link number}

Specify the maximum number of bundles and links for all multilink users in the VPDN group. The range for both bundles and links is from 0 to 32767. In general, each user requires one bundle.

5

Router(config-vpdn)# loadsharing ip ip-address [limit number]

Configure the endpoints for loadsharing. This router will loadshare IP traffic with the first router specified in Step 2. The limit keyword limits the number of simultaneous sessions that are sent to the remote endpoint (HGW/LNS). This limit can be between 0 and 32767 sessions.

6

Router(config-vpdn)# backup ip ip-address [limit number] [priority number]

Set up a backup HGW/LNS router. The number of sessions per backup can be limited. The priority number can be between 2 and 32767. The highest priority is 2, which is the first HGW/LNS router to receive backup traffic. The lowest priority, which is the default, is 32767.

7

Router(config-vpdn)# exit

Return to global configuration mode.

8

Router(config)# resource-pool profile vpdn profile-name

or

Router(config)# resource-pool profile customer name

Enter either VPDN profile configuration mode or customer profile configuration mode, depending on whether you want to allow VPDN connections for a customer profile, or allow combined session counting on all of the VPDN sessions within a VPDN profile.

9

Router(config-vpdn-profile)# vpdn group group-name}

or

Router(config-customer-profi)# vpdn group group-name

Attach the VPDN group to either the VPDN profile or the customer profile specified in Step 7.


Example

The following example shows the configuration of a VPDN group named vpdn4commerce and how it was associated with the customer profile johndoe1:

Router(config)# vpdn enable
Router(config)# vpdn-group vpdn4commerce
Router(config-vpdn)# request dialin l2f ip 10.10.1.1 domain 5552221212
Router(config-vpdn)# multilink bundle number 10
Router(config-vpdn)# loadsharing ip 10.10.1.1 25
Router(config-vpdn)# backup ip 10.10.1.2 20
Router(config-vpdn)# exit
Router(config)# resource-pool profile customer johndoe1
Router(config-customer-profi)# vpdn group vpdn4commerce

Configuration Examples

This section provides the following configuration examples:

Sample Configuration for Resource Pool Management

Sample Direct Remote Services Configuration

Sample Customer Profile Configuration for Data Over Voice Bearer Service

Sample VPDN Configuration

Sample VPDN Load Sharing and Backup Configuration

Sample Configuration for Resource Pool Management

The following example configuration illustrates the general use of RPM:

resource-pool enable
resource-pool call treatment resource busy
resource-pool call treatment profile no-answer
!
resource-pool group resource isdn-ports
 range limit 46
resource-pool group resource MICA-modems
 range port 1/0 2/23
!
resource-pool profile customer ACME
 limit base-size 30
 limit overflow-size 10
 resource isdn-ports digital
 resource MICA-modems speech service gold
 dnis group ACME_dnis_numbers

Note   Replace resource isdn-ports digital above with resource isdn-ports speech to set up DoVBS. See the section, "Sample Direct Remote Services Configuration" for more information.


!
resource-pool profile customer DEFAULT
 limit base-size 10
 resource MICA-modems speech service silver
 dnis group default

resource-pool profile discriminator deny_DNIS
  call-type digital
  dnis group bye-bye
!
resource-pool profile service gold
 modem min-speed 33200 max-speed 56000 modulation v90
resource-pool profile service silver
 modem min-speed 19200 max-speed 33200 modulation v34
!
resource-pool aaa protocol local
!
dialer dnis group ACME_dnis_numbers
 number 301001
dialer dnis group bye-bye
 number 301005

Note the following characteristics of the sample configuration:

Digital calls to 301001 are associated with the customer ACME by using the resource group "isdn-ports".

Speech calls to 301001 are associated with the customer ACME by using the resource group "MICA-modems." In the ACME customer profile, this resource group uses service profile "gold," which allows V.90 connections (anything less than a V.90 connection is also allowed).

Digital calls to 301005 are denied.

All other speech calls to any other DNIS number are associated with the customer profile "DEFAULT" by using the resource group "MICA-modems." In the DEFAULT customer profile, this resource group uses service profile "silver," which allows V.34 connections (anything more than V.34 is not allowed; anything less than V.34 is allowed).

All other digital calls to any other DNIS number are not associated with a customer profile and are therefore not allowed.

In this case, the customer profile named "DEFAULT" serves as the default customer profile for speech calls only. If the solution uses an external RPMS server, this same configuration can be used for backup resource pooling if communication is lost between the NAS and the RPMS.

Sample Direct Remote Services Configuration

The following example configuration illustrates the use of direct remote services with RPM:

resource-pool profile customer ACME
 limit base-size 30
 limit overflow-size 10
 resource isdn-ports digital
 resource MICA-modems speech service gold
 dnis group ACME_dnis_numbers
 aaa group-configuration tahoe
 source  template acme_direct
!
resource-pool profile customer DEFAULT
 limit base-size 10
 resource MICA-modems speech service silver
 dnis group default
resource-pool profile discriminator deny_DNIS
  call-type digital
  dnis group bye-bye
!
resource-pool profile service gold
 modem min-speed 33200 max-speed 56000 modulation v90
resource-pool profile service silver
 modem min-speed 19200 max-speed 33200 modulation v34
!
resource-pool aaa protocol local
!
template acme_direct
 peer default ip address pool tahoe
 ppp authentication chap isdn-users
 ppp multilink
!
dialer dnis group ACME_dnis_numbers
 number 301001
dialer dnis group bye-bye
 number 301005

Sample Customer Profile Configuration for Data Over Voice Bearer Service

To allow ISDN calls with a speech bearer capability to be directed to digital resources, make the following change (highlighted in bold) to the configuration shown in the section "Sample Configuration for Resource Pool Management":

resource-pool profile customer ACME
 limit base-size 30
 limit overflow-size 10
 resource isdn-ports speech
 dnis group ACME_dnis_numbers

This change causes ISDN speech calls (in addition to ISDN digital calls) to be directed to the resource "isdn-ports"; thus, ISDN speech calls provide Data Over Voice Bearer Service.

Sample VPDN Configuration

Adding the following commands to the "Sample Configuration for Resource Pool Management" section allows you to use VPDN by setting up a VPDN profile and a VPDN group.


Note   If the limits imposed by the VPDN profile are not required, do not configure the VPDN profile. Replace the command vpdn profile ACME_VPDN under the customer profile ACME with the command vpdn group outgoing-2.


resource-pool profile vpdn ACME_VPDN
 limit base-size 6
 limit overflow-size 0
 vpdn group outgoing-2
!
resource-pool profile customer ACME
 limit base-size 30
 limit overflow-size 10
 resource isdn-ports digital
 resource MICA-modems speech service gold
 dnis group ACME_dnis_numbers
 vpdn profile ACME_VPDN

vpdn enable
!
vpdn-group outgoing-2
 request dialin 12f ip 172.16.1.9 dnis ACME_dnis_numbers
 local name HQ-NAS
 multilink bundle 1
 multilink link 2
 dnis ACME_dnis_numbers
!
dialer dnis group ACME_dnis_numbers
 number 301001

Sample VPDN Load Sharing and Backup Configuration

The Cisco IOS software enables you to balance and back up VPDN sessions across multiple tunnel endpoints (HGW/LNS). When a user or session comes into the NAS/LAC, a VPDN load-balancing algorithm is triggered and applied to the call, which is then passed to an available HGW/LNS. You can modify this function by limiting the number of sessions supported on an HGW/LNS router and limiting the number of MLP bundles and links.

shows an example of one NAS/LAC directing calls to two HGW/LNS routers by using the L2TP tunneling protocol. Each router has a different number of supported sessions and works at a different speed. The NAS/LAC is counting the number of active simultaneous sessions sent to each HGW/LNS.

Figure 9

Home Gateway Load Sharing and Backup

In a standalone NAS environment (no RPMS server is used), the NAS has complete knowledge of the status of tunnel endpoints. Load balancing across endpoints is done by a "least-filled tunnel" or a "next-available round robin" approach. In an RPMS-controlled environment, RPMS has the complete knowledge of tunnel endpoints. However, the NAS still controls those tunnel endpoints selected by RPMS.

When load-balancing traffic across multiple endpoints (HGW/LNS), a standalone NAS uses the following search criteria:

1 Selects any idle endpoint—an HGW/LNS with no active sessions.

2 Selects an active endpoint that currently has a tunnel established with the NAS.

3 If all specified load-sharing routers are busy, the NAS selects the backup HGW.
If all endpoints are busy, the NAS reports that it cannot find an IP address to establish the call.


Note   This default search order criteria is independent of the Cisco Resource Pool Manager Server application scenario. A standalone NAS uses a different load-sharing algorithm than the Cisco Resource Pool Manager Server. This search criteria will change as future enhancements become available.


The following example configuration shows the use of VPDN load-sharing and backup with RPM:

vpdn enable
!
vpdn-group outgoing-2
 request dialin l2tp ip 172.16.1.9 dnis ACME_dnis_numbers
 local name HQ-NAS
 loadsharing ip 172.16.1.9 limit 200
 loadsharing ip 172.16.2.17 limit 50
 backup ip 172.16.3.22

Verifying Call-Counter and Call-Detail Output

The following commands provide call-counter and call-detail output for the different RPM components. An example for each command follows.

show resource-pool call

show resource-pool customer

show resource-pool discriminator

show resource-pool resource

show dialer dnis {group | number}WORD

show resource-pool vpdn {group | profile} WORD

clear resource-pool {customer | discriminator | resource} {WORD | all}

show resource-pool call

The following output of the show resource-pool call command shows the details for all current calls, including the customer profile and resource group, and the matched DNIS group:

Router# show resource-pool call
Shelf 0, slot 0, port 0, channel 15, state RM_RPM_RES_ALLOCATED
  Customer profile ACME, resource group isdn-ports
  DNIS number 301001
Shelf 0, slot 0, port 0, channel 14, state RM_RPM_RES_ALLOCATED
  Customer profile ACME, resource group isdn-ports
  DNIS number 301001
Shelf 0, slot 0, port 0, channel 11, state RM_RPM_RES_ALLOCATED
  Customer profile ACME, resource group MICA-modems
  DNIS number 301001

show resource-pool customer

If you enter the show resource-pool customer command without including a customer profile name, a list of the current customer profile names appears. If you enter a customer profile name with the show resource-pool customer command, as in the example below, the call counters for the selected customer profile appear. These counters include historical data and can be cleared:

Router# show resource-pool customer ACME
    3 active connections
    41 calls accepted
    3 max number of simultaneous connections
    11 calls rejected due to profile limits
    2 calls rejected due to resource unavailable
    0 minutes spent with max connections
    5 overflow connections
    1 overflow states entered
    11 overflow connections rejected
    10 minutes spent in overflow
    214 minutes since last clear command

show resource-pool discriminator

If you enter the show resource-pool discriminator command without including a call discriminator name, a list of the current call discriminator profiles appears. If you enter a call discriminator profile name with the show resource-pool discriminator command, the number of calls rejected by the selected call discriminator appears:

Router# show resource-pool discriminator
List of Call Discriminator Profiles:
    deny_DNIS
Router# show resource-pool discriminator deny_DNIS
    1 calls rejected

show resource-pool resource

If you enter the show resource-pool resource command without including a resource name, a list of the current resource names appears. If you enter a resource name is entered with the show resource-pool resource command, the call counters for the selected resource appear. These counters include historical data and can be cleared:

Router# show resource-pool resource
List of Resources:
    isdn-ports
    MICA-modems

Router# show resource-pool resource isdn-ports
    46 resources in the resource group
    2 resources currently active
    8 calls accepted in the resource group
    2 calls rejected due to resource unavailable
    0 calls rejected due to resource allocation errors

show dialer dnis

The following sample output of the show dialer dnis command shows the call counters for a given DNIS group. These counters include historical data and can be cleared:

Router# show dialer dnis group ACME_dnis_numbers
DNIS Number:301001
  11 total connections
  5 peak connections
  0 calltype mismatches

show resource-pool vpdn

The following sample output of the show resource-pool vpdn profile command shows the call counters for a given VPDN profile. These counters include historical data and can be cleared:

Router# show resource-pool vpdn profile ACME_VPDN
        2 active connections
        2 max number of simultaneous connections
        0 calls rejected due to profile limits
        0 calls rejected due to resource unavailable
        0 overflow connections
        0 overflow states entered
        0 overflow connections rejected
        215 minutes since last clear command

The following sample output of the show resource-pool vpdn group command shows tunnel information for a given VPDN group:

Router# show resource-pool vpdn group outgoing-2
VPDN Group outgoing-2 found under VPDN Profiles:  ACME_VPDN
Tunnel (L2F)
------
dnis:301001
dnis:ACME_dnis_numbers
Endpoint    Session Limit Priority Active Sessions Status Reserved Sessions
--------    ------------- -------- --------------- ------ -----------------
172.16.1.9  *             1        2               OK     -
--------    -------------          ---------------        -----------------
Total       *                      2                      0

clear resource-pool

This command clears the call counters in the access server. Depending on what keywords you use, you can clear all resource pool counter statistics, or you can limit the clearing to specific parameters within different customer profiles, discriminators, or physical resources:

Router# clear resource-pool customer customer1

Router# clear resource-pool discriminator customer3

Router# clear resource-pool resource all

Troubleshooting Resource Pool Management

Test and verify that ISDN, CAS, SS7, PPP, AAA, and VPDN are working properly before implementing RPM. Once RPM is implemented, the only commands needed for troubleshooting RPM are:

debug resource-pool

debug aaa authorization

Use the debug resource-pool command as the first step to ensure proper operation. It is usually sufficient in most cases. Use the debug aaa authorization command for troubleshooting VPDN and modem service problems.

When using the direct remote services implementation, first make sure the RPM is working. Then check the dial-in caller and users.

The following problems may occur:

No DNIS group found, or no customer profile uses a default DNIS

Call discriminator blocks the DNIS

Customer profile limits have been exceeded

Resource group limits have been exceeded


Note   Always enable the debug and log timestamps when troubleshooting RPM.


Checking the Resource Pool Connection

The following sample output of debug resource-pool shows a successful RPM connection. The entries in bold are of particular importance:

*Mar  1 02:14:57.439: RM state:RM_IDLE event:DIALER_INCALL DS0:0:0:0:21
*Mar  1 02:14:57.439: RM: event incoming call
*Mar  1 02:14:57.443: RM state:RM_DNIS_AUTHOR event:RM_DNIS_RPM_REQUEST DS0:0:0:0:21
*Mar  1 02:14:57.447: RM:RPM event incoming call
*Mar  1 02:14:57.459: RPM profile ACME found
*Mar  1 02:14:57.487: RM state:RM_RPM_RES_AUTHOR event:RM_RPM_RES_AUTHOR_SUCCESS
 DS0:0:0:0:21
*Mar  1 02:14:57.487: Allocated resource from res_group isdn-ports
*Mar  1 02:14:57.491: RM:RPM profile "ACME", allocated resource "isdn-ports"
successfully
*Mar  1 02:14:57.495: RM state:RM_RPM_RES_ALLOCATING event:RM_RPM_RES_ALLOC_SUCCESS
DS0:0:0:0:21
*Mar  1 02:14:57.603: %LINK-3-UPDOWN: Interface Serial0:21, changed state to up
*Mar  1 02:15:00.879: %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0:21,
changed state to up

Troubleshooting DNIS Group Problems

The following output of the debug resource-pool command shows a customer profile that is not found for a particular DNIS group:

*Mar  1 00:38:21.011: RM state:RM_IDLE event:DIALER_INCALL DS0:0:0:0:3
*Mar  1 00:38:21.011: RM: event incoming call
*Mar  1 00:38:21.015: RM state:RM_DNIS_AUTHOR event:RM_DNIS_RPM_REQUEST DS0:0:0:0:3
*Mar  1 00:38:21.019: RM:RPM event incoming call
*Mar  1 00:38:21.103: RPM no profile found for call-type digital in default DNIS number
*Mar  1 00:38:21.155: RM:RPM profile rejected do not allocate resource
*Mar  1 00:38:21.155: RM state:RM_RPM_RES_AUTHOR event:RM_RPM_RES_AUTHOR_FAIL
DS0:0:0:0:3
*Mar  1 00:38:21.163: RM state:RM_RPM_DISCONNECTING event:RM_RPM_DISC_ACK DS0:0:0:0:3

Troubleshooting Call Discriminator Problems

The following output of the debug resource-pool command shows an incoming call that is matched against a call discriminator profile:

*Mar  1 00:35:25.995: RM state:RM_IDLE event:DIALER_INCALL DS0:0:0:0:4
*Mar  1 00:35:25.999: RM: event incoming call
*Mar  1 00:35:25.999: RM state:RM_DNIS_AUTHOR event:RM_DNIS_RPM_REQUEST DS0:0:0:0:4
*Mar  1 00:35:26.003: RM:RPM event incoming call
*Mar  1 00:35:26.135: RM:RPM profile rejected do not allocate resource
*Mar  1 00:35:26.139: RM state:RM_RPM_RES_AUTHOR event:RM_RPM_RES_AUTHOR_FAIL
DS0:0:0:0:4
*Mar  1 00:35:26.143: RM state:RM_RPM_DISCONNECTING event:RM_RPM_DISC_ACK DS0:0:0:0:4

Troubleshooting Customer Profile Counts

The following output of the debug resource-pool command shows what happens once a customer profile's limits have been reached:

*Mar  1 00:43:33.275: RM state:RM_IDLE event:DIALER_INCALL DS0:0:0:0:9
*Mar  1 00:43:33.279: RM: event incoming call
*Mar  1 00:43:33.279: RM state:RM_DNIS_AUTHOR event:RM_DNIS_RPM_REQUEST DS0:0:0:0:9
*Mar  1 00:43:33.283: RM:RPM event incoming call
*Mar  1 00:43:33.295: RPM count exceeded in profile ACME
*Mar  1 00:43:33.315: RM:RPM profile rejected do not allocate resource
*Mar  1 00:43:33.315: RM state:RM_RPM_RES_AUTHOR event:RM_RPM_RES_AUTHOR_FAIL
DS0:0:0:0:9
*Mar  1 00:43:33.323: RM state:RM_RPM_DISCONNECTING event:RM_RPM_DISC_ACK DS0:0:0:0:9

Troubleshooting Resource Group Counts

The following output of the debug resource-pool command shows the resources all in use within a resource group:

*Mar  1 00:52:34.411: RM state:RM_IDLE event:DIALER_INCALL DS0:0:0:0:19
*Mar  1 00:52:34.411: RM: event incoming call
*Mar  1 00:52:34.415: RM state:RM_DNIS_AUTHOR event:RM_DNIS_RPM_REQUEST DS0:0:0:0:19
*Mar  1 00:52:34.419: RM:RPM event incoming call
*Mar  1 00:52:34.431: RPM profile ACME found
*Mar  1 00:52:34.455: RM state:RM_RPM_RES_AUTHOR event:RM_RPM_RES_AUTHOR_SUCCESS
DS0:0:0:0:19
*Mar  1 00:52:34.459: All resources in res_group isdn-ports are in use
*Mar  1 00:52:34.463: RM state:RM_RPM_RES_ALLOCATING event:RM_RPM_RES_ALLOC_FAIL
DS0:0:0:0:19
*Mar  1 00:52:34.467: RM:RPM failed to allocate resources for "ACME"

Checking the RPM/VPDN Connection

The following sample output of debug resource-pool shows a successful RPM/VPDN connection. The entries in bold are of particular importance:

*Mar  1 00:15:53.639: Se0:10 RM/VPDN/rm-session-request: Allocated vpdn info for domain
NULL MLP Bundle SOHO
*Mar  1 00:15:53.655: RM/VPDN/ACME_VPDN: VP LIMIT/ACTIVE/RESERVED/OVERFLOW are now
6/0/0/0
*Mar  1 00:15:53.659: RM/VPDN/ACME_VPDN: Session reserved for outgoing-2
*Mar  1 00:15:53.695: Se0:10 RM/VPDN: Session has been authorized using
dnis:ACME_dnis_numbers
*Mar  1 00:15:53.695: Se0:10 RM/VPDN/session-reply: NAS name HQ-NAS
*Mar  1 00:15:53.699: Se0:10 RM/VPDN/session-reply: Endpoint addresses 172.16.1.9
*Mar  1 00:15:53.703: Se0:10 RM/VPDN/session-reply: VPDN tunnel protocol l2f
*Mar  1 00:15:53.703: Se0:10 RM/VPDN/session-reply: VPDN Group outgoing-2
*Mar  1 00:15:53.707: Se0:10 RM/VPDN/session-reply: VPDN domain dnis:ACME_dnis_numbers
*Mar  1 00:15:53.767: RM/VPDN: MLP Bundle SOHO Session Connect with 1 Endpoints:
*Mar  1 00:15:53.771:   IP 172.16.1.9 OK
*Mar  1 00:15:53.771: RM/VPDN/rm-session-connect/ACME_VPDN: VP
LIMIT/ACTIVE/RESERVED/OVERFLOW are now 6/1/0/0
*Mar  1 00:15:54.815: %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0:10,
changed state to up
*Mar  1 00:15:57.399: %ISDN-6-CONNECT: Interface Serial0:10 is now connected to SOHO

Following are some VPDN problems that typically might occur:

Customer profile is not associated with a VPDN profile or VPDN group (the call will be locally terminated in this case. Regular VPDN can still succeed even if RPM/VPDN fails).

VPDN profile limits have been reached (call answered but disconnected).

VPDN group limits have been reached (call answered but disconnected).

VPDN end point is not reachable (call answered but disconnected).

Troubleshooting Customer/VPDN Profile

The following sample output of debug resource-pool indicates that there is no VPDN group associated with an incoming DNIS group. However, the output of debug resource-pool, as shown here, does not effectively reflect the problem:

*Mar  1 03:40:16.483: Se0:15 RM/VPDN/rm-session-request: Allocated vpdn info for domain
NULL MLP Bundle SOHO
*Mar  1 03:40:16.515: Se0:15 RM/VPDN/rm-session-request: Authorization failed
*Mar  1 03:40:16.527: %VPDN-6-AUTHORERR: L2F NAS HQ-NAS cannot locate a AAA server for
Se0:15 user SOHO
*Mar  1 03:40:16.579: %LINK-3-UPDOWN: Interface Virtual-Access1, changed state to up
*Mar  1 03:40:17.539: %LINEPROTO-5-UPDOWN: Line protocol on Interface Serial0:15,
changed state to up
*Mar  1 03:40:17.615: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access1,
changed state to up
*Mar  1 03:40:19.483: %ISDN-6-CONNECT: Interface Serial0:15 is now connected to SOHO


Note   Whenever the debug resource-pool command offers no further assistance besides the indication that authorization has failed, enter the debug aaa authorization command to further troubleshoot the problem.


The following sample shows output for the debug aaa authorization command:

*Mar  1 04:03:49.846: Se0:19 RM/VPDN/rm-session-request: Allocated vpdn info for domain
NULL MLP Bundle SOHO
*Mar  1 04:03:49.854: Se0:19 AAA/AUTHOR/RM vpdn-session (3912941997):
Port='DS0:0:0:0:19' list='default' service=RM
*Mar  1 04:03:49.858: AAA/AUTHOR/RM vpdn-session: Se0:19 (3912941997) user='301001'
*Mar  1 04:03:49.862: Se0:19 AAA/AUTHOR/RM vpdn-session (3912941997): send AV
service=resource-management
*Mar  1 04:03:49.866: Se0:19 AAA/AUTHOR/RM vpdn-session (3912941997): send AV
protocol=vpdn-session
*Mar  1 04:03:49.866: Se0:19 AAA/AUTHOR/RM vpdn-session (3912941997): send AV
rm-protocol-version=1.0
*Mar  1 04:03:49.870: Se0:19 AAA/AUTHOR/RM vpdn-session (3912941997): send AV
rm-nas-state=3278356
*Mar  1 04:03:49.874: Se0:19 AAA/AUTHOR/RM vpdn-session (3912941997): send AV
rm-call-handle=27
*Mar  1 04:03:49.878: Se0:19 AAA/AUTHOR/RM vpdn-session (3912941997): send AV
multilink-id=SOHO
*Mar  1 04:03:49.878: Se0:19 AAA/AUTHOR/RM vpdn-session (3912941997): found list
"default"
*Mar  1 04:03:49.882: Se0:19 AAA/AUTHOR/RM vpdn-session (3912941997): Method=LOCAL
*Mar  1 04:03:49.886: Se0:19 AAA/AUTHOR/RM/local (3912941997): Received AV
service=resource-management
*Mar  1 04:03:49.890: Se0:19 AAA/AUTHOR/RM/local (3912941997): Received AV
protocol=vpdn-session
*Mar  1 04:03:49.890: Se0:19 AAA/AUTHOR/RM/local (3912941997): Received AV
rm-protocol-version=1.0
*Mar  1 04:03:49.894: Se0:19 AAA/AUTHOR/RM/local (3912941997): Received AV
rm-nas-state=3278356
*Mar  1 04:03:49.898: Se0:19 AAA/AUTHOR/RM/local (3912941997): Received AV
rm-call-handle=27
*Mar  1 04:03:49.902: Se0:19 AAA/AUTHOR/RM/local (3912941997): Received AV
multilink-id=SOHO
*Mar  1 04:03:49.906: Se0:19 AAA/AUTHOR/VPDN/RM/LOCAL: Customer ACME has no VPDN  group
for session dnis:ACME_dnis_numbers
*Mar  1 04:03:49.922: Se0:19 AAA/AUTHOR (3912941997): Post authorization status = FAIL

Troubleshooting VPDN Profile Limits

The following output of the debug resource-pool command shows that VPDN profile limits have been reached:

*Mar  1 04:57:53.762: Se0:13 RM/VPDN/rm-session-request: Allocated vpdn info for domain
NULL MLP Bundle SOHO
*Mar  1 04:57:53.774: RM/VPDN/ACME_VPDN: VP LIMIT/ACTIVE/RESERVED/OVERFLOW are now
0/0/0/0
*Mar  1 04:57:53.778: RM/VPDN/ACME_VPDN: Session outgoing-2 rejected due to Session
Limit
*Mar  1 04:57:53.798: Se0:13 RM/VPDN/rm-session-request: Authorization failed
*Mar  1 04:57:53.802: %VPDN-6-AUTHORFAIL: L2F NAS HQ-NAS, AAA authorization failure for
Se0:13 user SOHO; At Session Max
*Mar  1 04:57:53.866: %ISDN-6-DISCONNECT: Interface Serial0:13  disconnected from
SOHO, call lasted 2 seconds
*Mar  1 04:57:54.014: %LINK-3-UPDOWN: Interface Serial0:13, changed state to down
*Mar  1 04:57:54.050: RM state:RM_RPM_RES_ALLOCATED event:DIALER_DISCON DS0:0:0:0:13
*Mar  1 04:57:54.054: RM:RPM event call drop
*Mar  1 04:57:54.054: Deallocated resource from res_group isdn-ports

Troubleshooting VPDN Group Limits

The following output of the debug resource-pool command shows that VPDN group limits have been reached. From this output, it is not readily obvious what the problem is. Enable the debug aaa authorization command to troubleshoot further (see "Using the debug aaa authorization Command" on page 40 for more information):

*Mar  1 05:02:22.314: Se0:17 RM/VPDN/rm-session-request: Allocated vpdn info for domain
NULL MLP Bundle SOHO
*Mar  1 05:02:22.334: RM/VPDN/ACME_VPDN: VP LIMIT/ACTIVE/RESERVED/OVERFLOW are now
5/0/0/0
*Mar  1 05:02:22.334: RM/VPDN/ACME_VPDN: Session reserved for outgoing-2
*Mar  1 05:02:22.358: Se0:17 RM/VPDN/rm-session-request: Authorization failed
*Mar  1 05:02:22.362: %VPDN-6-AUTHORFAIL: L2F NAS HQ-NAS, AAA authorization failure for
Se0:17 user SOHO; At Multilink Bundle Limit
*Mar  1 05:02:22.374: %ISDN-6-DISCONNECT: Interface Serial0:17  disconnected from
SOHO, call lasted 2 seconds
*Mar  1 05:02:22.534: %LINK-3-UPDOWN: Interface Serial0:17, changed state to down
*Mar  1 05:02:22.570: RM state:RM_RPM_RES_ALLOCATED event:DIALER_DISCON DS0:0:0:0:17
*Mar  1 05:02:22.574: RM:RPM event call drop
*Mar  1 05:02:22.574: Deallocated resource from res_group isdn-ports

Troubleshooting VPDN Endpoint Problems

The following output of the debug resource-pool command shows that the IP endpoint for the VPDN group is not reachable:

*Mar  1 05:12:22.330: Se0:21 RM/VPDN/rm-session-request: Allocated vpdn info for domain
NULL MLP Bundle SOHO
*Mar  1 05:12:22.346: RM/VPDN/ACME_VPDN: VP LIMIT/ACTIVE/RESERVED/OVERFLOW are now
5/0/0/0
*Mar  1 05:12:22.350: RM/VPDN/ACME_VPDN: Session reserved for outgoing-2
*Mar  1 05:12:22.382: Se0:21 RM/VPDN: Session has been authorized using
dnis:ACME_dnis_numbers
*Mar  1 05:12:22.386: Se0:21 RM/VPDN/session-reply: NAS name HQ-NAS
*Mar  1 05:12:22.386: Se0:21 RM/VPDN/session-reply: Endpoint addresses 172.16.1.99
*Mar  1 05:12:22.390: Se0:21 RM/VPDN/session-reply: VPDN tunnel protocol l2f
*Mar  1 05:12:22.390: Se0:21 RM/VPDN/session-reply: VPDN Group outgoing-2
*Mar  1 05:12:22.394: Se0:21 RM/VPDN/session-reply: VPDN domain dnis:ACME_dnis_numbers
*Mar  1 05:12:25.762: %ISDN-6-CONNECT: Interface Serial0:21 is now connected to SOHO
*Mar  1 05:12:27.562: %VPDN-5-UNREACH: L2F HGW 172.16.1.99 is unreachable
*Mar  1 05:12:27.578: RM/VPDN: MLP Bundle SOHO Session Connect with 1 Endpoints:
*Mar  1 05:12:27.582:   IP 172.16.1.99 Destination unreachable

Using the debug aaa authorization Command

In general, the debug aaa authorization command is not required for RPM troubleshooting—unless debug resource-pool is too vague.

Typically, debug aaa authorization is more useful for troubleshooting with RPMS:

Router# debug aaa authorization
AAA Authorization debugging is on
Router# show debug
General OS:
  AAA Authorization debugging is on
Resource Pool:
  resource-pool general debugging is on

The following output of the debug resource-pool and debug aaa authorization commands shows a successful RPM connection:

*Mar  1 06:10:35.450: AAA/MEMORY: create_user (0x723D24) user='301001'
ruser=''port='DS0:0:0:0:12' rem_addr='102' authen_type=NONE service=NONE priv=0
*Mar  1 06:10:35.462: DS0:0:0:0:12 AAA/AUTHOR/RM call-accept (2784758907):
Port='DS0:0:0:0:12' list='default' service=RM
*Mar  1 06:10:35.466: AAA/AUTHOR/RM call-accept: DS0:0:0:0:12 (2784758907) user=
'301001'
*Mar  1 06:10:35.470: DS0:0:0:0:12 AAA/AUTHOR/RM call-accept (2784758907): send AV
service=resource-management
*Mar  1 06:10:35.470: DS0:0:0:0:12 AAA/AUTHOR/RM call-accept (2784758907): send AV
protocol=call-accept
*Mar  1 06:10:35.474: DS0:0:0:0:12 AAA/AUTHOR/RM call-accept (2784758907): send AV
rm-protocol-version=1.0
*Mar  1 06:10:35.478: DS0:0:0:0:12 AAA/AUTHOR/RM call-accept (2784758907): send AV
rm-nas-state=7513368
*Mar  1 06:10:35.482: DS0:0:0:0:12 AAA/AUTHOR/RM call-accept (2784758907): send AV
rm-call-type=speech
*Mar  1 06:10:35.486: DS0:0:0:0:12 AAA/AUTHOR/RM call-accept (2784758907): send AV
rm-request-type=dial-in
*Mar  1 06:10:35.486: DS0:0:0:0:12 AAA/AUTHOR/RM call-accept (2784758907): send AV
rm-link-type=isdn
*Mar  1 06:10:35.490: DS0:0:0:0:12 AAA/AUTHOR/RM call-accept (2784758907): found list
"default"
*Mar  1 06:10:35.494: DS0:0:0:0:12 AAA/AUTHOR/RM call-accept (2784758907): Method=LOCAL
*Mar  1 06:10:35.498: DS0:0:0:0:12 AAA/AUTHOR/RM/local (2784758907): Received
DNIS=301001
*Mar  1 06:10:35.498: DS0:0:0:0:12 AAA/AUTHOR/RM/local (2784758907): Received CLID=102
*Mar  1 06:10:35.502: DS0:0:0:0:12 AAA/AUTHOR/RM/local (2784758907): Received
Port=DS0:0:0:0:12
*Mar  1 06:10:35.506: DS0:0:0:0:12 AAA/AUTHOR/RM/local (2784758907): Received AV
service=resource-management
*Mar  1 06:10:35.510: DS0:0:0:0:12 AAA/AUTHOR/RM/local (2784758907): Received AV
protocol=call-accept
*Mar  1 06:10:35.510: DS0:0:0:0:12 AAA/AUTHOR/RM/local (2784758907): Received AV
rm-protocol-version=1.0
*Mar  1 06:10:35.514: DS0:0:0:0:12 AAA/AUTHOR/RM/local (2784758907): Received AV
rm-nas-state=7513368
*Mar  1 06:10:35.518: DS0:0:0:0:12 AAA/AUTHOR/RM/local (2784758907): Received AV
rm-call-type=speech
*Mar  1 06:10:35.522: DS0:0:0:0:12 AAA/AUTHOR/RM/local (2784758907): Received AV
rm-request-type=dial-in
*Mar  1 06:10:35.526: DS0:0:0:0:12 AAA/AUTHOR/RM/local (2784758907): Received AV
rm-link-type=isdn
*Mar  1 06:10:35.542: AAA/AUTHOR (2784758907): Post authorization status = PASS_REPL
*Mar  1 06:10:35.546: DS0:0:0:0:12 AAA/AUTHOR/RM/call-accept (2784758907): Processing
AV service=resource-management
*Mar  1 06:10:35.550: DS0:0:0:0:12 AAA/AUTHOR/RM/call-accept (2784758907): Processing
AV protocol=call-accept
*Mar  1 06:10:35.554: DS0:0:0:0:12 AAA/AUTHOR/RM/call-accept (2784758907): Processing
AV rm-protocol-version=1.0
*Mar  1 06:10:35.558: DS0:0:0:0:12 AAA/AUTHOR/RM/call-accept (2784758907): Processing
AV rm-response-code=overflow
*Mar  1 06:10:35.558: DS0:0:0:0:12 AAA/AUTHOR/RM/call-accept (2784758907): Processing
AV rm-call-handle=47
*Mar  1 06:10:35.562: DS0:0:0:0:12 AAA/AUTHOR/RM/call-accept (2784758907): Processing
AV rm-call-count=2
*Mar  1 06:10:35.566: DS0:0:0:0:12 AAA/AUTHOR/RM/call-accept (2784758907): Processing
AV rm-cp-name=ACME
*Mar  1 06:10:35.570: DS0:0:0:0:12 AAA/AUTHOR/RM/call-accept (2784758907): Processing
AV rm-rg-name#0=MICA-modems
*Mar  1 06:10:35.574: DS0:0:0:0:12 AAA/AUTHOR/RM/call-accept (2784758907): Processing
AV rm-rg-service-name#0=gold
*Mar  1 06:10:35.578: DS0:0:0:0:12 AAA/AUTHOR/RM/call-accept (2784758907): Processing
AV rm-call-treatment=busy
*Mar  1 06:10:35.582: DS0:0:0:0:12 AAA/AUTHOR/RM/call-accept (2784758907): Processing
AV rm-call-type=speech

Command Reference

This section documents the new or modified commands for the resource pool management feature. All other commands are documented in the Cisco IOS Release 12.0 Command Reference.

aaa group-configuration

backup

call progress tone

call-type

call-type cas

clear dialer dnis

clear resource-pool

dialer dnis group

dnis

dnis group

domain

limit base-size

limit overflow-size

loadsharing

modem min-speed max-speed

multilink

number

ppp ipcp

range

request dialin

resource

resource-pool

resource-pool aaa accounting ppp

resource-pool aaa protocol

resource-pool call treatment

resource-pool group resource

resource-pool profile customer

resource-pool profile discriminator

resource-pool profile service

resource-pool profile vpdn

show call progress tone

show dialer dnis

show resource-pool call

show resource-pool customer

show resource-pool discriminator

show resource-pool resource

show resource-pool vpdn

show vpdn domain

show vpdn group

show vpdn multilink

source template

template

vpdn group

vpdn profile

debug resource-pool

aaa group-configuration

To associate a AAA server group with an interface or customer profile, enter the aaa group-configuration interface or customer profile sub-command. To disable the configuration, enter the no form of this command.

aaa group-configuration aaa-group-name

no aaa group-configuration aaa-group-name

Syntax Description

aaa-group-name

Character string used to name the group of AAA servers.


Defaults

No default behavior or values.

Command Modes

Interface

Customer profile subcommand

Command History

Release
Modification

12.0(6)T

This command was introduced.


Usage Guidelines

The AAA server group feature introduces a way to group existing server hosts. The feature enables you to select a subset of the configured server hosts and use them for a particular service.

A server group is a list of server hosts of a particular type. Currently supported server host types are RADIUS server hosts and TACACS+ server hosts. A server group is used with a global server host list. The server group lists the IP addresses of the selected server hosts.

Example

The following example shows a AAA server group by the name of radius-3 being associated with a customer profile by the name of acme.

Router(config)# resource-pool profile customer acme
Router(config-customer-profi)# aaa group-configuration radius-3

Related Commands

Command
Description

aaa accounting

Enables AAA accounting of requested services for billing or security when RADIUS or TACACS+ is used.

aaa authentication login

Sets AAA authentication at login.

aaa authorization

Sets parameters that restrict network access to a user.

aaa new model

Enables the AAA access control model.

radius-server-host

Specifies and defines the IP address of the RADIUS server host before configuring a AAA server group.

tacacs-server-host

Specifies and defines the IP address of the TACACS+ server host before configuring a AAA server group.


backup

To configure an IP backup endpoint address, enter the backup VPDN group configuration command. To remove this function, enter the no form of this command.

backup ip ip-address [limit number [priority number]]

no backup ip ip-address [limit number [priority number]]

Syntax Description

ip ip-address

IP address of the HGW/LNS at the other end of the tunnel. This is the IP endpoint at the end of the tunnel, which is an HGW/LNS router.

limit number

(Optional) Limits sessions per backup. The limit can range from 0 to 32767. The default is no limit set.

priority number

(Optional) Priority level. Loadsharing is priority 1. Backup priority is between 2 and 32,767. The highest priority is 2, which is the first home gateway router to receive backup traffic. The lowest priority is 32,767. The priority group is used to support multiple levels of loadsharing and backup. The default is the lowest priority.


Defaults

No default behavior or values. This function is used only if it is configured.

Command Modes

VPDN group configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced in Cisco IOS Release 12.0(4)XI1 and applies to Cisco AS5200s and Cisco AS5300s only.


Usage Guidelines

Use the backup VPDN group configuration command to configure an IP backup endpoint address.

Examples

The following example shows that the backup command is not available in the command line interface until you enter the request dialin command:

Router(config)# vpdn-group customer1-vpdngroup
Router(config-vpdn)# ?
VPDN group configuration commands:
  accept   Accept a tunnel open request
  default  Set a command to its defaults
  exit     Exit from VPDN group configuration mode
  no       Negate a command or set its defaults
  request  Request to open a tunnel
Router(config-vpdn)# request dialin l2tp ip 10.2.2.2 domain customerx
Router(config-vpdn)# ?
VPDN group configuration commands:
  backup            Add backup address
  default           Set a command to its defaults
  dnis              Accept a DNIS tunnel
  domain            Accept a domain tunnel
  exit              Exit from VPDN group configuration mode
  force-local-chap  Force a CHAP challenge to be instigated locally
  l2tp              L2TP specific commands
  lcp               LCP specific commands
  loadsharing       Add loadsharing address
  local             local information, like name
  multilink         Configure limits for Multilink
  no                Negate a command or set its defaults
  request           Request to open a tunnel

The following example shows an IP backup endpoint address of 10.1.1.1 configured with a backup session limit of 5:

Router(config-vpdn)# backup ip 10.1.1.1 limit 5

Related Commands

Command
Description

request dialin

Specifies a dial-in L2F or L2TP tunnel to a remote peer if a dial-in request is received for a specified domain or Dialed Number Information Service (DNIS).


call progress tone

To specify the country code for retrieving the call progress tone parameters from the call progress tone database, enter the call progress tone configuration mode command. To cancel the previous setting and to generate the call progress tones according to modem settings, enter the no version of this command.

call progress tone country country-name

no call progress tone country country-name

Syntax Description

country

Selects default call progress tones (ring and cadence settings) for the specified country.

country-name

Valid entries are: argentina, australia, austria, belgium, brazil, canada, china, colombia, cyprus, czech-republic, denmark, finland, france, germany, greece, hongkong, hungary, iceland, india, indonesia, ireland, israel, italy, japan, korea, luxembourg, malaysia, mexico, netherlands, peru, philippines, poland, portugal, russia, singapore, slovakia, slovenia, south-africa, spain, sweden, switzerland, taiwan, thailand, turkey, unitedkingdom, usa, and venezuela.


Defaults

Modem default settings. (Generally northamerica for Cisco IOS Release versions earlier than release 12.0(3)XG; us for 12.0(3)XG and later releases.)

Command Modes

Configuration mode

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the call progress tone configuration command to specify the country for call progress tone generation. While in many cases the country is chosen automatically based on the modem setting, automatic selection won't work for all users because many modems do not support all countries and many users choose the "us" or "default-t1" or "default-e1" setting on their modem.

This command affects the tones generated at the local interface and does not affect any information passed to the remote end of a connection or any tones generated at the remote end of a connection.

For dial platforms (AS5200, AS5300, and AS5800), call progress tones are used only for the resource pool management application. Resource pool management assumes that the call progress tone selection is global. Select only one call progress tone set for the whole box, and it will globally override country settings on all ports.

Examples

The following example shows the call progress tone set for Japan tone parameters:

Router(config)# call progress tone country japan
Router(config)# exit

Related Commands

Command
Description

show call progress

Displays the contents of the internal call progress tone database.


call-type

To reject particular types of calls, enter the call-type call discriminator command. Enter the no form of this command to disable this feature.

call-type {all | digital | speech | v110 | v120}

no call-type {all | digital | speech | v110 | v120}

Syntax Description

all

Rejects all calls.

digital

Rejects digital calls.

speech

Rejects speech calls.

v110

Rejects V.110 calls.

v120

Rejects V.120 calls.


Defaults

All calls are accepted by the network access server.

Command Modes

Call discriminator profile configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the call-type call discriminator command to reject particular types of calls. Call type "all" is mutually exclusive for all other call types. If call type "all" is set in the discriminator, no other call types are allowed. Also, once a DNIS is associated with a call type in a discriminator, it cannot be used in any other discriminator.

Examples

The following example shows the call discriminator being configured to reject speech calls for the call discriminator profile named userd3:

Router(config)# resource-pool profile discriminator userd3
Router(config-call-discrim)# call-type speech
Router(config-call-discrim)#

Related Commands

None

call-type cas

To statically set the call-type override for incoming channel-associated signalling (CAS) calls, enter the call-type cas DNIS group configuration command. Enter the no form of this command to disable this service.

call-type cas {digital | speech}

no call-type cas {digital | speech}

Syntax Description

digital

Override call type to digital. The incoming call with the DNIS in the called group is treated as a digital call type.

speech

Override call-type to speech. The incoming call with the DNIS in the called group is treated as a speech call type.


Default

None.

Command Mode

DNIS group configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the call-type cas DNIS group configuration command to set the call-type override. From the resource pooling call-type perspective, use CT1 (CAS) to support either analog calls (speech) or digital calls (switched 56K).

Switched 56K calls are digital calls that connect to HDLC framers. Unlike ISDN, it is impossible to communicate the call type in CT1. Therefore, switched 56K services in CT1 can be differentiated by the DNIS numbers. This command identifies that the call arriving with the DNIS in the DNIS group is assigned to the call type specified in the command.

Examples

The following example shows the DNIS group configuration mode being accessed to use the call-type cas command to set the call type override for CAS to speech:

Router(config)# dialer dnis group modem-group1
Router(config-called-group)# call-type cas speech

Related Commands

None

clear dialer dnis

To reset the counter statistics associated with a specific DNIS group or number, enter the clear dialer dnis EXEC command. There is no no form of this command.

clear dialer dnis {group name | number number}

Syntax Description

group name

Clears dialer DNIS group statistics.

number number

Clears dialer DNIS number statistics.


Defaults

None.

Command Modes

Privileged EXEC

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the clear dialer dnis EXEC command to reset the counter statistics associated with a specific DNIS group or number. This command clears the counters for a DNIS group to reset the counter statistics associated with a specific DNIS group or number. If an ISP is charging a customer for the number of calls to a DNIS, it can clear the number after a week or month by using this command.

Examples

The following example shows the result of using the clear dialer dnis command for the DNIS group named dg1. Note that the counters have been cleared after the clear dialer dnis command has been entered:

Router# show dialer dnis group dg1
DNIS Number:71028
  4 total connections
  3 peak connections
  1 calltype mismatches
DNIS Number:4156266541
  8 total connections
  5 peak connections
  0 calltype mismatches
DNIS Number:4085541628
  3 total connections
  2 peak connections
  0 calltype mismatches
DNIS Number:71017
  2 total connections
  1 peak connections
  0 calltype mismatches

Router# clear dialer dnis group dg1

Router# show dialer dnis group dg1
DNIS Number:71028
  0 total connections
  0 peak connections
  0 calltype mismatches
DNIS Number:4156266541
  0 total connections
  0 peak connections
  0 calltype mismatches
DNIS Number:4085541628
  0 total connections
  0 peak connections
  0 calltype mismatches
DNIS Number:71017
  0 total connections
  0 peak connections
  0 calltype mismatches

Related Commands

Command
Description

show dialer dnis

Displays how many calls a specific DNIS group has had.


clear resource-pool

To reset the counter statistics associated with a specific customer profile, call discriminator, or physical resource, enter the clear resource-pool privileged EXEC command. There is no no version of this command.

clear resource-pool {customer | discriminator | resource} {name | all}

Syntax Description

customer

Clears a customer profile.

discriminator

Clears a call discriminator.

resource

Clears a physical resource. Checks the counters maintained for resource groups.

name

Clears a specific customer profile, discriminator, or physical resource in the access server.

all

Clears all customer profiles, discriminators, or physical resources in the access server.


Defaults

None.

Command Modes

Privileged EXEC

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Enter the clear resource-pool privileged EXEC command to reset the counter statistics associated with a specific customer profile, call discriminator, or physical resource.

Examples

The following example shows the use of the clear resource-pool command for the specific customer named customer-isp:

Router# clear resource-pool customer ?
  WORD  Customer profile name
  all   Clear all customer profiles
Router# clear resource-pool customer customer_isp
Router#

Related Commands

Command
Description

show resource-pool customer

Displays the contents of one or more customer profiles.

show resource-pool resource

Displays the resource groups set up in the access server.

show resource-pool call

Displays all active call information for all customer profiles and resource groups.


dialer dnis group

To create a DNIS group, enter the dialer dnis group global configuration command. Enter the no form of this command to remove a specific DNIS group from the running configuration.

dialer dnis group name

no dialer dnis group name

Syntax Description

name

Assigns a name to the DNIS group number.


Defaults

A dialer DNIS group named default.

Command Modes

Global configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the dialer dnis group global configuration command to create a DNIS group. This command enables you to create and populate a DNIS group, which is then added to a profile (customer or discriminator) by using the dnis group command within that profile's configuration mode.

Examples

The following example shows a specific DNIS group named modem-group1 being created with the options available for further configuration:

Router(config)# dialer dnis group modem-group1
Router(config-dnis-group)# ?
Dialer Called Configuration Commands:
  call-type  set call-type override
  default    Set a command to its defaults
  exit       Exit from dialer configuration mode
  help       Description of the interactive help system
  no         Negate a command or set its defaults
  number     Enter number in dnis group

In the following example, a customer profile called isp_1 is created, a DNIS group called dnis_isp_1 is associated with the customer profile, and DNIS numbers 1234 and 5678 are assigned to the DNIS group. Only DNIS numbers 1234 and 5678 are allocated physical resources by the isp_1 customer profile, which counts and manages the resources for these two DNIS numbers and ignores all other DNIS numbers:

Router(config)# resource-pool profile customer isp_1
Router(config-customer-pro)# dnis group dnis_isp_1
Router(config-customer-pro)# exit
Router(config)# dialer dnis group dnis_isp_1
Router(config-called-group)# number 1234
Router(config-called-group)# number 5678

Related Commands

Command
Description

resource-pool profile

Creates a customer profile.

dnis group

Includes a group of DNIS numbers in a customer profile.


dnis

To support additional DNIS for a specific VPDN tunnel, enter the dnis VPDN group configuration command. To remove a DNIS from a VPDN group, enter the no form of this command.


Note   When resource pool management is enabled, this command uses the keyword designator dnis-group-name. When resource pool management is disabled, this command uses the keyword designator dnis-number.


dnis dnis-group-name

no dnis dnis-group-name

Syntax Description

dnis-group-name

DNIS group name—If resource pool management is enabled and the VPDN group is configured under the incoming customer profile, dnis-group-name is used.

dnis-number

DNIS group number—If resource pool management is disabled, the dnis-number is used. Or, if a call is associated with a customer profile without any VPDN group configured for the customer profile, dnis-number is used.


Default

Disabled.

Command Mode

VPDN group configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the dnis VPDN group configuration command to support additional DNIS for a specific VPDN tunnel. The dnis command is available in the command line interface after you enter the request dialin command for the first time. DNIS allows a VPDN tunnel to be authorized by using the DNIS number or DNIS group name.


Note   Configure the vpdn group command with the request dialin command to enable VPDN. The requestor initiates a dial-in tunnel. The acceptor accepts a request for a dial-in tunnel.


Examples

The following example shows multiple DNISs tunneling to one HGW/LNS router at 10.1.1.1. Note that the dnis command does not appear in the command line interface until you enter the request dialin command:

Router(config)# vpdn-group california_users
Router(config-vpdn)# ?
VPDN group configuration commands:
  accept   Accept a tunnel open request
  default  Set a command to its defaults
  exit     Exit from VPDN group configuration mode
  no       Negate a command or set its defaults
  request  Request to open a tunnel

Router(config-vpdn)# request dialin l2tp ip 10.1.1.1 dnis 1234
Router(config-vpdn)# ?
VPDN group configuration commands:
  backup            Add backup address
  default           Set a command to its defaults
  dnis              Accept a DNIS tunnel
  domain            Accept a domain tunnel
  exit              Exit from VPDN group configuration mode
  force-local-chap  Force a CHAP challenge to be instigated locally
  l2tp              L2TP specific commands
  lcp               LCP specific commands
  loadsharing       Add loadsharing address
  local             local information, like name
  multilink         Configure limits for Multilink
  no                Negate a command or set its defaults
  request           Request to open a tunnel
Router(config-vpdn)# dnis 5678
Router(config-vpdn)# dnis 9101
Router(config-vpdn)# dnis 1121
Router(config-vpdn)# ^Z

Related Commands

Command
Description

request dialin

Specifies a dial-in L2F or L2TP tunnel to a remote peer if a dial-in request is received for a specified domain or Dialed Number Information Service (DNIS).


dnis group

To include a group of DNIS numbers in a customer profile, enter the dnis group customer profile configuration command. Enter the no form of this command to remove a DNIS group from a customer profile.

dnis group {default | name name}

no dnis group {default | name name}

Syntax Description

default

Allows a specified customer profile to accept all DNIS numbers coming into the access server. For example, a stray DNIS number not listed in any customer profile passes through this default DNIS group. Most customer profiles do not have this option configured.

name

Assigns a name to a DNIS group.

name

The name can have up to 23 characters.


Defaults

No DNIS groups are associated with a customer profile.

Command Modes

Customer profile configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the dnis group customer profile configuration command to include a group of DNIS numbers in a customer profile or discriminator:

Examples

The following example includes the DNIS group called "customer1dnis" in the "customer1" customer profile:

router(config)# resource-pool profile customer customer1
router(config-customer-profile)# dnis group customer1dnis

Related Commands

Command
Description

dialer dnis group

Creates a DNIS group.

resource-pool profile

Creates a customer profile.


domain

To support additional domain names for a specific VPDN group, enter the domain VPDN group configuration command. To remove a domain name from a VPDN group, enter the no form of this command.

domain name

no domain name

Syntax Description

name

Domain name.


Defaults

This function will be used if it is configured. Otherwise, it is disabled.

Command Modes

VPDN group configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the domain VPDN group configuration command to support additional domain names for a specific VPDN group. The domain command becomes available in the command line interface after you enter the request dialin command for the first time. The domain command allows a VPDN tunnel to be authorized by using the domain name.


Note   Configure the vpdn group command with the request dialin command to enable VPDN. The requestor initiates a dial-in tunnel.


Examples

The following example shows multiple domains tunneling to one HGW/LNS router at 10.1.1.1. Note that the domain command does not appear in the command line interface until you enter the request dialin command:

Router(config)# vpdn-group california_users
Router(config-vpdn)# ?
VPDN group configuration commands:
  accept   Accept a tunnel open request
  default  Set a command to its defaults
  exit     Exit from VPDN group configuration mode
  no       Negate a command or set its defaults
  request  Request to open a tunnel

Router(config-vpdn)# request dialin l2tp ip 10.1.1.1 domain la.com
Router(config-vpdn)# ?
VPDN group configuration commands:
  backup            Add backup address
  default           Set a command to its defaults
  dnis              Accept a DNIS tunnel
  domain            Accept a domain tunnel
  exit              Exit from VPDN group configuration mode
  force-local-chap  Force a CHAP challenge to be instigated locally
  l2tp              L2TP specific commands
  lcp               LCP specific commands
  loadsharing       Add loadsharing address
  local             local information, like name
  multilink         Configure limits for Multilink
  no                Negate a command or set its defaults
  request           Request to open a tunnel
Router(config-vpdn)# domain sandiego.com
Router(config-vpdn)# domain sanjose.com
Router(config-vpdn)# domain sf.com

Related Commands

Command
Description

request dialin

Specifies a dial-in L2F or L2TP tunnel to a remote peer if a dial-in request is received for a specified domain or Dialed Number Information Service (DNIS).


limit base-size

To define the base number of simultaneous connections that can be done in a single customer or VPDN profile, enter the limit base-size customer profile configuration command. Enter the no form of this command to remove the limitation.

limit base-size {number | all}

no limit base-size {number | all}

Syntax Description

number

Sets the maximum number of simultaneous connections or sessions that can be used in a specified customer or VPDN profile.

all

Accepts all calls. Use this command if you don't want to limit or apply overflow session counting to a customer or VPDN profile.


Defaults

No limits are set for a customer profile. The base size is set to all.

Command Modes

Customer profile configuration/VPDN profile configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the limit base-size customer or VPDN profile configuration command to define the base number of simultaneous connections in a single customer or VPDN profile. The session limit applies to all the physical resource groups and pools configured in a single customer profile. If you want to define the number of overflow calls granted to a customer profile by using the command limit overflow-size, do not set the command limit base-size to "all." Instead, specify a number for limit base-size.

Examples

The following example shows the limits of the total number of simultaneous connections to a base size of 48:

router(config)# resource-pool profile customer customer1_isp
router(config-customer-profile)# limit base-size 48

Related Commands

Command
Description

resource-pool profile

Creates a customer profile.

limit overflow-size

Defines the number of overflow sessions allowed by a single customer profile.


limit overflow-size

To define the number of overflow calls granted to one customer or VPDN profile, enter the limit overflow-size customer profile configuration command. Enter the no form of this command to remove the overflow configuration.

limit overflow-size {number | all}

no limit overflow-size {number | all}

Syntax Description

number

Specifies the number of overflow calls.

all

Allows an unlimited number of overflow calls.


Defaults

The overflow size is set to 0.

Command Modes

Customer profile configuration/VPDN profile configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the limit overflow-size customer or VPDN profile configuration command to define the number of overflow calls granted to one customer or VPDN profile. The overflow is not applied if the limit base-size command is set to "all".

Examples

The following example shows 20 overflow calls granted to the customer profile called customer1_isp:

router(config)# resource-pool profile customer customer1_isp
router(config-customer-profile)# limit overflow-size 20

Related Commands

Command
Description

resource-pool profile

Creates a customer profile.

limit base-size

Defines the base number of simultaneous standard sessions allowed by a single customer profile.


loadsharing

To configure endpoints for loadsharing, enter the loadsharing VPDN group configuration command. To remove this function, enter the no form of this command.

loadsharing ip ip-address [limit number]

no loadsharing ip ip-address [limit number]

Syntax Description

ip ip-address

IP address of the HGW/LNS at the other end of the tunnel. This is the IP endpoint at the end of the tunnel, which is a HGW/LNS router.

limit number

(Optional) Limits sessions per loadshare. The limit has a range from 0 to 32,767 sessions. The default is no limit set.


Defaults

This function is not used when not configured.

Command Modes

VPDN group configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the loadsharing VPDN group configuration command to configure endpoints for loadsharing.

Examples

In the following example, one VPDN group called customer1-vpdng is created. L2TP IP traffic is loadshared between two HGW/LNSs. The IP addresses for the HGW/LNS's WAN ports are 172.21.9.67 and 172.21.9.68. The characteristics for 172.21.9.67 are defined by using the request dialin command. The characteristics for 172.21.9.68 are defined by using the loadsharing command.

A backup home-gateway router is specified at 172.21.9.69 by using the backup command. This router serves as a backup device for two load-sharing HGW/LNS:

!
vpdn-group customer1-vpdng
 request dialin l2tp ip 172.21.9.67 domain cisco.com
 loadsharing ip 172.21.9.68 limit 100
 backup ip 172.21.9.69 priority 5
 domain cisco2.com
!

Related Commands

Command
Description

request dialin

Specifies a dial-in L2F or L2TP tunnel to a remote peer if a dial-in request is received for a specified domain or Dialed Number Information Service (DNIS).


modem min-speed max-speed

To configure various modem-service parameters, enter the modem min-speed max-speed service profile configuration command. Enter the no form of this command to remove modem parameters.

modem min-speed {speed | any} max-speed {speed | any [modulation value]}

no modem min-speed {speed | any} max-speed {speed | any [modulation value]}

Syntax Description

min-speed

Configures the minimum modem speed for all the modems used by this service profile.

speed

Specifies the minimum and maximum bps rate for the modems, which can be between 300 and 56,000 bps. Must be in V.90 increments.

any

Specifies any minimum or maximum speed.

max-speed

Configures the maximum modem speed for all the modems used by this service profile. Must be in V.90 increments.

modulation value

(Optional) Specifies the maximum negotiated speed. Replace the value argument with one of the following choices: any, k56flex, v22bis, v34, or v90.

error-correction

(Hidden command) 1apm, mn14

compression

(Hidden command) mnps, v42bis


Defaults

No modem service parameters are defined by default. Any default services provided by the modems will be available.

Command Modes

Service profile configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the modem min-speed max-speed service profile configuration command to configure various modem-service parameters:

Examples

The following example shows the modem service parameters for the service profile named user1sample configured for a minimum speed of any, a maximum speed of any, and a modulation of k56flex.

Router(config)# resource-pool profile service user1sample
Router(config-service-prof)# modem min-speed any max-speed any modulation k56flex

Related Commands

None

multilink

To limit sessions authorized for all multilink users, enter the multilink VPDN group configuration command. To remove this function, enter the no form of this command.

multilink {bundle number | link number}

no multilink {bundle number | link number}

Syntax Description

bundle number

Configures the number of bundles supported for a VPDN group. In general, each user requires one bundle. The limit has a range from 0 to 32,767.

link number

Configures the number of links or sessions supported for each bundle. The limit has a range from 0 to 32,767.


Defaults

No limit is set.

Command Modes

VPDN group configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the multilink VPDN group configuration command to limit sessions authorized for all multilink users. Each user requires one bundle—regardless if the user is a remote modem client or an ISDN client.

One modem client using one B channel requires one link. One ISDN BRI node may require up to two links for one BRI line connection. The second B channel of an ISDN BRI node comes up when the maximum threshold is exceeded.

Examples

The following example shows a VPDN group called joe_eastcoast. An L2TP tunnel is set up to the home gateway router at IP address 10.2.2.2. You can authorize ten MLPPP bundles for ten users. Each user dials in to the domain called bostonjoe.com. Each bundle is authorized to support a maximum of 5 links. This means that all 10 users can consume a maximum of 50 simultaneous sessions dialing in to bostonjoe.com:

Router(config)# vpdn-group joe_eastcoast
Router(config-vpdn)# request dialin l2tp ip 10.2.2.2 domain bostonjoe.com
Router(config-vpdn)# multilink bundle 10
Router(config-vpdn)# multilink link 5

Related Commands

Command
Description

request dialin

Specifies a dial-in L2F or L2TP tunnel to a remote peer if a dial-in request is received for a specified domain or Dialed Number Information Service (DNIS).


number

To add a DNIS number to a dialer DNIS group, enter the number DNIS group configuration command followed by the specifying number. Enter the no form of this command to remove a DNIS number from a DNIS group.

number number

no number number

Syntax Description

number

Specifies a DNIS number, which can have up to 65 digits.


Defaults

None.

Command Modes

DNIS group configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the number DNIS group configuration command to enter a DNIS number to a dialer DNIS group. The Cisco IOS software also includes a feature that streamlines the DNIS configuration process. By replacing any digit with an X (for example, issuing the number 555222121x command), clients dialing different numbers, such as 5552221214 or 5552221215, are automatically mapped to the same customer profile. The X variable is a place holder for the digits 1 through 9.

Examples

The following example shows a DNIS group called dnis_isp_1 and DNIS numbers 1234 and 5678 assigned to the DNIS group.

Router(config)# dialer dnis group dnis_isp_1
Router(config-called-group)# number 1234
Router(config-called-group)# number 5678

Related Commands

Command
Description

dnis group

Includes a group of DNIS numbers in a customer profile.


ppp ipcp

To configure the primary and secondary domain name server (DNS) addresses, or the primary and secondary WINS server addresses to be supplied to the peer during IPCP negotiation, enter the ppp ipcp template configuration command. To delete a ppp ipcp configuration, enter the no form of this command.

ppp ipcp {accept-address}|{dns [(primary dns ip address | secondary dns ip address)] }| {ignore-map}|{(wins [primary wins ip address> | secondary wins ip address)]}

no ppp ipcp {accept-address}|{dns [(primary dns ip address | secondary dns ip address)] }| {ignore-map}|{(wins [primary wins ip address> | secondary wins ip address)]}

Syntax Description

accept-address

Accept any non-zero IP address from the peer.

dns

Domain name server.

primary dns

Primary domain name server. Specify DNS address to provide.

ip address

IP address of the primary or secondary DNS or WINS server.

secondary dns

Secondary domain name server.

ignore-map

Ignore dialer map when negotiating peer IP address.

wins

Windows Internet naming service. Specify WINS address to provide.

primary wins

Primary Windows Internet naming service.

secondary wins

Secondary Windows Internet naming service.


Defaults

No servers are configured.

Command Modes

Template configuration

Command History

Release
Modification

12.0(6)T

This command was introduced.


Usage Guidelines

All PPP and peer-default commands are allowed under this grouping.

Examples

Router(config-template)# ppp ipcp accept-address

Router(config-template)# ppp ipcp dns 10.1.1.1 10.1.1.2

Router(config-template)# ppp ipcp ignore-map

Router(config-template)# ppp ipcp wins 10.1.1.1 10.1.1.2

Router(config-template)# no ppp ipcp wins 10.1.1.1 10.1.1.2

Related Commands

None

range

To associate a range of modems or other physical resources with a resource group, enter the range resource configuration command. To remove a range of modems or other physical resources, enter the no form of this command.

range {limit number | port range}

no range {limit number | port range}

Syntax Description

limit number

Specifies the maximum number of simultaneous connections supported by the resource group. Replace the number argument with the session limit you want to assign. Your access server's hardware configuration determines the maximum value of this limit. Applicable to ISDN B-channels or HDLC controllers.

port range

Specifies the range of resource ports to use in the resource group.
For the Cisco AS5200 and AS5300, replace the range variable with slot/port slot/port.


Defaults

No range is configured.

Command Modes

Resource group configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the range resource configuration command to associate a range of modems or other physical resources with a resource group.

Specify the range for port-based resources by using the resource's physical location. Do not identify non-port-based resource ranges by using a location. Rather, specify the size of the resource group with a single integer limit.

Specify non-contiguous ranges by using multiple range port commands within the same resource group. Do not configure the same ports in more than one resource group and do not overlap multiple port ranges.

For resources that are not pooled and have a 1-to-1 correspondence between DS0s, B channels, and HDLC framers, use the range limit number command. Circuit-switched data calls and V.120 calls use these kinds of resources.


Note   Do not put heterogenous resources in the same group. Do not put MICA modems in the same group as Microcom modems. Do not put modems and HDLC controllers in the same resource group.
Do not configure "port" and "limit" parameters in the same resource group.


Examples

The following example shows the range limit set for 48 simultaneous connections being supported by the resource group:

router# configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
router(config)# resource-pool group resource hdlc1
router(config-resource-group)# range limit 48

The following example shows the ports set for modem 1 ranging from port 0 to port 47:

router(config)# resource-pool group modem1
router(config-resource-group)# range port 1/0 1/47

Related Commands

None

request dialin

To specify a dial-in L2F or L2TP tunnel to a remote peer if a dial-in request is received for a specified domain or Dialed Number Information Service (DNIS), enter the request dialin VPDN group configuration command. To remove this function, enter the no form of this command.

request dialin {l2f | l2tp} {ip ip-address} {domain domain-name | dnis dnis-number | dnis-group-name}

no request dialin {l2f | l2tp} {ip ip-address} {domain domain-name | dnis dnis-number | dnis-group-name}

Syntax Description

dnis group-name

Name of the DNIS group.

dnis dnis-number

Dialed number used for authorizing a specific tunnel that forwards traffic to the HGW/LNS.

domain domain-name

Case-sensitive name of the domain to tunnel.

ip ip-address

IP address (www.xxx.yyy.zzz) of the HGW/LNS at the other end of the tunnel.

l2f | l2tp

Select L2F or L2TP tunnel protocol.


Defaults

None. request dialin must be explicitly configured.

Command Modes

VPDN group configuration

Command History

Release
Modification

11.3(5)AA

This command appeared in Cisco IOS Release 11.3(5)AA.

12.0(4)XI

The command request dialin modified for 12.0.


Usage Guidelines

Use the request dialin VPDN group configuration command to specify a dial-in L2F or L2TP tunnel to a remote peer if a dial-in request is received for a specified domain or Dialed Number Information Service (DNIS).

This command starts a tunnel to a remote peer defined by a specific IP address if a dial-in tunnel is received for users under a specific domain name, or if a specific DNIS is called. Configure the VPDN group command to use request dialin, which indicates a dial-in tunnel is requested.


Note   Configure the vpdn group command with the request dialin command to enable VPDN. The requestor initiates a dial-in tunnel. The acceptor accepts a request for a dial-in tunnel.


To add additional domain names or DNIS to a VPDN group, enter the domain and dnis commands, which are available in the CLI after you enter the request dialin command for the first time.

Examples

The following example shows a request for an L2TP dial-in tunnel to a remote peer at IP address 172.17.33.125 for a user in domain partner.com:

request dialin l2tp ip 172.17.33.125 partner.com

The following example shows multiple domains tunneling to one LNS (for L2TP) router at 10.1.1.1. Note that the domain and dnis commands do not appear in the command line interface until you enter the request dialin command:

Router(config)# vpdn-group california_users
Router(config-vpdn)# ?
VPDN group configuration commands:
  accept   Accept a tunnel open request
  default  Set a command to its defaults
  exit     Exit from VPDN group configuration mode
  no       Negate a command or set its defaults
  request  Request to open a tunnel

Router(config-vpdn)# request dialin l2tp ip 10.1.1.1 domain la.com
Router(config-vpdn)# ?
VPDN group configuration commands:
  backup            Add backup address
  default           Set a command to its defaults
  dnis              Accept a DNIS tunnel
  domain            Accept a domain tunnel
  exit              Exit from VPDN group configuration mode
  force-local-chap  Force a CHAP challenge to be instigated locally
  l2tp              L2TP specific commands
  lcp               LCP specific commands
  loadsharing       Add loadsharing address
  local             local information, like name
  multilink         Configure limits for Multilink
  no                Negate a command or set its defaults
  request           Request to open a tunnel
Router(config-vpdn)# domain sandiego.com
Router(config-vpdn)# domain sanjose.com
Router(config-vpdn)# domain sf.com
Router(config-vpdn)# ^Z
Router# show running
Building configuration...

Current configuration:
!
---- cut ----
!
vpdn-group california_users
 request dialin l2tp ip 10.1.1.1 domain la.com
 domain sandiego.com
 domain sanjose.com
 domain sf.com
!
---- cut ----

Related Commands

Command
Description

accept dialin

Sets up a tunnel on the HGW/LNS side.


resource

To assign resources and supported call-types to a customer profile, enter the resource customer profile configuration command. Enter the no form of this command to disable this function.

resource name {digital | speech | v110 | v120} [service name]

no resource name {digital | speech | v110 | v120} [service name]

Syntax Description

resource name

Assigns a name to a group of physical resources inside the access server. This name can have up to 23 characters.

digital

Accepts digital calls. Specifies circuit-switched data calls that terminate on a HDLC framers (unlike asynchronous analog modem call that use start and stop bits).

speech

Accepts speech calls. Specifies normal voice calls, such as calls started by analog modems and standard telephones.

v110

Accepts V.110 calls.

v120

Accepts V.120 calls. By specifying this keyword, the access server begins counting the number of v120 software encapsulations occurring in the system.

service name

(Optional) Configures a service profile. This option is not supported for digital or V.120 calls.


Defaults

No resources are assigned to the customer profile by default.

Command Modes

Customer profile configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the resource customer profile configuration command to assign resources and supported call-types to a customer profile. This command specifies a group of physical resources to be used in answering an incoming call of a particular type for a particular customer profile. For example, calls started by analog modems are reciprocated with the speech keyword.

Examples

The following example shows a physical resource group called "modem1". Forty-eight integrated modems are then assigned to modem1, which is linked to the customer profile called "customer1_isp":

Router(config)# resource group resource modem1
Router(config-resource-gro)# range port 1/0 1/47
Router(config-resource-gro)# exit
Router(config)# resource-pool profile customer customer1_isp

Router(config-customer-pro)# resource modem1 ?
  digital  Accept digital calls
  speech   Accept speech calls
  v110     Accept V.110 calls
  v120     Accept V.120 calls
Router(config-customer-pro)# resource modem1 speech

Related Commands

Command
Description

resource-pool profile

Creates a customer profile.


resource-pool

To enable or disable resource pool management, enter the resource-pool global configuration command. There is no no form of this command.

resource-pool {enable | disable}

Syntax Description

enable

Enables resource pool management.

disable

Disables resource pool management.


Defaults

Resource management is disabled.

Command Modes

Global configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the resource-pool global configuration command to enable and disable the resource pool management feature.

Examples

Router(config)# resource-pool enable
Router(config)# resource-pool disable

Related Commands

None

resource-pool aaa accounting ppp

To include enhanced start/stop resource manager records to AAA accounting, enter the resource-pool aaa accounting ppp global configuration command. Enter the no form of this command to disable this feature.

resource-pool aaa accounting ppp

no resource-pool aaa accounting ppp

Syntax Description

This command has no additional keyword options.

Defaults

Disabled. The default of the resource-pool enable command is to not enable these new accounting records.

Command Modes

Global configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the resource-pool aaa accounting ppp global configuration command to include enhanced start/stop resource manager records to AAA accounting. The resource-pool aaa accounting ppp command adds new resource pool management fields to the AAA accounting start/stop records. The new attributes in the start records are also in the stop records—in addition to those new attributes added exclusively for the stop records.

If you have configured your regular AAA accounting, this command directs additional information from the resource manager into your accounting records.


Note   If you configure only this command and do not configure AAA accounting, nothing happens. The default functionality for the resource-pool enable command does not include this functionality.


The following new fields are added to the start and stop records:

New Start Record Fields
New Stop Record Fields

Call-type

Customer-profile-name

Customer-profile-active-sessions

MLP-session-ID (multilink users)

Resource-group-name

Overflow-flag

VPDN-tunnel-ID (VPDN users)

VPDN-homegateway (VPDN users)

VPDN-domain-name (VPDN users)

VPDN-group-active-session (VPDN users)

ModemSpeed-receive

ModemSpeed-transmit

MLP-session-ID (multilink users)



Caution
This list of newly supported start and stop fields is not exhaustive. Cisco reserves the right to enhance this list of records at any time. Use the show accounting command to see the contents of each active session.


Note   Cisco recommends that you thoroughly understand how these new start/stop records affect your current accounting structure before you enter this command.


Examples

The following example shows the new AAA accounting start/stop records inserted into an existing AAA accounting infrastructure:

Router(config)# resource-pool aaa accounting ppp

Related Commands

Command
Description

show accounting

Steps through all active sessions and displays all accounting records for actively accounted functions.


resource-pool aaa protocol

To specify which protocol to use for resource management, enter the resource-pool aaa protocol global configuration command. Enter the no form of this command to disable this feature and go to local.

resource-pool aaa protocol {local | group name}

no resource-pool aaa protocol

Syntax Description

local

Specifies local authorization.

group name

Specifies an authorization method that is not local; for example, using an external AAA server group. The Resource Pool Management Server(s) (RPMS) is defined in a AAA server group.


Defaults

Defaults to local.

Command Modes

Global configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the resource-pool aaa protocol global configuration command to specify which protocol to use for resource management. The AAA server group is most useful when you want to have multiple RPMSs configured as a fall-back mechanism.

Examples

Router(config)# resource-pool aaa protocol local

Related Commands

None

resource-pool call treatment

To set up the signal sent back to the telco switch in response to incoming calls, enter the resource-pool call treatment global configuration command. Enter the no form of this command to disable this function.

resource-pool call treatment {profile {busy | no-answer} | resource {busy |     channel-not-available}}

no resource-pool call treatment {profile {busy | no-answer} | resource {busy |     channel-not-available}}

Syntax Description

busy

Answers the call; then, sends a busy signal when profile authorization or resource allocation fails.

no-answer

Does not answer the call when profile authorization fails.

profile

Call treatment when profile authorization fails.

resource

Call treatment when resource allocation fails.

channel-not-available

Send "channel not available" code when resource allocation fails.


Defaults

No answer for a customer profile; CNA for a resource.

Command Modes

Global configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the resource-pool call treatment global configuration command to set up the signal sent back to the telco switch in response to incoming calls.

Examples

res_pool(config)# resource-pool call treatment profile ?
  busy       Send busy code when profile authorization fails
  no-answer  Don't answer when profile authorization fails

Related Commands

None

resource-pool group resource

To create a resource group for resource management, enter the resource-pool group resource global configuration command. Enter the no form of this command to remove a resource group from the running configuration.

resource-pool group resource name

no resource-pool group resource name

Syntax Description

resource name

Assigns a name to a group of physical resources inside the access server. This name can have up to 23 characters.


Defaults

No resource groups are set up.

Command Modes

Global configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the resource-pool group resource global configuration command to create a resource group for resource management. When calls come into the access server, they are allocated physical resources as specified within resource groups and customer profiles.

See the range command for more information.

If some physical resources are not included in any resource groups, then these remaining resources are not used and are considered to be part of the default resource group. These resources can be used in certain cases to answer calls before profile allocation occurs, but the resources are not used other than in the connection phase.


Note   For standalone NAS environments, configure resource groups before using them in customer profiles. For external RPMS environments, configure resource groups on the NAS before defining them on external RPMS servers.


When enabling RPM for SS7 signaling, like resources in the NAS must be in a single group:

All modems must be in one group.

All HDLC controllers must be in a different group.

All V.110 ASICs must be put into another group.

All V.120 resources must be in a separate group.

All resource group types must have the same number of resources and that number must equal the number of interface channels available from the public network switch. This grouping scheme prevents the signal "Channel Not Available" (CNA) from being sent to the signaling point. For SS7 signaling, Microcom and MICA modems must be in the same group. If SS7 signaling is not used, Cisco recommends assigning Microcom and MICA modems to separate groups to avoid introducing errors in RPM statistics.

Examples

The following example shows the configuration options within a resource group:

Router(config)# resource-pool group resource modem1
Router(config-resource-group)# ?
Resource Group Configuration Commands:
  default  Set a command to its defaults
  exit     Exit from resource-manager configuration mode
  help     Description of the interactive help system
  no       Negate a command or set its defaults
  range    Configure range for resource
Router(config-resource-group)# range ?
  limit  Configure the maximum limit
  port   Configure the resource ports
Router(config-resource-group)# range limit ?
  <1-192>  Maximum number of connections allowed
Router(config-resource-group)# range port ?
  <0-246>  First Modem TTY Number
  x/y      Slot/Port for Internal Modems

Related Commands

None

resource-pool profile customer

To create a customer profile, enter the resource-pool profile customer global configuration command. Enter the no form of this command to delete a customer profile from the running configuration.

resource-pool profile customer name

no resource-pool profile customer name

Syntax Description

name

Name of the customer profile. This name can have up to 23 characters.


Defaults

No customer profiles are set up.

Command Modes

Global configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the resource-pool profile customer global configuration command to create a customer profile.

Examples

The following example shows the creation of a customer profile called "isp-abc". By entering the ? command, you can see the options you can set within the customer profile:

Router(config)# resource-pool profile customer isp-abc
Router(config-customer-pro)# ?
Customer Profile Configuration Commands:
  dnis      Assign dnis group with this profile
  default   Set a command to its defaults
  exit      Exit from resource-manager configuration mode
  help      Description of the interactive help system
  limit     Configure limits for the profile
  no        Negate a command or set its defaults
  resource  Assign resource and supported call-type
  vpdn      Assign VPDN group/profile with this profile

Related Commands

Command
Description

resource-pool group

Creates a resource group for resource management.

limit base-size

Defines the base number of simultaneous standard sessions allowed by a single customer profile.

limit overflow-size

Defines the number of overflow sessions allowed by a single customer profile.

dnis group

Includes a group of DNIS numbers in a customer profile.

resource

Assigns resources and supported call-types to a customer profile.


resource-pool profile discriminator

To create a call discrimination profile, enter the resource-pool profile discriminator global configuration command. Enter the no form of this command to remove a profile from the running configuration.

resource-pool profile discriminator name

no resource-pool profile discriminator name

Syntax Description

name

Name of the call discriminator profile. This name can have up to 23 characters.


Defaults

No discrimination of calls.

Command Modes

Global configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the resource-pool profile discriminator global configuration command to create a call discrimination profile.

Examples

The following example shows how to create a discrimination profile called "user1":

res_pool(config)# resource-pool profile discriminator user1

Related Commands

Command
Description

dnis group

Includes a group of DNIS numbers in a discriminator profile.

call-type

Rejects particular types of calls.


resource-pool profile service

To set up the service profile configuration, enter the resource-pool profile service global configuration command. Enter the no form of this command to disable this function.

resource-pool profile service name

no resource-pool profile service name

Syntax Description

name

Name of the service profile. This name can have up to 23 characters.


Defaults

No service profiles are set up.

Command Modes

Global configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the resource-pool profile service global configuration command to set up the service profile configuration.

Examples

The following example shows the creation of a service profile called "user1":

Router(config)# resource-pool profile service user1

Related Commands

None

resource-pool profile vpdn

To set up for VPDN session counting for one or more VPDN groups and to limit sessions that can be authorized for VPDN groups, enter the resource-pool profile vpdn global configuration command. Enter the no form of this command to disable this function.

resource-pool profile vpdn name

no resource-pool profile vpdn name

Syntax Description

name

Name of the VPDN profile.


Defaults

No VPDN profiles are set up.

Command Modes

Global configuration

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the resource-pool profile vpdn global configuration command to set up VPDN session counting for one or more VPDN groups and to limit sessions that can be authorized for VPDN groups.

Examples

The following example shows the creation of a VPDN session counter at the VPDN group named "lg-hmgate":

Router(config)# resource-pool profile vpdn lg-hmgate

Related Commands

Command
Description

limit base-size

Defines the base number of simultaneous standard sessions allowed by a single customer profile.

limit overflow-size

Defines the number of overflow sessions allowed by a single customer profile.


show call progress tone

To display the contents of the internal call progress (CP) tone database for a specific country, enter the show call progress tone EXEC mode command. There is no no version of this command.

show call progress tone country [tone-type]

Syntax Description

country

(Optional) Enter the country code for the country's call progress tone database you want to see.

tone-type

(Optional) Enter the tone type parameters you want to see.

Options are:

busy—Busy tone

congestion—Congestion tone

dialtone—Dial tone

disconnect—Disconnect tone

error—Error tone

off-hook-alert—Off-hook alert tone

off-hook-notice—Off-hook notice tone

pbx-dialtone—PBX dialtone

ringback—Ringback tone

routing—Routing tone


Defaults

The default provided by the modem.

Command Modes

Configuration mode.

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Using this command enables you to see the exact settings as they are programmed in the call-progress-tone database.

Examples

When you enter the show call progress tone command, the contents of the internal call progress tone database for a specific country appears as in the following example:

Router>show call progress tone japan
Call progress tone: Japan

Dial tone:
0     Forever       425Hz -15.0/-15.0/-15.0 dBm0

PBX Dial tone:
0     Forever       425Hz -15.0/-15.0/-15.0 dBm0

Busy tone:
0       250ms       425Hz -20.0/-20.0/-20.0 dBm0
1       250ms     Silence

Congestion tone:
0       250ms       425Hz -20.0/-20.0/-20.0 dBm0
1       250ms     Silence

Error tone:
0       330ms       950Hz -15.0/-15.0/-15.0 dBm0
1       330ms      1400Hz -15.0/-15.0/-15.0 dBm0
2       330ms      1800Hz -15.0/-15.0/-15.0 dBm0
3      5000ms     Silence

Routing tone:
0       125ms       600Hz -24.0/-24.0/-24.0 dBm0
1       125ms     Silence
2       125ms       600Hz -24.0/-24.0/-24.0 dBm0
3     Forever     Silence

Disconnect tone:
0       330ms       600Hz -15.0/-15.0/-15.0 dBm0
1       330ms     Silence
2       330ms       600Hz -15.0/-15.0/-15.0 dBm0
3     Forever     Silence

Ringback tone:
0      1000ms       425Hz -19.0/-19.0/-19.0 dBm0
1      4000ms     Silence

Off-hook Notice tone:
0       100ms 1400x2040Hz -24.0/-24.0/-24.0 dBm0 -24.0/-24.0/-24.0 dBm0
1       100ms     Silence

Off-hook Alert tone:
0       100ms 1400x2040Hz -15.0/-15.0/-15.0 dBm0 -15.0/-15.0/-15.0 dBm0
1       100ms     Silence

Table 5 show show call progress tone Display Field Description

Field
Description

Cadence number

Call progress tones consist of cadences—periods of sound or silence with certain parameters that do not change during the cadence. The cadence number shows the number of a particular cadence within the call progress tone definition. Cadence numbers start at the number 0.

Cadence duration

Cadence duration in "Forever" means that the sound or silence can be heard forever, like in a dialtone.

Cadence type

Silence—no tone is generated
440Hz—a single frequency is generated.
440x530Hz—two frequencies are added (mixed).

Amplitudes for corresponding frequency components

Amplitudes for the corresponding frequency components. Different amplitudes are used on different trunk types.


The following example shows a specific call progress tone (Japan, busy):

Router# show call progress tone japan busy
Busy tone for Japan:
0      2000ms  440x480 Hz -17.0/-17.0/-19.0 dBm0 -17.0/-17.0/-19.0 dBm0
1      4000ms     Silence

Related Commands

Command
Description

call progress tone

Specifies the country code for retrieving call progress tone parameters from the call progress tone database.


show dialer dnis

To see how many calls DNIS groups have had, enter the show dialer dnis privileged EXEC command. There is no no form of this command.

show dialer dnis {group [name] | number [number]}

Syntax Description

group

Displays DNIS group statistics.

name

(Optional) DNIS group name.

number

Displays DNIS group number statistics.

number

(Optional) DNIS group number.


Defaults

None. If no DNIS groups are configured and resource pooling is enabled, then no calls are accepted. All calls are identified by calltype/DNIS combinations.

Command Modes

Privileged EXEC

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the show dialer dnis EXEC command to see how many calls DNIS groups have had or how many calls a specific DNIS group has had. You can configure each DNIS group with multiple numbers. Using this command shows tables of statistics for each DNIS number received at the NAS.

Examples

The following example shows the show dialer dnis command being used to display DNIS group and DNIS number statistics:

Router# show dialer dnis ?
  group   DNIS group statistics
  number  DNIS number statistics

Router# show dialer dnis group
List of DNIS Groups:
  default
  mdm_grp1

Router# show dialer dnis group mdm_grp1
DNIS Number:2001
  0 total connections
  0 peak connections
  0 calltype mismatches
DNIS Number:2002
  0 total connections
  0 peak connections
  0 calltype mismatches
DNIS Number:2003
  0 total connections
  0 peak connections
  0 calltype mismatches
DNIS Number:2004
  0 total connections
  0 peak connections
  0 calltype mismatches

Router# show dialer dnis number
List of Numbers:
  default
  2001
  2002
  2003
  2004

Router# show dialer dnis number 2001
DNIS Number:2001
  0 connections total
  0 peak connections
  0 call-type mismatches

Table 6 show dialer dnis Field Descriptions

Field
Description

List of DNIS Groups

List of DNIS groups assigned.

List of Numbers

List of DNIS numbers currently assigned.

DNIS Number

Dialed Number Information Service number assigned to specific customers.

Total connections

Cumulative number of connections since the last clear command was used.

Peak connections

Cumulative number of peak connections since the last clear command was used.

Calltype mismatches

Cumulative number of calltype mismatches since the last clear command was used.


Related Commands

Command
Description

clear dialer dnis

Resets the counter for statistics associated with DNIS groups or numbers.


show resource-pool call

To display all active call information for all customer profiles and resource groups, enter the show resource-pool call EXEC command. There is no no form of this command.

show resource-pool call

Syntax Description

There are no keywords or arguments for this command.

Defaults

If no calls are up, there is no output. Enter the command to see valid information for all current calls.

Command Modes

User and privileged EXEC

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the show resource-pool call EXEC command to see all active call information for all customer profiles and resource groups. Use this command to see output when one call is up.

Examples

The following example shows output for the show resource-pool call command:

Router# show resource-pool call
Shelf 0, slot 0, port 0, channel 2, state RM_RPM_RES_ALLOCATED
  Customer profile cp1, resource group isdn1
  DNIS number 71017

Table 7 show resource-pool call Field Descriptions

Field
Description

Shelf

The shelf number where the call is being handled.

Slot

The slot number where the call is being handled.

Port

The port number where the call is being handled.

Channel

The channel number where the call is being handled.

State

The state of the call.

Customer profile

The customer profile name (alphanumeric).

Resource group

The name of the resource group being used for the call.

DNIS number

The DNIS number for the call.


Related Commands

None

show resource-pool customer

To display the contents of one or more customer profiles, enter the show resource-pool customer EXEC command. There is no no form of this command.

show resource-pool customer [name]

Syntax Description

name

(Optional) Specifies the name of a specific customer profile. The name can have up to 23 characters.


Defaults

None.

Command Modes

User and privileged EXEC

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the show resource-pool customer EXEC command to see the contents of one or more customer profiles.

Examples

Router# show resource-pool customer customer1_isp
    5 active connections
    3 calls accepted
    8 max number of simultaneous connections
    0 calls rejected due to profile limits
    0 calls rejected due to resource unavailable
    0 overflow connections
    0 overflow states entered
    0 minutes spent in overflow
    28 minutes since last clear command

Table 8 show resource-pool customer Field Descriptions

Field
Description

Active connections

Lists the number of active connections in the specified customer profile.

Calls accepted

Cumulative number of calls accepted since the last clear command in the customer profile—regardless of the call type.

Max number of simultaneous connections

Maximum number of simultaneous connections assigned for this customer profile.

Calls rejected due to profile limits

Cumulative number of calls rejected since the last clear command because the maximum number of allowable simultaneous connections was exceeded. You can configure each customer profile to not exceed a simultaneous call limit. This feature stops a single customer profile from consuming all the system resources.

Calls rejected due to resource unavailable

Cumulative number of calls rejected since the last clear command because no system resources were available to accept the call (such as a free modem for an analog call or an HDLC framer for a circuit switched data call).

Overflow connections

Number of overflow connections active since the last clear command.

Overflow states entered

Number of overflow states processed since the last clear command.

Minutes spent in overflow

Number of minutes that the overflow session has been in process since the last clear command.

Minutes since last clear command

Number of minutes since the clear command has been used.

List of Customer Profiles

Lists the customer profiles set up on the access server.


Related Commands

None

show resource-pool discriminator

To see how many times an incoming call has been rejected due to a specific DNIS/call-type combination, enter the show resource-pool discriminator EXEC command. There is no no form of this command.

show resource-pool discriminator [name]

Syntax Description

name

(Optional) Specifies the name of the specific DNIS/call-type that will be rejected. The name can have up to 23 characters.


Defaults

None. You must configure a call discriminator for it to work or appear.

Command Modes

User and privileged EXEC

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the show resource-pool discriminator EXEC command to see how many times an incoming call has been rejected due to a specific DNIS/call-type combination.

Examples

Example 1

Router# show resource-pool discriminator
List of Call Discriminator Profiles:
    cd1
    cd2
    cd3
    cd4
Router# show resource-pool discriminator cd1
    0 calls rejected

Table 9 show resource-pool discriminator Command Field Descriptions

Field
Description

List of Call Discriminator Profiles

A list of the Call Discriminator Profile names currently assigned.

Calls rejected

Number of calls rejected since the last clear command was used (This is cumulative).


Related Commands

None

show resource-pool resource

To see the resource groups configured in the network access server (NAS), enter the show resource-pool resource EXEC command. There is no no form of this command.

show resource-pool resource [name]

Syntax Description

name

(Optional) Displays the contents of a specifically named resource group, which was set up by using the resource-pool group resource name command. The name can have up to 23 characters.


Defaults

None.

Command Modes

User and privileged EXEC

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Use the show resource-pool resource EXEC command to see the resource groups configured in the network access server (NAS). To see the contents of a specific resource group, use the show resource-pool resource name command.

Examples

The following example shows the output for the show resource-pool resource EXEC command:

Router# show resource-pool resource
List of Resources:
    modem1
    rg1
    hi

Router# show resource-pool resource modem-group-1
    2 resources in the resource group
    0 resources currently active
    0 calls accepted in the resource group
    0 calls rejected due to resource unavailable
    0 calls rejected due to resource allocation errors

Table 10 show resource-pool resource name Command Field Descriptions

Field
Description

Resources in the resource group

Number of resources allocated to this pool. For example, you can limit a range of modems to five. You can limit a range of circuit-switched data calls to 50.

Resources currently active

Number of resources that are currently used in the resource group.

Calls accepted in the resource group

Number of calls accepted in the resource group (This is cumulative).

Calls rejected due to resource unavailable

Number of calls rejected because a resource was not available (This is cumulative).

Calls rejected due to resource allocation errors

Number of times the access server had an available resource, but the resource had an error when the access server tried to allocate it (for example, a bad modem). Therefore, the call was rejected. (This is cumulative.)


Related Commands

None

show resource-pool vpdn

To see the contents of a specific VPDN group or specific VPDN profile, enter the show resource-pool vpdn EXEC command. There is no no form of this command.

show resource-pool vpdn {group | profile} [name]

Syntax Description

group

Displays all the VPDN groups configured inside the NAS.

profile

Displays all the VPDN profiles configured inside the NAS.

name

(Optional) Specifies the name of a specific VPDN group or profile.


Defaults

None.

Command Modes

User and privileged EXEC

Command History

Release
Modification

12.0(4)XI

This command was introduced.


Usage Guidelines

Enter the show resource-pool vpdn EXEC command to see the contents of a specific VPDN group or specific VPDN profile.

Examples

Enter the show resource-pool vpdn group name command to see the contents of a specific VPDN group. This example contains one domain name, one DNIS group, and one end point:

Example 1

Router# show resource-pool vpdn group customer2-vpdng
VPDN Group customer2-vpdng found under Customer Profiles: customer2

Tunnel (LTP)
--------
dnis:customer2-calledg
hp.com

Endpoint        Session Limit Priority Active Sessions Status Reserved Sessions
--------        ------------- -------- --------------- ------ -----------------
172.21.9.97     *             1        0               OK
                -------------          ---------------        -----------------
Total           *                      0                      0

Example 2

Router# show resource-pool vpdn group
List of VPDN Groups under Customer Profiles
Customer Profile user1: big
Customer Profile user2: green
List of VPDN Groups under VPDN Profiles
VPDN Profile lggate: vpdnlgate
VPDN Profile yellow: hi

Table 11 show resource-pool vpdn group Command Field Descriptions

Field
Description

Endpoint
