MPLS VPN—MIB Support

---

This document describes the Simple Network Management Protocol (SNMP) agent support in Cisco IOS for Multiprotocol Label Switching (MPLS) Virtual Private Network (VPN) management, as implemented in the draft MPLS/BGP Virtual Private Network Management Information Base Using SMIv2 (draft-ietf-ppvpn-mpls-vpn-mib-03.txt).

The MPLS VPN technology allows service providers to offer intranet and extranet VPN services that directly connect their customers' remote offices to a public network with the same security and service levels that a private network offers. Each VPN is associated with one or more VPN routing/forwarding instances (VRFs). A VRF is created for each VPN defined on a router and contains most of the information needed to manage and monitor MPLS VPNs: an IP routing table, a derived Cisco Express Forwarding (CEF) table, a set of interfaces that use this forwarding table, and a set of rules and routing protocol parameters that control the information that is included into the routing table. The Provider-Provisioned VPN (PPVPN)-MPLS-VPN MIB provides access to this VRF information, as well as interfaces included in the VRF, and other configuration and monitoring information.

The PPVPN-MPLS-VPN MIB provides the following benefits:

•A standards-based SNMP interface for retrieving information about critical MPLS VPN events.

•VRF information to assist in the management and monitoring of MPLS VPNs.

•Information, in conjunction with the Interfaces MIB, about interfaces assigned to VRFs.

•Performance statistics for all VRFs on a router.

•The generation and queuing of notifications that call attention to major changes in the operational status of MPLS VPN enabled interfaces; the forwarding of notification messages to a designated NMS for evaluation and action by network administrators.

•Advanced warning when VPN routing tables are approaching or exceed their capacity.

•Warnings about the reception of illegal labels on a VRF-enabled interface. Such receptions may indicate misconfiguration or an attempt to violate security.

This document describes both the PPVPN-MPLS-VPN MIB notification and the tables.

Feature Specifications for the MPLS VPN—MIB Support

Feature History
Release	Modification
12.0(21)ST	This feature was introduced.
12.0(22)S	This feature was integrated into Cisco IOS Release 12.0(22)S.
12.2(14)S	This feature was integrated into Cisco IOS Release 12.2(13)S.
12.2(15)T	The PPVPN-MPLS-VPN MIB notifications were supported in Cisco IOS Release 12.2(13)T. The PPVPN-MPLS-VPN MIB tables were integrated into Cisco IOS Release 12.2(15)T.
12.0(24)S1	The feature was implemented for ATM and Frame Relay subinterfaces and integrated into Cisco IOS Release 12.0(24)S1.
Supported Platforms
Cisco IOS 12.0 S and ST Releases: Cisco 7500 series, Cisco 12000 series. Cisco IOS 12.2 T Releases: Cisco 3620, Cisco 3640, Cisco 7200 series, Cisco 7500 series, Cisco MGX 8850-RPM.

Finding Support Information for Platforms and Cisco IOS Software Images

Use Cisco Feature Navigator to find information about platform support and Cisco IOS software image support. Access Cisco Feature Navigator at http://www.cisco.com/go/fn. You must have an account on Cisco.com. If you do not have an account or have forgotten your username or password, click Cancel at the login dialog box and follow the instructions that appear.

Contents

•Prerequisites for MPLS VPN—MIB Support

•Restrictions for MPLS VPN—MIB Support

•Information About MPLS VPN—MIB Support

•How to Configure MPLS VPN—MIB Support

•Configuration Examples for MPLS VPN—MIB Support

•Additional References

•Command Reference

•Glossary

Prerequisites for MPLS VPN—MIB Support

The MPLS VPN MIB agent requires the following:

•SNMP is installed and enabled on the label switching routers.

•MPLS is enabled on the label switching routers.

•Multiprotocol Border Gateway Protocol (BGP) is enabled on the label switching routers.

•Cisco Express Forwarding is enabled on the label switching routers.

Restrictions for MPLS VPN—MIB Support

The following restrictions apply to the PPVPN-MPLS-VPN MIB for this release:

•Configuration of the MIB using the SNMP SET command is not supported in this release, except for trap-related objects, such as mplsVpnNotificationEnable and mplsVpnVrfSecIllegalLabelRcvThresh.

•The mplsVpnVrfBgpNbrPrefixTable is not supported in this version.

Information About MPLS VPN—MIB Support

SNMP agent code operating in conjunction with the PPVPN-MPLS-VPN MIB enables a standardized, SNMP-based approach to managing MPLS VPNs in Cisco IOS.

The PPVPN-MPLS-VPN MIB is based on the IETF draft MIB specification draft-ietf-ppvpn-mpls-vpn-mib-03.txt, which includes objects describing features that support MPLS VPN events. This IETF draft MIB, which undergoes revisions from time to time, is being evolved toward becoming a standard. Accordingly, the Cisco implementation of the PPVPN-MPLS-VPN MIB is expected to track the evolution of the IETF draft MIB, and may change accordingly.

Some slight differences between the IETF draft MIB and the actual implementation of MPLS VPNs within Cisco IOS require some minor translations between the PPVPN-MPLS-VPN MIB and the internal data structures of Cisco IOS. These translations are accomplished by means of the SNMP agent code. Also, while running as a low priority process, the SNMP agent provides a management interface to Cisco IOS. SNMP adds little overhead on the normal functions of the device.

The SNMP objects defined in the PPVPN-MPLS-VPN MIB can be viewed by any standard SNMP utility. The network administrator can retrieve information in the PPVPN-MPLS-VPN MIB using standard SNMP get and getnext operations for SNMP v1, v2, and v3.

All PPVPN-MPLS-VPN MIB objects are based on the IETF draft MIB; thus, no Cisco specific SNMP application is required to support the functions and operations pertaining to the PPVPN-MPLS-VPN MIB features.

This section contains the following topics:

•Capabilities Supported by PPVPN-MPLS-VPN MIB

•Functional Structure of the PPVPN-MPLS-VPN MIB

•Supported Objects in PPVPN-MPLS-VPN MIB

•MIB Objects Not Supported

Capabilities Supported by PPVPN-MPLS-VPN MIB

The following functionality is supported for the PPVPN-MPLS-VPN MIB. The PPVPN-MPLS-VPN MIB provides you with the ability to do the following:

•Gather routing and forwarding information for MPLS VPNs on a router.

•Expose information in the VRF routing table.

•Gather information on BGP configuration related to VPNs and VRF interfaces and statistics.

•Emit notification messages that signal changes when critical MPLS VPN events occur.

•Enable, disable, and configure notification messages for MPLS VPN events by using extensions to existing SNMP CLI commands.

•Specify the IP address of a network management system (NMS) in the operating environment to which notification messages are sent.

•Write notification configurations into nonvolatile memory.

Functional Structure of the PPVPN-MPLS-VPN MIB

The SNMP agent code supporting the PPVPN-MPLS-VPN MIB follows the existing model for such code in Cisco IOS and is, in part, generated by the Cisco IOS tool set, based on the MIB source code.

The SNMP agent code, which has a layered structure that is common to MIB support code in Cisco IOS, consists of four layers:

•Platform-independent layer—This layer is generated primarily by the MIB development Cisco IOS tool set and incorporates platform- and implementation-independent functions. The Cisco IOS MIB development tool set creates a standard set of files associated with a MIB.

•Application interface layer—The functions, names, and template code for MIB objects in this layer are also generated by the MIB development Cisco IOS tool set.

•Application-specific layer—This layer provides an interface between the application interface layer and the API and data structures layer below and performs tasks needed to retrieve required information from Cisco IOS, such as searching through data structures.

•API and data structures layer—This layer contains the data structures or APIs within Cisco IOS that are retrieved or called in order to set or retrieve SNMP management information.

Supported Objects in PPVPN-MPLS-VPN MIB

The PPVPN-MPLS-VPN MIB contains numerous tables and object definitions that provide read-only SNMP management support for the MPLS VPN feature in Cisco IOS. The PPVPN-MPLS-VPN MIB conforms to Abstract Syntax Notation One (ASN.1), thus reflecting an idealized MPLS VPN database.

Using any standard SNMP network management application, you can retrieve and display information from the PPVPN-MPLS-VPN MIB using GET operations; similarly, you can traverse information in the MIB database for display using GETNEXT operations.

The PPVPN-MPLS-VPN MIB tables and objects supported in this Cisco IOS release are described briefly in the following sections:

•Scalar Objects

•MIB Tables

•Notifications

Objects that are not supported in this Cisco IOS release are listed in the "MIB Objects Not Supported" section.

Figure 1 shows a simple MPLS VPN configuration. This configuration includes two customer MPLS VPNs, labeled VPN1 and VPN2, and a simple provider network that consists of two provider edge routers, labeled PE1 and PE2, and a provider core router labeled P. Figure 1 shows the following sample configuration:

•VRF names—VPN1 and VPN2

•Interfaces associated with VRFs—Et1, Et2, and At3/0

•Routing protocols—OSPF, RIP, and IBGP

•Routes associated with VPN1—10.1.0.0, 10.2.0.0, and 10.3.0.0

•Routes associated with VPN2—172.16.1.0 and 172.16.2.0

•Routes associated with the provider network—192.168.1.0, 192.168.2.0, and 192.168.3.0

This configuration is used in this document to explain MPLS VPN events that are monitored and managed by the PPVPN-MPLS-VPN MIB.

Figure 1 Sample MPLS VPN Configuration

Scalar Objects

Table 1 shows the PPVPN-MPLS-VPN MIB scalar objects supported for this release.

Table 1 PPVPN-MPLS-VPN MIB Scalar Objects

MIB Object	Function
mplsVpnConfiguredVrfs	The number of VRFs configured on the router, including VRFs recently deleted.
mplsVpnActiveVrfs	The number of VRFs that are active on the router. An active VRF is assigned to at least one interface that is in the operationally up state.
mplsVpnConnectedInterfaces	The total number of interfaces assigned to any VRF.
mplsVpnNotificationEnable	A value that indicates whether all the PPVPN-MPLS-VPN MIB notifications are enabled. •Setting this object to true enables all notifications defined in the PPVPN-MPLS-VPN MIB. •Setting it to false disables all notifications defined in the MIB. This is one of the few objects that is writable.
mplsVpnVrfConfMaxPossibleRoutes	A number that indicates the amount of routes that this router is capable of storing. This value cannot be determined because it is based on the amount of available memory in the system. Therefore, this object is set to zero (0).

MIB Tables

The PPVPN-MPLS-VPN MIB implementation for this release supports the following tables described in this section:

•mplsVpnVrfTable

•mplsVpnInterfaceConfTable

•mlsVpnVrfRouteTargetTable

•mplsVpnVrfBgpNbrAddrTable

•mplsVpnVrfSecTable

•mplsVpnVrfPerfTable

•mplsVpnVrfRouteTable

mplsVpnVrfTable

Entries in the VRF configuration table (mplsVpnVrfTable) represent the VRFs that are defined on the router. This includes recently deleted VRFs. The information in this table is also displayed with the show ip vrf command.

Each VRF is referenced by its VRF name (mplsVpnVrfName).

Table 2 lists the MIB objects and their functions for this table.

Table 2 PPVPN-MPLS-VPN MIB Objects for the mplsVpnVrfTable

MIB Object	Function
mplsVpnVrfName	The name associated with this VRF. When this object is used as an index to a table, the first octet is the string length, and subsequent octets are the ASCII codes of each character. For example, "vpn1" is represented as 4.118.112.110.49.
mplsVpnVrfDescription	The description of the VRF. This is specified with the following configuration command: Router(config)# ip vrf vrf-name Router(config-vrf)# description vrf-description
mplsVpnVrfRouteDistinguisher	The route distinguisher for this VRF. This is specified with the following configuration command: Router(config)# ip vrf vrf-name Router(config-vrf)# rd route-distinguisher
mplsVpnVrfCreationTime	The value of the sysUpTime when this VRF entry was created.
mplsVpnVrfOperStatus	The operational status of this VRF. A VRF is up (1) when at least one interface associated with the VRF is up. A VRF is down (2) when: •No interfaces exist whose ifOperStatus = up (1). •No interfaces are associated with this VRF.
mplsVpnVrfActiveInterfaces	The number of interfaces assigned to this VRF which are operationally up.
mplsVpnVrfAssociatedInterfaces	The number of interfaces assigned to this VRF, independent of the operational status.
mplsVpnVrfConfMidRouteThreshold	The middle route threshold. If the amount of routes in the VRF crosses this threshold, an mplsNumVrfRouteMidThreshExceeded notification is sent (if notifications are enabled and configured). You can set this value in configuration mode as a percentage of the maximum with the maximum routes limit {warn-threshold | warn-only) command, as follows: Router(config)# ip vrf vpn1 Router(config-vrf)# maximum routes 1000 50 The middle or warn threshold is set for VRF vpn1 as 50% of the maximum route threshold. The following command sets a middle threshold of 1000 routes. An mplsNumVrfRouteMidThreshExceeded notification is sent when this threshold is exceeded. However, additional routes are still allowed because a maximum route threshold is not set with this command. Router(config-vrf)# maximum routes 1000 warn-only
mplsVpnVrfConfHighRouteThreshold	The maximum route threshold. If the amount of routes in the VRF crosses this threshold, an mplsNumVrfRouteMaxThreshExceeded notification is sent (if notifications are enabled and configured). You can set this value in configuration mode with the maximum routes limit {warn-threshold | warn-only) command as follows: Router(config)# ip vrf vpn2 Router(config-vrf)# maximum routes 1000 75 The maximum route threshold is set for 1000 routes for VRF vpn2 with a middle or warn threshold of 75% of this threshold.
mplsVpnVrfConfMaxRoutes	This value is the same as the mplsVpnVrfConfHighRouteThreshold.
mplsVpnVrfConfLastChanged	The value of sysUpTime when the configuration of the VRF changes or interfaces are assigned or unassigned from the VRF. Note This object is updated only when values in this table change.
mplsVpnVrfConfRowStatus	Read-only implementation. This object normally reads "active (1)," but may read "notInService (2)," if a VRF was recently deleted.
mplsVpnVrfConfStorageType	Read-only implementation. This object always reads "volatile (2)."

mplsVpnInterfaceConfTable

In Cisco IOS, a VRF is associated with one MPLS VPN. Zero or more interfaces can be associated with a VRF. A VRF uses an interface that is defined in the ifTable of the Interfaces Group of MIB II (IFMIB). The IFMIB defines objects for managing interfaces. The ifTable of this MIB contains information on each interface in the network. The mplsVpnInterfaceConfTable associates a VRF from the mplsVpnVrfTable with a forwarding interface from the ifTable. Figure 2 shows the relationship between VRFs and interfaces defined in the ifTable and the mplsVpnInterfaceConfTable.

Figure 2 VRFs, the Interfaces MIB, and the mplsVpnInterfaceConfTable

Entries in the VPN interface configuration table (mplsVpnInterfaceConfTable) represent the interfaces that are assigned to each VRF. The information available in this table is also displayed with the show ip vrf command.

The mplsVpnInterfaceConfTable shows how interfaces are assigned to VRFs. A label switch router (LSR) creates an entry in this table for every interface capable of supporting MPLS VPNs.

The mplsVpnInterfaceConfTable is indexed by the following:

•mplsVpnVrfName—The VRF name

•mplsVpnInterfaceConfIndex—An identifier that is the same as the ifIndex from the Interface MIB of the interface assigned to the VRF

Table 3 lists the MIB objects and their functions for this table.

Table 3 PPVPN-MPLS-VPN MIB Objects for the mplsVpnInterfaceConfTable

MIB Object	Function
mplsVpnInterfaceConfIndex	Provides the interface MIB ifIndex of this interface that is assigned to a VRF.
mplsVpnInterfaceLabelEdgeType	Indicates whether the interface is a provider edge interface (1) or a customer edge interface (2). This value is always providerEdge (1) because in Cisco IOS, customerEdge interfaces are not assigned to VRFs and do not appear in this table.
mplsVpnInterfaceVpnClassification	Specifies what type of VPN this interface is providing: carrier supporting carrier (CsC) (1), enterprise (2), or InterProvider (3). This value is set to enterprise (2) if MPLS is not enabled and to carrier supporting carrier (1) if MPLS is enabled on this interface.
mplsVpnInterfaceVpnRouteDistProtocol	Indicates the route distribution protocols that are being used to redistribute routes with BGP on this interface: BGP (2), OSPF (3), or RIP (4). In Cisco IOS, router processes are defined and redistributed on a per-VRF basis, not per-interface. Therefore, all interfaces assigned to the same VRF have the same value for this object.
mplsVpnInterfaceConfStorageType	Read-only implementation. This object always reads "volatile (2)."
mplsVpnInterfaceConfRowStatus	Read-only implementation. This object normally reads "active (1)," but may read "notInService (2)," if a VRF was recently deleted.

mlsVpnVrfRouteTargetTable

The route target table (mplsVpnVrfRouteTargetTable) describes the route target communities that are defined for a particular VRF. An LSR creates an entry in this table for each target configured for a VRF supporting an MPLS VPN instance.

The distribution of VPN routing information is controlled through the use of VPN route target communities, implemented by Border Gateway Protocol (BGP) extended communities. Distribution of VPN routing information works as follows:

•When a VPN route learned from a CE router is injected into BGP, a list of VPN route target extended community attributes are associated with it. Typically the list of route target community values is set from an export list of route targets associated with the VRF from which the route was learned.

•An import list of route target extended communities is associated with each VRF. The import list defines route target extended community attributes a route must have for the route to be imported into the VRF. For example, if the import list for a particular VRF includes route target communities A, B, and C, then any VPN route that carries any of those route target extended communities—A, B, or C—is imported into the VRF.

Figure 3 shows a sample configuration and its relationship to an mplsVpnVrfRouteTargetTable. A route target table exists on each PE router. Routers with route distinguishers (RDs) 100:1, 100:2, and 100:3 are shown in the sample configuration. Routers with RDs 100:4 and 100:5 are not shown in Figure 3, but are included in the route targets for PE2 and in the mplsVpnVrfRouteTargetTable.

Figure 3 Sample Configuration and the mplsVpnVrfRouteTargetTable

The mplsVpnVrfRouteTargetTable shows the import and export route targets for each VRF. The table is indexed by the following:

•mplsVpnVrfName—The VRF name

•mplsVpnVrfRouteTargetIndex—The route target entry identifier

•mplsVpnVrfRouteTargetType—A value specifying whether the entry is an import route target, export route target, or is defined as both

Table 4 lists the MIB objects and their functions for this table.

Table 4 PPVPN-MPLS-VPN MIB Objects for the mplsVpnVrfRouteTargetTable

MIB Object	Function
mplsVpnVrfRouteTargetIndex	A value that defines each route target's position in the table.
mplsVpnVrfRouteTargetType	Determines which type of route target the entry represents: import (1), export (2), or both (3).
mplsVpnVrfRouteTarget	Determines the route distinguisher for this target.
mplsVpnVrfRouteTargetDescr	Description of the route target. This object is not supported in this Cisco IOS release. Therefore, the object is the same as mplsVpnVrfRouteTarget.
mplsVpnVrfRouteTargetRowStatus	Read-only implementation. This object normally reads "active (1)," but may read "notInService (2)," if a VRF was recently deleted.

mplsVpnVrfBgpNbrAddrTable

The BGP neighbor address table (mplsVpnVrfBgpNbrAddrTable) represents the MPLS eBGP neighbors that are defined for a particular VRF. An LSR creates an entry for every BGP neighbor that is defined in the VRF's address-family.

The mplsVpnVrfBgpNbrAddrTable is indexed by the following:

•mplsVpnVrfName—The VRF name

•mplsVpnInterfaceConfIndex—An identifier that is the same as the ifIndex from the Interface MIB of the interface assigned to the VRF

•mplsVpnVrfBgpNbrIndex—The IP address of the neighbor

Table 5 lists the MIB objects and their functions for this table.

Table 5 PPVPN-MPLS-VPN MIB Objects for the mplsVpnVrfBgpNbrAddrTable

MIB Object	Function
mplsVpnVrfBgpNbrIndex	The IPv4 address of the eBGP neighbor.
mplsVpnVrfBgpNbrRole	The role of this eBGP neighbor: customer edge (1) or provider edge (2). If the object mplsVpnInterfaceVpnClassification is carrier supporting carrier (CSC), then this value is provider edge (2), otherwise, this value is customer edge (1).
mplsVpnVrfBgpNbrType	Address type of this eBGP neighbor. The MIB only supports IPv4 (1). Therefore, this object returns "ipv4 (1)."
mplsVpnVrfBgpNbrAddr	IP address of the eBGP neighbor.
mplsVpnVrfBgpNbrRowStatus	Read-only implementation. This object normally reads "active (1)," but may read "notInService (2)" if a VRF was recently deleted.
mplsVpnVrfBgpNbrStorageType	Read-only implementation. This object always reads "volatile (2)."

mplsVpnVrfSecTable

The VRF security table (mplsVpnVrfSecTable) provides information about security for each VRF. An LSR creates an entry in this table for every VRF capable of supporting MPLS VPN.

The mplsVpnVrfSecTable augments the mplsVpnVrfTable and has the same indexing.

Table 6 lists the MIB objects and their functions for this table.

Table 6 PPVPN-MPLS-VPN MIB Objects for the mplsVpnVrfSecTable

MIB Object	Function
mplsVpnVrfSecIllegalLabelViolations	The number of illegally received labels on a VRF interface. Only illegal labels are counted by this object, therefore the object only applies to a VRF interface that is MPLS enabled (carrier supporting carrier [CsC] situation). This counter is incremented whenever a label is received that is above or below the valid label range, not in the global label forwarding table, or is received on the wrong VRF (that is, table IDs for the receiving interface and appropriate VRF label forwarding table do not match).
mplsVpnVrfSecIllegalLabelRcvThresh	Notification threshold for illegal labels received on this VRF. When the amount of illegal labels received on this interface crosses this threshold, an mplsNumVrfSecIllegalLabelThreshExceeded notification is sent (if the notification is enabled and configured). This object is one of the few in this MIB agent that supports the SNMP SET operation, which allows you to change this value.

mplsVpnVrfPerfTable

The VRF performance table (mplsVpnVrfPerfTable) provides statistical performance information for each VRF. An LSR creates an entry in this table for every VRF capable of supporting MPLS VPN.

The mplsVpnVrfPerfTable augments the mplsVpnVrfTable and has the same indexing.

Table 7 lists the MIB objects and their functions for this table.

Table 7 PPVPN-MPLS-VPN MIB Objects for the mplsVpnVrfPerfTable

MIB Objects	Functions
mplsVpnVrfPerfRoutesAdded	The number of routes added to this VRF over the course of its lifetime.
mplsVpnVrfPerfRoutesDeleted	The number of routes removed from this VRF.
mplsVpnVrfPerfCurrNumRoutes	The number of routes currently defined within this VRF.

mplsVpnVrfRouteTable

The VRF routing table (mplsVpnVrfRouteTable) provides the IP routing table information for each VRF. The information available in this table can also be accessed with the show ip route vrf vrf-name command. For example, for PE1 in Figure 1:

•With the show ip route vrf vpn1 command, you would see results like the following:

Router# show ip route vrf vpn1

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

* - candidate default, U - per-user static route, o - ODR
P - periodic downloaded static route
!

Gateway of last resort is not set

!

     10.0.0.0/32 is subnetted, 3 subnets

B       10.3.0.0 [200/0] via 192.168.2.1, 04:36:33

C       10.1.0.0/16 is directly connected, Ethernet1

C       10.2.0.0/16 [200/0] directly connected Ethernet2, 04:36:33

•With the show ip route vrf vpn2 command, you would see results like the following:

Router# show ip route vrf vpn2

Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP

D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area

N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2

E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP

i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area

* - candidate default, U - per-user static route, o - ODR
P - periodic downloaded static route
!

Gateway of last resort is not set

!

     172.16.0.0/32 is subnetted, 2 subnets

B       172.16.2.0 [200/0] via 192.168.2.1, 04:36:33

C       172.16.1.0 is directly connected, ATM 3/0

Figure 4 shows the relationship of the routing tables, the VRFs, and the mplsVpnVrfRouteTable. You can view information about the VPN1 and VPN2 route tables using the show ip route vrf vrf-name command. The global route table is the same as ipCidrRouteTable in the IP-FORWARD-MIB. You can view information about the global route table with the show ip route command.

Figure 4 Route Table, VRFs, and the mplsVpnVrfRouteTable

An LSR creates an entry in this table for every route that is configured, either dynamically or statically, within the context of a specific VRF capable of supporting MPLS VPN.

The mplsVpnVrfRouteTable is indexed by the following:

•mplsVpnVrfName—The VRF name, which provides the VRF routing context

•mplsVpnVrfRouteDest—The IP destination address

•mplsVpnVrfRouteMask—The IP destination mask

•mplsVpnVrfRouteTos—The IP header ToS bits

•mplsVpnVrfRouteNextHop—The IP address of the next hop for each route entry

---

Note The ToS bits are not supported in this Cisco IOS release and, therefore, are always 0.

---

Table 8 lists the MIB objects and their functions for the mplsVpnVrfRouteTable. This table represents VRF-specific routes. The global routing table is the ipCidrRouteTable in the IP-FORWARD-MIB.

Table 8 PPVPN-MPLS-VPN MIB Objects for the mplsVpnVrfRouteTable

MIB Object	Function
mplsVpnVrfRouteDest	The destination IP address defined for this route.
mplsVpnVrfRouteDestAddrType	The address type of the IP destination address (mplsVpnVrfRouteDest). This MIB implementation only supports IPv4 (1). Therefore, this object has a value of "ipv4 (1)."
mplsVpnVrfRouteMask	The destination IP address mask defined for this route.
mplsVpnVrfRouteMaskAddrType	The address type of the destination IP address mask. This MIB implementation only supports IPv4 (1). Therefore, this object has a value of "ipv4 (1)."
mplsVpnVrfRouteTos	The ToS bits from the IP header for this route. Cisco IOS only supports ToS bits of zero. Therefore, the object is always 0.
mplsVpnVrfRouteNextHop	The next hop IP address defined for this route.
mplsVpnVrfRouteNextHopAddrType	The address type of the next hop IP address. This MIB implementation only supports IPv4 (1). Therefore, this object has a value of "ipv4 (1)."
mplsVpnVrfRouteIfIndex	The interface MIB ifIndex for the interface through which this route is forwarded. The object is 0 if no interface is defined for the route.
mplsVpnVrfRouteType	Defines if this route is a local or remotely defined route.
mplsVpnVrfRouteProto	The routing protocol that was responsible for adding this route to the VRF.
mplsVpnVrfRouteAge	The number of seconds since this route was last updated.
mplsVpnVrfRouteInfo	A pointer to more information from other MIBs. This object is not supported and always returns "nullOID (0.0)."
mplsVpnVrfRouteNextHopAS	The autonomous system number of the next hop for this route. This object is not supported and is always 0.
mplsVpnVrfRouteMetric1	The primary routing metric used for this route.
mplsVpnVrfRouteMetric2 mplsVpnVrfRouteMetric3 mplsVpnVrfRouteMetric4 mplsVpnVrfRouteMetric5	Alternate routing metrics used for this route. These objects are supported only for Cisco IGRP and Cisco EIGRP. These objects display the bandwidth metrics used for the route. Otherwise, these values are set to -1.
mplsVpnVrfRouteRowStatus	Read-only implementation.This object normally reads "active (1)," but may read "notInService (2)," if a VRF was recently deleted.
mplsVpnVrfRouteStorageType	Read-only implementation. This object always reads "volatile (2)."

Notifications

This section provides the following information about PPVPN-MPLS-VPN MIB notifications supported in this release:

•Notification Generation Events

•Notification Specification

•Monitoring the PPVPN-MPLS-VPN MIB Notifications

Notification Generation Events

The following notifications of the PPVPN-MPLS-VPN MIB are implemented for this release:

•mplsVrfIfUp—Sent to an NMS when an interface comes up and is assigned a VPN routing/forwarding table instance (VRF).

•mplsVrfIfDown—Generated and sent to the NMS when a VRF is removed from an interface or the interface transitions from an operationally "up" state to a "down" state.

•mplsNumVrfRouteMidThreshExceeded—Generated and sent when the middle (warning) threshold is crossed. You can configure this threshold in the CLI by using the following commands:

Router(config)# ip vrf vrf-name

Router(config-vrf)# maximum routes limit warn-threshold (% of max)

The warn-threshold argument is a percentage of the maximum routes specified by the limit argument. You can also configure a middle threshold with the following command, in which the limit argument represents the warning threshold:

Router(config-vrf)# maximum routes limit warn-only

This notification is sent to the NMS only at the time the threshold is exceeded. (See Figure 5 for a comparison of the warning and maximum thresholds.) Whenever the number of routes falls below this threshold and exceeds the threshold again, a notification is sent to the NMS.

•mplsNumVrfRouteMaxThreshExceeded—Generated and sent when you attempt to create a route on a VRF that already contains the maximum number of routes as defined by the limit argument of the maximum routes commands:

Router(config)# ip vrf vrf-name

Router(config-vrf)# maximum routes limit warn-threshold (% of max)

A trap notification is sent to the NMS when you attempt to exceed the maximum threshold. Another notification is not sent until the number of routes falls below the maximum threshold and reaches the maximum threshold again. (See Figure 5 for an example of how this notification works and for a comparison of the maximum and warning thresholds.)

---

Note The maximum routes command sets the number of routes for a VRF. You cannot exceed the number of routes in the VRF that you set with the maximum routes limit warn-threshold command.

Prior to this implementation of the PPVPN-MPLS-VPN MIB, you were not notified when this threshold (or the warning threshold) was reached.

---

•mplsNumVrfSecIllegalLabelThreshExceeded—Generated and sent when the amount of illegal labels received on a VRF interface exceeds the threshold mplsVpnVrfSecIllegalLabelRcvThresh. This threshold is defined with a value of 0. Therefore, a notification is sent when the first illegal label is received on a VRF. Labels are considered illegal if they are outside of the valid label range, do not have a Label Forwarding Information Base (LFIB) entry, or the table ID of the message does not match the table ID for the label in the LFIB.

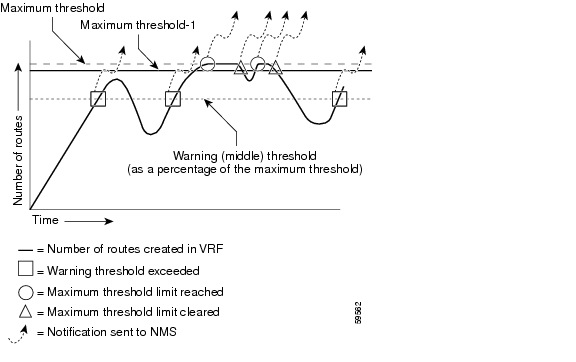

Figure 5 Comparison of Warning and Maximum Thresholds

For information on the Cisco IOS CLI commands for configuring PPVPN-MPLS-VPN MIB notifications that are to be sent to an NMS, see the "How to Configure MPLS VPN—MIB Support" section and the "Command Reference" section.

Notification Specification

In an SNMPv1 notification, each VPN notification has a generic type identifier and an enterprise-specific type identifier for identifying the notification type.

•The generic type for all VPN notifications is "enterpriseSpecific" as this is not one of the generic notification types defined for SNMP.

•The enterprise-specific type is identified as follows:

–1 for mplsVrfIfUp

–2 for mplsVrfIfDown

–3 for mplsNumVrfRouteMidThreshExceeded

–4 for mplsNumVrfRouteMaxThreshExceeded

–5 for mplsNumVrfSecIllegalLabelThreshExceeded

In SNMPv2, the notification type is identified by an SnmpTrapOID varbind (variable binding consisting of an object identifier [OID] type and value) included within the notification message.

Each notification also contains two additional objects from the PPVPN-MPLS-VPN MIB. These objects provide additional information about the event, as follows:

•The VRF interface up/down notifications provide additional variables—mplsVpnInterfaceConfIndex and mplsVpnVrfName—in the notification. These variables describe the SNMP interface index and the VRF name, respectively.

•The mid and max threshold notifications include the mplsVpnVrfName variable (VRF name) as well as the mplsVpnVrfPerfCurrNumRoutes variable that indicates the current number of routes within the VRF.

•The illegal label notification includes the mplsVpnVrfName variable (VRF name) and the mplsVpnVrfSecIllegalLabelViolations variable that maintains the current count of illegal labels on a VPN.

Monitoring the PPVPN-MPLS-VPN MIB Notifications

When PPVPN-MPLS-VPN MIB notifications are enabled (see the snmp-server enable traps mpls vpn command), notification messages relating to specific MPLS VPN events within Cisco IOS are generated and sent to a specified NMS in the network. Any utility that supports SNMPv1 or SNMPv2 notifications can receive notification messages.

To monitor PPVPN-MPLS-VPN MIB notification messages, log in to an NMS that supports a utility that displays SNMP notifications, and start the display utility.

MIB Objects Not Supported

The following objects from the mplsVpnVrfBgpPathAttrTable are not supported for this release:

•mplsVpnVrfBgpPathAttrPeer

•mplsVpnVrfBgpPathAttrIpAddrPrefixLen

•mplsVpnVrfBgpPathAttrIpAddrPrefix

•mplsVpnVrfBgpPathAttrOrigin

•mplsVpnVrfBgpPathAttrASPathSegment

•mplsVpnVrfBgpPathAttrNextHop

•mplsVpnVrfBgpPathAttrMultiExitDisc

•mplsVpnVrfBgpPathAttrLocalPref

•mplsVpnVrfBgpPathAttrAtomicAggregate

•mplsVpnVrfBgpPathAttrAggregatorAS

•mplsVpnVrfBgpPathAttrAggregatorAddr

•mplsVpnVrfBgpPathAttrCalcLocalPref

•mplsVpnVrfBgpPathAttrBest

•mplsVpnVrfBgpPathAttrUnknown

How to Configure MPLS VPN—MIB Support

This section describes configuration tasks for MPLS VPN—MIB Support. Each task in the list is identified as either required or optional.

•Configuring the SNMP Community (required)

•Configuring the Router to Send SNMP Traps (required)

•Configuring Threshold Values for MPLS VPN-MIB Notifications (required)

The MPLS VPN notifications are enabled or disabled using the extended CLI commands (see the "Command Reference" section).

Configuring the SNMP Community

An SNMP community string defines the relationship between the SNMP manager and the agent. The community string acts like a password to regulate access to the agent on the router.

Perform this task to configure an SNMP community.

SUMMARY STEPS

1. enable

2. show running-config

3. configure terminal

4. snmp-server community string [view view-name] [ro | rw] [acl-number]

5. do copy running-config startup-config

6. exit

7. show running config [interface | map-class]

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	show running-config Example: Router# show running-config	Displays the running configuration to determine if an SNMP agent is already running. •If no SNMP information is displayed, continue with the next step. If any SNMP information is displayed, you can modify the information or change it as needed.
Step 3	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 4	snmp-server community string [view view-name] [ro | rw] [acl-number] Example: Router(config)# snmp-server community comaccess ro	Sets up the community access string to permit access to the SNMP protocol. •The string argument acts like a password and permits access to the SNMP protocol. •The view view-name keyword argument pair specifies the name of a previously defined view. The view defines the objects available to the community. •The ro keyword specifies read-only access. Authorized management stations are only able to retrieve MIB objects. •The rw keyword specifies read-write access. Authorized management stations are able to both retrieve and modify MIB objects. •The acl-number argument is an integer from 1 to 99 that specifies an access list of IP addresses that are allowed to use the community string to gain access to the SNMP agent.
Step 5	do copy running-config startup-config Example: Router(config)# do copy running-config startup-config	Saves the modified configuration to nonvolatile memory (NVRAM) as the startup configuration file. •The do command allows you to perform EXEC level commands in configuration mode.
Step 6	exit Example: Router(config)# exit	Returns to privileged EXEC mode.
Step 7	show running config [interface | map-class] Example: Router# show running config | include smnp-server	(Optional) Displays the configuration information currently on the router, the configuration for a specific interface, or map-class information. •Use the show running-config command to check that the snmp-server statements appear in the output.

Configuring the Router to Send SNMP Traps

Perform this task to configure the router to send traps to a host.

The snmp-server host command specifies which hosts receive traps. The snmp-server enable traps command globally enables the trap production mechanism for the specified traps.

For a host to receive a trap, an snmp-server host command must be configured for that host, and, generally, the trap must be enabled globally through the snmp-server enable traps command.

---

Note Although you can set the community-string argument using the snmp-server host command by itself, we recommend you define this string using the snmp-server community command prior to using the snmp-server host command.

---

SUMMARY STEPS

1. enable

2. configure terminal

3. snmp-server host host-addr [traps | informs] [version {1 | 2c | 3 [auth | noauth | priv]}] community-string [udp-port port] [notification-type] [vrf vrf-name]

4. snmp-server enable traps mpls vpn [vrf-up] [vrf-down] [mid-threshold] [max-threshold] [illegal-label]

5. end

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	snmp-server host host-addr [traps | informs] [version {1 | 2c | 3 [auth | noauth | priv]}] community-string [udp-port port] [notification-type] [vrf vrf-name] Example: Router(config)# snmp-server host 172.20.2.160 traps comaccess mpls-vpn	Specifies the recipient of an SNMP notification operation. •The host-addr argument specifies the name or Internet address of the host (the targeted recipient). •The traps keyword sends SNMP traps to this host. This is the default. •The informs keyword sends SNMP informs to this host. •The version keyword specifies the version of the SNMP used to send the traps. Version 3 is the most secure model, as it allows packet encryption with the priv keyword. If you use the version keyword, you must specify one of the following: –1 —SNMPv1. This option is not available with informs. –2c —SNMPv2C. –3 —SNMPv3. The following three optional keywords can follow the version 3 keyword (auth, noauth, priv). •The community-string argument is a password-like community string sent with the notification operation. •The udp-port port keyword argument pair names the UDP port of the host to use. The default is 162. •The notification-type argument specifies the type of notification to be sent to the host. If no type is specified, all notifications are sent. •The vrf vrf-name keyword argument pair specifies the VRF table that should be used to send SNMP notifications.
Step 4	snmp-server enable traps mpls vpn [vrf-up] [vrf-down] [mid-threshold] [max-threshold] [illegal-label] Example: Router(config)# snmp-server enable traps mpls vpn vrf-up vrf-down	Enables the router to send MPLS VPN specific SNMP notifications (traps and informs). •The vrf-up keyword enables a notification for the assignment VRF to an interface that is operational or for the transition of a VRF interface to the operationally up state. •The vrf-down keyword enables a notification for the removal of a VRF from an interface or the transition of an interface to the down state. •The mid-threshold keyword enables a notification of a warning that the number of routes created has crossed the warning threshold. This warning is sent only at the time the warning threshold is exceeded. •The max-threshold keyword enables a notification that a route creation attempt was unsuccessful because the maximum route limit was reached. Another notification is not sent until the number of routes falls below the maximum threshold and reaches the maximum threshold again. The max-threshold value is determined by the maximum routes command in VRF configuration mode. •The illegal-label keyword enables a notification for any illegal labels received on a VRF interface. Labels are illegal if they are outside the legal range, do not have an LFIB entry, or do not match table IDs for the label.
Step 5	end Example: Router(config)# end	(Optional) Exits to user EXEC mode.

Configuring Threshold Values for MPLS VPN-MIB Notifications

Perform this task to configure threshold values for MPLS VPN-MIB notifications.

The mplsNumVrfRouteMidThreshExceeded notification event is generated and sent when the middle (warning) threshold is crossed. You can configure this threshold in the CLI by using the maximum routes command in VRF configuration mode. This notification is sent to the NMS only at the time the threshold is exceeded. Whenever the number of routes falls below this threshold and exceeds the threshold again, a notification is sent to the NMS.

The mplsNumVrfRouteMaxThreshExceeded notification event is generated and sent when you attempt to create a route on a VRF that already contains the maximum number of routes as defined by the maximum routes command in VRF configuration mode. A trap notification is sent to the NMS when you attempt to exceed the maximum threshold. Another notification is not sent until the number of routes falls below the maximum threshold and reaches the maximum threshold again.

(See Figure 5 for an example of how this notification works and for a comparison of the maximum and warning thresholds.)

---

Note The maximum routes command sets the number of routes for a VRF. You cannot exceed the number of routes in the VRF that you set with the maximum routes limit warn-threshold command.

Prior to this implementation of the PPVPN-MPLS-VPN MIB, you were not notified when this threshold (or the warning threshold) was reached.

---

SUMMARY STEPS

1. enable

2. configure terminal

3. ip vrf vrf-name

4. maximum routes limit {warn-threshold | warn-only}

5. end

DETAILED STEPS

	Command or Action	Purpose
Step 1	enable Example: Router> enable	Enables privileged EXEC mode. •Enter your password if prompted.
Step 2	configure terminal Example: Router# configure terminal	Enters global configuration mode.
Step 3	ip vrf vrf-name Example: Router(config)# ip vrf vpn1	Configures a VRF routing table. •The vrf-name argument specifies the name assigned to a VRF.
Step 4	maximum routes limit {warn-threshold | warn-only} Example: Router(config-vrf)# maximum routes 10000 80 or Example: Router(config-vrf)# maximum routes 10000 warn-only	Limits the maximum number of routes in a VRF to prevent a PE router from importing too many routes. •The limit argument specifies the maximum number of routes allowed in a VRF. The range is from 1 to 4,294,967,295. •The warn-threshold argument generates a warning when the number of routes set by the warn-threshold argument is reached and rejects routes that exceed the maximum number set in the limit argument. The warning threshold is a percentage from 1 to 100 of the maximum number of routes specified in the limit argument. •The warn-only keyword specifies that a SYSLOG error message is issued when the maximum number of routes allowed for a VRF exceeds the limit threshold. However, additional routes are still allowed.
Step 5	end Example: Router(config-vrf)# end	(Optional) Exits to privileged EXEC mode.

Configuration Examples for MPLS VPN—MIB Support

This section contains the following configuration examples for the MPLS VPN—MIB Support feature:

•Configuring the SNMP Community Examples

•Configuring the Router to Send SNMP Traps Example

•Configuring Threshold Values for MPLS VPN-MIB Notifications Examples

Configuring the SNMP Community Examples

The following example shows enabling a simple SNMP community group. This configuration permits any SNMP client to access all PPVPN-MPLS-VPN MIB objects with read-only access using the community string comaccess.

Router# config terminal

Router(config)# snmp-server community comaccess ro

Verify that the SNMP master agent is enabled for the MPLS VPN—MIB Support feature:

Router# show running-config | include snmp-server

Building configuration...

....

snmp-server community comaccess RO

....

---

Note If you do not see any "snmp-server" statements, SNMP is not enabled on the router.

---

Configuring the Router to Send SNMP Traps Example

The following example shows you how to enable the router to send MPLS VPN notifications to host 172.20.2.160 using the comaccess community string if a VRF transitions from a down state to an up state or from an up state to a down state.

Router# config terminal

Router(config)# snmp-server host 172.20.2.160 traps comaccess mpls-vpn

Router(config)# snmp-server enable traps mpls vpn vrf-up vrf-down

Configuring Threshold Values for MPLS VPN-MIB Notifications Examples

The following example shows how to set a maximum threshold of 10000 routes and a warning threshold that is 80 percent of the maximum threshold for a VRF named vpn1 on a router:

Router(config)# ip vrf vpn1

Router(config)# maximum routes 10000 80

The following example shows how to set a warning threshold of 10000 routes for a VRF named vpn2 on a router. An error message is generated; however, additional routes are still allowed because a maximum route threshold is not set with this command.

Router(config)# ip vrf vpn2

Router(config)# maximum routes 10000 warn-only

Additional References

For additional information related to the MPLS VPN—MIB Support feature, refer to the following references:

•Related Documents

•Standards

•MIBs

•RFCs

•Technical Assistance

Related Documents

Related Topic	Document Title
Multiprotocol Label Switching (MPLS) Label Distribution Protocol (LDP) configuration tasks	MPLS Label Distribution Protocol
A description of SNMP agent support in Cisco IOS for the MPLS Label Switching Router MIB (MPLS-LSR-MIB)	MPLS Label Switching Router MIB
MPLS Virtual Private Network (VPN) configuration tasks	MPLS Virtual Private Networks (VPNs)
Configuration tasks for MPLS ATM network enhancements	MPLS Scalability Enhancements for the ATM LSR
MPLS automatic bandwidth adjustment configuration tasks	MPLS Traffic Engineering (TE)—Automatic Bandwidth Adjustment for TE Tunnels
MPLS traffic engineering scalability enhancements configuration tasks	MPLS Traffic Engineering (TE)—Scalability Enhancements
A description of SNMP agent support in Cisco IOS for the MPLS Traffic Engineering MIB (MPLS TE MIB)	MPLS Traffic Engineering (TE) MIB
Basic MPLS VPN Carrier Supporting Carrier configuration tasks	MPLS VPN Carrier Supporting Carrier
Overview and configuration tasks for the Multiprotocol Label Switching (MPLS) distribution protocol	"Multiprotocol Label Switching" chapter in the Cisco IOS Switching Services Configuration Guide, Release 12.2

Standards

Standards	Title
No new or modified standards are supported by this feature.	—

MIBs

MIBs1	MIBs Link
MPLS/BGP Virtual Private Network Management Information Base Using SMIv2 (draft-ietf-ppvpn-mpls-vpn-mib-03.txt)	To obtain lists of supported MIBs by platform and Cisco IOS release, and to download MIB modules, go to the Cisco MIB website on Cisco.com at the following URL: http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml

1 Not all supported MIBs are listed.

To locate and download MIBs for selected platforms, Cisco IOS releases, and feature sets, use Cisco MIB Locator found at the following URL:

http://tools.cisco.com/ITDIT/MIBS/servlet/index

If Cisco  MIB Locator does not support the MIB information that you need, you can also obtain a list of supported MIBs and download MIBs from the Cisco  MIBs page at the following URL:

http://www.cisco.com/public/sw-center/netmgmt/cmtk/mibs.shtml

To access Cisco MIB Locator, you must have an account on Cisco.com. If you have forgotten or lost your account information, send a blank e-mail to cco-locksmith@cisco.com. An automatic check will verify that your e-mail address is registered with Cisco.com. If the check is successful, account details with a new random password will be e-mailed to you. Qualified users can establish an account on Cisco.com by following the directions found at this URL:

http://www.cisco.com/register

RFCs

RFCs1	Title
RFC 2233	The Interfaces Group MIB using SMIv2
RFC 2547bis	BGP/MPLS VPNs

1 Not all supported RFCs are listed.

Technical Assistance

Description	Link
Technical Assistance Center (TAC) home page, containing 30,000 pages of searchable technical content, including links to products, technologies, solutions, technical tips, and tools. Registered Cisco.com users can log in from this page to access even more content.	http://www.cisco.com/public/support/tac/home.shtml

Command Reference

This section documents new and modified commands for this feature. All other commands used with this feature are documented in the Cisco IOS Release 12.2 command reference publications.

•snmp-server enable traps mpls vpn

•snmp-server host

snmp-server enable traps mpls vpn

To enable the router to send Multiprotocol Label Switching (MPLS) Virtual Private Network (VPN) specific Simple Network Management Protocol (SNMP) notifications (traps and informs), use the snmp-server enable traps mpls vpn command in global configuration mode. To disable MPLS VPN specific SNMP notifications, use the no form of this command.

snmp-server enable traps mpls vpn [vrf-up] [vrf-down] [mid-threshold] [max-threshold] [illegal-label]

no snmp-server enable traps mpls vpn [vrf-up] [vrf-down] [mid-threshold] [max-threshold] [illegal-label]

Syntax Description

vrf-up	(Optional) Enables a notification for the assignment of a VPN routing/forwarding instance (VRF) to an interface that is operational or for the transition of a VRF interface to the operationally up state.
vrf-down	(Optional) Enables a notification for the removal of a VRF from an interface or the transition of an interface to the down state.
mid-threshold	(Optional) Enables a notification of a warning that the number of routes created has crossed the warning threshold. This warning is sent only at the time the warning threshold is exceeded.
max-threshold	(Optional) Enables a notification that a route creation attempt was unsuccessful because the maximum route limit was reached. Another notification is not sent until the number of routes falls below the maximum threshold and reaches the maximum threshold again. The max-threshold value is determined by the maximum routes command in VRF configuration mode.
illegal-label	(Optional) Enables a notification for any illegal labels received on a VRF interface. Labels are illegal if they are outside the legal range, do not have a Label Forwarding Information Base (LFIB) entry, or do not match table IDs for the label.

Defaults

This command is disabled by default.

Command Modes

Global configuration

Command History

Release	Modification
12.0(21)ST	This command was introduced.
12.0(22)S	This command was integrated into Cisco IOS Release 12.0(22)S.
12.2(15)T	This command was integrated into Cisco IOS Release 12.2(15)T.
12.0(24)S1	This command was implemented on ATM and Frame Relay subinterfaces and integrated into Cisco IOS Release 12.0(24)S1.

Usage Guidelines

If this command is used without any of the optional keywords, all MPLS VPN notification types are enabled.

The values for mid-threshold and max-threshold are set using the maximum routes limit {warn-threshold | warn-only} command in VRF configuration mode.

---

Note The warn-only keyword in the maximum routes command sets the mid-threshold only and imposes no limit for the maximum threshold.

---

The notification types described above are defined in the following MIB objects of the PPVPN-MPLS-VPN-MIB as follows:

•mplsVrfIfUp

•mplsVrfIfDown

•mplsNumVrfRouteMidThreshExceeded

•mplsNumVrfRouteMaxThreshExceeded

•mplsNumVrfSecIllegalLabelThreshExceeded

Examples

In the following example, MPLS VPN trap notifications are sent to the host specified as 172.31.156.34 using the community string public if a VRF transitions from a down state to an up state or from an up state to a down state:

Router(config)# snmp-server enable traps mpls vpn vrf-up vrf-down

Router(config)# snmp-server host 172.31.156.34 traps public mpls-vpn

Related Commands

Command	Description
maximum routes	Limits the maximum number of routes in a VRF.
snmp-server traps atm	Enables ATM SNMP notifications.
snmp-server traps frame-relay	Enables Frame-Relay SNMP notifications.
snmp-server host	Specifies the recipient of SNMP notifications.

snmp-server host

To specify the recipient of a Simple Network Management Protocol (SNMP) notification, use the snmp-server host command in global configuration mode. To remove the specified host from the configuration, use the no form of this command.

snmp-server host host-addr [traps | informs] [version {1 | 2c | 3 [auth | noauth | priv]}] community-string [udp-port port] [notification-type] [vrf vrf-name]

no snmp-server host host [traps | informs]

Syntax Description

host-addr	Name or Internet address of the host (the targeted recipient of SNMP notifications).
traps	(Optional) Sends SNMP notifications (traps) to this host. This is the default if the [traps | informs] keyword choice is not specified.
informs	(Optional) Sends SNMP informs to this host.
version	(Optional) Version of the SNMP used to send the notifications. Version 3 is the most secure model, because it allows packet encryption by means of the priv keyword. If you use the version keyword, you must specify one of the following: •1—SNMPv1. This option is not available with informs. •2c—SNMPv2C. •3—SNMPv3. The following optional keywords can be used in conjunction with the version 3 keyword: –auth (Optional) Enables Message Digest 5 (MD5) and Secure Hash Algorithm (SHA) packet authentication. –noauth (Default) The noAuthNoPriv security level. This is the default if the [auth | noauth | priv] keyword choice is not specified. –priv (Optional) Enables Data Encryption Standard (DES) packet encryption (also called "privacy").
community-string	Password-like community string sent with the notification operation. Although you can set this string using the snmp-server host command by itself, we recommend that you define this string using the snmp-server community command prior to using the snmp-server host command.
udp-port port	(Optional) UDP port of the host to which SNMP notifications are to be sent. The default is 162.
notification-type	(Optional) Type of notification to be sent to the host. If no type is specified, all notifications are sent. The notification type can be one or more of the following keywords: •bgp—Sends Border Gateway Protocol (BGP) state change notifications. •calltracker—Sends Call Tracker call-start/call-end notifications. •config—Sends configuration change notifications. •director—Sends DistributedDirector-related notifications. •dspu—Sends downstream physical unit (DSPU) notifications. •entity—Sends Entity MIB modification notifications. •envmon—Sends Cisco enterprise-specific environmental monitor notifications when an environmental threshold is exceeded. •frame-relay—Sends Frame Relay notifications. •hsrp—Sends Hot Standby Routing Protocol (HSRP) notifications. •ipmobile—Sends Mobile IP notifications. •ipsec—Sends IP Security (IPSec) notifications. •isdn—Sends ISDN notifications. •llc2—Sends Logical Link Control, type 2 (LLC2) notifications. •mpls-ldp—Sends notifications indicating status changes in LDP sessions. •mpls-traffic-eng—Sends MPLS traffic engineering notifications indicating changes in the status of MPLS traffic engineering tunnels. •mpls-vpn—Sends MPLS VPN notifications. •pim—Sends Protocol Independent Multicast (PIM) notifications. •repeater—Sends standard repeater (hub) notifications. •rsrb—Sends remote source-route bridging (RSRB) notifications. •rsvp—Sends Resource Reservation Protocol (RSVP) notifications. •rtr—Sends Service Assurance Agent (SAA) Response Time Reporter (RTR) notifications. •sdlc—Sends Synchronous Data Link Control (SDLC) notifications. •sdllc—Sends SDLC Logical Link Control (SDLLC) notifications. •snmp—Sends any enabled RFC 1157 SNMP linkUp, linkDown, authenticationFailure, warmStart, and coldStart notifications. •stun—Sends serial tunnel (STUN) notifications. •syslog—Sends error message notifications (Cisco Syslog MIB). Specify the level of messages to be sent with the logging history level command. •tty—Sends Cisco enterprise-specific notifications when a TCP connection closes. •voice—Sends SNMP poor quality of voice traps, when used with the snmp enable peer-trap poor qov command. •vsimaster—Sends VSI Master notifications. •x25—Sends X.25 event notifications.
vrf vrf-name	(Optional) Specifies the Virtual Private Network (VPN) routing/forwarding (VRF) table that should be used to send SNMP notifications.

Defaults

This command is disabled by default. No notifications are sent.

If you enter this command with no keywords, the default is to send all trap types to the host. No informs will be sent to this host.

If no version keyword is present, the default is version 1. If version 3 is specified, but the security level is not specified, the default security level is noauth.

The no snmp-server host command with no keywords will disable traps, but not informs, to the host. In order to disable informs, use the no snmp-server host informs command.

The default UDP port is 162.

---

Note If the community-string is not defined using the snmp-server community command prior to using this command, the default form of the snmp-server community command will automatically be inserted into the configuration. The password (community-string) used for this automatic configuration of the snmp-server community will be the same as specified in the snmp-server host command. This is the default behavior for Cisco IOS Release 12.0(3) and later.

---

Command Modes

Global configuration

Command History

Release	Modification
10.0	This command was introduced.
12.0(3)T	The following keywords were added: •The version 3 [auth | noauth | priv] keywords were added. •The hsrp notification-type keyword was added. •The voice notification-type keyword was added.
11.3(1) MA	The voice notification-type keyword was integrated into the Cisco IOS Release 11.3(1) MA.
12.1(3)T	The calltracker notification-type keyword was added for the Cisco AS5300 and AS5800 platforms.
12.2(2)T	•The vrf vrf-name keyword/argument combination was added. •The ipmobile notification-type keyword was added. •Support for the vsimaster notification-type keyword was added for the Cisco 7200 and Cisco 7500 series.
12.2(4)T	•The pim notification-type keyword was added. •The ipsec notification-type keyword was added.
12.0(17)ST	The mpls-traffic-eng notification-type keyword was added.
12.2(8)T	•The mpls-traffic-eng notification-type keyword was integrated into Cisco IOS Release 12.2(8)T. •The director notification-type keyword was added.
12.0(21)ST	The mpls-vpn and mpls-ldp notification-type keywords were added.
12.0(22)S	The mpls-vpn notification-type keyword was integrated into Cisco IOS Release 12.0(22)T.
12.2(13)T	The mpls-vpn and mpls-ldp notification-type keywords were integrated into Cisco IOS Release 12.2(13)T.
12.2(14)S	This command was integrated into Cisco IOS Release 12.2(14)S.
12.2(15)T	This command was integrated into Cisco IOS Release 12.2(15)T.
12.0(24)S1	This command was integrated into Cisco IOS Release 12.0(24)S1.

Usage Guidelines

SNMP notifications can be sent as traps or inform requests. Traps are unreliable because the receiver does not send acknowledgments when it receives traps. The sender cannot determine if the traps were received. However, an SNMP entity that receives an inform request acknowledges the message with an SNMP response protocol data unit (PDU). If the sender never receives the response, the inform request can be sent again. Thus, informs are more likely to reach their intended destination.

However, informs consume more resources in the agent and in the network. Unlike a trap, which is discarded as soon as it is sent, an inform request must be held in memory until a response is received or the request times out. Also, traps are sent only once, while an inform may be retried several times. The retries increase traffic and contribute to a higher overhead on the network.

If you do not enter an snmp-server host command, no notifications are sent. To configure the router to send SNMP notifications, you must enter at least one snmp-server host command. If you enter the command with no keywords, all trap types are enabled for the host.

To enable multiple hosts, you must issue a separate snmp-server host command for each host. You can specify multiple notification types in the command for each host.

When multiple snmp-server host commands are given for the same host and kind of notification (trap or inform), each succeeding command overwrites the previous command. Only the last snmp-server host command will be in effect. For example, if you enter an snmp-server host informs command for a host and then enter another snmp-server host informs command for the same host, the second command will replace the first.

The snmp-server host command is used in conjunction with the snmp-server enable command. Use the snmp-server enable command to specify which SNMP notifications are sent globally. For a host to receive most notifications, at least one snmp-server enable command and the snmp-server host command for that host must be enabled.

However, some notification types cannot be controlled with the snmp-server enable command. For example, some notification types are always enabled. Other notification types are enabled by a different command. For example, the linkUpDown notifications are controlled by the snmp trap link-status command. These notification types do not require an snmp-server enable command.

The availability of a notification-type option depends on the router type and Cisco IOS software features supported on the router. For example, the envmon notification-type is available only if the environmental monitor is part of the system. To see what notification types are available on your system, use the command help ? at the end of the snmp-server host command.

The vrf keyword allows you to specify the notifications being sent to a specified IP address over a specific VRF. The VRF defines a VPN membership of a customer so data is stored using the VPN.

Regarding Notification Type Keywords

The notification-type keywords used in the snmp-server host command do not always match the keywords used in the corresponding snmp-server enable traps command. For example, the notification keyword applicable to MPLS traffic engineering tunnels is specified as mpls-traffic-eng (containing two dashes and no intervening spaces). The corresponding parameter in the snmp-server enable traps command is specified as mpls traffic-eng (containing an intervening space and a dash).

This syntax difference is necessary to ensure that the CLI interprets the notification type keyword of the snmp-server host command as a unified, single-word construct, which preserves the capability of the snmp-server host command to accept multiple notification-type keywords in the CLI command line. The snmp-server enable traps commands, however, often use two word constructs in order to provide hierarchical configuration options and to maintain consistency with the command syntax of related commands. Table 9 maps snmp-server enable traps commands to the keywords used in the snmp-server host command.

Table 9 Notification Keywords and Corresponding SNMP Enable Traps Commands

snmp enable traps Command	snmp host command Keyword
snmp-server enable traps mpls ldp	mpls-ldp
snmp-server enable traps mpls traffic-eng1	mpls-traffic-eng
snmp-server enable traps mpls vpn	mpls-vpn

1 See the Cisco IOS Switching Services Command Reference for documentation of this command.

Examples

If you want to configure a unique SNMP community string for notifications, but you want to prevent SNMP polling access with this string, the configuration should include an access-list. In the following example, the community string is named comaccess and the access list is numbered 10:

Router(config)# snmp-server community comaccess ro 10

Router(config)# snmp-server host 172.20.2.160 comaccess

Router(config)# access-list 10 deny any

The following example shows how to send RFC 1157 SNMP traps to the host specified by the name myhost.cisco.com. Other traps are enabled, but only SNMP traps are sent because only snmp is specified in the snmp-server host command. The community string is defined as comaccess.

Router(config)# snmp-server enable traps

Router(config)# snmp-server host myhost.cisco.com comaccess snmp

The following example shows how to send SNMP and Cisco environmental monitor enterprise-specific notifications to IP address 172.30.2.160:

Router(config)# snmp-server enable traps

Router(config)# snmp-server host 172.30.2.160 public snmp envmon

The following example shows how to enable the router to send all notifications to the host identified as myhost.cisco.com using the community string public:

Router(config)# snmp-server enable traps

Router(config)# snmp-server host myhost.cisco.com public

In the following example, notifications will not be sent to any host. The BGP notifications are enabled for all hosts, but only the ISDN notifications are enabled for sending to a host.

Router(config)# snmp-server enable traps bgp

Router(config)# snmp-server host bob public isdn

The following example shows how to enable the router to send all inform requests to the host specified as myhost.cisco.com using the community string public:

Router(config)# snmp-server enable traps

Router(config)# snmp-server host myhost.cisco.com informs version 2c public

The following example shows how to send HSRP MIB notifications to the host specified as myhost.cisco.com. The community string is defined as public.

Router(config)# snmp-server enable hsrp

Router(config)# snmp-server host myhost.cisco.com traps version 2c public hsrp

The following example shows how to send all SNMP notifications to xyz.com over the VRF named trap-vrf:

Router(config)# snmp-server host xyz.com vrf trap-vrf

Related Commands

Command	Description
smnp-server enable traps	Enables the sending of SNMP notifications.
snmp-server enable traps mpls vpn	Enables the router to send MPLS VPN specific SNMP notifications (traps and informs).
snmp-server informs	Specifies inform request options.
snmp-server trap-source	Specifies the interface (and hence the corresponding IP address) that an SNMP trap should originate from.
snmp-server trap-timeout	Defines how often to try resending trap messages on the retransmission queue.

Glossary

AS—autonomous system. A collection of networks that share the same routing protocol and that are under the same system administration.

ASN.1—Abstract Syntax Notation One. OSI language for describing data types independent of particular computer structures and representation techniques. Described by ISO International Standard 8824.

BGP—Border Gateway Protocol. The exterior Border Gateway Protocol used to exchange routing information between routers in separate autonomous systems. BGP uses Transmission Control Protocol (TCP). Because TCP is a reliable protocol, BGP does not experience problems with dropped or fragmented data packets.

BGP prefixes—A route announcement using the BGP. A prefix is composed of a path of autonomous system (AS) numbers, indicating which networks the packet must pass through, and the IP block that is being routed. A BGP prefix would look something like: 701 1239 42 206.24.14.0/24. (The /24 part is referred to as a CIDR mask.) The /24 indicates that there are 24 ones in the netmask for this block starting from the left side. A /24 corresponds to the natural mask 255.255.255.0.

CEF—Cisco Express Forwarding. An advanced Layer 3 IP switching technology. CEF optimizes network performance and scalability for networks with large and dynamic traffic patterns.

CE router—customer edge router. A router on the border between a VPN provider and a VPN customer that belongs to the customer.

CIDR—classless interdomain routing. Technique supported by BGP4 and based on route aggregation. CIDR allows routers to group routes together to reduce the quantity of routing information carried by the core routers. With CIDR, several IP networks appear to networks outside the group as a single, larger entity. With CIDR, IP addresses and their subnet masks are written as four octets, separated by periods, followed by a forward slash and a two-digit number that represents the subnet mask.

community—In SNMP, a logical group of managed devices and NMSs in the same administrative domain.

community name—See community string.

community string—Text string that acts as a password and is used to authenticate messages sent between a managed station and a router containing an SNMP agent. The community string is sent in every packet between the manager and the client. Also called a community name.

IETF—Internet Engineering Task Force. Task force consisting of over 80 working groups responsible for developing Internet standards. The IETF operates under the auspices of ISOC. See also ISOC.

informs—A type of notification message that is more reliable than a conventional trap notification message, because the informs message notification requires acknowledgment, and a trap notification does not.

ISOC—Internet Society. International nonprofit organization, founded in 1992, that coordinates the evolution and use of the Internet. In addition, ISOC delegates authority to other groups related to the Internet, such as the IAB. ISOC is headquartered in Reston, Virginia (United States).

label—A short, fixed-length data construct that tells switching nodes how to forward data (packets or cells).

LDP—Label Distribution Protocol. A standard protocol between MPLS-enabled routers that is used for the negotiation of the labels (addresses) used to forward packets.

LFIB—Label Forwarding Information Base. In the Cisco Label Switching system, the data structure for storing information about incoming and outgoing tags (labels) and associated equivalent packets suitable for labeling.

LSR—label switching router. A device that forwards MPLS packets based on the value of a fixed-length label encapsulated in each packet.

MIB—Management Information Base. Database of network management information that is used and maintained by a network management protocol such as SNMP or CMIP. The value of a MIB object can be changed or retrieved using SNMP or CMIP commands, usually through a GUI network management system. MIB objects are organized in a tree structure that includes public (standard) and private (proprietary) branches.

MPLS—Multiprotocol Label Switching. A method for forwarding packets (frames) through a network. It enables routers at the edge of a network to apply labels to packets (frames). ATM switches or existing routers in the network core can switch packets according to the labels with minimal lookup overhead.

MPLS interface—An interface on which MPLS traffic is enabled.

MPLS VPN—Multiprotocol Label Switching Virtual Private Network. An IP network infrastructure delivering private network services over a public infrastructure using a layer 3 backbone. Using MPLS VPNs in a Cisco IOS network provides the capability to deploy and administer scalable Layer 3 VPN backbone services including applications, data hosting network commerce, and telephony services to business customers.

For an MPLS VPN Solution, an MPLS VPN is a set of provider edge routers that are connected by means of a common "backbone" network to supply private IP interconnectivity between two or more customer sites for a given customer. Each VPN has a set of provisioning templates and policies and can span multiple provider administrative domains (PADs).

notification—A message sent by an SNMP agent to a network management station, console, or terminal to indicate that a significant event within Cisco IOS has occurred. See also trap.

NMS—network management system. A powerful, well-equipped computer (typically an engineering workstation) that is used by a network administrator to communicate with other devices in the network. An NMS is typically used to manage network resources, gather statistics, and perform a variety of network administration and configuration tasks.

PE router—provider edge router. A router on the border between a VPN provider and a VPN customer that belongs to the provider.

PPVPN—Provider-Provisioned VPN. The name of the IETF working group that is developing the PPVPN-MPLS-VPN MIB.

QoS—quality of service. Measure of performance for a transmission system that reflects its transmission quality and service availability.

RSVP—Resource Reservation Protocol. Protocol for reserving network resources to provide quality of service guarantees to application flows.

RT—route target. An extended community attribute that identifies a group of routers and, in each router of that group, a subset of forwarding tables maintained by the router that can be populated with a BGP route carrying that extended community attribute. The RT is a 64-bit value by which Cisco IOS discriminates routes for route updates in VRFs.

SNMP—Simple Network Management Protocol. Network management protocol used almost exclusively in TCP/IP networks. SNMP provides a means to monitor and control network devices, and to manage configurations, statistics collection, performance, and security. See also SNMP2.

SNMP2—SNMP Version 2. Version 2 of the popular network management protocol. SNMP2 supports centralized as well as distributed network management strategies, and includes improvements in the Structure of Management Information (SMI), protocol operations, management architecture, and security. See also SNMP.

traffic engineering—The techniques and processes used to cause routed traffic to travel through the network on a path other than the one that would have been chosen if standard routing methods had been used.

trap—A message sent by an SNMP agent to a network management station, console, or terminal, indicating that a significant event occurred. Traps (notifications) are less reliable than inform requests, because the receiver does not send an acknowledgment when it receives a trap. The sender cannot determine if the trap was received. See also notification.

VPN—Virtual Private Network. A group of sites that, as the result of a set of administrative policies, are able to communicate with each other over a shared backbone network. A VPN is a secure IP-based network that shares resources on one or more physical networks. A VPN contains geographically dispersed sites that can communicate securely over a shared backbone. See also MPLS VPN.

VPN ID—A mechanism that identifies a VPN based on RFC 2685. A VPN ID consists of an Organizational Unique Identifier (OUI), a three-octet hex number assigned by the IEEE Registration Authority, and a VPN index, a four-octet hex number, which identifies the VPN within the company.

VRF—VPN routing/forwarding instance. A VRF consists of an IP routing table, a derived forwarding table, a set of interfaces that use the forwarding table, and a set of rules and routing protocols that determine what goes into the forwarding table. In general, a VRF includes the routing information that defines a customer VPN site that is attached to a PE router.

---

Note Refer to the Internetworking Terms and Acronyms for terms not included in this glossary.

---
