FRF2.1 Annex 1
This feature module describes the FRF2.1 Annex 1 feature. It includes information on the benefits of the new feature, supported platforms, related documents and so on.
This document includes the following sections:
•
Monitoring and Maintaining FRF2.1 Annex 1
Feature Overview
The FRF2.1 Annex 1 for Event Driven Procedures feature provides a signalling protocol for permanent virtual circuit (PVC) monitoring at the Network-to-Network Interface (NNI) for a Frame Relay switching network. FRF2.1 Annex 1 generates notification when an event occurs that changes status, and when an event occurs, it generates immediate notification.
FRF2.1 Annex 1 allows for faster notification of PVC status, such as addition, deletion, or availability, in Frame Relay switching networks with multiple switching nodes. The faster notification results in better network management as well as increased PVC scalability per interface because Local Management Interface (LMI) procedures are not needed at each NNI node for each PVC in the network.
FRF2.1 Annex 1 adds event driven procedures to the enterprise Frame Relay network. It enables fast convergence and provides quick responses to any changes within a Frame Relay network.
Benefits
FRF2.1 Annex 1 benefits are as follows:
PVC Status
Faster notification of PVC status for network management purposes.
Scalability
Increased scalability of the number of PVCs on interfaces in a Frame Relay switching network.
Restrictions
The FRF2.1 Annex 1 feature is supported only in the Cisco IOS Release 12.0(S) release train.
Event driven procedures do not provide reliable message exchange between peer Layer 3 entities. The PVC status messages are discarded without detection when Q.933 protocol errors occur. PVC status messages can be lost between the Q.922 and Q.933 entities due to the following types of NNI equipment problems:
•
•
•
Related Features and Technologies
FRF2.1 Annex 1 replaces Q.933 Annex A. FRF2.1 Annex 1 supports polling based, bi-directional Frame Relay NNI PVC management procedures that provide notification when a PVC outage condition occurs and recovers.
Related Documents
•
•
•
•
•
Supported Platforms
•
•
•
Supported Standards
•
Prerequisites
Enabling FRF2.1 Annex 1 Feature
•
•
Configuration Tasks
See the following sections for configuration tasks for the FRF2.1 Annex 1 feature. Each task in the list indicates if the task is optional or required.
•
•
•
Configuring Frame Relay Interface and Switched PVCs
To configure Frame Relay switching using FRF2.1 Annex 1, PVCs must be added to both slot/port configurations. Table 1 provides the first set of commands necessary to begin this configuration task. Table 2 provides the second set of commands necessary to complete the configuration task. "Frame Relay Interface and Switched PVCs configuration" section provides a working example of these commands.
Table 1
Configure Frame Relay Switching, Encapsulation and Switched PVCs on first port
Table 2
Configure Encapsulation and Switched PVCs on second port

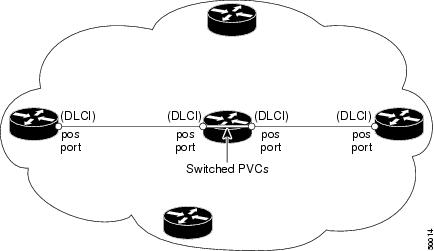

Figure 1 Generic Frame Relay Switched PVC example
Note
Verifying Frame Relay Interface and Switched PVCs
Use any of the following show commands to verify that the Frame Relay and switched PVCs are enabled.
•
•
•
•
Troubleshooting Tips
If you experience difficulty verifying your configuration, check your router and line cards to make sure line cards are properly seated and all other mechanical functions are operating properly. Refer to the configuration that came with your router for troubleshooting details.
If LAPF is down, verify the maximum transmission unit (MTU) size and LAPF n201 size is identical at both ends of the link. Use the following commands to verify this information:
•
•
Configuring Country Code ID
To enable the country code for use in the PVC status message, use the following commands to configure the country code number and type. Country code ID is an optional command.
Verifying Country Code ID
Use the following command to verify that your country code identifier was properly established:
show running interface interface[slot/port]
Configuring Network ID
To enable the network identifier for use in the PVC status message, use the following commands to configure the network identifier. This is an optional command.
Verifying Network ID
Use the following command to verify that your network identifier was properly established:
show running interface interface[slot/port]
Monitoring and Maintaining FRF2.1 Annex 1
Use following show commands to monitor and maintain this feature.
Configuration Examples
This section provides the following configuration examples:
•
•
•
Frame Relay Interface and Switched PVCs configuration
router#config terminalEnter configuration commands, one per line. End with CNTL/Z.router(config)#frame-relay switchingrouter(config)#interface pos3/1router(config-if)#encapsulation frame-relayrouter(config-if)#frame-relay nni-annex1router(config-if)#frame-relay route 500 interface pos3/0 501router(config-if)#exitrouter(config)#interface pos3/0router(config-if)#encapsulation frame-relayrouter(config-if)#frame-relay nni-annex1router(config-if)#frame-relay route 501 interface pos3/1 500router(config-if)#endrouter#008619: 3w4d: %SYS-5-CONFIG_I: Configured from console by consolerouter#show running interface pos3/1Building configuration...Current configuration:!interface POS3/1no ip addressno ip directed-broadcastencapsulation frame-relaycrc 16clock source internalframe-relay intf-type nniframe-relay nni-annex1frame-relay route 21 interface POS3/0 20frame-relay route 100 interface POS5/0 100frame-relay route 230 interface POS5/0 230frame-relay route 500 interface POS3/0 501frame-relay lapf n201 4470endshow frame-relay pvc interface
router#show frame-relay pvc interface pos3/1 100PVC Statistics for interface POS3/1 (Frame Relay NNI)DLCI = 100, DLCI USAGE = SWITCHED, PVC STATUS = INACTIVE, INTERFACE = POS3/1LOCAL PVC STATUS = INACTIVE, NNI PVC STATUS = ACTIVEinput pkts 5 output pkts 5 in bytes 520out bytes 520 dropped pkts 0 in FECN pkts 0in BECN pkts 0 out FECN pkts 0 out BECN pkts 0in DE pkts 0 out DE pkts 0out bcast pkts 0 out bcast bytes 0switched pkts 10Detailed packet drop counters:no out intf 0 out intf down 0 no out PVC 0in PVC down 0 out PVC down 0 pkt too big 0pvc create time 3w4d, last time pvc status changed 1w0dshow frame-relay route
router#show frame-relay routeInput Intf Input Dlci Output Intf Output Dlci StatusPOS3/1 21 POS3/0 20 inactivePOS3/1 100 POS5/0 100 inactivePOS3/1 230 POS5/0 230 inactivePOS3/2 100 POS5/2 100 inactivePOS3/2 230 POS5/2 230 inactivePOS5/0 100 POS3/1 100 inactivePOS5/0 230 POS3/1 230 inactivePOS5/2 100 POS3/2 100 inactivePOS5/2 230 POS3/2 230 inactiveshow frame-relay inactive-reason
router#show frame-relay inactive-reason interface pos3/1 230LAPF released in this network: country 25, network 2112Command Reference
This section documents new commands. All other commands used with this feature are documented in the Cisco IOS Release 12.0(S) command reference publications.
•
frame-relay nni-annex1
To enable FRF2.1 Annex procedures on a Frame Relay encapsulated surface, use the frame-relay nni-annex1 global configuration command. To increase the LAPF packet size on some GSR line cards, use the frame-relay nni-annex1 [padding <number>] command. To disable frame-relay nni-annex1, use the no form of this command.
frame-relay nni-annex1 [padding <number>]
no frame-relay nni-annex1
Syntax Description
Defaults
The default value is number with a value of 10.
Command Modes
Global Interface Configuration
Command History
Usage Guidelines
You can configure the padding size using a value between 3 and 10. Configuring the LAPF packet padding size smaller than the GSR line card will support is not allowed. This hidden keyword and syntax is used only with the GSR product line.
Examples
The following example shows how slot 3/port 0 is configured to pad the LAPF packet out to 7 bytes:
router(config)#interface pos3/0router(config-if)#frame-relay nni-annex1 padding 7router(config-if)#endrouter#show running interface pos3/0Building configuration...Current configuration:!interface POS3/0ip address 2.2.2.2 255.255.255.0no ip directed-broadcastencapsulation frame-relaycrc 32frame-relay intf-type nniframe-relay nni-annex1 padding 7frame-relay route 20 interface POS3/2 20frame-relay route 21 interface POS3/1 21frame-relay route 22 interface POS3/1 22frame-relay lapf n201 4470endRelated Commands
frame-relay country-code
To enter the country code for use in the PVC status message, use the frame-relay country-code number cc type global configuration command. To disable frame-relay country-code, use the no form of this command.
frame-relay country-code number cc type
no frame-relay country-code number cc type
Syntax Description
Defaults
The default value is number with a value of 0.
The default value is cc type with a value of 0.
Command Modes
Global Interface Configuration
Command History
Usage Guidelines
Use this command when a country code is required in PVC status messages.
When you assign the cc type, use 0 (E.164) for country code type and 1 (X.121) for data country code type.
Examples
The following example shows a country code with a value of 75 and country code type value 0:
router#config terminalEnter configuration commands, one per line. End with CNTL/Z.router(config)#interface pos3/1router(config-if)#frame-relay country-code 75 0router(config-if)#endrouter#show running interface pos3/1Building configuration...Current configuration:!interface POS3/1no ip addressno ip directed-broadcastencapsulation frame-relaycrc 16clock source internalframe-relay intf-type nniframe-relay nni-annex1frame-relay network-id 2112frame-relay country-code 75 0frame-relay route 21 interface POS3/0 20frame-relay route 100 interface POS5/0 100frame-relay route 230 interface POS5/0 230frame-relay lapf n201 4470endRelated Commands
frame-relay network-id
National network identifier for use in PVC message status.
frame-relay network-id
To enter a National Network identifier code for use in the PVC status message, use the frame-relay network-id number global configuration command. To disable frame-relay network-id, use the no form of this command.
frame-relay network-id number
no frame-relay network-id number
Syntax Description
Defaults
The default value is number with value of 0.
Command Modes
Global Interface Configuration
Command History
Usage Guidelines
The network identifier is determined by the user.
Examples
The following example shows the network identifier configured to a value of 2112:
router#config terminalEnter configuration commands, one per line. End with CNTL/Z.router(config)#interface pos3/1router(config-if)#frame-relay network-id 2112router(config-if)#endrouter#008617: 3w4d: %SYS-5-CONFIG_I: Configured from console by consolerouter#show running interface pos3/1Building configuration...Current configuration:!interface POS3/1no ip addressno ip directed-broadcastencapsulation frame-relaycrc 16clock source internalframe-relay intf-type nniframe-relay nni-annex1frame-relay network-id 2112frame-relay country-code 75 0frame-relay route 21 interface POS3/0 20frame-relay route 100 interface POS5/0 100frame-relay route 230 interface POS5/0 230frame-relay lapf n201 4470endRelated Commands
show frame-relay inactive-reason
To display the inactive reason on a particular PVC configured interface, use the show frame-relay inactive-reason interface[slot/port] dlci global configuration command.
show frame-relay inactive-reason interface interface[slot/port] dlci
Syntax Description
interface
Keyword for interface.
interface
Type of interface connection.
slot
Line card slot number.
port
Line card port number.
dlci
Frame Relay PVC dlci number assigned a value from 16 to 1007.
Defaults
No default behavior or values.
Command Modes
EXEC command
Command History
Usage Guidelines
This command is applicable only to inactive PVCs.
Examples
The following example shows the inactive reason on slot3/port 1:
router#show frame-relay inactive-reason interface pos3/1 230LAPF released in this network: country 0, network 0router#show running interface pos3/1Building configuration...Current configuration:!interface POS3/1no ip addressno ip directed-broadcastencapsulation frame-relaycrc 16clock source internalframe-relay intf-type nniframe-relay nni-annex1frame-relay route 22 interface POS3/0 22frame-relay route 100 interface POS5/0 100frame-relay route 230 interface POS5/0 230frame-relay lapf n201 4470endRelated Commands
Debug Commands
This section documents new debug commands. All other commands used with this feature are documented in the Cisco IOS Release 12.0(S) command reference publications.
•
•
debug frame-relay nni-extended event interface
To display debug messages for Frame Relay PVC NNI events, use the debug frame-relay nni event interface interface[slot/port] dlci EXEC command. To disable debug frame-relay nni event interface, use the no form of this command.
debug frame-relay nni event interface interface[slot/port] dlci
no debug frame-relay nni event interface interface [slot/port] dlci
Syntax Description
interface
keyword for interface
interface
Type of interface connection
slot
Line card slot number
port
Line card port number
dlci
Frame Relay PVC dlci number
Defaults
No default behavior or values.
Command History
Examples
The following example shows frame-relay event debugging on slot3/port 1:
router#debug frame-relay nni-extended event interface pos3/1 230Frame Relay NNI Extended event debugging is onDisplay FR nni extended-switching event debug on interface POS3/1 dlci 230Related Commands
frame-relay nni-annex1
Enables FRF2.1 Annex 1 procedures on a Frame Relay encapsulated surface.
debug frame-relay nni-extended packet interface
To display debug messages for Frame Relay PVC status messages, use the debug frame-relay nni packet interface interface[slot/port] dlci EXEC command. To disable debug frame-relay nni packet interface, use the no form of this command
debug frame-relay nni packet interface interface[slot/port] dlci
no command debug frame-relay nni packet interface interface[slot/port] dlci
Syntax Description
interface
keyword for interface
interface
Type of interface connection
slot
Line card slot number
port
Line card port number
dlci
Frame Relay PVC number
Defaults
No default behavior or values.
Command History
Examples
The following example shows frame-relay packet debugging on slot3/port 1:
router#debug frame-relay nni-extended packet interface pos3/1 230Frame Relay NNI Extended packet debugging is onDisplay FR nni extended-switching packet debug on interface POS3/1 dlci 230Related Commands
frame-relay nni-annex1
Enables FRF2.1 Annex 1 procedures on a Frame Relay encapsulated surface.
Glossary
Data Link Connection Identifier (DLCI)—A unique number assigned to a PVC end point in a frame relay network. Identifies a particular PVC endpoint within a user's access channel in a frame relay network and has local significance only to that channel.
Encapsulation—A process by which an interface device places an end device's protocol-specific frames inside a frame relay frame. The network accepts only frames formatted specifically for frame relay; hence, interface devices acting as interfaces to an frame relay network must perform encapsulation. See also Interface device or Frame-Relay-Capable Interface Device.
Internet Operating System (IOS)—Cisco system software that provides common functionality, scalability, and security for all products under the CiscoFusion architecture. Cisco IOS allows centralized, integrated, and automated installation and management of internetworks, while ensuring support for a wide variety of protocols, media, services, and platforms.
Link Access Protocol for Frame bearer services (LAPF)—LAPF is used to convey data link service data units between DL-service users in the U-plane for frame mode bearer services across the user-network interface.
Local Management Interface (LMI)—Set of enhancements to the basic Frame Relay specifications.
maximum transmission unit (MTU)—Maximum packet size, in bytes, that a particular interface can handle.
Network-to-Network Interface (NNI)—Frame Relay standard that defines the interface between two Frame Relay switches that are both located in a private network or are both located in a public network. The interface between a public switch and private one is defined by the UNI standard.
permanent virtual circuit (PVC)—A frame relay logical link, whose endpoints and class of service are defined by network management. Analogous to an X.25 permanent virtual circuit, a PVC consists of the originating frame relay network element address, originating data link control identifier, terminating frame relay network element address, and termination data link control identifier. Originating refers to the access interface from which the PVC is initiated. Terminating refers to the access interface at which the PVC stops. Many data network customers require a PVC between two points. Data terminating equipment with a need for continuous communication use PVCs. See also Data Link Connection Identifier (DLCI)
