Configuring Voice over Frame Relay for the Cisco MC3810
This chapter shows you how to configure Voice over Frame Relay on the Cisco MC3810 concentrator. For a description of the commands used to configure Voice over Frame Relay, refer to the "Voice-Related Commands" chapter in the Voice, Video, and Home Applications Command Reference.
Voice over Frame Relay enables a Cisco MC3810 concentrator to carry voice traffic (for example, telephone calls and faxes) over a Frame Relay network. Voice over Frame Relay on the Cisco MC3810 is supported on serial ports 0 and 1, as well as on the T1/E1 trunk.
Note
The Cisco MC3810 does not support Frame Relay switched virtual circuits (SVCs).
This chapter describes the commands to specifically configure Voice over Frame Relay on the Cisco MC3810. It is assumed you have already configured your Frame Relay backbone network. As part of your Frame Relay configuration, you need to configure the map class, and the Local Management Interface (LMI) among other Frame Relay functionality. For more information about Frame Relay configuration, see the Wide-Area Networking Configuration Guide.
List of Terms
Call leg—A logical connection between the router and either a telephony endpoint over a bearer channel, or another endpoint using a session protocol.
CIR—Committed information Rate. The average rate of information transfer a subscriber (for example, the network administrator) has stipulated for a Frame Relay PVC.
CODEC—coder-decoder. Device that typically uses pulse code modulation to transform analog signals into a digital bit stream and digital signals back into analog signals. In Voice over IP, it specifies the voice coder rate of speech for a dial peer.
DCE—Data communications equipment.
DLCI—Data-link connection identifier.
Dial peer—An addressable call endpoint. In Voice over IP, there are two kinds of dial peers: POTS and VoIP.
DS0—A 64-K B-channel on an E1 or T1 WAN interface.
DTE—Data terminal equipment.
DTMF—Dual tone multifrequency. Use of two simultaneous voice-band tones for dial (such as touch tone).
E&M—E&M stands for recEive and transMit (or Ear and Mouth). E&M is a trunking arrangement generally used for two-way switch-to-switch or switch-to-network connections. Cisco's E&M interface is an RJ-48 connector that allows connections to PBX trunk lines (tie lines).
FXO—Foreign Exchange Office. An FXO interface connects to the PSTN's central office and is the interface offered on a standard telephone. Cisco's FXO interface is an RJ-11 connector that allows an analog connection to be directed at the PSTN's central office. This interface is of value for off-premise extension applications.
FXS—Foreign Exchange Station. An FXS interface connects directly to a standard telephone and supplies ring, voltage, and dial tone. Cisco's FXS interface is an RJ-11 connector that allows connections to basic telephone service equipment, keysets, and PBXs.
PBX—Private Branch Exchange. Privately owned central switching office.
PLAR—Private Line Auto Ringdown. This type of service results in a call attempt to some particular remote endpoint when the local extension is taken off-key.
POTS—Plain Old Telephone Service. Basic telephone service supplying standard single line telephones, telephone lines, and access to the public switched telephone network.
POTS dial peer—Dial peer connected via a traditional telephony network. POTS peers point to a particular voice port on a voice network device.
PSTN—Public Switched Telephone Network. PSTN refers to the local telephone company.
PVC—Permanent virtual circuit.
Trunk—Service that allows quasi-transparent connections between two PBXs, a PBX and a local extension, or some other combination of telephony interfaces to be permanently conferenced together by the session application and signaling passed transparently through the IP network.
UIO—Universal I/O serial port (Cisco MC3810)
VoFR dial peer—Dial peer connected via a Frame Relay network. VoFR peers point to specific VoFR devices.
Prerequisites Tasks
Before you can configure your Cisco MC3810 concentrator to use Voice over Frame Relay, you must first:
•
•
•
•
•
•
After you have analyzed your dial plan and decided how to integrate it into your existing Frame Relay network, you are ready to configure your network devices to support Voice over Frame Relay.
Voice over Frame Relay Configuration Task List
To configure Voice over Frame Relay, you need to perform the following tasks:
1
You must configure your Frame Relay network to support real-time voice traffic before you configure Voice over Frame Relay. The preliminary tasks include the following:
(a)
(b)
2
Although not mandatory, there are some preliminary tasks you can complete to make dial peer configuration easier. They include:
(a)
(b)
Configure dial peers. Each dial peer defines the characteristics associated with a call leg. A call leg is a discrete segment of a call connection that lies between two points in the connection. An end-to-end call is comprised of four call legs, two from the perspective of the source access server, and two from the perspective of the destination access server. Dial peers are used to apply attributes to call legs and to identify call origin and destination.
There are two different kinds of dial peers:
(a)
(b)
As part of the dial-peer configuration, you can configure forward digits and configure the preference level of a dial peer to support hunt groups. When planning your dial plan, consider using hunt groups to hunt for dial peers. For more information about configuring these dial peer parameters, refer to the "Advanced Dial Peer Configuration" section.
4
Configure your Cisco MC3810 concentrator to support voice ports. In general, voice-port commands define the characteristics associated with a particular voice-port signaling type. Voice ports on the Cisco MC3810 support three basic voice signaling types:
(a)
(b)
(c)
Under most circumstances, the default voice-port command values are adequate to configure FXO and FXS ports to transport voice data over your existing IP network. Because of the inherent complexities involved with PBX networks, E&M ports might need specific voice-port values configured, depending on the specifications of the devices in your telephony network. For more information about configuring voice ports, refer to the "Configuring Voice Port" chapter.
Configure Frame Relay Network to Support Real-Time Voice Traffic
This section describes the preliminary Frame Relay configuration tasks necessary to support Voice over Frame Relay. This section is divided into three procedures:
•
•
•
You can perform any of the procedures, depending on your application.
Configure a Frame Relay Map Class for a Group of DLCIs
Before configuring a Frame Relay data-link connection identifier (DLCI) for voice traffic, you can configure a Frame Relay map class to assign traffic shaping properties to a group of DLCIs. If you have a large number of permanent virtual circuits (PVCs) to configure, you can assign the PVCs the same traffic shaping properties without statically defining the values for each PVC.
Configuring a Frame Relay map class is optional. You can create multiple map classes, with different variables for each map class. If you want to skip this task, proceed to the next section.
Note
To configure a Frame Relay map class for a group of DLCIs, use the following commands beginning in configuration mode:
Configure a Frame Relay DLCI for Voice Traffic
When configuring a Frame Relay PVC to support voice traffic, you must ensure that the carrier can accommodate the traffic rate or profile transmitted on the PVC. If too much traffic is sent at once, the carrier may discard frames, which causes disruptions to real-time voice traffic. Or, the carrier may deal with traffic bursts by queuing up the bursts and delivering them at a metered rate. Excessive queuing also causes disruption to real-time voice traffic.
To compensate for this, it is recommended that you configure Frame Relay traffic shaping, and that you configure the traffic profile parameters specified with the map class. For more information on configuring the map class, see the previous section.
To configure a Frame Relay DLCI to support voice traffic, use the following commands beginning in configuration mode:
If the serial interface was configured for multipoint operation, repeat Steps 10 through 12 for each subinterface.
Table 7 Recommended Data Segmentation Sizes
64 kbps
80 bytes
128 kbps
160 bytes
256 kbps
320 bytes
512 kbps
640 bytes
1536 kbps (full T1)
1600 bytes
2048 kbps (full E1)
1600 bytes
1 The data segmentation size is based on back-to-back Frame Relay. If sending traffic through an IGX with standard Frame Relay, subtract 6 bytes from the recommended data segmentation size.
Note
When configuring Voice over Frame Relay in back-to-back hard-wired configurations, make sure one side of the voice connection is configured as DCE and the other side is configured as DTE. The Voice over Frame Relay configuration must be performed on the Cisco MC3810 concentrators on both sides of the voice connection.
Configure Switched Frame Relay for Voice Traffic
To configure switched Frame Relay to support voice traffic, use the following command in configuration mode:
Note
Prepare to Configure Voice Dial Peers
After you have analyzed your dial plan and decided how to integrate it into your existing network, you are ready to configure your network devices to support Voice over Frame Relay. The actual configuration procedure depends entirely upon the topology of your voice network, but, in general, you need to complete the following steps:
•
•
Timesaver
If possible, you might want to configure the Frame Relay dial peers in a back-to-back configuration before separating them across the Frame Relay network. Using a back-to-back configuration, you can test your Voice over Frame Relay and dial-peer configuration to see if you can successfully make a voice connection. Then, when you place both peers on the network, if you cannot make a voice connection, you can isolate the cause as a network problem. For an example of a back-to-back Voice over Frame Relay configuration, see the "Voice over Frame Relay Configuration Examples" section.
Organize Voice Network Information
After you have configured your Frame Relay network, you should collect all of the data directly related to each dial peer by creating a peer configuration table to prepare for configuring Voice over Frame Relay.
Create a Peer Configuration Table
There is specific information relative to each dial peer that needs to be identified before you can configure Voice over Frame Relay. One way to do this is to create a peer configuration table.
shows a diagram of a small voice network in which Router 1 connects a small sales branch office to the main office through Router 2. There are only two devices in the sales branch office that need to be established as dial peers: a basic telephone and a fax machine. Router 2 is the primary gateway to the main office; as such, it needs to be connected to the company's private branch exchange (PBX). There are two basic telephones and one fax machine connected to the PBX that need to be established as dial peers in the main office.
shows the peer configuration table for the example illustrated in .
Figure 15 Sample Voice over Frame Relay Network
Table 8
Peer Configuration Table for Sample Voice over Frame Relay Network
The dial plan shown in lists a simple dial-peer configuration table, with no special configuration for how you forward or playout excess digits. For more information on other options for designing your dial plan and configuring your dial peers to connect with PBXs, see the "Advanced Dial Peer Configuration" section.
Configure Dial Peers
Dial peers describe the entities to and/or from which a call is established. Dial-peer configuration tasks define the address or set of addresses serviced by that dial peer and the call parameters required to establish a call to and/or from that dial peer.
There are two different kinds of dial peers:
•
•
POTS peers associate a telephone number with a particular voice port so that incoming calls for that port can be received. Voice over Frame Relay peers point to specific voice-network devices (by associating destination telephone numbers with a specific Frame Relay DLCI) so that outgoing calls can be placed. Both POTS and Voice over Frame Relay dial peers are needed to establish Voice over Frame Relay connections if you want to both send and receive calls.
For tandem voice nodes, POTS dial peers are not required.
Establishing two-way communication using Voice over Frame Relay requires establishing a specific voice connection between two defined endpoints. As shown in , for outgoing calls (from the perspective of the voice-telephony dial peer 1), the voice-telephony dial peer establishes the source (the originating telephone number and voice port) of the call. The voice-network dial peer establishes the destination by associating the destination phone number with a specific Frame Relay DLCI.
Figure 16 Outgoing Calls from the Perspective of Cisco MC3810 No. 1
In the example, the destination pattern 14085554000 string maps to a U.S. phone number 555-4000, with the digit 1 plus the area code (408) preceding the number. When configuring the destination pattern, set the dial string to match the local dial conventions.
To complete the two-way communications loop, you need to configure VoFR dial peer 4 as shown in .
Figure 17 Outgoing Calls from the Perspective of Cisco MC3810 No. 2
The only exception to this is when both POTS dial peers are connected to the same concentrator, as shown in . In this circumstance, you would not need to configure a Voice over Frame Relay dial peer.
Figure 18 Communication between Dial Peers Sharing the Same Concentrator
When configuring dial peers, you need to understand the relationship between the destination pattern and the session target. The destination pattern is the telephone number of the voice device attached to the voice port. The session target represents the route to a serial port on the peer Cisco MC3810 at the other end of the Frame Relay connection. and show the relationship between the destination pattern and the session target, as seen from the perspective of both Cisco MC3810 concentrators in a Voice over Frame Relay configuration.

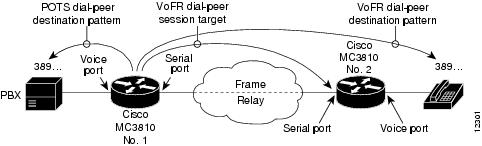

Figure 19 Relationship between Destination Pattern and Session Target From the Perspective of Cisco MC3810 No. 1
Figure 20 Relationship between Destination Pattern and Session Target From the Perspective of Cisco MC3810 No. 2
Configure POTS Dial Peers
To configure a POTS dial peer, you need to uniquely identify the peer (by assigning it a unique tag number), define its telephone number, and associate it with a voice port through which calls will be established. Under most circumstances, the default values for the remaining dial-peer configuration commands are sufficient to establish connections.
To configure POTS dial peers, use the following commands beginning in configuration mode:
1
dial-peer voice tag pots
Define a POTS peer and enter dial-peer configuration mode. All subsequent commands that you enter in dial-peer voice mode before you exit will apply to this dial peer.
The tag value identifies the dial peer and must be unique on the Cisco MC3810. Do not duplicate a specific tag number.
2
destination-pattern string
Configure the dial peer's destination pattern.
The string is a series of digits that specify the E.164 or private dialing plan telephone number. Valid entries are the digits 0 through 9 and the letters A through D. The following special characters can be entered in the string:
•
•
•
•
3
port slot/port
Associate this voice-telephony dial peer with a specific logical dial interface. Enter the slot/port number of the voice port connected to the POTS dial peer.
4
forward-digits {num-digit | all}
(Optional) If using the forward-digits feature, configure the digit-forwarding method that will be used on the dial peer.
5
prefix string
(Optional) If the forward-digits feature was not configured in the last step, assign the dialed digits prefix for the dial peer.
6
preference value
(Optional) Configure a preference for the POTS dial peer. The value is a number from 0 to 10 where the lower the number, the higher the preference. If POTS and voice network (VoFR) peers are mixed in the same hunt group, POTS dial peers will be searched first, even if a voice-network peer has a higher preference number.
For more information about hunt groups and preferences, see the "Hunt Groups and Preference Configuration" section.
To configure additional POTS dial peers, exit dial-peer configuration mode by entering exit, and repeat the previous steps.
Configure Voice over Frame Relay Dial Peers
To configure a Voice over Frame Relay dial peer, you need to uniquely identify the peer (by assigning it a unique tag number), define the outgoing serial port number and the virtual circuit number.
To configure Voice over Frame Relay dial peers, use the following commands beginning in configuration mode:
1
dial-peer voice tag vofr
Define a Voice over Frame Relay dial peer and enter dial-peer configuration mode. All subsequent commands that you enter in dial-peer voice mode before you exit will apply to this dial peer.
The tag value identifies the dial peer and must be unique on the Cisco MC3810. Do not duplicate a specific tag number.
2
destination-pattern string
Configure the dial peer's destination pattern. The same restrictions for the string listed in the POTS dial-peer configuration also apply to the VoFR destination-pattern.
3
session target interface Serial interface dlci
Configure the Frame Relay session target for the dial peer.
4
preference value
(Optional) Configure a preference for the Voice over Frame Relay dial peer. The value is a number from 0 to 10 where the lower the number, the higher the preference.
For more information about hunt groups and preferences, see the "Hunt Groups and Preference Configuration" section.
5
alt-dial string
(Optional) Configure the alternate dial-out string when configuring on-net-to-off-net alternative dialing.
To configure additional Voice over Frame Relay dial peers, exit dial-peer configuration mode by entering exit, and repeat the previous steps.
Note
Depending on your configuration, you may need to consider how to configure voice networks with excess digit playout, forward digits and default voice routes, or use hunt groups with dial-peer preferences. For more information on these topics, see the "Advanced Dial Peer Configuration" section.
Validation Tips
Verify that the voice connection is working by doing the following:
•
•
You can check the validity of your dial peer and voice-port configuration by performing the following steps:
•
•
•
•
Troubleshooting Tips
If you are having trouble connecting a call, you can try to resolve the problem by performing the following tasks:
•
•
•
Advanced Dial Peer Configuration
Depending on the configuration, you may need to consider different strategies for how you configure the dial plan, and how you configure the dial peers. This section describes the following topics regarding dial peer configuration that you may need to consider:
•
•
Note
Excess Digits Playout
Excess digits are defined as received digits that are beyond the length of the destination pattern on a terminating router. A terminating router will forward excess digits to the telephony interface. For example, if the digits "123456789" are matched on a terminating router with a destination pattern of "1.....," the "6789" are excess digits and will be forwarded.
A router that is originating a call will only collect digits up to the length of a defined destination pattern. When a number is dialed that is longer than the destination pattern, after the last digit in the destination pattern is dialed, the call is immediately placed, and the additional digits are not collected by the Cisco MC3810.
For example, if the digits "123456789" are dialed on an originating Cisco MC3810 with a destination pattern of 1...., then "6789" are not collected. The call is placed immediately after the digit "5" is dialed. The additional digits "6789" are not collected, but are passed through the audio path.
In configurations where a phone on an FXS port on the Cisco MC3810 is connected to the PSTN through an FXO port on the same Cisco MC3810, additional steps are necessary to enable a call to go through. Because the uncollected excess digits are passed through the audio path, the excess digits might not go through if the audio path isn't ready when the excess digit is dialed. When dialing a destination pattern in this situation, pause and wait for a second dial tone before dialing the excess digits. This will give the audio path time to accept the excess digits.
Forward Digits and Voice Default Routes
Voice default routing for fixed-length dial plans can be used with larger PBX configurations to forward digits to Cisco MC3810 telephony interfaces.
shows an example of routing voice calls through a PBX using forward digits. In the configuration, the Cisco MC3810-t and Cisco MC3810-T are tandem nodes, and are required to support forwarding digits so that calls from Cisco MC3810s 0, 5, or 9 can make a call to extension "8208."

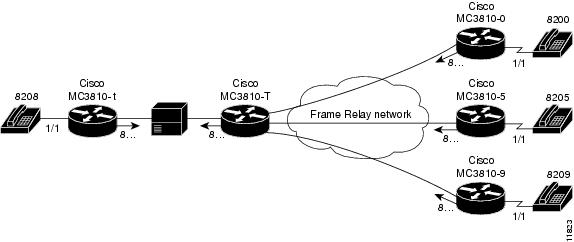

Figure 21 Routing Voice Calls Among Cisco MC3810s Through a PBX
On the two tandem nodes, the forward-digits command is required. This command specifies to forward all digits matched with the destination "8..." to the appropriate port. For a call from Cisco MC3810-0 to reach extension 8208, the call must first terminate at Cisco MC3810-T, which plays out the digits "8208" to the voice port connected to the PBX. The PBX then routes the voice call to Cisco MC3810-t. On the tandem nodes, although the forward-digits all command is used, the forward-digits 4 command can also be used in this example.
The following are the dial-peer configurations on each Cisco MC3810 required for this configuration:
For Cisco MC3810-t:
dial-peer voice 8 pots destination-pattern 8208 session-target s0 1dial-peer voice 1000 pots destination-pattern 8... forward-digits all port 1/1dial-peer voice 9999 pots destination-pattern .... forward-digits all port 1/1For Cisco MC3810-T:
dial-peer voice 1 vofr destination-pattern 8200 session-target s0 1dial-peer voice 6 vofr destination-pattern 8209 session-target s0 6dial-peer voice 10 vofr destination-pattern 8209 session-target s0 10dial-peer voice 1 pots destination-pattern 8... forward-digits all port 1/1For Cisco MC3810-0:
dial-peer voice 1 pots destination-pattern 8200 port 1/1dial-peer voice 1000 vofr destination-pattern8... session-target s0 1For Cisco MC3810-5:dial-peer voice 5 pots destination-pattern 8205 port 1/1dial-peer voice 1000 vofr destination-pattern 8... session-target s0-1For Cisco MC3810-9:
dial-peer voice 9 pots destination-pattern 8209 port 1/1dial-peer voice 1000 vofr destination-pattern 8... session-target s0 1The concept of voice default routes is also shown in and in the configuration. In the example, the configurations for the destination dial plans "8..." in both the tandem nodes are voice default routes because all voice calls dialed that start with 8 followed by three digits will either match on 8208 or end up with 8...., which is the last resort voice route used by Cisco MC3810-t if no other route is discovered.
Hunt Groups and Preference Configuration
When configuring the destination pattern for voice-telephony dial peers (such as to a PBX), if you configure each dial peer with a different destination pattern, then you may have limitations on the availability of calls getting through. This is because when you configure each dial peer with a different destination pattern, the destination is a single DS0 timeslot on the voice connection to the PBX. If that timeslot gets busy, then a call attempt to the dial peer mapped to that specific DS0 timeslot will fail.
For example, in the following dial-peer configuration, there are four POTS dial peers configured, all with a different destination pattern on the same PBX:
dial-peer voice 1 pots destination-pattern 3001 port 1/1dial-peer voice 2 pots destination-pattern 3002 port 1/2dial-peer voice 3 pots destination-pattern 3003 port 1/3dial-peer voice 4 pots destination-pattern 3004 port 1/4Because each dial peer has a different destination pattern configured, there is no backup available if the DS0 timeslot mapped to the dial peer is busy with another call.
However, the Cisco MC3810 supports the concept of hunt groups, in which you configure a group of dial peers on the same PBX with the same destination pattern. With a hunt group, if a call attempt is made to a dial peer on a specific DS0 timeslot, if that timeslot is busy, the Cisco MC3810 hunts for another timeslot on that channel until an available timeslot is found. In this case, each dial peer is configured using the same destination pattern of 3000, forming a dial pool to that destination pattern.
To provide specific dial peers in the pool with a preference over other dial peers, you can configure the preference order for each dial peer using the preference command. The following is an example of the dial-peer configuration with all dial peers having the same destination pattern, but different preference orders:
dial-peer voice 1 pots destination pattern 3000 port 1/1 preference 0dial-peer voice 2 pots destination pattern 3000 port 1/2 preference 1dial-peer voice 3 pots destination pattern 3000 port 1/3 preference 2dial-peer voice 4 pots destination pattern 3000 port 1/4 preference 3Note that when setting the preference order, the lower the preference number, the higher the priority. The highest priority is given to the dial peer with preference order 0.
You can also set the preference order on the network side, for voice network dial peers. However, you cannot mix the preference orders for POTS dial peers (local telephone devices) and voice-network peers (devices across the WAN backbone). You can set a separate preference order for each dial-peer type, but the preference order will not work on both at the same time. For example, you can configure preference order 0, 1, and 2 for voice telephony dial peers, and you can configure a separate preference order 0, 1, and 2 for the voice network dial peers, but the two preference orders are separate. The system only resolves the preference among dial peers of the same type; it does not resolve preferences between the two separate preference order lists.
The hunt group feature hunts for dial peers in the following order:
1
2
3
4
Note
Variable Length Dial Plans
In most voice configurations, fixed-length dialing plans, in which all the dial-peer destination patterns have the same length, are sufficient because the telephone number strings are all the same length. However, in some voice network configuration, variable length dial plans are required, especially if the network crosses country boundaries and the telephone number strings are of different lengths.
By entering the "T" timer character in the destination pattern, the Cisco MC3810 can be configured to accept a fixed-length dial string, and then wait for additional dialed digits. For example, the following dial-peer configuration shows how the T character can be set to allow variable length dial strings.
dial peer voice 1 potsdestination-pattern 2222Tport 1/1In this example, the Cisco MC3810 accepts the digits 2222, and then waits for an unspecified number of dialed digits. If digits continue to be entered before the inter-digit timeout expires, then the Cisco MC3810 will gather up to 31 additional digits. Once the inter-digit timeout expires, the Cisco MC3810 places the call. The inter-digit timeout is set by the timeouts inter-digit voice-port command.
The inter-digit timeout timer can be immediately terminated by entering the "#" digit. If the # character is entered while the Cisco MC3810 is waiting for the additional digits, the # character is treated as an end-dial accelerator. The # character is not treated as an actual digit in the destination pattern and is not sent as part of the dialed string across the network.
However, if the # character is entered before the Cisco MC3810 is waiting for the additional digits (meaning before the "T" character is entered in the destination pattern)< then the # character is treated as a dialed digit. For example, if a destination pattern is configured with the string 222...T, then the digits 2222####1234567 can be gathered, but the digits 2222###1234#67 cannot be gathered because the final # character is treated as a terminator.
The default value for the interdigit timeout is 1- seconds. If the duration is not changed, using the "T" timer adds 10 seconds to each call setup time because the call is not attempted until the timer expires (unless the # character is used as a terminator). Because of this dependency, if using variable length dial plans, the voice-port interdigit timeout should be reduced to reduce the call setup time.
Voice over Frame Relay Configuration Examples
This section provides the following Voice over Frame Relay configuration examples:
•
•
Back-to-Back Voice over Frame Relay Configuration
shows a configuration example for two Cisco MC3810 concentrators configured back-to-back, with Voice over Frame Relay configured for both concentrators. This setup is useful to test your Voice over Frame Relay configuration locally to make sure voice connections can be made locally before configuring Voice over Frame Relay across a larger network. Following the figure are the commands required to configure the Cisco MC3810 concentrators in this example.
Note

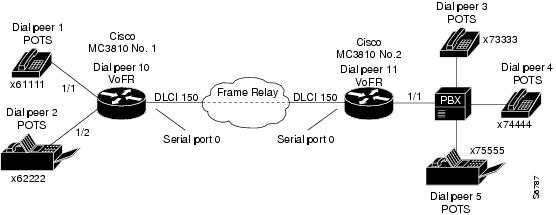

Figure 22 Back-to-Back Voice over Frame Relay Configuration
Configuration for Cisco MC3810 No. 1
no service padno service udp-small-serversno service tcp-small-servershostname Frame-topframe-relay switchinginterface Ethernet0ip address 10.1.10.1 255.0.0.0interface Serial0 point-to-pointip address 12.0.0.3 255.0.0.0encapsulation frame-relayno fair-queueclock rate network-clock 2000000dce terminal-timing enableframe-relay class fr1frame-relay map ip 12.0.0.1 231 broadcastframe-relay interface-dlci 231 voice-encap 1600frame-relay intf-type dcemap-class frame-relay fr1frame-relay adaptive-shaping becnframe-relay cir 64000frame-relay bc 1000router ripredistribute connectednetwork 12.0.0.0voice-port 1/1dial-peer voice 1 potsdestination-pattern 10port 1/1dial-peer voice 101 vofrdestination-pattern 2.session target Serial0 231endConfiguration for Cisco MC3810 No. 2
interface Ethernet0ip address 10.1.20.1 255.0.0.0router ripredistribute connectednetwork 12.0.0.0interface Serial0 point-to-pointip address 12.0.0.1 255.0.0.0encapsulation frame-relaybandwidth 2000000frame-relay class fr1frame-relay map ip 12.0.0.3 231 broadcastframe-relay interface-dlci 231 voice-encap 1600map-class frame-relay fr1frame-relay adaptive-shaping becnframe-relay cir 64000frame-relay bc 1000voice-port 1/1dial-peer voice 1 potsdestination-pattern 20port 1/1dial-peer voice 101 vofrdestination-pattern 1.session target Serial0 231endVoice over Frame Relay Network Configuration
The following is a configuration example for a Voice over Frame Relay network, including configuration for voice ports and dial peers. shows the configuration for one Cisco MC3810 at a central site connected to two Cisco MC3810 concentrators at different remote sites across a Frame Relay network. Following the figure are the commands required to configure the Cisco MC3810 concentrators in this example.

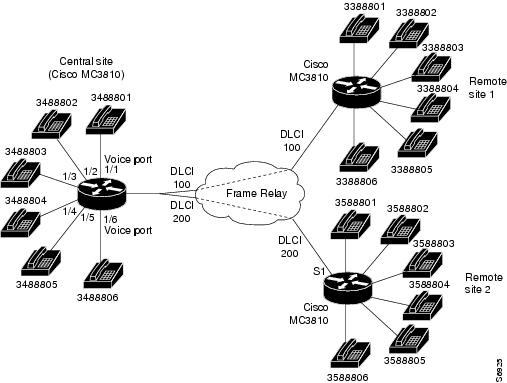

Figure 23 Voice over Frame Relay Network Configuration
Configuration for Central Site Cisco MC3810
The following is the configuration for the central site Cisco MC3810 concentrator:
hostname centralcontroller T1 0framing esflinecode b8zschannel-group 1 timeslots 1-24 speed 64interface Ethernet0ip address 172.22.124.66 255.255.255.0interface Serial 0:1 multipointip address 223.223.224.229 255.255.255.0encapsulation frame-relayno fair-queueframe-relay traffic-shapingframe-relay interface-dlci 100 voice-encap 80class fr1frame-relay interface-dlci 200 voice-encap 160class fr2router igrp 1network 172.22.0.0network 223.223.224.0no ip classlessmap-class frame-relay fr1frame-relay adaptive-shaping becnframe-relay cir 64000frame-relay bc 1000map-class frame-relay fr2frame-relay adaptive-shaping becnframe-relay cir 128000frame-relay bc 1000line con 0exec-timeout 0 0line aux 0line vty 0voice-port 1/1voice-port 1/2voice-port 1/3voice-port 1/4voice-port 1/5voice-port 1/6dial-peer voice 1 potsdestination-pattern 3488801port 1/1dial-peer voice 2 potsdestination-pattern 3488802port 1/2dial-peer voice 3 potsdestination-pattern 3488803port 1/3dial-peer voice 4 potsdestination-pattern 3488804port 1/4dial-peer voice 5 potsdestination-pattern 3488805port 1/5dial-peer voice 6 potsdestination-pattern 3488806port 1/6dial-peer voice 338 vofrdestination-pattern 338....session target Serial0:1 100dial-peer voice 358 vofrdestination-pattern 358....session target Serial0:1 200endConfiguration for Remote Site 1 Cisco MC3810
The following is the configuration for the Cisco MC3810 concentrator at Remote Site 1:
hostname remote1controller T1 0framing esflinecode b8zschannel-group 2 timeslots 1 speed 64interface Ethernet0ip address 172.22.125.66 255.255.255.0interface Serial 0:2 multipointip address 223.223.224.227 255.255.255.0encapsulation frame-relayno fair-queueframe-relay traffic-shapingframe-relay interface-dlci 100 voice-encap 80class fr1router igrp 1network 172.22.0.0network 223.223.224.0no ip classlessmap-class frame-relay fr1frame-relay cir 64000frame-relay bc 1000frame-relay adaptive-shaping becnline con 0exec-timeout 0 0line aux 0line vty 0voice-port 1/1voice-port 1/2voice-port 1/3voice-port 1/4voice-port 1/5voice-port 1/6dial-peer voice 1 potsdestination-pattern 3388801port 1/1dial-peer voice 2 potsdestination-pattern 3388802port 1/2dial-peer voice 3 potsdestination-pattern 3388803port 1/3dial-peer voice 4 potsdestination-pattern 3388804port 1/4dial-peer voice 5 potsdestination-pattern 3388805port 1/5dial-peer voice 6 potsdestination-pattern 3388806port 1/6dial-peer voice 2000 vofrdestination-pattern 358....session target Serial0:2 100dial-peer voice 2001 vofrdestination-pattern 348....session target Serial0:2 100Configuration for Remote Site 2 Cisco MC3810
The following is the configuration for the Cisco MC3810 concentrator at Remote Site 2:
hostname remote2interface Ethernet0ip address 172.22.126.66 255.255.255.0interface Serial1 multipointip address 223.223.224.226 255.255.255.0encapsulation frame-relayno fair-queueframe-relay traffic-shapingframe-relay interface-dlci 200 voice-encap 160class fr1clock rate 128000router igrp 1network 172.22.0.0network 223.223.224.0no ip classlessmap-class frame-relay fr1frame-relay cir 128000frame-relay bc 1000frame-relay adaptive-shaping becnline con 0exec-timeout 0 0line aux 0line vty 0voice-port 1/1voice-port 1/2voice-port 1/3voice-port 1/4voice-port 1/5voice-port 1/6dial-peer voice 1 potsdestination-pattern 3588801port 1/1dial-peer voice 2 potsdestination-pattern 3588802port 1/2dial-peer voice 3 potsdestination-pattern 3588803port 1/3dial-peer voice 4 potsdestination-pattern 3588804port 1/4dial-peer voice 5 potsdestination-pattern 3588805port 1/5dial-peer voice 6 potsdestination-pattern 3588806port 1/6dial-peer voice 2000 vofrdestination-pattern 348....session target Serial1 200dial-peer voice 2001 vofrdestination-pattern 338....session target Serial1 200end
