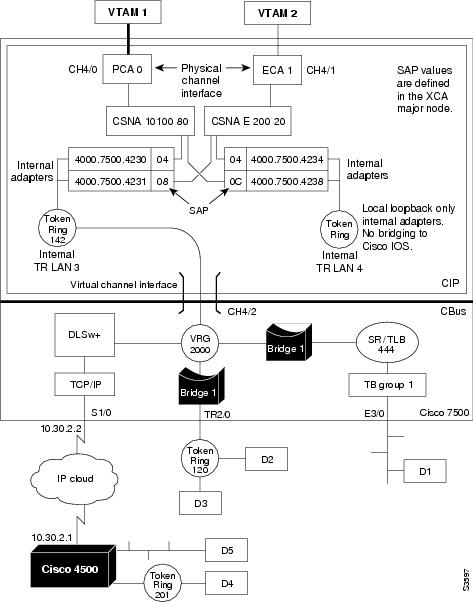

ECPA CSNA Configuration Example
Configure TN3270 DLUR with CMPC Host Connection
Static and Dynamic LUs with LU Nailing Configuration Example
Removing LU Nailing Definitions Example
Configuring Different Values for Precedence and TOS Example
Overriding Configured Values Example

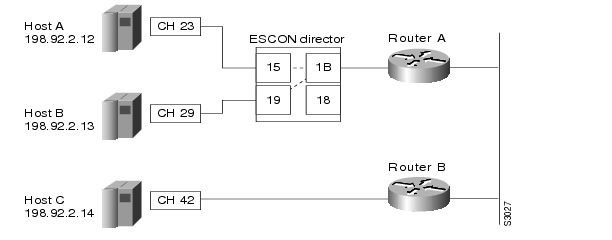

Configure IP Host Backup Example
CMPC Configuration Examples for CMPC

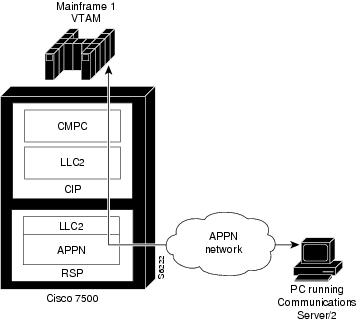

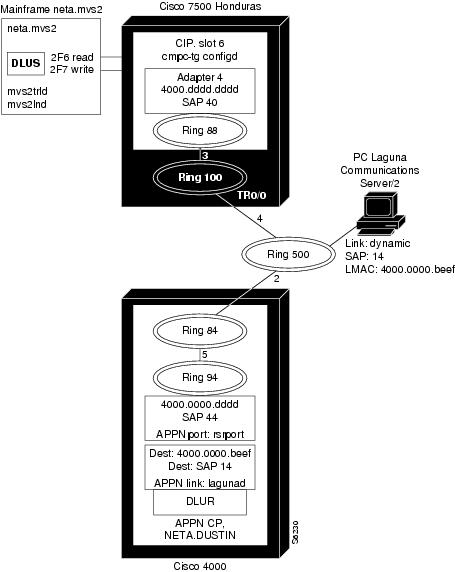

Connecting VTAM to a Remote PC with Communications Server/2 Example
Connecting VTAM to the APPN NN on the CIP Example
Connecting Two VTAM Nodes Using Two CIPs in the Same Router Example

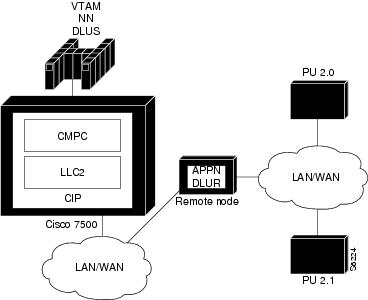

Connecting VTAM to the APPN NN on a Remote Router with DLUR Example
TN3270 Server DLUR Running on the Same CIP Example
Configuring Cisco Mainframe Channel Connection Adapters
This chapter describes how to configure the Cisco Mainframe Channel Connection (CMCC) family of adapters. These adapters include the Channel Interface Processor (CIP) for Cisco 7500 and Cisco 7000 series routers, and the ESCON Channel Port Adapter(ECPA) and the Parallel Channel Port Adapter (PCPA) for Cisco 7200 series routers.
Note
In this chapter, references to Channel Port Adapter (CPA) correspond to both the ECPA and the PCPA.
For hardware technical descriptions and information about installing the router interfaces, refer to the hardware installation and maintenance publication for your product. For a complete description of the CMCC adapter commands in this chapter, refer to the "Cisco Mainframe Channel Connection Adapter Commands" chapter of the Bridging and IBM Networking Command Reference. To locate documentation of other commands that appear in this chapter, use the command reference master index or search online.
Cisco's Mainframe Channel Connection Adapters
The CMCC adapter family supports the IBM channel attachment and includes the following products:
•
•
•
All CMCC adapters support the full range of channel software applications available in the Cisco IOS software.
Figure 170 Cisco Mainframe Channel Connection Adapters
CIP
The CIP for the Cisco 7000 and Cisco 7500 series is designed for high-end network environments that demand high-performance, high-port density, high-capacity solutions.
The CIP provides support for the IBM ESCON Channel Adapter (ECA) and Bus-and-Tag Parallel Channel Adapter (PCA) channel-attached interfaces from Cisco 7000 series routers to IBM mainframes and in most cases, it eliminates the need for a separate front-end processor (FEP).
A single CIP can support up to two physical channel interfaces in any combination of either PCA or ECA. The CIP's Parallel channel interface is provided by the PCA, and the ESCON channel interface is provided by the ECA. Each CIP is pre-configured with the appropriate channel adapters at manufacturing time.
The Cisco 7000 and Cisco 7500 series routers support online insertion and removal (OIR), which allows you to install or remove CIPs while the system is operating.
Benefits
The key benefits of the CIP are as follows:
•
•
•
•
•
CPA
The CPA is available for the Cisco 7200 series routers. The CPA expands the value of Cisco's IBM channel solution by providing channel connectivity to mid-range mainframe configurations. The CPA is a standard single-width port adapter supporting ESCON or Parallel channel interfaces to IBM mainframes.
The only differences between CMCC software applications running on the CIP and a CPA are performance and capacity. The performance difference is based upon differences in the internal bus architecture of a CIP vs a CPA, and the capacity difference is based on the difference in maximum memory configurations (128 MB for CIP and 32 MB for CPA).
Each CPA provides a single channel interface for Cisco 7200-series routers. In some situations, this eliminates the need for a separate front-end processor (FEP). The CPA contains a single I/O connector.
The Cisco 7200-series router supports online insertion and removal (OIR), which allows you to install or remove port adapters while the system is operating.
Benefits
The key benefits of CPA are as follows:
•
•
•
ECPA
An ECPA is classified as a high-speed port adapter providing a single ESCON physical channel interface. Current Cisco 7200 configuration guidelines recommend using no more than three high-speed port adapters in a single Cisco 7200 router. Refer to the Cisco 7200 Series Port Adapter Hardware Configuration Guidelines publication for more details.
PCPA
A PCPA provides a single Parallel channel physical interface supporting both 3.0 and 4.5 MBps data transfer rates.
Differences between the CIP and CPA
illustrates the differences between the CMCC adapters.
Supported Environments
The CMCC adapters provide support for the environments discussed in the following sections:
•
•
TCP/IP Environments Using CLAW
TCP/IP mainframe protocol environments for IBM operating systems Multiple Virtual Storage (MVS) and Virtual Machine (VM) are supported. This support includes TCP/IP-based applications such as terminal emulation (Telnet), the File Transfer Protocol (FTP), Simple Mail Transfer Protocol (SMTP); and Network File System (NFS), a distributed file access system. In addition, Internet Control Message Protocol (ICMP) and User Datagram Protocol (UDP) are supported.
The Cisco IOS implements the Common Link Access to Workstation (CLAW) channel protocol to transport data between the mainframe and a CMCC adapter in TCP/IP environments. Each CLAW connection requires two devices out of a maximum of 256. Although this allows for a maximum of 128 CLAW connections per interface, a maximum of 32 CLAW connections per interface is recommended.
The CLAW packing feature enables the transport of multiple IP packets in a single channel operation and significantly increases throughput performance between a mainframe and a CMCC adapter. Currently, IBM's TCP/IP stack does not support the CLAW packing feature.
The CLAW packing feature requires changes to the mainframe CLAW driver support. In partnership with Cisco Systems, Interlink Computer Science has made the corresponding CLAW driver change to Cisco IOS for S/390 Release 2 and Interlink TCPaccess 5.2. Customers must make the necessary changes to their host configurations in order to enable the CLAW packing feature.

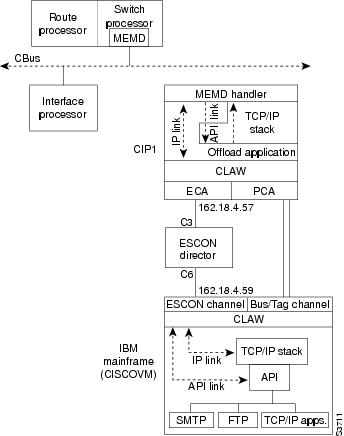

TCP/IP Offload Environments
TCP/IP mainframe protocol environments for IBM operating systems MVS, VM, and Transaction Processing Facility (TPF) are supported.
The TCP/IP offload feature for CMCC adapters delivers the same function as the TCP/IP offload function on the 3172 Interconnect Controller (Model 3), but with increased performance.
IP Host Backup Environment
You can connect multiple mainframes to a single CMCC adapter using a ESCON. Often, these mainframes run using the ESCON Multiple Image Facility (EMIF), which permits the physical machine to be divided into multiple logical partitions (LPARs). By defining an unused partition on another mainframe, a user can move the operating system from a failed mainframe or mainframe partition to the unused partition. By having multiple paths to each device, the move is accomplished without changing the mainframe software. This function also permits moving an IP stack between multiple operating system images.
On the CMCC adapter, each IP connection is treated as a physical device. The CMCC adapter does not support multiple active paths to a single IP connection (or device). Prior to IP Host Backup, the router configuration had to be changed whenever the mainframe operating system was moved from one mainframe or LPAR to another. The IP Host Backup feature permits the mainframe operating system to be moved from one mainframe to another without requiring a change to the router configuration at the time of the move.
Note
TN3270 Server Environments
The TN3270 server feature on a CMCC adapter card provides mapping between an SNA 3270 host and a TN3270 client connected to a TCP/IP network as shown in . Functionally, it is useful to view the TN3270 server from two different perspectives: SNA functions and Telnet Server functions.
•
From the perspective of an SNA 3270 host connected to the CMCC adapter, the TN3270 server is an SNA device that supports multiple PUs, with each PU supporting up to 255 logical units (LUs). The LU can be Type 1, 2, or 3. The SNA host is unaware of the existence of the TCP/IP extension on the implementation of these LUs.
The LUs implemented by TN3270 server are dependent LUs. To route these dependent LU sessions to multiple VTAM hosts connected to the TN3270 server in the CMCC adapter card, rather than routing in the VTAM hosts, the TN3270 server implements a SNA session switch with end node dependent LU requester (DLUR) function. Using the DLUR is optional so that the TN3270 server can be used with VTAM versions prior to version 4.2, which provide no Advanced Peer-to-Peer Networking (APPN) support.
SNA session switch allows you to eliminate SNA subarea routing between hosts of TN3270 traffic by establishing APPN links with the primary LU hosts directly.
•
From the perspective of a TN3270 client, the TN3270 server is a high-performance Telnet server that supports Telnet connections, negotiation and data format. The server on the CMCC adapter card supports Telnet connection negotiation and data format as specified in RFC 1576 (referred to as "traditional TN3270") and RFC 1647 (referred to as "TN3270E").
Figure 171 TN3270 Implementation
Unless the TN3270 server uses a Token Ring connection to a Front-End Processor (FEP) as its host connection, it will require CSNA or CMPC support. For this reason, TN3270 configuration issues and tasks begins in the section "Configure TN3270 on a CMCC Adapter," later in this chapter.
Note
Cisco SNA Environments
The CSNA feature provides support for SNA protocols over both ESCON and Parallel interfaces to the IBM mainframe. As an IBM 3172 replacement, a CMCC adapter supports the External Communications Adapter (XCA) feature of Virtual Telecommunications Access Method (VTAM), which allows VTAM to define Token Ring devices attached to the 3172 as switched devices.
In SNA environments, support for the XCA feature of VTAM allows the CMCC adapter to provide an alternative to FEPs at sites where NCP is not required for SNA routing functions.
By providing CLS and the Logical Link Control type 2 (LLC2) protocol stack on the CMCC adapter card, all frames destined to the CMCC adapter or from the CMCC adapter card are switched by the router. The presentation of LAN media types allows the CSNA feature to take advantage of current source-route bridging (SRB), remote source-route bridging (RSRB), data-link switching plus (DLSw+), Source-Route Translational Bridging (SR/TLB), internal SDLC-LLC2 translational bridging (SDLLC), Qualified Logical Link Control (QLLC) services and APPN.
The CSNA feature supports the following communication through a Cisco 7000 with RSP7000, Cisco 7500, and Cisco 7200 series router:
•
•
•
•
The CSNA feature provides SNA connectivity through Media Access Control (MAC) addresses configured for internal MAC adapters on the Cisco 7000 with RSP7000, Cisco 7500 series router and the Cisco 7200 series router. These internal MAC adapters correspond to XCA major node definitions in VTAM, providing access points (LAN gateway) to VTAM for SNA network nodes. The internal MAC adapters are configured to exist on internal LANs located on a CMCC adapter card. Each CMCC adapter card can be configured with multiple internal Token Ring LANs. Each internal Token Ring LAN must be configured to participate in source-route bridging. There is a maximum limit of 18 internal MAC adapters per CMCC adapter. The internal MAC adapter is an emulation of LAN adapters in an IBM 3172 Interconnect Controller.
Cisco MultiPath Channel Environments
The CMPC feature provides support for APPN connections using both High Performance Routing (HPR) and Intermediate Session Routing (ISR). It supports the VTAM Transport Resource List (TRL) major node and the VTAM Local SNA major node.
The CMPC feature can be used to establish an APPN connection between VTAM and the following APPN nodes:
•
•
•
•
•
The CMPC feature isolates VTAM from the actual network topology. The MPC protocol is terminated on the CMCC adapter and converted to LLC protocols. Once converted to LLC protocols other Cisco features are used to connect VTAM to other APPN nodes in the network. CMPC can be used with DLSw+, RSRB, SR/TLB, SRB, SDLLC, QLLC, ATM LAN emulation, and FRAS host to provide connectivity to VTAM.
CMCC Adapter Interface Configuration Task List
You can perform the tasks in the following sections to configure and maintain IBM channel attach interfaces.
Some CMCC adapter software features are configured on a virtual port. On the CIP adapter cards installed in a Cisco 7000 with RSP 7000 or a Cisco 7500 series router, there are up to two physical ports, numbered 0 and 1, and a virtual port, numbered 2. However, on the CPA installed in a Cisco 7200 series router, the single physical port and the virtual port are configured using the same port number ID, number 0.
Not all tasks are required. Your CMCC adapter image may be preloaded. You must select an interface, after which you configure the features you want supported on that interface.
Note
•
•
•
•
•
•
•
•
•
See the end of this chapter for "CMCC Interface Configuration Examples."
Because the TN3270 server configuration is performed after an interface is configured for CSNA support, TN3270 configuration issues and tasks are addressed separately from the interface configuration tasks. The TN3270 configuration task list begins in the section "TN3270 Configuration Task List," later in this chapter.
Load the CMCC Adapter Microcode Image
This section provides information on loading the microcode images for the CIP and CPA.
CIP Microcode Image
Beginning with Cisco IOS Software Release 11.1, the CIP microcode (or CIP image) no longer is bundled with the Cisco IOS software. You must have Flash memory installed on the Route Switch Processor (RSP) card to use the IBM channel attach features in Cisco IOS Software Release 11.1 and later.
The CIP image is preloaded on Flash cards for all Cisco 7000 with RSP7000 and Cisco 7500 series routers ordered with the CIP option for Cisco IOS Software Release 11.1 and later. Use the commands in this section if you are upgrading the CIP image in your router.
To prepare the CIP, use the following commands beginning in privileged EXEC command mode:
CPA Microcode Image
The CPA microcode image is preloaded on Flash memory cards for Cisco 7200 series routers for Cisco IOS Release 11.3(3)T and later. You may be required to copy a new image to Flash memory when a new microcode image becomes available. Use the commands in this section if you are upgrading or loading a microcode image other than the default.
To prepare the CPA, use the following commands beginning in privileged EXEC command mode:
Select the Interface
Before you configure your channel attach interface, you must select the interface. Use the following command in global configuration mode:
interface channel slot/port
Select the channel attach interface and enter interface configuration mode.
Use the show extended channel EXEC commands to display current CMCC adapter status. This command provides a report for each interface configured to support IBM channel attach.
Configure Channel Interface Tracking for HSRP or SNMP Alerts
If you want to use Hot Standy Router Protocol (HSRP) or SNMP alerts to monitor channel interface status for an ECPA or PCPA channel interface, use the following command in interface configuration mode to enable physical interface signal tracking:
state-tracks-signal
Enables tracking of the physical interface signal for an ECPA or PCPA channel interface.
The state-tracks-signal command is valid only on channel interfaces which combine the functions of both a physical and virtual interface. The ECPA and PCPA are examples of this type of channel interface. The command is not valid for the CIP, which has a separate channel interface for the virtual channel functions.
Configure TCP/IP CLAW or CLAW Packing Support
The following sections describe how to configure CLAW support. This feature is configured on the physical interface. All tasks, except for configuring other interface support are required.
•
•
•
See the section "Select Host System Parameters" for guidelines on matching interface configuration values with host system values.
Assign an IP Address
You must assign an IP address to the channel interface so that it can communicate with other devices (or tasks) on the network. The IP address you assign to the interface must be in the same subnetwork as the hosts with which you wish to communicate.
To assign an IP address, use the following command in interface configuration mode:
ip address address mask
Assign an IP address and network mask to the selected interface.
Configure the IBM Channel Attach Interface
You must define the devices, or tasks, supported on the interface. Some information you need to perform this task is derived from the following host system configuration files: MVSIOCP, IOCP, and the TCPIP configuration. Refer to the section "Select Host System Parameters" for guidelines on matching interface configuration values with host system values.
To configure an IBM channel interface, use the following command in interface configuration mode:
claw path device-address ip-address host-name device-name host-app device-app [broadcast] [backup]
Define the CLAW parameters for this device.
The CLAW Packing feature requires changes to the mainframe CLAW driver support. In partnership with Cisco Systems, Interlink Computer Science has made the corresponding CLAW driver change to Cisco IOS software for S/390 Release 2 and Interlink TCPaccess 5.2. Configuration parameters in the host TCP/IP applications must change to enable the CLAW packing feature.
See the section "CMCC Interface Configuration Examples" for samples of claw commands for different configurations.
Select a Data Rate for the Parallel Channel Interfaces
When you configure a Parallel channel attach interface, you must define a data rate of either 3 MBPS or 4.5 MBPS.
To select a data rate, use the following command in interface configuration mode:
Configure Other Interface Support
To enhance the usefulness of IBM channel attach support, you can further define how the interface and the router interoperate by using the following commands in interface configuration mode:
Configure TCP/IP Offload Support
The following sections describe how to configure the IBM channel attach interface for TCP/IP offload support. All tasks, except for configuring other interface support, are required:
•
•
•
See the section "Select Host System Parameters" for guidelines on matching interface configuration values with host system values.
Assign an IP Address
You must assign an IP address to the channel interface so that it can communicate with other devices (or tasks) on the network. The IP address you assign to the interface must be in the same subnetwork as the hosts with which you wish to communicate.
To assign an IP address, use the following command in interface configuration mode:
ip address address mask
Assign an IP address and network mask to the selected interface.
Configure the IBM Channel Attach Interface
You must define the devices, or tasks supported on the interface. Some information you need to perform this task is derived from the following host system configuration files: MVSIOCP, IOCP, and the TCP/IP configuration. Refer to the section "Select Host System Parameters" for guidelines on matching interface configuration values with host system values.
To configure the IBM channel interface, use the following command in interface configuration mode:
offload path device-address ip-address host-name device-name host-app device-app host-link device-link [broadcast] [backup]
Define the offload parameters for this device.
See the section "CMCC Interface Configuration Examples" for samples of offload commands for different configurations.
Select a Data Rate for the Parallel Channel Interfaces
When you configure a Parallel channel attach interface, you must define a data rate of either 3 MB per second or 4.5 MB per second.
To select a data rate, use the following command in interface configuration mode:
Configure Other Interface Support
You can further define how the interface and the router interoperate. You can use the following commands in interface configuration mode to enhance the usefulness of IBM channel attach support:
Configure CSNA Support
The following sections describe how to configure the IBM channel attach interface for CSNA support. This procedures requires the configuration of both the physical and virtual interfaces. The last task, "Configure an Internal Adapter's Link Characteristics," is optional. All other tasks are required.
•
•
•
•
•
Select a Data Rate for the Parallel Channel Interfaces
When you configure a Parallel channel attach interface, you must define a data rate of either 3 MBps or 4.5 MBps.
To configure the data rate, use the following command in interface configuration mode:
Configure the Subchannel Information
To define an SNA subchannel supported by the CSNA feature, use the following command in interface configuration mode for the physical channel interface:
csna path device [maxpiu value] [time-delay value] [length-delay value]
Define the CSNA subchannel device.
Configure the Internal LAN
To configure an internal LAN, use the following commands beginning in global configuration mode:
1
interface channel slot/port
Select the virtual interface.
2
lan tokenring lan-id
Select the internal LAN interface and enter internal LAN configuration mode.
Note
Configure the Source Bridge
Select the bridging characteristics for the internal LAN. Use the following commands in internal LAN configuration mode:
source-bridge local-ring bridge-number target-ring
Select source-route bridging for the selected LAN interface.
Configure the LOCADDR Priority
Select the LOCADDR priority for the internal LAN. Use the following commands in internal LAN configuration mode:
locaddr-priority list-number
Select locaddr priority for the selected LAN interface.
Configure the SAP Priority
Select the SAP priority for the internal LAN. Use the following commands in internal LAN configuration mode:
Configure Internal Adapters
To select or configure an internal adapter, use the following command in internal LAN configuration mode:
Name the Internal Adapter
Select a name for the internal adapter. Use the following command in internal adapter configuration mode:
Configure an Internal Adapter's Link Characteristics
To configure the LLC link characteristics of an internal adapter, use the following optional commands in internal adapter configuration mode:
Configure the CMCC Adapters for IP Host Backup
The following sections describe how to configure the IBM channel attach interface for IP Host Backup support. With IP Host Backup, you can configure a backup group for each CLAW or offload device, one path at a time, or you can specify a group of IP host paths and then configure which CLAW or offload IP addresses are used with those paths. Using the second method, specifying paths, provides a shortcut to the one at a time method.
•
•
•
Configure a CLAW IP Host Backup Group
You must define the devices, or tasks, supported on the interface. Some information you need to perform this task is derived from the following host system configuration files: MVSIOCP, IOCP, and the TCPIP configuration.
To configure the CLAW IP Host Backup, use the following command in interface configuration mode:
claw path device-address ip-address host-name device-name host-app device-app [broadcast] backup
Define the CLAW parameters for this device.
See the section "Configuration Tasks" for samples of claw commands for different configurations.
Configure an Offload IP Host Backup Group
You must define the devices, or tasks supported on the interface. Some information you need to perform this task is derived from the following host system configuration files: MVSIOCP, IOCP, and the TCP/IP configuration.
To configure the Offload IP Host backup, use the following command in interface configuration mode to configure an Offload device (read and write subchannel) for communication with a mainframe TCP/IP stack in Offload mode:
See the section "Configuration Tasks" for samples of offload commands for different configurations.
Configure an IP Host Backup Group Using Paths
You can define a backup group by specifying a path, or group of paths, that are used as the IP Host Backup. Under the backup group, you can have multiple backup connections defined that all use the same IP address.
To configure the IP Host Backup using paths, use the following commands beginning in interface configuration mode:
Select Host System Parameters
This section describes how to correlate values found in the VM and MVS system I/O configuration program (IOCP) files with the fields in the claw, csna, cmpc, and offload interface configuration commands. In addition, for CLAW and Offload, you will need configuration information from the host TCP/IP application configuration file. Refer to the following IBM operating system manuals for specific IOCP configuration statement details:
•
•
Values from the Host IOCP File
When you define CLAW or offload parameters, you must supply path information and device address information to support routing on an IBM channel. The path information can be simple, in the case of a channel directly attached to a router, or more challenging when the path includes an ESCON director switch or multiple image facility support.
The path argument is a concatenation of three hexadecimal numbers that represent the values listed in .
In , two host systems connect to the ESCON director switch on paths 23 and 29. The channels both exit the switch on path 1B and attach to Router A.
Figure 172 System with an ESCON Director Switch and a Directly Attached Channel
Note that the path between Host A and Host B is dynamically switched within the ESCON director. A third host is attached directly to Router B through path 42.
The IOCP control unit statements would look similar to the following examples:
•
CNTLUNIT CUNUMBER=0001, PATH=(23), LINK=1B, UNITADD=((00,64)), UNIT=SCTC, CUADD=F•
CNTLUNIT CUNUMBER=0002, PATH=(29), LINK=1B, UNITADD=((00,64)), UNIT=SCTC, CUADD=A•
CNTLUNIT CUNUMBER=000A, PATH=(42), UNIT=SCTC, UNITADD=((00,64))The system administrator can provide you with the values. For example the ESCON director ports 15 and 19 in are the channel attachments from the ESCON director to each host. Given these values, the claw command path argument for the two channel attachments to Router A becomes:
claw 150F claw 190AThe offload command path argument for the two channel attachments to Router A becomes:
offload 150F offload 190AThe claw command path argument for the directly attached channel to Router B is easy to determine:
claw 0100Similarly, the offload command path argument for the directly attached channel to Router B is as follows:
offload 0100Next, determine the claw, csna, cmpc, or offload command device-address argument value, which is shown as 00 in the UNITADD parameter for all three devices. Based on the above example, this value can be any even value.
The UNITADD parameter in the CNTLUNIT macro of the IOCP file defines the valid range for device addresses. In the example above, a UNITADD parameter of (00,64) means that the first valid device address is 00 and the number of devices is 64 for a range of 00 to 63. In the hexadecimal notation used by channel configuration commands this translates to a range of 00 to 3F.
The claw (or offload) commands now become:
•
claw 150F 00claw 190A 00•
offload 150F 00offload 190A 00•
claw 0100 02•
offload 0100 02Values from the Host TCP/IP File
The remainder of the claw and offload command arguments are derived from the DEVICE, LINK, and HOME statements in the host TCP/IP configuration files. The csna and cmpc configuration commands include only path and device. The statements will be similar to the following:
•
DEVICE EVAL CLAW 500 VMSYSTEM C7000 NONE 20 20 4096 4096LINK EVAL1 IP 0 EVALHOME 198.92.2.12 EVAL1•
DEVICE EVAL CLAW 600 STSYSTEM C7000 NONE 20 20 4096 4096LINK EVAL1 IP 0 EVALHOME 198.92.2.13 EVAL1•
DEVICE EVAL CLAW 700 RDUSYSTM C7000 NONE 20 20 4096 4096LINK EVAL1 IP 0 EVALHOME 198.92.2.14 EVAL1The DEVICE statement lists the host-name and device-name values to use, which follows the CLAW 500 entry in the DEVICE statement.
The LINK statement links the device name, EVAL, to EVAL1. The IP address for EVAL1 appears in the HOME statement.
Based on this example, you can supply the remainder of the arguments for the sample claw commands:
•
claw 150F 00 198.92.2.12 VMSYSTEM C7000 TCPIP TCPIPclaw 190A 00 198.92.2.13 STSYSTEM C7000 TCPIP TCPIP•
claw 0100 02 198.92.2.14 RDUSYSTM C7000 TCPIP TCPIPSimilarly, the sample offload commands are as follows:
•
offload 150F 00 198.92.2.12 VMSYSTEM C7000 TCPIP TCPIP TCPIP APIoffload 190A 00 198.92.2.13 STSYSTEM C7000 TCPIP TCPIP TCPIP API•
offload 0100 02 198.92.2.14 RDUSYSTM C7000 TCPIP TCPIP TCPIP APIExample of a Derived Value
When you have a directly attached channel, the system administrator may provide you with a system IODEVICE ADDRESS that you can use. In this case, you must work backwards through the IOCP file to locate the proper device-address argument value for the claw command.
In this first example, the IODEVICE ADDRESS value is 800. Using this number, you locate the IODEVICE ADDRESS statement in the IOCP file, which points you to the CNTLUNIT statement that contains the device-address argument value for the claw, csna, cmpc or offload command:
IODEVICE ADDRESS=(0800,256),CUNUMBR=(0012),UNIT=SCTC**** Address 800 points to CUNUMBR 0012 in the following statementCNTLUNIT CUNUMBR=0012,PATH=(28),UNIT=SCTC,UNITADD=((00,256))**** The device-address is the UNITADD value of 00From this example, the claw command would be similar to the following:
claw 0100 00 197.91.2.12 CISCOVM EVAL TCPIP TCPIPIn the next example, the system administrator has given you an IODEVICE ADDRESS of 350, which does not correspond exactly to a value in the IOCP file. In this instance you must calculate an offset device-address argument value for the claw or offload command:
IODEVICE ADDRESS=(0340,64),CUNUMBR=(0008),UNIT=SCTCIODEVICE ADDRESS=(0380,64),CUNUMBR=(0009),UNIT=SCTC**** Address 350 (340 + 10) is in the range covered by CUNUMBER 0008CNTLUNIT CUNUMBR=0008,PATH=(24),UNIT=SCTC,UNITADD=((40,64)),SHARED=N, X**** The device-address is the UNITADD value of 40, offset by 10**** The device-address to use is 50From this example, the claw command would be similar to the following:
claw 0100 50 197.91.2.12 CISCOVM EVAL TCPIP TCPIP
Note
Because the appropriate configuration of the missing interrupt handler (MIH) varies according to the protocols and software releases used, Cisco offers the following guidance:
•
•
Refer to the IBM publication Transmission Control Protocol/Internet Protocol TCP/IP Version 2 Release 2.1 for MVS: Planning and Customization (publication SC31-6085 or later) for information on disabling the MIH.
Monitor and Maintain the Interface
You can perform the tasks in the following sections to monitor and maintain the interfaces:
•
•
•
•
Monitor Interface Status
The software allows you to display information about the interface, including the version of the software and the hardware, the controller status, and statistics about the interfaces. The following table lists some of the interface monitoring commands. To display the full list of show commands, enter show ? at the EXEC prompt.
Perform the following commands in EXEC mode to display information associated with each command. All commands are applicable to all CMCC adapter interfaces (CIP and CPA), unless it is mentioned that they are specific to a particular CMCC adapter. Commands are listed in alphabetic order.
Clear and Reset an Interface
To clear the interface counters shown with the show interfaces command, use the following command in EXEC mode:
Note
To clear the counters associated with application features configured on the CMCC adapters, use the following command in EXEC mode:
Note
Use the following command in EXEC mode to clear and reset interfaces. Under normal circumstances, you do not need to clear the hardware logic on interfaces.
Monitor the Physical Channel Interface on the CPA
Unlike the CIP, which has a separate channel interface for the virtual channel functions, the ECPA and PCPA have a single interface that combines the functions of both a physical and virtual channel interface. For this reason, monitoring the physical channel interface on a CPA requires other considerations in its implementation.
In Cisco IOS releases prior to 12.0(4.1), you could not configure how the state of the physical interface on a CPA was tracked, particularly when the interface was configured for no shutdown. In those previous Cisco IOS releases when the CPA channel interface was configured for no shutdown, the channel interface status was always reported as UP/UP, even when no signal was present on the physical connection.
In Cisco IOS release 12.0(4.1) and later, you can use the state-tracks-signal configuration command to control how you want the state of the CPA's channel interface to be reported. The state-tracks-signal command is useful in environments where you are using Hot Standby Router Protocol (HSRP) or SNMP alerts to monitor channel interface status.
Use the following command in interface configuration mode to enable physical interface signal tracking:
state-tracks-signal
Enables tracking of the physical interface signal for an ECPA or PCPA channel interface.
When the state-tracks-signal command is used on an interface that is configured for no shutdown, then the state of the channel interface is reported according to the status of the physical channel interface signal. If the physical channel interface signal is not present, then the channel interface status is DOWN/DOWN.
When the channel interface is configured for no state-tracks-signal (the default) and no shutdown, the channel interface status is always reported as UP/UP, even when there is no signal present on the physical connection. This configuration is useful for TN3270 server environments that are operating in a mode without any physical channel interface connections.
Shut Down and Restart an Interface
You can disable an interface. Doing so disables all functions on the specified interface and marks the interface as unavailable on all monitoring command displays. This information is communicated to other network servers through all dynamic routing protocols. The interface will not be mentioned in any routing updates. On the CMCC adapter with ESCON interface, a command is sent to the host to inform it of the impending shutdown. On the CMCC adapter's Parallel interface, the shutdown command disables the adapter card's transceivers and the interface stops responding to all commands.
For the following reasons, it is recommended that channel interfaces be shut down:
•
•
•
•
•
To shut down an interface and then restart it, use the following commands in interface configuration mode:
To check whether an interface is disabled, use the EXEC command show interfaces. An interface that has been shut down is shown as administratively down in the show interfaces command display.
Run CMCC Adapter Interface Loopback Diagnostics
The CMCC adapter does not provide software loopback support. You can use special loopback wrap plugs to perform hardware loopback with the ESCON and Parallel channel interfaces. Hardware loopback information is included in the hardware installation notes for the CMCC adapters.
Configure CMCC Adapter Core Dump
To obtain the output of a CMCC adapter core dump, use the following commands in global configuration mode:
Note
While the router is running, you can use the write EXEC command to write the contents of a CMCC adapter that is not halted.
Note
Configure TN3270 on a CMCC Adapter
The following sections describe additional features of TN3270 server support on the CMCC adapter.
•
•
You will also need to understand the following information before proceeding with TN3270 configuration tasks:
•
Dynamic LU Allocation
This will be the most common form of request from TN3270 clients emulating a TN3270 terminal. The user typically wants to specify emulating a particular terminal type and normally is not interested in what LOCADDR or LU name is allocated by the host, as long as a network solicitor logon menu is presented. The server will perform the following on such a session request:
•
•
•
When VTAM receives the NMVT, it will use the EBCDIC model type and number string to look up an LU template under the LUGROUP. For example, the string "327802E" will find a match in the sample configuration shown in . An ACTLU will be sent and a terminal session with the model and type requested by the client can be established.
Formation of LU Model Type and Number
VTAM requires a model type and number from the Reply PSID NMVT to use as a key to look up in the LU group to find an LU template. The model type is a four character string; the model number is a two or three character string. The server will accept the following formats of terminal type string from the client:
•
•
Note
•
•
Clients that do not support TN3270E typically require a 3270 datastream on the SSCP-LU flow. Clients that are TN3270E compliant will typically utilize the SNA Character Set (SCS) on the SSCP-LU session. In order to accommodate these two classes of clients, the TN3270 server directs them to different LUGROUP entries at the host. To make this as easy as possible, the SCS requirement is also encoded into the model string sent to the host. Following the previously described terminal type string formats accepted by the server, this additional condition is applied:
If the client has negotiated TN3270E support, the character "S" is overlaid on the fifth character of the string, or appended if the string is less than five characters. See .
Specific LU Allocation
A TN3270E client can request a specific LU name by using the TN3270E command CONNECT as documented in RFC 1647. The name requested must match the name by which the TN3270 server knows the LU (see the section "LU Names in the TN3270 Server"), and the host must have activated the LU (with ACTLU).
LU Names in the TN3270 Server
Where SNA session switching is configured (that is, on DLUR PUs) the TN3270 server learns the LU names from the ACTLUs.
For direct PUs, a "seed" name can be configured on the PU. TN3270 server uses this name in conjunction with the LOCADDRS to generate names for the LUs. It is best to use the same naming convention as the host.
SNA Switching—End Node DLUR
An end node DLUR function is implemented as part of the TN3270 server. The purpose of the DLUR is to allow the routing of TN3270 LUs to multiple VTAM hosts to be performed in the CMCC adapter card rather than on the VTAM hosts. This feature is especially important with the new multi-CPU CMOS mainframe, which comprises up to 16 CPUs that appear as separate VTAMs.
The implementation of TN3270 server LUs under DLUR also allows the server to learn about the LU names on the ACTLU, which greatly simplifies the configuration to support specifically requestable LUs such as printers.
Multiple Hosts Support
The TN3270 server supports access to multiple hosts via the configuration on a PU basis (). PUs connected to different hosts/applications can be configured with different IP address.
From the pu (direct) TN3270 configuration command values shown in , PU X2 establishes a link to a host at SAP 4 (the default) on MAC address 4100.cafe.0002. A client connecting to IP address 171.69.176.43 is allocated an LU from that PU and is routed to that host.
Note that by using the DLUR function, all the LUs in the server can be defined and owned by a controlling VTAM. When a client requests an application residing on a different VTAM host, the controlling VTAM will issue the request to the target host which will send a BIND directly to the client. All LU-LU data will then flow directly between the target host and the client without needing to go through the controlling VTAM.
IP Type of Service and Precedence Setting
The TN3270 server supports IP type of service (TOS) precedence setting. TOS is used in router networks to make routing decisions for the generated IP packets. The TN3270 server generates packets that comply to IP TOS and IP precedence values. (Refer to RFC 1349 for a description of IP TOS and IP precedence.)
The Cisco implementation of IP precedence allows values of 0 to 7 while TOS allows values from 0 to 15. You must choose appropriate values for TN3270 screens and printers consistent with your organization's policy.
At the protocol level, IP precedence allows a router network to discriminate between different types of traffic by giving different priorities to them. IP TOS allows router networks to discriminate between different types of traffic by giving different routing characteristics to them. Precedence and TOS values complement one another and provide flexibility in managing your network traffic.
In TN3270 server, two types of TN3270 clients connect: interactive screens or printers. Screens are interactive while printers need bulk data transfer. IP TOS and IP precedence allows you to discriminate between those two types of sessions and assign different precedence values to the interactive connection and the bulk data connection.
IP TOS and IP precedence values can be specified either at the TN3270 server command level or on the individual PU command level. Values can be specified on both levels, in which case siftdown will be used to determine value on individual PU. Siftdown is used when you configure values in TN3270 server configuration mode that apply to all entities in the server, yet you still can configure individual PUs at the PU configuration mode to alternative values. PU values not specifically changed use the values configured at the TN3270 server configuration mode. This flexibility provides a powerful, yet efficient, way to manage the values.
VTAM Host Configuration Considerations for Dynamic LU Allocation
Other non-Cisco implementations of TN3270 support depend on predefined, static pools of LUs to support different terminal types requested by the TN3270 clients. The CMCC adapter TN3270 server implementation removes the static nature of these configurations by using a VTAM release 3.4 feature, dynamic definition of dependent LU (DDDLU). (Refer to the VTAM operating system manuals for your host system, under the descriptions for LUGROUP for additional information.) DDDLU dynamically requests LUs using the terminal type provided by TN3270 clients. The dynamic request eliminates the need to define any LU configuration in the server to support TN3270 clients emulating a generic TN3270 terminal.
To support DDDLU, the PUs used by the TN3270 server have to be defined in VTAM with LUSEED and LUGROUP parameters as shown in .
Figure 173 VTAM Host Values Defining LUSEED and LUGROUP
With the configuration shown in defined in the host, the ACTPU sent by VTAM for the PU TN3270PU will have the "Unsolicited NMVT Support" set in the system services control point (SSCP) capabilities control vector. This allows the PU to dynamically allocate LUs by sending network management vector transport (NMVT) with a "Reply Product Set ID" control vector.
After the TN3270 server sends a positive response to the ACTPU, it will wait for VTAM to send ACTLUs for all specifically defined LUs. In the sample configuration shown in , ACTLUs will be sent for TN3X1100 and TN3X1101. The server sends a positive response and sets SLU DISABLED. The LOCADDR of these LUs are put into the specific LU cache and reserved for specific LU name requests only.
To allow sufficient time for the VTAM host to send all the ACTLUs, a 30-second timer is started and restarted when an ACTLU is received. When the time expires, it is assumed all ACTLUs defined in VTAM for the PU have been sent. All LUs that have not been activated are available in a generic LU pool to be used for DDDLU unless they have been reserved by the configuration using the generic-pool deny TN3270 configuration command.
After the VTAM activation, the server can support session requests from clients using dynamic or specific LU allocation.
Note
Some VTAM configurations include the number sign (#) and at symbol (@). In the U.S. English EBCDIC character set, these characters are stored as the hexadecimal values 7B and 7C, respectively. VTAM will look for those hexadecimal values when processing the configuration file.
The characters used to enter these values are different in other EBCDIC National Language character sets. lists the languages that have different characters for the 7B and 7C hexadecimal values and the corresponding symbols used to enter the characters.
For example, the value for the LUSEED parameter in the PU definition called TN3270PU in has a value of TN3X1###. To properly code this value for LUSEED for the French National Language character set, the value should be TN3X1£££.
LU Address Mapping
Logical unit (LU) address mapping allows a client IP address to be mapped, or "nailed," to one or more LU local addresses on one or more physical units (PUs) by means of router configuration commands. You can control the relationship between the TN3270 client and the LU.
Clients from traditional TN3270 (non-TN3270E) devices can connect to specific LUs, which overcomes a limitation of TN3270 devices that cannot specify a "CONNECT LU." LU nailing is useful for TN3270E clients, because you can perform the configuration at the router, providing central control, rather than at the client.
Handling Large Configurations
The largest size nonvolatile random-access memory (NVRAM) planned for the Cisco 7000, Cisco 7500 and Cisco 7200 series routers is 128 KB. The maximum number of nailing commands that can be stored in a 128 KB NVRAM is approximately 4000. However, large configurations may map as many as 10,000 IP addresses to LUs.
To maintain a configuration file that exceeds 128 KB there are two alternatives. The configuration file can be stored compressed in NVRAM. Or, the configuration file can be stored in Flash memory that is either internal Flash or on a PCMCIA card.
LU Nailing and Model Matching
The "model matching" feature of the CMCC TN3270 server is designed for efficient use of dynamic LUs. Each client specifies a terminal model type at connection. When a non-nailed client connects and does not request a specific LU, the LU allocation algorithm attempts to allocate an LU that operated with that terminal model the last time it was used. If no such model is available, the next choice is an LU that has not been used since the PU was last activated. Failing that, any available LU is used; however, for dynamic LUs only, there is a short delay in connecting the session.
Where a client or set of clients is nailed to a set of more than one LU, the same logic applies. If the configured LU nailing maps a screen client to a set of LUs, the LU nailing algorithm attempts to match the client to a previously used LU that was most recently used with the same terminal model type as requested by the client for this connection. If a match is found, that LU is used. If a match is not found, any LU in the set that is not currently in use is chosen. If there is no available LU in the set, the connection is rejected.
For example, the following LUs are nailed to clients at address 192.195.80.40, and LUs BAGE1004 and BAGE1005, which were connected but are now disconnected.
lu name client-ip:tcp nail state model frames in out idle for1 BAGE1001 192.195.80.40:3822 Y P-BIND 327904E 4 4 0:22:352 BAGE1002 192.195.80.40:3867 Y ACT/SESS 327904E 8 7 0:21:203 BAGE1003 192.195.80.40:3981 Y ACT/SESS 327803E 13 14 0:10:134 BAGE1004 192.195.80.40:3991 Y ACT/NA 327803E 8 9 0:0:75 BAGE1005 192.195.80.40:3997 Y ACT/NA 327805 8 9 0:7:8If a client at IP address 192.195.80.40 requests a terminal model of type IBM-3278-5, LU BAGE1005 will be selected over BAGE1004.
lu name client-ip:tcp nail state model frames in out idle for1 BAGE1001 192.195.80.40:3822 Y P-BIND 327904E 4 4 0:23:292 BAGE1002 192.195.80.40:3867 Y ACT/SESS 327904E 8 7 0:22:143 BAGE1003 192.195.80.40:3981 Y ACT/SESS 327803E 13 14 0:11:74 BAGE1004 192.195.80.40:3991 Y ACT/NA 327803E 8 9 0:1:15 BAGE1005 192.195.80.40:4052 Y ACT/SESS 327805 13 14 0:0:16TN3270 Configuration Modes
The TN3270 configuration modes and router command prompts are described in the following sections and displayed in . The TN3270 server can be configured only on the virtual interface of a CMCC adapter.
Some configuration commands create entities on the CMCC adapter. For most of these, the command changes to the mode associated with that entity (for example, a PU). In general, the parameters provided to create the entity come in two sets: those that identify the specific instance of the entity (for example, a PU name) and those that merely set operating parameters. To return to the mode later, the same command is used but with only the first set of parameters. The tasks in this section clarify how to return to a command mode without necessarily creating a new entity.
To create a DLUR LSAP and enter DLUR LSAP configuration mode, use the following command in TN3270 DLUR configuration mode:
To return later to the DLUR LSAP configuration mode on the same entity, use the following command in TN3270 DLUR configuration mode:
To remove an entity, the same identification parameters are needed. Use the following command beginning in TN3270 DLUR configuration mode:
TN3270 configuration modes described in this section include the following:
•
•
Figure 174 TN3270 Configuration Modes
TN3270 Server Configuration Mode
From interface configuration mode, tn3270-server command puts you in TN3270 server configuration mode. The following prompt appears:
tn3270-server>DLUR Configuration Mode
From TN3270 server configuration mode, the dlur command puts you in DLUR configuration mode. The following prompt appears:
tn3270-dlur>DLUR SAP Configuration Mode
From DLUR server configuration mode, lsap command puts you in DLUR SAP configuration mode. The following prompt appears:
tn3270-dlur-lsap>PU Configuration Mode
There are two paths to PU configuration mode: from the TN3270 server configuration mode, or from the DLUR configuration mode. In either mode, the pu command puts you in PU configuration mode.
From TN3270 configuration mode, the pu command to create a new PU is:
pu pu-name idblk-idnum ip-address type adapno lsap [rmac rmac] [rsap rsap] [lu-seed lu-name-stem]
From DLUR configuration mode, the pu command to create a new PU is:
pu pu-name idblk-idnum ip-address
From either mode, to return to PU configuration mode on PU pu-name the command is:
pu pu-name
The following prompts appear, depending on which mode you are in:
tn3270-pu>tn3270-dlur-pu>Commands Allowed in Multiple Modes
The following commands are valid in TN3270 configuration mode, or in either variation of PU configuration mode:
•
•
•
•
•
•
•
•
Values entered in PU configuration mode override settings made in TN3270 configuration mode. In addition, the no form of these commands entered in PU configuration mode will restore the command value entered in TN3270 command mode.
TN3270 Configuration Task List
The following sections describe how to configure TN3270 server support on a CMCC adapter's virtual interface. Not all tasks are required. Refer to "TN3270 Configuration Examples" for configuration examples.
Task List for Multiple APPN Hosts
When the host site uses APPN and the TN3270 server can reach multiple hosts, we recommend you use DLUR and configure your PUs under DLUR. In this instance, perform the following tasks:
Note
Task List for Non-APPN Hosts
When the host site does not use APPN, you configure your PU parameters for a directly-connected host. In this instance, perform the following tasks:
•
Configure SNA Support
Host connectivity must be configured prior to configuring TN3270 support. This is accomplished in one of three ways:
•
•
•
After the host connection is configured, begin the TN3270 configuration.
Configure TN3270 Server
This task is required. To establish a TN3270 server on the internal LAN interface on the CMCC adapter, use the following commands beginning in global configuration mode:
When you use the tn3270-server command, you enter TN3270 configuration mode and can use all other commands in the task list. You can later override many configuration values you enter in TN3270 configuration mode from PU configuration mode. On IBM host systems, these types of commands are often referred to as "sift down" commands because their values can sift down through several levels of configuration and can be optionally altered at each configuration level.
Configure IP Precedence
To configure IP precedence, use the following command in TN3270 server or TN3270 PU configuration mode:
Use the no ip precedence screen or the no ip precedence printer commands to return the precedence value to a default of 0.
Configure IP TOS
To configure IP TOS, use the following command in TN3270 server or TN3270 PU configuration mode:
Use the no ip tos screen or the no ip tos printer commands to return the precedence value to a default of 0.
Configure PU Parameters on the TN3270 Server
This task is required when configuring PUs that do not use DLUR. The first command, pu rmac rsap lu-seed command is required. All other commands are optional. To configure PU parameters for the TN3270 server, use the following commands beginning in TN3270 configuration mode:
When you use the pu command, you enter PU configuration mode and can use all other commands in this task list. Configuration values you enter in PU configuration mode will override other values entered while in TN3270 configuration mode. In addition, you can enter PU configuration mode from DLUR configuration mode when configuring PUs that are connected by means of DLUR.
If you are configuring PUs for directly connected hosts, you need not perform any additional configuration tasks.
Configure DLUR
This task is required when configuring DLUR connected hosts. To configure DLUR parameters for the TN3270 server, use the following commands beginning in TN3270 configuration mode:
Configure SAPs under DLUR
To configure SAPs under the DLUR function, use the following commands beginning in DLUR configuration mode:
Configure PUs under DLUR
This task is required when configuring DLUR connected hosts. To configure PUs under the DLUR function, use the following commands beginning in DLUR configuration mode:
The pu command entered in DLUR configuration mode has different parameters than when it is entered from TN3270 configuration mode.
Configure LU Nailing
To configure LU nailing, use the following command in TN3270 PU configuration mode:
client [printer] ip ip-address [mask] lu first-locaddr [last-locaddr]
Configure the IP address and nail type and specify the locaddr range.
The client command allows a client with multiple TN3270 connections from the same IP address to nail their screen connections to LUs that are configured as screen LUs at the host and to nail printer connections to LUs that are configured as printers at the host. When the connection is made, a device type of "328*" is matched to a printer definition, and any other device type is matched to a screen definition.
Monitor the TN3270 Server
The following table lists the monitoring commands specific to the TN3270 server. To display the full list of show commands, enter show ? at the EXEC prompt.
Use the following commands in privileged EXEC mode:
Configure CMPC Support
Cisco MultiPath Channel (CMPC) is Cisco System's implementation of IBM's MultiPath Channel (MPC) feature. CMPC allows VTAM to establish Advanced-Peer-to-Peer Networking (APPN) connections using both High Performance Routing (HPR) and Intermediate Session Routing (ISR) through a channel-attached router platforms.
With CMPC, Cisco 7000 with RSP7000, Cisco 7500, and Cisco 7200 series routers can be deployed in Parallel MVS systems complex (sysplex) configurations.
CMPC can be used to establish an APPN connection between VTAM and the following APPN nodes:
•
•
•
•
•
One read subchannel and one write subchannel are supported for each MPC transmission group. The read subchannel and write subchannel may be split over two physical channel connections on the same CMCC adapter.
CMPC insulates VTAM from the actual network topology. The MPC protocols are terminated on the CMCC adapter and converted to LLC protocols. After they are converted to LLC protocols, other Cisco features can be used to connect VTAM to other APPN nodes in the network. CMPC can be used in conjunction with DLSw+, RSRB, SR/TLB, SRB, SDLLC, QLLC, ATM LAN emulation, and FRAS host to provide connectivity to VTAM.
CMPC supports connections to PU 2.1 nodes: APPN NN, APPN EN, and LEN. Subarea connections are not supported.
The CMPC feature coexists on a CMCC adapter with the TCP/IP Offload, IP Datagram, TN3270, and CSNA features.
CMPC Requirements
The following are minimum host system requirements to support CMPC:
•
•
CMPC Configuration Overview
To configure the CMPC feature, you must configure the host VTAM parameters and the CMCC adapter. The CMPC Configuration Examples for CMPC show the VTAM configuration parameters and the router configuration commands for each example.
The following guidelines will help you prepare for CMPC configuration:
•
•
•
•
•
•
•
•
•
•
•
To help clarify the configuration process, refer to , which shows the CMPC link between the VTAM host, the router, and CMCC adapter card, and the communication to the LLC2 end point. The read and write addresses defined in the VTAM host correspond to the read and write paths defined for CMPC. CMPC communicates with the LLC2 stack, which communicates to the end point of the connection by means of the IEEE 802.2 link.
Figure 175 Logical View of CMPC Link
Configuration Tasks
This section describes the following configuration tasks associated with the CMPC feature. The first two tasks are performed on the VTAM host. The remaining tasks are performed on the router. All tasks are required.
•
•
•
•
•
Configure the VTAM Transport Resource List Major Node
To configure MPC on the host, define the Transport Resource List (TRL) major node. See the following IBM documents for details on how to configure the TRL major node:
•
•
•
The following is an example of a typical configuration:
LAGTRLA VBUILD TYPE=TRLLAGTRLEA TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0, XREAD=(2F0), XWRITE=(2F1)In this example, device 2F0 has been configured for read and 2F1 has been configured for write. The command to activate the TRL should be issued before activating the Local node. If your TRL data set was named LAGTRLA, the activate command would be as follows:
v net,act,id=lagtrla,update=add
where the ID parameter refers to the name of the data set containing the TRL definition.
Note that "update=add" is preferred and is the default for later versions of VTAM. The argument "update=all" can cause inactive TRLEs to be deleted unexpectedly from ISTTRL. However, "update=all" must be used if you change an active TRL data set and wish the changes to become active. The following commands are useful for displaying the current list of TRLEs:
d net,trl
d net,id=isttrl,e
d net,trl,trle=trle_nameConfigure the VTAM Local SNA Major Node
To configure the MPC channel link on the VTAM host, define the local SNA major node.
The following is an example of a typical configuration:
LAGLNA VBUILD TYPE=LOCALLAGPUA PU TRLE=LAGTRLEA, XISTATUS=ACTIVE, XXID=YES,CONNTYPE=APPN,CPCP=YES,HPR=YESThe TRLE parameter in the local node refers to the label on the TRLE statement from the TRL major node LAGTRLA. Also, if you do not want to run HPR set the HPR parameter to "NO." The local SNA major node must be activated after the TRL node has been activated. If your local node data set was named LAGLNA, the activate command is as follows:
v net,act,id=laglna
Configure the CMPC Subchannels
To define a CMPC read subchannel and CMPC write subchannel, use the following commands in interface configuration mode on a CMCC adapter physical interface:
1
cmpc path device tg-name read
Configure the CMPC read subchannel.
2
cmpc path device tg-name write
Configure the CMPC write subchannel.
These statements define the subchannel addresses that CMPC will use to connect to the host, and correspond to the definitions in the TRL major network node on the host. Specifically the last two hexadecimal digits in the read parameter match the device value configuration in the cmpc command. The last two hexadecimal digits in the write parameter match the device value in the cmpc command.
Use the no cmpc path device command to remove the definition of a subchannel.
Configure the CMPC Transmission Groups
To define a CMPC transmission group by name and specify its connection to the LLC2 stack, use the following command in interface configuration mode on a CMCC adapter virtual interface:
tg tg-name llc type adaptno lsap [rmac rmac] [rsap rsap]
Define the CMPC transmission group name.
The tg command defines an LLC connection with a complete addressing 4-tuple. The lsap, rmac, and rsap are specified explicitly by parameters. The lmac is the LMAC of the adapter referred to by the type and adaptno parameters.
The tg-name must match the name given in the cmpc command issued in the physical interfaces on the same CMCC adapter.
Use the no tg command to remove a CMPC transmission group from the configuration, which will deactivate the named CMPC transmission group.
To change any parameter of the tg statement, the statement must be removed by using the no tg tg-name command.
Configure the CMCC Adapter Internal LAN for CMPC
Configuring CMPC support on the CMCC adapter internal LAN is similar to configuring CSNA support. Many of the configuration tasks are the same. To configure the internal LAN adapter on the CMCC adapter to support CMPC, perform the following tasks:
•
•
•
Configure the CMCC Adapter Internal LANs
To select a CMCC adapter internal LAN interface, use the following commands beginning in global configuration mode:
1
interface channel slot/port
Select the virtual interface.
2
lan tokenring lan-id
Select the internal LAN interface and enter internal LAN configuration mode.
Use the no lan command to disconnect all LLC2 sessions established through all internal LAN interfaces configured on a particular internal LAN.
Up to 18 internal adapters can be configured on a CMCC adapter.
Configure SRB
Select the bridging characteristics for Token Ring and FDDI, or Ethernet. Use the following command in internal LAN configuration mode:
source-bridge local-ring bridge-number target-ring
Select source-route bridging for the selected LAN interface.
Configure LOCADDR Priority
Select the locaddr priority for the internal LAN. Use the following commands in internal LAN configuration mode:
locaddr-priority list-number
Select locaddr priority for the selected LAN interface.
Configure SAP Priority
Select the sap priority for the internal LAN. Use the following commands in internal LAN configuration mode:
Configure Internal Adapters
To select or configure an internal adapter, use the following command in internal LAN configuration mode:
Name the Internal Adapter
Select a name for the internal adapter. Use the following command in internal adapter configuration mode:
Naming an internal adapter is optional.
Configure the Internal Adapter and Its Link Characteristics
To configure the link characteristics of the internal LAN adapter, use the following commands in internal LAN configuration:
Configuring LLC parameters is optional. Default values are used when no parameters are configured.
CMCC Interface Configuration Examples
The following sections include examples to help you understand some aspects of interface configuration:
•
•
•
•
•
•
•
•
•
•
•
CPA Microcode Load Example
The following example copies a new image to Flash memory:
router#copy tftp:xcpa26-2 slot0:xcpa26-2Address or name of remote host []? neptuneTranslating "neptune"...domain server (10.20.30.10) [OK]Destination filename [xcpa26-2]?Accessing tftp://neptune/xcpa26-2...Loading motto/xcpa26-2 from 10.20.30.10 (via FastEthernet0/0): !Expanding slot0:xcpa26-2_kernel_xcpa (343148 bytes): !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!Expanding slot0:xcpa26-2_seg_802 (237848 bytes): !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!Expanding slot0:xcpa26-2_seg_cmpc (319960 bytes): !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!Expanding slot0:xcpa26-2_seg_csna (89856 bytes): !!!!!!!!!!!!!!!!!!Expanding slot0:xcpa26-2_seg_eca (461424 bytes): !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!Expanding slot0:xcpa26-2_seg_offload (80344 bytes): !!!!!!!!!!!!!!!!Expanding slot0:xcpa26-2_seg_pca (69376 bytes): !!!!!!!!!!!!!!Expanding slot0:xcpa26-2_pseg_push (15936 bytes): !!!Expanding slot0:xcpa26-2_seg_tcpip (158896 bytes): !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!Expanding slot0:xcpa26-2_seg_tn3270 (601784 bytes): !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!![OK - 2387456/4774912 bytes]2387456 bytes copied in 110.588 secs (21704 bytes/sec)router#After copying a CMCC ucode image to flash memory, a directory command of the flash device displays the following:
Router#dir slot0:Directory of slot0:/1 -rw- 1 Aug 18 1998 12:29:12 xcpa26-22 -rw- 344438 Aug 18 1998 12:29:12 xcpa26-2.kernel_xcpa3 -rw- 237848 Aug 18 1998 12:29:37 xcpa26-2.seg_8024 -rw- 319960 Aug 18 1998 12:29:56 xcpa26-2.seg_cmpc5 -rw- 89856 Aug 18 1998 12:30:15 xcpa26-2.seg_csna6 -rw- 461424 Aug 18 1998 12:30:20 xcpa26-2.seg_eca7 -rw- 80344 Aug 18 1998 12:31:03 xcpa26-2.seg_offload8 -rw- 69376 Aug 18 1998 12:31:07 xcpa26-2.seg_pca9 -rw- 15936 Aug 18 1998 12:31:11 xcpa26-2.seg_push10 -rw- 158896 Aug 18 1998 12:31:12 xcpa26-2.seg_tcpip11 -rw- 601784 Aug 18 1998 12:31:32 xcpa26-2.seg_tn32707995392 bytes total (5614116 bytes free)The following example loads the microcode from an individual microcode image that is stored as a file in Flash memory:
Router(config)# microcode ecpa slot0:xcpa26-2Router(config)# microcode reloadIP Address and Network Mask Configuration Example
The following example assigns an IP address and network mask to the IBM channel attach interface on the router:
ip address 197.91.2.5 255.255.255.0CLAW Configuration Example
The following example configures the IBM channel attach interface to support a directly connected device:
claw 0100 00 197.91.2.2 VMSYSTEM C7000 TCPIP TCPIPCLAW Packing Configuration Examples
The following example configures the IBM channel attach interface to support CLAW packing on HOSTA and HOSTC and the nonpacked version of CLAW on HOSTB:
interface Channel0/0ip mtu 4092ip address 172.18.4.49 255.255.255.248no keepaliveclaw C010 F2 172.18.4.50 HOSTA RTRA PACKED PACKEDclaw C020 F4 172.18.4.52 HOSTB RTRA TCPIP TCPIPclaw C030 F6 172.18.4.53 HOSTC RTRA PACKED PACKEDThe following is an example of a CLAW definition in the host configuration file for IOS/390:
000100 *---------------------------------------------000200 * Member: IOS390R2.V510.PARM(TCPCFGxx)000300 * Description: TCP task group configuration000400 *---------------------------------------------000500000600 * Define the virtual medium000700000800 MEDIA VIRTUAL MTU(4096) NAME(LOOPBACK)000900001000 * Define the physical medium001100001200 MEDIA CLAW MTU(4096) NAME(ROGCLAW) ASSIST001300001400 * Define the host001500001600 NETWORK IPADDRESS(172.18.4.50)001700 SUBNET(255.255.255.248)001800001900 *002000002100 CLAW DEVADDR(8f2)002200 BUFSIZE(32768)002300 IBUF(5)002400 OBUF(5)002500 RESTART(60)002600 HOSTNAME(HOSTA)002700 WSNAME(RTRA)002800 START002900 PACKED003000003100 * Define gateway003200003300 ROUTE DEST(0.0.0.0) ROUTE(172.18.4.49)003400003500 * Define the transport pr003600003700 TCP MAXRCVBUF(131072)003800 MAXSNDBUF(131072)003900 DEFRCVBUF(131072)004000 DEFSNDBUF(131072)004100 DELAYACK(2)004200 FASTRX(3)004300 MAXRXMIT(18)004400 MINDEV(90)004500 PORTUSE(1:4095)004600 PORTASGN(4096:8191)004700004800 UDP MAXRCVBUF(64000)005200 PORTUS004900 MAXSNDBUF(64000)005000 DEFRCVBUF(64000)005100 DEFSNDBUF(64000)005300 PORTAS005200 PORTUSE(1:4095)005300 PORTASGN(4096:8191)005400005500 RAW MAXRCV005600 MAXSND005700Offload Configuration Example
The following example consists of the mainframe host profile statements, buffer poolsize recommendations, and router configuration statements for the network shown in .
Figure 176 Offload Network Configuration Block Diagram
Host Profile Statements
; Device statementDEVICE OFF CLAW 762 CISCOVM CIP1 NONE 20 20 4096 4096!; Link Statements (both needed)LINK OFFL OFFLOADLINK1 1 OFFLINK MEMD OFFLOADAPIBROAD 162.18.4.59 OFF OFFL!; Home Statement; (No additional home statements are added for offload)!!; Routing information (if you are not using the ROUTED SERVER)GATEWAY; NETWORK FIRST HOP DRIVER PCKT_SZ SUBN_MSK SUBN_VALUE162.18 = MEMD 4096 0.0.255.248 0.0.4.56DEFAULTNET = MEMD 1500 0!;START statementsSTART OFF!Router Configuration Statements
The following statements configure the offload feature in the router. When you configure a host-to-host communication through the same channel interface, include the no ip redirects and ip route-cache same-interface commands:
interface Channel0/0ip address 162.18.4.57 255.255.255.248no ip redirectsip route-cache same-interfaceno keepaliveoffload C300 62 162.18.4.59 CISCOVM CIP1 TCPIP TCPIP TCPIP APICSNA Configuration Example
The following configuration is an example of configuring CSNA on a Cisco 7500 router with a CIP. illustrates this configuration example.
Figure 177 CIP CSNA Internal LAN Network Diagram
source-bridge ring-group 2000source-bridge transparent 2000 444 1 1dlsw remote-peer 0 tcp 10.30.3.1dlsw local-peer peer-id 10.30.2.2!interface serial 1/0ip address 10.30.2.2 255.255.255.128clockrate 56000!interface tokenring 2/0mac-address 4000.7500.0200no ip addressring-speed 16source-bridge 120 1 2000source-bridge spanning!interface ethernet 3/0mac-address 0200.ae00.c000no ip addressbridge-group 1!interface channel 4/0no ip addressno ip directed-broadcastno keepalivecsna 0100 80!interface channel 4/1no ip addressno ip directed-broadcastno keepalivecsna E200 20 maxpiu 65535 time-delay 100!interface channel 4/2no ip addressno ip directed-broadcastno keepalivemax-llc2-sessions 2500lan TokenRing 3source-bridge 142 1 2000adapter 0 4000.7500.4230llc2 local-window 1llc2 ack-max 1adapter 1 4000.7500.4231lan TokenRing 4adapter 7 4000.7500.4234adapter 8 4000.7500.4238!bridge 1 protocol ieeeECPA CSNA Configuration Example
The following configuration is an example of configuring CSNA on a Cisco 7200 router with a ECPA. illustrates this configuration example.
Figure 178
ECPA CSNA Translational Bridging Configuration Example
source-bridge ring-group 2000source-bridge transparent 2000 444 1 1dlsw remote-peer 0 tcp 10.30.3.1dlsw local-peer peer-id 10.30.2.2!interface serial 1/0ip address 10.30.2.2 255.255.255.128clockrate 56000!interface tokenring 2/0mac-address 4000.7500.0200no ip addressring-speed 16source-bridge 120 1 2000source-bridge spanning!interface ethernet 3/0mac-address 0200.ae00.c000no ip addressbridge-group 1!interface channel 4/0no ip addressno ip directed-broadcastno keepalivecsna E200 30 maxpiu 65535CSNA E200 40 maxpiu 65535max-llc2-sessions 2500lan TokenRing 3source-bridge 142 1 2000adapter 0 4000.7500.4230llc2 local-window 1llc2 ack-max 1adapter 1 4000.7500.4231lan TokenRing 4adapter 7 4000.7500.4234adapter 8 4000.7500.4238!bridge 1 protocol ieeeTN3270 Configuration Examples
The following configuration has three PUs using DLUR and two more with direct connections.
The initial CIP configuration is as follows:
interface Channel2/2ip address 10.10.20.126 255.255.255.128no ip redirectsno ip directed-broadcastno keepalivelan TokenRing 0source-bridge 223 1 2099adapter 0 4100.cafe.0001llc2 N1 2057adapter 1 4100.cafe.0002llc2 N1 2057Configuration dialog to configure the TN3270 function follows:
! HOSTA is channel-attached and will open SAP 8 on adapter 0.! HOSTB is reached via token-ring! HOSTC is channel-attached non-APPN and will open SAP 4 on adapter 0.! enter interface configuration mode for the virtual interface in slot 2router(config)#int channel 2/2! create TN3270 Server entityrouter(config-if)#tn3270-server! set server-wide defaults for PU parametersrouter(cfg-tn3270)#keepalive 0router(cfg-tn3270)#unbind-action disconnectrouter(cfg-tn3270)#generic-pool permit! define DLUR parameters and enter DLUR configuration moderouter(cfg-tn3270)#dlur SYD.TN3020 SYD.VMG! create PUs under DLUR! Note that the first two share an IP addressrouter(tn3270-dlur)#pu pu0 05d99001 10.10.20.1router(tn3270-dlur-pu)#pu pu1 05d99002 10.10.20.1router(tn3270-dlur-pu)#pu pu2 05d99003 10.10.20.2! create a DLUR LSAP and enter DLUR LSAP configuration moderouter(tn3270-dlur-pu)#lsap token-adapter 1! specify the VRN name of the network containing this lsaprouter(tn3270-dlur-lsap)#vrn syd.lan4! create a link from this lsaprouter(tn3270-dlur-lsap)#link hosta rmac 4100.cafe.0001 rsap 8router(tn3270-dlur-lsap)#link hostb rmac 4000.7470.0009 rsap 4router(tn3270-dlur-lsap)#exitrouter(tn3270-dlur)#exit! create direct pus for the non-APPN Host! note that they must use different lsaps because they go to the same Hostrouter(cfg-tn3270)#pu pu3 05d00001 10.10.20.5 tok 1 24 rmac 4100.cafe.0001 lu-seed pu3###router(tn3270-pu)#pu pu4 05d00002 10.10.20.5 tok 1 28 rmac 4100.cafe.0001 lu-seed pu4###router(tn3270-pu)#endThe resulting configuration from the initial configuration and the configuration dialog follows:
interface Channel2/2ip address 10.10.20.126 255.255.255.128no ip redirectsno keepalivelan TokenRing 0source-bridge 223 1 2099adapter 0 4100.cafe.0001llc2 N1 2057adapter 1 4100.cafe.0002llc2 N1 2057tn3270-serverpu PU3 05D00001 10.10.20.5 token-adapter 1 24 rmac 4100.cafe.0001 lu-seed PU3###pu PU4 05D00002 10.10.20.5 token-adapter 1 28 rmac 4100.cafe.0001 lu-seed PU4###dlur SYD.TN3020 SYD.VMGlsap token-adapter 1vrn SYD.LAN4link HOSTB rmac 4000.7470.0009link HOSTA rmac 4100.cafe.0001 rsap 08pu PU0 05D99001 10.10.20.1pu PU1 05D99002 10.10.20.1pu PU2 05D99003 10.10.20.2Configure TN3270 DLUR with CMPC Host Connection
The following example shows a DLUR PU with a CMPC host connection.
interface Channel0/0no ip addressno keepalivecmpc C010 E5 LPAR1TG READcmpc C010 E6 LPAR1TG WRITEcmpc C020 00 LPAR2TG READcmpc C020 01 LPAR2TG WRITE!interface Channel0/2ip address 172.18.5.1 255.255.255.224no keepalivelan TokenRing 0source-bridge 100 1 8adapter 0 4000.4040.0000 ! for cmpcadapter 1 4000.6060.0000 ! TN3270 serveradapter 2 4000.7070.0000tn3270-servermaximum-lus 20000 ! optionalidle-time 64800 ! optionaltiming-mark ! optionaltcp-port 24 ! optionalclient 10.10.10.0 255.255.255.0 lu maximum 10000 ! optionaldlur NETA.TN3270CP NETA.CPACdlus-backup NETA.MVS2 ! optionalpreferred-NNserver NETA.CPAC ! optionallsap token-adapter 1 04 ! TN3270 server uses cmcc adapter 1 and sap=04link LINK1 rmac 4000.4040.0000 rsap 08 ! link to cmpc on adapter 0lsap token-adapter 2 04link LINK2 rmac 4000.7070.0000 rsap 08 ! link to cmpc on adapter 2pu TNPU1 0175 4321 172.18.5.2!tg LPAR1TG llc token-adapter 0 08 rmac 4000.6060.0000 rsap 04 ! rsap optionaltg LPAR2TG llc token-adapter 2 08 rmac 4000.7070.0000 ! rsap=04 by default"Static and Dynamic LUs with LU Nailing Configuration Example
The following example shows a direct PU and a DLUR PU configured with the same listening point. The PUs are configured with the same nailed client IP address.
tn3270-serverpu PU1 05D18081 172.28.1.82 token-adapter 1 24 rmac 4100.cafe.0001 lu-seed PU3###client ip 192.195.80.40 lu 1 10dlurpu PU2 05D190B3 172.28.1.82 token-adapter 1 28 rmac 4100.cafe.0001 lu-seed PU4###client ip 192.195.80.40 lu 1 10Assuming each PU has three static LUs, which are ACTLU enabled and not connected, then these LUs are the first to be nailed. That is, the first six connections from client IP address 192.195.80.40 use the static LUs and subsequent connections use the remaining dynamic LUs.
Removing LU Nailing Definitions Example
In the following example, locaddrs 1 to 50 are reserved for all remote screen devices in the 171.69.176.0 subnet.
interface channel 2/2tn3270-serverpu BAGE4client ip 171.69.176.28 255.255.255.0 lu 1 50To remove a nailing definition, the complete range of locaddrs must be specified as configured. So for the example above, the following command would remove the LU nailing definition.
no client ip 171.69.176.28 255.255.255.0 lu 1 50If an attempt is made to remove a subset of the range of configured locaddrs then the command is rejected.
no client ip 171.69.176.28 255.255.255.0 lu 1 20% client ip 171.69.176.28 lu not matched with configured lu 1 50Configuring Different Values for Precedence and TOS Example
The following example changes IP precedence and IP TOS to different values under the TN3270 server for both the screen and printer. Note that any PUs defined under this configuration will inherit these values unless the corresponding parameter is specifically changed for that PU.
interface channel 3/2tn3270-serverip precedence screen 6ip precedence printer 3ip tos screen 8ip tos printer 4Overriding Configured Values Example
In the following example, the PU PUS1 uses the IP TOS precedence screen and printer values from the values provided in TN3270 server configuration mode. PUS2 uses the IP TOS screen and printer values defined in TN3270 server configuration mode. However, different values for IP precedence are provided for PUS2 under PU configuration mode.
interface channel 3/2tn3270-serverip precedence screen 6ip precedence printer 3ip tos screen 8ip tos printer 4pu PUS1 05D18009 172.28.1.101 token-adapter 0 AC rsap 08pu PUS2 05D18071 172.28.1.99 token-adapter 0 A4 rmac 4000.7470.00e7ip precedence screen 7ip precedence printer 0Configure IP Host Backup Example
shows the backup connection occurring between System B mainframe3 when mainframe 2 fails.
Figure 179 IP Host Backup Configuration
The intent of this backup configuration is that the system named A will be loaded on one of the mainframes in LPAR1 on that mainframe. The DASD for that system will be shared among all the mainframes but only one of them will ever IPL the system at one time. The same holds for LPAR2 and LPAR3.
The ESCON director has the following connections:
•
•
•
•
The following examples show how to configure IP Host Backup for three mainframe hosts, Mainframe 1, Mainframe 2, and Mainframe 3, as shown in . Each mainframe is configured for at least three logical partitions (LPARs).
Excerpts from the host TCP/IP profiles show how the host might be configured. Excerpts from the router configuration show how the IP Host Backup configuration statements are configured.
Host TCP/IP Profiles
The DEVICE and HOME statements in the nine TCP/IP profiles are similar to the following:
LPAR1 (mainframes 1, 2, 3):DEVICE CIP1 CLAW 630 LPAR1 CIP1 NONE 20 20 4096 4096LINK CIP1L IP 0 CIP1HOME198.92.5.2 CIP1LLPAR2 (mainframes 1, 2, 3):DEVICE CIP1 CLAW 730 LPAR1 CIP1 NONE 20 20 4096 4096LINK CIP1L IP 0 CIP1HOME198.92.5.3 CIP1LLPAR3 (mainframes 1, 2, 3):DEVICE CIP1 CLAW 830 LPAR1 CIP1 NONE 20 20 4096 4096LINK CIP1L IP 0 CIP1HOME198.92.5.4 CIP1LRouter Configuration
On the router, the CIP is located in slot 3 and port 1 is connected to the ESCON director. The path commands define the group of paths that are used as the IP Host Backup.
interface channel 3/1ip address 198.92.5.1 255.255.255.128path c010 c110 c210claw 30 198.92.5.2 lpar1 cip1 tcpip tcpippath c020 c120 c220claw 30 198.92.5.3 lpar2 cip1 tcpip tcpippath c030 c130 c230claw 30 198.92.5.4 lpar3 cip1 tcpip tcpipCMPC Configuration Examples for CMPC
This section provides sample configurations for the CMPC feature. Throughout these configuration samples, a Cisco 7500 router with an RSP is used to illustrate the configurations. The configurations also apply to a Cisco 7000 router with an RP or an RSP installed. All SAP values are written in hexadecimal form.
Refer to the following configuration examples to see how different networked systems can be configured:
•
•
•
•
•
Connecting VTAM to a Remote PC with Communications Server/2 Example
shows the physical components for this example. shows the various parameters for each component in the configuration example.
Figure 180 Topology for VTAM-to-Remote PC with Communications Server/2
In , the following activity occurs:
•
•
•
•
Figure 181 Parameters for VTAM-to-Remote PC with Communications Server/2
The example in shows CMPC running on the CIP and communicating with a PC running Communications Server/2. APPN is not running on the router. It is only running in VTAM and on the PC.
The configuration examples for the VTAM host and the router follow.
TRL Node LAGTRLA on MVS2
LAGTRA VBUILD TYPE=TRLLAGTRLA TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0, XREAD=(2F0), XWRITE=(2F1)Local Node LAGLNA on MVS2
LAGNNA VBUILD TYPE=LOCALLAGPUA PU TRLE=LAGTRLA, XISTATUS=ACTIVE, XXID=YES,CONNTYPE=APPN,CPCP=YES,HPR=YESConfiguration for Honduras Router
source-bridge ring-group 100!interface TokenRing0/0no ip addressring-speed 16source-bridge 500 4 100!interface Ethernet1/0ip address 172.18.3.24 255.255.255.0!interface Channel6/1no ip addressno keepalivecmpc C020 F0 LAGUNAA READcmpc C020 F1 LAGUNAA WRITE!interface Channel6/2no ip addressno keepalivelan TokenRing 0source-bridge 88 3 100adapter 1 4000.aaaa.aaaatg LAGUNAA llc token-adapter 1 18 rmac 4000.0000.beef rsap 14Activate the Configuration
To activate the configuration, issue the following commands from MVS2:
v net,act,id=lagtrla,update=addv net,act,id=laglnaConnecting VTAM to the APPN NN on the CIP Example
shows the physical components for this example. shows the various parameters for each component in the configuration example.
Figure 182 Topology for VTAM-to-APPN NN Connection on the CIP
In , the following activity occurs:
•
•
•
•
•
Figure 183 Parameters for VTAM-to-APPN NN Connection on the CIP
The configuration illustrated in is more complex because you must configure APPN on the router. There are many different ways to configure APPN. The example is a simple APPN configuration in which SRB is used to connect the APPN NN on the RSP to VTAM and the token-ring attached PC.
It is possible to connect directly to the Token Ring port, an option not shown in the example.
When configuring APPN on the router, you must type the complete command before exiting an APPN configuration subsection. If you need to change an APPN configuration subsection, you must type the no complete command before you can change the subsection. Remember to type complete before exiting the subsection. The router ignores the new APPN configuration commands until you type the complete command.
Configuration for TRL Node LAGTRLB
LAGTRB VBUILD TYPE=TRLLAGTRLB TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0, XREAD=(2F2), XWRITE=(2F3)Local SNA Major Node LAGLNB
LAGNNB VBUILD TYPE=LOCALLAGPUB PU TRLE=LAGTRLB, XISTATUS=ACTIVE, XXID=YES,CONNTYPE=APPN,CPCP=YESHonduras Router
interface Channel6/1no ip addressno keepalivecmpc C020 F2 LAGUNAB READcmpc C020 F3 LAGUNAB WRITE!interface Channel6/2no ip addressno keepalivelan TokenRing 0source-bridge 88 3 100adapter 2 4000.bbbb.bbbblan TokenRing 2tg LAGUNAB llc token-adapter 2 20 rmac 4000.0000.bbbb rsap 24!!appn control-point NETA.HONDURAScomplete!appn port RSRBPORT rsrblocal-sap 24desired-max-send-btu-size 4096max-rcv-btu-size 4096rsrb-virtual-station 4000.0000.bbbb 61 2 100complete!appn link-station LAGUNABport RSRBPORTlan-dest-address 4000.0000.beef 14completerouter eigrp 109network 172.18.0.0Activate the Configuration
After all configurations are in place, the following commands can be used to start up the links. On the MVS system, use the following commands:
v net,act,id=lagtrlb,update=addv net,act,id=laglnbOn the router, use the following command from the global configuration mode:
appn startConnecting Two VTAM Nodes Using Two CIPs in the Same Router Example
shows the physical components for this example. shows the various parameters for each component in the configuration example.
Figure 184 Topology for VTAM-to-VTAM Connection
In , the following activity occurs:
•
•
•
•
The CIPs could be in different routers or both VTAM connections could be to the same CIP.
shows parameters for VTAM-to-VTAM connection.
Figure 185 Parameters for VTAM-to-VTAM Connection
Differing solutions can be configured for the example shown in . For example, you can have two CIPs in different routers connected via LLC2. You can also configure host connections going into the same CIP card rather than two separate CIP cards.
mvs2trlc
MVS2TRC VBUILD TYPE=TRLMVS2TRLC TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0, XREAD=(2F4), XWRITE=(2F5)mvs2lnc
MVS2NNC VBUILD TYPE=LOCALMVS2PUC PU TRLE=MVS2TRLC, XISTATUS=ACTIVE, XXID=YES,CONNTYPE=APPN,CPCP=YEScpactrlc
CPACTRC VBUILD TYPE=TRLCPACTRLC TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0, XREAD=(840), XWRITE=(841)cpaclnc
CPACNNC VBUILD TYPE=LOCALCPACPUC PU TRLE=CPACTRLC, XISTATUS=ACTIVE, XXID=YES,CONNTYPE=APPN,CPCP=YESRouter
interface Channel4/1no ip addressno keepalivecmpc C010 40 CPACC READcmpc C010 41 CPACC WRITE!interface Channel4/2no ip addressno keepalivelan TokenRing 0source-bridge 43 5 100adapter 3 4000.0000.cccctg CPACC llc token-adapter 3 34 rmac 4000.cccc.cccc rsap 30!interface Channel6/1no ip addressno keepalivecmpc C020 F4 MVS2C READcmpc C020 F5 MVS2C WRITE!interface Channel6/2lan TokenRing 0source-bridge 88 3 100adapter 3 4000.cccc.cccctg MVS2C llc token-adapter 3 30 rmac 4000.0000.cccc rsap 34Activate the Configuration
On the MVS system MVS2, use the following commands to activate the configuration:
v net,act,id=mvs2trlc,update=addv net,act,id=mvs2lncOn the MVS system CPAC, use the following commands to activate the configuration:
v net,act,id=cpactrlc,update=addv net,act,id=cpaclncConnecting VTAM to the APPN NN on a Remote Router with DLUR Example
shows the physical components for the DLUS-to-DLUR configuration. shows the various parameters for each component in the configuration example.
Figure 186 Topology for VTAM-to-APPN NN on a Remote Router with DLUR Connection
Figure 187 Parameters for VTAM-to-APPN NN on a Remote Router with DLUR Connection
In the example shown in , DLUS is running on the MVS host. DLUR is running on a remote Cisco 4000 router. The connection from MPC to the APPN stack on the Cisco 4000 is via LLC2. There is no NN on the Cisco 7500. The PC is running Communications Server/2.
mvs2trld
MVS2TRD VBUILD TYPE=TRLMVS2TRLD TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0, XREAD=(2F7), XWRITE=(2F6)mvs2lnd
MVS2NND VBUILD TYPE=LOCALMVS2PUD PU TRLE=MVS2TRLD, XISTATUS=ACTIVE, XXID=YES,CONNTYPE=APPN,CPCP=YESAdditional Configuration for Router Honduras
interface Channel6/1cmpc C020 F6 CONFIGD WRITEcmpc C020 F7 CONFIGD READ!interface Channel6/2lan TokenRing 0source-bridge 88 3 100adapter 4 4000.dddd.ddddtg CONFIGD llc token-adapter 4 40 rmac 4000.0000.dddd rsap 44Router Dustin
source-bridge ring-group 84interface Ethernet0ip address 172.18.3.36 255.255.255.0media-type 10BaseT!interface TokenRing0no ip addressring-speed 16source-bridge 500 2 84!appn control-point NETA.DUSTINdlus NETA.MVS2dlurcomplete!appn port RSRBPORT rsrblocal-sap 44desired-max-send-btu-size 4096max-rcv-btu-size 4096rsrb-virtual-station 4000.0000.dddd 94 5 84complete!appn link-station LAGUNADport RSRBPORTlan-dest-address 4000.0000.beef 14complete!appn link-station MVS2Dport RSRBPORTlan-dest-address 4000.dddd.dddd 40completeActivate the Configuration
On the MVS2 system, use the following commands to activate the configuration:
v net,act,id=mvs2trld,update=addv net,act,id=mvs2lndOn the router Dustin, use the following command from the global configuration mode:
appn startTN3270 Server DLUR Running on the Same CIP Example
shows the physical components for this example. shows the various parameters for each component in the configuration example.
Figure 188 Topology for VTAM-to-TN3270 Server DLUR Running on the Same CIP Connection
In , the following activity occurs:
•
•
•
•
The TN3270 server does not have to be in the same CMCC adapter as the CMPC driver.
Figure 189 Parameters for VTAM-to-TN3270 DLUR Running on the Same Connection
The following configurations apply to the example shown in .
mvs2trle
MVS2TRE VBUILD TYPE=TRLMVS2TRLE TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0,READ=(2F8),WRITE=(2F9)mvs2lne
MVS2NNE VBUILD TYPE=LOCALMVS2PUE PU TRLE=MVS2TRLE,ISTATUS=ACTIVE,XID=YES,CONNTYPE=APPN,CPCP=YESswlagtn
SWLAGTN VBUILD TYPE=SWNET,MAXGRP=10,MAXNO=10,MAXDLUR=10LAGTNPU PU ADDR=01, XMAXPATH=1, XIDBLK=017,IDNUM=EFEED, XPUTYPE=2, XMAXDATA=4096, XLUGROUP=TNGRP1,LUSEED=LAGLU##tngrp1
TNGRP1E VBUILD TYPE=LUGROUPTNGRP1 LUGROUPDYNAMIC LU DLOGMOD=D4C32XX3, XMODETAB=ISTINCLM,USSTAB=USSTCPIP,SSCPFM=USS3270@ LU DLOGMOD=D4C32784, XMODETAB=ISTINCLM,USSTAB=USSTCPIP,SSCPFM=USS3270Additional Router Configuration for Router Honduras
interface Channel6/1cmpc C020 F8 CONFIGE READcmpc C020 F9 CONFIGE WRITE!interface Channel6/2lan TokenRing 0source-bridge 88 3 100adapter 5 4000.eeee.eeeeadapter 6 4000.0000.eeeetn3270-serverdlur NETA.HOND327S NETA.MVS2lsap token-adapter 6 54link MVS2TN rmac 4000.eeee.eeee rsap 50pu TNPU 017EFEED 172.18.1.218tg CONFIGE llc token-adapter 6 50 rmac 4000.eeee.eeee rsap 54Activate the Configuration
On the MVS system, use the following commands to activate the configuration:
v net,act,id=mvstrle,update=addv net,act,id=mvslnev net,act,id=swhondpuv net,act,id=swlagtnv net,act,id=swhondcpv net,act,id=tngrp1On the router Honduras, use the following command from TN3270 configuration mode:
no shutdown
