debug ppp bap

To display general BACP transactions, use the debug ppp bap EXEC command. The no form of this command disables debugging output.

[no] debug ppp bap [error | event | negotiation]

Syntax Description

error	(Optional) Displays local errors.
event	(Optional) Displays information about protocol actions and transitions between action states (pending, waiting, idle) on the link.
negotiation	(Optional) Displays successive steps in negotiations between peers.

Usage Guidelines

Do not use this command when memory is scarce or in very high traffic situations.

Sample Displays

The following types of events generate the debug messages displayed in the figures in this section:

•A dial attempt failed.

•A BACP group was created.

•A BACP group was removed.

•The precedence of the group changed.

•Attempting to dial a number.

•Received a BACP message.

•Discarding a BACP message.

•Received an unknown code.

•Cannot find the appropriate BACP group on input.

•Displaying the response type.

•Incomplete mandatory options notification.

•Invalid outgoing message type.

•Unable to build an output message.

•Sending a BACP message.

•Details about the sent message (type of message, its identifier, the virtual access interface that sent it, and so forth).

The following is sample output from the debug ppp bap command:

Router# debug ppp bap

BAP Virtual-Access1: group "laudrup" (2) (multilink) without precedence created

BAP laudrup: sending CallReq, id 2, len 38 on BRI3:1 to remote

BAP Virtual-Access1: received CallRsp, id 2, len 13

BAP laudrup: CallRsp, id 2, ACK

BAP laudrup: attempt1 to dial 19995776677 on BRI3

 ---> reason BAP - Multilink bundle overloaded

BAP laudrup: sending StatusInd, id 2, len 44 on Virtual-Access1 to remote

BAP Virtual-Access1: received StatusRsp, id 2, len 1

BAP laudrup: StatusRsp, id 2, ACK

describes some basic information about the group, the events, and the sent-message details.

Table 105 Debug PPP BAP Field Descriptions

Field	Description
BAP Virtual-Access1:	Identifier of the virtual access interface in use.
group "laudrup"	Name of the BACP group.
sending CallReq	Action initiated; in this case, sending a call request.
on BRI3:1 to remote	Physical interface being used.
BAP laudrup: attempt1 to dial 19995776677 on BRI3 ---> reason BAP - Multilink bundle overloaded	Call initiated, number being dialed, and physical interface being used. Reason for initiating the BACP call.
BAP laudrup: sending StatusInd, id 2, len 44 on Virtual-Access1 to remote	Details about the sent message: it was a status indication message, had identifier 2, BACP datagram length 44, and was sent on virtual access interface 1. You can display information about the virtual access interface by using the show interfaces virtual-access command. (The length shown at the end of each negotiated option includes the 2-byte type and length header.)

The debug ppp bap event command might show state transitions and protocol actions, in addition to the basic debug ppp bap command.

The following is sample output from the debug ppp bap event command when the event keyword is used:

Router# debug ppp bap event

BAP laudrup: Idle --> AddWait

BAP laudrup: AddWait --> AddPending

BAP laudrup: AddPending --> Idle

The following is sample output from the debug ppp bap event command when the event keyword is used:

Router# debug ppp bap event

Peer does not support a message type

No response to a particular request

No response to all request retransmissions

Not configured to initiate link addition

Expected action by peer has not occurred

Exceeded number of retries

No links available to call out

Unable to provide phone numbers for callback

Maximum number of links in the group

Minimum number of links in the group

Unable to process link addition at present

Unable to process link removal at present

Not configured/unable to initiate link removal

Link addition completed notification

Link addition failed notification

Determination of location of the group config

Link with specified discriminator not in group

Link removal failed

Call failure with status

Failed to dial specified number

Discarding retransmission

Unable to find received identifier

Received StatusInd when no call pending

Discarding message with no phone delta

Unable to send message in particular state

Received a zero identifier

Request has precedence

The error messages displayed might be added to the basic output when the debug ppp bap error command is used. Because the errors are very rare, you might never see these messages.

Router# debug ppp bap error

Unable to find appropriate request for received response

Invalid message type of queue

Received request is not part of the group

Add link attempt failed to locate group

Remove link attempt failed to locate group

Unable to inform peer of link addition

Changing of precedence cannot locate group

Received short header/illegal length/short packet

Invalid configuration information length

Unable to NAK incomplete options

Unable to determine current number of links

No interface list to dial on

Attempt to send invalid data

Local link discriminator is not in group

Received response type is incorrect for identifier

The messages displayed might be added to the basic output when the debug ppp bap negotiation command is used:

Router# debug ppp bap negotiation

BAP laudrup: adding link speed 64 kbps for type 0x1 len 5

BAP laudrup: adding reason "User initiated addition", len 25

BAP laudrup: CallRsp, id 4, ACK

BAP laudrup: link speed 64 kbps for types 0x1, len 5 (ACK)

BAP laudrup: phone number "1: 0 2: ", len 7 (ACK)

BAP laudrup: adding call status 0, action 0 len 4

BAP laudrup: adding 1 phone numbers "1: 0 2: " len 7

BAP laudrup: adding reason "Successfully added link", len 25

BAP laudrup: StatusRsp, id 4, ACK

Additional negotiation messages might also be displayed for the following:

Received BAP message

Sending message

Decode individual options for send/receive

Notification of invalid options

The following shows additional reasons for a particular BAP action that might be displayed in an "adding reason" line of the debug ppp bap negotiation command output

"Outgoing add request has precedence"

"Outgoing remove request has precedence"

"Unable to change request precedence"

"Unable to determine valid phone delta"

"Attempting to add link"

"Link addition is pending"

"Attempting to remove link"

"Link removal is pending"

"Precedence of peer marked CallReq for no action"

"Callback request rejected due to configuration"

"Call request rejected due to configuration"

"No links of specified type(s) available"

"Drop request disallowed due to configuration"

"Discriminator is invalid"

"No response to call requests"

"Successfully added link"

"Attempt to dial destination failed"

"No interfaces present to dial out"

"No dial string present to dial out"

"Mandatory options incomplete"

"Load has not exceeded threshold"

"Load is above threshold"

"Currently attempting to dial destination"

"No response to CallReq from race condition"

describes the reasons for a BACP Negotiation Action.

Table 106 Explanation of Reasons for BACP Negotiation Action

Reason	Explanation
`Outgoing add request has precedence"	We received a CallRequest or CallbackRequest while we were waiting on a CallResponse or CallbackResponse to a transmitted request. We are the favored peer from the initial BACP negotiation, therefore we are issuing a NAK to our peer request.
"Outgoing remove request has precedence"	We received a LinkDropQueryRequest while we are waiting on a LinkDropQueryResponse to a transmitted request. We are the favored peer from the initial BACP negotiation, therefore we are issuing a NAK to our peer request.
"Unable to change request precedence"	We received a CallRequest, CallbackRequest or LinkDropQueryRequest while we were waiting on a LinkDropQueryResponse to a transmitted request. Our peer is deemed to be the favored peer from the initial BACP negotiation and we were unable to change the status of our outgoing request in response to the favored request so we are issuing a NAK. (This is an internal error and should never be seen.)
"Unable to determine valid phone delta"	We received a CallRequest from our peer but we are unable to provide the required phone delta for the response; therefore we are issuing a NAK. (This is an internal error and should never be seen.)
"Attempting to add link"	We received a LinkDropQueryRequest while we were attempting to add a link; a NAK is issued.
"Link addition is pending"	We received a LinkDropQueryRequest, CallRequest, or CallbackRequest while we were attempting to add a link as the result of a previous operation; a NAK is issued in the response.
"Attempting to remove link"	We received a CallRequest or CallbackRequest while we were attempting to remove a link; a NAK is issued.
"Link removal is pending"	We received a CallRequest, CallbackRequest or LinkDropQueryRequest while we were attempting to remove a link as the result of a previous operation; a NAK is issued in the response.
"Precedence of peer marked CallReq for no action"	We received an ACK to a previously unfavored CallRequest; we are issuing a CallStatusIndication to inform our peer that there will be no further action on our part as per this response.
"Callback request rejected due to configuration"	We received a CallbackRequest but we are configured not to accept them; a REJect is issued to our peer.
"Call request rejected due to configuration"	We received a CallRequest but we are configured not to accept them; a REJect is issued to our peer.
"No links of specified type(s) available"	We received a CallRequest but there are no links of the specified type and speed available; a NAK is issued.
"Drop request disallowed due to configuration"	We received a LinkDropQueryRequest but we are configured not to accept them; a NAK is issued to our peer.
"Discriminator is invalid"	We received a LinkDropQueryRequest but the local link discriminator is not contained within the bundle; a NAK is issued.
"No response to call requests"	After no response to our CallRequest message, a CallStatusIndication is sent to the peer informing that no more action will be taken on behalf of this operation.
"Successfully added link"	Sent as part of the CallStatusIndication informing our peer that we successfully completed the addition of a link to the bundle as the result of the transmission of a CallRequest or the reception of a CallbackRequest.
"Attempt to dial destination failed"	Sent as part of the CallStatusIndication informing our peer that we failed in an attempt to add a link to the bundle as the result of the transmission of a CallRequest or the reception of a CallbackRequest. The retry field with the CallStatusIndication informs the peer of our intentions.
"No interfaces present to dial out"	There are no available interfaces to dial out on to attempt to add a link to the bundle, and we are not going to retry the dial attempt.
"No dial string present to dial out"	We do not have a dial string to dial out with to attempt to add a link to the bundle, and we are not going to retry the dial attempt. (This is an internal error and should never be seen.)
"Mandatory options incomplete"	We received a CallRequest, CallbackRequest, LinkDropQueryRequest or CallStatusIndication and the mandatory options are not present, thus a NAK is issued in the response. (A CallStatusResponse is an ACK, however).
"Load has not exceeded threshold"	We received a CallRequest or CallbackRequest but we are issuing a NAK in the response. We are monitoring the load of the bundle, thus we determine when links should be added to the bundle.
"Load is above threshold"	We received a LinkDropQueryRequest but we are issuing a NAK in the response. We are monitoring the load of the bundle, and thus we determine when links should be removed from the bundle.
"Currently attempting to dial destination"	We received a CallbackRequest which is a retransmission of one which we previously ACK'd and are currently in the process of dialing the number suggested in the request. We are issuing an ACK because we did so previously, even though our peer never saw the previous response.
"No response to CallReq from race condition"	We issued a CallRequest but failed to receive a response, and we are issuing a CallStatusIndication to inform our peer of our intention not to proceed with the operation.

debug ppp multilink fragments

Use the debug ppp multilink fragments EXEC command to display information about individual multilink fragments and important multilink events. The no form of this command disables debugging output.

[no] debug ppp multilink fragments

Usage Guidelines

The debug ppp multilink fragments command has some memory overhead and should not be used when memory is scarce or in very high traffic situations.

Sample Display

The following is sample output from the debug ppp multilink fragments command when used with the ping command. The debug output indicates that a multilink PPP packet on interface BRI 0 (on the B channel) is an input (I) or output (O) packet. The output also identifies the sequence number of the packet and the size of the fragment.

Router# debug ppp multilink fragments

Router# ping 7.1.1.7

Type escape sequence to abort.

Sending 5, 100-byte ICMP Echos to 7.1.1.7, timeout is 2 seconds:

!!!!!

Success rate is 100 percent (5/5), round-trip min/avg/max = 32/34/36 ms

Router#

2:00:28: MLP BRI0: B-Channel 1: O seq 80000000: size 58

2:00:28: MLP BRI0: B-Channel 2: O seq 40000001: size 59

2:00:28: MLP BRI0: B-Channel 2: I seq 40000001: size 59

2:00:28: MLP BRI0: B-Channel 1: I seq 80000000: size 58

2:00:28: MLP BRI0: B-Channel 1: O seq 80000002: size 58

2:00:28: MLP BRI0: B-Channel 2: O seq 40000003: size 59

2:00:28: MLP BRI0: B-Channel 2: I seq 40000003: size 59

2:00:28: MLP BRI0: B-Channel 1: I seq 80000002: size 58

2:00:28: MLP BRI0: B-Channel 1: O seq 80000004: size 58

2:00:28: MLP BRI0: B-Channel 2: O seq 40000005: size 59

2:00:28: MLP BRI0: B-Channel 2: I seq 40000005: size 59

2:00:28: MLP BRI0: B-Channel 1: I seq 80000004: size 58

2:00:28: MLP BRI0: B-Channel 1: O seq 80000006: size 58

2:00:28: MLP BRI0: B-Channel 2: O seq 40000007: size 59

2:00:28: MLP BRI0: B-Channel 2: I seq 40000007: size 59

2:00:28: MLP BRI0: B-Channel 1: I seq 80000006: size 58

2:00:28: MLP BRI0: B-Channel 1: O seq 80000008: size 58

2:00:28: MLP BRI0: B-Channel 2: O seq 40000009: size 59

2:00:28: MLP BRI0: B-Channel 2: I seq 40000009: size 59

2:00:28: MLP BRI0: B-Channel 1: I seq 80000008: size 58

debug ppp multilink events

To display information about events affecting multilink groups established for BACP, use the debug ppp multilink events EXEC command. The no form of this command disables debugging output.

[no] debug ppp multilink events

Usage Guidelines

Do not use this command when memory is scarce or in very high traffic situations.

Sample Display

The following is sample output from the debug ppp multilink events command:

Router# debug ppp multilink events

MLP laudrup: established BAP group 4 on Virtual-Access1, physical BRI3:1

MLP laudrup: removed BAP group 4

Other event messages include the following:

Unable to find bundle for BAP group identifier

Unable to find physical interface to start BAP

Unable to create BAP group

Attempt to start BACP when inactive or running

Attempt to start BACP on non-MLP interface

Link protocol has gone down, removing BAP group

Link protocol has gone down, BAP not running or present

describes the significant fields.

Table 107 Debug PPP Multilink Events Field Descriptions

Field	Description
MLP laudrup	Name of the multilink group.
established BAP group 4	Internal identifier. The same identifiers are used in the show ppp bap group command output.
Virtual-Access1	Dynamic access interface number.
physical BRI3:1	Bundle was established from a call on this interface.
removed BAP group 4	When the bundle is removed, the associated BACP group (with its ID) is also removed.

debug priority

Use the debug priority EXEC command to display priority queueing output. The no form of this command disables debugging output.

[no] debug priority

Usage Guidelines

This command has no arguments or keywords and no default behavior or values.

Sample Displays

The following example shows how to enable priority queueing output:

Router# debug priority

Priority output queueing debugging is on

The following is sample output from the debug priority command when the Frame Relay PVC Interface Priority Queueing (FR PIPQ) feature is configured on serial interface 0:

Router# debug priority

00:49:05:PQ:Serial0 dlci 100 -> high

00:49:05:PQ:Serial0 output (Pk size/Q 24/0)

00:49:05:PQ:Serial0 dlci 100 -> high

00:49:05:PQ:Serial0 output (Pk size/Q 24/0)

00:49:05:PQ:Serial0 dlci 100 -> high

00:49:05:PQ:Serial0 output (Pk size/Q 24/0)

00:49:05:PQ:Serial0 dlci 200 -> medium

00:49:05:PQ:Serial0 output (Pk size/Q 24/1)

00:49:05:PQ:Serial0 dlci 300 -> normal

00:49:05:PQ:Serial0 output (Pk size/Q 24/2)

00:49:05:PQ:Serial0 dlci 400 -> low

00:49:05:PQ:Serial0 output (Pk size/Q 24/3)

Related Command

debug custom-queue

debug qllc error

Use the debug qllc error EXEC command to display quality link line control (QLLC) errors. The no form of this command disables debugging output.

[no] debug qllc error

Usage Guidelines

This command helps you track down errors in the QLLC interactions with X.25 networks. Use debug qllc error in conjunction with debug x25 all to see the connection. The data shown by this command only flows through the router on the X.25 connection. Some forms of this command can generate lots of output and network traffic.

Sample Display

The following is sample output from the debug qllc error command:

Router# debug qllc error

%QLLC-3-GENERRMSG: qllc_close - bad qllc pointer Caller 00407116 Caller 00400BD2

QLLC 4000.1111.0002: NO X.25 connection. Discarding XID and calling out

The following line indicates that the QLLC connection was closed:

%QLLC-3-GENERRMSG: qllc_close - bad qllc pointer Caller 00407116 Caller 00400BD2

The following line shows the virtual MAC address of the failed connection:

QLLC 4000.1111.0002: NO X.25 connection. Discarding XID and calling out

debug qllc event

Use the debug qllc event EXEC command to enable debugging of QLLC events. The no form of this command disables debugging output.

[no] debug qllc event

Usage Guidelines

Use the debug qllc event command to display primitives that might affect the state of a QLLC connection. An example of these events is the allocation of a QLLC structure for a logical channel indicator when an X.25 call has been accepted with the QLLC call user data. Other examples are the receipt and transmission of LAN explorer and XID frames.

Sample Display

The following is sample output from the debug qllc event command:

Router# debug qllc event

QLLC: allocating new qllc lci 9

QLLC: tx POLLING TEST, da 4001.3745.1088, sa 4000.1111.0001

QLLC: rx explorer response, da 4000.1111.0001, sa c001.3745.1088, rif
08B0.1A91.1901.A040

QLLC: gen NULL XID, da c001.3745.1088, sa 4000.1111.0001, rif 0830.1A91.1901.A040, dsap
4, ssap 4

QLLC: rx XID response, da 4000.1111.0001, sa c001.3745.1088, rif 08B0.1A91.1901.A040

The following line indicates a new QLLC data structure has been allocated:

QLLC: allocating new qllc lci 9

The following lines show transmission and receipt of LAN explorer or test frames:

QLLC: tx POLLING TEST, da 4001.3745.1088, sa 4000.1111.0001

QLLC: rx explorer response, da 4000.1111.0001, sa c001.3745.1088, rif
08B0.1A91.1901.A040

The following lines show XID events:

QLLC: gen NULL XID, da c001.3745.1088, sa 4000.1111.0001, rif 0830.1A91.1901.A040, dsap
4, ssap 4

QLLC: rx XID response, da 4000.1111.0001, sa c001.3745.1088, rif 08B0.1A91.1901.A040

debug qllc packet

Use the debug qllc packet EXEC command to display QLLC events and QLLC data packets. The no form of this command disables debugging output.

[no] debug qllc packet

Usage Guidelines

This command helps you to track down errors in the QLLC interactions with X.25 networks. The data shown by this command only flows through the router on the X25 connection. Use debug qllc packet in conjunction with debug x25 all to see the connection and the data that flows through the router.

Sample Display

The following is sample output from the debug qllc packet command:

Router# debug qllc packet

14:38:05: Serial2/5 QLLC I: Data Packet.-RSP    9 bytes.

14:38:07: Serial2/6 QLLC I: Data Packet.-RSP 112 bytes.

14:38:07: Serial2/6 QLLC O: Data Packet. 128 bytes.

14:38:08: Serial2/6 QLLC I: Data Packet.-RSP    9 bytes.

14:38:08: Serial2/6 QLLC I: Data Packet.-RSP 112 bytes.

14:38:08: Serial2/6 QLLC O: Data Packet. 128 bytes.

14:38:08: Serial2/6 QLLC I: Data Packet.-RSP    9 bytes.

14:38:12: Serial2/5 QLLC I: Data Packet.-RSP 112 bytes.

14:38:12: Serial2/5 QLLC O: Data Packet. 128 bytes.

The following lines indicate a packet was received on the interfaces:

14:38:05: Serial2/5 QLLC I: Data Packet.-RSP    9 bytes.

14:38:07: Serial2/6 QLLC I: Data Packet.-RSP 112 bytes.

The following lines show that a packet was transmitted on the interfaces:

14:38:07: Serial2/6 QLLC O: Data Packet. 128 bytes.

14:38:12: Serial2/5 QLLC O: Data Packet. 128 bytes.

debug qllc state

Use the debug qllc state EXEC command to enable debugging of the QLLC events. The no form of this command disables debugging output.

[no] debug qllc state

Usage Guidelines

Use the debug qllc state command to show when the state of a QLLC connection has changed. The typical QLLC connection goes from states ADM to SETUP to NORMAL. The NORMAL state indicates that a QLLC connection exists and is ready for data transfer.

Sample Display

The following is sample output from the debug qllc state command:

Router# debug qllc state

Serial2 QLLC O: QSM-CMD

Serial2: X25 O D1 DATA (5) Q 8 lci 9 PS 4 PR 3

QLLC: state ADM -> SETUP

Serial2: X25 I D1 RR (3) 8 lci 9 PR 5

Serial2: X25 I D1 DATA (5) Q 8 lci 9 PS 3 PR 5

Serial2 QLLC I: QUA-RSPQLLC: addr 00, ctl 73

QLLC: qsetupstate: recvd qua rsp

QLLC: state SETUP -> NORMAL

The following line indicates a QLLC connection attempt is changing state from ADM to SETUP:

QLLC: state ADM -> SETUP

The following line indicates a QLLC connection attempt is changing state from SETUP to NORMAL:

QLLC: state SETUP -> NORMAL

debug qllc timer

Use the debug qllc timer EXEC command to display QLLC timer events. The no form of this command disables debugging output.

[no] debug qllc timer

Usage Guidelines

The QLLC process periodically cycles and checks status of itself and its partner. If the partner is not found in the desired state, a LAPB primitive command is resent until the partner is in the desired state or the timer expires.

Sample Display

The following is sample output from the debug qllc timer command:

Router# debug qllc timer

14:27:24: Qllc timer lci 257, state ADM retry count 0 Caller 00407116 Caller 00400BD2

14:27:34: Qllc timer lci 257, state NORMAL retry count 0

14:27:44: Qllc timer lci 257, state NORMAL retry count 1

14:27:54: Qllc timer lci 257, state NORMAL retry count 1

The following line of output shows the state of a QLLC partner on a given X.25 logical channel identifier:

14:27:24: Qllc timer lci 257, state ADM retry count 0 Caller 00407116 Caller 00400BD2

Other messages are informational and appear every ten seconds.

debug qllc x25

Use the debug qllc x25 EXEC command to display X.25 packets that affect a QLLC connection. The no form of this command disables debugging output.

[no] debug qllc x25

Usage Guidelines

This command is helpful to track down errors in the QLLC interactions with X.25 networks. Use debug qllc x25 in conjunction with debug x25 events or debug x25 all to see the X.25 events between the router and its partner.

Sample Display

The following is sample output from the debug qllc x25 command:

Router# debug qllc x25

15:07:23: QLLC X25 notify lci 257 event 1

15:07:23: QLLC X25 notify lci 257 event 5

15:07:34: QLLC X25 notify lci 257 event 3 Caller 00407116 Caller 00400BD2

15:07:35: QLLC X25 notify lci 257 event 4

describes fields of output.

Table 108 Debug QLLC X.25 Field Descriptions

Field	Description
15:07:23	Shows the time of day.
QLLC X25 notify 257	Indicates this is a QLLC X25 message.
event n	Indicates the type of event, n. Values for n can be as follows: •1 - Circuit is cleared •2 - Circuit has been reset •3 - Circuit is connected •4 - Circuit congestion has cleared •5 - Circuit has been deleted

debug radius

Use the debug radius EXEC command to display information associated with the Remote Authentication Dial-In User Server (RADIUS). The no form of this command disables debugging output.

[no] debug radius

Usage Guidelines

RADIUS is a distributed security system that secures networks against unauthorized access. Cisco supports RADIUS under the Authentication, Authorization, and Accounting (AAA) security system.

Use the debug aaa authentication command to get a high-level view of login activity. When RADIUS is used on the router, you can use the debug radius command for more detailed debugging information.

Sample Displays

The following is sample output from the debug aaa authentication command for a RADIUS login attempt that failed. The information indicates that RADIUS is the authentication method used.

Router# debug aaa authentication

14:02:55: AAA/AUTHEN (164826761): Method=RADIUS

14:02:55: AAA/AUTHEN (164826761): status = GETPASS

14:03:01: AAA/AUTHEN/CONT (164826761): continue_login

14:03:01: AAA/AUTHEN (164826761): status = GETPASS

14:03:01: AAA/AUTHEN (164826761): Method=RADIUS

14:03:04: AAA/AUTHEN (164826761): status = FAIL

The following is partial sample output from the debug radius command that shows a login attempt that failed because of a key mismatch (that is, a configuration problem):

Router# debug radius

13:55:19: Radius: IPC Send 0.0.0.0:1645, Access-Request, id 0x7, len 57

13:55:19:         Attribute 4 6 AC150E5A

13:55:19:         Attribute 5 6 0000000A

13:55:19:         Attribute 1 7 62696C6C

13:55:19:         Attribute 2 18 19D66483

13:55:22: Radius: Received from 171.69.1.152:1645, Access-Reject, id 0x7, len 20

13:55:22: Radius: Reply for 7 fails decrypt

The following is partial sample output from the debug radius command that shows a successful login attempt as indicated by an Access-Accept message:

Router# debug radius

13:59:02: Radius: IPC Send 0.0.0.0:1645, Access-Request, id 0xB, len 56

13:59:02:         Attribute 4 6 AC150E5A

13:59:02:         Attribute 5 6 0000000A

13:59:02:         Attribute 1 6 62696C6C

13:59:02:         Attribute 2 18 0531FEA3

13:59:04: Radius: Received from 171.69.1.152:1645, Access-Accept, id 0xB, len 26

13:59:04:         Attribute 6 6 00000001

The following is partial sample output from the debug radius command that shows an unsuccessful login attempt as indicated by the Access-Reject message:

Router# debug radius

13:57:56: Radius: IPC Send 0.0.0.0:1645, Access-Request, id 0xA, len 57

13:57:56:         Attribute 4 6 AC150E5A

13:57:56:         Attribute 5 6 0000000A

13:57:56:         Attribute 1 7 62696C6C

13:57:56:         Attribute 2 18 49C28F6C

13:57:59: Radius: Received from 171.69.1.152:1645, Access-Reject, id 0xA, len 20

Related Commands

debug aaa accounting
debug aaa authentication

debug rif

Use the debug rif EXEC command to display information on entries entering and leaving the routing information field (RIF) cache. The no form of this command disables debugging output.

[no] debug rif

Usage Guidelines

In order to use the debug rif command to display traffic source-routed through an interface, fast switching of source route bridging (SRB) frames must first be disabled with the no source-bridge route-cache interface configuration command.

Sample Display

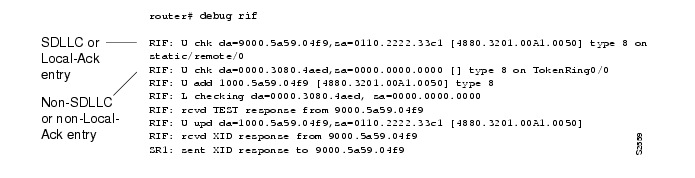

The following is sample output from the debug rif command:

The first line of output is an example of a RIF entry for an interface configured for SDLLC or Local-Ack. describes significant fields shown in this line of debug rif output.

Table 109 Debug RIF Field Descriptions—Part 1

Field	Description
RIF:	This message describes RIF debugging output.
U chk	Update checking. The entry is being updated; the timer is set to zero (0).
da = 9000.5a59.04f9	Destination MAC address.
sa = 0110.2222.33c1	Source MAC address. This field contains values of zero (0000.0000.0000) in a non-SDLLC or non-Local-ack entry.
[4880.3201.00A1.0050]	RIF string. This field is blank (null RIF) in a non-SDLLC or non-Local-Ack entry.
type 8	Possible values follow: •0—Null entry •1—This entry was learned from a particular Token Ring port (interface) •2—Statically configured •4—Statically configured for a remote interface •8—This entry is to be aged •16—This entry (which has been learned from a remote interface) is to be aged •32—This entry is not to be aged •64 —This interface is to be used by LAN Network Manager (and is not to be aged)
on static/remote/0	This route was learned from a real Token Ring port, in contrast to a virtual ring.

The following line of output is an example of a RIF entry for an interface that is not configured for SDLLC or Local-Ack:

RIF: U chk da=0000.3080.4aed,sa=0000.0000.0000 [] type 8 on TokenRing0/0

Notice that the source address contains only zero values (0000.0000.0000), and that the RIF string is null ([ ]). The last element in the entry indicates that this route was learned from a virtual ring, rather than a real Token Ring port.

The following line shows that a new entry has been added to the RIF cache:

RIF: U add 1000.5a59.04f9 [4880.3201.00A1.0050] type 8

The following line shows that a RIF cache lookup operation has taken place:

RIF: L checking da=0000.3080.4aed, sa=0000.0000.0000

The following line shows that a TEST response from address 9000.5a59.04f9 was inserted into the RIF cache:

RIF: rcvd TEST response from 9000.5a59.04f9

The following line shows that the RIF entry for this route has been found and updated:

RIF: U upd da=1000.5a59.04f9,sa=0110.2222.33c1 [4880.3201.00A1.0050]

The following line shows that an XID response from this address was inserted into the RIF cache:

RIF: rcvd XID response from 9000.5a59.04f9

The following line shows that the router sent an XID response to this address:

SR1: sent XID response to 9000.5a59.04f9

explains the other possible lines of debug rif output.

Table 110 Debug RIF Field Descriptions—Part 2

Field	Description
RIF: L Sending XID for address	The router/bridge wanted to send a packet to address but did not find it in the RIF cache. It sent an XID explorer packet to determine which RIF it should use. The attempted packet is dropped.
RIF: L No buffer for XID to address	Similar to the previous description; however, a buffer in which to build the XID packet could not be obtained.
RIF: U remote rif too small [rif]	A packet's RIF was too short to be valid.
RIF: U rej address too big [rif]	A packet's RIF exceeded the maximum size allowed and was rejected. The maximum size is 18 bytes.
RIF: U upd interface address	The RIF entry for this router/bridge's interface has been updated.
RIF: U ign address interface update	A RIF entry that would have updated an interface corresponding to one of this router's interfaces.
RIF: U add address [rif]	The RIF entry for address has been added to the RIF cache.
RIF: U no memory to add rif for address	No memory to add a RIF entry for address.
RIF: removing rif entry for address, type code	The RIF entry for address has been forcibly removed.
RIF: flushed address	The RIF entry for address has been removed because of a RIF cache flush.
RIF: expired address	The RIF entry for address has been aged out of the RIF cache.

Related Command

debug list

debug rtr error

Use the debug rtr error EXEC command to enable logging of response time reporter runtime errors. The no form of this command disables debugging output—including the debug rtr trace command.

[no] debug rtr error [probe]

Syntax Description:

probe

(Optional) Number of the probe in the range 0 to 31.

Usage Guidelines

The response time reporter feature allows you to monitor network performance and network resources by measuring response times and availability. With this feature you can perform troubleshooting, problem notifications, and preproblem analysis based on response time reporter statistics.

The debug rtr error command displays runtime errors. When a probe number other than 0 is specified, all runtime errors for that probe are displayed when the probe is active. When the probe number is 0, all runtime errors relating to the response time reporter scheduler process are displayed. When no probe number is specified, all runtime errors for all active probes configured on the router and probe control are displayed. The response time reporter scheduler process is responsible for starting and stopping probes and managing the database.

---

Note   Use the debug rtr error command before using the debug rtr trace command because the debug rtr error command generates a smaller amount of traffic.

---

Because the trace output generated by the debug rtr trace command uses the same control mechanism as debug rtr error, the no debug rtr error command disables both logging and tracing.

Sample Display

The following is sample output from the debug rtr error command. All debug output for the response time reporter (including debug rtr trace) has the format shown.

Router# debug rtr error 1

RTR 1: Error Return Code - LU0 RTR Probe 1

          in echoTarget on call luReceive

          LuApiReturnCode of InvalidHandle - invalid host name or API handle

describes the fields in the output.

Table 111 Debug RTR Error Field Descriptions

Field	Description
RTR 1	Number of the probe generating the message.
Error Return Code	Message identifier indicating the error type (or error itself).
LU0 RTR Probe 1	Name of the process generating the message.
in echoTarget on call luReceive LuApiReturnCode of InvalidHandle - invalid host name or API handle	Supplemental messages that pertain to the message identifier.

Related Command

debug rtr trace

debug rtr trace

Use the debug rtr trace EXEC command to trace the execution of a response time reporter probe. The no form of this command disables trace debugging output (but not debug rtr error output).

[no] debug rtr trace [probe]

Syntax Description:

probe

(Optional) Number of the probe in the range 0 to 31.

Usage Guidelines

---

Note   The debug rtr trace command can generate a large number of debug messages. First use the debug rtr error command, and then use the debug rtr trace on a per probe basis.

---

When a probe number other than 0 is specified, execution for that probe is traced. When the probe number is 0, the response time reporter scheduler process is traced. When no probe number is specified, all active probes and every probe control is traced. The response time reporter scheduler process is responsible for starting and stopping probes and managing the database.

The debug rtr trace command also enables debug rtr error for the specified probe. However, the no debug rtr trace command does not disable the debug rtr error command. You must manually disable the command by using the no debug rtr error command.

All debug output (including debug rtr error) has the format shown in the debug rtr error output example.

Sample Display

The following is sample output from the debug rtr trace command. In this example, a probe is traced through a single operation attempt: the setup of a connection to the target (LU0), the attempt at an echo, and the closing of the connection on the echo attempt.

Router# debug rtr trace

RTR 1: Calling getRttMonOperState (check pending) - LU0 RTR Probe 1

RTR 1: Calling getRttMonOperState (check death) - LU0 RTR Probe 1

RTR 1: Starting An Echo Operation - LU0 RTR Probe 1

RTR 1: setting receiveFinished to FALSE - LU0 RTR Probe 1

         in dependLuEchoApplication

RTR 1: openConnection called - LU0 RTR Probe 1

         Calling rttMonHopConnected

RTR 1: calling luT0orT2Open - LU0 RTR Probe 1

RTR 1: Dumping luT0orT2Open Result - LU0 RTR Probe 1

         applicationHandle: inRttMonCtrlAdminQItem = 13920808

         receiveFinished = FALSE currentLUHandle = 14199576

         maxRespBufferLen = 52 receivedBufferLen = 0

         aHostName = CWBC02 locAddr = 1 eApplNameLen = 7

         ApplName = D5E2D7C5C3C8D60 eModeName = 4040404040404040 userDataLen = 14

         userData = D5E2D7C5C3C8D61 sysSense = 0 userSense = 0 bindDataLen = 64

         bindData = D5E2D7C5C3C8D61 bindDataCount = 14

RTR 1: Calling rttMonSetConnectionHandle - LU0 RTR Probe 1

RTR 1: Calling rttMonSetHopConnectedState to TRUE - LU0 RTR Probe 1

RTR 1: Calling rttMonSetDiagText - LU0 RTR Probe 1

RTR 1: setupPathInfo called - LU0 RTR Probe 1

         Calling rttMonStartUpdatePath

RTR 1: Calling rttMonUpdatePath - LU0 RTR Probe 1

         for Target CWBC02 NSPECHO

RTR 1: Calling rttMonEndUpdatePath - LU0 RTR Probe 1

RTR 1: Calling rttMonUpdateNumberOfEchosAttempted - LU0 RTR Probe 1

RTR 1: performEcho called - LU0 RTR Probe 1

         applicationHandle: inRttMonCtrlAdminQItem = 13920808

         receiveFinished = FALSE currentLUHandle = 14199576

         maxRespBufferLen = 52 receivedBufferLen = 0

         echoTimeout (milliseconds) = 5000 sequenceNum = 886

         rttMonEchoAdminTargetAddress is CWBC02 NSPECHO

         verifyDataFlag = False

RTR 1: Calling rttMonGetFirstStoredHopAddress - LU0 RTR Probe 1

RTR 1: echoTarget called - LU0 RTR Probe 1

         applicationHandle: inRttMonCtrlAdminQItem = 13920808

         receiveFinished = FALSE currentLUHandle = 14199576

         maxRespBufferLen = 52 receivedBufferLen = 0

         echoTimeout (milliseconds) = 5000

         Data:

          E6 A7 E8 A9 01 02 03 77  00 00 00 00 C1

         calling luReceive...

RTR 1: calling luSend - LU0 RTR Probe 1

RTR 1: receiveFinished is FALSE - LU0 RTR Probe 1

         in echoTarget calling

         process_wait_for_event_timed(5000 milliseconds)

RTR 1: rtt_closeIndication called - DSPU Msg Proc

         applicationHandle: inRttMonCtrlAdminQItem = 13920808

         receiveFinished = FALSE currentLUHandle = 14199576

         maxRespBufferLen = 52 receivedBufferLen = 0

RTR 1: setting receiveFinished to TRUE - DSPU Msg Proc

         in rtt_closeIndication

RTR 1: Woke on receive event - LU0 RTR Probe 1

RTR 1: returned from echoTarget - LU0 RTR Probe 1

         with D_echoTarget_connectionLost return_code

         and responseTime (milliseconds) = 196

...

RTR 1: Calling getRttMonOperState (check active) - LU0 RTR Probe 1

RTR 1: Going to Sleep - LU0 RTR Probe 1

         until next frequency time (delta milliseconds 60000)

Related Command

debug rtr error

debug sdlc

Use the debug sdlc EXEC command to display information on Synchronous Data Link Control (SDLC) frames received and sent by any router serial interface involved in supporting SDLC end station functions. The no form of this command disables debugging output.

[no] debug sdlc

Usage Guidelines

---

Note   Because the debug sdlc command can generate many messages and alter timing in the network node, use it only when instructed by authorized support personnel.

---

Sample Display

The following is sample output from the debug sdlc command:

Router# debug sdlc

SDLC: Sending RR at location 4

Serial3: SDLC O (12495952) C2 CONNECT (2) RR P/F 6

Serial3: SDLC I (12495964) [C2] CONNECT (2) RR P/F 0 (R) [VR: 6 VS: 0]

Serial3: SDLC T [C2] 12496064 CONNECT 12496064 0

SDLC: Sending RR at location 4

Serial3: SDLC O (12496064) C2 CONNECT (2) RR P/F 6

Serial3: SDLC I (12496076) [C2] CONNECT (2) RR P/F 0 (R) [VR: 6 VS: 0]

Serial3: SDLC T [C2] 12496176 CONNECT 12496176 0

The following line of output indicates that the router is sending a Receiver Ready packet at location 4 in the code:

SDLC: Sending RR at location 4

The following line of output describes a frame input event:

Serial3: SDLC O (12495952) C2 CONNECT (2) RR P/F 6

describes the fields in this line of output.

Table 112 Debug SDLC Field Descriptions for a Frame Output Event

Field	Description
SDLC	Protocol providing the information.
Serial3	Interface type and unit number reporting the frame event.
O	Command mode of frame event. Possible values follow: •I—Frame input •O—Frame output •T—T1 timer expired
(12495952)	Current timer value.
C2	SDLC address of the SDLC connection.
CONNECT	State of the protocol when the frame event occurred. Possible values follow: •CONNECT •DISCONNECT •DISCSENT (disconnect sent) •ERROR (FRMR frame sent) •REJSENT (reject frame sent) •SNRMSENT (SNRM frame sent) •USBUSY •THEMBUSY •BOTHBUSY
(2)	Size of the frame (in bytes).
RR	Frame type name. Possible values follow: •DISC—Disconnect •DM—Disconnect mode •FRMR—Frame reject •IFRAME—Information frame •REJ—Reject •RNR—Receiver not ready •RR—Receiver ready •SIM—Set Initialization mode command •SNRM—Set Normal Response Mode •TEST—Test frame •UA—Unnumbered acknowledgment •XID—EXchange ID
P/F	Poll/Final bit indicator. Possible values follow: •F—Final (printed for Response frames) •P—Poll (printed for Command frames) •P/F—Poll/Final (printed for RR, RNR and REJ frames, which can be either Command or Response frames)
6	Receive count; range: 0-7.

The following line of output describes a frame input event:

Serial3: SDLC I (12495964) [C2] CONNECT (2) RR P/F 0 (R) [VR: 6 VS: 0] rfp: P

In addition to the fields described in , output for a frame input event also includes the additional fields described in .

Table 113 Debug SDLC Field Descriptions Unique to a Frame Input Event

Field	Description
(R)	Frame Type: •C—Command •R—Response
VR: 6	Receive count; range: 0-7.
VS: 0	Send count; range: 0-7.
rfp: P	Ready for poll; •P —Idle poll (keepalive) timer is on. •T—Data acknowledgment timer is on. These timers are based on the T1 timer.
VS: 0	Send count; range: 0-7.

The following line of output describes a frame timer event:

Serial3: SDLC T [C2] 12496064 CONNECT 12496064 0

describes the fields in this line of output.

Table 114 Debug SDLC Field Descriptions for a Timer Event

Field	Description
Serial3:	Interface type and unit number reporting the frame event.
SDLC	Protocol providing the information.
T	The timer has expired.
[C2]	SDLC address of this SDLC connection.
12496064	System clock.
CONNECT	State of the protocol when the frame event occurred. Possible values follow: •BOTHBUSY •CONNECT •DISCONNECT •DISCSENT (disconnect sent) •ERROR (FRMR frame sent) •REJSENT (reject frame sent) •SNRMSENT (SNRM frame sent) •THEMBUSY •BOTHBUSY
12496064	Top timer.
0	Retry count; default: 0.

Related Command

debug list

debug sdlc local-ack

Use the debug sdlc local-ack EXEC command to display information on the local acknowledgment feature. The no form of this command disables debugging output.

[no] debug sdlc local-ack [number]

Syntax Description

number

(Optional) Frame type that you want to monitor. Refer to the Usage Guidelines section.

Usage Guidelines

You can select the frame types you want to monitor; the frame types correspond to bit flags. You can select 1, 2, 4, or 7, which is the decimal value of the bit flag settings. If you select 1, the octet is set to 00000001. If you select 2, the octet is set to 0000010. If you select 4, the octet is set to 00000100. If you want to select all frame types, select 7; the octet is 00000111. The default is 7 for all events. defines these bit flags.

Table 115 Debug SDLC Local-Ack Debugging Levels

Debug Command	Meaning
debug sdlc local-ack 1	Only U-Frame events
debug sdlc local-ack 2	Only I-Frame events
debug sdlc local-ack 4	Only S-Frame events
debug sdlc local-ack 7	All SDLC Local-Ack events (default setting)

---

Caution

Because using this command is processor intensive, it is best to use it after hours, rather than in a production environment. It is also best to use this command by itself, rather than in conjunction with other debugging commands.

---

Sample Display

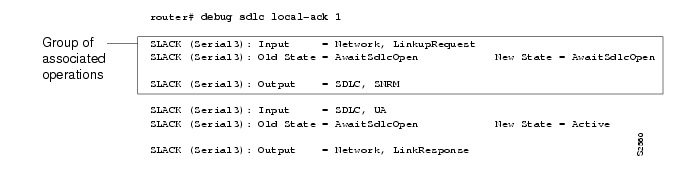

The following is sample output from the debug sdlc local-ack command:

The first line shows the input to the SDLC local acknowledgment state machine:

SLACK (Serial3): Input     = Network, LinkupRequest

describes the fields in this line of output.

Table 116 Debug SDLC Local-Ack Field Descriptions

Field	Description
SLACK	The SDLC local acknowledgment feature is providing the information.
(Serial3):	Interface type and unit number reporting the event.
Input = Network	The source of the input.
LinkupRequest	The op code. A LinkupRequest is an example of possible values.

The second line shows the change in the SDLC local acknowledgment state machine. In this case the AwaitSdlcOpen state is an internal state that has not changed while this display was captured.

SLACK (Serial3): Old State = AwaitSdlcOpen            New State = AwaitSdlcOpen

The third line shows the output from the SDLC local acknowledgment state machine:

SLACK (Serial3): Output     = SDLC, SNRM

debug sdlc packet

Use the debug sdlc packet EXEC command to display packet information on Synchronous Data Link Control (SDLC) frames received and sent by any router serial interface involved in supporting SDLC end station functions. The no form of this command disables debugging output.

[no] debug sdlc packet [max-bytes]

Syntax Description

max-byte

(Optional) Limits the number of bytes of data that are printed to the display.

Usage Guidelines

This command requires intensive CPU processing; therefore, we recommend not using it when the router is expected to handle normal network loads, such as in a production environment. Instead, use this command when network response is non-critical. We also recommend that you use this command by itself, rather than in conjunction with other debug commands.

Sample Display

The following is sample output from the debug sdlc packet command with the packet display limited to 20 bytes of data.

Router# debug sdlc packet 20

 Serial3 SDLC Output

00000 C3842C00 02010010 019000C5 C5C5C5C5 Cd.........EEEEE

00010 C5C5C5C5                            EEEE

 Serial3 SDLC Output

00000 C3962C00 02010011 039020F2          Co.........2

 Serial3 SDLC Output

00000 C4962C00 0201000C 039020F2          Do.........2

 Serial3 SDLC Input

00000     C491                              Dj

debug sdllc

Use the debug sdllc EXEC command to display information about data link layer frames transferred between a device on a Token Ring and a device on a serial line via a router configured with the SDLLC feature. The no form of this command disables debugging output.

[no] debug sdllc

Usage Guidelines

The SDLLC feature translates between the SDLC link layer protocol used to communicate with devices on a serial line and the LLC2 link layer protocol used to communicate with devices on a Token Ring.

The router configured with the SDLLC feature must be attached to the serial line. The router sends and receives frames on behalf of the serial device on the attached serial line but acts as an SDLC station.

The topology between the router configured with the SDLLC feature and the Token Ring is network dependent and is not limited by the SDLLC feature.

Sample Display

The following is sample output from the debug sdllc command between link layer peers from the perspective of the SDLLC-configured router.

Router# debug sdllc

SDLLC: rx explorer rsp, da 4000.2000.1001, sa C000.1020.1000, rif

 8840.0011.00A1.0050

SDLLC: tx short xid, sa 4000.2000.1001, da C000.1020.1000, rif

 88C0.0011.00A1.0050, dsap 4 ssap 4

SDLLC: tx long xid, sa 4000.2000.1001, da C000.1020.1000, rif

 88C0.0011.00A1.0050, dsap 4 ssap 4

Rcvd SABME/LINKUP_REQ pak from TR host

SDLLCERR: not from our partner, pak dropped, da 4000.2000.1001,

sa C000.1020.1000, rif 8840.0011.00A1.0050, partner = 5000.1040.1003

describes the significant fields.

Table 117 Debug SDLLC Field Descriptions

Field	Description
rx	Router receives message from the FEP.
explorer rsp	Response to an explorer (TEST) frame previously sent by the router to FEP.
da	Destination address. This is the address of the router receiving the response.
sa	Source address. This is the address of the FEP sending the response to the router.
rif	Routing information field.
tx	Router sent message to the FEP.
short xid	Router sent the null XID to the FEP.
dsap	Destination service access point
ssap	Source service access point.
tx long xid	Router sent the XID type 2 to the FEP.
Rcvd	Router received Layer 2 message from the FEP.
SABME/LINKUP_REQ	Set asynchronous Balanced Mode Extended command.
partner =	Partner address.

The following line indicates that an explorer frame response was received by the router at address 4000.2000.1001 from the FEP at address C000.1020.1000 with the specified RIF. The original explorer sent to the FEP from the router is not monitored as part of the debug sdllc command.

SDLLC: rx explorer rsp, da 4000.2000.1001, sa C000.1020.1000, rif

 8840.0011.00A1.0050

The following line indicates that the router sent the null XID (Type 0) to the FEP. The debugging information does not include the response to the XID message sent by the FEP to the router.

SDLLC: tx short xid, sa 4000.2000.1001, da C000.1020.1000, rif

 88C0.0011.00A1.0050, dsap 4 ssap 4

The following line indicates that the router sent the XID command (Format 0 Type 2) to the FEP:

SDLLC: tx long xid, sa 4000.2000.1001, da C000.1020.1000, rif

 88C0.0011.00A1.0050, dsap 4 ssap 4

The following line is the SABME response to the XID command previously sent by the router to the FEP:

Rcvd SABME/LINKUP_REQ pak from TR host
