debug ip rtp header-compression
debug ip trigger-authentication
debug ip pim
Use the debug ip pim EXEC command to display Protocol Independent Multicast (PIM) packets received and transmitted as well as PIM related events.The no form of this command disables debugging output.
[no] debug ip pim [group]
Syntax Description
Usage Guidelines
PIM uses IGMP packets to communicate between routers and advertise reachability information.
Use this command with debug ip igmp and debug ip mrouting to observe additional multicast routing information.
Sample Display
The following is sample output from the debug ip pim command:
Router# debug ip pim 224.2.0.1PIM: Received Join/Prune on Ethernet1 from 172.24.37.33PIM: Received Join/Prune on Ethernet1 from 172.24.37.33PIM: Received Join/Prune on Tunnel0 from 10.3.84.1PIM: Received Join/Prune on Ethernet1 from 172.24.37.33PIM: Received Join/Prune on Ethernet1 from 172.24.37.33PIM: Received RP-Reachable on Ethernet1 from 172.16.20.31PIM: Update RP expiration timer for 224.2.0.1PIM: Forward RP-reachability packet for 224.2.0.1 on Tunnel0PIM: Received Join/Prune on Ethernet1 from 172.24.37.33PIM: Prune-list (10.221.196.51/32, 224.2.0.1)PIM: Set join delay timer to 2 seconds for (10.221.0.0/16, 224.2.0.1) on Ethernet1PIM: Received Join/Prune on Ethernet1 from 172.24.37.6PIM: Received Join/Prune on Ethernet1 from 172.24.37.33PIM: Received Join/Prune on Tunnel0 from 10.3.84.1PIM: Join-list: (*, 224.2.0.1) RP 172.16.20.31PIM: Add Tunnel0 to (*, 224.2.0.1), Forward statePIM: Join-list: (10.0.0.0/8, 224.2.0.1)PIM: Add Tunnel0 to (10.0.0.0/8, 224.2.0.1), Forward statePIM: Join-list: (10.4.0.0/16, 224.2.0.1)PIM: Prune-list (172.24.84.16/28, 224.2.0.1) RP-bit set RP 172.24.84.16PIM: Send Prune on Ethernet1 to 172.24.37.6 for (172.24.84.16/28, 224.2.0.1), RPPIM: For RP, Prune-list: 10.9.0.0/16PIM: For RP, Prune-list: 10.16.0.0/16PIM: For RP, Prune-list: 10.49.0.0/16PIM: For RP, Prune-list: 10.84.0.0/16PIM: For RP, Prune-list: 10.146.0.0/16PIM: For 10.3.84.1, Join-list: 172.24.84.16/28PIM: Send periodic Join/Prune to RP via 172.24.37.6 (Ethernet1)The following lines appear periodically when PIM is running in sparse mode and indicate to this router which multicast groups and multicast sources other routers are interested in:
PIM: Received Join/Prune on Ethernet1 from 172.24.37.33PIM: Received Join/Prune on Ethernet1 from 172.24.37.33The following lines appear when a rendezvous point (RP) message is received and the RP timer is reset. The expiration timer sets a checkpoint to make sure the RP still exists; otherwise a new RP must be discovered.
PIM: Received RP-Reachable on Ethernet1 from 172.16.20.31PIM: Update RP expiration timer for 224.2.0.1PIM: Forward RP-reachability packet for 224.2.0.1 on Tunnel0The prune-list message in the following line states that this router is not interested in the source address information. The prune message tells an upstream router to stop forwarding multicast packets from this source.
PIM: Prune-list (10.221.196.51/32, 224.2.0.1)In the following line, a second router on the network wants to override the prune message that the upstream router just received. The timer is set at a random value so that if there are additional routers on the network that still want to receive multicast packets for the group, only one will actually send the message. The other routers will receive the join message and then suppress sending their own message.
PIM: Set join delay timer to 2 seconds for (10.221.0.0/16, 224.2.0.1) on Ethernet1In the following line, a join message is sent towards the RP for all sources:
PIM: Join-list: (*, 224.2.0.1) RP 172.16.20.31In the following lines, the interface is being added to the outgoing interface (OIF) of the *,G and S,G mroute table entry so that packets from the source will be forwarded out that particular interface:
PIM: Add Tunnel0 to (*, 224.2.0.1), Forward statePIM: Add Tunnel0 to (10.0.0.0/8, 224.2.0.1), Forward stateThe following line appears in sparse mode only. There are two trees on which data may be received: the RP tree and the source tree. In dense mode there is no RP. After the source and the receiver have discovered one another at the RP, the first-hop router for the receiver will usually join to the source tree rather than the RP tree.
PIM: Prune-list (172.24.84.16/28, 224.2.0.1) RP-bit set RP 172.24.84.16The Send Prune message in the next line shows that a router is sending a message to a second router saying that the first router no longer wants to receive multicast packets for the S,G. The "RP" at the end of the message indicates that the router is pruning the RP tree and is most likely joining the source tree, although the router may not have downstream members for the group or downstream routers with members of the group. The output shows which specific sources this router no longer wants to receive multicast from.
PIM: Send Prune on Ethernet1 to 172.24.37.6 for (172.24.84.16/28, 224.2.0.1), RPThe following lines indicate a prune message is sent toward the RP so that router can join the source tree rather than the RP tree:
PIM: For RP, Prune-list: 10.9.0.0/16PIM: For RP, Prune-list: 10.16.0.0/16PIM: For RP, Prune-list: 10.49.0.0/16In the following line, a periodic message is sent towards the RP. The default period is once per minute. Prune and join messages are sent toward the RP or source rather than directly to the RP or source. It is the responsibility of the next-hop router to take proper action with this message, such as continuing to forward it to the next router in the tree.
PIM: Send periodic Join/Prune to RP via 172.24.37.6 (Ethernet1)Related Commands
debug ip dvmrp
debug ip igmp
debug ip igrp transactions
debug ip mrouting
debug ip sddebug ip pim atm
To log PIM ATM signaling activity, use the debug ip pim atm EXEC command. The no form of this command disables debugging output.
[no] debug ip pim atm
Sample Displays
The following is sample output from the shows a new group being created and the router toward the RP opening a new VC. Since there are now two groups on this router, there are two virtual circuits open, as reflected by the "current count."
The following is sample output from the debug ip pim atm command:
Router# debug ip pim atmJan 28 19:05:51: PIM-ATM: Max VCs 200, current count 1Jan 28 19:05:51: PIM-ATM: Send SETUP on ATM2/0 for 239.254.254.253/171.69.214.43Jan 28 19:05:51: PIM-ATM: Received CONNECT on ATM2/0 for 239.254.254.253, vcd 19Jan 28 19:06:35: PIM-ATM: Max VCs 200, current count 2describes the significant fields in the output.
The resulting show ip mroute output follows:
Router# show ip mroute 239.254.254.253IP Multicast Routing TableFlags: D - Dense, S - Sparse, C - Connected, L - Local, P - PrunedR - RP-bit set, F - Register flag, T - SPT-bit set, J - Join SPTTimers: Uptime/ExpiresInterface state: Interface, Next-Hop or VCD, State/Mode(*, 239.254.254.253), 00:00:04/00:02:53, RP 171.69.214.50, flags: SIncoming interface: Ethernet1/1, RPF nbr 171.69.214.50Outgoing interface list:ATM2/0, VCD 19, Forward/Sparse-Dense, 00:00:04/00:02:52debug ip pim auto-rp
Use the debug ip pim auto-rp EXEC command to display the contents of each Protocol Independent Multicast (PIM) packet used in the automatic discovery of group-to-rendezvous point (RP) mapping as well as the actions taken on the address-to-RP mapping database. The no form of this command disables debugging output.
[no] debug ip pim auto-rp
Sample Displays
The following is sample output from the debug ip pim auto-rp command:
Router# debug ip pim auto-rpAuto-RP: Received RP-announce, from 172.31.214.66, RP_cnt 1, holdtime 180 secsAuto-RP: update (192.168.248.0/24, RP:172.31.214.66)Auto-RP: Build RP-Discovery packetAuto-RP: Build mapping (192.168.248.0/24, RP:172.31.214.66),Auto-RP: Build mapping (192.168.250.0/24, RP:172.31.214.26).Auto-RP: Build mapping (192.168.254.0/24, RP:172.31.214.2).Auto-RP: Send RP-discovery packet (3 RP entries)Auto-RP: Build RP-Announce packet for 172.31.214.2Auto-RP: Build announce entry for (192.168.254.0/24)Auto-RP: Send RP-Announce packet, IP source 172.31.214.2, ttl 8The first two lines show a packet received from 172.31.214.66 announcing that it is the rendezvous point (RP) for the groups in 192.168.248.0/24. This announcement contains one RP address and is valid for 180 seconds. The RP-mapping agent then updates its mapping database to include the new information.
Auto-RP: Received RP-announce, from 172.31.214.66, RP_cnt 1, holdtime 180 secsAuto-RP: update (192.168.248.0/24, RP:172.31.214.66)In the next five lines, the router creates an RP-discovery packet containing three RP mapping entries. The packet is sent to the well-known CISCO-RP-DISCOVERY group address (224.0.1.40).
Auto-RP: Build RP-Discovery packetAuto-RP: Build mapping (192.168.248.0/24, RP:172.31.214.66),Auto-RP: Build mapping (192.168.250.0/24, RP:172.31.214.26).Auto-RP: Build mapping (192.168.254.0/24, RP:172.31.214.2).Auto-RP: Send RP-discovery packet (3 RP entries)The final three lines show the router announcing that it intends to be an RP for the groups in 192.168.254.0/24. Only routers inside the scope ttl 8 receive the advertisement and use the RP for these groups.
Auto-RP: Build RP-Announce packet for 172.31.214.2Auto-RP: Build announce entry for (192.168.254.0/24)Auto-RP: Send RP-Announce packet, IP source 172.31.214.2, ttl 8The following is sample output from the debug ip pim auto-rp command when a router receives an update. In this example, the packet contains three group-to-RP mappings, which are valid for 180 seconds. The RP-mapping agent then updates its mapping database to include the new information.
Router# debug ip pim auto-rpAuto-RP: Received RP-discovery, from 172.31.214.17, RP_cnt 3, holdtime 180 secsAuto-RP: update (192.168.248.0/24, RP:172.31.214.66)Auto-RP: update (192.168.250.0/24, RP:172.31.214.26)Auto-RP: update (192.168.254.0/24, RP:172.31172.31.214.2)debug ip policy
Use the debug ip policy EXEC command to display IP policy routing packet activity. The no form of this command disables debugging output.
[no] debug ip policy
Usage Guidelines
After you configure IP policy routing with the ip policy and route map commands, use the debug ip policy command to ensure that the IP policy is configured correctly.
Policy routing looks at various parts of the packet and then routes the packet based on certain user-defined attributes in the packet.
The debug ip policy command helps you determine what policy routing is doing. It displays information about whether a packet matches the criteria, and if so, the resulting routing information for the packet.
CautionBecause the debug ip policy command generates a significant amount of output, use it only when traffic on the IP network is low, so other activity on the system is not adversely affected.
You can also use the show ip local policy command to obtain additional information.
Sample Display
The following is sample output from the debug ip policy command. Line 1 indicates that a packet with the given source and destination addresses matched a policy. Line 2 indicates the clause in the route map that the packet matched. In this case, the packet matches clause 20 in the route map. Line 3 indicates that a second packet did not match the policy.
Router# debug ip policyIP: s=172.16.232.150 (local), d=172.16.2.75, len 100, policy matchIP: route map equal, item 20, permitIP: s=172.16.232.150 (local), d=172.16.2.75, len 200, policy rejected -- normal forwardingdebug ip rip
Use the debug ip rip EXEC command to display information on RIP routing transactions. The no form of this command disables debugging output.
[no] debug ip rip
Sample Display

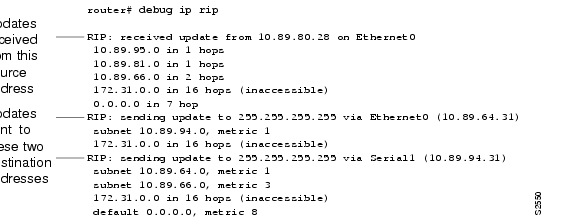

The following is sample output from the debug ip rip command:
The output shows that the router being debugged has received updates from one router at source address 160.89.80.28. That router sent information about five destinations in the routing table update. Notice that the fourth destination address in the update—131.108.0.0—is inaccessible because it is more than 15 hops away from the router sending the update. The router being debugged also sent updates, in both cases to broadcast address 255.255.255.255 as the destination.
The second line is an example of a routing table update. It shows how many hops a given Internet address is from the router.
The entries show that the router is sending updates that are similar, except that the number in parentheses is the source address encapsulated into the IP header.
Examples of additional output that the debug ip rip command can generate follow.
Entries such as the following appear at startup or when an event occurs such as an interface transitioning or a user manually clearing the routing table:
RIP: broadcasting general request on Ethernet0RIP: broadcasting general request on Ethernet1An entry such as the following is most likely caused by a malformed packet from the transmitter:
RIP: bad version 128 from 160.89.80.43debug ip routing
Use the debug ip routing EXEC command to display information on Routing Information Protocol (RIP) routing table updates and route-cache updates. The no form of this command disables debugging output.
[no] debug ip routing
Sample Display
The following is sample output from the debug ip routing command:
Router# debug ip routingRT: add 172.25.168.0 255.255.255.0 via 172.24.76.30, igrp metric [100/3020]RT: metric change to 172.25.168.0 via 172.24.76.30, igrp metric [100/3020]new metric [100/2930]IP: cache invalidation from 0x115248 0x1378A, new version 5736RT: add 172.26.219.0 255.255.255.0 via 172.24.76.30, igrp metric [100/16200]RT: metric change to 172.26.219.0 via 172.24.76.30, igrp metric [100/16200]new metric [100/10816]RT: delete route to 172.26.219.0 via 172.24.76.30, igrp metric [100/10816]RT: no routes to 172.26.219.0, entering holddownIP: cache invalidation from 0x115248 0x1378A, new version 5737RT: 172.26.219.0 came out of holddownRT: garbage collecting entry for 172.26.219.0IP: cache invalidation from 0x115248 0x1378A, new version 5738RT: add 172.26.219.0 255.255.255.0 via 172.24.76.30, igrp metric [100/10816]RT: delete route to 172.26.219.0 via 172.24.76.30, igrp metric [100/10816]RT: no routes to 172.26.219.0, entering holddownIP: cache invalidation from 0x115248 0x1378A, new version 5739RT: 172.26.219.0 came out of holddownRT: garbage collecting entry for 172.26.219.0IP: cache invalidation from 0x115248 0x1378A, new version 5740RT: add 172.26.219.0 255.255.255.0 via 172.24.76.30, igrp metric [100/16200]RT: metric change to 172.26.219.0 via 172.24.76.30, igrp metric [100/16200]new metric [100/10816]RT: delete route to 172.26.219.0 via 172.24.76.30, igrp metric [100/10816]RT: no routes to 172.26.219.0, entering holddownIP: cache invalidation from 0x115248 0x1378A, new version 5741In the following lines, a newly created entry has been added to the IP routing table. The "metric change" indicates that this entry existed previously, but its metric changed and the change was reported by means of IGRP. The metric could also be reported via RIP, OSPF, or another IP routing protocol. The numbers inside the brackets report the administrative distance and the actual metric.
RT: add 172.25.168.0 255.255.255.0 via 172.24.76.30, igrp metric [100/3020]RT: metric change to 172.25.168.0 via 172.24.76.30, igrp metric [100/3020]new metric [100/2930]IP: cache invalidation from 0x115248 0x1378A, new version 5736"Cache invalidation" means that the fast switching cache was invalidated due to a routing table change. "New version" is the version number of the routing table. When the routing table changes, this number is incremented. The hexadecimal numbers are internal numbers that vary from version to version and software load to software load.
In the following output, the "holddown" and "cache invalidation" lines are displayed. Most of the distance vector routing protocols use "holddown" to avoid typical problems like counting to infinity and routing loops. If you look at the output of show ip protocols you will see what the timer values are for "holddown" and "cache invalidation." "Cache invalidation" corresponds to "came out of holddown." "Delete route" is triggered when a better path comes along. It gets rid of the old inferior path.
RT: delete route to 172.26.219.0 via 172.24.76.30, igrp metric [100/10816]RT: no routes to 172.26.219.0, entering holddownIP: cache invalidation from 0x115248 0x1378A, new version 5737RT: 172.26.219.0 came out of holddowndebug ip rsvp
Use the debug ip rsvp EXEC command to enable logging of significant Resource Reservation Protocol (RSVP) events. The no form of this command disables debugging output.
[no] debug ip rsvp [detail [access-list]]
Syntax Description
Usage Guidelines
The RSVP protocol permits end systems to request quality of service (QOS) guarantees from the network.
The debug ip rsvp command displays recognition of new senders, subsequent discontinuation of senders, and installation and removal of reservations.
The detail option displays recognition of new senders, subsequent discontinuation of senders, installation and removal of reservations, and messages sent and received that are permitted by the specified access list, or all messages if no access list is specified. The output from detail option is the same as the debug ip rsvp command but it also includes a hexadecimal-dump of the contents of the messages.
Sample Displays
In the following message, the router received a path message for destination 192.168.253.10 on interface Ethernet 0/2. The message was sent by 172.31.215.9—this indicates the previous hop and not the source.
RSVP: PATH message for 192.168.253.10(Ethernet0/2) from 172.31.215.9In the following two messages, the router is sending a path message to destination 192.168.253.10 on interface Ethernet 0/0. The second message is a reassurance that the packet is sent.
RSVP: send path multicast about 192.168.253.10 on Ethernet0/0RSVP: IP to 192.168.253.10 length=52 checksum=720C Ethernet0/0In the following message, the router received an reservation (RESV) message for destination 192.168.253.10 on interface serial 0. The message was sent by 172.31.215.113, which is the next hop toward the destination.
RSVP: RESV message for 192.168.253.10(Serial0) from 172.31.215.113In the following messages, the router is removing the sender state for destination 1.1.1.1. The destination port is (1234), the source is 172.31.215.11, and the protocol and source port are (17:1234). Removing the sender state triggers a teardown message to be sent toward destination 1.1.1.1 on interface Ethernet 0/2 (located in the routing table).
RSVP: remove Ethernet0/1 PATH 1.1.1.1(1234) <- 172.31.215.11(17:1234)RSVP: send path teardown multicast about 1.1.1.1 on Ethernet0/2The following messages occur when a reservation (RESV) message is received but no sender state (path message) exists that matches it. In this case, the router drops the reservation and sends a reservation error message to destination 192.168.253.10.
RSVP: RESV message for 192.168.253.10(Serial0) from 172.31.215.113RSVP: send reservation error to 172.31.215.113 about 192.168.253.10RSVP: IP to 172.31.215.113 length=40 checksum=1A84 if Serial0RSVP RESV: no path information for 192.168.253.10In the following messages, the router tears down a reservation because it received a teardown message or because the message timed out. Tearing down a reservation triggers the removal of the existing installed reservation, as shown in the second message. The teardown also triggers the removal of this reservation from upstream routers. After the router removes the reservation, an RESV teardown message is sent to the source to tear down the reservation on the next hop, as shown in the fourth message. This process continues until the source is reached.
RSVP: RESV TEAR message for 192.168.253.10(Ethernet0/0) from 172.31.215.98RSVP: remove Ethernet0/0 RESV 192.168.253.10(18004) <- 172.31.60.189(17:18004)RSVP: remove Ethernet0/2 RESV request 192.168.253.10(18004) <- 172.31.60.189(17:18004)RSVP: send reservation teardown to 172.31.215.9 about 192.168.253.10In the following messages, the router received and accepted a new reservation request. This request triggers the router to send a reservation request message to the source.
RSVP: Reservation is newRSVP: start requesting 30 kbps SE reservation for 172.31.60.189(18004) UDP-> 192.168.253.10(18004) on Ethernet0 neighbor 172.31.215.97In the following message, the router received an RSVP message on an interface with the RSVP feature disabled:
RSVP: Input packet while RSVP disabled on Serial2/0debug ip rtp header-compression
Use the debug ip rtp header-compression EXEC command to display events specific to RTP header compression. Use the no form of this command to disable debugging output.
[no] debug ip rtp header-compression
Sample Display
The following is sample output from the debug ip rtp header-compression command:
Router# debug ip rtp header-compressionRHC BRI0: rcv compressed rtp packetRHC BRI0: context0: expected sequence 0, received sequence 0RHC BRI0: rcv compressed rtp packetRHC BRI0: context0: expected sequence 1, received sequence 1RHC BRI0: rcv compressed rtp packetRHC BRI0: context0: expected sequence 2, received sequence 2RHC BRI0: rcv compressed rtp packetRHC BRI0: context0: expected sequence 3, received sequence 3describes the significant fields in the output.
Related Command
debug ip rtp packets
Use the debug ip rtp packets EXEC command to display a detailed dump of packets specific to RTP header compression. Use the no form of this command to disable debugging output.
[no] debug ip rtp packets
Sample Display
The following is sample output from the debug ip rtp packets command:
Router# debug ip rtp packetsRTP packet dump:IP: source: 171.68.8.10, destination: 224.2.197.169, id: 0x249B, ttl: 9,TOS: 0 prot: 17,UDP: source port: 1034, destination port: 27404, checksum: 0xB429,len: 152RTP: version: 2, padding: 0, extension: 0, marker: 0,payload: 3, ssrc 2369713968,sequence: 2468, timestamp: 85187180, csrc count: 0describes the significant fields in the output.
Table 68 Debug IP RTP Packets Field Descriptions
id
IP identification.
ttl
IP time to live (TTL).
len
Total UDP length.
Related Command
debug ip rtp header-compression
debug ip sd
Use the debug ip sd command to display all session directory (SD) announcements received. The no form of this command disables debugging output.
[no] debug ip sd
Usage Guidelines
This command shows session directory announcements for multicast IP. Use it to observe multicast activity.
Sample Display
The following is sample output from the debug ip sd command:
Router# debug ip sdSD: Announcement from 172.31.58.81 on Serial0.1, 146 bytess=*cisco: CBONE Audioi=cisco internal-only audio conferenceo=dino@dino-ss20.cisco.comc=224.0.255.1 16 2891478496 2892688096m=audio 31372 1700SD: Announcement from 172.22.246.68 on Serial0.1, 147 bytess=IMS: U.S. Senatei=U.S. Senate at http://town.hall.org/radio/live.htmlo=carl@also.radio.comc=224.2.252.231 95 0 0m=audio 36572 2642a=fmt:gsmprovides explanations for representative lines of the debug ip sd output.
Related Commands
debug ip dvmrp
debug ip igmp
debug ip mbgp dampening
debug ip mrouting
debug ip pimdebug ip security
Use the debug ip security EXEC command to display IP security option processing. The no form of this command disables debugging output.
[no] debug ip security
Usage Guidelines
The debug ip security command displays information for both basic and extended IP security options. For interfaces where ip security is configured, each IP packet processed for that interface results in debugging output regardless of whether the packet contains IP security options. IP packets processed for other interfaces that also contain IP security information also trigger debugging output. Some additional IP security debugging information is also controlled by the debug ip packet EXEC command.
Note
Because the debug ip security command generates a significant amount of output for every IP packet processed, use it only when traffic on the IP network is low, so other activity on the system is not adversely affected.
Sample Display
The following is sample output from the debug ip security command:
Router# debug ip securityIP Security: src 172.24.72.52 dst 172.24.72.53, number of BSO 1idb: NULLpak: insert (0xFF) 0x0IP Security: BSO postroute: SECINSERT changed to secret (0x5A) 0x10IP Security: src 172.24.72.53 dst 172.24.72.52, number of BSO 1idb: secret (0x6) 0x10 to secret (0x6) 0x10, no implicitdef secret (0x6) 0x10pak: secret (0x5A) 0x10IP Security: checking BSO 0x10 against [0x10 0x10]IP Security: classified BSO as secret (0x5A) 0x10describes significant fields in the output.
The following line indicates that the packet was locally generated, and it has been classified with the internally significant security level "insert" (0xff) and authority 0x0:
idb: NULLpak: insert (0xff) 0x0The following line indicates that the packet was received via an interface with dedicated IP security configured. Specifically, the interface is configured at security level "secret" and with authority information of 0x0. The packet itself was classified at level "secret" (0x5a) and authority 0x10.
idb: secret (0x6) 0x10 to secret (0x6) 0x10, no implicitdef secret (0x6) 0x10pak: secret (0x5A) 0x10debug ip socket
Use the debug ip socket EXEC command to display all state change information for all sockets. Use the no form of this command to disable debugging output.
[no] debug ip socket
Usage Guidelines
Use this command to collect information on the socket interface. To get more complete information on a socket/TCP port pair, use this command in conjunction with debug ip tcp transactions.
Because the socket debugging information is state-change oriented, you will not see the debug message on a per packet basis. However, if the connections normally have very short lives (few packet exchanges during the life cycle of a connection), then socket debugging could become expensive because of the state changes involved during connection setup and teardown.
Sample Displays
The following is sample output from the debug ip socket output from a server process:
Router# debug ip socketAdded socket 0x60B86228 to process 40SOCKET: set TCP property TCP_PID, socket 0x60B86228, TCB 0x60B85E38Accepted new socket fd 1, TCB 0x60B85E38Added socket 0x60B86798 to process 40SOCKET: set TCP property TCP_PID, socket 0x60B86798, TCB 0x60B877C0SOCKET: set TCP property TCP_BIT_NOTIFY, socket 0x60B86798, TCB 0x60B877C0SOCKET: created new socket to TCP, fd 2, TCB 0x60B877C0SOCKET: bound socket fd 2 to TCB 0x60B877C0SOCKET: set TCP property TCP_WINDOW_SIZE, socket 0x60B86798, TCB 0x60B877C0SOCKET: listen on socket fd 2, TCB 0x60B877C0SOCKET: closing socket 0x60B86228, TCB 0x60B85E38SOCKET: socket event process: socket 0x60B86228, TCB new state --> FINWAIT1socket state: SS_ISCONNECTED SS_CANTSENDMORE SS_ISDISCONNECTINGSOCKET: Removed socket 0x60B86228 from process 40 socket listThe following is sample output from the debug ip socket command from a client process:
Router# debug ip socketAdded socket 0x60B70220 to process 2SOCKET: set TCP property TCP_PID, socket 0x60B70220, TCB 0x60B6CFDCSOCKET: set TCP property TCP_BIT_NOTIFY, socket 0x60B70220, TCB 0x60B6CFDCSOCKET: created new socket to TCP, fd 0, TCB 0x60B6CFDCSOCKET: socket event process: socket 0x60B70220, TCB new state --> SYNSENTsocket state: SS_ISCONNECTINGSOCKET: socket event process: socket 0x60B70220, TCB new state --> ESTABsocket state: SS_ISCONNECTINGSOCKET: closing socket 0x60B70220, TCB 0x60B6CFDCSOCKET: socket event process: socket 0x60B70220, TCB new state --> FINWAIT1socket state: SS_ISCONNECTED SS_CANTSENDMORE SS_ISDISCONNECTINGSOCKET: Removed socket 0x60B70220 from process 2 socket listdescribes the significant fields in the output.
Table 71
Debug IP Socket Field Descriptions
Related Command
debug ip tcp driver
Use the debug ip tcp driver EXEC command to display information on Transmission Control Protocol (TCP) driver events; for example, connections opening or closing, or packets being dropped because of full queues. The no form of this command disables debugging output.
[no] debug ip tcp driver
Usage Guidelines
The TCP driver is the process that the router software uses to send packet data over a TCP connection. Remote source-route bridging, STUN (serial tunneling), and X.25 switching currently use the TCP driver.
Using the debug ip tcp driver command together with the debug ip tcp driver-pak command provides the most verbose debugging output concerning TCP driver activity.
Sample Display
The following is sample output from the debug ip tcp driver command:
Router# debug ip tcp driverTCPDRV359CD8: Active open 172.21.80.26:0 --> 172.21.80.25:1996 OK, lport 36628TCPDRV359CD8: enable tcp timeoutsTCPDRV359CD8: 172.21.80.26:36628 --> 172.21.80.25:1996 AbortTCPDRV359CD8: 172.21.80.26:36628 --> 172.21.80.25:1996 DoClose tcp abortdescribes the fields in the first line of output.
The following line indicates that the TCP driver user (remote source-route bridging, in this case) will allow TCP to drop the connection if excessive retransmissions occur:
TCPDRV359CD8: enable tcp timeoutsThe following line indicates that the TCP driver user (in this case, remote source-route bridging) at IP address 172.21.80.26 (and using TCP port number 36628) is requesting that the connection to IP address 172.21.80.25 using TCP port number 1996 be aborted:
TCPDRV359CD8: 172.21.80.26:36628 --> 172.21.80.25:1996 AbortThe following line indicates that this connection was in fact closed due to an abnormal termination:
TCPDRV359CD8: 172.21.80.26:36628 --> 172.21.80.25:1996 DoClose tcp abortdebug ip tcp driver-pak
Use the debug ip tcp driver-pak EXEC command to display information on every operation that the Transmission Control Protocol (TCP) driver performs. The no form of this command disables debugging output.
[no] debug ip tcp driver-pak
Usage Guidelines
This command turns on a verbose debugging by logging at least one debugging message for every packet sent or received on the TCP driver connection.
The TCP driver is the process that the router software uses to send packet data over a TCP connection. Remote source-route bridging, STUN (serial tunneling), and X.25 switching currently use the TCP driver.
To observe the context within which certain debug ip tcp driver-pak messages occur, turn on this command in conjunction with the debug ip tcp driver command.
Note
Sample Display
The following is sample output from the debug ip tcp driver-pak command:
Router# debug ip tcp driver-pakTCPDRV359CD8: send 2E8CD8 (len 26) queuedTCPDRV359CD8: output pak 2E8CD8 (len 26) (26)TCPDRV359CD8: readf 42 bytes (Thresh 16)TCPDRV359CD8: readf 26 bytes (Thresh 16)TCPDRV359CD8: readf 10 bytes (Thresh 10)TCPDRV359CD8: send 327E40 (len 4502) queuedTCPDRV359CD8: output pak 327E40 (len 4502) (4502)describes the fields shown in the first line.
The following line indicates that the TCP driver has sent the data that it had received from the TCP driver user, as shown in the previous line of output. The last field in the line (26) indicates that the 26 bytes of data were sent out as a single unit.
TCPDRV359CD8: output pak 2E8CD8 (len 26) (26)The following line indicates that the TCP driver has received 42 bytes of data from the remote IP address. The TCP driver user (in this case, remote source-route bridging) has established an input threshold of 16 bytes for this connection. (The input threshold instructs the TCP driver to transfer data to the TCP driver user only when at least 16 bytes are present.)
TCPDRV359CD8: readf 42 bytes (Thresh 16)debug ip tcp intercept
To display TCP intercept statistics, use the debug ip tcp intercept EXEC command. The no form of this command disables debugging output.
[no] debug ip tcp intercept
Sample Display
illustrates a scenario in which a router configured with TCP intercept operates between a client and a server.
Figure 1 Example TCP Intercept Environment
The following is sample output from the debug ip tcp intercept command:
Router# debug ip tcp interceptA connection attempt arrives:
INTERCEPT: new connection (172.19.160.17:61774) => (10.1.1.30:23)INTERCEPT: 172.19.160.17:61774 <- ACK+SYN (10.1.1.30:61774)A second connection attempt arrives:
INTERCEPT: new connection (172.19.160.17:62030) => (10.1.1.30:23)INTERCEPT: 172.19.160.17:62030 <- ACK+SYN (10.1.1.30:62030)The router retransmits to both apparent clients:
INTERCEPT: retransmit 2 (172.19.160.17:61774) <- (10.1.1.30:23) SYNRCVDINTERCEPT: retransmit 2 (172.19.160.17:62030) <- (10.1.1.30:23) SYNRCVDA third connection attempt arrives:
INTERCEPT: new connection (171.69.232.23:1048) => (10.1.1.30:23)INTERCEPT: 171.69.232.23:1048 <- ACK+SYN (10.1.1.30:1048)The router sends more retransmissions trying to establish connections with the apparent clients:
INTERCEPT: retransmit 4 (172.19.160.17:61774) <- (10.1.1.30:23) SYNRCVDINTERCEPT: retransmit 4 (172.19.160.17:62030) <- (10.1.1.30:23) SYNRCVDINTERCEPT: retransmit 2 (171.69.232.23:1048) <- (10.1.1.30:23) SYNRCVDThe router establishes the connection with the third client and retransmits to the server:
INTERCEPT: 1st half of connection is established (171.69.232.23:1048) => (10.1.1.30:23)INTERCEPT: (171.69.232.23:1048) SYN -> 10.1.1.30:23INTERCEPT: retransmit 2 (171.69.232.23:1048) -> (10.1.1.30:23) SYNSENTThe server responds; the connection is established:
INTERCEPT: 2nd half of connection established (171.69.232.23:1048) => (10.1.1.30:23)INTERCEPT: (171.69.232.23:1048) ACK -> 10.1.1.30:23The router retransmits to the first two apparent clients, times out, and sends resets:
INTERCEPT: retransmit 8 (172.19.160.17:61774) <- (10.1.1.30:23) SYNRCVDINTERCEPT: retransmit 8 (172.19.160.17:62030) <- (10.1.1.30:23) SYNRCVDINTERCEPT: retransmit 16 (172.19.160.17:61774) <- (10.1.1.30:23) SYNRCVDINTERCEPT: retransmit 16 (172.19.160.17:62030) <- (10.1.1.30:23) SYNRCVDINTERCEPT: retransmitting too long (172.19.160.17:61774) => (10.1.1.30:23) SYNRCVDINTERCEPT: 172.19.160.17:61774 <- RST (10.1.1.30:23)INTERCEPT: retransmitting too long (172.19.160.17:62030) => (10.1.1.30:23) SYNRCVDINTERCEPT: 172.19.160.17:62030 <- RST (10.1.1.30:23)debug ip tcp transactions
Use the debug ip tcp transactions EXEC command to display information on significant Transmission Control Protocol (TCP) transactions such as state changes, retransmissions, and duplicate packets. The no form of this command disables debugging output.
[no] debug ip tcp transactions
Usage Guidelines
This command is particularly useful for debugging a performance problem on a TCP/IP network that you have isolated above the data link layer.
The debug ip tcp transactions command displays output for packets the router sends and receives, but does not display output for packets it forwards.
Sample Display
The following is sample output from the debug ip tcp transactions command:
Router# debug ip tcp transactionsTCP: sending SYN, seq 168108, ack 88655553TCP0: Connection to 10.9.0.13:22530, advertising MSS 966TCP0: state was LISTEN -> SYNRCVD [23 -> 10.9.0.13(22530)]TCP0: state was SYNSENT -> SYNRCVD [23 -> 10.9.0.13(22530)]TCP0: Connection to 10.9.0.13:22530, received MSS 956TCP0: restart retransmission in 5996TCP0: state was SYNRCVD -> ESTAB [23 -> 10.9.0.13(22530)]TCP2: restart retransmission in 10689TCP2: restart retransmission in 10641TCP2: restart retransmission in 10633TCP2: restart retransmission in 13384 -> 10.0.0.13(16151)]TCP0: restart retransmission in 5996 [23 -> 10.0.0.13(16151)]describes significant fields in the output.
debug ip trigger-authentication
Use the debug ip trigger-authentication command to display information related to automated double authentication. The no form of this command disables debugging output.
[no] debug ip trigger-authentication [verbose]
Syntax Description
verbose
(Optional) Specifies that the complete debugging output be displayed, including information about packets that are blocked before authentication is complete.
Usage Guidelines
Use this command when troubleshooting automated double authentication.
This command displays information about the remote host table—whenever entries are added, updated, or removed, a new debugging message is displayed.
What is the remote host table? Whenever a remote user needs to be user-authenticated in the second stage of automated double authentication, the local device sends a UDP packet to the remote user's host. Whenever such a UDP packet is sent, the user's host IP address is added to a table. If additional UDP packets are sent to the same remote host, a new table entry is not created; instead, the existing entry is updated with a new time stamp. This remote host table contains a cumulative list of host entries; entries are deleted after a timeout period or after you manually clear the table using the clear ip trigger-authentication command.
If you include the verbose keyword, the debugging output also includes information about packet activity.
Sample Display
The following is sample output from the debug ip trigger-authentication command. In this example, the local device at 172.21.127.186 sends a UDP packet to the remote host at 172.21.127.114. The UDP packet is sent to request the remote user's username and password (or PIN). (The output indicates "New entry added.")
After a timeout period, the local device has not received a valid response from the remote host, so the local device sends another UDP packet. (The output indicates "Time stamp updated.")
Then the remote user is authenticated, and after a length of time (the timeout period) the entry is removed from the remote host table. (The output indicates "remove obsolete entry.")
myfirewall# debug ip trigger-authenticationTRIGGER_AUTH: UDP sent from 172.21.127.186 to 172.21.127.114, qdata=7C2504New entry added, timestamp=2940514234TRIGGER_AUTH: UDP sent from 172.21.127.186 to 172.21.127.114, qdata=7C2504Time stamp updated, timestamp=2940514307TRIGGER_AUTH: remove obsolete entry, remote host=172.21.127.114The following is sample output from the debug ip trigger-authentication verbose command. In this example, messages about packet activity are included because of the use of the verbose keyword.
You can see many packets that are being blocked at the interface because the user has not yet been double authenticated. These packets will be permitted through the interface only after the user has been double authenticated. (You can see packets being blocked when the output indicates "packet enqueued" then "packet ignored.")
TRIGGER_AUTH: packet enqueued, qdata=69FEECremote host=172.21.127.113, local host=172.21.127.186 (if: 0.0.0.0)TRIGGER_AUTH: UDP sent from 172.21.127.186 to 172.21.127.113, qdata=69FEECTime stamp updatedTRIGGER_AUTH: packet enqueued, qdata=69FEECremote host=172.21.127.113, local host=172.21.127.186 (if: 0.0.0.0)TRIGGER_AUTH: packet ignored, qdata=69FEECTRIGGER_AUTH: packet enqueued, qdata=69FEECremote host=172.21.127.113, local host=172.21.127.186 (if: 0.0.0.0)TRIGGER_AUTH: packet ignored, qdata=69FEECTRIGGER_AUTH: packet enqueued, qdata=69FEECremote host=172.21.127.113, local host=172.21.127.186 (if: 0.0.0.0)TRIGGER_AUTH: UDP sent from 172.21.127.186 to 172.21.127.113, qdata=69FEECTime stamp updatedTRIGGER_AUTH: packet enqueued, qdata=69FEECremote host=172.21.127.113, local host=172.21.127.186 (if: 0.0.0.0)TRIGGER_AUTH: packet ignored, qdata=69FEECTRIGGER_AUTH: packet enqueued, qdata=69FEECremote host=172.21.127.113, local host=172.21.127.186 (if: 0.0.0.0)TRIGGER_AUTH: packet ignored, qdata=69FEECdebug ip udp
To enable logging of User Datagram Protocol (UDP) packets sent and received, use the debug ip udp privileged EXEC command. To disable debugging output, use the no form of this command.
[no] debug ip udp
Usage Guidelines
Enter the debug ip udp command on the device that should be receiving packets from the host. Check the debugging output to see whether packets are being received from the host.
CautionThe debug ip udp command can use considerable CPU cycles on the device. Do not enable it if your network is heavily congested
Sample Display
The following is sample output from the debug ip udp command:
Router# debug ip udpUDP packet debugging is onRouter#00:18:48: UDP: rcvd src=0.0.0.0(68), dst=255.255.255.255(67), length=58400:18:48: UDP: sent src=10.1.1.10(67), dst=172.17.110.136(67), length=60400:18:48: UDP: rcvd src=172.17.110.136(67), dst=10.1.1.10(67), length=30800:18:48: UDP: sent src=0.0.0.0(67), dst=255.255.255.255(68), length=32800:18:48: UDP: rcvd src=0.0.0.0(68), dst=255.255.255.255(67), length=58400:18:48: UDP: sent src=10.1.1.10(67), dst=172.17.110.136(67), length=60400:18:48: UDP: rcvd src=172.17.110.136(67), dst=10.1.1.10(67), length=30800:18:50: UDP: sent src=0.0.0.0(67), dst=255.255.255.255(68), length=328debug ip wccp events
Use the debug ip wccp events EXEC command to display information about significant Web Cache Control Protocol events. The no form of this command disables debugging output.
[no] debug ip wccp events
Sample Display
The following is sample output from the debug ip wccp events command when a Cisco Cache Engine is added to the list of available Web caches.
Router# debug ip wccp eventsWCCP-EVNT: Built I_See_You msg body w/1 usable web caches, change # 0000000AWCCP-EVNT: Web Cache 192.168.25.3 addedWCCP-EVNT: Built I_See_You msg body w/2 usable web caches, change # 0000000BWCCP-EVNT: Built I_See_You msg body w/2 usable web caches, change # 0000000Cdebug ip wccp packets
Use the debug ip wccp packets EXEC command to display information about every Web Cache Control Protocol packet received or sent by the router. The no form of this command disables debugging output.
[no] debug ip wccp packets
Sample Display
The following is sample output from the debug ip wccp packets command. The router is sending keepalive packets to the Cisco Cache Engines at 192.168.25.4 and 192.168.25.3. Each keepalive packet has an identification number associated with it. When the Cisco Cache Engine receives a keepalive packet from the router, it sends a reply with the identification number back to the router.
Router# debug ip wccp packetsWCCP-PKT: Received valid Here_I_Am packet from 192.168.25.4 w/rcvd_id 00003532WCCP-PKT: Sending I_See_You packet to 192.168.25.4 w/ rcvd_id 00003534WCCP-PKT: Received valid Here_I_Am packet from 192.168.25.3 w/rcvd_id 00003533WCCP-PKT: Sending I_See_You packet to 192.168.25.3 w/ rcvd_id 00003535WCCP-PKT: Received valid Here_I_Am packet from 192.168.25.4 w/rcvd_id 00003534WCCP-PKT: Sending I_See_You packet to 192.168.25.4 w/ rcvd_id 00003536WCCP-PKT: Received valid Here_I_Am packet from 192.168.25.3 w/rcvd_id 00003535WCCP-PKT: Sending I_See_You packet to 192.168.25.3 w/ rcvd_id 00003537WCCP-PKT: Received valid Here_I_Am packet from 192.168.25.4 w/rcvd_id 00003536WCCP-PKT: Sending I_See_You packet to 192.168.25.4 w/ rcvd_id 00003538WCCP-PKT: Received valid Here_I_Am packet from 192.168.25.3 w/rcvd_id 00003537WCCP-PKT: Sending I_See_You packet to 192.168.25.3 w/ rcvd_id 00003539
