Configuring IBM Channel Attach
Cisco's Implementation of the IBM Channel Attach Interface
TCP/IP Environments Using CLAW
TN3270 Server Environments under CSNA
Interface Configuration Task List
Configure IBM Channel Attach for TCP/IP CLAW Support
Configure the IBM Channel Attach Interface
Select a Data Rate for the Parallel Channel Adapter (PCA)
Configure Other Interface Support
Configure IBM Channel Attach for TCP/IP Offload Support
Configure the IBM Channel Attach Interface
Select a Data Rate for the Parallel Channel Adapter (PCA)
Configure Other Interface Support
Configure IBM Channel Attach for CSNA Support
Configure the Channel Information
Configure the Internal LAN Interfaces
Configure the Internal Adapter's Link Characteristics
Values from the Host IOCP File
Values from the Host TCP/IP File
Monitor and Maintain the Interface
Shut Down and Restart an Interface
Run CIP Interface Loopback Diagnostics
Configuring TN3270 on a Channel Interface Processor
Formation of LU Model Type and Number
IP Type of Service and Precedence Setting
VTAM Host Configuration Considerations for Dynamic LU Allocation
NVRAM Configuration File Compression
Store Configuration File in Flash
TN3270 Server Configuration Mode
Commands Allowed in Multiple Modes
TN3270 Configuration Task List
Task List for Multiple APPN Hosts
Configure PU Parameters on the TN3270 Server
Configure the VTAM Transport Resource List Major Node
Configure the VTAM Local SNA Major Node
Configure the CMPC Subchannels
Configure the CMPC Transmission Groups
Configure the CIP Internal LAN for CMPC
Configure the CIP Internal LANs
Configure Source-Route Bridging
Configure the Internal Adapter and Its Link Characteristics
IBM Channel Attach Interface Configuration Examples
Routing Process Configuration Example
IP Address and Network Mask Configuration Example
Interface Shutdown and Startup Example
Configure Static and Dynamic LUs with LU Nailing Example
Remove LU Nailing Definitions Example
Configuring Different Values for Precedence and TOS Example
Overriding Configured Values Example
Connecting VTAM to a Remote PC with Communications Server/2 Example
Connecting VTAM to the APPN NN on the CIP Example
Connecting Two VTAM Nodes Using Two CIPs in the Same Router Example
Connecting VTAM to the APPN NN on a Remote Router with DLUR Example
TN3270 Server DLUR Running on the Same CIP Example
Configuring IBM Channel Attach
This chapter describes how to configure the Cisco 7000 with RSP7000 and Cisco 7500 series mainframe Channel Interface Processor (CIP), which supports the IBM channel attach feature.
For hardware technical descriptions and information about installing the router interfaces, refer to the hardware installation and maintenance publication for your product. For command descriptions and usage information, refer to the "IBM Channel Attach Commands" chapter of the Bridging and IBM Networking Command Reference. To locate documentation of other commands that appear in this chapter, use the command reference master index or search online.
Cisco's Implementation of the IBM Channel Attach Interface
Support for IBM channel attach is provided on the Cisco 7000 with RSP7000 and Cisco 7500 series routers by the Channel Interface Processor (CIP) and an appropriate interface adapter card. With a CIP and the ESCON Channel Adapter (ECA) or bus-and-tag Parallel Channel Adapter (PCA), a Cisco 7000 with RSP7000 and Cisco 7500 series router can be directly connected to a mainframe, replacing the function of an IBM 3172 interconnect controller. This connectivity enables mainframe applications and peripheral access from LAN-based workstations.
A single CIP can support up to two channel adapter cards in any combination. Because of this flexibility, upgrading from parallel bus-and-tag to ESCON is simplified. The CIP can be configured for ESCON support by replacing a PCA with an ESCON adapter. Note that this upgrade procedure must be done by authorized service personnel.
The CIP provides support for the environments discussed in the following sections:
•
TCP/IP Environments Using CLAW
•
TCP/IP Environments Using CLAW
TCP/IP mainframe protocol environments for IBM operating systems Multiple Virtual Storage (MVS) and Virtual Machine (VM) are supported. This support includes TCP/IP-based applications such as terminal emulation (Telnet), the File Transfer Protocol (FTP), Simple Mail Transfer Protocol (SMTP) and Network File System (NFS), a distributed file access system. In addition, Internet Control Message Protocol (ICMP) and User Datagram Protocol (UDP) are supported.
A CIP configured with 8 megabytes (MB) of memory can support up to 128 CLAW connections, or 256 devices. Because each CLAW connection requires two devices, that allows a maximum of 128 CLAW connections per interface adapter card. However, a maximum of 32 CLAW connections is recommended.
TCP/IP Offload Environments
TCP/IP mainframe protocol environments for IBM operating systems MVS and VM are supported.
The CIP TCP/IP offload feature delivers the same function as the TCP/IP "offload" function on the 3172 Interconnect Controller (Model 3), but without the performance penalty. This feature implements the 3172 offload protocol for transporting application requests over the IBM ESCON or bus-and-tag channels.
All functionality provided in the CLAW environment is also supported in the TCP/IP offload environment because the function ships TCP/IP application calls over the mainframe channel using the CLAW channel protocol.
CIP SNA (CSNA) Environments
The CSNA feature provides support for SNA protocols over both ESCON and PCA interfaces to the IBM mainframe. As an IBM 3172 replacement, the CIP must support the External Communications Adapter (XCA) feature of VTAM, which allows VTAM to define Token Ring devices attached to the 3172 as switched devices.
In SNA environments, support for the XCA feature of VTAM allows the CIP to provide an alternative to front-end processors (FEPs) at sites where NCP is not required for SNA routing functions.
By providing CLS and the Logical Link Control, type 2 (LLC2) protocol stack on the CIP card, all frames destined to the CIP or from the CIP card can be fast switched by the router. The presentation of multiple "virtual" LAN media types allows the CSNA feature to take advantage of current source-route bridging (SRB), remote source-route bridging (RSRB), data-link switching plus (DLSw+), transparent bridging, SDLC-LLC2 translation (SDLLC), and Qualified Logical Link Control (QLLC) services.
Note
The CSNA feature supports the following communication through a Cisco 7000 with RSP7000 and Cisco 7500 series router:
•
•
•
•
The CSNA feature provides SNA connectivity through the use of MAC addresses configured for internal MAC adapters on the Cisco 7000 with RSP7000 and Cisco 7500 series router. These internal MAC adapters correspond to XCA major node definitions in VTAM, providing access points (LAN gateway) to VTAM for SNA network nodes. The internal MAC adapters are configured to exist on internal LANs located on a CIP card. Each CIP card can be configured with multiple internal LANs where an internal LAN can be a Token Ring, Ethernet, or FDDI LAN. Each internal Token Ring or FDDI LAN must be configured to participate in either source-route or transparent bridging and each internal Ethernet LAN must be configured for transparent bridging. Each internal Token Ring or FDDI LAN can be configured with up to 32 internal MAC adapters. An Ethernet internal LAN can support a single internal MAC adapter. The internal MAC adapter is an emulation of LAN adapters in an IBM 3172 interconnect controller.
TN3270 Server Environments under CSNA
The TN3270 server feature on a CIP card provides mapping between an SNA 3270 host and a TN3270 client connected to a TCP/IP network as shown in . Functionally, it is useful to view the TN3270 server from two different perspectives: SNA functions and Telnet Server functions.
•
From the perspective of an SNA 3270 host connected to the CIP, the TN3270 server is an SNA device that supports multiple physical units (PUs), with each PU supporting up to 255 logical unites (LUs). The LU can be Type 1, 2, or 3. The SNA host is unaware of the existence of the TCP/IP extension on the implementation of these LUs.
The LUs implemented by TN3270 server are dependent LUs. To route these dependent LU sessions to multiple virtual telecommunications access method (VTAM) hosts connected to the server in the CIP card, rather than routing in the VTAM hosts, the TN3270 server implements a SNA session switch with end node dependent LU requester (DLUR) function. Using the DLUR is optional so that the TN3270 server can be used with VTAM versions prior to version 4.2, which provide no APPN support.
SNA session switch allows you to eliminate SNA subarea routing between hosts of TN3270 traffic by establishing APPN links with the primary LU hosts directly.
•
From the perspective of a TN3270 client, the TN3270 server is a Telnet server that can support approximately 8000 concurrent Telnet sessions. The server on the CIP card supports Telnet connection negotiation and data format as specified in RFC 1576 (referred to as "traditional TN3270") and RFC 1647 (referred to as "TN3270E").
Figure 146 TN3270 Implementation
Because the TN3270 server configuration is performed after an interface is configured for CSNA support, TN3270 configuration issues and tasks are addressed separately from the interface configuration tasks. The description of TN3270 configuration issues and tasks begins in the section "Configuring TN3270 on a Channel Interface Processor," later in this chapter.
Note
Interface Configuration Task List
You can perform the tasks in the following sections to configure and maintain IBM channel attach interfaces. In addition, several examples show how host configuration settings correlate to values used in the configuration commands.
Note
Not all tasks are required. Your CIP image may be preloaded. You must select an interface, after which you configure the features you want supported on that interface.
•
•
•
•
•
See the end of this chapter for "IBM Channel Attach Interface Configuration Examples."
Note
Because the TN3270 server configuration is performed after an interface is configured for CSNA support, TN3270 configuration issues and tasks are addressed separately from the interface configuration tasks. The of TN3270 configuration task list begins in the section "TN3270 Configuration Task List," later in this chapter.
Load the CIP Image
Beginning with Cisco IOS Software Release 11.1, the CIP microcode (or CIP image) no longer is bundled with the Cisco IOS software. You must have Flash memory installed on the Route Processor (RP) card and 8 MB of RAM installed on your CIP card to use the IBM channel attach features in Cisco IOS Software Release 11.1 and later.
The CIP image is preloaded on Flash cards for all Cisco 7000 with RSP7000 and Cisco 7500 series routers ordered with the CIP option for Cisco IOS Software Release 11.1 and later. Perform the tasks in this section if you are upgrading the CIP image in your router.
To prepare the CIP, perform the following tasks beginning in privileged EXEC command mode:
Rather than as a single image (named cipxxx-yy), the CIP image appears as a directory (cipxxx-yy) that contains the various image segments to be loaded into the CIP.
The router configuration process takes longer than when using features, because the initial loading of a CIP configuration feature results in the loading of the applicable code and includes any necessary processing.
Select the Interface
Before you configure your channel attach interface, you must select the interface. Perform the following task in global configuration mode:
Select the channel attach interface and enter interface configuration mode.
interface channel slot/port
You need not add a space between the interface type (channel) and the slot and port number. For example, you can specify interface channel 3/0 or interface channel3/0.
Use the show extended channel subchannel EXEC command to display current CIP status. This command provides a report for each physical interface configured to support IBM channel attach.
The following section describes how to configure your channel attach interface.
See the section "IBM Channel Attach Interface Configuration Examples" at the end of this chapter for example configuration commands.
Configure IBM Channel Attach for TCP/IP CLAW Support
The following sections describe how to configure the IBM channel attach interface for TCP/IP CLAW support. All tasks, except for configuring other interface support, are required:
•
•
•
See the section "Select Host System Parameters" for guidelines on matching interface configuration values with host system values.
Define the Routing Process
You must configure the routing process that will be used by the Cisco IOS software. We recommend using the Enhanced IGRP routing process to perform IP routing on the IBM channel attach interface. Perform the following steps beginning in global configuration mode:
Assign an IP Address
You must assign an IP address to the ECA or PCA interface so that it can communicate with other devices (or tasks) on the network. The IP address you assign to the interface must be in the same subnetwork as the hosts with which you wish to communicate. Perform the following task in interface configuration mode:
Assign an IP address and network mask to the selected interface.
ip address address mask
Configure the IBM Channel Attach Interface
You must define the devices, or tasks, supported on the interface. Some information you need to perform this task is derived from the following host system configuration files: MVSIOCP, IOCP, and the TCPIP configuration. Refer to the section "Select Host System Parameters" for guidelines on matching interface configuration values with host system values.
Perform the following task in interface configuration mode:
Define the CLAW parameters for this device.
claw path device-address ip-address host-name device-name host-app device-app [broadcast]
See the section "IBM Channel Attach Interface Configuration Examples" for samples of claw commands for different configurations.
Select a Data Rate for the Parallel Channel Adapter (PCA)
When you configure a channel attach interface that supports a PCA card, you must define a data rate of either 3 MBps or 4.5 MBps. Perform the following task in interface configuration mode:
Configure Other Interface Support
To enhance the usefulness of IBM channel attach support, you can further define how the interface and the router interoperate by performing any of the following tasks in interface configuration mode:
Configure IBM Channel Attach for TCP/IP Offload Support
The following sections describe how to configure the IBM channel attach interface for TCP/IP offload support. All tasks, except for configuring other interface support, are required:
•
•
•
See the section "Select Host System Parameters" for guidelines on matching interface configuration values with host system values.
Define the Routing Process
You must configure the routing process that will be used by the Cisco IOS software. We recommend using the Enhanced IGRP routing process to perform IP routing on the IBM channel attach interface. Perform the following steps beginning in global configuration mode:
Assign an IP Address
You must assign an IP address to the ECA or PCA interface so that it can communicate with other devices (or tasks) on the network. The IP address you assign to the interface must be in the same subnetwork as the hosts with which you wish to communicate. Perform the following task in interface configuration mode:
Assign an IP address and network mask to the selected interface.
ip address address mask
Configure the IBM Channel Attach Interface
You must define the devices, or tasks supported on the interface. Some information you need to perform this task is derived from the following host system configuration files: MVSIOCP, IOCP, and the TCP/IP configuration. Refer to the section "Select Host System Parameters" for guidelines on matching interface configuration values with host system values.
Perform the following task in interface configuration mode:
Define the offload parameters for this device.
offload path device-address ip-address host-name device-name host-app device-app host-link device-link [broadcast]
See the section "IBM Channel Attach Interface Configuration Examples" for samples of offload commands for different configurations.
Select a Data Rate for the Parallel Channel Adapter (PCA)
When you configure a channel attach interface that supports a PCA card, you must define a data rate of either 3 MB per second or 4.5 MB per second. Perform the following task in interface configuration mode:
Configure Other Interface Support
You can further define how the interface and the router interoperate. You can perform any of the following tasks in interface configuration mode to enhance the usefulness of IBM channel attach support:
Configure IBM Channel Attach for CSNA Support
The following sections describe how to configure the IBM channel attach interface for CSNA support. The last task, "Name the Internal Adapter," is optional. All other tasks are required.
•
•
•
Note
Configure the Channel Information
To define the SNA channels supported by the CSNA feature, perform the following task in interface configuration mode:
Define the CSNA interface.
csna path device [maxpiu value] [time-delay value] [length-delay value]
Note
Configure the Internal LAN Interfaces
To select an internal LAN interface, perform the following tasks beginning in global configuration mode:
Configure Bridging
Select the bridging characteristics for Token Ring and FDDI, or Ethernet. Perform either of the following tasks in internal LAN configuration mode:
Select source-route bridging for Token Ring or FDDI.
source-bridge local-ring bridge-number target-ring
Select transparent bridging for Ethernet.
bridge-group bridge-group
Configure the Internal Adapter's Link Characteristics
To configure the link characteristics of the internal LAN adapter, perform the following tasks in internal LAN configuration mode:
Name the Internal Adapter
Select a name for the internal adapter. Perform the following task in internal adapter configuration mode:
Select Host System Parameters
This section describes how to correlate values found in the VM and MVS system I/O configuration program (IOCP) files with the fields in the claw interface configuration command and the offload interface configuration command. In addition, you will need configuration information from the host TCP/IP application configuration file. Refer to the following IBM operating system manuals for specific IOCP configuration statement details:
•
•
Values from the Host IOCP File
When you define CLAW or offload parameters, you must supply path information and device address information to support routing on an IBM channel. The path information can be simple, in the case of a channel directly attached to a router, or more challenging when the path includes an ESCON director switch or multiple image facility support.
The path argument is a concatenation of three hexadecimal numbers that represent the values listed in .
In , two host systems connect to the ESCON director switch, on paths 23 and 29. The channels both exit the switch on path 1B and attach to Router A.

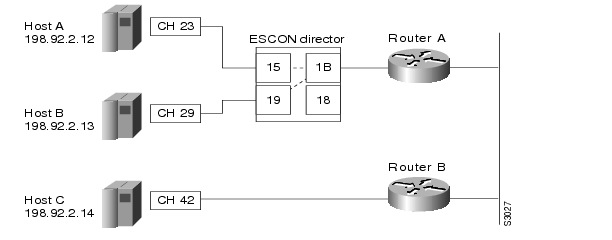

Figure 147 System with an ESCON Director Switch and a Directly Attached Channel
Note that the path between Host A and Host B is dynamically switched within the ESCON director. A third host is attached directly to Router B through path 42. The IOCP control unit statements would look something like the following examples:
•
CNTLUNIT CUNUMBER=0001, PATH=(23), LINK=1B, UNITADD=((00,64)), UNIT=SCTC, CUADD=F•
CNTLUNIT CUNUMBER=0002, PATH=(29), LINK=1B, UNITADD=((00,64)), UNIT=SCTC, CUADD=A•
CNTLUNIT CUNUMBER=000A, PATH=(42), UNIT=SCTC, UNITADD=((00,64))
Note
The system administrator can provide you with the values, for example 15 and 19, for the return channel attachment from the switch to each host. Given these values, the claw command path argument for the two channel attachments to Router A becomes:
claw 150F claw 190AThe offload command path argument for the two channel attachments to Router A becomes:
offload 150F offload 190AThe claw command path argument for the directly attached channel to Router B is easy to determine:
claw 0100Similarly, the offload command path argument for the directly attached channel to Router B is as follows:
offload 0100Next, determine the claw or offload command device-address argument value, which is shown as 00 in the UNITADD parameter for all three devices. This value can be any even value between 00 and 3E, as long as it matches an allowed UNITADD value in IOCP. The claw (or offload) commands now become:
•
claw 150F 00claw 190A 00•
offload 150F 00offload 190A 00•
claw 0100 02•
offload 0100 02Values from the Host TCP/IP File
The remainder of the claw and offload command arguments are derived from the DEVICE, LINK, and HOME statements in the host TCP/IP configuration files. The statements will be similar to the following:
•
DEVICE EVAL CLAW 500 VMSYSTEM C7000 NONE 20 20 4096 4096LINK EVAL1 IP 0 EVALHOME 198.92.2.12 EVAL1•
DEVICE EVAL CLAW 600 STSYSTEM C7000 NONE 20 20 4096 4096LINK EVAL1 IP 0 EVALHOME 198.92.2.13 EVAL1•
DEVICE EVAL CLAW 700 RDUSYSTM C7000 NONE 20 20 4096 4096LINK EVAL1 IP 0 EVALHOME 198.92.2.14 EVAL1The DEVICE statement lists the host-name and device-name values to use, which follows the CLAW 500 entry in the DEVICE statement.
The LINK statement links the device name, EVAL, to EVAL1. The IP address for EVAL1 appears in the HOME statement.
Based on this example, you can supply the remainder of the arguments for the sample claw commands:
•
claw 150F 00 198.92.2.12 VMSYSTEM C7000 TCPIP TCPIPclaw 190A 00 198.92.2.13 STSYSTEM C7000 TCPIP TCPIP•
claw 0100 02 198.92.2.14 RDUSYSTM C7000 TCPIP TCPIPSimilarly, the sample offload commands are as follows:
•
offload 150F 00 198.92.2.12 VMSYSTEM C7000 TCPIP APIoffload 190A 00 198.92.2.13 STSYSTEM C7000 TCPIP API•
offload 0100 02 198.92.2.14 RDUSYSTM C7000 TCPIP APIExample of a Derived Value
When you have a directly attached channel, the system administrator may provide you with a system IODEVICE ADDRESS that you can use. In this case, you must work backwards through the IOCP file to locate the proper device-address argument value for the claw command.
In this first example, the IODEVICE ADDRESS value is 800. Using this number, you locate the IODEVICE ADDRESS statement in the IOCP file, which points you to the CNTLUNIT statement that contains the device-address argument value for the claw or offload command:
IODEVICE ADDRESS=(0800,256),CUNUMBR=(0012),UNIT=SCTC**** Address 800 points to CUNUMBR 0012 in the following statementCNTLUNIT CUNUMBR=0012,PATH=(28),UNIT=SCTC,UNITADD=((00,256))**** The device-address is the UNITADD value of 00From this example, the claw or offload command would be similar to the following:
claw 0100 00 197.91.2.12 CISCOVM EVAL TCPIP TCPIPIn the next example, the system administrator has given you an IODEVICE ADDRESS of 350, which does not correspond exactly to a value in the IOCP file. In this instance you must calculate an offset device-address argument value for the claw or offload command:
IODEVICE ADDRESS=(0340,64),CUNUMBR=(0008),UNIT=SCTCIODEVICE ADDRESS=(0380,64),CUNUMBR=(0009),UNIT=SCTC**** Address 350 (340 + 10) is in the range covered by CUNUMBER 0008CNTLUNIT CUNUMBR=0008,PATH=(24),UNIT=SCTC,UNITADD=((40,64)),SHARED=N, X**** The device-address is the UNITADD value of 40, offset by 10**** The device-address to use is 50From this example, the claw or offload command would be similar to the following:
claw 0100 50 197.91.2.12 CISCOVM EVAL TCPIP TCPIP
Note
CautionWhen you are running MVS, you must disable the missing interrupt handler (MIH) to avoid introducing errors into the CLAW algorithm. Refer to the IBM publication Transmission Control Protocol/Internet Protocol TCP/IP Version 2 Release 2.1 for MVS: Planning and Customization (publication SC31-6085 or later) for information on disabling the MIH.
Monitor and Maintain the Interface
You can perform the tasks in the following sections to monitor and maintain the interfaces:
•
•
Monitor Interface Status
The software allows you to display information about the interface, including the version of the software and the hardware, the controller status, and statistics about the interfaces. The following table lists some of the interface monitoring tasks. To display the full list of show commands, enter show ? at the EXEC prompt.
Perform the following commands in privileged EXEC mode:
Clear and Reset an Interface
To clear the interface counters shown with the show interfaces command, enter the following command in EXEC mode:
Note
Complete the following task in EXEC mode to clear and reset interfaces. Under normal circumstances, you do not need to clear the hardware logic on interfaces.
Shut Down and Restart an Interface
You can disable an interface. Doing so disables all functions on the specified interface and marks the interface as unavailable on all monitoring command displays. This information is communicated to other network servers through all dynamic routing protocols. The interface will not be mentioned in any routing updates. On the CIP with an ECA interface adapter, a command is sent to the host to inform it of the impending shutdown. On the CIP with a PCA interface adapter, the shutdown command disables the adapter card's transceivers and the PCA stops responding to all commands. A select-out bypass relay must be manually set at the cable connecting to the PCA.
One reason to shut down an interface is if you want to change the interface type of a Cisco 7000 with RSP7000 or Cisco 7500 port online. To ensure that the system recognizes the new interface type, shut down the interface, then reenable it after changing the interface. Refer to your hardware documentation for more details.
To shut down an interface and then restart it, perform the following tasks in interface configuration mode:
To check whether an interface is disabled, use the EXEC command show interfaces. An interface that has been shut down is shown as administratively down in the show interfaces command display.
Run CIP Interface Loopback Diagnostics
The CIP does not provide software loopback support. You can use special loopback wrap plugs to perform hardware loopback with the ECA and PCA interface cards. Hardware loopback information is included in the hardware installation notes for the CIP.
Configuring TN3270 on a Channel Interface Processor
The following sections describe additional features of TN3270 server support on the CIP. The features discussed include the following:
•
•
You will also need to understand the following information before proceeding with TN3270 configuration tasks:
•
Dynamic LU Allocation
This will be the most common form of request from TN3270 clients emulating a TN3270 terminal. The user typically wants to specify emulating a particular terminal type and normally is not interested in what LOCADDR or LU name is allocated by the host, as long as a network solicitor logon menu is presented. The server will perform the following on such a session request:
•
•
•
When VTAM receives the NMVT, it will use the EBCDIC model type and number string to look up an LU template under the LUGROUP. For example, the string "327802E" will find a match in the sample configuration shown in . An ACTLU will be sent and a terminal session with the model and type requested by the client can be established.
Formation of LU Model Type and Number
VTAM requires a model type and number from the Reply PSID NMVT to use as a key to look up in the LU group to find an LU template. The model type is a four character string; the model number is a two or three character string. The server will accept the following formats of terminal type string from the client:
•
•
Note
•
•
A complication arises with TN3270E clients that request a copy of the Bind Image. Such clients require SCS datastream on the SSCP-LU flow. All other clients require 3270 datastream on that flow. Therefore, these two kinds of client must be directed to different LUGROUP entries at the host. To make this as easy as possible, the SCS requirement is also encoded into the model string sent to the host. Following the previously described terminal type string formats accepted by the server, this additional condition is applied:
•
Specific LU Allocation
A TN3270E client can request a specific LU name by using the TN3270E command CONNECT as documented in RFC 1647. The name requested must match the name by which the TN3270 server knows the LU (see the section "LU Names in the TN3270 Server"), and the host must have activated the LU (with ACTLU).
LU Names in the TN3270 Server
Where SNA session switching is configured (that is, on DLUR PUs) the TN3270 server learns the LU names from the ACTLUs.
For direct PUs, a "seed" name can be configured on the PU. TN3270 server uses this name in conjunction with the LOCADDRS to generate names for the LUs. It is best to use the same naming convention as the host.
SNA Switching—End Node DLUR
An end node DLUR function is implemented as part of the TN3270 server. The purpose of the DLUR is to allow the routing of TN3270 LUs to multiple VTAM hosts to be performed in the CIP card rather than on the VTAM hosts. The need for this feature will increase with the introduction of the new multi-CPU CMOS mainframe which comprises up to 16 CPUs that appear as separate VTAMs.
The implementation of TN3270 server LUs under DLUR also allows the server to learn about the LU names on the ACTLU, which greatly simplifies the configuration to support specifically requestable LUs such as printers.
Multiple Hosts Support
The TN3270 server supports access to multiple hosts via the configuration on a PU basis (). PUs connected to different hosts/applications can be configured with different IP address.
From the pu (direct) TN3270 configuration command values shown in , PU X2 establishes a link to a host at SAP 4 (the default) on MAC address 4100.cafe.0002. A client connecting to IP address 171.69.176.43 is allocated an LU from that PU and is routed to that host.
Note that by using the DLUR function, all the LUs in the server can be defined and owned by a controlling VTAM. When a client requests an application residing on a different VTAM host, the controlling VTAM will issue the request to the target host which will send a BIND directly to the client. All LU-LU data will then flow directly between the target host and the client without needing to go through the controlling VTAM.
IP Type of Service and Precedence Setting
The TN3270 server supports IP type of service (TOS) precedence setting. TOS is used in router networks to make routing decisions for the generated IP packets. The TN3270 server generates packets that comply to IP TOS and IP precedence values. (Refer to RFC 1349 for a description of IP TOS and IP precedence.)
The Cisco implementation of IP precedence allows values of 0 to 7 while TOS allows values from 0 to 15. You must choose appropriate values for TN3270 screens and printers consistent with your organization's policy.
At the protocol level, IP precedence allows a router network to discriminate between different types of traffic by giving different priorities to them. IP TOS allows router networks to discriminate between different types of traffic by giving different routing characteristics to them. Precedence and TOS values complement one another and provide flexibility in managing your network traffic.
In TN3270 server, two types of TN3270 clients connect: interactive screens or printers. Screens are interactive while printers need bulk data transfer. IP TOS and IP precedence allows you to discriminate between those two types of sessions and assign different precedence values to the interactive connection and the bulk data connection.
IP TOS and IP precedence values can be specified either at the TN3270 server command level or on the individual PU command level. Values can be specified on both levels, in which case siftdown will be used to determine value on individual PU. Siftdown is used when you configure values in TN3270 server configuration mode that apply to all entities in the server, yet you still can configure individual PUs at the PU configuration mode to alternative values. PU values not specifically changed use the values configured at the TN3270 server configuration mode. This flexibility provides a powerful, yet efficient, way to manage the values.
VTAM Host Configuration Considerations for Dynamic LU Allocation
Other non-Cisco implementations of TN3270 support depend on predefined, static pools of LUs to support different terminal types requested by the TN3270 clients. The CIP TN3270 server implementation removes the static nature of these configurations by using a VTAM release 3.4 feature, dynamic definition of dependent LU (DDDLU). (Refer to the VTAM operating sysetm manuals for your host system, under the descriptions for LUGROUP for additional information.) DDDLU dynamically requests LUs using the terminal type provided by TN3270 clients. The dynamic request eliminates the need to define any LU configuration in the server to support TN3270 clients emulating a generic TN3270 terminal.
To support DDDLU, the PUs used by the TN3270 server have to be defined in VTAM with LUSEED and LUGROUP parameters as shown in .
Figure 148 VTAM Host Values Defining LUSEED and LUGROUP
With the configuration shown in defined in the host, the ACTPU sent by VTAM for the PU TN3270PU will have the "Unsolicited NMVT Support" set in the system services control point (SSCP) capabilities control vector. This allows the PU to dynamically allocate LUs by sending network management vector transport (NMVT) with a "Reply Product Set ID" control vector.
After the TN3270 server sends a positive response to the ACTPU, it will wait for VTAM to send ACTLUs for all specifically defined LUs. In the sample configuration shown in , ACTLUs will be sent for TN3X1100 and TN3X1101. The server sends a positive response and sets SLU DISABLED. The LOCADDR of these LUs are put into the specific LU cache and reserved for specific LU name requests only.
To allow sufficient time for the VTAM host to send all the ACTLUs, a 30-second timer is started and restarted when an ACTLU is received. When the time expires, it is assumed all ACTLUs defined in VTAM for the PU have been sent. All LUs that have not been activated are available in a generic LU pool to be used for DDDLU unless they have been reserved by the configuration using the generic-pool deny TN3270 configuration command.
After the VTAM activation, the server can support session requests from clients using dynamic or specific LU allocation.
Note
Some VTAM configurations include the number sign (#) and at symbol (@). In the U.S. English EBCDIC character set, these characters are stored as the hexadecimal values 7B and 7C, respectively. VTAM will look for those hexadecimal values when processing the configuration file.
The characters used to enter these values are different in other EBCDIC National Language character sets. lists the languages that have different characters for the 7B and 7C hexadecimal values and the corresponding symbols used to enter the characters.
For example, the value for the LUSEED parameter in the PU definition called TN3270PU in has a value of TN3X1###. To properly code this value for LUSEED for the French National Language character set, the value should be TN3X1£££.
LU Address Mapping
Logical unit (LU) address mapping allows a client IP address to be mapped, or "nailed," to one or more LU local addresses on one or more physical units (PUs) by means of router configuration commands. You can control the relationship between the TN3270 client and the LU.
Clients from traditional TN3270 (non-TN3270E) devices can connect to specific LUs, which overcomes a limitation of TN3270 devices that cannot specify a "CONNECT LU." LU nailing is useful for TN3270E clients, because you can perform the configuration at the router, providing central control, rather than at the client.
Handling Large Configurations
The largest size nonvolatile random-access memory (NVRAM) planned for the Cisco 7000 and 7500 series routers is 128 KB. The maximum number of nailing commands that can be stored in a 128 KB NVRAM is approximately 4000. However, large configurations may map as many as 10,000 IP addresses to LUs.
To maintain a configuration file that exceeds 128 KB there are two alternatives. The configuration file can be stored compressed in NVRAM. Or, the configuration file can be stored in Flash memory that is either internal Flash or on a PCMCIA card.
NVRAM Configuration File Compression
The service compress-config global command specifies that the configuration file is to be stored compressed in NVRAM. Once the configuration file has been compressed, the router functions normally. A show startup-config EXEC command expands the configuration before displaying it. When the system is booted, it recognizes that the configuration file is compressed and will expand it and proceed normally.
The example below compresses a 129 KB configuration file to 11 KB.
router# copy running-config startup-configBuilding configuration...Compressing configuration from 129648 bytes to 11077 bytes[OK]The size of the configuration must not exceed three times the NVRAM size. For a 128 KB size NVRAM, the largest expanded configuration file size is 384 KB.
Note
If the boot ROMs do not recognize a compressed configuration, the following message is displayed:
Boot ROMs do not support NVRAM compression Config NOT written to NVRAMStore Configuration File in Flash
Store the startup configuration file in Flash memory by entering the boot config slot0:router-config global command. This command sets the environment variable CONFIG_FILE to load the startup configuration (router-config) from Flash memory, which is PCMCIA slot0 in this case. The buffer that holds the configuration file is usually the size of NVRAM. Larger configurations need larger buffers. To adjust the buffer size, use the boot buffersize bytes global command.
Note that you must first do a copy startup-config slot0:router-config prior to the boot config slot0:router-config to create the Flash configuration file. After you have created the Flash configuration file, update the Flash again.
For example, the following commands store the configuration file in Flash memory:
copy startup-config slot0:router-configconf tboot buffersize <bytes>boot config slot0:router-configcopy running-config startup-configCare must be taken when editing or changing a large configuration. Flash memory space is used every time a copy running-config startup-config is issued. Because file management for Flash memory, such as optimizing free space, is not done automatically you must pay close attention to available Flash memory. Cisco recommends that you use a large-capacity Flash card of at least 20 MB.
LU Nailing and Model Matching
The "model matching" feature of the CIP TN3270 server is designed for efficient use of dynamic LUs. Each client specifies a terminal model type at connection. When a non-nailed client connects and does not request a specific LU, the LU allocation algorithm attempts to allocate an LU that operated with that terminal model the last time it was used. If no such model is available, the next choice is an LU that has not been used since the PU was last activated. Failing that, any available LU is used; however, for dynamic LUs only, there is a short delay in connecting the session.
Where a client or set of clients is nailed to a set of more than one LU, the same logic applies. If the configured LU nailing maps a screen client to a set of LUs, the LU nailing algorithm attempts to match the client to a previously used LU that was most recently used with the same terminal model type as requested by the client for this connection. If a match is found, that LU is used. If a match is not found, any LU in the set that is not currently in use is chosen. If there is no available LU in the set, the connection is rejected.
For example, the following LUs are nailed to clients at address 192.195.80.40, and LUs BAGE1004 and BAGE1005, which were connected but are now disconnected.
lu name client-ip:tcp nail state model frames in out idle for1 BAGE1001 192.195.80.40:3822 Y P-BIND 327904E 4 4 0:22:352 BAGE1002 192.195.80.40:3867 Y ACT/SESS 327904E 8 7 0:21:203 BAGE1003 192.195.80.40:3981 Y ACT/SESS 327803E 13 14 0:10:134 BAGE1004 192.195.80.40:3991 Y ACT/NA 327803E 8 9 0:0:75 BAGE1005 192.195.80.40:3997 Y ACT/NA 327805 8 9 0:7:8If a client at IP address 192.195.80.40 requests a terminal model of type IBM-3278-5, LU BAGE1005 will be selected over BAGE1004.
lu name client-ip:tcp nail state model frames in out idle for1 BAGE1001 192.195.80.40:3822 Y P-BIND 327904E 4 4 0:23:292 BAGE1002 192.195.80.40:3867 Y ACT/SESS 327904E 8 7 0:22:143 BAGE1003 192.195.80.40:3981 Y ACT/SESS 327803E 13 14 0:11:74 BAGE1004 192.195.80.40:3991 Y ACT/NA 327803E 8 9 0:1:15 BAGE1005 192.195.80.40:4052 Y ACT/SESS 327805 13 14 0:0:16TN3270 Configuration Modes
The TN3270 configuration modes and router command prompts are described in the following sections and displayed in . The TN3270 server can be configured only on Port 2, the internal LAN port, of a CIP card.
Some configuration commands create entities on the CIP. For most of these, the command changes to the mode associated with that entity (for example, a PU). In general, the parameters provided to create the entity come in two sets: those which identify the specific instance of the entity (for example, a PU name) and those that merely set operating parameters. To return to the mode later, the same command is used but with only the first set of parameters. The following example tasks clarify how to return to a command mode without necessarily creating a new entity:
To create a DLUR LSAP and enter DLUR LSAP configuration mode, perform the following task beginning in TN3270 DLUR configuration mode:
To return later to the DLUR LSAP configuration mode on the same entity, perform the following task beginning in TN3270 DLUR configuration mode:
To remove an entity, the same identification parameters are needed. Perform the following task beginning in TN3270 DLUR configuration mode:
TN3270 configuration modes described in this section include the following:
•
•
Figure 149 TN3270 Configuration Modes
TN3270 Server Configuration Mode
From interface configuration mode, tn3270-server command puts you in TN3270 server configuration mode.
The following prompt appears:
tn3270-server>DLUR Configuration Mode
From TN3270 server configuration mode, the dlur command puts you in DLUR configuration mode.
The following prompt appears:
tn3270-dlur>DLUR SAP Configuration Mode
From DLUR server configuration mode, lsap command puts you in DLUR SAP configuration mode.
The following prompt appears:
tn3270-dlur-lsap>PU Configuration Mode
There are two paths to PU configuration mode: from the TN3270 server configuration mode, or from the DLUR configuration mode. In either mode, the pu command puts you in PU configuration mode.
From TN3270 configuration mode, the pu command to create a new PU is:
pu pu-name idblk-idnum ip-address type adapno lsap [rmac rmac] [rsap rsap] [lu-seed lu-name-stem]
From DLUR configuration mode, the pu command to create a new PU is:
pu pu-name idblk-idnum ip-address
From either mode, to return to PU configuration mode on PU pu-name the command is:
pu pu-name
The following prompts appear, depending on which mode you are in:
tn3270-pu>tn3270-dlur-pu>Commands Allowed in Multiple Modes
The following commands are valid in TN3270 configuration mode, or in either variation of PU configuration mode:
•
•
•
•
•
•
•
•
Values entered in PU configuration mode override settings made in TN3270 configuration mode. In addition, the no form of these commands entered in PU configuration mode will restore the command value entered in TN3270 command mode.
TN3270 Configuration Task List
The following sections describe how to configure TN3270 server support on the CIP. Not all tasks are required. Refer to "TN3270 Configuration Example" for configuration examples.
Note
Task List for Multiple APPN Hosts
When the host site uses APPN and the TN3270 server can reach multiple hosts, we recommend you use DLUR and configure your PUs under DLUR. In this instance, perform the following tasks:
Note
Task List for non-APPN Hosts
When the host site does not use APPN, you configure your PU parameters for a directly-connected host. In this instance, perform the following tasks:
•
Configure SNA Support
CIP SNA support (CSNA) must be configured prior to configuring TN3270 support. Refer to the section "Configure IBM Channel Attach for CSNA Support," earlier in this chapter.
After you have configured CSNA support, you proceed with TN3270 configuration.
Configure TN3270 Server
This task is required. To establish a TN3270 server on the internal LAN interface on the CIP, perform the following tasks beginning in global configuration mode:
When you use the tn3270-server command, you enter TN3270 configuration mode and can use all other commands in the task list. You can later override many configuration values you enter in TN3270 configuration mode from PU configuration mode. On IBM host systems, these types of commands are often referred to as "sift down" commands because their values can sift down through several levels of configuration and can be optionally altered at each configuration level.
Configure IP Precedence
To configure IP precedence, perform the following task in TN3270 server or TN3270 PU configuration mode:
Use the no ip precedence screen or the no ip precedence printer commands to return the precedence value to a default of 0.
Configure IP TOS
To configure IP TOS, perform the following task in TN3270 server or TN3270 PU configuration mode:
Use the no ip tos screen or the no ip tos printer commands to return the precedence value to a default of 0.
Configure PU Parameters on the TN3270 Server
This task is required when configuring PUs that do not use DLUR. To configure PU parameters for the TN3270 server, perform the following tasks beginning in TN3270 configuration mode:
When you use the pu command, you enter PU configuration mode and can use all other commands in this task list. Configuration values you enter in PU configuration mode will override other values entered while in TN3270 configuration mode. In addition, you can enter PU configuration mode from DLUR configuration mode when configuring PUs that are connected by means of DLUR.
If you are configuring PUs for directly connected hosts, you need not perform any additional configuration tasks.
Configure DLUR
This task is required when configuring DLUR connected hosts. To configure DLUR parameters for the TN3270 server, perform the following tasks beginning in TN3270 configuration mode:
Configure SAPs under DLUR
To configure SAPs under the DLUR function, perform the following tasks beginning in DLUR configuration mode:
Configure PUs under DLUR
This task is required when configuring DLUR connected hosts. To configure PUs under the DLUR function, perform the following tasks beginning in DLUR configuration mode:
The pu command entered in DLUR configuration mode has different parameters than when it is entered from TN3270 configuration mode.
Configure LU Nailing
To configure LU nailing, perform the following task in TN3270 PU configuration mode:
Configure the IP address and nail type and specify the locaddr range.
client [printer] ip ip-address [mask] lu first-locaddr [last-locaddr]
The client command allows a client with multiple TN3270 connections from the same IP address to nail their screen connections to LUs that are configured as screen LUs at the host and to nail printer connections to LUs that are configured as printers at the host. When the connection is made, a device type of "328*" is matched to a printer definition, and any other device type is matched to a screen definition.
Monitor the TN3270 Server
The following table lists some of the monitoring tasks specific to the TN3270 server. To display the full list of show commands, enter show ? at the EXEC prompt.
Use the following commands in privileged EXEC mode:
Cisco MultiPath Channel
Cisco MultiPath Channel (CMPC) is Cisco System's implementation of IBM's MultiPath Channel (MPC) feature. CMPC allows the virtual telecommunications access method (VTAM) to establish Advanced-Peer-to-Peer Networking (APPN) connections using both High Performance Routing (HPR) and Intermediate Session Routing (ISR) through a channel-attached Cisco 7000 with RSP7000 and Cisco 7500 series router using the MPC protocols.
An APPN ISR channel connection to a Cisco router also can be established with CSNA. However, an APPN HPR channel connection to a Cisco router is possible only through the use of CMPC.
With CMPC, Cisco 7000 with RSP7000 and Cisco 7500 series routers can be deployed in parallel MVS systems complex (sysplex) configurations.
CMPC can be used to establish an APPN connection between VTAM and the following APPN nodes:
•
•
•
•
•
One read subchannel and one write subchannel are supported for each MPC transmission group. The read subchannel and write subchannel may be split over two physical channel connections.
CMPC insulates VTAM from the actual network topology. The MPC protocols are terminated on the CIP and converted to LLC protocols. Once converted to LLC protocols other Cisco features can be used to connect VTAM to other APPN nodes in the network. CMPC can be used in conjunction with DLSw+, RSRB, SR/TLB, SRB, SDLLC, QLLC, ATM LAN emulation, and FRAS host to provide connectivity to VTAM.
CMPC supports connections to PU 2.1 nodes: APPN NN, APPN EN, and LEN. Subarea connections are not supported.
The CMPC feature coexists on a CIP with the TCP/IP Offload, IP Datagram, TN3270, and CSNA features.
Requirements
The following are minimum router requirements to support CMPC:
•
•
•
The following are minimum host system requirements to support CMPC:
•
•
Configuration Overview
To configure the CMPC feature, you must configure the host VTAM parameters and the CIP card in the Cisco 7000 with RSP7000 or Cisco 7500 series router. The CMPC Configuration Examples show the VTAM configuration parameters and the router configuration commands for each example.
The following guidelines will help you prepare for CMPC configuration:
•
•
•
•
•
•
•
•
•
•
•
To help clarify the configuration process, refer to , which shows the CMPC link between the VTAM host, the router, and CIP card, and the communication to the LLC2 end point. The read and write addresses defined in the VTAM host correspond to the read and write paths defined for CMPC. CMPC communicates with the LLC2 stack, which communicates to the end point of the connection by means of the IEEE 802.2 link.
Figure 150 Logical View of CMPC Link
Configuration Tasks
This section describes the following configuration tasks associated with the CMPC feature. The first two tasks are performed on the VTAM host. The remaining tasks are performed on the router. All tasks are required.
•
•
•
•
•
Configure the VTAM Transport Resource List Major Node
To configure MPC on the host, define the Transport Resource List (TRL) major node. See the following IBM documents for details on how to configure the TRL major node:
•
•
•
The following is an example of a typical configuration:
LAGTRLA VBUILD TYPE=TRLLAGTRLEA TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0, XREAD=(2F0), XWRITE=(2F1)In this example, device 2F0 has been configured for read and 2F1 has been configured for write. The command to activate the TRL should be issued before activating the Local node. If your TRL data set was named LAGTRLA, the activate command would be as follows:
v net,act,id=lagtrla,update=add
where the ID parameter refers to the name of the data set containing the TRL definition.
Note that "update=add" is preferred. The argument "update=all" can cause inactive TRLEs to be deleted unexpectedly from ISTTRL. However, "update=all" must be used if you change an active TRL data set and wish the changes to become active. The following commands are useful for displaying the current list of TRLEs:
d net,trl
d net,id=isttrl,e
d net,trl,trle=trle_nameConfigure the VTAM Local SNA Major Node
To configure the MPC channel link on the VTAM host, define the local SNA major node.
The following is an example of a typical configuration:
LAGLNA VBUILD TYPE=LOCALLAGPUA PU TRLE=LAGTRLEA, XISTATUS=ACTIVE, XXID=YES,CONNTYPE=APPN,CPCP=YES,HPR=YESThe TRLE parameter in the local node refers to the label on the TRLE statement from the TRL major node LAGTRLA. Also, if you do not want to run HPR set the HPR parameter to "NO." The local SNA major node must be activated after the TRL node has been activated. If your local node data set was named LAGLNA, the activate command is as follows:
v net,act,id=laglna
Configure the CMPC Subchannels
To define a CMPC read subchannel and CMPC write subchannel, perform the following tasks in interface configuration mode on a CIP physical interface:
Configure the CMPC read subchannel.
cmpc path device tg-name {read | write}
Configure the CMPC write subchannel.
cmpc path device tg-name {read | write}
These statements define the subchannel addresses that CMPC will use to connect to the host, and correspond to the definitions in the TRL major network node on the host.
Use the no cmpc path command to remove the definition of a subchannel and to deactivate the CMPC transmission group.
Configure the CMPC Transmission Groups
To define a CMPC transmission group by name and specify its connection to the LLC2 stack, perform the following task in interface configuration mode on a CIP virtual interface:
Define the CMPC transmission group name.
tg tg-name llc type adaptno lsap [rmac rmac] [rsap rsap]
The tg command defines an LLC connection with a complete addressing 4-tuple. The lsap, rmac, and rsap are specified explicitly by parameters. The lmac is the LMAC of the adapter referred to by the type and adaptno parameters.
The tg-name must match the name given in the cmpc command issued in the physical interface(s) on the same CIP.
Use the no tg command to remove a CMPC transmission group from the configuration, which will deactivate the named CMPC transmission group.
To change any parameter of the tg statement, the statement must be removed by using the no tg tg-name command.
Configure the CIP Internal LAN for CMPC
Configuring CMPC support on the CIP internal LAN is similar to configuring CSNA support. Many of the configuration tasks are the same. To configure the internal LAN adapter on the CIP to support CMPC, perform the following tasks:
•
•
•
Configure the CIP Internal LANs
To select a CIP internal LAN interface, perform the following tasks beginning in global configuration mode:
Use the no lan command to disconnect all LLC2 sessions established through all internal LAN interfaces configured on a particular internal LAN.
Up to 18 internal adapters can be configured on an internal LAN.
Configure Source-Route Bridging
Select the bridging characteristics for Token Ring and FDDI or for Ethernet. Perform either of the following tasks in internal LAN configuration mode:
Select source-route bridging for Token Ring or FDDI.
source-bridge local-ring bridge-number target-ring
Select transparent bridging for Ethernet.
bridge-group bridge-group
Configure the Internal Adapter and Its Link Characteristics
To configure the link characteristics of the internal LAN adapter, perform the following tasks in internal LAN configuration mode:
Configuring LLC parameters is optional. Default values are used when no parameters are configured.
Name the Internal Adapter
To select a name for the internal adapter, perform the following task in internal adapter configuration mode:
Naming an internal adapter is optional.
IBM Channel Attach Interface Configuration Examples
The following sections include examples to help you understand some aspects of interface configuration:
•
•
•
•
•
•
•
•
Routing Process Configuration Example
The following example configures an Enhanced IGRP routing process in autonomous system 127 and defines two networks to be advertised as originating within that autonomous system:
router eigrp 127network 197.91.2.0network 197.91.0.0IP Address and Network Mask Configuration Example
The following example assigns an IP address and network mask to the IBM channel attach interface on the router:
ip address 197.91.2.5 255.255.255.0CLAW Configuration Example
The following example configures the IBM channel attach interface to support a directly connected device:
claw 0100 00 197.91.0.21 VMSYSTEM C7000 TCPIP TCPIPOffload Configuration Example
The following example consists of the mainframe host profile statements, buffer poolsize recommendations, and router configuration statements for the network shown in .
Host Profile Statements
; Device statementDEVICE OFF CLAW 762 CISCOVM CIP1 NONE 20 20 4096 4096!; Link Statements (both needed)LINK OFFL OFFLOADLINK1 1 OFFLINK MEMD OFFLOADAPIBROAD 162.18.4.59 OFF OFFL!; Home Statement; (No additional home statements are added for offload)!!; Routing information (if you are not using the ROUTED SERVER)GATEWAY; NETWORK FIRST HOP DRIVER PCKT_SZ SUBN_MSK SUBN_VALUE162.18 = MEMD 4096 0.0.255.248 0.0.4.56DEFAULTNET = MEMD 1500 0!;START statementsSTART OFF!Buffer Poolsize Recommendations
See the IBM TCP/IP Performance Tuning Guide (SC31-7188-00) for buffer size adjustments.
Router Configuration Statements
The following statements configure the offload feature in the router. When you configure an host-to-host communication through the same ECA adapter, include the no ip redirects and ip route-cache same-interface commands:
!interface Channel0/0ip address 162.18.4.57 255.255.255.248no ip redirectsip route-cache same-interfaceip route-cache cbusno keepaliveoffload C300 62 162.18.4.59 CISCOVM CIP1 TCPIP TCPIP TCPIP API!Figure 151 Offload Network Configuration Block Diagram
CSNA Configuration Example
The following configuration shows how to configure CSNA in a Cisco 7000 with RSP7000 and Cisco 7500 channel-attached router. This configuration example accommodates the router configuration illustrated in .
source-bridge ring-group 2source-bridge remote-peer tcp 198.92.0.122source-bridge remote-peer tcp 198.92.0.123!interface serial 1/0ip address 198.92.0.122 255.255.255.0clockrate 56000!interface tokenring 2/0mac-address 400070000411no ip addressring-speed 16source-bridge active 101 1 2source-bridge spanning!interface ethernet 3/0mac-address 020070000412no ip addressbridge-group 1!interface fddi 4/0mac-address 400070000413no ip addresssource-bridge 102 1 2!interface channel 0/0csna 0100 80csna 0100 81!interface channel 0/1csna 0100 40csna 0100 41 time-delay 30 length-delay 4096!interface channel 0/2!max-llc2-sessions 2048!lan tokenring 0source-bridge 1000 1 2adapter 0 4000.0000.0401adapter 1 4000.0000.0402llc2 N2 3llc2 t1-time 2000!lan tokenring 1source-bridge 1001 1 2adapter 2 4000.0000.0401adapter 3 4000.0000.0403llc2 N2 3llc2 t1-time 2000!lan ethernet 0bridge-group 1adapter 0 4000.0000.0C01!lan fddi 0source-bridge 1002 1 2adapter 0 4000.0000.0D01!bridge 1 protocol ieeeFigure 152 CSNA Internal LAN Network Diagram
Interface Shutdown and Startup Example
The following example turns off the CIP interface in slot 2 at port 0:
interface channel 2/0shutdownThe following example enables the CIP interface in slot 3 at port 0 that had been previously shut down:
interface channel 3/0no shutdownTN3270 Configuration Example
The following configuration has three PUs using DLUR and two more with direct connections.
The initial CIP configuration is as follows:
interface Channel2/2ip address 10.10.20.126 255.255.255.128no ip redirectsno ip directed-broadcastip pim query-interval 0ip igmp query-interval 0no ip route-cacheno keepaliveno clns checksumclns congestion-threshold 0clns erpdu-interval 0clns rdpdu-interval 0no clns route-cacheno clns send-erpduno clns send-rdpdulan TokenRing 0source-bridge 223 1 2099adapter 0 4100.cafe.0001llc2 N1 2057adapter 1 4100.cafe.0002llc2 N1 2057Configuration dialog to configure the TN3270 function follows:
! HOSTA is channel-attached and will open SAP 8 on adapter 0.! HOSTB is reached via token-ring! HOSTC is channel-attached non-APPN and will open SAP 4 on adapter 0.! enter interface configuration mode for the virtual interface in slot 2router(config)#int channel 2/2! create TN3270 Server entityrouter(config-if)#tn3270-server! set server-wide defaults for PU parametersrouter(cfg-tn3270)#keepalive 0router(cfg-tn3270)#unbind-action disconnectrouter(cfg-tn3270)#generic-pool permit! define DLUR parameters and enter DLUR configuration moderouter(cfg-tn3270)#dlur SYD.TN3020 SYD.VMG! create PUs under DLUR! Note that the first two share an IP addressrouter(tn3270-dlur)#pu pu0 05d99001 10.10.20.1router(tn3270-dlur-pu)#pu pu1 05d99002 10.10.20.1router(tn3270-dlur-pu)#pu pu2 05d99003 10.10.20.2! create a DLUR LSAP and enter DLUR LSAP configuration moderouter(tn3270-dlur-pu)#lsap token-adapter 1! specify the VRN name of the network containing this lsaprouter(tn3270-dlur-lsap)#vrn syd.lan4! create a link from this lsaprouter(tn3270-dlur-lsap)#link hosta rmac 4100.cafe.0001 rsap 8router(tn3270-dlur-lsap)#link hostb rmac 4000.7470.0009 rsap 4router(tn3270-dlur-lsap)#exitrouter(tn3270-dlur)#exit! create direct pus for the non-APPN Host! note that they must use different lsaps because they go to the same Hostrouter(cfg-tn3270)#pu pu3 05d00001 10.10.20.5 tok 1 24 rmac 4100.cafe.0001 lu-seed pu3###router(tn3270-pu)#pu pu4 05d00002 10.10.20.5 tok 1 28 rmac 4100.cafe.0001 lu-seed pu4###router(tn3270-pu)#endThe resulting configuration from the initial configuration and the configuration dialog follows:
interface Channel2/2ip address 10.10.20.126 255.255.255.128no ip redirectsno ip directed-broadcastip pim query-interval 0ip igmp query-interval 0no ip route-cacheno keepaliveno clns checksumclns congestion-threshold 0clns erpdu-interval 0clns rdpdu-interval 0no clns route-cacheno clns send-erpduno clns send-rdpdulan TokenRing 0source-bridge 223 1 2099adapter 0 4100.cafe.0001llc2 N1 2057adapter 1 4100.cafe.0002llc2 N1 2057tn3270-serverpu PU3 05D00001 10.10.20.5 token-adapter 1 24 rmac 4100.cafe.0001 lu-seed PU3###pu PU4 05D00002 10.10.20.5 token-adapter 1 28 rmac 4100.cafe.0001 lu-seed PU4###dlur SYD.TN3020 SYD.VMGlsap token-adapter 1vrn SYD.LAN4link HOSTB rmac 4000.7470.0009link HOSTA rmac 4100.cafe.0001 rsap 08pu PU0 05D99001 10.10.20.1pu PU1 05D99002 10.10.20.1pu PU2 05D99003 10.10.20.2Configure Static and Dynamic LUs with LU Nailing Example
The following example shows a direct PU and a DLUR PU configured with the same listening point. The PUs are configured with the same nailed client IP address.
tn3270-serverpu PU1 05D18081 172.28.1.82 ...client ip 192.195.80.40 lu 1 10dlurpu PU2 05D190B3 172.28.1.82client ip 192.195.80.40 lu 1 10Assuming each PU has three static LUs, which are ACTLU enabled and not connected, then these LUs will be the first to be nailed. That is, the first six connections from client IP address 192.195.80.40 will use the static LUs and subsequent connections will use the remaining dynamic LUs.
Remove LU Nailing Definitions Example
In the following example, locaddrs 1 to 50 are reserved for all remote screen devices in the 171.69.176.0 subnet.
interface channel 2/2tn3270-serverpu BAGE4client ip 171.69.176.28 255.255.255.0 lu 1 50To remove a nailing definition, the complete range of locaddrs must be specified as configured. So for the example above, the following command would remove the LU nailing definition.
no client ip 171.69.176.28 255.255.255.0 lu 1 50If an attempt is made to remove a subset of the range of configured locaddrs then the command is rejected.
no client ip 171.69.176.28 255.255.255.0 lu 1 20% client ip 171.69.176.28 lu not matched with configured lu 1 50Configuring Different Values for Precedence and TOS Example
The following example changes IP precedence and IP TOS to different values under the TN3270 server for both the screen and printer. Note that any PUs defined under this configuration will inherit these values unless the corresponding parameter is specifically changed for that PU.
interface channel 3/2tn3270-serverip precedence screen 6ip precedence printer 3ip tos screen 8ip tos printer 4Overriding Configured Values Example
In the following example, the PU PUS1 uses the IP TOS precedence screen and printer values from the values provided in TN3270 server configuration mode. PUS2 uses the IP TOS screen and printer values defined in TN3270 server configuration mode. However, different values for IP precedence are provided for PUS2 under PU configuration mode.
interface channel 3/2tn3270-serverip precedence screen 6ip precedence printer 3ip tos screen 8ip tos printer 4pu PUS1 05D18009 172.28.1.101 token-adapter 0 AC rsap 08pu PUS2 05D18071 172.28.1.99 token-adapter 0 A4 rmac 4000.7470.00e7ip precedence screen 7ip precedence printer 0CMPC Configuration Examples
This section provides sample configurations for the CMPC feature. Throughout these configuration samples, a Cisco 7500 router with an RSP is used to illustrate the configurations. The configurations also apply to a Cisco 7000 router with an RP or an RSP installed. All SAP values are written in hexadecimal form.
Refer to the following configuration examples to see how different networked systems can be configured:
•
•
•
•
•
Connecting VTAM to a Remote PC with Communications Server/2 Example
shows the physical components for this example. shows the various parameters for each component in the configuration example.
Figure 153 Topology for VTAM-to-Remote PC with Communications Server/2
In , the following activity occurs:
•
•
•
•
Figure 154 Parameters for VTAM-to-Remote PC with Communications Server/2
The example in shows CMPC running on the CIP and communicating with a PC running Communications Server/2. APPN is not running on the router. It is only running in VTAM and on the PC.
The configuration examples for the VTAM host and the router follow.
Configuration for TRL Node LAGTRLA on MVS2
LAGTRA VBUILD TYPE=TRLLAGTRLA TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0, XREAD=(2F0), XWRITE=(2F1)Configuration for Local Node LAGLNA on MVS2
LAGNNA VBUILD TYPE=LOCALLAGPUA PU TRLE=LAGTRLA, XISTATUS=ACTIVE, XXID=YES,CONNTYPE=APPN,CPCP=YES,HPR=YESConfiguration for Honduras Router
microcode CIP flash slot0:johnchap/cip209-157.mpcsource-bridge ring-group 100!interface TokenRing0/0no ip addressring-speed 16source-bridge 500 4 100!interface Ethernet1/0ip address 172.18.3.24 255.255.255.0!interface Channel6/1no ip addressno keepalivecmpc C020 F0 LAGUNAA READcmpc C020 F1 LAGUNAA WRITE!interface Channel6/2no ip addressno keepalivelan TokenRing 0source-bridge 88 3 100adapter 1 4000.aaaa.aaaatg LAGUNAA llc token-adapter 1 18 rmac 4000.0000.beef rsap 14Activate the Configuration
To activate the configuration, issue the following commands from MVS2:
v net,act,id=lagtrla,update=addv net,act,id=laglnaConnecting VTAM to the APPN NN on the CIP Example
shows the physical components for this example. shows the various parameters for each component in the configuration example.
Figure 155 Topology for VTAM-to-APPN NN Connection on the CIP
In , the following activity occurs:
•
•
•
•
•
Figure 156 Parameters for VTAM-to-APPN NN Connection on the CIP
The configuration illustrated in is more complex because you must configure APPN on the router. There are many different ways to configure APPN. The example is a simple APPN configuration in which SRB is used to connect the APPN NN on the RSP to VTAM and the token-ring attached PC.
It is possible to connect directly to the Token Ring port, an option not shown in the example.
When configuring APPN on the router, you must type the complete command before exiting an APPN configuration subsection. If you need to change an APPN configuration subsection, you must type the no complete command before you can change the subsection. Remember to type complete before exiting the subsection. The router ignores the new APPN configuration commands until you type the complete command.
Configuration for TRL Node LAGTRLB
LAGTRB VBUILD TYPE=TRLLAGTRLB TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0, XREAD=(2F2), XWRITE=(2F3)Configuration for Local SNA Major Node LAGLNB
LAGNNB VBUILD TYPE=LOCALLAGPUB PU TRLE=LAGTRLB, XISTATUS=ACTIVE, XXID=YES,CONNTYPE=APPN,CPCP=YESConfiguration for Honduras Router
interface Channel6/1no ip addressno keepalivecmpc C020 F2 LAGUNAB READcmpc C020 F3 LAGUNAB WRITE!interface Channel6/2no ip addressno keepalivelan TokenRing 0source-bridge 88 3 100adapter 2 4000.bbbb.bbbblan TokenRing 2tg LAGUNAB llc token-adapter 2 20 rmac 4000.0000.bbbb rsap 24!!appn control-point NETA.HONDURAScomplete!appn port RSRBPORT rsrblocal-sap 24desired-max-send-btu-size 4096max-rcv-btu-size 4096rsrb-virtual-station 4000.0000.bbbb 61 2 100complete!appn link-station LAGUNABport RSRBPORTlan-dest-address 4000.0000.beef 14completerouter eigrp 109network 172.18.0.0Activate the Configuration
After all configurations are in place, the following commands can be used to start up the links. On the MVS system, enter the following commands:
v net,act,id=lagtrlb,update=addv net,act,id=laglnbOn the router, enter the following command from the global configuration mode:
appn startConnecting Two VTAM Nodes Using Two CIPs in the Same Router Example
shows the physical components for this example. shows the various parameters for each component in the configuration example.
Figure 157 Topology for VTAM-to-VTAM Connection
In , the following activity occurs:
•
•
•
•
The CIPs could be in different routers or both VTAM connections could be to the same CIP.
Figure 158 Parameters for VTAM-to-VTAM Connection
Differing solutions can be configured for the example shown in . For example, you can have two CIPs in different routers connected via LLC2. You can also configure host connections going into the same CIP card rather than two separate CIP cards.
Configuration for mvs2trlc
MVS2TRC VBUILD TYPE=TRLMVS2TRLC TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0, XREAD=(2F4), XWRITE=(2F5)Configuration for mvs2lnc
MVS2NNC VBUILD TYPE=LOCALMVS2PUC PU TRLE=MVS2TRLC, XISTATUS=ACTIVE, XXID=YES,CONNTYPE=APPN,CPCP=YESConfiguration for cpactrlc
CPACTRC VBUILD TYPE=TRLCPACTRLC TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0, XREAD=(840), XWRITE=(841)Configuration for cpaclnc
CPACNNC VBUILD TYPE=LOCALCPACPUC PU TRLE=CPACTRLC, XISTATUS=ACTIVE, XXID=YES,CONNTYPE=APPN,CPCP=YESConfiguration for the Router
interface Channel4/1no ip addressno keepalivecmpc C010 40 CPACC READcmpc C010 41 CPACC WRITE!interface Channel4/2no ip addressno keepalivelan TokenRing 0source-bridge 43 5 100adapter 3 4000.0000.cccctg CPACC llc token-adapter 3 34 rmac 4000.cccc.cccc rsap 30!interface Channel6/1no ip addressno keepalivecmpc C020 F4 MVS2C READcmpc C020 F5 MVS2C WRITE!interface Channel6/2lan TokenRing 0source-bridge 88 3 100adapter 3 4000.cccc.cccctg MVS2C llc token-adapter 3 30 rmac 4000.0000.cccc rsap 34Activate the Configuration
On the MVS system MVS2, enter the following commands to activate the configuration:
v net,act,id=mvs2trlc,update=addv net,act,id=mvs2lncOn the MVS system CPAC, enter the following commands to activate the configuration:
v net,act,id=cpactrlc,update=addv net,act,id=cpaclncConnecting VTAM to the APPN NN on a Remote Router with DLUR Example
shows the physical components for the DLUS-to-DLUR configuration. shows the various parameters for each component in the configuration example.
Figure 159 Topology for VTAM-to-APPN NN on a Remote Router with DLUR Connection
Figure 160 Parameters for VTAM-to-APPN NN on a Remote Router with DLUR Connection
In the example shown in , DLUS is running on the MVS host. DLUR is running on a remote Cisco 4000 router. The connection from MPC to the APPN stack on the Cisco 4000 is via LLC2. There is no NN on the Cisco 7500. The PC is running Communications Server/2.
Configuration for mvs2trld
MVS2TRD VBUILD TYPE=TRLMVS2TRLD TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0, XREAD=(2F7), XWRITE=(2F6)Configuration for mvs2lnd
MVS2NND VBUILD TYPE=LOCALMVS2PUD PU TRLE=MVS2TRLD, XISTATUS=ACTIVE, XXID=YES,CONNTYPE=APPN,CPCP=YESAdditional Configuration for Router Honduras
interface Channel6/1cmpc C020 F6 CONFIGD WRITEcmpc C020 F7 CONFIGD READ!interface Channel6/2lan TokenRing 0source-bridge 88 3 100adapter 4 4000.dddd.ddddtg CONFIGD llc token-adapter 4 40 rmac 4000.0000.dddd rsap 44Configuration for Router Dustin
source-bridge ring-group 84interface Ethernet0ip address 172.18.3.36 255.255.255.0media-type 10BaseT!interface TokenRing0no ip addressring-speed 16source-bridge 500 2 84!appn control-point NETA.DUSTINdlus NETA.MVS2dlurcomplete!appn port RSRBPORT rsrblocal-sap 44desired-max-send-btu-size 4096max-rcv-btu-size 4096rsrb-virtual-station 4000.0000.dddd 94 5 84complete!appn link-station LAGUNADport RSRBPORTlan-dest-address 4000.0000.beef 14complete!appn link-station MVS2Dport RSRBPORTlan-dest-address 4000.dddd.dddd 40completeActivate the Configuration
On the MVS2 system, enter the following commands to activate the configuration:
v net,act,id=mvs2trld,update=addv net,act,id=mvs2lndOn the router Dustin, enter the following command from the global configuration mode:
appn startTN3270 Server DLUR Running on the Same CIP Example
shows the physical components for this example. shows the various parameters for each component in the configuration example.
Figure 161 Topology for VTAM-to-TN3270 Server DLUR Running on the Same CIP Connection
In , the following activity occurs:
•
•
•
•
The TN3270 server does not have to be in the same CIP as the CMPC driver.
Figure 162 Parameters for VTAM-to-TN3270 DLUR Running on the Same CIP Connection
The following configurations apply to the example shown in .
Configuration for mvs2trle
MVS2TRE VBUILD TYPE=TRLMVS2TRLE TRLE LNCTL=MPC,MAXBFRU=8,REPLYTO=3.0,READ=(2F8),WRITE=(2F9)Configuration for mvs2lne
MVS2NNE VBUILD TYPE=LOCALMVS2PUE PU TRLE=MVS2TRLE,ISTATUS=ACTIVE,XID=YES,CONNTYPE=APPN,CPCP=YESConfiguration for swlagtn
SWLAGTN VBUILD TYPE=SWNET,MAXGRP=10,MAXNO=10,MAXDLUR=10LAGTNPU PU ADDR=01, XMAXPATH=1, XIDBLK=017,IDNUM=EFEED, XPUTYPE=2, XMAXDATA=4096, XLUGROUP=TNGRP1,LUSEED=LAGLU##Configuration for tngrp1
TNGRP1E VBUILD TYPE=LUGROUPTNGRP1 LUGROUPDYNAMIC LU DLOGMOD=D4C32XX3, XMODETAB=ISTINCLM,USSTAB=USSTCPIP,SSCPFM=USS3270@ LU DLOGMOD=D4C32784, XMODETAB=ISTINCLM,USSTAB=USSTCPIP,SSCPFM=USS3270Additional Router Configuration for Router Honduras
interface Channel6/1cmpc C020 F8 CONFIGE READcmpc C020 F9 CONFIGE WRITE!interface Channel6/2lan TokenRing 0source-bridge 88 3 100adapter 5 4000.eeee.eeeeadapter 6 4000.0000.eeeetn3270-serverdlur NETA.HOND327S NETA.MVS2lsap token-adapter 6 54link MVS2TN rmac 4000.eeee.eeee rsap 50pu TNPU 017EFEED 172.18.1.218tg CONFIGE llc token-adapter 5 50 rmac 4000.eeee.eeee rsap 54Activate the Configuration
On the MVS system, enter the following commands to activate the configuration:
v net,act,id=mvstrle,update=addv net,act,id=mvslnev net,act,id=swhondpuv net,act,id=swlagtnv net,act,id=swhondcpv net,act,id=tngrp1On the router Honduras, enter the following command from TN3270 configuration mode:
no shutdown
