Layer 2 Tunnel Protocol
Feature Summary
The Layer 2 Tunnel Protocol (L2TP) is an emerging Internet Engineering Task Force (IETF) standard that combines the best features of two existing tunneling protocols: Cisco's Layer 2 Forwarding (L2F) and Microsoft's Point-to-Point Tunneling Protocol (PPTP). L2TP is an extension to the Point-to-Point Protocol (PPP), which is an important component for VPNs. VPNs allow users and telecommuters to connect to their corporate intranets or extranets. VPNs are cost-effective because users can connect to the Internet locally and tunnel back to connect to corporate resources. This not only reduces overhead costs associated with traditional remote access methods, but also improves flexibility and scalability.
Traditional dial-up networking services only support registered IP addresses, which limits the types of applications that are implemented over VPNs. L2TP supports multiple protocols and unregistered and privately administered IP addresses over the Internet. This allows the existing access infastructure, such as the Internet, modems, access servers, and ISDN terminal adapters (TAs), to be used. It also allows enterprise customers to outsource dialout support, thus reducing overhead for hardware maintenance costs and 800 number fees, and allows them to concentrate corporate gateway resources. shows the L2TP architecture in a typical dial up environment.
Figure 1 L2TP Architecture
L2TP offers the same full-range spectrum of features as L2F, but offers additional functionality. A L2TP-capable home gateway will work with an existing L2F network access server and will concurrently support upgraded components running L2TP. LNSs do not require reconfiguration each time an individual LAC is upgraded from L2F to L2TP. offers a comparison of L2F and L2TP feature components.
Benefits
L2TP offers the following benefits:
•
Vendor interoperability.
•
•
•
•
List of Terms
attribute-value pair (AV pair)—A generic pair of values passed from a AAA server to a AAA client. For example, in the AV pair user = bill, "user" is the attribute and "bill" is the value.
calling line identification (CLID)— A unique number that informs the called party of the phone number identification of the calling party.
challenge handshake authentication protocol (CHAP)—A PPP cryptographic challenge/response authentication protocol in which the cleartext password is not passed over the line. This allows the secure exchange of a shared secret between the two endpoints of a connection.
client—Instigator of the PPP session. Also referred to as the PPP client, or PPP peer.
cloning—Creating and configuring a virtual access interface by applying a specific virtual template interface. The template is the source of the generic user information and router-dependent information. The result of cloning, is a virtual access interface configured with all the commands in the template.
control messages—Exchange messages between the LAC and LNS pairs, operating in-band within the tunnel protocol. Control messages govern the aspects of the tunnel and sessions within the tunnel.
dial user—An end system or router attached to an on-demand PSTN or ISDN, which is either the initiator or recipient of a call. Also referred to as a dial-up or virtual dial-up client.
Dialed Number identification Service (DNIS)—The called party number. Typically, this is a number used by call centers or a central office where different numbers are each assigned to a specific service.
Integrated Services Digital Network (ISDN)—Communication protocols offered by telephone companies that permit telephone networks to carry date, voice, and other source traffic.
Layer 2 Tunnel Protocol (L2TP)—A Layer 2 tunneling protocol that is an extension to the PPP protocol used for Virtual Private Networks (VPNs). L2TP merges the best features of two existing tunneling protocols: Microsoft's PPTP and Cisco's L2F. It is the emerging IETF standard, currently being drafted by participants from Ascend, Cisco Systems, Copper Mountain Networks, IBM, Microsoft, and 3Com.
Link Control Protocol (LCP)—A protocol that establishes, configures, and tests data link connections used by PPP.
L2TP access concentrator (LAC)—An L2TP device that the client directly connects to and whereby PPP frames are tunneled to the L2TP network server (LNS). The LAC needs only implement the media over which L2TP is to operate to pass traffic to one or more LNSs. It may tunnel any protocol carried within PPP. The LAC is the initiator of incoming calls and the receiver of outgoing calls. Analogous to the Layer 2 Forwarding (L2F) network access server (NAS).
L2TP network server (LNS)—Termination point for L2TP tunnel and access point where PPP frames are processed and passed to higher layer protocols. An LNS operates on any platform capable of PPP termination. The LNS handles the server side of the L2TP protocol. L2TP relies only on the single media over which L2TP tunnels arrive. The LNS may have a single LAN or WAN interface, yet still be able to terminate calls arriving at any of the LACs full range of PPP interfaces (asynchronous, synchronous, ISDN, V.120, etc.). The LNS is the initiator of outgoing calls and the receiver of incoming calls. Analogous to the Layer 2 Forwarding (L2F) home gateway (HGW).
Multiplex Identifier (MID)—The number associated with a specific user's L2TP/L2F session.
Multilink PPP Protocol (MLP)—A protocol that provides the capability of splitting and recombining packets to a single end system across a logical pipe (also called a bundle) formed by multiple links. Multilink PPP provides bandwidth on demand and reduces transmission latency across WAN links.
Network Access Server (NAS)—A device providing temporary, on-demand network access to users. The access is point-to-point typically using PSTN or ISDN lines. A NAS may also serve as a LAC, LNS, or both. In Cisco's implementation for L2TP, the NAS serves as a LAC for incoming calls and serves as a LNS for outgoing calls. The NAS is synonymous with LAC.
Network Control protocol (NCP)—PPP protocol for negotiation of OSI Layer 3 (the network layer) parameters.
Password Authentication Protocol (PAP)—A simple PPP authentication mechanism in which a cleartext username and password are transmitted to prove identity. PAP is not as secure as CHAP because the password is passed in "cleartext."
point-of-presence (POP)—The access point to a service provider's network.
Point-to-Point Protocol (PPP)—A protocol that encapsulates network layer protocol information over point-to-point links. The RFC for PPP is RFC 1661.
Point-to-Point Tunneling Protocol (PPTP)—Microsoft's Point to Point Tunneling Protocol. Some of the features in L2TP were derived from PPTP.
public switched telephone network (PSTN)—Telephone networks and services in place worldwide.
session—A single, tunneled PPP session. Also referred to as a call.
tunnel—A virtual pipe between the LAC and LNS that can carry multiple PPP sessions.
tunnel ID—A two-octet value that denotes a tunnel between a LAC and LNS
virtual access interface—Instance of a unique virtual interface that is created dynamically and exists temporarily. Virtual access interfaces can be created and configured differently by different applications, such as virtual profiles and virtual private dialup networks.Virtual access interfaces are cloned from virtual template interfaces.
virtual template interface—A logical interface configured with generic configuration information for a specific purpose or configuration common to specific users, plus router-dependent information. The template takes the form of a list of Cisco IOS interface commands that are applied to virtual access interfaces, as needed.
Virtual Private Dialup Networking (VPDN)—A system that permits dial-in networks to exist remotely to home networks, while giving the appearance of being directly connected. VPDNs use L2TP and L2F to terminate the Layer 2 and higher parts of the network connection at the LNS, instead of the LAC.
zero length body message (ZLB)—A control or payload packet that only contains an L2TP header and does not contain any control message information or PPP payload. ZLB messages are used explicitly for acknowledging packets on the control or data channel.
Restrictions
The following restrictions apply to the L2TP feature:
•
•
Platforms
For 12.0T IOS Releases, L2TP is supported on the following platforms:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
For 11.3AA IOS Releases, L2TP is supported on the following platforms:
•
•
•
•
Prerequisites
A Cisco router or access server must be using a Cisco IOS software image that supports VPDN and the hardware platform you are using.
Supported MIBs and RFCs
L2TP is an emerging standard and currently supports the L2TP Internet Engineering Task Force (IETF) draft document.
Functional Description
The following sections are included as part of the functional description:
•
L2TP Overview
The following sections supply additional detail about the interworkings and Cisco's implementation of L2TP. Using L2TP tunneling, an Internet Service Provider (ISP), or other access service, can create a virtual tunnel to link customer's remote sites or remote users with corporate home networks. The L2TP access concentrator (LAC) located at the ISP's point of presence (POP) exchanges PPP messages with remote users and communicates by way of L2TP requests and responses with the customer's L2TP network server (LNS) to set up tunnels. L2TP passes protocol-level packets through the virtual tunnel between end points of a point-to-point connection. Frames from remote users are accepted by the ISP's POP, stripped of any linked framing or transparency bytes, encapsulated in L2TP and forwarded over the appropriate tunnel. The customer's home gateway accepts these L2TP frames, strips the L2TP encapsulation, and processes the incoming frames for the appropriate interface. shows the L2TP tunnel detail and how user "lsmith" connects to the LNS to access the designated corporate intranet.
Figure 2 L2TP Tunnel Structure
Incoming Call Sequence
A VPDN connection between a remote user, a LAC at the ISP point-of-presence (POP), and the LNS at the home LAN using an L2TP tunnel is accomplished as follows:
1
2
3
4
5
6
The end result is that the exchange process appears to be between the dial-up client and the remote LNS exclusively, as if no intermediary device (the LAC) is involved. offers a pictorial account of the L2TP incoming call sequence with its own corresponding sequence numbers. Note the sequence numbers in figure 3 are not related to the sequence numbers described above.

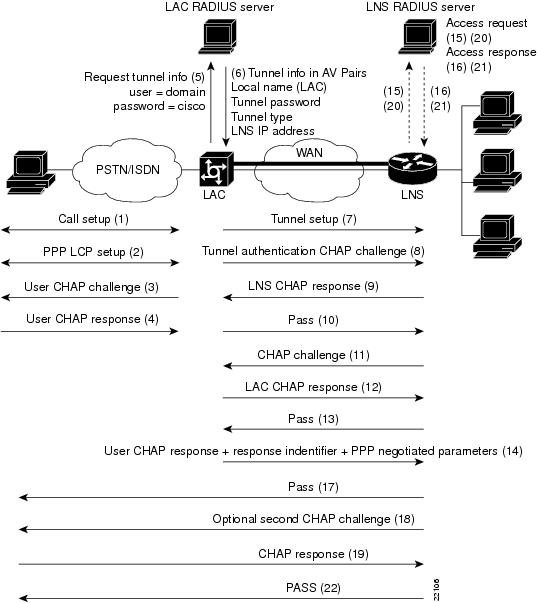

Figure 3
L2TP Incoming Call Flow
LAC AAA Tunnel Definition Lookup
AAA tunnel definition look up allows the LAC to look up tunnel definitions using key words. Two new Cisco AV pairs are added to support LAC tunnel definition lookup: tunnel type and l2tp-tunnel-password. These AV pairs are configured on the Radius server. A description of the values are as follows:
tunnel type—Indicates the tunnel type is either L2F or L2TP. This is an optional AV pair and if not defined, reverts to L2F, the default value. If you want to configure an L2TP tunnel, you must use the L2TP AV pair value. This command is case sensitive.
l2tp-tunnel-password—This value is the secret (password) used for L2TP tunnel authentication and L2TP AV pair hiding. This is an optional AV pair value; however, if it is not defined, the secret will default to the password associated with the local name on the LAC local username-password database. This AV pair is analogous to the l2tp local secret CLI command. For example:

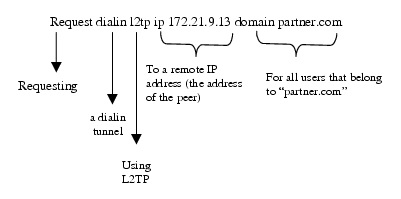

request dialin l2tp ip 172.21.9.13 domain cisco.coml2tp local name dustiel2tp local secret partneris equivalent to the following RADIUS server configuration:
cisc.com Password = "cisco"cisco-avpair = "vpdn: tunnel-id=dustie",cisco-avpair = "vpdn: tunnel-type=l2tp",cisco-avpair = "vpdn: l2tp-tunnel-password=partner',cisco-avpair = "vpdn: ip-addresses=172.21.9.13"Before You Begin
Before you configure your router or access server for VPDN using L2TP, you should proceed in one of two ways:
•
or
•
Frequently problems arise when too many components are configured simultaneously and deciphering problems can become convoluted. Therefore, you should configure components independently and confirm connectivity before adding another component.
Authentication commands that are frequently used with VPDN are listed below. Use these commands to enable the AAA access control system and to define login and PPP access:
Note
Configuration Tasks
The three primary components involved in implementing VPDN are:
1
2
3
Subsequently, you can configure a virtual template interface, which applies defined attributes to virtual access interfaces, which will then pass link-layer frames over the L2TP tunnel.
shows the basic commands required for VPDN. Additional VPDN and L2TP commands can be applied as needed, in order to fine-tune parameters to suit your network characteristics.
Figure 4 VPDN Configuration Commands
To configure, monitor, and troubleshoot VPDN, perform the tasks in the following sections:
•
•
•
Configure VPDN on the L2TP Access Concentrator (LAC)
The LAC is a device that is typically (although not always) located at a service provider's POP and initial configuration and ongoing management is done by the service provider. Use the following commands to enable VPDN on a LAC using L2TP beginning in global configuration mode:
Configure VPDN on a L2TP Network Server (LNS)
The LNS is the termination point for an L2TP tunnel. The LNS initiates outgoing calls and receives incoming calls from the LAC. To configure the LNS to initiate and receive calls, use the following commands beginning in global configuration mode:
At this point, you can configure the virtual template interface with configuration parameters you want applied to virtual access interfaces. A virtual template interface is a logical entity configured for a serial interface. The virtual template interface is not tied to any physical interface and is applied dynamically, as needed. Virtual access interfaces are cloned from a virtual template interface, used on demand, and then freed when no longer needed. Use the following commands to create and configure a virtual template interface beginning in global configuration mode:
Optionally, you can configure other commands for the virtual template interface. For information about configuring virtual template interfaces, see the "Configuring Virtual Template Interfaces" chapter in the Dial Solutions Configuration Guide.
Review the "Command Reference" section in this document to learn about commands you can use to scale and enhance VPDN and L2TP features.
Monitor and Troubleshooting VPDN and L2TP
Troubleshooting components in VPDN is not always straightforward because there are multiple technologies and OSI layers involved. The following EXEC commands will help you isolate and identify problems on VPDNs using L2TP tunnels:
See the "Debug Examples" section in this document for sample output for the commands listed above.
Configuration Examples
Figure 5 Topology Configuration for Configuration Examples
LAC Configuration Example
The following is a basic L2TP configuration for the LAC for the topology shown in . The local name is not defined so the hostname used as the local name. Because the L2TP tunnel password is not defined, the username password, DJ, is used.
! Enable AAA globallyaaa new-model! Enable AAA authentication for PPP and list the default method to use for PPP authenticationaaa authentication ppp default local! Define the username as "DJ"username DJ password 7 030C5E070A00781B! Enable VPDNvpdn enable! Define VPDN group number 1vpdn-group 1! Allow the LAC to respond to dialin requests using L2TP from IP address 172.21.9.13domain "cisco.com"request dialin l2tp ip 172.21.9.13 domain cisco.comLNS Configuration Example
The following is a basic L2TP configuration example with corresponding comments on the LNS for the topology shown in .
! Enable AAA globallyaaa new-model! Enable AAA authentication for PPP and list the default method to use for PPP authenticationaaa authentication ppp default local! Define the username as "partner"username partner password 7 030C5E070A00781B! create virtual-template 1 and assign all values for virtual access interfacesinterface Virtual-Template1! Borrow the IP address from interface ethernet 1ip unnumbered Ethernet0! Disable multicast fast switchingno ip mroute-cache! Use CHAP to authenticate PPPppp authentication chap! Enable VPDNvpdn enable! Create vpdn-group number 1vpdn-group 1! Accept all dialin l2tp tunnels from virtual-template 1 from remote peer DJaccept dialin l2tp virtual-template 1 remote DJDebug Examples
•
•
Figure 6 Topology Diagram for Debug Example
LAC Debug Example
The following is a successful debug example for the topology shown in .
DJ# show debugVPDN events debugging is onVPDN protocol events debugging is onDJ#20:47:33: %LINK-3-UPDOWN: Interface Async7, changed state to up20:47:35: As7 VPDN: Looking for tunnel -- cisco.com --20:47:35: As7 VPDN: Get tunnel info for cisco.com with NAS DJ, IP 172.21.9.1320:47:35: As7 VPDN: Forward to address 172.21.9.1320:47:35: As7 VPDN: Forwarding...20:47:35: As7 VPDN: Bind interface direction=120:47:35: Tnl/Cl 8/1 L2TP: Session FS enabled20:47:35: Tnl/Cl 8/1 L2TP: Session state change from idle to wait-for-tunnel20:47:35: As7 8/1 L2TP: Create session20:47:35: Tnl 8 L2TP: SM State idle20:47:35: Tnl 8 L2TP: Tunnel state change from idle to wait-ctl-reply20:47:35: Tnl 8 L2TP: SM State wait-ctl-reply20:47:35: As7 VPDN: kath@cisco.com is forwarded20:47:35: Tnl 8 L2TP: Got a challenge from remote peer, DJ20:47:35: Tnl 8 L2TP: Got a response from remote peer, DJ20:47:35: Tnl 8 L2TP: Tunnel Authentication success20:47:35: Tnl 8 L2TP: Tunnel state change from wait-ctl-reply to established20:47:35: Tnl 8 L2TP: SM State established20:47:35: As7 8/1 L2TP: Session state change from wait-for-tunnel to wait-reply20:47:35: As7 8/1 L2TP: Session state change from wait-reply to established20:47:36: %LINEPROTO-5-UPDOWN: Line protocol on Interface Async7, changed state to upThe following is output from the show vpdn command for the LAC (DJ):
show vpdnL2TP Tunnel and Session Information (Total tunnels=1 sessions=1)LocID RemID Remote Name State Remote Address Port Sessions8 7 Partner est 172.21.9.13 1701 1LocID RemID TunID Intf Username State Last Chg1 1 8 As7 kath@cisco.com est 00:00:37LAC Problem Debug
The following example assumes that you suspect an error in parsing control packets. You can use the debug vpdn packet using the control keyword to verify control packet information.
debug vpdn packet control20:50:27: %LINK-3-UPDOWN: Interface Async7, changed state to up20:50:29: Tnl 9 L2TP: O SCCRQ20:50:29: Tnl 9 L2TP: O SCCRQ, flg TLF, ver 2, len 131, tnl 0, cl 0, ns 0, nr 020:50:29: contiguous buffer, size 131C8 02 00 83 00 00 00 00 00 00 00 00 80 08 00 0000 00 00 01 80 08 00 00 00 02 01 00 80 0A 00 0000 03 00 00 00 03 80 0A 00 00 00 04 00 00 00 ...20:50:29: Tnl 9 L2TP: Parse AVP 0, len 8, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Parse SCCRP20:50:29: Tnl 9 L2TP: Parse AVP 2, len 8, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Protocol Ver 25620:50:29: Tnl 9 L2TP: Parse AVP 3, len 10, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Framing Cap 0x0x320:50:29: Tnl 9 L2TP: Parse AVP 4, len 10, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Bearer Cap 0x0x320:50:29: Tnl 9 L2TP: Parse AVP 6, len 8, flag 0x0x020:50:29: Tnl 9 L2TP: Firmware Ver 0x0x112020:50:29: Tnl 9 L2TP: Parse AVP 7, len 12, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Hostname DJ20:50:29: Tnl 9 L2TP: Parse AVP 8, len 25, flag 0x0x020:50:29: Tnl 9 L2TP: Vendor Name Cisco Systems, Inc.20:50:29: Tnl 9 L2TP: Parse AVP 9, len 8, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Assigned Tunnel ID 820:50:29: Tnl 9 L2TP: Parse AVP 10, len 8, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Rx Window Size 420:50:29: Tnl 9 L2TP: Parse AVP 11, len 22, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Chlng D807308D106259C5933C6162ED3A168920:50:29: Tnl 9 L2TP: Parse AVP 13, len 22, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Chlng Resp 9F6A3C70512BD3E2D44DF183C3FFF2D120:50:29: Tnl 9 L2TP: No missing AVPs in SCCRP20:50:29: Tnl 9 L2TP: Clean Queue packet 020:50:29: Tnl 9 L2TP: I SCCRP, flg TLF, ver 2, len 153, tnl 9, cl 0, ns 0, nr 1contiguous pak, size 153C8 02 00 99 00 09 00 00 00 00 00 01 80 08 00 0000 00 00 02 80 08 00 00 00 02 01 00 80 0A 00 0000 03 00 00 00 03 80 0A 00 00 00 04 00 00 00 ...20:50:29: Tnl 9 L2TP: I SCCRP from DJ20:50:29: Tnl 9 L2TP: O SCCCN to DJ tnlid 820:50:29: Tnl 9 L2TP: O SCCCN, flg TLF, ver 2, len 42, tnl 8, cl 0, ns 1, nr 120:50:29: contiguous buffer, size 42C8 02 00 2A 00 08 00 00 00 01 00 01 80 08 00 0000 00 00 03 80 16 00 00 00 0D 4B 2F A2 50 30 13E3 46 58 D5 35 8B 56 7A E9 8520:50:29: As7 9/1 L2TP: O ICRQ to DJ 8/020:50:29: As7 9/1 L2TP: O ICRQ, flg TLF, ver 2, len 48, tnl 8, cl 0, ns 2, nr 120:50:29: contiguous buffer, size 48C8 02 00 30 00 08 00 00 00 02 00 01 80 08 00 0000 00 00 0A 80 08 00 00 00 0E 00 01 80 0A 00 0000 0F 00 00 00 04 80 0A 00 00 00 12 00 00 00 ...20:50:29: Tnl 9 L2TP: Clean Queue packet 120:50:29: Tnl 9 L2TP: Clean Queue packet 220:50:29: Tnl 9 L2TP: I ZLB ctrl ack, flg TLF, ver 2, len 12, tnl 9, cl 0, ns 1, nr 2contiguous pak, size 12C8 02 00 0C 00 09 00 00 00 01 00 0220:50:30: As7 9/1 L2TP: Parse AVP 0, len 8, flag 0x0x8000 (M)20:50:30: As7 9/1 L2TP: Parse ICRP20:50:30: As7 9/1 L2TP: Parse AVP 14, len 8, flag 0x0x8000 (M)20:50:30: As7 9/1 L2TP: Assigned Call ID 120:50:30: As7 9/1 L2TP: No missing AVPs in ICRP20:50:30: Tnl 9 L2TP: Clean Queue packet 220:50:30: As7 9/1 L2TP: I ICRP, flg TLF, ver 2, len 28, tnl 9, cl 1, ns 1, nr 3contiguous pak, size 28C8 02 00 1C 00 09 00 01 00 01 00 03 80 08 00 0000 00 00 0B 80 08 00 00 00 0E 00 0120:50:30: As7 9/1 L2TP: O ICCN to DJ 8/120:50:30: As7 9/1 L2TP: O ICCN, flg TLF, ver 2, len 203, tnl 8, cl 1, ns 3, nr 220:50:30: contiguous buffer, size 203C8 02 00 CB 00 08 00 01 00 03 00 02 80 08 00 0000 00 00 0C 80 0A 00 00 00 18 00 00 DA C0 80 0A00 00 00 13 00 00 00 02 00 28 00 00 00 1B 02 ...20:50:30: Tnl 9 L2TP: Clean Queue packet 320:50:30: As7 9/1 L2TP: I ZLB ctrl ack, flg TLF, ver 2, len 12, tnl 9, cl 1, ns 2, nr 4contiguous pak, size 12C8 02 00 0C 00 09 00 01 00 02 00 0420:50:30: %LINEPROTO-5-UPDOWN: Line protocol on Interface Async7, changed state to upLNS Debug Example
The following is a successful debug example output from the LNS using the debug vpdn protocol command with the events keyword:
debug vpdn protocol events20:19:17: L2TP: I SCCRQ from DJ tnl 820:19:17: L2X: Never heard of DJ20:19:17: Tnl 7 L2TP: New tunnel created for remote DJ, address 172.21.9.420:19:17: Tnl 7 L2TP: Got a challenge in SCCRQ, DJ20:19:17: Tnl 7 L2TP: Tunnel state change from idle to wait-ctl-reply20:19:17: Tnl 7 L2TP: Got a Challenge Response in SCCCN from DJ20:19:17: Tnl 7 L2TP: Tunnel Authentication success20:19:17: Tnl 7 L2TP: Tunnel state change from wait-ctl-reply to established20:19:17: Tnl 7 L2TP: SM State established20:19:17: Tnl/Cl 7/1 L2TP: Session FS enabled20:19:17: Tnl/Cl 7/1 L2TP: Session state change from idle to wait-for-tunnel20:19:17: Tnl/Cl 7/1 L2TP: New session created20:19:17: Tnl/Cl 7/1 L2TP: O ICRP to DJ 8/120:19:17: Tnl/Cl 7/1 L2TP: Session state change from wait-for-tunnel to wait-connect20:19:17: Tnl/Cl 7/1 L2TP: Session state change from wait-connect to established20:19:17: Vi1 VPDN: Virtual interface created for kath@cisco.com20:19:17: Vi1 VPDN: Set to Async interface20:19:17: Vi1 VPDN: Clone from Vtemplate 1 filterPPP=0 blocking20:19:18: %LINK-3-UPDOWN: Interface Virtual-Access1, changed state to up20:19:18: Vi1 VPDN: Bind interface direction=220:19:18: Vi1 VPDN: PPP LCP accepting rcv CONFACK20:19:19: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access1, changed state to upThe following is sample outpout on the LNS using the show vpdn command:
sh vpdnL2TP Tunnel and Session Information (Total tunnels=1 sessions=1)LocID RemID Remote Name State Remote Address Port Sessions7 8 DJ est 172.21.9.4 1701 1LocID RemID TunID Intf Username State Last Chg1 1 7 Vi1 kath@cisco.com est 00:00:28Debug PPP Negotiation Example
The following is sample output from the debug ppp negotiation command where the negotiated LCP options do not match between the LAC and the LNS. You may want to enable the lcp renegotiation on-mismatch command to enable the LNS to renegotiate LCP directly with the client.
Router# debug ppp negoppp: sending CONFREQ, type = 3 (CI_AUTHTYPE), value = C223/5ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = 43C5B1AEPPP BRI7: B-Channel 1: O LCP CONFREQ(1) id 44 (F) AUTHTYPE (5) 194 35 5MAGICNUMBER (6) 67 197 177 174PPP BRI7: B-Channel 1(i): pkt type 0xC021, datagramsize 34PPP BRI7: B-Channel 1: I LCP CONFREQ(1) id 1 (1E) ?? (4) 0 0MRU (4) 5 244AUTHTYPE (5) 194 35 5PPP BRI7: B-Channel 1(i): pkt type 0xC021, datagramsize 19Type11 (4) 5 244Type13 (9) 3 0 192 123 68 241 33PPP BRI7: B-Channel 1: input(C021) state = REQSENT code = CONFREQ(1) id = 1len = 30ppp: received config for type = 0 (??)ppp: rcvd unknown option 0 rejectedThe debug ppp negotiation and debug ppp chap commands are enabled to decipher a CHAP negotiation problem. This is due to a connectivity problem between a Cisco and non-Cisco device. Also note that the service-timestamps command is enabled on the router. The service-timestamps command is helpful to decipher timing and keepalive issues and we recommend that you always enable this command.
Router# debug ppp nego chap3:22:53: ppp: sending CONFREQ, type = 3 (CI_AUTHTYPE), value = C223/53:22:53: ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = C6091F.3:22:55: ppp: sending CONFREQ, type = 3 (CI_AUTHTYPE), value = C223/53:22:55: ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = C6091F3:22:55: PPP BRI0: B-Channel 1: received config for type = 0x0 (??)3:22:55: PPP BRI0: B-Channel 1: rcvd unknown option 0x0 rejected3:22:55: PPP BRI0: B-Channel 1: received config for type = 0x1 (MRU) value = 0x5F4 rejected3:22:55: PPP BRI0: B-Channel 1: received config for type = 0x3 (AUTHTYPE) value= 0xC223 value = 0x5 acked3:22:55: PPP BRI0: B-Channel 1: received config for type = 0x11 (MULTILINK_MRRU)rejected3:22:55: PPP BRI0: B-Channel 1: received config for type = 0x13 (UNKNOWN)3:22:55: PPP BRI0: B-Channel 1: rcvd unknown option 0x13 rejected3:22:55: ppp: config REJ received, type = 3 (CI_AUTHTYPE), value = C223/53:22:55: ppp: sending CONFREQ, type = 3 (CI_AUTHTYPE), value = C223/53:22:55: ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = C6091F3:22:55: PPP BRI0: B-Channel 1: received config for type = 0x3 (AUTHTYPE) value= 0xC2.Success rate is 0 percent (0/5)moog#23 value = 0x5 acked3:22:55: ppp: config REJ received, type = 3 (CI_AUTHTYPE), value = C223/53:22:55: ppp: BRI0: B-Channel 1 closing connection because remote won't authenticate3:22:55: ppp: sending CONFREQ, type = 3 (CI_AUTHTYPE), value = C223/53:22:55: ppp: sending CONFREQ, type = 5 (CI_MAGICNUMBER), value = C6091F3:22:55: %ISDN-6-DISCONNECT: Interface BRI0: B-Channel 1 disconnected from 01235820040 , call lasted 2 seconds3:22:56: %LINK-3-UPDOWN: Interface BRI0: B-Channel 1, changed state to downIndication:Debug PPP Chap Example
The following debug ppp chap excerpt shows a CHAP authentication failure because a configuration mismatch between devices. Verifying and correcting any username and password mismatch should remedy this problem.
Router# debug ppp chapppp: received conf.ig for type = 5 (MAGICNUMBER) value = 1E24718 ackedPPP BRI0: B-Channel 1: state = ACKSENT fsm_rconfack(C021): rcvd id E6ppp: config ACK received, type = 3 (CI_AUTHTYPE), value = C223ppp: config ACK received, type = 5 (CI_MAGICNUMBER), value = 28CEF76CBRI0: B-Channel 1: PPP AUTH CHAP input code = 1 id = 83 len = 16BRI0: B-Channel 1: PPP AUTH CHAP input code = 2 id = 96 len = 28BRI0: B-Channel 1: PPP AUTH CHAP input code = 4 id = 83 len = 21BRI0: B-Channel 1: Failed CHAP authentication with remote.Remote message is: MD compare failedDebug VPDN Events Examples
The following is a debug trace on the LAC using the debug vpdn event command with the protocol keyword. The L2TP tunnel failure is caused by an error in the tunnel password.
Router# debug vpdn event protocol%LINK-3-UPDOWN: Interface Async7, changed state to upAs7 VPDN: Looking for tunnel -- cisco.com --As7 VPDN: Get tunnel info for cisco.com with NAS partner, IP 172.21.9.13As7 VPDN: Forward to address 172.21.9.13As7 VPDN: Forwarding...As7 VPDN: Bind interface direction=1Tnl/Cl 10/1 L2TP: Session FS enabledTnl/Cl 10/1 L2TP: Session state change from idle to wait-for-tunnelAs7 10/1 L2TP: Create sessionTnl 10 L2TP: SM State idle1Tnl 10 L2TP: Tunnel state change from idle to wait-ctl-replyTnl 10 L2TP: SM State wait-ctl-replyAs7 VPDN: kath@cisco.com is forwardedTnl 10 L2TP:I SCCRP from stellaTnl 10 L2TP: Tunnel Authentication fails for partner------>> TUNNEL FAILURETnl 10 L2TP: Tunnel state change from wait-ctl-reply to shutting-downTnl 10 L2TP: Shutdown tunnelAs7 10/1 L2TP: Destroying sessionAs7 10/1 L2TP: Session state change from wait-for-tunnel to idle10Tnl 10 L2TP: Tunnel state shutting-down while destroying sessionTnl 10 L2TP: Tunnel state change from shutting-down to idleMar 1 01:04:32: %LINK-3-UPDOWN: Interface Async7, changed state to downAs7 VPDN: ResetA77 VPDN: CleanupAs7 VPDN: ResetAs7 VPDN: Unbind interface%LINK-5-CHANGED: Interface Async7, changed state to reset%LINK-3-UPDOWN: Interface Async7, changed state to downIn this example, the debug vpdn event protocol command is enabled on the LNS. The LNS does not agree with the LCP CONFACK sent by the LAC to the client. The LAC has done LCP negotiation on behalf of the LNS and the CONFACK sent contained the LCP options that the LAC agreed on with the client (on behalf of the LNS). To remedy this problem you can do one of two things: check the configuration for the virtual-template on the LNS and the dialin interfaces on the LAC to ensure they match, or use the lcp renegotiation on-mismatch command on the LNS. The lcp-renegotiatoin on-mismatch command forces renegotiation only if there is a mismatch between devices. Note that using the lcp renegotiation on-mismatch command will add a slight delay.
Router# debug vpdn event protocolTnl 12 L2TP: New tunnel created for remote partner, address 172.21.9.412Tnl 12 L2TP: Tunnel state change from idle to wait-ctl-replyTnl 12 L2TP: Tunnel Authentication successTnl 12 L2TP: Tunnel state change from wait-ctl-reply to establishedTnl 12 L2TP: SM State establishedTnl/Cl 12/1 L2TP: Session FS enabledTnl/Cl 12/1 L2TP: Session state change from idle to wait-for-tunnelTnl/Cl 12/1 L2TP: New session createdTnl/Cl 12/1 L2TP: Session state change from wait-for-tunnel to wait-connectTnl/Cl 12/1 L2TP: Session state change from wait-connect to establishedVi2 VPDN: Virtual interface created for kath@cisco.comVi2 VPDN: Set to Async interfaceVi2 VPDN: Clone from Vtemplate 1 filterPPP=1 blocking%LINK-3-UPDOWN: Interface Virtual-Access2, changed state to upVi2 VPDN: Bind interface direction=2Vi2 VPDN: PPP LCP accepted rcv CONFACKVPDN: PPP LCP not accepting sent CONFACKVPDN: Unbind interface%LINK-3-UPDOWN: Interface Virtual-Access2, changed state to downVi2 VPDN: CleanupVi2 VPDN: ResetVi2 VPDN: Unbind interfaceVi2 VPDN: Reset@cisco.comTnl 12/1 L2TP: ICCN Error getting virtual interface@cisco.comTnl 12/1 L2TP: Session state change from established to shutting-down bum1@cisco.com Tnl 12/1 L2TP: Destroying session@cisco.comTn1 12/1 L2TP: Session state change from shutting-down to idleTnl 12 L2TP: Tunnel state change from established to no-sessions-leftTnl 12 L2TP: No more sessions in tunnel, shutdown in 14 secondsTnl 12 L2TP: Shutdown tunnelTnl 12 L2TP: Tunnel state change from no-sessions-left to idleShow Interface Virtual Access Example
The following is an example of the show interface virtual access command, which displays normal working status:
Router# show interface virtual-access 3Virtual-Access3 is up, line protocol is upHardware is Virtual Access interfaceMTU 1500 bytes, BW 128 Kbit, DLY 100000 usec, rely 255/255, load 1/255Encapsulation PPP, loopback not set, keepalive set (10 sec)DTR is pulsed for 5 seconds on resetLCP Open, multilink OpenOpen: IPCPLast input 00:02:30, output never, output hang neverLast clearing of "show interface" counters 1d19hQueueing strategy: fifoOutput queue 0/40, 0 drops; input queue 21/75, 0 drops5 minute input rate 0 bits/sec, 0 packets/sec5 minute output rate 0 bits/sec, 0 packets/sec55930 packets input, 3347967 bytes, 0 no bufferReceived 0 broadcasts, 0 runts, 0 giants, 0 throttles0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored, 0 abort105261 packets output, 9607052 bytes, 0 underruns0 output errors, 0 collisions, 0 interface resets0 output buffer failures, 0 output buffers swapped out0 carrier transitionsShow VPDN Session Examples
By default, if the show vpdn command is used without any keywords or arguments, all tunnel and session information for all active sessions and tunnels is displayed:
Router# show vpdnL2TP Tunnel and session Information (Total tunnels=1 sessions=1)LocID RemID Remote Name State Remote Address Port Sessions2 10 wander est 172.21.9.13 1701 1LocID RemID TunID Intf Username State Last Chg1 1 2 As7 kath@cisco.com est 00:23:01L2F Tunnel and SessionNAS CLID HGW CLID NAS Name HGW Name State10 2 stella acadia open172.21.9.4 172.21.9.232CLID MID Username Intf State2 1 jdoe@hp.com As6 openThe following is an example of the show vpdn session command, which summarizes status on all active tunnels:
Router# show vpdn sessionL2TP Session Information (Total tunnels=1 sessions=1)LocID RemID TunID Intf Username State Last Chg1 1 2 As7 bum1@cisco.co est 00:29:34L2F SessionCLID MID Username Intf State3 1 jdoe@hp.com As6 openShow VPDN Tunnel Examples
The following is sample output using the show vpdn tunnel command, which displays information about all active L2F and L2TP tunnels in summary-style format:
Router#sh vpdn tunnelL2TP Tunnel Information (Total tunnels=1 sessions=1)LocID RemID Remote Name State Remote Address Port Sessions2 10 wander est 172.21.9.13 1701 1L2F TunnelNAS CLID HGW CLID NAS Name HGW Name State9 1 stella acadia open172.21.9.4 172.21.9.232Use the show vpdn tunnel with the all keyword to display summary information about all active L2F and L2TP tunnels.
Router#show vpdn tunnel allL2TP Tunnel Information (Total tunnels=1 sessions=1)Tunnel id 2 is up, remote id is 10, 1 active sessionTunnel state is established, time since change: 00:32:28Peer tunnel name is wanderInternet Address: 172.21.9.13, port 1701Local tunnel name is stellaInternet Address: 172.21.9.4, port 1701200 packets sent, 401 received, 5667 bytes sent, 11336 receivedControl Ss=4 Sr=2L2F TunnelNAS name: stellaNAS CLID: 9NAS IP address 172.21.9.4Gateway name: acadiaGateway CLID: 1Gateway IP address 172.21.9.232State: openPackets out: 383Bytes out: 8633Packets in: 651Bytes in: 29964You can also use the show vpdn session command using the all and username keywords to display statistics about active L2F and L2TP tunnels. If there are no active tunnels, a "no active tunnel" message is displayed as seen below:
Router# show vpdn session all username bum1@cisco.comL2TP Session Information (Total tunnels=1 sessions=1)Call id 1 is up on tunnel id 2Remote tunnel name is wanderInternet Address: 172.21.9.13Session username is bum1@cisco.com, state is establishedTime since change: 00:34:28, Interface As7Remote call id: 1212 packets sent, 425 received, 6003 bytes sent, 12008 receivedSequencing is onSs=211 Sr=213 Remote Ns=212 Remote Nr=0 Out of order=0Remote has not requested congestion control% No active L2F tunnelsThe following output shows active L2F tunnel information for user kath@cisco.com and reports that there are no active L2TP tunnels:
Router#sh vpdn session all username kath@cisco.com% No active L2TP tunnelsL2F SessionMID: 1User: kath@cisco.comInterface: Async6State: openPackets out: 139Bytes out: 4518Packets in: 422Bytes in: 27013Command Reference
This section documents new, existing, and modified commands that are used to configure, monitor, and troubleshoot L2TP and VPDNs:
•
•
•
See the Debug Commands section of this document for a complete list of deubg commands to use for isolating and troubleshooting L2TP problems.
accept dialin
To specify the local name to use for authenticating and the virtual template to use for cloning new virtual access interfaces when an incoming L2TP tunnel connection is requested from a specific peer, use the accept dialin VPDN group command. To disable authentication and virtual template cloning, use the no form of this command.
accept dialin [l2f | l2tp | any] virtual-template number [remote remote-peer-name]
no accept dialin [l2f | l2tp | any] virtual-template number [remote remote-peer-name]Syntax Description
Default
Disabled
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
This command replies to a dial in L2F or L2TP tunnel open request from the specified peer. Once the LNS accepts the request from a LAC, it uses the specified virtual template to clone new virtual access interfaces. This command replaces the vpdn incoming command used in Cisco IOS Release 11.3. The user interface will automatically be upgraded when you reload the router with a 12.0 T or 11.3 AA image.
Default VPDN Group Configuration
Use the following command syntax to enable a default VPDN group configuration:
accept dialin l2tp virtual-template 1
Typically, you need one VPDN group for each LAC. For an LNS that services many LACs, the configuration can become cumbersome; however, you can use the default VPDN group configuration if all the LACs will share the same tunnel attributes. An example of this scenario would be a LNS that services a large department with many Windows NT L2TP clients that are co-located with the LAC. Each of the Windows NT devices is an L2TP client as well as a LAC. Each of these devices will demand a tunnel to the LNS. If all the tunnels will share the same tunnel attributes you can use a default VPDN group configuration, which excels and simplifies the configuration process.
Note
Example
The following example allows the LNS to accept an L2TP type dial in tunnel. A virtual access interface will be cloned from virtual-template 1, from a remote peer named mugsy:
accept dialin l2tp virtual-template 1 remote mugsyIf you only use the accept dialin command with the l2tp and virtual-template keywords and omit the remote-peer-name argument, you automatically enable a default L2TP VPDN group, which allows all tunnels to share the same tunnel attributes:
vpdn-group 1! Default L2TP VPDN groupaccept dialin l2tp virtual-template 1Related Commands
clear vpdn tunnel
To shut down a specified tunnel and all sessions within the tunnel, use the clear vpdn tunnel EXEC command.
clear vpdn tunnel {l2f nas-name hgw name | l2tp [remote name] [local name]}
Syntax Description
Command Mode
EXEC
Usage Guidelines
This command first appeared in Cisco IOS Release 11.2
This command was modified with the l2f and l2tp keywords and options, in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
Use this command to clear a specific tunnel and all sessions within the tunnel.
Use this command to isolate problems by forcing a tunnel to come down without deconfiguring the tunnel (the tunnel can be restarted immediately by a user logging in).
If you are using the l2tp keyword, you can clear the tunnel by matching either the remote name or remote name and local name.
Example
The following example clears a tunnel to a remote peer named sophia:
clear vpdn tunnel l2tp mugsy sophiaforce-local-chap
To force the LNS to reauthenticate the client, use the force-local-chap VPDN group command. To disable reauthentication, use the no form of this command.
force-local-chap
no force-local-chapSyntax Description
This command has no arguments or keywords.
Default
CHAP authentication at the LNS is disabled; default authentication occurs at the LAC.
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
This command is only used if CHAP authentication is enabled for PPP (using the ppp authentication chap command). This command forces the LNS to reauthenticate the client in addition to the proxy authentication that occurs at the LAC. If the force-local-chap command is used, then the authentication challenge occurs twice. The first challenge comes from the LAC and the second challenge comes from the LNS. Some PPP clients may experience problems with double authentication. If this occurs, authentication challenge failures may be seen if the debug ppp negotiation command is enabled.
Example
The following example enables CHAP authentication at the LNS if a mismatch occurs between the client and the LAC:
force-local-chap on-mismatchl2f ignore-mid-sequence
To ignore multiplex ID (MID) sequence numbers for sessions in an L2F tunnel, use the l2f ignore-mid-sequence VPDN group command. To remove the ability to ignore MID sequencing, use the no form of this command.
l2f ignore-mid-sequence
no l2f ignore-mid-sequenceSyntax Description
This command has no arguments or keywords.
Default
MID sequence number ignoring is disabled.
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release11.3(5)AA and 12.0(1)T.
This command applies only to L2F initiated tunnels and control packets for initial LCP tunnel negotiation.
This command is not required for Cisco-to-Cisco, LAC-to-LNS tunnel endpoints, and is only required if MID sequence numbering is not supported by a third-party hardware vendor.
Example
The following example ignores MID sequencing for L2F sessions between a Cisco router and a non-Cisco hardware device, which does not support MID sequencing:
l2f ignore-mid-sequencel2tp drop out-of-order
To instruct a LAC or LNS using L2TP to drop packets that are received out of order, use the l2tp drop out-of-order VPDN group command. To disable dropping of out-of-sequence packets, use the no form of this command
l2tp drop out-of-order
no l2tp drop out-of-orderSyntax Description
This command has no keywords or arguments.
Default
Disabled
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release11.3(5)AA and 12.0(1)T.
This command is valid only for tunnels where sequencing is enabled.
Example
The following example causes the LAC or LNS to drop any packets that are received out of order:
l2tp drop out-of-orderl2tp flow-control backoff-queuesize
To define the maximum number of packets that can be queued locally for a session when a peer's receive window is full, use the l2tp flow-control backoff-queuesize VPDN group command. To change the value of the queue size simply reenter the command with the new queue size value. To remove a manually configured flow-control backoff value, use the no form of this command.
l2tp flow-control backoff-queuesize queuesize
no l2tp flow-control backoff-queuesize queuesizeSyntax Description
queuesize
Sets the queue size limit on a LAC or LNS so that when the remote peer's receive window is full, the LAC or LNS delays sending additional packets.
Default
L2tp flow control backoff queuing is enabled and uses a default value of 25.
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
This command is used for congestion control. This command will not appear as a valid option if the l2tp flow-control receive-window command is disabled, or the value is set to zero (for sequencing only).
Example
The following example uses the l2tp flow-control receive-window command option to 8, which in turn enables the l2tp flow-control backoff-queuesize command option. When the remote peer's receive window is full, the maximum number packets that can be queued locally for an L2TP session is 35.
l2tp flow-control receive-window 8l2tp flow-control backoff-queuesize 35Related Commands
l2tp flow-control maximum-ato
l2tp flow-control receive-windowl2tp flow-control maximum-ato
To define the maximum adaptive time-out for congestion control, use the l2tp flow-control maximum-ato VPDN group command. To reset the time-out to a new value, simply reenter the command with the new value. To remove a manually configured time-out value, use the no form of this command.
l2tp flow-control maximum-ato milliseconds
no l2tp flow-control maximum-ato millisecondsSyntax Description
milliseconds
The wait time period, in milliseconds, before the LAC or LNS probes its remote peer's receive-window to resume sending packets.
Default
2000 milliseconds.
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
This command is used for congestion control between the LAC and LNS. This command will not appear as a valid option if the l2tp flow-control receive-window command is disabled or set to zero.
Example
The following example forces the LAC or LNS to wait 4000 milliseconds before attempting to probe the remote peer's receive status window again:
l2tp flow-control maximum-ato 4000Related Commands
l2tp flow-control backoff-queuesize
l2tp flow-control receive-windowl2tp flow-control receive-window
To define the receive window on a LAC or LNS and enable either device to send sequence numbers, use the l2tp flow-control receive-window VPDN group command. To remove a flow-control receive-window value and disable sequencing, use the no form of this command.
l2tp flow-control receive-window windowsize
nol2tp flow-control receive-window windowsizeSyntax Description
windowsize
The number of packets that can be received by the remote end device before backoff queuing occurs.
Default
Receive window and sequence numbers are disabled.
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
If the receive-window value is set to zero, then sequence numbers are not sent, and congestion control is not enabled. Data zero length body (ZLB) acknowledgments are not sent when congestion control is disabled. If the receive-window value is greater than zero, then congestion control is enabled, and the value that is configured is sent to the L2TP receive window attribute value pair (AVP).
Using the l2tp flow-control receive-window command with a value greater than zero allows you to configure the following L2TP (optional) commands:
l2tp flow-control maximum-ato
l2tp flow-control backoff-queuesizeIf the l2tp flow-control receive-window command is not enabled or the value is set to zero, then the l2tp flow-control maximum-ato and 2tp flow-control backoff-queuesize commands will not appear as configurable options by the command parser.
Example
The following example configures a receive window value of 25 to be communicated to the remote peer and subsequently enables the configuration of the l2tp flow-control maximum-ato and l2tp flow-control backoff-queuesize commands.
l2tp flow-control receive-window 10 l2tp flow-control maximum-ato 15 l2tp flow-control backoff-queuesize 35Related Commands
l2tp flow-control backoff-queuesize
l2tp flow-control maximum-atol2tp flow-control static-rtt
To define a static round-trip time for congestion control, use the l2tp flow-control static-rtt VPDN group command. To apply a different value, simply reenter the command with the new value. To disable a static round-trip time, use the no form of this command.
l2tp flow-control static-rtt round-trip-time
no l2tp flow-control static-rtt round-trip-timeSyntax Description
Default
Disabled; adaptive timeouts are used.
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release11.3(5)AA and 12.01(1)T.
If the LAC/LNS is configured to use a static round-trip time, then adaptive time-outs (ATO) are calculated on the fixed round-trip time value configured using the l2tp flow-control static-rtt command. If the device is not configured with the l2tp flow-control static-rtt command, then flow control is automatically calculated based on packet send and receive times.
Example
The following example sets a static round-trip delay of 15000 milliseconds, which in turn disables adaptive timeouts:
l2tp flow-control static-rtt 2500
Note
Related Commands
l2tp flow-control backoff-queuesize
l2tp flow-control maximum-ato
l2tp flow-control receive-windowl2tp hidden
To enable L2TP AV pair hiding, which encrypts the AV pair "value," use the l2tp hidden VPDN group command. To disable L2TP AV pair value hiding, use the no form of this command.
l2tp hidden
no l2tp hiddenSyntax Description
This command has no keywords or arguments.
Default
L2TP AVP hiding is disabled.
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
This command is useful for additional security if PPP is using PAP or proxy authentication between the LAC and LNS. When AV pair hiding is enabled, then the L2TP hiding algorithm is executed, and sensitive passwords that are used between the L2TP AV pairs are encrypted during PAP or proxy authentication. This command is not required if one-time PAP password authentication is used.
In , the client initiates a PPP session with the LAC, and tunnel authentication begins. The LAC in turn exchanges authentication requests with the LNS. Upon successful authentication between the LAC and LNS, a tunnel is created. Proxy authentication is done by the LAC, using either PAP or CHAP. Since PAP username and password information is exchanged between devices in clear-text, it is beneficial to use the l2tp hidden command where L2TP AV pair values are encrypted.
Figure 7 LAC-LNS Proxy authentication
Example
The following example encrypts the AV pair value exchanged between the LAC and LNS:
l2tp hiddenl2tp ip udp checksum
To enable IP User Data Protocol (UDP) checksums on L2TP payload packets, use the l2tp ip udp checksum VPDN group command. To disable IP UDP checksums, use the no form of this command.
l2tp ip udp checksum
no l2tp ip udp checksumSyntax Description
There are no keywords or arguments for this command.
Default
Disabled
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
Enabling IP UDP checksum packets causes the switching path to revert to process-level switching, which results in slower performance.
Example
The following example enables IP UDP checksums on L2TP payload packets:
l2tp ip udp checksuml2tp offset
To enable the offset field in L2TP payload packets, use the l2tp offset VPDN group command. To disable the offset field, use the no form of this command.
l2tp offset
no l2tp offsetSyntax Description
This command has no keywords or arguments.
Default
Enabled
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
Enabling the offset field forces longword header alignment in L2TP payload packets and may improve performance on some platforms (such as those using the 4k MIPS processor). However, this potentially increases the size of the packets. Use the show version command to determine if your Cisco router or access server has a 4k MIPS processor.
Note
Example
The following example disables the offset field:
no l2tp offsetl2tp tunnel authentication
To enable L2TP tunnel authentication, use the l2tp tunnel authentication VPDN group command. To disable L2TP tunnel authentication, use the no form of this command.
l2tp tunnel authentication
no l2tp tunnel authenticationSyntax Description
This command has no keywords or arguments.
Default
Enabled
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
Example
The following example enables L2TP tunnel authentication:
l2tp tunnel authentication
Note
l2tp tunnel hello
To set the number of seconds between sending hello keepalive packets for a L2TP tunnel, use the l2tp tunnel hello command. To change the tunnel hello value, simply reenter the command with the new value. To disable the sending of hello keepalive packets, use the no form of this command.
l2tp tunnel hello hello-interval
no l2tp tunnel hello hello-intervalSyntax Description
hello-interval
The interval, in seconds, that the LAC and LNS wait before sending the next L2TP tunnel keepalive packet.
Default
60 seconds.
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
The L2TP tunnel keepalive timers do not have use the same value on both sides of the tunnel. For example, a LAC can use a keepalive value of 30 seconds, and an LNS can use the default value of 60 seconds.
Example
The following example sets the L2TP tunnel hello value to 90 seconds:
l2tp tunnel hello 90l2tp tunnel password
To set the password that the router will use to authenticate the tunnel, use the l2tp tunnel password VPDN group command. To remove a previously configured password, use the no form of this command.
l2tp tunnel password password
no l2tp tunnel password passwordSyntax Description
Default
Disabled. If the l2tp tunnel password is not configured, the local password is used. If no local password is configured, the hostname is used.
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
The password defined with the l2tp tunnel password command is also used for AV pair hiding.
The password hierarchy sequence that is used for tunnel identification and, subsequently, tunnel authentication, is as follows:
•
•
•
Example
The following example configures the tunnel password, dustie, which will be used to authenticate the tunnel between local and remote peer:
l2tp tunnel password dustieRelated Commands
hostname
local name
l2tp hiddenlcp renegotiation
To allow the LNS to renegotiate the link control protocol (LCP) on dial in calls, using L2TP or L2F, use the lcp renegotiation VPDN group command. To remove LCP renegotiation, use the no form of this command.
lcp renegotiation
no lcp renegotiationSyntax Description
always
Always renegotiates PPP LCP at the LNS.
on-mismatch
Renegotiates PPP LCP at the LNS only in the event of an LCP mismatch between the LAC and LNS.
Default
LCP renegotiation is disabled on the LNS.
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
This command is only valid at the LNS. This command is useful for an LNS that tunnels to a non-Cisco LAC, where the LAC may negotiate a different set of LCP options than what the LNS expects.
When a PPP session is started at the LAC, LCP parameters are negotiated, and a tunnel initiated, the LNS can either accept the LAC LCP negotiations or can request LCP renegotiation. Using the lcp renegotiation always command forces renegotiation to occur at the LNS. If lcp renegotiation on-mismatch is configured, then renegotiation will only occur if there is an LCP mismatch between the LNS and LAC.
Note
Example
The following example configures the LNS to renegotiate PPP LCP with a non-Cisco LAC:
vpdn-group 1accept dialin l2tp virtual-template 1 remote patlcp renegotiation on-mismatchlocal name
To specify a local host name that the tunnel will use to identify itself, use the local name global configuration command. To remove a local name, use the no form of this command.
local name name
no local name nameSyntax Description
Default
Disabled. A local name must be explicitly configured.
Command Mode
Global configuration
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
This command allows each VPDN group to use a unique and local name. The password hierarchy sequence that is used for tunnel identification and subsequently, tunnel authentication, is as follows:
•
•
•
Example
The following example configures the local host name of the tunnel as dustie:
local name dustieRelated Commands
hostname
l2tp tunnel passwordrequest dialin
To specify a dial in L2F or L2TP tunnel to a remote peer if a dial in request is received for a caller belonging to a specified domain, or a specific Digital Number Information String (DNIS) is called, use the request dialin VPDN group command. To remove this function, use the no form of this command.
request dialin [l2f | l2tp] ip ip-address {domain domain-name | dnis dialed-number}
no request dialin [l2f | l2tp] ip ip-address {domain domain-name | dnis dialed-number}Syntax Description
Default
Disabled. No dial in is configured.
Command Mode
VPDN group mode
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
This command is used to initiate a tunnel to a remote peer at a specific IP address, if a dialin tunnel request is received for users under a specific domain name (cisco.com, for example), or if a specific DNIS is called (408-555-1234, for example).
shows a breakdown of the request dialin command.
Figure 8 Request Dialin Command Breakdown
Note
Example
The following example requests an L2TP dial in tunnel to a remote peer at IP address 172.17.33.125 for a user in the domain named partner.com:
request dialin l2tp ip 172.17.33.125 partner.comRelated Commands
accept dialin
vpdn incoming
vpdn outgoingshow vpdn session
To display information about activeL2TP or L2F sessions in a virtual private dialup network, use the show vpdn session EXEC command. If the show vpdn command is used without the session or tunnel keywords, both session and tunnel information is displayed by default.
show vpdn session [all [interface | tunnel | username] | packets | sequence | state | timers | window]
Syntax Description
Command Mode
EXEC
Usage Guidelines
This command first appeared in Cisco IOS Release 11.2. This command was modified for L2TP and L2F session and tunnel variables in Cisco IOS Release 11.3(5)AA and 12.0(1)T.
Sample Displays
This section shows sample displays from various show vpdn commands.
The following is sample output from the show vpdn command without any keywords or arguments. All session information is displayed by default.
Router# show vpdnL2TP Tunnel and session Information (Total tunnels=1 sessions=1)LocID RemID Remote Name State Remote Address Port Sessions2 10 wander est 172.21.9.13 1701 1LocID RemID TunID Intf Username State Last Chg1 1 2 As7 bum1@cisco.com est 00:23:01L2F Tunnel and SessionNAS CLID HGW CLID NAS Name HGW Name State10 2 stella acadia open172.21.9.4 172.21.9.232CLID MID Username Intf State2 1 jdoe@hp.com As6 openThe following is sample output from the show vpdn session command:
Router# show vpdn sessionL2TP Session Information (Total tunnels=1 sessions=1)LocID RemID TunID Intf Username State Last Chg1 1 2 As7 bum1@cisco.co est 00:29:34L2F SessionCLID MID Username Intf State3 1 jdoe@hp.com As6 openThe following sample output is from the show vpdn command with the session, all, and username keywords:
Router# sh vpdn session all username bum1@cisco.comL2TP Session Information (Total tunnels=1 sessions=1)Call id 1 is up on tunnel id 2Remote tunnel name is wanderInternet Address: 172.21.9.13Session username is bum1@cisco.com, state is establishedTime since change: 00:34:28, Interface As7Remote call id: 1212 packets sent, 425 received, 6003 bytes sent, 12008 receivedSequencing is onSs=211 Sr=213 Remote Ns=212 Remote Nr=0 Out of order=0Remote has not requested congestion control% No active L2F tunnelsRouter# sh vpdn session all username jdoe@hp.com% No active L2TP tunnelsL2F SessionMID: 1User: jdoe@hp.comInterface: Async6State: openPackets out: 139Bytes out: 4518Packets in: 422Bytes in: 27013describes the fields shown in the show vpdn session display.
Table 2 Show VPDN Session Field Descriptions
Related Commands
show vpdn
show vpdn tunnelshow vpdn tunnel
To display information about active Layer 2 Tunneling Protocol (l2TP) or Level 2 Forwarding (L2F) tunnels in a virtual private dialup network, use the show vpdn tunnel EXEC command. If the show vpdn command is used without the session or tunnel keywords, both session and tunnel information is displayed by default.
show vpdn tunnel [all [id | local-name | remote-name] | packets | state | summary | transport]
Syntax Description
Command Mode
EXEC
Usage Guidelines
This command first appeared in Cisco IOS Release 11.2. This command was modified for l2TP and L2F session and tunnel variables in Cisco IOS Releases 11.3(5)AA and 12.0(1)T.
Sample Display
This section shows sample displays from vious show vpdn commands and keyword options. The following example displays the show vpdn command without any keywords or arguments:
Router# sh vpdnL2TP Tunnel and session Information (Total tunnels=1 sessions=1)LocID RemID Remote Name State Remote Address Port Sessions2 10 wander est 172.21.9.13 1701 1LocID RemID TunID Intf Username State Last Chg1 1 2 As7 bum1@cisco.co est 00:23:01L2F Tunnel and SessionNAS CLID HGW CLID NAS Name HGW Name State10 2 stella acadia open172.21.9.4 172.21.9.232CLID MID Username Intf State2 1 jdoe@hp.com As6 openThe following is output from the show vpdn tunnel command:
Router# sh vpdn tunnelL2TP Tunnel Information (Total tunnels=1 sessions=1)LocID RemID Remote Name State Remote Address Port Sessions2 10 wander est 172.21.9.13 1701 1L2F TunnelNAS CLID HGW CLID NAS Name HGW Name State9 1 stella acadia open172.21.9.4 172.21.9.232Related Commands
show vpdn
show vpdn sessionvpdn domain-delimiter
To specify the characters to be use to delimit the domain prefix or domain suffix, use the vpdn domain-delimiter global configuration command.
domain-delimiter delimiter-characters [suffix | prefix]
Syntax Description
Default
This command is disabled.
Command Mode
Global configuration
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3.
You can enter one vpdn domain-delimiter command to list the suffix delimiters and another vpdn domain-delimiter command to list the prefix delimiters. However, no character can be both a suffix delimiter and a prefix delimiter.
This command allows the network access server to parse a list of home gateway DNS domain names and addresses sent by an AAA server. The AAA server can store domain names or IP addresses in the following AV pair:
cisco-avpair = "lcp:interface-config=ip address 1.1.1.1 255.255.255.255.0",
cisco-avpair = "lcp:interface-config=ip address bigrouter@excellentinc.com,
Examples
The following example lists three suffix delimiters and three prefix delimiters:
vpdn domain-delimiter %-@ suffixvpdn domain-delimiter #/\\ prefixThe following example allows the host name and domain name:
cisco.com#houstonddrhoustonddr@cisco.comRelated Commands
vpdn enable
To enable VPDN on the router and inform the router to look for tunnel definitions in a local database and on a remote authorization server (LNS), if one is present, use the vpdn enable global configuration command. To disable VPDN, use the no form of this command.
vpdn enable
no vpdn enableSyntax Description
This command has no keywords or arguments.
Default
Disabled
Command Mode
Global configuration.
Usage Guidelines
This command first appeared in Cisco IOS Release 11.2.
Sample Display
The following example enables VPDN on the router:
vpdn enablevpdn-group
To define a local, unique group number identifier, use the vpdn-group global configuration command. To remove a group number, use the no form of this command.
vpdn-group group-number
no vpdn-group group-numberSyntax Description
Default
VPDN group number assignments are not defined.
Command Mode
Global configuration
Usage Guidelines
This command first appeared in Cisco IOS Release11.3(5)AA and 12.0(1)T.
The vpdn-group number command is a local, unique identifier for each VPDN group.Example
The following example establishes local VPDN group number 1 for which other variables, such as force-local chap, can be assigned:
vpdn group-number 1vpdn incoming
To specify the local name to use for authenticating, and the virtual template to use for building interfaces for incoming connections when a L2F connection is requested from a certain remote host, use the vpdn incoming global configuration command. To remove the local name for tunnel authentication, use the no form of this command.
vpdn incoming remote-name local-name virtual-template number
Syntax Description
Default
Disabled
Command Mode
Global configuration
Usage Guidelines
This command first appeared in Cisco IOS Release 11.2.
The accept dialin command will replace this command in future Cisco IOS Release.
The remote-name and local-name arguments are case sensitive.
This command is usually used on a home gateway, not on the network access server in the ISP or public data network.
Note
Example
The following partial example specifies use of local host go_blue and virtual template interface 6 for connections with remote host dallas_wan:
vpdn incoming dallas_wan go_blue virtual-template 6vpdn outgoing
To specify use of a Dialed Number Information Service (DNIS) or use of a domain name when selecting a tunnel for forwarding traffic to the remote host (the home gateway) on a virtual private dialup network, use the vpdn outgoing global configuration command.
vpdn outgoing {dnis dialed-number | domain-name} local-name ip ip-address
Syntax Description
Default
Disabled
Command Mode
Global configuration
Usage Guidelines
This command first appeared in Cisco IOS Release 11.2.
The request dialin command will replace this command in a future Cisco IOS Release.
The domain-name and local-name arguments are case sensitive.
This command is usually used on a network access server, not on a home gateway.
When DNIS is enabled and a dialed number is provided, the network service provider can use the dialed number to select a specific tunnel destination.
The domain name can be used to choose a tunnel destination. For example, if a user dials in as "joe@company-a.com," where joe is the username and "company-a.com" is the domain name, you can select a tunnel destination based on the domain (company-a.com).
If both DNIS information and a CHAP or PAP name map to a valid tunnel, the DNIS information is used.
If TACACS+ is used to get tunnel information, the string "dnis:" is prepended to the phone number before attempting to look up the information in AAA.
Note
Examples
The following example selects a tunnel destination based on the domain name:
vpdn outgoing chicago-main go-blue ip 172.17.33.125The following example selects a tunnel destination based on the use of DNIS and a specific dialed number:
vpdn outgoing dnis 2387765 gocardinal ip 170.16.44.56Related Commands
vpdn enable
vpdn history failure table-sizevpdn search-order
To specify how the service provider's network access server is to perform VPDN tunnel authorization searches, use the vpdn search-order global configuration command. To remove a prior specification, use the no form of the command.
vpdn search-order {dnis domain | domain dnis | domain | dnis}
no vpdn search-orderSyntax Description
Default
Search first on the DNIS information provided on ISDN lines and then search on the domain name. This is equivalent to using the vpdn search-order dnis domain command.
Command Mode
Global configuration
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3.
VPDN authorization searches are performed only as specified.
The configuration shows the vpdn search-order command setting only if the command is explicitly configured.
Example
The following example configures a network access server to select a tunnel destination based on the use of DNIS and a specific dialed number and to perform tunnel authorization searches based on the DNIS information only.
vpdn enablevpdn outgoing dnis 2387765 gocardinal ip 170.16.44.56vpdn search-order dnisvpdn source-ip
To set the source IP address of the network access server, use the vpdn source-ip global configuration command.
vpdn source-ip address
Syntax Description
Default
Disabled
Command Mode
Global configuration
Usage Guidelines
This command first appeared in Cisco IOS Release 11.3.
One source IP address is configured on the network access server. The source IP address is configured per network access server, not per domain.
Example
The following example enables VPDN on the network access server and sets an IP source address of 171.4.48.3.
vpdn enablevpdn source-ip 171.4.48.3Related Commands
Debug Commands
Use the following new or modified commands to debug VPDN and L2TP tunnels:
debug vpdn event
To display L2TP errors and events that are a part of normal tunnel establishment or shutdown for VPDNs, use the debug vpdn event command to display . To disable debugging errors and events, use the no form of this command to disable debugging output.
debug vpdn event [protocol | flow-control]
no debug vpdn event [protocol | flow-control]Syntax Description
protocol
Displays all errors for the tunneling protocols used by VPDNs, such as L2TP, L2F, PPTP, and events within these protocols.
flow control
Displays L2TP flow control errors.
Command Mode
EXEC
Usage Guidelines
This command first appeared in Cisco IOS Release 11.2(5)AA and 12.0(1)T.
Use this command to display VPDN errors and basic events within the protocol, such as state changes. This command does not include packet trace information or information about sent or received individual management packets.
Sample Display
The following is sample output for the natural sequence of events for an LNS named stella:
Router# debug vpdn event20:47:33: %LINK-3-UPDOWN: Interface Async7, changed state to up20:47:35: As7 VPDN: Looking for tunnel -- cisco.com --20:47:35: As7 VPDN: Get tunnel info for cisco.com with NAS stella, IP 172.21.9.1320:47:35: As7 VPDN: Forward to address 172.21.9.1320:47:35: As7 VPDN: Forwarding...20:47:35: As7 VPDN: Bind interface direction=120:47:35: Tnl/Cl 8/1 L2TP: Session FS enabled20:47:35: Tnl/Cl 8/1 L2TP: Session state change from idle to wait-for-tunnel20:47:35: As7 8/1 L2TP: Create session20:47:35: Tnl 8 L2TP: SM State idle20:47:35: Tnl 8 L2TP: Tunnel state change from idle to wait-ctl-reply20:47:35: Tnl 8 L2TP: SM State wait-ctl-reply20:47:35: As7 VPDN: bum1@cisco.com is forwarded20:47:35: Tnl 8 L2TP: Got a challenge from remote peer, stella20:47:35: Tnl 8 L2TP: Got a response from remote peer, stella20:47:35: Tnl 8 L2TP: Tunnel Authentication success20:47:35: Tnl 8 L2TP: Tunnel state change from wait-ctl-reply to established20:47:35: Tnl 8 L2TP: SM State established20:47:35: As7 8/1 L2TP: Session state change from wait-for-tunnel to wait-reply20:47:35: As7 8/1 L2TP: Session state change from wait-reply to established20:47:36: %LINEPROTO-5-UPDOWN: Line protocol on Interface Async7, changed state to upThe following shows sample debug output on the LAC named stella:
Router# debug vpdn event20:19:17: L2TP: I SCCRQ from stella tnl 820:19:17: L2X: Never heard of stella20:19:17: Tnl 7 L2TP: New tunnel created for remote stella, address 172.21.9.420:19:17: Tnl 7 L2TP: Got a challenge in SCCRQ, stella20:19:17: Tnl 7 L2TP: Tunnel state change from idle to wait-ctl-reply20:19:17: Tnl 7 L2TP: Got a Challenge Response in SCCCN from stella20:19:17: Tnl 7 L2TP: Tunnel Authentication success20:19:17: Tnl 7 L2TP: Tunnel state change from wait-ctl-reply to established20:19:17: Tnl 7 L2TP: SM State established20:19:17: Tnl/Cl 7/1 L2TP: Session FS enabled20:19:17: Tnl/Cl 7/1 L2TP: Session state change from idle to wait-for-tunnel20:19:17: Tnl/Cl 7/1 L2TP: New session created20:19:17: Tnl/Cl 7/1 L2TP: O ICRP to stella 8/120:19:17: Tnl/Cl 7/1 L2TP: Session state change from wait-for-tunnel to wait-connect20:19:17: Tnl/Cl 7/1 L2TP: Session state change from wait-connect to established20:19:17: Vi1 VPDN: Virtual interface created for bum1@cisco.com20:19:17: Vi1 VPDN: Set to Async interface20:19:17: Vi1 VPDN: Clone from Vtemplate 1 filterPPP=0 blocking20:19:18: %LINK-3-UPDOWN: Interface Virtual-Access1, changed state to up20:19:18: Vi1 VPDN: Bind interface direction=220:19:18: Vi1 VPDN: PPP LCP accepting rcv CONFACK20:19:19: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access1, changed state to updebug vpdn packet
To display L2TP errors and events that are a part of normal tunnel establishment or shutdown for VPDNs, use the debug vpdn packet command. To disable debugging output, use the no form of this command.
debug vpdn packet [control | flow-control | control detail | data]
no debug vpdn packet [control | flow-control | control detail | data]Syntax Description
Command Mode
EXEC
Usage Guidelines
This command first appeared in Cisco IOS Release 11.2(5)AA and 12.0(1)T.
Use this command with the following keywords:
•
•
•
•
CautionThe debug vpdn packet command using the data keyword is CPU intensive and may decrease performance significantly.
Sample Display
The following is sample output from the debug vpdn packet control where VPDN event exchange is normal:
Router# debug vpdn event protocol20:50:27: %LINK-3-UPDOWN: Interface Async7, changed state to up20:50:29: Tnl 9 L2TP: O SCCRQ20:50:29: Tnl 9 L2TP: O SCCRQ, flg TLF, ver 2, len 131, tnl 0, cl 0, ns 0, nr 020:50:29: contiguous buffer, size 131C8 02 00 83 00 00 00 00 00 00 00 00 80 08 00 0000 00 00 01 80 08 00 00 00 02 01 00 80 0A 00 0000 03 00 00 00 03 80 0A 00 00 00 04 00 00 00 ...20:50:29: Tnl 9 L2TP: Parse AVP 0, len 8, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Parse SCCRP20:50:29: Tnl 9 L2TP: Parse AVP 2, len 8, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Protocol Ver 25620:50:29: Tnl 9 L2TP: Parse AVP 3, len 10, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Framing Cap 0x0x320:50:29: Tnl 9 L2TP: Parse AVP 4, len 10, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Bearer Cap 0x0x320:50:29: Tnl 9 L2TP: Parse AVP 6, len 8, flag 0x0x020:50:29: Tnl 9 L2TP: Firmware Ver 0x0x112020:50:29: Tnl 9 L2TP: Parse AVP 7, len 12, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Hostname stella20:50:29: Tnl 9 L2TP: Parse AVP 8, len 25, flag 0x0x020:50:29: Tnl 9 L2TP: Vendor Name Cisco Systems, Inc.20:50:29: Tnl 9 L2TP: Parse AVP 9, len 8, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Assigned Tunnel ID 820:50:29: Tnl 9 L2TP: Parse AVP 10, len 8, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Rx Window Size 420:50:29: Tnl 9 L2TP: Parse AVP 11, len 22, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Chlng D807308D106259C5933C6162ED3A168920:50:29: Tnl 9 L2TP: Parse AVP 13, len 22, flag 0x0x8000 (M)20:50:29: Tnl 9 L2TP: Chlng Resp 9F6A3C70512BD3E2D44DF183C3FFF2D120:50:29: Tnl 9 L2TP: No missing AVPs in SCCRP20:50:29: Tnl 9 L2TP: Clean Queue packet 020:50:29: Tnl 9 L2TP: I SCCRP, flg TLF, ver 2, len 153, tnl 9, cl 0, ns 0, nr 1contiguous pak, size 153C8 02 00 99 00 09 00 00 00 00 00 01 80 08 00 0000 00 00 02 80 08 00 00 00 02 01 00 80 0A 00 0000 03 00 00 00 03 80 0A 00 00 00 04 00 00 00 ...20:50:29: Tnl 9 L2TP: I SCCRP from stella20:50:29: Tnl 9 L2TP: O SCCCN to stella tnlid 820:50:29: Tnl 9 L2TP: O SCCCN, flg TLF, ver 2, len 42, tnl 8, cl 0, ns 1, nr 120:50:29: contiguous buffer, size 42C8 02 00 2A 00 08 00 00 00 01 00 01 80 08 00 0000 00 00 03 80 16 00 00 00 0D 4B 2F A2 50 30 13E3 46 58 D5 35 8B 56 7A E9 8520:50:29: As7 9/1 L2TP: O ICRQ to stella 8/020:50:29: As7 9/1 L2TP: O ICRQ, flg TLF, ver 2, len 48, tnl 8, cl 0, ns 2, nr 120:50:29: contiguous buffer, size 48C8 02 00 30 00 08 00 00 00 02 00 01 80 08 00 0000 00 00 0A 80 08 00 00 00 0E 00 01 80 0A 00 0000 0F 00 00 00 04 80 0A 00 00 00 12 00 00 00 ...20:50:29: Tnl 9 L2TP: Clean Queue packet 120:50:29: Tnl 9 L2TP: Clean Queue packet 220:50:29: Tnl 9 L2TP: I ZLB ctrl ack, flg TLF, ver 2, len 12, tnl 9, cl 0, ns 1, nr 2contiguous pak, size 12C8 02 00 0C 00 09 00 00 00 01 00 0220:50:30: As7 9/1 L2TP: Parse AVP 0, len 8, flag 0x0x8000 (M)20:50:30: As7 9/1 L2TP: Parse ICRP20:50:30: As7 9/1 L2TP: Parse AVP 14, len 8, flag 0x0x8000 (M)20:50:30: As7 9/1 L2TP: Assigned Call ID 120:50:30: As7 9/1 L2TP: No missing AVPs in ICRP20:50:30: Tnl 9 L2TP: Clean Queue packet 220:50:30: As7 9/1 L2TP: I ICRP, flg TLF, ver 2, len 28, tnl 9, cl 1, ns 1, nr 3contiguous pak, size 28C8 02 00 1C 00 09 00 01 00 01 00 03 80 08 00 0000 00 00 0B 80 08 00 00 00 0E 00 0120:50:30: As7 9/1 L2TP: O ICCN to stella 8/120:50:30: As7 9/1 L2TP: O ICCN, flg TLF, ver 2, len 203, tnl 8, cl 1, ns 3, nr 220:50:30: contiguous buffer, size 203C8 02 00 CB 00 08 00 01 00 03 00 02 80 08 00 0000 00 00 0C 80 0A 00 00 00 18 00 00 DA C0 80 0A00 00 00 13 00 00 00 02 00 28 00 00 00 1B 02 ...20:50:30: Tnl 9 L2TP: Clean Queue packet 320:50:30: As7 9/1 L2TP: I ZLB ctrl ack, flg TLF, ver 2, len 12, tnl 9, cl 1, ns 2, nr 4contiguous pak, size 12C8 02 00 0C 00 09 00 01 00 02 00 0420:50:30: %LINEPROTO-5-UPDOWN: Line protocol on Interface Async7, changed state to up
