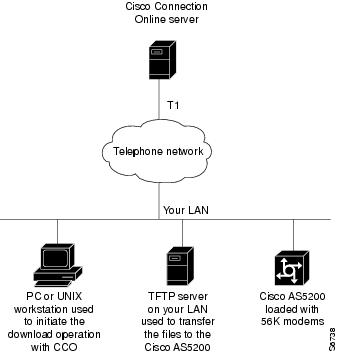

Step 1—Download the Modem Firmware from CCO to Your Workstation
Step 2—Copy the Firmware from a Local TFTP Server to the Access Server or Router
Control Modems
Collect Modem Statistics
Show Modem Example
Show Modem Summary Example
Show Modem Log Example
Show Modem AT-Mode Example
Time Interval Example
Modem Polling Example
Polling Attempts Example
Change Modem Configuration
Change Automatically for External Modems
Change Manually by Sending AT Commands to Integrated Modems
Managing Modems
The Cisco IOS software provides commands that manage modems that reside inside access servers or routers in the form of modem cards. Cisco Systems does not consider external modems, which physically connect to an access server or router with an asynchronous cable or modem line, to be part of its modem management paradigm.
For a complete description of the commands in this chapter, refer to the "Modem Management Commands" chapter of the Dial Solutions Command Reference. To locate documentation of other commands that appear in this chapter, use the command reference master index or search online.
This chapter consists of the following sections:
•
Business Scenarios that Benefit from Managing Modems
•
Cisco's Modem and Terminal Adapter Technology
•
Manageable versus Nonmanageable Modems
•
Verify Connection Speed Performance
•
Automatically Run a Modem Diagnostics Test
•
Display Local Disconnect Reasons
•
Upgrade Modem Firmware for 56K, V.34, and V.110 Cards
•
Control Modems
•
Collect Modem Statistics
•
Change Modem Configuration
Business Scenarios that Benefit from Managing Modems

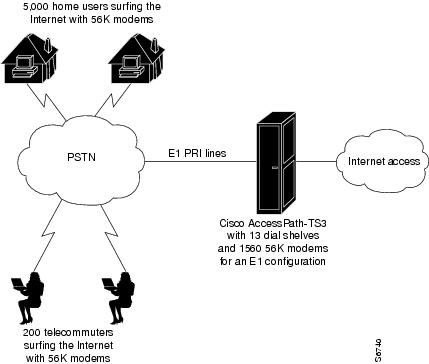

shows a typical large scale dial scenario for an Internet service provider. Modem management commands are useful for gathering call statistics and upgrading modem firmware for large modem pools.
Figure 47 Typical Large-Scale Dial Scenario for an ISP
shows a typical dial scenario for an enterprise network.
Figure 48 Typical Dial Scenario for an Enterprise Network
Cisco's Modem and Terminal Adapter Technology
Cisco Systems installs the following different types of modems and terminal adapter cards in some of its access devices:
•
56K Modems
•
V.110 Terminal Adapters
•
V.34 Modems
shows which Cisco access devices provide hardware support for these dial technologies.
Table 9
Type of Modem or Terminal Adapter
|
Cisco AS5200
|
Cisco AS5300
|
Cisco 3600 Series
|
Cisco AccessPath Integrated Access System
|
56K modem card
|
Yes
|
Yes
|
Yes
|
Yes
|
V.110 terminal adapter module
|
Yes
|
No
|
No
|
No
|
V.34 modem card
|
Yes
|
Yes
|
Yes
|
Yes
|
Available Modems and Terminal Adapters
56K Modems
The 56K modems are used for making high-speed connections across digital networks. Ultimately, this means that files transmitted at up to 56 kbps arrive at the desktop nearly twice as fast as standard V.34 (28.8-kbps) connections. The wait for information is reduced by nearly 50 percent.
The 56K modems are ideal for serious Internet users who want to quickly dial-in to corporate LANs or download web pages containing sound, video, graphics, and other large files over digital networks using standard telephone lines.
Traditional modems assume that both ends of a modem conversation use an analog connection over the public switched telephone network. Data signals are converted from digital to analog and back again to digital, limiting transmission speeds to 33.6 kbps. The 56K modems, however, assume that one end of the modem conversation has a pure digital connection to the phone network and takes advantage of the high-speed digital connection. This is a new technique where the network is viewed as a digital transmission medium and the data is encoded for transmission over an end user's telephone line, which is also known as the local loop. The downstream data is digitally encoded instead of being modulated. Upstream analog-to-digital communication at the local loop can transmit up to 33.6 kbps. Downstream digital to analog communication at the local loop can transmit up to 56 kbps. To maximize channel bandwidth for 56 kbps connections, the Integrated Services Digital Network Primary Rate Interface (ISDN PRI) must be used. (See .)
Figure 49 Remote PC Downloading Files over the Network at 56 kbps
Special digital signal processor (DSP) software is used in conjunction with 56K modem firmware to enable speeds up to 56 kbps. Both DSP and modem firmware are posted on the Cisco Connection Online (CCO) FTP server for upgrading purposes. Upgrade instructions are provided in the section "Upgrade Modem Firmware for 56K, V.34, and V.110 Cards" later in this chapter.
The following prerequisites apply to 56K modems:
•
K56flex-compatible modems must be present at both ends of a digital connection in a digital network. K56 requires a client-side modem and a server-side modem. If not, this speed cannot be achieved. All modem connections will fall back to V.34 speeds.
•
Only one analog loop can be in the end-to-end communications path.
•
You cannot have any A-law to U-law conversions, which exist at some international gateways.
V.110 Terminal Adapters
V.110 is a bit rate adaptation protocol defined by International Telecommunication Union (ITU). V.110 provides a standard method of encapsulating data over Global System for Mobile Telecommunications (GSM) and ISDN networks. A Cisco AS5200 loaded with V.110 terminal adapter modules provides corporate or Internet access to GSM mobile users.
The 12 port V.110 terminal adapter connects to the AS5200 TDM bus via the universal carrier card. There can be up to five V.110 modules in one Cisco AS5200, which is capable of terminating 60 V.110 sessions. Modem and V.110 terminal adapter port modules can coexist in the same Cisco AS5200. Based on ISDN Q.931 call bearer information, the Cisco IOS software routes calls to the appropriate port module for termination. For example, analog calls are terminated by the modem modules, GSM calls are serviced by the V.110 terminal adapter modules, and ISDN calls are sent to the PPP termination engine. This flexibility allows providing one telephone number to users for analog, GSM, and ISDN data calls.
shows a dial-in scenario for how V.110 technology can be used with Cisco AS5200 access servers:
Figure 50 V.110 Dial-In Scenario
V.34 Modems
Recommendation V.34 is the name of the standard that defines how modems should operate at 28.8 kbps. The previous standard for high speed modem communication was V.32bis, which defined how modems should operate at 14.4 kbps.
Manageable versus Nonmanageable Modems
Depending on which modem license you purchase with your access server or router, Cisco modems are either manageable or not manageable by the Cisco IOS software.
Manageable modems support the one out-of-band feature, which is used for gathering modem performance statistics and transmitting attention (AT) commands. Nonmanageable modems do not support the out-of-band feature nor the functionality associated with manageable modems. As you read through this chapter, note which commands apply to manageable versus nonmanageable modems.
provides a summary of the Cisco IOS commands supported by manageable modems versus nonmanageable modems.
Table 10 Commands for Manageable versus Nonmanageable Modems
Modem Commands
|
Supported by Manageable Modems
|
Supported by Nonmanageable Modems
|
clear modem
|
Yes
|
Yes
|
clear modem at-mode
|
Yes
|
No
|
clear modem counters
|
Yes
|
No
|
copy modem
|
Yes
|
Yes
|
modem at-mode
|
Yes
|
No
|
modem at-mode-permit
|
Yes
|
No
|
modem autotest
|
Yes
|
Yes
|
modem bad
|
Yes
|
Yes
|
modem buffer-size
|
Yes
|
No
|
modem busyout
|
Yes
|
Yes
|
modem hold-reset
|
Yes
|
Yes
|
modem poll time
|
Yes
|
No
|
modem recovery-time
|
Yes
|
No
|
modem shutdown
|
Yes
|
Yes
|
modem startup-test
|
Yes
|
Yes
|
modem status-poll
|
Yes
|
No
|
show modem
|
Yes
|
Yes
|
show modem at-mode
|
Yes
|
No
|
show modem call-stats
|
Yes
|
No
|
show modem connect-speeds
|
Yes
|
No
|
show modem cookie
|
Yes
|
Yes
|
show modem csm
|
Yes
|
Yes
|
show modem log
|
Yes
|
Yes
|
show modem summary
|
Yes
|
No
|
show modem test
|
Yes
|
Yes
|
show modem version
|
Yes
|
Yes
|
test modem back-to-back
|
Yes
|
Yes
|
Verify Connection Speed Performance
Making sure that your modems are connecting at the correct connection speeds is an important aspect of managing modems. To display modem connection speed statistics for a specific modem or range of modems, use the following EXEC commands:
Step
|
Command
|
Purpose
|
1
|
show modem connect-speeds [max-speed [slot]]
|
Displays connection speed statistics for all the modems.
|
2
|
show modem [slot/port | group number]
|
Displays a high-level performance report for all the modems or a single modem.
|
These commands also provide performance information to investigate possible bad or corrupt modems or T1/E1 lines. For example, suppose you have an access server that is fully populated with V.34 modems. If you notice that modem 1/0 is only getting V.34 connections 50% of the time, whereas all the other modems are getting V.34 connections 80% of the time, then modem 1/0 is probably malfunctioning or bad. If you are reading low connection speeds across all the modems, you may have a faulty channelized T1 or ISDN PRI line connection.
To display connection speed information for all modems running in your system, use the show modem connect-speeds max-speed EXEC command. Because most terminal screens are not wide enough to display the entire range of connection speeds at one time (for example, 75 to 56000 bps), the max-speed variable is used. This variable specifies the contents of a shifting baud-rate window, which provides you with a snap shot of the modem connection speeds for your system. Replace the max-speed argument with the maximum connect speed that you want to view. You can specify from 12000 to 56000 bps. If you are interested in viewing a snap shot of lower baud rates, specify a lower connection speed. If you are interested in viewing a snap shot of higher baud rates, specify a higher connection speed.
See the chapter "Modem Management Commands" in the Dial Solutions Command Reference for a complete description of each of the fields displayed in the following Microcom modem example:
router# show modem connect-speeds 33600
Mdm 14400 16800 19200 21600 24000 26400 28800 31200 33600 TotCnt
* 0/0 0 0 0 0 0 0 4 4 1 9
* 0/1 2 0 0 0 0 0 3 3 1 9
* 0/3 0 0 0 1 0 0 3 4 1 9
* 0/4 1 0 0 0 0 2 2 1 1 7
* 0/5 0 0 0 0 0 0 4 4 1 9
* 0/6 0 0 0 0 0 1 3 3 1 8
* 0/7 0 0 0 2 0 0 4 3 1 10
* 0/8 2 0 0 0 0 0 3 4 1 10
* 0/9 0 0 0 0 0 0 4 3 0 7
* 0/10 1 0 0 0 0 1 3 2 1 8
* 0/11 0 0 0 0 0 0 4 3 1 8
* 0/13 0 0 0 0 0 0 4 2 1 7
* 0/14 1 0 0 0 0 1 2 2 1 7
* 0/15 0 0 0 0 0 0 4 2 1 7
* 0/16 0 0 0 1 0 0 3 2 1 7
* 0/17 1 0 0 0 0 0 4 2 1 8
* 0/18 1 0 0 0 0 0 3 3 1 8
* 0/19 0 0 0 0 0 0 5 3 1 9
* 0/20 0 0 0 0 0 0 4 2 1 7
* 0/21 1 0 0 0 0 0 4 2 0 7
* 0/22 0 0 0 0 0 0 7 9 1 17
* 0/23 0 0 0 0 0 2 2 3 1 8
* 2/0 0 0 0 1 0 0 3 3 1 8
* 2/1 0 0 0 0 0 0 5 2 1 8
* 2/2 0 0 0 1 0 0 4 1 1 7
* 2/3 1 0 0 0 0 0 4 2 1 8
* 2/4 0 0 0 0 0 0 5 2 1 8
* 2/5 0 0 0 0 0 0 4 3 1 8
* 2/6 0 0 0 0 0 0 3 2 1 6
* 2/7 1 0 0 0 0 1 3 2 0 7
* 2/8 1 0 0 0 0 0 3 2 1 7
* 2/9 0 0 0 0 0 1 3 2 1 7
* 2/10 2 0 0 0 0 2 1 0 1 6
* 2/11 0 0 0 1 0 1 3 5 1 11
* 2/12 0 0 0 0 0 0 5 2 1 8
* 2/13 1 0 0 0 0 0 5 0 1 7
* 2/14 1 0 0 0 0 0 3 3 1 8
* 2/15 1 0 0 0 0 1 2 3 1 8
* 2/16 0 0 0 0 0 0 4 3 1 8
* 2/17 0 0 0 0 0 0 5 11 0 16
* 2/18 0 0 0 1 0 1 1 2 1 6
* 2/19 0 0 0 0 0 0 2 3 1 6
* 2/20 1 0 0 0 0 2 3 9 1 16
* 2/21 1 0 0 0 0 0 4 1 1 7
* 2/22 0 0 0 1 0 0 2 3 1 7
* 2/23 0 0 0 0 0 1 3 3 1 8
Tot 23 0 0 9 0 18 165 141 44 400
Tot % 5 0 0 2 0 4 41 35 11
Mdm 14400 16800 19200 21600 24000 26400 28800 31200 33600 TotCnt
* 0/0 0 0 0 0 0 4 1 3 1 9
* 0/1 2 0 0 0 0 3 1 2 1 9
* 0/3 0 0 0 1 0 3 4 0 1 9
* 0/4 1 0 0 0 0 4 0 1 1 7
* 0/5 0 0 0 0 0 4 3 1 1 9
* 0/6 0 0 0 0 0 4 0 3 1 8
* 0/7 0 0 0 2 0 4 1 2 1 10
* 0/8 2 0 0 0 0 3 0 5 0 10
* 0/9 0 0 0 0 0 4 2 0 1 7
* 0/10 1 0 0 0 0 4 0 2 1 8
* 0/11 0 0 0 0 0 4 0 3 1 8
* 0/13 0 0 0 0 0 4 1 1 1 7
* 0/14 1 0 0 0 0 2 3 0 1 7
* 0/15 0 0 0 0 0 4 1 1 1 7
* 0/16 0 0 0 1 0 3 2 0 1 7
* 0/17 1 0 0 0 0 4 1 1 1 8
* 0/18 1 0 0 0 0 3 2 1 1 8
* 0/19 0 0 0 0 0 5 1 2 1 9
* 0/20 0 0 0 0 0 4 0 3 0 7
* 0/21 1 0 0 0 0 4 0 1 1 7
* 0/22 0 0 0 0 0 6 6 4 1 17
* 0/23 0 0 0 0 0 4 2 1 1 8
* 2/0 0 0 0 1 0 3 1 2 1 8
* 2/1 0 0 0 0 0 3 3 1 1 8
* 2/2 0 0 0 1 0 4 0 1 1 7
* 2/3 1 0 0 0 0 3 2 1 1 8
* 2/4 0 0 0 0 0 4 2 1 1 8
* 2/5 0 0 0 0 0 4 1 2 1 8
* 2/6 0 0 0 0 0 3 0 3 0 6
* 2/7 1 0 0 0 1 2 2 0 1 7
* 2/8 1 0 0 0 0 3 0 2 1 7
* 2/9 0 0 0 0 0 4 1 1 1 7
* 2/10 2 0 0 0 0 3 0 0 1 6
* 2/11 0 0 0 1 0 3 1 5 1 11
* 2/12 0 0 0 0 0 4 3 0 1 8
* 2/13 1 0 0 0 0 2 3 0 1 7
* 2/14 1 0 0 0 0 3 2 1 1 8
* 2/15 1 0 0 0 0 3 0 3 1 8
* 2/16 0 0 0 0 0 4 0 4 0 8
* 2/17 0 0 0 0 0 5 2 8 1 16
* 2/18 0 0 1 0 0 2 1 1 1 6
* 2/19 0 0 0 0 0 2 2 1 1 6
* 2/20 1 0 0 0 0 4 2 8 1 16
* 2/21 1 0 0 0 0 4 0 1 1 7
* 2/22 0 0 1 0 0 2 0 3 1 7
* 2/23 0 0 0 0 0 4 2 1 1 8
Tot 23 0 2 7 1 167 64 92 44 400
Tot % 5 0 0 1 0 41 16 23 11
The following example shows the connection statistics for modem 1/2, which is a V.34 Microcom modem. See the chapter "Modem Management Commands" in the Dial Solutions Command Reference for a complete description of each of the displayed fields:
Mdm Typ Status Tx/Rx G Duration TX RX RTS CTS DSR DCD DTR
1/2 V34 Idle 26400/28800 1 00:18:42 x x x x
Modem 1/2, Microcom (Select), Async3, TTY3
Firmware (Boot) Rev: 3.1(30) (3.0(4))
DSP Controller (SPX) Rev: 1.1(0) (1.1(0))
Modem config: Incoming and Outgoing
Protocol: reliable/LAPM, Compression: V42bis
Management port config: Status polling and AT session
Management port status: Status polling and AT session
TX signals: -13 dBm, RX signals: -19 dBm
Last clearing of "show modem" counters never
122 incoming completes, 6 incoming failures
0 outgoing completes, 0 outgoing failures
0 failed dial attempts, 0 ring no answers, 0 busied outs
0 no dial tones, 0 dial timeouts, 0 watchdog timeouts
6 no carriers, 0 link failures, 2 resets, 0 recover oob
0 protocol timeouts, 0 protocol errors, 0 lost events
Connection Speeds 75 300 600 1200 2400 4800
# of connections 0 0 0 0 0 0
Connection Speeds 7200 9600 12000 14400 16800 19200
# of connections 0 0 1 1 2 3
Connection Speeds 21600 24000 26400 28800 31200 32000
# of connections 18 13 51 32 1 0
Connection Speeds 33600 34000 36000 38000 40000 42000
# of connections 0 0 0 0 0 0
Connection Speeds 44000 46000 48000 50000 52000 54000
# of connections 0 0 0 0 0 0
Connection Speeds 75 300 600 1200 2400 4800
# of connections 0 0 0 0 0 0
Connection Speeds 7200 9600 12000 14400 16800 19200
# of connections 0 0 1 1 0 3
Connection Speeds 21600 24000 26400 28800 31200 32000
# of connections 2 16 60 39 0 0
Connection Speeds 33600 34000 36000 38000 40000 42000
# of connections 0 0 0 0 0 0
Connection Speeds 44000 46000 48000 50000 52000 54000
# of connections 0 0 0 0 0 0
The next example shows example output for the show modem command. See the chapter "Modem Management Commands" in the Dial Solutions Command Reference for a complete description of each of the displayed fields:
Inc calls Out calls Busied Failed No Succ
Mdm Usage Succ Fail Succ Fail Out Dial Answer Pct.
* 1/0 37% 98 4 0 0 0 0 0 96%
1/1 38% 98 2 0 0 0 0 0 98%
1/2 35% 122 6 0 0 0 0 0 95%
1/3 37% 104 4 0 0 0 0 0 96%
* 1/4 39% 104 5 0 0 0 1 1 95%
* 1/5 37% 96 4 0 0 0 0 0 96%
* 1/6 37% 120 6 0 0 0 0 0 95%
1/7 34% 130 5 0 0 0 0 0 96%
1/8 39% 111 6 0 0 0 1 1 94%
1/9 37% 108 4 0 0 0 0 0 96%
* 1/10 39% 115 8 0 0 0 0 0 93%
* 1/11 37% 86 3 0 0 0 0 0 96%
* 1/12 38% 121 3 0 0 0 1 1 97%
1/13 35% 107 6 0 0 0 0 0 94%
* 1/14 37% 92 5 0 0 0 0 0 94%
1/15 41% 106 9 0 0 0 0 0 92%
1/16 35% 112 6 0 0 0 0 0 94%
1/17 39% 101 3 0 0 0 0 0 97%
1/18 40% 102 7 0 0 0 0 0 93%
1/19 37% 93 3 0 0 0 0 0 96%
1/20 42% 97 4 0 0 0 0 0 96%
1/21 38% 86 5 0 0 0 0 0 94%
* 1/22 40% 104 10 0 0 0 0 0 91%
1/23 41% 76 5 0 0 0 0 0 93%
Automatically Run a Modem Diagnostics Test
You can automatically run a diagnostics test for on modems inside access servers, such as a Cisco AS5200 loaded with Microcom modems. Modems that fail the test are automatically busied out of service. To do this, issue the modem autotest global configuration command, which is described in the following sections:
•
How the Modem Autotest Works
•
Preliminary Usage Guidelines
•
Setup the Modem Autotest
•
Modem Autotest Example
•
Manually Isolating a Back-to-Back Modem Test Example
Note
The modem autotest feature is not supported on the Cisco 3600 series routers populated with MICA digital modem cards. However, the Cisco 3600 series does support a limited power on startup test, which automatically removes inoperable modems from dial-up services.
How the Modem Autotest Works
The access server or router performs the test by automatically conducting a series of back-to-back connections and data transfers between two internal modems. The data transfer consists of sending one packet that is 10-bytes large between two modems. All modem test connections occur inside the system. A modem involved in a back-to-back modem test is temporarily marked as busy, which means the modem will not accept a call while the test is running.
If all modems are currently active and the modem autotest is activated, the test will wait until at least two modems drop their calls and become available. The modem auto test moves on to test a second pair of modems as soon as two additional modems become available, and so on. To disable the modem autotest at any time, issue the no modem autotest command.
Preliminary Usage Guidelines
We recommend that you set the modem autotest to run during off-peak hours. This provides maximum access to your remote users. For example, if you are an Internet service provider and your peak dial-in hours are between 5:00 p.m. and 12:00 p.m. on weekdays, configure the test to run automatically at 3:00 a.m. on Saturday mornings. Bad or inoperable modems detected by the test will automatically be busied out. See .
Figure 51 Sample Demand Curve for Dial Access
There are specific syntax functions used for the modem autotest time hh:mm [interval#] command. The required time hh:mm parameter specifies the start time to initiate the test in hours and minutes (hh:mm; for example 1:00 a.m. is specified as 01:00). By default, the test runs once every 24 hours when enabled. The modem autotest feature synchronizes its timing with the access server's internal clock. The interval# parameter gives you the opportunity to specify which day and hour of the week you want the test to run. In place of the interval parameter specify the hour that you want to start the test, which can be between 1 and 168 hours ahead of the current time. For example, suppose that today is Friday and the current time on the access server is 3:00 p.m. If you want the test to run once every Saturday at 3:00 a.m., enter the modem autotest time 03:00 168 command (03:00 = 3:00 a.m. in military time; 168 = 7 days).
Use the show clock EXEC command to determine the current time set on the access server.
Use the show modem test EXEC command to see the results of the modem autotest. This command displays which modems were tested and the results of the test. You can also use the show modem EXEC command to see which modems are marked bad by the modem autotest command. To disable the test at any time, issue the no modem autotest command.
Setup the Modem Autotest
To set up the modem autotest, perform the following tasks beginning in EXEC mode:
Step
|
Command
|
Purpose
|
1
|
show clock
|
Take note of the current time set on the access server or router. The modem autotest synchronizes with this time. Be sure this clock matches the current actual time in your time zone.
|
2
|
configure terminal
|
Enter global configuration mode.
|
3
|
modem autotest time hh:mm [interval]
|
Specify the time you want the modem test to automatically begin. Express it in hours and minutes in military time.1
|
4
|
modem autotest minimum number
|
Set the minimum number of modems that will remain untested and available to accept calls during each test cycle. The default is six modems.
|
5
|
modem autotest error threshold
|
Specify a maximum consecutive modem error count that will trigger the modem autotest. You can configure the system to watch for between 3 and 50 errors before the modem autotest begins. To view the list of monitored errors, issue the show modem call-stats command.
|
6
|
exit
|
Return to EXEC mode.
|
7
|
show modem test
|
Display the results of the modem autotest after it has run.
|
8
|
show modem
|
Display the complete list of which modems are marked bad versus good.2
|
Modem Autotest Example
The following example shows how to set the modem autotest to run once per week on Tuesdays at 3:00 a.m. Additionally, the autotest will activate if the system detects a modem error count higher than 40 errors.
Step 1
Use the set clock EXEC command to determine the current time set on the router or access server. In this example, the time and date set on the following router is 3:00 p.m, Monday, August 25, 1997.
*15:00:01.031 EST Aug 25 1997
Step 2
Enter global configuration mode and set the modem autotest using the modem autotest time command. In this example, the access server is configured to run the modem autotest every Tuesday at 3:00 a.m.
router# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
router(config)# modem autotest time 03:00 168
Step 3
Configure the autotest to activate if the system detects a high modem error count. In this example, the autotest activates if the system detects a modem error count higher than 40 errors. To view the list of monitored errors, issue the show modem call-stats EXEC command.
router(config)# modem autotest error 40
%SYS-5-CONFIG_I: Configured from console by console
Step 4
Display the results of the modem autotest after the test has run through a test cycle by issuing the show modem test EXEC command:
Date Time Modem Test Reason State Result
5/15 07:25:17 AM 1/0 Back-To-Back TIME INTERVAL Idle FAIL
5/15 07:25:17 AM 1/1 Back-To-Back TIME INTERVAL Idle PASS
5/15 07:25:17 AM 1/2 Back-To-Back TIME INTERVAL Idle PASS
5/15 07:25:17 AM 1/3 Back-To-Back TIME INTERVAL Idle FAIL
5/15 07:25:17 AM 1/4 Back-To-Back TIME INTERVAL Idle PASS
5/15 07:25:17 AM 1/5 Back-To-Back TIME INTERVAL Idle PASS
5/15 07:25:17 AM 1/6 Back-To-Back TIME INTERVAL Idle PASS
5/15 07:25:17 AM 1/7 Back-To-Back TIME INTERVAL Idle PASS
5/15 07:25:17 AM 1/8 Back-To-Back TIME INTERVAL Idle PASS
5/15 07:25:17 AM 1/9 Back-To-Back TIME INTERVAL Idle PASS
Alternatively, you can view which modems were marked bad by the modem autotest by issuing the show modem EXEC command. Bad modems are marked by the letter B. In this example, modem 1/0 and 1/3 are marked bad, which takes them out of commission and makes them unable to participate in dial services.
%SYS-5-CONFIG_I: Configured from console by consolem
Inc calls Out calls Busied Failed No Succ
Mdm Usage Succ Fail Succ Fail Out Dial Answer Pct.
B 1/0 0% 0 0 0 0 1 0 0 0%
B 1/3 0% 0 0 0 0 1 0 0 0%
Manually Isolating a Back-to-Back Modem Test Example
You can also manually isolate an internal back-to-back connection and data transfer between two modems for focused troubleshooting purposes. For example, if mobile users cannot dial in to modem 2/5 (which is the sixth modem port on the modem board in the second chassis slot), attempt a back-to-back test with modem 2/5 and a modem known to be functioning, such as modem 2/6. To do this, issue the test modem back-to-back slot/port slot/port.
You might need to enable this command on several different combinations of modems to determine which one is not functioning properly. A pair of operable modems successfully connect and complete transmitting data in both directions. An operable modem and an inoperable modem do not successfully connect with each other.
Step 1
Perform a back-to-back modem test between two normal functioning modems. This example shows a successful connection between modem 1/1 and modem 1/0, which verifies normal operating conditions between these two modems.
AS5200# test modem back-to-back 1/1 1/0
Repetitions (of 10-byte packets) [1]: 10
%MODEM-5-B2BCONNECT: Modems (1/1) and (1/0) connected in back-to-back test: CONN
%MODEM-5-B2BMODEMS: Modems (1/0) and (1/1) completed back-to-back test: success/
After you enter the test modem back-to-back command, you must define the number of packets transmitted between modems at the Repetitions prompt. The ideal range of packets to transmit and receive is from 1 to 100. The default is 1 packet that is 10-bytes large. The response message (for example, "success/packets = 2/2") tells you how many packets were successfully sent in both directions compared to the total number of packets attempted to be sent in both directions. Because the software reports the packet total in both directions, the reported numbers are two times the number you originally specify.
Step 2
However, when modem 1/1 is tested against modem 1/3, the back-to-back modem test fails. Therefore, modem 1/3 is suspected or proven to be inoperable or bad.
router# test modem back-to-back 1/1 1/3
Repetitions (of 10-byte packets) [1]: 10
%MODEM-5-BADMODEMS: Modems (1/3) and (1/1) failed back-to-back test: NOCARRIER
Step 3
Next, you need to manually mark modem 1/3 as an inoperable or bad modem. To do this, you must first find out which line number corresponds with modem 1/3. By issuing the show modem 1/3 EXEC command, you can see that TTY line number 4 (shown as TTY4) is used for modem 1/3.
Mdm Typ Status Tx/Rx G Duration TX RX RTS CTS DSR DCD DTR
1/3 V34 Idle 28800/28800 0 00:00:00 x x x x x
Modem 1/3, Microcom MNP10 V34 Modem (Managed), TTY4
Firmware (Boot) Rev: 1.0(23) (1.0(5))
Modem config: Incoming and Outgoing
Protocol: reliable/MNP, Compression: V42bis
Management port config: Status polling and AT session
Management port status: Status polling and AT session
TX signals: -15 dBm, RX signals: -17 dBm
Last clearing of "show modem" counters never
0 incoming completes, 0 incoming failures
0 outgoing completes, 0 outgoing failures
0 failed dial attempts, 0 ring no answers, 1 busied outs
0 no dial tones, 0 dial timeouts, 0 watchdog timeouts
0 no carriers, 0 link failures, 0 resets, 0 recover oob
0 protocol timeouts, 0 protocol errors, 0 lost events
Connection Speeds 75 300 600 1200 2400 4800
# of connections 0 0 0 0 0 0
Connection Speeds 7200 9600 12000 14400 16800 19200
# of connections 0 0 0 0 0 0
Connection Speeds 21600 24000 26400 28800 31200 32000
# of connections 0 0 0 1 0 0
Connection Speeds 33600 34000 36000 38000 40000 42000
# of connections 0 0 0 0 0 0
Connection Speeds 44000 46000 48000 50000 52000 54000
# of connections 0 0 0 0 0 0
Step 4
Enter line configuration mode and manually remove modem 1/3 from dial services by issuing the modem bad command on line 4:
router# configure terminal
router(config-line)# modem bad
router(config-line)# exit
Step 5
You can now issue the show modem EXEC command or the show modem slot/port command to display the bad modem status.
Bad modems are marked with the letter B in the show modem command display output:
%SYS-5-CONFIG_I: Configured from console by consolem
Inc calls Out calls Busied Failed No Succ
Mdm Usage Succ Fail Succ Fail Out Dial Answer Pct.
B 1/3 0% 0 0 0 0 1 0 0 0%
Bad modems are also marked as Bad in the Status column of the show modem slot/port command's display output:
Mdm Typ Status Tx/Rx G Duration TX RX RTS CTS DSR DCD DTR
1/3 V34 Bad 28800/28800 0 00:00:00 x x x x x
Modem 1/3, Microcom MNP10 V34 Modem (Managed), TTY4
Firmware (Boot) Rev: 1.0(23) (1.0(5))
Modem config: Incoming and Outgoing
Protocol: reliable/MNP, Compression: V42bis
Management port config: Status polling and AT session
Management port status: Status polling and AT session
TX signals: -15 dBm, RX signals: -17 dBm
Last clearing of "show modem" counters never
0 incoming completes, 0 incoming failures
0 outgoing completes, 0 outgoing failures
0 failed dial attempts, 0 ring no answers, 1 busied outs
0 no dial tones, 0 dial timeouts, 0 watchdog timeouts
0 no carriers, 0 link failures, 0 resets, 0 recover oob
0 protocol timeouts, 0 protocol errors, 0 lost events
Connection Speeds 75 300 600 1200 2400 4800
# of connections 0 0 0 0 0 0
Connection Speeds 7200 9600 12000 14400 16800 19200
# of connections 0 0 0 0 0 0
Connection Speeds 21600 24000 26400 28800 31200 32000
# of connections 0 0 0 1 0 0
Connection Speeds 33600 34000 36000 38000 40000 42000
# of connections 0 0 0 0 0 0
Connection Speeds 44000 46000 48000 50000 52000 54000
# of connections 0 0 0 0 0 0
Display Local Disconnect Reasons
Use the show modem call-stats [slot] EXEC command to find out why a modem ended its connection or why a modem is not operating at peek performance.
Local disconnect reasons are listed across the top of the screen display (for example, wdogTimr, compress, retrain, inacTout, linkFail, moduFail, mnpProto, and lapmProt). In the body of the screen display, the number of times each modem disconnected is displayed (see the # column). For a particular disconnect reason, the % column indicates the percent that a modem was logged for the specified disconnect reason with respect to the entire modem pool for that given reason. For example, out of all the times the rmtLink error occurred on all the modems in the system, the rmtLink error occurred 10% of the time on modem 0/22.
Bad or malfunctioning modems are detected by an unusually high number of disconnect counters for a particular disconnect reason. For example, if modem 1/0 had an astronomically high number of compression errors compared to the remaining modems in system, modem 1/0 would probably be bad or inoperable.
To reset the counters displayed by the show modem call-stats command, issue the clear modem counters command.
Note
For a complete description of each of the error display fields, see the chapter "Modem Management Commands" in the Dial Solutions Command Reference. Remote disconnect reasons are not described by this command.
The following example displays output for the show modem call-stats command. Due to the screen size limitation of most terminal screen displays, not all the possible disconnect reasons are displayed at one time. Only the top eight most frequently experienced disconnect reasons are displayed at one time.
router# show modem call-stats
dial-in/dial-out call statistics
lostCarr dtrDrop rmtLink wdogTimr compress retrain inacTout linkFail
Mdm # % # % # % # % # % # % # % # %
* 0/0 6 2 2 3 1 0 0 0 0 0 0 0 0 0 0 0
* 0/1 5 2 2 3 2 1 0 0 0 0 0 0 0 0 0 0
0/2 5 2 2 3 4 3 0 0 0 0 0 0 0 0 0 0
* 0/3 5 2 2 3 2 1 0 0 0 0 0 0 0 0 0 0
* 0/4 5 2 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 0/5 5 2 2 3 2 1 0 0 0 0 0 0 0 0 0 0
* 0/6 4 1 2 3 2 1 0 0 0 0 0 0 0 0 0 0
* 0/7 4 1 2 3 4 3 0 0 0 0 0 0 0 0 0 0
* 0/8 6 2 1 1 3 2 0 0 0 0 0 0 0 0 0 0
* 0/9 5 2 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 0/10 5 2 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 0/11 5 2 1 1 2 1 0 0 0 0 0 0 0 0 0 0
0/12 5 2 2 3 2 1 0 0 0 0 0 0 0 0 0 0
* 0/13 5 2 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 0/14 5 2 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 0/15 5 2 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 0/16 5 2 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 0/17 5 2 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 0/18 5 2 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 0/19 5 2 1 1 3 2 0 0 0 0 0 0 0 0 0 0
* 0/20 5 2 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 0/21 5 2 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 0/22 5 2 1 1 11 10 0 0 0 0 0 0 0 0 0 0
* 0/23 5 2 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 2/0 4 1 2 3 2 1 0 0 0 0 0 0 0 0 0 0
* 2/1 5 2 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 2/2 5 2 2 3 0 0 0 0 0 0 0 0 0 0 0 0
* 2/3 5 2 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 2/4 5 2 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 2/5 5 2 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 2/6 4 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 2/7 5 2 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 2/8 5 2 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 2/9 4 1 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 2/10 5 2 1 1 0 0 0 0 0 0 0 0 0 0 0 0
* 2/11 5 2 1 1 5 4 0 0 0 0 0 0 0 0 0 0
* 2/12 5 2 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 2/13 5 2 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 2/14 5 2 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 2/15 4 1 1 1 3 2 0 0 0 0 0 0 0 0 0 0
* 2/16 4 1 1 1 3 2 0 0 0 0 0 0 0 0 0 0
* 2/17 5 2 2 3 9 8 0 0 0 0 0 0 0 0 0 0
* 2/18 4 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 2/19 3 1 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 2/20 7 3 1 1 8 7 0 0 0 0 0 0 0 0 0 0
* 2/21 5 2 1 1 1 0 0 0 0 0 0 0 0 0 0 0
* 2/22 4 1 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 2/23 5 2 1 1 2 1 0 0 0 0 0 0 0 0 0 0
Total 233 59 110 0 0 0 0 0
noCarr noDitone busy abort dialStrg autoLgon dialTout rmtHgup
Mdm # % # % # % # % # % # % # % # %
* 0/0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0/2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/3 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/4 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/5 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/6 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/7 5 5 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/8 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/9 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/10 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/11 5 5 0 0 0 0 0 0 0 0 0 0 0 0 0 0
0/12 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/13 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/14 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/15 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/16 2 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/17 4 4 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/18 5 5 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/19 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/20 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/21 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/22 5 5 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 0/23 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/0 2 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/1 3 3 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/4 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/5 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/6 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/7 4 4 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/8 7 8 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/9 4 1 1 1 2 1 0 0 0 0 0 0 0 0 0 0
* 2/10 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/11 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/12 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/13 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/14 4 4 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/15 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/16 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/17 5 5 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/18 5 5 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/19 3 3 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/20 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/21 4 4 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/22 2 2 0 0 0 0 0 0 0 0 0 0 0 0 0 0
* 2/23 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Upgrade Modem Firmware for 56K, V.34, and V.110 Cards
New versions of modem firmware are regularly posted to the Cisco Connection Online (CCO) server for you to download to your system. However, you must be a CCO registered user to access these files. These new versions of firmware contain bug fixes or new modem features, which improves your system's overall modem performance.
Note
The modem download procedures described in this section do not apply to MICA digital modems. Only Micocom modem support is described.
The typical way to download firmware is shown in . Use a PC or UNIX workstation to access CCO and download the new firmware to your desktop computer. After the firmware is downloaded, transfer it to a TFTP server somewhere on your LAN. You might be able to set up your workstation as a TFTP server. Next, log on to the access server or router to which you want to upgrade modem firmware and issue the Cisco IOS copy command to copy the file to the integrated modems.
Figure 52 Downloading Modem Firmware from CCO to Your Modems
Perform the following two steps to download modem firmware from CCO to your integrated modems:
Step 1—Download the Modem Firmware from CCO to Your Workstation
Step 2—Copy the Firmware from a Local TFTP Server to the Access Server or Router
These steps are explained in detail in the next sections.
Step 1—Download the Modem Firmware from CCO to Your Workstation
Choose a method to download these files from Cisco Systems:
•
Download Method 1—Use an Internet Browser
•
Download Method 2—Use a Traditional FTP Application
Download Method 1—Use an Internet Browser
This section describes the procedure for logging onto Cisco System's Software Center and downloading new modem firmware to a workstation. You must log in as a Cisco registered user.
Note
After the files are downloaded to your desktop computer, you must transfer them to a TFTP server on your network using an FTP application. The Cisco IOS software uses the copy tftp command to copy files from remote servers to access servers or routers. However, check to see if your workstation can be set up as TFTP server. If so, you do not need to transfer the files. Use your workstation as a server instead.
Step 1
Launch an Internet browser.
Step 2
Bring up Cisco Systems' Software Center home page at the following URL, which is subject to change without notice, and enter you CCO registered username and password at the prompt:
http://www.cisco.com/public/sw-center
Step 3
Find the firmware you want. Next, download it to your local workstation. For example, suppose you are looking for the latest Microcom firmware for the Cisco AS5200. Click the Access Products hot link. The Access Products window is displayed.
Step 4
Click Cisco AS5200 Series Software.
Step 5
Click Download Microcom Modem Firmware (for the type of modems installed in your access server or router).
Step 6
Select the version of firmware you want to download.
Step 7
Follow the remaining download instructions.
Step 8
After the firmware is downloaded to your workstation, you must transfer the file to a TFTP server somewhere in your LAN using a terminal emulation software application.
Download Method 2—Use a Traditional FTP Application
Take the following steps to download firmware files from Cisco's CCO FTP server using an FTP client application.
Note
The directory path leading to the firmware files on cco.cisco.com is subject to change without notice. If you cannot access the files using an FTP application, try taking the URL route at http://www.cisco.com/public/sw-center.
Step 1
Log in to Cisco Systems' CCO FTP server, which is called cco.cisco.com:
terminal> ftp cco.cisco.com
Connected to cio-sys.cisco.com.
Cisco Connection Online | | Cisco Systems, Inc.
Email: cco-team@cisco.com ||| ||| 170 West Tasman Drive
Phone: +1.800.553.2447 .:|||||:..:|||||:. San Jose, CA 95134
NOTE: As of February 1, 1997 ftp.cisco.com will now point to this
service. Please be advised. To use the former ftp.cisco.com after
February 1, connect to ftpeng.cisco.com
+ Your CCO username and password, or
+ A special access code followed by your e-mail address, or
+ "anonymous" followed by your e-mail address for guest access.
cio-sys FTP server (CIOESD #103 Sun Dec 15 14:43:43 PST 1996) ready.
Step 2
Enter your CCO registered username and password (for example, harry and letmein):
Name (cco.cisco.com:harry): harry
Password required for harry.
##########################################################################
# Welcome to the Cisco Systems CCO FTP server.
# This server has a number of restrictions. If you are not familiar
# with these, please first get and read the /README or /README.TXT
# file.http://www.cisco.com/acs/info/cioesd.html for more info.
##########################################################################
***** NOTE: As of February 1, 1997, "cco.cisco.com", *****
***** "www.cisco.com" and "ftp.cisco.com" are now all *****
***** logical names for the same machine. *****
***** The old "ftp.cisco.com" is an entirely *****
***** different machine, which is now known as *****
***** "ftpeng.cisco.com" or "ftp-eng.cisco.com". *****
***** In general, "ftpeng.cisco.com" is used only for *****
***** distribution of Cisco Engineering-controlled *****
***** projects, such as beta programs, early field *****
***** trials, developing standards documents, etc. *****
***** Be sure to confirm you have connected to *****
***** the machine you need to interact with. *****
If you have any odd problems, try logging in with a minus sign (-)
as the first character of your password. This will turn off a feature
that may be confusing your ftp client program.
Please send any questions, comments, or problem reports about this
server to cco-team@cisco.com.
To download files from CCO, you must be running a *passive-mode*
To drop files on this system, you must cd to the /drop directory.
Mirrors of this server can be found at
+ ftp://www-europe.cisco.com European (Amsterdam)
+ ftp://www-fr.cisco.com France (Paris)
+ ftp://www-au.cisco.com Australia (Sydney)
+ ftp://www-jp.cisco.com Japan (Tokyo)
+ ftp://www-kr.cisco.com Korea (Seoul)
Please read the file README
it was last modified on Sat Feb 1 12:49:31 1997 - 163 days ago
ser harry logged in. Access restrictions apply.
Remote system type is UNIX.
Using binary mode to transfer files.
Step 3
Specify the directory path that holds the modem firmware you want to download. Suppose you want 56K modem firmware for the Cisco AS5200, the directory path would be /cisco/access/5200/56k:
ftp> cd /cisco/access/5200/56k
Please read the file README
it was last modified on Tue May 27 10:07:38 1997 - 48 days ago
Please read the file README.txt
it was last modified on Tue May 27 10:07:38 1997 - 48 days ago
Step 4
View the contents of the directory with the ls command:
Entering Passive Mode (192,31,7,130,218,128)
Opening ASCII mode data connection for /bin/ls.
drwxr-s--T 2 ftpadmin ftpcio 512 Jun 30 18:11 .
drwxr-sr-t 19 ftpadmin ftpcio 512 Jun 23 10:26 ..
lrwxrwxrwx 1 root 3 10 Aug 6 1996 README -> README.txt
-rw-rw-r-- 1 root ftpcio 2304 May 27 10:07 README.txt
-r--r--r-- 1 ftpadmin ftpint 96708 Jul 10 18:08 mcom-modem-dsp-3.1.30-1.1.0.bin
-r--r--r-- 1 ftpadmin ftpint 280208 Jul 10 18:08 mcom-modem-fw-3.1.30-1.1.0.bin
Step 5
Specify a binary image transfer:
Step 6
Copy the modem firmware files from the server to your local environment with the get command.
The following example downloads the modem firmware file mcom-modem-fw-3.1.30-1.1.0.bin:
ftp> get mcom-modem-fw-3.1.30-1.1.0.bin
Opening BINARY mode data connection for mcom-modem-fw-3.1.30-1.1.0.bin (280208
bytes).
local: mcom-modem-fw-3.1.30-1.1.0.bin remote: mcom-modem-fw-3.1.30-1.1.0.bin
280208 bytes received in 0.63 seconds (4.4e+02 Kbytes/s)
Step 7
Quit your terminal session:
Step 8
Verify that you successfully transferred the files to your local directory:
-r--r--r-- 1 96708 Jul 10 18:08 mcom-modem-dsp-3.1.30-1.1.0.bin
-r--r--r-- 1 280208 Jul 10 18:08 mcom-modem-fw-3.1.30-1.1.0.bin
If you haven't already done so, you must now transfer these files to a local TFTP or rcp server that your access server or router can access.
Step 2—Copy the Firmware from a Local TFTP Server to the Access Server or Router
Depending on the type of modems installed in your system, the download instructions will vary. Refer to the instructions that best describe your scenario:
•
56K Firmware and DSP Upgrades
•
V.34 Firmware Upgrades
•
V.110 Firmware Upgrades
56K Firmware and DSP Upgrades
Perform the following steps to upgrade Microcom 56K modem firmware and DSP software. This section provides an example to upgrade the firmware on 56K modems loaded in a Cisco AS5200 access server.
Note
This section describes the two file download method for Microcom modem cards. It does not describe how to download firmware for MICA modems nor the single file download method for Microcom modems (a single file downloaded from Cisco's CCO FTP server, which contains both modem firmware and DSP software). Refer to your product-specific documentation for information about single file 56K downloads and MICA downloads.
•
Step 1—Create an Empty Boot Flash Memory Image File on Your TFTP Server
•
Step 2—Back Up the Boot Flash Image and Disable Modem Autoconfigure
•
Step 3—Upgrade to the Latest 56K Modem Firmware
•
Step 4—Download the RAM-Based DSP Software to Boot Flash Memory
•
Step 5—Copy the RAM-Based DSP Software from Boot Flash Memory to the 56K Modems
Before 56K modems were introduced, modem firmware was upgraded with a single firmware file stored in the modem's Flash memory. The file remained in the modem's Flash memory. However with 56K modems, the modem's Flash memory is not large enough to retain the necessary software to transmit at 56 kbps. Therefore the software is divided into two parts—56K modem firmware and DSP software. The firmware resides in the modem's Flash memory. The DSP software, which is the core intelligence of K56flex technology, runs from the access server's RAM. Because the DSP software is not retained across reloads or power cycles, the image is stored in the access server's boot Flash memory. (See .)
Figure 53 Supported Copy Commands
Step 1—Create an Empty Boot Flash Memory Image File on Your TFTP Server
Before you back up your boot Flash image with the copy bootflash tftp command, you must create an empty destination file on your local TFTP server:
Step 1
Log on to the Cisco AS5200 and find out the name of the boot image file in boot Flash memory with the show bootflash command:
1 6465584 c5200-is-l.112-6.4
[6465648 bytes used, 1922960 available, 8388608 total]
8192K bytes of processor board Boot flash (Read/Write)
Step 2
Go to your TFTP server and create an empty file using your boot image's filename, then change its permissions to be world writable:
henry-sun:/tftpboot> touch c5200-is-l.112-6.4
henry-sun:/tftpboot> chmod 666 c5200-is-l.112-6.4
henry-sun:/tftpboot> ls -l c5200-is-l.112-6.4
-rw-rw-rw- 1 henry cisco 6465584 Jul 14 15:25 c5200-is-l.112-6.4
The placeholder or destination file is now created and prepared for the backup copy operation.
Step 2—Back Up the Boot Flash Image and Disable Modem Autoconfigure
For example, complete the following steps for a Cisco AS5200:
Step 1
Back up your Boot Flash image to a local TFTP server on your network with the copy bootflash tftp command. This provides a recovery mechanism for you in case you accidentally erase or damage your Boot Flash image in one of the later steps.
router# copy bootflash tftp
Step 2
Enter global configuration mode and disable the modem autoconfigure command on the TTY lines that correspond with the 56K modems. Ignore this step if this command is not enabled in your system configuration. In the following example, one 12-port 56K modem card is installed in slot 2:
router# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
router(config)# line 13 24
router(config-line)# no modem autoconfigure
router(config-line)# exit
%SYS-5-CONFIG_I: Configured from console by console
The boot image is now backed up and modem autoconfigure is disabled.
Step 3—Upgrade to the Latest 56K Modem Firmware
For example, complete the following steps for a Cisco AS5200:
Step 1
Log in to the Cisco AS5200 and copy the new modem firmware file from your TFTP server directly to the installed 56K modems using the copy tftp modem Privileged EXEC command:
Step 2
Specify the range of 56K modems that you want to upgrade. This example shows the range of modems to be 2/12 through 2/23:
Modem Numbers (<slot>/<port>[-<slot>/<port>] | group <number> | all)? 2/12-2/23
Step 3
Specify the name or address of the TFTP server holding the new modem firmware. Press the Return key to accept the default name or IP address enclosed in the brackets []. Also specify the source path/filename of the firmware.
Address or name of remote host [255.255.255.255]? tftp-server
Source file name? mcom-modem-fw-3.1.30-1.1.0.bin
Accessing file 'mcom-modem-fw-3.1.30-1.1.0.bin' on tftp-server...
Loading mcom-modem-fw-3.1.30-1.1.0.bin from 172.16.1.129 (via Ethernet0):
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
[OK - 280208/557056 bytes]
*Mar 2 08:18:49.143: %MODEM-5-DL_START: Modem (2/12) started firmware download
*Mar 2 08:18:51.147: %MODEM-5-DL_START: Modem (2/13) started firmware download
*Mar 2 08:18:53.151: %MODEM-5-DL_START: Modem (2/14) started firmware download
*Mar 2 08:18:55.155: %MODEM-5-DL_START: Modem (2/15) started firmware download
*Mar 2 08:18:57.159: %MODEM-5-DL_START: Modem (2/16) started firmware download
*Mar 2 08:18:59.163: %MODEM-5-DL_START: Modem (2/17) started firmware download
*Mar 2 08:19:01.167: %MODEM-5-DL_START: Modem (2/18) started firmware download
*Mar 2 08:19:03.171: %MODEM-5-DL_START: Modem (2/19) started firmware download
*Mar 2 08:19:05.175: %MODEM-5-DL_START: Modem (2/20) started firmware download
*Mar 2 08:19:07.179: %MODEM-5-DL_START: Modem (2/21) started firmware download
*Mar 2 08:19:09.179: %MODEM-5-DL_START: Modem (2/22) started firmware download
*Mar 2 08:19:11.183: %MODEM-5-DL_START: Modem (2/23) started firmware download
*Mar 2 08:20:01.959: %MODEM-5-DL_GOOD: Modem (2/17) completed firmware download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:20:02.251: %MODEM-5-DL_GOOD: Modem (2/18) completed firmware download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:20:03.019: %MODEM-5-DL_GOOD: Modem (2/15) completed firmware download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:20:03.023: %MODEM-5-DL_GOOD: Modem (2/16) completed firmware download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:20:03.347: %MODEM-5-DL_GOOD: Modem (2/14) completed firmware download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:20:03.355: %MODEM-5-DL_GOOD: Modem (2/19) completed firmware download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:20:04.711: %MODEM-5-DL_GOOD: Modem (2/13) completed firmware download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:20:05.739: %MODEM-5-DL_GOOD: Modem (2/12) completed firmware download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:20:05.747: %MODEM-5-DL_GOOD: Modem (2/20) completed firmware download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:20:05.751: %MODEM-5-DL_GOOD: Modem (2/21) completed firmware download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:20:06.007: %MODEM-5-DL_GOOD: Modem (2/22) completed firmware download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:20:09.375: %MODEM-5-DL_GOOD: Modem (2/23) completed firmware download:
MNPClass10K56flexModemRev3.1.30/85
The 56K modems are now upgraded to the latest version of modem firmware. The procedure for copying the DSP software from a local file server to the access server's boot Flash memory is described next.
•
Step 4—Download the RAM-Based DSP Software to Boot Flash Memory
•
Step 5—Copy the RAM-Based DSP Software from Boot Flash Memory to the 56K Modems
These two steps are performed only once. Although the DSP software runs from RAM, the Cisco IOS software automatically copies the DSP code from boot Flash memory to the 56K modems each time the access server power cycles in the future. After you copy the DSP software to boot Flash memory for the first time, you should not have to perform these steps again.
Step 4—Download the RAM-Based DSP Software to Boot Flash Memory
Step 1
Copy the DSP software file from your TFTP server to the access server's boot Flash memory using the copy tftp bootflash command. The Cisco IOS software prompts you with a sequence of questions such as name/address of the TFTP server and the DSP filename to be copied. Answer all of the questions accordingly.
router# copy tftp bootflash
1 2348148 as5200-boot-l.111-7.AA
[2348212 bytes used, 6040396 available, 8388608 total]
Step 2
Specify the address or name of the server that currently holds the DSP software. You must also specify the source path/filename of the DSP software and the destination filename. The system software proposes a destination filename for you, which is enclosed in square brackets []. Press the Return key to accept the default destination name.
Address or name of remote host [255.255.255.255]? tftp-server
Source file name? mcom-modem-dsp-3.1.30-1.1.0.bin
Destination file name [mcom-modem-dsp-3.1.30-1.1.0.bin]?
Accessing file 'mcom-modem-dsp-3.1.30-1.1.0.bin' on tftp-server...
Loading mcom-modem-dsp-3.1.30-1.1.0.bin from 172.16.1.129 (via Ethernet0): ! [OK]
Step 3
When the system asks to confirm erasing the Flash memory device before copying the DSP file, enter no. You will now see a warning message appear that says the DSP file cannot be executed on the system (unlike a feature set or system image). Ignore this message, because you do not want to erase the system's Flash memory.
Erase flash device before writing? [confirm] no
%Warning: File not a valid executable for this system
Step 4
Initiate the copy operation by entering y then pressing the Return key at the [confirm] prompt:
Step 5
Continue with the copy operation by entering yes and pressing the Return key:
Copy 'mcom-modem-dsp-3.1.30-1.1.0.bin' from server as
'mcom-modem-dsp-3.1.30-1.1.0.bin' into Flash WITHOUT erase? [yes/no] yes
Loading mcom-modem-dsp-3.1.30-1.1.0.bin from 172.16.1.129 (via Ethernet0):
!!!!!!!!!!!!!!!!!!![OK - 96708/6040396 bytes]
Verifying checksum... OK (0x9B87) Flash device copy took 00:00:02 [hh:mm:ss]
Now the DSP software is in the access server's boot Flash memory. Proceed to the next section, "Step 5—Copy the RAM-Based DSP Software from Boot Flash Memory to the 56K Modems" for step-by-step instructions on how to transfer the DSP image to the 56K modems.
Step 5—Copy the RAM-Based DSP Software from Boot Flash Memory to the 56K Modems
Step 1
Copy the DSP software to the 56K modems by entering the copy flash modem Privileged EXEC command. After you enter this command, specify the range of 56K modems that you want to target with the DSP software. In this example, only one 12-port 56K modem board is installed in the Cisco AS5200.
Modem Numbers (<slot>/<port>[-<slot>/<port>] | group <number> | all)? 2/12-2/23
Step 2
Specify the filename of the DSP software and press the Return key. Note that the filename must be preceded by bootflash:, which is necessary to address the file that is stored in boot Flash memory.
Name of file to copy? bootflash:mcom-modem-dsp-3.1.30-1.1.0.bin
[OK - 96708/278528 bytes]
Downloading modem DSP file: bootflash:mcom-modem-dsp-3.1.30-1.1.0.bin
Step 3
Proceed with the DSP download by entering y and pressing the Return key:
Proceed with DSP download? [n]: y
Downloading modem DSP file. Check current modem firmware version.
If firmware version is not the correct version to run with DSP image,
the correct firmware version must also be downloaded.
*Mar 2 08:22:10.535: %MODEM-5-DL_DSP_START: Modem (2/12) started DSP download
*Mar 2 08:22:12.539: %MODEM-5-DL_DSP_START: Modem (2/13) started DSP download
*Mar 2 08:22:14.543: %MODEM-5-DL_DSP_START: Modem (2/14) started DSP download
*Mar 2 08:22:16.543: %MODEM-5-DL_DSP_START: Modem (2/15) started DSP download
*Mar 2 08:22:18.563: %MODEM-5-DL_DSP_START: Modem (2/16) started DSP download
*Mar 2 08:22:20.567: %MODEM-5-DL_DSP_START: Modem (2/17) started DSP download
*Mar 2 08:22:22.567: %MODEM-5-DL_DSP_START: Modem (2/18) started DSP download
*Mar 2 08:22:24.567: %MODEM-5-DL_DSP_START: Modem (2/19) started DSP download
*Mar 2 08:22:26.567: %MODEM-5-DL_DSP_START: Modem (2/20) started DSP download
*Mar 2 08:22:28.571: %MODEM-5-DL_DSP_START: Modem (2/21) started DSP download
*Mar 2 08:22:30.575: %MODEM-5-DL_DSP_START: Modem (2/22) started DSP download
*Mar 2 08:22:32.579: %MODEM-5-DL_DSP_START: Modem (2/23) started DSP download
*Mar 2 08:22:56.795: %MODEM-5-DL_DSP_GOOD: Modem (2/13) completed DSP download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:22:57.055: %MODEM-5-DL_DSP_GOOD: Modem (2/12) completed DSP download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:22:57.311: %MODEM-5-DL_DSP_GOOD: Modem (2/14) completed DSP download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:22:57.315: %MODEM-5-DL_DSP_GOOD: Modem (2/15) completed DSP download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:22:57.575: %MODEM-5-DL_DSP_GOOD: Modem (2/17) completed DSP download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:22:57.835: %MODEM-5-DL_DSP_GOOD: Modem (2/18) completed DSP download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:22:58.091: %MODEM-5-DL_DSP_GOOD: Modem (2/16) completed DSP download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:22:58.351: %MODEM-5-DL_DSP_GOOD: Modem (2/19) completed DSP download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:22:58.355: %MODEM-5-DL_DSP_GOOD: Modem (2/20) completed DSP download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:23:00.059: %MODEM-5-DL_DSP_GOOD: Modem (2/21) completed DSP download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:23:04.119: %MODEM-5-DL_DSP_GOOD: Modem (2/22) completed DSP download:
MNPClass10K56flexModemRev3.1.30/85
*Mar 2 08:23:05.387: %MODEM-5-DL_DSP_GOOD: Modem (2/23) completed DSP download:
MNPClass10K56flexModemRev3.1.30/85
Note
Now the 56K modems are equipped with the DSP software. The modems are configured to transmit at speeds up to 56 kbps. Each time the access server is power cycled, the system software automatically loads the 56K modems with the DSP software in boot Flash memory. If you erase the DSP software file from boot Flash memory, the 56K modems will revert to V.34 operation on the next power cycle.
Step 4
Verify that the DSP software copied to the 56K modems with the show modem version command. In this example, modems 2/12 through 2/23 are loaded with the new DSP software:
router# show modem version
Modem module Firmware Boot DSP
2/12 1 3.1(30) 3.0(4) 1.1(0)/1.1(0)
2/13 1 3.1(30) 3.0(4) 1.1(0)/1.1(0)
2/14 1 3.1(30) 3.0(4) 1.1(0)/1.1(0)
2/15 1 3.1(30) 3.0(4) 1.1(0)/1.1(0)
2/16 1 3.1(30) 3.0(4) 1.1(0)/1.1(0)
2/17 1 3.1(30) 3.0(4) 1.1(0)/1.1(0)
2/18 1 3.1(30) 3.0(4) 1.1(0)/1.1(0)
2/19 1 3.1(30) 3.0(4) 1.1(0)/1.1(0)
2/20 1 3.1(30) 3.0(4) 1.1(0)/1.1(0)
2/21 1 3.1(30) 3.0(4) 1.1(0)/1.1(0)
2/22 1 3.1(30) 3.0(4) 1.1(0)/1.1(0)
2/23 1 3.1(30) 3.0(4) 1.1(0)/1.1(0)
Modem board HW version info:
hw version= 8, number_of_ports= 24, max_modules= 2, max_oob_ports= 2
number_of_modems= 12, option_bits= 1,
rev_num= 03.00, vendor_model_number= 01,
vendor_banner= Microcom MNP10 V34 Modem
number_of_modems= 12, option_bits= 1,
rev_num= 03.00, vendor_model_number= 02,
vendor_banner= Microcom MNP10 K56 Modem
V.34 Firmware Upgrades
The following example copies the Microcom modem firmware file called mcom-modem-firmware.2.2.8.bin from the TFTP server Modem_Server to all the V.34 Microcom modems installed in a Cisco AS5200 access server:
Modem Numbers (<slot>/<port>[-<slot>/<port>] | group <number> | all)? all
Address or name of remote host [UNKNOWN]? Modem_Server
Source file name? images/mcom-modem-firmware.2.2.8.bin
Accessing file 'images/mcom-modem-firmware.2.2.8.bin on Modem_Server...
Loading images/mcom-modem-firmware.2.2.8.bin .from 172.16.254.254 (via Ethernet0): !
[OK]
Loading images/mcom-modem-firmware.2.2.8.bin from 172.16.254.254 (via Ethernet0):
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
[OK - 237503/278528 bytes]
%MODEM-5-DL_START: Modem (2/0) started firmware download
%MODEM-5-DL_START: Modem (2/1) started firmware download
%MODEM-5-DL_START: Modem (2/2) started firmware download
%MODEM-5-DL_START: Modem (2/3) started firmware download
%MODEM-5-DL_START: Modem (2/4) started firmware download
%MODEM-5-DL_START: Modem (2/5) started firmware download
%MODEM-5-DL_START: Modem (2/6) started firmware download
%MODEM-5-DL_START: Modem (2/7) started firmware download
%MODEM-5-DL_START: Modem (2/8) started firmware download
%MODEM-5-DL_START: Modem (2/9) started firmware download
%MODEM-5-DL_START: Modem (2/10) started firmware download
%MODEM-5-DL_START: Modem (2/11) started firmware download
%MODEM-5-DL_START: Modem (2/12) started firmware download
%MODEM-5-DL_START: Modem (2/13) started firmware download
%MODEM-5-DL_START: Modem (2/14) started firmware download
%MODEM-5-DL_START: Modem (2/15) started firmware download
%MODEM-5-DL_START: Modem (2/16) started firmware download
%MODEM-5-DL_START: Modem (2/17) started firmware download
%MODEM-5-DL_START: Modem (2/18) started firmware download
%MODEM-5-DL_START: Modem (2/19) started firmware download
%MODEM-5-DL_START: Modem (2/20) started firmware download
%MODEM-5-DL_START: Modem (2/21) started firmware download
%MODEM-5-DL_START: Modem (2/22) started firmware download
%MODEM-5-DL_START: Modem (2/23) started firmware download
%MODEM-5-DL_GOOD: Modem (2/2) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/10) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/4) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/6) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/7) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/12) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/11) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/13) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/1) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/14) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/19) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/22) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/5) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/8) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/9) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/17) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/0) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/3) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/21) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/16) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/15) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/18) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/20) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/23) completed firmware download:
MNPClass10V.34/V.FCModemRev1.0.23/85.23/85
V.110 Firmware Upgrades
The following example copies the modem firmware file v110-ta-firmware.2.8.7.bin from the local TFTP server Modem_Server to all the V.34 terminal adapters installed in a Cisco AS5200 access server:
Modem Numbers (<slot>/<port>[-<slot>/<port>] | group <number> | all)? all
Address or name of remote host [UNKNOWN]? Modem_Server
Source file name? images/v110-ta-firmware.2.8.7.bin
Accessing file 'images/v110-ta-firmware.2.8.7.bin on Modem_Server...
Loading images/v110-ta-firmware.2.8.7.bin .from 172.16.254.254 (via Ethernet0): ! [OK]
Loading images/v110-ta-firmware.2.8.7.bin from 172.16.254.254 (via Ethernet0):
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
[OK - 237503/278528 bytes]
%MODEM-5-DL_START: Modem (2/0) started firmware download
%MODEM-5-DL_START: Modem (2/1) started firmware download
%MODEM-5-DL_START: Modem (2/2) started firmware download
%MODEM-5-DL_START: Modem (2/3) started firmware download
%MODEM-5-DL_START: Modem (2/4) started firmware download
%MODEM-5-DL_START: Modem (2/5) started firmware download
%MODEM-5-DL_START: Modem (2/6) started firmware download
%MODEM-5-DL_START: Modem (2/7) started firmware download
%MODEM-5-DL_START: Modem (2/8) started firmware download
%MODEM-5-DL_START: Modem (2/9) started firmware download
%MODEM-5-DL_START: Modem (2/10) started firmware download
%MODEM-5-DL_START: Modem (2/11) started firmware download
%MODEM-5-DL_START: Modem (2/12) started firmware download
%MODEM-5-DL_START: Modem (2/13) started firmware download
%MODEM-5-DL_START: Modem (2/14) started firmware download
%MODEM-5-DL_START: Modem (2/15) started firmware download
%MODEM-5-DL_START: Modem (2/16) started firmware download
%MODEM-5-DL_START: Modem (2/17) started firmware download
%MODEM-5-DL_START: Modem (2/18) started firmware download
%MODEM-5-DL_START: Modem (2/19) started firmware download
%MODEM-5-DL_START: Modem (2/20) started firmware download
%MODEM-5-DL_START: Modem (2/21) started firmware download
%MODEM-5-DL_START: Modem (2/22) started firmware download
%MODEM-5-DL_START: Modem (2/23) started firmware download
%MODEM-5-DL_GOOD: Modem (2/2) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/10) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/4) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/6) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/7) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/12) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/11) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/13) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/1) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/14) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/19) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/22) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/5) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/8) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/9) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/17) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/0) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/3) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/21) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/16) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/15) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/18) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/20) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
%MODEM-5-DL_GOOD: Modem (2/23) completed firmware download:
MNPClass10v110/V.FCModemRev1.0.23/85.23/85
Control Modems
This section describes how to manually remove inoperable or bad modems from dial-up services.
You can perform the following optional tasks in line configuration mode:
Step
|
Command
|
Purpose
|
1
|
modem bad
|
Remove and idle modem from service and indicate it as suspected or proven to be inoperable.
|
2
|
modem hold-reset
|
Reset and isolate the modem hardware for extensive troubleshooting.
|
3
|
modem busyout
|
Gracefully disable a modem from dial services.
|
4
|
modem shutdown
|
Abruptly shut down a modem from dial service.
|
5
|
modem recovery-time minutes
|
Set the maximum amount of time the call-switching module waits for a local modem to respond to a request before it is considered locked in a suspended state. The default is five minutes.
|
If you use the modem bad command to remove an idle modem from dial services and mark it as inoperable, the letter B is used to identify the modem as bad. You can see the letter B for modems that are marked bad by looking at the Status column in the show modem slot/port command's output. Additionally, look at the far left column in the show modem command's output. Use the no modem bad command to unmark a modem as B and restore it for dial-up connection services. If the letter b appears next to a modem number, it means the modem was removed from service with the modem shutdown command or the modem busyout command.
Note
Only idle modems can be marked bad by the modem bad command. If you want to mark a modem bad that is actively supporting a call, first issued the modem shutdown command then issue the modem bad command.
Use the modem hold-reset command if you are experiencing extreme modem behavior (for example, if the modem is uncontrollably dialing in to the network). This command prevents the modem from establishing software relationships such as those created by the test back-to-back modem command and the modem autotest command. The modem is unusable while the modem hold-reset command is configured. The modem hold-reset command also resets a modem that is frozen in a suspended state. Disable the suspended modem with the modem hold-reset command, and then restart hardware initialization with the no modem hold-reset command.
The following example disables a suspended modem and resets its hardware initialization:
router# configure terminal
router(config-line)# modem hold-reset
router(config-line)# no modem hold-reset
The following example gracefully disables the modem associated with line 1 from dialing and answering calls. The modem is disabled only after all active calls on the modem are dropped.
router# configure terminal
router(config)# modem busyout
The following example abruptly shuts down the modem associated with line 2. All active calls on the modem are dropped immediately.
router# configure terminal
router(config)# modem shutdown
In the following example, the modem using TTY line 3 is actively supporting a call. However, we want to mark the modem bad because it has poor connection performance. First abruptly shut down the modem and drop the call with the modem shutdown command then issue the modem bad command to take the modem out of service.
Inc calls Out calls Busied Failed No Succ
Mdm Usage Succ Fail Succ Fail Out Dial Answer Pct.
1/0 37% 98 4 0 0 0 0 0 96%
1/1 38% 98 2 0 0 0 0 0 98%
* 1/2 2% 3 99 0 0 0 0 0 1%
router# configure terminal
router(config)# modem shutdown
router(config)# modem bad
Inc calls Out calls Busied Failed No Succ
Mdm Usage Succ Fail Succ Fail Out Dial Answer Pct.
1/0 37% 98 4 0 0 0 0 0 96%
1/1 38% 98 2 0 0 0 0 0 98%
B 1/2 2% 3 99 0 0 0 0 0 1%
Collect Modem Statistics
There are many commands that enable you to display or poll various modem statistics.To show modem performance statistics, perform the following tasks in EXEC mode:
Step
|
Command
|
Purpose
|
1
|
show modem [slot/port | group number]
|
Show various performance statistics for a modem or group of modems.
|
2
|
show modem csm [slot/port | group number]
|
Show the call-switching module status for a modem or group of modems.
|
3
|
show modem log [slot/port | group number]1
|
Show the event log status for a modem or group of modems.
|
4
|
show modem summary1
|
Display the cumulative system statistics for all modems installed in the access server.
|
5
|
show modem at-mode1
|
Display all the active direct connect AT sessions for Microcom modems.
|
Manageable Microcom modems have an out-of-band feature, which is used for polling modem statistics. To configure the system to poll for modem statistics, perform the tasks in the following task table. Unless otherwise specified, all tasks are performed in global configuration mode.
Step
|
Command
|
Purpose
|
1
|
modem poll time seconds
|
Specify the number of seconds between statistical modem polling for Microcom modems. The default is 12 seconds.The configuration range is 2 to 120 seconds.
|
2
|
modem poll retry number
|
Set maximum number of polling attempts to Microcom modems. The default is three polling attempts. The configuration range is from 0 to 10 attempts.1
|
3
|
modem status-poll
|
In line configuration mode, poll for a Microcom modem's status and statistics.
|
4
|
modem buffer-size number
|
Define the number of modem events that each modem is able to store. The default is 100 events for each modem. Use the show modem log command to view modem events.
|
Show Modem Example
The following example shows example output for the show modem command:
Inc calls Out calls Busied Failed No Succ
Mdm Usage Succ Fail Succ Fail Out Dial Answer Pct.
* 1/0 17% 74 3 0 0 0 0 0 96%
* 1/1 15% 80 4 0 0 0 1 1 95%
* 1/2 15% 82 0 0 0 0 0 0 100%
1/3 21% 62 1 0 0 0 0 0 98%
1/4 21% 49 5 0 0 0 0 0 90%
* 1/5 18% 65 3 0 0 0 0 0 95%
* 1/6 19% 58 2 0 0 0 0 0 96%
* 1/7 17% 67 5 0 0 0 1 1 93%
* 1/8 20% 68 3 0 0 0 0 0 95%
1/9 16% 67 2 0 0 0 0 0 97%
1/10 18% 56 2 0 0 0 1 1 96%
* 1/11 15% 76 3 0 0 0 0 0 96%
* 1/12 16% 62 1 0 0 0 0 0 98%
1/13 17% 51 4 0 0 0 0 0 92%
1/14 16% 51 5 0 0 0 0 0 91%
1/15 17% 65 0 0 0 0 0 0 100%
1/16 15% 73 3 0 0 0 0 0 96%
1/17 17% 67 2 0 0 0 0 0 97%
1/18 17% 61 2 0 0 0 0 0 96%
* 1/19 17% 74 2 0 0 0 0 0 97%
1/20 16% 65 1 0 0 0 0 0 98%
* 1/21 16% 58 3 0 0 0 0 0 95%
* 1/22 18% 56 4 0 0 0 0 0 93%
* 1/23 20% 60 4 0 0 0 0 0 93%
Show Modem Summary Example
You can display a high level summary of the modems' performance with the show modem summary command:
router# show modem summary
Incoming calls Outgoing calls Busied Failed No Succ
Usage Succ Fail Avail Succ Fail Avail Out Dial Ans Pct.
14% 2489 123 15 0 0 15 0 3 3 95%
Show Modem Log Example
The following example shows the event log status for a manageable modem. It also identifies the time elapsed since each modem event was performed (for example, 01:02:41 means the modem event occurred 1 hour, 2 minutes, and 41 seconds ago):
router# show modem log 0/0
01:03:03: Startup Response: Microcom MNP10 K56 Modem (Select)
Modem (boot) firmware = 3.1(16) (3.0(4))
DSP Controller (SPX) rev = 204.173(0) (143.191(0))
01:03:03: Control Reply: 0xFF1F
01:03:03: RS232 event: RTS noDTR* CTS* DSR* noDCD* noRI noTST
01:03:03: RS232 event: RTS noDTR CTS DSR noDCD noRI noTST
01:03:03: Modem State event: Idle
01:03:03: End connection event: Retransmits for MNP block (TX/RX) = 0/0
Duration = 0:00:00, Number of TX/RX char = 0/0
Local Disc Reason = Lost Carrier
Remote Disc Reason = Unknown
01:03:04: Phone number event:
01:02:51: DTR event: DTR On
01:02:51: RS232 event: RTS DTR* CTS DSR noDCD noRI noTST
00:39:52: Startup Response: Microcom MNP10 K56 Modem (Select)
Modem (boot) firmware = 3.1(16) (3.0(4))
DSP Controller (SPX) rev = 1.1(0) (1.1(0))
Show Modem AT-Mode Example
The following example shows that modem 1/1 has one open AT directly connected session:
router# show modem at-mode
Active AT-MODE management sessions:
Time Interval Example
The following example sets the time interval between polls to 10 seconds using the modem poll time configuration command:
router# configure terminal
router(config)# modem poll time 10
Modem Polling Example
The following example enables modem status polling through the out-of-band feature, which is associated to line 1:
router# configure terminal
router(config-line)# modem status-poll
Polling Attempts Example
The following example configures the server to attempt to retrieve statistics from a local modem up to five times before discontinuing the polling effort:
router# configure terminal
router(config)# modem poll retry 5
Change Modem Configuration
You can automatically change the running configuration for external modems (not embedded in modem cards) by issuing a single command. Additionally, you can change an integrated modem's running configuration by sending individual AT commands:
•
Change Automatically for External Modems
•
Change Manually by Sending AT Commands to Integrated Modems
Change Automatically for External Modems
The Cisco IOS software can issue initialization strings automatically for most types of modems externally attached to an access server. A modem initialization string is a series of parameter settings that are sent to your modem to configure it to interact with the access server in a specified way. The Cisco IOS software defines seven initialization strings that have been found to properly initialize most modems so that the modems function properly with Cisco access servers. These initialization strings have the following names:
•
Codex_3260
•
Usr_courier
•
Usr_sportster
•
Hayes_optima
•
Global_village
•
Viva
•
Telebit_t3000
Note
Internal or integrated modems, such as those used by the Cisco AS5200 and Cisco AS5300, are preconfigured by Cisco Systems and do not need to be initialized.
If you do not know which of these modem strings is appropriate for your modems, issue the modem autoconfigure discovery line configuration command, as shown in the following example:
2511(config-line)# modem autoconfigure discovery
2511(config-line)# Ctrl-Z
2511# copy running-config startup-config
The Cisco IOS software first tries the first of these strings to see if the modem initializes properly. If not, the Cisco IOS software cycles to the next string and repeats the process until the appropriate string is found. If none of the strings properly initializes the modem, you must manually configure the modem.
If you know that your modem can be configured using an initialization string from one of these scripts, you can issue the modem autoconfigure type type command, where type is one of the strings in the preceding list. If you list a specific modem type, initialization proceeds more quickly.
To display the list of modems for which the router has modem string entries, issue the show modemcap command. You can change a modem value that was returned from the show modemcap EXEC command. For example, you might want to add the factory default, &F, entry to the configuration file. To do this, enter the modemcap edit modem-name attribute value line configuration command. Configure one attribute of one modem at a time.
The following example shows how to enter line configuration mode and issue the modem autoconfigure type type command for a US Robotics Sportster modem.
2511(config-line)# modem autoconfigure type usr_sportster
For more information about the recommended strings for any type of modem, refer to the section "Sample Modem Strings" in the appendix "Configuring Modem Support and Chat Scripts" in the Dial Solutions Command Reference. If you have access to Cisco Connection Online (CCO), you can also access the following URL for more information (which is subject to change without notice):
http://www.cisco.com/warp/public/76/4.html
Change Manually by Sending AT Commands to Integrated Modems
Manageable Microcom modems have an out-of-band feature, which is used to poll modem statistics and transmit AT commands. The Cisco IOS software uses a direct connect session to transfer information through this out-of-band feature. To send AT commands to a Microcom modem, you must permit a direct connect session for a specified modem, open a direct connect session, send AT commands to a modem, and clear the directly connected session from the modem when you are finished.
Note
This sections does not describe how to send AT commands to MICA digital modems. If your system uses MICA modems, refer to the publication AT Command Set and Register Summary for MICA Six-Port Modules.
Open a direct connect session by issuing the modem at-mode slot/port command in Privileged EXEC mode. From here, you can transmit AT commands directly from your terminal session window to the internal Microcom modems. Most incoming or outgoing calls on the modems are not interrupted when you open a direct connect session and transmit AT commands. However, some AT commands interrupt a call—for example, the ATH command, which hangs up a call. Open and close one direct connect session at a time. Beware that multiple open sessions slow down modem performance.
Refer to the AT command set that came with your router for a complete list of AT commands that you can transmit to the modems.
For Microcom modems, you can clear or terminate an active directly connected session in two ways:
•
Press Ctrl-C after transmitting all AT commands as instructed by the system when you enter AT command mode.
•
Enter a second Telnet session and enable the clear modem at-mode slot/port command in EXEC configuration mode. This method is used for closing a directly connected session that may have been mistakenly left open by the first Telnet session.
Transmit AT Command Example
The following example opens a directly connected session on modem 1/1, enters AT command mode on modem 1/1, and transmits the at%v and at\s commands via the out-of-band feature on modem 1/1:
router# modem at-mode 1/1
You are now entering AT command mode on modem (slot 1 / port 1).
Please type CTRL-C to exit AT command mode.
MNP Class 10 V.34/V.FC Modem Rev 1.0/85
MODEM HW: SA 2W United States
4 RTS 5 CTS 6 DSR - CD 20 DTR - RI
The manageable modem returns "OK" if the AT command you transmit is successfully enabled.
Clear a Direct Connect Session from a Second Telnet Session Example
The following examples are for Microcom modems.
The following example shows how to execute the modem at-mode command from a Telnet session:
router# modem at-mode 1/1
The following example shows how to execute the clear modem at-mode command from a second Telnet session while the first Telnet session is connected to the modem:
router# clear modem at-mode 1/1
clear "modem at-mode" for modem 1/1 [confirm] <press Return>
The following output is displayed in the first Telnet session after the modem is cleared by the second Telnet session:
Direct connect session cleared by vty0 (171.69.1.164)
