Table Of Contents
Debug Serial Interface for Frame Relay Encapsulation
Debug Serial Interface for HDLC
Debug Serial Interface for HSSI
Debug Serial Interface for ISDN Basic Rate
Debug Serial Interface for an MK5025 Device
Debug Serial Interface for SMDS Encapsulation
Debug Serial Packet for SMDS Encapsulation
debug serial interface
Use the debug serial interface EXEC command to display information on a serial connection failure. The no form of this command disables debugging output.
debug serial interface
no debug serial interfaceSyntax Description
This command has no arguments or keywords.
Command Mode
EXEC
Usage Guidelines
If the show interface serial command shows that the line and protocol are down, you can use the debug serial interface command to isolate a timing problem as the cause of a connection failure. If the keepalive values in the mineseq, yourseen, and myseen fields are not incrementing in each subsequent line of output, there is a timing or line problem at one end of the connection.
Note
While the debug serial interface command typically does not generate a lot of output, nevertheless use it cautiously during production hours. When SMDS is enabled, for example, it can generate considerable output.
The output of the debug serial interface command can vary, depending on the type of WAN configured for an interface: Frame Relay, HDLC, HSSI, SMDS, or X.25. The output also can vary depending on the type of encapsulation configured for that interface. The hardware platform also can affect debug serial interface output.
The following sections show sample debug serial interface displays for various configurations and describe the possible output the command can generate for these configurations.
Debug Serial Interface for Frame Relay Encapsulation
The following message is displayed if the encapsulation for the interface is Frame Relay (or HDLC) and the router attempts to send a packet containing an unknown packet type:
Illegal serial link type code xxxDebug Serial Interface for HDLC

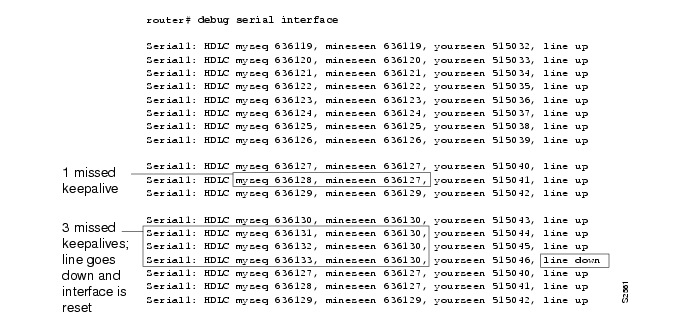

shows sample debug serial interface output for an HDLC connection when keepalives are enabled.
Figure 2-133 Sample Debug Serial Interface Output for HDLC
In , the debug serial interface display shows that the remote router is not receiving all the keepalives the router is sending. When the difference in the values in the myseq and mineseen fields exceeds three, the line goes down and the interface is reset.
describes significant fields shown in .
Table 2-76 Debug Serial Interface Field Descriptions for HDLC
describes additional error messages that the debug serial interface command can generate for HDLC.
Table 2-77 Debug Serial Interface Error Messages for HDLC
Debug Serial Interface for HSSI
On an HSSI interface, the debug serial interface command can generate the following additional error message:
HSSI0: Reset from 0xnnnnnnnThis message indicates that the HSSI hardware has been reset. The 0xnnnnnnn variable is the address of the routine requesting that the hardware be reset; this value is useful only to development engineers.
Debug Serial Interface for ISDN Basic Rate
describes error messages that the debug serial interface command can generate for ISDN Basic Rate.
Table 2-78 Debug Serial Interface Message Descriptions for ISDN Basic Rate
Debug Serial Interface for an MK5025 Device
describes the additional error messages that the debug serial interface command can generate for an MK5025 device.
Table 2-79 Debug Serial Interface Message Descriptions for an MK5025 Device
Debug Serial Interface for SMDS Encapsulation
When encapsulation is set to SMDS, debug serial interface displays SMDS packets that are sent and received, as well as any error messages resulting from SMDS packet transmission.
The error messages that the debug serial interface command can generate for SMDS follow.
The following message indicates that a new protocol requested SMDS to encapsulate the data for transmission. SMDS is not yet able to encapsulate the protocol.
SMDS: Error on Serial 0, encapsulation bad protocol = xThe following message indicates that SMDS was asked to encapsulate a packet, but no corresponding destination E.164 SMDS address was found in any of the static SMDS tables or in the ARP tables:
SMDS send: Error in encapsulation, no hardware address, type = xThe following message indicates that a protocol such as CLNS or IP has been enabled on an SMDS interface, but the corresponding multicast addresses have not been configured. The n variable displays the link type for which encapsulation was requested. This value is only significant to Cisco as an internal protocol type value.
SMDS: Send, Error in encapsulation, type=nThe following messages can occur when a corrupted packet is received on an SMDS interface. The router expected x, but received y.
SMDS: Invalid packet, Reserved NOT ZERO, x ySMDS: Invalid packet, TAG mismatch x ySMDS: Invalid packet, Bad TRAILER length x yThe following messages can indicate an invalid length for an SMDS packet:
SMDS: Invalid packet, Bad BA length xSMDS: Invalid packet, Bad header extension length xSMDS: Invalid packet, Bad header extension type xSMDS: Invalid packet, Bad header extension value xThe following messages are displayed when the debug serial interface command is enabled:
Interface Serial 0 Sending SMDS L3 packet:SMDS: dgsize:x type:0xn src:y dst:zIf the debug serial interface command is enabled, the following message can be displayed when a packet is received on an SMDS interface, but the destination SMDS address does not match any on that interface:
SMDS: Packet n, not addressed to usdebug serial packet
Use the debug serial packet EXEC command to display more detailed serial interface debugging information than you can obtain using debug serial interface command. The no form of this command disables debugging output.
debug serial packet
no debug serial packetSyntax Description
This command has no arguments or keywords.
Command Mode
EXEC
Usage Guidelines
The debug serial packet command generates output that is dependent on the type of serial interface and the encapsulation that is running on that interface. The hardware platform also can impact debug serial packet output.
Sample Display
The debug serial packet command displays output for only SMDS encapsulations.
Debug Serial Packet for SMDS Encapsulation
shows sample output when SMDS is enabled on the interface.
Figure 2-134 Sample Debug Serial Packet Output for SMDS
router# debug serial packetInterface Serial2 Sending SMDS L3 packet:SMDS Header : Id: 00 RSVD: 00 BEtag: EC Basize: 0044Dest:E18009999999FFFF Src:C12015804721FFFF Xh:04030000030001000000000000000000SMDS LLC : AA AA 03 00 00 00 80 38SMDS Data : E1 19 01 00 00 80 00 00 0C 00 38 1F 00 0A 00 80 00 00 0C 01 2B 71SMDS Data : 06 01 01 0F 1E 24 00 EC 00 44 00 02 00 00 83 6C 7D 00 00 00 00 00SMDS Trailer : RSVD: 00 BEtag: EC Length: 0044As shows, when encapsulation is set to SMDS, debug serial packet displays the entire SMDS header (in hex), as well as some payload data on transmit or receive. This information is useful only when you have an understanding of the SMDS protocol. The first line of the output indicates either Sending or Receiving.
debug service-module
To display debugging messages that monitor the detection and clearing of network alarms on the CSU/DSU, use the debug service-module privileged EXEC command. Use the no debug service-module command to disable debugging messages.
debug service-module
no debug service-moduleSyntax Description
This command has no arguments or keywords.
Command Mode
Privileged EXEC
Usage Guidelines
Use this command to enable and disable debug logging for the serial 0 and serial 1 interfaces on the Cisco 2524 and Cisco 2525 routers.
Debug messages can also be viewed by entering the show service-module command.
Example
The following example is output from the debug service-module command:
Router1# debug service-moduleService module debugging is onSERVICE_MODULE(1): loss of signal ended after duration 00:05:36SERVICE_MODULE(1): oos/oof ended after duration 01:05:14SERVICE_MODULE(0): Unit has no clockSERVICE_MODULE(0): detects loss of signalSERVICE_MODULE(0): loss of signal ended after duration 00:00:33debug source bridge
Use the debug source bridge EXEC command to display information about packets and frames transferred across a source-route bridge. The no form of this command disables debugging output.
[no] debug source bridge
Sample Display
shows sample debug source bridge output for peer bridges using TCP as a transport mechanism. The remote source-route bridging (RSRB) network configuration has ring 2 and ring 1 bridged together through remote peer bridges. The remote peer bridges are connected via a serial line and use TCP as the transport mechanism.
Figure 2-135 Sample Debug Source Bridge Output—TCP Environment
router# debug source bridgeRSRB: remote explorer to 5/131.108.250.1/1996 srn 2 [C840.0021.0050.0000]RSRB: Version/Ring XReq sent to peer 5/131.108.250.1/1996RSRB: Received version reply from 5/131.108.250.1/1996 (version 2)RSRB: DATA: 5/131.108.250.1/1996 Ring Xchg Rep, trn 2, vrn 5, off 18, len 10RSRB: added bridge 1, ring 1 for 5/131.108.240.1/1996RSRB: DATA: 5/131.108.250.1/1996 Explorer trn 2, vrn 5, off 18, len 69RSRB: DATA: 5/131.108.250.1/1996 Forward trn 2, vrn 5, off 0, len 92RSRB: DATA: forward Forward srn 2, br 1, vrn 5 to peer 5/131.108.250.1/1996Explanations for individual lines of output in follow.
The following line indicates that a remote explorer frame has been sent to IP address 131.108.250.1 and like all RSRB TCP connections, has been assigned port 1996. The bridge belongs to ring group 5. The explorer frame originated from ring number 2. The routing information field (RIF) descriptor has been generated by the local station and indicates that the frame was sent out via bridge 1 onto virtual ring 5.
RSRB: remote explorer to 5/131.108.250.1/1996 srn 2 [C840.0021.0050.0000]The following line indicates that a request for remote peer information has been sent to IP address 131.108.250.1, TCP port 1996. The bridge belongs to ring group 5.
RSRB: Version/Ring XReq sent to peer 5/131.108.250.1/1996The following line is the response to the version request previously sent. The response is sent from IP address 131.108.250.1, TCP port 1996. The bridge belongs to ring group 5.
RSRB: Received version reply from 5/131.108.250.1/1996 (version 2)The following line is the response to the ring request previously sent. The response is sent from IP address 131.108.250.1, TCP port 1996. The target ring number is 2, virtual ring number is 5, the offset is 18, and the length of the frame is 10 bytes.
RSRB: DATA: 5/131.108.250.1/1996 Ring Xchg Rep, trn 2, vrn 5, off 0, len 10The following line indicates that bridge 1 and ring 1 were added to the source-bridge table for IP address 131.108.250.1, TCP port 1996.
RSRB: added bridge 1, ring 1 for 5/131.108.250.1/1996The following line indicates that a packet containing an explorer frame came across virtual ring 5 from IP address 131.108.250.1, TCP port 1996. The packet is 69 bytes in length. This packet is received after the Ring Exchange information was received and updated on both sides.
RSRB: DATA: 5/131.108.250.1/1996 Explorer trn 2, vrn 5, off 18, len 69The following line indicates that a packet containing data came across virtual ring 5 from IP address 131.108.250.1 over TCP port 1996. The packet is being placed on the local target ring 2.The packet is 92 bytes in length.
RSRB: DATA: 5/131.108.250.1/1996 Forward trn 2, vrn 5, off 0, len 92The following line indicates that a packet containing data is being forwarded to the peer that has IP 131.108.250.1 address belonging to local ring 2 and bridge 1. The packet is forwarded via virtual ring 5. This packet is sent after the Ring Exchange information was received and updated on both sides.
RSRB: DATA: forward Forward srn 2, br 1, vrn 5 to peer 5/131.108.250.1/1996shows sample debug source bridge output for peer bridges using direct encapsulation as a transport mechanism. The RSRB network configuration has ring 1 and ring 2 bridged together through peer bridges. The peer bridges are connected via a serial line and use TCP as the transport mechanism.
Figure 2-136 Sample Debug Source Bridge Output—Direct Encapsulation Environment
router# debug source bridgeRSRB: remote explorer to 5/Serial1 srn 1 [C840.0011.0050.0000]RSRB: Version/Ring XReq sent to peer 5/Serial1RSRB: Received version reply from 5/Serial1 (version 2)RSRB: IFin: 5/Serial1 Ring Xchg, Rep trn 0, vrn 5, off 0, len 10RSRB: added bridge 1, ring 1 for 5/Serial1Explanations for individual lines of output in follow.
The following line indicates that a remote explorer frame was sent to remote peer Serial1, which belongs to ring group 5. The explorer frame originated from ring number 1. The routing information field (RIF) descriptor 0011.0050 was generated by the local station and indicates that the frame was sent out via bridge 1 onto virtual ring 5.
RSRB: remote explorer to 5/Serial1 srn 1 [C840.0011.0050.0000]The following line indicates that a request for remote peer information was sent to Serial1. The bridge belongs to ring group 5.
RSRB: Version/Ring XReq sent to peer 5/Serial1The following line is the response to the version request previously sent. The response is sent from Serial 1. The bridge belongs to ring group 5 and the version is 2.
RSRB: Received version reply from 5/Serial1 (version 2)The following line is the response to the ring request previously sent. The response is sent from Serial1. The target ring number is 2, virtual ring number is 5, the offset is 0, and the length of the frame is 39 bytes.
RSRB: IFin: 5/Serial1 Ring Xchg Rep, trn 2, vrn 5, off 0, len 39The following line indicates that bridge 1 and ring 1 were added to the source-bridge table for Serial1.
RSRB: added bridge 1, ring 1 for 5/Serial1debug source error
Use the debug source error EXEC command to display source-route bridging errors. The no form of this command disables debugging output.
[no] debug source error
Usage Guidelines
The debug source error command displays some output also found in the debug source bridge output. Refer to the debug source bridge command for other possible output.
Sample Displays
In all of the following examples of debug source error command messages, the variable number is the Token Ring interface. For example, if the line of output starts with SRB1, the output relates to the Token Ring 1 interface. SRB indicates a source-route bridging message. RSRB indicates a remote source-route bridging message. SRTLB indicates a source-route translational bridging message.
In the following example, a packet of protocol protocol-type was dropped:
SRBnumber drop: Routed protocol protocol-typeIn the following example, an Address Resolution Protocol (ARP) packet was dropped. ARP is defined in RFC 826.
SRBnumber drop:TYPE_RFC826_ARPIn the following example, the current Cisco IOS version does not support Qualified Logical Link Control (QLLC). Reconfigure the router with an image that has the IBM feature set.
RSRB: QLLC not supported in version versionPlease reconfigure.In the following example, the packet was dropped because the outgoing interface of the router was down:
RSRB IF: outgoing interface not up, dropping packetIn the following example, the router received an out-of-sequence IP sequence number in a Fast Sequenced Transport (FST) packet. FST has no recovery for this problem like TCP encapsulation does.
RSRB FST: bad sequence number dropping.In the following example, the router was unable to locate the virtual interface:
RSRB: couldn't find virtual interfaceIn the following example, the peer router's TCP queue is full. TCPD indicates that this is a TCP debug.
RSRB TCPD: tcp queue full for peerIn the following example, the router was unable to send data to the peer router. A result of 1 indicates that the TCP queue is full. A result of -1 indicates that the RSRB peer is closed.
RSRB TCPD: tcp send failed for peer resultIn the following example, the Routing Information Identifier was not set in the explorer packet going forward. The packet will not support SRB, so it is dropped.
vrforward_explorer - RII not setIn the following example, a packet sent to a virtual bridge in the router did not include a routing information field (RIF) to tell the router which route to use:
RSRB: no RIF on packet sent to virtual bridgeThe following example indicates that the RIF did not contain any information or the length field was set to zero:
RSRB: RIF length of zero sent to virtual bridgeThe following message occurs when the local service access point (LSAP) is out of range. The variable lsap-out is the value, type is the type of RSRB peer, and state is the state of the RSRB peer.
VRP: rsrb_lsap_out = lsap-out, type = type, state = stateIn the following message, the router is unable to find another router with which to exchange bridge protocol data units (BPDU's). BPDU's are exchanged to set up the spanning tree and determine the forwarding path.
RSRB(span): BPDU's peer not foundRelated Commands
debug source bridge
debug source eventdebug source event
Use the debug source event EXEC command to display information on source-route bridging activity. The no form of this command disables debugging output.
[no] debug source event
Usage Guidelines
Some of the output from the debug source bridge and debug source error commands is identical to the output of this command.
Note
Sample Display
shows sample debug source event output.
Figure 2-137 Sample Debug Source Event Output
router# debug source eventRSRB0: forward (srn 5 bn 1 trn 10), src: 8110.2222.33c1 dst: 1000.5a59.04f9[0800.3201.00A1.0050]RSRB0: forward (srn 5 bn 1 trn 10), src: 8110.2222.33c1 dst: 1000.5a59.04f9[0800.3201.00A1.0050]RSRB0: forward (srn 5 bn 1 trn 10), src: 8110.2222.33c1 dst: 1000.5a59.04f9[0800.3201.00A1.0050]RSRB0: forward (srn 5 bn 1 trn 10), src: 8110.2222.33c1 dst: 1000.5a59.04f9[0800.3201.00A1.0050]RSRB0: forward (srn 5 bn 1 trn 10), src: 8110.2222.33c1 dst: 1000.5a59.04f9[0800.3201.00A1.0050]describes significant fields shown in .
Examples of other debug source event messages follow.
In the following example messages, SRBnumber or RSRBnumber denotes a message associated with interface Token Ring number. A number of 99 denotes the remote side of the network.
SRBnumber: no path, s: source-MAC-addr d: dst-MAC-addr rif: rifIn the preceding example, a bridgeable packet came in on interface Token Ring number but there was nowhere to send it. This is most likely a configuration error. For example, an interface has source bridging turned on, but it is not connected to another source bridging interface or a ring group.
In the following example, a bridgeable packet has been forwarded from Token Ring number to the target ring. The two interfaces are directly linked.
SRBnumber: direct forward (srn ring bn bridge trn ring)In the following examples, a proxy explorer reply was not generated because there was no way to get to the address from this interface. The packet came from the node with the first address.
SRBnumber: br dropped proxy XID, address for address, wrong vring (rem)SRBnumber: br dropped proxy TEST, address for address, wrong vring (rem)SRBnumber: br dropped proxy XID, address for address, wrong vring (local)SRBnumber: br dropped proxy TEST, address for address, wrong vring (local)SRBnumber: br dropped proxy XID, address for address, no pathSRBnumber: br dropped proxy TEST, address for address, no pathIn the following example, an appropriate proxy explorer reply was generated on behalf of the second address. It is sent to the first address.
SRBnumber: br sent proxy XID, address for address[rif]SRBnumber: br sent proxy TEST, address for address[rif]The following example indicates that the broadcast bits were not set, or that the routing information indicator on the packet was not set:
SRBnumber: illegal explorer, s: source-MAC-addr d: dst-MAC-addr rif: rifThe following example indicates that the direction bit in the RIF field was set, or that an odd packet length was encountered. Such packets are dropped.
SRBnumber: bad explorer control, D set or oddThe following example indicates that a spanning explorer was dropped because the spanning option was not configured on the interface:
SRBnumber: span dropped, input off, s: source-MAC-addr d: dst-MAC-addr rif: rifThe following example indicates that a spanning explorer was dropped because it had traversed the ring previously:
SRBnumber: span violation, s: source-MAC-addr d: dst-MAC-addr rif: rifThe following example indicates that an explorer was dropped because the maximum hop count limit was reached on that interface:
SRBnumber: max hops reached - hop-cnt, s: source-MAC-addr d: dst-MAC-addr rif: rifThe following example indicates that the ring exchange request was sent to the indicated peer. This request tells the remote side which rings this node has and asks for a reply indicating which rings that side has.
RSRB: sent RingXreq to ring-group/ip-addrThe following example indicates that a message was sent to the remote peer. The label variable can be AHDR (active header), PHDR (passive header), HDR (normal header), or DATA (data exchange), and op can be Forward, Explorer, Ring Xchg, Req, Ring Xchg, Rep, Unknown Ring Group, Unknown Peer, or Unknown Target Ring.
RSRB: label: sent op to ring-group/ip-addrThe following example indicates that the remote bridge and ring pair were removed from or added to the local ring group table because the remote peer changed:
RSRB: removing bn bridge rn ring from ring-group/ip-addrRSRB: added bridge bridge, ring ring for ring-group/ip-addrThe following example shows miscellaneous remote peer connection establishment messages:
RSRB: peer ring-group/ip-addr closed [last state n]RSRB: passive open ip-addr(remote port) -> local portRSRB: CONN: opening peer ring-group/ip-addr, attempt nRSRB: CONN: Remote closed ring-group/ip-addr on openRSRB: CONN: peer ring-group/ip-addr open failed, reason[code]The following example shows that an explorer packet was propagated onto the local ring from the remote ring group:
RSRBn: sent local explorer, bridge bridge trn ring, [rif]The following messages indicate that the remote source-route bridging code found the packet was in error:
RSRBn: ring group ring-group not foundRSRBn: explorer rif [rif] not long enoughThe following example indicates that a buffer could not be obtained for a ring exchange packet; this is an internal error.
RSRB: couldn't get pak for ringXchgThe following example indicates that a ring exchange packet was received that had an incorrect length; this is an internal error.
RSRB: XCHG: req/reply badly formed, length pak-length, peer peer-idThe following example indicates that a ring entry was removed for the peer; the ring was possibly disconnected from the network, causing the remote router to send an update to all its peers.
RSRB: removing bridge bridge ring ring from peer-id ring-typeThe following example indicates that a ring entry was added for the specified peer; the ring was possibly added to the network, causing the other router to send an update to all its peers.
RSRB: added bridge bridge, ring ring for peer-idThe following example indicates that no memory was available to add a ring number to the ring group specified; this is an internal error.
RSRB: no memory for ring element ring-groupThe following example indicates that memory was corrupted for a connection block; this is an internal error.
RSRB: CONN: corrupt connection blockThe following example indicates that a connector process started, but that there was no packet to process; this is an internal error.
RSRB: CONN: warning, no initial packet, peer: ip-addr peer-pointerThe following example indicates that a packet was received with a version number different from the one present on the router:
RSRB: IF New version. local=local-version, remote=remote-version,pak-op-code peer-idThe following example indicates that a packet with a bad op code was received for a direct encapsulation peer; this is an internal error.
RSRB: IFin: bad op op-code (op code string) from peer-idThe following example indicates that the virtual ring header will not fit on the packet to be sent to the peer; this is an internal error:
RSRB: vrif_sender, hdr won't fitThe following example indicates that the specified peer is being opened. The retry count specifies the number of times the opening operation is attempted.
RSRB: CONN: opening peer peer-id retry-countThe following example indicates that the router, configured for FST encapsulation, received a version reply to the version request packet it had sent previously:
RSRB: FST Rcvd version reply from peer-id (version version-number)The following example indicates that the router, configured for FST encapsulation, sent a version request packet to the specified peer:
RSRB: FST Version Request. op = opcode, peer-idThe following example indicates that the router received a packet with a bad op code from the specified peer; this is an internal error.
RSRB: FSTin: bad op opcode (op code string) from peer-idThe following example indicates that the TCP connection between the router and the specified peer is being aborted:
RSRB: aborting ring-group/peer-id (vrtcpd_abort called)The following example indicates that an attempt to establish a TCP connection to a remote peer timed out:
RSRB: CONN: attempt timed outThe following example indicates that a packet was dropped because the ring group number in the packet did not correlate with the ring groups configured on the router:
RSRBnumber: ring group ring-group not founddebug span
Use the debug span EXEC command to display information on changes in the spanning-tree topology when debugging a transparent bridge. The no form of this command disables debugging output.
debug span
no debug spanSyntax Description
This command has no arguments or keywords.
Command Mode
EXEC
Usage Guidelines
This command is useful for tracking and verifying that the spanning-tree protocol is operating correctly.
Sample Display—IEEE Spanning Tree
Sample debug span output for an IEEE BPDU packet follows:
ST: Ether4 0000000000000A080002A02D6700000000000A080002A02D6780010000140002000F00shows the preceding debug span output broken up by fields and labeled to aid documentation.
Figure 2-138 Sample Debug Span Output for an IEEE BPDU Packet
describes significant fields shown in .
Table 2-81 Debug Span Field Descriptions for an IEEE BPDU Packet
Sample Display—DEC Spanning Tree
Sample debug span output for a DEC BPDU packet follows:
ST: Ethernet4 E1190100000200000C01A2C90064008000000C0106CE0A01050F1E6Ashows the preceding debug span output broken up by fields and labeled to aid documentation.
Figure 2-139 Sample Debug Span Output
describes significant fields shown in .
Table 2-82 Debug Span Field Descriptions for a DEC BPDU Packet
debug sse
Use the debug sse EXEC command to display information for the silicon switching engine (SSE) processor. The no form of this command disables debugging output.
debug sse
no debug sseSyntax Description
This command has no arguments or keywords.
Command Mode
EXEC
Usage Guidelines
By using the debug sse command, you can observe statistics and counters maintained by the SSE.
Sample Display
shows sample debug sse output.
Figure 2-140 Sample Debug SSE Output
router# debug sseSSE: IP number of cache entries changed 273 274SSE: IP number of cache entries changed 273 274SSE: bridging enabledSSE: interface Ethernet0/0 icb 0x30 addr 0x29 status 0x21A040 protos 0x11SSE: interface Ethernet0/1 icb 0x33 addr 0x29 status 0x21A040 protos 0x11SSE: interface Ethernet0/2 icb 0x36 addr 0x29 status 0x21A040 protos 0x10SSE: interface Ethernet0/3 icb 0x39 addr 0x29 status 0x21A040 protos 0x11SSE: interface Ethernet0/4 icb 0x3C addr 0x29 status 0x21A040 protos 0x10SSE: interface Ethernet0/5 icb 0x3F addr 0x29 status 0x21A040 protos 0x11SSE: interface Hssi1/0 icb 0x48 addr 0x122 status 0x421E080 protos 0x11SSE: cache update took 316ms, elapsed 320msExplanations for representative lines of output in follow.
The following line indicates that the SSE cache is being updated due to a change in the IP fast switching cache:
SSE: IP number of cache entries changed 273 274The following line indicates that bridging functions were enabled on the SSE:
SSE: bridging enabledThe following lines indicate that the SSE is now loaded with information about the interfaces:
SSE: interface Ethernet0/0 icb 0x30 addr 0x29 status 0x21A040 protos 0x11SSE: interface Ethernet0/1 icb 0x33 addr 0x29 status 0x21A040 protos 0x11SSE: interface Ethernet0/2 icb 0x36 addr 0x29 status 0x21A040 protos 0x10SSE: interface Ethernet0/3 icb 0x39 addr 0x29 status 0x21A040 protos 0x11SSE: interface Ethernet0/4 icb 0x3C addr 0x29 status 0x21A040 protos 0x10SSE: interface Ethernet0/5 icb 0x3F addr 0x29 status 0x21A040 protos 0x11SSE: interface Hssi1/0 icb 0x48 addr 0x122 status 0x421E080 protos 0x11The following line indicates that the SSE took 316 ms of processor time to update the SSE cache. The value of 320 ms represents the total time elapsed while the cache updates were performed.
SSE: cache update took 316ms, elapsed 320msdebug standby
Use the debug standby EXEC command to display hot standby protocol state changes. The no form of this command disables debugging output.
debug standby
no debug standbySyntax Description
This command has no arguments or keywords.
Command Mode
EXEC
Usage Guidelines
The debug standby command displays hot standby protocol state changes and debugging information regarding transmission and receipt of hot standby protocol packets. Use this command to determine whether hot standby routers recognize one another and take the proper actions.
Sample Display
shows sample debug standby output.
Figure 2-141 Sample Debug Standby Output
router# debug standbySB: Ethernet0 state Virgin -> ListenSB: Starting up hot standby processSB:Ethernet0 Hello in 198.92.72.21 Active pri 90 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello in 198.92.72.21 Active pri 90 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello in 198.92.72.21 Active pri 90 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello in 198.92.72.21 Active pri 90 hel 3 hol 10 ip 198.92.72.29SB: Ethernet0 state Listen -> SpeakSB:Ethernet0 Hello out 198.92.72.20 Speak pri 100 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello in 198.92.72.21 Active pri 90 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello out 198.92.72.20 Speak pri 100 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello in 198.92.72.21 Active pri 90 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello out 198.92.72.20 Speak pri 100 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello in 198.92.72.21 Active pri 90 hel 3 hol 10 ip 198.92.72.29SB: Ethernet0 state Speak -> StandbySB:Ethernet0 Hello out 198.92.72.20 Standby pri 100 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello in 198.92.72.21 Active pri 90 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello out 198.92.72.20 Standby pri 100 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello in 198.92.72.21 Active pri 90 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello out 198.92.72.20 Standby pri 100 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello in 198.92.72.21 Active pri 90 hel 3 hol 10 ip 198.92.72.29SB: Ethernet0 Coup out 198.92.72.20 Standby pri 100 hel 3 hol 10 ip 198.92.72.29SB: Ethernet0 state Standby -> ActiveSB:Ethernet0 Hello out 198.92.72.20 Active pri 100 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello in 198.92.72.21 Speak pri 90 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello out 198.92.72.20 Active pri 100 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello in 198.92.72.21 Speak pri 90 hel 3 hol 10 ip 198.92.72.29SB:Ethernet0 Hello out 198.92.72.20 Active pri 100 hel 3 hol 10 ip 198.92.72.29describes significant fields shown in .
Table 2-83 Debug Standby Field Descriptions
Explanations for representative lines of output in follow.
The following line indicates that the router is initiating the hot standby protocol. The standby ip interface configuration command enables hot standby.
SB: Starting up hot standby processThe following line indicates that a state transition occurred on the interface:
SB: Ethernet0 state Listen -> Speakdebug stun packet
Use the debug stun packet EXEC command to display information on packets traveling through the serial tunnel (STUN) links. Use the no form of this command to disable debugging output.
debug stun packet [group] [address]
no debug stun packet [group] [address]Syntax Description
Command Mode
EXEC
Usage Guidelines
Because using this command is processor intensive, it is best to use it after hours, rather than in a production environment. It is also best to turn this command on by itself, rather than use it in conjunction with other debug commands.
Sample Display
shows sample debug stun packet output.

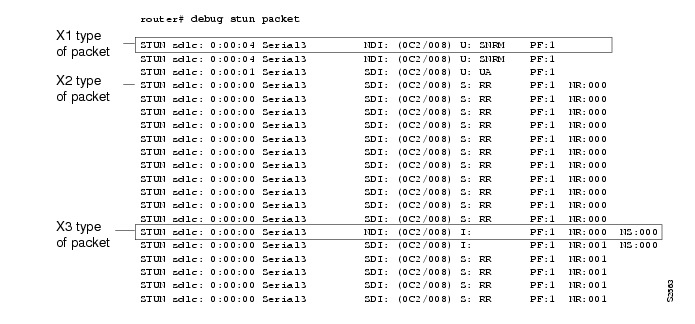

Figure 2-142 Sample Debug STUN Packet Output
Explanations for individual lines of output from follow.
The following line describes an X1 type of packet:
STUN sdlc: 0:00:04 Serial3 NDI: (0C2/008) U: SNRM PF:1describes significant fields shown in this line of debug stun packet output.
Table 2-84 Debug STUN Packet Field Descriptions
The following line of output describes an X2 type of packet:
STUN sdlc: 0:00:00 Serial3 SDI: (0C2/008) S: RR PF:1 NR:000All the fields in the previous line of output match those for an X1 type of packet, except the last field, which is additional. NR:000 indicates a receive count of 0; the range for the receive count is 0 to 7.
The following line of output describes an X3 type of packet:
STUN sdlc: 0:00:00 Serial3 SDI: (0C2/008) S:I PF:1 NR:000 NS:000All fields in the previous line of output match those for an X2 type of packet, except the last field, which is additional. NS:000 indicates a send count of 0; the range for the send count is 0 to 7.
debug tftp
Use the debug tftp EXEC command to display Trivial File Transfer Protocol (TFTP) debugging information when encountering problems netbooting or using the configure network or write network commands. The no form of this command disables debugging output.
debug tftp
no debug tftpSyntax Description
This command has no arguments or keywords.
Command Mode
EXEC
Sample Display
shows sample debug tftp output from the EXEC command write network.
Figure 2-143 Sample Debug TFTP Output
router# debug tftpTFTP: msclock 0x292B4; Sending write request (retry 0), socket_id 0x301DA8TFTP: msclock 0x2A63C; Sending write request (retry 1), socket_id 0x301DA8TFTP: msclock 0x2A6DC; Received ACK for block 0, socket_id 0x301DA8TFTP: msclock 0x2A6DC; Received ACK for block 0, socket_id 0x301DA8TFTP: msclock 0x2A6DC; Sending block 1 (retry 0), socket_id 0x301DA8TFTP: msclock 0x2A6E4; Received ACK for block 1, socket_id 0x301DA8describes significant fields shown in the first line of output from .
Table 2-85 Debug TFTP Field Descriptions
debug token ring
Use the debug token ring EXEC command to display messages about Token Ring interface activity. The no form of this command disables debugging output.
debug token ring
no debug token ringSyntax Description
This command has no arguments or keywords.
Command Mode
EXEC
Usage Guidelines
This command reports several lines of information for each packet sent or received and is intended for low traffic, detailed debugging.
The Token Ring interface records provide information regarding the current state of the ring. These messages are only displayed when the debug token events command is enabled.
The debug token ring command invokes verbose Token Ring hardware debugging. This includes detailed displays as traffic arrives and departs the unit.
Note
Sample Display
shows sample debug token ring output.
Figure 2-144 Sample Debug Token Ring Output
router# debug token ringTR0: Interface is alive, phys. addr 5000.1234.5678TR0: in: MAC: acfc: 0x1105 Dst: c000.ffff.ffff Src: 5000.1234.5678 bf: 0x45TR0: in: riflen 0, rd_offset 0, llc_offset 40TR0: out: MAC: acfc: 0x0040 Dst: 5000.1234.5678 Src: 5000.1234.5678 bf: 0x00TR0: out: LLC: AAAA0300 00009000 00000100 AAC00000 00000802 50001234 ln: 28TR0: in: MAC: acfc: 0x1140 Dst: 5000.1234.5678 Src: 5000.1234.5678 bf: 0x09TR0: in: LLC: AAAA0300 00009000 00000100 AAC0B24A 4B4A6768 74732072 ln: 28TR0: in: riflen 0, rd_offset 0, llc_offset 14TR0: out: MAC: acfc: 0x0040 Dst: 5000.1234.5678 Src: 5000.1234.5678 bf: 0x00TR0: out: LLC: AAAA0300 00009000 00000100 D1D00000 FE11E636 96884006 ln: 28TR0: in: MAC: acfc: 0x1140 Dst: 5000.1234.5678 Src: 5000.1234.5678 bf: 0x09TR0: in: LLC: AAAA0300 00009000 00000100 D1D0774C 4DC2078B 3D000160 ln: 28TR0: in: riflen 0, rd_offset 0, llc_offset 14TR0: out: MAC: acfc: 0x0040 Dst: 5000.1234.5678 Src: 5000.1234.5678 bf: 0x00TR0: out: LLC: AAAA0300 00009000 00000100 F8E00000 FE11E636 96884006 ln: 28describes significant fields shown in the second line of output from .
Table 2-86 Debug Token Ring Field Descriptions—Part 1
describes significant fields shown in the third line of output from .
Table 2-87 Debug Token Ring Field Descriptions—Part 2
describes significant fields shown in the fifth line of output from .
Table 2-88 Debug Token Ring Field Descriptions—Part 3
debug vines arp
Use the debug vines arp EXEC command to display debugging information on all Virtual Integrated Network Service (VINES) Address Resolution Protocol (ARP) packets that the router sends or receives. The no form of this command disables debugging output.
debug vines arp
no debug vines arpSyntax Description
This command has no arguments or keywords.
Command Mode
EXEC
Sample Display
shows sample debug vines arp output.
Figure 2-145 Sample Debug VINES ARP Output
router# debug vines arpVNSARP: received ARP type 0 from 0260.8c43.a7e4VNSARP: sending ARP type 1 to 0260.8c43.a7e4VNSARP: received ARP type 2 from 0260.8c43.a7e4VNSARP: sending ARP type 3 to 0260.8c43.a7e4 assigning address 3001153C:8004VSARP: received ARP type 0 from 0260.8342.1501VSARP: sending ARP type 1 to 0260.8342.1501VSARP: received ARP type 2 from 0260.8342.1501VSARP: sending ARP type 3 to 0260.8342.1501 assigning address 3001153C:8005,sequence 143C, metric 2In , the first four lines show a non-sequenced ARP transaction and the second four lines show a sequenced ARP transaction. Within the first group of four lines, the first line shows that the router received an ARP request (type 0) from indicated station address 0260.8c43.a7e4. The second line shows that the router is sending back the ARP service response (type 1), indicating that it is willing to assign VINES Internet addresses. The
