Configuring Scalable Hub-and-Spoke MPLS VPNs

This feature prevents local connectivity between subscribers at the spoke provider edge (PE) router and ensures that a hub site provides subscriber connectivity. Any sites that connect to the same PE router must forward intersite traffic using the hub site. This ensures that the routing done at the spoke site moves from the access-side interface to the network-side interface or from the network-side interface to the access-side interface, but never from the access-side interface to the access-side interface.

This feature prevents situations where the PE router locally switches the spokes without passing the traffic through the hub site. This prevents subscribers from directly connecting to each other.

This feature eases configuration by removing the requirement of one VRF per spoke. In prior releases, when spokes connected to the same PE router, each spoke was configured in a separate VRF to ensure that the traffic between the spokes traversed the central link between the wholesale service provider and the ISP. However, this solution was not scalable. When many spokes connected to the same PE router, configuration of VRFs for each spoke became quite complex and greatly increased memory usage. This was especially true in large-scale environments that supported high-density remote access to Layer 3 VPNs.

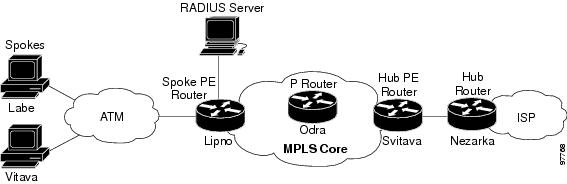

The figure below shows a sample hub-and-spoke topology.

Figure 1

Hub-and-Spoke Topology

This feature uses two unidirectional VRFs to forward IP traffic between the spokes and the hub PE router:

• The upstream VRF forwards the IP traffic from the spokes toward the hub PE router. This VRF typically contains only a default route but might also contain summary routes and multiple default routes. The default route points to the interface on the hub PE router that connects to the upstream ISP. The router dynamically learns about the default route from the routing updates that the hub PE router or home gateway sends. The upstream VRF also contains the VAIs that connect the spokes, but it contains no other local interfaces.
• The downstream VRF forwards traffic from the hub PE router back to the spokes. This VRF contains Point-to-Point Protocol (PPP) peer routes for the spokes and per-user static routes received from the Authentication, Authorization, and Accounting (AAA) server. It also contains the routes imported from the hub PE router.

The router redistributes routes from the downstream VRF into Multiprotocol Border Gateway Protocol (MP-BGP). The spoke PE router typically advertises a summary route across the MPLS core for the connected spokes. The VRF configured on the hub PE router imports the advertised summary route.

The unicast Reverse Path Forwarding (RPF) check ensures that an IP packet that enters a router uses the correct inbound interface. This feature supports unicast RPF check on the spoke-side interfaces. Because different VRFs are used for downstream and upstream forwarding, the RPF mechanism ensures that source address checks occur in the downstream VRF.

1.    enable

2.    configure terminal

3.    ip vrf vrf-name

4.    rd route-distinguisher

5.    route-target {import | export | both} route-target-ext-community

6.    exit

1.    enable

2.    configure terminal

3.    interface virtual-template number

4.    ip vrf forwarding vrf-name1 [ downstream vrf-name2]

5.    ip unnumbered type number

6.    exit

To configure the downstream VRF for an AAA server, enter the following Cisco attribute value:

lcp:interface-config=ip vrf forwarding U downstream D

For more information about configuring a RADIUS server, see Configuring Virtual Template Interfaces.

1.    show ip vrf [brief | detail | interfaces | id] [vrf-name]

2.    show ip route vrf vrf-name

3.    show running-config [ interface type number]

Router# show ip vrf

  Name   Default RD   Interface
  D      2:0          Loopback2
                      Virtual-Access3 [D]

                      Virtual-Access4 [D]


  U      2:1          Virtual-Access3
                      Virtual-Access4

Router# show ip vrf detail vrf1
VRF D; default RD 2:0; default VPNID <not set>
  Interfaces:
         Loopback2           Virtual-Access3 [D]  Virtual-Access4 [D]
  Connected addresses are not in global routing table
  Export VPN route-target communities
    RT:2:0
  Import VPN route-target communities
    RT:2:1
  No import route-map
  No export route-map
VRF U; default RD 2:1; default VPNID <not set>
  Interfaces:
    Virtual-Access3          Virtual-Access4
  Connected addresses are not in global routing table
  No Export VPN route-target communities
  Import VPN route-target communities
    RT:2:1
  No import route-map
  No export route-map

Router# show ip route vrf D

Routing Table: D
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter
area
       * - candidate default, U - per-user static route, o - ODR
       P - periodic downloaded static route
Gateway of last resort is not set
     2.0.0.0/8 is variably subnetted, 5 subnets, 2 masks
U       2.0.0.2/32 [1/0] via 2.8.1.1
S       2.0.0.0/8 is directly connected, Null0
U       2.0.0.5/32 [1/0] via 2.8.1.2
C       2.8.1.2/32 is directly connected, Virtual-Access4
C       2.8.1.1/32 is directly connected, Virtual-Access3

Router# show ip route vrf U
Routing Table: U
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS interarea
       * - candidate default, U - per-user static route, o - ODR
       P - periodic downloaded static route
Gateway of last resort is 100.0.0.20 to network 0.0.0.0
     2.0.0.0/32 is subnetted, 1 subnets
C       2.0.0.8 is directly connected, Loopback2
B*   0.0.0.0/0 [200/0] via 100.0.0.20, 1w5d

Router# show running-config interface virtual-access 3
Building configuration...
Current configuration : 92 bytes
!
interface Virtual-Access3
 ip vrf forwarding U downstream D
 ip unnumbered Loopback2
end

Router# show running-config interface virtual-access 4
Building configuration...
Current configuration : 92 bytes
!
interface Virtual-Access4
 ip vrf forwarding U downstream D
 ip unnumbered Loopback2
end
