Cisco 10-Gigabit Ethernet X2 Transceiver Modules Installation Note


Product Numbers: X2-10GB-SR=, X2-10GB-LR=, X2-10GB-ER=, X2-10GB-ZR=, X2-10GB-CX4=, X2-10GB-LX4=, X2-10GB-LRM=, DWDM-X2-xx.xx=

This installation note provides the installation instructions for the 10-Gigabit Ethernet X2 transceiver modules. The X2 transceivers are hot-swappable input/output (I/O) devices that plug into a 10-Gigabit Ethernet port, which connects the system module port with either a fiber-optic network or a copper network.

Contents

This document contains these sections:

Overview

Safety

Required Tools

Installing the 10-Gigabit Ethernet X2 Transceiver Module

Removing the 10-Gigabit Ethernet X2 Transceiver Module

Translated Safety Warnings

Related Documentation

Obtaining Documentation and Submitting a Service Request

Overview

The 10-Gigabit Ethernet X2 transceiver module is a hot-swappable I/O device that plugs into 10-Gigabit Ethernet ports. (See Figure 1.) The X2 transceiver connects the electrical circuitry of the system with the optical or copper network. Product numbers and other details are provided in Table 1 and Table 2.

Table 1 10-Gigabit Ethernet X2 Transceiver Modules

Product Number
Description

X2-10GB-SR

Cisco 10GBASE-SR X2 transceiver module for MMF, dual SC connector

X2-10GB-LR

Cisco 10GBASE-LR X2 transceiver module for SMF, dual SC connector

X2-10GB-ER

Cisco 10GBASE-ER X2 transceiver module for SMF, dual SC connector

X2-10GB-ZR

Cisco 10GBASE-ZR X2 transceiver module for SMF, dual SC connector

X2-10GB-CX4

Cisco 10GBASE-CX4 X2 transceiver module for CX4 cable, InfiniBand 4x connector

X2-10GB-LX4

Cisco 10GBASE-LX4 X2 transceiver module for MMF, dual SC connector

X2-10GB-LRM

Cisco 10GBASE-LRM X2 transceiver module for MMF, dual SC connector


Table 2 10-Gigabit Ethernet DWDM X2 Transceiver Modules

Product Number
Description
ITU Channel

DWDM-X2-60.61=

10GBASE-DWDM 1560.61 nm X2 (100-GHz ITU grid)

21

DWDM-X2-59.79=

10GBASE-DWDM 1559.79 nm X2 (100-GHz ITU grid)

22

DWDM-X2-58.98=

10GBASE-DWDM 1558.98 nm X2 (100-GHz ITU grid)

23

DWDM-X2-58.17=

10GBASE-DWDM 1558.17 nm X2 (100-GHz ITU grid)

24

DWDM-X2-56.55=

10GBASE-DWDM 1556.55 nm X2 (100-GHz ITU grid)

26

DWDM-X2-55.75=

10GBASE-DWDM 1555.75 nm X2 (100-GHz ITU grid)

27

DWDM-X2-54.94=

10GBASE-DWDM 1554.94 nm X2 (100-GHz ITU grid)

28

DWDM-X2-54.13=

10GBASE-DWDM 1554.13 nm X2 (100-GHz ITU grid)

29

DWDM-X2-52.52=

10GBASE-DWDM 1552.52 nm X2 (100-GHz ITU grid)

31

DWDM-X2-51.72=

10GBASE-DWDM 1551.72 nm X2 (100-GHz ITU grid)

32

DWDM-X2-50.92=

10GBASE-DWDM 1550.92 nm X2 (100-GHz ITU grid)

33

DWDM-X2-50.12=

10GBASE-DWDM 1550.12 nm X2 (100-GHz ITU grid)

34

DWDM-X2-48.51=

10GBASE-DWDM 1548.51 nm X2 (100-GHz ITU grid)

36

DWDM-X2-47.72=

10GBASE-DWDM 1547.72 nm X2 (100-GHz ITU grid)

37

DWDM-X2-46.92=

10GBASE-DWDM 1546.92 nm X2 (100-GHz ITU grid)

38

DWDM-X2-46.12=

10GBASE-DWDM 1546.12 nm X2 (100-GHz ITU grid)

39

DWDM-X2-44.53=

10GBASE-DWDM 1544.53 nm X2 (100-GHz ITU grid)

41

DWDM-X2-43.73=

10GBASE-DWDM 1543.73 nm X2 (100-GHz ITU grid)

42

DWDM-X2-42.94=

10GBASE-DWDM 1542.94 nm X2 (100-GHz ITU grid)

43

DWDM-X2-42.14=

10GBASE-DWDM 1542.14 nm X2 (100-GHz ITU grid)

44

DWDM-X2-40.56=

10GBASE-DWDM 1540.56 nm X2 (100-GHz ITU grid)

46

DWDM-X2-39.77=

10GBASE-DWDM 1539.77 nm X2 (100-GHz ITU grid)

47

DWDM-X2-38.98=

10GBASE-DWDM 1538.98 nm X2 (100-GHz ITU grid)

48

DWDM-X2-38.19=

10GBASE-DWDM 1538.19 nm X2 (100-GHz ITU grid)

49

DWDM-X2-36.61=

10GBASE-DWDM 1536.61 nm X2 (100-GHz ITU grid)

51

DWDM-X2-35.82=

10GBASE-DWDM 1535.82 nm X2 (100-GHz ITU grid)

52

DWDM-X2-35.04=

10GBASE-DWDM 1535.04 nm X2 (100-GHz ITU grid)

53

DWDM-X2-34.25=

10GBASE-DWDM 1534.25 nm X2 (100-GHz ITU grid)

54

DWDM-X2-32.68=

10GBASE-DWDM 1532.68 nm X2 (100-GHz ITU grid)

56

DWDM-X2-31.90=

10GBASE-DWDM 1531.90 nm X2 (100-GHz ITU grid)

57

DWDM-X2-31.12=

10GBASE-DWDM 1531.12 nm X2 (100-GHz ITU grid)

58

DWDM-X2-30.33=

10GBASE-DWDM 1530.33 nm X2 (100-GHz ITU grid)

59


Figure 1 10-Gigabit Ethernet X2 Transceiver Module (Optical)

1

Transmit optical bore

6

Module connector

2

Receive optical bore

7

Latch (extended)

3

Latching sleeve (retracted)

8

Latching sleeve (extended)

4

EMI gasket

9

Latch (retracted)

5

Transceiver heat sink




Note The dual SC connectors on the X2 transceivers support network interface cables with either Physical Contact (PC) or Ultra-Physical Contact (UPC) polished face types. The dual SC connectors on the X2 transceivers do not support network interface cables with an Angle Polished Connector (APC) polished face type.


Table 3 lists the port cabling specifications for the 10-Gigabit Ethernet X2 transceiver modules. Table 4 lists the X2 transceiver optical transmit and receive specifications.

Table 3 X2 Transceiver Port Cabling Specifications

X2 Product Number
Wavelength (nm)
Cable Type
Core Size (microns)
Modal Bandwidth (MHz/km
Maximum Cabling Distance 1

X2-10GB-SR

850

MMF

62.5
62.5
50.0
50.0
50.0

160
200
400
500
2000

26 m (85.3 feet)
33 m (108.3 feet)
66 m (216.5 feet)
82 m (269 feet)
300 m (984.3 feet)

X2-10GB-LR

1310

SMF

G.652 fiber

10 km (6.21 miles)

X2-10GB-ER 2

1550

SMF

G.652 fiber

40 km (24.84 miles) 3

X2-10GB-ZR

1550

SMF

G.652 fiber

80 km (49.72 miles) 4

X2-10GB-LX4

1310

MMF

62.5
50.0
50.0

500
400
500

300 m (984.3 feet)
240 m (787.4 feet)
300 m (984.3 feet)

X2-10GB-CX4

InfiniBand (copper)

15 m (49.2 feet)

X2-10GB-LRM

1310

MMF

62.5
50.0
50.0

500
400
500

220 m (722 feet)
100 m (328 feet)
220 m (722 feet)

DWDM-X2-xx.xx

SeeTable 5

SMF

G.652 fiber

80 km (49.72 miles) 4

1 Minimum cabling distance for optical X2 transceivers is 2 meters according to the IEEE 802.3ae standard.

2 Requires a 5-dB 1550-nm, fixed-loss attenuator for distances less than 20 km.

3 For distances up to 30 km, no special link design rules need to be considered. Link distances beyond 30 km require that you verify the cable characteristics, especially the cable's loss value.

4 When shorter distances of SMF are used, an inline optical attenuator (10 dB) must be used to avoid overloading and damaging the receiver.


Table 4 X2 Transceiver Optical Transmit and Receive Specifications

X2 Product Number
Transceiver Type
Transmit Power (dBm)
Receive Power (dBm)
Transmit and Receive Wavelength (nm)

X2-10GB-SR

10GBASE-SR, 850-nm MMF

-1.2 (Max)
-7.3 (Min)

-1.0 (Max)
-9.9 (Min)

840 to 860

X2-10GB-LR

10GBASE-LR, 1310-nm SMF

0.5 (Max)
-8.2 (Min)

0.5 (Max)
-14.4 (Min)

1260 to 1355

X2-10GB-ER

10GBASE-ER, 1550-nm SMF

4.0 (Max)
-4.7 (Min)

-1.0 (Max)
-15.8 (Min)

1530 to 1565

X2-10GB-ZR

10GBASE-ZR, 1550-nm SMF

4.0 (Max)

0 (Min)

-7.0 (Max)

-24.0 (Min)

1530 to1565

X2-10GB-LX4

10GBASE-LX4 WWDM 1300-nm MMF

- 0.5 per lane (Max)

-6.75 per lane in OMA (Min)

-0.5 per lane (Max)

-14.25 per lane in OMA (Min)

Four lanes; overall range: 1269 to 1356

X2-10GB-LRM

10GBASE-LR, 1310-nm MMF

0.5 (Max)

-6.5 (Min)

0.5 (Max)

-8.4 (Min average) and
-6.4 (Min in OMA)

1260 to 1355


Table 3 lists the optical specifications of the DWDM X2 transceivers.

Table 5 DWDM X2 Transceiver Optical Transmit and Receive Specifications

Parameter
Symbol
Minimum
Typical
Maximum
Units
Notes and Conditions

Transmitter

Spectral Width

0.2

m

Full width, -20 dB from maximum, with resolution bandwidth (RBW) = 0.01 nm.

Transmitter Center Wavelength

x-100

x

x+100

pm

Refer to Table 2 for center wavelengths.

Side-Mode Suppression Ratio

SMSR

30

dB

Transmitter Extinction Ratio

OMI

9

dB

Transmitter Optical Output Power

P-out

-1.0

3.0

dBm

Average power coupled into single-mode fiber.

Receiver

Receiver Optical Input Wavelength

1530

1565

nm

Receiver Damage Threshold

-1

dBm

Dispersion Tolerance

-500



1600

ps/nm

Power-Limited Performance (measured at optical signal-to-noise ratio [OSNR] of 30 dB at 0.1-nm RBW)

Optical Input Power

Pin

-23.0



-7.0

dBm

1

Dispersion Power Penalty



3

dB

1

Noise-Limited Performance (measured at OSNR of 24 dB at 0.1-nm RBW)

Optical Input Power

Pin

-17.0



-7.0

dBm

1

Dispersion OSNR Penalty



3

dB

1

1 At bit error rate (BER) = 10e-12 with an IEEE802.3 test pattern.


Safety

Safety warnings appear throughout this publication in procedures that may harm you if performed them incorrectly or ignore them. A warning symbol precedes each warning statement.

Statement 1071—Warning Definition

Warning


IMPORTANT SAFETY INSTRUCTIONS

This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device.

SAVE THESE INSTRUCTIONS

Waarschuwing

BELANGRIJKE VEILIGHEIDSINSTRUCTIES

Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt raadplegen.

BEWAAR DEZE INSTRUCTIES

Varoitus

TÄRKEITÄ TURVALLISUUSOHJEITA

Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien lausuntonumeroiden avulla.

SÄILYTÄ NÄMÄ OHJEET

Attention

IMPORTANTES INFORMATIONS DE SÉCURITÉ

Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.

CONSERVEZ CES INFORMATIONS

Warnung

WICHTIGE SICHERHEITSHINWEISE

Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.

BEWAHREN SIE DIESE HINWEISE GUT AUF.

Avvertenza

IMPORTANTI ISTRUZIONI SULLA SICUREZZA

Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le traduzioni delle avvertenze riportate in questo documento.

CONSERVARE QUESTE ISTRUZIONI

Advarsel

VIKTIGE SIKKERHETSINSTRUKSJONER

Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne enheten.

TA VARE PÅ DISSE INSTRUKSJONENE

Aviso

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.

GUARDE ESTAS INSTRUÇÕES

¡Advertencia!

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña a este dispositivo.

GUARDE ESTAS INSTRUCCIONES

Varning!

VIKTIGA SÄKERHETSANVISNINGAR

Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning.

SPARA DESSA ANVISNINGAR

Aviso

INSTRUÇÕES IMPORTANTES DE SEGURANÇA

Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham o dispositivo.

GUARDE ESTAS INSTRUÇÕES

Advarsel

VIGTIGE SIKKERHEDSANVISNINGER

Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed.

GEM DISSE ANVISNINGER





Required Tools

You will need these tools to install the 10-Gigabit Ethernet X2 transceiver modules:

Small flat-blade screwdriver for removing the X2 transceiver socket covers.

Wrist strap or other personal grounding device to prevent ESD occurrences.

Antistatic mat or antistatic foam to set the transceiver on.

Fiber-optic end-face cleaning tools and inspection equipment. For complete information on inspecting and cleaning fiber-optic connections, refer to the white-paper document at this URL:

http://www.cisco.com/en/US/tech/tk482/tk607/technologies_white_paper09186a0080254eba.shtml

Installing the 10-Gigabit Ethernet X2 Transceiver Module

The 10-Gigabit Ethernet X2 transceiver module that you receive may or may not have a spring-loaded latch sleeve. Both transceiver types are functionally identical.


Warning Class 1 laser product. Statement 1008



Warning Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures. Statement 70



Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040



Warning Use of controls, adjustments, or performing procedures other than those specified may result in hazardous radiation exposure. Statement 1057



Note This installation procedure applies to both the spring-loaded and non-spring-loaded X2 transceivers.



Caution The X2 transceiver is a static-sensitive device. Always use an ESD wrist strap or similar individual grounding device when handling X2 transceivers or coming into contact with system modules.

To install an X2 transceiver, follow these steps:


Step 1 Using a small flat-blade screwdriver, carefully pry the X2 transceiver port cover off of the system module faceplate.

Use the two arrows on the port cover as guides for inserting the screwdriver blade. Save the port cover for future use.

Step 2 Remove the X2 transceiver from its protective packaging.


Note Do not remove the optical bore dust plugs until directed to do so later in the procedure.


Step 3 Check the label on the X2 transceiver body to verify that you have the correct model for your network.

Step 4 To install the X2 transceiver, follow these steps:

a. Insert the X2 transceiver into the transceiver socket on the system module front panel. (See Figure 2, top view.) Continue sliding the X2 transceiver into the socket until the X2 transceiver EMI gasket is against the system module faceplate. The X2 transceiver connector is now mated to the socket connector.

b. Verify that the X2 transceiver latches are fully engaged and secure by sliding the transceiver latching sleeve toward the system module faceplate. (See Figure 2, bottom view.)


Caution If the latches are not fully engaged, you may accidently disconnect the X2 transceiver.

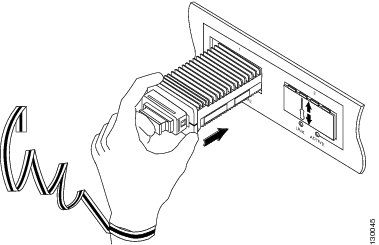

Figure 2 Installing the 10-Gigabit Ethernet X2 Transceiver Module


Note 10-Gigabit Ethernet X2 transceivers are keyed to prevent incorrect insertion.


Step 5 If you are cabling an optical X2 transceiver, follow these steps. If you are cabling a CX4 X2 transceiver, go to step 6.

Before removing the dust plugs and making any optical connections, observe the following guidelines:

Always keep the protective dust plugs on the unplugged fiber-optic cable connectors and the transceiver optical bores until you are ready to make a connection.

Always inspect and clean the SC connector end-faces just before making any connections. Refer to the Tip on this page for a pointer to a fiber-optic inspection and cleaning white paper.

Always grasp the SC connector housing to plug or unplug a fiber-optic cable.

a. Remove the dust plugs from the optical network interface cable SC connectors. Save the dust plugs for future use.

b. Inspect and clean the SC connector's fiber-optic end faces.

Tip For complete information on inspecting and cleaning fiber-optic connections, refer to the white-paper document at this URL:
http://www.cisco.com/en/US/tech/tk482/tk607/technologies_white_paper09186a0080254eba.shtml

c. Remove the dust plugs from the X2 transceiver module optical bores.

d. Immediately attach the network interface cable SC connectors to the X2 transceiver module. (See Figure 3 for cabling an optical X2 transceiver module.)

Figure 3 Cabling an Optical 10-Gigabit Ethernet X2 Transceiver Module

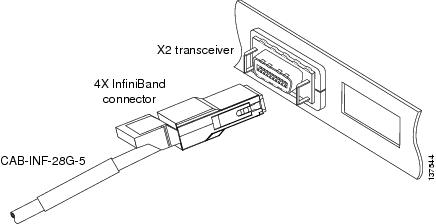

Step 6 Plug the InfiniBand cable connector into the CX4 X2 transceiver connector. (See Figure 4.) Make sure that the InfiniBand cable connector is aligned with the X2 transceiver.

Figure 4 Cabling a CX4 (Copper) 10-Gigabit Ethernet X2 Transceiver Module

Step 7 Carefully route the InfiniBand network cable through the cable management brackets on your system. Figure 5 shows how the InfiniBand cable should be routed through either a horizontal cable management bracket or a vertical cable management bracket.


Note Make sure that you route the InfiniBand cable through cable management brackets to provide adequate strain relief and cable support when cabling CX4 X2 transceivers. The InfiniBand cable is heavy. Without proper support, the InfiniBand cable can cause the cable connector to sag or skew. Misalignment between the cable connector and the transceiver connector can cause intermittent connections between the cable connector pins and the CX4 X2 transceiver pins.

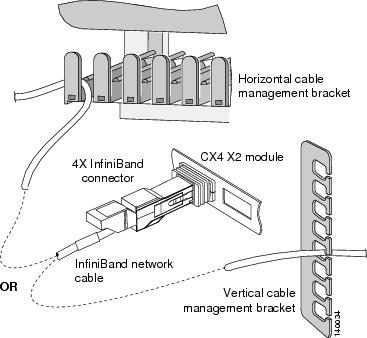

Figure 5 InfiniBand Cable Support


Removing the 10-Gigabit Ethernet X2 Transceiver Module


Warning Class 1 laser product. Statement 1008



Warning Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures. Statement 70



Warning Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040



Warning Use of controls, adjustments, or performing procedures other than those specified may result in hazardous radiation exposure. Statement 1057



Note This removal procedure applies to both the spring-loaded and non-spring-loaded X2 transceivers.



Caution The X2 transceiver is a static-sensitive device. Always use an ESD wrist strap or similar individual grounding device when handling X2 transceivers or coming into contact with modules.

To remove an X2 transceiver, follow these steps:


Step 1 Disconnect the network interface cable from the X2 transceiver connectors. If this is an optical X2 transceiver, immediately reinstall the dust plugs in the X2 transceiver optical bores and the fiber-optic cable SC connectors.

Step 2 Grip the sides of the X2 transceiver latching sleeve with your thumb and forefinger, and pull the latching sleeve out to release the X2 transceiver from the socket connector. (See Figure 6, top view.)

Step 3 Slide the X2 transceiver out of the socket. (See Figure 6, bottom view.) Immediately place the X2 transceiver in an antistatic bag.

Step 4 Reinstall the socket cover if you are not installing an X2 transceiver in the empty socket:

a. Position the socket cover in front of the socket opening.

b. Snap the socket cover in place.

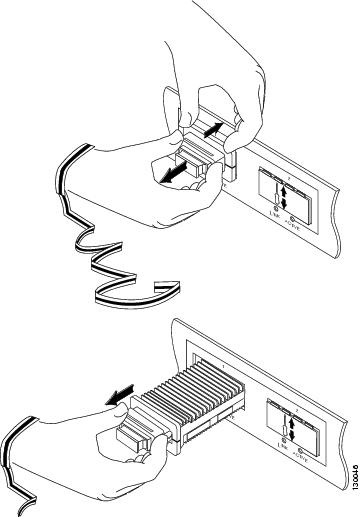

Figure 6 Removing the 10-Gigabit Ethernet X2 Transceiver


Translated Safety Warnings

This section repeats in multiple languages the basic warnings that appear in this document.

Statement 70—Invisible Laser Radiation Warning

Warning


Because invisible laser radiation may be emitted from the aperture of the port when no cable is connected, avoid exposure to laser radiation and do not stare into open apertures. Statement 70

Waarschuwing

Omdat er onzichtbare laserstraling uit de opening van de poort geëmitteerd kan worden wanneer er geen kabel aangesloten is, dient men om blootstelling aan laserstraling te vermijden niet in de open openingen te kijken.

Varoitus

Kun porttiin ei ole kytketty kaapelia, portin aukosta voi vuotaa näkymätöntä lasersäteilyä. Älä katso avoimiin aukkoihin, jotta et altistu säteilylle.

Attention

Etant donné qu'un rayonnement laser invisible peut être émis par l'ouverture du port quand aucun câble n'est connecté, ne pas regarder dans les ouvertures béantes afin d'éviter tout risque d'exposition au rayonnement laser.

Warnung

Aus der Öffnung des Ports kann unsichtbare Laserstrahlung austreten, wenn kein Kabel angeschlossen ist. Kontakt mit Laserstrahlung vermeiden und nicht in offene Öffnungen blicken.

Avvertenza

Poiché quando nessun cavo è collegato alla porta, da quest'ultima potrebbe essere emessa radiazione laser invisibile, evitare l'esposizione a tale radiazione e non fissare con gli occhi porte a cui non siano collegati cavi.

Advarsel

Usynlige laserstråler kan sendes ut fra åpningen på utgangen når ingen kabel er tilkoblet. Unngå utsettelse for laserstråling og se ikke inn i åpninger som ikke er tildekket.

Aviso

Evite uma exposição à radiação laser e não olhe através de aberturas expostas, porque poderá ocorrer emissão de radiação laser invisível a partir da abertura da porta, quando não estiver qualquer cabo conectado.

¡Advertencia!

Cuando no esté conectado ningún cable, pueden emitirse radiaciones láser invisibles por el orificio del puerto. Evitar la exposición a radiaciones láser y no mirar fijamente los orificios abiertos.

Varning!

Osynliga laserstrålar kan sändas ut från öppningen i porten när ingen kabel är ansluten. Undvik exponering för laserstrålning och titta inte in i ej täckta öppningar.



Statement 1008—Class 1 Laser Product

Warning


Class 1 laser product.

Waarschuwing

Klasse-1 laser produkt.

Varoitus

Luokan 1 lasertuote.

Attention

Produit laser de classe 1.

Warnung

Laserprodukt der Klasse 1.

Avvertenza

Prodotto laser di Classe 1.

Advarsel

Laserprodukt av klasse 1.

Aviso

Produto laser de classe 1.

¡Advertencia!

Producto láser Clase I.

Varning!

Laserprodukt av klass 1.

Aviso

Produto a laser de classe 1.

Advarsel

Klasse 1 laserprodukt.





Statement 1040—Product Disposal

Warning


Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040

Waarschuwing

Het uiteindelijke wegruimen van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

Varoitus

Tämä tuote on hävitettävä kansallisten lakien ja määräysten mukaisesti.

Attention

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.

Warnung

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

Avvertenza

Lo smaltimento di questo prodotto deve essere eseguito secondo le leggi e regolazioni locali.

Advarsel

Endelig kassering av dette produktet skal være i henhold til alle relevante nasjonale lover og bestemmelser.

Aviso

Deitar fora este produto em conformidade com todas as leis e regulamentos nacionais.

¡Advertencia!

Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales.

Varning!

Vid deponering hanteras produkten enligt gällande lagar och bestämmelser.

Aviso

O descarte definitivo deste produto deve estar de acordo com todas as leis e regulamentações nacionais.

Advarsel

Endelig bortskaffelse af dette produkt skal ske i henhold til gældende love og regler.





Statement 1057—Hazardous Radiation Exposure

Warning


Use of controls, adjustments, or performing procedures other than those specified may result in hazardous radiation exposure. Statement 1057

Waarschuwing

Het gebruik van regelaars of bijstellingen of het uitvoeren van procedures anders dan opgegeven kan leiden tot blootstelling aan gevaarlijke straling.

Varoitus

Säätimien tai säätöjen käyttö ja toimenpiteiden suorittaminen ohjeista poikkeavalla tavalla voi altistaa vaaralliselle säteilylle.

Attention

L'utilisation de commandes, de réglages ou de procédures autres que ceux spécifiés peut entraîner une exposition dangereuse à des radiations.

Warnung

Die Verwendung von nicht spezifizierten Steuerelementen, Einstellungen oder Verfahrensweisen kann eine gefährliche Strahlenexposition zur Folge haben.

Avvertenza

L'adozione di controlli, regolazioni o procedure diverse da quelle specificate può comportare il pericolo di esposizione a radiazioni.

Advarsel

Bruk av kontroller eller justeringer eller utførelse av prosedyrer som ikke er spesifiserte, kan resultere i farlig strålingseksponering.

Aviso

O uso de controles, ajustes ou desempenho de procedimentos diferentes dos especificados pode resultar em exposição prejudicial de radiação.

¡Advertencia!

La aplicación de controles, ajustes y procedimientos distintos a los especificados puede comportar una exposición peligrosa a la radiación.

Varning!

Om andra kontroller eller justeringar än de angivna används, eller om andra processer än de angivna genomförs, kan skadlig strålning avges.

Aviso

O uso de controles, ajustes ou procedimentos diferentes daqueles especificados pode resultar em exposição perigosa à radiação.

Advarsel

Brug af kontrolfunktioner, justeringer, eller udførelse af procedurer andre end de, der er angivet, kan resultere i udsættelse for farlig bestråling.





Related Documentation

For hardware installation and maintenance information on specific Cisco routers and switches, see the installation and configuration guide for your router or switch.

For software configuration information and support, see the Cisco IOS software configuration and command reference publications for the installed Cisco IOS software release or the Catalyst operating system software configuration and command reference publications for the installed Catalyst operating system software release.

Support summaries for all X2s are at:

http://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html

Obtaining Documentation and Submitting a Service Request

For information on obtaining documentation, submitting a service request, and gathering additional information, see the monthly What's New in Cisco Product Documentation, which also lists all new and revised Cisco technical documentation, at:

http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html

Subscribe to the What's New in Cisco Product Documentation as a Really Simple Syndication (RSS) feed and set content to be delivered directly to your desktop using a reader application. The RSS feeds are a free service and Cisco currently supports RSS version 2.0.
