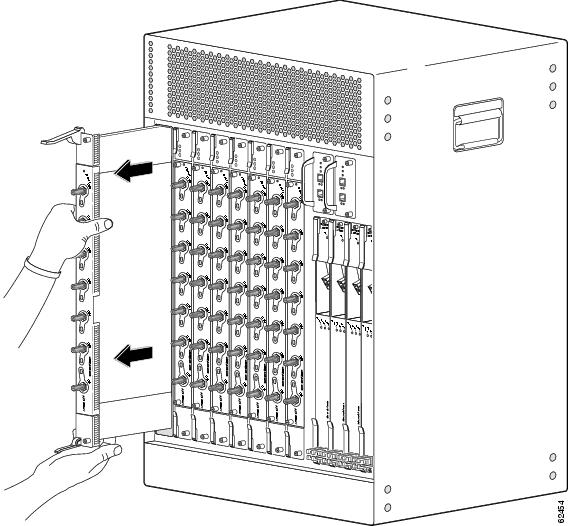

Removing a Cisco uBR10-LCP2-MC16x Cable Interface Line Card

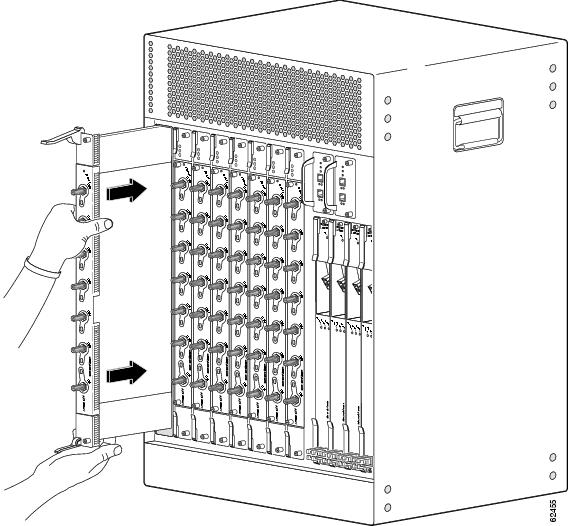

Installing the Cisco uBR10-LCP2-MC16x Cable Interface Line Card in the Chassis
Connecting the Cables
Replacing the Line Card in the Cisco uBR10-LCP2 Adapter Card

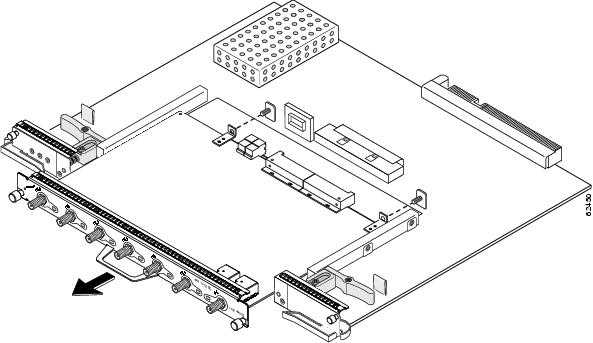

Removing the Cable Interface Line Card from the Adapter Card
Installing the Cisco uBR MC16x Cable Interface Line Card in the Adapter Card
Replacing the Cisco uBR10-LCP2-MC16x Cable Interface Line Card in the Chassis
Connecting the Cables
Troubleshooting the Cisco uBR10-LCP2-MC16x Cable Interface Line Card
Related Documentation
Obtaining Documentation
Cisco.com
Ordering Documentation
Documentation Feedback
Obtaining Technical Assistance
Cisco Technical Support Website
Submitting a Service Request
Definitions of Service Request Severity
Obtaining Additional Publications and Information
Cisco uBR10-LCP2-MC16C/MC16E/MC16S Cable Interface Card for the Cisco uBR10012 Router
OL-2872-02
June 2005
Note
The Cisco uBR10-LCP2-MC16x (C, E, S) cable interface line cards are end of sale. For additional information, refer to END-OF-LIFE NOTICE, NO. 2600 at the following location:
http://www.cisco.com/en/US/products/hw/cable/ps2209/prod_eol_notice0900aecd80183921.html
This document describes the Cisco uBR10-LCP2-MC16C, the Cisco uBR10-LCP2-MC16E, and the Cisco uBR10-LCP2-MC16S cable interface line cards and how to install them for use with the Cisco uBR10012 universal broadband router. This document provides the following information:
•Cisco uBR10-LCP2-MC16C/MC16E/MC16S Overview
•Technical Specifications
•Safety Information and Warnings
•Removing and Replacing a Cisco uBR10-LCP2-MC16x Cable Interface Line Card
•Replacing the Line Card in the Cisco uBR10-LCP2 Adapter Card
•Troubleshooting the Cisco uBR10-LCP2-MC16x Cable Interface Line Card
•Obtaining Documentation
•Documentation Feedback
•Obtaining Technical Assistance
•Obtaining Additional Publications and Information
Cisco uBR10-LCP2-MC16C/MC16E/MC16S Overview
The cable interface line cards, together with external IF-to-RF upconverters, serve as the RF interface between the cable headend and DOCSIS/EuroDOCSIS-based cable modems.
The Cisco uBR10-LCP2-MC16C, the Cisco uBR10-LCP2-MC16E, and the Cisco-LCP2-MC16S cable interface line cards are a combination of two components:
•Cisco uBR-MC16x (MC16C, MC16E, and MC16S) cable interface line cards—Provide one downstream and six upstreams channels.
–Cisco uBR-MC16C and Cisco uBR-MC16S support cable modems and set-top boxes that operate according to the Data-over-Cable Service Interface Specifications (DOCSIS). DOCSIS supports the 6-MHz North American channel plans using the ITU J.83 Annex B RF standard. The downstream uses a 6 MHz channel width in the 85- to 860-MHz frequency range, and the upstream supports the 5- to 42-MHz frequency range.
Note The Cisco uBR-MC16S main board also includes a daughter card that provides the advanced hardware-based spectrum management feature. This daughter card is an integral part of the card assembly and cannot be removed in the field.
–Cisco uBR-MC16E supports cable modems and set-top boxes that operate according to the European DOCSIS specifications (EuroDOCSIS). EuroDOCSIS supports the 8-MHz Phase Alternating Line (PAL) and SEquential Couleur Avec Memoire (SECAM) channel plans using the ITU J.112 Annex A RF standard. The downstream uses an 8 MHz channel width in the 85- to 860-MHz frequency range, and the upstream supports multiple channel widths in the 5- to 65-MHz frequency range.
•Cisco Line Card Processor (Cisco uBR10-LCP2) adapter card—Provides the mechanical and electrical conversions necessary for the Cisco uBR-MC16C, the Cisco uBR-MC16E, or the Cisco MC16S cable interface line card to fit the form factor used in the Cisco uBR100012 chassis.
Note Currently there are two types of LCP adapter cards, LCP and LCP2. The LCP is the original adapter card shipped with the Cisco uBR10-LCP-MC16x card. (Installation information about the LCP adapter card also applies to the LCP2 adapter card.) The Cisco uBR10-LCP2 adapter card is replacing the old LCP adapter card. The upgrade to the Cisco uBR10-LCP2 increases the memory from 64- to 256-MB. The upgrade supports N+1 requirements when the card is used as a redundant or protect card. There is no problem with the original LCP version if the card is used as the operating card. See the Proactive Upgrade Field Notice number 18301 at the following URL:
http://www-tac.cisco.com/Support_Library/field_alerts/fn18103.html.
The Cisco uBR10-LCP2 and Cisco uBR-MC16x cable interface line cards (MC16C, MC16E, and MC16S) are mechanically connected to each other by using brackets and power connectors (see Figure 1). The Cisco uBR10-LCP2 not only adapts the cable interface line card to the form factor of the Cisco uBR10012 chassis, but also provides:
•Proper voltage conversion for the cards and chassis.
•Boot code required to use the cable interface line cards.
•SDRAM for buffering packets as they are transferred between the card and PRE1.
The cards are inserted into and removed from the Cisco uBR10012 chassis as a single logical and physical unit. All Cisco uBR10-LCP2-MC16x cable interface line cards support online insertion and removal (OIR). OIR uses the MAC address assigned to the Cisco uBR10-LCP2 adapter card, allowing you to replace any Cisco uBR-MC16x cable interface line card installed on the adapter card without losing the configuration information.
Note Do not attempt to separate or remove the cable interface line card from the Cisco uBR10-LCP2 adapter card while they are inserted in the Cisco uBR10012 chassis. Remove the card from the chassis as a unit and then separate them on a lab bench or other area that protects against ESD damage. See the "Replacing the Line Card in the Cisco uBR10-LCP2 Adapter Card" section.
Figure 1 shows the Cisco uBR10-LCP2-MC16C cable interface line card.
Figure 1 Cisco uBR10-LCP2 Adapter Card with the Cisco uBR-MC16C Cable Interface Line Card Installed
The one downstream port and six upstream ports support the modulations shown in Table 1.
Table 1 Cisco uBR10-LCP2-MC16C, E, and S Cable Interface Line Card Specifications
Cable Interface Line Card
|
Downstream Modulation
|
Upstream Modulation
|
Output
|
Cisco uBR10-LCP2-MC16C1
|
64 QAM, 256 QAM
|
QPSK, 16 QAM
|
+42 dBmV +/- 3dB
|
Cisco uBR10-LCP2-MC16E2
|
64 QAM, 256 QAM
|
QPSK, 16 QAM
|
+40 dBmV +/- 3dB
|
Cisco uBR10-LCP2-MC16S3
|
64 QAM, 256 QAM
|
QPSK, 16 QAM
|
+42 dBmV +/- 2dB
|
The default modulations are:
•64 quatrature amplitude modulations (QAM) for downstream.
•quadrature amplitude phase-shift keying (QPSK) for upstream.
DOCSIS and EuroDOCSIS Data Rates and Modulation Schemes
Cisco cable interface line cards are configured in a number of different upstream combinations based on the card used, your cable network, and the anticipated subscription and service levels. Table 2 lists the data rates and modulation schemes for both DOCSIS and EuroDOCSIS standards.
Table 2 DOCSIS and EuroDOCSIS Upstream Data Rates
Upstream Channel Width
|
Modulation Scheme
|
Baud Rate Sym/sec
|
Raw Bit Rate Mbit/sec
|
Throughput
(Bit rate - Overhead) Mbit/sec
|
3.2 MHz
|
16 QAM(4)
QPSK (2)
|
2.56 M
|
10.24
5.12
|
9.0
4.6
|
1.6 MHz
|
16 QAM(4)
QPSK (2)
|
1.28 M
|
5.12
2.56
|
4.5
2.3
|
800 kHz
|
16 QAM(4)
QPSK (2)
|
640 k
|
2.56
1.28
|
2.3
1.2
|
400 kHz
|
16 QAM(4)
QPSK (2)
|
320 k
|
1.28
0.64
|
1.2
0.6
|
200 kHz
|
16 QAM(4)
QPSK (2)
|
160 k
|
0.64
0.32
|
0.6
0.3
|
Cisco uBR10-LCP2-MC16C
The Cisco uBR10-LCP2-MC16C cable interface line card output is +42 dBmV +/- 3 dB and supports all DOCSIS upstream channel widths described in Table 2. The card is configured identically to the Cisco uBR-MC16C cable interface line card.
Note The configuration information for the Cisco uBR10-LCP2-MC16C is the same as the information for the Cisco uBR10-LCP2-MC28C/Cisco uBR-MC28C, except that there are fewer upstream and downstream ports. Refer to the configuration guides.
For Cisco IOS software requirements see the "Obtaining Documentation" section.
For configuration information, refer to Configuring the Cisco uBR-MC28C Cable Modem Card, available on the documentation CD-ROM and Cisco.com at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/cab_r_sw/flmc28.htm
Refer to the Cisco uBR7200 Series Universal Broadband Router Software Configuration Guide at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/cab_rout/index.htm
Cisco uBR10-LCP2-MC16E
The Cisco uBR10-LCP2-MC16E cable interface line card output is +40 dBmV +/- 3 dB and supports all EuroDOCSIS upstream channel widths described in Table 2. The card is configured identically to the Cisco uBR-MC16E cable interface line card.
While all other Cisco cable interface line cards transmit downstream signals to upconverters by using the 44-MHz frequency, the Cisco uBR10-LCP2-MC16E transmits downstream IF signals to an up converter by using the 36.125-MHz frequency.
For Cisco IOS software requirements see the "Obtaining Documentation" section.
For configuration information, refer to Configuring the Cisco uBR7200 Series MC16E Cable Modem Card, available on the documentation CD-ROM and Cisco.com or at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/cab_r_sw/index.htm
Refer to Chapter 3 in the Cisco uBR7200 Series Universal Broadband Router Software Configuration Guide at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/cab_rout/index.htm
Cisco uBR10-LCP2-MC16S
The Cisco uBR10-LCP2-MC16S:
•Consists of the Cisco uBR10-LCP2 adapter card, a motherboard (based on the Cisco uBR-MC16C cable interface line card) and an additional "piggy-back" spectrum management daughter card. The card is configured identically to the Cisco uBR-MC16S cable interface line card.
•Supports all DOCSIS downstream symbol rates and upstream channel widths as described in Table 2.
•Features advanced spectrum management capabilities made possible by hardware and software enhancements. The advanced spectrum management capabilities of the Cisco uBR10-LCP2-MC16S include the ability to hierarchically scan portions of the upstream spectrum for clean channels of varying widths.
The Cisco uBR10-LCP2-MC16S spectrum management card (daughter card) is able to sample the 5 to 42 MHz upstream frequency spectrum and initiate frequency hops, modulation change, or channel-width changes based on the sampled information. When specified thresholds have been reached, the spectrum management card takes a snapshot of the available upstream spectrum and then passes this information to the Cisco IOS software, where it is analyzed for indications of significant ingress or impulse noise. From this analysis, the Cisco IOS software draws informed conclusions regarding the "cleanest" portions of the upstream frequency spectrum to initiate a frequency hop to a clean upstream channel, if warranted. The user-defined threshold values are specified by commands in the configuration file of the Cisco uBR10012 router.
For Cisco IOS software requirements see the "Related Documentation" section.
Physical Description

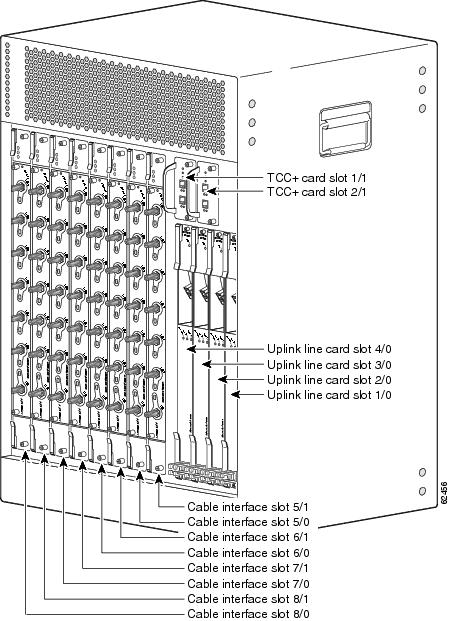

Figure 2 shows the chassis slot numbering for the cable interface line cards.
Figure 2 Cisco uBR10012 Router Chassis Slot Numbering

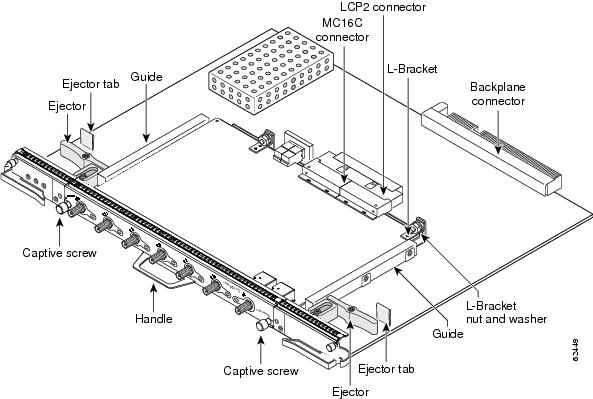

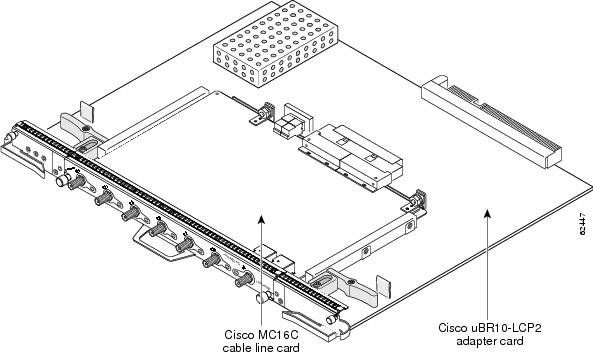

Figure 3 shows the cable interface line card and adapter card as a unit. Note the location of the ejectors used to separate the line card from the adapter card.
Figure 3 Cisco uBR10-LCP2-MC16C Cable Interface Line Card Components
Figure 4 shows the faceplate for the Cisco uBR10-LCP2-MC16C cable interface line card.
Figure 4 Cisco uBR10-LCP2-MC16C Faceplate
The Cisco uBR10-LCP2-MC16C cable interface line card has one downstream port and six upstream ports. The upstream ports are labeled US0 through US5. The downstream port is labeled DS. See Table 3 for a description of the LCP2 adapter card LEDs and Table 4 for descriptions of the cable interface line card LEDs and their functions.
Figure 5 shows the faceplate for the Cisco uBR10-LCP2-MC16E cable interface line card.
Figure 5 Cisco uBR10-LCP2-MC16E Faceplate
The Cisco uBR10-LCP2-MC16E cable interface line card has one downstream port and six upstream ports. The upstream ports are labeled US0 through US5. The downstream port is labeled DS. See Table 3 for a description of the LCP2 adapter card LEDs and Table 4 for descriptions of the cable interface line card LEDs and their functions.
Figure 6 shows the faceplate for the Cisco uBR10-LCP2-MC16S cable interface line card.
Figure 6 Cisco uBR10-LCP2-MC16S Faceplate
The Cisco uBR10-LCP2-MC16S cable interface line card has one downstream port and six upstream ports. The upstream ports are labeled US0 through US5. The downstream port is labeled DS. There are six LEDs labeled MGR ACT (manager active) next to each upstream port. See Table 3 for a description of the LCP2 adapter card LEDs and Table 4 for descriptions of the cable interface line card LEDs and their functions.
Cisco uBR10-LCP2-MC16x LEDs
Both the Cisco uBR10-LCP2 adapter card and the cable interface line card have their own set of status LEDs on the front of the module. The Cisco uBR10-LCP2 adapter card LEDs are described in Table 3. The Cisco uBR-MC16x cable interface line cards LEDs are described in Table 4.
Table 3 describes the LCP2 adapter card LEDs and their functions.
Table 3 Cisco uBR10-LCP2 Adapter Card LEDs and Their Functions
LED
|
Status
|
Description
|
Power
|
Green
Off
|
Indicates that the power is being supplied to the Cisco uBR10-LCP2.
Power is off.
|
Status
Status LED on N+1 or redundant card in chassis
|
Yellow
Green
Blinking Green
|
Indicates that the Cisco uBR10-LCP2 is in the boot up process, is in self test mode, or is downloading code.
Indicates that the Cisco uBR10-LCP2 has successfully completed the boot, the self test, and the code download process.
Indicates that the board is in standby or protect card mode.
|
Maintenance
|
Off
Yellow
|
Normally off to indicate that there is no maintenance action required.
Indicates that it is safe to remove the entire assembly (Cisco uBR10-LCP2 adapter card and Cisco uBR-MC16x cable interface line card) from the chassis.
|
Table 4 describes the cable interface line card LEDs and their functions.
Table 4 Cisco uBR-MC16x Cable Interface Line Card LEDs and Their Functions
LED
|
Status
|
Description
|
Enables
|
Green
Off
|
Cable interface line card is operating normally, is receiving DC power from the router midplane, and is configured for operation.
Either the card is shut down or the slot is not working.
|
Upstream
|
Green
Off
|
Upstream path is enabled and configured (each upstream port).
Either the port is not properly configured or is shut down, or the slot is not working.
|
Downstream
|
Green
Off
|
Downstream path is enabled and is configured (each downstream port).
Either the port is not properly configured or is shut down, or the slot is not working.
|
MGR ACT
(uBR-MC16S only)
|
Green
Off
|
Spectrum management activity on the channel.
Spectrum management is not active.
|
Technical Specifications
Table 5 lists the specifications for the Cisco uBR10-LCP2-MC16C, Cisco uBR10-LCP2-MC16E, and Cisco uBR10-LCP2-MC16S cable interface line cards.
Table 5 Cisco uBR10-LCP2-MC16C/MC16E/MC16S Cable Interface Line Card Specifications
Description
|
Specifications
|
Product order number
|
•UBR10-LCP2,
UBR10-LCP2=
•UBR10-LCP2-MC16E,
UBR10-LCP2-MC16E=
•UBR10-LCP2-MC16C,
UBR10-LCP2-MC16C=
•UBR10-LCP2-MC16S,
UBR10-LCP2-MC16S=
•UBR10-MC-Cover=
|
Card dimensions (overall)
|
•Height: 21.25 in (53.96 cm)
•Width: 1.4 in (3.56 cm)
•Depth: 16.5 in (41.91 cm)
|
Weight
|
12 lb. (5.44kg)
|
Power consumption
|
80 W (273.15 btu1 )
|
MTBF
|
•UBR10-LCP2-MC16C — 138,769 hours
•UBR10-LCP2-MC16E — 134,698 hours
•UBR10-LCP2-MC16S — 110,946 hours
|
Facility temperature range
|
•Operating: 41 to 104×F (5 to 40×C)
•Storage: - 40 to 158×F (- 40 to 70×C)
|
Relative humidity
|
•Operating: 5 to 85%
•Storage: 5 to 95%
|
Operating altitude
|
-197 to 13,123 ft (- 60 to 4000 m)
|
Cisco IOS software minimum requirements
|
•Cisco uBR10-LCP2-MC16C—Cisco IOS Release 12.2(4)XF or a later release
•Cisco uBR10-LCP2-MC16E—Cisco IOS Release 12.2(4)XF or a later release
•Cisco uBR10-LCP2-MC16S—Cisco IOS Release 12.2(8)BC2 or a later release
|
Safety Information and Warnings
Following are safety guidelines that you should follow when working with any equipment that connects to electrical power.
Warning Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
Electrical Equipment Guidelines
Follow these basic guidelines when working with any electrical equipment:
•Before beginning any procedures requiring access to the chassis interior, locate the emergency power-off switch for the room in which you are working.
•Disconnect all power and external cables before moving a chassis.
•Do not work alone when potentially hazardous conditions exist.
•Never assume that power has been disconnected from a circuit; always check.
•Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
•Carefully examine your work area for possible hazards such as moist floors, ungrounded power extension cables, and missing safety grounds.
Preventing Electrostatic Discharge Damage
Electrostatic discharge (ESD) damage, which occurs when electronic cards or components are improperly handled, can result in complete or intermittent failures. The AC-input power shelf and its AC power modules contain a printed circuit card that is fixed in a metal carrier. Electromagnetic interference (EMI) shielding and connectors are integral components of the carrier. Although the metal carrier helps to protect the cards from ESD, use an antistatic strap each time you handle the modules.
Following are guidelines for preventing ESD damage:
•Always use an ESD-preventive wrist or ankle strap and ensure that it makes good skin contact. Before removing a card from the chassis, connect the equipment end of the strap to a bare metal, unpainted surface on the chassis or rack-mount.
•Handle components by the carrier edges only; avoid touching the card components or any connector pins.
•When removing a module, place it on an antistatic surface or in a static-shielding bag. If the module will be returned to the factory, immediately place it in a static-shielding bag.
•Avoid contact between the modules and clothing. The wrist strap protects the card from ESD voltages on the body only; ESD voltages on clothing can still cause damage.
Caution For safety, periodically check the resistance value of the antistatic strap. The measurement should be between 1 and 10 megohms.
Warning Definition
|
Warning
|
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071
SAVE THESE INSTRUCTIONS
|
Waarschuwing
|
BELANGRIJKE VEILIGHEIDSINSTRUCTIES
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd, wilt raadplegen.
BEWAAR DEZE INSTRUCTIES
|
Varoitus
|
TÄRKEITÄ TURVALLISUUSOHJEITA
Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen kuin käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät laitteen mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten lopussa näkyvien lausuntonumeroiden avulla.
SÄILYTÄ NÄMÄ OHJEET
|
Attention
|
IMPORTANTES INFORMATIONS DE SÉCURITÉ
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement, soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil, référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.
CONSERVEZ CES INFORMATIONS
|
Warnung
|
WICHTIGE SICHERHEITSHINWEISE
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
BEWAHREN SIE DIESE HINWEISE GUT AUF.
|
Avvertenza
|
IMPORTANTI ISTRUZIONI SULLA SICUREZZA
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di incidenti. Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per individuare le traduzioni delle avvertenze riportate in questo documento.
CONSERVARE QUESTE ISTRUZIONI
|
Advarsel
|
VIKTIGE SIKKERHETSINSTRUKSJONER
Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før du begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i slutten av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte med denne enheten.
TA VARE PÅ DISSE INSTRUKSJONENE
|
Aviso
|
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento dos perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas habituais de prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham este dispositivo.
GUARDE ESTAS INSTRUÇÕES
|
¡Advertencia!
|
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará el número que le ayudará a encontrar el texto traducido en el apartado de traducciones que acompaña a este dispositivo.
GUARDE ESTAS INSTRUCCIONES
|
Varning!
|
VIKTIGA SÄKERHETSANVISNINGAR
Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer som finns i slutet av varje varning för att hitta dess översättning i de översatta säkerhetsvarningar som medföljer denna anordning.
SPARA DESSA ANVISNINGAR
|
|
|
|
|
|
|
|
|
|
|
Aviso
|
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de lesões corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que envolvem os circuitos elétricos e familiarize-se com as práticas padrão de prevenção de acidentes. Use o número da declaração fornecido ao final de cada aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham o dispositivo.
GUARDE ESTAS INSTRUÇÕES
|
Advarsel
|
VIGTIGE SIKKERHEDSANVISNINGER
Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer til undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde oversættelsen i de oversatte advarsler, der fulgte med denne enhed.
GEM DISSE ANVISNINGER
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Removing and Replacing a Cisco uBR10-LCP2-MC16x Cable Interface Line Card
Note This procedure applies to the Cisco uBR10-LCP2-MC16C, the Cisco uBR10-LCP2-MC16E, and the Cisco uBR10-LCP2-MC16S cable interface line cards.
To remove and replace an individual cable interface line card you need the following tools and parts:
•Replacement cable interface line card (order number UBR10-LCP2-MC16C=, UBR10-LCP2-MC16E=, UBR10-LCP2-MC16S=).
•ESD-preventive wrist strap.
•Antistatic surface or antistatic bag.
•Blank line card Cisco UBR10-MC-COVER= (if you are not replacing the card with another card).
Note For proper cooling and airflow, you must always install a blank cable interface line card cover in a blank line card slot. The product order number for the blank cable interface line card cover is Cisco UBR10-MC-COVER=.
Unpacking a Cisco uBR10-LCP2-MC16x Cable Interface Line Card
Tip Make sure that you are using the ESD-preventive wrist strap.
Step 1 Open the shipping carton by cutting the packing tape along the flaps on the top of the box.
Step 2 Remove the Cisco uBR10-LCP2-MC16x cable interface line card from the packaging.
Step 3 Place the card on an antistatic surface.
Removing a Cisco uBR10-LCP2-MC16x Cable Interface Line Card
Tip To prevent alarms from activating, you must administratively shut down a cable interface line card before hot swapping it. Refer to the Shutting Down and Restarting the Interface in the Cisco uBR7200 Series Universal Broadband Router Software Configuration Guide at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/inter_c/icdoverv.htm
Otherwise, inform the network administrator that this portion of the network will be temporarily interrupted. If the maintenance LED is on, you can remove the cable interface line card without affecting systems operations.
Use the following procedure to remove an existing cable interface line card from the Cisco uBR10012 chassis.
Step 1 Attach an antistatic wrist strap to your wrist and to a bare metal, unpainted surface on the chassis or frame.
Step 2 Face the back of the Cisco uBR10012 chassis. Clear enough interface and power cables to allow sufficient space to work.
Step 3 If installing a new cable interface line card in a blank slot, remove the blank slot cover and discard it. Otherwise, disconnect all coaxial cables from the cable interface line card being replaced or removed.
Step 4 Unscrew the top and bottom captive screws on the cable interface line card (Figure 7).
Step 5 Simultaneously pivot both ejector levers away from each other to disengage the cable interface line card from the backplane (Figure 8).
Step 6 Slide the cable interface line card out of the slot and place it on an antistatic surface or in an antistatic bag (Figure 9).
Step 7 If you are installing a new or replacement cable interface line card, continue with the next procedure. Otherwise, install a blank cover over the slot and screw down its captive screws to conclude this procedure.
Note For proper cooling and airflow, you must always install a blank cable interface line card cover in a blank line card slot. Product order number Cisco UBR10-MC-COVER=.

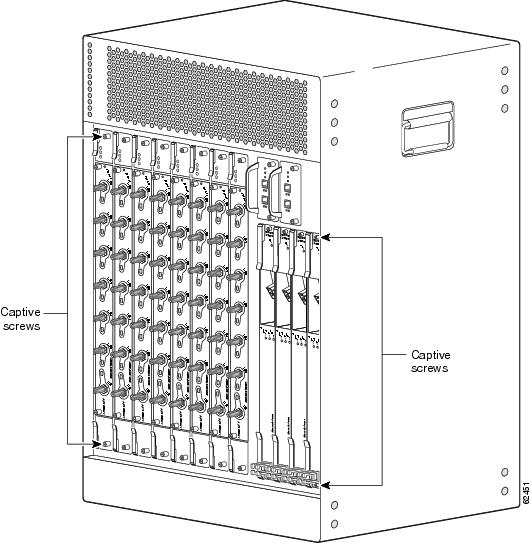

Figure 7 Locating the Captive Screws

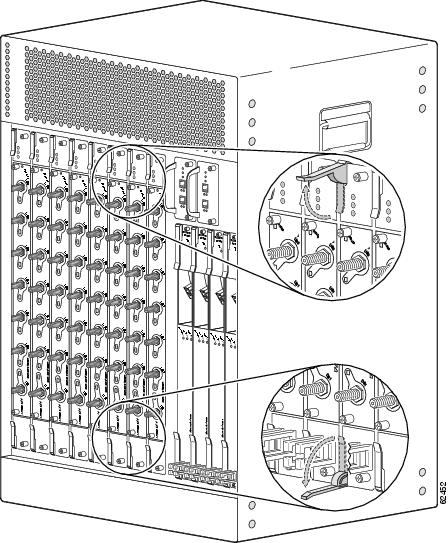

Figure 8 Opening the Ejector Levers
Figure 9 Removing the Cable Interface Line Card
Installing the Cisco uBR10-LCP2-MC16x Cable Interface Line Card in the Chassis
Step 1 Ensure that you are properly grounded before handling the line card.
Step 2 Grasp the faceplate of the new cable interface line card with one hand and place your other hand under the card carrier (to support the weight of the card).
Step 3 Verify that the ejector levers are perpendicular to the faceplate. See Figure 8.
Step 4 Carefully align the upper and lower edges of the cable interface line card with the upper and lower guides in the chassis, and slide the cable interface line card into the slot until you can feel it begin to seat in the backplane connectors (Figure 10).
Step 5 To firmly seat the card in the backplane, simultaneously pivot both ejector levers toward each other until they are parallel to the faceplate (Figure 11).
Step 6 Secure the cable interface line card in the chassis by tightening the top and bottom captive screws (see Figure 7).
Figure 10 Inserting the Cable Interface Line Card
Caution To ensure that there is adequate space for additional cable interface line cards, always tighten the captive screws on each newly installed cable interface line card
before you insert any additional cards. These screws prevent accidental removal and provide proper grounding for electromagnetic interference (EMI) shielding.

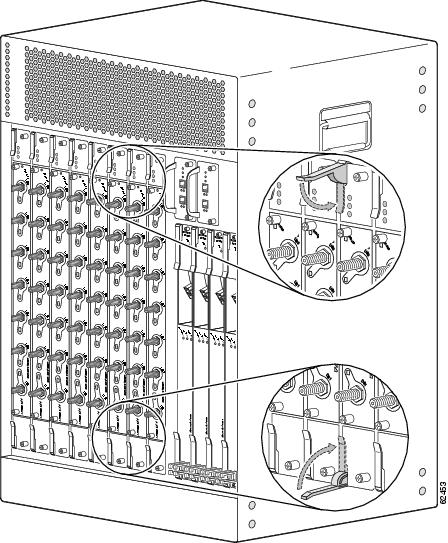

Figure 11 Closing the Ejector Levers
Connecting the Cables
When fully inserted, the cable interface line card cycles through its power-on self-test. The Power LED comes on (green) and the Status LED comes on (yellow). If the card is operating correctly, the Status LED then turns green. If these LEDs do not operate as described, refer to the "Troubleshooting the Cisco uBR10-LCP2-MC16x Cable Interface Line Card" section and the Cisco uBR10012 Universal Broadband Router Hardware Installation Guide at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ubr10012/hig/index.htm.
Note It is not necessary to configure the cable interface line card if you are installing a replacement card in the identical slot. The system automatically downloads the necessary configuration information from the process routing enigne (PRE).
Step 1 Connect all downstream and upstream coaxial cables to the cable interface line card, as necessary.
Step 2 Configure the cable interface line card, if necessary. For information about configuring the cable interface line card, refer to the Cisco uBR10012 Universal Broadband Router Software Configuration Guide at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/index.htm
Replacing the Line Card in the Cisco uBR10-LCP2 Adapter Card
The following section describes how to remove and replace a Cisco uBR-MC16x cable interface line card in the Cisco uBR10-LCP2 adapter card.
Note Do not attempt to separate or remove the cable interface line card from the Cisco uBR10-LCP2 adapter card while the combined cards are inserted in the chassis. You must remove the card as a unit; then, separate the line card from the LCP2 adapter card on a lab bench or other area that protects against ESD damage.
Tip To prevent alarms from activating, you must administratively shut down a cable interface line card before hot swapping it. Refer to "Shutting Down and Restarting the Interface" in the Cisco uBR7200 Series Universal Broadband Router Software Configuration Guide at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios121/121cgcr/inter_c/icdoverv.htm
Refer to the release notes at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ub10krns/index.htm.
Otherwise, inform the network administrator that this portion of the network will be temporarily interrupted. If the maintenance LED is on, you can remove the cable interface line card without affecting systems operations.
Removing the Cable Interface Line Card from the Adapter Card
Note The Cisco uBR-MC16S main board also includes a daughter card . This daughter card is an integral part of the card assembly and cannot be removed in the field.
Step 1 Ensure that you are properly grounded before handling the line card.
Step 2 Remove the cable interface line card from the chassis. See the "Removing a Cisco uBR10-LCP2-MC16x Cable Interface Line Card" section.
Step 3 Place the cable interface line card on an antistatic surface, omponent side facing up (see Figure 12).
Step 4 Loosen and remove the two sets of retaining nuts and washers on the L-brackets on the cable interface line card and set the nuts and washer aside.
Step 5 Loosen the two captive screws on the cable interface line card. See Figure 12.
Step 6 To disengage the Cisco cable interface line card from the Cisco uBR10-LCP2 adapter card, simultaneously grip the ejector levers and the ejector tabs with your thumbs and index fingers.
Step 7 Press the ejector levers back against the ejector tab. The card snaps loose from the adapter card.
Step 8 Pull the cable interface line card straight out of the adapter card with the handle. See Figure 14.
Step 9 Place the removed cable interface line card aside on an antistatic surface.

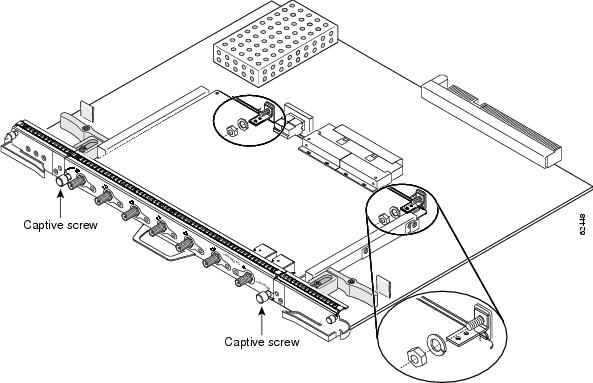

Figure 12 Removing the Nuts and Washers

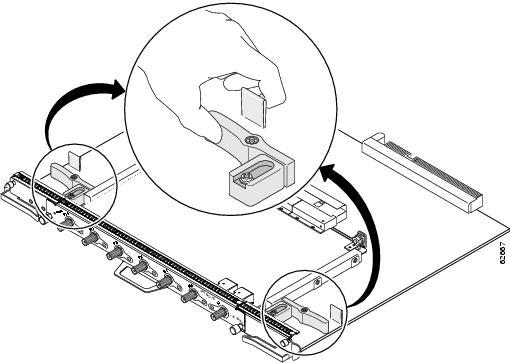

Figure 13 Ejecting the Cable Interface Line Card from the Adapter Card
Figure 14 Removing the Cisco uBR-MC16x Cable Interface Line Card from the Adapter Card
Installing the Cisco uBR MC16x Cable Interface Line Card in the Adapter Card
Step 1 Ensure that you are properly grounded before handling the line card.
Step 2 Align the Cisco uBR10-MC16x cable interface line card with the guide rails on the Cisco uBR10-LCP2 adapter card. Ensure that the bottom of the cable interface line card is flush with the bottom of the LCP2 adapter card.
Step 3 Slide the new cable interface line card into the adapter card slowly, making sure that the card is sliding under the spring guides and into the guides (see Figure 3).
Step 4 Continue pushing on the front of the card until the connectors on the card are firmly seated in the connectors on the adapter card. The ejector levers on each side of the card snap into place when the card is fully inserted.
Step 5 Verify that the power connectors are aligned with those on the adapter card.
Step 6 Continue pushing on the front of the card until the connectors on the card are firmly seated in the connectors on the adapter card. The ejector levers on each side of the card snap into place when the card is fully inserted.
Step 7 Make sure that the screws on the adapter card brackets slide cleanly into the holes in the L-brackets.
Note These brackets help align the Cisco uBR10-LCP2 adapter card and Cisco uBR-MC16x cable interface line card and hold the cable interface line card and the adapter card together.
Step 8 Tighten the captive screws on the cable interface line card to secure it to the LCP2 adapter card. See Figure 12.
Step 9 Replace the retaining washers and retaining nuts on the L-brackets (see Figure 13). Make sure that they are finger-tight.
Step 10 To secure the adapter card to the cable interface line card, turn the nuts a half-turn with the wrench.
Replacing the Cisco uBR10-LCP2-MC16x Cable Interface Line Card in the Chassis
Tip It is not necessary to configure the cable interface line card if you are installing a replacement card in the identical slot. The system automatically downloads the necessary configuration information from the PRE.
Step 1 Ensure that you are properly grounded before handling the line card.
Step 2 Grasp the faceplate of the new cable interface line card with one hand and place your other hand under the card carrier (to support the weight of the card) and position the card in front of the card cage slot.
Step 3 Carefully align the upper and lower edges of the cable interface line card with the upper and lower guides in the chassis, and slide the card into the slot until you can feel it begin to seat in the backplane connectors (Figure 10).
Step 4 Simultaneously pivot both ejector levers toward each other (until they are parallel to the faceplate) to firmly seat the card in the backplane (Figure 11).
Step 5 Secure the cable interface line card in the chassis by tightening the top and bottom captive screws (see Figure 7).
Caution To ensure that there is adequate space for additional cable interface line cards, always tighten the captive screws on each newly installed card
before you insert any additional cards. These screws prevent accidental removal and provide proper grounding for electromagnetic interference (EMI) shielding.
Connecting the Cables
When fully inserted, the cable interface line card cycles through its power-on self-test. The Power LED is on (green) and the Status LED turns yellow. If the card is operating correctly, the Status LED then turns green. If these LEDs do not operate as described, see the "Troubleshooting the Cisco uBR10-LCP2-MC16x Cable Interface Line Card" section and the Cisco uBR10012 Universal Broadband Router Hardware Installation Guide at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/index.htm.
Step 1 Connect all downstream and upstream coaxial cables to the cable interface line card, as necessary.
Step 2 Configure the cable interface line card, if necessary.
For information about configuring the cable interface line card, refer to the Cisco uBR10012 Universal Broadband Router Software Configuration Guide at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ubr10012/scg/index.htm
See the release notes at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/cab_rout/cfig_nts/10494hmc.htm.
Troubleshooting the Cisco uBR10-LCP2-MC16x Cable Interface Line Card
To help isolate a problem with a card, check the following:
Step 1 Are all enabled LEDs on?
If yes, the system is operational.
Step 2 Are any enabled LEDs off?
a. If the enabled LED on a cable interface line card is off, first verify that the card has been enabled and configured for operations. The enabled LED remains off when a card has not been configured and enabled.
b. If a port has been enabled but its corresponding enabled LED is still off, check to see if the card has pulled away from the router. Reseat the card in its slot. You do not have to turn off the system power when removing or replacing a card. After the system reinitializes the interfaces, the enabled LED on the cable interface line card should come on.
c. If the enabled LED remains off after the above checks, it is likely that the system has detected a processor hardware failure. Contact a service representative for instructions. Refer to "Obtaining Technical Assistance" section.
Related Documentation
For more information, see the following:
•Cisco uBR10012 Universal Broadband Router Hardware Installation Guide
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ubr10012/hig/index.htm
•Cisco uBR10-LCP2-MC28C Cable Interface Line Card for the Cisco uBR10012 Router
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ubr10012/frus/ub10clcp.htm
•Cisco uBR10012 Universal Broadband Router Software Configuration Guide
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ubr10012/scg/index.htm
•Cisco uBR10012 Universal Broadband Router Software Features
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ubr10012/ub10ksw/index.htm
•Cisco uBR10000 Series Universal Broadband Router Release Notes
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ub10krns/index.htm
•Cisco Cable Modem Termination Ssystem Feature Guide
http://www.cisco.com/univercd/cc/td/doc/product/cable/cab_rout/cmtsfg/index.htm
•Installing a Cisco uBR10-LCP2-MCxx Cable Interface Line Card Quick Start Guide
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ubr10012/index.htm
•Cisco uBR7200 Series Universal Broadband Software Features
http://www.cisco.com/univercd/cc/td/doc/product/cable/cab_rout/ub7200sw/index.htm
•For more Cisco cable products information, go to the following URL:
http://www.cisco.com/warp/public/44/jump/cable.shtml
•For more specific information on Cisco uBR10-LCP2-MC16S capabilities and programming, refer to:
–Cisco uBR10012 Universal Broadband Router Software Configuration Guide at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ubr10012/index.htm
–Advanced Spectrum Management Feature for the Cisco uBR-MC16S Cable Interface Line Card at the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/cab_rout/ub7200sw/index.htm
–Cisco uBR7200 Dynamic Upstream Modulationat the following URL:
http://www.cisco.com/univercd/cc/td/doc/product/cable/cab_rout/ub7200sw/index.htm
Note The advanced hardware-based spectrum management features on the Cisco uBR10-LCP2-MC16S cable interface line card must be enabled by Cisco IOS software. At the time of this document's publication, no Cisco IOS software supports the advanced hardware-based spectrum management feature. Check the release notes for succeeding Cisco IOS releases for information on this support.
Obtaining Documentation
Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several ways to obtain technical assistance and other technical resources. These sections explain how to obtain technical information from Cisco Systems.
Cisco.com
You can access the most current Cisco documentation at this URL:
http://www.cisco.com/univercd/home/home.htm
You can access the Cisco website at this URL:
http://www.cisco.com
You can access international Cisco websites at this URL:
http://www.cisco.com/public/countries_languages.shtml
Ordering Documentation
You can find instructions for ordering documentation at this URL:
http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm
You can order Cisco documentation in these ways:
•Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from the Ordering tool:
http://www.cisco.com/en/US/partner/ordering/index.shtml
•Nonregistered Cisco.com users can order documentation through a local account representative by calling Cisco Systems Corporate Headquarters (California, USA) at 408 526-7208 or, elsewhere in North America, by calling 800 553-NETS (6387).
Documentation Feedback
You can send comments about technical documentation to bug-doc@cisco.com.
You can submit comments by using the response card (if present) behind the front cover of your document or by writing to the following address:
Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883
We appreciate your comments.
Obtaining Technical Assistance
For all customers, partners, resellers, and distributors who hold valid Cisco service contracts, Cisco Technical Support provides 24-hour-a-day, award-winning technical assistance. The Cisco Technical Support Website on Cisco.com features extensive online support resources. In addition, Cisco Technical Assistance Center (TAC) engineers provide telephone support. If you do not hold a valid Cisco service contract, contact your reseller.
Cisco Technical Support Website
The Cisco Technical Support Website provides online documents and tools for troubleshooting and resolving technical issues with Cisco products and technologies. The website is available 24 hours a day, 365 days a year at this URL:
http://www.cisco.com/techsupport
Access to all tools on the Cisco Technical Support Website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a user ID or password, you can register at this URL:
http://tools.cisco.com/RPF/register/register.do
Submitting a Service Request
Using the online TAC Service Request Tool is the fastest way to open S3 and S4 service requests. (S3 and S4 service requests are those in which your network is minimally impaired or for which you require product information.) After you describe your situation, the TAC Service Request Tool automatically provides recommended solutions. If your issue is not resolved using the recommended resources, your service request will be assigned to a Cisco TAC engineer. The TAC Service Request Tool is located at this URL:
http://www.cisco.com/techsupport/servicerequest
For S1 or S2 service requests or if you do not have Internet access, contact the Cisco TAC by telephone. (S1 or S2 service requests are those in which your production network is down or severely degraded.) Cisco TAC engineers are assigned immediately to S1 and S2 service requests to help keep your business operations running smoothly.
To open a service request by telephone, use one of the following numbers:
Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)
EMEA: +32 2 704 55 55
USA: 1 800 553 2447
For a complete list of Cisco TAC contacts, go to this URL:
http://www.cisco.com/techsupport/contacts
Definitions of Service Request Severity
To ensure that all service requests are reported in a standard format, Cisco has established severity definitions.
Severity 1 (S1)—Your network is "down," or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.
Severity 2 (S2)—Operation of an existing network is severely degraded, or significant aspects of your business operation are negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.
Severity 3 (S3)—Operational performance of your network is impaired, but most business operations remain functional. You and Cisco will commit resources during normal business hours to restore service to satisfactory levels.
Severity 4 (S4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is little or no effect on your business operations.
Obtaining Additional Publications and Information
Information about Cisco products, technologies, and network solutions is available from various online and printed sources.
•Cisco Marketplace provides a variety of Cisco books, reference guides, and logo merchandise. Visit Cisco Marketplace, the company store, at this URL:
http://www.cisco.com/go/marketplace/
•The Cisco Product Catalog describes the networking products offered by Cisco Systems, as well as ordering and customer support services. Access the Cisco Product Catalog at this URL:
http://cisco.com/univercd/cc/td/doc/pcat/
•Cisco Press publishes a wide range of general networking, training and certification titles. Both new and experienced users will benefit from these publications. For current Cisco Press titles and other information, go to Cisco Press at this URL:
http://www.ciscopress.com
•Packet magazine is the Cisco Systems technical user magazine for maximizing Internet and networking investments. Each quarter, Packet delivers coverage of the latest industry trends, technology breakthroughs, and Cisco products and solutions, as well as network deployment and troubleshooting tips, configuration examples, customer case studies, certification and training information, and links to scores of in-depth online resources. You can access Packet magazine at this URL:
http://www.cisco.com/packet
•iQ Magazine is the quarterly publication from Cisco Systems designed to help growing companies learn how they can use technology to increase revenue, streamline their business, and expand services. The publication identifies the challenges facing these companies and the technologies to help solve them, using real-world case studies and business strategies to help readers make sound technology investment decisions. You can access iQ Magazine at this URL:
http://www.cisco.com/go/iqmagazine
•Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering professionals involved in designing, developing, and operating public and private internets and intranets. You can access the Internet Protocol Journal at this URL:
http://www.cisco.com/ipj
•World-class networking training is available from Cisco. You can view current offerings at this URL:
http://www.cisco.com/en/US/learning/index.html
This document is to be used in conjunction with the documents listed in the Obtaining Documentation section.
Copyright © 2004, Cisco Systems, Inc.
All rights reserved.
