Clock Source Paths

Clock Source Paths

---

The schematics in this appendix display the various clock source paths established by the Cisco Cable Clock Card in a Cisco uBR7246 VXR depending on your external connection(s) and configuration.

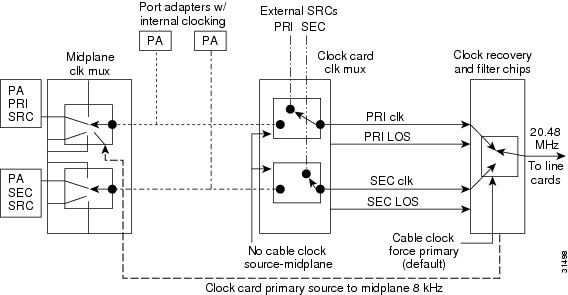

Figure A-1 Primary External Clock Source

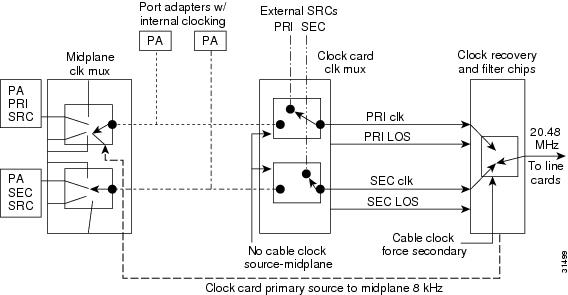

Figure A-2 Secondary External Clock Source

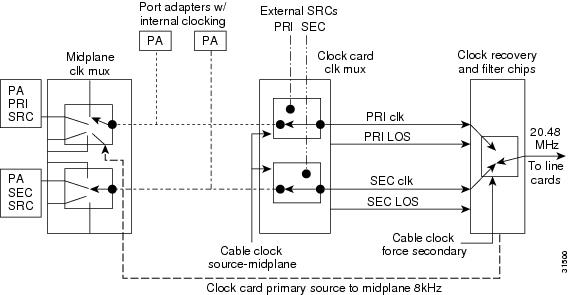

Figure A-3 Secondary External Clock Source Driving Midplane

Figure A-4 Secondary Internal Clock Source
