2 Overview

This document describes the procedures used to connect the cables between the Cisco uBR 3x10 RF Switches and the working and protect Cisco uBR10-MC5X20S/U cable interface line cards installed in a Cisco uBR10012 Cable Modem Termination System (CMTS).

3 Protection Scheme

The N+1 redundancy protection scheme you select for your system depends largely upon the number of cable interface line cards installed in the Cisco uBR10012 chassis. The 7+1 eight-card redundancy scheme supports redundancy for the cable interface line cards installed in a fully populated Cisco uBR10012 chassis. Other redundancy schemes can be used to support partial cable interface line card populations in a Cisco uBR10012 chassis.

A single Cisco uBR10012 CMTS supports up to eight Cisco uBR10-MC5X20S/U cable interface line cards, each featuring 5 downstream and 20 upstream cable interfaces for a total of 40 downstream and 160 upstream interfaces in the chassis. Two Cisco uBR 3x10 RF Switches are used to connect to the Cisco uBR10012 CMTS, to deploy a redundancy scheme in which one protect cable interface line card supports from one to seven working cable interface line cards in the same chassis.

4 RF Cable Assembly Specifications

The following sections describe the coaxial cable and header block assemblies required to support N+1 redundancy between the Cisco uBR 3x10 RF Switches and the Cisco CMTS.


Note Although you may construct and implement your own cabling system according to the specifications outlined here, we recommend using the Cisco N+1 redundancy cabling solution designed specifically for this Cisco CMTS feature (Cisco part numbers CAB-RFSW520TIMM and CAB-RFSW520TPMF for pre-assembled, terminated cable bundles). Pre-assembled cable sets are designed to fit the racking configuration described in Rack-Mounting Two Cisco uBR 3x10 RF Switches with the Cisco uBR10012 CMTS and Cisco uBR10-MC5X20S/U Cable Interface Line Cards quick start guide. Other configurations require custom cables.



Note Prepopulated custom cables for this reference design, or cable components such as header blocks, crimping tools, or connectors, are available from custom cable fabricators such as White Sands Engineering (1-800-JUMPERS).


Universal Cable Holders

Universal cable holders (UCH) are used to attach the cables to the Cisco uBR10-MC5X20S/U cable interface line cards (see Figure 1). Refer to Cisco uBR10-MC5X20S/U Cable Interface Line Card for information about installing cables in the UCH.


Caution Always use universal cable holders to avoid damage to the connectors on the line cards.


Note Universal cable holders (UCH) are not included in the unpopulated cable kits. The UCHs are shipped with the Cisco uBR10-MC5X20S/U cable interface line cards.


Coaxial Cable Bundles

The coaxial cable approved for use in the Cisco N+1 cable assembly is Belden YR46940. The cable bundles have either 5 or 10 coaxial cables enclosed in an external sheath. Each cable in the bundle is a different color. (See Figure 1.)

Figure 1 Cable Bundles with Cable Holders and Header Blocks

Cisco cables are color-coded for easy reference and installation. The cable color corresponds to a specific port on the card. The tables include a column for users to define ports and color definitions.

See Table 1 for a list of the cable ports and associated cable color applicable when using MC5X20 quad-shielded cables.

See Table 2 for a list of the cable ports and associated cable color applicable when using MC5X20 dual-shielded cables.

Table 1 MC5X20 Quad-Shielded Cable Ports and Cable Colors

Universal Cable Holder (1)
Universal Cable Holder (2)
Universal Cable Holder (3)
Line Card Port
Cable Color
RF Switch User Defined
Line Card Port
Cable Color
RF Switch User Defined
Line Card Port
Cable Color
RF Switch
User Defined

US1 0

Violet



US10

Violet



DS2 0

Violet



US1

Orange



US11

Orange



DS1

Orange



US2

Brown



US12

Brown



DS2

Brown



US3

Black



US13

Black



DS3

Black



US4

Gray



US14

Gray



DS4

Gray



US5

Violet



US15

Violet





US6

Orange



US16

Orange





US7

Brown



US17

Brown





US8

Black



US18

Black





US9

Gray



US19

Gray





1 US = upstream

2 DS = downstream


Table 2 MC5X20 Dual-Shielded Cable Ports and Cable Colors

Universal Cable Holder (1)
Universal Cable Holder (2)
Universal Cable Holder (3)
Line Card Port
Cable Color
RF Switch User Defined
Line Card Port
Cable Color
RF Switch User Defined
Line Card Port
Cable Color
RF Switch
User Defined

US1 0

Red



US10

Grey



DS2 0

Red



US1

White



US11

Brown



DS1

White



US2

Blue



US12

Red



DS2

Blue



US3

Green



US13

White



DS3

Green



US4

Yellow



US14

Blue



DS4

Yellow



US5

Violet



US15

Green





US6

Orange



US16

Yellow





US7

Black



US17

Violet





US8

Gray



US18

Orange






US9

Brown



US19

Black





1 US = upstream

2 DS = downstream


Header Blocks

Header blocks hold the MCX connectors that attach to the individual coaxial cables that mate to the Cisco uBR 3x10 RF Switch (see Figure 1). Be sure that the header block is in the correct orientation before inserting the cables.


Note The header blocks used in this cabling solution are slightly beveled at the top for easy identification. In addition, the alignment pins on the header blocks are offset, preventing you from accidentally connecting the header block upside down.



Note An extraction tool is shipped with the Cisco uBR 3x10 RF Switch to remove MCX connectors from the header blocks and universal cable holders, if necessary.


Figure 2 displays a detailed view of a header block that connects to the RF switches.

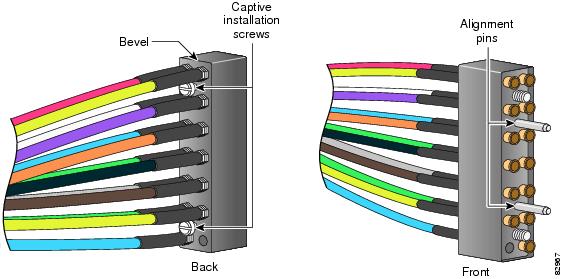

Figure 2 Cisco uBR 3x10 RF Switch Header Block

5 Connecting RF Cables to the Cisco uBR 3x10 RF Switch

RF cables are connected to the CMTS, PROTECT, and CABLE PLANT portions of the Cisco uBR 3x10 RF Switch in bundles of RF cables. The cables are terminated with MCX connectors that attach to the header blocks connected to the RF Switch at one of the following locations:

CMTS—These groups of RF cables connect to cable interface line cards designated as the working line cards.

PROTECT—These groups of RF cables connect to cable interface line cards designated as the protect line cards.

CABLE PLANT—These groups of RF cables connect to the splitters and diplexers at the cable headend or hub.

To insert the cables in the header block and connect the header block to the Cisco uBR 3x10 RF Switch, complete the following steps:


Step 1 Insert the MCX connectors into the header blocks according to the mapping in the "CMTS and PROTECT Cabling" section.

Step 2 Gently pull on the cables to be sure that they are firmly seated in the header blocks.

Step 3 With the beveled edge of the header block at the top, line up the two alignment pins on the header block with the two holes corresponding to the RF connector group (CMTS, PROTECT, or CABLE PLANT) section of the RF switch.

Step 4 Press the header block into place, using equal pressure on both the upper and lower portions of the header block.

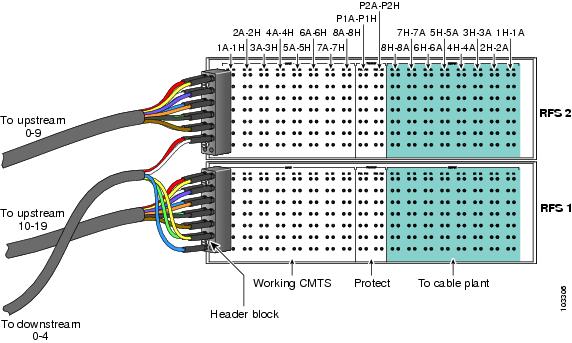

Figure 3 Cabled Header Block and RF Switch


Caution To ensure proper installation and avoid poor connections, be sure that the cables are not positioned at too acute an angle.

Step 5 Use a flat-blade screwdriver to tighten the captive installation screws at both the top and bottom of the header block to prevent accidental disconnections.


Caution Do not overtighten. Cisco recommends that you tighten the screws to 5 to 7 inch-pounds.


Tip Alternately, mount the header blocks on the Cisco uBR 3x10 RF Switch first, then insert the MCX connectors. Do not fully tighten the header blocks to the RF switch before gently pulling on the cables to be sure that they are firmly seated.



6 CMTS and PROTECT Cabling

This section describes the mapping of RF cables from the working and protect line cards to the Cisco uBR 3x10 RF Switch. Refer to Figure 4 for header block and cable designations as viewed from the cable side of the header blocks.

When you connect RF cables between the RF switch and a cable interface line card installed in a Cisco uBR10012 chassis, ensure that all the RF cables in the bundle attach to interfaces on the same cable interface line card installed in the Cisco uBR10012 chassis. (Refer to Table 3, Table 4, Table 5, and Table 6 for line-card-to-RF-switch-port mapping information.)

Use the following guidelines to map cables between the Cisco uBR 3x10 RF Switch and the Cisco uBR10012 CMTS:

The cable interface ports labeled A through E and H through L on the header block all must attach to upstream interfaces on the Cisco uBR10012 chassis.

The cable interface ports labeled F, G, and M are applicable only to downstream connection.

The cable interface port labeled N on the header block does not attach to anything in the Cisco RF switch. Therefore, it should not be connected to any cable interface on the Cisco uBR10012 CMTS.


Note This mapping is applicable to both working and protect cable interface line cards when employing N+1 redundancy. The distinction between which cable interface line card serves as a protect line card and which serve as working line cards is determined by whether the header block is plugged into a working (switch side) or protect group of slots on the Cisco uBR 3x10 RF Switch and by the configuration you specify. Refer to the "N+1 Redundancy for the Cisco CMTS" chapter of the Cisco Cable Modem Termination System Feature Guide.



Tip Install the cable management bracket (optional), before cabling the RF switch.

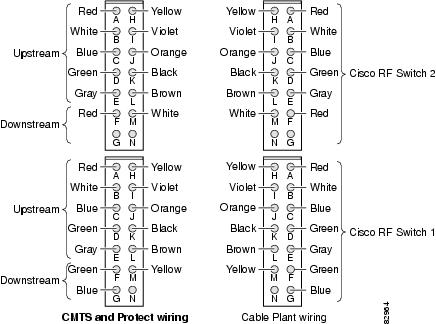

Figure 4 Wiring the CMTS and Protect Headers (Cable Plant Headers Shown for Comparison)

Table 3 RF Switch Ports and Line Card Ports for Line Card Slots 8/0 and 8/1

Working Line Card Slot 8/0—Ports
RF Switch—Port
Working Line Card Slot 8/1—Ports
RF Switch—Port
Cable Color

US0

SW2-1A

US0

SW2-2A

Red

US1

SW2-1B

US1

SW2-2B

White

US2

SW2-1C

US2

SW2-2C

Blue

US3

SW2-1D

US3

SW2-2D

Green

US4

SW2-1H

US4

SW2-2H

Yellow

US5

SW2-1I

US5

SW2-2I

Violet

US6

SW2-1J

US6

SW2-2J

Orange

US7

SW2-1K

US7

SW2-2K

Black

US8

SW2-1E

US8

SW2-2E

Gray

US9

SW2-1L

US9

SW2-2L

Brown



US10

SW1-1E

US10

SW1-2E

Gray

US11

SW1-1L

US11

SW1-2L

Brown

US12

SW1-1A

US12

SW1-2A

Red

US13

SW1-1B

US13

SW1-2B

White

US14

SW1-1C

US14

SW1-2C

Blue

US15

SW1-1D

US15

SW1-2D

Green

US16

SW1-1H

US16

SW1-2H

Yellow

US17

SW1-1I

US17

SW1-2I

Violet

US18

SW1-1J

US18

SW1-2J

Orange

US19

SW1-1K

US19

SW1-2K

Black



DS0

SW2-1F

DS0

SW2-2F

Red

DS1

SW2-1M

DS1

SW2-2M

White

DS2

SW1-1G

DS2

SW1-2G

Blue

DS3

SW1-1F

DS3

SW1-2F

Green

DS4

SW1-1M

DS4

SW1-2M

Yellow


Table 4 RF Switch Ports and Line Card Ports for Line Card Slots 7/0 and 7/1

Working Line Card Slot 7/0—Ports
RF Switch—Port
Working Line Card Slot 7/1—Ports
RF Switch—Port
Cable Color

US0

SW2-3A

US0

SW2-4A

Red

US1

SW2-3B

US1

SW2-4B

White

US2

SW2-3C

US2

SW2-4C

Blue

US3

SW2-3D

US3

SW2-4D

Green

US4

SW2-3H

US4

SW2-4H

Yellow

US5

SW2-3I

US5

SW2-4I

Violet

US6

SW2-3J

US6

SW2-4J

Orange

US7

SW2-3K

US7

SW2-4K

Black

US8

SW2-3E

US8

SW2-4E

Gray

US9

SW2-3L

US9

SW2-4L

Brown



US10

SW1-3E

US10

SW1-4E

Gray

US11

SW1-3L

US11

SW1-4L

Brown

US12

SW1-3A

US12

SW1-4A

Red

US13

SW1-3B

US13

SW1-4B

White

US14

SW1-3C

US14

SW1-4C

Blue

US15

SW1-3D

US15

SW1-4D

Green

US16

SW1-3H

US16

SW1-4H

Yellow

US17

SW1-3I

US17

SW1-4I

Violet

US18

SW1-3J

US18

SW1-4J

Orange

US19

SW1-3K

US19

SW1-4K

Black



DS0

SW2-3F

DS0

SW2-4F

Red

DS1

SW2-3M

DS1

SW2-4M

White

DS2

SW1-3G

DS2

SW1-4G

Blue

DS3

SW1-3F

DS3

SW1-4F

Green

DS4

SW1-3M

DS4

SW1-4M

Yellow


Table 5 RF Switch Ports and Line Card Ports for Line Card Slots 6/0 and 6/1

Working Line Card Slot 6/0—Ports
RF Switch—Port
Working Line Card Slot 6/1—Ports
RF Switch—Port
Cable Color

US0

SW2-5A

US0

SW2-6A

Red

US1

SW2-5B

US1

SW2-6B

White

US2

SW2-5C

US2

SW2-6C

Blue

US3

SW2-5D

US3

SW2-6D

Green

US4

SW2-5H

US4

SW2-6H

Yellow

US5

SW2-5I

US5

SW2-6I

Violet

US6

SW2-5J

US6

SW2-6J

Orange

US7

SW2-5K

US7

SW2-6K

Black

US8

SW2-5E

US8

SW2-6E

Gray

US9

SW2-5L

US9

SW2-6L

Brown



US10

SW1-5E

US10

SW1-6E

Gray

US11

SW1-5L

US11

SW1-6L

Brown

US12

SW1-5A

US12

SW1-6A

Red

US13

SW1-5B

US13

SW1-6B

White

US14

SW1-5C

US14

SW1-6C

Blue

US15

SW1-5D

US15

SW1-6D

Green

US16

SW1-5H

US16

SW1-6H

Yellow

US17

SW1-5I

US17

SW1-6I

Violet

US18

SW1-5J

US18

SW1-6J

Orange

US19

SW1-5K

US19

SW1-6K

Black



DS0

SW2-5F

DS0

SW2-6F

Red

DS1

SW2-5M

DS1

SW2-6M

White

DS2

SW1-5G

DS2

SW1-6G

Blue

DS3

SW1-5F

DS3

SW1-6F

Green

DS4

SW1-5M

DS4

SW1-6M

Yellow


Table 6 RF Switch Ports and Line Card Ports for Line Card Slots 5/0 and 5/1

Working Line Card Slot 5/0—Ports
RF Switch—Port
Protect Line Card Slot 5/1—Ports
RF Switch—Port
Cable Color

US0

SW2-7A

US0

SW2-P1A

Red

US1

SW2-7B

US1

SW2-P1B

White

US2

SW2-7C

US2

SW2-P1C

Blue

US3

SW2-7D

US3

SW2-P1D

Green

US4

SW2-7H

US4

SW2-P1H

Yellow

US5

SW2-7I

US5

SW2-P1I

Violet

US6

SW2-7J

US6

SW2-P1J

Orange

US7

SW2-7K

US7

SW2-P1K

Black

US8

SW2-7E

US8

SW2-P1E

Gray

US9

SW2-7L

US9

SW2-P1L

Brown



US10

SW1-7E

US10

SW1-P1E

Gray

US11

SW1-7L

US11

SW1-P1L

Brown

US12

SW1-7A

US12

SW1-P1A

Red

US13

SW1-7B

US13

SW1-P1B

White

US14

SW1-7C

US14

SW1-P1C

Blue

US15

SW1-7D

US15

SW1-P1D

Green

US16

SW1-7H

US16

SW1-P1H

Yellow

US17

SW1-7I

US17

SW1-P1I

Violet

US18

SW1-7J

US18

SW1-P1J

Orange

US19

SW1-7K

US19

SW1-P1K

Black



DS0

SW2-7F

DS0

SW2-P1F

Red

DS1

SW2-7M

DS1

SW2-P1M

White

DS2

SW1-7G

DS2

SW1-P1G

Blue

DS3

SW1-7F

DS3

SW1-P1F

Green

DS4

SW1-7M

DS4

SW1-P1M

Yellow


Cable Plant Cabling

CABLE PLANT header blocks are wired in the reverse sequence of the CMTS and Protect header blocks (see Figure 5). Use the same connection methods as described in the "Connecting RF Cables to the Cisco uBR 3x10 RF Switch" section.


Note CABLE PLANT slots on the Cisco uBR 3x10 RF Switch are numbered in reverse sequence from CMTS and PROTECT. Slot number one is on the right. Refer to Figure 5 for header block and cable designations as viewed from the cable side of the header blocks.


Figure 5 Wiring the Cable Plant Cable Headers (CMTS/Protect Headers Shown for Comparison)

7 Related Documentation

Cisco uBR 3x10 RF Switch Hardware Installation and Cabling Guide

http://www.cisco.com/univercd/cc/td/doc/product/cable/rfswitch/icg/index.htm

Cisco uBR10-MC5X20S/U Cable Interface Line Card for the Cisco uBR10012 Router

http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ubr10012/frus/index.htm

Installing the Cisco uBR10-MC5X20S/U Cable Interface Line Card

http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ubr10012/qsg/index.htm

Cabling the Cisco uBR10-MC5X20S/U Cable Interface Line Card

http://www.cisco.com/univercd/cc/td/doc/product/cable/ubr10k/ubr10012/qsg/index.htm

Cabling the uBR 3x10 RF Switches to the Cisco uBR10-MC5x20S/U in a Cisco uBR10012 CMTS

http://www.cisco.com/univercd/cc/td/doc/product/cable/rfswitch/5x20qsc.pdf

Regulatory Compliance and Safety Information for the Cisco RF Switch

http://www.cisco.com/univercd/cc/td/doc/product/cable/rfswitch/rfs_rcsi.htm

For more Cisco cable products information, go to the following URL:

http://www.cisco.com/warp/public/44/jump/cable.shtml

8 Obtaining Documentation

Cisco documentation and additional literature are available on Cisco.com. Cisco also provides several ways to obtain technical assistance and other technical resources. These sections explain how to obtain technical information from Cisco Systems.

Cisco.com

You can access the most current Cisco documentation on the World Wide Web at this URL:

http://www.cisco.com/univercd/home/home.htm

You can access the Cisco website at this URL:

http://www.cisco.com

International Cisco websites can be accessed from this URL:

http://www.cisco.com/public/countries_languages.shtml

Ordering Documentation

You can find instructions for ordering documentation at this URL:

http://www.cisco.com/univercd/cc/td/doc/es_inpck/pdi.htm

You can order Cisco documentation in these ways:

Registered Cisco.com users (Cisco direct customers) can order Cisco product documentation from the Ordering tool:

http://www.cisco.com/en/US/partner/ordering/index.shtml

Nonregistered Cisco.com users can order documentation through a local account representative by calling Cisco Systems Corporate Headquarters (California, USA) at 408 526-7208 or, elsewhere in North America, by calling 800 553-NETS (6387).

9 Documentation Feedback

You can submit e-mail comments about technical documentation to bug-doc@cisco.com.

You can submit comments by using the response card (if present) behind the front cover of your document or by writing to the following address:

Cisco Systems
Attn: Customer Document Ordering
170 West Tasman Drive
San Jose, CA 95134-9883

We appreciate your comments.

10 Obtaining Technical Assistance

For all customers, partners, resellers, and distributors who hold valid Cisco service contracts, the Cisco Technical Assistance Center (TAC) provides 24-hour-a-day, award-winning technical support services, online and over the phone. Cisco.com features the Cisco TAC website as an online starting point for technical assistance. If you do not hold a valid Cisco service contract, please contact your reseller.

Cisco TAC Website

The Cisco TAC website provides online documents and tools for troubleshooting and resolving technical issues with Cisco products and technologies. The Cisco TAC website is available 24 hours a day, 365 days a year. The Cisco TAC website is located at this URL:

http://www.cisco.com/tac

Accessing all the tools on the Cisco TAC website requires a Cisco.com user ID and password. If you have a valid service contract but do not have a login ID or password, register at this URL:

http://tools.cisco.com/RPF/register/register.do

Opening a TAC Case

Using the online TAC Case Open Tool is the fastest way to open P3 and P4 cases. (P3 and P4 cases are those in which your network is minimally impaired or for which you require product information.) After you describe your situation, the TAC Case Open Tool automatically recommends resources for an immediate solution. If your issue is not resolved using the recommended resources, your case will be assigned to a Cisco TAC engineer. The online TAC Case Open Tool is located at this URL:

http://www.cisco.com/tac/caseopen

For P1 or P2 cases (P1 and P2 cases are those in which your production network is down or severely degraded) or if you do not have Internet access, contact Cisco TAC by telephone. Cisco TAC engineers are assigned immediately to P1 and P2 cases to help keep your business operations running smoothly.

To open a case by telephone, use one of the following numbers:

Asia-Pacific: +61 2 8446 7411 (Australia: 1 800 805 227)
EMEA: +32 2 704 55 55
USA: 1 800 553-2447

For a complete listing of Cisco TAC contacts, go to this URL:

http://www.cisco.com/warp/public/687/Directory/DirTAC.shtml

TAC Case Priority Definitions

To ensure that all cases are reported in a standard format, Cisco has established case priority definitions.

Priority 1 (P1)—Your network is "down" or there is a critical impact to your business operations. You and Cisco will commit all necessary resources around the clock to resolve the situation.

Priority 2 (P2)—Operation of an existing network is severely degraded, or significant aspects of your business operation are negatively affected by inadequate performance of Cisco products. You and Cisco will commit full-time resources during normal business hours to resolve the situation.

Priority 3 (P3)—Operational performance of your network is impaired, but most business operations remain functional. You and Cisco will commit resources during normal business hours to restore service to satisfactory levels.

Priority 4 (P4)—You require information or assistance with Cisco product capabilities, installation, or configuration. There is little or no effect on your business operations.

11 Obtaining Additional Publications and Information

Information about Cisco products, technologies, and network solutions is available from various online and printed sources.

Cisco Marketplace provides a variety of Cisco books, reference guides, and logo merchandise. Go to this URL to visit the company store:

http://www.cisco.com/go/marketplace/

The Cisco Product Catalog describes the networking products offered by Cisco Systems, as well as ordering and customer support services. Access the Cisco Product Catalog at this URL:

http://cisco.com/univercd/cc/td/doc/pcat/

Cisco Press publishes a wide range of general networking, training and certification titles. Both new and experienced users will benefit from these publications. For current Cisco Press titles and other information, go to Cisco Press online at this URL:

http://www.ciscopress.com

Packet magazine is the Cisco quarterly publication that provides the latest networking trends, technology breakthroughs, and Cisco products and solutions to help industry professionals get the most from their networking investment. Included are networking deployment and troubleshooting tips, configuration examples, customer case studies, tutorials and training, certification information, and links to numerous in-depth online resources. You can access Packet magazine at this URL:

http://www.cisco.com/packet

iQ Magazine is the Cisco bimonthly publication that delivers the latest information about Internet business strategies for executives. You can access iQ Magazine at this URL:

http://www.cisco.com/go/iqmagazine

Internet Protocol Journal is a quarterly journal published by Cisco Systems for engineering professionals involved in designing, developing, and operating public and private internets and intranets. You can access the Internet Protocol Journal at this URL:

http://www.cisco.com/ipj

Training—Cisco offers world-class networking training. Current offerings in network training are listed at this URL:

http://www.cisco.com/en/US/learning/index.html
