Release Notes for Cisco Service Control Operating System Release 3.1.6S and Cisco Service Control Application for Broadband Release 3.1.6 with Cisco SCE8000
February, 2009 OL-17014-04The following release notes describe functional enhancements, fixes, and known caveats for Cisco Service Control software deployed with the Cisco SCE8000 Service Control Engine. These release notes apply to Cisco Service Control Operation System (SCOS) Release 3.1.6S and Cisco Service Control Application for Broadband (SCA-BB) Release 3.1.6.
Supports: SCOS Release 3.1.6S and SCA BB Release 3.1.6
•
Open Caveats in Cisco SCE Release 3.16
•
Introduction
This document describes the Service Control Engine SCE8000 platform together with Release 3.1.6S of the Service Control Operating System (SCOS).
The primary enhancement of Release 3.1.6S is support for the Cisco SCE8000 platform.
The Cisco service control engine 8000 (SCE8000) is a high-capacity, carrier-grade network element designed to perform stateful application and session-based classification and to manage application-level IP traffic per subscriber. The SCE8000 has the highest performance and capacity of the SCE product family, capable of supporting multiple, 10-gigabit interfaces.
The Cisco SCE8000 is deployed in a number of capacities within service provider networks. It can be integrated into the core, at aggregation peering-points, as well as at the edge and aggregation layers to provide advanced application-level bandwidth optimization, management, and service control functions. The Cisco SCE8000 is access agnostic and can be deployed in any Cable, Wireline, or Mobile IP network environment. The Cisco SCE8000 is deployed using high-speed 10-gigabit ethernet interfaces connected to these core and aggregation elements of today's Service Provider networks.
Residing at these critical junctions of the network, the Cisco SCE8000 is not only a high performance solution, but also a highly available and robust solution. It employs a number of High Availability (HA) and reliability features to meet expectations of the most demanding multimedia applications and Service Level Agreements (SLAs). The Cisco SCE8000 employs both inter- and intrachassis redundancy features to guarantee high availability. Multiple CiscoSCE8000s can be deployed to achieve high availability and failover without imposing any single point of failure. An N+1 high-availability topology is supported by clustering multiple Cisco SCE8000s allowing the solution to scale linearly. To achieve higher performance and maximum capacity, the Cisco SCE8000 takes advantage of patented system logic and stateful Deep Packet Inspection (DPI) technology.
This document outlines issues related to the operation of SCOS Release 3.1.6S and SCA BB Release 3.1.6 with the Cisco SCE8000 platform. It assumes the reader already has a good working knowledge of the Cisco Service Control solution. For additional information, refer to the Cisco Service Control Engine documentation.
Note
1.
2.
3.
4.
SCOS Release 3.1.6S
•
•
•
Compatibility Information
SCOS Release 3.1.6S may be installed on the following Service Control Engine platform:
•
The following SCE platforms cannot be used with SCOS Release 3.1.6S.
•
•
•
These platforms should use SCOS Release 3.1.6.
For information regarding compatibility between Service Control components, refer to the Cisco Service Control Application for Broadband Download Guide.
Capacity Information
SCA BB Release 3.1.6 supports the following flow and subscriber capacity numbers.
SCE8000
(SCE8000)250,000
16 M (8 M bidirectional)
SCOS Release 3.1.6S Functional Enhancements
The following section lists the functional enhancements in SCOS Release 3.1.6S. See the Cisco SCE8000 Software Configuration Guide for more information regarding these features.
Cisco SCE8000 Platform Support
The primary enhancement of Release 3.1.6S is to support the Cisco SCE8000 platform.
SCA BB Release 3.1.6 Functional Enhancements to Support the SCE8000
This section lists the functional enhancements in SCA BB Release 3.1.6S. For more information regarding these features, see the Cisco Service Control Application for Broadband User Guide.
SCA-BB Console Changes

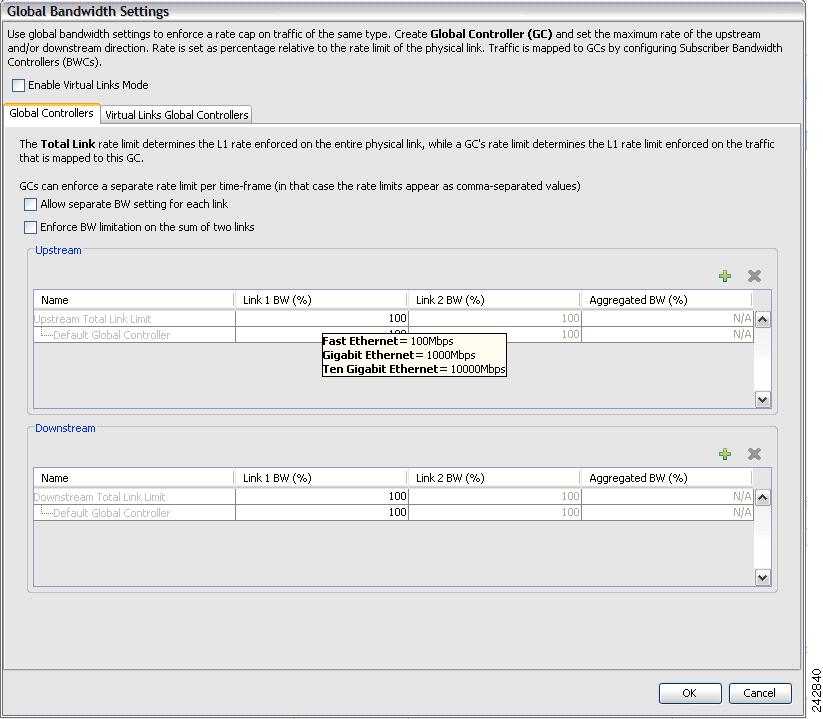

In the Service Configuration Editor, the Global Controllers user interface is adjusted for 10 GBE interfaces. An SCA BB tool tip indicates that an option of 10 Gigabit Ethernet exists (Figure 1).
Figure 1 Global Bandwidth Controllers User Interface
The Network Navigator graphical user interface Online Status window provides a correct indication of the SCE platform and interface type.

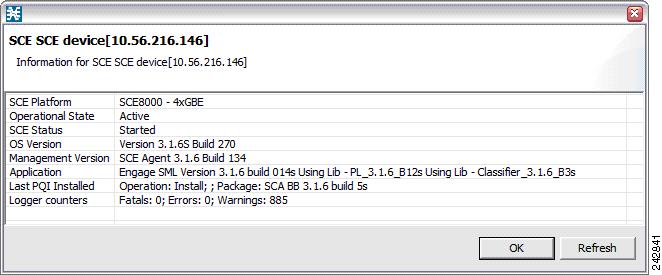

The following values are presented when applicable (Figure 2):
•
•
Figure 2 SCE Platform Type
Note
For purposes of identification, the PQI file of SCA BB Release 3.1.6 for Cisco SCE8000 carries a version string of 3.1.6S and the build number is different from the PQI of other SCE platforms. However, it is functionally identical to SCA BB Release 3.1.6.
CLI and File System Compatibility
In general, Cisco SCE8000 functionality and interfaces are identical to the Cisco SCE 1010 and SCE 2020 platforms. This section describes functional differences between Cisco SCE8000 and Cisco SCE 2020.
Cisco SCE8000 CLI Adaptation
Most of the CLI in Cisco SCE8000 are identical to Cisco SCE 2020. There are some changes implied by the Cisco SCE8000 architecture.
Interface names are changed to comply with Cisco standard, based on the different rates of the SCE8000 data links and management links.
Detailed CLI reference for the Cisco SCE8000 appears in the Cisco SCE8000 CLI Command Reference.
File System Structure
The SCOS home directory changed. When a user logs into the Cisco SCE8000, the current working directory is /apps/data/scos (in the SCE2020 this location is /tffs0).
All files that are or may be used by the user are located under this directory tree. For example, the configuration file config.txt is located in /apps/data/scos/system.
In the Cisco SCE 2020, system files and executables are also located under this same tree. For the SCE8000 platform, all system and executables are located under a different tree, which is a read-only file system, for greater protection of the system and image files.
Filename Structure
SCE8000 file system, which is based on Linux file system, has the following differences from SCE 2020:
•
•
Some file names may still comply to the 8.3 file name restriction, as they are used in both SCE 2020 and SCE8000. User-created and copied files can have any name.
API Support
Both the SCE Subscriber API and the Service Configuration API of Release 3.1.6 and later support the SCE8000 as well as SCE 2020.
User code that worked with earlier versions of these APIs does not require change to function with SCE8000.
Protocol Support
For information about protocol support for Protocol Pack #13, refer to the Protocol Pack Notes (included in SCA BB Release l3.1.6).
Note
Resolved Issues
No existing caveats were resolved in this SCOS release.
Open Caveats in Cisco SCE Release 3.16
CSCsv49142
The SCE8000 management interface does not support speed and duplex configuration
SCOS release 3.1.6S for the SCE8000 platform does not support management interface speed and duplex configuration. The commands are available in the CLI under interface GigabitEthernet 1/1, but have no actual implication on the system. The user should not use these commands in SCOS Release 3.1.6S.
Workaround: Not needed, since the system is always in auto. If the peer device works at a speed slower than 1000 Mbps, the interface will adjust, as it is in autonegotiation mode.
CSCsq96310
The SCE8000 cannot configure default gateway before IP address is configured.
The default gateway cannot be configured until an IP address is first configured. Trying to set the default gateway when IP address is set results in an error.
Workaround: Configure the IP address before adding the default gateway.
CSCsq93712
SCE8000 cannot configure nondefault attack detectors.
Attack detectors cannot be used with non-default rules using ACL. Trying to configure ACL rules for attack detector fails.
Using attack detector without ACL is working.
Workaround: None
CSCsq33416
SCE8000 entity MIB is not updated dynamically when components are added.
FRU modules may not appear correctly in the entity MIB after being added.
When a second PSU or SPA pluggable optic is added online, it does not appear in the entity MIB. The problem occurs only when new components are added. Replacing FRUs that were installed at system reload is properly reflected in the entity MIB.
After reload, the entity MIB is properly updated.
Workaround: None.
CSCsk78621
SCE8000 in rare cases, application installation or un-install can cause a system failure if done immediately after clock/time zone change.Updating clock or time zone can, in some rare cases, leave the software in a transient state that in turn can cause application installation or un-install to hang and system reboot.
In all the observed cases the transient situation passed after 20 minutes.
This can happen when installing, un-installing, or upgrading PQI via the CLI or from SCA-BB GUI.
Conditions:
This event is extremely rare and is only relevant for application or pqi installation, or un-install.
As SNTP is currently not supported for FCS, there is no risk for automatic clock update.
Workaround: We recommend you avoid application or pqi installation or un-install for a full hour after changing clock or time zone from CLI.
If it is necessary to actively change the time or time zone, we recommend you do so after the pqi is installed.
CSCsq94141
In rare cases, there may be a condition in which the SNMP agent does not respond to new SNMP requests
Workaround: If the SNMP does not respond, use the following CLI commands to disable it and enable again:
Under general configuration menu:
#no snmp-server#snmp-server enableCSCsm12163
SNMP protocol Version v1 does not show 64-bit counters.
Workaround: We recommend you use SNMP v2.
CSCsq67666
SNMP traps have an incorrect index on the management IF status trap.
The ENTITY-STATE-MIB includes two entity state notifications:
•
•
Each of these traps include the following two varbinds:
•
•
These varbinds explicitly define the entity physical index that triggered the traps, for example:
•
•
(Physical Index `22' in the entity MIB represents GigabitEthernet 3/0/0).
When the management port triggers one of these notifications, the zero physical Index is sent, for example:
•
•
Note that when the index is 0, this means that the port is the management port.
Workaround: None.
CSCsr19962
Two second link down when moving manually to external-bypass.
When the external optical bypass is enabled by CLI command, there is link down time of two seconds.
This does not happen when optical bypass is enabled due to system failure or reload.
Workaround: To avoid link downtime, use a debug command as follows:
#do debug slot 0 ppc 0 func NjcCPLD[0].SetOpticalBypass 1#external-bypassCSCsx40066
The SCE8000 system fails to establish a Telnet connection due to a DNS issue.
When you establish a connection to Cisco SCE8000 using Telnet, the client failed to acquire the IP address and the connection is aborted.
Workaround: Any of the following workarounds can be implemented:
•
•
•
•
