CLI Command Reference
This chapter contains all the CLI commands available on the SCE platform.
Each command description is broken down into the following sub-sections:
Syntax and Conventions
The CLI commands are written in the following format:
command required-parameter [optional-parameter]
no is an optional parameter that may appear before the command name.
When typing commands, you may enclose parameters in double-quote marks, and you must do so when there is a space within a parameter name.
?
Lists all of the commands available for the current command mode. You can also use the ? command to get specific information on a keyword or parameter. To obtain a list of commands that begin with a particular character string, enter the abbreviated command entry immediately followed by a question mark (?). This form of help is called partial help, because it lists only the keywords or arguments that begin with the abbreviation you entered.
?
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings
Command Modes
All
Usage Guidelines
To list a command's associated keywords or arguments, enter a question mark (?) in place of a keyword or parameter on the command line. This form of help is called argument help because it lists the keywords or arguments that apply based on the command, keywords, and arguments you have already entered.
Examples
The following example shows ways of requesting help using the ? wildcard.
SCE(config)#ip ? default-gateway Sets the default gateway domain-lookup Enables the IP DNS-based host name-to-address translation domain-name Define a default domain name host Add a host to the host table name-server Specify the address of one or more name servers to use for name andaddress resolution route Add IP routing entry SCE(config)#ip d? default-gateway domain-lookup domain-name SCE(config)#ip de? default-gateway SCE(config)#ip deaaa accounting commands
Use the no form of the command to disable TACACS+ accounting.
aaa accounting commands level default stop-start group tacacs+
no aaa accounting commands level default
Syntax Description
level
The privilege level for which to enable the TACACS+ accounting
0: User
5: Viewer
10: Admin
15: Root
Defaults
By default, TACACS+ accounting is disabled.
Command Modes
Global Configuration
Usage Guidelines
If TACACS+ accounting is enabled, the SCE platform sends an accounting message to the TACACS+ server after every command execution. The accounting message is logged in the TACACS+ server for the use of the network administrator.
The start-stop keyword (required) indicates that the accounting message is sent at the beginning and the end (if the command was successfully executed) of the execution of a CLI command.
Authorization: admin
Examples
The following example enables TACACS+ accounting for the admin privilege level (10).
SCE>enable 10 Password:<cisco> SCE#config SCE(config)# aaa accounting commands 10 default stop-start group tacacs+ SCE(config)#Related Commands
aaa authentication attempts
aaa authentication attempts login number-of-attempts
Syntax Description
number-of-attempts
the maximum number of login attempts that will be permitted before the telnet session is terminated
Defaults
Default number-of-attempts = 3
Command Modes
Global Configuration
Usage Guidelines
The maximum number of login attempts is relevant only for Telnet sessions. From the local console, the number of re-tries is unlimited.
Authorization: admin
Examples
The following example shows how to set the maximum number of logon attempts to five.
SCE>enable 10 Password:<cisco> SCE#config product>(config)# aaa authentication attempts login 5 SCE(config)#Related Commands
aaa authentication enable default
Specifies which privilege level authentication methods are to be used, and in what order of preference. Use the no form of the command to delete the privilege level authentication methods list.
aaa authentication enable default method1 [method2...]
no aaa authentication enable default
Syntax Description
method
the privilege level authentication methods to be used. You may specify up to four different methods, in the order in which they are to be used.
Defaults
Default privilege level authentication method = enable only
Command Modes
Global Configuration
Usage Guidelines
Use this command to configure "backup" privilege level authentication methods to be used in the event of failure of the primary privilege level authentication method. The following method options are available:
•
group tacacs+ : Use TACACS+ authentication.
•
•
•
If the privilege level authentication methods list is deleted, the default privilege level authentication method only ( enable password) will be used. TACACS+ authentication will not be used.
Authorization: admin
Examples
This example shows how to configure privilege level authentication methods.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)# aaa authentication enable default group tacacs+ enable none SCE(config)#Related Commands
aaa authentication login default
aaa authentication accounting commands
aaa authentication attempts
show tacacs
aaa authentication login default
Specifies which login authentication methods are to be used, and in what order of preference. Use the no form of the command to delete the login authentication methods list.
aaa authentication login default method1 [method2...]
no aaa authentication login default
Syntax Description
method
the login authentication methods to be used. You may specify up to four different methods, in the order in which they are to be used.
Defaults
Default login authentication method = enable only
Command Modes
Global Configuration
Usage Guidelines
Use this command to configure "backup" login authentication methods to be used in the event of failure of the primary login authentication method.
The following method options are available:
•
•
•
•
If the login authentication methods list is deleted, the default login authentication method only (enable password) will be used. TACACS+ authentication will not be used.
Authorization: admin
Examples
This example shows how to configure login authentication methods.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)# aaa authentication login default group tacacs+ enable none SCE(config)#Related Commands
aaa authentication enable default
aaa authentication accounting commands
aaa authentication attempts
show tacacs
accelerate-packet-drops
Enables the drop-wred-packets-by-hardware mode. This improves performance, but prevents the application from being able to count all dropped packets. Use the no form to disable the drop-wred-packets-by-hardware mode, enabling the software to count all dropped packets (at the expense of some loss of performance).
accelerate-packet-drops
no accelerate-packet-drops
Syntax Description
This command has no arguments or keywords.
Defaults
By default, accelerate-packet-drops (the drop-wred-packets-by-hardware mode) is enabled.
Command Modes
Interface Linecard Configuration
Usage Guidelines
By default, the SCE platform hardware drops WRED packets (packets that are marked to be dropped due to BW control criteria). However, this presents a problem for the user who needs to know the number of dropped packets per service.
The user can disable the drop-wred-packets-by-hardware mode. The application can then retrieve the number of dropped packets for every flow and provide the user with better visibility into the exact number of dropped packets and their distribution.
Note that counting all dropped packets has a considerable affect on system performance, and therefore, by default, the drop-wred-packets-by-hardware mode is enabled.
Note
Authorization: admin
Examples
The following example shows how to disable the drop-wred-packets-by-hardware mode so that the application can count all dropped packets.
SCE>enable 10 password:<cisco> SCE#>config SCE(config)#interface linecard 0 SCE(config if)#no accelerate-packet-drops SCE(config if)#Related Commands
access-list
Adds an entry to the bottom of the specified access list. Use the no form of the command to remove an entry from the specified access list.
access-list number permission address
no access-list number
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
The SCE platform can be configured with Access Control Lists (ACLs), which are used to permit or deny incoming connections on any of the management interfaces. An access list is an ordered list of entries, each consisting of the following:
•
•
•
The order of the entries in the list is important. The default action of the first entry that matches the connection is used. If no entry in the Access List matches the connection, or if the Access List is empty, the default action is deny.
Authorization: admin
Examples
The following examples illustrate the use of this command.
EXAMPLE 1
The following example adds entries to the bottom of access-list 1. The first entry permits access to 10.1.1.0 through 10.1.1.255. The second entry denies access to any address. Together this list allows access only to addresses 10.1.1.*.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#access-list 1 permit 10.1.1.0 0.0.0.255 SCE(config)#access-list 1 deny any SCE(config)#EXAMPLE 2
The following example defines access list 2, a list that denies access to all IP addresses in the range: 10.1.2.0 to 10.1.2.255, permits access to all other addresses in the range 10.1.0.0 to 10.1.15.255, and denies access to all other IP addresses. Note that since the first range is contained within the second range, the order of entries is important. If they had been entered in the opposite order, the deny entry would not have any effect.
SCE>enable 10 Password:<cisco> SCE#config SCE (config)#access-list 2 deny 10.1.2.0 0.0.0.255 SCE (config)#access-list 2 permit 10.1.0.0 0.0.15.255 SCE(config)#Related Commands
application slot replace force completion
Forces the current application replace process to complete and immediately start finalization (killing all old flows).
application slot slot-number replace force completion
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example illustrates how to force the application replace operation to complete immediately.
SCE>enable 10 Password:<cisco> SCE#application slot 0 replace force completion SCE#asymmetric-L2-support
Configures the system to treat flows as having asymmetric layer 2 characteristics (including Ethernet, VLAN, and L2TP), for the purpose of packet injection.
Use the no form of the command to disable asymmetric L2 support.
asymmetric-L2-support
no asymmetric-L2-support
Syntax Description
This command has no arguments or keywords.
Defaults
By default, asymmetric layer 2 support is disabled.
Command Modes
Interface Linecard Configuration
Usage Guidelines
You should enable asymmetric layer 2 support in cases where the following conditions apply for any flows:
•
•
Note
Authorization: admin
Examples
The following example shows how to use this command.
SCE>enable 10 Password:<cisco> SCE#configureSCE(config)#interface linecard 0SCE(config if)# asymmetric-L2-supportRelated Commands
attack-detector default
Defines default thresholds and attack handling action. If a specific attack detector is defined for a particular situation (protocol/attack direction/side), it will override these defaults. Use the no version of this command to delete the user-defined defaults. The system defaults will then be used.
attack-detector default protocol protocol attack-direction attack-direction side side [action action ] [open-flows open-flows] [ddos-suspected-flows ddos-suspected-flows] [suspected-flows-ratio suspected-flows-ratio] [notify-subscriber | dont-notify-subscriber] [alarm |noalarm]
no attack-detector default protocol protocol attack-direction attack-direction side side [action action] [open-flows open-flows] [ddos-suspected-flows ddos-suspected-flows] [suspected-flows- ratio suspected-flows-ratio]
Syntax Description
Defaults
The default values for the default attack detector are:
•
•
•
•
Command Modes
LineCard Interface Configuration
Usage Guidelines
The following arguments must always be specified:
•
•
•
The following arguments are optional:
•
•
•
•
Use the optional keywords as follows:
•
•
•
•
Use the attack-detector <number>command to configure a specific attack detector.
Authorization: admin
Examples
The following examples illustrate the use of the attack-detector default command:
EXAMPLE 1
The following example configures a default attack detector for TCP flows from the attack source.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface LineCard 0 SCE(config if)#attack-detector default protocol TCP attack-direction attack-source side both action report open-flows 500 ddos-suspected-flows 75 suspected-flows-ratio 50 SCE(config if)#EXAMPLE 2
The following example enables subscriber notification for the specified default attack detector.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface LineCard 0 SCE(config if)#attack-detector default protocol TCP attack-direction attack-source side both notify-subscriber SCE(config if)#Related Commands
attack-detector <number>
attack-filter subscriber-notification ports
show interface LineCard attack-detector
attack-detector
Enables the specified attack detector and assigns an access control list (ACL) to it.
attack-detector number access-list access-list
Syntax Description
number
The attack detector number.
access-list
The number of the ACL containing the IP addresses selected by this detector
Defaults
This command has no default settings.
Command Modes
LineCard Interface Configuration
Usage Guidelines
Use the following commands to define the attack detector and the ACL:
•
•
Authorization: admin
Examples
The following example enables attack detector number "2", and assigns ACL "8".
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface LineCard 0 SCE(config if)#attack-detector 2 access-list 8 SCE(config if)#Related Commands
access-list
attack-detector <number>
show interface LineCard attack-detector
show access-lists
attack-detector <number>
Configures a specific attack detector for a particular attack type (protocol/attack direction/side) with the assigned number. Use the default form of this command to configure the default attack detector for the specified attack type. Use the no form of this command to delete the specified attack detector.
attack-detector number protocol (((TCP|UDP) [dest-port destination port ])|ICMP|other|all) attack-direction attack-direction side side [action action ] [open-flows open-flows ] [ddos-suspected-flows ddos-suspected-flows ] [suspected-flows-ratio suspected-flows-ratio ] [notify-subscriber|dont-notify-subscriber] [alarm|no-alarm]
no attack-detector number
attack-detector default protocol (((TCP|UDP) [dest-port destination port ])|ICMP|other|all) attack-direction attack-direction side side [action action ] [open-flows open-flows ] [ddos-suspected-flows ddos-suspected-flows ] [suspected-flows-ratio suspected-flows-ratio ] [notify-subscriber|dont-notify-subscriber] [alarm|no-alarm]
no attack-detector default protocol (((TCP|UDP) [dest-port destination port ])|ICMP|other|all) attack-direction attack-direction side side
default attack-detector {all |all-numbered}
default attack-detector number protocol (((all | IMCP | other | TCP | UDP) [dest-port destination port attack-direction attack-direction side side
Syntax Description
Defaults
The default values for the default attack detector are:
•
•
•
•
Command Modes
LineCard Interface Configuration
Usage Guidelines
If a specific attack detector is defined for a particular attack type, it will override the configured default attack detector.
The following arguments must always be specified:
•
•
•
The following arguments are optional:
•
•
•
•
Use the appropriate keyword to enable or disable subscriber notification by default:
•
•
Use the appropriate keyword to enable or disable sending an SNMP trap by default:
•
•
If the selected protocol is either TCP or UDP, specify whether the destination port is specific, not specific, or both. If the destination port or ports are specific, the specific destination ports are configured using the attack-detectorcommand.
Use the attack-detectorcommand to enable a configured attack detector.
Use the attack-detector defaultcommand to configure a default attack detector.
Authorization: admin
Examples
The following examples illustrate the use of the attack-detector <number>command:
EXAMPLE 1
The following example configures the attack detector number "2".
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface LineCard 0 SCE(config if)# attack-detector 2 protocol UDP dest-port not-specific attack-direction single-side-destination side both action block open-flows-rate 500 suspected-flows-rate 500 suspected-flows-ratio 50 notify-subscriber alarm SCE(config if)#EXAMPLE 2
The following example deletes attack detector number "2".
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface LineCard 0 SCE(config if)#no attack-detector 2 SCE(config if)#EXAMPLE 3
The following example disables subscriber notification for attack detector number "2".
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface LineCard 0 SCE(config if)#attack-detector 2 protocol UDP dest-port not-specific attack-direction single-side-destination side both dont-notify- subscriber SCE(config if)#Related Commands
attack-detector
attack-detector TCP-port-list|UDP-port-list
attack-filter subscriber-notification ports
attack-detector default
show interface LineCard attack-detector
attack-detector TCP-port-list|UDP-port-list
Defines the list of destination ports for specific port detections for TCP or UDP protocols.
attack-detector number (tcp-port-list|udp-port-list) (all | (port1 [port2...]) )
Syntax Description
number
Number of the attack detector for which this list of specific ports is relevant
port1, port2
List of up to 15 specific port numbers.
Defaults
This command has no default settings.
Command Modes
LineCard Interface Configuration
Usage Guidelines
TCP and UDP protocols may be configured for specified ports only (port-based). Use this command to configure the list of specified destination ports per protocol.
Up to 15 different TCP port numbers and 15 different UDP port numbers can be specified.
Configuring a TCP/UDP port list for a given attack detector affects only attack types that have the same protocol (TCP/UDP) and are port-based (i.e. detect a specific destination port). Settings for other attack types are not affected by the configured port list(s).
Specify either TCP-port-list or UDP-port-list.
Use the all keyword to include all ports in the list.
Authorization: admin
Examples
This example shows how to configure the destination port list for the TCP protocol for attack detector #10.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface LineCard 0 SCE(config if)#attack-detector 10 TCP-port-list 100 101 102 103 SCE(config if)#Related Commands
attack-filter
Enables specific attack detection for a specified protocol and attack direction. Use the no form of the command to disable attack detection.
attack-filter protocol (((TCP|UDP) [dest-port destination port ])|ICMP|other|all) attack-direction attack-direction
no attack-filter protocol (((TCP|UDP) [dest-port destination port ])|ICMP|other|all) attack-direction attack-direction
Syntax Description
Defaults
By default, attack-filter is enabled.
Default protocols = all protocols (no protocol specified)
Default attack direction = all directions
Default destination port = both port-based and port-less
Command Modes
LineCard Interface Configuration
Usage Guidelines
Specific attack filtering is configured in two steps:
•
•
In addition, the user can manually override the configured attack detectors to either force or prevent attack filtering in a particular situation (using the attack filter force filter | don't-filter command).
By default, specific-IP detection is enabled for all attack types. You can configure specific IP detection to be enabled or disabled for a specific, defined situation only, depending on the following options:
•
•
•
If the selected protocol is either TCP or UDP, specify whether the destination port is specific (port-based), not specific (port-less), or both. If the destination port or ports are specific, the specific destination ports are configured using the attack-detector TCP-port-list|UDP-port-listcommand.
Authorization: admin
Examples
The following examples illustrate the use of this command.
EXAMPLE 1
The following example shows how to enable specific, dual-sided attack detection for TCP protocol only.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface LineCard 0 SCE(config if)#attack-filter protocol TCP dest-port specific attack-direction dual-sided SCE(config if)#EXAMPLE 2
The following example shows how to enable single-sided attack detection for ICMP protocol only.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface LineCard 0 SCE(config if)# attack-filter protocol ICMP attack-direction single-side-source SCE(config if)#EXAMPLE 3
The following example disables attack detection for all non TCP, UDP, or ICMP protocols.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface LineCard 0 SCE(config if)#no attack-filter protocol other attack-direction all SCE(config if)#Related Commands
attack-detector TCP-port-list|UDP-port-list
attack-detector <number>
show interface LineCard attack-filter
attack-filter dont-filter | force-filter
This command prevents attack filtering for a specified IP address/protocol. If filtering is already in process, it will be stopped. When attack filtering has been stopped, it remains stopped until explicitly restored by another CLI command (either specific or general). Use theno form of this command to restore attack filtering. Theforce-filter keyword forces attack filtering for a specified IP address/protocol. When attack filtering has been forced, it continues until explicitly stopped by another CLI command (either specific or general). Use theno form of this command to stop attack filtering.
attack-filter force-filter action (block|report) protocol ((TCP|UDP) [dest-port (port-number |not-specific)]|ICMP|other) attack-direction (((single-side-source|single-side-destination|single-side-both) ip ip-address )|(dual-sided source-ip ip-address destination-ip ip-address )) side side
attack-filter dont-filter protocol ((TCP|UDP) [dest-port (port-number |not-specific)]|ICMP|other) attack-direction (((single-side-source|single-side-destination|single-side-both) ip ip-address )|(dual-sided source-ip ip-address destination-ip ip-address )) side side
no attack-filter dont-filter protocol ((TCP|UDP) [dest-port (port-number |not-specific)]|ICMP|other) attack-direction (((single-side-source|single-side-destination|single-side-both) ip ip-address )|(dual-sided source-ip ip-address destination-ip ip-address )) side side
no attack-filter force-filter protocol ((TCP|UDP) [dest-port (port-number |not-specific)]|ICMP|other) attack-direction (((single-side-source|single-side-destination|single-side-both) ipip-address )|(dual-sided source-ip ip-address destination-ip ip-address )) side side
no attack-filter force-filter all
no attack-filter dont-filter all
Syntax Description
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
After configuring the attack detectors, the SCE platform automatically detects attacks and handles them according to the configuration. However, there are scenarios in which a manual intervention is desired, either for debug purposes, or because it is not trivial to reconfigure the SCE attack-detectors properly.
The user can use the CLI attack filtering commands to do the following:
•
•
Attack filtering can be prevented for a specified IP address/protocol by executing a dont-filter CLI command. If filtering is already in process, it will be stopped. When attack filtering has been stopped, it remains stopped until explicitly restored by another CLI command (either force-filter or no dont-filter).
Attack filtering can be prevented for a specified IP address/protocol by executing a dont-filter CLI command. If filtering is already in process, it will be stopped. When attack filtering has been stopped, it remains stopped until explicitly restored by another CLI command (either force-filter or no dont-filter).
Use the all keyword to restore or stop all filtering.
Authorization: admin
Examples
The following are examples of the attack-filter command:
EXAMPLE 1
The following example prevents attack filtering for the specified conditions.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#attack-filter dont-filter protocol other attack-direction single-side-source ip 10.10.10.10 side both SCE(config if)#EXAMPLE 2:
The following example restores all attack filtering.
SCE>enable 10 SCE#config SCE(config)#interface linecard 0 SCE(config if)#no attack-filter dont-filter all SCE(config if)# Password:<cisco>EXAMPLE 3:
The following example forces attack filtering.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#attack-filter force-filter protocol TCP dest-port not-specific attack-direction dual-sided source-ip 10.10.10.10 destination-ip 20.20.20.20 side both SCE(config if)#EXAMPLE 4:
The following example stops all forced attack filtering.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#no attack-filter force-filter all SCE#Related Commands
attack-filter subscriber-notification ports
Specifies a port as subscriber notification port. TCP traffic from the subscriber side to this port will never be blocked by the attack filter, leaving it always available for subscriber notification. Use theno form of this command to remove the port from the subscriber notification port list.
attack-filter subscriber-notification ports port
no attack-filter subscriber-notification ports port
Syntax Description
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Use this command to configure the port to be used for subscriber notification as configured using the attack-filter and attack-detector <number>commands.
Authorization: admin
Examples
The following example specifies port 100 as the subscriber notification port.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#attack-filter subscriber-notification ports 100 SCE(config if)#Related Commands
attack-detector default
attack-detector <number>
show interface linecard attack-filter
bandwidth
Sets Ethernet shaping for the TenGigabitEthernet line interfaces.
bandwidth bandwidth burst-size burstsize
Syntax Description
Defaults
bandwidth = 100000K (100 Mbps)
burst-size = 5000 (5K bytes)
Command Modes
TenGigabitEthernet Interface Configuration
Usage Guidelines
This command is valid for a specified TenGigabitEthernet line interface only. It must be executed explicitly for each interface.
Authorization: admin
Examples
The following example sets bandwidth and burst size for a 10 Gigabit Ethernet line interface 3/2/0)
SCEconfig SCE(config)#interface TenGigabitEthernet 3/2/0 SCE(config if)#bandwidth 100000 burstsize 5000 SCE(config if)#Related Commands
blink
Blinks a slot LED for visual identification. Use theno form of this command to stop the slot blinking.
blink slot slot-number
no blink slot slot-number
Syntax Description
Defaults
Not blinking
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example configures the SCE platform to stop blinking.
SCE>enable 10 Password:<cisco> SCE#no blink slot 0 SCE#Related Commands
boot system
Specifies a new package file to install. The SCE platform extracts the actual image file(s) from the specified package file only during the copy running-config startup-config command.
boot system ftp://username[:password]@server-address[:port]/path/source-file destination-file
no boot system
Syntax Description
ftp://...destination-file
The ftp site and path of a package file that contains the new firmware. The filename should end with the.pkg extension.
Defaults
The ftp site and path of a package file that contains the new firmware. The filename should end with the.pkg extension.
Command Modes
Global Configuration
Usage Guidelines
Use this command to upgrade the SCE platform embedded firmware. The package file is verified for the system and checked that it is not corrupted. The actual upgrade takes place only after executing the copy running-config startup-config command and rebooting the SCE platform.
Authorization: admin
Examples
The following example upgrades the system.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#boot system ftp://user:1234@10.10.10.10/downloads/SENum.pkg.pkg Verifying package file... Package file verified OK. SCE(config)#do copy running-config startup-config Backing -up configuration file... Writing configuration file... Extracting new system image... Extracted OK.Related Commands
calendar set
Sets the system calendar. The calendar is a system clock that continues functioning even when the system shuts down.
calendar set hh:mm:ss day month year
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Always coordinate between the calendar and clock by using the clock read-calendar command after setting the calendar.
Authorization: admin
Examples
The following example sets the calendar to 20 minutes past 10 AM, January 13, 2006, synchronizes the real-time clock to the calendar time, and displays the result.
SCE>enable 10 Password:<cisco> SCE#calendar set 10:20:00 13 jan 2006 SCE#clock read-calendar SCE#show calendar 10:20:03 UTC THU January 13 2006 SCE#show clock 10:20:05 UTC THU January 13 2006 SCE#Related Commands
cd
Changes the path of the current working directory.
cd new-path
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
The new path should already have been created in the local flash file system.
Authorization: admin
Examples
The following example shows the current directory (root directory) and then changes the directory to the log directory located under the root directory.
SCE>enable 10 Password:<cisco> SCE>enable 10 SCE#pwd system SCE#cd log SCE#pwd system:log SCE#Related Commands
clear arp-cache
Deletes all dynamic entries from the ARP cache. The Address Resolution Protocol (ARP) is a TCP/IP protocol that converts IP addresses to physical addresses. Dynamic entries are automatically added to and deleted from the cache during normal use. Entries that are not reused age and expire within a short period of time. Entries that are reused have a longer cache life.
clear arp-cache
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example clears the ARP cache.
SCE>enable 10 Password:<cisco> SCE#clear arp-cache SCE#Related Commands
clear interface linecard counters
Clears the linecard Interface counters.
clear interface linecard slot-number counters
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example clears the Line-Card 0 counters.
SCE>enable 10 Password:<cisco> SCE#clear interface linecard 0 counters SCE#Related Commands
clear interface linecard flow-filter
Clears all flow filter rules for the specified partition.
clear interface linecard slot-number flow-filter partition name name
Syntax Description
slot-number
The number of the identified slot. Enter a value of 0.
name
Name of the partition for which to clear the flow filter rules
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example shows how to use this command.
SCE>enable 15 Password:<cisco> SCE#>clear interface linecard 0 flow-filter partition name partition_1 SCE#>Related Commands
clear interface linecard mac-resolver arp-cache
Clears all the MAC addresses in the MAC resolver database.
clear interface linecard slot-number mac-resolver arp-cache
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example shows how to use this command.
SCE>enable 10 Password:<cisco> SCE#clear interface linecard 0 mac-resolver arp-cache SCE#Related Commands
clear interface linecard subscriber
Clears all anonymous subscribers in the system.
clear interface linecard slot-number subscriber anonymous all
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example clears all anonymous subscribers.
SCE>enable 10 Password:<cisco> SCE#clear interface linecard 0 subscriber anonymous all SCE#Related Commands
no subscriber
no subscriber anonymous-group
show interface linecard subscriber anonymous
clear interface linecard subscriber db counters
Clears the "total" and "maximum" subscribers database counters.
clear interface linecard slot-number subscriber db counters
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example clears all anonymous subscribers.
SCE>enable 10 Password:<cisco> SCE#clear interface linecard 0 subscriber db counters SCE#Related Commands
clear interface linecard traffic-counter
Clears the specified traffic counter.
clear interface linecard slot-number traffic-counter (name | all)
Syntax Description
slot-number
The number of the identified slot. Enter a value of 0.
name
Name of the traffic counter to be cleared.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use the all keyword to clear all traffic counters.
Authorization: admin
Examples
The following example clears the traffic counter name counter1.
SCE>enable 10 Password:<cisco> SCE#clear interface linecard 0 traffic-counter name counter1 SCE#Related Commands
clear logger
Clears SCE platform logger (user log files). This erases the information stored in the user log files.
clear logger [device user-file-log|line-attack-file-log ] [counters|nv-counters]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
The user log files have a size limit, with new entries overwriting the oldest entries. Therefore, there is no need to regularly clear the log files. Use this operation when you are certain that the information contained in the logs is irrelevant and might be confusing (for example, when re-installing the system at a new site, whose administrators should not be confused with old information).
•
•
Authorization: admin
Examples
EXAMPLE 1:
The following example clears the SCE platform user log file.
SCE>enable 10 Password:<cisco> SCE#clear logger device User-File-Log Are you sure?Y SCE#EXAMPLE 2:
The following example clears the SCE platform user log file counters.
SCE>enable 10 Password:<cisco> SCE#clear logger device User-File-Log counters Are you sure?Y SCE#EXAMPLE 3:
The following example clears the user log file non-volatile counters.
SCE>enable 10 Password:<cisco> SCE#clear logger device user-file-log nv-counters Are you sure?Y SCE#Related Commands
clear management-agent notifications counters
Clears the counters for the number of notifications sent to the management agent
clear management-agent notifications counters
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example clears the management agent notifications counters.
SCE>enable 10 Password:<cisco> SCE#clear management-agent notifications counters SCE#Related Commands
clear rdr-formatter
Clears the RDR formatter counters and statistics.
clear rdr-formatter
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example clears the RDR-formatter counters.
SCE>enable 10 Password:<cisco> SCE#clear rdr-formatter SCE#Related Commands
clear scmp name counters
Clears the counters for the specified SCMP peer device.
clear scmp name name counters
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example clears the counters for the SCMP peer device named device_1.
SCE>enable 10 Password:<cisco> SCE#clear scmp name device_1 counters SCE#Related Commands
clock read-calendar
Synchronizes clocks by setting the system clock from the calendar.
clock read-calendar
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example updates the system clock from the calendar.
SCE>enable 10 Password:<cisco> SCE#clock read-calendar SCE#Related Commands
clock set
Manually sets the system clock.
clock set hh:mm:ss day month year
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Always coordinate between the calendar and clock by using the clock update-calendar command after setting the clock.
Authorization: admin
Examples
The following example sets the clock to 20 minutes past 10 PM, January 13, 2006.
SCE>enable 10 Password:<cisco> SCE#clock set 22:20:00 13 jan 2006 SCE#clock update-calendar SCE#show clock 22:21:10 UTC THU January 13 2006 SCE#show calendar 22:21:18 UTC THU January 13 2006 SCE#Related Commands
clock summertime
Configures the SCE platform to automatically switch to daylight savings time on a specified date, and also to switch back to standard time. In addition, the time zone code can be configured to vary with daylight savings time if required. (For instance, in the eastern United States, standard time is designated EST, and daylight savings time is designated EDT). Use theno form of this command to cancel the daylight savings time transitions configuration.
clock summertime
Syntax Description
Defaults
recurring, offset = 60 minutes
By default, the following recurrent time changes are configured:
•
•
Command Modes
Global Configuration
Usage Guidelines
The format of the command varies somewhat, depending on how the dates for the beginning and end of daylight savings time are determined for the particular location:
•
–
–
•
–
–
General guidelines for configuring daylight savings time transitions:
•
•
•
•
–
–
In the Southern hemisphere, month2 must be before month1, as daylight savings time begins in the fall and ends in the spring.
•
–
–
For the clock summer-time recurring command, the default values are the United States transition rules:
•
•
Use the recurring keyword if daylight savings time always begins and ends on the same day every year.
Use the first/last keywords to specify the occurrence of a day of the week in a specified month: For example: last Sunday March.
Use a specific date including the year for a not recurring configuration. For example: March 29, 2004.
Use week/day of the week/month (no year) for a recurring configuration:
•
•
Authorization: admin
Examples
The following examples illustrate the use of this command.
EXAMPLE 1
The following example shows how to configure recurring daylight savings time for a time zone designated "DST" as follows:
•
•
•
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#clock summer-time DST recurring last Sunday March 00:00 4 Saturday November 23:59 SCE(config)#EXAMPLE 2
The following example shows how to configure non-recurring daylight savings time for a time zone designated "DST" as follows:
•
•
•
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#clock summer-time DST April 16 2005 00:00 October 23 2005 23:59 SCE(config)#EXAMPLE 3
The following example shows how to cancel the daylight savings configuration.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#no clock summer-time SCE(config)#Related Commands
clock timezone
Sets the time zone. Use the no version of this command to remove current time zone setting. The purpose of setting the time zone is so that the system can correctly interpret time stamps data coming from systems located in other time zones.
clock timezone zone hours [minutes]
no clock timezone
Syntax Description
Defaults
UTC (hours = 0)
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example sets the time zone to Pacific Standard Time with an offset of 10 hours behind UTC.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#clock timezone PST -10 SCE(config)#Related Commands
clock update-calendar
Synchronizes clocks by setting the calendar from the system clock.
clock update-calendar
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example updates the calendar according to the clock.
SCE>enable 10 Password:<cisco> SCE#clock update-calendar SCE#Related Commands
configure
Enables the user to move from Privileged Exec Mode to Configuration Mode.
configure
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
After the user enters the configure command, the system prompt changes from <host-name># to <host-name>(config)#, indicating that the system is in Global Configuration Mode. To leave Global Configuration Mode and return to the Privileged Exec Mode prompt, use the exit command.
Authorization: admin
Examples
The following example enters the Global Configuration Mode.
SCE>enable 10 Password:<cisco> SCE#configure SCE#(config) #Related Commands
connection-mode
Sets the connection mode parameters.
connection-mode connection-mode physically-connected-links physically-connected-links priority priority on-failure on-failure
Syntax Description
Defaults
connection mode = inline
physically-connected-links =link 0
priority = primary
on-failure:
–
–
Command Modes
Linecard Interface Configuration
Usage Guidelines
This command can only be used if the line card is in either no-application or shutdown mode.
Authorization: admin
Examples
The following example shows how to configure the primary SCE 8000 platform in a two-SCE platform inline topology. Link "0" is connected to this SCE platform, and the behavior of the SCE platform if a failure occurs is "bypass".
SCE>enable 10 Password: <cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#connection-mode inline-cascade physically-connected-links link-0 priority primary on-failure bypass SCE(config if)#Related Commands
show interface linecard connection-mode
show interface linecard physically-connected-links
copy
Copies any file from a source directory to a destination directory on the local flash file system.
copy source-file destination-file
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Both file names should be in 8.3 format, that is, there are a maximum of 8 characters before the period and three characters following it.
Authorization: admin
Examples
The following example copies the local analysis.sli file located in the root directory to the applications directory.
SCE>enable 10 Password:<cisco> SCE#copy analysis.sli applications/analysis.sli SCE#Related Commands
copy ftp://
Uploads or downloads a file system using FTP.
copy ftp://username[:password]@server-address[:port]/path/source-file destination-file
copy source-file ftp://username[:password]@server-address[:port]/path/destination-file
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use the following syntax for remote upload/download using FTP:
ftp://username[:password]@server-address[:port]/path/file
You can configure keyword shortcuts for the copy command using the following commands:
•
•
Authorization: admin
Examples
The following example downloads the ftp.sli file from the host 10.10.10.10 with user name "user" and password "a1234".
SCE>enable 10 Password:<cisco> SCE#copy ftp://user:a1234@10.10.10.10/p:/applications/ftp.sli appl/analysis.sli SCE#Related Commands
copy-passive
Uploads or downloads a file using passive FTP.
copy-passive source-file ftp://username[:password]@server-address[:port]/path/destination-file [overwrite ]
copy-passive ftp://username[:password]@server-address[:port]/path/source-fil destination-file
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use the following format for remote upload/download using FTP: ftp://username[:password]@serveraddress[:port]/path/file
Use the overwrite keyword to permit the command to overwrite an existing file.
You can configure keyword shortcuts for the copy command using the following commands:
•
•
Authorization: admin
Examples
The following example downloads the analysis.sli file from the host 10.10.10.10 with user name "user" and password "a1234".
SCE>enable 10 Password:<cisco>0 SCE#copy-passive ftp://user:a1234@10.10.10.10/p:/applications/analysis.sli appl/analysis.sli SCE#Related Commands
copy running-config startup-config
Builds a configuration file with general configuration commands called config.txt, which is used in successive boots.
copy running-config startup-config
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
This command must be entered to save newly configured parameters, so that they will be effective after a reboot. You can view the running configuration before saving it using the more running-config command.
The old configuration file is automatically saved in the /system/prevconf directory.
Authorization: admin
Examples
The following example saves the current configuration for successive boots.
SCE>enable 10 Password:<cisco> SCE#copy running-config startup-config Backing-up configuration file... Writing configuration file... SCE#Related Commands
copy source-file ftp://
Uploads a file to a remote station, using FTP.
copy source-file ftp://username[:password]@server-address[:port]/path/destination-file
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use the following format for remote upload/download using FTP: ftp://username[:password]@serveraddress[:port]/path/file
You can configure keyword shortcuts for the copy command using the following commands:
•
•
Authorization: admin
Examples
The following example uploads the analysis.sli file located on the local flash file system to the host 10.1.1.105.
SCE>enable 10 Password:<cisco> SCE#copy /appl/analysis.sli ftp://myname:mypw@10.1.1.105/p:/applications/analysis.sli SCE#Related Commands
copy source-file startup-config
Copies the specified source file to the startup-config file. Use this command to upload a backup configuration file created using the copy startup-config destination-file command. This is useful in a cascaded solution for copying the configuration from one SCE platform to the other.
copy source-file startup-config
Syntax Description
source-file
The name of the backup configuration file.
•
•
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
The source file name should be in 8.3 format, that is, there are a maximum of 8 characters before the period and three characters following it.
Authorization: admin
Examples
The following example shows how to upload a backup configuration file.
SCE>enable 10 Password:<cisco> SCE#copy ftp://user:pass@host/drive:/dir/bakupcfg.txt startup-config SCE#Related Commands
copy startup-config destination-file
Copies the startup-config file to the specified destination file. Use this command to create a backup configuration file. This is useful in a cascaded solution for copying the configuration from one SCE platform to the other. The file created by this command can then be uploaded to the second SCE platform using the copy source-file startup-config command.
copy startup-config destination-file
Syntax Description
destination-file
The name of the file to which the configuration is copied.
•
•
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
The destination file name should be in 8.3 format, that is, there are a maximum of 8 characters before the period and three characters following it.
Authorization: admin
Examples
The following example shows how to create a backup configuration file.
SCE>enable 10 Password:<cisco> SCE#copy startup-config ftp://user:pass@host/drive:/dir/bckupcfg.txt SCE#Related Commands
default subscriber template all
Removes all user-defined subscriber templates from the system. The default template only remains.
default subscriber template all
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Authorization: admin
Examples
The following example removes all user-defined subscriber templates.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)# default subscriber template all SCE(config if)#Related Commands
subscriber template import csv-file
show interface linecard subscriber templates
party template
delete
Deletes a file from the local flash file system. Use the recursive switch to delete a complete directory and its contents. When used with the recursive switch, the filename argument specifies a directory rather than a file.
delete file-name [/recursive]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate how to use this command:
EXAMPLE 1:
The following example deletes the oldlog.txt file.
SCE>enable 10 Password:<cisco> SCE#delete oldlog.txt SCE#EXAMPLE 2:
The following example deletes the oldlogs directory.
SCE>enable 10 Password:<cisco> SCE#delete oldlogs /recursive 3 files and 1 directories will be deleted. Are you sure? y 3 files and 1 directories have been deleted. SCE#Related Commands
dir
Displays the files in the current directory.
dir [applications] [-r]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example displays the files in the current directory (root).
SCE>enable 10 Password:<cisco> SCE#dir File list for /system/ 512TUE JAN 01 00:00:00 1980LOGDBG DIR 512TUE JAN 01 00:00:00 1980LOG DIR 7653 TUE JAN 01 00:00:00 1980FTP.SLI 29 TUE JAN 01 00:00:00 1980SCRIPT.TXT 512 TUE JAN 01 00:00:00 1980SYSTEM DIR SCE#Related Commands
disable
Moves the user from a higher level of authorization to a lower user level.
disable [level ]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged Exec and Viewer
Usage Guidelines
Use this command with the level option to lower the user privilege level, as illustrated in the following figure. If a level is not specified, it defaults to User mode.
Figure 2-1 Disable Command
Note that you must exit to the Privileged Exec command mode to use this command.
Authorization: user
Examples
The following example shows how to change from root to admin mode:
SCE>enable 15 Password:<cisco> SCE#>disable 10 SCE#Related Commands
do
Use the do command to execute an EXEC mode command (such as a show command) or a privileged EXEC command (such as show running-config ) without exiting to the relevant command mode.
do command
Syntax Description
Defaults
This command has no default settings.
Command Modes
All configuration modes
Usage Guidelines
Use this command when in any configuration command mode (global configuration, linecard configuration, or any interface configuration) to execute a user exec or privileged exec command.
Enter the entire command with all parameters and keywords as you would if you were in the relevant command mode.
Authorization: admin
Examples
The following example assumes that the on-failure action of the SCE platform has been changed to 'bypass'. The connection mode configuration is then displayed to verify that the parameter was changed. The do command is used to avoid having to exit to the user exec mode.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#connection-mode on-failure bypass SCE(config if)#do show interface linecard 0 connection-mode slot 0 connection mode Connection mode is inline slot failure mode is bypass Redundancy status is standalone SCE(config if)#Related Commands
duplex
Configures the duplex operation of the GigabitEthernet management interface.
duplex mode
no duplex
Syntax Description
mode
Set to the desired duplex mode:
•
•
•
Defaults
mode = Auto
Command Modes
GigabitEthernet Interface Configuration
Usage Guidelines
Use this command to configure the duplex mode of the GigabitEthernet management interface.
•
If the speed (see speed ) of the management interface is configured to auto, changing this configuration has no effect.
Authorization: admin
Examples
The following example configures the management port to auto mode.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface GigabitEthernet 1/1 SCE(config if)#duplex auto SCE(config if)#Related CommandsE
enable
Enables the user to access a higher authorization level.
enable [level ]
Syntax Description
level
User authorization level (0, 5, 10, 15) as specified in CLI Authorization Levels, page 1-11.
Defaults
level = admin
Command Modes
User Exec
Usage Guidelines
Authorization levels are illustrated in the following figure.
Figure 2-2 Enable Command
If a level is not specified, the level defaults to admin authorization, level 10.
Note that you cannot use the enable command from the Privileged Exec or any of the configuration command modes.
Authorization: User
Examples
The following example accesses the administrator authorization level. Note that the prompt changes from SCE> to SCE#, indicating that the level is the administrator privilege level.
SCE>enable Password:<cisco> SCE#Related Commands
enable password
Configures a password for the specified authorization level, thus preventing unauthorized users from accessing the SCE platform. Use theno form of the command to disable the password for the specified authorization level.
enable password [level level ] [encryption-type ] password
no enable password [level level ]
Syntax Description
Defaults
password = cisco
Command Modes
Global Configuration
Usage Guidelines
After the command is entered, any user executing the enable command must supply the specified password.
•
•
•
•
•
Authorization: admin
Examples
The following example sets a level 10 password as a123*man.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#enable password level 10 a123*man SCE(config)#Related Commands
erase startup-config-all
Removes all current configuration by removing all configuration files.
erase startup-config-all
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
The following data is deleted by this command:
•
•
•
•
After using this command, the SCE platform should be reloaded immediately to ensure that it returns to the 'factory default' state.
You can use the copy startup-config destination-file command to create a backup of the current configuration before it is deleted.
Authorization: admin
Examples
The following example shows how to erase the startup configuration.
SCE>enable 10 Password:<cisco> SCE#erase startup-config-allRelated Commands
exit
Exits from the current mode to the next "lower" mode.
exit
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
All
Usage Guidelines

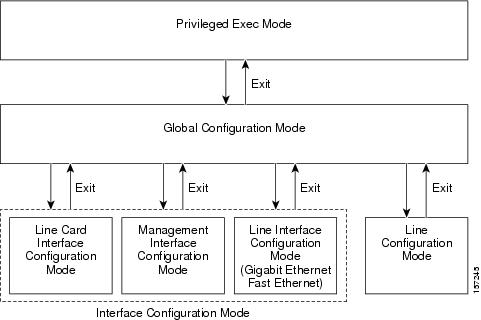

Use this command each time you want to exit a mode, as illustrated in the following figure. The system prompt changes to reflect the lower-level mode.
Figure 2-3 Exit Command
Authorization: admin
Examples
The following example exits from the Linecard Interface Configuration Mode to Global Configuration Mode and then to Privileged Exec and Viewer Modes.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#exit SCE(config)#exit SCE#Related Commands
configure
interface gigabitethernet
interface linecard
interface tengigabitethernet
line vty
external-bypass
Manually activates the external bypass modules.
Use the no form of the command to deactivate the external bypass modules.
Use the default form of the command to return the external bypass module to the default state (deactivated).
external-bypass
no external-bypass
default external-bypass
Syntax Description
This command has no arguments or keywords.
Defaults
By default the external bypass module is deactivated.
Command Modes
Interface Linecard Configuration
Usage Guidelines
Authorization: admin
Examples
The following example illustrates how to use this command.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#external-bypass SSCE(config if)#Related Commands
failure-recovery operation-mode
Specifies the operation mode to be applied after boot resulting from failure. When using the default switch, you do not have to specify the mode.
failure-recovery operation-mode mode
default failure-recovery operation-mode
Syntax Description
mode
operational or non-operational. Indicates whether or not the system will boot as operational following a failure.
Defaults
mode = operational
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example sets the system to boot as operational after a failure
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#failure-recovery operation-mode operational SCE(config)#Related Commands
flow-capture
Executes flow capture operations.
flow-capture (start format cap file-destination | stop)
Syntax Description
file-destination
Destination (FTP site path) where the cap file should be created in the format: ftp://<username>:<password>@<ip_address>/<path>/<filename>
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
The flow capture is a useful debugging capability that captures packets from the traffic stream in real time and stores them for later analysis using a standard cap format. The classification of the traffic portion to be captured is based on L4 attributes. The captured information is sent to a specified FTP destination. The FTP transaction is done online on SCE2000 platform, or immediately after the capture process concluded on SCE8000 platform.
The following operations are available:
•
•
Note that traffic can be captured only when an application is loaded.
To perform a flow capture, complete the following steps:
1.
You may skip this step and use the default controller values.
2.
You must use the traffic-rule command to define the recording rule. You cannot use the flow-filter command.
3.
Use the flow-capture start command.
4.
Use the flow-capture stop command.
If not stopped by the operator, the flow capture will stop when the maximum duration or capacity has been reached
At any point, you can use the show interface linecard flow-capture command to display the flow capture status, including whether flow capture is currently recording or is stopped, the capacity already used and the number of packets recorded.
Authorization: admin
Examples
The following examples show how to use this command.
Example 1
The following example shows how to perform all the steps in a flow capture:
1.
2.
3.
(show command shows that recording is in progress.)
4.
SCE>enable 10 Password:<cisco> SCE#>configure SCE(config)#interface linecard 0 SCE(config if)#flow-capture controllers max-l4-payload-length 200 SCE(config if)#flow-capture controllers time 45 SCE(config if)#traffic-rule name FlowCaptureRule IP-addresses subscriber-side all network-side all protocol 250 direction both traffic-counter counter2 action flow-capture SCE(config if)# flow-capture start format cap ftp://myUser:myPassword@10.10.10.80/./myCap.cap SCE(config if)#do show interface linecard 0 flow-capture Flow Capture Status:--------------------Flow capture status: RECORDINGCapturing type: ONLINETarget file size (bytes): 219616Time limit (sec): 45Max L4 payload length (bytes): 200Number of recorded packets: 830Number of lost packets: 0SCE(config if)#do flow-capture stop SCE(config if)#do show interface linecard 0 flow-captureFlow Capture Status:--------------------Flow capture status: NOT RECORDINGCapturing type: ONLINELast stop cause: User RequestTarget file size (bytes): 197256Time limit (sec): 45Max L4 payload length (bytes): 200Number of recorded packets: 713Number of lost packets: 0SCE(config if)#Example 2
The following example is identical to the previous one, except that instead of using the stop command, the capturing process continues until the defined time limit is reached.
1.
2.
3.
(show command shows that recording is in progress.)
4.
SCE>enable 10 Password:<cisco> SCE#>configure SCE(config)#interface linecard 0 SCE(config if)#flow-capture controllers max-l4-payload-length 200 SCE(config if)#flow-capture controllers time 45 SCE(config if)#traffic-rule name FlowCaptureRule IP-addresses subscriber-side all network-side all protocol 250 direction both traffic-counter counter2 action flow-capture SCE(config if)# flow-capture start format cap ftp://myUser:myPassword@10.10.10.80/./myCap.cap SCE(config if)#do show interface linecard 0 flow-capture Flow Capture Status:--------------------Flow capture status: RECORDINGCapturing type: ONLINETarget file size (bytes): 219616Time limit (sec): 45Max L4 payload length (bytes): 200Number of recorded packets: 830Number of lost packets: 0after 45 seconds....SCE(config if)#do show interface linecard 0 flow-capture Flow Capture Status:--------------------Flow capture status: NOT RECORDINGCapturing type: ONLINELast stop cause: Time LimitTarget file size (bytes): 758172Time limit (sec): 45Max L4 payload length (bytes): 200Number of recorded packets: 2863Number of lost packets: 0SCE(config if)#Example 3
In this example instead of using the stop command, the capturing process continues until the defined file-size limit (128MB in SCE8000) is reached.
1.
2.
3.
(show command shows that recording is in progress.)
4.
SCE>enable 10 Password:<cisco> SCE#>configure SCE(config)#interface linecard 0 SCE(config if)#default flow-capture controllers max-l4-payload-length SCE(config if)#default flow-capture controllers time SCE(config if)#traffic-rule name FlowCaptureRule IP-addresses subscriber-side all network-side all protocol 250 direction both traffic-counter counter2 action flow-capture SCE(config if)# flow-capture start format cap ftp://myUser:myPassword@10.10.10.80/./myCap.cap SCE(config if)#do show interface linecard 0 flow-capture Flow Capture Status:--------------------Flow capture status: RECORDINGCapturing type: ONLINETarget file size (bytes): 219616Time limit (sec): 45Max L4 payload length (bytes): 200Number of recorded packets: 830Number of lost packets: 0after 45 minutes...SCE(config if)#do show interface linecard 0 flow-captureFlow Capture Status:--------------------Flow capture status: NOT RECORDINGCapturing type: ONLINELast stop cause: Cannot Write To File or Max Allowed File Size ExceededTarget file size (bytes): 13417700Time limit (sec): 3600Max L4 payload length (bytes): UnlimitedNumber of recorded packets: 2216548Number of lost packets: 0SCE(config if)#Related Commands
flow-capture controllers
Configures limitations on the flow capture feature. Use the default form of the command to reset all options to the default values.
flow-capture controllers time (duration | unlimited)
flow-capture controllers max-l4-payload-length (length | unlimited)
default flow-capture controllers (time | max-l4-payload-length)
Syntax Description
Defaults
duration = 3600 seconds
length = unlimited
Command Modes
Interface Linecard Configuration
Usage Guidelines
The flow capture is a useful debugging capability that captures packets from the traffic stream in real time and stores them for later analysis. The classification of the traffic portion to be captured is based on L4 attributes.
The portion of traffic that is captured does not receive service (is not processed by the application). Therefore it is important to control the capturing scenario so that service is not negatively affected. This is done by limiting certain aspects of the flow capture.
The following options are available:
•
•
Authorization: admin
Examples
The following example shows how to configure the limitations to the flow capture.
SCE>enable 10 Password:<cisco> SCE#>configure SCE(config)#interface linecard 0 SCE(config if)#flow-capture controllers time 120 SCE(config if)#flow-capture controllers max-l4-payload-length 200 SCE(config if)#Related Commands
force failure-condition
Forces a virtual failure condition, and exits from the failure condition, when performing an application upgrade.
force failure-condition
no force failure-condition
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
When upgrading the application in a cascaded system, use this command to force failure in the active SCE8000 platform (see 'System Upgrades' in the Chapter "Redundancy and Fail-Over" in the Cisco SCE8000 Software Configuration Guide ).
Authorization: admin
Examples
The following example forces a virtual failure condition.
At the displayed 'n', type 'Y' and press Enter to confirm the forced failure.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#force failure-condition Forcing failure will cause a failover - do you want to continue? n SCE(config if)#Related Commands
help
Displays information relating to all available CLI commands.
help bindings|tree
Syntax Description
This command has no arguments.
Defaults
This command has no default settings.
Command Modes
Exec
Usage Guidelines
Use the bindings keyword to print a list of keyboard bindings (shortcut commands).
Use the tree keyword to display the entire tree of all available CLI commands.
Authorization: User
Examples
The following example shows the partial output of the help bindings command.
SCE>help bindings Line Cursor Movements --------------------- Ctrl-F /->Moves cursor one character to the right. Ctrl-B /<-Moves cursor one character to the left. Esc-FMoves cursor one word to the right. Esc-BMoves cursor one word to the left. Ctrl-AMoves cursor to the start of the line. Ctrl-EMoves cursor to the end of the line. Esc F Moves cursor forward one word. Esc BMoves cursor backward one word. Editing ------- Ctrl-DDeletes the character where the cursor is located. Esc-DDeletes from the cursor position to the end of the word. BackspaceDeletes the character before the current location of the cursor. Ctrl-H Deletes the character before the current location of the cursor. Ctrl-KDeletes from the cursor position to the end of the line. Ctrl-UDeletes all characters from the cursor to the beginning of the line. Ctrl-XDeletes all characters from the cursor to the beginning of the line. Ctrl-WDeletes the word to the left of the cursor. Ctrl-YRecall the last item deleted. Help and Operation Features ---------------------------- ? Argument help. <Tab>Toggles between possible endings for the typed prefix. <Esc><Tab>Displays all the possible arguments backwards. Ctrl-I <TAB> SCE>Related Commands
history
Enables the history feature, that is, a record of the last command lines that executed. Use the no form of this command to disable history.
history
no history
Syntax Description
This command has no arguments or keywords.
Defaults
History is enabled.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate how to use this command.
EXAMPLE 1
The following example enables the history feature.
SCE>enable 10 Password:<cisco> SCE#history SCE#EXAMPLE 2
The following example disables the history feature.
SCE>enable 10 Password:<cisco> SCE#no history SCE#Related Commands
history size
Sets the number of command lines that the system records in the history.
history size size
no history size
Syntax Description
Defaults
size = 10 lines
Command Modes
Privileged EXEC
Usage Guidelines
The size of the history buffer can be any number from 0-50. Use the no form of this command to restore the default size.
Authorization: admin
Examples
The following example sets the history buffer size to 50 command lines.
SCE>enable 10 Password:<cisco> SCE#history size 50 SCE#Related Commands
hostname
Modifies the name of the SCE platform. The host name is part of the displayed prompt.
hostname host-name
Syntax Description
Defaults
host-name = SCE
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example changes the host name to MyHost.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#>hostname MyHost MyHost(config)#>Related Commands
interface gigabitethernet
Enters GigabitEthernet Interface Configuration mode to configure the Gigabit Ethernet management interface in slot #1.
interface gigabitethernet slot-number/interface-number
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Use this command to configure the management port.
To return to the Global Configuration Mode, use the exit command.
The system prompt changes to reflect the GigabitEthernet Interface Configuration mode.
Authorization: admin
Examples
The following example enters into GigabitEthernet Configure Interface Mode to configure the managment port.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface gigabitethernet 1/1 SCE(config if)#Related Commands
interface linecard
Enters Linecard Interface Configuration Mode.
interface linecard slot-number
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
The system prompt is changed to reflect the Line Card Configuration mode. To return to the Global Configuration Mode, use the exit command.
Authorization: admin
Examples
The following example enters LineCard Interface Configuration Mode.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#Related Commands
ip access-class
Specifies which access control list (ACL) controls global access to the SCE platform. Use the no form of the command to permit global access to the SCE platform from any IP address.
ip access-classnumber
no ip access-class
Syntax Description
Defaults
none (all IP addresses can access the system)
Command Modes
Global Configuration
Usage Guidelines
The ACL specified in this command contains the definitions for all IP addresses with permission to access the SCE platform. IP addresses not permitted in this access list cannot access or detect the SCE platform; even a ping command will receive no response if it is not from a permitted IP address.
Authorization: admin
Examples
The following example sets access list 1 as the global ACL.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip access-class 1 SCE(config)#Related Commands
ip address
Sets the IP address and subnet mask of the Management Interface.
ip address new-address subnet-mask
Syntax Description
Defaults
This command has no default settings.
Command Modes
GigabitEthernet Interface Configuration
Usage Guidelines
Note
Note
If there is a routing table entry mapped to the old address, but not to the new address, the command may fail.
Authorization: admin
Examples
The following example sets the IP address of the SCE platform to 10.1.1.1 and the subnet mask to 255.255.0.0.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#gigabitethernet interface 1/1 SCE(config if)#ip address 10.1.1.1 255.255.0.0 SCE(config if)#Related Commands
ip advertising
Enables IP advertising. If either the destination or interval is not configured, the default values are assumed.
Use the no version of the command to disable IP advertising.
Use the default version of the command to restore IP advertising destination or interval to the default values.
ip advertising [(destination destination ) | (interval interval )]
no ip advertising
default ip advertising [destination | interval]
Syntax Description
destination
The IP address of the destination for the ping requests
interval
The frequency of the ping requests in seconds
Defaults
By default, IP advertising is disabled
destination = 127.0.0.1
interval = 300 seconds
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate the use of this command.
EXAMPLE 1:
The following example enables IP advertising, specifying 10.1.1.1 as the destination and an interval of 240 seconds.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip advertising destination 10.1.1.1 SCE(config)#ip advertising interval 240 SCE(config)#EXAMPLE 2:
The following example restores the IP advertising destination to the default value.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#default ip advertising destination SCE(config)#Related Commands
ip default-gateway
Configures the default gateway for the SCE platform. Use theno form of this command to remove the SCE platform default gateway configuration
ip default-gateway x.x.x.x
no ip default-gateway
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example sets the default gateway IP of the SCE platform to 10.1.1.1.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip default-gateway 10.1.1.1 SCE(config)#Related Commands
ip domain-lookup
Enables or disables the domain name lookups. Use theno form of the command to disable the domain name lookup.
ip domain-lookup
no ip domain-lookup
Syntax Description
This command has no arguments or keywords.
Defaults
By default, domain name lookup is enabled.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate how to use this command.
EXAMPLE 1:
The following example enables the domain lookup.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip domain-lookup SCE(config)#EXAMPLE 2:
The following example disables the domain lookup
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#no ip domain-lookup SCE(config)#Related Commands
ip domain-name
Defines a default domain name. Use the no parameter of this command to remove the current default domain name. When using the no parameter, you do not have to specify the domain name.
ip domain-name domain-name
no ip domain-name
Syntax Description
domain-name
The default domain name used to complete host names that do not specify a domain. Do not include the initial period that separates an unqualified name from the domain name.
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate the use of this command.
EXAMPLE 1:
The following example configures a domain name
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip domain-name cisco.com SCE(config)#EXAMPLE 2:
The following example removes the configured domain name.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#no ip domain-name SCE(config)#Related Commands
ip ftp password
Specifies the password to be used for FTP connections for the current session. The system will use this password if no password is given in the copy FTP command.
ip ftp password password
Syntax Description
Defaults
Default password is admin
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example sets the password to be used in the FTP connection to mypw.
SCE>enable 10 Password:<cisco> SCE#ip ftp password mypw SCE#Related Commands
ip ftp username
Configures the username for FTP connections for the current session. This username will be used if no username is given in the copy FTP command.
ip ftp username user-name
Syntax Description
Defaults
Default username is anonymous
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example sets myname as the username for FTP connections.
SCE>enable 10 Password:<cisco> SCE#ip ftp username myname SCE#Related Commands
ip host
Adds a host name and address to the host table. Use the no form of the command to remove a host name and address from the host table.
ip host hostname ip-address
no ip host hostname [ip-address]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example adds a host to the host table.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip host PC85 10.1.1.1 SCE(config)#Related Commands
ip name-server
Specifies the address of 1-3 servers to use for name and address resolution. The system maintains a list of up to 3 name servers. If the current list is not empty, this command adds the specified servers to the list. The no option of this command removes specified servers from the current list.
ip name-server server-address1 [server-address2] [server-address3]
no ip name-server
Syntax Description
server-address1
The IP address of the name server.
server-address2
The IP address of an additional name server.
server-address3
The IP address of an additional name server.
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example adds the DNS 10.1.1.1 and 10.1.1.2 to the configured servers list.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip name-server 10.1.1.1 10.1.1.2 SCE(config)#Related Commands
ip radius-client retry limit
Configures the parameters for retransmitting unacknowledged RADIUS client messages.
ip radius-client retry limit times [timeout timeout ]
Syntax Description
times
The maximum number of times the RADIUS client can try unsuccessfully to send a message.
timeout
Timeout interval for retransmitting a message, in seconds
Defaults
times = 3
timeout = 5 second
Command Modes
Global Configuration
Usage Guidelines
Due to the unreliable nature of UDP, the RADIUS client retransmits requests to the SCMP peer device if they were not acknowledged within the configured number of seconds. Messages that were not acknowledged can be retransmitted up to the configured maximum number of retries.
The optional timeout parameter limits the time interval for retransmitting a message.
Authorization: admin
Examples
The following example illustrates how to configure the retransmission parameters.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)# ip radius-client retry limit 5 timeout 5 SCE(config)#Related Commands
ip route
Adds an IP routing entry to the routing table. Use theno option to remove an IP routing entry from the routing table.
ip route ip-address mask [next-hop]
no ip route prefix mask [next-hop]
no ip route all
Syntax Description
ip-address
The IP address of the new entry.
mask
The relevant subnet mask.
next-hop
The next hop in the route.
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
All addresses must be in dotted notation.
The next-hop must be within the Management Interface subnet.
Use the all keyword with the no form of the command to remove all IP routing entries from the routing table.
Authorization: admin
Examples
The following examples illustrate the use of this command:
EXAMPLE 1:
The following example sets the next-hop to 20.2.2.2 for IP addresses in the range 10.10.10.0 to 10.10.10.255.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip route 10.10.10.0 255.255.255.0 20.2.2.2 SCE(config)#EXAMPLE 2:
The following example removes the entry added in the previous example.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#no ip route 10.10.10.0 255.255.255.0 S CE(config)#Related Commands
ip rpc-adapter
Enables the RPC adapter. Use the no option of this command to disable the RPC adapter.
ip rpc-adapter
no ip rpc-adapter
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate the use of this command.
EXAMPLE 1:
The following example enables the RPC adapter.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip rpc-adapter SCE(config)#EXAMPLE 2:
The following example disables the RPC adapter.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#no ip rpc-adapter SCE(config)#Related Commands
ip rpc-adapter port
Defines the RPC adapter port. Use the default option to reset the RPC adapter port assignment to the default port of 14374.
ip rpc-adapter portport-number
default ip rpc-adapter port
Syntax Description
Defaults
port number = 14374
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate the use of this command:
EXAMPLE 1:
The following example shows how to configure the RPC interface, specifying 1444 as the RPC adapter port.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip rpc-adapter SCE(config)#ip rpc-adapter port 1444EXAMPLE 2:
The following example shows how reset the RPC adapter port.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#default ip rpc-adapter portRelated Commands
ip rpc-adaptor security-level
Sets the PRPC server security level.
ip rpc-adaptor security-level {full|semi|none}
Syntax Description
Defaults
default = semi
Command Modes
Global Configuration
Usage Guidelines
Specify the desired PRPC server security level:
•
•
•
Authorization: admin
Examples
The following example illustrates how to set the PRPC server security level.
SCE>enable 10 Password:<cisco> SCE#configure SCE(config)#ip rpc-adaptor security-level full SCE>Related Commands
ip ssh
Enables the SSH server. Use the no option to disable the SSH server.
ip ssh [SSHv1]
no ip ssh [SSHv1]
Syntax Description
This command has no arguments.
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
If the SSHv1 keyword is not specified, both SSHV1 and SSHv2 are enabled. If you wish to enable only SSHv2, use the no form of the command to disable SSHv1, as explained in Example 3. Use the ip ssh SSHv1 command to re-enable SSHv1.
When using an SSH server, you should also do the following:
•
Authorization: admin
Examples
The following examples illustrate the use of this command:
EXAMPLE 1:
The following example enables the SSH server. Both SSHV1 and SSHv2 are enabled.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip ssh SCE(config)#EXAMPLE 2:
The following example disables the SSH server.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#no ip ssh SCE(config)#EXAMPLE 3:
The following example shows how to disable SSHv1 so that only SSHv2 is enabled.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip sshSCE(config)#no ip ssh SSHv1SCE(config)#Related Commands
ip ssh key
Generates or removes the SSH key set. A set of keys must be generated at least once before enabling the SSH server.
ip ssh key [generate|remove]
Syntax Description
generate
generates a new SSH key set and saves it to non-volatile memory. Key size is always 2048 bits.
remove
removes the existing key set.
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Each SSH server should define a set of keys (DSA2, RSA2 and RSA1) to be used when communicating with various clients. The key sets are pairs of public and private keys. The server publishes the public key while keeping the private key in non-volatile memory, never transmitting it to SSH clients.
Note that the keys are kept on the /system/ file, which means that a person with knowledge of the `enable' password can access both the private and public keys. The SSH server implementation provides protection against eavesdroppers who can monitor the management communication channels of the SCE platform, but it does not provide protection against a user with knowledge of the `enable' password.
When using an SSH server, you should also do the following:
•
Authorization: admin
Examples
The following examples illustrate how to use this command.
EXAMPLE 1:
The following example generates a new SSH key set.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip ssh key generate SCE(config)#EXAMPLE 2:
The following example removes the SSH key set,
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#ip ssh key remove SCE(config)#Related Commands
ip-tunnel IPinIP skip
Enables the recognition of IPinIP tunnels and skipping into the internal IP packet. Use the no form of this command to disable IPinIP skip.
ip-tunnel IPinIP skip
no ip-tunnel IPinIP skip
Syntax Description
This command has no arguments or keywords.
Defaults
By default, IPinIP skip is disabled.
Command Modes
Interface Linecard Configuration
Usage Guidelines
•
•
•
•
See the ip-tunnel IPinIP DSCP-marking-skip command.
Authorization: admin
Examples
The following example shows how to use this command.
Note that you must access the root level to shutdown the linecard, even though the IPinIP command is at the admin level.
SCE>enable 15 Password:<cisco> SCE#> configure SCE(config)#>interface linecard 0 SCE(config if)#>shutdownSCE(config if)#>ip-tunnel IPinIP skipSCE(config if)#>no shutdownRelated Commands
ip-tunnel IPinIP DSCP-marking-skip
Configures the SCE platform to perform DSCP marking on the internal IP header of IPinIP traffic.
Use the no form of the command to perform DSCP marking on the external IP header.
ip-tunnel IPinIP DSCP-marking-skip
no ip-tunnel IPinIP DSCP-marking-skip
Syntax Description
This command has no arguments or keywords.
Defaults
By default, DSCP marking of IPinIP traffic is done on the external IP header (no form of the command).
Command Modes
Interface Linecard Configuration
Usage Guidelines
DSCP marking modifies the DSCP bits of the IPv4 header. In IPinIP tunnels there are at least two IP headers. By default, DSCP marking is performed only on the external IP header. Use this command to mark the DSCP bits of the internal IP header.
This command takes effect only when IPinIP skip is enabled (see the ip-tunnel IPinIP skip command, above).
Note
IPinIP DSCP marking can only be configured when there is no application loaded or the linecard is shut down.
Authorization: admin
Examples
The following example shows how to configure the SCE platform to perform DSCP marking on the internal IP header of an IPinIP flows.
Note that you must access the root level to shutdown the linecard, even though the DSCP marking command is at the admin level.
SCE>enable 15 Password:<cisco> SCE#> configure SCE(config)#>interface linecard 0 SCE(config if)#>shutdownSCE(config if)#>ip-tunnel IPinIP DSCP-marking-skipSCE(config if)#>no shutdownip-tunnel l2tp skip
Configures the recognition of L2TP tunnels and skipping into the internal IP packet. Use the no form of this command to disable tunnel recognition and classify traffic by the external IP address.
ip-tunnel L2TP skip
no ip-tunnel
Syntax Description
This command has no arguments or keywords.
Defaults
By default, IP tunnel recognition is disabled.
Command Modes
Linecard Interface Configuration
Usage Guidelines
L2TP is an IP-based tunneling protocol. Therefore, the system must be specifically configured to recognize the L2TP flows, given the UDP port used for L2TP. The SCE platform can then skip the external IP, UDP, and L2TP headers, reaching the internal IP, which is the actual subscriber traffic. If L2TP is not configured, the system treats the external IP header as the subscriber traffic, thus all the flows in the tunnel are seen as a single flow.
The IP tunnel mode is mutually exclusive with other VLAN-based classification.
Use the L2TP identify-by command to configure the port number that the LNS and LAC use for L2TP tunnels.
Authorization: admin
Examples
The following example enables recognition of L2TP tunnels.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#ip-tunnel L2TP skip SCE(config if)#Related Commands
l2tp identify-by
Configures the port number that the LNS and LAC use for L2TP tunnels.
l2tp identify-by port-number port-number
l2tp identify-by default port
Syntax Description
Defaults
port-number = 1701
Command Modes
Linecard Interface Configuration
Usage Guidelines
Use the default port keyword to replace the user-configured port number with the default port.
Note that if external fragmentation exists in the L2TP environment, it is required to configure a quick-forwarding-ignore Traffic Rule (see the section "Configuring Traffic Rules and Counters" in the Cisco SCE Software Configuration Guide ) that bypasses all IP traffic targeted to either the LNS or LAC IP address. This will make sure that any packets not having the L2TP port indication (i.e. non-first fragments) will not require handling by the traffic processors.
In addition, in order to prevent reordering of L2TP tunneled fragments, it is advised to define a quick-forwarding traffic-rule for all the L2TP traffic. This can be done based on the IP ranges in use by the internal IPs in the tunnel (as allocated by the LNS), or simply for all of the traffic passing through the SCE platform.
Note that flow redirection and flow blocking cannot be performed on the quick-forwarded traffic.
Authorization: admin
Examples
The following example configures port# 1000 as the L2TP port.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#l2tp identify-by port-number 1000 SCE(config if)#Related Commands
line vty
Enters Line Configuration Mode for Telnet lines, configuring all Telnet lines.
line vty start-number [end-number]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
The system prompt changes to reflect the Line Configuration mode. To return to Global Configuration Mode, use the exit command.
Authorization: admin
Examples
The following example enters the Line Configuration Mode for all lines.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#line vty 0 SCE(config-line)#Related Commands
link failure-reflection
Enables/disables the link failure reflection.
link failure-reflection [on-all-ports] [linecard-aware]
no link failure-reflection [linecard-aware]
Syntax Description
on-all-ports
Enables reflection of a link failure to all ports
linecard-aware
Prevents link failure reflection if the indications are that the failure is in the line card
Defaults
By default, link failure reflection is disabled
Command Modes
Linecard Interface Configuration
Usage Guidelines
Use the on-all-ports keyword to enable reflection of a link failure to all ports
Use the linecard-aware keyword when each link of the SCE8000 platform (Subscriber-side interface and the corresponding Network-side interface) is connected to a different linecard.
This mode reflects a failure of one port to the other three ports of the SCE8000, differently, depending on whether the failure appears to be in the SCE platform itself or not, as follows:
•
•
Use the no form of this command to disable failure reflection. The on-all-ports keyword is not used in the no form of the command.
Use the no form of this command with the linecard-aware keyword to disable the linecard aware mode, without disabling link failure reflection itself.
Authorization: admin
Examples
The following example enables the reflection of a link failure to all ports:
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#link failure-reflection on-all-ports S CE(config if)#link mode
Configures the link mode. The link mode allows the user to force the specified behavior on the link. This may be useful during installation and for debugging the network.
link mode all-links mode
Syntax Description
Defaults
Command Modes
Linecard Interface Configuration
Usage Guidelines
Always use the all-links keyword; the link mode cannot be set separately for the individual links.
Authorization: admin
Examples
The following example illustrates the use of this command:
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#link mode all-links bypassRelated Commands
logger add-user-message
Adds a message string to the user log files.
logger add-user-message message-text
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example adds "testing 123" as the message to the user log files:
SCE>enable 10 Password:<cisco> SCE#logger add-user-message testing 123 SCE#logger device
Disables or enables the specified logger device.
logger device {line-attack-file-log | statistics-file-log | user-file-log} status
Syntax Description
Defaults
By default, the log devices are enabled.
Command Modes
Global Configuration
Usage Guidelines
Available logger devices are:
•
•
•
Authorization: admin
Examples
The following example disables the User-File-Log device.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#logger device user-file-log disabled SCE(config)#Related Commands
logger device user-file-log max-file-size
logger get user-log file-name
clear logger
logger device user-file-log max-file-size
Sets the maximum log file size.
logger device User-File-Log max-file-size size
Syntax Description
Defaults
size = 1,000,000 bytes
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example configures the maximum size of the User-File-Log device to 65000 bytes.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#logger device user-file-log max-file-size 65000 SCE(config)#Related Commands
logger get support-file
Generates a log file for technical support via FTP. Note that this operation may take some time.
logger get support-file filename
Syntax Description
filename
Name of the generated log file. The specified file must be located on an FTP site, not on the local file system.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example generates a technical support log file (via FTP) named support.zip.
SCE>enable 10 Password:<cisco> SCE#logger get support-file ftp://user:1234@10.10.10.10/c:/support.zip SCE#Related Commands
logger get user-log file-name
Outputs the current user log to a target file. The output file name can be a local path, full path, or full FTP path file name.
logger get user-log file-name target-file
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example retrieves the current user log files.
SCE>enable 10 Password:<cisco> SCE#logger get user-log file-name ftp://myname:mypw@10.1.1.205/d:/log.txt SCE#Related Commands
logout
Logs out of the Command-Line Interface of the SCE platform.
logout
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Exec
Usage Guidelines
The system prompts for confirmation of the logout command with 'N'. Type 'Y' to confirm the logout.
Examples
The following example shows how the user logs out (and confirms the logout).
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#exit SCE>logout Are you sure? YRelated Commands
mac-resolver arp
Adds a static IP entry to the MAC resolver database. Use theno form of the command to remove the static IP entry from the data base.
mac-resolver arpip_address [vlan vlan_tag] mac_address
no mac-resolver arp ip_address [vlan vlan_tag] mac_address
Syntax Description
Defaults
This command has no default settings.
Command Modes
Interface Linecard Configuration
Usage Guidelines
When adding an entry, if a client has previously registered a dynamic entry with the same IP address and VLAN tag, the entry receives the MAC address specified in the CLI command, and the entry is changed to static.
When removing an entry, if an entry has been added both as a dynamic entry and a static entry, it exists in the database as a static entry only (as explained in the preceding paragraph). Removing the static configuration changes the entry from a static entry to a dynamic entry and deletes the corresponding user-configured MAC address.
Authorization: admin
Examples
The following example assigns the MAC address 1111.2222.3333 to the IP address 10.20.30.40.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#mac-resolver arp 10.20.30.40 1111.2222.3333 SCE(config if)#Related Commands
management-agent sce-api ignore-cascade-violation
Configures the agent to ignore the errors issued when logon operations are performed on a standby SCE platform. Use the no form of this command to configure the agent to issue an error when a logon operation is performed on a standby SCE platform. Use thedefault form of this command to set the value to the default (the default behavior is to issue an error when a logon operation is performed on a standby SCE platform).
management-agent sce-api ignore-cascade-violation
no management-agent sce-api ignore-cascade-violation
default management-agent sce-api ignore-cascade-violation
Syntax Description
This command has no arguments or keywords.
Defaults
By default, an error is issued when a logon operation is performed on a standby SCE platform ( no form of the command).
Command Modes
Global Configuration
Usage Guidelines
Starting in release 3.1.0, the SCE platform issues an error message when a logon operation is performed on the standby SCE platform in a cascaded system. This behavior is not backward compatible for previous versions of the SCE Subscriber API.
Use this command with SCOS release 3.1.0 to provide backward-compatible behavior to previous releases in which such errors were not issued.
Authorization: admin
Examples
The following example illustrates how to use this command.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)# management-agent sce-api ignore-cascade-violation SCE(config)#Related Commands
management-agent sce-api logging
Enables the SCE subscriber API trouble-shooting logging, which is written to the user-log. Use the no form of this command to disable SCE subscriber API trouble-shooting logging.
management-agent sce-api logging
no management-agent sce-api logging
Syntax Description
This command has no arguments or keywords.
Defaults
By default, the SCE subscriber API trouble-shooting logging is disabled.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example enables SCE subscriber API trouble-shooting logging.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)# management-agent sce-api logging SCE(config)#Related Commands
management-agent sce-api timeout
Defines the timeout interval for disconnection of an SCE subscriber API client, after which the resources allocated for this client would be released.
management-agent sce-api timeout timeout-interval
Syntax Description
Defaults
Default = 300 seconds
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
This example shows how to configure a timeout interval of 10 seconds.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)# management-agent sce-api timeout 10Related Commands
management-agent system
Specifies a new package file to install for the management agent. The SCE platform extracts the actual image file(s) from the specified package file only during the copy running-config startup-config command. When using the no version of this command, you do not have to specify the package-file-name.
management-agent system package-file-name
no management-agent system
Syntax Description
package-file-name
The name of a package file that contains the new management agent software. The filename should end with the.pkg extension.
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Use this command to upgrade the SCE platform management agent. The package file is verified for the system and checked that it is not corrupted. The actual upgrade takes place only after executing the copy running-config startup-config command and rebooting the SCE platform.
Authorization: admin
Examples
The following example upgrades the system with the mng45.pkg package.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#management-agent system mng45.pkg Verifying package file... Package file verified OK. SCE(config)#do copy running-config startup-config Backing -up configuration file... Writing configuration file... Extracting new management agent... Extracted OK.Related Commands
mkdir
Creates a new directory.
mkdir directory-name
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example creates a new directory named mydir.
SCE>enable 10 Password:<cisco> SCE#mkdir mydir CE#Related Commands
more
Displays the contents of a file.
more {file-name | running-config [all-data] | startup-config}
Syntax Description
file-name
The name of the file to be displayed.
all data
Displays defaults as well as non-default settings (running-config option only)
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
The running-config option displays the running configuration file. You can use the all data switch with this option to see sample usage for many CLI configuration commands.
The startup-config option displays the startup configuration file.
Authorization: admin
Examples
The following sample output displays the contents of the running configuration file.
SCE>enable 10 Password:<cisco> SCE#more running-config #This is a general configuration file (running-config). #Created on 16:48:11 UTC WED June 13 2001 cli-type 1 #version 1 service logger no service password-encryption enable password level 10 0 "cisco" enable password level 15 0 "cisco" service RDR-formatter no RDR-formatter destination all RDR-formatter history-size 0 clock timezone UTC 0 ip domain-lookup no ip domain-name no ip name-server service telnetd FastEthernet 0/0 ip address 10.1.5.120 255.255.0.0 speed auto duplex auto exit ip default-gateway 10.1.1.1 no ip route all line vty 0 4 no access-class in timeout 30 exit SCE#Related Commands
more user-log
Displays the user log on the CLI console screen.
more user-log
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example displays the user log on the CLI console screen.
SCE>enable 10 Password:<cisco> SCE#more user-log <INFO>| 01/28/97 22:29:22 | CPU #000 | Logger: Task Initialized successfullyRelated Commands
mpls
Configures the MPLS environment. MPLS labels are supported up to a maximum of 15 labels per packet.
mpls traffic-engineering skip
mpls vpn skip
default mpls
Syntax Description
See "Usage Guidelines"
Defaults
By default, traffic-engineering skip is enabled.
Command Modes
Interface Linecard Configuration
Usage Guidelines
Use the traffic-engineering skip form of the command when all IP addresses are unique and MPLS labels are not mandatory (a non-MPLS/VPN environment). Any packets that are injected by the SCE into the MPLS labeled traffic (block or redirect) are sent with no MPLS labels. Use this mode when the MPLS labels in the traffic are only used for traffic engineering, such as QOS, and not for routing.
This is the default mode, and it should be changed only if MPLS is used for routing in the network and block or redirect is being employed. However, first verify that there are no private IP conflicts in the network.
Use the VPN skip form of the command when all IP addresses are unique, but MPLS labels are used, and the labels used for injection are the correct ones, as seen on the flow. This mode can be used when the MPLS labels are used for routing, or even VPNs (assuming there are no private IP addresses).
The VPN skip mode is an asymmetric layer 2 mode, and as with all asymmetric layer 2 modes, you should expect reduced performance and capacity, since the system must follow the flow and keep the layer 2 information.
Use the default keyword to set the MPLS configuration to the default value.
Authorization: admin
Examples
The following example illustrates the use of this command in a non-MPLS/VPN environment..
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#mpls traffic-engineering skip SCE(config if)#Related Commands
no subscriber
Removes a specified subscriber from the system. Use theall option to remove all introduced subscribers.
no subscriber name subscriber-name
no subscriber scmp name scmp-name all
no subscriber sm all
no subscriber all
Syntax Description
subscriber-name
The specific subscriber name to be removed from the system.
scmp-name
Name of an SCMP peer device.
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Use the scmp name all option to remove all subscribers managed by the specified SCMP peer device.
Use the sm all option to remove all subscribers managed by the SM.
Authorization: admin
Examples
The following example removes all subscribers.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)# no subscriber all SCE(config if)#Related Commands
no subscriber mappings included-in
Use this command to remove all existing subscriber mappings from a specified IP range.
no subscriber mappings included-in ip-range IP-range
Syntax Description
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Use the IP-range parameter to remove all existing subscriber mappings from a specified IP range.
Authorization: admin
Examples
The following example removes any existing subscriber mappings from the specified IP range.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)# no subscriber mappings included-in IP-range 10.10.10.10/0Related Commands
ping
Pings the given host to test for connectivity. The ping program sends a test message (packet) to an address and then awaits a reply. Ping output can help you evaluate path-to-host reliability, delays over the path, and whether the host can be reached or is functioning.
ping host
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example pings the host 10.1.1.201.
SCE>enable 10 Password:<cisco> SCE#ping 10.1.1.201 pinging 10.1.1.201... PING 10.1.1.201: 56 data bytes 64 bytes from host (10.1.1.201): icmp_seq=0. time=0. ms 64 bytes from host (10.1.1.201): icmp_seq=1. time=0. ms 64 bytes from host (10.1.1.201): icmp_seq=2. time=0. ms 64 bytes from host (10.1.1.201): icmp_seq=3. time=0. ms ----10.1.1.201 PING Statistics---- 4 packets transmitted, 4 packets received, 0% packet loss round-trip (ms) min/avg/max = 0/0/0 SCE#Related Commands
pqi install file
Installs the specified pqi file using the installation options specified (if any). This may take up to 5 minutes.
pqi install file filename [options options ]
Syntax Description
filename
The filename of the pqi application file to be installed.
options
The desired installation options. Use the show pqi file command to display the available installation options.
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Always run the pqi uninstall file command before installing a new pqi file to prevent accumulation of old files on the disk.
Authorization: admin
Examples
The following example installs the Subscriber Manager anr10015.pqi file. No options are specified.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#pqi install file anr10015.pqi SCE(config if)#Related Commands
pqi rollback file
Reverses an upgrade of the specified pqi file. This may take up to 5 minutes.
pqi rollback file filename
Syntax Description
filename
The filename of the pqi application file to be rolled-back. It must be the pqi file that was last upgraded.
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Always specify the last pqi file that was upgraded. Use the show pqi last-installed command.
Authorization: admin
Examples
The following example reverses the upgrade for the Subscriber Manager using the anr100155.pqi file.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#pqi rollback file anr100155.pqi SCE(config if)#Related Commands
pqi uninstall file
Uninstalls the specified pqi file. This may take up to 5 minutes.
pqi uninstall file filename
Syntax Description
filename
The filename of the pqi application file to be uninstalled. It must be the pqi file that was installed last.
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Always specify the last pqi file that was installed. Use the show pqi last-installed command.
Always run the pqi uninstall command before installing a new pqi file to prevent accumulation of old files on the disk.
Authorization: admin
Examples
The following example uninstalls the Subscriber Manager anr10015.pqi file.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#pqi uninstall file anr10015.pqi SCE(config if)#Related Commands
pqi upgrade file
Upgrades the application using the specifiedpqi file and the upgrade options specified (if any). This may take up to 5 minutes.
pqi upgrade file filename [options options ]
Syntax Description
filename
The filename of the pqi application file to be used for the upgrade.
options
The desired upgrade options. Use the show pqi file command to display the available options.
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
A given pqi upgrade file is suitable for upgrading only from specific previously installed pqi files. The upgrade procedure checks that an upgrade is possible from the currently installed pqi file. The upgrade procedure will be stopped with an error message if the upgrade is not possible.
When upgrading the application in a cascaded system, use the force failure-condition command to force failure in the active SCE 2000 platform (see 'System Upgrades' in the Chapter "Redundancy and Fail-Over" in the Cisco Service Control Engine Software Configuration Guide ).
Authorization: admin
Examples
The following example upgrades the Subscriber Manager using the anr100155.pqi file. No options are specified.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#pqi upgrade file anr100155.pqi SCE(config if)#Related Commands
pwd
Displays the current working directory.
pwd
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example shows the current working directory as system.
SCE>enable 10 Password:<cisco> SCE#pwd system: SCE#Related Commands
queue
Sets the queue shaping.
queue queue-number bandwidth bandwidth burst-size burstsize
Syntax Description
Defaults
Bandwidth = 100000K (100 Mbps)
Burst size = 8000 (8K bytes)
Command Modes
TenGigabitEthernet Interface Configuration
Usage Guidelines
This command is valid for a specified TenGigabitEthernet line interface only. It must be executed explicitly for each interface.
Use the interface tengigabitethernet command to access the configuration mode for the desired interface.
Authorization: admin
Examples
The following example configures queue shaping for queue 1 for 10GBE interface in bay #3.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface TenGigabitEthernet 3/3/0 SCE(config if)#queue 1 bandwidth 20000 burstsize 1000Related CommandsE
rdr-formatter category number
Assigns a meaningful name to a category. This category name can then be used in any rdr-formatter command instead of the category number. Use the no option of this command to disassociate the name from the category. The name will then not be recognized by any CLI commands.
rdr-formatter category number [1-4] name category name
no rdr-formatter category number [1-4] name category name
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example assigns the name "prepaid" to Category 1.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#rdr-formatter category number 1 name prepaid SCE(config)#Related Commands
rdr-formatter destination
Configures an RDRV1 or Netflow destination. This is where the RDR formatter sends the records (RDRs or export packets) it produces. Use theno form of the command to remove the mappings of a destination to categories. When all categories for a destination are removed, the entire destination is removed.
rdr-formatter destinationip-address port port-number [category {name category-name }| {number [1-4] }] [priority priority-value ] [category ...] protocol {RrdrV1 | NetflowV9} [transport {udp | tcp}]
no rdr-formatter destination ip-address port port-number [category {name category-name }| {number [1-4 ]}]
no rdr-formatter destination all
Syntax Description
Defaults
Default protocol = RDRv1
Command Modes
Global Configuration
Usage Guidelines
Up to eight destinations can be configured. Multiple destinations over the same category must have distinct priorities. In redundancy mode, the entry with the highest priority is used by the RDR formatter; in multicast mode or load-balancing mode priorities have no meaning.
In its simplest form, this command specifies only the IP address and port number of the destination and the protocol being used. In addition, a global priority may be assigned to the destination. Or a specific priority may be assigned to any or all of the four categories for the specified destination. If a global priority is not explicitly configured, the highest priority is assigned automatically.
Categories may be identified by either name or number.
A certain destination may be configured to one or more categories on the same time. A maximum of three destinations may be assigned to a specific category.
Note
PRIORITIES
Following are some guidelines for configuring priorities for the report destinations:
•
•
•
•
•
•
•
Authorization: admin
Examples
The following examples illustrate the use of this command:
EXAMPLE 1:
The following example configures a Netflow destination with the default priority (highest) to be used by all categories.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#rdr-formatter destination 10.1.1.205 port 33000 protocol NetflowV9 transport udp SCE(config)#EXAMPLE 2:
The following example configures an RDR formatter destination for two categories with a different priority for each category. This configuration will send RDRs from category 2 to this destination, but generally not RDRs from category 1.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#rdr-formatter destination 10.1.1.206 port 34000 category number 1 priority 10 category number 2 priority 90 protocol RrdrV1 SCE(config)#Related Commands
show rdr-formatter destination
service rdr-formatter
rdr-formatter protocol NetflowV9 dscp
rdr-formatter destination protocol netflowv9 template data timeout
rdr-formatter destination protocol NetflowV9 template data timeout
Configures the interval after which all Netflow templates must be exported to the specified destination (refreshed). Use theno or the default form of the command to disable the template refresh mechanism.
rdr-formatter destination ip-address port port-number protocol NetflowV9 template data timeout timeout-value
no rdr-formatter destination ip-address port port-number protocol NetflowV9 template data
default rdr-formatter destination ip-address port port-number protocol NetflowV9 template data
Syntax Description
Defaults
By default, the refresh mechanism is disabled.
Command Modes
Global Configuration
Usage Guidelines
A template record defines the structure of each Netflow data record. The RDR formatter transmits the templates only along with their matching data records. The RDR formatter refreshes the templates on the collector by resending them at configured intervals.
The no form of the command disables the refresh mechanism.
The default form of the command also disables the refresh mechanism, since the default state is disabled.
Authorization: admin
Examples
The following example illustrates the use of this command:
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#rdr-formatter destination 10.1.1.205 port 33000 protocol NetflowV9 template data timeout 240 SCE(config)#Related Commands
rdr-formatter forwarding-mode
Defines the mode in which the RDR formatter will send the RDRs to the destinations.
rdr-formatter forwarding-mode mode
Syntax Description
mode
Settings: redundancy, multicast, simple-load-balancing as described in the Valid Mode Settings table in the Usage Guidelines.
Defaults
Default mode = redundancy
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example sets the RDR formatter mode to "redundancy".
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#rdr-formatter forwarding-mode redundancy SCE(config)#Related Commands
rdr-formatter history-size
Configures the size of the history buffer. This command is currently not supported.
rdr-formatter history-size size
Syntax Description
Defaults
Default size = 0
Command Modes
Global Configuration
Usage Guidelines
Do not change the size of the history buffer from the default value.
Since currently only RDRv1 is supported, the size of the history buffer must be zero bytes, even though the system will accept a command specifying a larger size.
Authorization: admin
Examples
Related Commands
rdr-formatter protocol NetflowV9 dscp
Defines the DSCP value to be assigned to the Netflow packets.
rdr-formatter protocol NetflowV9 dscp dscp-value
Syntax Description
Defaults
Default dscp-value = 0
Command Modes
Global Configuration
Usage Guidelines
You can assign a DSCP value to specify the diffserv value of the Netflow traffic exported from your SCE platform.
Authorization: admin
Examples
The following example illustrates the use of this command.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#rdr-formatter protocol NetflowV9 dscp 0x20 SCE(config)#Related Commands
rdr-formatter rdr-mapping
Adds a dynamic RDR mapping to a category or removes one from a category. Use the no form of this command to remove an existing mapping.
rdr-formatter rdr-mapping (tag-id tag number category-number category number )
no rdr-formatter rdr-mapping (tag-id tag number category-number category number )
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
The configuration of categories to RDR tags is done by adding and removing mappings. You can add a mapping of RDR tag to a category and remove a mapping, including the default mapping. If the table already contains a mapping with the same tag and category number, an error is issued and nothing is done.
If all categories are removed from a tag, this tag will be ignored and will not be formatted and sent - this is `ignore mapping'.
Authorization: admin
Examples
The following examples illustrate how to use this command.
EXAMPLE 1
This example shows how to add a mapping to a category.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#rdr-formatter rdr-mapping tag-id 0xf0f0f000 category-number 1 SCE(config)#EXAMPLE 2
This example shows how to restore the default mapping for a specified RDR tag.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#default rdr-formatter rdr-mapping tag-id 0xf0f0f000 SCE(config)#Related Commands
reload
Note
Reboots the SCE platform.
reload
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example shows backing up of the configuration and performing a system reboot.
SCE>enable 10 Password:<cisco> SCE#copy running-config-all startup-config-all SCE#reload Are you sure? Y The system is about to reboot, this will end your CLI sessionRelated Commands
reload shutdown
Shuts down the SCE platform, preparing it for being turned off.
reload shutdown
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use this command to shut down the SCE platform in an orderly manner, before turning it off. After issuing this command, the only way to revive the SCE platform from its power-down state is to turn it off, then back on.
This command can only be issued from the serial CLI console port. When issued during a telnet CLI session, an error message is returned and the command is ignored. This is done to prevent the possibility of shutting it down from a remote location, from which it is not possible to power back up.
Authorization: admin
Examples
The following example shows the shutdown process.
SCE>enable 10 Password:<cisco> SCE#reload shutdown You are about to shut down the system. The only way to resume system operation after this is to cycle the power off, and then back on. Continue?Y IT IS NOW SAFE TO TURN THE POWER OFF.Related Commands
rename
Changes the file name to the specified name.
renameexisting-file-name new-file-name
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example changes the name of file test1.pkg to test3.pkg.
SCE>enable 10 Password:<cisco> SCE#rename test1.pkg test3.pkg SCE#Related Commands
rmdir
Removes an empty directory. To remove a directory that is not empty, use the delete command with the recursive switch.
rmdir directory-name
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
You can only remove an empty directory. Use the dir command to verify that no files are listed in this directory.
Authorization: admin
Examples
The following example deletes the code directory.
SCE>enable 10 Password:<cisco> SCE#rmdir code SCE#Related Commands
salt
Configures the value of the salt to be applied to the Personally Identifying Field of Extended Transaction Usage RDRs prior to hashing it.
Use the default form of the command to reset the salt to the default value.
salt salt-value1 salt-value2 salt-value3 salt-value4
default salt
Syntax Description
Defaults
0x12345678 0x12345678 0x12345678 0x12345678
Command Modes
Interface Linecard Configuration
Usage Guidelines
When generating Extended Transaction Usage RDRs for analyzing subscriber browsing patterns, it is necessary to hash the Personally Identifying Field to protect the identity of the subscriber. This command configures the salt to be applied to the field before hashing.
Always make sure to save the running configuration using the copy running-config startup-config command.Authorization: admin
Examples
The following example shows how to use this command.
SCE>enable 10 Password:<cisco> SCE#configure SCE(config)#interface linecard 0 SCE(config if)#salt 0xfafafafa 0xfafafafa 0xfafafafa 0xfafafafa SCE(config if)#sce-url-database add-entry
Adds a single entry to the protected URL database
sce-url-database add-entry url-wildcard URL-wildcard-format flavor-id flavor-id
Syntax Description
Defaults
This command has no default settings.
Command Modes
Interface Linecard Configuration
Usage Guidelines
Use this command to add only a few new entries to the database. Add a large number of new URLs by importing an updated protected URL database file.
The user executing the command must have write permission for the protected URL database.
.Authorization: admin
Examples
The following example shows how to add an entry to the database. Since the flavor-ID is included in the command, this indicates that it is not present in the import file.
SCE>enable 10 Password:<cisco> SCE#>configure SCE(config)#interface linecard 0 SCE(config if)#sce-url-database add-entry url-wildcard xxx* flavor-id 50SCE(config if)#Related Commands
sce-url-database protection
sce-url-database import
show interface linecard sce-url-database
sce-url-database import
Imports entries from an encrypted or cleartext file into the protected URL database.
sce-url-database import (cleartext-file | encrypted-file file-name) [flavor-id flavor-id]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Interface Linecard Configuration
Usage Guidelines
Specify the type of file:
•
•
Guidelines for Managing the Protected URL Database
•
•
•
•
Protected URL Database Import File
The database import file may either contain cleartext or be encrypted. If the file is encrypted, the matching encryption key must be configured by the database owner.
If the file is encrypted, it must be prefixed with a cleartext header. The encrypted file header format must be exactly as follows:
Encrypted file version: 0x01
Block cipher index: 0x01
Mode of operation index: 0x02
Padder index: 0x02
IV length: 0x10
IV: <16 unformatted bytes which form the 128 bits IV of the encrypted data >
Following the header, the following data should appear in AES 128, CFB mode, encrypted format:
A random number (in the range [16...31]) of random bytes, followed by the word "Signed", and then again 32 random bytes.
Each following line represents a single URL.
Protected URL Database Import File Format
[Flavor <tab>] URL
Where:
•
•
Results
•
•
•
•
The total number of failures and a listing of the failed file line numbers are reported when the import is finished.
Authorization: admin
Examples
The following example shows how to import the protected URL database from an encrypted file. Since the flavor-ID is included in the command, this indicates that it is not present in the import file.
SCE>enable 10 Password:<cisco> SCE#>configure SCE(config)#interface linecard 0 SCE(config if)#sce-url-database import encrypted-file blacklist-file flavor-id 50SCE(config if)#Related Commands
sce-url-database protection
sce-url-database add-entry
show interface linecard sce-url-database
sce-url-database protection
Configures user authorization for the protected URL database.
Use the no form of the command to either remove all protection settings, or to remove only the encryption key.
sce-url-database protection owner (myself | (name user-name))
sce-url-database protection allow-write (all-users | owner-only)
sce-url-database protection allow-lookup (owner-only | no-user)
sce-ur l-database protection encryption-key encryption-key
no sce-url-database protection
no sce-url-database protection encryption-key
Syntax Description
Defaults
•
•
•
–
–
•
–
–
•
Command Modes
Interface Linecard Configuration
Usage Guidelines
When the protected URL database is protected, one user is designated as the owner of the database and only that user can execute the protection CLI commands on the database; the database manipulation commands then being restricted according to the owner configuration. This requires defining the AAA authorization method (either based on local users or based on a TACACS+ server, etc.) and defining at least one user who should be assigned to be the owner of the database.
If the database is defined to be protected, none of the database information (including the owner, the database entries, and the authorization information itself) is accessible to any users, including the relevant saved configuration in the log files and in the relevant SCA BB reports. The database-owner user may change the authorizations using the CLI; however, when any of the protections are relaxed (or all of the protections are relaxed by removing the protections entirely) the database is reset.
In order to ensure the secrecy of the database information, the database entries may be imported to the SCE (using the CLI) in an encrypted form using 128-, 192-, or 256-bit key length AES. The key may be set or updated using the appropriate CLI command; typically, this command should be run over a secure Telnet session.
User Authorization Guidelines:
•
•
•
•
–
–
–
•
–
–
Authorization: admin
Examples
The following example shows how to configure protected URL database protection.
SCE>enable 10 Password:<cisco> SCE#>configure SCE(config)#interface linecard 0 SCE(config if)#sce-url-database protection owner myselfSCE(config if)#sce-url-database protection allow-write all-usersSCE(config if)#sce-url-database protection allow-lookup no-userSCE(config if)#sce-url-database protection encryption-key AABBCCDDEEFF11223344556677889900SCE(config if)#Related Commands
sce-url-database import
show interface linecard sce-url-database protection
sce-url-database remove-all
sce-url-database add-entry
sce-url-database remove-all
Clears the protected URL database
sce-url-database remove-all
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Interface Linecard Configuration
Usage Guidelines
The user executing the command must have write permission for the protected URL database.
.Authorization: admin
Examples
The following example shows how to use this command.
SCE>enable 10 Password:<cisco> SCE#>configure SCE(config)#interface linecard 0 SCE(config if)#sce-url-database remove-allSCE(config if)#Related Commands
sce-url-database protection
sce-url-database import
show interface linecard sce-url-database
scmp
Enables the Service Control Management Protocol functionality. Use the no form of the command to disable the SCMP.
scmp
no scmp
Syntax Description
This command has no arguments or keywords.
Defaults
By default, SCMP is disabled.
Command Modes
Global Configuration
Usage Guidelines
SCMP is a protocol by which an SCE platform communicates with peers such as Cisco routers running ISG to manage subscriber sessions.
SCMP performs the following functions:
•
•
•
When the SCMP is disabled, all subscribers provisioned via this interface are removed.
Authorization: admin
Examples
The following example illustrates how to disable the SCMP.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#no scmp SCE(config)#Related Commands
scmp keepalive-interval
Defines interval between keep-alive messages to the SCMP peer device.
scmp keepalive-interval interval
Syntax Description
Defaults
interval = 5 seconds
Command Modes
Global Configuration
Usage Guidelines
The SCE platform sends keep-alive messages to all connected SCMP peer device at the defined interval.
•
•
Authorization: admin
Examples
The following example illustrates how to define the SCMP keepalive message interval.
SCE>enable 10 Password:<cisco> SCE#configure SCE(config)#scmp keepalive-interval 10 SCE(config)#Related Commands
scmp loss-of-sync-timeout
Defines the loss of sync timeout interval; that is the amount of time between loss of connection between the SCE platform and an SCMP peer device and the loss-of-sync event.
scmp loss-of-sync-timeout interval
Syntax Description
Defaults
interval = 90 seconds
Command Modes
Global Configuration
Usage Guidelines
If the connection between an SCE platform and an SCMP peer device fails, a timer starts. If the configured loss of sync timeout interval is exceeded, the connection is assumed to be not-in-sync, a loss-of-sync event occurs, and the following actions are performed:
•
•
•
Authorization: admin
Examples
The following example illustrates how to define loss of sync timeout interval.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)# scmp loss-of-sync-timeout 120 SCE(config)#Related Commands
scmp name
Adds an SCMP peer device. Use the no form of the command to delete the specified SCMP peer device.
scmp name name radius host-name secret secret [auth-port auth-port# acct-port acct-port# ]
no scmp name name
Syntax Description
name
Name of the SCMP peer device
host-name
IP address or name of the RADIUS host
secret
RADIUS shared secret
auth-port#
authentication port number
acct-port#
accounting port number
Defaults
Default: Ports configuration as specified in RFC #2865 and RFC #2866
Authentication port = 1812
Accounting port = 1813
Command Modes
Global Configuration
Usage Guidelines
After defining an SCMP peer device, you must associate it with one or more unmapped anonymous groups (see subscriber anonymous-group name scmp name ). This provides the ability to query the SCMP peer regarding unmapped IP addresses in cases where the SCE platform is not updated when the subscriber session has started (see scmp subscriber send-session-start ) or in recovery scenarios.
You cannot delete an SCMP device that has anonymous groups assigned to it. Use the no form of the subscriber anonymous-group name scmp name command to remove all associated anonymous groups before deleting the device.
Authorization: admin
Examples
The following example illustrates how to define an SCMP peer device.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)# scmp name peer_device1 radius radius1 secret abcdef SCE(config)#Related Commands
scmp reconnect-interval
Defines the SCMP reconnect interval; that is the amount of time between attempts by the SCE platform to reconnect with an SCMP peer.
scmp reconnect-interval interval
Syntax Description
Defaults
interval = 30 seconds
Command Modes
Global Configuration
Usage Guidelines
The SCE platform attempts to reconnect to the SCMP peer device at the defined intervals by sending an establish peering request message. If a valid reply is received, the SCMP connection state for the SCMP peer is changed, and the SCMP performs the required reconnection operations, such as the following:
•
•
Authorization: admin
Examples
The following example illustrates how to define the SCMP reconnect interval.
SCE>enable 10 Password:<cisco> SCE#configure SCE(config)#scmp reconnect-interval 60 SCE(config)#>Related Commands
scmp subscriber force-single-sce
Configures the SCMP to make the SCMP peer device verify that each subscriber is only provisioned for one SCE platform. This configuration must be enabled in MGSCP deployments. Use the no form of the command to disable verifying each subscriber is only provisioned for one SCE platform.
scmp subscriber force-single-sce
no scmp subscriber force-single-sce
Syntax Description
This command has no arguments or keywords.
Defaults
Default is disabled.
Command Modes
Global Configuration
Usage Guidelines
This command takes effect only if it is set before the connection with the SCMP peers is established. Use the no scmp and scmp commands to stop and then restart the SCMP if active connections exist.
Authorization: admin
Examples
The following example illustrates how to use this command.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#scmp subscriber force-single-sce SCE(config)#Related Commands
scmp subscriber id append-to-guid
Defines the subscriber ID structure for subscribers provisioned via the SCMP interface. Use the no form of the command to clear the subscriber ID structure setting.
scmp subscriber id append-to-guid radius-attributes Calling-Station-Id | NAS-Port-Id | User-Name [Calling-Station-Id | NAS-Port-Id | User-Name] [Calling-Station-Id | NAS-Port-Id | User-Name]
no scmp subscriber id append-to-guid
Syntax Description
This command has no arguments.
Defaults
By default, all settings are cleared.
Command Modes
Global Configuration
Usage Guidelines
The GUID is a global unique ID assigned to each subscriber session by the SCMP peer device.
The user can define the structure of the subscriber ID via this command by specifying which of the following RADIUS attributes to include and in which order:
•
•
•
The GUID is always appended at the end of the subscriber ID as defined by this command.
The no form of the command clears the subscriber ID structure setting,resulting in no other elements being used with the GUID to form the subscriber ID.
You must disable the SCMP interface before executing this command. (Use the command no scmp.)
Authorization: admin
Examples
The following example illustrates how to use this command.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#no scmpSCE(config)#scmp subscriber id append-to-guid radius-attributes User-Name Calling-Station-Id NAS-Port-Id SCE(config)#scmp SCE(config)#Related Commands
scmp subscriber send-session-start
Configures the SCMP to make the SCMP peer device push sessions to the SCE platform immediately when the session is created on the peer device. Use the no form of the command to disable pushing of sessions from the SCMP peer device to the SCE platform.
scmp subscriber send-session-start
no scmp subscriber send-session-start
Syntax Description
This command has no arguments or keywords.
Defaults
Default is disabled.
Command Modes
Global Configuration
Usage Guidelines
This command takes effect only if it is set before the connection with the SCMP peers is established. Use the no scmp and scmp commands to stop and then restart the SCMP if active connections exist.
This feature must be disabled in MGSCP deployments.
Authorization: admin
Examples
The following example illustrates how to use this command.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#scmp subscriber send-session-start SCE(config)#Related Commands
script capture
Begins the recording of a script. It tracks all commands typed until the script stop command is used.
script capture script-file-name
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use this command to capture a sequence of repeated commands into a file for the purpose of executing the commands again.
Use the script stop command to stop capturing the script.
Authorization: admin
Examples
The following example shows the script capture for the script1.txt.
SCE>enable 10 Password:<cisco> SCE#script capture script1.txt SCE#cd log SCE#cd.. SCE#pwd SCE#script stopRelated Commands
script print
Displays a script file.
script print script-file-name
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example prints the commands captured in script1.txt.
SCE>enable 10 Password:<cisco> SCE#script print script1.txt cd log cd.. pwd script stop SCE#Related Commands
script run
Runs a script. The script may be created using the script capture command, or it may be created as a text file containing the appropriate commands.
script run script-file-name [halt]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use this command to run a script that you have previously created using the script capture command.
Use the halt keyword to break script on errors.
Authorization: admin
Examples
The following example runs the script named monitor.txt, which contains commands to enable the generation of the real-time subscriber usage RDRs for the specified subscribers.
Following is the contents of the file:
configure interface linecard 0 subscriber name Jerry property name monitor value 1 subscriber name George property name monitor value 1 subscriber name Elaine property name monitor value 1 subscriber name Kramer property name monitor value 1The following show how to run the script:
SCE>enable 10 Password:<cisco> SCE#script run monitor.txt SCE#configure SCE(config)#interface linecard 0 SCE(config if)#subscriber name Jerry property name monitor value 1 SCE(config if)#subscriber name George property name monitor value 1 SCE(config if)#subscriber name Elaine property name monitor value 1 SCE(config if)#subscriber name Kramer property name monitor value 1 SCE(config if)#Related Commands
script stop
Stops script capture. Used in conjunction with the script capture command, it marks the end of a script being recorded.
script stop
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example stops the capturing of a script.
SCE>enable 10 Password:<cisco> SCE#script capture script1.txt SCE#cd log SCE#cd.. SCE#pwd SCE#script stop SCE#Related Commands
service-bandwidth-prioritization-mode
Defines the service bandwidth prioritization mode.
service-bandwidth-prioritization-mode {global | subscriber-internal}
Syntax Description
This command has no arguments.
Defaults
default = subscriber-internal
Command Modes
Interface Linecard Configuration
Usage Guidelines
This parameter configures how bandwidth controllers compete for bandwidth by specifying which assurance level (AL) value is used when allocating bandwidth between bandwidth controllers. The AL can either be taken from either of the following:
•
•
Authorization: admin
Examples
The following example shows how to use this command.
SCE>enable 10 Password:<cisco> SCE#configure SCE(config)#interface linecard 0 SCE(config if)#service-bandwidth-prioritization-mode global SCE(config if)#Related Commands
service password-encryption
Enables password encryption, so that the password remains secret when the configuration file is displayed. Use the no form of this command to disable password encryption.
service password-encryption
no service password-encryption
Syntax Description
This command has no arguments or keywords.
Defaults
Disabled (no encryption)
Command Modes
Global Configuration
Usage Guidelines
Passwords that were configured in an encrypted format are not deciphered when password encryption is disabled.
Authorization: admin
Examples
The following example shows the effect of enabling password encryption.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#enable password abcd SCE(config)#do more running-config #This is a general configuration file (running-config). #Created on 10:20:57 ISR TUE July 3 2001 ... enable password level 10 0 "abcd" ... SCE(config)#service password-encryption SCE(config)#do more running-config #This is a general configuration file (running-config). #Created on 10:21:12 ISR TUE July 3 2001 ... service password-encryption enable password level 10 0 "e2fc714c4727ee9395f324cd2e7f331f" ... SCE(config)#Related Commands
service rdr-formatter
Enables/disables the RDR-formatter. The RDR-formatter is the element that formats the reports of events produced by the linecard and sends them to an external data collector. Use the no keyword of this command to disable the RDR-formatter.
service rdr-formatter
no service rdr-formatter
Syntax Description
This command has no arguments or keywords.
Defaults
Enabled
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate the use of the service rdr-formatter command:
EXAMPLE 1:
The following example enables the RDR-formatter.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#service rdr-formatter SCE(config)#EXAMPLE 2:
The following example disables the RDR-formatter.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#no service rdr-formatter SCE(config)#Related Commands
show rdr-formatter enabled
rdr-formatter category-number
rdr-formatter destination
service telnetd
Enables the Telnet daemon. Use the no form of this command to disable the daemon preventing new users from accessing the SCE platform via Telnet.
service telnetd
no service telnetd
Syntax Description
This command has no arguments or keywords.
Defaults
Telnet daemon enabled
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate the use of the service telnetd command:
EXAMPLE 1:
The following example enables the Telnet daemon.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#service telnetd SCE(config)#EXAMPLE 2:
The following example disables the Telnet daemon.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#no service telnetd SCE(config)#Related Commands
show access-lists
Shows all access-lists or a specific access list.
show access-lists [number ]
Syntax Description
Defaults
Default access list number = 1.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example displays the configuration of access-list 5.
SCE>enable 5 Password:<cisco> SCE#show access-lists 5 Standard IP access list 5 Permit 10.1.1.0, wildcard bits 0.0.0.255 deny any SCE#Related Commands
show blink
Displays the blinking status of a slot. A slot blinks after it receives a blink command.
show blink slot slot-number
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the blink status of slot 0.
SCE>enable 5 Password:<cisco> SCE>show blink slot 0 Slot 0 blink status: off SCE>Related Commands
show calendar
Displays the time maintained by the real-time system calendar clock.
show calendar
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the current system calendar.
SCE>enable 5 Password:<cisco> SCE>show calendar 12:50:03 GMT MON November 13 2005 SCE>Related Commands
show clock
Displays the time maintained by the system clock.
show clock
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the current system clock.
SCE>enable 5 Password:<cisco> SCE>show clock 12:50:03 GMT MON November 13 2005 SCE>Related Commands
show environment all
Displays information about the SCE platform environment, including the following:
•
•
•
•
show environment all
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to use this command.
SCE>enable 5 Password:<cisco> SCE>show environment allEnvironment information:---------------------Slot 1: SCE8000-SCM-E---------------------scm[0].smc[0].max1668[0] - temperature device..TEMPERATURE status:========================================================================================== =======================================================PCB_Upper local1 29C 29 29.0 29 0.0 -18 -8 60 75 OK 0000:00:00:54 ----------- ----:--:--:-- 0...VOLTAGE status:...FAN status:CurrStatus : OK fan tray is in non-manual mode (0000:00:00:50)PrevStatus : <none> (----:--:--:--)Sts# : 0 (access=2, fail=0)...PSU status:CurrStatus : OK (0000:00:00:50)PrevStatus : <none> (----:--:--:--)Sts# : 0 (access=1, fail=0)...Message summary:INTERNAL status is: {OK}VOLTAGE status is: {OK, <DISABLED>}TEMPERATURE status is: {OK}FAN status is: {OK}PSU status is: {OK}SCE>show environment cooling
Displays information about the SCE platform cooling.
show environment cooling
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to use this command.
SCE>enable 5 Password:<cisco> SCE>show environment coolingEnvironment Cooling information:-----------SCE8000-FAN-----------fan-tray[0] - cooling deviceINTERNAL status:CurrStatus : OK (0000:00:01:43)PrevStatus : <none> (----:--:--:--)Sts# : 0 (access=7, fail=0)FAN status:CurrStatus : OK fan tray is in non-manual mode (0000:00:01:43)PrevStatus : <none> (----:--:--:--)Sts# : 0 (access=4, fail=0)Status Register : 0xa4Control Mode : HP (High Power)Test Enable State : DisabledLed Status : GreenFan Status : OKThermistor Status : OKSpeed Level (1-4) : 1Thermistor Value : 24 CelsiusSw Version : 0x10000Message summary:INTERNAL status is: {OK}VOLTAGE status is: {OK, <DISABLED>}TEMPERATURE status is: {OK}FAN status is: {OK}PSU status is: {OK}SCE>show environment power
Displays information about the SCE platform PSUs (power supply unit).
show environment power
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to use this command.
SCE>enable 5 Password:<cisco> SCE>show environment powerEnvironment Power information:-------------PWR-2700-AC/4-------------psu[0] - power supply deviceINTERNAL status:CurrStatus : OK (0000:00:01:59)PrevStatus : <none> (----:--:--:--)Sts# : 0 (access=4, fail=0)PSU status:CurrStatus : OK (0000:00:01:59)PrevStatus : <none> (----:--:--:--)Sts# : 0 (access=4, fail=0)Message summary:INTERNAL status is: {OK}VOLTAGE status is: {OK, <DISABLED>}TEMPERATURE status is: {OK}FAN status is: {OK}PSU status is: {OK}SCE>show environment temperature
Displays information about the temperature of the SCE platform.
show environment temperature
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to use this command.
SCE>enable 5 Password:<cisco> SCE>show environment temperature Environment Temperature information:---------------------Slot 1: SCE8000-SCM-E---------------------scm[0].smc[0].max1668[0] - temperature deviceINTERNAL status:CurrStatus : OK (0000:00:02:15)PrevStatus : <none> (----:--:--:--)Sts# : 0 (access=35, fail=0)TEMPERATURE status:Name General CurrVal MinVal AvgVal MaxVal DevVal ErrL WrnL WrnH ErrH CurrStatus dddd:hh:mm:ss PrevStatus dddd:hh:mm:ss Sts#========================================================================================== =======================================================PCB_Upper local1 29C 29 29.0 29 0.0 -18 -8 60 75 OK 0000:00:02:15 ----------- ----:--:--:-- 0DPT sd_1 39C 38 38.7 39 0.5 -8 2 74 89 OK 0000:00:02:15 ----------- ----:--:--:-- 0CLS sd_2 33C 32 32.8 33 0.4 -8 2 63 78 OK 0000:00:02:15 ----------- ----:--:--:-- 0SCE>show environment voltage
Displays information about the SCE platform voltage.
show environment voltage
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to use this command.
SCE>enable 5 Password:<cisco> SCE>show environment voltageEnvironment Voltage information:---------------------Slot 1: SCE8000-SCM-E---------------------scm[0].smc[0].summit766[0] - voltage deviceINTERNAL status:CurrStatus : OK (0000:00:01:28)PrevStatus : <none> (----:--:--:--)Sts# : 0 (access=23, fail=0)VOLTAGE status:Name General CurrVal MinVal AvgVal MaxVal DevVal ErrL WrnL WrnH ErrH CurrStatus dddd:hh:mm:ss PrevStatus dddd:hh:mm:ss Sts#========================================================================================== =======================================================Main_3_3 CH_A 3286mV 3286 3286.0 3286 0.0 3168 3234 3366 3432 OK 0000:00:01:28 ----------- ----:--:--:-- 0Main_2_5 CH_B 2490mV 2490 2490.0 2490 0.0 2400 2450 2550 2600 OK 0000:00:01:28 ----------- ----:--:--:-- 0SCE>show failure-recovery operation-mode
Displays the operation mode to apply after boot resulted from failure.
show failure-recovery operation-mode
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example displays the failure recovery operation mode:
SCE>enable 5 Password:<cisco> SCE>show failure-recovery operation-mode System Operation mode on failure recovery is: operational SCE>Related Commands
show hostname
Displays the currently configured hostname.
show hostname
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows that SCE8000 is the current hostname.
SCE>enable 5 Password:<cisco> SCE>show hostname SCE8000 SCE>Related Commands
show hosts
Displays the default domain name, the address of the name server, and the content of the host table.
show hosts
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the domain and hosts configured.
SCE>enable 5 Password:<cisco> SCE>show hosts Default domain is cisco.com Name/address lookup uses domain service Name servers are 10.1.1.60, 10.1.1.61 Host Address ---- ------- PC85 10.1.1.61 SCE>Related Commands
show interface gigabitethernet
Displays the details of the GigabitEthernet management interface.
show interface gigabitethernet slot-number/interface-number [counters [direction ]
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
The counters keyword displays the values of counters of the GigabitEthernet management interface.
Authorization: viewer
Examples
The following example shows the GigabitEthernet details.
SCE>enable 5 Password:<cisco> SCE>show interface gigabitethernet 1/1 SCE>Related Commands
show interface linecard
Displays information for a specific linecard Interface.
show interface linecard slot-number
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to use this command.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 The application assigned to slot 0 is /system/app/eng30102.sli Silent is off Configured shutdown is off Shutdown due to sm-connection-failure is off Resulting current shutdown state is off WAP handling is disabled SCE>Related Commands
show interface linecard accelerate-packet-drops
Displays the currently configured hardware packet drop mode.
show interface linecard slot-number accelerate-packet-drops
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
Authorization: viewer
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 accelerate-packet-drops Accelerated packet drops mode is enabled SCE>Related Commands
show interface linecard application
Displays the name of the application loaded on the Linecard Interface.
show interface linecard slot-number application
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the currently loaded application.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 application /system/app/eng30102.sli SCE>Related Commands
show interface linecard asymmetric-L2-support
Displays the current asymmetric layer 2 support configuration.
show interface linecard slot-number asymmetric-L2-support
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example illustrates how to use this command:
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 asymmetric-L2-support Asymmetric layer 2 support is disabled SCE>Related Commands
show interface linecard asymmetric-routing-topology
Displays information relating to asymmetric routing topology.
show interface linecard slot-number asymmetric-routing-topology
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Displays the following:
•
•
The unidirectional flows ratio is displayed only for TCP flows, and reflects the way the flows were opened. It is calculated over the period of time since the SCE platform was last reloaded, or since the counters were last reset.
To reset the asymmetric routing mode counters, see clear interface linecard asymmetric-routing-topology counters.
Note
Authorization: viewer
Examples
The following example illustrates how to use this command:
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 asymmetric-routing-topology Asymmetric Routing Topology mode is disabled TCP Unidirectional flows ratio statistics: ========================================== Traffic Processor 1 : 0% Traffic Processor 2 : 0% Traffic Processor 3 : 0% Traffic Processor 4 : 0% Traffic Processor 5 : 0% Traffic Processor 6 : 0% Traffic Processor 7 : 0% Traffic Processor 8 : 0% Traffic Processor 9 : 0% Traffic Processor 10 : 0% Traffic Processor 11 : 0% Traffic Processor 12 : 0% Note that the statistics are updated only if the system is configured to work in Enhanced Open Flow (i.e. following settings are disabled: Classical Open Flow mode, VAS, TCP no bypass est, etc.). The statistics are updated once every two minutes SCE>Related Commands
asymmetric-routing-topology enabled
clear interface linecard asymmetric-routing-topology counters
show interface linecard attack-detector
Displays the configuration of the specified attack detector.
show interface linecard slot-number attack-detector [default|all]
show interface linecard slot-number attack-detector attack-detector
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use the all keyword to display the configuration of all existing attack detectors.
Use the default keyword to display default attack detector configuration.
The following information is displayed:
•
•
•
•
–
–
–
•
•
Authorization: viewer
Examples
The following examples illustrate the show interface linecard attack-detector command:
EXAMPLE 1:
The following example displays the configuration of attack detector number 3.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 attack-detector 3 Detector #3: Comment: 'Sample' Access-list: 1 Effective only for TCP port(s) 21,23,80 Effective for all UDP ports Protocol|Side|Direction ||Action| Thresholds |Sub- |Alarm | | || |Open flows|Ddos-Suspected flows|notif| | | || |rate |rate |ratio | | --------|----|-----------||------|----------|------------|-------|-----|----- TCP |net.|source-only|| | | | | | TCP |net.|dest-only || | | | | | TCP |sub.|source-only|| | | | | | TCP |sub.|dest-only || | | | | | TCP |net.|source+dest|| | | | | | TCP |sub.|source+dest|| | | | | | TCP+port|net.|source-only||Block | | | | |Yes TCP+port|net.|dest-only || | | | | | TCP+port|sub.|source-only||Block | | | | |Yes TCP+port|sub.|dest-only || | | | | | TCP+port|net.|source+dest|| | | | | | TCP+port|sub.|source+dest|| | | | | | UDP |net.|source-only|| | | | | | UDP |net.|dest-only || | | | | | UDP |sub.|source-only|| | | | | | UDP |sub.|dest-only || | | | | | UDP |net.|source+dest|| | | | | | UDP |sub.|source+dest|| | | | | | UDP+port|net.|source-only|| | | | | | UDP+port|net.|dest-only || | | | | | UDP+port|sub.|source-only|| | | | | | UDP+port|sub.|dest-only || | | | | | UDP+port|net.|source+dest|| | | | | | UDP+port|sub.|source+dest|| | | | | | ICMP |net.|source-only|| | | | | | ICMP |net.|dest-only || | | | | | ICMP |sub.|source-only|| | | | |Yes | ICMP |sub.|dest-only || | | | | | other |net.|source-only|| | | | | | other |net.|dest-only || | | | | | other |sub.|source-only|| | | | | | other |sub.|dest-only || | | | | | Empty fields indicate that no value is set and configuration from the default attack detector is used. SCE>EXAMPLE 2:
The following example displays the configuration of the default attack detector.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 attack-detector default Protocol|Side|Direction ||Action| Thresholds |Sub- |Alarm | | || |Open flows|Ddos-Suspected Flows|notif| | | || |rate |rate |ratio | | --------|----|-----------||------|----------|------------|-------|-----|----- TCP |net.|source-only||Report| 1000| 500|50 |No |No TCP |net.|dest.-only ||Report| 1000| 500|50 |No |No TCP |sub.|source-only||Report| 1000| 500|50 |No |No TCP |sub.|dest.-only ||Report| 1000| 500|50 |No |No TCP |net.|source+dest||Report| 100| 50|50 |No |No TCP |sub.|source+dest||Report| 100| 50|50 |No |No TCP+port|net.|source-only||Report| 1000| 500|50 |No |No TCP+port|net.|dest.-only ||Report| 1000| 500|50 |No |No TCP+port|sub.|source-only||Report| 1000| 500|50 |No |No TCP+port|sub.|dest.-only ||Report| 1000| 500|50 |No |No TCP+port|net.|source+dest||Report| 100| 50|50 |No |No TCP+port|sub.|source+dest||Report| 100| 50|50 |No |No UDP |net.|source-only||Report| 1000| 500|50 |No |No UDP |net.|dest.-only ||Report| 1000| 500|50 |No |No UDP |sub.|source-only||Report| 1000| 500|50 |No |No UDP |sub.|dest.-only ||Report| 1000| 500|50 |No |No UDP |net.|source+dest||Report| 100| 50|50 |No |No UDP |sub.|source+dest||Report| 100| 50|50 |No |No UDP+port|net.|source-only||Report| 1000| 500|50 |No |No UDP+port|net.|dest.-only ||Report| 1000| 500|50 |No |No UDP+port|sub.|source-only||Report| 1000| 500|50 |No |No UDP+port|sub.|dest.-only ||Report| 1000| 500|50 |No |No UDP+port|net.|source+dest||Report| 100| 50|50 |No |No UDP+port|sub.|source+dest||Report| 100| 50|50 |No |No ICMP |net.|source-only||Report| 500| 250|50 |No |No ICMP |net.|dest.-only ||Report| 500| 250|50 |No |No ICMP |sub.|source-only||Report| 500| 250|50 |No |No ICMP |sub.|dest.-only ||Report| 500| 250|50 |No |No other |net.|source-only||Report| 500| 250|50 |No |No other |net.|dest.-only ||Report| 500| 250|50 |No |No other |sub.|source-only||Report| 500| 250|50 |No |No other |sub.|dest.-only ||Report| 500| 250|50 |No |No SCE>Related Commands
show interface linecard attack-filter
Displays the attack filtering configuration.
show interface linecard slot-number attack-filter [option ]
Syntax Description
slot-number
The number of the identified slot. Enter a value of 0.
option
See Usage Guidelines for the list of options.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Following is a list of options that may be displayed:
•
–
–
–
•
–
–
–
•
•
•
•
•
•
Authorization: viewer
Examples
The following examples illustrate the use of this command.
EXAMPLE 1:
The following example displays the configuration of attack detection between two specified IP addresses (dual-sided) for destination port 101.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 attack-filter query dual-sided source-IP 10.10.10.10 dest 10.10.10.145 dest-port 101 configured SCE>EXAMPLE 2:
The following example displays all existing forced attack filters.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 attack-filter force-filter No force-filter commands are set for slot 0 SCE>EXAMPLE 3:
The following example displays the subscriber notification ports.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 attack-filter subscriber-notification ports Configured Subscriber notification ports: 100 SCE>Related Commands
show interface linecard connection-mode
Shows the current configuration of the SCE platform link connection.
show interface linecard slot-number connection-mode
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to use this command.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 connection-mode slot 0 connection mode Connection mode is inline slot failure mode is bypass Redundancy status is standalone SCE>Related Commands
show interface linecard counters
Displays the Linecard Interface hardware counters.
show interface linecard slot-number counters [bandwidth] [cpu-utilization]
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Specify any of the optional keywords to display only the desired counters.
Authorization: viewer
Examples
The following example shows the hardware counters for the Linecard Interface.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 countersDP packets in: 340DP packets out: 340DP IP packets in: 340DP Non-IP packets: 0DP IP packets checksum err: 0DP IP packets length err: 0DP IP broadcast packets: 0DP IP fragmented packets: 0DP IP packets with TTL=0 err: 0DP Non TCP/UDP packets: 0DP TCP/UDP packets checksum err: 0DP ARP packets: 0DP PPP compressed packets: 0DP packets dropped: 0DP tuples to FF: 340DP tuples from CLS: 340DP L7 Filter congested packets: 0DP VLAN packets: 0DP MPLS packets: 0DP parse errors: 0DP IPinIP skipped packets: 0DP no payload packets: 53DP self-IP packets: 0DP tunneled packets: 0DP L2TP control packets: 0DP L2TP packets with offset: 0traffic-counters information:-----------------------------Counter 'myCounter' value: 0 L3 bytes. Rules using it: None.1 counters listed out of 36 available ... SCE>Related Commands
show interface linecard duplicate-packets-mode
Displays the currently configured duplicate packets mode.
show interface linecard slot-number duplicate-packets-mode
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example illustrates the use of this command:
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 duplicate-packets-mode Packet duplication of flows due to Delay Sensitive <bundles>is enabled Packet duplication of flows due to No-Online-Control <set-flow>is enabled Packet duplication of flows due to No-Online-Control <set-flow>ratio percent is 70 Packet duplication in case of shortage is enabled SCE>Related Commands
show interface linecard external-bypass
Displays the state of the external bypass module.
show interface linecard slot-number exteranl-bypass
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following examples illustrate the use of this command.
EXAMPLE 1
The following example shows the output of this command when both external bypass modules are functioning properly.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 external-bypass External bypass current state is `not activated'. External bypass failure state is `activated'. Amount of expected external bypass devices: 2 (automatically configured) SCE>EXAMPLE 2
The following example shows the output of this command when one external bypass module is not detected.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 external-bypass External bypass current state is `not activated'. External bypass failure state is `activated'. Amount of expected external bypass devices: 2 (automatically configured) Warning: External bypass device expected but not detected on link #1 SCE>Related Commands
show interface linecard flow-open-mode
Displays the currently configured flow open mode.
show interface linecard slot-number flow-open-mode
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example illustrates the use of this command.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 flow-open-modeEnhanced flow open mode is disabled Asymmetric layer 2 support is disabledNote that other settings may override all/part of the Enhanced Flow Open mode, e.g. VAS, TCP no bypass est, etc.(in which cases will behave as in the classical mode)SCE>Related Commands
show interface linecard ip-tunnel
Displays the current IP tunnel configuration.
show interface linecard slot-number ip-tunnel
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example illustrates the use of this command:
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 ip-tunnel no IP tunnel SCE>Related Commands
show interface linecard ip-tunnel IPinIP
Displays the current IPinIP configuration.
show interface linecard slot-number IP-tunnel IPinIP
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to use this command.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 ip-tunnel IPinIP IPinIP skip mode is enabled IPinIP DSCP skip mode is disabled SCE>Related Commands
show interface linecard l2tp
Displays the currently configured L2TP support parameters.
show interface linecard slot-number l2tp
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example illustrates the use of the show interface linecard L2TP command:
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 l2tp L2TP identify-by port-number 1701 SCE>Related Commands
show interface linecard link mode
Displays the configured Linecard Interface link mode.
show interface linecard slot-number link mode
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the configured link mode for the Linecard Interface.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 link mode Link mode on port1-port2 Current link mode is :forwarding Actual link mode on active is :forwarding Actual link mode on failure is :monopath-bypass SCE>Related Commands
show interface linecard link-to-port-mappings
Displays the link ID to port ID mappings.
show interface linecard slot-number link-to-port-mappings
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the link ID to port ID mapping for the Linecard Interface.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 link-to-port-mappings Link Id | Upstream Port <Out>| Downstream Port <Out> ----------------------------------------------------------- 0 | 0/2 | 0/1 SCE>Related Commands
show interface linecard mac-mapping
Displays the linecard MAC mapping information.
show interface linecard slot-number mac-mapping
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the MAC mapping information.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 mac-mapping MAC mapping status is: disabled MAC mapping default mapping is: none set MAC mapping dynamic insertion to table is enabled SCE>Related Commands
show interface linecard mac-resolver arp
Displays a listing of all IP addresses and corresponding MAC addresses currently registered in the MAC resolver database.
show interface linecard 0 mac-resolver arp
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to display the entries in the MAC-resolver ARP database.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 mac-resolver arp There are no entries in the mac-resolver arp database SCE>Related Commands
show interface linecard mpls
Displays the current MPLS tunnelling configuration.
show interface linecard slot-number mpls
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example illustrates the use of this command:
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 mpls MPLS Traffic-Engineering skip SCE>Related Commands
show interface linecard physically-connected-links
Displays the link mapping for the Linecard Interface.
show interface linecard slot-number physically-connected-links
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the link mapping for the Linecard Interface.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 physically-connected-links slot 0 is connected to link-0 and link-1 SCE>Related Commands
show interface linecard sce-url-database
Displays the contents of the protected URL database.
Can also be used to look for a specific URL and display the related flavor ID.
show interface linecard slot-number sce-url-database
show interface linecard slot-number sce-url-database url url
Syntax Description
slot-number
The number of the identified slot. Enter a value of 0.
url
The specific URL to lookup in the sce-url-database.
Defaults
This command has no default settings.
Command Modes
Privileged Exec
Usage Guidelines
•
•
Authorization: admin
Examples
The following example shows how to use this command
SCE>enable 10 Password:<cisco> SCE#show interface linecard 0 sce-url-database SCE#Related Commands
show interface linecard sce-url-database protection
Displays the following current protected URL database protection settings:
•
•
•
show interface linecard slot-number sce-url-database protection
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to use this command
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 sce-url-database protection Protection Domain BLACK_LIST_DOMAIN Status: Domain owner:black Read is allowed to no user Write is allowed to user black only Lookup is allowed to no user Encryption key is not setSCE>Related Commands
show interface linecard service-bandwidth-prioritization-mode
Displays the currently configured service bandwidth prioritization mode.
show interface linecard slot-number service-bandwidth-prioritization-mode
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example illustrates the use of this command:
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 service-bandwidth-prioritization-mode Service bandwidth prioritization mode is: Subscriber Internal SCE>Related Commands
show interface linecard shutdown
Displays the current shutdown state.
show interface linecard slot-number shutdown
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the linecard Interface shutdown mode.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 shutdown off SCE>Related Commands
show interface linecard silent
Displays the current Linecard Interface silent state. When the silent state is Off, the linecard events reporting function is enabled.
show interface linecard slot-number silent
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the Linecard Interface silent mode.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 silent off SCE>Related Commands
show interface linecard subscriber
Displays subscribers meeting specified criteria.
show interface linecard slot-number subscriber [amount] [prefix prefix] [suffix suffix ] [property propertyname equals|bigger-than|less-than property-val ] [all-names]
show interface linecard slot-number subscriber name subscriber-name
show interface linecard slot-number subscriber all-names
show interface linecard slot-number subscriber [amount] (prefix prefix | suffix suffix)
show interface linecard slot-number subscriber [amount] property propertyname equals|bigger-than|less-than property-val
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use this command to display names of subscribers or the number of subscribers meeting one of the following specified criteria:
•
•
•
Use the amount keyword to display the number of subscribers meeting the criteria rather than listing actual subscriber names.
Use the all-names keyword to display the names of all subscribers currently in the SCE platform subscriber database.
Authorization: viewer
Examples
The following examples illustrate the use of this command.
EXAMPLE 1
Following is an example that lists the number of subscribers with the prefix `gold' in the subscriber name
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 subscriber amount prefix gold There are 40 subscribers with name prefix 'gold'. SCE>EXAMPLE 2
Following is an example that lists all subscribers currently in the SCE platform subscribers database.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 subscriber all-names There are 8 subscribers in the database. john_doe mary_smith david_jones betty_peters bill_jackson jane_doe bob_white andy_black SCE>Related Commands
show interface linecard subscriber aging
Displays the subscriber aging configuration for the specified type of subscriber (anonymous or introduced).
show interface linecard slot-number subscriber aging [anonymous|introduced]
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use the anonymous keyword to display the subscriber aging configuration for anonymous subscribers.
Use the introduced keyword to display the subscriber aging configuration for introduced subscribers.
Authorization: viewer
Examples
The following is an example of how to display the aging of introduced subscribers.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 subscriber aging introduced Introduced subscriber aging is enabled. Introduced subscriber aging time is 30 minutes. SCE>Related Commands
show interface linecard subscriber anonymous
Displays the subscribers in a specified anonymous subscriber group. Use the amount form to display the number of subscribers in the group rather than a complete listing of members.
show interface linecard slot-number subscriber anonymous [amount] [name group-name ]
Syntax Description
slot-number
The number of the identified slot. Enter a value of 0.
group-name
The anonymous subscriber group.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
If no group-name is specified, all anonymous subscribers in all groups are displayed.
Authorization: viewer
Examples
The following is an example of how to display the number of subscribers in the anonymous subscriber group anon1.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 subscriber anonymous amount name anon1 SCE>Related Commands
show interface linecard subscriber anonymous-group
Displays the configuration of the specified anonymous subscriber group. Use the all form with no group name to display all existing anonymous subscriber groups.
show interface linecard slot-number subscriber anonymous-group [name group-name ] [all]
Syntax Description
slot-number
The number of the identified slot. Enter a value of 0.
group-name
The anonymous subscriber group.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following is an example of how to display the anonymous subscriber groups.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 subscriber anonymous-group all name IP range Template # ---- -------- ---------- Group1 10.10.10.10/99 0 1 anonymous groups are configured SCE>Related Commands
show interface linecard subscriber db counters
Displays the subscriber database counters.
show interface linecard slot-number subscriber db counters
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Counter Definitions
The following sections present definitions of the counters displayed in the output of this command.
Current values:
Subscribers: Number of currently existing subscribers (excluding subscribers waiting to be removed).
Introduced subscribers: Number of introduced subscribers.
Anonymous subscribers: Number of anonymous subscribers.
Subscribers with mappings: Number of subscribers with mappings.
Single non-VPN IP mappings: Number of mappings to single IP addresses.
Non-VPN IP Range mappings: Number of mappings to ranges of IP addresses.
VLAN based subscribers (appears only if VLAN-based subscribers are enabled): Number of VLAN based VPNs with subscribers.
Subscribers with open sessions: Number of subscribers with open flows (sessions).
SSessions mapped to the default subscriber: Number of open flows (sessions) related to the default party.
Peak values:
Peak number of subscribers with mappings:
Peak number occurred at:
Peak number cleared at:
Event counters:
Subscriber introduced: Number of login calls resulting in adding a subscriber.
Subscriber pulled: Number of pullResponse calls.
Subscriber aged: Number of aged subscribers.
Pull-request notifications sent: Number of pull request notifications sent.
State notifications sent: Number of state change notifications sent to peers.
Logout notifications sent: Number of logout events.
Examples
The following example illustrates the output for this command.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 subscriber db counters Current values: =============== Subscribers: 3 used out of 9999 max. Introduced/Pulled subscribers: 3. Anonymous subscribers: 0. Subscribers with mappings: 3 used out of 9999 max. Single non-VPN IP mappings: 1. non-VPN IP Range mappings: 1. Subscribers with open sessions: 0. Sessions mapped to the default subscriber: 0.Related Commands
show interface linecard subscriber mapping
Displays subscribers whose mapping meets the specified criteria.
show interface linecard slot-number subscriber mapping [IP ipaddress/range ] [[amount] included-in IP iprange [none]
Syntax Description
slot-number
The number of the identified slot. Enter a value of 0.
ip-range
Specified range of IP addresses.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use this command to display subscribers whose mapping meets one of the following specified criteria:
•
•
Use the amount keyword to display the number of subscribers meeting the criteria rather than listing actual subscriber names.
•
Authorization: viewer
Examples
The following example lists the number of subscribers with no mapping.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 subscriber mapping amount none Subscribers with no mappings: N/A Total 1 subscribers listed. SCE>Related Commands
show interface linecard subscriber max-subscribers
Displays the maximum number of subscribers. Also indicates whether the capacity options have been disabled.
show interface linecard slot-number subscriber max-subscribers
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following is an example of how to display the maximum number of subscribers when the capacity options have not been disabled. (In which case the capacity options determine the maximum number of subscribers.)
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 subscriber max-subscribers Configured actual maximum number of subscribers: 80000. Note, however, that Subscriber Capacity Options are enabled, and they determine the actual maximum number of subscribers. SCE>Related Commands
show interface linecard subscriber name
Displays information about a specified subscriber.
show interface linecard slot-number subscriber name name [mappings] [counters] [properties]
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
The following information can be displayed:
•
•
•
•
If no category is specified, a complete listing of property values, mappings and counters is displayed.
Authorization: viewer
Examples
The following is an example of how to list the mappings for the specified subscriber.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 subscriber name gold123 mappings Subscriber 'gold123' mappings: IP 10.0.0.0 - Expiration (sec): Unlimited SCE>Related Commands
show interface linecard subscriber properties
Displays all existing subscriber properties.
show interface linecard slot-number subscriber properties
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following is an example of how to display the subscriber properties.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 subscriber properties Subscriber properties: "monitor" : int16, minValue=0, maxValue=1. "new_classification_policy" : Uint16. "packageId : Uint16, minValue=0, maxValue=4999. "QpLimit" : int32[18]. "QpSet" : Uint8[18]. Subscriber read-only properties: "concurrentAttacksNumber" : Uint8. "PU_QP_QuotaSetCounter" : Uint8[18]. "PU_QP_QuotaUsageCounter" : int32[18]. "PU_REP_nonReportedSessionsInTUR" : int32. "P_aggPeriodType" :Uint8. "P_blockReportCounter : int32 "P_endOfAggPeriodTimestamp : Uint32. "P_firstTimeParty" : bool. "P_localEndOfAggPeriodTimestamp : Uint32. "P_mibSubCounters16" : Uint16[36][2]. "P_mibSubCounters32" : Uint32[36][2]. "P_newParty" : bool. "P_numOfRedirections : Uint8. "P_partyCurrentPackage : Uint16 "P_partyGoOnlineTime : Uint32 "P_partyMonth : Uint16 SCE>Related Commands
show interface linecard subscriber sm-connection-failure
Displays the current state of the SM-SCE platform connection, as well as the configured action to take in case of failure of that connection.
show interface linecard slot-number subscriber sm-connection-failure [timeout]
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use the timeout keyword to display the configured SM-SCE platform link failure timeout value.
Authorization: viewer
Examples
The following examples illustrate the use of this command.
EXAMPLE 1
The following is an example of how to display the state of the SM-SCE platform connection.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 subscriber subscriber sm-connection-failure Current SM link state: down. Please note that this refers to the logical connection, which means the synchronization with the SM i.e. There might be cases where the connection at the SM will be up and down at the SE since synchronization hasn't been completed yet. Configured action to take when SM link is down: No action SCE>EXAMPLE 2
The following is an example of how to display the configured timeout value for the SM-SCE platform connection.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 subscriber subscriber sm-connection-failure timeout SM SCE link failure timeout is: 90 SCE>Related Commands
show interface linecard subscriber templates
Displays a specified subscriber template.
show interface linecard slot-number subscriber templates [all|index template-number ]
Syntax Description
slot-number
The number of the identified slot. Enter a value of 0.
template-number
The index number of the template to be displayed.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use the all keyword to display all existing subscriber templates.
Authorization: viewer
Examples
The following is an example of how to display a specified subscriber template.
SCE>enable 5 SCE>show interface linecard 0 subscriber templates index 3 Subscriber template 3 properties monitor=0 new_classification_policy=0 packageId=0 QpLimit[0..17]=0*17,8 QpSet[0..17]=0*17,1 SCE> Password:<cisco>Related Commands
show interface linecard tos-marking
Displays the current TOS marking state.
show interface linecard slot-number tos-marking
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use this command to display the current TOS marking state, including:
•
•
Authorization: viewer
Examples
The following example shows a sample of the output from this command.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 tos-marking ToS Translation Table ===================== | tos-id | tos-value (DSCP) | |--------|------------------| | 1 | 00 (0x00) | | 2 | 00 (0x00) | | 3 | 00 (0x00) | | 4 | 00 (0x00) | | 5 | 00 (0x00) | | 6 | 00 (0x00) | | 7 | 00 (0x00) | ToS Marking state by egress interface ===================================== | Interface | State | |------------|----------| | 1 | Disabled | | 2 | Disabled | | 3 | Disabled | | 4 | Disabled | SCE>Related Commands
show interface linecard traffic-counter
Displays the specified traffic counter.
show interface linecard slot-number traffic-counter name [all]
Syntax Description
slot-number
The number of the identified slot. Enter a value of 0.
name
Name of the traffic counter to be displayed.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use the all keyword to display all traffic counters.
Authorization: viewer
Examples
The following example displays information for all existing traffic counters.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 traffic-counter all Counter 'cnt' value: 0 packets. Rules using it: None. Counter 'cnt2' value: 1284 packets. Rules using it: Rule2. 2 counters listed out of 32 available. SCE>Related Commands
show interface linecard traffic-rule
Displays the specified traffic rule configuration.
show interface linecard slot-number traffic-rule name name |tunnel-id-mode|all
Syntax Description
slot-number
The number of the identified slot. Enter a value of 0.
name
Name of the traffic rule to be displayed.
Defaults
This command has no default settings.s
Command Modes
User Exec
Usage Guidelines
Use the all keyword to display all traffic counter rules.
Use the tunnel-id-mode keyword to display all rules defined in tunnel-id-mode.
Authorization: viewer
Examples
The following example displays traffic rule information.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 traffic-rule name Rule1 0 rules listed out of 127 available. SCE>Related Commands
show interface linecard virtual-links
Displays the currently configured virtual links
You can also use this command to see which virtual links have GCs whose values have been changed from the original SCA BB configuration.
show interface linecard slot-number virtual-links all
show interface linecard slot-number virtual-links changed
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec.
Usage Guidelines
Use the all keyword to see all the currently configured virtual links, with their ID number and direction.
Use the changed keyword to see which virtual links have GCs for which the PIR is now different from the values configured for the template GCs via the console.
Examples
The following examples illustrate the use of this command.
Example 1
This example shows how to display all existing virtual links.
SCE>enable 5password<cisco>SCE>show interface LineCard 0 virtual-links all Virtual Link enabled Virtual link index 1 direction upstream Virtual link index 2 direction upstream Virtual link index 3 direction upstream Virtual link index 4 direction upstream Virtual link index 12 direction upstream Virtual link index 13 direction upstream Virtual link index 14 direction upstream Virtual link index 15 direction upstreamExample 2
This example displays the virtual links that have GCs with values that are different from the original configuration.
SCE>enable 5password<cisco>SCE>show interface LineCard 0 virtual-links changed Virtual Link enabled Virtual link index 3 direction upstream Global Controller index 0 timebased values = 300,300,300,300 Global Controller index 1 timebased values = 500,500,500,500 Virtual link index 12 direction upstream Global Controller index 0 timebased values = 700,700,700,700 Virtual link index 14 direction upstream Global Controller index 0 timebased values = 5500,5500,5500,5500 Global Controller index 1 timebased values = 1500,1500,1500,1500Related Commands
show interface linecard vlan
Displays the VLAN tunnel configuration.
show interface linecard slot-number vlan
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the VLAN configuration.
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 vlan VLAN symmetric skip SCE>Related Commands
sshow interface linecard wap
Displays the current WAP handling state.
show interface linecard slot-number wap
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example illustrates how to use this command:
SCE>enable 5 Password:<cisco> SCE>show interface linecard 0 wap WAP handling is disabled SCE>Related Commands
show interface tengigabitethernet
Displays the details of a TenGigabitEthernet Interface.
show interface tengigabitethernet slot-number/bay-number/interface-number [counters [direction ]|queue queue-number ]
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
The counters keyword displays the values of counters of a TenGigabitEthernet line interface.
The queue keyword displays the bandwidth and burst size of a queue in a TenGigabitEthernet line interface.
Authorization: viewer
Examples
The following examples shows output of this command
EXAMPLE 1
.The following example shows how to display the inventory (UDIs) for the FRUs only.
SCE>enable 5 Password:<cisco> SCE>show inventory NAME: "SCE8000 Chassis", DESCR: "CISCO7604" PID: CISCO7604 , VID: V0 , SN: FOX105108X5 NAME: "SCE8000 Service Control Module (SCM) in slot 1", DESCR: "SCE8000-SCM-E" PID: SCE8000-SCM-E , VID: V0 , SN: CAT1122584N NAME: "SCE8000 SPA Interface Processor (SIP) in slot 3", DESCR: "SCE8000-SIP" PID: SCE8000-SIP , VID: V0 , SN: CAT1150G07F NAME: "SPA-1X10GE-L-V2", DESCR: "SPA-1X10GE-L-V2" PID: SPA-1X10GE-L-V2 , VID: V02, SN: JAE11517RMR NAME: "SPA-1X10GE-L-V2", DESCR: "SPA-1X10GE-L-V2" PID: SPA-1X10GE-L-V2 , VID: V02, SN: JAE11496E1P NAME: "SPA-1X10GE-L-V2", DESCR: "SPA-1X10GE-L-V2" PID: SPA-1X10GE-L-V2 , VID: V02, SN: JAE11517RIO NAME: "SPA-1X10GE-L-V2", DESCR: "SPA-1X10GE-L-V2" PID: SPA-1X10GE-L-V2 , VID: V02, SN: JAE115295HH NAME: "SCE8000 FAN 1", DESCR: "FAN-MOD-4HS" PID: FAN-MOD-4HS , VID: V0 , SN: DCH11013744 NAME: "SCE8000 AC or DC power supply 0", DESCR: "PWR-2700-AC/4" PID: PWR-2700-AC/4 , VID: V0 , SN: APQ105000MV NAME: "SCE8000 AC or DC power supply 1", DESCR: "PWR-2700-DC/4" PID: PWR-2700-AC/4 , VID: V0 , SN: APQ105000MV NAME: "XFP-10GLR-OC192SR ", DESCR: "XFP-10GLR-OC192SR " PID: XFP-10GLR-OC192SR , VID: V02, SN: AGA1142N4B7 NAME: "XFP-10GLR-OC192SR ", DESCR: "XFP-10GLR-OC192SR " PID: XFP-10GLR-OC192SR , VID: V02, SN: AGA1142N4AL NAME: "XFP-10GLR-OC192SR ", DESCR: "XFP-10GLR-OC192SR " PID: XFP-10GLR-OC192SR , VID: V02, SN: AGA1141N43R NAME: "XFP-10GLR-OC192SR ", DESCR: "XFP-10GLR-OC192SR " PID: XFP-10GLR-OC192SR , VID: V02, SN: AGA1143N4JNEXAMPLE 2
The following example shows how to display the complete inventory (UDIs) of the SCE platform.
SCE>enable 5 Password:<cisco> SCE>show inventory raw PID: CISCO7604 , VID: V0 , SN: FOX105108XB NAME: "SCE8000 Physical Slot 1", DESCR: "Container SCE8000 Service Control Module (SCM) slot" PID: "" , VID: "" , SN: "" NAME: "SCE8000 Physical Slot 2", DESCR: "Container SCE8000 Service Control Module (SCM) slot" PID: "" , VID: "" , SN: "" NAME: "SCE8000 Physical Slot 3", DESCR: "Container SCE8000 SPA Interface Processor (SIP) slot" PID: "" , VID: "" , SN: "" NAME: "SCE8000 Physical Slot 4", DESCR: "Container SCE8000 Optical Bypass slot" PID: "" , VID: "" , SN: "" NAME: "SCE8000 Fan Module", DESCR: "Container SCE8000 Fan Module" PID: "" , VID: "" , SN: "" NAME: "SCE8000 AC or DC power supply", DESCR: "Container SCE8000 AC or DC power supply" PID: "" , VID: "" , SN: "" NAME: "SCE8000 Link", DESCR: "Container SCE8000 Link" PID: "" , VID: "" , SN: "" NAME: "SCE8000 Backplane", DESCR: "Container SCE8000 Backplane " PID: "" , VID: "" , SN: "" NAME: "SCE8000 Service Control Module (SCM) in slot 1", DESCR: "SCE8000-SCM-E" PID: SCE8000-SCM-E , VID: V0 , SN: CAT1151G00Z NAME: "SCE8000 SPA Interface Processor (SIP) in slot 3", DESCR: "SCE8000-SIP" PID: SCE8000-SIP , VID: V0 , SN: CAT1204G020 NAME: "SCE8000 Link 0", DESCR: "SCE8000 Link" PID: "" , VID: "" , SN: "" NAME: "SCE8000 Link 1", DESCR: "SCE8000 Link" PID: "" , VID: "" , SN: "" NAME: "SCE8000 SIP bay 3/0", DESCR: "SCE8000 SIP bay" PID: "" , VID: "" , SN: "" NAME: "SCE8000 SIP bay 3/1", DESCR: "SCE8000 SIP bay" PID: "" , VID: "" , SN: "" NAME: "SCE8000 SIP bay 3/2", DESCR: "SCE8000 SIP bay" PID: "" , VID: "" , SN: "" NAME: "SCE8000 SIP bay 3/3", DESCR: "SCE8000 SIP bay" PID: "" , VID: "" , SN: "" NAME: "SPA-1X10GE-L-V2", DESCR: "SPA-1X10GE-L-V2" PID: SPA-1X10GE-L-V2 , VID: V02, SN: JAE11485LPJ NAME: "SPA-1X10GE-L-V2", DESCR: "SPA-1X10GE-L-V2" PID: SPA-1X10GE-L-V2 , VID: V02, SN: JAE11485L4C NAME: "SPA-1X10GE-L-V2", DESCR: "SPA-1X10GE-L-V2" PID: SPA-1X10GE-L-V2 , VID: V02, SN: JAE11485L9V NAME: "SPA-1X10GE-L-V2", DESCR: "SPA-1X10GE-L-V2" PID: SPA-1X10GE-L-V2 , VID: V02, SN: JAE11485LAP NAME: "TenGigabitEthernet3/0/0", DESCR: "SCE8000 SPA port" PID: "" , VID: "" , SN: "" NAME: "TenGigabitEthernet3/1/0", DESCR: "SCE8000 SPA port" PID: "" , VID: "" , SN: "" NAME: "TenGigabitEthernet3/2/0", DESCR: "SCE8000 SPA port" PID: "" , VID: "" , SN: "" NAME: "TenGigabitEthernet3/3/0", DESCR: "SCE8000 SPA port" PID: "" , VID: "" , SN: "" NAME: "SCE8000 FAN 1", DESCR: "FAN-MOD-4HS" PID: FAN-MOD-4HS , VID: V0 , SN: DCH10511402 NAME: "SCE8000 AC or DC power supply 0", DESCR: "PWR-2700-AC/4" PID: PWR-2700-AC/4 , VID: V0 , SN: APQ105100F8 NAME: "SCE8000 AC or DC power supply 1", DESCR: "PWR-2700-AC/4" PID: PWR-2700-AC/4 , VID: V0 , SN: APQ105100F8 NAME: "XFP-10GZR-OC192LR ", DESCR: "XFP-10GZR-OC192LR " PID: XFP-10GZR-OC192LR , VID: V01, SN: FNS11061SBB NAME: "XFP-10GZR-OC192LR ", DESCR: "XFP-10GZR-OC192LR " PID: XFP-10GZR-OC192LR , VID: V01, SN: FNS11021359 NAME: "XFP-10G-MM-SR ", DESCR: "XFP-10G-MM-SR " PID: XFP-10G-MM-SR , VID: V01, SN: FNS12130MLQ NAME: "XFP-10G-MM-SR ", DESCR: "XFP-10G-MM-SR " PID: XFP-10G-MM-SR , VID: V01, SN: FNS12130MHF NAME: "SCE8000 traffic processor 1", DESCR: "SCE8000 traffic processor" PID: "" , VID: "" , SN: "" NAME: "SCE8000 traffic processor 2", DESCR: "SCE8000 traffic processor" PID: "" , VID: "" , SN: "" NAME: "SCE8000 traffic processor 3", DESCR: "SCE8000 traffic processor" PID: "" , VID: "" , SN: "" NAME: "SCE8000 traffic processor 4", DESCR: "SCE8000 traffic processor" PID: "" , VID: "" , SN: "" NAME: "SCE8000 traffic processor 5", DESCR: "SCE8000 traffic processor" PID: "" , VID: "" , SN: "" NAME: "SCE8000 traffic processor 6", DESCR: "SCE8000 traffic processor" PID: "" , VID: "" , SN: "" NAME: "SCE8000 traffic processor 7", DESCR: "SCE8000 traffic processor" PID: "" , VID: "" , SN: "" NAME: "SCE8000 traffic processor 8", DESCR: "SCE8000 traffic processor" PID: "" , VID: "" , SN: "" NAME: "SCE8000 traffic processor 9", DESCR: "SCE8000 traffic processor" PID: "" , VID: "" , SN: "" NAME: "SCE8000 traffic processor 10", DESCR: "SCE8000 traffic processor" PID: "" , VID: "" , SN: "" NAME: "SCE8000 traffic processor 11", DESCR: "SCE8000 traffic processor" PID: "" , VID: "" , SN: "" NAME: "SCE8000 traffic processor 12", DESCR: "SCE8000 traffic processor" PID: "" , VID: "" , SN: ""Related Commands
show inventory
Displays UDI information for the SCE platform.
show inventory [raw]
Syntax Description
This command has no arguments..
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use this command to display the following UDI information for the SCE platform:
•
•
•
•
•
Use the raw keyword to display the complete inventory of the SCE platform.
When the raw keyword is not used, only field replaceable units (FRUs) are displayed.
Authorization: viewer
Examples
The following example displays the UDI information for the SCE platform.
SCE>enable 5 Password:<cisco> SCE>show inventory NAME: "Chassis", DESCR: "Cisco SCE 2020 Service Control Engine, Multi Mode, 4-port GE" PID: SCE2020-4XGBE-MM , VID: V01, SN: CAT093604K3 SCE>Related Commands
show ip access-class
Shows the access list defined for global IP access to the SCE platform. Only IP addresses permitted access according to this access list are allowed access to the system.
show ip access-class
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the IP access class mapping.
SCE>enable 5 Password:<cisco> SCE>show ip access-class IP layer is using access-list # 1. SCE>Related Commands
show ip advertising
Shows the status of IP advertising, the configured destination and the configured interval.
show ip advertising [destination|interval]
Syntax Description
destination
Displays IP advertising destination.
interval
Displays the interval between ping commands
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use the form show ip advertising destination to display the IP advertising destination.
Use the form show ip advertising interval to display the interval between ping commands.
Authorization: viewer
Examples
The following example shows the IP advertising status and configuration.
SCE>enable 5 Password:<cisco> SCE>show ip advertising IP advertising is disabled IP advertising destination is 10.10.10.10 IP advertising interval is 853 seconds SCE>Related Commands
show ip default-gateway
Shows configured default gateway.
show ip default-gateway
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example displays the default gateway.
SCE>enable 5 Password:<cisco> SCE>show ip default-gateway Default gateway: 10.1.1.1 SCE>Related Commands
show ip filter
Displays information regarding the management interface IP filtering.
show ip filter
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use this command to display the following information for management interface IP filtering.
•
•
•
•
Authorization: viewer
Examples
The following command shows how to display information for management interface IP filtering
SCE>enable 5 Password:<cisco> SCE>show ip filter is fragment filtered : 0 Input Bandwidth : 0 Kb/sec Input packets rate : 2 Pkt/sec Input bandwidth policer : CIR: 20000.00 Kb/sec BTime: 200 msec LP: 100 % Input packet rate policer : CIR: 5000.00 Pkt/sec BTime: 200 msec LP: 100 % Permit monitor :state : no_attack BW: 0 High : CIR: 20000.00 Kb/sec BTime: 10000 msec LP: 100 % Low : CIR: 20000.00 Kb/sec BTime: 10000 msec LP: 100 % Denied monitor :state : no_attack BW: 0 High : CIR: 20000.00 Kb/sec BTime: 10000 msec LP: 100 % Low : CIR: 20000.00 Kb/sec BTime: 10000 msec LP: 100 % in_bytes : 85115466 in_pkt : 371598 in_pkt_accept : 371598 in_pkt_denied : 0 drop_fragment_cnt : 0 action_delay_due_bw : 0 action_delay_due_pkt : 0 PERMIT events meStartAttack : 0 meStopAttack : 0 DENIED events meStartAttack : 0 SCE>Related Commands
show ip radius-client
Displays the RADIUS client general configuration.
show ip radius-client
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged Exec
Usage Guidelines
Authorization: admin
Examples
The following example illustrates how to use this command.
SCE>enable 10 Password:<cisco> SCE#show ip radius-client SCE>Related Commands
show ip route
Shows the entire routing table and the destination of last resort (default-gateway). When using the prefix and mask parameters, it shows the routing entries from the subnet specified by the prefix and mask pair.
show ip route [prefix mask ]
Syntax Description
prefix
The prefix of the routing entries to be included.
mask
Used to limit the search of routing entries.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following examples illustrate the use of this command.
EXAMPLE 1:
The following example shows the default gateway.
SCE>enable 5 Password:<cisco> SCE>show ip route gateway of last resort is 10.1.1.1 SCE>EXAMPLE 2:
The following example shows retrieval of the ip route.
SCE>enable 5 Password:<cisco> SCE>show ip route 10.1.60.0 255.255.255.0 | prefix | mask | next hop | |--------------|--------------|--------------| | 10.1.60.0 | 255.255.255.0 | 10.1.1.5 | SCE>Related Commands
show ip rpc-adapter
Displays the status of the RPC adapter (enabled or disabled) and the configured port.
show ip rpc-adapter [sessions]
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the configuration of the RPC adapter.
SCE>enable 5 Password:<cisco> SCE>show ip rpc-adapter RPC Server is OFFLINE RPC Server port is 14374 SCE>Related Commands
show ip ssh
Shows the status of the SSH sever, including current SSH sessions.
show ip ssh
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to retrieve the current SSH status.
SCE>enable 5 Password:<cisco> SCE>show ip sshSSH server is enabled. SSHv1 support is enabled SSH server does not use any access-list. There are no active SSH sessions. SCE>Related Commands
show line vty
Displays the Telnet configuration.
show line vty timeout|access-class in
Syntax Description
timeout
Shows the timeout configured to the Telnet sessions.
access-class in
Shows the access list configured to the Telnet server that contains the list of addresses that have access to the system.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the access list configured for telnet lines.
SCE>enable 5 Password:<cisco> SCE>show line vty access-class in Telnet server is using access-list # 1. SCE>Related Commands
show log
Displays the contents of the user log file.
show log
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example illustrates the use of this command.
SCE>enable 5 Password:<cisco> SCE>show log 2006-01-25 00:14:46 | INFO | CPU #000 | User message files were successfully cleared, new files were opened 2006-01-25 00:23:07 | INFO | CPU #000 | A new password was set for level 10 2006-01-25 00:49:41 | INFO | CPU #000 | System hostname changed to :ecco" 2006-01-25 01:02:41 | INFO | CPU #000 | Time zone set to GMT 2006-01-25 01:06:33 | INFO | CPU #000 | A new password was set for level 15 2006-01-25 01:08:07 | INFO | CPU #000 | A new password was set for level 5 2006-01-25 01:23:07 | INFO | CPU #000 | IP address of slot 0, port 0 set to 10.10.10 2006-01-25 01:56:44 | INFO | CPU #000 | Configuration file '/system/config.txt' was saved - file size 1200 2006-01-25 05:34:45 | INFO | CPU #000 | A telnet session from 20.20.20.20 was established SCE>Related Commands
show logger device
Displays the configuration of the specified SCE platform logger file. Also displays the current user log counters.
show logger device {line-attack-file-log | user-file-log[counters|max-file-size|status|nv-counters]}
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Specify the desired logger device:
•
–
–
•
–
–
If you specify User-File-Log, you can specify one of the following options:
•
•
•
•
Authorization: viewer
Examples
The following examples illustrate the use of this command.
EXAMPLE 1
The following example shows the SCE platform Line-Attack-File-Log status and configuration.
SCE>enable 5 Password:<cisco> SCE>show logger device Line-Attack-File-Log Line-Attack-File-Log status: Enabled Line-Attack-File-Log file size: 1000000 SCE>EXAMPLE 2
The following example shows the SCE platform User-File-Log counters.
SCE>enable 5 Password:<cisco> SCE>show logger device line-attack-file-log counters device User-File-Log counters Total info messages: 62 Total warning messages: 4 Total error messages: 0 Total fatal messages: 0 Last time these counters were cleared: 02:23:27 GMT TUES January 17 2006 SCE>Related Commands
show management-agent
Displays information regarding the management agent.
show management-agent
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use this command to display the following information for the management agent:
•
•
Authorization: viewer
Examples
The following example shows how to display the information for the management-agent.
SCE>enable 5 Password:<cisco> SCE>show management-agent management agent is enabled. management agent is active, version: SCE Agent 3.0.3 Build 15 management agent does not use any access-list. SCE>Related Commands
show management-agent sce-api quota
Displays information relating to the quota message buffer.
show management-agent sce-api quota
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use this command to display the following information:
•
•
•
Authorization: viewer
Examples
The following example shows how to display the information for the management-agent.
SCE>enable 5 Password:<cisco> SCE>show management-agent sce-api quota Quota rate control : 125Quota max buffer size : 1000Quota msg in buffer : 0SCE>Related Commands
show pqi file
Displays information, such as installation options, about the specified application file.
show pqi file filename info
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to display application file information.
SCE>enable 5 Password:<cisco> SCE>show pqi file myfile.pqi info application: sm description: SCE 1000 sm target SCE : SCE 1000 module names: sm20001.pm0 SCE>Related Commands
show pqi last-installed
Displays the name of the last pqi file that was installed.
show pqi last-installed
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to find out what pqi file is installed.
SCE>enable 5 Password:<cisco> SCE>show pqi last-installed package name: SACS BB package version 3.0.1. build 02 package date: Tue Jun 10 17:27:55 GMT+00:00 2006 operation: Upgrade SCE>Related Commands
show rdr-formatter
Displays the RDR formatter configuration.
show rdr-formatter
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the configuration of the RDR formatter.
SCE>enable 5 Password:<cisco> SCE>show rdr-formatter Status: enabled Connection is: down Forwarding mode: redundancy Connection table: ---------------------------------------------------------- Collector | Port | Status | Priority per Category: | IP Address / | | |--------------------------| Host-Name | | | Category1 | Category2 | ---------------------------------------------------------- 10.1.1.205 |33000 | Down | 100 | 100 | 10.1.1.206 |33000 | Down | 60 | 60 | 10.12.12.12 |33000 | Down | 40 | 40 | ---------------------------------------------------------- RDR: queued: 0, sent:4460807, thrown: 0, format-mismatch:0 UM: queued: 0, sent: 0, thrown: 0 Logger: queued: 0, sent: 39, thrown: 0 Errors: thrown: 0 Last time these counters were cleared: 20:23:05 IST WED March 14 2007 SCE>Related Commands
show rdr-formatter connection-status
Displays information regarding the RDR formatter connections.
show rdr-formatter connection-status
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Displays the following information regarding the RDR formatter connections:
•
•
–
–
–
Authorization: viewer
Examples
The following example shows the RDR formatter connection status.
SCE>enable 5 Password:<cisco> SCE>show rdr-formatter connection-status Connection is: up Forwarding mode: redundancy Connection table: ---------------------------------------------------------- Collector | Port | Status | Priority per Category: | IP Address / | | |--------------------------| Host-Name | | | Category1 | Category2 | ---------------------------------------------------------- 10.1.1.205 |33000 | Up | 100 primary | 100 primary| 10.1.1.206 |33000 | Down | 60 | 60 | 10.12.12.12 |33000 | Up | 40 | 40 | ---------------------------------------------------------- SCE>Related Commands
show rdr-formatter counters
Displays the RDR formatter counters.
show rdr-formatter counters
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the RDR-formatter counters.
SCE>enable 5 Password:<cisco> SCE>show rdr-formatter counters RDR: queued: 0, sent:4460807, thrown: 0, format-mismatch:0 UM: queued: 0, sent: 0, thrown: 0 Logger: queued: 0, sent: 39, thrown: 0 Last time these counters were cleared: 20:23:05 IST WED March 14 2007 SCE>Related Commands
show rdr-formatter destination
Displays the RDR formatter destinations, including protocol and transport type.
show rdr-formatter destination
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the configured RDRv1 formatter destinations.
SCE>enable 5 Password:<cisco> SCE>show rdr-formatter destination Destination: 10.56.201.50 Port: 33000 Protocol: RDRv1 Destination: 10.56.204.7 Port: 33000 Protocol: NetflowV9 Destination: 10.56.204.10 Port: 33000 Protocol: RDRv1 SCE>Related Commands
show rdr-formatter enabled
Shows the RDR-formatter status (enabled/disabled).
show rdr-formatter enabled
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows that the RDR formatter is enabled.
SCE>enable 5 Password:<cisco> SCE>show rdr-formatter enabled Status: enabled SCE>Related Commands
show rdr-formatter forwarding-mode
Shows the configured RDR-formatter forwarding-mode (redundancy/multicast/simple load balancing).
show rdr-formatter forwarding-mode
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the RDR formatter forwarding-mode.
SCE>enable 5 Password:<cisco> SCE>show rdr-formatter forwarding-mode Forwarding mode: redundancy SCE>Related Commands
show rdr-formatter history-size
Shows the configured size of the RDR formatter history buffer.
show rdr-formatter history-size
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the size of the RDR formatter history buffer.
SCE>enable 5 Password:<cisco> SCE>show rdr-formatter history-size History buffer size: 16000 bytes SCE>Related Commands
show rdr-formatter protocol NetflowV9 dscp
Displays the NetflowV9 assigned DSCP value.
show rdr-formatter protocol NetflowV9 dscp
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example illustrates the use of this command.
SCE>enable 5 Password:<cisco> SCE>show rdr-formatter protocol NetflowV9 dscp Configured DSCP for Netflow traffic: 0 SCE>Related Commands
show rdr-formatter rdr-mapping
Shows to which RDR formatter category a specified RDR tag is mapped.
show rdr-formatter rdr-mapping all|tag-ID
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use the all keyword to display all current RDR-category mappings.
Authorization: viewer
Examples
The following example illustrates the use of this command, showing partial output:
SCE>enable 5 Password:<cisco> SCE>show rdr-formatter rdr-mapping all Tag Categories --- ---------- 0xb2d05e01 1 0xb2d05e02 1 0xb2d05e04 1 0xb2d05e05 1 0xf0f0f000 1 0xf0f0f002 1 0xf0f0f004 1 0xf0f0f005 1 0xf0f0f010 1 0xf0f0f016 1 0xf0f0f017 1 0xf0f0f018 1 ---More--- SCE>Related Commands
show rdr-formatter statistics
Displays RDR formatter statistics.
show rdr-formatter statistics
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use this command to display the following RDR formatter statistics:
•
•
•
–
–
Authorization: viewer
Examples
The following example shows the current RDR statistics.
SCE>enable 5 Password:<cisco> SCE>show rdr-formatter statistics RDR-formatter statistics: ========================= Category 1: sent: 1794517 in-queue: 0 thrown: 0 format-mismatch: 0 unsupported-tags: 1701243 rate: 2 RDRs per second max-rate: 64 RDRs per second Category 2: sent: 12040436 in-queue: 0 thrown: 0 format-mismatch: 0 unsupported-tags: 0 rate: 12 RDRs per second max-rate: 453 RDRs per second Category 3: sent: 0 in-queue: 0 thrown: 0 format-mismatch: 0 unsupported-tags: 0 rate: 0 RDRs per second max-rate: 0 RDRs per second Category 4: sent: 0 in-queue: 0 thrown: 0 format-mismatch: 0 unsupported-tags: 0 rate: 0 RDRs per second max-rate: 0 RDRs per second Destination: 10.56.201.50 Port: 33000 Status: up Sent: 13835366 Rate: 211 Max: 679 Last connection establishment: 17 hours, 5 minutes, 14 seconds Destination: 10.56.204.7 Port: 33000 Status: up Sent: 12134054 Rate: 183 Max: 595 Sent Templates: 13732 Sent Data Records: 12134054 Refresh Timeout (Sec): 5 Last connection establishment: 17 hours, 5 minutes, 15 seconds SCE>Related Commands
show running-config
Shows the current configuration.
show running-config [all-data]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use the all data keyword to see sample usage for many CLI configuration commands.
Authorization: admin
Examples
The following example shows the output of the show running-config command.
SCE>enable 10 Password:<cisco> SCE#>show running-config all-data #This is a general configuration file (running-config). #Created on 12:06:13 UTC SUN May 11 2008 #cli-type 1 #version 1 no management-agent notifications notification-list 1417,1418,804,815,1404,1405,1406,1407,1408,400 no management-agent notifications notification-list 402,421,440,441,444,445,446,450,437,457 no management-agent notifications notification-list 3593,3594,3595,10040 snmp-server community "public" ro RDR-formatter forwarding-mode multicast RDR-formatter destination 10.56.96.26 port 33000 category number 1 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 2 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 3 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 4 priority 100 interface LineCard 0 connection-mode inline on-failure external-bypass no silent no shutdown attack-filter subscriber-notification ports 80 replace spare-memory code bytes 3145728 interface GigabitEthernet 1/1 ip address 10.56.96.46 255.255.252.0 interface TenGigabitEthernet 3/0/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/1/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/2/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/3/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" exit ip default-gateway 10.56.96.1 line vty 0 4 exit management-agent property "com.pcube.management.framework.install.activation.operation" "Install" management-agent property "com.pcube.management.framework.install.activated.package" "SCA BB" management-agent property "com.pcube.management.framework.install.activated.version" "3.1.6 build 79" management-agent property "com.pcube.management.framework.install.activation.date" "Sun May 11 08:44:04 GMT+00:00 2008" flow-filter partition name "ignore_filter" first-rule 4 num-rules 32 flow-filter partition name "udpPortsToOpenBySw" first-rule 40 num-rules 21 SCE#Related Commands
show scmp
Displays the SCMP (ISG) general configuration and status.
show scmp [all | name name ] [counters]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged Exec
Usage Guidelines
You can display configuration for a specified destination by using the name argument. Use the all keyword to display configuration for all destinations.
Use the counters keyword to display the statistics per destination. For this option, you must either specify the desired destination, using the name argument, or use the all keyword to display statistics for all destinations.
Authorization: admin
Examples
The following example illustrates how to display the SCMP counters for a specified destination.
SCE>enable 10 Password:<cisco> SCE#show scmp name scmp_peer1 counters SCMP Connection 'scmp_peer1' counters: Total messages sent: 72 Total messages received: 72 Establish requests sent: 1 Establish replies received: 1 Accounting requests sent: 20 Accounting replies received: 20 Subscriber queries sent: 0 Subscriber query response recv: 0 Request retry exceeded: 0 Requests replied with errors: 0 Subscriber requests received: 50 Subscriber responses sent: 50 Failed Requests: 0 Keep-alive sent: 1 Keep-alive received: 1 SCE>Related Commands
show snmp
Displays the SNMP configuration and counters.
show snmp
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the SNMP server configuration and statistics.
SCE>enable 5 Password:<cisco> SCE>show snmp SNMP server status: Enabled Location: London_Office Contact: Brenda Authentication Trap Status: Enabled Communities: ------------ Community: public, Access Authorization: RO, Access List Index: 1 Trap managers: ------------ Trap host: 10.1.1.205, community: public, version: SNMPv2c SNMP stats: 29 SNMP packets input 0 Bad SNMP version errors 29 Unknown community name 0 Illegal operation for community name supplied 0 Encoding errors 0 Number of requested variables 0 Number of altered variables 0 Get-request PDUs 0 Get-next PDUs 0 Set-request PDUs 29 SNMP packets output 0 Too big errors 0 No such name errors 0 Bad values errors 0 General errors 0 Response PDUs 29 Trap PDUs SCE>Related Commands
show snmp community
show snmp contact
show snmp enabled
show snmp host
show snmp location
show snmp community
Displays configured communities.
show snmp community
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the SNMP manager communities.
SCE>enable 5 Password:<cisco> SCE>show snmp community Community: public, Access Authorization: RO, Access List Index: 1 SCE>Related Commands
show snmp contact
Displays the configured MIB-2 variable sysContact.
show snmp contact
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the system contact.
SCE>enable 5 Password:<cisco> SCE>show snmp contact Contact: Brenda@mycompany.com SCE>Related Commands
show snmp enabled
Displays the SNMP agent status (enabled/disabled).
show snmp enabled
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the SNMP server enabled status.
SCE>enable 5 Password:<cisco> SCE>show snmp enabled SNMP server status: Enabled SCE>Related Commands
show snmp host
Displays the destination hosts for SNMP traps.
show snmp host
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the destination hosts for SNMP traps.
SCE>enable 5 Password:<cisco> SCE>show snmp host Trap host: 10.1.1.205, community: public, version: SNMPv2c SCE>Related Commands
show snmp location
Displays the configured MIB-2 variable sysLocation.
show snmp location
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the system location.
SCE>enable 5 Password:<cisco> SCE>show snmp location Location: London_Office SCE>Related Commands
show snmp mib
Displays MIB variables.
show snmp mib mib variables
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the MIB-2 system group.
SCE>enable 5 Password:<cisco> SCE>show snmp mib MIB-II system sysDescr.0 = CiSco Service Engineering, SW version: Control Card Version 1.30 build 29, HW version: SCE GE "RevE" sysObjectID.0 = 1.3.6.1.4.1.5655.1.2 sysUpTime.0 = 14 hours, 25 minutes, 59 seconds sysContact.0 = Brenda@mycompany.com sysName.0 = SCE sysLocation.0 = London_Office sysServices.0 = 2 SCE>Related Commands
show snmp traps
Displays the SNMP traps generation status (enabled/disabled).
show snmp traps
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the SNMP server traps status.
SCE>enable 5 Password:<cisco> SCE>show snmp traps Authentication-failure trap status: Disabled operational-status traps status: Enabled system-reset trap status: Enabled chassis traps status: Enabled RDR-formatter traps status: Enabled Telnet traps status: Enabled logger traps status: Enabled SNTP traps status: Enabled link-bypass traps status: Enabled subscriber traps status: Enabled pull-request-failure traps status: Disabled attack traps status: Enabled port-operational-status traps status: Enable SCE>Related Commands
show startup-config
Shows the startup configuration file. Use this command to review the configuration used by the SCE platform at boot time in comparison with the current configuration to make sure that you approve of all the differences before saving the configuration by using copy running-config startup-config command.
show startup-config
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use this command to review the configuration used by the SCE platform at boot time in comparison with the current configuration, to make sure that you approve of all the differences before saving the configuration (use the copy running-config startup-config command to save the configuration).
Authorization: admin
Examples
The following example shows a sample output.
SCE>enable 10 Password:<cisco> SCE#show startup-config #Created on 12:06:13 UTC SUN May 11 2008 #cli-type 1 #version 1 no management-agent notifications notification-list 1417,1418,804,815,1404,1405,1406,1407,1408,400 no management-agent notifications notification-list 402,421,440,441,444,445,446,450,437,457 no management-agent notifications notification-list 3593,3594,3595,10040 snmp-server community "public" ro RDR-formatter forwarding-mode multicast RDR-formatter destination 10.56.96.26 port 33000 category number 1 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 2 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 3 priority 100 RDR-formatter destination 10.56.96.26 port 33000 category number 4 priority 100 interface LineCard 0 connection-mode inline on-failure external-bypass no silent no shutdown attack-filter subscriber-notification ports 80 replace spare-memory code bytes 3145728 interface GigabitEthernet 1/1 ip address 10.56.96.46 255.255.252.0 interface TenGigabitEthernet 3/0/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/1/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/2/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" interface TenGigabitEthernet 3/3/0 bandwidth 10000000 burst-size 50000 global-controller 0 name "Default Global Controller" exit ip default-gateway 10.56.96.1 line vty 0 4 exit management-agent property "com.pcube.management.framework.install.activation.operation" "Install" management-agent property "com.pcube.management.framework.install.activated.package" "SCA BB" management-agent property "com.pcube.management.framework.install.activated.version" "3.1.6 build 79" management-agent property "com.pcube.management.framework.install.activation.date" "Sun May 11 08:44:04 GMT+00:00 2008" flow-filter partition name "ignore_filter" first-rule 4 num-rules 32 flow-filter partition name "udpPortsToOpenBySw" first-rule 40 num-rules 21 SCE#Related Commands
show system operation-status
Displays the operation status of the system.
show system operation-status
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the system operation status:
SCE>enable 5 Password:<cisco> SCE>show system operation-status System Operation status is Operational SCE>Related Commands
show system-uptime
Displays the length of time the system has been running since the last reboot..
show system-uptime
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the system uptime for the SCE platform.
SCE>enable 5 Password:<cisco> SCE>show system-uptime SCE uptime is 4 days, 13 hours, 21 minutes, 37 seconds SCE>Related Commands
show tacacs
Displays statistics for the TACACS+ servers.
show tacacs [all]
Syntax Description
This command has no arguments.
Defaults
This command has no default settings.
Command Modes
User Exec
The 'all' option is available only at the Privileged Exec level.
Use the 'all' keyword to display keys and timeouts as well as other statistics.
Usage Guidelines
Note that, although most show commands are accessible to viewer level users, the 'all' option is available only at the admin level. Use the command ' enable 10 ' to access the admin level.
Authorization: viewer
The ' all ' option is at the admin authorization level.
Examples
The following examples illustrate how to use this command.
EXAMPLE 1
This example shows how to display statistics for all TACACS+ servers.
SCE>enable 5 Password:<cisco> SCE>show tacacs Server: 100.10.10.10./49: opens=0 closes=0 error=0 messages in=0 messages out=0 SCE>EXAMPLE 2
This example shows how to display statistics, including keys and timeouts, for all TACACS+ servers.
SCE>enable 10 Password:<cisco> SCE# show tacacs all Server: 100.10.10.10./49: opens=0 closes=0 error=0 messages in=0 messages out=0 timeout=20 uses default timeout= yes key= a uses default key= no SCE#Related Commands
show telnet sessions
Displays any active Telnet sessions.
show telnet sessions
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows that there is one active Telnet session.
SCE>enable 5 Password:<cisco> SCE>show telnet sessions There is 1 active telnet session: Index | Source ================ 0 | 10.1.1.201 SCE>Related Commands
show telnet status
Displays the status of the telnet server daemon.
show telnet status
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows that the telnet daemon is currently enabled.
SCE>enable 5 Password:<cisco> SCE>show telnet status Telnet daemon is enabled. SCE>Related Commands
show timezone
Displays the current time zone and daylight saving time configuration as configured by the user.
show timezone
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the time zone configured by the user.
SCE>enable 5 Password:<cisco> SCE>show timezone Time zone: ISR minutes offset from UTC: 120 SCE>Related Commands
show users
Displays the users in the local database, including passwords.
show users
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privilege Exec
Usage Guidelines
Note that, although most show commands are accessible to viewer level users, this command is available only at the admin level. Use the command ' enable 10 ' to access the admin level.
Authorization: admin
Examples
This example shows how to display the users in the local database.
SCE>enable 10 Password:<cisco> SCE# show users User: name = Joe privilege level = 10 password = joespwd is password encrypted = no SCE#Related Commands
show version
Displays the configuration information for the system including the hardware version, the software version, the application used, and other configuration information.
show version
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the current version information of the SCE platform.
SCE>enable 5 Password:<cisco> SCE>show version SCE>show version System version: Version 3.1.6S Build 279 Build time: Jun 10 2008, 19:27:47 (Change-list 335658) Software version is: Version 3.1.6S Build 279 Hardware information is: ---------------- Firmware ---------------- kernel : [kernel] 1.0.0/5 (inactive: [kernel] 1.0.0/5) u-boot : [uboot] 1.0.0/6 (field: [uboot] 0.8.1/13) select : [ubs-cf1] 1.0.0/5 (secondary: [ubs-cf1] 1.0.0/5) ---------------- Slot 1: SCM-8000 ---------------- serial-num : CAT1202G07D part-num : 73-10598-01 38 cpld : 0x8162 vtpld : 0xc001 summit-0 : 0x10008 summit-1 : 0x10008 dpt/tx : 0x4837 cls/ff : 0x2047 cls flow cap: 33554432 ---------------- TVR ---------------- #cpus : 1 cpu SVR : 0x80900120 cpu PVR : 0x80040202 cpu freq : 1000MHz cpu (eeprom): 2.1, 1000MHz cpld : 0xa1b7 cpld-ufm : 0xa803 summit : 0x10007 cf : Model=SMART CF, FwRev=0x20060811, Size=4062240KB ---------------- CFC-0 ---------------- board type : P2 #cpus : 3 cpu-0 SVR : 0x80900121 cpu-0 PVR : 0x80040202 cpu-0 freq : 1500MHz cpu-1 SVR : 0x80900121 cpu-1 PVR : 0x80040202 cpu-1 freq : 1500MHz cpu-2 SVR : 0x80900121 cpu-2 PVR : 0x80040202 cpu-2 freq : 1500MHz cpu (eeprom): 2.1, 1500MHz cpld-0 : 0xb20e cpld-1 : 0xb20e cpld-2 : 0xb20e cpld-0-ufm : 0xb803 cpld-1-ufm : 0xb803 cpld-2-ufm : 0xb803 summit-0 : 0x1000a summit-1 : 0x1000a fc : 0x1044 ---------------- CFC-1 ---------------- board type : P2 #cpus : 3 cpu-0 SVR : 0x80900121 cpu-0 PVR : 0x80040202 cpu-0 freq : 1500MHz cpu-1 SVR : 0x80900121 cpu-1 PVR : 0x80040202 cpu-1 freq : 1500MHz cpu-2 SVR : 0x80900121 cpu-2 PVR : 0x80040202 cpu-2 freq : 1500MHz cpu (eeprom): 2.1, 1500MHz cpld-0 : 0xb20e cpld-1 : 0xb20e cpld-2 : 0xb20e cpld-0-ufm : 0xb803 cpld-1-ufm : 0xb803 cpld-2-ufm : 0xb803 summit-0 : 0x1000a summit-1 : 0x1000a fc : 0x1044 ---------------- Slot 3: SIP-8000 ---------------- serial-num : CAT1204G01H part-num : 73-10947-01 cpld : 0x9162 summit-0 : 0x10006 summit-1 : 0x10006 dpt-0 : 0x3033 dpt-1 : 0x3033 spa[0] : SPA-1X10GE-L-V2 spa[1] : SPA-1XTENGE-XFP spa[2] : SPA-1X10GE-L-V2 spa[3] : SPA-1XTENGE-XFP ---------------- SCE8000 Chassis ---------------- product-num : CISCO7604 serial-num : FOX10420BKZ part-num : 73-9789-02 part-rev : A0 vid : V01Part number: 73-10598-01 38 Revision: Software revision: LineCard S/N : CAT1202G07D Power Supply type: AC SML Application information is: No application is configured. Logger status: Enabled Platform: SCE8000 - 4x10GBE Management agent interface version: SCE Agent 3.1.6 Build 134 Software package file: ftp://ftpserver/simba.pkg SCE8000 uptime is 9 minutes, 54 secondsSCE>Related Commands
show version all
Displays the complete version information as well as the running configuration for all components.
show version all
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows version and configuration information for all the system components.
SCE>enable 5 Password:<cisco> SCE>show version all SSystem version: Version 3.1.6S Build 279 Build time: Jun 10 2008, 19:27:47 (Change-list 335658) Software version is: Version 3.1.6S Build 279 Hardware information is: ---------------- Firmware ---------------- kernel : [kernel] 1.0.0/5 (inactive: [kernel] 1.0.0/5) u-boot : [uboot] 1.0.0/6 (field: [uboot] 0.8.1/13) select : [ubs-cf1] 1.0.0/5 (secondary: [ubs-cf1] 1.0.0/5) ---------------- Slot 1: SCM-8000 ---------------- serial-num : CAT1202G07D part-num : 73-10598-01 38 cpld : 0x8162 vtpld : 0xc001 summit-0 : 0x10008 summit-1 : 0x10008 dpt/tx : 0x4837 cls/ff : 0x2047 cls flow cap: 33554432 ---------------- TVR ---------------- #cpus : 1 cpu SVR : 0x80900120 cpu PVR : 0x80040202 cpu freq : 1000MHz cpu (eeprom): 2.1, 1000MHz cpld : 0xa1b7 cpld-ufm : 0xa803 summit : 0x10007 cf : Model=SMART CF, FwRev=0x20060811, Size=4062240KB ---------------- CFC-0 ---------------- board type : P2 #cpus : 3 cpu-0 SVR : 0x80900121 cpu-0 PVR : 0x80040202 cpu-0 freq : 1500MHz cpu-1 SVR : 0x80900121 cpu-1 PVR : 0x80040202 cpu-1 freq : 1500MHz cpu-2 SVR : 0x80900121 cpu-2 PVR : 0x80040202 cpu-2 freq : 1500MHz cpu (eeprom): 2.1, 1500MHz cpld-0 : 0xb20e cpld-1 : 0xb20e cpld-2 : 0xb20e cpld-0-ufm : 0xb803 cpld-1-ufm : 0xb803 cpld-2-ufm : 0xb803 summit-0 : 0x1000a summit-1 : 0x1000a fc : 0x1044 ---------------- CFC-1 ---------------- board type : P2 #cpus : 3 cpu-0 SVR : 0x80900121 cpu-0 PVR : 0x80040202 cpu-0 freq : 1500MHz cpu-1 SVR : 0x80900121 cpu-1 PVR : 0x80040202 cpu-1 freq : 1500MHz cpu-2 SVR : 0x80900121 cpu-2 PVR : 0x80040202 cpu-2 freq : 1500MHz cpu (eeprom): 2.1, 1500MHz cpld-0 : 0xb20e cpld-1 : 0xb20e cpld-2 : 0xb20e cpld-0-ufm : 0xb803 cpld-1-ufm : 0xb803 cpld-2-ufm : 0xb803 summit-0 : 0x1000a summit-1 : 0x1000a fc : 0x1044 ---------------- Slot 3: SIP-8000 ---------------- serial-num : CAT1204G01H part-num : 73-10947-01 cpld : 0x9162 summit-0 : 0x10006 summit-1 : 0x10006 dpt-0 : 0x3033 dpt-1 : 0x3033 spa[0] : SPA-1X10GE-L-V2 spa[1] : SPA-1XTENGE-XFP spa[2] : SPA-1X10GE-L-V2 spa[3] : SPA-1XTENGE-XFP ---------------- SCE8000 Chassis ---------------- product-num : CISCO7604 serial-num : FOX10420BKZ part-num : 73-9789-02 part-rev : A0 vid : V01Part number: 73-10598-01 38 Revision: Software revision: LineCard S/N : CAT1202G07D Power Supply type: AC SML Application information is: No application is configured. Logger status: Enabled Platform: SCE8000 - 4x10GBE Management agent interface version: SCE Agent 3.1.6 Build 134 Software package file: ftp://ftpserver/simba.pkg SCE8000 uptime is 9 minutes, 54 seconds====================== #This is a general configuration file (running-config). #Created on 10:14:59 UTC TUE November 12 2006 . interface LineCard 0 connection-mode active no silent . . Software package file: Not available Unified management package file: /system/images/um13012.pkg SCE>Related Commands
show version software
Displays version information for the current software.
show version software
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the current software version.
SCE>enable 5 Password:<cisco> SCE>show version software Software version is: Version 3.0.5 Build 240 SCE>Related Commands
silent
Disables the linecard from reporting events. Use the no form of this command if you want the linecard to send reports.
silent
no silent
Syntax Description
This command has no arguments or keywords.
Defaults
No silent
Command Modes
Linecard Interface Configuration
Usage Guidelines
Authorization: admin
Examples
The following example changes the linecard state to silent.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#interface linecard 0 SCE(config if)#silent SCE(config if)#Related Commands
snmp-server
Enables the SNMP agent. You can use any of the other SNMP-server commands to enable the SNMP agent. Use the no form to disable the SNMP agent from responding to SNMP managers. All SNMP settings are saved and are restored when the SNMP agent is re-enabled.
snmp-server enable
no snmp-server
Syntax Description
This command has no arguments or keywords.
Defaults
disabled
Command Modes
Global Configuration
Usage Guidelines
You must define at least one community string in order to allow SNMP access. For complete information on community strings.
Authorization: admin
Examples
The following example disables the SNMP server.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#no snmp-server SCE(config)#Related Commands
snmp-server community
Sets a community string. Use the no form of the command to remove a community string.
snmp-server community community-string [read-option]
no snmp-server community community-string [read-option]
no snmp-server community all
Syntax Description
Defaults
no SNMP access
Command Modes
Global Configuration
Usage Guidelines
Use the all keyword with the no form of the command to remove all configured communities.
Authorization: admin
Examples
The following example configures an SNMP managers community that has read-only permissions for the SCE platform MIB. Only SNMP managers in access list 1 can access the SCE platform.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#snmp-server community public ro 1 SCE(config)#Related Commands
snmp-server contact
Sets the MIB-2 variable system contact. Use theno form of this command to remove the contact setting.
snmp-server contact contact
no snmp-server contact
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example configures the system contact.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#snmp-server contact Brenda@MyCompany.com SCE(config)#Related Commands
snmp-server enable traps
Enables/disables SNMP traps (only authentication-failure traps and enterprise traps can be controlled using this command). Use thedefault form of this command to reset SNMP traps to the default status.
snmp-server enable traps [snmp [snmp trap name ]] [enterprise [enterprise trap name ]]
no snmp-server enable traps [snmp [snmp trap name ]] [enterprise [enterprise trap name ]]
default snmp-server enable traps [snmp [snmp trap name ]] [enterprise [enterprise trap name ]]
Syntax Description
Defaults
snmp traps: disabled
enterprise traps: enabled
Command Modes
Global Configuration
Usage Guidelines
There are two classes of SNMP traps that are controlled by this command
•
•
The options snmp and enterprise are parameters specifying the class of traps that are to be enabled/disabled by this command. Each class, or type, is composed of specific traps. Use these parameters as follows:
•
•
•
Since, at this time, the only snmp type trap is the authentication trap, the snmp and authentication parameters arecurrently redundant.
Authorization: admin
Examples
The following example configures the SNMP server to send traps.
SCE>enable 10 Password:<cisco> SCE#config SCE(config)#snmp-server enable traps SCE(config)#Related Commands
snmp-server host
Sets destination hosts for SNMP traps.
snmp-server host address [traps] [version version] community-string
no snmp-server host address [traps] [version version] community-string
no snmp-server host all
Syntax Description
Defaults
No hosts
Command Modes
Global Configuration
Usage Guidelines
If no
