Blocking API
This module describes the features and operations of the Blocking API and provides code examples.
This module introduces the Reply Timeout, a feature unique to the Blocking API.
Note
If you only need to develop an automatic integration , skip this module and go directly to the Non-blocking APImodule.
•
•
•
Information About Multi-threading Support
The Blocking API supports a configurable number of threads calling its methods simultaneously. For more information about configuring the number of threads, see the C++ init Method.
Note
Multi-threading Support Example

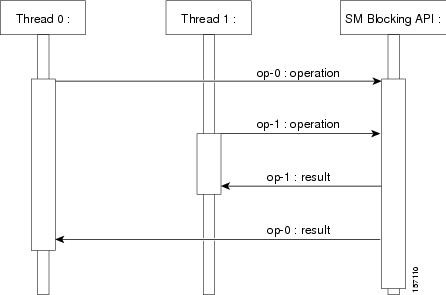

Thread-0 calls operation-0 at time-0, and thread-1 calls operation-1 at time-1, where time-1 is later than time-0. In this example, it is possible that operation-1 may be performed before operation-0, as shown in the following diagram (the vertical scale is time):
Figure 3-1 Multi-threading Support
The SM allocates five threads to handle each API instance. It is recommended to develop a multi-threaded application that uses the API with a number of threads in the order of the five threads. Implementing with more threads might result in longer delays for the calling threads.
Operation Timeout Error Code
A Blocking operation returns only when the operation result has been retrieved from the SM. If a networking malfunction or other error prevents the operation result from being retrieved, the caller will wait indefinitely. The SM API provides means of working around this situation.
The reply timeout feature, the setReplyTimeout method, lets the caller set a timeout. It will return a ReturnCode with the ERROR_CODE_CLIENT_OPERATION_TIMEOUT error when a reply does not return within the timeout period.
Calling the setReplyTimeout function with an int value sets a reply timeout. The reply timeout is interpreted in milliseconds. A zero value indicates that the operation should wait (freeze, hang) until a result arrives - or indefinitely, if no result arrives.
Information About Blocking API Methods
This section lists the methods of the Blocking API. A description of each method's input parameters and return values follows the syntax of each method.
The Blocking API is a superset of the Non-blocking API. Except for differences in return values and result handling, identical operations in both APIs have the same functions and syntax structure.
The C/C++ API share the same function signature, except for the SMB_ prefix for all function names of the Blocking C APIs and the API handle of type SMB_HANDLE as the first parameter in all functions. The function description explains any other differences between the APIs.
The Blocking API subscriber management methods can be classified into the following categories:
•
Note
•
•
–
It is possible to combine methods from different categories in a single application. The classification is presented for clarification purposes only.
•
Note
SmApiBlocking bapi; // Init with default parameters bapi.init(); // Connect to the SM bapi.connect((char*)"1.1.1.1");login
Syntax
ReturnCode* login(char* argName, char** argMappings, MappingType* argMappingTypes, int argMappingsSize, char** argPropertyKeys, char** argPropertyValues, int argPropertySize, char* argDomain, bool argIsAdditive, int argAutoLogoutTime)Description
The login method adds or modifies a domain, mappings, and properties of a subscriber that already exists in the SM database. It can be called with partial data;for example, with only mappings or only properties provided and NULL put in the unchanged fields.
If another subscriber with the same (or colliding) mappings already exists in the same domain, the colliding mappings will be removed from the other subscriber and assigned to the new subscriber.
If the subscriber does not exist in the SM database, it will be created with the data provided.
Parameters
argName —See explanation of Subscriber Name Format, page 2-7.
argMappings —See explanation of mappings and mapping types in the Information About Network ID Mappingssection. If no mappings are specified, and the argIsAdditive flag is TRUE, the previous mappings will be retained. If no such mappings exist, the operation will fail.
argMappingTypes —See explanation of mappings and mapping types in the Information About Network ID Mappingssection.
argMappingsSize —The size of the argMappings and argMappingTypes arrays.
argPropertyKeys —See explanation of property keys and values in the Subscriber Propertiessection.
argPropertyValues —See explanation of property keys and values in the Subscriber Propertiessection.
argPropertySize —The size of the argPropertyKeys and argPropertyValues arrays.
argDomain —See explanation of Subscriber Domains, page 2-8.
If domain is NULL, but the subscriber already has a domain, the existing domain will be retained.
If the domain is different to the domain that was previously assigned to the subscriber, the subscriber will be removed automatically from the SCEs of the previous domain and moved to the SCEs of the new domain.
ArgIsAdditive —Refers to the mappings parameters.
•
•
argAutoLogoutTime —Applies only to mappings provided as arguments to this method.
•
•
•
Return Value
A pointer to a ReturnCode structure with a void type, unless an error has occurred.
Error Codes
The following is the list of error codes that this method might return:
•
•
•
•
•
The following can cause this error:
–
–
For a description of error codes, see List of Error Codes, page A-1.
Example
To add the IP address 192.168.12.5 to an existing subscriber named john without affecting existing mappings:
MappingType map_type = IP_RANGE; char* ip_address = "192.168.12.5"; bapi.login( "john", // subscriber name &ip_address, &map_type, 1, // one mapping NULL, NULL, 0, // no properties "subscribers", // domain true, // isMappingAdditive is true -1); // autoLogoutTime set to infiniteTo add the IP address 192.168.12.5 overriding previous mappings:
MappingType map_type = IP_RANGE; char* ip_address = "192.168.12.5"; bapi.login( "john", // subscriber name &ip_address, &map_type, 1, NULL, NULL,0, "subscribers", // domain false, // isMappingAdditive is false -1); // autoLogoutTime set to infiniteTo extend the auto logout time of 192.168.12.5 that was previously assigned to john :
MappingType map_type = IP_RANGE; char* ip_address = "192.168.12.5"; bapi.login( "john", // subscriber name &ip_address, &map_type, 1, NULL, NULL, 0, "subscribers", // domain false, // isMappingAdditive is false 300); // autoLogoutTime set to 300 secondsTo modify a dynamic property of john (e.g. package ID):
char* prop_name = "packageID"; char* prop_value = "10"; bapi.login( "john", NULL, NULL, 0, &prop_name, // property key &prop_value, // property value 1, // one property "subscribers", // domain false, -1);To add the IP address 192.168.12.5 to an existing subscriber named john without affecting existing mappings and modify a dynamic property of john (e.g. package ID):
MappingType map_type = IP_RANGE; char* ip_address = "192.168.12.5"; char* prop_name = "packageID"; char* prop_value = "10"; bapi.login( "john", &ip_address, &map_type, 1, &prop_name, // property key &prop_value, // property value 1, "subscribers", // domain true, // isMappingAdditive is set to true -1);logoutByName
Syntax
ReturnCode* logoutByName(char* argName, char** argMappings, MappingType* argMappingTypes, int argMappingsSize)Description
Locates the subscriber in the database and removes mappings from the subscriber.
Parameters
argName —See explanation of Subscriber Name Format, page 2-7.
argMappings —See explanation of mappings and mapping types in the Information About Network ID Mappingssection. If no mappings are specified, all the subscriber mappings will be removed.
argMappingTypes —See explanation of mappings and mapping types in the Information About Network ID Mappingssection.
argMappingsSize —The size of the argMappings and argMappingTypes arrays.
Return Value
A pointer to a ReturnCode structure with a Boolean type:
•
•
Error Codes
The following is the list of error codes that this method might return:
•
•
•
•
•
•
For a description of error codes, see List of Error Codes, page A-1.
Example
To remove IP address 192.168.12.5 from subscriber john :
MappingType map_type = IP_RANGE; char* ip_address = "192.168.12.5"; bapi.logoutByName( "john", &ip_address, &map_type, 1);To remove all IP addresses from subscriber john :
bapi.logoutByName("john", NULL, NULL,0);logoutByNameFromDomain
Syntax
ReturnCode* logoutByNameFromDomain (char* argName, char** argMappings, MappingType* argMappingTypes, int argMappingsSize, char* argDomain)Description
Locates the subscriber in the database according to the specified domain and removes mappings from the subscriber.
Parameters
argName —See explanation of Subscriber Name Format, page 2-7.
argMappings —See explanation of mappings and mapping types in the Information About Network ID Mappingssection. If no mappings are specified, all the subscriber mappings will be removed.
argMappingTypes —See explanation of mappings and mapping types in the Information About Network ID Mappingssection.
argMappingsSize —The size of the argMappings and argMappingTypes arrays.
argDomain —See explanation of Subscriber Domains, page 2-8.
The operation will fail if either of the following conditions exists:
•
•
Return Value
A pointer to a ReturnCode structure with a Boolean type:
•
•
Error Codes
The following is the list of error codes that this method might return:
•
•
•
•
•
•
For a description of error codes, see List of Error Codes, page A-1.
Example
To remove IP address 192.168.12.5 of subscriber john from domain subscribers :
MappingType map_type = IP_RANGE; char* ip_address = "192.168.12.5"; bapi.logoutByNameFromDomain( "john", &ip_address, &map_type, 1, "subscribers");To remove all IP addresses of subscriber john from domain subscribers :
bapi.logoutByNameFromDomain( "john", NULL, NULL, 0, "subscribers");logoutByMapping
Syntax
ReturnCode* logoutByMapping( char* argMapping, MappingType argMappingType, char* argDomain)Description
Locates a subscriber based on domain and mapping, and removes the subscriber mappings. The subscriber remains in the database.
Parameters
argMapping —See explanation of mappings and mapping types in the Information About Network ID Mappingssection.
argMappingType —See explanation of mappings and mapping types in the Information About Network ID Mappingssection.
argDomain —See description in the Parameterssection of the logoutByNameFromDomain method..
Return Value
A pointer to a ReturnCode structure with a Boolean type:
•
•
Error Codes
The following is the list of error codes that this method might return:
•
•
•
•
•
•
For a description of error codes, see List of Error Codes, page A-1.
Example
To remove IP address 192.168.12.5 from domain subscribers :
bapi.logoutByMapping( "192.168.12.5", IP_RANGE, "subscribers");loginCable
Syntax
ReturnCode* loginCable(char* argCpe, char* argCm, char* argIp, int argLease, char* argDomain, char** argPropertyKeys, char** argPropertyValues, int argPropertySize)Description
A login method adapted for the cable environment, which calls the cable support module in the SM. This method logs in CPEs to the SM. To log in a CM, specify the CM MAC address in both CPE and CM arguments. For additional information, see the "Cable Environment" Appendix of the Cisco SCMS Subscriber Manager User Guide .
Note
Parameters
argCpe —A unique identifier of the CPE (usually a MAC address).
argCm —A unique identifier of the cable modem (usually a MAC address).
argIp —The CPE IP address.
argLease —The CPE lease time.
argDomain —See explanation of Subscriber Domains, page 2-8.
The domain will usually be CMTS IP.
Note
argPropertyKeys —See explanation of the keys and values in the Subscriber Propertiessection. If the CPE is provided with partial or no application properties, the values for the missing application properties will be copied from the application properties of the CM to which this CPE belongs. Each CM application property thus serves as a default for the CPE under it.
argPropertyValues —See explanation of the keys and values in the Subscriber Propertiessection.
argPropertySize —The size of the argPropertyKeys and argPropertyValues arrays.
Return Value
A pointer to a ReturnCode structure with a void type.
Error Codes
None.
Examples
To add the IP address 192.168.12.5 to a CM called CM1 with 2 hours lease time:
bapi.loginCable( "CM1", "CM1", "192.168.12.5", 7200,// lease time in seconds "subscribers", NULL, NULL, 0); // no propertiesTo add the IP address 192.168.12.50 to a CPE called CPE1 behind CM1 with a lease time of 1 hour:
bapi.loginCable( "CPE1", "CM1", "192.168.12.50", 3600,// lease time in seconds "subscribers", NULL, NULL, 0);logoutCable
Syntax
ReturnCode* logoutCable(char* argCpe, char* argCm, char* argIp, char* argDomain)Description
Indicates a logout (CPE becoming offline) event to the SM cable support module.
Parameters
argCpe —See description in the Parameterssection of the loginCable method.
argCm —See description in the Parameterssection of the loginCable method.
argIp —See description in the Parameterssection of the loginCable method.
argDomain —See description in the Parameterssection of the loginCable method.
Return Value
A pointer to a ReturnCode structure with a Boolean type:
•
•
Error Codes
None.
Examples
To remove the IP address 192.168.12.5 from CPE1 that is behind CM1 :
bool isExist = bapi.logoutCable( "CPE1", "CM1", "192.168.12.5", "subscribers");addSubscriber
Syntax
ReturnCode* addSubscriber( char* argName, char** argMappings, MappingType* argMappingTypes, int argMappingsSize, char** argPropertyKeys, char** argPropertyValues, int argPropertySize, char** argCustomPropertyKeys, char** argCustomPropertyValues, int argCustomPropertySize, char* argDomain)Description
Creates a new subscriber record according to the given data and adds it to the SM database. If a subscriber by this name already exists, it will be removed before the new one is added. In contrast to login , which modifies fields passed to it and leaves unspecified fields unchanged, addSubscriber sets the subscriber exactly as specified by the parameters passed to it.
Note
Note
Example:
Subscriber AB , already set up in the subscriber database, has a single IP mapping of IP1 .
If an addSubscriber operation for AB is called with no mappings specified (NULL in both the mappings and mappingTypes fields), AB will be left with no mappings.
However, calling a login operation with these NULL-value parameters will not change AB 's mappings; AB will still have its previous IP mapping of IP1 .
Parameters
argName —See explanation of Subscriber Name Format, page 2-7.
argMappings —See explanation of mappings and mapping types in the Information About Network ID Mappingssection.
argMappingTypes —See explanation of mappings and mapping types in the Information About Network ID Mappingssection.
argMappingsSize —The size of the argMappings and argMappingTypes arrays.
argPropertyKeys —See explanation of property keys and values in the Subscriber Propertiessection.
argPropertyValues —See explanation of property keys and values in the Subscriber Propertiessection.
argPropertySize —The size of the argPropertyKeys and argPropertyValues arrays.
argCustomPropertyKeys —See explanation of custom property keys and values in the Custom Properties.
argCustomPropertyValues —See explanation of custom property keys and values in the Custom Properties.
argPropertySize —The size of the argCustomPropertyKeys and argCustomPropertyValues arrays.
argDomain —See explanation of Subscriber Domains, page 2-8.
A NULL value indicates that the subscriber is domain-less.
Return Value
A pointer to a ReturnCode structure with a void type.
Error Codes
The following is the list of error codes that this method might return:
•
•
•
•
•
•
•
This error code indicates that invalid values were supplied for the propertyValues parameter.
For a description of error codes, see List of Error Codes, page A-1.
Example
To add a new subscriber, john , with custom properties:
char* propKeys[] = { "work_phone", "home_phone" }; char *propValues[] = { "123456", "898765" }; bapi.addSubscriber( "john", NULL, NULL, 0,// dynamic mappings will be set by login NULL, NULL, 0,// dynamic properties will be set by login propKeys, propValues, 2,// 2 custom properties "subscribers"); // default domainremoveSubscriber
Syntax
ReturnCode* removeSubscriber(char* argName)Description
Removes a subscriber completely from the SM database.
Parameters
argName —See explanation of Subscriber Name Format, page 2-7.
Return Value
A pointer to a ReturnCode structure with a Boolean type:
•
•
Error Codes
The following is the list of error codes that this method might return:
•
•
•
For a description of error codes, see List of Error Codes, page A-1.
Example
To remove subscriber john entirely from the database:
bapi.removeSubscriber("john");removeAllSubscribers
Syntax
ReturnCode* removeAllSubscribers()Description
Removes all subscribers from the SM, leaving the database with no subscribers.
Note
Return Value
A pointer to a ReturnCode structure with a void type.
Error Codes
None.
getNumberOfSubscribers
Syntax
ReturnCode* getNumberOfSubscribers()Description
Retrieves the total number of subscribers in the SM database.
Return Value
A pointer to a ReturnCode structure holding an integer describing the number of subscribers in the SM.
Error Codes
None.
getNumberOfSubscribersInDomain
Syntax
ReturnCode* getNumberOfSubscribersInDomain(char* argDomain)Description
Retrieves the number of subscribers in a subscriber domain.
Parameters
argDomain —A name of a subscriber domain that exists in the SM's domain repository.
Return Value
A pointer to a ReturnCode structure holding an integer describing the number of subscribers in the domain provided.
Error Codes
The following is the list of error codes that this method might return:
•
•
For a description of error codes, see List of Error Codes, page A-1.
getSubscriber
Syntax
ReturnCode* getSubscriber(char* argName)Description
Retrieves a subscriber record. Each field is formatted as an integer, string, or string array, as described in the Return Value section for this method. If the subscriber does not exist in the SM database, an exception will be thrown.
Parameters
argName —See explanation of Subscriber Name Format, page 2-7.
Return Value
A pointer to a ReturnCode structure holding an array of ReturnCode structures with nine elements. No array element is NULL.
The following list is the element values and their meanings:
Error Codes
The following is the list of error codes that this method might return:
•
•
For a description of error codes, see List of Error Codes, page A-1.
Example
To retrieve the subscriber record of john :
ReturnCode* sub = bapi.getSubscriber("john"); // sub name char* name = sub->u.objectArray[0]->u.stringVal; // sub mapping char** mappings = sub->u.objectArray[1]->u.stringArrayVal; // mappings types short* types = sub->u.objectArray[2]->u.shortArrayVal; char* domainName = (char*)sub->u.objectArray[3]->u.stringVal; char** propertyNames = (char**)sub->u.objectArray[4]->u.stringArrayVal; char** propertyValues = (char**)sub->u.objectArray[5]->u.stringArrayVal; char** customPropertyName = (char**)sub->u.objectArray[6]->u.stringArrayVal; char** customPropertyValues = (char**)sub->u.objectArray[7]->u.stringArrayVal; long* autoLogoutTime = sub->u.objectArray[8]->u.longArrayVal;subscriberExists
Syntax
ReturnCode* subscriberExists(char* argName)Description
Verifies that a subscriber exists in the SM database.
Parameters
argName —See explanation of Subscriber Name Format, page 2-7.
Return Value
A pointer to a ReturnCode structure with a Boolean type:
•
•
Error Codes
None.
subscriberLoggedIn
Syntax
ReturnCode* subscriberLoggedIn(char* argName)Description
Checks whether a subscriber that already exists in the SM database is logged in; i.e., if the subscriber also exists in an SCE database.
When the SM is configured to work in Pull mode , a TRUE value returned by this method does not guarantee that the subscriber actually exists in an SCE database, but rather that the subscriber is available to be pulled by an SCE if needed.
If the subscriber does not exist in the SM database, an exception will be thrown.
Parameters
argName —See explanation of Subscriber Name Format, page 2-7.
Return Value
A pointer to a ReturnCode structure with a Boolean type:
•
•
Error Codes
The following is the list of error codes that this method might return:
•
•
For a description of error codes, see List of Error Codes, page A-1.
getSubscriberNameByMapping
Syntax
ReturnCode* getSubscriberNameByMapping(char* argMapping, MappingType argMappingType, char* argDomain)Description
Finds a subscriber name according to a mapping and a domain.
Parameters
argMapping —See explanation of mappings and mapping types in the Information About Network ID Mappingssection.
argMappingType —See explanation of mappings and mapping types in the Information About Network ID Mappingssection.
argDomain —The name of the domain to which the subscriber belongs. The operation will fail if either of the following conditions exists:
•
•
Return Value
A pointer to a ReturnCode structure with a String ( char* ) type:
•
•
Error Codes
The following is the list of error codes that this method might return:
•
•
•
•
For a description of error codes, see List of Error Codes, page A-1.
getSubscriberNames
Syntax
ReturnCode* getSubscriberNames(char* argFirstName, int argAmount)Description
Gets a bulk of subscriber names from the SM database, starting with argFirstName followed by the next argAmount subscribers (in alphabetical order).
If argFirstName is NULL, the (alphabetically) first subscriber name that exists in the SM database will be used.
Note
Parameters
argFirstName —Last subscriber name from last bulk (first name to look for). Use NULL to start with the first (alphabetic) subscriber.
argAmount —Limit on the number of subscribers that will be returned. If this value is higher than the SM limit (1000), the SM limit will be used.
Note
Return Value
A pointer to a ReturnCode structure with a String Array ( char** ) holding a list of subscriber names ordered alphabetically.
The method will return as many subscribers as are found in the SM database, starting at the requested subscriber. The lower value of argAmount and the SM limit (1000) limits the array size.
Error Codes
The following is the list of error codes that this method might return:
•
•
For a description of error codes, see List of Error Codes, page A-1.
Example
To receive an alphabetical list of subscriber names:
bool hasMoreSubscribers; char* lastBulkEnd = NULL; char tmpName[50]; int bulkSize = 100; do { ReturnCode* subscribers = smApi.getSubscriberNames(lastBulkEnd,bulkSize); hasMoreSubscribers = false; if ((isReturnCodeError(subscribers) == false) && (subscribers->type == STRING_ARRAY_T) &&(subscribers->u.stringArrayVal != NULL)) { for (int i = 0; i <subscribers->size; i++) { // do something with subscribers->u.stringArrayVal[i] } if (subscribers->size == bulkSize) { hasMoreSubscribers = true; strcpy (tmpName, subscribers->u.stringArrayVal[bulkSize - 1]); lastBulkEnd = tmpName; } } freeReturnCode(subscribers); } while (hasMoreSubscribers);getSubscriberNamesInDomain
Syntax
ReturnCode* getSubscriberNamesInDomain( char* argFirstName, int argAmount, char* argDomain)Description
Retrieves subscribers from the SM database that are associated with the specified domain.
The function of this operation is the same as the getSubscriberNamesoperation.
Parameters
argFirstName —See description in the Parameterssection of the getSusbcriberNames operation.
argAmount —See description in the Parameterssection of the getSusbcriberNames operation.
argDomain —The name of a subscriber domain that exists in the SM domain repository.
Return Value
An alphabetically ordered array of subscriber names that belong to the specified domain.
See the Return Valuesection of the getSusbcriberNames operation for more information.
Error Codes
The following is the list of error codes that this method might return:
•
•
•
For a description of error codes, see List of Error Codes, page A-1.
getSubscriberNamesWithPrefix
Syntax
ReturnCode* getSubscriberNamesWithPrefix(char* argFirstName, int argAmount, char* argPrefix)Description
Retrieves subscribers from the SM database whose names begin with a specified prefix.
The function of this operation is the same as the getSubscriberNamesoperation.
Parameters
argFirstName —See description in the Parameterssection of the getSusbcriberNames operation.
argAmount —See description in the Parameterssection of the getSusbcriberNames operation.
argPrefix —A case-sensitive string that marks the prefix of the required subscriber names.
Return Value
An alphabetically ordered array of subscriber names that start with the prefix required.
See the Return Valuesection of the getSusbcriberNames operation for more information.
Error Codes
The following is the list of error codes that this method might return:
•
•
For a description of error codes, see List of Error Codes, page A-1.
getSubscriberNamesWithSuffix
Syntax
ReturnCode* getSubscriberNamesWithSuffix(char* argFirstName, int argAmount, char* argSuffix)Description
Retrieves subscribers from the SM database whose names end with the specified suffix.
The function of this operation is the same as the getSubscriberNamesoperation.
Parameters
argFirstName —See description in the Parameterssection of the getSusbcriberNames operation.
argAmount —See description in the Parameterssection of the getSusbcriberNames operation.
argSuffix —A case-sensitive string that marks the suffix of the required subscriber names.
Return Value
An alphabetically ordered array of subscriber names that end with the suffix required.
See the Return Valuesection of the getSusbcriberNames operation for more information.
Error Codes
The following is the list of error codes that this method might return:
•
•
For a description of error codes, see List of Error Codes, page A-1.
getDomains
Syntax
ReturnCode* getDomains()Description
Provides a list of current subscriber domains in the SM domain repository.
Return Value
A pointer to a ReturnCode structure with a String Array ( char** ) holding a complete list of subscriber domain names in the SM.
Error Codes
None.
setPropertiesToDefault
Syntax
ReturnCode* setPropertiesToDefault(char* argName, char** argPropertyKeys, int argPropertySize)Description
Resets the specified application properties of a subscriber. If an application is installed, the relevant application properties will be set to the default value of the properties according to the currently loaded application information. If an application is not installed, an ERROR_CODE_ILLEGAL_STATE error code is returned.
Parameters
argName —See explanation of Subscriber Name Format, page 2-7.
argPropertyKeys —See explanation of property keys and values in the Subscriber Propertiessection.
argPropertySize —The size of the argPropertyKeys array.
Return Value
A pointer to a ReturnCode structure with a void type.
Error Codes
The following is the list of error codes that this method might return:
•
•
•
•
•
•
For a description of error codes, see List of Error Codes, page A-1.
removeCustomProperties
Syntax
ReturnCode* removeCustomProperties(char* argName, char** argCustomPropertyKeys, int argCustomPropertySize)Description
Resets the specified custom properties of a subscriber.
Parameters
argName —See explanation of Subscriber Name Format, page 2-7.
argCustomPropertyKeys —See explanation of custom property keys and values in the Custom Propertiessection.
argCustomPropertySize —The size of the argCustomPropertyKeys array.
Return Value
A pointer to a ReturnCode structure with a void type.
Error Codes
The following is the list of error codes that this method might return:
•
•
•
For a description of error codes, see List of Error Codes, page A-1.
C++ setLogger Method
Syntax
void setLogger(Logger *argLogger)Description
Sets an implementation of the abstract Logger class. Use this method to integrate the SM API log messages with the host application log.
Parameters
argLogger —An implementation of the abstract Logger class.
Return Value
None.
C++ init Method
Syntax
Bool init(int argSupportedThreads, int argThreadPriority, Uint32 argBufferSize, Uint32 argKeepAliveDuration, Uint32 argConnectionTimeout, Uint32 argReconnectTimeout)Description
Configures and initializes the API.
Note
Parameters
argSupportedThreads —The number of threads the API should support.
argThreadPriority —The priority for the PRPC protocol network thread.
argBufferSize —The internal buffer size (for default use 2000000 (2,000,000) bytes).
argKeepAliveDuration —A hint regarding the wanteddelay between PRPC protocol keep-alive messages (default use 10 seconds).
argConnectionTimeout —A hint regarding the wanted timeout on a non-responding PRPC protocol connection (for default use 20 seconds).
argReconnectTimeout —When the connection to the SM is down, the API will attempt to re-establish the connection after this timeout.
Return Value
Boolean value:
•
•
Example
SmBlockingApi bapi; bool success = bapi.init(10, 0, 2000000, //default 10, //default 20, //default 0); //default (no reconnect)C SMB_init Function
Syntax
SMB_HANDLE SMB_init ( int argSupportedThreads, int argThreadPriority, Uint32 argBufferSize, Uint32 argKeepAliveDuration, Uint32 argConnectionTimeout)Description
Allocates, configures, and initializes the API.
Note
Parameters
argSupportedThreads —The number of threads the API should support.
argThreadPriority —The priority for the PRPC protocol network thread.
argBufferSize —The internal buffer size (default use 2000000 (2,000,000) bytes).
argKeepAliveDuration —A hint regarding the wanted delay between PRPC protocol keep-alive messages (default use 10 seconds).
argConnectionTimeout —A hint regarding the wanted timeout on a non-responding PRPC protocol connection (for default use 20 seconds).
Return Value
SMB_HANDLE handle to the API. If the handle equals NULL, the initialization failed. Otherwise, a non-NULL value is returned.
Example
SMB_HANDLE api; // initialize an API api = SMB_init(10, // 10 threads 0, 300000, // 3,000,000 bytes 10, // default 30); // 30 sec connection timeoutC SMB_release Function
Syntax
void SMB_release(SMB_HANDLE argApiHandle)Description
Releases the resources used by the API. This function must be called at the end of the use of the API.
Parameters
argApiHandle —The API handle received using the SMB_init function.
Return Value
None.
setReconnectTimeout
Syntax
void setReconnectTimeout(Uint32 reconnectTimeout)Description
Sets the reconnection timeout.
When the connection to the SM is down, the API will attempt to re-establish the connection after 'reconnection timeout' seconds.
Parameters
reconnectTimeout —The timeout.
Return Value
None.
setName
Syntax
void setName(char *argName)Description
Sets the name of the API, which serves as a unique identifier for the API-SM connection. The setName function should be called before calling the connect method.
Parameters
argName —The API name.
Return Value
None.
connect
Syntax
bool connect(char* argHostName, Uint16 argPort = 14374)Description
Attempts to establish a PRPC protocol connection to the SM.
Parameters
argHostName —The SM IP-Address or hostname.
argPort —TCP port to connect the SM on (default is 14374).
Return Value
Boolean value:
•
•
disconnect
Syntax
bool disconnect()Description
Attempts to terminate the PRPC protocol connection to the SM.
Return Value
Boolean value:
•
•
isConnected
Syntax
bool isConnected();Description
Checks whether the PRPC protocol connection to the SM is up and running.
Return Value
Boolean value:
•
•
Blocking API C++ Code Examples
This section provides two code examples:
•
•
•
•
Getting Number of Subscribers
The following example prints to stdout the total number of subscribers in the SM database and the number of subscribers in each subscriber domain.
#include "SmApiBlocking.h" #include <stdio.h> int main(int argc, char* argv[]) { SmApiBlocking bapi; //initiation bapi.init(); bapi.setReplyTimeout(300000); //set timeout for 5 minutes bapi.connect(argv[1]); // connect to the SM //operations ReturnCode* domains = bapi.getDomains(); ReturnCode* totalSubscribers=bapi.getNumberOfSubscribers(); if ((isReturnCodeError(domains) == false) && (isReturnCodeError(totalSubscribers) == false)) { printf("number of susbcribers in the database:\t\t %d\n", totalSubscribers->u.intVal); for (int i=0; i<domains->size; i++) { ReturnCode* numberOfSusbcribersInDomain= bapi.getNumberOfSubscribersInDomain( domains->u.stringArrayVal[i]); if (isReturnCodeError(numberOfSusbcribersInDomain) == false) { printf("number of susbcribers domain %s:\t\t%d\n", domains->u.stringArrayVal[i], numberOfSusbcribersInDomain->u.intVal); } freeReturnCode (numberOfSusbcribersInDomain); } } freeReturnCode (domains); freeReturnCode (totalSubscribers); //finalization bapi.disconnect(); return 0; }Adding a Subscriber, Printing Information, Removing a Subscriber
The following program adds a subscriber to the subscriber database, retrieves the subscriber information, prints it to stdout, and removes the subscriber from the subscriber database.
#include "SmApiBlocking.h" #include <stdio.h> int main(int argc, char* argv[]) { checkArguments(argc,argv); SmApiBlocking bapi; //initiation bapi.init(); bapi.setReplyTimeout(10000); //set timeout for 10 seconds bapi.connect(argv[1]); // connect to the SM //add subscriber printf("adding subscriber to SM\n"); MappingType type = IP_RANGE; char* customKey = "custom-key"; char* customVal = "10"; ReturnCode* ret = bapi.addSubscriber( argv[2], // name &(argv[3]),// mapping &type, // mapping type 1, // one mapping &(argv[4]),// property key &(argv[5]),// property value 1, // number of properties &customKey,//custom property key &customVal,//custom property value 1, // number of custom properties argv[6]); //domain freeReturnCode (ret); //Print subscriber printf("Printing subscriber:\n"); ReturnCode* subfields = bapi.getSubscriber(argv[1]); if (isReturnCodeError(subfields) == false) { printf("\tname:\t\t%s\n", subfields->u.objectArray[0]->u.stringVal); printf("\tmapping:\t%s\n", subfields->u.objectArray[1]->u.stringArrayVal[0]); printf("\tdomain:\t\t%s\n", subfields->u.objectArray[3]->u.stringVal); printf("\tautologout:\t%d\n", subfields->u.objectArray[8]->u.intVal); // Remove subscriber printf("removing subscriber from SM\n"); bapi.removeSubscriber(argv[1]); } else { printf("error in subscriber retrieval\n"); } freeReturnCode(subfields); //finalization bapi.disconnect(); return 0; } void checkArguments(int argc, char* argv[]) { if (argc != 7) { printf("usage: AddPrintRemove <SM-address><subscriber-name>" "<IP mapping><property-key><property-value><domain>"); exit(1); } }Blocking API C Code Examples
This section provides two code examples:
•
•
•
•
Getting Number of Subscribers
The following example prints to stdout the total number of subscribers in the SM database and the number of subscribers in each subscriber domain.
#include "SmApiBlocking_c.h" #include <stdio.h> int main(int argc, char* argv[]) { //initiation SMB_HANDLE bapi = SMB_init(10,0,2000000,10,20); if (bapi == NULL) { // init failure return -1; } SMB_setReplyTimeout(bapi,300000); //set timeout for 5 minutes SMB_connect(bapi,argv[1],14374); // connect to the SM //operations ReturnCode* domains = SMB_getDomains(bapi); ReturnCode* totalSubscribers= SMB_getNumberOfSubscribers(bapi); if ((isReturnCodeError(domains) == false) && (isReturnCodeError(totalSubscribers) == false)) { printf("number of susbcribers in the database:\t\t %d\n", totalSubscribers->u.intVal); for (int i=0; i<domains->size; i++) { ReturnCode* numberOfSusbcribersInDomain= SMB_getNumberOfSubscribersInDomain(bapi, domains->u.stringArrayVal[i]); if(isReturnCodeError(numberOfSusbcribersInDomain) == false { printf("number of susbcribers domain %s:\t\t%d\n", domains->u.stringArrayVal[i], numberOfSusbcribersInDomain->u.intVal); } freeReturnCode (numberOfSusbcribersInDomain); } } freeReturnCode (domains); freeReturnCode (totalSubscribers); //finalization SMB_disconnect(bapi); SMB_release(bapi); return 0; }Adding a Subscriber, Printing Information, Removing a Subscriber
The following program adds a subscriber to the subscriber database, retrieves the subscriber information, prints it to stdout , and removes the subscriber from the subscriber database.
#include "SmApiBlocking_c.h" #include <stdio.h> int main(int argc, char* argv[]) { checkArguments(argc,argv); //initiation SMB_HANDLE bapi = SMB_init(10,0,2000000,10,20); if (bapi == NULL) { // init failure return -1; } SMB_setReplyTimeout(bapi,10000); //set timeout for 10 seconds SMB_connect(bapi,argv[1], 14374);// connect to the SM //add subscriber printf("adding subscriber to SM\n"); MappingType type = IP_RANGE; char* customKey = "custom-key"; char* customVal = "10"; ReturnCode* ret = SMB_addSubscriber( bapi, // handle argv[2], // name &(argv[3]), // mapping` &type, // mapping type 1, // one mapping &(argv[4]), // property key &(argv[5]), // property value 1, // number of properties &customKey, //custom property key &customVal, //custom property value 1, // number of custom properties argv[6]); //domain freeReturnCode (ret); //Print subscriber printf("Printing subscriber:\n"); ReturnCode* subfields = SMB_getSubscriber(bapi,argv[2]); if (isReturnCodeError(subfields) == false) { printf("\tname:\t\t%s\n", subfields->u.objectArray[0]->u.stringVal); printf("\tmapping:\t%s\n", subfields->u.objectArray[1]->u.stringArrayVal[0]); printf("\tdomain:\t\t%s\n", subfields->u.objectArray[3]->u.stringVal); printf("\tautologout:\t%d\n", subfields->u.objectArray[8]->u.intVal); // Remove subscriber printf("removing subscriber from SM\n"); SMB_removeSubscriber(bapi,argv[2]); } else { printf("error in subscriber retrieval\n"); } freeReturnCode(subfields); //finalization SMB_disconnect(bapi); SMB_release(bapi); return 0; } void checkArguments(int argc, char* argv[]) { if (argc != 7) { printf("usage: AddPrintRemove <SM-address><subscriber-name>" "<IP mapping><property-key><property-value><domain>"); exit(1); } }
