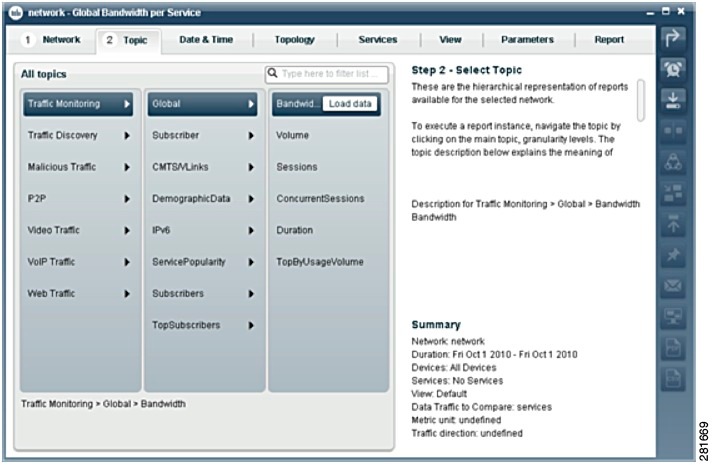

Topic
Date and Time
Topology
Services

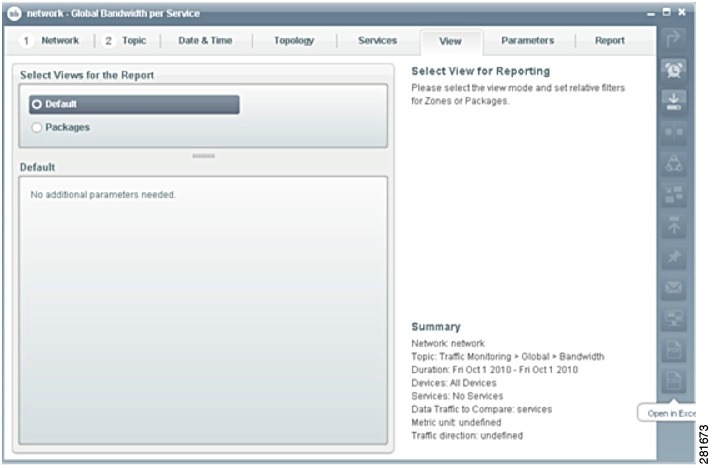

View

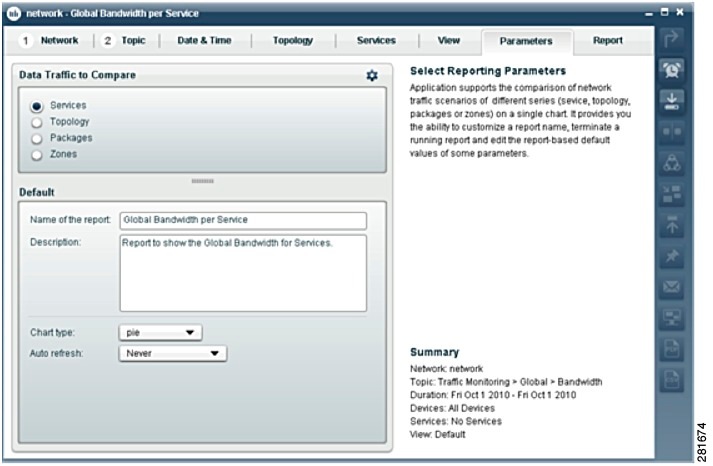

Parameter

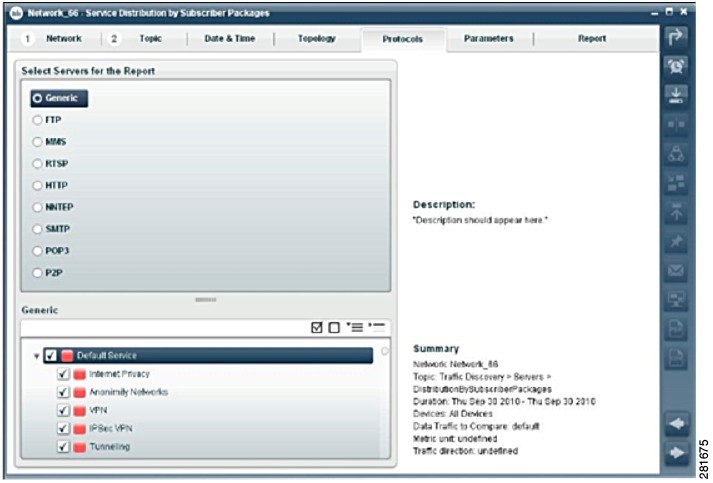

Protocols

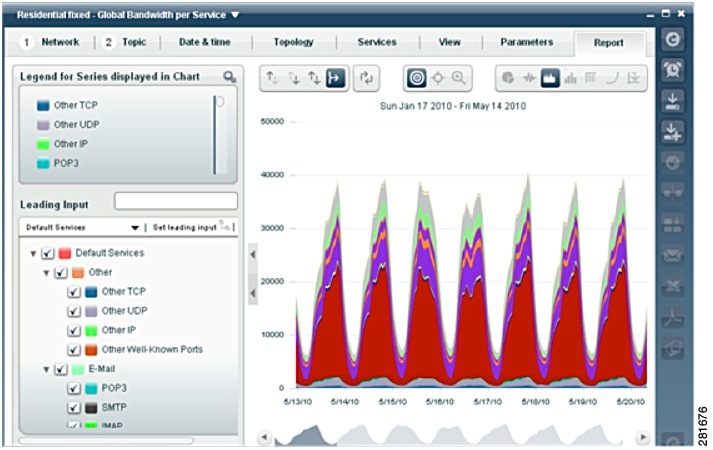

Running an Interactive Report
Chart

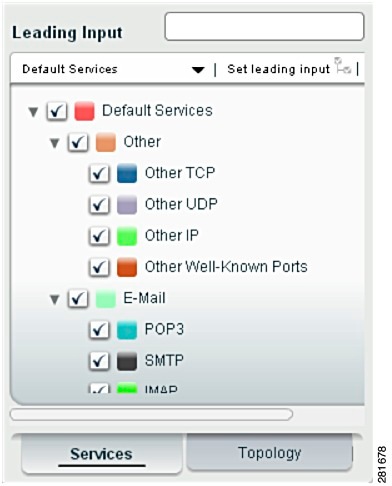

Leading Input

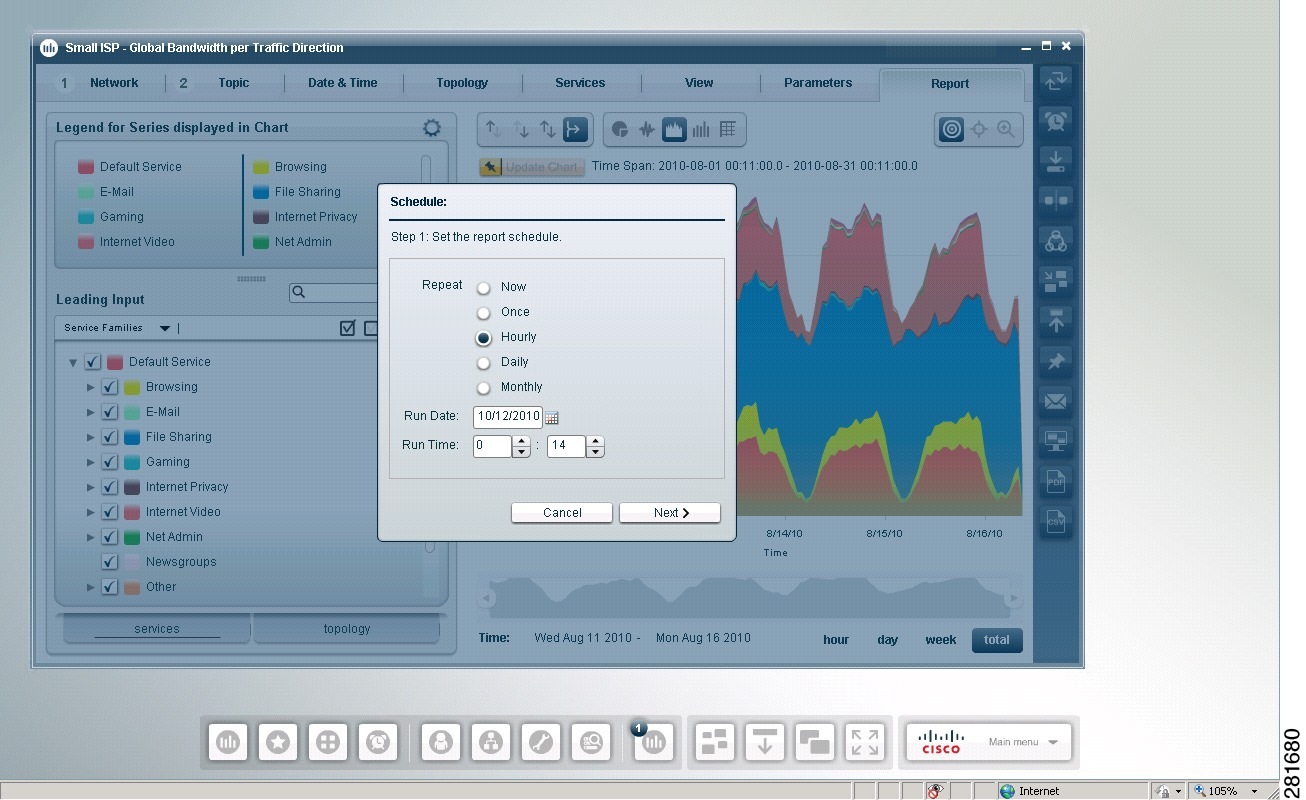

Scheduling a Report
Saving a Report
Exporting Report Output
My Favorites
Sharing a Report Definition
Duplicating a Report Definition
Report Gallery

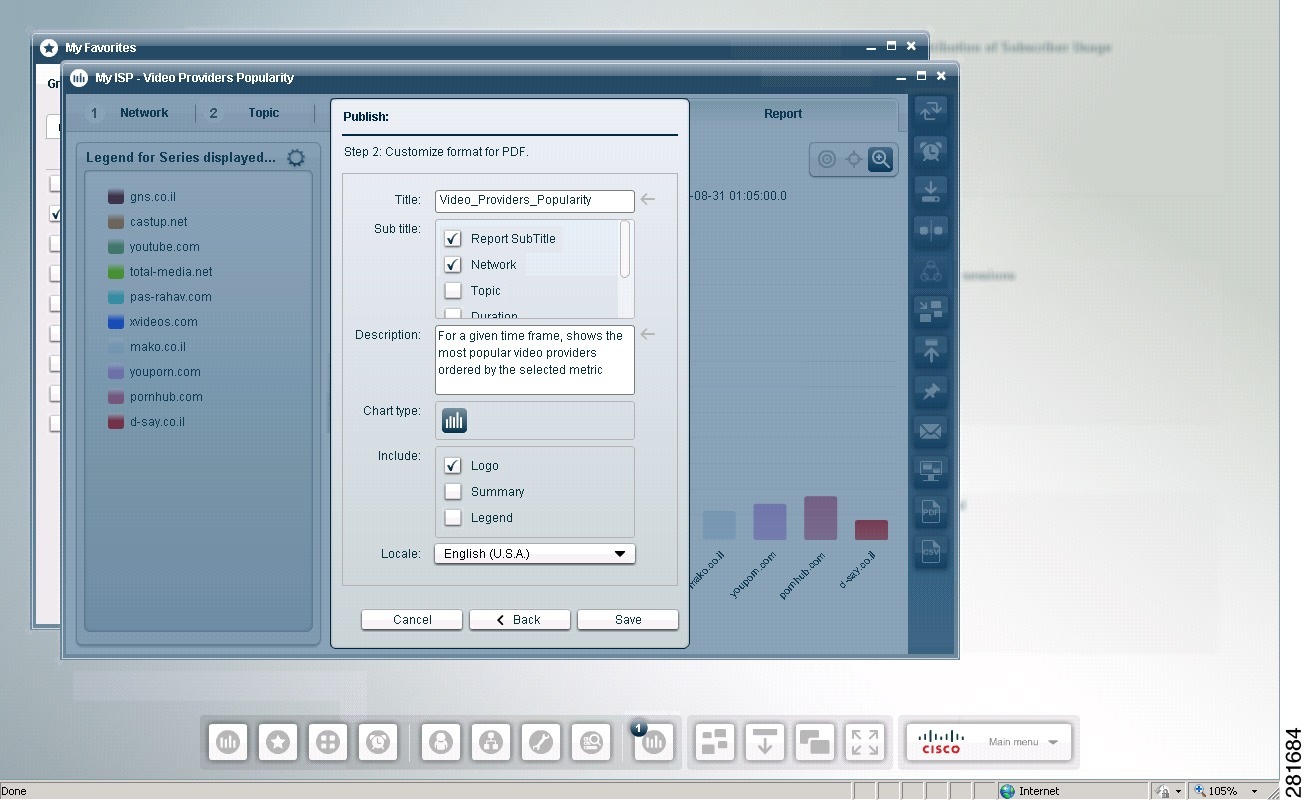

Publish a Report Output
Remember a Report

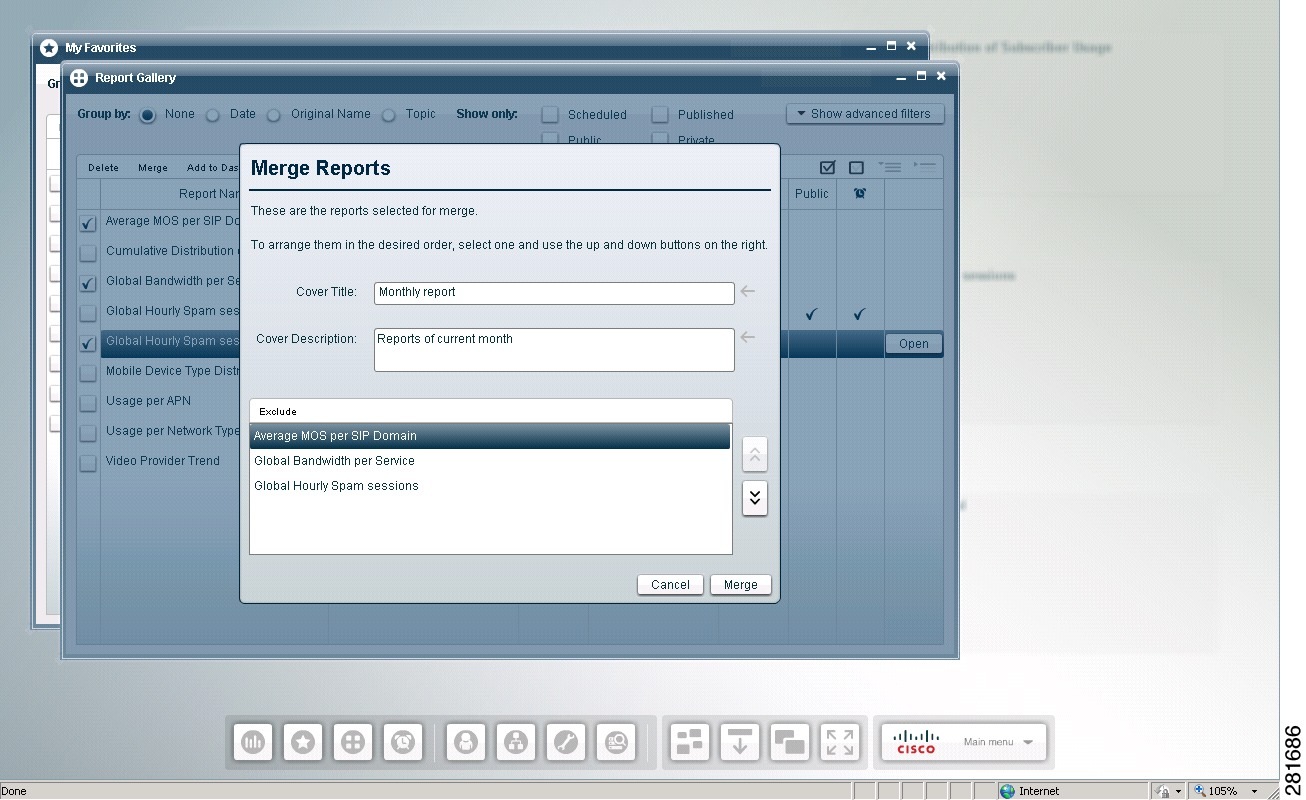

Merging a Reports
Scheduled Reports
Deleting a Scheduled Report

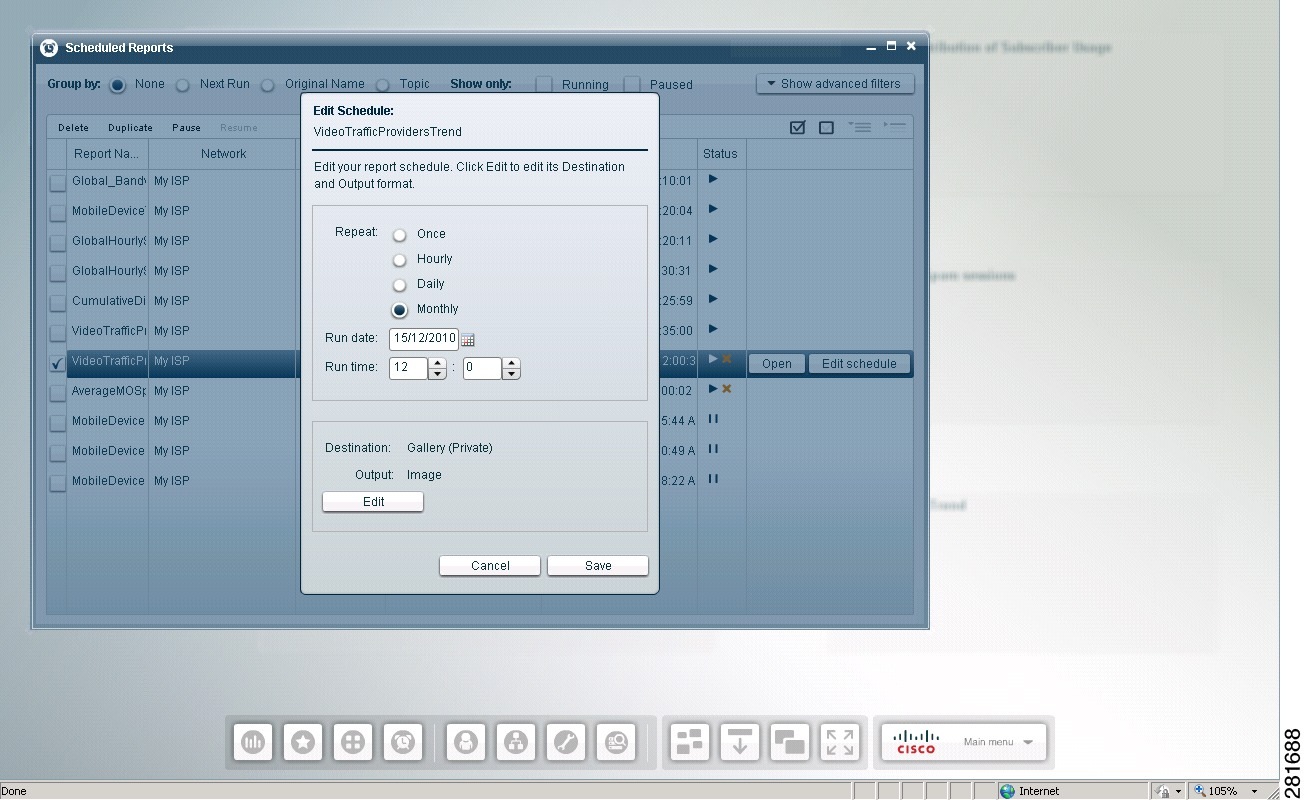

Editing a Scheduled Report
Reporting
Revised: December 22, 2010, OL-24156-01
Introduction
This chapter describes how a user can run interactive report, save and share report, schedule recurring reports, view and customize a dashboard or share results.
This chapter contains the following sections:
•
Report Topics
•Running Reports
•My Favorites
•Report Gallery
•Scheduled Reports
Cisco Insight v2 Reporting provides a series of actions allowing users to run interactive reports, save and share report definitions, schedule recurring reports, view and customize a dashboard or share results.
It significantly enhances the application usability because users are gradually driven to their preferred reporting information. The wizard guides you through step-by-step procedure where all mandatory and optional parameters can be populated. You can run, schedule, or save your report.
This new approach has several benefits:
•It hides the complexity of the original template, structured as a list of report groups, each based on specific traffic tables.
•It reduces the redundancy of similar reports spread across the template.
•It creates a friendly interface for operators not having a deep knowledge of the SCE environment.
To access and display the report parameters, click the Report Wizard icon on the module launcher.
Report Topics
This tab represents the different report topics available on the official Cisco Insight v2 template.
The report topics are organized in the following report groups:
•P2P Group
•Traffic Monitoring Group
•Video
•VoIP
•Web
•Traffic Discovery Reports
•Malicious Traffic
P2P Group
The P2P group presents some statistics about peer-to-peer traffic.
P2P reports cannot be generated using data collected from the SCE platform running in Asymmetric Routing Classification mode.
Consumers
The Consumers group includes the following report topics:
Report Metrics
|
Report Topic Name
|
Description
|
Top
|
Top P2P Consumers
|
For a given time frame, shows the most popular P2P consumers for selected domains ordered by traffic volume.
|
Top
|
Top P2P Downloader
|
For a given time frame, shows the most popular P2P download consumers.
|
Top
|
Top P2P Uploaders
|
For a given time frame, shows the most popular P2P upload consumers.
|
Protocols
The Protocols group includes the following report topics:
Report Topic Name
|
Description
|
Top P2P Protocols
|
For a given time frame, shows the most popular P2P protocols for selected domains ordered by traffic volume.
|
Traffic Monitoring Group
CMTS/VLinks
The CMTS/VLinks group of report topics provides statistics of bandwidth or volume of traffic used by a virtual link. The reports are provided per service usage counter for the total volume used by the virtual link. The volume consumption can be displayed per service for the virtual link.
The reports cannot be generated using data collected from an SCE platform running in Asymmetric Routing Classification mode.
The CMTS/VLinks group includes the following report topics:
Report Metrics
|
Report Topic Name
|
Description
|
Bandwidth
|
Daily peak BW for VLinks
|
For a given time frame, shows the value per day of the maximum one-hour to two-hour bandwidth for specific VLinks.
|
Top VLinks by Volume
|
Top VLinks by Usage Volume
|
For a given time frame, shows the most popular VLinks ordered by volume.
|
Active Subscribers
|
Total Active Subscribers per VLink
|
For a given time frame, shows the daily or weekly average trend for the total number of active subscribers for the selected VLink.
|
Top Services by Volume
|
VLink Aggregated Usage Volume per Service
|
For a given time frame, shows the aggregated usage volume per service for the selected VLink.
|
Bandwidth
|
VLink Bandwidth per Package
|
For a given time frame, shows the distribution of bandwidth between the different packages for the selected VLink.
|
Bandwidth
|
VLink Bandwidth per Service
|
For a given time frame, shows the distribution of bandwidth between the different services for the selected VLink.
|
Volume
|
VLink Daily Usage Volume per Service
|
For a given time frame, shows the daily volume distribution between the different services for the selected VLink.
|
Volume
|
VLink Hourly Usage Volume per Service
|
For a given time frame, shows the hourly volume distribution between the different services for the selected VLink.
|
Bandwidth
|
VLink BW per Cable-Modems group
|
For a given time frame, shows the distribution of bandwidth between the different cable-modems group for the selected VLink.
|
Demographic Data
The Demographic Data group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Active Subscribers
|
Total Active Subscribers
|
Shows the daily or weekly average trend in total number of active subscribers.
|
Cumulative Distributions
|
Cumulative Distribution of Subscriber Usage
|
For a given time frame, show a list of subscriber consumption.
|
Cumulative Distributions
|
Subscribers Average Consumption
|
For a given time frame, shows a list of subscriber consumption.
|
Global
The Global group provides statistics about the traffic bandwidth or volume that was consumed. The bandwidth or volume consumption can be displayed per service for the entire link.
The Global group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Active Subscribers
|
Global Active Subscribers per Service
|
For a given time frame, shows the distribution of Active Subscribers between the different services defined in the system.
|
Active Subscribers
|
Global Active Subscribers per Topology
|
For a given time frame, shows the distribution of Active Subscribers between the different topologies defined in the system.
|
Active Subscribers
|
Package Active Subscriber per Service
|
For a given time frame, shows the distribution of Active Subscribers between the different services defined in the system for all subscribers belonging to a particular package.
|
Active Subscribers
|
Package Active Subscriber per Topology
|
For a given time frame, shows the distribution of Active Subscribers between the different topologies defined in the system for all subscribers belonging to a particular package.
|
Active Subscribers
|
Package Active Subscriber Comparison
|
For a given time frame, shows the active subscriber comparison belonging to a particular package.
|
Active Subscribers
|
Zone Active Subscribers per Service
|
For a given time frame, shows the distribution of Active Subscribers between the different services defined in the system for all subscribers belonging to a particular zone.
|
Active Subscribers
|
Zone Active Subscribers per Topology
|
For a given time frame, shows the distribution of Active Subscribers between the different topologies defined in the system for all subscribers belonging to a particular zone.
|
Active Subscribers
|
Zone Active Subscribers Comparison
|
For a given time frame, shows the active subscriber comparison belonging to a particular zone.
|
Bandwidth
|
Daily peak BW for All Packages
|
For a given time frame, shows the value per day of the maximum one-hour or two-hour bandwidth for all the packages defined in the system.
|
Bandwidth
|
Global Bandwidth per Service vs Total Bandwidth
|
For a given time frame, shows the distribution of bandwidth of a specific service compared to the total bandwidth.
|
Bandwidth
|
Global Bandwidth per Service Comparison
|
For a given time frame, shows the global bandwidth per service comparison.
|
Bandwidth
|
Global Bandwidth per Service
|
For a given time frame, shows the distribution of bandwidth between the different services defined in the system.
|
Bandwidth
|
Global Bandwidth per Topology
|
For a given time frame, shows the distribution of bandwidth between the different networks defined in the system.
|
Bandwidth
|
Global Bandwidth per Traffic Direction
|
For a given time frame, shows the global bandwidth per traffic direction.
|
Bandwidth
|
Link Daily peak BW for All Packages
|
For a give time frame, shows value per day of maximum one hour or tow hour bandwidth for specific package define in the system.
|
Bandwidth
|
Link Bandwidth per Service VS Total Bandwidth
|
For a given time frame, shows the distribution of bandwidth of a specific service compared to the total bandwidth for all subscribers belonging to a particular link
|
Bandwidth
|
Link Bandwidth per Service comparison
|
For a given time frame, shows the global bandwidth per service comparison for all the subscribers belonging to a particular link
|
Bandwidth
|
Daily peak BW per Package
|
For a given time frame, shows the value per day of the maximum one-hour or tow-hour bandwidth for a specific package defined in the system.
|
Bandwidth
|
Multi Package Bandwidth per Service
|
For a given time frame, shows the distribution of bandwidth between the different services defined in the system for all subscribers belonging to the selected packages.
|
Bandwidth
|
Package Bandwidth per Service
|
For a given time frame, shows the distribution of bandwidth between the different services defined in the system for all subscribers belonging to a particular package.
|
Bandwidth
|
Package Bandwidth per Topology
|
For a given time frame, shows the distribution of bandwidth between the different topologies defined in the system for all subscribers belonging to a particular package.
|
Bandwidth
|
Package Bandwidth Comparison
|
For a given time frame, shows the bandwidth comparison for the selected list of packages.
|
Bandwidth
|
Package Bandwidth per Service comparison
|
For a given time frame, shows the global bandwidth per service comparison for all the subscribers belonging to a particular package.
|
Bandwidth
|
Package Bandwidth per Traffic Direction
|
For a given time frame, shows the distribution of bandwidth between the different traffic directions defined in the system for all subscribers belonging to a particular package.
|
Bandwidth
|
Package Bandwidth per Service VS Total Bandwidth
|
For a given time frame, shows the distribution of bandwidth of a specific service compared to the total bandwidth for all subscribers belonging to a particular package
|
Bandwidth
|
Daily peak BW per Zone
|
For a given time frame, shows the value per day of the maximum one-hour or tow-hour bandwidth for a specific zone defined in the system.
|
Bandwidth
|
Multi Zone Bandwidth per Service
|
For a given time frame, shows the distribution of bandwidth between the different services defined in the system for all subscribers belonging to the selected zones.
|
Bandwidth
|
Zone Bandwidth per Service
|
For a given time frame, shows the distribution of bandwidth between the different services defined in the system for all subscribers belonging to a particular zone.
|
Bandwidth
|
Zone Bandwidth per Topology
|
For a given time frame, shows the distribution of bandwidth between the different topologies defined in the system for all subscribers belonging to a particular zone.
|
Bandwidth
|
Zone Bandwidth Comparison
|
For a given time frame, shows the bandwidth comparison for the selected list of zones.
|
Bandwidth
|
Zone Bandwidth per Service comparison
|
For a given time frame, shows the global bandwidth per service comparison for all the subscribers belonging to a particular zone.
|
Bandwidth
|
Zone Bandwidth per Traffic Direction
|
For a given time frame, shows the distribution of bandwidth between the different traffic directions defined in the system for all subscribers belonging to a particular zone.
|
Bandwidth
|
Zone Bandwidth per Service VS Total Bandwidth
|
For a given time frame, shows the distribution of bandwidth of a specific service compared to the total bandwidth for the subscribers belonging to a particular zone.
|
Concurrent Sessions
|
Global Concurrent Sessions per Service
|
For a given time frame, shows the distribution of concurrent sessions between the different services defined in the system.
|
Concurrent Sessions
|
Global Concurrent Sessions per Topology
|
For a given time frame, shows the distribution of concurrent sessions between the different topologies defined in the system.
|
Concurrent Sessions
|
Package Concurrent Sessions per Service
|
For a given time frame, shows the distribution of concurrent sessions between the different services defined in the system for all subscribers belonging to a particular package.
|
Concurrent Sessions
|
Package Concurrent Sessions per Topology
|
For a given time frame, shows the distribution of concurrent sessions between the different topologies defined in the system for all subscribers belonging to a particular package.
|
Concurrent Sessions
|
Package Concurrent Sessions Comparison
|
For a given time frame, shows the concurrent sessions comparison for the selected list of packages.
|
Concurrent Sessions
|
Zone Concurrent Sessions per Service
|
For a given time frame, shows the distribution of concurrent sessions between the different services defined in the system for all subscribers belonging to a particular zone.
|
Concurrent Sessions
|
Zone Concurrent Sessions per Topology
|
For a given time frame, shows the distribution of concurrent sessions between the different topologies defined in the system for all subscribers belonging to a particular zone.
|
Concurrent Sessions
|
Zone Concurrent Sessions Comparison
|
For a given time frame, shows the concurrent sessions comparison for the selected list of zones.
|
Duration
|
Global Hourly Aggregated Minutes per Service
|
For a given time frame, shows the total number of minutes spent for services defined in the system.
|
Duration
|
Global Hourly Aggregated Minutes per Topology
|
For a given time frame, shows the total number of minutes spent for topologies defined in the system.
|
Duration
|
Package Hourly Aggregated Minutes per Service
|
For a given time frame, shows the total number of minutes spent for services defined in the system for all subscribers belonging to a particular package.
|
Duration
|
Package Hourly Aggregated Minutes per Topology
|
For a given time frame, shows the total number of minutes spent for topologies defined in the system for all subscribers belonging to a particular package.
|
Duration
|
Package Hourly Aggregated Minutes Comparison
|
For a given time frame, shows the hourly aggregated minutes comparison for the selected list of packages.
|
Duration
|
Zone Hourly Aggregated Minutes per Service
|
For a given time frame, shows the total number of minutes spent for services defined in the system for all subscribers belonging to a particular zone.
|
Duration
|
Zone Hourly Aggregated Minutes per Topology
|
For a given time frame, shows the total number of minutes spent for topologies defined in the system for all subscribers belonging to a particular zone.
|
Duration
|
Zone Hourly Aggregated Minutes Comparison
|
For a given time frame, shows the hourly aggregated minutes comparison for the selected list of zones.
|
Sessions
|
Global Daily Usage Sessions per Service
|
For a given time frame, shows the distribution of sessions between the different services defined in the system.
|
Sessions
|
Global Daily Usage Sessions per Topology
|
For a given time frame, shows the distribution of sessions between the different topologies defined in the system.
|
Sessions
|
Global Hourly Usage Sessions per Service
|
For a given time frame, shows the distribution of sessions between the different services defined in the system.
|
Sessions
|
Global Hourly Usage Sessions per Topology
|
For a given time frame, shows the distribution of sessions between the different topologies defined in the system.
|
Sessions
|
Package Hourly Usage Sessions per Service
|
For a given time frame, shows the distribution of sessions between the different services defined in the system for all subscribers belonging to a particular package.
|
Sessions
|
Package Hourly Usage Sessions per Topology
|
For a given time frame, shows the distribution of sessions between the different topologies defined in the system for all subscribers belonging to a particular package.
|
Sessions
|
Package Hourly Usage Sessions Comparison
|
For a given time frame, shows the hourly usage sessions comparison for the selected list of packages.
|
Sessions
|
Zone Daily Usage Sessions per Service
|
For a given time frame, shows the daily session distribution between the different services for the selected zone
|
Sessions
|
Zone Daily Usage Sessions per Topology
|
For a given time frame, shows the daily session distribution between the different topologies for the selected zone.
|
Sessions
|
Zone Daily Usage Sessions Comparison
|
For a given time frame, shows the daily usage sessions comparison for the selected list of zones.
|
Sessions
|
Zone Hourly Usage Sessions per Service
|
For a given time frame, shows the distribution of sessions between the different services defined in the system for all subscribers belonging to a particular zone.
|
Sessions
|
Zone Hourly Usage Sessions per Topology
|
For a given time frame, shows the distribution of sessions between the different topologies defined in the system for all subscribers belonging to a particular zone.
|
Sessions
|
Zone Hourly Usage Sessions Comparison
|
For a given time frame, shows the hourly usage sessions comparison for the selected list of zones.
|
Top by Usage Volume
|
Global Aggregated Usage Volume per Service
|
For a given time frame, shows the aggregated distribution of volume between the different services defined in the system.
|
Top by Usage Volume
|
Global Aggregated Usage Volume per Topology
|
For a given time frame, shows the aggregated distribution of volume between the different topologies defined in the system.
|
Top by Usage Volume
|
Package Aggregated Usage Volume per Service
|
For a given time frame, shows the most popular services for all subscribers belonging to a particular package.
|
Top by Usage Volume
|
Package Aggregated Usage Volume per Topology
|
For a given time frame, shows the most popular topology for all subscribers belonging to a particular package.
|
Top by Usage Volume
|
Package Aggregated Usage Volume Comparison
|
For a given time frame, shows the aggregated usage volume comparison for the selected list of packages.
|
Top by Usage Volume
|
Zone Aggregated Usage Volume per Service
|
For a given time frame, shows the most popular services for all subscribers belonging to a particular zone.
|
Top by Usage Volume
|
Zone Aggregated Usage Volume per Topology
|
For a given time frame, shows the most popular topology for all subscribers belonging to a particular zone.
|
Top by Usage Volume
|
Zone Aggregated Usage Volume Comparison
|
For a given time frame, shows the aggregated usage volume comparison for the selected list of zones.
|
Volume
|
Global Daily Usage Volume per Service
|
For a given time frame, shows the distribution of volume between the different services defined in the system.
|
Volume
|
Global Daily Usage Volume per Topology
|
For a given time frame, shows the distribution of volume between the different topologies defined in the system.
|
Volume
|
Global Hourly Usage Volume per Service
|
For a given time frame, shows the distribution of volume between the different services defined in the system.
|
Volume
|
Global Hourly Usage Volume per Topology
|
For a given time frame, shows the distribution of volume between the different topologies defined in the system.
|
Volume
|
Global Busy Hours Usage Volume per Service
|
For a given time frame, shows the distribution of volume between the different services during the busy hours.
|
Volume
|
Package Daily Usage Volume per Service
|
For a given time frame, shows the distribution of volume between the different services defined in the system for all subscribers belonging to a particular package.
|
Volume
|
Package Daily Usage Volume per Topology
|
For a given time frame, shows the distribution of volume between the different topologies defined in the system for all subscribers belonging to a particular package.
|
Volume
|
Package Daily Usage Volume Comparison
|
For a given time frame, shows the daily usage volume comparison for the selected list of packages.
|
Volume
|
Package Hourly Usage Volume per Service
|
For a given time frame, shows the distribution of volume between the different services defined in the system for all subscribers belonging to a particular package.
|
Volume
|
Package Hourly Usage Volume per Topology
|
For a given time frame, shows the distribution of volume between the different topologies defined in the system for all subscribers belonging to a particular package.
|
Volume
|
Package Hourly Usage Volume Comparison
|
For a given time frame, shows the hourly usage volume comparison for the selected list of packages.
|
Volume
|
Zone Daily Usage Volume per Service
|
For a given time frame, shows the distribution of volume between the different services defined in the system for all subscribers belonging to a particular zone.
|
Volume
|
Zone Daily Usage Volume per Topology
|
For a given time frame, shows the distribution of volume between the different topologies defined in the system for all subscribers belonging to a particular zone.
|
Volume
|
Zone Daily Usage Volume Comparison
|
For a given time frame, shows the daily usage volume comparison for the selected list of zones.
|
Volume
|
Zone Hourly Usage Volume per Service
|
For a given time frame, shows the distribution of volume between the different services defined in the system for all subscribers belonging to a particular zone.
|
Volume
|
Zone Hourly Usage Volume per Topology
|
For a given time frame, shows the distribution of volume between the different topologies defined in the system for all subscribers belonging to a particular zone.
|
Volume
|
Zone Hourly Usage Volume Comparison
|
For a given time frame, shows the hourly usage volume comparison for the selected list of zones.
|
IPv6
The IPv6 group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
IPv6/IPv4 Bandwidth Comparison
|
IPv6 vs IPv4 Bandwidth Comparison
|
For a given time frame, shows the bandwidth comparison between IPv6 and IPv4 traffic.
|
Tunneled Active Subscribers
|
Tunneled IPv6 Active Subscribers
|
For a given time frame, shows the tunneled IPv6 active subscribers.
|
Tunneled Average Subscriber Bandwidth
|
Tunneled IPv6 Average Subscriber Bandwidth
|
For a given time frame, shows the tunneled IPv6 average subscriber bandwidth.
|
Tunneled Concurrent Sessions
|
Tunneled IPv6 Concurrent Sessions
|
For a given time frame, shows the tunneled IPv6 concurrent sessions.
|
Link
The Link monitoring reports provides you the statistics of the links. The Link group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Bandwidth
|
Link Bandwidth per Service
|
For a given time frame, shows the distribution of bandwidth between the different services for the selected Link.
|
Bandwidth
|
Link Bandwidth per Topology
|
For a given time frame, shows the distribution of bandwidth between the different topologies for the selected link.
|
Bandwidth
|
Link Bandwidth per Traffic Direction
|
For a given time frame, shows the distribution of bandwidth between the different traffic directions for the selected VLink.
|
Concurrent Sessions
|
Link Concurrent Sessions per Service
|
For a given time frame, shows the concurrent session distribution between the different services for the selected link.
|
Concurrent Sessions
|
Link Concurrent Sessions per Topology
|
For a given time frame, shows the concurrent session distribution between the different topologies for the selected link.
|
Duration
|
Link Hourly Aggregated Minutes per Service
|
For a given time frame, shows the hourly aggregated minutes distribution between the different services for the selected link.
|
Duration
|
Link Hourly Aggregated Minutes per Topology
|
For a given time frame, shows the hourly aggregated minutes distribution between the different topologies for the selected link.
|
Sessions
|
Link Daily Usage Sessions per Service
|
For a given time frame, shows the daily session distribution between the different services for the selected link.
|
Sessions
|
Link Daily Usage Sessions per Topology
|
For a given time frame, shows the daily session distribution between the different topologies for the selected link.
|
Sessions
|
Link Hourly Usage Sessions per Service
|
For a given time frame, shows the hourly sessions distribution between the different services for the selected link.
|
Sessions
|
Link Hourly Usage Sessions per Topology
|
For a given time frame, shows the hourly sessions distribution between the different topologies for the selected link.
|
Top by Usage Volume
|
Link Aggregated Usage Volume per Service
|
For a given time frame, shows the aggregated usage volume per service for the selected link.
|
Top by Usage Volume
|
Link Aggregated Usage Volume per Topology
|
For a given time frame, shows the aggregated usage volume per topology for the selected link.
|
Top by Usage Volume
|
Link Aggregated Usage Volume Comparison
|
For a given time frame, shows the aggregated usage volume comparison for the selected list of links.
|
Volume
|
Link Daily Usage Volume per Service
|
For a given time frame, shows the daily volume distribution between the different services for the selected link.
|
Volume
|
Link Daily Usage Volume per Topology
|
For a given time frame, shows the daily volume distribution between the different topologies for the selected link.
|
Volume
|
Link Hourly Usage Volume per Service
|
For a given time frame, shows the hourly volume distribution between the different services for the selected link.
|
Volume
|
Link Hourly Usage Volume per Topology
|
For a given time frame, shows the hourly volume distribution between the different topologies for the selected link.
|
Volume
|
Link Busy Hours Usage Volume per Service
|
For a given time frame, shows the volume distribution between the different services for the selected link during the busy hours.
|
Mobile
The Mobile group includes the following reports topics:
Report Metrics
|
Report Topic Name
|
Description
|
Active Subscribers
|
Number of subscribers per location
|
For a given time frame, shows the number of active subscribers per location.
|
Aggregated Usage
|
Usage per Device type
|
For a given time frame, shows the aggregated usage per device.
|
Aggregated Usage
|
Usage per Network Type
|
For a given time frame, shows the aggregated usage per network.
|
Aggregated Usage
|
Usage per APN
|
For a given time frame, shows the aggregated usage per APN.
|
Aggregated Usage
|
Usage per Location
|
For a given time frame, shows the aggregated usage per location.
|
Aggregated Usage
|
Usage per SGSN
|
For a given time frame, shows the aggregated usage per SGSN.
|
Distribution
|
Device Type distribution (IMEI)
|
|
Usage Volume per Service
|
Application usage for specific device
|
For a given time frame, shows the application usage for the selected specific device.
|
Usage Volume per Service
|
Application usage for Specific Network Type
|
For a given time frame, shows the application usage for the selected specific network type.
|
Usage Volume per Service
|
Application usage for Specific APN
|
For a given time frame, shows the application usage for the selected specific APN.
|
Service Popularity
The Service Popularity group is designed to present statistics about demographic usage of the network (distributions, trends, and so on).
The service popularity group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Average
|
Service Popularity among Subscribers (Average)
|
For a given time frame, shows the distribution of Active Subscribers between the different services defined in the system.
|
Average
|
Service Popularity among Subscribers of Specific Package (Average)
|
For a given time frame, shows the distribution of Active Subscribers between the different services defined in the system for all subscribers belonging to a particular package.
|
Average
|
Service Popularity among Subscribers of Specific Zone (Average)
|
For a given time frame, shows the distribution of Active Subscribers between the different services defined in the system for all subscribers belonging to a particular zone.
|
Time Analysis
|
Service Popularity among Subscribers
|
For a given time frame, shows the popularity of a specific service against all services among subscribers defined in the system.
|
Time Analysis
|
Service Popularity among Subscribers of Specific Package
|
For a given time frame, shows the popularity of a specific service against all services among subscribers defined in the system for all subscribers belonging to a particular package.
|
Time Analysis
|
Service Popularity among Subscribers of Specific Zone
|
For a given time frame, shows the distribution of Active Subscribers between the different services defined in the system for all subscribers belonging to a particular zone.
|
Subscribers
The Subscriber Monitoring group is designed to view statistics about the bandwidth or volume of traffic used by SCE subscribers. The reports are provided per service usage counter for the total volume consumed by the subscriber. The Subscribers group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Average Bandwidth
|
Average Subscriber BW
|
For a given time frame, shows the distribution of bandwidth between the different services defined in the system.
|
Average Bandwidth
|
Average Subscriber BW per Service
|
For a given time frame, shows the distribution of bandwidth between the different services defined in the system.
|
Average Sessions
|
Average Subscriber Concurrent Sessions
|
For a given time frame, shows the average subscriber concurrent sessions.
|
Average Sessions
|
Average Subscriber Concurrent Sessions per Service
|
For a given time frame, shows the average subscriber concurrent sessions per service.
|
Bandwidth
|
Daily peak BW for Specific Subscriber
|
For a given time frame, shows value per day of the maximum one-hour or two-hour bandwidth for a specific subscriber.
|
Bandwidth
|
Peak Bandwidth per Subscriber
|
For a given time frame, shows the peak bandwidth per subscriber for specific, all, or by subscriber ID pattern.
|
Bandwidth
|
Subscriber Bandwidth per Service
|
For a given time frame, shows the distribution of bandwidth between the different services defined in the system for a particular subscriber.
|
Bandwidth Comparison
|
Subscriber Bandwidth Comparison
|
For a given time frame, shows the bandwidth comparison for the selected list of subscribers.
|
Duration
|
Subscriber Hourly Aggregated Minutes per Service
|
For a given time frame, shows the hourly total number of minutes spent for services defined in the system for a particular subscriber.
|
Real-Time Flows
|
Subscriber Flows Detail
|
For a given time frame, shows the real-time flow details for a specific subscriber.
|
Sessions
|
Subscriber Daily Usage Sessions per Service
|
For a given time frame, shows the daily sessions distribution between the different services defined in the system for a particular subscriber.
|
Sessions
|
Subscriber Hourly Usage Sessions per Service
|
For a given time frame, shows the hourly sessions distribution between the different services defined in the system for a particular subscriber.
|
Top Services by Usage Volume
|
Subscriber Aggregated Usage Volume per Service
|
For a given time frame, shows the most popular services for the selected monitored subscribers.
|
Volume
|
Subscriber Daily Usage Volume per Service
|
For a given time frame, shows the daily volume distribution between the different services defined in the system for a particular subscriber.
|
Volume
|
Subscriber Hourly Usage Volume per Service
|
For a given time frame, shows the hourly volume distribution between the different services defined in the system for a particular subscriber.
|
Top Subscribers
A Top Subscribers report identifies the most consuming subscribers in terms of traffic volume (for all or specific services). Subscriber bandwidth and volume reports can be generated for those subscribers configured for real-time monitoring.
The Top Subscribers group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
List
|
Top Subscribers
|
For a given time frame, shows a list of consumption by the subscriber. Note the specified time will be rounded to the nearest Day or Hour. The number of available entries depends on the TA adapter configuration.
|
Relative Consumption
|
Relative Consumption of Top Subscribers
|
For a given time frame, shows the relative consumption of a specific number of subscribers.
|
Service Distribution
|
Top Subscribers Usage Distribution per Service
|
For a given time frame, shows the usage distribution per service of specific subscriber or all subscribers if not specified.
|
Video
The Video group allows you to view statistics of the video traffic.
Bandwidth Monitoring
The Bandwidth Monitoring group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Bandwidth Monitoring
|
Global Bandwidth per Video Service
|
For a given time frame, shows the distribution of bandwidth between the different Video services defined in the system.
|
Bandwidth Monitoring
|
Package Bandwidth per Video Service
|
For a given time frame, shows the distribution of bandwidth between the different Video services defined in the system for all subscribers belonging to a particular package.
|
Bandwidth Monitoring
|
Zone Bandwidth per Video Service
|
For a given time frame, shows the distribution of bandwidth between the different Video services defined in the system for all subscribers belonging to a particular zone.
|
Consumers
The Consumers group includes the following report:
Report Metrics
|
Report Topic Name
|
Description
|
Video Monitoring
|
Top Video Consumers
|
For a given time frame, shows the most popular video consumers.
|
Hosts
The Hosts group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Popularity
|
Video Hosts Popularity
|
For a given time frame, shows the most popular video hosts ordered by the selected metric.
|
Time of Day Access
|
Time of Day Access pattern per Video Host
|
For a given time frame, shows the access pattern for a video hosts in a certain time of day.
|
Top
|
Top Video Hosts
|
For a given time frame, shows the most popular video hosts.
|
Providers
The Providers group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Activity
|
Video Providers Activity
|
For a given time frame, shows the statistics about the most popular video providers.
|
Popularity
|
Video Providers Popularity
|
For a given time frame, shows the most popular video providers ordered by the selected metric.
|
Time of Day Access
|
Time of Day Access pattern per Video Provider
|
For a given time frame, shows the access pattern for a video provider in a certain time of day.
|
Top
|
Top Video Providers
|
For a given time frame, show the most popular video providers.
|
Top
|
Top Video Providers Trend
|
For a given time frame, shows the trend of the most popular video providers.
|
Trend
|
Video Provider Trend
|
For a given time frame, shows the trend of video providers.
|
Services
The Services group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Distribution
|
Global Video Service Distribution
|
For a given time frame, shows the most popular video services.
|
Distribution
|
Package Video Service Distribution
|
For a given time frame, shows the most popular video services of a particular package.
|
Distribution
|
Zone Video Service Distribution
|
For a given time frame, shows the most popular video services of a particular zone.
|
VoIP
The VoIP group of reports allows you to view statistics of the VoIP traffic.
These reports cannot be generated using data collected from the SCE running in asymmetric routing classification mode.
Global
The Global group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Bandwidth
|
Global Bandwidth per VoIP Service
|
For a given time frame, shows the Global Bandwidth per VoIP Service for selected domains.
|
Bandwidth
|
Package Bandwidth per VoIP Service
|
For a given time frame, shows the Package Bandwidth per VoIP Service for selected domains.
|
Bandwidth
|
Zone Bandwidth per VoIP Service
|
For a given time frame, shows the zone Bandwidth per VoIP Service for selected domains.
|
Concurrent Calls
|
Global Concurrent Calls per VoIP Service
|
For a given time frame, shows the Global Concurrent Calls per VoIP Service for selected domains.
|
Concurrent Calls
|
Package Concurrent Calls per VoIP Service
|
For a given time frame, shows the Package Concurrent Calls per VoIP Service for selected domains.
|
Concurrent Calls
|
Zone Concurrent Calls per VoIP Service
|
For a given time frame, shows the zone Concurrent Calls per VoIP Service for selected domains.
|
Duration
|
Global Call Minutes per VoIP Service
|
For a given time frame, shows the distribution of concurrent VoIP calls between the different services defined in the system.
|
Duration
|
Global Hourly Call Minutes per VoIP Service
|
For a given time frame, shows the Global Hourly Call Minutes per Service for selected domains.
|
Duration
|
Package Hourly Call Minutes per VoIP Service
|
For a given time frame, shows the Package Hourly Call Minutes per Service for selected domains.
|
Duration
|
Zone Hourly Call Minutes per VoIP Service
|
For a given time frame, shows the zone Hourly Call Minutes per Service for selected domains.
|
QoS
The QoS group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Distribution
|
Global VoIP Codec Distribution
|
For a given time frame, shows the Global VoIP Codec Distribution.
|
Distribution
|
Global VoIP MOS Distribution
|
For a given time frame, shows the Global VoIP MOS Distribution for selected domains.
|
Global
|
Global VoIP Jitter
|
For a given time frame, shows the Global VoIP Jitter for selected domains.
|
Global
|
Global VoIP MOS
|
For a given time frame, shows the Global VoIP MOS for selected domains.
|
Global
|
Global VoIP Packets Loss
|
For a given time frame, shows the Global VoIP Packets Loss for selected domains.
|
Hourly Average
|
Global Hourly Average VoIP Jitter
|
For a given time frame, shows the Global Hourly Average VoIP Jitter for selected domains.
|
Hourly Average
|
Global Hourly Average VoIP MOS
|
For a given time frame, shows the Global Hourly Average VoIP MOS for selected domains.
|
Hourly Average
|
Global Hourly Average VoIP Packets Loss
|
For a given time frame, shows the Global Hourly Average VoIP Packets Loss for selected domains.
|
SIP Domains
The SIP Domains group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Average MOS
|
Average MOS per SIP Domain
|
For a given time frame, shows the Average MOS per SIP domain.
|
Calls Duration
|
Calls Duration per SIP Domains
|
For a given time frame, shows the call duration per SIP domain.
|
Number of Calls
|
Number of Calls per SIP Domain
|
For a given time frame, shows the most popular SIP or Vonage domains per number of calls.
|
Top
|
Top SIP Domains
|
For a given time frame, shows the most popular SIP or Vonage domains.
|
Top
|
Top SIP Domains by Unique Users
|
For a given time frame, shows the most popular SIP Domains ordered by Unique Users.
|
Top User Agents
|
Top SIP User Agents
|
For a given time frame, shows the most popular SIP User Agents.
|
Subscribers
The Subscribers group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Top
|
Top Talkers
|
For a given time frame, shows the most popular VoIP subscribers ordered by the selected metric.
|
Bandwidth
|
Subscriber Bandwidth per VoIP Service
|
For a given time frame, shows the distribution of bandwidth between the different VoIP services defined in the system for a particular subscriber.
|
Duration
|
Subscriber Hourly Call Minutes per VoIP Service
|
For a given time frame, shows the total number of call minutes spent for services defined in the system for a specific subscriber.
|
Web
The Web Monitoring Reports provides you the statistics of the web traffic.
Consumers
The Consumers group includes the following report:
Report Metrics
|
Report Topic Name
|
Description
|
Consumers
|
Top Browsing Consumers
|
For a given time frame, shows the list of the most browsing subscribers.
|
Domains
The Domains group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Activity
|
Domains Activity
|
For a given time frame, shows the web domain activity.
|
Popularity
|
Domains Popularity
|
For a given time frame, shows the most popular web domains.
|
Time of Days Access
|
Time of Day Access pattern per Domain
|
For a given time frame, shows the access pattern for a web domain in a certain time of day.
|
Top
|
Top Domains
|
For a given time frame, shows the most popular web domains.
|
Top
|
Top Domains Trend
|
For a given time frame, shows the trend of the most popular web domains.
|
Trend
|
Domain Trend
|
For a given time frame, shows the web domain trend.
|
Hosts
The Web and Streaming group allows you to compile statistics presenting the most popular servers or hosts for the various predefined system classes (such as Browsing, Streaming, and Downloading) and for user-defined classes.
The Hosts group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Popularity
|
Hosts Popularity
|
For a given time frame, shows the most popular web hosts.
|
Time of Day Access
|
Time of Day Access pattern per Host
|
For a given time frame, shows the access pattern for a web host in a certain time of day.
|
Top
|
Top Hosts
|
For a given time frame, shows the most popular web hosts.
|
Traffic Discovery Reports
The Traffic Discovery-Statistics group of report templates allows you to view statistics compiled from the source and destination IP addresses and ports of the system traffic.
The reports cannot be generated using data collected from an SCE platform running in asymmetric routing classification mode.
Note The reports in this group are not per subscriber; they supply general port and IP address information.
Clients
The Clients group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Top
|
Top Client IP to Server IP
|
For a given time frame, shows the most popular Client IP to Server IP for specific domains.
|
Top
|
Top Client IP to Server IP and Server Port
|
For a given time frame, shows the most popular Client IP, Server IP, and Server Port for specific domains.
|
Top
|
Top Client IP to Server Port
|
For a given time frame, shows the most popular Client IP and Server Port for specific domains.
|
Top
|
Top Clients
|
For a given time frame, shows the most popular clients for specific domains.
|
Protocol
The Protocol group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Generic
|
Top Protocols
|
For a given time frame, shows the most popular protocol for specific domains.
|
IP
|
Top IP Protocols
|
For a given time frame, shows the most popular IP protocol for specific domains.
|
Top
|
Top P2P Protocols
|
For a given time frame, show the most popular protocol.
|
Servers
The Servers group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Distribution by Subscriber Packages
|
Service Distribution by Subscriber Packages
|
For a given time frame, shows the most popular Service grouped by the package of the requesting subscriber.
|
Distribution by Subscriber Packages
|
FTP Server Distribution by Subscriber Packages
|
For a given time frame, shows the most popular FTP server grouped by the package of the requesting subscriber.
|
Distribution by Subscriber Packages
|
MMS Server Distribution by Subscriber Packages
|
For a given time frame, shows the most popular MMS server grouped by the package of the requesting subscriber.
|
Distribution by Subscriber Packages
|
RTSP Host Distribution by Subscriber Packages
|
For a given time frame, shows the most popular RTSP host grouped by the package of the requesting subscriber.
|
Distribution by Subscriber Packages
|
Web Hosts Distribution by Subscriber Packages
|
For a given time frame, shows the most popular web host grouped by the package of the requesting subscriber.
|
Distribution by Subscriber Packages
|
NNTP Server Distribution by Subscriber Packages
|
For a given time frame, shows the distribution by Subscriber Packages.
|
Distribution by Subscriber Packages
|
POP3 Server Distribution by Subscriber Packages
|
For a given time frame, shows the distribution by Subscriber Packages.
|
Distribution by Subscriber Packages
|
SMTP Server Distribution by Subscriber Packages
|
For a given time frame, shows the distribution by Subscriber Packages.
|
Top
|
Top Server IP to Server Port
|
For a given time frame, show the most popular Server IP and Server Port for specific domains.
|
Top
|
Top Server Ports
|
For a given time frame, show the most popular server ports for specific domains.
|
Top
|
Top Servers
|
For a given time frame, show the most popular servers for specific domains.
|
Top
|
Top FTP Servers
|
For a given time frame, shows Top FTP servers for selected domains ordered by volume.
|
Top
|
Top MMS Servers
|
For a given time frame, shows Top MMS servers for selected domains ordered by volume.
|
Top
|
Top RTSP Hosts
|
For a given time frame, shows the most popular RTSP servers.
|
Top
|
Top Service Servers
|
For a given time frame, shows the most popular Service servers.
|
Top
|
Top Web Hosts
|
For a given time frame, shows the most popular web servers.
|
Top
|
Top Email Account Owners
|
For a given time frame, shows the most popular Email Account Owners.
|
Top
|
Top Email Recipients
|
For a given time frame, shows the most popular email recipients ordered by selected metric.
|
Top
|
Top Email Senders
|
For a given time frame, shows the most popular email senders ordered by selected metric.
|
Top
|
Top Newsgroups
|
For a given time frame, shows the most popular newsgroups ordered by selected metric.
|
Top
|
Top NNTP Consumers
|
For a given time frame, shows the most popular NNTP consumers ordered by selected metric.
|
Top
|
Top NNTP Servers
|
For a given time frame, shows the most popular NNTP servers for selected domains ordered by traffic volume.
|
Top
|
Top POP3 Servers
|
For a given time frame, shows the most popular POP3 servers for selected domains ordered by traffic volume.
|
Top
|
Top SMTP Servers
|
For a given time frame, shows the most popular SMTP servers for selected domains ordered by traffic volume.
|
Top
|
Top Subscriber to Newsgroups
|
For a given time frame, shows the most popular subscribers to newsgroups.
|
Services
The Services group includes the following report:
Report Metrics
|
Report Topic Name
|
Description
|
Top
|
Top Service Ports
|
For a given time frame, shows distribution Server Ports of a certain service for specific domains.
|
Malicious Traffic
The Malicious Traffic group allows you to view statistics of the malicious events accrued in the system.
DoS
The DoS group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Attacked Subscribers
|
DoS Attacked Subscribers
|
For a given time frame, shows the distribution of DoS-attacked subscribers over time for the different IP protocols defined in the system.
|
Top
|
Top DoS Attacked Hosts
|
For a given time frame, shows the most DoS-attacked hosts.
|
Top
|
Top DoS Attacked Subscribers
|
For a given time frame, shows the most DoS-attacked subscribers.
|
Scans/Attacks
The Scans/Attacks group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Rate
|
Global Scan or Attack Rate
|
For a given time frame, shows the global scan or attack rate.
|
Top
|
Top Scanned or Attacked ports
|
For a given time frame, shows the most scanned or attacked ports.
|
Top
|
Top Scanning or Attacking Hosts
|
For a given time frame, shows the most scanning or attacking hosts.
|
Top
|
Top Scanning or Attacking Subscribers
|
For a given time frame, shows the most scanning or attacking subscribers.
|
Spam
The Spam group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Distribution
|
Cumulative Distribution of Subscriber's SMTP Sessions
|
For a given time frame, shows the cumulative distribution of subscriber's SMTP sessions.
|
Distribution
|
Subscriber Average SMTP Sessions
|
For a given time frame, shows the average SMTP sessions distribution.
|
Hourly Sessions
|
Global Hourly Spam Sessions
|
For a given time frame, shows the hourly spam sessions distribution.
|
Top
|
Top Spammers
|
For a given time frame, shows the top spammers.
|
Subscribers
The Subscribers group includes the following reports:
Report Metrics
|
Report Topic Name
|
Description
|
Infected
|
Infected Subscribers
|
For a given time frame, shows the list of infected subscribers.
|
Infected
|
Infected Subscribers vs Active Subscribers
|
For a given time frame, shows the distributions of infected and active subscribers.
|
Running Reports
To run a report, you must set certain parameters. These parameters are classified into tabs with respect to their relevance:
•Network
•Topic
•Date and Time
•Topology
•Services
•View
•Parameter
•Protocols
Network
This is the first and the mandatory tab. It shows the list of available networks that the operator is allowed to see and use for reporting.
If more than one network is available, the last chosen shall become the pre-selected network of the user, the next time a new report wizard is launched.

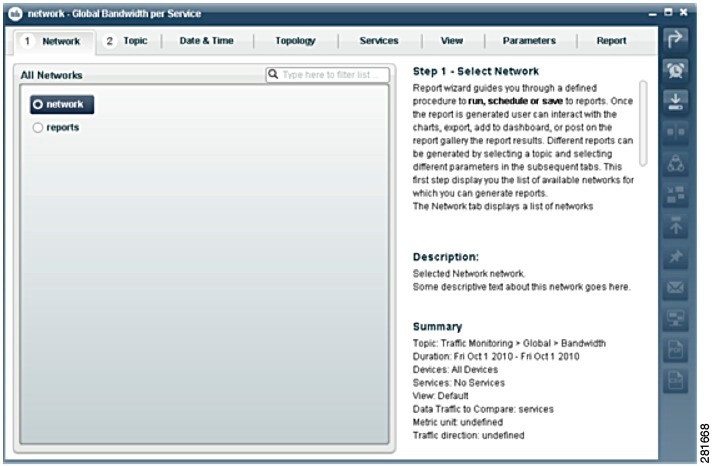

When you click the Network tab, you see:
Figure 6-1 Selecting Network
Topic
This is the second tab and it is also mandatory. In the Report wizard, the Topic tab allows the operator to select the desired type of traffic analysis. It shows the available report topics by using multi-step selection (up to three steps) to let the operator select the needed report by specifying the main topic, desired metric, and other report features.
When you click the Topic tab, you see:
Figure 6-2 Selecting Topic
Date and Time
This is the third tab and is an optional tab. It has some default settings (usually a time window of the last 24 hours, days or weeks, but this depends on the selected topic). You need to enter the details in the tab only if you want to set a different time interval.
To enter the details in the tab with a different time interval, uncheck the Show Last 24 hours check box. You can enter date and time by:
•Entering the date and hours manually or using the up and down arrow buttons.
•Clicking on the calendar dates.
For reports supporting a Start date or End date (based on SCE time stamps), you can select a timezone option to run the report by:
•Using the timezone of each SCE device, that is set as default.
•Choosing the Use device time zone option, to run the report using the time-zone of the master SCE.
When the format type is Start date or End date, the operator can also set the time aggregation from the Aggregation drop-down list.

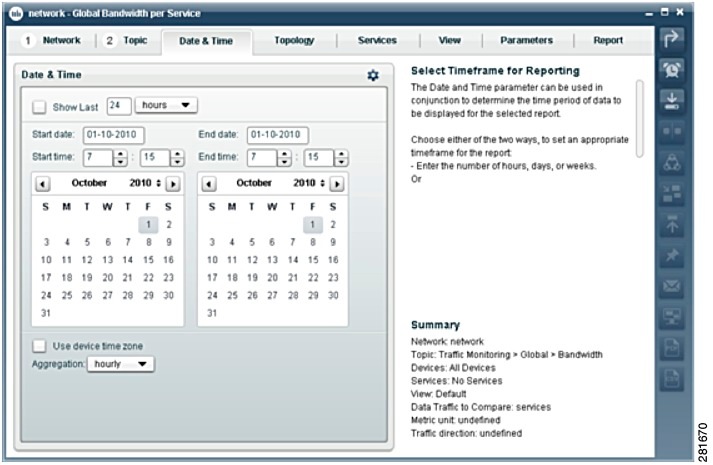

When you click the Date & Time tab, you see:
Figure 6-3 Setting the Date and Time
Topology
This tab is optional and dynamic, because it is not always required. It shows the topology view of the selected networks. The trees view (custom or devices) allows either selecting devices easily or grouping of devices to achieve the right view on the chart. You can save the tree configuration in the Report wizard in the form of collapsed or expanded layers.
When you select a device, the Show links (physical or virtual) option gets highlighted along with the device name.
Topology can be drilled down up to the Links or Virtual Links level to include details in the report generated.
When you click the Topology tab, you see:
Figure 6-4 Selecting Topology
Services
This tab is optional and dynamic, because is not always required. It displays the services enabled in the SCE's of the selected networks.
The operator can switch to the trees view (service families, custom services, or list of services) allowing a better understanding of services and family of services and achieving the right view on the chart. The tree configuration can be saved as personal settings in the form of collapsed or expanded layers.

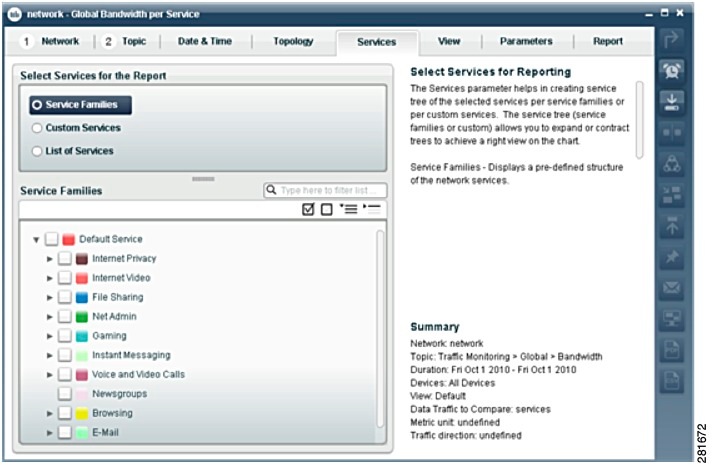

When you click the Services tab, you see:
Figure 6-5 Selecting Services
View
This tab is optional and dynamic, because it is required only when you need to make a choice between package and zone. It shows zone and package lists as alternative selection. You can choose package or zone as the first selection and save this as personal settings for the tab.
When you click the View tab, you see:
Figure 6-6 Selecting Views
Parameter
As an optional step, the wizard allows setting more optional parameters such as:
•Customization of the report name and description - All reports available in Cisco Insight v2 have a default name, as taken from the original template. You can provide a customized report name and description in the respective fields.
•Metric unit. You can select any available option (kbps, Mbps, and Gbps) from the Metric unit drop-down list.
•Traffic direction. You can generate the chart in upstream, downstream, or both.
•Chart type. You can get the output chart in the form of a pie, bar, or line diagram.
When you click the Parameters tab, you see:
Figure 6-7 Setting Parameters
Protocols
This is an optional tab and appears only for selected set of report topics which are configured to show data specific to protocols or applications. A screen similar to following appears:
Figure 6-8 Protocol Selection
You can go back to some tabs, change some parameters, and then choose to save, run, or schedule a report. This technique can be used to quickly generate, save, or schedule, a series of similar reports without repeating all the steps in the wizard.
Running an Interactive Report
You execute at least all the mandatory steps in the wizard, the report can be displayed in the Report tab by clicking the Refresh Report button. The report is interactive and you can perform a series of real-time actions using the different available graphical widgets.
The Report tab has four main sections:
Sections
|
Description
|
Chart
|
It contains the chart itself, chart name, time span, axis, and labels.
|
Legend for Series displayed in Chart
|
To the left of the chart, there is a section with two tabs, one with the legend, detailing the series colors and labels, and the second with the list of selected parameters, detailing all the previous selections for the chart.
|
Leading Input
|
It displays the service tree of the services that appear in the chart and allows you to choose the level of detail based on the Popularity Tree, Service Families, and Custom Tree.
|
Time controller
|
With time-based reports, under the chart, there is a time controller allowing the change of timeframe to display in the chart.
|
When you execute a report, you see:
Figure 6-9 Running an Interactive Report
Chart
Cisco Insight v2 provides the configuration settings for the following chart elements:
Figure 6-10 Chart Elements
Chart Elements
|
Description
|
Upstream and downstream details on the same chart
|
Reports showing service series and supporting a filter on traffic direction, can display the information about the upstream component only, the downstream, or both directions.
When displaying bidirectional service series (when the traffic direction filter is set to "Both"), a flag allows expanding each service contribution into upstream and downstream components.
|
|
Drill-down reports
|
The application supports the drill-down feature on interactive charts. When focusing on a specific series, the operator can launch a new report based on the selected series and related to the source report.
This feature is used to navigate through different reports when performing some specific analysis.
Note Not all reports will support the drill-down option.
|
|
|
Data Marker
|
It provides an interactive data indicator that can be positioned on the plot to mark a specific position in terms of coordinates. The data indicator follows the series plot when moved on the chart- so when it is moved in the X-axis direction, the Y-axis positioning will follow the plot automatically and vice versa.
The indicator must have a display which provides information about its current location, for example, the relevant X and Y axis percentage value in the cumulative report.
Note When printing or exporting the chart, you can choose to display the indicator or not.
|
|
|
Chart zoom in/out
|
In interactive view you can zoom out interactively and define the level of zoom into the current report chart.
Note When printing or exporting a chart after the zoom operation has been used, the layout of the output reproduce what the operator sees on the screen (the information of the applied zoom level is not lost).
|
|
Chart types
|
A list of alternative chart types (bar, pie, and line) is displayed in the upper-right corner of the Report tab. You can choose any of the chart types before exporting or printing the report.
|
Leading Input
The tree controllers are present on the Report tab of the wizard as well. It displays the service tree of the services that appear in the chart and allows you to choose the level of detail based on the tree status.
You can perform operations on the chart such as print or export based on the current hierarchy status of the chart.
You can also define the hierarchy type and the depth of the tree when you define a scheduled report.
Cisco Insight v2 provides the ability to configure the number of items displayed in the initial group and the number of items displayed on each expansion of "other".
Figure 6-11 Tree Controllers
The Cisco Insight v2 describes a multi-graph view feature. It provides the ability to create reports that combine several different series into the same view.
The following time controller, associated with time-based charts and positioned under the time axis, can be an example:
Figure 6-12 Time Controller
Cisco Insight v2 has the time interval options (hourly, daily, weekly, total, and so on) for trend analysis reports.
The time controller introduced by Cisco Insight v2 that supports manual positioning of the sliding time window. Using the scroll buttons on the extreme corners of the time controller widget.
When the tab with the report chart is in focus, the toolbar can be used to perform the following operations (according to the capabilities of the connected operator):
•Scheduling a Report
•Saving a Report
•Exporting Report Output
Scheduling a Report
Reports can be run immediately or scheduled to be executed with a programmable delay or with a specific frequency. These reports can further be sent via email to a list of recipients (the Cisco Insight v2 must be configured to communicate with an SMTP server before using this feature).
To schedule a report, follow perform the following steps:
Step 1 Select the Schedule option from the toolbar. A schedule dialog box will appear allowing the setting of all required parameters.
When you select the schedule option, you see:
Figure 6-13 Schedule Report
Step 2 Set all desired parameters (time, destination, export format, report name, layout, and so on) for the upcoming reports.
Step 3 Click Cancel to return to previous page, or click Schedule to schedule the report.
A summary of the scheduled report will be shown under the scheduled reports module. To edit or delete the scheduled reports, click the Scheduled Reports icon in the module Launcher.
Saving a Report
When you set all mandatory parameters of a report or have in focus a generated report, you can save it as a template that can be used during later sessions. A template enables you to run a report quickly, skipping the wizard steps. You can set a report custom name or use the default.
After a report has been saved, the number on the icon of the launcher gets updated, which shows that a new saved report is available.
Exporting Report Output

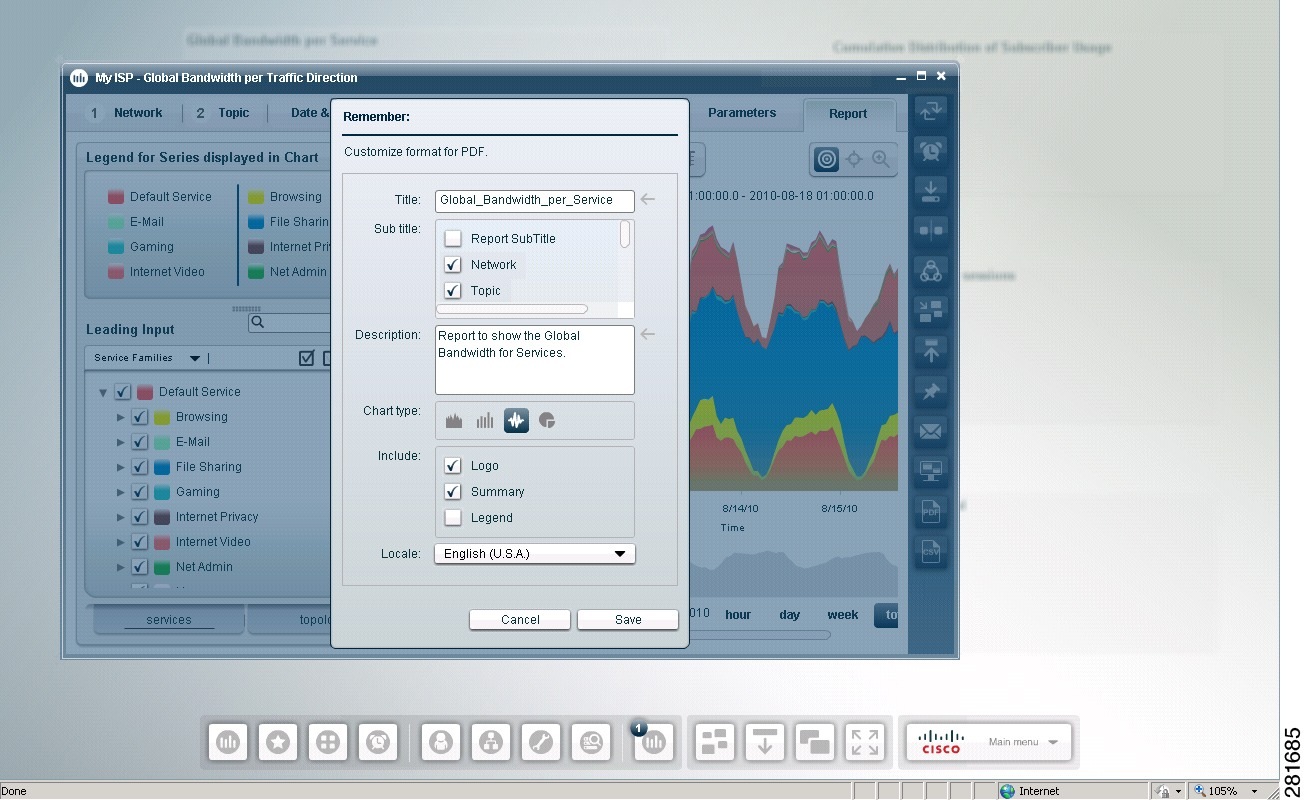

When you work with the Report tab in focus, all possible export formats (PDF, image, CSV) are available on the toolbar. When you clicks one of these exports, a dialog box appears, allowing you to set what needs to be exported (chart, table, legends, titles, and so on), the export format type (PDF, image, CSV), and the template layout.
My Favorites
You can select all mandatory parameters of a report and save it as a template that can be used later. The report template allows running reports while skipping all the wizard steps. You can set a report custom name or use the default.
To access and display the saved reports, click the My favorites icon on the module launcher.
It shows a list of report templates, with report custom name, network, modified date, and creator name. You can search for the report from the list and use filters.
To use the filter, perform the following steps:
Step 1 Click the Additional Filters option on the top-right corner of the My Favorites module. The various filter options are displayed.
Step 2 Filter and sort reports using any one of the following criteria- Creation date, Network name, Custom name of the report, Creators name, and so on.

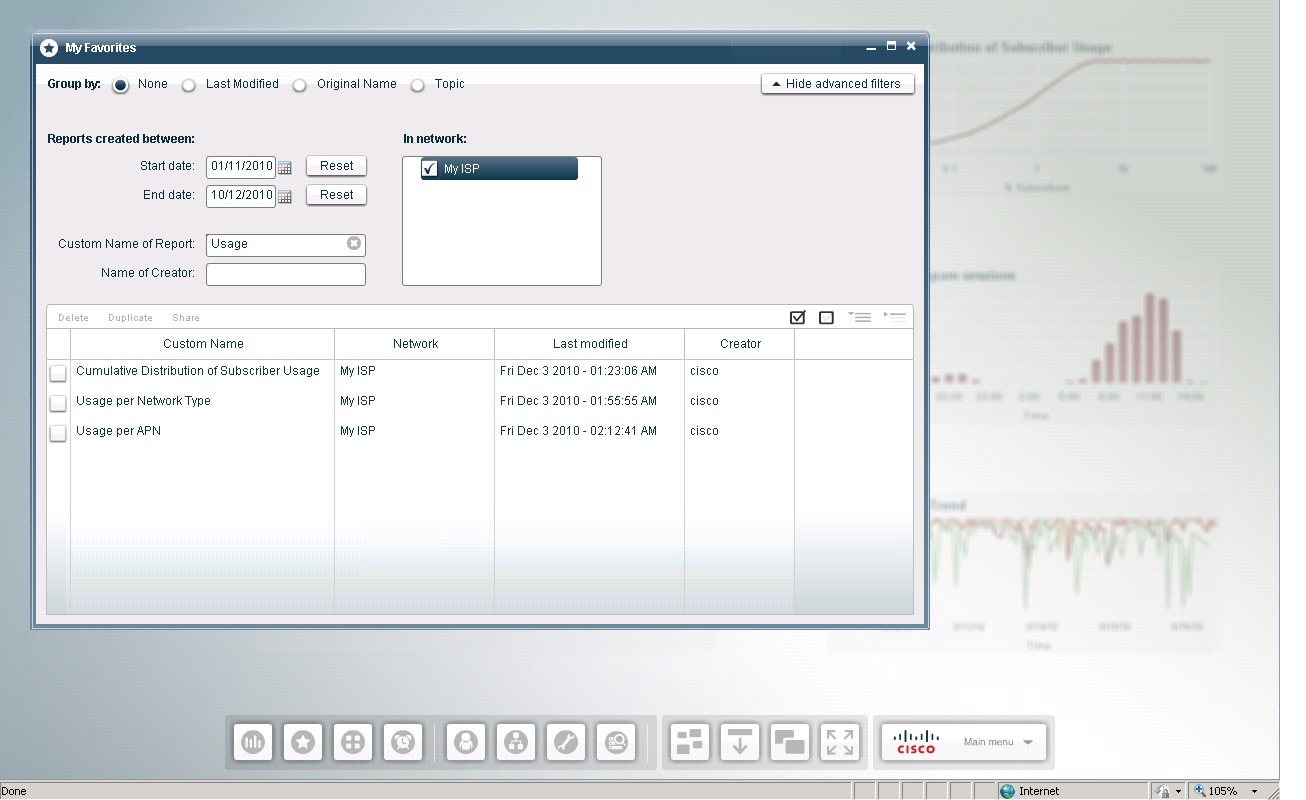

When you filter the reports, you see:
Figure 6-14 Filtering Reports
On applying the above mentioned filters, the report list gets updated.
With the saved reports, the following actions can be performed:
•Sharing a Report Definition
•Duplicating a Report Definition
Sharing a Report Definition
To share a report definition, perform the following steps:
Step 1 Select the report definitions you want to share.
Step 2 Click Share Selected. A Share Selected Report Definitions dialog box is displayed.

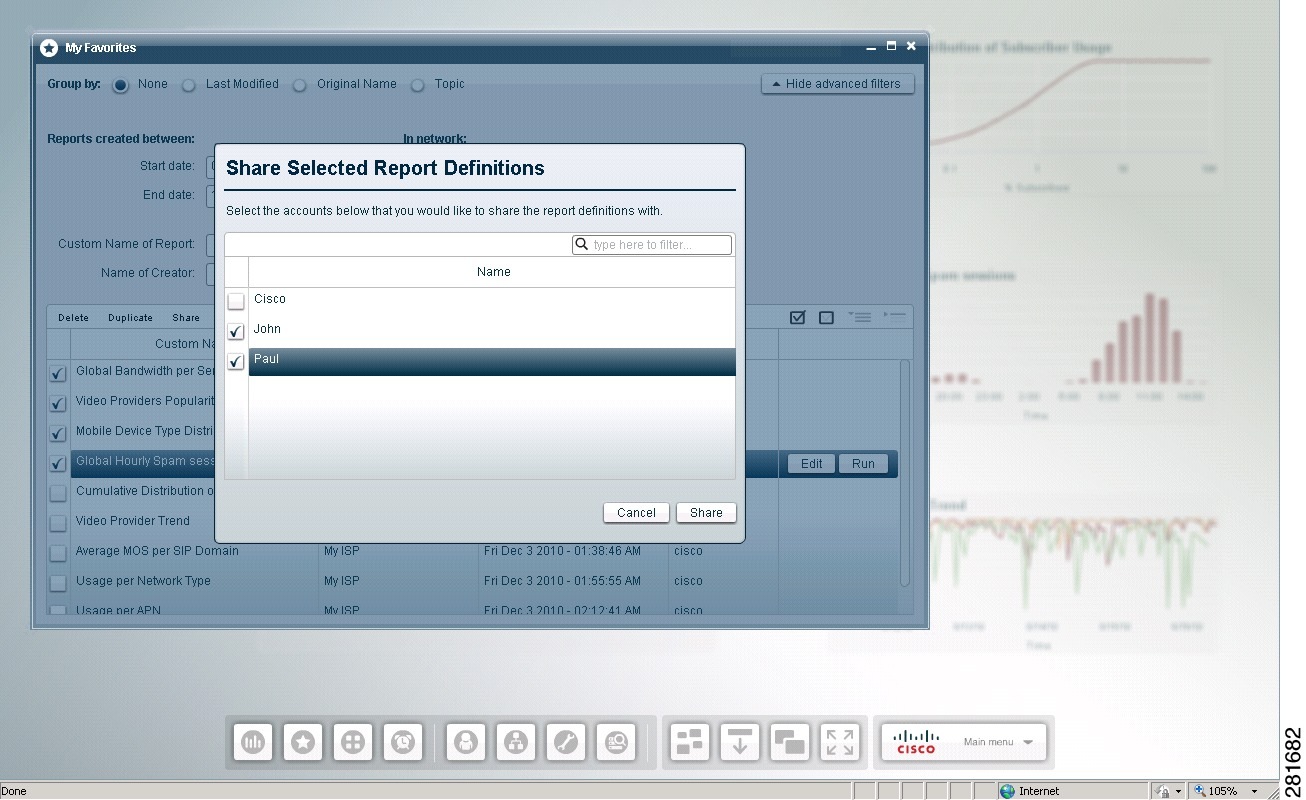

When you click S hare Selected, you see:
Figure 6-15 Sharing Report Definition
Note•Select the network groups whose visibility rights are compatible with the selected favorite report.
•Click Share. Each target account will get a copy of the select report in the respective favorite lists.
Note Because this operation creates a new element in the favorite report list of the target accounts, a notification gets displayed on the favorite report module on the module launcher of those accounts.
Similarly, you can unshare a shared report definition as well.
Duplicating a Report Definition
You can quickly create the exact copy of a selected report and conveniently change only a subset of parameters as needed. This allows you to open and compare several charts on a single screen.
To duplicate a report definition, perform the following steps:
Step 1 Select the report definitions you want to duplicate.
Step 2 Select the Duplicate Selected option.

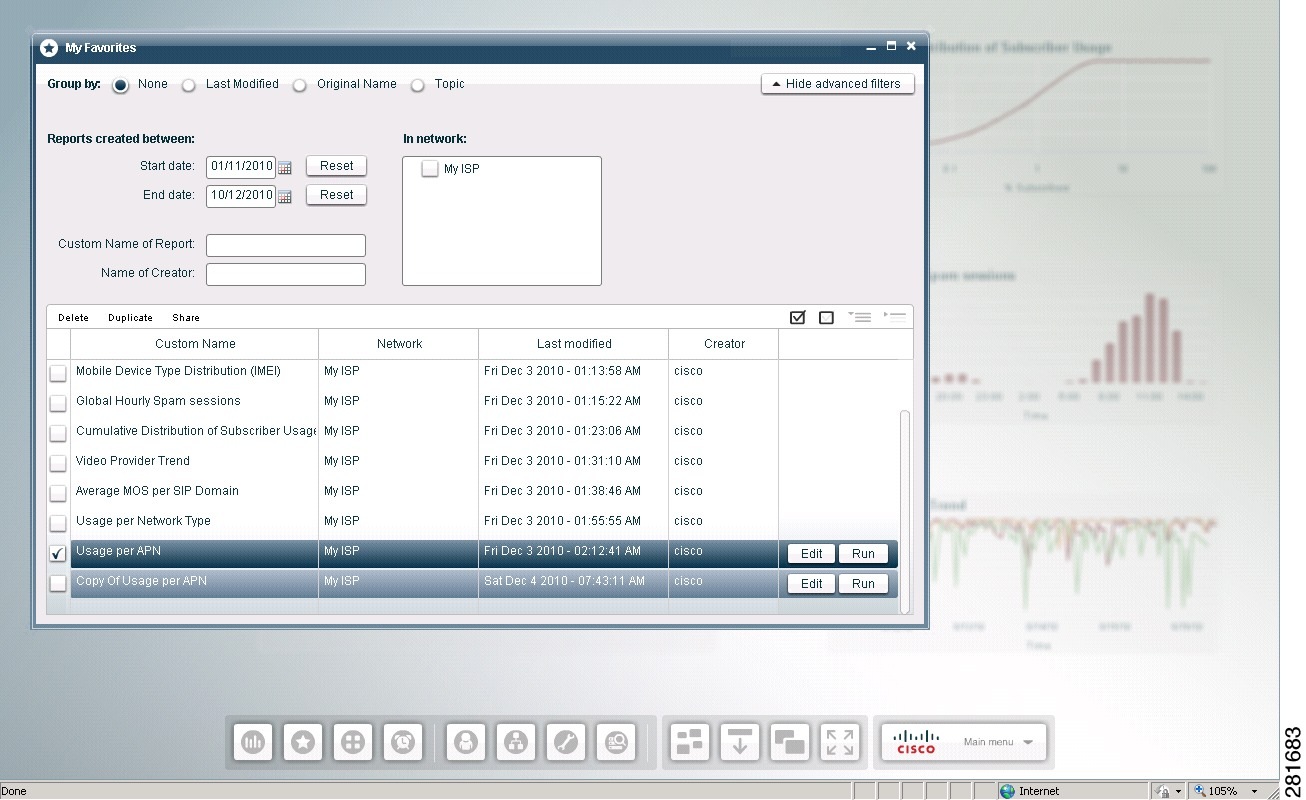

When you select Duplicate Selected, you see:
Figure 6-16 Duplicating a Report Definition
The duplicated report definitions are labeled as Copy of (old report name) and are selected by default after duplication.
Report Gallery
The report gallery is a tool using which where each user can view all:
•Report results shared by other accounts (only reports fulfilling the report visibility constraints of the accounts will be displayed).
•Personal reports that were published on the gallery (these can be private or shared with other users).
•Results of personal scheduled reports.
•Temporary reports saved with the "Remember" action on the workspace. These will be removed after the current session is over.
To access and display the published reports, click the Report Gallery icon on the module launcher.
Using a report gallery, you can:
•Publish a Report Output
•Remember a Report
•Merging a Reports
Publish a Report Output
To publish a report output, perform the following steps:
Step 1 Click Publish from the toolbar. A publish dialog box appears.
Step 2 Select the type of output to be published to the report gallery.
Step 3 Check the Share with checkbox, if you want to share the published report with a particular account group.
Note If you want to publish the report as a CSV file, click Next and the file will get published to the report gallery.
Step 4 Click Next. A dialog box similar to following appears on the screen:
Figure 6-17 Publishing a Report Output
Step 5 Set all the desired parameters (report title, subtitle, description, chart type, locale, and elements to include such as logo, legend, summary table).
Step 6 Click Done.
Remember a Report
To remember a report, perform the following steps:
Step 1 Click Remember from the toolbar. A Remember dialog box as shown below, appears
Figure 6-18 Remembering a Report
Step 2 Set all the desired parameters (report title, subtitle, description, chart type, locale, and elements to include such as logo, legend, summary table).
Step 3 Click Done.
A notification appears on the report gallery icon, which shows that a new report has been published to the report gallery.
Merging a Reports
To merge multiple report results (only PDF) from the Gallery into a single layout, perform the following steps:
Step 1 Select multiple reports (only PDF) from the report gallery you want to merge.
Click Merge on the toolbar. A dialog box similar to following appears on the screen:
Figure 6-19 Merging Report Output
Step 2 In the Merger Reports dialog box, provide the cover title and description to be shown on the cover page of the merged output.
Step 3 Select the order of the reports in which you want to see the generated output.
Step 4 Click Merge.
A new browser window opens showing the merged PDF output containing contents from all the selected reports.
Scheduled Reports
Cisco Insight v2 supports the ability to automatically run the several predefined reports each in a preconfigured time and interval. For example, an administrator needs to periodically share a set of reports with his or her managers or peers. The user (administrator) can define a list of users (managers) that will receive a notification on report batch completion and will have access to the report results as well.
Scheduled reports run in background and are designed to produce a static output that can be sent via email or stored on the file system of the server.
To access and display your saved reports, click the Scheduled Reports icon on the module launcher.
Using a scheduled report, you can perform following functions:
•Deleting a Scheduled Report
•Editing a Scheduled Report
Deleting a Scheduled Report
To delete a scheduled report, perform the following steps:
Step 1 Select the target report definitions.
Step 2 Choose Delete. A delete dialog box similar to the following appears:

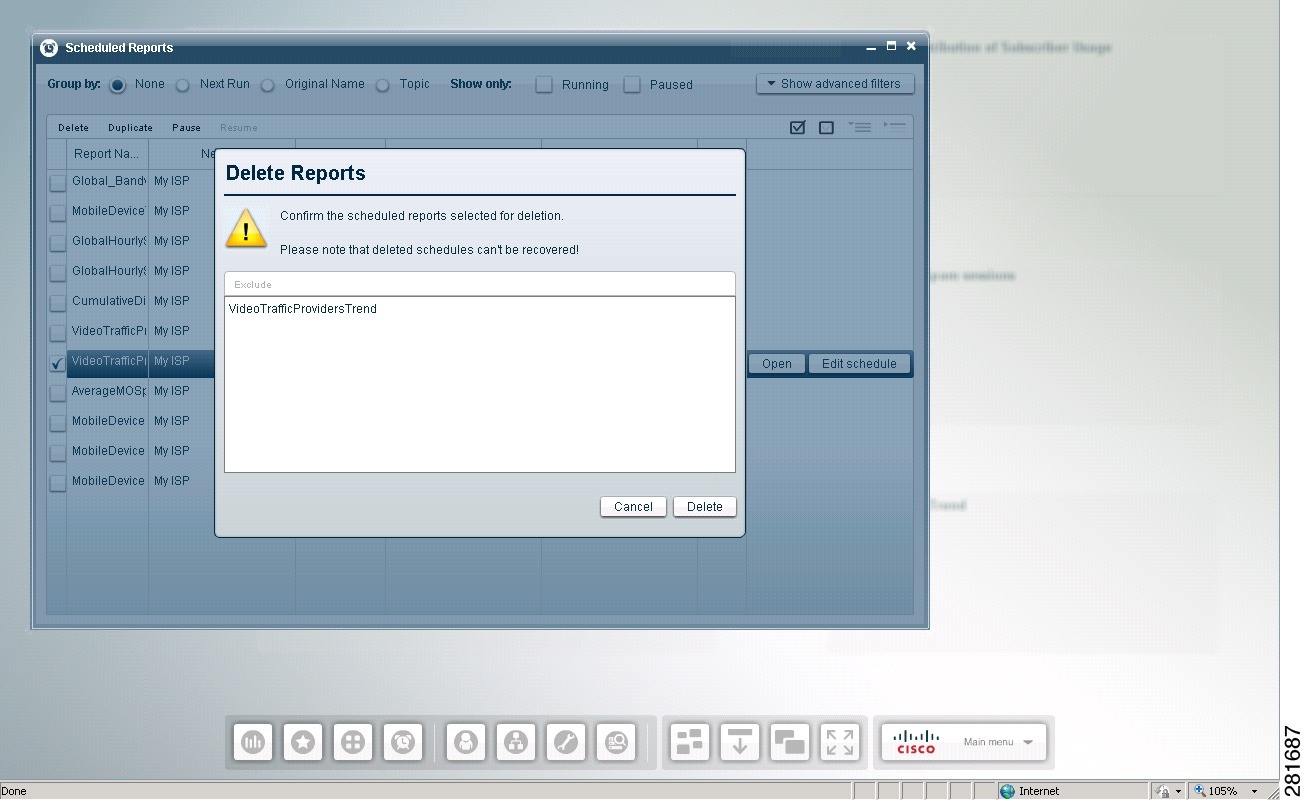

Figure 6-20 Deleting a Scheduled Report
Step 3 Review the name of the reports to be deleted.
Step 4 Click Delete to confirm.
Editing a Scheduled Report
To edit a scheduled report, perform the following steps:
Step 1 Select the target report from the list of scheduled reports.
Step 2 Select the Edit schedule option located at the extreme right of the report name. An Edit Schedule dialog box as shown below appears:
Figure 6-21 Editing a Scheduled Report
Step 3 Set the report schedule as needed. Click Next to confirm. A new dialog box appears.
Step 4 Select the report output. Click Next to confirm. A new dialog box appears on the screen.
Step 5 Set all the desired parameters (report title, subtitle, description, chart type, locale, and elements to include such as logo, legend, summary table). Click Next to confirm.
Step 6 Select report destination and choose to publish the report as private or public.
Step 7 Click Save.
Feedback
