Table Of Contents

Getting Started

Starting the NME-APA Device Console

Getting Started

---

This module describes how to get started with the NME-APA Device Console

Starting the NME-APA Device Console

This section describes how to start the NME-APA Device Console

---

Step 1 Double-click the APADC shortcut icon that is located on the Desktop.

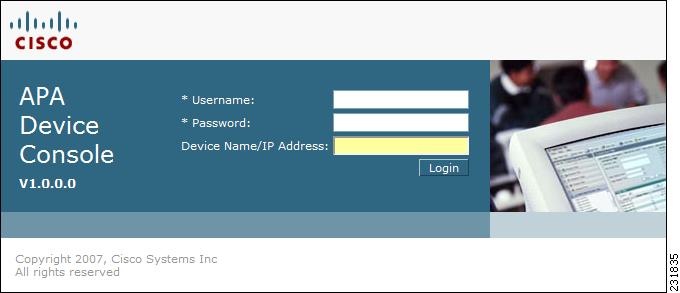

The page http://localhost:8080/login.jsp is opened in a web browser displaying the login screen.

Figure 2-1

Step 2 Type root in the Username field and type cisco in the Password field.

Step 3 Click Login.

The Create IT Manager User screen appears.

Figure 2-2

Step 4 Type in the name of the IT manager user in the Username field, and type in and confirm the user password in the Password and Confirm Password fields.

Step 5 Click Create.

The login screen reappears.

Step 6 Type in the username and password for the IT manager user created in Step 4.

The NME-APA Device Console appears.

---
