CLI Command Reference
This chapter contains all the CLI commands available on the NME-APA module.
Each command description is broken down into the following sub-sections:
Syntax and Conventions
The CLI commands are written in the following format: command required-parameter [optional-parameter]
no is an optional parameter that may appear before the command name.
When typing commands, you may enclose parameters in double-quote marks, and you must do so when there is a space within a parameter name.
?
Lists all of the commands available for the current command mode. You can also use the ? command to get specific information on a keyword or parameter. To obtain a list of commands that begin with a particular character string, enter the abbreviated command entry immediately followed by a question mark (?). This form of help is called partial help, because it lists only the keywords or arguments that begin with the abbreviation you entered.
?
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings
Command Modes
All
Usage Guidelines
To list a command's associated keywords or arguments, enter a question mark (?) in place of a keyword or parameter on the command line. This form of help is called argument help because it lists the keywords or arguments that apply based on the command, keywords, and arguments you have already entered.
Authorization: User
Examples
The following example shows ways of requesting help using the ? wildcard.
NME-APA(config)#ip ? advertising Enable IP advertising or set parametersdomain-lookup Enables the IP DNS-based host name-to-address translationdomain-name Define a default domain namehost Add a host to the host tablename-server Specify the address of one or more name servers to use for name and address resolutionradius-client RADIUS-Client settingsrpc-adapter Enable PRPC adapter or set attributes NME-APA(config)#ip d? default-gateway domain-lookup domain-name NME-APA(config)#ip de? default-gateway NME-APA(config)#ip deaaa accounting commands
Use the no form of the command to disable TACACS+ accounting.
aaa accounting commands level default stop-start group tacacs+
no aaa accounting commands level default
Syntax Description
level
The privilege level for which to enable the TACACS+ accounting
0: User
5: Viewer
10: Admin
15: Root
Defaults
By default, TACACS+ accounting is disabled.
Command Modes
Global Configuration
Usage Guidelines
If TACACS+ accounting is enabled, the NME-APA module sends an accounting message to the TACACS+ server after every command execution. The accounting message is logged in the TACACS+ server for the use of the network administrator.
The start-stop keyword (required) indicates that the accounting message is sent at the beginning and the end (if the command was successfully executed) of the execution of a CLI command.
Authorization: admin
Examples
The following example enables TACACS+ accounting for the admin privilege level (10).
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)# aaa accounting commands 10 default stop-start group tacacs+ NME-APA(config)#Related Commands
aaa authentication attempts
aaa authentication attempts login number-of-attempts
Syntax Description
number-of-attempts
the maximum number of login attempts that will be permitted before the telnet session is terminated
Defaults
Default number-of-attempts = 3
Command Modes
Global Configuration
Usage Guidelines
The maximum number of login attempts is relevant only for Telnet sessions. From the local console, the number of re-tries is unlimited.
Authorization: admin
Examples
The following example shows how to set the maximum number of logon attempts to five.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)# aaa authentication attempts login 5 NME-APA(config)#Related Commands
aaa authentication enable default
Specifies which privilege level authentication methods are to be used, and in what order of preference. Use the no form of the command to delete the privilege level authentication methods list.
aaa authentication enable default method1 [method2...]
no aaa authentication enable default
Syntax Description
method
the privilege level authentication methods to be used. You may specify up to four different methods, in the order in which they are to be used.
Defaults
Default privilege level authentication method = enable only
Command Modes
Global Configuration
Usage Guidelines
Use this command to configure "backup" privilege level authentication methods to be used in the event of failure of the primary privilege level authentication method. The following method options are available:
•
group tacacs+ : Use TACACS+ authentication.
•
•
•
If the privilege level authentication methods list is deleted, the default privilege level authentication method only ( enable password) will be used. TACACS+ authentication will not be used.
Authorization: admin
Examples
This example shows how to configure privilege level authentication methods.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)# aaa authentication enable default group tacacs+ enable none NME-APA(config)#Related Commands
aaa authentication login default
aaa authentication accounting commands
aaa authentication attempts
show tacacs
aaa authentication login default
Specifies which login authentication methods are to be used, and in what order of preference. Use the no form of the command to delete the login authentication methods list.
aaa authentication login default method1 [method2...]
no aaa authentication login default
Syntax Description
method
the login authentication methods to be used. You may specify up to four different methods, in the order in which they are to be used.
Defaults
Default login authentication method = enable only
Command Modes
Global Configuration
Usage Guidelines
Use this command to configure "backup" login authentication methods to be used in the event of failure of the primary login authentication method.
The following method options are available:
•
•
•
•
If the login authentication methods list is deleted, the default login authentication method only (enable password) will be used. TACACS+ authentication will not be used.
Authorization: admin
Examples
This example shows how to configure login authentication methods.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)# aaa authentication login default group tacacs+ enable none NME-APA(config)#Related Commands
aaa authentication enable default
aaa authentication accounting commands
aaa authentication attempts
show tacacs
application slot replace force completion
Forces the current application replace process to complete and immediately start finalization (killing all old flows).
application slot slot-number replace force completion
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example illustrates how to force the application replace operation to complete immediately.
NME-APA>enable 10 Password:<cisco> NME-APA#application slot 0 replace force completion NME-APA#attack-detector default
Defines default thresholds and attack handling action. If a specific attack detector is defined for a particular situation (protocol/attack direction/side), it will override these defaults. Use the no version of this command to delete the user-defined defaults. The system defaults will then be used.
attack-detector default protocol protocol attack-direction attack-direction side side [action action ] [open-flows open-flows] [ddos-suspected-flows ddos-suspected-flows] [suspected-flows-ratio suspected-flows-ratio] [notify-user | dont-notify-user] [alarm | noalarm]
no attack-detector default protocol protocol attack-direction attack-direction side side [action action] [open-flows open-flows] [ddos-suspected-flows ddos-suspected-flows] [suspected-flows-ratio suspected-flows-ratio]
Syntax Description
Defaults
The default values for the default attack detector are:
•
•
•
•
Command Modes
LineCard Interface Configuration
Usage Guidelines
The following arguments must always be specified:
•
•
•
The following arguments are optional:
•
•
•
•
Use the optional keywords as follows:
•
•
•
•
Use the attack-detector <number> command to configure a specific attack detector.
Authorization: admin
Examples
The following examples illustrate the use of the attack-detector default command:
EXAMPLE 1
The following example configures a default attack detector for TCP flows from the attack source.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface LineCard 0 NME-APA(config if)#attack-detector default protocol TCP attack-direction attack-source side both action report open-flows 500 ddos-suspected-flows 75 suspected-flows-ratio 50 NME-APA(config if)#EXAMPLE 2
The following example enables user notification for the specified default attack detector.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface LineCard 0 NME-APA(config if)#attack-detector default protocol TCP attack-direction attack-source side both notify-user NME-APA(config if)#Related Commands
attack-detector <number>
attack-filter user-notification ports
show interface LineCard attack-detector
attack-detector
Enables the specified attack detector and assigns an access control list (ACL) to it.
attack-detector number
Syntax Description
Defaults
This command has no default settings.
Command Modes
LineCard Interface Configuration
Usage Guidelines
Use the following commands to define the attack detector:
•
Authorization: admin
Examples
The following example enables attack detector number "2".
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface LineCard 0 NME-APA(config if)#attack-detector 2 NME-APA(config if)#Related Commands
attack-detector <number>
Configures a specific attack detector for a particular attack type (protocol/attack direction/side) with the assigned number. Use the default form of this command to configure the default attack detector for the specified attack type. Use the no form of this command to delete the specified attack detector.
attack-detector number protocol (((TCP|UDP) [dest-port destination port ])|ICMP|other|all) attack-direction attack-direction side side [action action ] [open-flows open-flows ] [ddos-suspected-flows ddos-suspected-flows ] [suspected-flows-ratio suspected-flows-ratio ] [notify-user|dont-notify-user] [alarm|no-alarm]
no attack-detector number
attack-detector default protocol (((TCP|UDP) [dest-port destination port ])|ICMP|other|all) attack-direction attack-direction side side [action action ] [open-flows open-flows ] [ddos-suspected-flows ddos-suspected-flows ] [suspected-flows-ratio suspected-flows-ratio ] [notify-user|dont-notify-user] [alarm|no-alarm]
no attack-detector default protocol (((TCP|UDP) [dest-port destination port ])|ICMP|other|all) attack-direction attack-direction side side
default attack-detector {all |all-numbered}
default attack-detector number protocol (((all | IMCP | other | TCP | UDP) [dest-port destination port attack-direction attack-direction side side
Syntax Description
Defaults
The default values for the default attack detector are:
•
•
•
•
Command Modes
LineCard Interface Configuration
Usage Guidelines
If a specific attack detector is defined for a particular attack type, it will override the configured default attack detector.
The following arguments must always be specified:
•
•
•
The following arguments are optional:
•
•
•
•
Use the appropriate keyword to enable or disable user notification by default:
•
•
Use the appropriate keyword to enable or disable sending an SNMP trap by default:
•
•
If the selected protocol is either TCP or UDP, specify whether the destination port is specific, not specific, or both. If the destination port or ports are specific, the specific destination ports are configured using the attack-detector command.
Use the attack-detector command to enable a configured attack detector.
Use the attack-detector default command to configure a default attack detector.
Authorization: admin
Examples
The following examples illustrate the use of the attack-detector <number> command:
EXAMPLE 1
The following example configures the attack detector number "2".
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface LineCard 0 NME-APA(config if)# attack-detector 2 protocol UDP dest-port not-specific attack-direction single-side-destination side both action block open-flows-rate 500 suspected-flows-rate 500 suspected-flows-ratio 50 notify-user alarm NME-APA(config if)#EXAMPLE 2
The following example deletes attack detector number "2".
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface LineCard 0 NME-APA(config if)#no attack-detector 2 NME-APA(config if)#EXAMPLE 3
The following example disables user notification for attack detector number "2".
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface LineCard 0 NME-APA(config if)#attack-detector 2 protocol UDP dest-port not-specific attack-direction single-side-destination side both dont-notify-user NME-APA(config if)#Related Commands
attack-detector
attack-detector TCP-port-list|UDP-port-list
attack-filter user-notification ports
attack-detector default
show interface LineCard attack-detector
attack-detector TCP-port-list|UDP-port-list
Defines the list of destination ports for specific port detections for TCP or UDP protocols.
attack-detector <number> (tcp-port-list|udp-port-list) (all | (<port1> [<port2>...]) )
Syntax Description
number
Number of the attack detector for which this list of specific ports is relevant
port1, port2
List of up to 15 specific port numbers.
Defaults
This command has no default settings.
Command Modes
LineCard Interface Configuration
Usage Guidelines
TCP and UDP protocols may be configured for specified ports only (port-based). Use this command to configure the list of specified destination ports per protocol.
Up to 15 different TCP port numbers and 15 different UDP port numbers can be specified.
Configuring a TCP/UDP port list for a given attack detector affects only attack types that have the same protocol (TCP/UDP) and are port-based (i.e. detect a specific destination port). Settings for other attack types are not affected by the configured port list(s).
Specify either TCP-port-list or UDP-port-list.
Use the all keyword to include all ports in the list.
Authorization: admin
Examples
This example shows how to configure the destination port list for the TCP protocol for attack detector #10.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface LineCard 0 NME-APA(config if)#attack-detector 10 TCP-port-list 100 101 102 103 NME-APA(config if)#Related Commands
attack-filter
Enables specific attack detection for a specified protocol and attack direction. Use the no form of the command to disable attack detection.
attack-filter protocol [protocol (((TCP|UDP) [dest-port destination port ])|ICMP|other)] [attack-direction attack-direction]
no attack-filter protocol [protocol (((TCP|UDP) [dest-port destination port ])|ICMP|other) [attack-direction attack-direction]
Syntax Description
Defaults
By default, attack-filter is enabled.
Default protocols = all protocols (no protocol specified)
Default attack direction = all directions
Default destination port = both port-based and port-less
Command Modes
LineCard Interface Configuration
Usage Guidelines
Specific attack filtering is configured in two steps:
•
•
In addition, the user can manually override the configured attack detectors to either force or prevent attack filtering in a particular situation (using the attack-filter dont-filter | force-filter command).
By default, specific-IP detection is enabled for all attack types. You can configure specific IP detection to be enabled or disabled for a specific, defined situation only, depending on the following options:
•
•
•
If the selected protocol is either TCP or UDP, specify whether the destination port is specific (port-based), not specific (port-less), or both. If the destination port or ports are specific, the specific destination ports are configured using the attack-detector TCP-port-list|UDP-port-list command.
Authorization: admin
Examples
The following examples illustrate the use of this command.
EXAMPLE 1
The following example shows how to enable specific, dual-sided attack detection for TCP protocol only.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface LineCard 0 NME-APA(config if)#attack-filter protocol TCP dest-port specific attack-direction dual-sided NME-APA(config if)#EXAMPLE 2
The following example shows how to enable single-sided attack detection for ICMP protocol only.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface LineCard 0 NME-APA(config if)# attack-filter protocol ICMP attack-direction single-side-source NME-APA(config if)#EXAMPLE 3
The following example disables attack detection for all non TCP, UDP, or ICMP protocols.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface LineCard 0 NME-APA(config if)#no attack-filter protocol other attack-direction all NME-APA(config if)#Related Commands
attack-detector TCP-port-list|UDP-port-list
attack-detector <number>
show interface LineCard attack-filter
attack-filter dont-filter | force-filter
This command prevents attack filtering for a specified IP address or protocol. If filtering is already in process, it is stopped. When attack filtering is stopped, it remains stopped until explicitly restored by another CLI command (either specific or general). Use theno form of this command to restore attack filtering. The force-filter keyword forces attack filtering for a specified IP address or protocol. When attack filtering is forced, it continues until explicitly stopped by another CLI command (either specific or general). Use the no form of this command to stop attack filtering.
attack-filter force-filter action action protocol ((TCP|UDP) [dest-port (port-number | non-specific)] | ICMP | other) attack-direction (((single-side-source | single-side-destination | single-side-both) ip ip-address) | (dual-sided source-ip ip-address destination-ip ip-address)) side side
attack-filter dont-filter protocol ((TCP|UDP) [dest-port (port-number | non-specific)] | ICMP | other) attack-direction (((single-side-source | single-side-destination | single-side-both) ip ip-address) | (dual-sided source-ip ip-address destination-ip ip-address)) side side
no attack-filter dont-filter protocol ((TCP|UDP) [dest-port (port-number | non-specific) ] |ICMP | other) attack-direction (((single-side-source | single-side-destination | single-side-both) ip ip-address) | (dual-sided source-ip ip-address destination-ip ip-address)) side side
no attack-filter force-filter action action protocol ((TCP|UDP) [dest-port (port-number | non-specific)] | ICMP | other) attack-direction (((single-side-source | single-side-destination | single-side-both) ip ip-address) | (dual-sided source-ip ip-address destination-ip ip-address)) side side
no attack-filter force-filter all
no attack-filter dont-filter all
Syntax Description
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
After configuring the attack detectors, the NME-APA module automatically detects attacks and handles them according to the configuration. However, there are scenarios in which a manual intervention is desired, either for debug purposes, or because it is not trivial to reconfigure the NME-APA attack-detectors properly.
The user can use the CLI attack filtering commands to do the following:
•
•
Attack filtering can be prevented for a specified IP address or protocol by executing a dont-filter CLI command. If filtering is already in process, it is stopped. When attack filtering has been stopped, it remains stopped until explicitly restored by another CLI command (either force-filter or no dont-filter).
Use the all keyword to restore or stop all filtering.
Authorization: admin
Examples
The following are examples of the attack-filter command:
EXAMPLE 1
The following example prevents attack filtering for the specified conditions.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)#attack-filter dont-filter protocol other attack-direction single-side-source ip 10.10.10.10 side both NME-APA(config if)#EXAMPLE 2:
The following example restores all attack filtering.
NME-APA>enable 10 NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)#no attack-filter dont-filter all NME-APA(config if)# Password:<cisco>EXAMPLE 3:
The following example forces attack filtering.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)#attack-filter force-filter action block protocol TCP dest-port not-specific attack-direction dual-sided source-ip 10.10.10.10 destination-ip 20.20.20.20 side both NME-APA(config if)#EXAMPLE 4:
The following example stops all forced attack filtering.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)#no attack-filter force-filter all NME-APA#Related Commands
attack-filter user-notification ports
Specifies a port as user notification port. TCP traffic from the user side to this port will never be blocked by the attack filter, leaving it always available for user notification. Use the no form of this command to remove the port from the user notification port list.
attack-filter user-notification ports port
no attack-filter user-notification ports port
Syntax Description
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Use this command to configure the port to be used for user notification as configured using the attack-filter and attack-detector <number> commands.
Authorization: admin
Examples
The following example specifies port 100 as the user notification port.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)#attack-filter user-notification ports 100 NME-APA(config if)#Related Commands
attack-detector default
attack-detector <number>
show interface linecard attack-filter
bandwidth
Sets Ethernet shaping for the FastEthernet line interfaces.
bandwidth bandwidth burst-size burstsize
Syntax Description
Defaults
bandwidth = 100000K (100 Mbps)
burst-size = 5000 (5K bytes)
Command Modes
FastEthernet Interface Configuration
Usage Guidelines
This command is valid for a specified FastEthernet line interface only. It must be executed explicitly for each interface.
Authorization: admin
Examples
This example sets bandwidth and burst size for a Fast Ethernet line interface (0/1)
NME-APA config NME-APA(config)#interface FastEthernet 0/1 NME-APA(config-if)#bandwidth 100000 burstsize 5000 NME-APA(config-if)#Related Commands
calendar set
Sets the system calendar. The calendar is a system clock that continues functioning even when the system shuts down.
calendar set hh:mm:ss day month year
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Always coordinate between the calendar and clock by using the clock read-calendar command after setting the calendar.
Authorization: admin
Examples
The following example sets the calendar to 20 minutes past 10 AM, January 13, 2006, synchronizes the real-time clock to the calendar time, and displays the result.
NME-APA>enable 10 Password:<cisco> NME-APA#calendar set 10:20:00 13 jan 2006 NME-APA#clock read-calendar NME-APA#show calendar 10:20:03 UTC THU January 13 2006 NME-APA#show clock 10:20:05 UTC THU January 13 2006 NME-APA#Related Commands
clock read-calendar
clock set
clock update-calendar
clock timezone
clock summertime
show calendar
show clock
cd
Changes the path of the current working directory.
cd new-path
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
The new path should already have been created in the local flash file system.
Authorization: admin
Examples
The following example shows the current directory (root directory) and then changes the directory to the log directory located under the root directory.
NME-APA>enable 10 Password:<cisco> NME-APA#pwd tffs0 NME-APA#cd log NME-APA#pwd tffs0:log NME-APA#Related Commands
clear arp-cache
Deletes all dynamic entries from the ARP cache. The Address Resolution Protocol (ARP) is a TCP/IP protocol that converts IP addresses to physical addresses. Dynamic entries are automatically added to and deleted from the cache during normal use. Entries that are not reused age and expire within a short period of time. Entries that are reused have a longer cache life.
clear arp-cache
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example clears the ARP cache.
NME-APA>enable 10 Password:<cisco> NME-APA#clear arp-cache NME-APA#clear interface linecard counters
Clears the linecard Interface counters.
clear interface linecard slot-number counters
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example clears the Line-Card 0 counters.
NME-APA>enable 10 Password:<cisco> NME-APA#clear interface linecard 0 counters NME-APA#Related Commands
clear interface linecard traffic-counter
Clears the specified traffic counter.
clear interface linecard slot-number traffic-counter (name | all)
Syntax Description
slot-number
The number of the identified slot. Enter a value of 0.
name
Name of the traffic counter to be cleared.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use the all keyword to clear all traffic counters.
Authorization: admin
Examples
The following example clears the traffic counter name counter1.
NME-APA>enable 10 Password:<cisco> NME-APA#clear interface linecard 0 traffic-counter name counter1 NME-APA#Related Commands
clear interface linecard user
Clears all anonymous users in the system.
clear interface linecard slot-number user anonymous all
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example clears all anonymous users.
NME-APA>enable 10 Password:<cisco> NME-APA#clear interface linecard 0 user anonymous all NME-APA#Related Commands
clear interface linecard user db counters
Clears the "total" and "maximum" users database counters.
clear interface linecard slot-number user db counters
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example clears all anonymous users.
NME-APA>enable 10 Password:<cisco> NME-APA#clear interface linecard 0 user db counters NME-APA#Related Commands
clear logger
Clears NME-APA module logger (user log files). This erases the information stored in the user log files.
clear logger [device user-file-log|line-attack-file-log ] [counters|nv-counters]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
The user log files have a size limit, with new entries overwriting the oldest entries. Therefore, there is no need to regularly clear the log files. Use this operation when you are certain that the information contained in the logs is irrelevant and might be confusing (for example, when re-installing the system at a new site, whose administrators should not be confused with old information).
•
•
Authorization: admin
Examples
EXAMPLE 1:
The following example clears the NME-APA module user log file.
NME-APA>enable 10 Password:<cisco> NME-APA#clear logger device User-File-Log Are you sure?Y NME-APA#EXAMPLE 2:
The following example clears the NME-APA module user log file counters.
NME-APA>enable 10 Password:<cisco> NME-APA#clear logger device User-File-Log counters Are you sure?Y NME-APA#EXAMPLE 3:
The following example clears the user log file non-volatile counters.
NME-APA>enable 10 Password:<cisco> NME-APA#clear logger device user-file-log nv-counters Are you sure?Y NME-APA#Related Commands
clear management-agent notifications counters
Clears the counters for the number of notifications sent to the management agent
clear management-agent notifications counters
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example clears the management agent notifications counters.
NME-APA>enable 10 Password:<cisco> NME-APA#clear management-agent notifications counters NME-APA#Related Commands
clear rdr-formatter
Clears the RDR formatter counters and statistics.
clear rdr-formatter
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example clears the RDR-formatter counters.
NME-APA>enable 10 Password:<cisco> NME-APA#clear rdr-formatter NME-APA#Related Commands
clock read-calendar
Synchronizes clocks by setting the system clock from the calendar.
clock read-calendar
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example updates the system clock from the calendar.
NME-APA>enable 10 Password:<cisco> NME-APA#clock read-calendar NME-APA#Related Commands
clock set
Manually sets the system clock.
clock set hh:mm:ss day month year
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Always coordinate between the calendar and clock by using the clock update-calendar command after setting the clock.
Authorization: admin
Examples
The following example sets the clock to 20 minutes past 10 PM, January 13, 2006.
NME-APA>enable 10 Password:<cisco> NME-APA#clock set 22:20:00 13 jan 2006 NME-APA#clock update-calendar NME-APA#show clock 22:21:10 UTC THU January 13 2006 NME-APA#show calendar 22:21:18 UTC THU January 13 2006 NME-APA#Related Commands
clock summertime
Configures the NME-APA module to automatically switch to daylight savings time on a specified date, and also to switch back to standard time. In addition, the time zone code can be configured to vary with daylight savings time if required. (For instance, in the eastern United States, standard time is designated EST, and daylight savings time is designated EDT). Use the no form of this command to cancel the daylight savings time transitions configuration.
clock summertime
no clock summertime
Syntax Description
Defaults
recurring, offset = 60 minutes
By default, the following recurrent time changes are configured:
•
•
Command Modes
Global Configuration
Usage Guidelines
The format of the command varies somewhat, depending on how the dates for the beginning and end of daylight savings time are determined for the particular location:
•
–
–
•
–
–
General guidelines for configuring daylight savings time transitions:
•
•
•
•
–
–
In the Southern hemisphere, month2 must be before month1, as daylight savings time begins in the fall and ends in the spring.
•
–
–
For the clock summer-time recurring command, the default values are the United States transition rules:
•
•
Use the recurring keyword if daylight savings time always begins and ends on the same day every year.
Use the first/last keywords to specify the occurrence of a day of the week in a specified month: For example: last Sunday March.
Use a specific date including the year for a not recurring configuration. For example: March 29, 2004.
Use week/day of the week/month (no year) for a recurring configuration:
•
•
Authorization: admin
Examples
The following examples illustrate the use of this command.
EXAMPLE 1
The following example shows how to configure recurring daylight savings time for a time zone designated "DST" as follows:
•
•
•
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#clock summer-time DST recurring last Sunday March 00:00 4 Saturday November 23:59 NME-APA(config)#EXAMPLE 2
The following example shows how to configure non-recurring daylight savings time for a time zone designated "DST" as follows:
•
•
•
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#clock summer-time DST April 16 2005 00:00 October 23 2005 23:59 NME-APA(config)#EXAMPLE 3
The following example shows how to cancel the daylight savings configuration.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#no clock summer-time NME-APA(config)#Related Commands
clock timezone
Sets the time zone. Use the no version of this command to remove current time zone setting. The purpose of setting the time zone is so that the system can correctly interpret time stamps data coming from systems located in other time zones.
clock timezone zone hours [minutes]
no clock timezone
Syntax Description
Defaults
UTC (hours = 0)
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example sets the time zone to Pacific Standard Time with an offset of 10 hours behind UTC.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#clock timezone PST -10 NME-APA(config)#Related Commands
clock update-calendar
Synchronizes clocks by setting the calendar from the system clock.
clock update-calendar
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example updates the calendar according to the clock.
NME-APA>enable 10 Password:<cisco> NME-APA#clock update-calendar NME-APA#Related Commands
configure
Enables the user to move from Privileged Exec Mode to Configuration Mode.
configure
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
After the user enters the configure command, the system prompt changes from <host-name># to <host-name>(config)#, indicating that the system is in Global Configuration Mode. To leave Global Configuration Mode and return to the Privileged Exec Mode prompt, use the exit command.
Authorization: admin
Examples
The following example enters the Global Configuration Mode.
NME-APA>enable 10 Password:<cisco> NME-APA#configure NME-APA(config)#Related Commands
copy
Copies any file from a source directory to a destination directory on the local flash file system.
copysource-file destination-file
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Both file names should be in 8.3 format, that is, there are a maximum of 8 characters before the period and three characters following it.
Authorization: admin
Examples
The following example copies the local analysis.sli file located in the root directory to the applications directory.
NME-APA>enable 10 Password:<cisco> NME-APA#copy analysis.sli applications/analysis.sli NME-APA#Related Commands
copy ftp://
Downloads a file from a remote station to the local flash file system, using FTP.
copy ftp://username[:password]@server-address[:port]/path/source-file destination-file
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use the following syntax for remote upload/download using FTP:
ftp://username[:password]@server-address[:port]/path/file
You can configure keyword shortcuts for the copy command using the following commands:
•
•
Authorization: admin
Examples
The following example downloads the ftp.sli file from the host 10.10.10.10 with user name "user" and password "a1234".
NME-APA>enable 10 Password:<cisco> NME-APA#copy ftp://user:a1234@10.10.10.10/p:/applications/ftp.sli NME-APA#Related Commands
copy-passive
Uploads or downloads a file using passive FTP.
copy-passive source-file ftp://username[:password]@server-address[:port]/path/destination-file [overwrite]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use the following format for remote upload/download using FTP: ftp://username[:password]@serveraddress[:port]/path/file
Use the overwrite keyword to permit the command to overwrite an existing file.
You can configure keyword shortcuts for the copy command using the following commands:
•
•
Authorization: admin
Examples
The following example performs the same operation as the previous copy ftp example using passive FTP.
NME-APA>enable 10 Password:<cisco> NME-APA#copy-passive appl/analysis.sli ftp://myname:mypw@10.1.1.105/p:/applications/analysis.sli NME-APA#Related Commands
copy running-config startup-config
Builds a configuration file with general configuration commands called config.txt, which is used in successive boots.
copy running-config startup-config
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
This command must be entered to save newly configured parameters, so that they will be effective after a reboot. You can view the running configuration before saving it using the more running-config command.
The old configuration file is automatically saved in the tffs0:system/prevconf directory.
Authorization: admin
Examples
The following example saves the current configuration for successive boots.
NME-APA>enable 10 Password:<cisco> NME-APA#copy running-config startup-config Backing-up configuration file... Writing configuration file... NME-APA#Related Commands
copy source-file ftp://
Uploads a file to a remote station, using FTP.
copy source-file ftp://username[:password]@server-address[:port]/path/destination-file
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use the following format for remote upload/download using FTP: ftp://username[:password]@serveraddress[:port]/path/file
You can configure keyword shortcuts for the copy command using the following commands:
•
•
Authorization: admin
Examples
The following example uploads the analysis.sli file located on the local flash file system to the host 10.1.1.105.
NME-APA>enable 10 Password:<cisco> NME-APA#copy /appl/analysis.sli ftp://myname:mypw@10.1.1.105/p:/applications/analysis.sli NME-APA#Related Commands
copy source-file startup-config
Copies the specified source file to the startup-config file. Use this command to upload a backup configuration file created using the copy startup-config destination-file command. This is useful in a cascaded solution for copying the configuration from one NME-APA module to the other.
copy source-file startup-config
Syntax Description
source-file
The name of the backup configuration file.
•
•
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
The source file name should be in 8.3 format, that is, there are a maximum of 8 characters before the period and three characters following it.
Authorization: admin
Examples
The following example shows how to upload a backup configuration file.
NME-APA>enable 10 Password:<cisco> NME-APA#copy ftp://user:pass@host/drive:/dir/bakupcfg.txt startup-config NME-APA#Related Commands
copy startup-config destination-file
Copies the startup-config file to the specified destination file. Use this command to create a backup configuration file. This is useful in a cascaded solution for copying the configuration from one NME-APA module to the other. The file created by this command can then be uploaded to the second NME-APA module using the copy source-file startup-config command.
copy startup-config destination-file
Syntax Description
destination-file
The name of the file to which the configuration is copied.
•
•
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
The destination file name should be in 8.3 format, that is, there are a maximum of 8 characters before the period and three characters following it.
Authorization: admin
Examples
The following example shows how to create a backup configuration file.
NME-APA>enable 10 Password:<cisco> NME-APA#copy startup-config ftp://user:pass@host/drive:/dir/bckupcfg.txt NME-APA#Related Commands
default user template all
Removes all user-defined user templates from the system. The default template only remains.
default user template all
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Authorization: admin
Examples
The following example removes all user-defined user templates.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)# default user template all NME-APA(config if)#Related Commands
user template import csv-file
show interface linecard user templates
party template
delete
Deletes a file from the local flash file system. Use the recursive switch to delete a complete directory and its contents. When used with the recursive switch, the filename argument specifies a directory rather than a file.
delete file-name [/recursive]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate how to use this command:
EXAMPLE 1:
The following example deletes the oldlog.txt file.
NME-APA>enable 10 Password:<cisco> NME-APA#delete oldlog.txt NME-APA#EXAMPLE 2:
The following example deletes the oldlogs directory.
NME-APA>enable 10 Password:<cisco> NME-APA#delete oldlogs /recursive 3 files and 1 directories will be deleted. Are you sure? y 3 files and 1 directories have been deleted. NME-APA#Related Commands
dir
Displays the files in the current directory.
dir [applications] [-r]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example displays the files in the current directory (root).
NME-APA>enable 10 Password:<cisco> NME-APA#dir File list for /tffs0/ 512TUE JAN 01 00:00:00 1980LOGDBG DIR 512TUE JAN 01 00:00:00 1980LOG DIR 7653 TUE JAN 01 00:00:00 1980FTP.SLI 29 TUE JAN 01 00:00:00 1980SCRIPT.TXT 512 TUE JAN 01 00:00:00 1980SYSTEM DIR NME-APA#Related Commands
disable
Moves the user from a higher level of authorization to a lower user level.
disable [level ]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged Exec and Viewer
Usage Guidelines

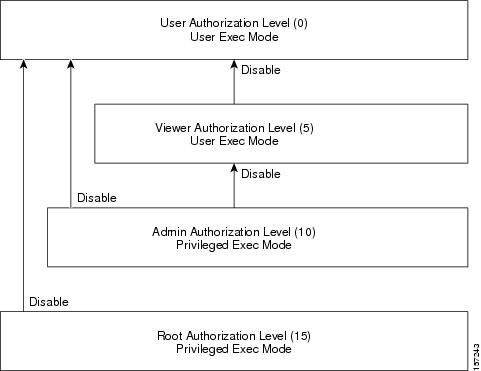

Use this command with the level option to lower the user privilege level, as illustrated in the following figure. If a level is not specified, it defaults to User mode.
Figure 1 Disable Command
Note that you must exit to the Privileged Exec command mode to use this command.
Authorization: user
Examples
The following example shows how to change from root to admin mode:
NME-APA>enable 15 Password:<cisco> NME-APA#>disable 10 NME-APA#Related Commands
do
Use the do command to execute an EXEC mode command (such as a show command) or a privileged EXEC command (such as show running-config) without exiting to the relevant command mode.
do command
Syntax Description
Defaults
This command has no default settings.
Command Modes
All configuration modes
Usage Guidelines
Use this command when in any configuration command mode (global configuration, linecard configuration, or any interface configuration) to execute a user exec or privileged exec command.
Enter the entire command with all parameters and keywords as you would if you were in the relevant command mode.
Authorization: admin
Examples
The following example assumes that the user has navigated to the interface configuration mode to perform some configuration tasks. The do command is used to avoid having to exit to the user exec mode.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)#do show system-uptime NME-APA uptime is 20 hours, 43 minutes, 37 seconds NME-APA(config if)#Related Commands
enable
Enables the user to access a higher authorization level.
enable [level]
Syntax Description
Defaults
level = admin
Command Modes
User Exec
Usage Guidelines

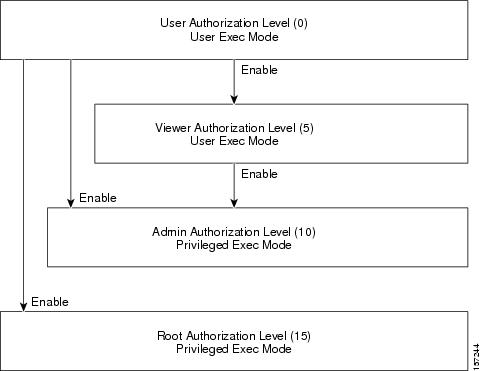

Authorization levels are illustrated in the following figure
Figure 2 Enable Command
If a level is not specified, the level defaults to admin authorization, level 10.
Note that you cannot use the enable command from the Privileged Exec or any of the configuration command modes.
Authorization: User
Examples
The following example accesses the administrator authorization level. Note that the prompt changes from NME-APA> to NME-APA#, indicating that the level is the administrator privilege level.
NME-APA>enable Password:<cisco> NME-APA#Related Commands
enable password
Configures a password for the specified authorization level, thus preventing unauthorized users from accessing the NME-APA module. Use theno form of the command to disable the password for the specified authorization level.
enable password [level level] [encryption-type] password
no enable password [level level]
Syntax Description
Defaults
password = cisco
Command Modes
Global Configuration
Usage Guidelines
After the command is entered, any user executing the enable command must supply the specified password.
•
•
•
•
•
Authorization: admin
Examples
The following example sets a level 10 password as a123*man.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#enable password level 10 a123*man NME-APA(config)#Related Commands
erase startup-config-all
Removes all current configuration by removing all configuration files.
erase startup-config-all
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
The following data is deleted by this command:
•
•
•
•
After using this command, the NME-APA module should be reloaded immediately to ensure that it returns to the 'factory default' state.
You can use the copy startup-config destination-file command to create a backup of the current configuration before it is deleted.
Authorization: admin
Examples
The following example shows how to erase the startup configuration.
NME-APA>enable 10 Password:<cisco> NME-APA#erase startup-config-allRelated Commands
exit
Exits from the current mode to the next "lower" mode.
exit
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
All
Usage Guidelines

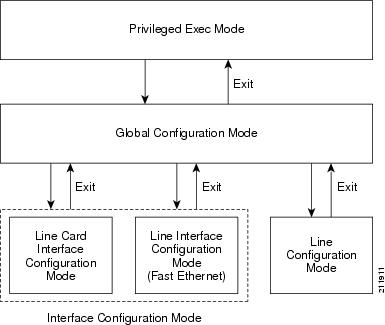

Use this command each time you want to exit a mode, as illustrated in the following figure. The system prompt changes to reflect the lower-level mode.
Figure 3 Exit Command
Authorization: admin
Examples
The following example exits from the Linecard Interface Configuration Mode to Global Configuration Mode and then to Privileged Exec and Viewer Modes.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)#exit NME-APA(config)#exit NME-APA#Related Commands
failure-recovery operation-mode
Specifies the operation mode to be applied after boot resulting from failure. When using the default switch, you do not have to specify the mode.
failure-recovery operation-mode mode
default failure-recovery operation-mode
Syntax Description
mode
operational or non-operational. Indicates whether or not the system will boot as operational following a failure.
Defaults
mode = operational
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example sets the system to boot as operational after a failure
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#failure-recovery operation-mode operational NME-APA(config)#Related Commands
help
Displays information relating to all available CLI commands.
help bindings|tree
Syntax Description
This command has no arguments.
Defaults
This command has no default settings.
Command Modes
Exec
Usage Guidelines
Use the bindings keyword to print a list of keyboard bindings (shortcut commands).
Use the tree keyword to display the entire tree of all available CLI commands.
Authorization: User
Examples
The following example shows the partial output of the help bindings command.
NME-APA>help bindings Line Cursor Movements --------------------- Ctrl-F /->Moves cursor one character to the right. Ctrl-B /<-Moves cursor one character to the left. Esc-FMoves cursor one word to the right. Esc-BMoves cursor one word to the left. Ctrl-AMoves cursor to the start of the line. Ctrl-EMoves cursor to the end of the line. Esc F Moves cursor forward one word. Esc BMoves cursor backward one word. Editing ------- Ctrl-DDeletes the character where the cursor is located. Esc-DDeletes from the cursor position to the end of the word. BackspaceDeletes the character before the current location of the cursor. Ctrl-H Deletes the character before the current location of the cursor. Ctrl-KDeletes from the cursor position to the end of the line. Ctrl-UDeletes all characters from the cursor to the beginning of the line. Ctrl-XDeletes all characters from the cursor to the beginning of the line. Ctrl-WDeletes the word to the left of the cursor. Ctrl-YRecall the last item deleted. Help and Operation Features ---------------------------- ? Argument help. <Tab>Toggles between possible endings for the typed prefix. <Esc><Tab>Displays all the possible arguments backwards. Ctrl-I <TAB> NME-APA>Related Commands
history
Enables the history feature, that is, a record of the last command lines that executed. Use the no form of this command to disable history.
history
no history
Syntax Description
This command has no arguments or keywords.
Defaults
History is enabled.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate how to use this command.
EXAMPLE 1
The following example enables the history feature.
NME-APA>enable 10 Password:<cisco> NME-APA#history NME-APA#EXAMPLE 2
The following example disables the history feature.
NME-APA>enable 10 Password:<cisco> NME-APA#no history NME-APA#Related Commands
history size
Sets the number of command lines that the system records in the history.
history size size
no history size
Syntax Description
Defaults
size = 10 lines
Command Modes
Privileged EXEC
Usage Guidelines
The size of the history buffer can be any number from 0-50. Use the no form of this command to restore the default size.
Authorization: admin
Examples
The following example sets the history buffer size to 50 command lines.
NME-APA>enable 10 Password:<cisco> NME-APA#history size 50 NME-APA#Related Commands
hostname
Modifies the name of the NME-APA module. The host name is part of the displayed prompt.
hostname host-name
Syntax Description
Defaults
host-name = NME-APA
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example changes the host name to MyHost.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#>hostname MyHost MyHost(config)#>Related Commands
interface fastethernet
Enters FastEthernet Interface Configuration mode to configure a specified Fast Ethernet line interface.
interface fastethernet slot-number/interface-number
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
This command is used to configure the line ports.
To return to the Global Configuration Mode, use the exit command.
The system prompt changes to reflect the Fast Ethernet Interface Configuration mode.
Authorization: admin
Examples
The following example enters into FastEthernet Configuration Interface Mode for line port #1.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface fastethernet 0/1 NME-APA(config if)#Related Commands
interface linecard
Enters Linecard Interface Configuration Mode.
interface linecard slot-number
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
The system prompt is changed to reflect the Line Card Configuration mode. To return to the Global Configuration Mode, use the exit command.
Authorization: admin
Examples
The following example enters LineCard Interface Configuration Mode.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)#Related Commands
ip advertising
Enables IP advertising. If the destination and/or interval is not configured, the default values are assumed. Use the no version of the command to disable IP advertising. Use the default version of the command to restore IP advertising destination or interval to the default values.
ip advertising [destination destination] | [interval interval]
no ip advertising
default ip advertising [destination | interval]
Syntax Description
destination
The IP address of the destination for the ping requests
interval
The frequency of the ping requests in seconds
Defaults
By default, IP advertising is disabled
destination = 127.0.0.1
interval = 300 seconds
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate the use of this command.
EXAMPLE 1:
The following example enables IP advertising, specifying 10.1.1.1 as the destination.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#ip advertising destination 10.1.1.1 interval 240 NME-APA(config)#EXAMPLE 2:
The following example enables IP advertising, specifying an interval of 240 seconds.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#ip advertising interval 240 NME-APA(config)#EXAMPLE 3:
The following example restores the IP advertising destination to the default value.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#default ip advertising destination NME-APA(config)#Related Commands
ip domain-lookup
Enables or disables the domain name lookups. Use the no form of the command to disable the domain name lookup.
ip domain-lookup
no ip domain-lookup
Syntax Description
This command has no arguments or keywords.
Defaults
By default, domain name lookup is enabled.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate how to use this command.
EXAMPLE 1:
The following example enables the domain lookup.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#ip domain-lookup NME-APA(config)#EXAMPLE 2:
The following example disables the domain lookup
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#no ip domain-lookup NME-APA(config)#Related Commands
ip domain-name
Defines a default domain name. Use the no parameter of this command to remove the current default domain name. When using the no parameter, you do not have to specify the domain name.
ip domain-name domain-name
no ip domain-name
Syntax Description
domain-name
The default domain name used to complete host names that do not specify a domain. Do not include the initial period that separates an unqualified name from the domain name.
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate the use of this command.
EXAMPLE 1:
The following example configures a domain name
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#ip domain-name cisco.com NME-APA(config)#EXAMPLE 2:
The following example removes the configured domain name.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#no ip domain-name NME-APA(config)#Related Commands
ip filter fragment
Use this command to enable the filtering out of IP fragments.
ip filter fragment enable
ip filter fragment disable
Syntax Description
This command has no arguments or keywords.
Defaults
By default, IP fragment filtering is disabled.
Command Modes
Global Configuration
Usage Guidelines
Management security is defined as the capability of the NME-APA module to cope with malicious management conditions that might lead to global service failure.
There are two parallel security mechanisms:
•
•
–
This command enables the IP fragment filter.
–
Use the ip filter moniter command to configure the IP filter monitor.
Use the enable keyword to enable IP fragment filtering.
Use the disable keyword to disable IP fragment filtering.
Authorization: admin
Examples
The following example shows how to enable IP fragment filtering.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#ip filter fragment enable NME-APA(config)#Related Commands
ip filter monitor
Configures the limits for permitted and not-permitted IP address transmission rates.
ip filter monitor [ip_permitted | ip_denied] low_rate low_rate high_rate high_rate burst burst size
Syntax Description
Defaults
low rate = 20 Mbps
high rate = 20 Mbps
burst size = 10 seconds
Command Modes
Global Configuration
Usage Guidelines
Management security is defined as the capability of the NME-APA module to cope with malicious management conditions that might lead to global service failure.
There are two parallel security mechanisms:
•
•
–
Use the ip filter fragment command to enable the IP fragment filter.
–
This command configures the IP filter monitor.
Use the ip_permitted keyword to apply configured limits to permitted IP addresses.
Use the ip_denied keyword to apply configured limits to not-permitted IP addresses.
If neither keyword is used, it is assumed that the configured limits apply to both permitted and not-permitted IP addresses.
Authorization: admin
Examples
The following example shows how to configure the rates for permitted IP addresses.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)# ip filter monitor ip_permitted low_rate 25 high_rate 30 burst 15 NME-APA(config)#Related Commands
ip ftp password
Specifies the password to be used for FTP connections for the current session. The system will use this password if no password is given in the copy FTP command.
ip ftp password password
Syntax Description
Defaults
Default password is admin
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example sets the password to be used in the FTP connection to mypw.
NME-APA>enable 10 Password:<cisco> NME-APA#ip ftp password mypw NME-APA#Related Commands
ip ftp username
Configures the username for FTP connections for the current session. This username will be used if no username is given in the copy FTP command.
ip ftp username user-name
Syntax Description
Defaults
Default username is anonymous
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example sets myname as the username for FTP connections.
NME-APA>enable 10 Password:<cisco> NME-APA#ip ftp username myname NME-APA#Related Commands
ip host
Adds a host name and address to the host table. Use the no form of the command to remove a host name and address from the host table.
ip host hostname ip-address
no ip host hostname [ip-address]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example adds a host to the host table.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#ip host PC85 10.1.1.1 NME-APA(config)#Related Commands
ip name-server
Specifies the address of 1-3 servers to use for name and address resolution. The system maintains a list of up to 3 name servers. If the current list is not empty, this command adds the specified servers to the list. The no option of this command removes specified servers from the current list.
ip name-server server-address1 [server-address2] [server-address3]
no ip name-server
Syntax Description
server-address1
The IP address of the name server.
server-address2
The IP address of an additional name server.
server-address3
The IP address of an additional name server.
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example adds the DNS 10.1.1.1 and 10.1.1.2 to the configured servers list.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#ip name-server 10.1.1.1 10.1.1.2 NME-APA(config)#Related Commands
ip radius-client retry limit
Configures the parameters for retransmitting unacknowledged RADIUS client messages.
ip radius-client retry limit times [timeout timeout]
Syntax Description
times
The maximum number of times the RADIUS client can try unsuccessfully to send a message.
timeout
Timeout interval for retransmitting a message, in seconds
Defaults
times = 3
timeout = 5 second
Command Modes
Global Configuration
Usage Guidelines
Due to the unreliable nature of UDP, the RADIUS client retransmits requests to the SCMP peer device if they were not acknowledged within the configured number of seconds. Messages that were not acknowledged can be retransmitted up to the configured maximum number of retries.
The optional timeout parameter limits the time interval for retransmitting a message.
Authorization: admin
Examples
The following example illustrates how to configure the retransmission parameters.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)# ip radius-client retry limit 5 timeout 5 NME-APA(config)#Related Commands
ip rpc-adapter
Enables the RPC adapter. Use the no option of this command to disable the RPC adapter.
ip rpc-adapter
no ip rpc-adapter
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate the use of this command.
EXAMPLE 1:
The following example enables the RPC adapter.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#ip rpc-adapter NME-APA(config)#EXAMPLE 2:
The following example disables the RPC adapter.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#no ip rpc-adapter NME-APA(config)#Related Commands
ip rpc-adapter port
Defines the RPC adapter port. Use the default option to reset the RPC adapter port assignment to the default port of 14374.
ip rpc-adapter port port-number
default ip rpc-adapter port
Syntax Description
Defaults
port number = 14374
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate the use of this command:
EXAMPLE 1:
The following example shows how to configure the RPC interface, specifying 1444 as the RPC adapter port.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#ip rpc-adapter NME-APA(config)#ip rpc-adapter port 1444EXAMPLE 2:
The following example shows how reset the RPC adapter port.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#default ip rpc-adapter portRelated Commands
ip rpc-adaptor security-level
Sets the PRPC server security level.
ip rpc-adaptor security-level {full|semi|none}
Syntax Description
Defaults
default = semi
Command Modes
Global Configuration
Usage Guidelines
Specify the desired PRPC server security level:
•
•
•
Authorization: admin
Examples
The following example illustrates how to set the PRPC server security level.
NME-APA>enable 10 Password:<cisco> NME-APA#configure NME-APA(config)#ip rpc-adaptor security-level full NME-APA>Related Commands
line vty
Enters Line Configuration Mode for Telnet lines, configuring all Telnet lines.
line vty start-number [end-number]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
The system prompt changes to reflect the Line Configuration mode. To return to Global Configuration Mode, use the exit command.
Authorization: admin
Examples
The following example enters the Line Configuration Mode for all lines.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#line vty 0 NME-APA(config-line)#Related Commands
link mode
Configures the link mode. The link mode allows the user to force the specified behavior on the link. This may be useful during installation and for debugging the network.
link mode link mode
Syntax Description
Defaults
Command Modes
Linecard Interface Configuration
Usage Guidelines
Use the port1-port2 keyword to configure the link mode for all links.
Authorization: admin
Examples
The following examples illustrate the use of the link mode command:
EXAMPLE 1:
The following example configures "bypass" as the link mode on the first link for the NME-APA module.
NME-APA Module>enable 10 Password:<cisco> NME-APA Module#config NME-APA Module(config)#interface linecard 0 NME-APA Module(config if)#link mode port1 bypass NME-APA Module(config if)#EXAMPLE 2:
The following example configures "forwarding" as the link mode for the NME-APA module.
NME-APA Module>enable 10 Password:<cisco> NME-APA Module#config NME-APA Module(config)#interface linecard 0 NME-APA Module(config if)#link mode forwarding NME-APA Module(config if)#EXAMPLE 3:
The following example configures "cutoff" as the link mode for the NME-APA module.
NME-APA Module>enable 10 Password:<cisco> NME-APA Module#config NME-APA Module(config)#interface linecard 0 NME-APA Module(config if)#link mode cutoff NME-APA Module(config if)#Related Commands
logger add-user-message
Adds a message string to the user log files.
logger add-user-message message-text
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example adds "testing 123" as the message to the user log files:
NME-APA>enable 10 Password:<cisco> NME-APA#logger add-user-message testing 123 NME-APA#logger device
Disables or enables the specified logger device.
logger device {line-attack-file-log | statistics-file-log | user-file-log} status
Syntax Description
Defaults
By default, the log devices are enabled.
Command Modes
Global Configuration
Usage Guidelines
Available logger devices are:
•
•
•
Authorization: admin
Examples
The following example disables the User-File-Log device.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#logger device user-file-log disabled NME-APA(config)#Related Commands
logger device user-file-log max-file-size
show logger device
logger get user-log file-name
clear logger
logger device user-file-log max-file-size
Sets the maximum log file size.
logger device User-File-Log max-file-size size
Syntax Description
Defaults
size = 1,000,000 bytes
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example configures the maximum size of the User-File-Log device to 65000 bytes.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#logger device user-file-log max-file-size 65000 NME-APA(config)#Related Commands
logger get support-file
Generates a log file for technical support using FTP. Note that this operation may take some time.
logger get support-file filename
Syntax Description
filename
Name of the generated log file. The specified file must be located on an FTP site, not on the local file system.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example generates a technical support log file (using FTP) named support.zip.
NME-APA>enable 10 Password:<cisco> NME-APA#logger get support-file ftp://user:1234@10.10.10.10/c:/support.zip NME-APA#Related Commands
logger get user-log file-name
Outputs the current user log to a target file. The output file name can be a local path, full path, or full FTP path file name.
logger get user-log file-name target-file
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example retrieves the current user log files.
NME-APA>enable 10 Password:<cisco> NME-APA#logger get user-log file-name ftp://myname:mypw@10.1.1.205/d:/log.txt NME-APA#Related Commands
logout
Logs out of the Command-Line Interface of the NME-APA module.
logout
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Exec
Usage Guidelines
The system prompts for confirmation of the logout command with 'N'. Type 'Y' to confirm the logout.
Examples
The following example shows how the user logs out (and confirms the logout).
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#exit NME-APA>logout Are you sure? YRelated Commands
management-agent sce-api logging
Enables the SCE user API troubleshooting logging, which is written to the user-log. Use the no form of this command to disable SCE user API troubleshooting logging.
management-agent sce-api logging
no management-agent sce-api logging
Syntax Description
This command has no arguments or keywords.
Defaults
By default, the SCE user API troubleshooting logging is disabled.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example enables SCE user API troubleshooting logging.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)# management-agent sce-api logging NME-APA(config)#Related Commands
management-agent sce-api timeout
Defines the timeout interval for disconnection of an SCE user API client, after which the resources allocated for this client would be released.
management-agent sce-api timeout timeout-interval
Syntax Description
Defaults
Default = 300 seconds
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
This example shows how to configure a timeout interval of 10 seconds.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)# management-agent sce-api timeout 10Related Commands
management-agent system
Specifies a new package file to install for the management agent. The NME-APA module extracts the actual image file(s) from the specified package file only during the copy running-config startup-config command. When using the no version of this command, you do not have to specify the package-file-name.
management-agent system package-file-name
no management-agent system
Syntax Description
package-file-name
The name of a package file that contains the new management agent software. The filename should end with the.pkg extension.
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Use this command to upgrade the NME-APA module management agent. The package file is verified for the system and checked that it is not corrupted. The actual upgrade takes place only after executing the copy running-config startup-config command and rebooting the NME-APA module.
Authorization: admin
Examples
The following example upgrades the system with the mng45.pkg package.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#management-agent system mng45.pkg Verifying package file... Package file verified OK. NME-APA(config)#do copy running-config startup-config Backing -up configuration file... Writing configuration file... Extracting new management agent... Extracted OK.Related Commands
mkdir
Creates a new directory.
mkdir directory-name
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example creates a new directory named mydir.
NME-APA>enable 10 Password:<cisco> NME-APA#mkdir mydir NME-APA#Related Commands
more
Displays the contents of a file.
more {file-name | running-config [all-data] | startup-config}
Syntax Description
file-name
The name of the file to be displayed.
all data
Displays defaults as well as non-default settings (running-config option only)
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
The running-config option displays the running configuration file. You can use the all data switch with this option to see sample usage for many CLI configuration commands.
The startup-config option displays the startup configuration file.
Authorization: admin
Examples
The following sample output displays the contents of the running configuration file.
NME-APA>enable 10 Password:<cisco> NME-APA#more running-config #This is a general configuration file (running-config). #Created on 16:48:11 UTC WED June 13 2001 cli-type 1 #version 1 service logger no service password-encryption enable password level 10 0 "cisco" enable password level 15 0 "cisco" service RDR-formatter no RDR-formatter destination all RDR-formatter history-size 0 clock timezone UTC 0 ip domain-lookup no ip domain-name no ip name-server service telnetd FastEthernet 0/0 ip address 10.1.5.120 255.255.0.0 exit ip default-gateway 10.1.1.1 no ip route all line vty 0 4 no access-class in timeout 30 exit NME-APA#Related Commands
more user-log
Displays the user log on the CLI console screen.
more user-log
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example displays the user log on the CLI console screen.
NME-APA>enable 10 Password:<cisco> NME-APA#more user-log <INFO>| 01/28/97 22:29:22 | CPU #000 | Logger: Task Initialized successfullyRelated Commands
no user
Removes a specified user from the system. Use the all option to remove all introduced users.
no user name user-name
no user scmp name scmp-name all
Syntax Description
user-name
The specific user name to be removed from the system.
scmp-name
Name of an SCMP peer device.
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Use the scmp name all option to remove all users managed by the specified SCMP peer device.
Authorization: admin
Examples
The following example removes all users.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)# no user all NME-APA(config if)#Related Commands
no user anonymous-group
Removes a specified anonymous user group from the system. Use the `all' form to remove all anonymous user groups.
no user anonymous-group name group-name
no user anonymous-group all
Syntax Description
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Authorization: admin
Examples
The following example removes all anonymous user groups.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)# no user anonymous-group allRelated Commands
ping
Pings the given host to test for connectivity. The ping program sends a test message (packet) to an address and then awaits a reply. Ping output can help you evaluate path-to-host reliability, delays over the path, and whether the host can be reached or is functioning.
ping host
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example pings the host 10.1.1.201.
NME-APA>enable 10 Password:<cisco> NME-APA#ping 10.1.1.201 pinging 10.1.1.201... PING 10.1.1.201: 56 data bytes 64 bytes from host (10.1.1.201): icmp_seq=0. time=0. ms 64 bytes from host (10.1.1.201): icmp_seq=1. time=0. ms 64 bytes from host (10.1.1.201): icmp_seq=2. time=0. ms 64 bytes from host (10.1.1.201): icmp_seq=3. time=0. ms ----10.1.1.201 PING Statistics---- 4 packets transmitted, 4 packets received, 0% packet loss round-trip (ms) min/avg/max = 0/0/0 NME-APA#Related Commands
pqi install file
Installs the specified pqi file using the installation options specified (if any). This may take up to 5 minutes.
pqi install file filename [options options]
Syntax Description
filename
The filename of the pqi application file to be installed.
options
The desired installation options. Use the show pqi file command to display the available installation options.
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Always run the pqi uninstall file command before installing a new pqi file to prevent accumulation of old files on the disk.
Authorization: admin
Examples
The following example installs the application stf30519.pqi file. No options are specified.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)#pqi install file stf30519.pqi NME-APA(config if)#Related Commands
pqi rollback file
Reverses an upgrade of the specified pqi file. This may take up to 5 minutes.
pqi rollback file filename
Syntax Description
filename
The filename of the pqi application file to be rolled-back. It must be the pqi file that was last upgraded.
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Always specify the last pqi file that was upgraded. Use the show pqi last-installed command.
Authorization: admin
Examples
The following example reverses the upgrade for the application using the anr100155.pqi file.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)#pqi rollback file anr100155.pqi NME-APA(config if)#Related Commands
pqi uninstall file
Uninstalls the specified pqi file. This may take up to 5 minutes.
pqi uninstall file filename
Syntax Description
filename
The filename of the pqi application file to be uninstalled. It must be the pqi file that was installed last.
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
Always specify the last pqi file that was installed. Use the show pqi last-installed command.
Always run the pqi uninstall command before installing a new pqi file to prevent accumulation of old files on the disk.
Authorization: admin
Examples
The following example uninstalls the application stf30519.pqi file.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)#pqi uninstall file stf30519.pqi NME-APA(config if)#Related Commands
pqi upgrade file
Upgrades the application using the specified pqi file and the upgrade options specified (if any). This may take up to 5 minutes.
pqi upgrade file filename [options options]
Syntax Description
filename
The filename of the pqi application file to be used for the upgrade.
options
The desired upgrade options. Use the show pqi file command to display the available options.
Defaults
This command has no default settings.
Command Modes
Linecard Interface Configuration
Usage Guidelines
A given pqi upgrade file is suitable for upgrading only from specific previously installed pqi files. The upgrade procedure checks that an upgrade is possible from the currently installed pqi file. The upgrade procedure is stopped with an error message if the upgrade is not possible.
Authorization: admin
Examples
The following example upgrades the application using the stf30519.pqi file. No options are specified.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface linecard 0 NME-APA(config if)#pqi upgrade file stf30519.pqi NME-APA(config if)#Related Commands
pwd
Displays the current working directory.
pwd
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example shows the current working directory as tffs0.
NME-APA>enable 10 Password:<cisco> NME-APA#pwd tffs0: NME-APA#Related Commands
queue
Sets the queue shaping.
queue queue-number bandwidth bandwidth burst-size burstsize
Syntax Description
Defaults
Bandwidth = 100000K (100 Mbps)
Burst size = 8000 (8K bytes)
Command Modes
FastEthernet Interface Configuration
Usage Guidelines
This command is valid for a specified FastEthernet line interface only. It must be executed explicitly for each interface.
Use the interface fastethernet command to access the configuration mode for the desired interface.
Authorization: admin
Examples
The following example configures queue shaping for queue 1 for FE port #1.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#interface fastethernet 0/2 NME-APA(config if)#queue 1 bandwidth 20000 burstsize 1000 NME-APA(config if)#Related Commands
rdr-formatter category number
Assigns a meaningful name to a category. This category name can then be used in any rdr-formatter command instead of the category number. Use the no option of this command to disassociate the name from the category. The name will then not be recognized by any CLI commands.
rdr-formatter category number [1-4] name category name
no rdr-formatter category number [1-4] name category name
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example assigns the name "prepaid" to Category 1.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#rdr-formatter category number 1 name prepaid NME-APA(config)#Related Commands
rdr-formatter destination
Note
Configures an RDR destination entry. Up to four entries can be configured. Each entry must have a different priority. The entry with the highest priority is used by the RDR formatter, provided that a connection with this destination can be established. This is where the RDR-formatter sends the RDRs it produces.
Use the no form of the command to remove the mappings of an RDR formatter destination to categories. When all categories for a destination are removed, the entire destination is removed.
rdr-formatter destination ip-address port port-number [category {name category-name } {number [1-4] }] [priority priority-value] protocol {RdrV1 | NetflowV9} transport {udp | tcp}
no rdr-formatter destination ip-address port port-number [category {name category-name }| {number [1-4 ]}]
no rdr-formatter destination all
Syntax Description
Defaults
Default protocol = RDRv1
Command Modes
Global Configuration
Usage Guidelines
The category may be identified by either name or number.
Assign a high priority to send RDRs from the specified category to this destination. Assign a low priority if RDRs from the specified category should not be sent to this destination.
For the first entry, if no priority is set, the highest priority is automatically assigned.
For all subsequent entries, the priority must be explicitly defined.
It is also possible to assign a different priority to each category for each destination. If no category is specified, the same priority is assigned to all categories for that destination.
Use the all keyword with the no form of the command to remove all of the configured RDR-formatter categories from the specified destination, thus removing the destination itself.
Authorization: admin
Examples
The following examples illustrate the use of the RDR-formatter destination command:
EXAMPLE 1:
The following example configures a Netflow destination with the default priority (highest) to be used by all categories.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#rdr-formatter destination 10.1.1.205 port 33000 protocol NetflowV9 transport udp NME-APA(config)#EXAMPLE 2:
The following example configures an RDR formatter destination for two categories with a different priority for each category. This configuration sends RDRs from category 2 to this destination, but generally not RDRs from category 1.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#rdr-formatter destination 10.1.1.206 port 34000 category number 1 priority 10 category number 2 priority 90 protocol RrdrV1 NME-APA(config)#Related Commands
rdr-formatter forwarding-mode
Defines the mode in which the RDR formatter will send the RDRs to the destinations.
rdr-formatter forwarding-mode mode
Syntax Description
mode
Settings: redundancy, multicast, simple-load-balancing as described in the Valid Mode Settings table in the Usage Guidelines.
Defaults
Default mode = redundancy
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following example sets the RDR formatter mode to "redundancy".
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#rdr-formatter forwarding-mode redundancy NME-APA(config)#Related Commands
rdr-formatter history-size
Configures the size of the history buffer. This command is currently not supported.
rdr-formatter history-size size
Syntax Description
Defaults
Default size = 0
Command Modes
Global Configuration
Usage Guidelines
Do not change the size of the history buffer from the default value.
Since currently only RDRv1 is supported, the size of the history buffer must be zero bytes, even though the system will accept a command specifying a larger size.
Authorization: admin
Examples
Related Commands
rdr-formatter rdr-mapping
Adds a dynamic RDR mapping to a category or removes one from a category. Use the no form of this command to remove an existing mapping.
rdr-formatter rdr-mapping (tag-id tag number category-number category number)
no rdr-formatter rdr-mapping (tag-id tag number category-number category number)
Syntax Description
Defaults
This command has no default settings.
Command Modes
Global Configuration
Usage Guidelines
The configuration of categories to RDR tags is done by adding and removing mappings. You can add a mapping of RDR tag to a category and remove a mapping, including the default mapping. If the table already contains a mapping with the same tag and category number, an error is issued and nothing is done.
If all categories are removed from a tag, this tag is ignored and is not formatted and sent - this is `ignore mapping'.
Authorization: admin
Examples
The following examples illustrate how to use this command.
EXAMPLE 1
This example shows how to add a mapping to a category.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#rdr-formatter rdr-mapping tag-id 0xf0f0f000 category-number 1 NME-APA(config)#EXAMPLE 2
This example shows how to restore the default mapping for a specified RDR tag.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#default rdr-formatter rdr-mapping tag-id 0xf0f0f000 NME-APA(config)#Related Commands
reload
Note
Reboots the NME-APA module.
reload
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example shows backing up of the configuration and performing a system reboot.
NME-APA>enable 10 Password:<cisco> NME-APA#copy running-config-all startup-config-all NME-APA#reload Are you sure? Y The system is about to reboot, this will end your CLI sessionRelated Commands
rename
Changes the file name to the specified name.
rename existing-file-name new-file-name
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example changes the name of file test1.pkg to test3.pkg.
NME-APA>enable 10 Password:<cisco> NME-APA#rename test1.pkg test3.pkg NME-APA#Related Commands
rmdir
Removes an empty directory. To remove a directory that is not empty, use the delete command with the recursive switch.
rmdir directory-name
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
You can only remove an empty directory. Use the dir command to verify that no files are listed in this directory.
Authorization: admin
Examples
The following example deletes the code directory.
NME-APA>enable 10 Password:<cisco> NME-APA#rmdir code NME-APA#Related Commands
script capture
Begins the recording of a script. It tracks all commands typed until the script stop command is used.
script capture script-file-name
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use this command to capture a sequence of repeated commands into a file for the purpose of executing the commands again.
Use the script stop command to stop capturing the script.
Authorization: admin
Examples
The following example shows the script capture for the script1.txt.
NME-APA>enable 10 Password:<cisco> NME-APA#script capture script1.txt NME-APA#cd log NME-APA#cd.. NME-APA#pwd NME-APA#script stopRelated Commands
script print
Displays a script file.
script print script-file-name
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example prints the commands captured in script1.txt.
NME-APA>enable 10 Password:<cisco> NME-APA#script print script1.txt cd log cd.. pwd script stop NME-APA#Related Commands
script run
Runs a script. The script may be created using the script capture command, or it may be created as a text file containing the appropriate commands.
script run script-file-name [halt]
Syntax Description
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Use this command to run a script that you have previously created using the script capture command.
Use the halt keyword to break script on errors.
Authorization: admin
Examples
The following example runs the script named monitor.txt, which contains commands to enable the generation of the real-time user usage RDRs for the specified users.
Following is the contents of the file:
configure interface linecard 0 user name Jerry property monitor value 1 user name George property monitor value 1 user name Elaine property monitor value 1 user name Kramer property monitor value 1The following shows how to run the script:
NME-APA>enable 10 Password:<cisco> NME-APA#script run monitor.txt NME-APA#configure NME-APA(config)#interface linecard 0 NME-APA(config if)#user name Jerry property monitor value 1 NME-APA(config if)#user name George property monitor value 1 NME-APA(config if)#user name Elaine property monitor value 1 NME-APA(config if)#user name Kramer property monitor value 1 NME-APA(config if)#Related Commands
script stop
Stops script capture. Used in conjunction with the script capture command, it marks the end of a script being recorded.
script stop
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
Privileged EXEC
Usage Guidelines
Authorization: admin
Examples
The following example stops the capturing of a script.
NME-APA>enable 10 Password:<cisco> NME-APA#script capture script1.txt NME-APA#cd log NME-APA#cd.. NME-APA#pwd NME-APA#script stop NME-APA#Related Commands
service password-encryption
Enables password encryption, so that the password remains secret when the configuration file is displayed. Use the no form of this command to disable password encryption.
service password-encryption
no service password-encryption
Syntax Description
This command has no arguments or keywords.
Defaults
Disabled (no encryption)
Command Modes
Global Configuration
Usage Guidelines
Passwords that were configured in an encrypted format are not deciphered when password encryption is disabled.
Authorization: admin
Examples
The following example shows the effect of enabling password encryption.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#enable password abcd NME-APA(config)#do more running-config #This is a general configuration file (running-config). #Created on 10:20:57 ISR TUE July 3 2001 ... enable password level 10 0 "abcd" ... NME-APA(config)#service password-encryption NME-APA(config)#do more running-config #This is a general configuration file (running-config). #Created on 10:21:12 ISR TUE July 3 2001 ... service password-encryption enable password level 10 0 "e2fc714c4727ee9395f324cd2e7f331f" ... NME-APA(config)#Related Commands
service rdr-formatter
Enables/disables the RDR-formatter. The RDR-formatter is the element that formats the reports of events produced by the linecard and sends them to an external data collector. Use the no keyword of this command to disable the RDR-formatter.
service rdr-formatter
no service rdr-formatter
Syntax Description
This command has no arguments or keywords.
Defaults
Enabled
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate the use of the service rdr-formatter command:
EXAMPLE 1:
The following example enables the RDR-formatter.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#service rdr-formatter NME-APA(config)#EXAMPLE 2:
The following example disables the RDR-formatter.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#no service rdr-formatter NME-APA(config)#Related Commands
show rdr-formatter enabled
rdr-formatter category number
rdr-formatter destination
service telnetd
Enables the Telnet daemon. Use the no form of this command to disable the daemon preventing new users from accessing the NME-APA module via Telnet.
service telnetd
no service telnetd
Syntax Description
This command has no arguments or keywords.
Defaults
Telnet daemon enabled
Command Modes
Global Configuration
Usage Guidelines
Authorization: admin
Examples
The following examples illustrate the use of the service telnetd command:
EXAMPLE 1:
The following example enables the Telnet daemon.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#service telnetd NME-APA(config)#EXAMPLE 2:
The following example disables the Telnet daemon.
NME-APA>enable 10 Password:<cisco> NME-APA#config NME-APA(config)#no service telnetd NME-APA(config)#Related Commands
setup
Invokes the setup utility, which is a dialog, or series of questions, that guides the user through the basic configuration process. This utility runs automatically upon initial connection to the local terminal. The utility may also be invoked explicitly to make changes to the system configuration.
setup
Syntax Description
The setup command does not include parameters in the usual sense of the word. However, the setup utility questions prompt for many global configuration parameters. Following is a table listing all the parameter values that are necessary to complete the initial configuration. It is recommended that you obtain all these values before beginning the setup.
Command Modes
Privileged EXEC
Usage Guidelines
Following is a brief list of the parameters configured via the setup command:
•
•
•
•
•
•
–
–
–
–
For a complete description of the command, see the Cisco Network Module Enhanced Application Performance Assurance User Guide.
Authorization: admin
Examples
The following example runs the setup utility.
NME-APA>enable 10 Password:<cisco> NME-APA#setup --- System Configuration Dialog ---At any point you may enter a question mark `?' followed by`Enter' for help.Use ctrl-C to abort configuration dialog at any prompt.Use ctrl-Z to jump to the end of the configuration dialog at anyprompt.Default settings are in square brackets `[]'.Would you like to continue with the System Configuration Dialog?[yes/no]: yshow calendar
Displays the time maintained by the real-time system calendar clock.
show calendar
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the current system calendar.
NME-APA>enable 5 Password:<cisco> NME-APA>show calendar 12:50:03 GMT MON November 13 2005 NME-APA>Related Commands
show clock
Displays the time maintained by the system clock.
show clock
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the current system clock.
NME-APA>enable 5 Password:<cisco> NME-APA>show clock 12:50:03 GMT MON November 13 2005 NME-APA>Related Commands
show failure-recovery operation-mode
Displays the operation mode to apply after boot resulted from failure.
show failure-recovery operation-mode
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example displays the failure recovery operation mode:
NME-APA>enable 5 Password:<cisco> NME-APA>show failure-recovery operation-mode System Operation mode on failure recovery is: operational NME-APA>Related Commands
show hostname
Displays the currently configured hostname.
show hostname
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows that NME-APA1 is the current hostname.
NME-APA>enable 5 Password:<cisco> NME-APA>show hostname NME-APA1 NME-APA>Related Commands
show hosts
Displays the default domain name, the address of the name server, and the content of the host table.
show hosts
Syntax Description
This command has no arguments or keywords.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the domain and hosts configured.
NME-APA>enable 5 Password:<cisco> NME-APA>show hosts Default domain is cisco.com Name/address lookup uses domain service Name servers are 10.1.1.60, 10.1.1.61 Host Address ---- ------- PC85 10.1.1.61 NME-APA>Related Commands
show interface fastethernet
Displays the details of a FastEthernet Interface.
show interface fastethernet slot-number/interface-number [counters [direction ]|duplex|speed|queue queue-number]
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
The following keywords are relevant to the line interfaces (1 - 2) of the NME-APA module:
The duplex keyword displays the configured and actual duplex mode of the specified interface.
The speed keyword displays the configured and actual speed of the specified interface.
The counters keyword displays the values of counters for the specified line interface.
The queue keyword displays the bandwidth and burst size of the specified queue in the specified line interface.
Counter Definitions
Following are definitions of the counters displayed in the output of this command.
In total octets: Total number of inbound octets
In good unicast packets: Total number good inbound unicast packets
In good multicast packets: Total number of good inbound multicast packets
In good broadcast packets: Total number of good inbound broadcast packets
In packets discarded: Total number of inbound discarded packets
In packets with CRC/Alignment error: Total number of inbound packets with CRC or alignment errors
In undersized packets: Total number of inbound undersized packets
In oversized packets: Total number of inbound oversized packets
Out unicast packets: Total number of outbound unicast packets
Out non unicast packets: Total number of outbound non-unicast packets
Out packets discarded: Total number of outbound discarded packets
Authorization: viewer
Examples
The following examples illustrate the use of the show interface FastEthernet command:
EXAMPLE 1:
The following example shows the FastEthernet details for a line interface.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface fastethernet 0/1 Configured speed: auto, configured duplex: auto AutoNegotiation is On, link is Up, actual speed: 100Mb/s, actual duplex: full Bandwidth: 100000 Kbps, Burst-size: 5000 bytes NME-APA>EXAMPLE 2:
The following example shows the FastEthernet interface counters.
NME-APA>show interface fastethernet 0/1 counters In total octets: 191520 In good unicast packets: 560 In good multicast packets: 0 In good broadcast packets: 0 In packets discarded: 0 In packets with CRC/Alignment error: 0 In undersized packets: 0 In oversized packets: 0 Out total octets: 0 Out unicast packets: 0 Out non unicast packets: 0 Out packets discarded: 0 NME-APA>EXAMPLE 3:
The following example shows the FastEthernet interface duplex mode configuration and status.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface fastethernet 0/1 duplex Configured duplex: auto AutoNegotiation is On, link is Up, actual duplex: half NME-APA>EXAMPLE 4:
The following example shows the FastEthernet interface speed configuration and status.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface fastethernet 0/1 speed Configured speed: auto AutoNegotiation is On, link is Up, actual speed: 100 NME-APA>EXAMPLE 5:
The following example shows the FastEthernet interface queue number 1.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface fastethernet 0/1 queue 1 Bandwidth: 100000 Kbps, Burst-size: 8000 bytes NME-APA>Related Commands
show interface linecard
Displays information for a specific linecard Interface.
show interface linecard slot-number
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows how to use this command.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 The application assigned to slot 0 is /tffs0/app/eng30102.sli Silent is off Configured shutdown is off Shutdown due to sm-connection-failure is off Resulting current shutdown state is off NME-APA>Related Commands
show interface linecard application
Displays the name of the application loaded on the Linecard Interface.
show interface linecard slot-number application
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the currently loaded application.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 application /tffs0/app/eng30102.sli NME-APA>Related Commands
show interface linecard attack-detector
Displays the configuration of the specified attack detector.
show interface linecard slot-number attack-detector [default|all]
show interface linecard slot-number attack-detector attack-detector
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Use the all keyword to display the configuration of all existing attack detectors.
Use the default keyword to display default attack detector configuration.
The following information is displayed:
•
•
•
•
–
–
–
•
•
Authorization: viewer
Examples
The following examples illustrate the show interface linecard attack-detector command:
EXAMPLE 1:
The following example displays the configuration of attack detector number 3.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 attack-detector 3 Detector #3: Comment: 'Sample' Access-list: 1 Effective only for TCP port(s) 21,23,80 Effective for all UDP ports Protocol|Side|Direction ||Action| Thresholds |Sub- |Alarm | | || |Open flows|Ddos-Suspected flows|notif| | | || |rate |rate |ratio | | --------|----|-----------||------|----------|------------|-------|-----|----- TCP |net.|source-only|| | | | | | TCP |net.|dest-only || | | | | | TCP |sub.|source-only|| | | | | | TCP |sub.|dest-only || | | | | | TCP |net.|source+dest|| | | | | | TCP |sub.|source+dest|| | | | | | TCP+port|net.|source-only||Block | | | | |Yes TCP+port|net.|dest-only || | | | | | TCP+port|sub.|source-only||Block | | | | |Yes TCP+port|sub.|dest-only || | | | | | TCP+port|net.|source+dest|| | | | | | TCP+port|sub.|source+dest|| | | | | | UDP |net.|source-only|| | | | | | UDP |net.|dest-only || | | | | | UDP |sub.|source-only|| | | | | | UDP |sub.|dest-only || | | | | | UDP |net.|source+dest|| | | | | | UDP |sub.|source+dest|| | | | | | UDP+port|net.|source-only|| | | | | | UDP+port|net.|dest-only || | | | | | UDP+port|sub.|source-only|| | | | | | UDP+port|sub.|dest-only || | | | | | UDP+port|net.|source+dest|| | | | | | UDP+port|sub.|source+dest|| | | | | | ICMP |net.|source-only|| | | | | | ICMP |net.|dest-only || | | | | | ICMP |sub.|source-only|| | | | |Yes | ICMP |sub.|dest-only || | | | | | other |net.|source-only|| | | | | | other |net.|dest-only || | | | | | other |sub.|source-only|| | | | | | other |sub.|dest-only || | | | | | Empty fields indicate that no value is set and configuration from the default attack detector is used. NME-APA>EXAMPLE 2:
The following example displays the configuration of the default attack detector.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 attack-detector default Protocol|Side|Direction ||Action| Thresholds |Sub- |Alarm | | || |Open flows|Ddos-Suspected Flows|notif| | | || |rate |rate |ratio | | --------|----|-----------||------|----------|------------|-------|-----|----- TCP |net.|source-only||Report| 1000| 500|50 |No |No TCP |net.|dest.-only ||Report| 1000| 500|50 |No |No TCP |sub.|source-only||Report| 1000| 500|50 |No |No TCP |sub.|dest.-only ||Report| 1000| 500|50 |No |No TCP |net.|source+dest||Report| 100| 50|50 |No |No TCP |sub.|source+dest||Report| 100| 50|50 |No |No TCP+port|net.|source-only||Report| 1000| 500|50 |No |No TCP+port|net.|dest.-only ||Report| 1000| 500|50 |No |No TCP+port|sub.|source-only||Report| 1000| 500|50 |No |No TCP+port|sub.|dest.-only ||Report| 1000| 500|50 |No |No TCP+port|net.|source+dest||Report| 100| 50|50 |No |No TCP+port|sub.|source+dest||Report| 100| 50|50 |No |No UDP |net.|source-only||Report| 1000| 500|50 |No |No UDP |net.|dest.-only ||Report| 1000| 500|50 |No |No UDP |sub.|source-only||Report| 1000| 500|50 |No |No UDP |sub.|dest.-only ||Report| 1000| 500|50 |No |No UDP |net.|source+dest||Report| 100| 50|50 |No |No UDP |sub.|source+dest||Report| 100| 50|50 |No |No UDP+port|net.|source-only||Report| 1000| 500|50 |No |No UDP+port|net.|dest.-only ||Report| 1000| 500|50 |No |No UDP+port|sub.|source-only||Report| 1000| 500|50 |No |No UDP+port|sub.|dest.-only ||Report| 1000| 500|50 |No |No UDP+port|net.|source+dest||Report| 100| 50|50 |No |No UDP+port|sub.|source+dest||Report| 100| 50|50 |No |No ICMP |net.|source-only||Report| 500| 250|50 |No |No ICMP |net.|dest.-only ||Report| 500| 250|50 |No |No ICMP |sub.|source-only||Report| 500| 250|50 |No |No ICMP |sub.|dest.-only ||Report| 500| 250|50 |No |No other |net.|source-only||Report| 500| 250|50 |No |No other |net.|dest.-only ||Report| 500| 250|50 |No |No other |sub.|source-only||Report| 500| 250|50 |No |No other |sub.|dest.-only ||Report| 500| 250|50 |No |No NME-APA>Related Commands
show interface linecard attack-filter
Displays the attack filtering configuration.
show interface linecard slot-number attack-filter [option]
Syntax Description
slot-number
The number of the identified slot. Enter a value of 0.
option
See Usage Guidelines for the list of options.
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Following is a list of options that may be displayed:
•
–
–
–
•
–
–
–
•
•
•
•
•
•
Authorization: viewer
Examples
The following examples illustrate the use of this command.
EXAMPLE 1:
The following example displays the configuration of attack detection between two specified IP addresses (dual-sided) for destination port 101.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 attack-filter query dual-sided source-IP 10.10.10.10 dest 10.10.10.145 dest-port 101 configured NME-APA>EXAMPLE 2:
The following example displays all existing forced attack filters.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 attack-filter force-filter No force-filter commands are set for slot 0 NME-APA>EXAMPLE 3:
The following example displays the user notification ports.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 attack-filter user-notification ports Configured User notification ports: 100 NME-APA>Related Commands
show interface linecard counters
Displays the Linecard Interface counters.
show interface linecard slot-number counters [bandwidth] [cpu-utilization] [cpu-history] [all-active-users]
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Specify any of the optional keywords to display only the desired counters.
Authorization: viewer
Examples
The following example shows the hardware counters for the Linecard Interface.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 countersDP packets in: 100DP packets out: 100DP IP packets in: 90DP Non-IP packets: 10DP IP packets with CRC error: 0DP IP packets with length error: 0DP IP broadcast packets: 10DP IP fragmented packets: 0DP IP packets with TTL=0 error: 0DP Non TCP/UDP packets: 10DP TCP/UDP packets with CRC error: 0FF counter #0: 0FF counter #1: 0FF counter #2: 0FF counter #3: 0... NME-APA>Related Commands
show interface linecard duplicate-packets-mode
Displays the currently configured duplicate packets mode.
show interface linecard slot-number duplicate-packets-mode
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example illustrates the use of this command:
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 duplicate-packets-mode Packet duplication of flows due to Delay Sensitive <bundles>is enabled Packet duplication of flows due to No-Online-Control <set-flow>is enabled Packet duplication of flows due to No-Online-Control <set-flow>ratio percent is 70 Packet duplication in case of shortage is enabled NME-APA>Related Commands
show interface linecard flow-open-mode
Displays the currently configured flow open mode.
show interface linecard slot-number flow-open-mode
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example illustrates the use of this command.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 flow-open-modeEnhanced flow open mode is disabled NME-APA>Related Commands
show interface linecard link mode
Displays the configured Linecard Interface link mode.
show interface linecard slot-number link mode
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the configured link mode for the Linecard Interface.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 link mode Link mode on port1-port2 Current link mode is :forwarding Actual link mode on active is :forwarding Actual link mode on failure is :monopath-bypass NME-APA>Related Commands
show interface linecard link-to-port-mappings
Displays the link ID to port ID mappings.
show interface linecard slot-number link-to-port-mappings
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the link ID to port ID mapping for the Linecard Interface.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 link-to-port-mappings Link Id | Upstream Port <Out>| Downstream Port <Out> ----------------------------------------------------------- 0 | 0/2 | 0/1 NME-APA>Related Commands
show interface linecard shutdown
Displays the current shutdown state.
show interface linecard slot-number shutdown
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the linecard Interface silent mode.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 shutdown off NME-APA>Related Commands
show interface linecard silent
Displays the current Linecard Interface silent state. When the silent state is Off, the linecard events reporting function is enabled.
show interface linecard slot-number silent
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the Linecard Interface silent mode.
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 silent off NME-APA>Related Commands
show interface linecard tos-marking
Displays the current linecard TOS marking table.
show interface linecard slot-number tos-marking
Syntax Description
Defaults
This command has no default settings.
Command Modes
User Exec
Usage Guidelines
Authorization: viewer
Examples
The following example shows the ToS marking table:
NME-APA>enable 5 Password:<cisco> NME-APA>show interface linecard 0 tos-marking BE AF1 AF2 AF3 AF4 FE green 0x0 0xa 0x12 0x1a 0x22 0x2e yellow 0x0 0xc 0x14 0x1c 0x24 0x2e red 0x0 0xe 0x16 0x1e 0x24 0x2e NME-APA>Related Commands
</
