Cisco RF Gateway 10 DS-384 Line Card Hardware Installation Guide
Overview
The Cisco RF Gateway 10 Universal Edge Quadrature Amplitude Modulation (UEQAM) Downstream 384 line card (hereafter called the Cisco RFGW-10 DS-384 line card) is a high-density downstream quadrature amplitude modulation (QAM) card that resides in the RF Gateway-10 chassis. It supports a maximum of 384 downstream channels through flexible QAM-capacity licensing. The Cisco RFGW-10 DS-384 line card supports both DOCSIS data, video on demand (VoD), and switched digital video (SDV).
Effective with Cisco IOS-XE Release 3.3.1SQ and Cisco IOS-XE Release 3.2.3SQ, the Cisco RFGW-10 supports the new version of the Cisco RFGW-10 DS-384 line card with P4080 CPU revision 3. The Version Identifier (VID) of the new Cisco RFGW-10 DS-384 line card is 2. Ensure that you run one of the following releases on the Supervisor engine 7-E for using the new version of Cisco RFGW-10 DS-384 line card (with P4080 CPU revision 3):
Note
If the Supervisor engine 7-E is running a release earlier than the above releases, the new version of the Cisco RFGW-10 DS-384 line card (with P4080 CPU revision 3) does not downgrade and hence, does not work.
Effective with Cisco IOS-XE Release 3.2.0SQ, the Cisco RFGW-10 DS-384 line card supports the following features:
- Different port density combinations of up to 8 ports and 384 QAMs on every line card.
- Support for 1 QAM per port, 2 QAM per port, 4 QAM per port, 8 QAM per port, and up to 128 QAMs per port in increments of 4. For example:
- Downstream RF performance compliant with CableLabs CM-SP-DRFI-I11-110210.
- Flexible licensing of 64 to 384 QAMs carriers per line card in increments of 1 QAM.
Note
Effective with Cisco IOS-XE Release 3.4.0SQ, for Annex B, the Cisco RFGW-10 supports a maximum of 1024 downstream channels per line card, where a maximum of 384 QAMs as pilots and a maximum of 640 QAMs as replicate. For Annex A, the Cisco RFGW-10 supports a maximum of 768 downstream channels per line card, where a maximum of 288 as pilot and 480 as replicate.
As with all components in the RF Gateway 10, the Cisco RFGW-10 DS-384 line card also provides high availability. Up to two protect line cards can be configured to operate in redundancy mode.
A line card failure results in a failover to the protect line card in less than a second. The failed line card can be debugged by taking it offline, resetting it, and bringing it back online and into operation.
The Cisco RFGW-10 DS-384 line card is designed to support a wide range of line card health conditions and initiate failover events if considered catastrophic:
- QAM/upconverter HW failure. The line card monitors both the digital and RF data integrity. The modules also provide a comprehensive alarm structure to the system CPU, which allows constant monitoring of the upconverter (UPX).
- Environmental alarms (temperature, voltage, frequency).
- Software kernel failures.
- Software module failure.
- DOCSIS Timing Interface (DTI) clock/timing failures (both internal and external).
Note
If a Cisco RFGW-10 DS-384 line card is present in slot 9, then the Timing, Communication, and Control (TCC) card in slot 13 causes crosstalk resulting in packet loss on that line card. It is recommended that you replace the TCC cards.The Cisco RFGW-10 DS-384 line card, when used as a downstream RF line card, supports both video and downstream external PHY interface (DEPI).
The Cisco RFGW-10 DS-384 line card has two upconverter modules and four RF outputs per upconverter. The upconverter module provides 128 channels per port and a high level of carrier per QAM frequency agility. Every upconverter module can process and output 384 ITU-B/C QAM channels and 288 ITU-A QAM channels.
When using the Cisco RFGW-10 DS-384 line card, a Supervisor card with greater throughput capabilities is required. Starting with Cisco IOS-XE Release 3.2.0SQ, the RF Gateway 10 supports the Cisco RF Gateway 10 Supervisor Engine 7-E.
The Cisco RF Gateway 10 Supervisor Engine 7-E is supported by the Cisco IOS-XE Release 3.2.0SQA release train.
The Cisco RF Gateway 10 Supervisor Engine 7-E has the following features:
- 848 Gbps switching capacity with 250 Mbps of throughput
- Four non-blocking 10 Gigabit Ethernet uplinks (SFP+)
- SFP support on uplinks for flexibility of up to 4 Gigabit Ethernet
- External USB and Secure Data (SD) memory card support for flexible storage options
For more information on the Cisco RF Gateway 10 Supervisor Engine 7-E, see the Cisco RF Gateway 10 Hardware Installation Guide.
Front Panel Interfaces
The Cisco RFGW-10 DS-384 line card provides the following external interfaces:
- Two SFPs and two SFP+ on the front panel—The SFP+ connector can support both GigE SFP and 10 GigE SFP modules. Because the Cisco RFGW-10 DS-384 line card does not support link redundancy and the maximum backplane data bandwidth is 20 Gbps, the line card supports the following front panel SFP configurations:
- Front panel SFP status LEDs
- Front panel ASI monitor port—This port is normally used for video program monitoring.
- Front panel line card status LEDs—For more information see, the LED Status section.
- Eight backplane RF ports—The Cisco RFGW-10 DS-384 line card has eight RF output ports to the RF Gateway 10 chassis backplane. The RF ports connect to the RF switch line cards in the chassis. Each RF port covers the RF spectrum from 45 MHz to up to 1 GHz range.
Note
The Cisco RFGW-10 DS-384 has eight RF ports, therefore the last four ports on the RF switch are unused.- 24 Gbps backplane data plane—The Cisco RFGW-10 DS-384 line card has two backplane bidirectional 12 Gbps data links from the Cisco RF Gateway 10 Supervisor Engine 7-E.
- Backplane DTI clock and control signals—The DTI 10.24 MHz clock and the time stamp synchronize the Edge QAM and the modular CMTS (M-CMTS) core to the same time base.
- Backplane active supervisor control—The backplane active Supervisor control interface indicates the primary and standby role of the two Supervisor cards in the chassis.
Safety Information and Warnings
Electrical Equipment Guidelines
- Before beginning any procedures requiring access to the chassis interior, locate the emergency power-off switch for the room in which you are working.
- Disconnect all power and external cables before moving a chassis.
- Do not work alone in potentially hazardous conditions.
- Never assume that power has been disconnected from a circuit; always check.
- Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
- Carefully examine your work area for possible hazards such as moist floors, ungrounded power extension cables, and missing safety grounds.
Preventing Electrostatic Discharge Damage
Electrostatic discharge (ESD) damage occurs when electronic cards or components are improperly handled, and can result in complete or intermittent failures. All line cards consist of a printed circuit card that is fixed in a metal carrier. Electromagnetic interference (EMI) shielding and connectors are integral components of the carrier. Although the metal carrier helps to protect the cards from ESD, use an antistatic strap each time you handle the modules. Handle the carriers by the edges only; never touch the cards or connector pins.
Caution
Always tighten the captive installation screws on all system components when you are installing them. These screws prevent accidental removal of the module, provide proper grounding for the system, and help to ensure that the line card connectors are properly seated in the backplane. Captive screws should be torqued to 6-8 in-lbs to ensure proper grounding and mechanical support. Never use cordless or corded drills to tighten screws; power screwdrivers and hand tools are acceptable.Static electricity can harm delicate components inside your system. To prevent static damage, discharge static electricity from your body before you touch any of your system components. As you continue to work on your system, periodically touch an unpainted metal surface on the computer chassis.
The following guidelines can prevent ESD damage:
- Always use an ESD-preventive wrist or ankle strap and ensure that it makes good skin contact. Before removing a card from the chassis, connect the equipment end of the strap to the ESD plug at the bottom of the chassis below the power entry modules. Ensure that the chassis or rack or both have a grounding cable installed.
- Handle line cards by the faceplate and carrier edges only; avoid touching the card components or any connector pins.
- When removing a card, place the removed module component-side-up on an antistatic surface or in a static-shielding bag. If the module will be returned to the factory, immediately place it in a static-shielding bag.
- Avoid contact between the modules and clothing. The wrist-strap protects the card from ESD voltages on the body only; ESD voltages on clothing can still cause damage.
- When transporting a sensitive component, first place it an antistatic container or packaging.
- Handle all sensitive components in a static-safe area. If possible, use antistatic floor pads and workbench pads.
Caution
For safety, periodically check the resistance value of the antistatic strap. The measurement should be between 1 and 10 megohms.Warning Definition
Warning
IMPORTANT SAFETY INSTRUCTIONSThis warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Use the statement number provided at the end of each warning to locate its translation in the translated safety warnings that accompanied this device. Statement 1071
SAVE THESE INSTRUCTIONS
Safety Instructions
Note
Do not unpack the module until you are ready to install it. Keep the module in the shipping container to prevent accidental damage until you determine an installation site. Use the appropriate unpacking documentation included with the module.
Warning
Read the installation instructions before connecting the system to the power source. Statement 1004
Warning
Only trained and qualified personnel should be allowed to install, replace, or service this equipment. Statement 1030
Warning
Ultimate disposal of this product should be handled according to all national laws and regulations. Statement 1040Unpacking the Line Card
Installing and Connecting the Line Card

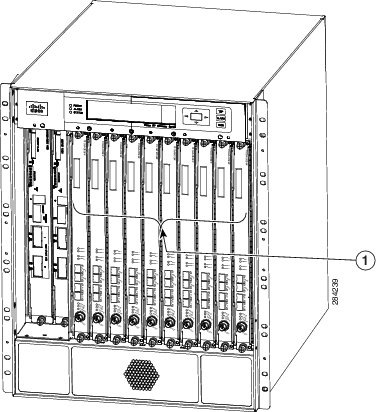

ProcedureThe Cisco RFGW-10 UEQAM has vertical chassis slots numbered from left to right.
Caution
During this procedure, wear grounding wrist-straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool. This could result in an electric shock.
Caution
To prevent ESD damage, handle the line card by the carrier edges only. Do not touch any of the RF connectors along the back of the card.

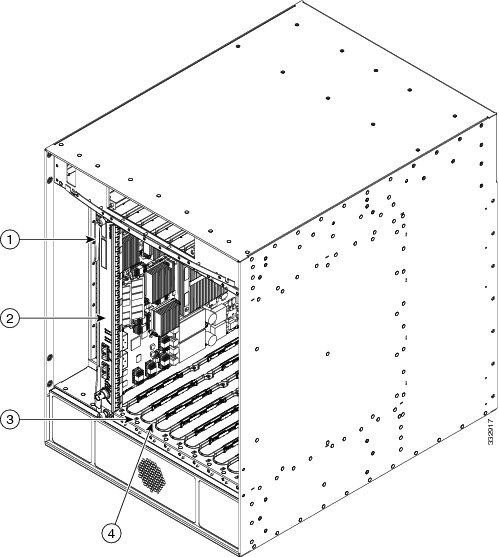

Step 1 Take the necessary precautions to prevent ESD damage as described in the Preventing Electrostatic Discharge Damage section. Step 2 Ensure that you have enough clearance to accommodate any interface equipment that you will connect directly to the Supervisor card ports. Step 3 Using a #2 phillips or a flathead screwdriver, loosen the captive installation screws that secure the line card blank panel or the existing line card (whichever is present).
Note The line cards can be installed only in Slots 3 through 12. Step 4 Remove the line card blank panel or the existing line card from the appropriate RF-capable slot. If a blank panel is installed, keep it for future use. If you are removing an existing line card, follow the instructions in the Removing the Line Card section. Step 5 To install the line card, turn the module sideways with the board facing right, grasp the line card front panel with one hand and place your other hand under the side edge of the board to support the line card.
Caution Do not touch the printed circuit boards or the connector pins. Step 6 Align the edges of the line card carrier with the slot guides on the top and bottom of the Cisco RFGW-10 UEQAM chassis, as shown in Figure 3 . The line cards slide into the chassis guides on the sheet metal carrier edge.
Step 7 Pivot the two module ejector levers out and away from the faceplate. Step 8 Carefully slide the line card into the appropriate slot until the notches on both the ejector levers engage the chassis top and bottom. Step 9 Using your thumb and forefinger of each hand to simultaneously pivot in both the ejector levers to fully seat the line card in the backplane connectors.
Caution Always use the ejector levers when installing or removing a line card. A line card that is partially seated in the backplane will not function correctly.
Note The line card sheet metal carrier faceplate has holes on the top and bottom for aligning to the chassis pin features. This feature aids in positioning each line card faceplate within the chassis. Step 10 Use a # 2 Phillips screwdriver to tighten the captive installation screws on each end of the line card faceplate. Tighten the captive screws to 6-8 in-lbs.
Removing the Line Card
Procedure
Caution
When no fiber cable is connected, the aperture of the port may be emitting invisible radiation. Avoid exposure to the radiation and do not stare into the apertures.
Caution
During this procedure, wear grounding wrist-straps to avoid ESD damage to the card. Do not directly touch the backplane with your hand or any metal tool. This could result in an electric shock.
Caution
To prevent electrostatic discharge damage (ESD) damage, handle the line card by the carrier edges only.
Installing and Removing SFP and SFP+ Transceiver Modules
For information about SFP and SFP+ transceiver modules, see the Cisco SFP and SFP+ Transceiver Module Installation Notes.
Servicing the Cisco RFGW-10 DS-384 Line Card
This section provides details on the service, maintenance, and troubleshooting for the Cisco RFGW-10 DS-384 line card and related components.
The following table provides a high-level view of symptoms and the sections you can refer to troubleshoot them.
Table 1 Servicing the Cisco RFGW-10 DS-384 Line Card Symptom Areas to Check Section/Document Line card does not become "ready"
Line card installation in chassis
Firmware or application download
Configuring the Cisco RFGW-10 DS-384 Line Card
SFP or SFP link lights are off
Line card installation
Status LED on the line card does not illuminate green—stays off or red
Line card installation in chassis
Firmware or application download
Configuring the Cisco RFGW-10 DS-384 Line Card
Status LED on the Supervisor card does not light green
Supervisor card installation
No RF output
Line card configuration
Configuring the Cisco RFGW-10 DS-384 Line Card
No RF output
Line card configuration
Configuring the Cisco RFGW-10 DS-384 Line Card
Troubleshooting the Line Card Installation
Procedure
Step 1 Verify that the POWER LED is on (green). If the LED is off (not green): Step 2 Verify that the LEDs (see the line card LED table) illuminate and go through the power on self test (POST) when the line card is inserted in the chassis. Step 3 Verify that the captive screws and ejector levers are secure: Step 4 Verify that the card is properly seated in the chassis: Step 5 Verify that the SFP modules are properly seated in the ports on the faceplate:
Verifying the Status of the Line Card
Procedure
Step 1 Ensure that the STATUS LED illuminates green (module operational). Step 2 When the Cisco RFGW-10 DS-384 is online, use the show module command to verify that the system acknowledges the new module and that the status of the module status is good. Step 3 If the module is not operational, re-seat it. If the module is still not operational, contact your customer service representative.
Verifying the Status of the Supervisor Card
ProcedureFor installation instruction for the Supervisor card, see Cisco RF Gateway 10 Hardware Installation Guide.
Step 1 Ensure that the STATUS LED illuminates green (module operational). Step 2 When the Supervisor card is online, enter the show module all command. Verify that the system acknowledges the new module and that the status of the module is good. Step 3 If the module is not operational, reseat it. If the module is still not operational, contact your customer service representative.
Specification of the Cisco RFGW-10 DS-384 Line Card
Physical Specifications and Compliance Information
Table 2 Cisco RFGW-10 DS-384 Line Card Specification Description Specification Card Dimensions
1.28 in x 15.35 in x 15 in (33 mm x 390 mm x 381 mm)
Weight
Approximately 10 lbs
Power Consumption
290 watts
Mean Time Between Failure (MTBF)
156000 hours
Temperature Range
Storage = -40 to 70˚ Celsius Operating = 0 to 40˚ Celsius
Relative Humidity
0% to 85% non-condensing
0% to 85% non-condensing
-60 to 3000 meters
Standards, Compliance, Protocols
47 CFR Part 15: 2008
CISPR22: Edition 5
EN300386: V1.3.3 : 2005
EN55022: 2006
EN61000-3-2: 2006
EN61000-3-3: 1995 [Inc amd 1 & 2
ICES-003 Issue 4 : 2004
KN 22: 2008
VCCI: V-3/2007.04
CISPR24: 1997 [Inc VCCI: V-3/2007.04amd 1 & 2]
EN300386: V1.3.3 : 2005
EN55024: 1998 [Inc amd 1 & 2]
EN61000-6-1: 2007
RF Output Specifications
Table 3 Output Specifications for the Cisco RFGW-10 DS-384 Line Card Description Specification Supported modulation format downstream (DS0-DS384)
64 QAM, 256 QAM
Note Effective with Cisco IOS-XE Release 3.3.1 for DEPI, a maximum of 192 QAM channels per line card for Annex A or mixed Annex and a maximum of 256 QAM channels per line card for Annex B are supported.
Normal operating channel bandwidth
Compliant to ITU-T Recommendation J.83
RF output power range
12 dB
Operating frequency range
48–999 MHz channel center frequencies
Output return loss
> 14 dB within an active output channel from 45 MHz to 750 MHz
> 13 dB within an active output channel from 750 MHz to 870 MHz
> 13 dB within an active output channel from 750 MHz to 870 MHz
> 12 dB within an active output channel from 870 MHz to 1003 MHz
> 12 dB in every inactive channel from 54 MHz to 870 MHz
> 10 dB in every inactive channel from 870 MHz to 1003 MHz
Worst–case spurious amplitude in the 50 to 860 MHz range when the upconverter is a maximum power output
Compliant with CableLabs DOCSIS Downstream RF Interface (DRFI): CM-SP-DRFI-I11-110210
Frequency stability
+/- 3 ppm
Frequency adjustment resolution
25 KHz
Amplitude adjustment resolution
0.1 dB
In–channel frequency response
Annex A/C: (approximately) 0.15 Square Root Raised Cosine Shaping
Annex B 64-QAM: (approximately) 0.18 Square Root Raised Cosine Shaping
Annex B 256-QAM: (approximately) 0.12 Square Root Raised Cosine Shaping
In–channel group delay
Not applicable
In–channel carrier–to–noise ratio
Unequalized MER > 35 dB
Equalized MER > 43 dB
Out-of-channel carrier-to-noise ratio
Compliant with CableLabs DOCSIS Downstream RF Interface (DRFI): CM-SP-DRFI-I11-110210
RF Output Power Range
Each channel within a controller has its own RF power adjustment over the 12 dB range.
The recommended RF power range depends on the mode of the upconverter. The mode of the upconverter is decided by the port density setting on the RF port. Table 4 lists the mode and the corresponding RF power range for the Cisco RFGW-10 DS-384 line card.
Table 4 RF Output Power Range for the Cisco RFGW-10 DS-384 Line Card Port Density Minimum RF Output Power/Channel (dBmV) Maximum RF Output Power/Channel (dBmV) 1
50
62
2
46
58
4
42
54
8
39
51
12
37
49
16
35
47
20
34
46
24
33
45
28
32
44
32
32
44
36
31
43
40
30
42
44
30
42
48
29
41
52
29
41
56
29
41
60
28
40
64
28
40
68
28
40
72
27
39
76
27
39
80
27
39
84
26
38
88
26
38
92
26
38
96
26
38
100
26
38
104
25
37
108
25
37
112
25
37
116
25
37
120
25
37
124
24
36
128
24
36
Noise
Table 5 Noise Specifications for the Cisco RFGW-10 DS-384 Line Card Description Specification Integrated phase noise 1 KHz to 10 KHz
-33 dBc double-sided noise power
Integrated phase noise 10 KHz to 50 KHz
-51 dBc double-sided noise power
Integrated phase noise 50 KHz to 3 MHz
-51 dBc double-sided noise power
Broadband noise at 61 dBmV output (all channels outside +/–18 MHz)
Compliant with CableLabs DOCSIS Downstream RF Interface (DRFI): CM-SP-DRFI-I11-110210
Modulated out of channel noise at 6 MHz
Compliant with CableLabs DOCSIS Downstream RF Interface (DRFI): CM-SP-DRFI-I11-110210
Modulated out of channel noise at 8 MHz
Compliant with CableLabs DOCSIS Downstream RF Interface (DRFI): CM-SP-DRFI-I11-110210
RF Specifications for the Cisco RFGW-10 DS-384 Line Card
Table 6 RF Specifications for the Cisco RFGW-10 DS-384 Line Card Description Specification Frequency step size
25 KHz
Amplitude flatness
+/- 2 dB over the entire frequency band. Compliant with CableLabs DOCSIS Downstream RF Interface (DRFI): CM-SP-DRFI-I11-110210.
Frequency accuracy
+/- 3 ppm
Absolute error from command output level
+/- 2 dB. Compliant with CableLabs DOCSIS Downstream RF Interface (DRFI): CM-SP-DRFI-I11-110210.
Part Numbers
Table 7 Part Numbers for the Cisco RFGW-10 DS-384 Line Card and Related Components Description Part Numbers CAB-RFGW3G60QTIMF, Cisco Systems, Inc.
- Cable bundle for RF card to HFC plant: 3 UCH2 units attached to one end and 25 F connectors attached to the other end, 9.84 feet (3 m) long.
- Cable bundle for RF card to RF switch: 3 UCH2 units attached to one end and 2 RF switch header blocks attached to the other end, 3.2 feet (1 m) long.
- Cable bundle for RF switch to HFC plant: 2 RF switch header blocks attached to one end and 25 F connectors attached to the other end, 9.84 feet (3 m) long.
LED Status
Table 8 Cisco RFGW-10 DS-384 Line Card LEDs LED Status Description STATUS
Green
Line card is powered on and has initialized correctly.
Red
Line card is booting up.
OFF
Line card is not initialized correctly, or the line card has not booted up.
ALARM
Green
Normal operation.
Orange
Minor line card error.
Red
Fatal line card error.
TRAFFIC
Green
Line card is active and the traffic is being processed by the line card.
Blue
Slot [11:12]: Line card is configured as the backup card.
Red
Slots [3:10]: Line card has failed over to the protect slot.
LINK
Green
The link is operational.
OFF
The link is not operational.
Additional References
Related Documents
For more information, the following resources are available:
- Cisco RF Gateway 10 Hardware Installation Guide describes information to enable a safe and efficient installation of the Cisco RFGW-10 UEQAM.
- Regulatory Compliance and Safety Information for Cisco RF Gateway 10 provides international agency compliance, safety, and statutory information for the Cisco RF Gateway 10. This document also provides part number information for all components of the Cisco RF Gateway-10 UEQAM.
- Release Notes for the RF Gateway 10 describe the features and caveats for all Cisco IOS Releases.
Technical Assistance
Description Link The Cisco Support website provides extensive online resources, including documentation and tools for troubleshooting and resolving technical issues with Cisco products and technologies.
To receive security and technical information about your products, you can subscribe to various services, such as the Product Alert Tool (accessed from Field Notices), the Cisco Technical Services Newsletter, and Really Simple Syndication (RSS) Feeds.
Access to most tools on the Cisco Support website requires a Cisco.com user ID and password.
Obtaining Documentation and Submitting a Service Request
For information on obtaining documentation, using the Cisco Bug Search Tool (BST), submitting a service request, and gathering additional information, see What's New in Cisco Product Documentation, at: http://www.cisco.com/c/en/us/td/docs/general/whatsnew/whatsnew.html.
Subscribe to What's New in Cisco Product Documentation, which lists all new and revised Cisco technical documentation, as an RSS feed and deliver content directly to your desktop using a reader application. The RSS feeds are a free service.
Cisco and the Cisco logo are trademarks or registered trademarks of Cisco and/or its affiliates in the U.S. and other countries. To view a list of Cisco trademarks, go to this URL: http://www.cisco.com/go/trademarks. Third-party trademarks mentioned are the property of their respective owners. The use of the word partner does not imply a partnership relationship between Cisco and any other company. (1110R)
Feedback
