Implementing a LocalDirector Network
This chapter describes how to implement the LocalDirector network. Sample network configurations include:
•
LocalDirector with Hubs and Switches
•
•
•
Overview
LocalDirector uses directed or dispatched mode to appear to the client as if it is communicating directly with a real server. If the client and server are on the same network segment, the response from the server bypasses LocalDirector, and the traffic will not be load balanced. All traffic must pass through LocalDirector and be directed to the real servers.
LocalDirector serves as a transparent learning bridge to forward data packets between its interfaces. Because of its bridge capability, LocalDirector must not be installed on the network parallel to another bridge. Only use LocalDirector to connect to servers allowing a single way in or out to the network through LocalDirector, as shown in Figure 2-1.
Figure 2-1 LocalDirector Bridge Between Internet and Servers
If there is another path from the network to your servers, a bridge loop is created and LocalDirector does not work properly. LocalDirector automatically detects a bridge loop and tries to recover. Syslog messages are generated to indicate there is a bridge loop, and virtual and real servers have intermittent failures.
LocalDirector must see all network traffic to make sure that the translation of IP headers occurs in both directions. Do not allow any traffic to bypass LocalDirector.
If the real servers have two single-attached interfaces (for example, they are dual-homed), make sure that load-balanced traffic cannot bypass LocalDirector. LocalDirector must be between the real servers and the Internet cloud that contains the clients. It must see all the packets coming from the clients to the virtual server and all the traffic that comes back in response to the client-to-virtual server packets.
In addition, packets from the clients must come in on one interface and go out to the real servers on a different interface. If these rules are not followed, LocalDirector cannot perform load balancing.
Note
LocalDirector with Hubs and Switches

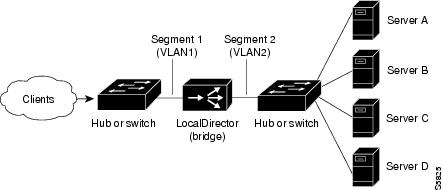

Figure 2-2 shows a basic LocalDirector network implementation using hubs or switches.
Figure 2-2 LocalDirector with Hubs or Switches

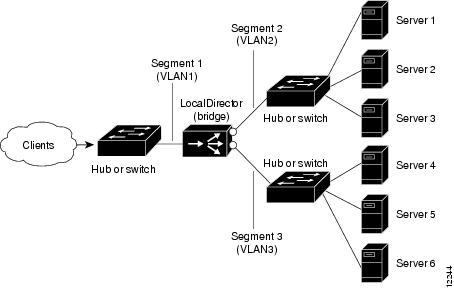

Figure 2-3 shows a LocalDirector network with multiple server farms on different LocalDirector interfaces.
Figure 2-3 LocalDirector with Multiple Server Farms
LocalDirector with Routers
Figure 2-4 and Figure 2-5 show LocalDirector implementations that include routers.

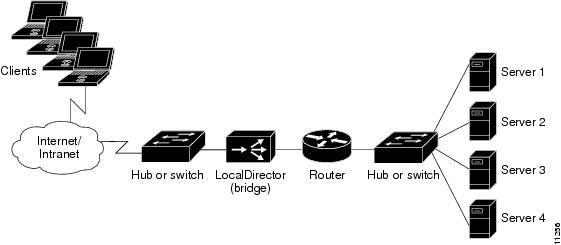

Figure 2-4 LocalDirector with a Router

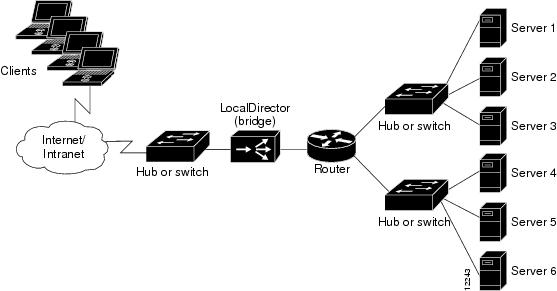

Figure 2-5 LocalDirector with a Router and Two Server Clusters
Highly Redundant Fault-Tolerant Configuration

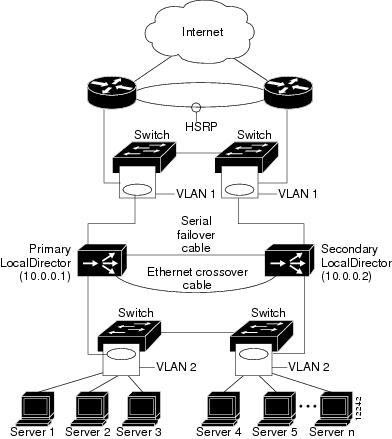

Figure 2-6 shows a highly redundant, fault-tolerant configuration.
Figure 2-6 Fault-Tolerant Configuration
Illegal LocalDirector Bridge Loop
Figure 2-7 shows a LocalDirector network with a bridge loop that does not work.
Figure 2-7 Illegal LocalDirector Bridge Loop
Fast EtherChannel Configuration
Fast EtherChannel is a method of multiplexing 100BASE-T full-duplex interfaces into a single, scalable, virtual channel of 200, 400, or 800 megabits. It is currently available on Cisco switches and Cisco routers. More than one Fast EtherChannel can be defined on a LocalDirector provided it has a sufficient number of interfaces to form the channels and has at least two network sides.
To set up LocalDirector for Fast EtherChannel, perform the following steps:
Step 1
LocalDirector(config)# channel 0 twoStep 2

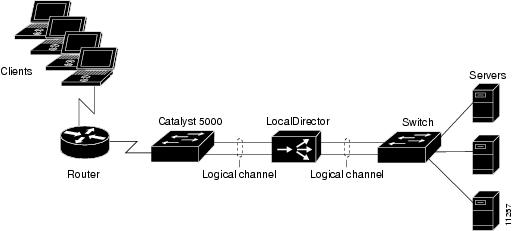

LocalDirector(config)# interface ethernet 0 100fullFigure 2-8 shows a LocalDirector Fast EtherChannel configuration.
Figure 2-8 LocalDirector Fast EtherChannel Configuration
