Program Examples
This chapter contains examples showing how to define the most common types of IP/TV programs. Each example includes a scenario that describes what kind of program is being defined, and the criteria used to select options. When default values are acceptable, this is indicated in the text.
This chapter contains the following sections:
•
Sample Network
•Sample On-Demand Category
•Sample On-Demand Program
•Sample Scheduled Program to Play a Media File
•Sample Scheduled Live-Capture Program
•Sample SmallCast Program
•Sample Recording
Sample Network
The examples in the following sections are based on the sample network described here:
•The main network is located at the corporate headquarters of Zycorp, Inc., in San Jose, California. About 100 IP/TV Viewer users are on this network, and one IP/TV Program Manager. The two IP/TV Servers on the network serve media files, whether scheduled, live or on-demand.
•A second network is located in the Zycorp sales office in Boston. This network is connected to the main network by a T1 leased line. About ten IP/TV Viewer users are on this network, along with one IP/TV Program Manager and one IP/TV Server. The IP/TV Server serves both scheduled and on-demand programs.
•A third network is located in the Zycorp sales office in Mexico City. This network can be reached from the main network through the Internet. About five IP/TV Viewer users are on this network, and one IP/TV Server. There is no IP/TV Program Manager; the IP/TV Server and all IP/TV Viewers are configured to get their program information from the IP/TV Program Manager in San Jose.
•A fourth network is located in the Zycorp manufacturing plant in Singapore. This network can be reached from the main network through the Internet. About 50 IP/TV Viewer users are on this network, along with one IP/TV Program Manager and one IP/TV Server.
Note Programs defined on the San Jose network that use administratively scoped addresses are not visible to IP/TV Viewer users on the Mexico City or Singapore networks, or to IP/TV Program Managers or IP/TV Servers on those networks. See the "Multicast Addresses" section for information about using scoped addresses to limit the range of IP/TV programs.

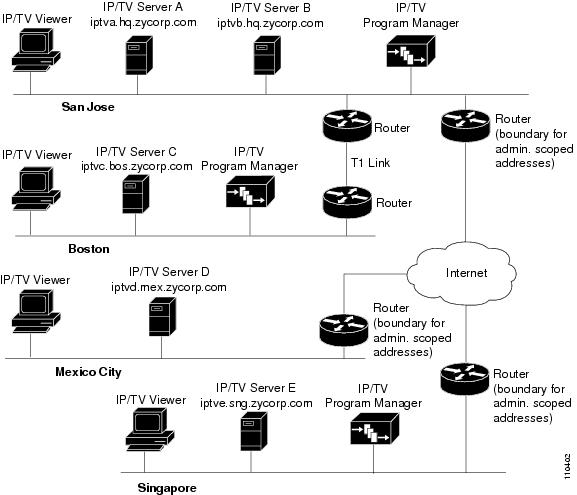

Figure 11-1 shows all of the IP/TV Servers and IP/TV Program Managers on each network, but only one sample PC running IP/TV Viewer on each network.
Figure 11-1 Sample Network
Sample On-Demand Category
Table 11-1 lists the settings chosen by the IP/TV administrator to set up an on-demand category on the IP/TV Program Manager on the Zycorp headquarters network. These settings are shown in Figure 5-7.
Table 11-1 Settings for On-Demand Category
Parameter
|
Value
|
New Category
|
Instructional Videos
|
Description
|
Corporate and Human Resources information for employees
|
Keywords
|
training benefits HR education
|
Administrator Name
|
IP/TV Help Desk
|
Telephone
|
456-567-8900 x 63
|
E-mail
|
iptvhelp@zycorp.com
|
Producer
|
HR Department
|
Sample On-Demand Program
Table 11-2 lists the settings chosen by the IP/TV administrator to set up an on-demand program on IP/TV Program Manager on the Zycorp headquarters network and autodistribute the program to a second server. Figure 5-10, Figure 5-11, and Figure 5-15 show these settings.
Note When a value is listed as Default, the IP/TV administrator accepted the value assigned by IP/TV Program Manager.
This program is defined within the on-demand category Instructional Videos (see Table 11-1).
The program is a 30-minute video summary of the information covered in the Employee Handbook. The media file, which initially resides only on Server B in San Jose, is automatically distributed to Server A. Autodistributing the media file allows IP/TV Program Manager to balance the load of requests for the program.
Table 11-2 Settings for On-Demand Program
Parameter
|
Value
|
Program Name
|
New Employee Orientation
|
Description
|
Video summary of the Employee Handbook
|
Keywords
|
instruction handbook employee
|
URL
|
www.zycorp.com/~HR
|
Copyright
|
Default (no copyright information is entered)
|
Password
|
Default (no password is set)
|
Hide Program from Viewer/SAP announcement
|
Unchecked
|
Select media file
|
Filename of media file containing new employee orientation video
|
Play Video (Enable QoS?)
|
Checked
|
Play Audio (Enable QoS?)
|
Checked
|
Play SlideCast (Enable QoS?)
|
Unchecked
|
Play Web Presentation
|
Unchecked
|
Transfer HTML to Browser Cache
|
Unchecked
|
Media length
|
Default
|
Audio/Video Bandwidth
|
Default
|
Maximum Video Frame Rate
|
Default
|
Web Presentation Bandwidth
|
Default
|
Web Presentation Base URL
|
Default
|
Clusters
|
Default
|
OnDemand Servers
|
File Present has been checked on server iptvb; Play has been checked on both server iptva and server iptvb
|
Auto Distribute File...
|
Checked; the file is automatically transferred to iptva
|
Transfer file now
|
Checked
|
Transfer file on
|
Unchecked
|
Administrator Name
|
IP/TV Help Desk
|
Telephone
|
456-567-8900 x 63
|
E-mail
|
iptvhelp@zycorp.com
|
Producer
|
HR Department
|
Sample Scheduled Program to Play a Media File
Table 11-3 lists the settings chosen by the IP/TV administrator to set up the simplest type of scheduled program. The program is a 1-hour film describing the 401(k) retirement plan available to all Zycorp employees located in San Jose and Boston. It does not apply to the employees in Mexico City or Singapore.
The film was provided by Mega Insurance Company, the company that offers the 401(k) plan, and the Zycorp coverage contract requires that the Mega Insurance copyright be included in the program listing information.
The Human Resources director wants the program to be played every Monday at 1100 Pacific time, which is 1400 Eastern time, through the end of the year.
Table 11-3 lists all the parameters on the New Program page and gives a recommended setting for each parameter. Figure 6-4, Figure 6-5, and Figure 6-7 show these settings.
Note When a value is listed as Default, the IP/TV administrator accepted the value assigned by IP/TV Program Manager.
Table 11-3 Settings for Scheduled Program to Play a Disk File
Parameter
|
Value
|
Program Name
|
Zycorp's 401(k) Plan
|
Description
|
Detailed description of the 401(k) retirement plan
|
URL Link (Optional)
|
http://www.zycorp.com/~benefits
|
Copyright (Optional)
|
Copyright 1999 Mega Insurance Company, all rights reserved.
|
Password (Optional)
|
Default
|
Enable Question Manager
|
Unchecked
|
Hide Program from Viewer/SAP Announcement
|
Unchecked
|
Play Program Continuously
|
Unchecked
|
Play Program once on
|
Selected, Mar 8 02 at 11:00
|
Length
|
1 hour
|
Do not repeat it
|
Unchecked
|
Repeat it every
|
Unchecked
|
Repeat it
|
Selected, Weekly, Monday 11:00
|
Last repeat ends on
|
Dec 27 02 12:00
|
Select Media File
|
Relative path of file (supplied by IP/TV Program Manager)
|
Play Once and Stop
|
Checked
|
Loop for Program Duration
|
Unchecked
|
Play from Start to End
|
Checked
|
Play .rtp Offset
|
Unchecked
|
Play Video (Enable QoS?)
|
Checked
|
Play Audio (Enable QoS?)
|
Checked
|
Play Slidecast (Enable QoS?)
|
Unchecked
|
Play Web Presentation
|
Unchecked
|
Multicast HTML to Browser Cache
|
Unchecked
|
Audio/Video Bandwidth
|
Default
|
Maximum Video Frame Rate
|
Default
|
Web Presentation Bandwidth
|
Default
|
Web Base URL (Optional)
|
Default
|
Server
|
iptvb
|
Suppress Viewer Feedback (for large sessions)
|
Unchecked
|
Administrator Name
|
IP/TV Help Desk
|
Telephone
|
456-567-8900 x 63
|
E-mail
|
iptvhelp@zycorp.com
|
Sample Scheduled Live-Capture Program
Table 11-4 lists the settings chosen by the IP/TV administrator to set up a schedule for a live-capture program.
The program is a 15-minute invitation to the annual company picnic. The invitation will be filmed on the Monday before the picnic, and multicast simultaneously. The program applies to employees in San Jose only.
Note When a value is listed as Default, the IP/TV Administrator accepted the value assigned by IP/TV Program Manager.
Figure 6-4, Figure 6-5, Figure 6-6, and Figure 6-7 show these settings.
Table 11-4 Settings for Live-Capture Program
Parameter
|
Value
|
Program Name
|
2002 Company Picnic
|
Description
|
Join us for the annual Zycorp company picnic!
|
URL Link (Optional)
|
www.zycorp.com/~HR
|
Copyright (Optional)
|
Default (no copyright information is entered)
|
Password (Optional)
|
Default (no password is set)
|
Enable Question Manager
|
Unchecked
|
Hide Program from Viewer/SAP Announcements
|
Unchecked
|
Play Program once on
|
Selected, Aug 18 02 10:00
|
Length
|
15 minutes
|
Do not repeat it
|
Checked
|
Repeat it every
|
Unchecked
|
Repeat it
|
Unchecked
|
Last repeat ends on
|
Default (not used if no repeats are scheduled)
|
Preferred Video Format
|
Set appropriately for the live-capture hardware on IP/TV Server
|
Compression Quality
|
Default
|
Preferred Audio Format
|
Default
|
Play Video (Enable QoS?)
|
Checked
|
Play Audio (Enable QoS?)
|
Checked
|
Play SlideCast (Enable QoS?)
|
Unchecked
|
Play Web Presentation
|
Unchecked
|
Multicast HTML to Browser Cache
|
Unchecked
|
Share SlideCast with
|
Unchecked
|
Share Presentation with
|
Unchecked
|
Audio/Video Bandwidth
|
Default
|
Maximum Video Frame Rate
|
Default
|
Web Presentation Bandwidth
|
Default
|
Start Page URL (Optional)
|
Default
|
Audio/Video Server
|
iptva (IP/TV Server that is equipped for live-capture Program)
|
Select Capture Card
|
Default
|
SlideCast/Web Presentation Server
|
Default
|
Administrator Name
|
IP/TV Help Desk
|
Telephone
|
456-567-8900 x 63
|
E-mail
|
iptvhelp@zycorp.com
|
Sample SmallCast Program
The Zycorp CEO plans to videotape an important 45-minute announcement to all employees. The taping will take place at 10:00 a.m. in San Jose, and the CEO wants the program to play simultaneously in Boston and Mexico City.
Table 11-5 lists the settings chosen by the IP/TV Administrator to set up a program to accomplish this using SmallCast. Figure 6-4, Figure 6-5, Figure 6-6, and Figure 6-7 show these settings.
The capture server in San Jose must be configured to be able to use SmallCast to send the program to the IP/TV Server in Mexico City. See the "Defining Servers and Server Clusters" section for information on defining servers.
Note Where a value is listed as Default, the IP/TV administrator has accepted the value assigned by IP/TV Program Manager.
Table 11-5 Settings for Sample SmallCast Program
Parameter
|
Value
|
Program Name
|
Zycorp News
|
Description
|
An important announcement from the CEO
|
URL Link
|
www.zycorp.com/admin/iptvprograms.htm
|
Copyright
|
Zycorp, Inc.
|
Password
|
Default (no password is set)
|
Enable Question Manager
|
Checked
|
Play Program Continuously
|
Unchecked
|
Play Program once on
|
Selected, Sep 15 02 10:00
|
Length
|
1 hour (extra time is allowed in case either the presentation or the question and answer period lasts longer than originally scheduled)
|
Do not repeat it
|
Checked
|
Repeat it every
|
Unchecked
|
Repeat it
|
Unchecked
|
Last repeat ends on
|
Default (not used if no repeats are scheduled)
|
Capture Live Audio/Video Data
|
Checked
|
Preferred Video Format
|
Set appropriately for the live-capture hardware on IP/TV Server
|
Compression Quality
|
Default
|
Preferred Audio Format
|
Default
|
Play This File
|
Cleared
|
Play Video (Enable QoS?)
|
Checked
|
Play Audio (Enable QoS?)
|
Checked
|
Play SlideCast (Enable QoS?)
|
Unchecked
|
Play Web Presentation
|
Unchecked
|
Multicast HTML to Browser Cache
|
Unchecked
|
Share SlideCast with
|
Unchecked
|
Share Presentation with
|
Unchecked
|
Audio/Video Bandwidth
|
Default
|
Maximum Video Frame Rate
|
Default
|
Web Presentation Bandwidth
|
Default
|
Start Page URL
|
Default
|
Audio/Video Server
|
iptva (the IP/TV Server that is equipped for live-capture Program)
|
SlideCast/Web Presentation Server
|
Default
|
Select Admin. Scoped Addresses
|
Checked
|
Select Global Scoped Addresses
|
Unchecked
|
Use SmallCast
|
Checked
|
SmallCast Only
|
Unchecked
|
Capture live MPEG data
|
Unchecked
|
Administrator Name
|
IP/TV Help Desk
|
Telephone
|
456-567-8900 x 63
|
E-mail
|
iptvhelp@zycorp.com
|
Sample Recording
Given the differences in local time between San Jose and Singapore, the sample SmallCast program example would not be a practical way to send the corporate announcement to users in Singapore. The original program was multicast during working hours in San Jose, which is the middle of the night in Singapore.
A better strategy would be to follow these steps:
Step 1 Record the live-capture program to a file.
Table 11-6 lists the settings chosen by the IP/TV administrator to set up a program that instructs IP/TV Server B in the main Zycorp network to record the live-capture program using the settings from Table 11-4.
Note When a value is listed as Default, the IP/TV administrator has accepted the value assigned by IP/TV Program Manager.
Table 11-6 Settings for Sample Recorded Program
Parameter
|
Value
|
Program Name
|
Zycorp News (default from the original program)
|
Description
|
An important announcement from the CEO (default from the original program)
|
Record Program once on
|
Checked, Sep 15 02 10:00 (default from the original program)
|
Length
|
1 hour (default from the original program)
|
Record Audio
|
Checked
|
Record Video
|
Checked
|
Record to this file
|
Name of the destination file, relative to the media root of the IP/TV Server
|
Do not overwrite existing file
|
Unchecked
|
Select a server from this list
|
iptvb.hq.zycorp.com
|
Administrator name
|
IP/TV Help Desk
|
Telephone
|
456-567-8900 x 63
|
E-mail
|
iptvhelp@zycorp.com
|
Step 2 Transfer the file to the IP/TV Server in Singapore using FTP.
Refer to the Cisco IP/TV Broadcast Server User Guide for information on transferring files using FTP.
Step 3 Set up a scheduled program on the IP/TV Server in Singapore to play the file. This procedure would be similar to the example provided in Table 11-3.
Figure 6-15, Figure 6-15, Figure 6-17, and Figure 6-18 show these settings.
