Creating Manifest Files

This appendix describes the process for creating manifest files used to acquire and distribute content with ACNS software, Release 5.0.3 and later releases. (Manifest files are also used in the ACNS 5.0 software release; however, this chapter contains some new and changed information that does not pertain to ACNS 5.0 software.) This chapter is divided into three major sections:

•Manifest File User Guidelines

This section provides:

–A general overview and purpose of manifest files in the context of a Cisco ACNS network

–A quick start section to get you up and running immediately

–Useful sample manifest files

–A syntax validation utility

–Explanation of live content distribution

•Manifest File Reference

This section describes:

–Detailed manifest file structure and syntax

–XML schema

–Running of automated manifest file scripts

–Manifest file time zone tables

•Using the ACNS Manifest Generator Tool

This section provides instructions for using the ACNS software GUI-based manifest file tool to create a basic manifest file.

Manifest File User Guidelines

This first major section contains the following topics:

•Overview

•Quick Start

•Working with Manifest Files

•More Sample Manifest Files

•Manifest Validator Utility

Overview

Cisco ACNS 5.x software manages the acquisition and distribution of pre-positioned content through an Extensible Markup Language (XML)-based reference file called the manifest file. The manifest file lists content that is to be used to populate Content Engines registered on a Cisco ACNS network. There should be one manifest file per channel.

The manifest file is placed on an origin server and identified by a unique URL. The location of the manifest file is specified when you enter the manifest file URL in the Modifying Channel window of the Content Distribution Manager GUI. Unlike the treatment of content by Cisco ACNS 4.x software, pre-positioned content is not stored on the Content Distribution Manager in ACNS 5.x software but is fetched from origin servers and distributed to Content Engines by a Content Engine that is a root Content Engine for the channel.

The Content Distribution Manager disseminates the manifest file URL to each of the root Content Engines on the ACNS network. The root Content Engine then parses the file and checks for any new or different information. After the root Content Engine determines what content is new, it fetches only that new content from the specified pre-positioned or live content from one or more origin servers.

The manifest file has the following features:

•Administrators and content providers can provide content on an origin server.

•Files can be imported over HTTP, HTTPS, or FTP while they are served using another streaming protocol based on a designated type of media playserver to play back the requested file.

Content acquisition and distribution can be controlled by setting prescheduled content availability dates and times. Two content acquisition methods can be configured within the manifest file. The first method specifies the acquisition of a single <item>. The second method specifies content acquisition by crawling a website or FTP server with the <crawler> feature. Either of these two methods can schedule when the acquisition is to start and how often its content is to be checked for freshness.

Quick Start

This section will help you succeed in writing manifest files that you can use to acquire content immediately. See other sections of this chapter to learn more about specifying useful attributes to customize the manifest files further and to obtain more information on the correct manifest file syntax.

Note The username and password specified in the Content Distribution Manager GUI Creating New Channel or Modifying Channel window (Channels > Channels > Basic Settings > Definition) serves only to fetch the manifest file. The actual content acquisition process does not use this username and password. For fetching actual content, the username and password need to be specified in the <server> <host> tag.

Writing XML Tags

The manifest file is a text file written in XML format. An XML text file consists of a series of XML tags. The following is an example of a simple XML tag:
<item attr1="value1" attr2="value2" />
In the preceding example, "item" is the name of the XML tag, so this tag is called the "item" tag. A tag can have many attributes in the form of name="value." The value field must be bounded by double quotation marks. There are two attributes inside the "item" tag shown in the example. The first attribute, called "attr1," has a value called "value1." The second attribute, called "attr2," has a value called "value2."

Tags typically start with "<" (left angle bracket) and end with "/>" (forward slash and right angle bracket), but they can start with "<" and end with ">." If a tag ends with ">," it means its scope is not yet complete. To complete its scope, a tag called "tag-name" must end with "</tag-name>," as shown in this example:
<server name="name" >
	<host name="name" />
</server>
On the first line of the example, the <server> tag ends with a ">," but its scope does not end on the first line. Its scope ends on the third line with the tag </server>. Because the <host> tag is inside the <server> tag, the <host> tag is called a subtag of the <server> tag, and the <server> tag is considered the parent tag of the <host> tag.

Two tag relationships can exist between XML tags: peer and subtag. In the following example, the two "item" tags have a peer relationship:
<item src="url1" />
<item src="url2" />
The key to identifying their peer relationship is that the first tag ends with a "/>" before the second tag starts. In the following example, the <server> and <host> tags have a subtag relationship:
<server name="cisco">
	<host name="url" />
</server>
The key to identifying their subtag relationship is that the first tag ends with a ">" before the second tag starts. The <host> tag is the subtag of the <server> tag; that is, the <server> tag is the parent of the <host> tag.

Important Manifest Tags

This section lists and briefly describes the important manifest tags for you to better understand manifest files.

•<CdnManifest> tag

The <CdnManifest> </CdnManifest> tag set must be the highest-level tag for the ACNS 5.x software manifest file. The tag set is required and marks the beginning and end of the manifest file content. At a minimum, each <CdnManifest> tag set must contain at least one item, or content object, that is fetched and stored, as shown in this example:
<CdnManifest>
   ...
</CdnManifest>
•<item> tag

The <item> tag is used to specify a single file to be pre-positioned.

–src attribute

The src attribute is required to specify the URL. The URL can be an absolute URL as shown in the following format:

protocol://username:password@/domain-name:port/file-path/file-name

The src attribute can also use a relative URL, but you need to use the <server><host> tags to specify protocol, domain, username, and password.

•<crawler> tag

The <crawler> tag is used to specify a crawl job. You can use the <crawler> tag to crawl an FTP directory and its subdirectories or to crawl directories using HTTP directory indexing.

–crawl directories

Use HTTP to crawl directories to fetch files in certain directories by enabling the built-in web server directory indexing feature. If a URL points to a directory when this directory indexing feature is enabled, the web server dynamically generates an HTML page and lists all the files and subdirectories. By parsing such an HTML page, the ACNS software can identify those files it can fetch from that particular directory.

–start-url attribute

The start-url attribute is required to specify the starting URL for crawling. It can be an absolute URL or a relative URL. (See the<item> tag discussion.)

–depth attribute

The crawler depth attribute specifies the directory depth of a web crawl. A depth value of 0 allows only a crawl of the starting URL page, whereas a depth value of 1 allows a crawl of the starting URL page and its links.

Writing a Single-Item HTTP Manifest File

The following sample shows the simplest way to write a manifest file that fetches content using the HTTP protocol:
<CdnManifest>
<item src="http://www.my-server.com/project-one.html" />
<item src="http://www.my-server.com/my-eng-group/project-two.html" />
<item src="http://www.my-server.com/project-three.html" />
</CdnManifest>
The <CdnManifest> tag set is required to specify a manifest file. Upon execution, the preceding manifest file sample instructs the ACNS software to fetch the following items using the HTTP protocol:

•http://www.my-server.com/project-one.html

•http://www.my-server.com/my-eng-group/project-two.html

•http://www.my-server.com/project-three.html

Writing a Single-Item FTP Manifest File

The following sample shows the simplest way to write a manifest file that fetches content using the FTP protocol:
<CdnManifest>
<item src="ftp://johnw:my-pass-word@myftp.cisco.com/file1.txt" />
<item src="ftp://johnw:my-pass-word@myftp.cisco.com//full-path/file2.txt" />
</CdnManifest>
Notice that after the FTP server name "myftp.cisco.com," the first URL has only one slash ("/") and the second URL has two slashes ("//"). The first file path, "file1.txt," is the relative file name and is relative to the home directory of the FTP user login. The second file path, "/full-path/file2.txt," is the absolute path.

Writing an FTP Crawler Manifest File

The following sample shows the simplest way to write a crawler manifest file that fetches content using the FTP protocol:
<CdnManifest>
<crawler start-url="ftp://ftp-server/folder/" depth="10" ttl = "10" />
</CdnManifest>
The preceding manifest file sample instructs the ACNS software to start crawling from ftp://ftp-server/folder to ten directory levels deep and to check those directories every 10 minutes for freshness.

The <crawler> tag specifies the crawl task. The start-url attribute specifies where the web crawler is to start crawling. The depth attribute of ten specifies how many levels of subdirectories the crawler should check to obtain the required content. The ttl attribute specifies how often the file is to be checked for freshness. The ttl attribute can be specified as an attribute in a single-item manifest file as well.

Writing an HTTPS Crawler Manifest File

The following manifest file sample instructs the ACNS software to start crawling from https://www.cisco.com/jobs/eng/ to a depth of five levels:
<CdnManifest>
<crawler start-url="https://www.cisco.com/jobs/eng/" depth="5" />
</CdnManifest>
As with the single-item manifest file, the <CdnManifest> tag set is required to specify a manifest file. If directory indexing is enabled for the jobs/eng directory and its subdirectories, then the crawler will go to a depth of five directory levels to retrieve the files. If the origin server is running HTTP or HTTPS services, directory indexing must be enabled for these directories. Enabling directory indexing allows ACNS 5.x software to crawl the directory and return a list of files from it.

Validating Manifest Files

It is a good practice to use the Manifest Validator utility to validate your manifest file after it is created. See the "Manifest Validator Utility" section for more information on the Manifest Validator utility.

Migrating from ACNS 4.x Software to ACNS 5.x Software

Unlike ACNS 4.2 software, ACNS 5.x software requires one or more origin servers where source files can be stored for the pre-positioning of content. These origin servers require that remote access servers be installed to support HTTP, FTP, or HTTPS services so that ACNS network devices can fetch pre-positioned files.

Files associated with a particular channel are typically stored in the same directory or subdirectory on the origin server. If the origin server is running HTTP or HTTPS services, directory indexing must be enabled for these directories. Enabling directory indexing allows ACNS 5.x software to crawl the directory and return a list of files from it.

Once the content is uploaded to a suitable origin server and is available, you can use the following simple manifest file to specify content acquisition:
<CdnManifest>
<crawler start-url="http://my-server/my-path/" ttl="10" />
</CdnManifest>
In the preceding example, a crawl job is specified for the associated channel to check the "my-path" directory for freshness every 10 minutes. Once this setup is complete, the root Content Engine associated with this channel monitors this directory to determine if there are any new or updated files and then automatically fetches them.

Using the preceding manifest file example achieves the same objective as that in ACNS software releases earlier than 5.0, where users copied pre-positioned files into a Content Distribution Manager import folder. However, using the manifest file is more powerful than the Content Distribution Manager import feature. For example, if you store content at different locations but the content must be distributed through the same channel, you can create multiple crawl jobs in the manifest file to monitor these locations. The following sample manifest file allows you to monitor different locations:
<CdnManifest>
<crawler start-url="http://my-server/my-path-http/" ttl="10" />
<crawler start-url="ftp://my-server/my-path-ftp/" ttl="10" />
</CdnManifest>
You are monitoring a directory "my-path-http" in an HTTP server and a directory "my-path-ftp" in an FTP server.

Working with Manifest Files

This section provides manifest file samples for carrying out specific tasks. Each sample has an associated explanation of its purpose and function. The manifest file can specify a single content object, a website crawler job, or an FTP server crawler job to acquire pre-positioned content or live content that is distributed to edge Content Engines later.

Specifying a Single Content Item

The following manifest file example specifies a single content item:
<CdnManifest>
<item src="http://www.my-server/test.html" />
<item src="test.html" />
<server name="my-origin-server-one"> <host name="http://www.my-server-one.com/eng/" />
</server>
<server name="my-origin-server-two"> <host name="http://www.my-server-two.com/eng/" />
</server>
<item src="project-two.html" />
<item server="my-origin-server-one" src="project-one.html" />
</CdnManifest>
For a single item, the key is to specify the item URL in the src attribute. There are two ways to specify the item URL:

•Specify the src attribute with the absolute URL as shown using the following format:

proto://username:password@/domain-name:port/file-path/file-name

The first <item> tag uses the full path.

•Specify the origin server information using the <server><host> tags and use the src attribute to only specify the relative path.

In the preceding example, every <item> tag except the first one uses a relative path. The second <item> tag uses the manifest server, where test.html is relative to the manifest file URL. The second <item> tag, "project-two.html," uses "my-origin-server-two." The third <item> tag, "project-one.html," uses "my-origin-server-one."

Use the <item> tag to specify a single content item, object, or URL. The required attribute src is used to specify the relative path portion of the URL. If the server name attribute is omitted, the server name attribute in the last specified <server> tag above it is used. If there are no <server> tags close by in the manifest file, the server that hosts the manifest file will be used, which means that the relative URL will be relative to the manifest file URL.

Note Before any content can be acquired, you must enter the URL that defines the location of the manifest file in the Content Distribution Manager GUI (Content > Channels > Channel Content). When defining the manifest settings, enter the location URL of the manifest file, its Time To Live (TTL), the username, and the password required to access the manifest file (if the location is password-protected). (See the "Configure Manifest File and Proxy Information for the Channel" section on page 6-27.)

Specifying a Crawl Job

The web crawler application methodically and automatically searches acceptable websites and makes a copy of the visited pages for later processing. The web crawler starts with a list of URLs to visit and identifies every web link in the page, adding these links to the list of URLs to visit. The process ends after one or more of the following conditions are met:

•Links have been followed to a specified depth.

•The maximum number of objects has been acquired.

•The maximum content size has been acquired.

By crawling a site at regular intervals using the Time To Live (or ttl) attribute, these links and their associated content can be updated regularly to keep the content fresh. For more information on the ttl attribute, see the "Refreshing and Removing Content" section.

Use the <crawler> tag to specify the website or FTP server crawler attributes. Table A-1 lists the attributes, states whether these attributes are required or optional, and describes their functions.
Table A-1 Website or FTP Server Crawler Job Attributes
Attribute

Description

start-url

(Required) Defines the URL to start from for the specified crawl job. It can be the full path or a relative path. If it is a relative path, the <server><host> tags are required to specify the origin server information.

depth (0, 1,-1)

(Optional) Defines the level of depth to crawl the specified website.

The depth is defined as the level of a website's URL links or FTP server's directory, where 0 is the URL or directory from which the crawler job starts.

0 = acquire only the starting URL
1, 2, 3,... = acquire the starting URL and its referred files to the depth specified
-1 = infinite or no depth restriction

The default is 20 if the depth is not specified.

Note It is not advisable to specify a depth of -1 because it will take a long time to crawl a large website and is wasteful if all of the content on that particular website is not required.
prefix
(Optional) Combines the host name from the <server> value and this field to create a full prefix. Only content whose URLs match the full prefix is acquired, as shown in this example:
<server name="xx"> <host name="www.cisco.com" proto="https" port=433/>
</server>
and in a <crawler> tag:
prefix="marketing/eng/"
The full prefix is "https://www.cisco.com:433/marketing/eng/." Only URLs that match this prefix are crawled. If a web page refers to .../marketing/ops, the marketing/ops page and its children are not acquired.

If the prefix is omitted, the crawler checks the default full prefix, which is the host name portion of the URL from the server. In the previous example, the default full prefix is "https://www.cisco.com:433."
accept

(Optional) Uses a regular expression to define acceptable URLs to crawl, in addition to having acceptable URLs match a prefix. For example, accept="stock" means that only URLs that meet two conditions are crawled: the URL matches the prefix and also contains the regular expression string "stock."

reject

(Optional) Uses a regular expression to reject a URL if it matches the expression. The URL is first checked for a possible prefix match and then checked for a reject regular expression. If a URL does not match the prefix, it is immediately rejected. If a URL matches both the prefix and the reject regular expression, it is rejected by the expression.

max-number

(Optional) Specifies the maximum number of crawler job objects that can be acquired.

max-size-in-B
max-size-in-KB
max-size-in-MB

(Optional) Specifies the maximum size of content that this crawler job can acquire. The size can be expressed in bytes (B), kilobytes (KB), or megabytes (MB).

Note The size of the file that is acquired is going to be less than the amount of disk space required to store the file. Files, when stored, contain overhead that contributes to the amount of disk space used for the channel. This overhead is approximately 20 KB per file. File size and storage overhead need to be taken into account when you are configuring the channel disk quota. (See the "Channel Quota" section on page 6-26 and the "Creating a Channel" section on page 5-11.)

externalPrefixes

(Optional) Specifies additional prefixes for crawl jobs to crawl multiple protocols or multiple websites. Prefixes are separated with a bar (|).

externalServers

(Optional) Specifies additional hosts for crawling jobs. Can be used for multiple host crawling jobs where each host has a different user account. This attribute can be used to refer to the <host> tag with the proper authentication information.
Note If you specify both the max-number and max-size attributes as the criteria to use to stop a crawler job, the condition that is met first takes precedence. That is, the crawler job stops either when the maximum number of objects is acquired or when the maximum content size is reached, whichever occurs first. For example, if the crawler job has acquired the maximum number of objects specified in the manifest file but has not yet reached the maximum content size, the crawler job stops.

The following is an example of a website crawler job:
<server name="cisco">
    <host name="http://www.cisco.com/jobs/" />
</server>
<crawler
    server="cisco"
    start-url="eng/index.html"
    depth="10"
    prefix="eng/"
    reject="\.pl"
    max-size-in-MB="200"
/>
This website crawler job example contains the following attributes:

•The start-url path is http://www.cisco.com/jobs/eng/index.html.

•Search to a website link depth of 10.

•Search URLs with the prefix http://www.cisco.com/jobs/eng/.

•Reject URLs containing .pl (Perl script pages).

•Crawl only until 200 megabytes in total content size is acquired.

If the server name attribute is omitted, the server name in the last specified <server> tag above it is used. If there are no <server> tags close by in the manifest file, the server that hosts the manifest file will be used, which means that the relative URL will be relative to the manifest file URL.

Writing Common Regular Expressions

A regular expression is a formula for matching strings that follow a recognizable pattern. The following special characters have special meanings in regular expressions:

. * \ ? [ ] ^ $

If the regular expression string does not include any of these special characters, then only an exact match satisfies the search. For example, "stock" must match the exact substring "stock."

For more information about writing regular expressions, refer to the following website:

http://yenta.www.media.mit.edu/projects/Yenta/Releases/Documentation/regex-0.12/

Scheduling Content Acquisition

Two attributes, ttl and prefetch, are used to schedule content acquisition. Use ttl to specify the frequency of checking the content for freshness, in minutes. For example, to check for page freshness every day, enter ttl="1440."

In the following example, page freshness is scheduled to be checked once a day:
<item
    src="index.html"
    ttl="1440"
/>
In the following example, page freshness is scheduled to be crawled and checked every hour to a link depth value of 2:
<crawler
    start-url="index.html"
    depth="2"
    ttl="60"
/>
If the content is not yet available at a particular URL, the prefetch attribute can be used to specify the start time for acquisition at that specified URL. For example, prefetch="2002-06-28 18:35:21" means that the content acquisition job can only start on June 28, 2002 at this specific time.

The following example schedules a crawl of this website every hour to a link depth value of 2 to start on November 9, 2001 at 8:45 a.m.
<crawler
    start-url="index.html"
    depth="2"
    prefetch="2001-11-09 08:45:12"
    ttl="60"
/>
Specifying Shared Attributes

Attributes in single <item> tags can be shared or have the same attribute values. Instead of writing these attributes individually for every <item> tag, you can extract them and place them in a higher-level tag called <item-group>, where these attributes can be shared from this higher-level tag. You can create an <item-group> tag at a level below the <CdnManifest> tag, and write <item> tags into it as subtags, moving shared attributes into the <item-group> tag, as shown in the following example:
<?xml version="1.0"?>
<CdnManifest>
<server name="cisco-cco">
  <host name="http://www.cisco.com"
         proto="http" />
</server>
<item-group
    server="cisco-cco"
    ttl="1440"
    type="prepos" >
   <item src="jobs/index.html"/>
   <item src="jobs/index1.html"/>
   <item src="jobs/index2.html"/>
   <item src="jobs/index3.html"/>
   <item src="jobs/index4.html"/>
   <item src="jobs/index5.html"/>
</item-group>
</CdnManifest>
You can also use the <options> tag to share attributes at the topmost level of the manifest file. Shared attributes in the <options> tag can be shared by every <item> tag or by the <crawler> tag in the manifest file. However, if a shared attribute is specified in both the <item-group> and the <item> tags or the <options> and <item> tags, attribute values in the <item> tags take precedence over the <item-group> and <options> tags. (For a list of shared attributes, see the "options" section.)

The following example illustrates this precedence rule. The first <item> tag takes the TTL value 1440 from the <options> tag, but the second <item> uses its own TTL value of 60.
<options
   ttl="1440" >
<item src="index.html" />
<item src="index1.html" ttl="60" />
If you need to specify many single <item> tags and if a manifest file with many content items or URLs must be created, Perl scripts are available to create such single <item> tags. (See the "Manifest File Automated Scripts" section to use automated Perl scripts.)

Specifying a Crawler Filter

With a rule-based crawler filter, you can crawl an entire website and only acquire contents with certain predefined characteristics. In contrast, crawler attributes in the <crawler> tag do not act as filters but only define the attributes for crawling. The <matchRule> tag is designed to act as a rule-based filter. You can define rule-based matches for file extensions, size, content type, and time stamp. In the following example, the crawl job is instructed to crawl the whole website starting at "index.html," but to acquire only files with the .jpg extension and those larger than 50 kilobytes.
<crawler
   start-url="index.html" >
   <matchRule>
       <match size-min-in-KB="50" extension="jpg" />
    </matchRule>
</crawler>
There can be multiple <match> subtags within a <matchRule> tag. Table A-2 lists and describes the <match> subtag attributes.

Table A-2 <match> Subtag Attributes

Attribute

Description

mime-type

Specifies match of these MIME-types.

extension

Specifies match of files with these extensions.

time-before

Specifies match of files modified before this time (using the Greenwich mean time [GMT] time zone) in yyyy-mm-dd hh:mm:ss format. (See the "options" section for a description of the timezone attribute.)

time-after

Specifies match of files modified after this time (using the Greenwich mean time [GMT] time zone) in yyyy-mm-dd hh:mm:ss format.

size-min-in-MB
size-min-in-KB
size-min-in-B

(Optional) Specifies match of content size equal to or larger than this value. The size can be expressed in megabytes (MB), kilobytes (KB), or bytes (B).

size-max-in-MB
size-max-in-KB
size-max-in-B

(Optional) Specifies match of content size equal to or smaller than this value. The size can be expressed in megabytes (MB), kilobytes (KB), or bytes (B).

prefix

The prefix attribute is optional and specifies a prefix as a match rule to filter out websites during a crawl job.

url-pattern

The url-pattern attribute is optional and specifies a regular expression as a match rule to filter out certain URLs.

A <match> subtag can specify multiple attributes. Attributes within a <match> tag have a Boolean AND relationship. In the following example, to satisfy this match rule, a file must have an .mpg type file extension and its size must be larger than 50 kilobytes.
<match extension="mpg" size-min-in-KB="50" />
There is a Boolean OR relationship between the <match> rules themselves. A <matchRule> tag can have multiple <match> subtags, but only one of these subtags must be matched. The <matchRule> tag can be specified as a subtag of the <crawler> tag, or a subtag of the <item-group> tag. If there is a subtag in an <item-group> tag, it is shared by every <crawler> tag within that <item-group> tag.

Note The accept or reject attributes can be mistakenly used in the <crawler> tag for a crawler filter.

For example, to crawl files with the extension .mpg, simply specifying accept="\.mpg" is not correct. In this case, although specifying accept="\.mpg" is not technically incorrect, no crawling occurs. Pages whose URLs do not match the accept constraint are not searched. For example, if the starting URL is index.html, this HTML file is parsed and any links not containing .mpg are rejected. If the .mpg files are located in the second or lower link levels, they are not fetched because the links connecting them have been rejected.

To properly crawl for the .mpg extension, use <matchRule>. Specify <matchRule> <match extension="mpg" />. The whole site is crawled and only those files with the .mpg extension are retained.

Specifying Content Priority

A priority can be assigned to content objects to define their order of importance. The ACNS software determines the order of processing from the level of priority of the content. The higher the content priority, the sooner the acquisition of content from the origin server and the sooner the content is distributed to the Content Engines.

Note Every content object acquired by running a crawler job has the same priority.

Three factors combine to determine content priority:

•Channel priority—Content Distribution Priority drop-down list in the in the Acquisition and Distribution Properties area of the Modifying Channels window in the Content Distribution Manager GUI

•Item index—Content order listed in the manifest file

•Item priority—Priority of the attributes specified in the <item> or <crawler> tag

To calculate content priority, use one of the following formulas:

•If there is a priority value for this content specified in the manifest file priority attribute, use the following formula:

content priority = channel priority * 10000 + item priority

where item priority can be any integer and is unrestricted

Tip If you want a particular content object to have the highest priority, specify a very large integer value for item priority in the content priority formula.

•If an object does not have a priority value specified in the manifest file priority attribute, use the following formula:

content priority = channel priority * 10000 + 10000 - item index

where item index is the order in which content is listed in the manifest file

Note If there is no priority specified for any items, content is processed in the order listed in the manifest file.

Generating a Playserver List

ACNS 5.x software supports playservers that play back the following pre-positioned content types on the ACNS network: HTTP, HTTPS, WMT, and RTSP (RealMedia and QuickTime Streaming Server [QTSS]). The ACNS software checks whether the requested protocol matches the list in the playserver table. If it matches, the request is delivered. If it does not match, the request is rejected.

You can generate a playserver list in the following ways:

•The manifest file, by configuring playserver attributes in an <item> tag

•The <playServerTable> tag, by configuring playserver MIME-type extension names

To create the playserver list directly through the manifest file, configure playserver attributes of the playserver list in an <item> tag. If an <item> tag does not have a playserver attribute, its playserver list is generated through the <playServerTable> tag. If the <playServerTable> tag is omitted in the manifest file, a built-in default <playServerTable> tag is used to generate the playserver list. Multiple servers are separated by commas, as shown in the following example:
<item src="video.mpg" playServer="real,wmt" />
You can also generate the playserver list that supports these streaming media types through the <playServerTable> tag. The <playServerTable> tag maps content into a playserver list based on the MIME-type extension name. If there is a <playServerTable> tag in the manifest file, use the <playServerTable> tag in the manifest file.

To generate the playserver list though the <playServerTable> tag, use MIME-type extension names to configure which playserver can play the particular pre-positioned content, as shown in the following example:
<playServerTable>
<playServer name="real">
         <contentType name="application/x-pn-realaudio" />
         <contentType name="application/vnd.rn-rmadriver" />
         <extension name="rm" />
         <extension name="ra" />
         <extension name="rp" />
         <extension name="rt" />
         <extension name="smi" />
</playServer>
<playServer name="wmt">
         <extension name="wmv" />
         <extension name="wma" />
         <extension name="wmx" />
         <extension name="asx" />
         <extension name="asf" />
         <extension name="avi" />
</playServer>
<playServer name="http">
         <contentType name="application/pdf" />
         <contentType name="application/postscript" />
         <extension name="pdf" />
         <extension name="ps" />
</playServer>
</playServerTable>
The <playServerTable> tag is used to generate a playserver list for each content type. In the preceding example, any file with a PDF file or a PostScript extension uses HTTP to play the content.

Customized Manifest Playserver Tables and the HTTP or HTTPS Playserver

In general, you do not need to specify your own playserver table or playserver in the manifest file. The ACNS 5.x software contains a default playserver table that maps appropriate file extensions or MIME-types to the proper playservers. (See the "Default PlayServerTable Schema" section to view the default playserver table.)

When you use the default playserver table, the HTTP and HTTPS playservers are always included in the playserver list, so that ACNS software always allows pre-positioned content to be played using the HTTP or HTTPS protocol. If the default playserver table does not meet your needs, you can customize your playserver lists by defining your own playserver table or by specifying a playServer attribute in the manifest file.

However, there are subtle implementation differences between ACNS 5.0.1 software and ACNS 5.0.3 software (and later releases) when you use customized playserver tables or attributes. In ACNS 5.0.1 software, even if you do not specify HTTP or HTTPS in a customized playserver table, the HTTP and HTTPS playservers are always included automatically, so that in addition to your customized list of playservers, all pre-positioned content can always be played using the HTTP or HTTPS protocol. In ACNS 5.0.3 software, the HTTP playserver is included in the default playserver table; however, if you specify your own playserver table or playServer attribute in the <item> or <crawler> tags, you must add the HTTP or HTTPS playserver in order to play HTTP or HTTPS content or other content using the HTTP or HTTPS protocol. The HTTP and HTTPS playservers are not automatically included, as is the case in ACNS 5.0.1 software.

In the following example, ACNS 5.0.1 software allows both the HTTP or HTTPS playserver and the WMT playserver to play the content, even though only the WMT playserver is specified:
<item src="video.mpg" playServer="wmt" />
However, in ACNS 5.0.3 software and later releases, only the WMT playserver plays the content. If you want to allow the HTTP or HTTPS playservers to play this content, you must specify the HTTP or HTTPS playserver, as follows:
<item src="video.mpg" playServer="wmt,http" />
or
<item src="video.mpg" playServer="wmt,https" />
Furthermore, in the following example, the manifest produces different results depending on whether you are using ACNS 5.0.1 software or ACNS 5.0.3 software and later releases:
<CdnManifest>
<playServerTable>
<playServer name="wmt">
<extension name="asf" />
<extension name="wmv" />
</playServer>
<playServer name="qtss">
<extension name="mov" />
</playServer>
</playServer>
</playServerTable>
<server name="server">
  <host name="http://server.com/" proto="http" />
</server>
<crawler start-url="root" depth="3" ttl="45" />
</CdnManifest>
The contents crawled in this sample manifest file would have the following features:

•In ACNS 5.0.1 software, files with the extension .asf and .wmv are played by both the HTTP playserver and the WMT playserver, and files with the extension .mov are played by the HTTP playserver and the QTSS (QuickTime) playserver because the HTTP playserver is always included automatically, even though it is not specified.

•In ACNS 5.0.3 software and later releases, files with the extension .asf and .wmv are played only by the WMT playserver, and files with the extension .mov are played only by the QTSS playserver. To include the HTTP playserver, you must add <playServer name="http"> and list all your extensions, as shown in the following example:
<playServerTable>
<playServer name="wmt">
<extension name="asf" />
<extension name="wmv" />
</playServer>
<playServer name="qtss">
<extension name="mov" />
</playServer>
<playServer name="http">
<extension name="avi" />
<extension name="mpeg" />
<extension name="mpg" />
<extension name="mp3" />
<extension name="rm" />
<extension name="ram" />
</playServer>
</playServerTable>
If you do not specify your own playserver table or playServer attribute, the default playserver table is used. The default playserver table always includes the HTTP playserver.

In the following manifest example, ACNS 5.0.1 software and ACNS 5.0.3 software and later releases behave the same. Because there is no <playServerTable> tag or playServer attribute defined, the default playserver table is used to generate a playserver for this item, which includes the HTTP playserver. The default playserver table automatically allows files to be played with the HTTP playserver as well as the associated playserver for that type of file extension.
<CdnManifest>
<item src="video.asf"  />
</CdnManifest>
Specifying Attributes for Content Serving

Certain attributes in the manifest file can be specified to control the manner in which content is served by the Content Engines. These attributes can be specified in the <item> and <crawler> tags. These same attributes can also be specified in the <item-group> or <options> tags, so they can be shared by their <item> and <crawler> subtags. Table A-3 lists and describes these content-serving attributes.

Table A-3 Attributes for Content Serving

Attribute

Description

noRedirectToOrigin

(Optional) Sets the redirection to the origin server to true or false. A false setting allows the ACNS network Content Engine to redirect content requests to the origin server if the content is not available at that device. A true setting does not allow the ACNS network Content Engine to redirect content requests to the origin server and generates an error. The default setting is false.

This attribute is a per-content attribute, meaning that if the content has been removed, the redirection settings do not apply. But if the software merely fails to acquire the content, then the settings apply.

serveStartTime

(Optional) Designates a time in yyyy-mm-dd hh:mm:ss format at which the ACNS software is allowed to start serving the content. If the serving start time is omitted, content is ready to serve once it is distributed to the Content Engine.

serveStopTime

(Optional) Designates a time in yyyy-mm-dd hh:mm:ss format at which the ACNS software temporarily stops serving the content. If the serving stop time is omitted, the ACNS software serves the content to the Content Engine until the content is removed by modifying the manifest file or renaming the channel.

alternateUrl

(Optional) If the content requested by the user is not ready in the ACNS network, the ACNS network redirects the request to this alternative URL, which can be configured as an error reporting page. This attribute supports only the full URL.

Note This attribute applies to the content being requested. If the content is deleted, the attribute does not apply. But if the content failed to be acquired, then this attribute should apply.

requireAuth

(Optional) Determines whether users need to be authenticated before the specified content is played. When requireAuth is set to true, the Content Engine requires authentication to play back the specified content to users and communicates with the origin server to check credentials. If the requests pass the credential check, the content is played back from the Content Engine. If this attribute is omitted, a heuristic approach is used to determine the setting: if the specified content is acquired by using a username and password, requireAuth is set to true; otherwise, it is set to false. For FTP, if the username is anonymous, requireAuth is set to false.

Note If requireAuth is true, the Origin Server field in the Content Distribution Manager GUI Web Site window for this channel needs to point to the server that can authenticate the users. When users want to play back the content, the server specified in the Origin Server field is checked for authentication.

bitrate-in-bps
bitrate-in-kbps
bitrate-in-mbps

Specifies the bit rate of the content. The ACNS network uses this value in playback download, as shown in this example:
item src="http://www.cisco.com/Prod/ACNS.swf" bitrate-in-kbps="500" / means that ACNS software downloads this file at 500 kbps, if it is requested for download and playback.

playDuration

Specifies the playtime duration, in seconds, for a video file. This value is used for these purposes:

•To download the video file and play it over HTTP

If the video file is played using HTTP, ACNS software uses the playDuration attribute to calculate the HTTP download bit rate.

•To schedule a video TV-out program

If the playtime duration value is omitted, the ACNS software attempts to calculate this value for an MPEG file.

ignoreQueryString

Playback attribute that can be used with the <options>, <item-group>, <item>, and <crawler> tags. If ignoreQueryString is set to true, then the ACNS software ignores any string after a question mark (?) in the request URL for playback. If this attribute is omitted, then the default value is false.

For example, content with the request URL url=http://web-server/foo has been pre-positioned. If a user requests content with the URL url=http://web-server/foo?id=xxx and the ignoreQueryString attribute is set to false, then the ACNS software will not use pre-positioned content from the request URL http://web-server/foo.

However, if the ignoreQueryString attribute is set to true, then the ACNS software treats the request URL http://www-server/foo?id=xxx the same as http://www-server/foo and returns pre-positioned content.

Specifying Metadata for Content Serving

In certain situations, you must specify the metadata for content playback. For example, if content is acquired from an FTP server but must be played back with HTTP, the HTTP playback metadata, such as MIME type and cache control, must be specified.

The <http-meta-data> subtag is used to specify HTTP metadata. Within the <http-meta-data> subtag shown in the following example, the name=value attributes are content-type="video/x-asf" and app-data="hh and dd." These subtags are specified so that the ACNS software passes them directly to the end user when the HTTP content is played back.
<http-meta-data content-type="video/x-asf" app-data="hh and dd" />
The <http-meta-data> tag is a subtag of the <item> or <crawler> tags. For every <item> or <crawler> tag in the <item-group> tag that is to share the metadata, configure the <http-meta-data> tag to be a subtag of the <item-group> tag. If a <crawler> tag has an <http-meta-data> subtag, each of its crawled content objects shares this metadata.

Specifying Time Values in the Manifest File

The following attributes require that you enter a time value in the format yyyy-mm-dd hh:mm:ss (year-month-day hour:minute:second).

•prefetch

•serveStartTime

•serveStopTime

•expires

•time-before

•time-after

In the manifest file, the time string conforms to the yyyy-mm-dd hh:mm:ss format. A time zone designation can be optionally specified at the end of a time string to indicate the particular time zone used. If a time zone designation is omitted, the GMT time zone is used. For a complete list of time zone designations and their GMT offsets, see the "Manifest File Time Zone Tables" section. Note that automatic conversion between daylight saving time and standard time within a time zone is not supported, but a special designation for daylight saving time can be used, such as PDT for Pacific daylight saving time. In the following example, the prefetch time is September 5, 2002 at 09:09:09 Pacific daylight saving time:
<options timeZone="PDT" />
<item src="index.html" prefetch="2002-09-05 09:09:09 PDT" />
Refreshing and Removing Content

Use the ttl (Time To Live) and expires attributes of the manifest file to monitor and control the freshness of content objects.

The ttl attribute is expressed in minutes and specifies how frequently the software checks the freshness of the content at the origin server. If the ttl attribute is specified inside an <item> tag, it applies to that item; if it is specified inside a <crawler> tag, the attribute applies to the crawl job.

For example, if you give the ttl attribute a value of 10, the software checks the item or crawl job every 10 minutes. If the item has been updated, then the updated file is reacquired.

Note Sometimes a crawl job can be very large, crawling over thousands of files. The recrawl speed is 5000 files per hour for small files. It is time-consuming to recheck so many files. We strongly recommend that you specify a large ttl value for such crawl jobs (for example, 1440 minutes [daily]). Otherwise, the software continues to crawl the site over and over again, blocking other acquisition tasks.

If you omit the ttl attribute in the manifest file, the Time To Live is assumed to be zero and the software does not recheck that item after it is acquired. A value of 0 (zero) for ttl means that the content is fetched only once and is never checked again unless you click the Fetch Manifest Now button in the Content Distribution Manager GUI or use the acquirer start-channel command on the root Content Engine CLI.

The Fetch Manifest Now button is located in the Content > Channels > Channel Content window in the Content Distribution Manager GUI. When you click this button, the software checks to see if the manifest file has been updated, and the updated manifest file is downloaded and reparsed. Also, regardless of whether the manifest file has been updated, all content in the channel is rechecked and the updated content is downloaded.

If you assign a negative value to the ttl attribute, such as -1, that item is never to be rechecked. A negative ttl attribute value prevents the software from checking item freshness, even if you click the Fetch Manifest Now button or use the acquirer start-channel command.

Note Configuring the update interval in the Content Distribution Manager GUI (Content > Channels > Channel Content) sets the interval for checking updates to the manifest file itself. This setting only pertains to checking the manifest file; it does not pertain to checking the content.

For further information, see the discussion of the ttl attribute in the "item" section.

The failRetryInterval attribute is sometimes confused with the ttl attribute. The fail and retry feature acts upon failed content or failed updates. If the acquisition of a single item or of some crawled content fails, the software automatically tries to refetch these failed objects after a default interval of 5 minutes. The fail and retry interval can also be specified by using the failRetryInterval attribute in the manifest file.

The difference between the failRetryInterval attribute and the ttl attribute is that the ttl attribute is for successfully acquired content and the failRetryInterval attribute is for content acquisition failures. The ttl attribute must be specified for the software to recheck the content freshness, whereas the failRetryInterval attribute does not need to be specified unless you want to change the retry interval.

For further information, see the discussion of the failRetryInterval attribute in the "item" section.

The expires attribute designates the time that the content is to be removed from the ACNS network. If you do not specify a time when you set the expires attribute, content is stored in the ACNS network until it is explicitly removed when you modify the manifest file. The expires attribute uses the format yyyy-mm-dd hh:mm:ss (year-month-day hour:minute:second). In the following example, the content expires on June 12, 2003 at 2:00 p.m.
expires="2003-06-12 14:00:00 PST"
If the expires attribute is specified inside an <item> tag, it applies to that item; if it is specified inside a <crawler> tag, the attribute applies to the crawl job. For further information, see the discussion of the expires attribute in the "item" section.

You can monitor the status of content replication and freshness by enabling and then viewing the transaction log files that reside on the Content Engines. To verify whether or not a content object or file was successfully imported to or refreshed on a particular Content Engine, take these actions:

•Enable the transaction log function on the Content Engine you want to monitor.

•View the transaction log entries for the content object or filename that resides on that Content Engine.

Specifying Live Content

The two types of live content that you can specify in a manifest file are:

•wmt-live

•real-live

Use the <item> tag and specify the type attribute as either wmt-live or real-live, as shown in the following example. The live stream for the wmt-live content type is url=mms://www.company-web-site.org/tmp/ceo-talk. The stream for the real-live content type is url=rtsp://real-server/tmp/funny-video.
<CdnManifest>
<server name="wmt-server">
<host name="mms://www.company-web-site.org" />
</server>
<item src="/tmp/ceo-talk" type="wmt-live" >
</item>

<server name="real-server">
<host name="real-server" proto="rtsp" />
</server>
<item src="tmp/funny-video" type="real-live" />

</CdnManifest>
More Sample Manifest Files

This section contains five sample manifest files. In XML, text between  contains comments that have no effect on the execution of the file. In these five samples, narrative comments have been added immediately below certain tags or groups of tags to provide you with a better understanding of what these particular tags mean. You can copy an entire sample file, save it to a text file, and then view it with Microsoft Internet Explorer.

Additionally, cross-reference links from the first occurrence of a tag to the "Manifest File Reference" section have been embedded in the narrative comments of each sample to provide you with a more in-depth explanation of the tag.

To download these sample files from Cisco.com, see the "Downloading the Sample Manifest Files" section.

The following paragraphs describe the topics covered by the five sample manifest files:

Sample 1

•How to use HTTP, HTTPS, and FTP protocols to acquire content

•How to specify a username and password when authentication is required

Sample 2

•How to specify attributes for acquisition:

–ttl—Sets the time interval between content freshness checks

–prefetch—Specifies the time when the ACNS software can start to acquire content from the origin server

•How to specify acquisition and distribution priorities

•How to specify the following playback attributes:

–serveStartTime—Sets time and date to start serving this content

–serveStopTime—Sets time and date to stop serving this content

–alternativeURL—Provides an alternative URL to use if content has not yet been replicated at the Content Engine

–requireAuth—Requires authentication credentials from users to play back the content

–expires—Sets content expiration time and date

–playServer—Chooses which playservers can play the specified content

–noRedirectToOrigin—If set to false and content has not yet been replicated, does not redirect the incoming request to the origin server

–<http-meta-data>—Adds metadata for HTTP playback

Sample 3

•A simple crawl job

–FTP crawl of a directory

–HTTP crawl of a directory

–HTTP crawl of a website

•A simple crawl job using the <matchRule> tag

–FTP crawl of a directory to fetch only MPEG files

–HTTP crawl of a directory to fetch only files larger than 10 MB

–HTTP crawl of a web site, to fetch only if-modified-since files

Sample 4

•Items with the <contains> tag included

Sample 5

•RealMedia and WMT streaming live content

Sample 1

Sample 1 shows how to use HTTP, HTTPS, and FTP protocols to acquire content and how to specify a username and password when authentication is required.
<CdnManifest>

<item src="http://my-server.xyz.com/myphotocollection/index.html" />
<item src="http://my-server.xyz.com/myphotocollection/myname/000001.jpg" />

<item src="http://my-name:my-password@my-auth-server.xyz.com/mymoviecollection/index.html"
/>
<item
src="http://my-name:my-password@my-auth-server.xyz.com/mymoviecollection/myname/000001.wmv
" />

<item src="https://my-server.xyz.com/my_secure_photocollection/index.html" />
<item src="https://my-server.xyz.com/my_secure_photocollection/myname/000001.jpg" />


<item
src="https://myself:mypwd@my-auth-server.xyz.com:443/my_auth_moviecollection/index.html"
sslAuthType="weak" />
<item
src="https://myself:mypwd@my-auth-server.xyz.com:443/my_auth_moviecollection/myname/000001
.wmv" sslAuthType="weak"/>
<item src="ftp://my-server.xyz.com//my-doc-root/myphotocollection/index.html" />
<item src="ftp://my-server.xyz.com/my-doc-root/myphotocollection/file1.jpg" />

<item
src="ftp://my-name:my-password@my-auth-server.xyz.com//my-doc-root/mymoviecollection/index
.html" />
<item
src="ftp://my-name:my-password@my-auth-server.xyz.com/my-own-moviecollection/wedding/file1
.wmv" />

</CdnManifest>
Sample 2

Sample 2 is a manifest file written to show how to specify attributes.
<CdnManifest>
<item src="ftp://my-ftp-server/data/video.mpg"
	ttl="60"
	type="prepos"
	prefetch="2003-03-20 10:00:00 PST"
	noRedirectToOrigin="true"
	requireAuth="true"
	playServer="http,wmt"
	expires="2003-06-12 14:00:00 PST"
	alternateUrl="http://my-web-server.com/video-error-page.htm"
	priority="50000"
	serveStartTime="2003-01-12 14:00:00 PST"
	serveStopTime="2099-04-12 14:00:00 PST"
	playDuration="240"
	failRetryInterval="60"
/>

<crawler start-url="ftp://my-ftp-server//root/data/video-files/"
	depth="3"
	ttl="60"
	noRedirectToOrigin="false"
	requireAuth="true"
	playServer="http,wmt"
	expires="2003-06-12 14:00:00 PST"
	alternateUrl="http://my-web-server.com/video-error-page.htm"
	priority="50000"
	serveStartTime="2003-01-12 14:00:00 PST"
	serveStopTime="2003-04-12 14:00:00 PST"
	failRetryInterval="60"
/>

<item src="ftp://my-ftp-server/data/video2.mpg"
		playServer="http,wmt" >
		<http-meta-data content-type="video/mpeg" />
</item>

<crawler start-url="ftp://my-ftp-server/data/mpeg-files-2/"
		depth="3" >
		<http-meta-data content-type="video/mpeg" />
</crawler>

</CdnManifest>
Sample 3

Sample 3 is a manifest file that shows how to use the crawl feature.
<CdnManifest>
<crawler start-url="ftp://ftp-server/pub-data/video-files/" ttl="10" depth="1" />

<crawler start-url="ftp://ftp-server/video-files/" ttl="10" depth="1" >
    <matchRule>
        <match extension="mpg" />
    </matchRule>
</crawler>

<crawler start-url="http://www.ftp-server.com/pub-data/video-files/" depth="5" />

<crawler start-url="http://www.ftp-server.com/pub-data/video-files/" depth="5" >
   <matchRule>
       <match size-min-in-KB="10" extension="mpg" />
    </matchRule>
</crawler>

<crawler start-url="http://www.cnn.com/sport/index.htm" prefix="sport/" depth="3"
size-min-in-KB="1000" />

<crawler start-url="http://www.cnn.com/movie/index.htm" depth="3" >
   <matchRule>
      <match extension="mpg" time-after="2002-01-02 00:00:00" />
      <match extension="asf" time-after="2002-07-02 00:00:00" />
   </matchRule>
</crawler>

</CdnManifest>
Sample 4

Sample 4 is a manifest file written to show the purpose and use of the <contains> tag. The <contains> tag is designed to prevent serving content if the required files are not present on the Content Engine. Typically, the delivery of a presentation consists of serving multiple files. For example, if an ASF video file uses several JPG or HTML files for its presentation, but the JPG or HTML files are not present, then the ASF video is not served.
<CdnManifest>
<item src="http://my-origin-server/images/intro.html" />
<item src="http://my-origin-server/images/intro.jpg" />

<item src="http://my-origin-server/movie/movie1.asf" >
<contains cdn-url="images/intro.html" />
<contains cdn-url="images/intro.jpg" />
</item>

</CdnManifest>
Sample 5

Sample 5 is a manifest file written to show how to specify live content. ACNS 5.x software supports two types of live content: wmt-live and real-live. You need to use the type attribute to specify live streaming content.
<CdnManifest>
<item src="mms://www.company-web-site.org/tmp/ceo-talk" type="wmt-live" />

<item src="rtsp://real-server/tmp/funny-video" type="real-live" />

</CdnManifest>
Downloading the Sample Manifest Files

To download the preceding five sample manifest files from Cisco.com, follow these steps:

Step 1 Go to the following URL to find the sample files:

http://www.cisco.com/pcgi-bin/tablebuild.pl/acns52

Step 2 When prompted, log in to Cisco.com using your designated Cisco.com username and password.

The Cisco ACNS Software download page appears, listing the available software updates for the Cisco ACNS Software product.

Step 3 Locate the file named ACNS-5.2.1.5-manifest-samples.zip. This file is a ZIP archive that contains the sample manifest files.

Step 4 Click the link for the ACNS-5.2.1.5-manifest-samples.zip file. The download page appears.

Step 5 Click Software License Agreement.

A new browser window opens, displaying the license agreement.

Step 6 After you have read the license agreement, close the browser window that displays the agreement, and return to the Software Download page.

Step 7 Click the filename link labeled Download.

Step 8 To temporarily store the zipped file containing the sample files, click Save to file, and then choose a location on your workstation.

Step 9 Use your preferred unzip program to unpack the scripts to a location on your workstation or your network.

After you have unzipped the sample files, you are ready to begin using them to create your own manifest files for your website.

Manifest Validator Utility

Because correct manifest file syntax is so important to the proper deployment of pre-positioned content on your ACNS network, Cisco makes available a manifest file syntax validator. The Manifest Validator, a Java-based command-line interface that verifies the correctness of the syntax of the manifest file you have written or modified, is built into the Content Distribution Manager GUI.

The Manifest Validator utility tests each line of the manifest file to identify syntax errors where they exist and determine whether or not the manifest file is valid and ready for use in importing content into your ACNS network. The results of these syntax validation tests are logged into a text file at a location that you name.

Running the Manifest Validator Utility

The Manifest Validator utility is built into the Content Distribution Manager GUI. Figure A-1 shows the Manifest Validator GUI window.

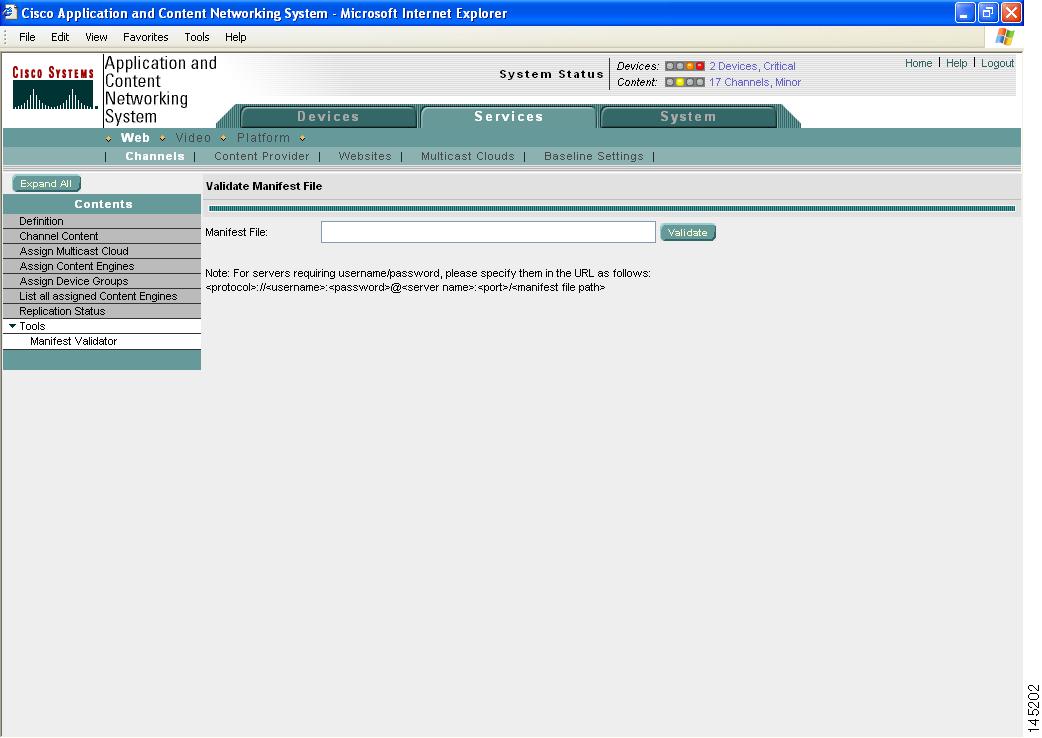

Figure A-1 Manifest Validator Content Distribution Manager GUI Window

After you create a channel, you can access the Manifest Validator using the following GUI path:

Services > Web > Channels > Edit or Create Channel Icon > Tools > Manifest Validator

Note You must first create a new channel or edit an exiting channel before you can access the Manifest Validator.

Under Validate Manifest File, enter the URL of the manifest file that you want to test in the Manifest File field and click Validate. The Manifest Validator checks the syntax of your manifest file to make sure that source files are named for each content item in the manifest. It then checks the URL for each content item to verify that the content is placed correctly and then displays the output in the lower part of the GUI window. The manifest file validator does not determine the size of the item.

Valid Manifest File Example

The following text is an example of a valid manifest file:
<CdnManifest>
<item
        src="tmp/mao's.html"
        priority="20"
        />
<server name="my-dev'box">
<host name="http://128.107.150.26"
        proto="http" />
</server>
<item
        src="tmp/lu.html"
        priority="300"
        />
<item
        src="/tmp/first_grader.html"
        />
<server name="server0">
       <host name="http://umark-u5.cisco.com:8080/" />
</server>
<item src="a.gif"/>
<server name="server1">
       <host name="http://unicorn-web" />
</server>
<item src="Media/wmtfiles/DCA%20Disk%201/Microsoft_Logos/Logos_100k.wmv" />
</CdnManifest>
The final lines of the manifest file validator output indicate whether the manifest is valid or not. Wait until the following message is displayed, indicating that the validator has completed processing the manifest file:
Total Number of Error: 0
Total Number of Warning: 0
Manifest File is CORRECT.
If errors are found, the error messages reported appear before the preceding message.

Invalid Manifest File Example

The following text is an example of an invalid manifest file:
<CdnManifest>
<item
        src="tmp/mao's.html"
        priority="20"
        />
<server name="my-dev'box">
<host name="http://128.107.150.26"
        proto="http" />
</server>
<item
        src="tmp/lu.html"
        priority="300"
        />
<item
        src="/tmp/first_grader.html"
        />
<server name="server0">
       <host name="http://umark-u5.cisco.com:8080/" >
</server>
<item src="a.gif"/>
<server name="server1">
       <host name="http://unicorn-web" />
</server>
<item src1="Media/wmtfiles/DCA%20Disk%201/Microsoft_Logos/Logos_100k.wmv" />
</CdnManifest>
In the preceding example, although there are no warnings, two errors are found, and this manifest file is syntactically incorrect, as shown in the following message:
ERROR (/state/dump/tmp.xml.1040667979990 line: 23 col: 1 ):No character data is allowed by
content model
ERROR (/state/dump/tmp.xml.1040667979990 line: 23 col: 9 ):Expected end of tag 'host'
  Manifest File: /state/dump/tmp.xml.1040667979990
  Total Number of Error: 2
  Total Number of Warning: 0
  Manifest File is NOT CORRECT!
The following full-text output is an example of the invalid manifest file after the Manifest Validator checks the file:
Manifest validated: http://qiwzhang-lnx/nfs-obsidian/Unicorn/my-single-bad.xml
The manifest is downloaded as /state/dump/tmp.xml.1040667979990 for validation, this file
will be removed when validation is completed.
Start CdnManifest
Start item
     priority=20
     src=tmp/mao's.html
End item
Start server
     name=my-dev'box
Start host
     name=http://128.107.150.26
     proto=http
     uuencoded=false
End host
End server
Start item
     priority=300
     src=tmp/lu.html
End item
Start item
     src=/tmp/first_grader.html
End item
Start server
     name=server0
Start host
     name=http://umark-u5.cisco.com:8080/
     uuencoded=false
ERROR (/state/dump/tmp.xml.1040667979990 line: 23 col: 1 ):No character data is allowed by
content model
ERROR (/state/dump/tmp.xml.1040667979990 line: 23 col: 9 ):Expected end of tag 'host'
Manifest File: /state/dump/tmp.xml.1040667979990
Total Number of Error: 2
Total Number of Warning: 0
Manifest File is NOT CORRECT!
Understanding Manifest File Validator Output

The manifest file validator messages appear below the Manifest File field in the Manifest Validator window of the Content Distribution Manager GUI.

Each output file has a similar structure and syntax. It clearly identifies any errors or warning messages arising from incorrect manifest file syntax. Manifest files are determined by the validator to be either:

•CORRECT—Contains possible syntax irregularities but is syntactically valid and ready for deployment on your ACNS network

•INCORRECT—Contains syntax errors and is unsuitable for deployment on your ACNS network

Syntax Errors

The manifest file validator issues syntax errors only when it cannot identify a source file for a listed content item, either because it is not listed or because it is listed using improper syntax. Files containing syntax errors are marked INCORRECT.

Syntax errors are identified in the output with the ERROR label. In addition to the label, the line and column number containing the error are provided, as well as the manifest attribute for which the error was issued. An error appears in the following example:
ERROR (/state/dump/tmp.xml.1040667979990 line: 23 col: 1 ):No character data is allowed by
content model
where:

•/state/dump/tmp.xml.1040667979990 is the manifest file name

•line: 23 col: 1 is the manifest file line and column number where the error occurs

•No character data is allowed by content model describes the type of manifest file error

Syntax Warnings

The manifest file validator issues syntax warnings for a wide variety of irregularities in the manifest file syntax. Files containing syntax warnings may be marked CORRECT or INCORRECT, depending on whether or not syntax errors have also been issued.

Syntax warnings are identified in the output with the WARNING label. In addition to this warning label, the line number for which the warning is issued is provided, as well as the manifest attribute, valid options, and the default value for that attribute for which the warning was issued.

Correcting Manifest File Syntax

Once you have identified syntax warnings, errors, and messages using the output from the manifest file validator, you can correct your manifest file syntax and then rerun the manifest file validator on the corrected file to verify its correctness.

To correct syntax warnings and errors in your manifest file, follow these steps:

Step 1 Open your manifest file using your preferred XML editor.

Step 2 Referring to your manifest file validator output, use the line numbers provided by the manifest file validator to locate the syntax violations in your manifest file.

It is a good idea to review every warning and error in your manifest file. Some warnings, although they still allow the manifest file validator to find your manifest file syntax to be correct, can be the source of problems when you deploy the identified content to your ACNS network.

Step 3 After you have made the necessary corrections for syntax warnings and errors, click Save.

Step 4 Process the manifest file through the manifest file validator again and review the validator output for new or unresolved errors and warnings.

Step 5 Repeat Step 1 through Step 4 until every error and warning has been adequately resolved and the manifest validator indicates that your manifest file syntax is correct.

Manifest File Reference

This major section contains the following topics:

•Manifest File Structure and Syntax

•XML Schema

•Manifest File Automated Scripts

•Manifest File Time Zone Tables

The most efficient and least error-prone methods of creating a manifest file are:

•Modify one of the sample manifest files in this chapter to suit your particular needs, ensuring that your XML syntax is correct.

•Use the two sample Perl scripts that can be downloaded from Cisco.com as is, or customize these downloaded scripts for your own purposes.

You can start with one of the prewritten sample XML manifest files presented in this chapter. Choose a sample manifest file that is closest to matching your content acquisition and pre-positioning needs, and then modify the XML code accordingly, while ensuring that your XML syntax is correct.

Alternatively, use the sample Perl scripts that Cisco provides (see the "Obtaining the Perl Scripts" section).

Once you have created a suitable manifest file, you can verify its correctness by running the Manifest Validator utility (see the "Manifest Validator Utility" section) on your newly written XML code from the Content Distribution Manager GUI.

Manifest File Structure and Syntax

The Cisco ACNS 5.x software manifest file provides powerful features for representing and manipulating ACNS network data that can be easily edited using any simple text editor. Table A-4 provides a summary list of the manifest file tags, their corresponding attributes and subelements, and a brief description of each tag. Table A-5 shows an example of how tags are nested in a manifest file. The sections that follow provide a more detailed description of the manifest file tags, the data they contain, and their attributes.

Table A-4 Manifest File Tag Summary

Tag Name

Subelements

Attributes

Description

CdnManifest

<playServerTable/>
<options/>
<server/>
<item/>
<item-group/>
<crawler/>

None

Marks the beginning and end of the manifest file content.

playServerTable

<playServer/>

None

(Optional) Sets default mappings for media types.

playServer

<contentType/>
<extension/>

name¹

Names the media server type on the Content Engine responsible for playing content types and files with extensions mapped to it using <contentType> tags.

contentType

None

name

(Optional, but must have either <content-type> or <extension> tag.) Names the MIME-type content mapped to a playserver.

extension

None

name

(Optional, but must have either <content-type> or <extension> tag.) Names the file extension that is mapped to a playserver.

options

<schedule><repeat>

alternateUrl
bitrate-in-bps
bitrate-in-kbps
bitrate-in-mbps
discardAllHttpHeaders
discardHttpHeaders
enableCookies
expires
failRetryInterval
ignoreOriginPort
ignoreQueryString

keepHttpHeaders
noRedirectToOrigin
notFoundURL
playDuration
prefetch
priority
requireAuth
server
sslAuthtype
timeZone
ttl
type

(Optional) Defines attributes specific to the manifest file that can be shared.

server

<host/>

name

Defines only one host from which content is to be retrieved.

host

None

name

disableBasicAuth
noProxy
ntlmUserDomain
password
port
proto

proxyServer
sslAuthType
user
userDomainName
uuencoded

Defines a web server or live server from which content is to be retrieved and later pre-positioned.

The host name can be specified as this:

proto://user:password@hostname:port

proxyServer

None

serverName

disableBasicAuth
ntlmUserDomain
password

port
user
uuencoded

Specifies proxy server information.

item

<contains/>
<http-meta-data/>
<schedule><repeat>

src
alternateUrl
authCookie
bitrate-in-bps
bitrate-in-kbps
bitrate-in-mbps
cdn-url
disableBasicAuth
discardAllHttpHeaders
discardHttpHeaders
enableCookies
expires
failRetryInterval
host
ignoreOriginPort
ignoreQueryString
keepHttpHeaders
noProxy
noRedirectToOrigin
ntlmUserDomain

password
playDuration
playServer
port
prefetch
priority
proto
proxyServer
requireAuth
server
serveStartTime
serveStopTime
sslAuthType
ttl
type
user
userDomainName
uuencoded

Identifies specific content that is to be acquired from the origin server.

crawler

<http-meta-data/>
<matchRule/>
<schedule><repeat>

start-url
accept
alternateUrl
authCookie
bitrate-in-bps
bitrate-in-kbps
bitrate-in-mbps
cdnPrefix
depth
disableBasicAuth
discardAllHttpHeaders
discardHttpHeaders
enableCookies
expires
externalPrefixes
externalServers
failRetryInterval
host
ignoreOriginPort
ignoreQueryString
keepExpiredContent
keepFolder
keepHttpHeaders
keepNoCacheContent
keepQueryUrl
max-number
max-size-in-MB

noProxy
noRedirectToOrigin
ntlmUserDomain
password
playDuration
playServer
port
prefetch
prefix
priority
proto
proxyServer
reject
reportBrokenLinks
requireAuth
serveStartTime
serveStopTime
server
srcPrefix
sslAuthType
ttl
type
user
userDomainName
uuencoded

Supports crawling of a website or FTP server.

item-group

<item/>
<crawler/>
<item-group/>
<http-meta-data/>
<schedule><repeat>

alternateUrl
bitrate-in-bps
bitrate-in-kbps
bitrate-in-mbps
cdnPrefix
cdn-url
disableBasicAuth
discardAllHttpHeaders
discardHttpHeaders
enableCookies
expires
failRetryInterval
host
ignoreOriginPort
ignoreQueryString
keepHttpHeaders
noProxy
noRedirectToOrigin
ntlmUserDomain

password
playDuration
playServerport
prefetch
priority
proto
proxyServer
requireAuth
serveStartTime
serveStopTime
server
src
srcPrefix
sslAuthType
ttl
type
user
userDomainName
uuencoded

Places shared attributes under one tag so that they can be shared by every <item> and <crawler> tag within that group.

matchRule

<match>

None

(Optional) Defines additional filter rules for crawler jobs.

match

None

extension
mime-type
prefix
size-min-in-B
size-min-in-KB
size-min-in-MB

size-max-in-B
size-max-in-KB
size-max-in-MB
time-after
time-before
url-pattern

(Optional) Specifies the acquisition criteria of content objects before they can be acquired by the ACNS network.

contains

None

cdn-url

(Optional) Identifies content objects that are embedded within the content item currently being described.

http-meta-data

None

name=value

(Optional) Sends HTTP response headers to end user HTTP requests to specify content type for FTP acquired content.

¹Attributes that are required for a tag are shown in boldface font.

Table A-5 Manifest File Nested Tag Relationships

<CdnManifest>

<playServerTable>
<playServer>

<contentType/>
<extension/>

</playServerTable>
</playServer>

<options>

Manifest file shared attributes

</options>

<server>

<host/>

</server>

<item>

<contains/>
<http-meta-data/>

</item>

<crawler>

<http-meta-data/>
<matchRule/>

</crawler>

<item-group>

<contains/>
<http-meta-data/>

</item-group>

</CdnManifest>

CdnManifest

The<CdnManifest> </CdnManifest> tag set is required and marks the beginning and end of the manifest file content. At a minimum, each <CdnManifest> tag set must contain at least one item, or content object, that is fetched and stored.

Attributes

None

Subelements

The <CdnManifest> tag set can contain the following subelements:

•playServerTable

The <CdnManifest> tag set can only contain one playServerTable subelement.

•options

The <CdnManifest> tag set can only contain one options subelement.

•server

•item

•item-group

•crawler

Example
<CdnManifest>
    <server name="origin-server">
                <host name="www.name.com" proto="http" port="80" />
    </server>
    <item cdn-url= "logo.jpg" server="originserver"  src= "images/img.jpg" type="prepos"
              playServer="http" ttl="300"/>
</CdnManifest>
playServerTable

The <playServerTable> </playServerTable> tag set is optional and provides a means for you to set default mappings for a variety of media types. Mappings can be set for both MIME-type content (the preferred mapping) and file extensions. Playserver tables allow you to override default mappings on the Content Engine for content types from a particular origin server. Playservers can be any one of the following five streaming servers: WMT, RealMedia, HTTP, QTSS, or TV-out. If no <playServerTable> tag is configured in the manifest file, a default <playServerTable> tag is used.

Using the manifest file, you can map groups of single items as well as individual content objects to an installed playserver. The following are content item and manifest file playserver mappings:

•Content item URL

Playserver mappings appear immediately after the origin server name in place of the default <cdn-media> tag.

•Manifest file as an attribute of the <item> or <item-group> tag

Playserver mappings placed at this location are identified using the playserver attribute and only apply to the named item or group of items.

•Manifest file as a playserver table

Mappings are grouped within the <playServerTable> and <playServer> tags and are applied to content served from the origin server as directed by the manifest file.

•System-level

Playserver mappings are configured during ACNS software startup.

The <playServerTable> tags are enclosed within the <CdnManifest> tags and name at least one of four playservers, such as RealServer, to which certain MIME-types and file extensions are mapped.

Attributes

None

Subelements

The <playServerTable> element must contain at least one <playServer> tag.

playServer

The <playServer> </playServer> tag set is required for the <playServerTable> tag and names the media server type on the Content Engine that is responsible for playing the content types and files with extensions mapped to it using the <contentType> tags. The <playServer> tag is enclosed within <playServerTable> tags.

Note Do not confuse the <playServer> tag with the playserver setting in an <item> or <item-group> tag. An <item> or <item-group> tag specifies a server type to be used for an individual content object or group of related content objects. Although both playserver settings accomplish the same task, <item> tag-level playserver settings take precedence over the content type and file extension mappings specified by the <playServer> tags in the <playServerTable> tag.

Attributes

The <playServer> tag name is required. Each <playServer> tag names the type of server to which content is mapped using the name attribute. In ACNS 5.x software, Content Engines support five types of playservers:

•real: RealMedia RealServer

•http: HTTP web server

•https: HTTPS web server

•qtss: Apple QuickTime Streaming Server

•wmt: Microsoft Windows Media Technologies

•tvout: Excludes other streaming services from playing the pre-positioned files

Subelements

At least one of the following subelements must be present in a <playServer> tag set.

•<contentType/>

•<extension/>

contentType

The <contentType/> tag is optional but either a <contentType/> or an <extension/> subelement must be present in a <playServer> tag set. The <contentType/> tag names MIME-type content that is to be mapped to a playserver. The <contentType/> tag must be enclosed within a <playServer> tag set. When both <contentType/> and <extension/> tags are present in a <PlayServerTable> tag for a particular media type, the <contentType/> mapping takes precedence.

Attributes

Each <contentType/> tag names a media content type that is to be mapped to the playserver using the name attribute. The name attribute is required.

Subelements

None

extension

The <extension/> tag is optional but either a <contentType/> or an <extension/> subelement must be present in a <playServer> tag set. The <extension/> tag names the file extension that is being mapped to a playserver.

The <extension/> tag follows the <playServer> tag. When both <contentType/> and <extension/> tags are present in the <playServer> tag for a particular media type, the <contentType/> mapping takes precedence.

Attributes

The name attribute is required and provides the file extension for a mapped content type. When files with the named extension are requested, the mapped playserver is used to serve them.

Subelements

None

Example
<CdnManifest>
<playServerTable>
    <playServer name="real">
         <contentType name="application/x-pn-realaudio" />
         <contentType name="application/vnd.rn-rmadriver" />
         <extension name="rm" />
         <extension name="ra" />
         <extension name="rp" />
         <extension name="rt" />
         <extension name="smi" />
</playServer>
<playServer name="wmt">
         <extension name="asx" />
         <extension name="asf" />
         <extension name="avi" />
</playServer>
<playServer name="http">
         <contentType name="application/pdf" />
         <contentType name="application/postscript" />
         <extension name="pdf" />
         <extension name="ps" />
</playServer>
</playServerTable>
<server name="test.origin.com/">
         <host name="http://tst.orgn.com" proto="http" />
</server>
<item
    src="pic1.mpg"
/>
</CdnManifest>
options

The <options/> tag is optional and used to define attributes specific to the manifest file. Shared attributes can be inherited by <item> and <crawler> tags in the manifest file. For example, timeZone is an attribute specific to the manifest file that is used to set the time zone for all time-related values. Attributes such as ttl and alternativeUrl can exist as <options/> tags, and their values can be shared by all <item> and <crawler> tags within the manifest file.

The <options/> tag set is enclosed within the <CdnManifest> tag set and specifies at least one global setting. No more than one <options> tag is allowed per manifest file.

If parameters are defined within the manifest file <options/>, <item-group>, or <item> tags, the order of precedence from lowest to highest is <options/>, <item-group>, and <item>.

Attributes

The timeZone attribute specifies the time zone for time values of attributes such as expire and prefetch.

The notFoundURL attribute is optional. This attribute is similar to the alternateUrl attribute. If content requested by the user is not ready in the ACNS network, the ACNS software redirects the request to this alternative URL, which can be configured as an error reporting page. The notFoundURL attribute supports only the full URL.

The following list of attributes can be shared by <item> and <crawler> tags. See the "item" section for descriptions of the following attributes:

•alternateUrl

•bitrate-in-bps/bitrate-in-kbps/bitrate-in-mbps

•discardAllHttpHeaders

•discardHttpHeaders

•enableCookies

•expires

•failRetryInterval

•ignoreOriginPort

•ignoreQueryString

•keepHttpHeaders

•noRedirectToOrigin

•playDuration

•prefetch

•priority

•requireAuth

•server

•sslAuthType

•ttl

•type

Subelements

<schedule><repeat>

(See the "item" section for descriptions of these subelements.)

Example
<CdnManifest>
<options
    noRedirectToOrigin= "true"
    timeZone="PST" />
</CdnManifest>
server

The <server> and <host> tag fields configure the origin content source server. The <host> tag field inside the <server> tag field configures the content source host. Having multiple <host> tag fields in one <server> tag field is not supported in ACNS 5.x software.

Each <item> or <item-group> tag can have a server attribute that refers to this <server> tag field. The <server> </server> tag set is required and defines only one host from which content is to be retrieved. The <server> tags are contained within <CdnManifest> tags and contain one <host> tag that identifies the host from which content is retrieved.

Attributes

name

The name attribute is required and can be any name as long as it matches the server attribute values in the <item> or <crawler> tags.

Subelements

<host/>

The <server> tag set can only contain one <host/> subelement.

host

The <host/> tag is required and defines a web server or live server from which content is to be retrieved and later pre-positioned. Only one host can be defined within a single <server> tag set. The <host/> tag must be enclosed within <server> tags.

Attributes

•disableBasicAuth

The disableBasicAuth attribute is optional; if specified, basic authentication is disabled.

•name

The name attribute is required and identifies the domain name or IP address of the host, unless the proto attribute field is empty. If the proto attribute field is empty, the name attribute must be a fully qualified URL, including scheme and domain name or IP address. It can also include subdirectories, such as http://www.abc.com/media.

The name attribute can also contain the UNC path to an SMB server. For example, \\SMBserver\directory\.

•noProxy

The noProxy attribute is optional. If set to true, no proxy is used for the origin server. The default is false.

•ntlmUserDomain

The ntlmUserDomain attribute is optional and specifies the user domain name for NTLM authentication.

•password

The password attribute is optional and identifies the password for the user account that is required to access the host server.

•port

The port attribute is optional and identifies the TCP port through which traffic to and from the host passes. The port used depends on the protocol used. The default port for HTTP is 80. The port attribute is only required for a nonstandard port assignment. The port attribute can also be specified in the name attribute, such as name="http://www.cisco.com:8080/."

•proto

The proto attribute is optional and identifies the communication protocol that is used to fetch content from the host. Supported protocols are HTTP, HTTPS, MMS, MMS-HTTP, or FTP. The default proto attribute is HTTP. The proto attribute can be empty if the name attribute is a fully qualified domain name (FQDN).

•proxyServer

The proxyServer attribute is optional and specifies which proxy server to use if there are multiple <proxyServer> tags in the manifest file. If no proxy server is specified, the server in the closest <proxyServer> tag is used.

•sslAuthType

The sslAuthType attribute is optional and has two possible values for the type of SSL certificate verification:

–strong—Strong authentication. If any errors occur during certificate verification by the acquirer module, content from that site will not be acquired. The default sslAuthType attribute setting is strong.

–weak—Weak authentication. If certain errors occur during certificate verification by the acquirer module, content from that site will continue to be acquired. These errors are as follows:

Unable to decode issuer's public key

Certificate has expired

Self-signed certificate

Self-signed certificate in certificate chain

Unable to get local issuer certificate

Subject issuer mismatch

Authority and issuer serial number mismatch

The root Content Engine is not marked as trusted

Unable to verify the first certificate

Certificate is not yet valid

Certificate has invalid purpose

•user

The user attribute is optional and identifies the secure login used for host access.

•userDomainName

See the "item" section for a description of this attribute.

•uuencoded

The uuencoded attribute is optional. If set to true, the password is not encoded. The uuencoded attribute default setting is false.

Subelements

None

proxyServer

The <proxyServer> tag specifies proxy server information. This tag is supported only in ACNS 5.1 and later software releases. The <proxyServer> tag must be located at the top level of the manifest file, directly under the <CdnManifest> tag; it cannot be used as a subtag of any other tags, as shown in this example:
<CdnManifest>
<proxyServer>
...
</CdnManifest>
</proxyServer>
Attributes

•disableBasicAuth

The disableBasicAuth attribute is optional; if specified, basic authentication is disabled.

•ntlmUserDomain

The ntlmUserDomain attribute is optional and specifies the user domain name for NTLM authentication.

•password

The password attribute is optional and identifies the password for the user account that is required to access the proxy server.

•port

The port attribute is optional and specifies the proxy port.

•serverName

The serverName attribute is required and identifies the domain name or IP address of the proxy server.

•user

The user attribute is optional and identifies the secure login used for proxy authentication.

•uuencoded

The uuencoded attribute is optional and designates whether the password is to be encoded.

Subelements

None

item

The <item> </item> tag set identifies the specific content that is to be acquired. The <item> tag names a single piece of content or a content object on the origin server, such as a graphic, MPEG video, or RealAudio sound file. Content items can be listed individually or grouped using the <item-group> tag.

The <item> tag must be enclosed within the <CdnManifest> tag set and can also be enclosed within <item-group> tags.

Attributes

•src

The src attribute is required and identifies the URL from which to fetch the content. The URL can be a full URL or a relative URL. A full URL has the following format:

proto://username:password@/domain-name:port/file-path/file-name

Protocols supported in item src are HTTP, HTTPS, MMS, MMS-HTTP, FTP, SMB, and file. For SMB, the URL must be written in UNC format (\\SMBserver\directory\file).

If a relative path is used, the <server> and <host> tags are required to specify origin server information, as shown in this example:
<item src="http://user:password@www.cisco.com/HR/index.html" />
<server name="ftp-server" >
   <host name="ftp://ftp-server"  user="johw" password="wwww" />
</host>
<item src="data/video.asf" />
Note A URL containing a question mark (?) is not supported. A manifest parsing error will occur if you specify a URL that contains a question mark.

Note A URL containing a pound sign (#) will be modified. All characters that follow a pound sign will be discarded, including the pound sign itself.

•host

Specify the host name if the source URL of the src attribute is a relative URL.

•server

The server attribute is optional and refers to the server name in the <server> tag. If the server attribute is omitted, the server listed in the closest <server> tag is used. If there is no <server> tag close to this item, the manifest server is used.

•cdn-url

The cdn-url attribute is optional and is used when content needs to be acquired from one URL (the content acquisition URL) and published using another URL (the publishing URL). The cdn-url attribute is the relative ACNS network URL that end users use to access this content. If no cdn-url attribute is specified, then the src attribute is used as the relative ACNS network URL.

In the following sample manifest file, the content item being acquired contains the file path /RemAdmin/InternalReview/firstpage.htm. By specifying a new file path (RemAdmin/Production/firstpage.htm) using the cdn-url attribute, the publishing URL disguises the fact that the content originated from an internal review.
<CdnManifest>
<server name="ultra-server">
	<host name="http://ultra-server" />
</server>
<item src="RemAdmin/InternalReview/firstpage.htm"
cdn-url="RemAdmin/Production/firstpage.htm" />
</CdnManifest>
In the preceding example, src is the content acquisition URL and cdn-url is the publishing URL.

Note The content item file path (RemAdmin/InternalReview/firstpage.htm) is controlled by the manifest file. The cdn-url attribute associates a file path with the content item in the manifest file. The manifest file allows the file path for the cdn-url attribute to be specified independently of the file path from which the content items are to be acquired from the origin server (src attribute), allowing the publishing URL to differ from the content acquisition URL. (See the "Generate the Publishing URL" section on page 6-31.)

If the content requires playback authentication or is live content, the origin server from which the content is acquired has to be contacted. Therefore, two URLs must exist for the same content item, and the URL specified in the cdn-url attribute must exist on the origin server at all times.

For example, if the content item "RemAdmin/Production/firstpage.htm" in the preceding example requires playback authentication, this content must exist on the "ultra-server" origin server. Otherwise, pre-positioned content playback will fail.

In general, you should not use the cdn-url, cdnPrefix, or srcPrefix attributes if playback authentication is required or if the content is live.

If you use FTP to acquire content and the content type is not specified in the manifest file and the cdn-url attribute is specified to alter your publishing URL, the cdn-url attribute must have the correct file path extension. Otherwise, the incorrect content type will be generated and you cannot play the content.

The following example correctly shows the publishing URL with the same file path extension (.jpg) as the origin server URL.
<item src="ftp://ftp-server.abc.com/pictures/pic.jpg"  cdn-url="pic.jpg" />
The following example is incorrectly written, because it does not specify the file path extension (.jpg) in the cdn-url attribute.
<item src="ftp://ftp-server.abc.com/pictures/pic.jpg"  cdn-url="pic" />
•type

The type attribute is optional and defines whether content is to be pre-positioned or live on the ACNS network. The three type attributes are prepos, wmt-live, and real-live. The wmt-live and real-live attributes are used to deliver live content. If this field is left blank, the default type is prepos.

•noRedirectToOrigin

The noRedirectToOrigin attribute is optional and sets the redirection to the origin server to true or false. A false setting allows the ACNS Content Engine or other edge device to redirect content requests to the origin server if the content is available at that device. A true setting does not allow the ACNS Content Engine or edge device to redirect content requests to the origin server, and it generates an error. The default noRedirectToOrigin setting is false. This attribute is a per-content attribute, meaning that if the content has been removed, the redirection settings do not apply. But if the software merely fails to acquire the content, then the settings apply.

(For the effect of the noRedirectToOrigin attribute on pre-positioned content freshness, see the "Configuring the Freshness of Pre-Positioned Content" section.)

•playServer

The playServer attribute is optional and names the server used to play back the content. Valid playservers are real (RealServer), wmt (Windows Media Technologies), qtss (QuickTime Streaming Server), http and https (web servers), and tvout. The value in this field is either one playserver or multiple playservers separated by commas. If a value for this attribute is not specified, the <PlayServerTable> tag in the manifest file is used to generate the playserver list for this content. If the manifest file does not have the <PlayServerTable> tag specified, it uses the default <PlayServerTable> tag.

•prefetch

The prefetch attribute is optional and specifies a time (in yyyy-mm-dd hh:mm:ss [year-month-day hour:minute:second] format) for the first content acquisition or re-check after the manifest file is parsed. The time zone for the time can be specified in the <options> tag. Note that the autoconversion between daylight saving time and standard time within a time zone is not supported, but a special designation for daylight saving time can be used, such as PDT for Pacific daylight saving time. In the following example, the prefetch time is September 5, 2002 at 09:09:09 Pacific daylight saving time.
<options timeZone="PDT" />
<item src="index.html" prefetch="2002-09-05 09:09:09 PDT" />
This attribute is used when you want to specify a future time for the acquirer to begin fetching content from the origin server. When a future time is specified, the acquirer will not acquire content before this time; however, it will check content freshness during its scheduled ttl interval. If a prefetch time is omitted, the content is acquired immediately.

This attribute behaves as follows:

–ACNS 5.1—After the manifest file is parsed, if the prefetch attribute specifies a future time, regardless whether items or crawl tasks have changed or new ones have been added, the acquirer checks and fetches the content or re-crawls the crawl jobs at the time specified by the prefetch attribute.

–ACNS 5.2—After the manifest file is parsed, if any items or crawl tasks have changed or new ones have been added and if the prefetch attribute specifies a future time, the acquirer checks and fetches the content or re-crawls the crawl jobs at the time specified by the prefetch attribute.

•expires

The expires attribute is optional and designates a time in yyyy-mm-dd hh:mm:ss format when the content is to be removed from the ACNS network. Additionally, you can specify the GMT time zone. (See the "Specifying Time Values in the Manifest File" section.) If a time value is omitted, content is stored until it is removed when you modify the relevant manifest file code. (For the effect of the HTTP header expires attribute on pre-positioned content freshness, see the "Configuring the Freshness of Pre-Positioned Content" section.)

•ttl

The ttl attribute is optional and designates a time interval, in minutes, for revalidation of the content. If a time value is omitted, the content is fetched only once and its freshness is never checked again. Usually the ttl attribute is a positive value; however, you can also assign a negative value to the ttl attribute. The following list describes ttl attribute value ranges.

ttl Attribute Value

Action

ttl > 0

Content is rechecked every ttl minute. Content is also rechecked if the manifest is reparsed and the content specification in the manifest file has changed or if you click the Refetch button.

ttl = 0

Content is fetched only once and never checked again. Content is only rechecked if the manifest is reparsed and the content specification in the manifest file has changed or if you click the Refetch button.

ttl < 0

Content is fetched only once and never checked again. Content will not be rechecked if the manifest is reparsed or if you click the Refetch button.

•serveStartTime

The serveStartTime attribute is optional and designates a time in yyyy-mm-dd hh:mm:ss format when the ACNS software is allowed to start serving the content. If the time to serve is omitted, content is ready to serve once it is distributed to the Content Engine or other edge device.

•serveStopTime

The serveStopTime attribute is optional and designates a time in yyyy-mm-dd hh:mm:ss format when the ACNS software temporarily stops serving the content. If the time to stop serving is omitted, the ACNS software serves the content until it is removed when you modify the relevant manifest file code. For the effect of the serveStopTime attribute on pre-positioned content freshness, see the "Configuring the Freshness of Pre-Positioned Content" section.

•alternateUrl

The alternateUrl attribute is optional. If content requested by the user is not ready in the ACNS network, the ACNS software redirects the request to this alternative URL, which can be configured as an error reporting page. The alternateUrl attribute supports only the full URL.

This attribute applies to the content being requested. If the content is deleted, the attribute does not apply. But if the content failed to be acquired, then this attribute should apply.

•priority

The priority attribute is optional and can be any integer value to specify the content processing priority. If a priority value is omitted, its index order within the manifest file is used to set the priority.

•requireAuth

The requireAuth attribute is optional and determines whether users need to be authenticated before the specified content is played. When true, the Content Engine requires authentication to play back the specified content to users and communicates with the origin server to check credentials. If the requests pass the credential check, the content is played back from the Content Engine. If this attribute is omitted, a heuristic approach is used to determine the value: if the specified content is acquired by using a username and password, requireAuth is set to true; otherwise, it is set to false. For FTP, if the username is anonymous, requireAuth is set to false.

Note If requireAuth is true, the Origin Server field in the Website window for this channel needs to point to the server that can authenticate users. When users want to play back the content, the server specified in the Origin Server field of the Website window is checked for authentication.

•playDuration

The playDuration attribute specifies the playtime duration, in seconds, for a video file. This value is used to:

–Download the video file and play it over HTTP.

If the video file is played using HTTP, the ACNS software uses the playDuration attribute to calculate the HTTP download bit rate.

–Schedule a video TV-out program.

If the time duration value is omitted, the ACNS software attempts to calculate this value for an MPEG file.

•failRetryInterval

This value specifies the retry interval, in minutes, when content acquisition fails. For example, failRetryInterval="10" means the ACNS software retries content acquisition every 10 minutes after acquisition has failed. If the retry universal value is not specified, the default value is 5 minutes. (The minimum failRetryInterval value accepted.) If a value of less than 5 minutes is specified, that value is converted to 5 minutes.

The behavior differs between failed content acquisition of a single item and failed content acquisition of a crawl item.

–For single item failure:
if ( ttl != 0, ttl < retryInterval)
The item is rechecked in accordance with the ttl attribute. Otherwise, the item is rechecked at the interval specified in the failRetryInterval attribute.

–For crawl item failure:

If some items are not acquired (excluding 300 and 400 series status error codes), only failed items are rechecked as specified in the failRetryInterval attribute.

When the ttl attribute interval occurs, all pages are recrawled.
if ( ttl != 0 and ttl < retryInterval )
always re-crawl
For example, if ttl = 10, and failRetryInterval = 4, the following will occur:

Number of Minutes

Action

0

Crawl

4

Recheck failed

8

Recheck failed

10

Recrawl

14

Recheck

18

Recheck

20

Recrawl

•bitrate-in-bps/bitrate-in-kbps/bitrate-in-mbps

This value specifies the bit rate of the content. ACNS software uses this value in playback download. In the following example, ACNS software downloads the file at 500 kbps if it is requested for download and play:
<item src="http://www.cisco.com/Prod/ACNS.swf" bitrate-in-kbps="500" />
•ignoreQueryString

This is a playback attribute that can be used with the <options>, <item-group>, <item>, and <crawler> tags. If the value is set to true, then ACNS software ignores any string after a question mark (?) in the request URL for playback. If this attribute is omitted, then the default value is false.

For example, content with the request URL url=http://web-server/foo has been pre-positioned. If a user requests content with the URL url=http://web-server/foo?id=xxx and the ignoreQueryString attribute value is false, then ACNS software does not use the pre-positioned content from the request URL http://web-server/foo.

However, if the ignoreQueryString attribute is set to true, then the ACNS software treats the request URL http://www-server/foo?id=xxx the same as http://www-server/foo and returns with pre-positioned content.

•ignoreOriginPort

This attribute allows playback of pre-positioned content from a port other than the standard port. If the ignoreOriginPort attribute is set to true, content can be played back without regard to the port specified in the request URL. The default for this attribute is false.

This attribute is not intended to be used for content that is routed using a Content Router. It is intended to work only for transparent WCCP routing or explicit proxy routing. A typical usage scenario for the ignoreOriginPort attribute might be as follows:

–The origin web server is not using port 80; it is using a non-standard port number in the URL.

–Users are using WCCP or explicit proxy routing, where the original URL containing the non-standard port number is used for playback from the Content Engine.

Pre-positioned content cannot be played back using a non-standard port; pre-positioned content is served only on ports that are standard for the protocol. If the incoming URL contains a port number other than the protocol's standard port, you must set the ignoreOriginPort attribute to true for playback to succeed.

•userDomainName

This attribute is used in two instances: (1) for NTLM authentication and (2) for the SMB file import feature. If the origin server is using NTLM authentication, you must use this attribute to specify the user domain name for NTLM authentication. If a shared folder is protected and the user account is part of a domain, you must use this attribute to specify the domain name of the configured shared folder.

Note Both userDomainName and ntlmUserDomain cannot co-exist in the manifest file; only one attribute can be used at a time.

•discardAllHttpHeaders

This attribute can be used for HTTP header filtering. When this attribute is set to "1" or true, no HTTP headers obtained from origin servers are stored in the CDNFS file system. When this attribute is set to "0" or false, only nontransit HTTP headers are stored, while transit headers are filtered out. The default value is false. Transit headers are automatically filtered out unless otherwise specified in the keepHttpHeaders attribute.

Transit HTTP headers that are automatically filtered out are as follows:

–accept-ranges

–proxy-connection

–connection

–set-cookie

–content-length

–transfer-encoding

–date

–upgrade

–keep-alive

–via

–proxy-authenticate

–www-authenticate

•discardHttpHeaders

This attribute can be used to filter specific non-transit headers that would normally be stored by default in the CDNFS file system. Nontransit headers include "server," "last-modified," and "content-type." To discard specific headers, list the headers separated by a bar (|), as shown in the following example:
<item discardHttpHeaders="Server|Last-modified">
•keepHttpHeaders

This attribute is used to store only specific HTTP headers within the CDNFS file system. To store specific headers, list the headers separated by a bar (|), as shown in the following example:
<item keepHttpHeaders="Connection|Date">
When you use the keepHttpHeaders attribute, only headers that are returned from the server with a successful GET request can be stored. Headers such as, www-authenticate or proxy-authenticate, are not returned with a successful GET request and cannot be stored.

Note The three HTTP header filtering attributes (discardAllHttpHeaders, discardHttpHeaders, and keepHttpHeaders) are mutually exclusive. You can specify only one attribute at a time within a single tag.

For example, the following configuration is not valid and will produce an error:
<item src="abc.html" discardHtpHeaders="Server" keepHttpHeaders="Date"/>
You can specify one attribute in the options or item-group tag and one attribute in the item or crawler tag; however, the attribute that is specified in the item or crawler tag will override the attribute that is inherited from the options or item-group tag. For example, the following configuration is valid:
<options discardAllHttpHeaders="true" />
<item src="one.html" /> <!—This uses the attribute inherited from options-- >
<crawler start-url="two.html" discardHttpHeaders="Server"/> <!—This uses one given
with crawler -- >
<item src="Three.html" keepHttpHeaders="Date"/> <!—This uses one given with item -- >
•enableCookies

This attribute enables cookie support for the item. When this attribute is set to true, the root Content Engine, after sending a request for an item to the origin server, parses the server response for cookie name value pairs. If the server response contains a cookie that is valid and has not expired, the root Content Engine stores the cookie in main memory.

The root Content Engine then returns the valid cookie to the server the next time the root Content Engine sends a request for the item.

A cookie is rejected if it contains any of the following rejection criteria, as found in RFC 2965:

–The value for the Path attribute is not a prefix of the request URI.

For example, if the request is www.abc.com/aaa/bbb/ccc.html and the Path attribute of the cookie returned is /aaa/ccc, then it is not valid because /aaa/ccc is not a prefix of /aaa/bbb/ccc [URL].

–The value for the Domain attribute contains no embedded dots or does not start with a dot.

–The value for the request host is not a domain-match of the Domain attribute.

–The request host is a FQDN (not an IP address) and has the form HD, where D is the value of the Domain attribute and H is a string that contains one or more dots.

–The Path attribute is not a prefix match of the request URL.

Note The root Content Engine does not use persistent memory to store cookies. If the Content Engine is restarted, all cookie information is lost.

The enableCookies attribute can be used with the <item>, <crawler>, <itemgroup>, and <options> tags.

•authCookie

This attribute enables the processing and sending of authentication cookies for the item. To enable this feature, the authCookie attribute must be set to true for the particular item that passes the user credentials and for which the server sends back the authentication cookies.

For example:

<item src=http://abc.com/auth.cgi?id=10000 authCookie="true"/>

The authCookie attribute can be used with the <item> and <crawler> tags.

The following attributes described under the <host> tag attributes can also be specified by the <item> tag.

•disableBasicAuth

•noProxy

•ntlmUserDomain

•password

•port

•proto

•proxyServer

•sslAuthType

•user

•uuencoded

Subelements

•<contains/>

•<http-meta-data/>

•<schedule/> <repeat/>

The <schedule/> <repeat/> subelement and its attributes specify a time for a recrawl or an item refetch to begin. You can have multiple <repeat> subelements under the <schedule> subelement. The attributes time, start, and end specify the day of the month or day of the week and the duration of the specified repeat. The time attribute is required, whereas start and end are optional attributes.

Note The schedule element takes precedence over the ttl attribute.

The time attribute uses either of the following formats:

time="dom:hh:mm" or

time="dow:hh:mm"

where dom is the day of the month (0-30), dow is the day of the week (Sun, Mon, Tue, Wed, Thu, Fri, Sat, or *), hh is the clock hour (0-23 or *), and mm is the minute (0-59).

For example,
<schedule>
	<repeat time="*:*:0" />
	<repeat time="*:13:0" />
	<repeat time="Sun:2:30" />
	<repeat time="4:2:30" />
	<repeat time="Mon:*:30" />
</schedule>
The start and end attributes use the following format:

start="yyyy-mm-dd hh:mm:ss"

end="yyyy-mm-dd hh:mm:ss"

For example,
<CdnManifest>
<item>
	<schedule>
		<repeat time="Sun:02:30" />
		<repeat time="*:*:34" start="2003-09-11 11:11:11 PST" end="2004-09-11 11:11:21
PST"/>
		<repeat time="21:02:35" start="2003-09-11 11:11:11 PST" end="2004-09-11
11:11:21 PST"/>
		<repeat time="21:02:35" end="2004-09-11 11:11:21 PST"/>
	</schedule>
</item>
.
.
.
Example
<item
    src="index.html"
    server="cisco.com"
    ttl="3000"
    alternateUrl="http://www.cisco.com/cdn-error.html"
/>
crawler

The <crawler> </crawler> tag set supports crawling a website or an FTP server.

Attributes

•start-url

The start-url attribute is required. It defines the URL at which to start the process of crawling the website or FTP server. It is identical to the src attribute used in the <item> tag. (See the "src" section.)

•host

The host attribute specifies the host name if the starting URL specified in the start-url attribute is a relative URL.

•depth

The depth attribute is optional and defines the link depth to which a website is to be crawled or directory depth to which an FTP server is to be crawled. If the depth is not specified, the default is 20. The following are the general depth values:

0 = acquire only the starting URL
1 = acquire the starting URL and its referred files
-1 = infinite or no depth restriction

Depth is defined as the level of a website or the directory level of an FTP server, where 0 is the starting URL.

•prefix

The prefix attribute is optional and combines the host name from the <server> tag with the value of the prefix attribute to create a full prefix. Only content whose URLs match the full prefix is acquired, as shown in this example:
<server name="xx"> <host name="www.cisco.com" proto="https" port=433 /> </server>
and in a <crawler> tag:
prefix="marketing/eng/"
The full prefix is "https://www.cisco.com:433/marketing/eng/." Only URLs that match this prefix are crawled.

If a prefix is omitted, the crawler checks the default full prefix, which is the host name portion of the URL from the server. In the previous example, the default full prefix is "https://www.cisco.com:433."

•accept

The accept attribute is optional and uses a regular expression to define acceptable URLs to crawl in addition to matching the prefix. For example, accept="stock" means that only URLs that meet two conditions are searched: the URL matches the prefix and contains the string "stock." (See the "Writing Common Regular Expressions" section for more information on using regular expressions.)

Note the following two key differences between the accept attribute and the prefix attribute:

–The prefix attribute uses an exact string match, while the accept attribute uses a regular expression.

–The prefix attribute applies to a URL including all of its links or subdirectories. However, the accept attribute allows the URL and its links and subdirectories to be evaluated separately.

•reject

The reject attribute is optional and uses a regular expression to reject a URL if it matches the reject regular expression. The reject regular expression is checked after checking for a prefix URL match. If a URL does not match the prefix, it is immediately rejected. If a URL matches the prefix and the reject parameters, it is rejected by the particular reject constraint. (See the "Writing Common Regular Expressions" section for more information on using regular expressions.)

Note the following two key differences between the reject attribute and the prefix attribute:

–The prefix attribute uses an exact string match, while the reject attribute uses a regular expression.

–The prefix attribute applies to a URL including all of its links or subdirectories. However, the reject attribute allows the URL and its links and subdirectories to be evaluated separately.

•max-number

The max-number attribute is optional and specifies the maximum number of crawler job objects that can be acquired.

•maxTotalSizeInB/KB/MB

The maxTotalSizeInB/KB/MB attribute is optional and specifies the maximum total content size in bytes, kilobytes or megabytes that this crawler job can acquire. The size attribute can be expressed in megabytes (MB), kilobytes (KB), or bytes (B).

This attribute replaces the max-size-in-B/KB/MB attribute, which continues to be supported for backward compatibility only.

•srcPrefix

The srcPrefix attribute is optional and must be used in conjunction with the cdnPrefix attribute to form a relative ACNS network URL. If a srcPrefix attribute is not specified, or if the prefix of the relative source URL does not match the srcPrefix attribute, then the relative ACNS network URL is the cdnPrefix value combined with the relative source URL. For example, if these content objects have the same source URL prefix "acme/pubs/docs/online/Design/" and you want to replace this prefix with a simple "online/," then specify srcPrefix="acme/pubs/docs/online/Design/" and cdnPrefix="online/."

•cdnPrefix

The cdnPrefix attribute is optional and must be used in conjunction with the srcPrefix attribute.

•requireAuth

The requireAuth attribute is optional and determines whether users need to be authenticated before the specified content is played. When true, the Content Engine requires authentication to play back the specified content to users and communicates with the origin server to check credentials. If the requests pass the credential check, the content is played back from the Content Engine. If this attribute is omitted, a process of discovery approach is used to determine its value: if the specified content is acquired by using a username and password, requireAuth is set to true; otherwise, it is set to false. For FTP, if the username is anonymous, requireAuth is set to false.

Note If requireAuth is set to true, the Origin Server field in the Website window for this channel needs to point to the server that can authenticate the users. When users want to play back the content, the server specified in the Origin Server field of the Website window is checked for authentication.

•externalPrefixes

The externalPrefixes attribute is optional and specifies additional prefixes for crawl jobs to crawl multiple protocols or multiple websites. Prefixes are separated with a bar (|).

•externalServers

The externalServers attribute is optional and can be used for multiple host crawling jobs where each host has a different user account. This attribute can be used to refer to the <host> tag with the proper authentication information.

•keepExpiredContent

This attribute can be used to acquire content during an HTTP or HTTPS crawl that is expired. When this attribute is set to true, expired content will be fetched. When this attribute is set to false, expired content is discarded. If this attribute is not specified, the default is false.

•keepFolder

This attribute is used to fetch folders (a folder is indicated when the request URL ends with a forward slash "/"). If this attribute is set to false, folder URLs are not acquired.

•keepNoCacheContent

This attribute can be used to acquire content during an HTTP or HTTPS crawl that would normally not be cached. When this attribute is set to true, the acquirer will fetch the content even though the content contains an HTTP cache control header indicating that the content is not to be cached. If this attribute is not specified, the default is false.

•keepQueryUrl

This attribute can be used to fetch URLs that contain "?" in the URL string. If this attribute is set to true, URLs with "?" will be fetched during HTML parsing for a crawl job if the URL meets the other crawling criteria set forth in the manifest file.

Note This attribute is supported in ACNS 5.3 and later releases. You cannot use URLs containing a "?" in a manifest file for a channel unless all Content Engines in the channel are using a version of ACNS software that supports this attribute.

This attribute is useful when you want to acquire content from a database, for example, where multiple files are differentiated in the portion of the URL string after the "?". When this attribute is not set, the portion of the URL after the "?" is discarded. If multiple URLs are found where the portion of the URL string in front of the "?" is the same, these URLs appear as duplicates, and only the last "duplicate" URL found is fetched.

•reportBrokenLinks

This attribute is used to report links on an HTML web page that cannot be fetched. If this attribute is set to true, all broken links encountered during a website crawl will be reported as errors. This attribute only applies to a website crawl, not to an index crawl. The default is false: broken links are not reported as errors.

The following attributes described under the <host> tag attributes can also be specified by the <crawler> tag:

•disableBasicAuth

•noProxy

•ntlmUserDomain

•password

•port

•proto

•proxyServer

•sslAuthType

•user

•uuencoded

The following attributes described under the <item> tag attributes can also be specified by the <crawler> tag.

•alternateUrl

•authCookie

•bitrate-in-bps/bitrate-in-kbps/bitrate-in-mbps

•discardAllHttpHeaders

•discardHttpHeaders

•enableCookies

•expires

•failRetryInterval

•ignoreOriginPort

•ignoreQueryString

•keepHttpHeaders

•noRedirectToOrigin

•playDuration

•playServer

•prefetch

•priority

•serveStartTime

•serveStopTime

•server

•ttl

•type

•userDomainName

Subelements

•<http-meta-data/>

•<matchRule></matchRule>

•<schedule><repeat>

(See the "item" section for descriptions of the <schedule><repeat> subelements.)

Example
<server name="cisco">
    <host name="http://www.cisco.com/jobs/" />
</server>
<crawler
    server="cisco"
    start-url="eng/index.html"
    depth="10"
    prefix="eng/"
    reject="\.pl"
    max-size-in-MB="200"
/>
item-group

The <item-group> </item-group> tag set is used to place shared attributes under one tag so that they can be shared by every <item> and <crawler> tag within that group. When attributes are shared, it means that attributes can be defined at either the <item-group> tag level for group-wide control or on a per <item> or per <crawler> tag basis. For example, if every <item> tag is using the same server and ttl attributes, you can create an <item-group> tag on top of these <item> tags and place the server and ttl attributes in the <item-group> tag.

Using shared attributes makes any manifest file with many <item> tags more efficient by consolidating the <item> tags with shared attributes. If the same attribute value exists in both the <item-group> and <item> tags, the value in the <item> tag takes precedence over that value in the <item-group> tag.

The <item-group> tag must be enclosed within the <CdnManifest> tag set and contain one or more <item> or <crawler> tags.

Attributes

If an attribute value is present only at the <item-group> tag level, then it is inherited by its inner element in the <item> tag. If an attribute value is present in a crawler job, its attributes, whether inherited or owned, are propagated to the content fetched by the crawler job.

The following attributes can be shared across many <item> and <crawler> tags and are candidates for the <item-group> level tag. See the "item" section for detailed descriptions of the following attributes:

•alternateUrl

•bitrate-in-bps/bitrate-in-kbps/bitrate-in-mbps

•cdn-url

•discardAllHttpHeaders

•discardHttpHeaders

•enableCookies

•expires

•failRetryInterval

•host

•ignoreOriginPort

•ignoreQueryString

•keepHttpHeaders

•noRedirectToOrigin

•playDuration

•playServer

•prefetch

•requireAuth

•serveStartTime

•serveStopTime

•server

•src

•priority

•ttl

•type

•userDomainName

The following attributes described under the <host> tag attributes can also be specified by the <item-group> tag.

•disableBasicAuth

•noProxy

•ntlmUserDomain

•password

•port

•proto

•proxyServer

•sslAuthType

•user

•uuencoded

Additionally, the following two attributes can be placed within the <item-group> tag. See the "crawler" section for a detailed description of the following two attributes:

•srcPrefix

•cdnPrefix

These two attributes convert the prefix of the src-url (content acquisition URL) to the cdn-url (publishing URL) for multiple content objects. These content objects are either implicitly specified by multiple <item> tags or acquired through a crawler job.

These two attributes can also be specified in the <crawler> tag. If you explicitly specify the srcPrefix attribute and cdnPrefix attribute for an individual <crawler> job, the <crawler> tag-level specification takes precedence over the <item-group> tag-level settings. If you do not specify these attributes for an individual <crawler> job, the <item-group> tag-level specification is inherited by the <crawler> job.

The srcPrefix and cdnPrefix attributes generate the relative ACNS network URL using the following rules:

•If the cdn-url attribute is present in the <item> tag, the relative ACNS network URL contains both the cdnPrefix attribute plus the cdn-url attribute. For example, if cdnPrefix="eng/spec" and cdn-url="e/f.html," the relative path in the URL is "eng/spec/e/f.html."

•If the srcPrefix attribute is not present in the <item> tag, the relative ACNS network URL is the cdnPrefix attribute plus the relative source URL.

•If the prefix of the relative source URL does not match the srcPrefix attribute, the relative ACNS network URL is the cdnPrefix attribute plus the source relative URL.

•To generate a relative ACNS network URL, remove the matched prefix from the relative source URL and replace it with the cdnPrefix attribute.

The relative ACNS network URL of <item> in the following example is "acme/default.htm."
<item-group cdnPrefix="acme/" >
    <item src="design/index.html" cdn-url="default.html" />
</item-group>
In the following example, content objects with the srcPrefix attribute, such as "design/plan/," have the relative ACNS network URL as "acme/" plus relative source URLs stripped of "design/plan/." Other content objects whose prefix attribute does not match "design/plan/" have "acme/" plus their original relative source URL.
<crawler
    start-url="design/plan/index.html"
    depth="-1"
    srcPrefix="design/plan/"
    cdnPrefix="acme/" />
Subelements

•<http-meta-data/>

•<crawler></crawler>

•<item-group/>

•<item></item>

•<schedule><repeat>

(See the "item" section for descriptions of the <schedule><repeat> subelements.)

Example

<item-group server="origin-web-server" type="prepos" ttl="300" cdnPrefix="unicorn/" >
         <item cdn-url="newHQpresentation.rm" src="newHQpresentation.rm" />
         <item cdn-url="animatedlogo.mpg" src="animlogo.mpg" />
         <item cdn-url="companytheme.mp3" src="cotheme.mp3" />
         <item cdn-url="newHQlayout.avi" src="newHQ.mov" />
</item-group>
matchRule

The <matchRule> </matchRule> tag set is optional and defines additional filter rules for crawler jobs. It affects only <crawler> tasks and is not used by single <item> tags. The crawler parameters defined in the <crawler></crawler> tag set determine primarily the scope of a crawl search. If a content object does not meet the criteria specified by the crawler parameter, neither it nor its children are searched.

The <matchRule> tag, however, determines only whether or not the content objects should be acquired regardless of the scope of the search. If a web page matches the crawler parameters without the <matchRule> feature, its children are searched even though its content objects are not acquired.

In the following crawler job example that uses the <matchRule> tag, the entire website is searched, but only files with the .jpg file extension larger than 50 kilobytes are acquired.
<crawler  start-url="index.html"  depth="-1" >
    <matchRule>
        <match size-min-in-KB="50" extensioin="jpg" />
    </matchRule>
</crawler>
The <matchRule> element can be nested within an <item-group> tag to define group-wide filter rules for <crawler> tags contained in the group. It can also be a subelement of a particular <crawler> job. The <crawler> tag-level setting overrides the <item-group> tag-level setting when both tags are present.

If you define criteria locally for individual <crawler> jobs, any existing group-level criterion is entirely discarded for that <crawler> job. That is, if your <item-group> tag match rule is set to A and your <crawler> tag specifies another match rule set to B, only B is to be used for the <crawler> tag rather than a combination of A and B. You can define at most one <matchRule> tag per <item-group> tag and at most one <matchRule> tag per <crawler> tag.

Attributes

None

Subelements

At least one <match> tag

match

The <match> </match> tag is optional and specifies the acquisition criteria of content objects before they can be acquired by ACNS software. Every attribute within a single <match> tag is ANDed (to form a logical conjunction) with the other attributes.

You can specify multiple <match> tags within the <matchRule> tag. The <match> tags are ORed (to form a logical inclusion) with other <match> tags. You must specify at least one <match> tag per <matchRule> tag.

Attributes

•mime-type

The mime-type attribute specifies MIME types.

•extension

The extension attribute specifies file extensions.

•time-before

The time-before attribute can provide both an absolute time (modified before yyyy-mm-dd hh:mm:ss) or a relative time (modified within ddd:hh:ss), relative to the present time, to download content. Time parameters should be expressed in GMT time zones. (For GMT offsets, see the "Manifest File Time Zone Tables" section.)

•time-after

The time-after attribute can provide both an absolute time (modified after yyyy-mm-dd hh:mm:ss) or a relative time (modified within ddd:hh:ss), relative to the present time, to download content. Time parameters should be expressed in GMT time zones. (For GMT offsets, see the "Manifest File Time Zone Tables" section.)

Note Relative time is calculated based on current time. We recommend that you synchronize the the server clock and the Content Engine clock so that relative time calculations will be accurate.

•minFileSizeInB/KB/MB

The minFileSizeInB/KB/MB attribute specifies that the acquired content size must be larger than this number of bytes, kilobytes, or megabytes. The size attribute can be expressed in bytes (B), kilobytes (KB), or megabytes (MB).

The minFileSizeInB/KB/MB attribute replaces the size-min-in-B/KB/MB attribute, which continues to be supported for backward compatibility only.

•maxFileSizeInB/KB/MB

The maxFileSizeInB/KB/MB attribute specifies that the acquired content size must be smaller than this number of bytes, kilobytes, or megabytes. This attribute can be expressed in bytes (B), kilobytes (KB), or megabytes (MB).

The maxFileSizeInB/KB/MB attribute replaces the size-max-in-B/KB/MB attribute, which continues to be supported for backward compatibility only.

•prefix

The prefix attribute is optional and specifies a prefix as a match rule to filter out websites during a crawl job.

•url-pattern

The url-pattern attribute is optional and specifies a regular expression as a match rule to filter out certain URLs.

Subelements

None

Examples
<! - - crawling item group -- >
<item-group server="origin-server" type="prepos">
       <matchRule>
              <match time-before="2000-05-05 12:0:0"/>
       </matchRule>
          <crawler start-url="eng/index.html" depth="-1"/>
            <crawler start-url="hr/index.html" depth="3">
                       <matchRule>
                               <match size-min-in-KB="1" extension="xxx"/>
                       </matchRule>
            </crawler>
</item-group>
To download content that was created or modified within the last 90 days, use the relative time format, as shown in the following example:
<match time-after="90:00:00"/>
To download content that was not modified within the last 2 weeks, use the relative time format, as shown in the following example:
<match time-before="14:00:00"/>
To download content that has been modified after January 30, 2003, 10:30PM, use the absolute time format, as shown in the following example:
<match time-after="2003-01-30 10:30:00"/>
contains

The <contains/> tag is optional and identifies content objects that are embedded within the content item currently being described. For example, the components of a SMIL (Synchronized Multimedia Integration Language) file request for an item using <contains/> links are only accepted after ACNS software determines that dependent content objects are present in the Content Engine.

The <contains /> tag must be enclosed within the <item> </item> tag.

The <contains /> tag is used to include embedded files for some video files, such as .asf or .rp. The ACNS software does not serve this item unless every contained item is present.

Attributes

The cdn-url attribute is required and is the relative ACNS network URL of one of the embedded contents.

Subelements

None

Example
<item src="house/img08.jpb" cdn-url="img08.jpg" />
<item src="house/img09.jpb" cdn-url="img09.jpg" />
<item cdn-url="house.rp"src="house/house.rp">
     <contains cdn-url="img08.jpg"/>
     <contains cdn-url="img09.jpg"/>
</item>
http-meta-data

The <http-meta-data> tag is optional and used for HTTP playback of content. If a content object is requested through HTTP, these attributes are sent to the end users as HTTP response headers. This type of response header is useful when you specify the content type for FTP acquired content.

The element can also be nested within an <item> or a <crawler> tag. The <item> or <crawler> tag-level settings override the <item-group> tag-level settings.

Attributes

The name=value attribute can be both standard HTTP header metadata and customized application metadata. If nested within the <item-group> tag, then the attribute applies to the content contained within the group.

This attribute can also be nested within an <item> or a <crawler> tag. The <item> or <crawler> tag-level settings override the <item-group> tag-level settings.

Subelements

None

Configuring the Freshness of Pre-Positioned Content

Four different manifest file configurations are possible to configure and manage the freshness of your pre-positioned content using the serveStopTime and noRedirectToOrigin attributes. The following configurations are possible:

•Both the serveStopTime and noRedirectToOrigin attributes are included in the manifest file, making the condition noRedirectToOrigin true. The conditions for this first case are shown in Table A-6.

•Only the serveStopTime attribute is included in the manifest file but the noRedirectToOrigin attribute is not, making the condition noRedirectToOrigin false. The conditions for this second case are shown in Table A-7.

•Neither the serveStopTime nor the noRedirectToOrigin attribute is included in the manifest file, making the condition noRedirectToOrigin false. The conditions for this third case are shown in Table A-8.

•Only the noRedirectToOrigin attribute is included in the manifest file but the serveStopTime attribute is not, making the condition noRedirectToOrigin true. The conditions for this fourth case are shown in Table A-9.

Depending on whether or not the serveStopTime and noRedirectToOrigin attributes are included and the timing combinations of the serveStopTime value and the HTTP header expiration, the conditions and corresponding results are listed in Table A-6 through Table A-9. In the following tables, now is defined as the time the end user request arrives. These tables use the end user request arrival time to make content delivery decisions.

Table A-6 Both serveStopTime and noRedirectToOrigin Attributes Included, noRedirectToOrigin=true

Condition

Result

Now is past the serveStopTime value

Content is not served, and an error message appears.

Now is before the serveStopTime value but is past the HTTP expires header

Content is served from the cdnfs, but the content can be stale.

Now is before the serveStopTime value and is before the HTTP expires header

Content is served from the cdnfs.

Now is before the serveStopTime value and no HTTP expires header exists

Content is served from the cdnfs.

Table A-7 Only serveStopTime Attribute Included, noRedirectToOrigin=false

Condition

Result

Now is past the serveStopTime value

Content is served by proxy from the origin server.

Now is before the serveStopTime value but is past the HTTP expires header

Content is served from the cdnfs, but content can be stale.

Now is before the serveStopTime value and is before the HTTP expires header

Content is served from the cdnfs.

Now is before the serveStopTime value and no HTTP expires header exists

Content is served from the cdnfs.

Table A-8 Neither serveStopTime nor noRedirectToOrigin Attributes Included, noRedirectToOrigin=false

Condition

Result

Now is past the HTTP expires header

Content is served by proxy from the origin server.

Now is before the HTTP expires header

Content is served from the cdnfs.

No HTTP expires header exists

Content is served from the cdnfs.

Table A-9 Only the noRedirectToOrigin Attribute Included, noRedirectToOrigin=true

Condition

Result

Now is past the HTTP expires header

Content is served from the cdnfs, but content can be stale.

Now is before the HTTP expires header

Content is served from the cdnfs.

No HTTP expires header exists

Content is served from the cdnfs.

XML Schema

In the case of the manifest file, an XML schema defines the custom markup language of the manifest file and the appearance of a given set of XML documents. The XML schema specifies which tags or elements you can use in your documents, the attributes those tags can contain, and their arrangement.

Manifest XML Schema

An XSD is a library that provides an application programming interface (API) for manipulating the components of an XML schema. For more information on an XSD, go to http://www.w3schools.com/schema/schema_intro.asp.

The following XML code is the manifest XML schema (CdnManfest.xsd).
<?xml version="1.0"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema">
<xs:include schemaLocation="PlayServerTable.xsd"/>
<xs:element name="CdnManifest">
  <xs:complexType>
    <xs:sequence>
        <xs:element ref="playServerTable" minOccurs="0" maxOccurs="1"/>
        <xs:element ref="options" minOccurs="0" maxOccurs="1"/>
        <xs:choice minOccurs="0" maxOccurs="unbounded">
            <xs:element ref="proxyServer" maxOccurs="unbounded"/>
            <xs:element ref="server" maxOccurs="unbounded"/>
            <xs:element ref="item-group" maxOccurs="unbounded"/>
            <xs:element ref="item" maxOccurs="unbounded"/>
            <xs:element ref="crawler" maxOccurs="unbounded"/>
        </xs:choice>
        <xs:choice minOccurs="0" maxOccurs="unbounded">
            <xs:element ref="item-group" maxOccurs="unbounded"/>
            <xs:element ref="item" maxOccurs="unbounded"/>
            <xs:element ref="crawler" maxOccurs="unbounded"/>
        </xs:choice>
   </xs:sequence>
  </xs:complexType>
</xs:element>
<xs:element name="options">
    <xs:complexType>
        <xs:attribute name="timeZone" type="xs:string" use="optional"/>
        <xs:attribute name="notFoundUrl" type="xs:string" use="optional"/>
        <xs:attribute name="alternateUrl" type="xs:string" use="optional"/>
        <xs:attribute name="noRedirectToOrigin" type="xs:boolean" use="optional"
default="false" />
        <xs:attribute name="requireAuth" type="xs:boolean" use="optional"/>
        <xs:attribute name="ignoreQueryString" type="xs:boolean" use="optional"/>
        <xs:attribute name="playDuration" type="xs:unsignedInt" use="optional"/>
        <xs:attribute name="bitrate-in-bps" type="xs:unsignedInt" use="optional"/>
        <xs:attribute name="bitrate-in-kbps" type="xs:unsignedInt" use="optional"/>
        <xs:attribute name="bitrate-in-mbps" type="xs:unsignedInt" use="optional"/>
        <xs:attribute name="ttl" type="xs:unsignedInt" use="optional"/>
        <xs:attribute name="failRetryInterval" type="xs:unsignedInt" use="optional"/>
        <xs:attribute name="prefetch" type="xs:string" use="optional"/>
        <xs:attribute name="type" use="optional" default="prepos">
            <xs:simpleType>
                <xs:restriction base="xs:string">
                    <xs:enumeration value="prepos"/>
                    <xs:enumeration value="wmt-live"/>
                    <xs:enumeration value="real-live"/>
                 </xs:restriction>
            </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="manifest-id" type="xs:string" use="optional"/>
        <xs:attribute name="clearlog" type="xs:boolean" use="optional" default="false"/>
        <xs:attribute name="rd" type="xs:string" use="optional"/>
        <xs:attribute name="prepos-tag" type="xs:string" use="optional"/>
        <xs:attribute name="live-tag" type="xs:string" use="optional"/>
     </xs:complexType>
 </xs:element>
 <xs:element name="server">
     <xs:complexType>
         <xs:sequence>
             <xs:element ref="host" minOccurs="1" maxOccurs="1"/>
         </xs:sequence>
         <xs:attribute name="name" type="xs:string" use="required"/>
     </xs:complexType>
 </xs:element>
 <xs:attributeGroup name = "hostAttr">
     <xs:attribute name="proxyServer" type="xs:string" use="optional"/>
     <xs:attribute name="noProxy" type="xs:boolean" use="optional"/>
     <xs:attribute name="proto" use="optional">
         <xs:simpleType>
               <xs:restriction base="xs:string">
                   <xs:enumeration value="http"/>
                   <xs:enumeration value="https"/>
                   <xs:enumeration value="ftp"/>
                   <xs:enumeration value="mms"/>
                   <xs:enumeration value="rtsp"/>
                   <xs:enumeration value="file"/>
                   <xs:enumeration value="mms-http"/>
               </xs:restriction>
         </xs:simpleType>
     </xs:attribute>
     <xs:attribute name="port" type="xs:unsignedShort" use="optional"/>
     <xs:attribute name="user" type="xs:string" use="optional"/>
     <xs:attribute name="password" type="xs:string" use="optional"/>
     <xs:attribute name="ntlmUserDomain" type="xs:string" use="optional"/>
     <xs:attribute name="disableBasicAuth" type="xs:boolean" use="optional"/>
     <xs:attribute name="uuencoded" type="xs:boolean" use="optional"/>
     <xs:attribute name="sslAuthType" use="optional">
         <xs:simpleType>
               <xs:restriction base="xs:string">
                   <xs:enumeration value="weak"/>
                   <xs:enumeration value="strong"/>
               </xs:restriction>
         </xs:simpleType>
    </xs:attribute>
 </xs:attributeGroup>
 <xs:element name="host">
     <xs:complexType>
           <xs:attribute name="name" type="xs:string" use="required"/>
           <xs:attributeGroup ref="hostAttr"/>
  </xs:complexType>
 </xs:element>
 <xs:element name="proxyServer">
     <xs:complexType>
         <xs:attribute name="serverName" type="xs:string" use="required"/>
         <xs:attribute name="host" type="xs:string" use="optional"/>
         <xs:attribute name="port" type="xs:unsignedShort" use="optional"/>
         <xs:attribute name="user" type="xs:string" use="optional"/>
         <xs:attribute name="password" type="xs:string" use="optional"/>
         <xs:attribute name="ntlmUserDomain" type="xs:string" use="optional"/>
         <xs:attribute name="uuencoded" type="xs:string" use="optional" default="false"/>
         <xs:attribute name="disableBasicAuth" type="xs:boolean" use="optional"
default="false"/>
     </xs:complexType>
 </xs:element>
 <xs:attributeGroup name = "contentAttr">
     <xs:attribute name="server" type="xs:string" use="optional"/>
     <xs:attribute name="playServer" type="xs:string" use="optional"/>
     <xs:attribute name="type" use="optional">
         <xs:simpleType>
             <xs:restriction base="xs:string">
                 <xs:enumeration value="prepos"/>
                 <xs:enumeration value="wmt-live"/>
                 <xs:enumeration value="real-live"/>
             </xs:restriction>
         </xs:simpleType>
     </xs:attribute>
     <xs:attribute name="playDuration" type="xs:unsignedInt" use="optional"/>
     <xs:attribute name="bitrate-in-bps" type="xs:unsignedInt" use="optional"/>
     <xs:attribute name="bitrate-in-kbps" type="xs:unsignedInt" use="optional"/>
     <xs:attribute name="bitrate-in-mbps" type="xs:unsignedInt" use="optional"/>
     <xs:attribute name="noRedirectToOrigin" type="xs:boolean" use="optional"/>
     <xs:attribute name="requireAuth" type="xs:boolean" use="optional"/>
     <xs:attribute name="ignoreQueryString" type="xs:boolean" use="optional"/>
     <xs:attribute name="alternateUrl" type="xs:string" use="optional"/>
     <xs:attribute name="ttl" type="xs:int" use="optional"/>
     <xs:attribute name="failRetryInterval" type="xs:unsignedInt" use="optional"/>
     <xs:attribute name="priority" type="xs:unsignedInt" use="optional"/>
     <xs:attribute name="prefetch" type="xs:string" use="optional"/>
     <xs:attribute name="expires" type="xs:string" use="optional"/>
     <xs:attribute name="serve" type="xs:string" use="optional"/>
     <xs:attribute name="serveStartTime" type="xs:string" use="optional"/>
     <xs:attribute name="serveStopTime" type="xs:string" use="optional"/>
 </xs:attributeGroup>
 <xs:attributeGroup name = "prefixAttr">
      <xs:attribute name="cdnPrefix" type="xs:string" use="optional"/>
      <xs:attribute name="srcPrefix" type="xs:string" use="optional"/>
 </xs:attributeGroup>
 <xs:element name="item-group">
     <xs:complexType>
         <xs:sequence>
             <xs:element ref="matchRule" minOccurs="0" maxOccurs="1"/>
             <xs:element ref="http-meta-data" minOccurs="0" maxOccurs="1"/>
             <xs:choice minOccurs="1" maxOccurs="unbounded">
                 <xs:element ref="item-group" maxOccurs="unbounded"/>
                 <xs:element ref="item" maxOccurs="unbounded"/>
                 <xs:element ref="crawler" maxOccurs="unbounded"/>
             </xs:choice>
         </xs:sequence>
         <xs:attributeGroup ref="contentAttr"/>
         <xs:attributeGroup ref="prefixAttr"/>
         <xs:attribute name="host" type="xs:string" use="optional"/>
         <xs:attributeGroup ref="hostAttr"/>
     </xs:complexType>
 </xs:element>
 <xs:element name="item">
     <xs:complexType>
         <xs:sequence>
             <xs:element ref="contains" minOccurs="0" maxOccurs="unbounded"/>
             <xs:element ref="http-meta-data" minOccurs="0" maxOccurs="1"/>
         </xs:sequence>
         <xs:attribute name="src" type="xs:string" use="required"/>
         <xs:attribute name="cdn-url" type="xs:string" use="optional"/>
         <xs:attributeGroup ref="contentAttr"/>
         <xs:attribute name="host" type="xs:string" use="optional"/>
         <xs:attributeGroup ref="hostAttr"/>
     </xs:complexType>
 </xs:element>
 <xs:element name="crawler">
     <xs:complexType>
         <xs:all>
             <xs:element ref="matchRule" minOccurs="0" maxOccurs="1"/>
             <xs:element ref="http-meta-data" minOccurs="0" maxOccurs="1"/>
         </xs:all>
         <xs:attribute name="start-url" type="xs:string" use="required"/>
                 <xs:attribute name="externalPrefixes" type="xs:string" use="optional"/>
                 <xs:attribute name="externalServers" type="xs:string" use="optional"/>
         <xs:attribute name="depth" type="xs:short" use="optional"/>
         <xs:attribute name="prefix" type="xs:string" use="optional"/>
         <xs:attribute name="accept" type="xs:string" use="optional"/>
         <xs:attribute name="reject" type="xs:string" use="optional"/>
         <xs:attribute name="max-number" type="xs:unsignedInt" use="optional"/>
         <xs:attribute name="max-size-in-B" type="xs:unsignedInt" use="optional"/>
         <xs:attribute name="max-size-in-KB" type="xs:unsignedInt" use="optional"/>
         <xs:attribute name="max-size-in-MB" type="xs:unsignedInt" use="optional"/>
         <xs:attributeGroup ref="contentAttr"/>
         <xs:attributeGroup ref="prefixAttr"/>
         <xs:attribute name="host" type="xs:string" use="optional"/>
         <xs:attributeGroup ref="hostAttr"/>
     </xs:complexType>
 </xs:element>
 <xs:element name="contains">
     <xs:complexType>
         <xs:attribute name="cdn-url" type="xs:string" use="required"/>
     </xs:complexType>
 </xs:element>
 <xs:element name="matchRule">
     <xs:complexType>
         <xs:sequence>
             <xs:element ref="match" minOccurs="1" maxOccurs="unbounded"/>
         </xs:sequence>
     </xs:complexType>
 </xs:element>
<xs:element name="match">
     <xs:complexType>
         <xs:attribute name="mime-type" type="xs:string" use="optional"/>
         <xs:attribute name="time-before" type="xs:string" use="optional"/>
         <xs:attribute name="time-after" type="xs:string" use="optional"/>
         <xs:attribute name="size-min-in-B" type="xs:int" use="optional"/>
         <xs:attribute name="size-max-in-B" type="xs:int" use="optional"/>
         <xs:attribute name="size-min-in-KB" type="xs:int" use="optional"/>
         <xs:attribute name="size-max-in-KB" type="xs:int" use="optional"/>
         <xs:attribute name="size-min-in-MB" type="xs:int" use="optional"/>
         <xs:attribute name="size-max-in-MB" type="xs:int" use="optional"/>
         <xs:attribute name="extension" type="xs:string" use="optional"/>
         <xs:attribute name="prefix" type="xs:string" use="optional"/>
         <xs:attribute name="url-pattern" type="xs:string" use="optional"/>
     </xs:complexType>
 </xs:element>
 <xs:element name="http-meta-data">
     <xs:complexType>
         <xs:anyAttribute processContents="skip" />
     </xs:complexType>
 </xs:element>
</xs:schema>
PlayServerTable XML Schema

The following XML code defines the PlayServerTable schema (playServerTable.xsd) for the CdnManfiest.xsd.
<?xml version="1.0"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema">
<xs:element name="playServerTable">
     <xs:complexType>
         <xs:sequence>
             <xs:element ref="playServer" minOccurs="1" maxOccurs="unbounded"/>
         </xs:sequence>
     </xs:complexType>
 </xs:element>
 <xs:element name="playServer">
     <xs:complexType>
         <xs:choice minOccurs="1" maxOccurs="unbounded">
             <xs:element ref="contentType"/>
             <xs:element ref="extension"/>
         </xs:choice>
         <xs:attribute name="name" use="required">
             <xs:simpleType>
                 <xs:restriction base="xs:string">
                      <xs:enumeration value="real"/>
                      <xs:enumeration value="wmt"/>
                      <xs:enumeration value="http"/>
                      <xs:enumeration value="qtss"/>
                 </xs:restriction>
             </xs:simpleType>
         </xs:attribute>
     </xs:complexType>
 </xs:element>
 <xs:element name="contentType">
     <xs:complexType>
         <xs:attribute name="name" type="xs:string" use="required"/>
     </xs:complexType>
 </xs:element>
 <xs:element name="extension">
     <xs:complexType>
         <xs:attribute name="name" type="xs:string" use="required"/>
     </xs:complexType>
 </xs:element>
</xs:schema>
Default PlayServerTable Schema

The following XML code defines the default PlayServerTable schema (PlayServerTable.xsd).
<?xml version="1.0"?>
<playServerTable xmlns:xsi = "http://www.w3.org/2001/XMLSchema-instance"
     xsi:noNamespaceSchemaLocation = "PlayServerTable.xsd">

  <playServer name="real">

    <contentType name="audio/x-pn-realaudio" />
    <contentType name="audio/x-pn-realaudio-plugin" />
    <contentType name="application/x-pn-realmedia" />
    <contentType name="application/smil" />
    <contentType name="application/vnd.rn-rmadriver" />
    <extension name="rm" />
    <extension name="rms" />
    <extension name="ra" />
    <extension name="rp" />
    <extension name="rt" />
    <extension name="smi" />
  </playServer>
  <playServer name="qtss">
    <contentType name="video/quicktime" />
    <extension name="mov" />
    <extension name="qt" />
    <extension name="mp4" />

  </playServer>
  <playServer name="wmt">

    <contentType name="video/x-ms-asf" />
    <contentType name="audio/x-ms-wma" />
    <contentType name="video/x-ms-wmv" />
    <contentType name="video/x-ms-wm"  />
    <contentType name="application/x-ms-wmz" />
    <contentType name="application/x-ms-wmd" />
    <extension name="wma" />
    <extension name="wmv" />
    <extension name="asf" />
    <extension name="wm"  />

  </playServer>
</playServerTable>
Manifest File Time Zone Tables

To convert to local time, you must know the time difference between Greenwich mean time (GMT) and local time for both standard time and summer time (daylight saving time). Table A-10 through Table A-25 list the time zones supported by the manifest file. The format for writing the time zone is:

<zonename>:[+|-:]hh:mm per line

where <zonename> is the name of the time zone or standard time zone abbreviation (see Table A-10) without spaces before or after the colon (":"), and "[+|-:]hh:mm" is the GMT offset in hours and minutes. The GMT offset default is "+."

Table A-10 Standard Time Zones and GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

ACT:+:09:30

Etc/GMT+7:-:07:00

HST:-:10:00

ADT:-:03:00

Etc/GMT+8:-:08:00

IET:-:05:00

AET:+:10:00

Etc/GMT+9:-:09:00

IST:+:05:30

AGT:-:03:00

Etc/GMT-0:00:00

JST:+:09:00

ART:+:02:00

Etc/GMT-10:+:10:00

MDT:-:06:00

AST:-:09:00

Etc/GMT-11:+:11:00

MET:+:01:00

BET:-:03:00

Etc/GMT-12:+:12:00

MIT:-:11:00

BST:+:06:00

Etc/GMT-13:+:13:00

MST7MDT:-:07:00

CAT:+:02:00

Etc/GMT-14:+:14:00

MST:-:07:00

CDT:-:05:00

Etc/GMT-1:+:01:00

NET:+:04:00

CET:+:01:00

Etc/GMT-2:+:02:00

NST:+:12:00

CNT:-:03:30

Etc/GMT-3:+:03:00

NZ-CHAT:+:12:45

CST6CDT:-:06:00

Etc/GMT-4:+:04:00

NZ:+:12:00

CST:-:06:00

Etc/GMT-5:+:05:00

Navajo:-:07:00

CTT:+:08:00

Etc/GMT-6:+:06:00

PDT:-:07:00

EAT:+:03:00

Etc/GMT-7:+:07:00

PLT:+:05:00

ECT:+:01:00

Etc/GMT-8:+:08:00

PNT:-:07:00

EDT:-:04:00

Etc/GMT-9:+:09:00

PRC:+:08:00

EET:+:02:00

Etc/GMT0:00:00

PRT:-:04:00

EST5EDT:-:05:00

Etc/GMT:00:00

PST8PDT:-:08:00

EST:-:05:00

Etc/Greenwich:00:00

PST:-:08:00

Etc/GMT+0:00:00

Etc/UCT:00:00

ROK:+:09:00

Etc/GMT+10:-:10:00

Etc/UTC:00:00

SST:+:11:00

Etc/GMT+11:-:11:00

Etc/Universal:00:00

UCT:00:00

Etc/GMT+12:-:12:00

Etc/Zulu:00:00

UTC:00:00

Etc/GMT+1:-:01:00

GB-Eire:00:00

Universal:00:00

Etc/GMT+2:-:02:00

GB:00:00

VST:+:07:00

Etc/GMT+3:-:03:00

GMT0:00:00

W-SU:+:03:00

Etc/GMT+4:-:04:00

GMT:00:00

WET:00:00

Etc/GMT+5:-:05:00

Greenwich:00:00

Zulu:00:00

Etc/GMT+6:-:06:00

HDT:-:09:00

Table A-11 Africa GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

Africa/Abidjan:00:00

Africa/Djibouti:+:03:00

Africa/Maputo:+:02:00

Africa/Accra:00:00

Africa/Douala:+:01:00

Africa/Maseru:+:02:00

Africa/Addis_Ababa:+:03:00

Africa/El_Aaiun:00:00

Africa/Mbabane:+:02:00

Africa/Algiers:+:01:00

Africa/Freetown:00:00

Africa/Mogadishu:+:03:00

Africa/Asmera:+:03:00

Africa/Gaborone:+:02:00

Africa/Monrovia:00:00

Africa/Bamako:00:00

Africa/Harare:+:02:00

Africa/Nairobi:+:03:00

Africa/Bangui:+:01:00

Africa/Johannesburg:+:02:00

Africa/Ndjamena:+:01:00

Africa/Banjul:00:00

Africa/Kampala:+:03:00

Africa/Niamey:+:01:00

Africa/Bissau:00:00

Africa/Khartoum:+:03:00

Africa/Nouakchott:00:00

Africa/Blantyre:+:02:00

Africa/Kigali:+:02:00

Africa/Ouagadougou:00:00

Africa/Brazzaville:+:01:00

Africa/Kinshasa:+:01:00

Africa/Porto-Novo:+:01:00

Africa/Bujumbura:+:02:00

Africa/Lagos:+:01:00

Africa/Sao_Tome:00:00

Africa/Cairo:+:02:00

Africa/Libreville:+:01:00

Africa/Timbuktu:00:00

Africa/Casablanca:00:00

Africa/Lome:00:00

Africa/Tripoli:+:02:00

Africa/Ceuta:+:01:00

Africa/Luanda:+:01:00

Africa/Tunis:+:01:00

Africa/Conakry:00:00

Africa/Lubumbashi:+:02:00

Africa/Windhoek:+:01:00

Africa/Dakar:00:00

Africa/Lusaka:+:02:00

—

Africa/Dar_es_Salaam:+:03:00

Africa/Malabo:+:01:00

—

Table A-12 America GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

America/Adak:-:10:00

America/Grenada:-:04:00

America/Noronha:-:02:00

America/Anchorage:-:09:00

America/Guadeloupe:-:04:00

America/North_Dak/Ctr:-:06:00

America/Anguilla:-:04:00

America/Guatemala:-:06:00

America/Panama:-:05:00

America/Antigua:-:04:00

America/Guayaquil:-:05:00

America/Pangnirtung:-:05:00

America/Araguaina:-:03:00

America/Guyana:-:04:00

America/Paramaribo:-:03:00

America/Aruba:-:04:00

America/Halifax:-:04:00

America/Phoenix:-:07:00

America/Asuncion:-:04:00

America/Havana:-:05:00

America/Port-au-Prince:-:05:00

America/Atka:-:10:00

America/Hermosillo:-:07:00

America/Port_of_Spain:-:04:00

America/Barbados:-:04:00

America/Ind/Indian:-:05:00

America/Porto_Acre:-:05:00

America/Belem:-:03:00

America/Ind/Knox:-:05:00

America/Porto_Velho:-:04:00

America/Belize:-:06:00

America/Ind/Marengo:-:05:00

America/Puerto_Rico:-:04:00

America/Boa_Vista:-:04:00

America/Ind/Vevay:-:05:00

America/Rainy_River:-:06:00

America/Bogota:-:05:00

America/Indianapolis:-:05:00

America/Rankin_Inlet:-:06:00

America/Bogota:-:05:00

America/Inuvik:-:07:00

America/Recife:-:03:00

America/Buenos_Aires:-:03:00

America/Iqaluit:-:05:00

America/Regina:-:06:00

America/Cambridge_Bay:-:07:0

America/Jamaica:-:05:00

America/Rio_Branco:-:05:00

America/Cancun:-:06:00

America/Jujuy:-:03:00

America/Rosario:-:03:00

America/Caracas:-:04:00

America/Juneau:-:09:00

America/Santiago:-:04:00

America/Catamarca:-:03:00

America/Ken/Louisville:-:05:00

America/Santo_Domingo:-:04:0

America/Cayenne:-:03:00

America/Ken/Monticello:-:05:0

America/Sao_Paulo:-:03:00

America/Cayman:-:05:00

America/Knox_IN:-:05:00

America/Scoresbysund:-:01:00

America/Chicago:-:06:00

America/La_Paz:-:04:00

America/Shiprock:-:07:00

America/Chihuahua:-:07:00

America/Lima:-:05:00

America/St_Johns:-:03:30

America/Cordoba:-:03:00

America/Los_Angeles:-:08:00

America/St_Lucia:-:04:00

America/Costa_Rica:-:06:00

America/Louisville:-:05:00

America/St_Thomas:-:04:00

America/Cuiaba:-:04:00

America/Maceio:-:03:00

America/St_Vincent:-:04:00

America/Curacao:-:04:00

America/Managua:-:06:00

America/Swift_Current:-:06:00

America/Danmarkshavn:00:00

America/Manaus:-:04:00

America/Tegucigalpa:-:06:00

America/Dawson:-:08:00

America/Martinique:-:04:00

America/Thule:-:04:00

America/Dawson_Creek:-:07:00

America/Mazatlan:-:07:00

America/Thunder_Bay:-:05:00

America/Denver:-:07:00

America/Mendoza:-:03:00

America/Tijuana:-:08:00

America/Detroit:-:05:00

America/Menominee:-:06:00

America/Tortola:-:04:00

America/Dominica:-:04:00

America/Merida:-:06:00

America/Vancouver:-:08:00

America/Edmonton:-:07:00

America/Mexico_City:-:06:00

America/St_Lucia:-:04:00

America/Eirunepe:-:05:00

America/Miquelon:-:03:00

America/Virgin:-:04:00

America/El_Salvador:-:06:00

America/Monterrey:-:06:00

America/Whitehorse:-:08:00

America/Ensenada:-:08:00

America/Montevideo:-:03:00

America/Winnipeg:-:06:00

America/Fort_Wayne:-:05:00

America/Montreal:-:05:00

America/Yakutat:-:09:00

America/Fortaleza:-:03:00

America/Montserrat:-:04:00

America/Yellowknife:-:07:00

America/Glace_Bay:-:04:00

America/Nassau:-:05:00

America/Virgin:-:04:00

America/Godthab:-:03:00

America/New_York:-:05:00

America/Whitehorse:-:08:00

America/Goose_Bay:-:04:00

America/Nipigon:-:05:00

America/Winnipeg:-:06:00

America/Grand_Turk:-:05:00

America/Nome:-:09:00

America/Tortola:-:04:00

Table A-13 Antarctica/Arctic GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

Antarctica/Casey:+:08:00

Antarctica/McMurdo:+:12:00

Antarctica/Vostok:+:06:00

Antarctica/Davis:+:07:00

Antarctica/Palmer:-:04:00

Arctic/Longyearbyen:+:01:00

Antarctica/DtDUrville:+:10:00

Antarctica/South_Pole:+:12:00

—

Antarctica/Mawson:+:06:00

Antarctica/Syowa:+:03:00

—

Table A-14 Asia GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

Asia/Aden:+:03:00

Asia/Hong_Kong:+:08:00

Asia/Riyadh87:+:03:07

Asia/Almaty:+:06:00

Asia/Hovd:+:07:00

Asia/Riyadh88:+:03:07

Asia/Amman:+:02:00

Asia/Irkutsk:+:08:00

Asia/Riyadh89:+:03:07

Asia/Anadyr:+:12:00

Asia/Istanbul:+:02:00

Asia/Riyadh:+:03:00

Asia/Aqtau:+:04:00

Asia/Jakarta:+:07:00

Asia/Saigon:+:07:00

Asia/Aqtobe:+:05:00

Asia/Jayapura:+:09:00

Asia/Sakhalin:+:10:00

Asia/Ashgabat:+:05:00

Asia/Jerusalem:+:02:00

Asia/Samarkand:+:05:00

Asia/Ashkhabad:+:05:00

Asia/Kabul:+:04:30

Asia/Seoul:+:09:00

Asia/Baghdad:+:03:00

Asia/Kamchatka:+:12:00

Asia/Shanghai:+:08:00

Asia/Bahrain:+:03:00

Asia/Karachi:+:05:00

Asia/Singapore:+:08:00

Asia/Baku:+:04:00

Asia/Kashgar:+:08:00

Asia/Taipei:+:08:00

Asia/Bangkok:+:07:00

Asia/Katmandu:+:05:45

Asia/Tashkent:+:05:00

Asia/Beirut:+:02:00

Asia/Krasnoyarsk:+:07:00

Asia/Tbilisi:+:04:00

Asia/Bishkek:+:05:00

Asia/Kuala_Lumpur:+:08:00

Asia/Tehran:+:03:30

Asia/Brunei:+:08:00

Asia/Kuching:+:08:00

Asia/Tel_Aviv:+:02:00

Asia/Calcutta:+:05:30

Asia/Kuwait:+:03:00

Asia/Thimbu:+:06:00

Asia/Choibalsan:+:09:00

Asia/Macao:+:08:00

Asia/Thimphu:+:06:00

Asia/Chongqing:+:08:00

Asia/Magadan:+:11:00

Asia/Tokyo:+:09:00

Asia/Chungking:+:08:00

Asia/Manila:+:08:00

Asia/Ujung_Pandang:+:08:00

Asia/Colombo:+:06:00

Asia/Muscat:+:04:00

Asia/Ulaanbaatar:+:08:00

Asia/Dacca:+:06:00

Asia/Nicosia:+:02:00

Asia/Ulan_Bator:+:08:00

Asia/Damascus:+:02:00

Asia/Novosibirsk:+:06:00

Asia/Urumqi:+:08:00

Asia/Dhaka:+:06:00

Asia/Omsk:+:06:00

Asia/Vientiane:+:07:00

Asia/Dili:+:09:00

Asia/Phnom_Penh:+:07:00

Asia/Vladivostok:+:10:00

Asia/Dubai:+:04:00

Asia/Pontianak:+:07:00

Asia/Yakutsk:+:09:00

Asia/Dushanbe:+:05:00

Asia/Pyongyang:+:09:00

Asia/Yekaterinburg:+:05:00

Asia/Gaza:+:02:00

Asia/Qatar:+:03:00

Asia/Yerevan:+:04:00

Asia/Harbin:+:08:00

Asia/Rangoon:+:06:30

—

Table A-15 Atlantic GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

Atlantic/Azores:-:01:00

Atlantic/Faeroe:00:00

Atlantic/South_Georgia:-:02:00

Atlantic/Bermuda:-:04:00

Atlantic/Jan_Mayen:+:01:00

Atlantic/St_Helena:00:00

Atlantic/Canary:00:00

Atlantic/Madeira:00:00

Atlantic/Stanley:-:04:00

Atlantic/Cape_Verde:-:01:00

Atlantic/Reykjavik:00:00

—

Table A-16 Australia GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

Australia/ACT:+:10:00

Australia/LHI:+:10:30

Australia/Queensland:+:10:00

Australia/Adelaide:+:09:30

Australia/Lindeman:+:10:00

Australia/South:+:09:30

Australia/Brisbane:+:10:00

Australia/Lord_Howe:+:10:30

Australia/Sydney:+:10:00

Australia/Broken_Hill:+:09:30

Australia/Melbourne:+:10:00

Australia/Tasmania:+:10:00

Australia/Canberra:+:10:00

Australia/NSW:+:10:00

Australia/Victoria:+:10:00

Australia/Darwin:+:09:30

Australia/North:+:09:30

Australia/West:+:08:00

Australia/Hobart:+:10:00

Australia/Perth:+:08:00

Australia/Yancowinna:+:09:30

Table A-17 Brazil GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

Brazil/Acre:-:05:00

Brazil/East:-:03:00

Brazil/West:-:04:00

Brazil/DeNoronha:-:02:00

—

—

Table A-18 Canada/Chile/Cuba GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

Canada/Atlantic:-:04:00

Canada/Mountain:-:07:00

Canada/Yukon:-:08:00

Canada/Central:-:06:00

Canada/Newfoundland:-:03:30

Chile/Continental:-:04:00

Canada/East-Ssktchwan:-:06:00

Canada/Pacific:-:08:00

Chile/EasterIsland:-:06:00

Canada/Eastern:-:05:00

Canada/Saskatchewan:-:06:00

Cuba:-:05:00

Table A-19 Egypt/Eire/Europe GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

Egypt:+:02:00

Europe/Kiev:+:02:00

Europe/Simferopol:+:02:00

Eire:00:00

Europe/Lisbon:00:00

Europe/Skopje:+:01:00

Europe/Amsterdam:+:01:00

Europe/Ljubljana:+:01:00

Europe/Sofia:+:02:00

Europe/Andorra:+:01:00

Europe/London:00:00

Europe/Stockholm:+:01:00

Europe/Athens:+:02:00

Europe/Luxembourg:+:01:00

Europe/Tallinn:+:02:00

Europe/Belfast:00:00

Europe/Madrid:+:01:00

Europe/Tirane:+:01:00

Europe/Belgrade:+:01:00

Europe/Malta:+:01:00

Europe/Tiraspol:+:02:00

Europe/Berlin:+:01:00

Europe/Minsk:+:02:00

Europe/Uzhgorod:+:02:00

Europe/Bratislava:+:01:00

Europe/Monaco:+:01:00

Europe/Vaduz:+:01:00

Europe/Brussels:+:01:00

Europe/Moscow:+:03:00

Europe/Vatican:+:01:00

Europe/Bucharest:+:02:00

Europe/Nicosia:+:02:00

Europe/Vienna:+:01:00

Europe/Budapest:+:01:00

Europe/Oslo:+:01:00

Europe/Vilnius:+:02:00

Europe/Chisinau:+:02:00

Europe/Paris:+:01:00

Europe/Warsaw:+:01:00

Europe/Copenhagen:+:01:00

Europe/Prague:+:01:00

Europe/Zagreb:+:01:00

Europe/Dublin:00:00

Europe/Riga:+:02:00

Europe/Zaporozhye:+:02:00

Europe/Gibraltar:+:01:00

Europe/Rome:+:01:00

Europe/Zurich:+:01:00

Europe/Helsinki:+:02:00

Europe/Samara:+:04:00

Europe/Simferopol:+:02:00

Europe/Istanbul:+:02:00

Europe/San_Marino:+:01:00

Europe/Skopje:+:01:00

Europe/Kaliningrad:+:02:00

Europe/Sarajevo:+:01:00

Europe/Sofia:+:02:00

Table A-20 Hong Kong/Iceland/India/Iran/Israel GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

Hongkong:+:08:00

Indian/Cocos:+:06:30

Indian/Mauritius:+:04:00

Iceland:00:00

Indian/Comoro:+:03:00

Indian/Mayotte:+:03:00

Indian/Antananarivo:+:03:00

Indian/Kerguelen:+:05:00

Indian/Reunion:+:04:00

Indian/Chagos:+:06:00

Indian/Mahe:+:04:00

Iran:+:03:30

Indian/Christmas:+:07:00

Indian/Maldives:+:05:00

Israel:+:02:00

Table A-21 Jamaica/Japan/Kwajalein/Libya GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

Jamaica:-:05:00

Kwajalein:+:12:00

Libya:+:02:00

Japan:+:09:00

—

—

Table A-22 Mexico/Mideast GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

Mexico/BajaNorte:-:08:00

Mexico/General:-:06:00

Mideast/Riyadh88:+:03:07

Mexico/BajaSur:-:07:00

Mideast/Riyadh87:+:03:07

Mideast/Riyadh89:+:03:07

Table A-23 Pacific/Poland/Portugal GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

Pacific/Apia:-:11:00

Pacific/Johnston:-:10:00

Pacific/Ponape:+:11:00

Pacific/Auckland:+:12:00

Pacific/Kiritimati:+:14:00

Pacific/Port_Moresby:+:10:00

Pacific/Chatham:+:12:45

Pacific/Kosrae:+:11:00

Pacific/Rarotonga:-:10:00

Pacific/Easter:-:06:00

Pacific/Kwajalein:+:12:00

Pacific/Saipan:+:10:00

Pacific/Efate:+:11:00

Pacific/Majuro:+:12:00

Pacific/Samoa:-:11:00

Pacific/Enderbury:+:13:00

Pacific/Marquesas:-:09:30

Pacific/Tahiti:-:10:00

Pacific/Fakaofo:-:10:00

Pacific/Midway:-:11:00

Pacific/Tarawa:+:12:00

Pacific/Fiji:+:12:00

Pacific/Nauru:+:12:00

Pacific/Tongatapu:+:13:00

Pacific/Funafuti:+:12:00

Pacific/Niue:-:11:00

Pacific/Truk:+:10:00

Pacific/Galapagos:-:06:00

Pacific/Norfolk:+:11:30

Pacific/Wake:+:12:00

Pacific/Gambier:-:09:00

Pacific/Noumea:+:11:00

Pacific/Wallis:+:12:00

Pacific/Guadalcanal:+:11:00

Pacific/Pago_Pago:-:11:00

Pacific/Yap:+:10:00

Pacific/Guam:+:10:00

Pacific/Palau:+:09:00

Poland:+:01:00

Pacific/Honolulu:-:10:00

Pacific/Pitcairn:-:08:00

Portugal:00:00

Table A-24 Singapore/System V/Turkey GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

Singapore:+:08:00

SystemV/EST5:-:05:00

SystemV/PST8PDT:-:08:00

SystemV/AST4:-:04:00

SystemV/EST5EDT:-:05:00

SystemV/YST9:-:09:00

SystemV/AST4ADT:-:04:00

SystemV/MST7:-:07:00

SystemV/YST9YDT:-:09:00

SystemV/CST6:-:06:00

SystemV/MST7MDT:-:07:00

Turkey:+:02:00

SystemV/CST6CDT:-:06:00

SystemV/PST8:-:08:00

—

Table A-25 U.S. GMT Offsets

Time Zone: GMT Offset

Time Zone: GMT Offset

Time Zone: GMT Offset

US/Alaska:-:09:00

US/Eastern:-:05:00

US/Pacific-New:-:08:00

US/Aleutian:-:10:00

US/Hawaii:-:10:00

US/Pacific:-:08:00

US/Arizona:-:07:00

US/Indiana-Starke:-:05:00

US/Samoa:-:11:00

US/Central:-:06:00

US/Michigan:-:05:00

—

US/East-Indiana:-:05:00

US/Mountain:-:07:00

—

Manifest File Automated Scripts

This section contains information about automated Perl scripts that you can use to automate the creation of manifest files for your ACNS network. The most efficient method of creating a manifest file is to customize the automated Spider Perl script in combination with the Manifest Perl script, both of which are available on Cisco.com. These two Perl scripts can serve as the basis for your own automation scripts that you modify to suit your needs.

The two Perl automated scripts are called spider.pl and manifest.pl. These scripts can be used as-is. If you are proficient in using Perl, you can modify the spider.pl and manifest.pl. However, if you modify these scripts, Cisco will not support them. Both the spider.pl and manifest.pl scripts contain a "--file" argument that is to be used in conjunction with a user-created rules file, such as .cfg. So that they can be reused, it is recommended that customers use this method to include the various arguments that they require, as opposed to running them from the command line.

First, use the Spider script, and then use the output of the Spider script as input to the Manifest script. The Spider script searches the content of the selected origin servers and outputs a database file containing a list of URLs of all content. The Manifest script uses this database file to build the manifest file with the correct syntax based on rules you stipulate from the command line or rules file. This produces an XML-based manifest file containing the URLs of only those content objects that you want made available to your users.

The following two sample automated Perl scripts are available on Cisco.com:

•Spider Perl script

The Spider script crawls over the content of a selected origin server and outputs a database file containing a list of URLs.

•Manifest Perl script

The Manifest script reads the database file output by the Spider script and uses rules that you establish to produce an XML-formatted manifest file containing the URLs of only those filtered content objects that you want to make available to users.

Installing Perl on Your Workstation

You must have Perl installed on your workstation before working with or running the Spider or Manifest scripts. It is useful to also have a Perl interpreter available. Perl is open source software and can be downloaded for free from a variety of locations on the Internet. Refer to the Comprehensive Perl Archive Network (CPAN) at these URLs:

http://www.cpan.org
or
http://www.perl.com

Obtaining the Perl Scripts

The Spider and Manifest scripts can be obtained from Cisco.com by using the same procedure that is used to obtain updated versions of Cisco ACNS software.

To obtain the Spider and Manifest scripts from Cisco.com, follow these steps:

Step 1 Go to the following URL to find the Spider and Manifest Perl scripts:

http://www.cisco.com/pcgi-bin/tablebuild.pl/acns52

Step 2 When prompted, log in to Cisco.com by using your designated Cisco.com username and password.

The Cisco ACNS Software download page appears, listing the available software updates for the Cisco ACNS Software product.

Step 3 Locate the file named ACNS-5.2.1.5-manifest-tools.zip. This file is a ZIP archive containing both the Manifest and Spider Perl scripts.

Step 4 Click the link for the ACNS-5.2.1.5-manifest-tools.zip file. The download page appears.

Step 5 Click Software License Agreement.

A new browser window opens, displaying the license agreement.

Step 6 After you have read the license agreement, close the browser window displaying the agreement, and return to the Software Download page.

Step 7 Click the filename link labeled Download.

Step 8 Click Save to file, and then choose a location on your workstation to temporarily store the zipped file containing the scripts.

Step 9 Use your preferred unzip program to unpack the scripts to a location on your workstation or your network.

After you have unzipped the scripts, you are ready to begin using them to build manifest files for your website. See the "Listing Website Content Using the Spider Script" section and the "Selecting Live and Pre-Positioned Content Using the Manifest Script" section for instructions on running the scripts.

Listing Website Content Using the Spider Script

In the simplest scenario, the Spider script is pointed to the address of an origin server and given the name of a database (.db) file into which it places any valid URLs it discovers on that site. For example, if you wanted to analyze the contents of www.cisco.com for content that might be pre-positioned after the manifest file is created, you would issue the following command:
perl spider.pl --start=www.cisco.com --db=ciscocontent.db
Limiting or Broadening the Scope of the Spider Script

Using the Spider script on the whole of www.cisco.com might take hours and produce much more information than you need. The Spider script contains a variety of tools that enable you to limit as well as broaden the scope of a spider's action.

Note When running the Spider script on large websites, you must plan for the long period of time and the large amount of memory that is required for the Spider script to create a database.

For example, to limit the Spider script's search of www.cisco.com to just that part of the server containing product-related support information, you could enter the following command:
perl spider.pl --start=www.cisco.com/public/support/ --db=ciscocontent.db
To ask the Spider script to follow links from www.cisco.com to the Cisco networking professionals forum, you could enter the following Spider script command:
perl spider.pl --start=www.cisco.com --accept=business.cisco.com --db=ciscocontent.db
Spider Script Syntax Guidelines

The Spider script accepts the following syntax, as described in Table A-26.

perl spider.pl {--start=origin_server_url [ --accept=accept_url | --depth=number | --file=filename |
--limit=number | --prefix=url_prefix | --map=url_prefix | --reject=disallowed_url | --db=database_name.db]}
Table A-26 Spider Script Keywords
Keyword

Description

Command-Line Syntax
--start (required)

Names the location (URL) of the origin server that is to be analyzed.
--start=www.cisco.com
--accept (optional)

Names a location other than that specified using the start keyword that is to be accepted when it is found in URLs.
--accept=forums.cisco.com
Note --accept is a more general command that can include regular expressions. For example, you can use "jobs.*tech" to accept any URLs with the string "jobs" followed by "tech."
--depth (optional)

Causes the Spider script to stop after following links to a specified number of levels deep on the origin server.
--depth=6
--file (optional)

Causes the Spider script to read its commands from a specified file, in this case the rules file, one line at a time.
--file=cisco-rules.cfg
--limit (optional)

Causes the Spider script to stop after retrieving a specified number of pages from the origin server. Specifying 0 sets no limit for the number of pages retrieved.
--limit=1000
--prefix (optional)

Specifies a URL prefix that is matched by the Spider script. The --prefix keyword is a convenient option that accepts a fixed string that it must match from the beginning, such as "http://www.cisco.com/jobs."
--prefix=http://www.cisco.com/partners/CDN/
--map (optional)

Causes the Spider script to substitute the second URL prefix (appearing after the second =) for the first in any URLs from the origin server. Or, for example, causes the Spider script to substitute the first prefix for the second when rerunning the Spider script on an origin server if links were modified to go to the Content Engine.
--map=http://www.cisco.com/public/support/
tac/=/support
--reject (optional)

Names a location that is rejected when it is found in URLs.

Note The order in which the --accept and --reject keywords are given to the Spider script determines precedence. The first match takes precedence.
--reject=/cgi-bin
--db (optional)

Names the database file in which content URLs from the origin server and any accepted locations are to be placed.
--db=ciscocontent.db
Customizing the Spider Script

Because the Spider script anticipates certain platforms and scenarios that might not correspond to your own website configuration, Cisco provides you with the Perl source code for the Spider script, which you can modify to suit your own needs.

Selecting Live and Pre-Positioned Content Using the Manifest Script

Whereas the Spider script is used to gather a list of potential content from an origin server, the Manifest Script sifts through this information gathered by the Spider script and decides which content to actually import to the ACNS network for placement on a Content Engine.

Pre-Positioned Versus Live Content

The Manifest script distinguishes between content that needs to be pre-positioned and live, streamed content that, by definition, cannot be pre-positioned.

The result of using the live command is nearly the same as that of using the prepos command. Both commands expect you to specify what you intend to deliver as live content or to deliver as pre-positioned content with --prepos=match() or --prepos=type(). The only difference between these two commands is the tags contained in the .xml file that is created by manifest.pl. If you use the prepos command, then the .xml file that is created contains the tag <item-group type="prepos">. If you use the live command, then the .xml file contains the tag <item-group type="wmt-live"> or <item-group type="real-live">, depending on whether the streaming data is RealMedia or WMT.

By using the prepos command, you identify and pre-position content that meets criteria that you specify. For example, to pre-position image files from Cisco.com that are larger than one megabyte, you would enter the following command:
perl manifest.pl --prepos='type(image/*) and size > 1000k' --db=ciscocontent.db
--xml=cisco.xml
By using the live command, you identify the URLs of live content. Unlike pre-positioned content, live content cannot be identified by information stored in the header, so you must devise a method of locating live content based solely on information contained in the URL of that content. For example, you can identify streamed content with the following command:
perl manifest.pl --live=`match(http://*)'
Manifest Script Syntax Guidelines

The Manifest script accepts the following syntax, as described in Table A-27.

perl manifest.pl [--file=filename | {--live=`keyword_comparison' | --prepos=`keyword_comparison'} | --set=`
