Release Notes for Cisco ACNS Software, Release 5.0.5, Build 9
September 11, 2003
Note
The most current Cisco documentation for released products is available at Cisco.com at http://www.cisco.com. The online documents may contain updates and modifications made after the hardcopy documents were printed.
Documentation Survey
Is Cisco documentation helpful? Click here to give us your feedback.
Contents
These release notes contain information about ACNS software, Release 5.0.5. These release notes describe the following topics:
•
•
Introduction
These release notes describe new features, supported hardware, and open and resolved caveats regarding ACNS software, Release 5.0.5.
New and Changed Information
This section describes existing features that have changed and new features in ACNS software, Release 5.0.5. These features include the following:
•
•
•
•
Configuring User Authentication Fail Over
Content Engines support three databases: local, TACACS+, and RADIUS, for login and configuration privileges. These databases can be configured as primary, secondary, or tertiary to specify the order in which they should be queried, if a user account is not found in the primary database. However, previous releases of ACNS software did not offer an option to configure user authentication fail-over if an authentication server is unreachable. This allowed Content Engines to query the alternative methods of user authentication by default whenever the primary user authentication method failed. User authentication fail-over is a method by which users will be unable to gain access to the Content Engine using the local database unless the non-local authentication servers (TACACS+ or RADIUS) are unreachable.
In ACNS software, Release 5.0.5, you can configure the user authentication fail-over feature using the authentication fail-over server-unreachable global configuration command. This command allows you to specify that a fail-over to the secondary authentication method should occur only if the primary authentication server is unreachable. For example, when a TACACS+ server is enabled for authentication, and the user tries to log in to the Content Engine using an account defined in the local database, login succeeds. With user authentication fail-over configured, users cannot use the local database unless TACACS+ servers are unreachable. Use the no version of this command, no authentication fail-over server-unreachable, to disable the user authentication fail-over feature.
Note
The following example sets user authentication fail-over to occur if the authentication server is unreachable:
ContentEngine(config)# authentication fail-over server-unreachableContentEngine(config)#The following message is displayed when the primary authentication menthod has been set as local and you attempt to configure user authentication fail-over feature:
Either authentication or authorization scheme was set incorrectly.Please, note the Authentication scheme fail-over due to server unreachablefeature doesn't have any effect if the primary, the secondary authenticationscheme, and the sequence of authentication schemes are configured incorrectly.Use the show authentication user EXEC command to find out whether user authentication fail-over is configured on the Content Engine, as shown in the following example:
ContentEngine# show authentication userAuthentication scheme fail-over reason: server unreachableLogin Authentication: Console/Telnet Session----------------------------- -----------------------local enabled (primary)radius disabledtacacs disabledConfiguration Authentication: Console/Telnet Session----------------------------- -----------------------local enabled (primary)radius disabledtacacs disabledContentEngine#Adding or Removing WMT MMS Allowed Filename Extensions
Content Engines use a list of filename extensions to decide whether a type of media file should be served by a Windows Media Technologies (WMT). Typically, Content Engines are shipped with a default list of filename extensions to be served by WMT. In previous releases of ACNS software, users were unable to add or delete filename extensions from this list. ACNS software, Release 5.0.5 adds the wmt mms allow extension global configuration command to let users add filename extensions to this list. The no version of this command, no wmt mms allow extension, removes a filename extension from the list.
The default list in the Content Engine contains the following filename extensions:
•
•
•
•
•
Note
The following example adds the file extension mp3 to the list of filename extensions to be served by WMT:
ContentEngine(config)# wmt mms allow extension mp3ContentEngine(config)#The show wmt mms allow extension EXEC command shows the filename extensions included in the list after you have added or deleted filename extensions. The show wmt mms allow extension command does not display anything if you have not modified the default list.
In the following example of show wmt mms allow extension command, the default list of filename extensions has not been modified:
ContentEngine(config)# show wmt mms allow extensionContentEngine(config)#In this example of the show wmt mms allow extension command, the filename extension mp3 has been added to the list of file extensions:
ContentEngine(config)# show wmt mms allow extensionWMT mms extensions allowed :asf mp3 none nsc wma wmvContentEngine(config)#The following restrictions apply to adding new filename extensions to the list:
•
•
•
Websense Server Integration with Low-End Content Engine Models
In ACNS software, Release 5.0.3, Websense server Version 4.4.1 was integrated with higher-end Content Engine models (CE-7305 and CE-7325), running as a separate process instead of running on a separate device. In ACNS software, Release 5.0.5, Websense server integration is extended to the lower-end Content Engine models as well. Websense server Version 4.4.1 can be integrated with ACNS software in the following Content Engine models:
•
•
•
•
•
•
•
•
•
•
There are no changes in the way that the Cache application communicates with the Websense server, except that the server now runs on the same device as the Cache application.
The amount of RAM needed for Websense server integration with the Content Engine is about 60 MB to 140 MB. When the Websense server is enabled and the Websense URL database is downloaded for the first time, CPU usage will be high. Therefore, we recommend enabling the Websense server during off-peak times or at times of low network traffic. Otherwise, other processes running on the Content Engine might be affected. When the Websense server stalls, it is automatically restarted.
An image of the Websense server resides in the /local/local1/WebsenseEnterprise directory. All the executables as well as the configuration and logging files are stored in this directory and requires about 150 MB of disk space. An additional 140 MB of disk space is required when the Websense URL database is downloaded, increasing the total disk space requirement to 290 MB. Because of this increased disk space requirement, we recommend increasing the size of the system file system (sysfs) disk partition to be larger than the default value on the Content Engines.
Configuration of Ports for the Websense Server
The Websense process requires that these four ports be opened for connections either from processes internal to the Content Engine or from external processes such as the PIX firewall:
•
This is the TCP port that receives requests for content filtering according to the Websense protocol.
•
If the Websense process blocks a URL, it sends a redirect URL to the user. The redirect URL is configured to print out the blocked page and policy for the user. The Websense process listens on this port to receive the pages blocked, serviced by a thread in the Websense server. This thread sends the blocked page in response to the redirected request.
•
This port is required by the Websense GUI to configure the Websense server.
•
The Websense server has an exhaustive set of diagnostics that the users can run remotely to diagnose problems in the Websense process. This port is the one that these diagnostics utilities connect to.
Users can configure these ports by modifying the websense.ini file that resides in the /local/local1/WebsenseEnterprise directory. The Websense server must be restarted so that it can pick up the newly configured ports. Default port numbers for these four ports are:
•
•
•
•
Users can modify the ports by exporting a copy of the websense.ini file using FTP from the /local/local1/WebsenseEnterprise directory on the Content Engine, modifying the file, deleting the websense.ini file on the Content Engine, and then sending back the modified file to the Content Engine using FTP.
Note
Changes in CLI Commands for the Websense Server
CLI commands for the Websense server have been changed as follows:
•
The caching software uses this global configuration command to set up communication with the Websense server. This command has been modified to include another variable to signify that the Websense server is local. The revised syntax is as follows:
url-filter http websense server {local | hostname}
If the local variable is specified during the configuration, then the caching software sends URL filtering requests to the Websense server running on the Content Engine. On the other hand, if the hostname variable is chosen, then the Websense server running on the Content Engine is not used.
•
This new global configuration command enables the local Content Engine to act as the Websense server. When this command is used, a back-end script starts the Websense server process through the node manager.
If the default ports are changed, the Websense server must be disabled and reenabled before the changes can be implemented.
•
This command has been modified to show the IP address of the local host in the Websense sever IP field when the local host is configured as the Websense server for Websense URL filtering.
•
This new command shows the configuration for the Websense server configured on the Content Engine. The output of the command includes the configured port numbers for the Websense server port, block message server port, configuration server port, and diagnostics server port; the Websense server version number; and the maximum number of connections.
•
This existing EXEC command has been enhanced to save modified Websense configuration files (websense.init and ws.cfg) across disk reconfiguration and ACNS software release upgrades.
User must execute this command in order to retain the most recent configuration modifications, including websense.ini file modifications and the Websense URL filtering configuration changes. The write memory command enables the changes made from the external Websense Manager GUI to be saved across disk reconfiguration and upgrade (which might erase disk content).
If the write memory command was not used before reboot but after a disk reconfiguration or an ACNS software upgrade that erases disk content, the Websense configurations that were saved when the write memory command was last used will be retained. However, if the write memory command was never used before, then default configurations will be applied when the content on /local/local1/WebsenseEnterprise directory is erased.
To configure the Websense server to run on the Content Engine, follow these steps:
Step 1
Step 2
Note
Step 3
•
•
•
Step 4
To enable the Websense server using the Content Engine GUI, follow these steps:
Step 1
Step 2
Note
You can also enable the Websense server using the Content Distribution Manager GUI. To enable the Websense server on the Content Engine, follow these steps:
Step 1
Step 2
Step 3

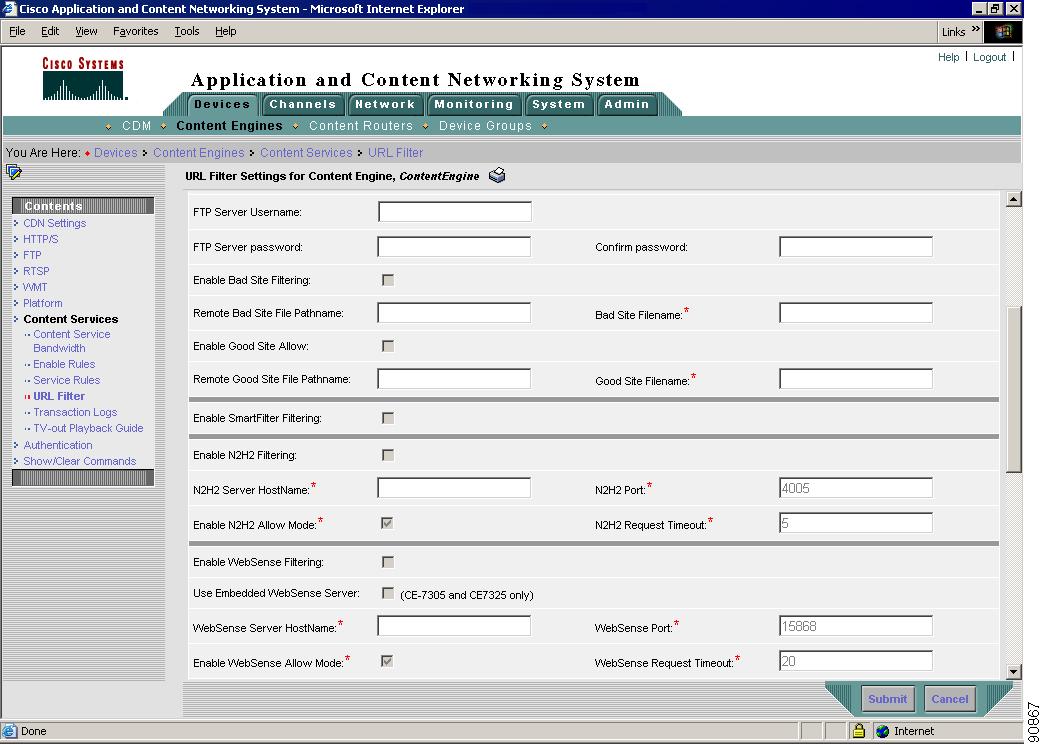

Figure 1 URL Filter Settings for Content Engine Window
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9
To download the Websense components, such as Explorer, Manager, and Reporter, or to obtain an evaluation key for using the Websense server that runs on the Content Engine, access the following URL and follow the sequence of steps:
http://www.websense.com/downloads
To access Websense product setup and implementation documents, access the following URL:
http://www.websense.com/support/documentation/index.cfm
Additional Information in show hardware Command Display Output
The show hardware EXEC command has been enhanced in ACNS software, Release 5.0.5 to display additional hardware information for the CE-510 and CE-565 Content Engine models. The show hardware EXEC command output for CE-510 and CE-565 displays the exact hardware variant details. These details are displayed against the Manufactured As heading in the output of the command.
The following show hardware output displays the hardware details, including the hardware variant details, for a CE-510:
ContentEngine# show hardwareApplication and Content Networking System Software (ACNS)Copyright (c) 1999-2003 by Cisco Systems, Inc.Application and Content Networking System Software Release 5.0.5 (build b8 Aug 1 2003)Version: ce510-5.0.5Compiled 21:24:59 Aug 1 2003 by ceuserCompile Time Options: PP SSSystem was restarted on Sat May 10 02:13:04 2003.The system has been up for 14 minutes, 2 seconds.Core CPU is GenuineIntel Intel(R) Celeron(R) CPU 1.70GHz (rev 1) running at 1699 MHz.512 Mbytes of Physical memory.1 CD ROM drive2 GigabitEthernet interfaces1 Console interface2 USB interfaces [Not supported in this version of software]Manufactured As: CE-510-K9 [-[8673C1X]-]BIOS Information:Vendor : IBMVersion : -[PLEC38AUS-C.38]-Rel. Date :Cookie info:SerialNumber: 78GB030SerialNumber (raw): 55 56 71 66 48 51 48 0 0 0 0TestDate: 5-0-2003ExtModel: CE510ModelNum (raw): 55 0 0 0 1HWVersion: 1PartNumber: 53 54 55 56 57BoardRevision: 1ChipRev: 1VendID: 0CookieVer: 2Chksum: 0xfd27There is no storage-array attached to this box.List of disk all drives:disk00: Normal (IDE disk) 38160MB( 37.3GB)disk00/04: SYSFS 1023MB( 1.0GB) mounted at /local1System use: 6129MB( 6.0GB)FREE: 31006MB( 30.3GB)disk01: Normal (IDE disk) 38162MB( 37.3GB)FREE: 38162MB( 37.3GB)ContentEngine#Hardware Supported
ACNS software, Release 5.0.5 supports the following hardware platforms:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Important Notes
This section emphasizes important information regarding ACNS 5.0.x software.
Upgrade Issues
Upgrading a Content Engine running ACNS software, Release 5.0.3 to Release 5.0.5 may fail if the Content Engine had been running for more than three weeks. Cisco recommends that you reload the Content Engine before upgrading from ACNS software, Release 5.0.3 to Release 5.0.5.
Media File System Issues When Downgrading to ACNS 5.0 Software
If you have configured the media file system (mediafs) with ACNS 5.1 software or later, and then downgrade to ACNS 5.0 software, the mediafs disk space assignment is lost and it reverts to ACNS network file system (cdnfs) disk space. (The mediafs is used for on-demand content that is fetched through the two streaming protocols [RTSP and WMT]. The cdnfs is used for pre-positioned content in the ACNS network.)
This situation occurs because of a design change that was implemented in ACNS 5.1 software. Because ACNS 5.0 software is not compatible with this change, the disk space becomes assigned to cdnfs instead of mediafs. To work around this problem, follow these steps:
1.
Use the Content Distribution Manager GUI for Content Engines that are registered with a Content Distribution Manager. Use the Content Engine GUI for standalone Content Engines (that is, Content Engines that are not registered with a Content Distribution Manager and are being managed through the Content Engine GUI or CLI).
2.
Websense Issues When Downgrading to ACNS 5.0 Software or ACNS 5.1 Software
If the local (internal) Websense server is enabled on the Content Engine and you downgrade from the ACNS 5.2.x software to ACNS 5.0 software or ACNS 5.1 software, the WebsenseEnterprise directory is removed from the Content Engine and the local Websense server stops working. Note that the ACNS 5.2.x software does not generate an error message indicating that the WebsenseEnterprise directory has been removed.
To avoid this problem when downgrading from ACNS 5.2.x software to ACNS software 5.1 or ACNS 5.0 software, follow these steps:
1.
2.
3.
Caveats
This section lists and describes caveats that are open in ACNS software, Release 5.0.5. Caveats describe unexpected behavior in ACNS software. Severity 1 caveats are the most serious; severity 2 caveats are less serious. Severity 3 caveats are moderate caveats.
Open Caveats - ACNS Software, Release 5.0.5
•
Symptom: WCCP bypass does not function properly when bypassing large packets from the client. Therefore, the client never receives an acknowledgment from the server for the data sent.
Condition: This problem occurs when the Content Engine bypasses the connection and the server advertises a maximum segment size (MSS) of 1460 bytes.
Workaround: If the client's path is configured to discover the maximum transmission unit (MTU), users can configure a lower value of MTU on the router interface connected to the Content Engine. Thus if a client sends a large packet, the router would drop it and would send an Internet Control Message Protocol (ICMP) message with the reduced MTU value. Clients would then adjust to the lower value.
•
Symptom: Content cannot be acquired using strong authentication from secure origin servers that use certificates from nonstandard certificate authorities (CAs). If strong authentication was chosen for content acquisitions from such a site, the acquirer error statistics will contain a 401 (Unauthorized) error code, and the acquirer error log will contain the following error message:
Strong Cert Authentication rejects certificate due to error: ssl error codeCondition: This problem occurs if the origin server uses a certificate that is not known as a standard certificate to the ACNS acquirer. For content acquisition from secure sites over HTTPS using strong authentication, only sites with certificates from standard certificate authorities are supported.
Note
Workaround: Use one of these workarounds:
–
On the secure server, use a certificate that was generated by one of the standard certificate authorities. ACNS network administrators should refer to the following information to determine which CA certificate they should install on their origin servers. Note that the certificate list differs based on the version of the ACNS software. For the ACNS 5.0.5 software release, refer to the following certificate list:-----BEGIN CERTIFICATE-----Issuer: C=US, O=VeriSign, Inc., OU=Class 1 Public PrimaryCertification AuthorityValidityNot Before: Jan 29 00:00:00 1996 GMTNot After : Jan 7 23:59:59 2020 GMTSubject: C=US, O=VeriSign, Inc., OU=Class 1 Public PrimaryCertification Authority-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=US, O=VeriSign, Inc., OU=Class 2 Public PrimaryCertification AuthorityValidityNot Before: Jan 29 00:00:00 1996 GMTNot After : Jan 7 23:59:59 2004 GMTSubject: C=US, O=VeriSign, Inc., OU=Class 2 Public PrimaryCertification Authority-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=US, O=VeriSign, Inc., OU=Class 3 Public PrimaryCertification AuthorityValidityNot Before: Jan 29 00:00:00 1996 GMTNot After : Jan 7 23:59:59 2004 GMTSubject: C=US, O=VeriSign, Inc., OU=Class 3 Public PrimaryCertification Authority-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=US, O=RSA Data Security, Inc., OU=Secure ServerCertification AuthorityValidityNot Before: Nov 9 00:00:00 1994 GMTNot After : Jan 7 23:59:59 2010 GMTSubject: C=US, O=RSA Data Security, Inc., OU=Secure ServerCertification Authority-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: O=VeriSign, Inc, OU=www.verisign.com/repository/TestCPS Incorp. By Ref. Liab.LTD., OU=For VeriSign authorized testing only. No assurances (C)VS1997ValidityNot Before: Mar 4 00:00:00 1997 GMTNot After : Mar 4 23:59:59 2025 GMTSubject: O=VeriSign, Inc, OU=www.verisign.com/repository/TestCPS Incorp. By Ref. Liab. LTD., OU=For VeriSign authorized testing only. No assurances (C)VS1997-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=AU, ST=Queensland, O=CryptSoft Pty Ltd, CN=Test PCA (1024 bit)ValidityNot Before: Dec 2 21:38:51 1999 GMTNot After : Jul 10 21:38:51 2005 GMTSubject: C=AU, ST=Queensland, O=CryptSoft Pty Ltd, CN=Test CA (1024 bit)-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=AU, ST=Some-State, O=Internet Widgits Pty Ltd, CN=PCAValidityNot Before: Jun 15 02:14:29 1997 GMTNot After : Jul 15 02:14:29 1997 GMTSubject: C=AU, ST=Some-State, O=Internet Widgits Pty Ltd, CN=CA-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=AU, ST=Some-State, O=Internet Widgits Pty Ltd, CN=PCAValidityNot Before: Jun 14 22:54:45 1997 GMTNot After : Jul 14 22:54:45 1997 GMTSubject: C=AU, ST=Some-State, O=Internet Widgits Pty Ltd, CN=PCA-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=GB, O=UCL, OU=ICE-TEL Project, CN=TrustFactoryValidityNot Before: Apr 22 14:39:14 1997 GMTNot After : Apr 22 14:39:14 1998 GMTSubject: C=GB, O=UCL, OU=ICE-TEL Project, CN=TrustFactory-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: O=European ICE-TEL project, OU=V3-Certification AuthorityValidityNot Before: Apr 2 17:35:53 1997 GMTNot After : Apr 2 17:35:53 1998 GMTSubject: O=European ICE-TEL project, OU=V3-Certification Authority,L=Darmstadt-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: O=European ICE-TEL project, OU=V3-Certification AuthorityValidityNot Before: Apr 2 17:33:36 1997 GMTNot After : Apr 2 17:33:36 1998 GMTSubject: O=European ICE-TEL project, OU=V3-Certification Authority-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: O=European ICE-TEL project, OU=V3-Certification Authority, L=DarmstadtValidityNot Before: Apr 2 17:35:59 1997 GMTNot After : Apr 2 17:35:59 1998 GMTSubject: O=European ICE-TEL project, OU=V3-Certification Authority,L=Darmstadt, CN=USER-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=Ca, L=Nepean, OU=No Liability Accepted, O=For Demo Purposes Only, CN=Entrust Demo Web CAValidityNot Before: Apr 26 13:35:01 1996 GMTNot After : Apr 26 13:35:01 2006 GMTSubject: C=Ca, L=Nepean, OU=No Liability Accepted, O=For Demo PurposesOnly, CN=Entrust Demo Web CA-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=AU, ST=Queensland, O=CryptSoft Pty Ltd, CN=Test PCA (1024 bit)ValidityNot Before: Dec 2 21:35:48 1999 GMTNot After : Jul 11 21:35:48 2005 GMTSubject: C=AU, ST=Queensland, O=CryptSoft Pty Ltd, CN=Test PCA (1024 bit)-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=US, O=RSA Data Security, Inc., OU=Commercial CertificationAuthorityValidityNot Before: Nov 4 18:58:34 1994 GMTNot After : Nov 3 18:58:34 1999 GMTSubject: C=US, O=RSA Data Security, Inc., OU=Commercial CertificationAuthority-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=ZA, ST=Western Cape, L=Cape Town, O=Thawte Consulting cc,OU=CertificationServices Division, CN=Thawte Server CA/Email=server-certs@thawte.comValidityNot Before: Aug 1 00:00:00 1996 GMTNot After : Dec 31 23:59:59 2020 GMTSubject: C=ZA, ST=Western Cape, L=Cape Town, O=Thawte Consulting cc,OU=Certification Services Division, CN=Thawte Server CA/Email=server-certs@thawte.com-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=ZA, ST=Western Cape, L=Cape Town, O=Thawte Consulting cc,OU=CertificationServices Division, CN=Thawte Premium Server CA/Email=premium-server@thawte.comValidityNot Before: Aug 1 00:00:00 1996 GMTNot After : Dec 31 23:59:59 2020 GMTSubject: C=ZA, ST=Western Cape, L=Cape Town, O=Thawte Consulting cc,OU=Certification Services Division, CN=Thawte Premium Server CA/Email=premium-server@thawte.com-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=AU, ST=Queensland, L=Brisbane, O=CryptSoft Pty Ltd,OU=development, CN=CryptSoft Dev CAValidityNot Before: Mar 22 13:34:04 1997 GMTNot After : Mar 22 13:34:04 1998 GMTSubject: C=AU, ST=Queensland, L=Brisbane, O=CryptSoft Pty Ltd, OU=development, CN=CryptSoft Dev CA-----END CERTIFICATE----------BEGIN CERTIFICATE-----Issuer: C=AU, ST=Queensland, L=Brisbane, O=CryptSoft Pty Ltd,OU=WORTHLESS CERTIFICATION AUTHORITIES, CN=ZERO VALUE CA - DEMONSTRATION PURPOSES ONLYValidityNot Before: Apr 3 13:22:54 1997 GMTNot After : Apr 3 13:22:54 1998 GMTSubject: C=AU, ST=Queensland, L=Brisbane, O=CryptSoft Pty Ltd,OU=WORTHLESS CERTIFICATION AUTHORITIES, CN=ZERO VALUE CA - DEMONSTRATION PURPOSES ONLY-----END CERTIFICATE-----•
Symptom: When ACNS network users use an external authentication server such as TACACS+, RADIUS, Windows NT LAN Manager (NTLM), or Lightweight Directory Access Protocol (LDAP) for authentication, authorization, and accounting of user accounts, the authentication server settings cannot be changed.
Condition: This occurs in ACNS software, Release 5.0 and later.
Workaround: Users need to remove the authentication server from service when they want to change the settings for any of the external authentication servers, such as TACACS+, RADIUS, NTLM, or LDAP. This can be done using the Local Authentication Settings window or the Authentication Scheme Settings window in the Content Distribution Manager GUI.
•
Symptom: When the user tries to add port 8443 for incoming HTTPS proxy requests on a Content Engine using the https proxy incoming 8443 command, the following message appears:
Port 8443 is reserved for application the Cdm_UI_httpCondition: This occurs when port 8443 is reserved for the HTTPS incoming proxy by the Content Distribution Manager GUI and port 8443 therefore cannot be used on a Content Engine where no Content Distribution Manager GUI is running. However, on a Content Distribution Manager, it is appropriate to reserve port 8443, because this port is used as the Content Distribution Manager GUI port.
Workaround: Use a different port that is not reserved. You can check reserved ports using the commands show services port port-number for a specific port or show services summary for a collective summary of all used ports.
•
Symptom: For pre-positioned Windows Media content, if the content is defined in the manifest file to be WMT over HTTP play and if NTLM authentication is enabled from the Content Distribution Manager, the Content Engine fails to handle the authentication with the origin server properly. You are repeatedly prompted for a username and password even though you have already entered the proper username and password.
Condition: This occurs in ACNS software, Release 5.0 and later.
Workaround: Choose one of the following options to avoid this problem.
–
–
–
•
Symptom: The cache service unexpectedly restarts after running for 3 months.
Condition: The cache service automatically restarts when it runs for a relatively long time under production traffic.
Workaround: The cache service is automatically restarted by a node manager. Therefore, no special workaround action is necessary.
•
Symptom: A multicast receiver Content Engine obtains content through unicast before the multicast sender has delivered the content through multicast.
Condition: This problem occurs when the Content Engine has a parent forwarder that is not the multicast sender but which has already received the content. The Content Engine contacts the parent and downloads the content through unicast.
Workaround: Take one of the following actions:
–
–
•
Symptom: The CLI does not allow you to assign a device group and reports only the first Content Engine with insufficient space. You might have to try a few times to assign a device group.
Condition: You are using the CLI to assign a device group to a channel, and multiple Content Engines have insufficient space for the channel quota.
Workaround: Either verify which Content Engines have space before you use a CLI command, or make sure that device groups contain similar Content Engines and that Content Engines are assigned consistently to device groups.
•
Symptom: Users experience a brief outage of HTTP services, and the following message is logged in the syslog.txt file:
Service 'cache' died due to signal 15: Terminated.Condition: This occurs when multiple services are enabled on lower-end Content Engine models, especially the CE-507. The system might be running low on memory.
Workaround: Cache service is resumed automatically. Users need to reduce the number of services on low-end Content Engine models such as the CE-507.
•
Symptom: Users receive a DNS failure message when the cache process is unable to resolve the host names presented in the URL.
Condition: DNS failure occurs when users attempt to access a website. However, this symptom is transient and rare.
Workaround: Use the reload function of the browser, although the problem disappears on its own after a short while.
•
Symptom: An error alert on the system log page indicates a failure to configure an IP address.
Condition: The Content Distribution Manager accepts invalid IP addresses that you enter as the NTLM server for authentication.
Workaround: Make sure that you enter a valid IP address.
•
Symptom: When the user tries to copy a file from the FTP server and install the software release file on the Content Engine, using the copy ftp install {hostname | ip-address} remotefiledir remotefilename command, the following error message appears:
ruby_upgrade: cannot create lock file 'ruby_upgrade.lck' : Permission deniedCondition: This error occurs when the user uses TACACS+ as the login authentication method for device management.
Workaround: There is no known workaround.
•
Symptom: The number of MPEG-1 concurrent streams that is streamed over HTTP is low on a CE-7325. The download of MPEG-1 files is found to be slower than the rate at which the files need to be played on a Windows Media Player. In addition, monitoring of the SNMP event MIB is interrupted.
Condition: This symptom is observed when ten MPEG-1 streams are pre-positioned across four Content Engines, each having an internal disk, and the HTTP bit rate is set to 1.1 Mbps.
Workaround: The files need to be encoded in other formats, or the MPEG-1 files must be streamed using Windows Media Technologies (WMT) or RTSP instead of HTTP.
•
Symptom: When a user configures certain settings for RealProxy, RealServer, or WMT using CLI commands, the following message appears:
The evaluation has already expiredHowever, when the same settings are configured using the GUI, no error message is displayed, but an error is recorded in the System Message Log window in the Content Distribution Manager GUI.
Condition: This occurs when an evaluation license is used and the evaluation period has expired.
Workaround: Purchase and install a permanent license. Do not use the evaluation license anymore.
•
Symptom: If the server responds with a "100 Continue" message for a POST request from the user, the Content Engine stops parsing all requests on the connection, and subsequent requests are not handled properly.
Condition: This symptom occurs in ACNS software, Release 4.2.5 or earlier, and all 5.0.x releases.
Workaround: To partially address the problem with proxy connection, users can upgrade to ACNS software, Release 4.2.7 and later in which ACNS closes the connection after serving the request. This results in slightly higher latency because of a break in the persistent connection. Known servers respond with the "100 Continue" message to the POST request method only.
•
Symptom: Login and configuration authentication servers can be enabled without having to configure an IP address or host name. For example, even if no TACACS+ servers are configured, you can still enable login authentication using TACACS+. This can be verified by using the show authentication user and authentication login tacacs enable commands.
Condition: When the disable local login authentication command is used to disable local authentication, the CLI believes that TACACS+ authentication has been already enabled and allows users to disable local authentication for login. In this scenario, the user can never log in to the Content Engine, because there are no configured TACACS+ servers and local authentication is also disabled.
Workaround: There is no known workaround.
•
Symptom: Users cannot play live streaming content from a Windows Media Server that is trying to obtain a stream from a Content Engine broadcast station alias.
Condition: This problem occurs when a Microsoft Windows Media Server is configured to obtain a WMT live stream from the Content Engine. The user's media player receives a "corrupted data" error or "invalid state" error. This problem does not occur if the stream that has been obtained from the Content Engine is not a live stream. The Windows Media Server is failing to retrieve the stream from the Content Engine, which in turn is obtaining the stream from the origin server.
Workaround: There is no known workaround. If possible, users should use a Content Engine to obtain the stream from a Windows Media Server.
•
Symptom: The F1 key might not work with certain terminal settings to access the BIOS menu.
Condition: This symptom occurs on either the CE-7305 or the CE-7325 only. With certain terminals, the F1 key might not work well because the terminal emulation program might use the F1 key for its own purposes, or send an incorrect F1 key sequence to the Content Engine. Without the F1 key, the user cannot press F1 to access the BIOS menu at system boot time.
Workaround: Tune the terminal emulation program settings, or connect a keyboard and monitor to the Content Engine to access the BIOS.
•
Symptom: When a user enables streaming (RTSP, WMT, and Cisco Streaming Engine) on the Content Engine Network Module from the Content Distribution Manager GUI, some of the streaming configuration settings are lost. These include WMT license key installed, RTSP server real-subscriber accept-license-agreement, rtsp server real-subscriber enable, rtsp proxy media-real enable, rtsp proxy media-real license-key installed, rtsp ip-address rtsp server, and cisco-streaming-engine enable.
Condition: This symptom occurs when the user performs an upgrade or downgrade after applying the settings.
Workaround: The user must choose the RTSP and WMT settings from the Contents pane on the Content Distribution Manager GUI and resubmit the configurations.
•
Symptom: The Content Distribution Manager GUI shows that an upgrade on a Content Engine has failed when the upgrade has in fact been successful. However, the CLI on the Content Engine shows the correct upgrade information.
Condition: This symptom occurs because the upgrade meta file has the wrong software version. In other words, the version in the meta file does not match the version of the upgrade file.
Workaround: Currently, there is no known workaround.
•
Symptom: The Windows Media Player will continue to wait forever to play a media file if the source is a media file that is configured to play in a loop from the Windows Media Server, and if the Content Engine is configured for unicast-in multicast-out multicast delivery of streaming media.
Condition: This occurs only when the source is a Windows Media Server and the media file is configured to loop and when the Content Engine is configured for unicast-in multicast-out.
Workaround: Avoid using a loop file from the Windows Media Server. Users can pre-position the media file to the Content Engine and multicast the file from the local disk before configuring it to play in a loop.
•
Symptom: Performing a software upgrade or downgrade using the Content Distribution Manager GUI shows the status as updateFailed in the device listing windows, such as the Content Engines window. This failure occurs when the software upgrade or downgrade encounters an error on the target device. Once a request for upgrade or downgrade is received by the target device, attempts to upgrade or downgrade software occur only once.
Condition: This occurs in ACNS software, Release 5.0 and later.
Workaround: Users need to avoid some of the following common error conditions:
–
–
–
–
If any of the above errors occur, clear that error and request another software upgrade or downgrade using the Content Distribution Manager GUI.
•
Symptom: The RealProxy player stops playing live split streams after a few hours. The video frame stops and the media cache statistics of the RTSP proxy show that no packets have been received.
Condition: This occurs on Content Engines running ACNS software, Release 5.0.3 and later.
Workaround: Close the RealProxy player and restart it. The audio and video will be available again.
•
Symptom: With WCCP Version 2 enabled, Windows XP clients might experience problems in accessing remote systems with shared files and folders that are running Windows 2000 Server and Internet Information Services (IIS) server.
Condition: This problem occurs when an attempt is made to connect to a remote system by specifying the Universal Naming Convention (UNC) name of a resource or mapping a network drive. Although connection is established with the remote system, it takes approximately 10 minutes for the shared resource to connect. This is because the Content Engine affects the Server Message Blocks (SMB) protocol.
Workaround: Take one of these actions:
–
–
–
•
Symptom: When the Content Engine is used in transparent or proxy mode in conjunction with an Internet Security and Acceleration (ISA) proxy as a downstream proxy that does NTLM authentication, contents take a long time to download.
Condition: This symptom occurs when a Content Engine is used in conjunction with an ISA proxy that does NTLM authentication.
Workaround: There is no known workaround.
•
Symptom: The ip name-server serial-lookup global configuration command fails to query each of the configured name servers iteratively in case the primary name server responds in the negative.
Workaround: There is no known workaround.
•
Symptom: After thousands of playlist position changes for a playlist that is scheduled to loop playback continuously or for an extended period, the TV-out service might run out of memory. Interruption in playback occurs and core files are generated.
Under some error conditions, such as loss or unavailability of media files on the cdnfs, a playlist might change its position rapidly, thereby exhibiting this behavior after several hours of continuously failed playback.
Condition: This occurs on the CE-507-AV, CE-560-AV, and CE-510 or CE-560 with optional AV decoder card installed, running ACNS software, Release 5.0 or later.
Workaround: Perform any of the following workarounds:
–
–
–
•
Symptom: The acquirer check-time-for-old-content [channel-id channel_num | channel-name channel_name] EXEC command does not work. The following messages are displayed when the command is used with valid root Content Engine channel ID and names:
ContentEngine# acquirer check-time-for-old-content channel-id 291Unable to get the channel information record for channel= 291This CE is not the root CE for this channel = 291Failed to check the last modified time in DBContentEngine# acquirer check-time-for-old-content channel-name channeltestUnable to get the channel information record for channel= 291This CE is not the root CE for this channel = 291Failed to check the last modified time in DBWorkaround: Use the acquirer check-time-for-old-content EXEC command without the channel ID and channel name parameters. This command will display the incorrect last modified time for all channels of the root Content Engine.
•
Symptom: When the ACNS software is upgraded, the database upgrade fails because a table is found to exist already. This appears as an upgrade error in the syslog.txt log file. The Centralized Management System (CMS) does not start on the device, and the device appears as offline in the device listing windows in the Content Distribution Manager GUI.
Condition: If a device is downgraded from ACNS software, Release 5.0.5 to ACNS software, Release 5.0.1, and subsequently deregistered from the Content Distribution Manager and reregistered with the Content Distribution Manager, the local database tables that were created as part of ACNS software, Release 5.0.5 remain in the database. The existence of these tables causes a later ACNS software upgrade to fail.
Workaround: This problem occurs only if the downgraded device is deregistered from the Content Distribution Manager. However, it is also possible to downgrade a device, keep it registered with the Content Distribution Manager, and later upgrade the device. In situations that require the downgraded device to be deregistered from the Content Distribution Manager, the database needs to be cleared of all tables before you reregister the device.
The sequence of CLI commands to deregister and reregister a device is as follows.
1.
2.
3.
The cms deregister command removes the registration information from the Content Distribution Manager and removes known database tables. The cms database delete command removes all tables, including any table that might have been created as part of another ACNS software release. The cms enable command registers the device with the Content Distribution Manager, creates the local database, and starts the CMS processes.
•
Symptom: Installing an upgraded version of ACNS software, Release 5.0.x deletes all content in the existing SmartFilter directory. Therefore, if SmartFilter software was previously installed for URL filtering, installation of a newer version of ACNS software, Release 5.0.x causes filtering to be disabled.
Condition: This symptom occurs if the user installs an upgraded version of ACNS software, Release 5.0.x on a Content Engine running SmartFilter software.
Workaround: SmartFilter, Version 3.1.2 is shipped with ACNS software, Release 5.0.x and contains SmartFilter software policy information stored on remote SmartFilter Administration Servers. Use the SmartFilter Administration Console to reapply the configuration settings on the Content Engine, and manually download the SmartFilter Control List. Once the Control List has been downloaded to the Content Engine, URL filtering will recommence.
•
Symptom: A multi-bit rate (MBR) media file, after being preloaded, returns partial cache-hit upon proxy style request.
Condition: This problem was observed with only one MBR media file.
Workaround: There is no known workaround. The media file will be fully cached after proxy style request is served.
•
Symptom: When the network experiences significant packet loss, the multicast sender may send fewer bytes than the actual file size. This causes multicast reception to fail on all receivers.
Condition: The network suffers a lot of multicast packet loss when the multicast session is about to end.
Workaround: In /local1/multicast-expert-config/, set a pgmfx configuration file on the multicast sender to turn off Pragmatic General Multicast (PGM) congestion control, turn up the proactive forward error correction (FEC), and on the Content Distribution Manager GUI, set the FEC to 16.
•
Symptom: When Microsoft Internet Information Services (IIS) server 4.0 is used as the FTP server and DOS format is used as the directory listing format, acquisition of content fails and error 712 (file size mismatch) occurs. This problem occurs because the IIS server calculates the file size incorrectly. When you compare the calculated file size with the downloaded file size,a mismatch is found and the downloaded file is ignored.
Condition: This problem occurs in ACNS software, Releases 5.0.1 and 5.0.3. Also, it is observed only with IIS server 4.0. IIS server 5.0 functions properly.
Workaround: There is no known workaround.
•
Symptom: The Content Engine is unable to play audio only files over playback with Content Engine AV units.
Condition: This occurs as the Content Engine is looking to synchronize audio and video tracks, but there is no video track.
Workaround: Record the audio-only files with blank video tracks.
•
Symptom: The Content Engine CLI allows users to enter proxy-protocol exclusion lists that use wildcards. When users try to do the same in the Content Distribution Manager GUI, the Content Distribution Manager displays an error.
Workaround: Use the CLI to make these configuration settings until the GUI is brought to parity with the CLI.
•
Symptom: Users cannot submit a GUI page where \ (the backslash character) is used as file separator in input fields.
Condition: The ACNS GUI does not allow directories with a \ as a file separator, but only / (a forward slash). The ACNS CLI accepts \ as a file separator.
Workaround: Use the corresponding CLI command instead of the GUI.
•
Symptom: Services do not start in the ACNS network, and no message is displayed.
Condition: When a default gateway is not configured, services do not start.
Workaround: Configure a default gateway in the ACNS GUI.
•
Symptom: The default behavior of the GUI does not match that of the CLI for the command http object url-validation enable. In the CLI, the default is to enable the command, but in the GUI the default is to disable the command.
Workaround: Enable the command in the GUI.
•
Symptom: The Content Engine is unable to authenticate users using LDAP.
Condition: The authentication mode process in the Content Engine does not release the sockets, and after some time (1 or 2 weeks) there are no sockets left for new requests.
Workaround: Restart the Content Engine.
•
Symptom: The administrator cannot access the Content Engine from the ACNS GUI if the fail-over feature is configured and the primary authentication scheme is not working.
Condition: This problem occurs with the web server if fail-over is configured and the primary authentication scheme is not working. When the primary authentication scheme is not working, the administrator can access the Content Engine using Content Distribution Manager, Telnet, SSH, or FTP.
Workaround: The administrator should use Telnet or the Content Distribution Manager to access the Content Engine.
•
Symptom: In ACNS software, Release 5.0.3, when the number of characters for the Group Names parameter exceeds 256, LDAP authentication does not work for those users.
Workaround: Limit the number of characters for the Group Names parameter to be less than 256.
•
Symptom: No CLI command is available in ACNS software, Release 5.0 and later releases to clear WCCP generic routing encapsulation (GRE) packet-related information. Although a CLI command (show wccp gre) is available to display the WCCP GRE counters, there is no CLI command currently available to clear them.
Condition: This symptom is observed regardless of whether WCCP is enabled or disabled on the Content Engine.
Workaround: There is no known workaround.
•
Symptom: Any changes in the Content Engine's DNS cache configuration do not take effect immediately.
Condition: This situation occurs when the dns listen and dns pin commands are used to configure an IP address and port number to listen for requests and map the IP addresses to their corresponding host names.
Workaround: Use the no dns enable and dns enable commands to disable and enable the Content Engine's DNS caching server, which will result in the DNS caching server picking up the changed configurations.
•
Symptom: Under certain conditions, if the user configures one valid and one invalid FTP server for exporting transaction logs, the show statistics transaction-logs command displays the entry for the valid FTP server twice. As a result of the duplicate entry, the counters are not correspondingly incremented with the number of files that are exported through FTP.
Condition: This symptom is observed on Content Engines running ACNS software, Release 5.0.
Workaround: The clear statistics transaction-logs command can be used to clear the transaction log export statistics and the duplicate entry for the valid FTP server.
•
Symptom: The client does not receive a requested object if the Websense server is not reachable or if the Websense server timeout value is greater than the configured default timeout value.
Condition: This symptom is observed only under the following conditions:
–
–
–
–
Workaround: The Websense server timeout value must be configured to be less than 60 seconds.
•
Symptom: The Content Router returns an error instead of proxying the request from the origin server when a playback request for WMT content on the Content Router fully qualified domain name is redirected to a Content Engine. This happens if you use the Content Router for routing WMT content and the content is not yet replicated to a Content Engine.
Condition: This occurs in ACNS 5.0 software when the following circumstances ha
Guest
