Content Engine Management Configuration and Features

---

This chapter describes how to configure the Content Engine with the command-line interface (CLI) or graphical user interface (GUI). This chapter also provides a table with the list of the features supported by the Content Engine. This chapter contains the following sections:

•Content Engine Management Features

•Secure Shell Version 1 Support for Login

•System Logging

•Traceroute Support

•Standby Interface Support

•Cache Application Feature Set Table

Content Engine Management Features

You can configure the Cache application with the command-line interface (CLI) or with the Cache application graphical user interface (GUI). This guide contains mostly CLI configuration examples. However, GUI examples are shown whenever a feature requires them or to illustrate a feature through a screen capture.

For information on CLI commands, refer to the Cisco ACNS Software Command Reference, Release 4.2.

Logging On to the GUI

The GUI has separate online help for those Cache application features supported with the graphical management interface.

To connect to the GUI, perform the following steps.

---

Step 1 Start a web browser on a machine that has access to the network on which the Content Engine resides.

---

Note Be sure to enable Java, JavaScript, and Cascading Style Sheets on your Internet Explorer browser, or use the Netscape 4.0 or later browser.

---

Step 2 Open the URL with the cache IP address specified in the initial Cache application configuration. Append the default port number 8001. For example:

http://172.16.13.8:8001

You are prompted for a username and password. (See Figure 2-1.)

Figure 2-1 Cache Application GUI—Authentication Challenge

Step 3 Enter a correct username and password. The Content Engine returns the GUI home page, as shown in Figure 2-2.

If you forget your password, you must have another administrator reset your password. The password for the user admin is specified in the initial system configuration dialog.

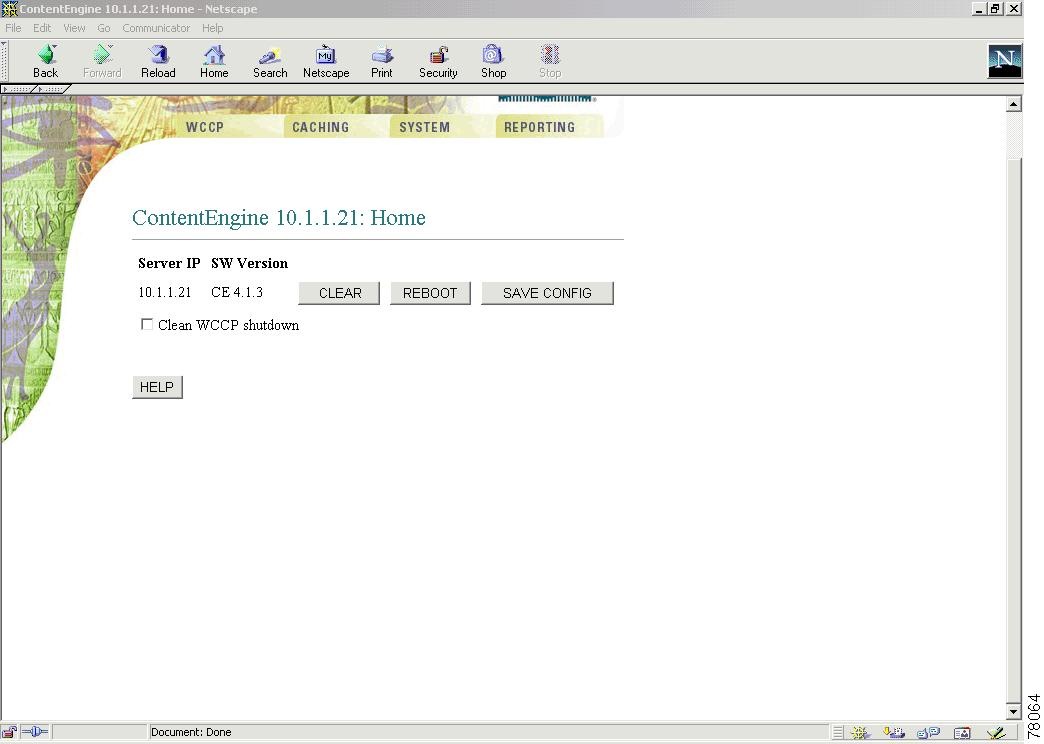

Figure 2-2 Cache Application GUI—Home Page

---

Administering Caching from the Cache Application GUI

Table 2-1 lists the Content Engine features that can be configured with the GUI (Figure 2-2).

Table 2-1 Content Engine GUI Tabs and Subtabs

Tabs	Subtabs	Description
WCCP	Enable WCCP	Enables WCCP on the Content Engine.
	Clustering	Sets parameters related to WCCP service clusters.
	Custom Web Cache	Configures custom web cache traffic on the Content Engine.
	Media Cache	Configures the Content Engine to cache HTTP traffic.
	Reverse Proxy	Configures reverse proxy service.
	Services	Configures multiple service groups.
	Web-Cache	Configures the Content Engine to cache standard web traffic.
	WMT-Streaming	Configures WMT streaming caching service.
Caching	Auth. cache	Configures cache authentication.
	Bypass	Configures traffic bypass.
	Cache on Abort	Configures cache on abort features when downloading is aborted.
	Content Preload	Configures content preloading.
	FTP Freshness	Configures FTP freshness factors.
	FTP Proxy	Configures FTP incoming and outgoing proxies. Proxy mode enables the Content Engine to operate in environments where WCCP is not enabled, or where client browsers have previously been configured to use a legacy FTP proxy server
	HTTP Freshness	Configures freshness factors for HTTP objects requested.
	HTTP Proxy	Configures HTTP incoming and outgoing proxies.
	HTTPS Proxy	Configures HTTPS incoming and outgoing proxies.
	ICP Client	Configure a Content Engine cluster to generate ICP queries before retrieving requested objects from the Internet.
	ICP Server	Configures a Content Engine to act as an ICP server.
	LDAP	Configures the Content Engine to use an LDAP server for authentication purposes.
	NTLM	Configures the Content Engine to use an NTLM server for authentication purposes.
	Persist. Connect.	Configures persistent connections on the Content Engine.
	Proxy Protocols	Configures the behavior of a Content Engine when it is intercepting requests sent to another proxy using WCCP in transparent mode.
	RADIUS	Configures the Content Engine to use a RADIUS server for authentication purposes.
	RealProxy	Enables RealProxy GUI Administration page.
	Transaction Logs	Configures transaction logging.
	URL Filtering	Configures URL filtering.
	WMT-Streaming	Enables WMT and configures WMT streaming parameters.
System	Authentication	Configures the way that the Content Engine authenticates and authorizes administrative user access.
	Basic Networking	Adjusts basic network settings for a Content Engine, such as default gateway and host name.
	DNS	Modifies Domain Name System (DNS) settings.
	Filesystem	Shows information about your currently configured file systems.
	NTP	Configures the Content Engine's time and date settings.
	Routing	Adds entries to the Content Engine's routing table.
	Rules Template	Configures the Rules Template on the Content Engine.
	SNMP	Configures SNMP parameters such as traps, host, and communities.
	Syslog	Configures the Content Engine to send varying levels of event messages to a syslog host.
	TACACS+	Configures the Content Engine to use a TACACS+ server for authentication purposes.
	TCP	Configures TCP parameters.
	Users	Adds, modifies, or deletes an administrative user.
Performance	Disk Stats	Displays general cache file system (cfs) disk statistics such as maximum disk storage and space used on disk.
	IMS Stats	Displays if-modified-since (IMS) request activity.
	Hardware Info	Displays hardware information on the Content Engine, such as model number, software version, and processing speed.
	Java Monitor	Monitors Content Engine resources, such as uptime, requests, and percentage of cache-hits.
	Performance	Displays Content Engine performance statistics, such as number of requests per second and object size.
	Requests	Displays statistics on miscellaneous HTTP request data, such as forced requests and server errors.
	Savings	Displays the number of requests that have been served by the Content Engine, and the savings incurred when the content is served from the Cache application.
	TCP	Displays TCP statistics, such as server and client connection openings.
	Usage	Displays Content Engine resource utilization statistics, such as CPU usage and number of HTTP requests.
	WMT-Streaming	Displays WMT statistics, such as active streams and savings.

Access to the Cache application GUI can be controlled with multiple levels of username and password access, and access can be restricted to a subset of IP addresses (hosts). These access controls are configured with the user command and the trusted-host command, which are the same commands that you use to configure access to the CLI.

---

Note Be sure to enable Java, JavaScript, and Cascading Style Sheets on your Internet Explorer browser, or use the Netscape 4.0 or later browser.

---

Secure Shell Version 1 Support for Login

Secure Shell (SSH) enables login access to the Content Engine through a secure and encrypted channel. SSH consists of a server and a client program. Like Telnet, you can use the client program to remotely log on to a machine that is running the SSH server, but unlike Telnet, messages transported between the client and the server are encrypted. The functionality of SSH includes user authentication, message encryption, and message authentication.

Before you enable the sshd command, use the ssh-key-generate command to generate a private and a public host key, which the client programs use to verify server's identity.

When a user runs an SSH client and logs in to the Content Engine, the public key for the SSH daemon running on the Content Engine is recorded in the client machine known_hosts file in the user's home directory. If the Content Engine administrator subsequently regenerates the host key by issuing the ssh-key-generate command, the user must delete the old public key entry associated with the Content Engine in the known_hosts file before running the SSH client program to log in to the Content Engine. When the user runs the SSH client program after deleting the old entry, the known_hosts file is updated with the new SSH public key for the Content Engine.

---

Note The Telnet daemon can still be used with the Content Engine. SSH does not replace Telnet.

---

This example generates an SSH public key and then enables the SSH service.

Console(config)# ssh-key-generate

Ssh host key generated successfully

Saving the host key to box ...

Host key saved successfully

Console(config)# sshd enable

Starting ssh daemon ...

Ssh daemon started successfully

System Logging

Use the logging command to set specific parameters for the system log file (syslog). This file contains authentication entries, settings of privilege levels and administrative details. System logging is always enabled internally. The system log file is located on the system file system (sysfs) partition as /local1/syslog.txt.

To configure the Content Engine to send varying levels of event messages to an external syslog host, use the logging host command. Logging can be configured to send various levels of messages to the console using the logging console priority option. (See Table 2-2.)

Table 2-2 Mapping of RealProxy Error Level to Syslog Priority Level

RealProxy Error Code	RealProxy Condition	RealProxy Usage	syslog Priority Level
0	Panic	Error potentially causing a system failure. RealSystem takes actions necessary to correct the problem.	Priority 0—LOG_EMERG, Emergency. System is unusable.
1	Severe	Error requiring immediate user intervention to prevent a problem.	Priority 1—LOG_ALERT, Alert. Immediate action needed.
2	Critical	Error that may require user intervention to correct.	Priority 2—LOG_CRI, Critical. Critical conditions.
3	General	Error that does not cause a significant problem with normal system operation.	Priority 3—LOG_ERR, Error. Error conditions.
4	Warning	Warning about a condition that does not cause system problems but may require attention.	Priority 4—LOG_WARNING Warning. Warning conditions.
5	Notice	Notice about a condition that does not cause system problems but should be noted.	5—LOG_NOTICE Notice. Normal but significant conditions.
6	Informational	Informational message only.	6—LOG_INFO Information. Informational messages.
7	Debug	Information of use only when debugging a program.	7—LOG_DEBUG Debug. Debugging messages.

---

Note In ACNS 4.2 software, syslog messages from the Content Engine to a remote host are sourced from port 10000 rather than port 514.

---

This example shows the last few lines of the syslog.txt file using the type-tail command, which only lists the last few lines of text in a file.

ContentEngine# type-tail syslog.txt

Jan 18 17:50:03 ContentEngine Host[3766]: authentication failure; (uid=0) -> aaHH for
content_engine_config service

Jan 18 17:50:05 ContentEngine login[3766]: Failed login session from 172.16.1.1 for user
aaHH:  Authentication service cannot retrieve authentication info.

Jan 18 18:39:05 ContentEngine Host[6787]: set privilege level to `0'

Jan 18 18:39:05 ContentEngine login: user login on 1 from 172.16.66.148

ContentEngine#

Mapping Syslog Priority Levels to RealProxy Error Codes

The RealProxy generates error messages and writes them to the RealProxy log file. (See the "Using the RealProxy Streaming Solution" section.) These error messages are captured by the Cache software and passed to the system log file. There is a one-to-one mapping correspondence between the RealProxy error codes and the syslog priority levels, as shown in Table 2-2.

Traceroute Support

Traceroute is a widely available utility on most operating systems today. Much like ping, it is a valuable tool for determining connectivity in a network. Ping allows the user to find out if there is a connection between two end systems. Traceroute does this as well, but additionally lists the intermediate routers between the two systems. Users can therefore see the routes that packets can take from one system to another.

Use the traceroute EXEC command to find the route to a remote host, where either the host name or IP address is known.

ContentEngine# traceroute yahoo.com

traceroute to 66.218.71.113 (66.218.71.113), 30 hops max, 38 byte packets

***

***

***

***

10  p3-3.paloalto-cr2.bbnplanet.net (4.0.26.13)  3.219 ms  2.001 ms  2.097 ms

11  p7-1.paloalto-nbr2.bbnplanet.net (4.0.6.77)  3.133 ms  1.949 ms  2.076 ms

12  p4-0.paloalto-nbr1.bbnplanet.net (4.0.5.65)  2.755 ms  2.204 ms  2.037 ms

13  p1-0.paix-bi2.bbnplanet.net (4.0.6.98)  2.928 ms  2.146 ms  2.334 ms

14  p1-0.xpaix17-level3.bbnplanet.net (4.0.1.70)  3.397 ms  3.631 ms  3.081 ms

15  gige10-0.ipcolo4.SanJose1.Level3.net (64.159.2.42)  3.334 ms  2.999 ms  2.388 ms

16  cust-int.level3.net (64.152.69.18)  3.871 ms  3.031 ms *

17  ge-3-3-0.msr1.pao.yahoo.com (216.115.101.42)  3.695 ms ge-2-3-0.msr2.pao.yahoo.com
(216.115.101.46)  6.998 ms *

18  vl16.bas1.scd.yahoo.com (66.218.64.146)  6.282 ms  5.091 ms  5.162 ms

19  w2.rc.scd.yahoo.com (66.218.71.113)  6.028 ms  5.782 ms  5.544 ms

ContentEngine#

Standby Interface Support

When an active network interface fails (because of cable trouble, Layer 2 switch failure, high error count, and so forth), and that interface is part of a standby group, a standby interface can become active and take the load off the failed interface.

To configure an interface to be a backup for another interface, use the standby command in interface configuration mode. Use the no form of the command to restore the default configuration of the interface.

To configure standby interfaces, interfaces are logically assigned to standby groups. The following rules define the standby group relationships:

•A standby group comprises two or more interfaces.

•The maximum number of standby groups on a Content Engine is four.

•Each interface is assigned a unique IP address, and each standby group is assigned a unique standby IP address, shared by all members of the group.

•Configure the duplex and speed settings of the standby group member interfaces for better reliability.

•Each interface in a standby group is assigned a priority. The operational interface with the highest priority in a standby group is the active interface. Only the active interface uses the group IP address.

•If the active interface fails, the operational interface in its standby group that is assigned the next highest priority becomes active.

•If all the members of a standby group fail and then one recovers, the ACNS software brings up the standby group on the operational interface.

•The priority of an interface in a standby group can be changed at runtime. The member interface that has the highest priority after this change becomes the new active interface (the default action is to preempt the currently active interface if an interface with higher priority exists).

The maximum number of errors allowed on the active interface before the interface is shut down and the standby is brought up is configured with the errors option, which is disabled by default.

---

Note Interface IP addresses and standby group IP addresses must be on different subnets to ensure reliable operation. You can use a dummy IP addresses in the private address space to serve as interface primary IP addresses, and use the real Content Engine IP address to serve as the standby group IP address in a different subnet to satisfy this requirement.

---

---

Note Make sure to configure the primary interface default gateway using the ip default-gateway global configuration command instead of the ip route command.

---

This example configures three interfaces to be part of the same standby group, with interface 3/0 as the active interface.

Console(config)# interface fastEthernet 3/0 standby 1 ip 172.16.10.10 255.255.254.0

Console(config)# interface fastEthernet 3/1 standby 1 ip 172.16.10.10 255.255.254.0

Console(config)# interface fastEthernet 3/2 standby 1 ip 172.16.10.10 255.255.254.0

Console(config)# interface fastEthernet 3/0 standby 1 priority 300

Console(config)# interface fastEthernet 3/1 standby 1 priority 200

Console(config)# interface fastEthernet 3/2 standby 1 priority 100

Console(config)# interface fastEthernet 3/0 standby 1 errors 10000

Console(config)# interface fastEthernet 3/1 standby 1 errors 10000

Console(config)# interface fastEthernet 3/2 standby 1 errors 10000

Cache Application Feature Set Table

Table 2-3 lists the principal features of the ACNS software Cache application, with the associated command-line interface (CLI) commands. Release notes may contain updates to this information.

Table 2-3 Cisco Cache Application Feature Set

Cisco Cache Software, Release 4.2 Feature	Related CLI Commands	Section and Page
Cache parameter settings
Caching of authenticated content	http cache-authenticated	Caching of Authenticated Content
Cache freshness	http min-ttl http max-ttl http age-multiplier http reval-each-request	Cache Freshness
Caching of binary content with cookies	http cache-cookies	Caching of Binary Content with Cookies
Object size capping	http object	Maximum Object Size
Selective abort of object downloading on client-abort (also called "quick_abort")	http cache-on-abort	Aborting Selected Objects
HTTP Range request caching	http cache-on-abort	Caching of HTTP Range Requests
Caching entire objects under Range requests	http smart-range	Caching Entire Objects Under Range Requests
Transparent caching
Transparency through WCCP	wccp version 2 wccp router-list	Transparent Caching Through WCCP
Authentication bypass	bypass auth-traffic bypass timer	Authentication Traffic Bypass
Dynamic bypass	bypass auth-traffic bypass timer	Dynamic Traffic Bypass
Overload bypass	bypass load	Overload Bypass
Static bypass	bypass static	Static Bypass
Multiport transparent redirection	proxy-protocols wccp port-list wccp service-number	Multiport Transparent Redirection
WCCP flow protection	wccp slow-start wccp flow-redirect	WCCP Flow Protection
IP spoofing	wccp spoof-client-ip enable	IP Spoofing
Accelerated WCCP Layer 2 support	wccp custom-web-cache wccp media-cache wccp reverse-proxy wccp service-number wccp web-cache	Accelerated WCCP Layer 2 Support
Transparent caching with the Cisco CSS 11000 series switch	http l4-switch enable	Configuring Transparent Caching with the Cisco CSS 11000 Series Switch
Proxy-style caching (nontransparent operation)
HTTP proxy caching	http proxy incoming	HTTP Proxy Caching
FTP proxy caching	ftp proxy incoming	FTP Proxy Caching
SSL tunneling	https proxy incoming	SSL Tunneling
Reverse proxy caching
Reverse proxy through WCCP	wccp reverse-proxy	Configuring Reverse Proxy Service Based on WCCP
Reverse proxy based on Layer 4 switch	http l4-switch enable	Configuring Reverse Proxy Service Based on a Layer 4 Switch
Cache hierarchy
Parent proxy failover	http proxy outgoing	Configuring Primary Proxy Failover
Handling proxy-style requests	http proxy outgoing proxy-protocols	Handling Proxy-Style Requests
ICP	icp client icp server	Internet Cache Protocol
Streaming media splitting and caching
Transparent caching and Microsoft Windows Media Technologies (WMT) 7.01	disk config sysfs partitionsize mediafs partitionsize wmt enable	Enabling Transparent WMT Service Using WCCP-Enabled Routers
Proxy caching and Microsoft Windows Media Technologies (WMT) 7.01	disk config sysfs partitionsize mediafs partitionsize wmt enable	Enabling Conventional WMT Proxy Service
WMT multicasting	wmt multicast wmt broadcast	Configuring WMT Multicasting
Transparent caching and RealProxy 8.01 support	disk config sysfs partitionsize mediafs partitionsize rtsp proxymedia-real enable	Enabling Transparent Caching of RTSP Traffic Using WCCP-Enabled Routers
Proxy caching and RealProxy 8.01 support	disk config sysfs partitionsize mediafs partitionsize rtsp proxy sysfs partitionsize media-real enable	Enabling Conventional Proxy Caching of RTSP Traffic
Employee Internet management
URL filtering	url-filter url-filter bad-sites-deny	URL Filtering Overview
N2H2 filtering	url-filter N2H2 server url-filter N2H2 allowmode	URL Filtering with the N2H2 Server
Websense enterprise server filtering	url-filter websense enable url-filter websense server	URL Filtering with the Websense Enterprise Server
SmartFilter filtering	url-filter smartfilter	URL Filtering with SmartFilter Software
Rules Template
Rules Template	rule enable	Rules Template Overview
User authentication
User authentication configuration	authentication login authentication configuration	User Authentication and Authorization
TACACS+ authentication	authentication login authentication configuration tacacs	TACACS+ Authentication
Microsoft NT LAN Manager (NTLM) authentication	http cache-authenticated ntlm server http authenticate-strip-ntlm	NTLM Authentication
RADIUS authentication	authentication login authentication configuration http authentication cache http authentication header radius-server	RADIUS HTTP Request Authentication
LDAP authentication	http authentication cache http authentication header ldap server	LDAP HTTP Request Authentication
Using access lists	access-lists enable	Group Authentication Using Access Control Lists
Logging
Squid-style transaction logging	transaction-logs format squid	Squid-Style Transaction Logging
Extended Squid transaction logging	transaction-logs format extended-squid	Extended Squid-Style Transaction Logging
Apache-style transaction logging	transaction-logs format apache	Apache-Style Transaction Logging
Sanitized transaction logs	transaction-logs sanitize	Sanitized Transaction Logs
Exporting log files	transaction-logs export enable transaction-logs export ftp-server	Exporting Log Files
Network management
SNMP agent support	snmp-server community	Key SNMP CLI Commands
SNMP traps	snmp-server enable traps snmp-server host	Configuring SNMP Traps
CiscoWorks2000 syslog format	logging cw2k	Using CiscoWorks2000
Cisco Discovery Protocol	interface FastEthernet 0/0 cdp enable	Using Cisco Discovery Protocol
TCP stack parameters
User-configurable TCP parameters	tcp	Configuring TCP Parameters Using the Content Engine GUI and CLI
TCP-over-satellite extensions	tcp client-satellite tcp server-satellite	TCP-Over-Satellite Extensions
Miscellaneous features
Boomerang agent	boomerang dns enable	Configuring the Content Engine as a Content Routing Agent
Browser autoconfiguration	proxy-auto-config	Browser Autoconfiguration
Healing mode	http cluster http cluster misses http cluster max-delay http cluster http-port	Configuring Healing Mode
Content preloading	pre-load enable pre-load url-list-file pre-load resume pre-load max-bandwidth	Content Preloading
