Displaying GSS Global Server Load-Balancing Statistics

---

This chapter describes the following tools for displaying the status of global server load balancing on your GSS network:

•CLI-based commands that display the content routing and global server load-balancing statistics performed by a GSS device (primary GSSM, standby GSSM, and GSS device).

•Monitor pages in the primary GSSM GUI that display the status of global server load-balancing activity for all GSS devices in your GSS network.

This chapter contains the following major sections:

•Displaying Global Server Load-Balancing Statistics from the CLI

•Displaying Global Server Load-Balancing Statistics from the GUI

Displaying Global Server Load-Balancing Statistics from the CLI

Each GSS device includes a comprehensive set of show statistics CLI commands to display content routing and load-balancing statistics for each major component involved in the GSS global server load-balancing operation. The GSS global server load-balancing components include boomerang (CRAs), DNS, and VIP keepalives. For example, the show statistics dns command can be used to display the traffic handled by a particular DNS rule, which matches a D-proxy to an answer, or to analyze the traffic to a particular hosted domain that is managed by a GSS.

You can also display advanced traffic management functions such as DNS sticky and network proximity for the GSS device.

The following sections provide detailed instructions about using the output of the various show statistics command options to display GSS global server load-balancing operation.

•Displaying the Status of the Boomerang Server on a GSS

•Displaying the Status of the DNS Server on a GSS

•Displaying the Status of Keepalives on a GSS

•Displaying Keepalive Answer Type Statistics

•Displaying DNS Sticky Statistics on a GSS

•Clearing GSS Global Server Load-Balancing Statistics

Displaying the Status of the Boomerang Server on a GSS

The boomerang server component uses calculations of network delay, provided by DNS races between content routing agents (CRAs), to determine which server is best able to respond to a given request. Use the show statistics boomerang command to display boomerang activity such as DNS races on your GSS device on a domain-by-domain basis or on a global basis.

The syntax for the show statistics boomerang command is:

show statistics boomerang {domain domain_name | global}

The options and variables are:

•domain—Displays statistics related to a named domain being served by the GSS.

•domain_name—Specifies the name of the domain.

•global—Displays statistics across the entire GSS network for the Boomerang server.

This example shows how to displays statistics across the entire GSS network for the boomerang server:

gss1.yourdomain.com# show statistics boomerang global

Boomerang global statistics:

        Total races: 24

This example shows how to displays boomerang statistics for a specific domain:

gss1.yourdomain.com# show statistics boomerang domain1

Domain statistics: (of domain1)

        DNS A requests:

Displaying the Status of the DNS Server on a GSS

The DNS server component tracks all DNS-related traffic to and from your GSS device, including information about DNS queries received, responses sent, queries dropped and forwarded. Use the show statistics dns command option to display DNS statistics about your GSS request routing and server load-balancing components such as DNS rules, answers, answer groups, domains, domain lists, proximity lookups by rule name or zone, source addresses, and source address groups.

When displaying the DNS answer group, domain list, or source address list statistics, you may specify the verbose option to display detailed statistics about each component of your DNS rules (for example, statistics for each answer that makes up an answer group or each domain that makes up a domain list).

This section contains the following procedures:

•Displaying Answer Statistics

•Displaying Answer Group Statistics

•Displaying Domain Statistics

•Displaying Domain List Statistics

•Displaying Global Statistics

•Displaying DNS Rule Proximity Statistics

•Displaying DNS Rule Statistics

•Displaying Source Address Statistics

•Displaying Source Address List Statistics

•Displaying DNS Rule Sticky Statistics

Displaying Answer Statistics

Use the show statistics dns answer command to display the accumulated hit count for each configured answer that responds to content queries. The statistics also include the per second average hit count calculated during the last-minute, a 5-minute interval, a 30-minute interval, and a 4-hour interval.

The syntax for the command is:

show statistics dns answer {list | answer_name}

The options and variables are:

•list—Lists the names of all answers configured for the GSS.

•answer_name—Specifies the name of the answer that you want to display statistics.

Table 12-1 describes the fields in the show statistics dns answer command output.

Table 12-1 Field Descriptions for show statistics dns answer
Command

Field	Description
Answer	Name of the answer. Depending on the type of answer, the GSS displays: •The VIP address of the answer (VIP-type answer) •Interface or circuit address (CRA-type answer) •The IP address of the name server (Name Server-type answer)
Type	Resources to which the GSS resolves DNS requests. The answer types include: VIP, CRA, or Name Server (NS).
Total Hits	Total number of hits for the configured answer since the GSS was last started or statistics cleared.
1-Min	Averaged per second hit count for the answer, calculated during the last minute.
5-Min	Averaged per second hit count for the answer, calculated during the last 5-minute interval.
30-Min	Averaged per second hit count for the answer, calculated during the last 30-minute interval.
4-Hr	Averaged per second hit count for the answer, calculated during the last 4-hour interval.

Displaying Answer Group Statistics

Use the show statistics dns answer-group command to display the total hit count for each configured answer group and the answers contained in the answer group.

The syntax for the command is:

show statistics dns answer-group {list | group_name [verbose]}

The options and variables are:

•list—Lists the names of all answer groups configured for the GSS.

•group_name—Specifies the name of the answer group that you want to display statistics.

•verbose—Allows you to display detailed statistics for each answer that makes up an answer group.

Table 12-2 describes the fields in the show statistics dns answer-group verbose command output.

Table 12-2 Field Descriptions for show statistics dns answer-group verbose Command

Field	Description
Total Hit Count	Accumulated hit count for the configured answer group since the GSS was last started.
Answer	Name of each answer in the answer group. Depending on the type of answer, the GSS displays: •The VIP address of the answer (VIP-type answer) •Interface or circuit address (CRA-type answer) •The IP address of the name server (Name Server-type answer)
Hit Count	Number of times the answer has been selected or matched in the DNS rule when the GSS processes a DNS request.
Status	Indicates whether the answer is online (up) or offline (down).

Displaying Domain Statistics

Use the show statistics dns domain command to display the accumulated hit count for each configured host domain. The statistics also include the per-second average hit count calculated during the last minute, a 5-minute interval, a 30-minute interval, and a 4-hour interval.

The syntax for the command is:

show statistics dns domain {list | domain_name}

The options and variables are:

•list—Lists the names of all domains configured for the GSS.

•domain_name—Specifies the name of the domain that you want to display statistics.

Table 12-3 describes the fields in the show statistics dns domain command output.

Table 12-3 Field Descriptions for show statistics dns domain
Command

Field	Description
Domain	Name of the hosted domain
Total Hits	Total number of hits for the specified hosted domain since the GSS was last started
1-Min	Averaged per second hit count for the hosted domain, calculated during the last minute
5-Min	Averaged per second hit count for the hosted domain, calculated during the last 5-minute interval
30-Min	Averaged per second hit count for the hosted domain, calculated during the last 30-minute interval
4-Hr	Averaged per second hit count for the hosted domain, calculated during the last 4-hour interval

Displaying Domain List Statistics

Use the show statistics dns domain-list command to display the total accumulated hit count for each configured domain list.

The syntax for the command is:

show statistics dns domain-list {list | domain_list_name [verbose]}

The options and variables are:

•list—Lists the names of all domains configured for the GSS.

•domain_list_name—Specifies the name of the domain list that you want to display statistics.

•verbose—Allows you to display detailed statistics for each domain that makes up a domain list.

Table 12-4 describes the fields in the show statistics dns domain-list verbose command output.

Table 12-4 Field Descriptions for show statistics dns domain-list verbose Command

Field	Description
Total Hit Count	Accumulated hit count for the hosted domain since the GSS was last started or statistics cleared
Domain Name	Name of the hosted domain in the domain list
Hit Count	Number of times the hosted domain has been selected or matched in the DNS rule when the GSS processes a DNS request

Displaying Global Statistics

Use the show statistics dns global command to display general DNS statistics for the GSS device in use.

The syntax for the command is:

show statistics dns global

Table 12-5 describes the fields in the show statistics dns global command output.

Table 12-5 Field Descriptions for show statistics dns global
Command

Field	Description
DnsQueriesRcvd	Total number of DNS queries received by the GSS from a requesting client D-proxy
DnsHostAddrQueriesRcvd	Total number of host address queries received by the GSS from a requesting client D-proxy
DnsResponsesSent	Total number of DNS responses sent by the GSS to a requesting client D-proxy
DnsResponsesNoError	Total number of DNS responses sent by the GSS to a requesting client D-proxy without an error
DnsResponsesErrors	Total number of DNS responses sent by the GSS to a requesting client D-proxy with an error
DnsServfailRCode	DNS server failure return code
DnsNxdomainRCode	DNS NX domain return code
DnsNotimpRCode	DNS not implemented return code
DnsRefusedRCode	DNS refused return code
DnsQueriesUnmatched	Total number of unmatched DNS queries received by the GSS from a requesting client D-proxy
DnsDrops	Total number of DNS queries dropped by the GSS
DnsNSFWDSent	Total number of queries that do not match domains on any GSS domain lists and have been forwarded by the GSS to an external DNS name server for resolution
DnsBoomServReqSent	Total number of requests sent by the boomerang server in the GSS to initiate a DNS race
DnsNSFWDResponsesRcvd	Total number of queries that have been forwarded to the GSS to an external DNS name server for resolution
DnsProxLkupReqSent	Total number of proximity lookup requests sent by the selector to the proximity subsystem
DnsProxLkupRespRecd	Total number of proximity lookup requests received by the selector from the proximity subsystem
DnsReqRatePerSecondCur	Current request rate per second that requests are made to the GSS to perform a DNS resolution
DnsReqRatePerSecondPeak	Peak request rate per second that requests are made to the GSS to perform a DNS resolution
DnsStickyLkupReqSent	Total number of sticky lookup requests sent by the selector to the sticky subsystem
DnsStickyAddReqSent	Total number of requests for IP addresses sent by the selector to the sticky subsystem
DnsStickyHit	Total number of successful sticky answer matches for the DNS rule
DnsStickyMiss	Total number of times the GSS was unable to provide the sticky answer for the DNS rule
DnsSrcPortErrorUdp	Total number of UDP errors that occurred on the DNS source port
DnsSrcPortErrorTcp	Total number of TCP errors that occurred on the DNS source port
DnsPollSocketError	Total number of socket connection errors

Displaying DNS Rule Proximity Statistics

Use the show statistics dns proximity rule command to display all proximity lookups by DNS rule name.

---

Note To clear proximity statistics related to the DNS server component of the GSS, use the clear statistics dns command. See the "Clearing GSS Global Server Load-Balancing Statistics" section for details.

---

The syntax for the command is:

show statistics dns proximity rule

Table 12-6 describes the fields in the show statistics dns proximity rule command output.

Table 12-6 Field Descriptions for show statistics dns proximity rule Command

Field	Description
Rule	Name of the matched DNS rule
Proximity Hit Count	Number of DNS requests that match the DNS rule
Proximity Success Count	Number of DNS responses successfully returned with a proximate answer for the DNS rule

Displaying DNS Rule Statistics

Use the show statistics dns rule command to display the total hit count and success count for each configured DNS rule.

The syntax for the command is:

show statistics dns rule {list | rule_name}

The options and variables are:

•list—Lists the names of all DNS rules configured for the GSS.

•rule_name—Specifies the name of the DNS rule that you want to display statistics.

Table 12-7 describes the fields in the show statistics dns rule command output.

Table 12-7 Field Descriptions for show statistics dns rule Command

Field	Description
Total Hit Count	Accumulated hit count for the configured DNS rule since the GSS was last started.
Total Success Count	Accumulated number of successful answer matches for the DNS rule.
Clause	Number of the balance clause in the DNS rule.
Hit Count	Number of times the DNS rule processed a DNS request.
Success Count	Number of successful answer matches for the DNS rule.
Id	Internal ID number of the answer in the DNS rule.
Address	Name of the answer. Depending on the type of answer, the GSS displays: •The VIP address of the answer (VIP-type answer) •Interface or circuit address (CRA-type answer) •The IP address of the name server (Name Server-type answer)
Hit Count	Number of times the answer has been selected or matched in the DNS rule when the GSS processes a DNS request.

Displaying Source Address Statistics

Use the show statistics dns source-address command to display the accumulated hit count for each configured source address. The statistics also includes the per-second average hit count calculated during the last-minute, a 5-minute interval, a 30-minute interval, and a 4-hour interval.

The syntax for the command is:

show statistics dns source-address {list | sa_name}

The options and variables are:

•list—Lists the names of all source addresses configured for the GSS.

•sa_name—Specifies the name of the source address that you want to display statistics.

Table 12-8 describes the fields in the show statistics dns source-address command output.

Table 12-8 Field Descriptions for show statistics dns source-address Command

Field	Description
Src Address	IP address or CIDR address block of the client DNS proxy
Total Hits	Total number of hits for the source address since the GSS was last started or statistics cleared
1-Min	Averaged per second hit count for the source address, calculated during the last minute
5-Min	Averaged per second hit count for the source address, calculated during the last 5-minute interval
30-Min	Averaged per second hit count for the source address, calculated during the last 30-minute interval
4-Hr	Averaged per second hit count for the source address, calculated during the last 4-hour interval

Displaying Source Address List Statistics

Use the show statistics dns source-address-list command to display the total hit count for each configured source address list. The statistics also include the last minute average, 5-minute average, 30-minute average, and 4-hour average of the hit counts.

The syntax for the command is:

show statistics dns source-address-list {list | sa_list_name [verbose]}

The options and variables are:

•list—Lists the names of all source addresses.

•sa_list_name—Specifies the name of the source address list that you want to display statistics.

•verbose—Allows you to display detailed statistics for each name in the source address list.

Table 12-9 describes the fields in the show statistics dns source-address-list command output.

Table 12-9 Field Descriptions for show statistics dns source-address-list verbose Command

Field	Description
Total Hit Count	Accumulated hit count for the configured source address list since the GSS was last started or statistics cleared
Source Address	IP address or CIDR address block of the client DNS proxy
Hit Count	Number of times the source address has been selected or matched in the DNS rule when the GSS processes a DNS request

Displaying DNS Rule Sticky Statistics

Use the show statistics dns sticky rule command to display all DNS sticky lookups by DNS rule name.

---

Note To clear sticky statistics related to the DNS server component of the GSS, use the clear statistics dns command. See the "Clearing GSS Global Server Load-Balancing Statistics" section for details.

---

The syntax for the command is:

show statistics dns sticky rule

Table 12-10 describes the fields in the show statistics dns sticky rule command output.

Table 12-10 Field Descriptions for show statistics dns sticky rule Command

Field	Description
Rule	Name of the matched DNS rule
Sticky Hit Count	Total number of lookups in the sticky database for the DNS rule
Sticky Success Count	Total number of successful sticky answer matches for the DNS rule

Displaying the Status of Keepalives on a GSS

The keepalive engine on each GSS device monitors the current online status of the configured keepalives managed by the GSS. You can display statistics for all keepalive types on your network, or limit statistics to a specific keepalive type, such as CRA, HTTP HEAD, ICMP, KAL-AP, name server, or TCP.

Use the show statistics keepalive command option to display statistics about the health of your GSS keepalives globally or by keepalive type.

This section contains the following procedures:

•Displaying CRA Keepalive Statistics

•Displaying Global Keepalive Statistics

•Displaying HTTP HEAD Keepalive Statistics

•Displaying ICMP Keepalive Statistics

•Displaying KAL-AP Keepalive Statistics

•Displaying Name Server Keepalive Statistics

•Displaying TCP Keepalive Statistics

•Displaying Keepalive Answer Type Statistics

Displaying CRA Keepalive Statistics

Use the show statistics keepalive cra command to display statistics for configured content routing agent (CRA) keepalive types managed by the GSS and used with boomerang-type answers.

The syntax for the command is:

show statistics keepalive cra {ip_address | all | list}

The options and variables are:

•ip_address—Specifies the IP address to display keepalive statistics.

•all—Displays all configured CRA-type keepalives.

•list—Lists all available IP addresses.

Table 12-11 describes the fields in the show statistics keepalive cra all command output.

Table 12-11 Field Descriptions for show statistics keepalive cra all Command

Field	Description
IP	IP address of the answer resource probed by the GSS.
Keepalive	Name assigned to the answer.
Status	State of the keepalive. The possible states are Online, Offline, Init, and Suspended.
One Way Delay	One-way delay time, in milliseconds, used by the GSS to calculate a static round-trip time (RTT), with the one-way delay constituting one-half of the round-trip time that is used for all DNS races involving this answer.
Packets Sent	Total number of keepalive packets sent to the answer by the GSS.
Packets Received	Total number of keepalive packets received by the GSS from the answer.
Positive Probe	Total number of keepalive probes sent to the answer that resulted in a positive (OK) response.
Negative Probe	Total number of keepalive probes sent to the answer that resulted in a negative response.
Transitions	Total number of keepalive transitions (for example, from Init to Online state) experienced by the keepalive.
GID	Global ID number used by the GSS.
LID	Local ID number used by the GSS.

Displaying Global Keepalive Statistics

Use the show statistics keepalive global command to display all keepalive statistics managed by the GSS device.

The syntax for the command is:

show statistics keepalive global

Table 12-12 describes the fields in the show statistics keepalive global command output.

Table 12-12 Field Descriptions for show statistics keepalive global
Command

Field	Description
ICMP Probe Success Count	Number of ICMP queries sent to the answer that resulted in a successful response
ICMP Probe Failure Count	Number of ICMP queries sent to the answer that resulted in a failure
ICMP 'echo request' packets sent	Number of ICMP echo request messages sent to the answer
ICMP 'echo reply' packets received	Number of ICMP echo reply messages received by the GSS from the answer
Configured ICMP Probe Count	Number of configured ICMP probes sent to the answer
ONLINE ICMP Probe Count	Number of ICMP probes sent to the answer that returned an Online state for the keepalive
OFFLINE ICMP Probe Count	Number of ICMP probes sent to the answer that returned an Offline state for the keepalive
SUSPENDED ICMP Probe Count	Number of ICMP probes sent to the answer that returned a Suspended state for the keepalive
INIT ICMP Probe Count	Number of ICMP probes sent to the answer that returned an Init state for the keepalive
DNS Probe Success Count	Number of DNS request probes sent by the GSS that resulted in a successful response
DNS Probe Failure Count	Number of DNS request probes sent by the GSS that resulted in a failure
DNS packets sent	Number of DNS request packets sent by the GSS
DNS packets received	Number of DNS request packets received by the GSS
Configured DNS Probe Count	Number of DNS request probes sent by the GSS
ONLINE DNS Probe Count	Number of DNS request probes sent that returned an Online state for the keepalive
OFFLINE DNS Probe Count	Number of DNS request probes that returned an Offline state for the keepalive
SUSPENDED DNS Probe Count	Number of DNS request probes sent that returned a Suspended state for the keepalive
INIT DNS Probe Count	Number of DNS request probes sent that returned an Init state for the keepalive
KAL-AP Probe Success Count	Number of KAL-AP queries sent to the answer that resulted in a successful response
KAL-AP Probe Failure Count	Number of KAL-AP queries sent to the answer that resulted in a failure
KAL-AP packets sent	Number of KAL-AP packets sent to the answer
KAL-AP packets received	Number of KAL-AP packets received by the GSS from the answer
Configured KAL-AP Probe Count	Number of configured KAL-AP probes sent to the answer
ONLINE KAL-AP Probe Count	Number of KAL-AP probes sent to the answer that returned an Online state for the keepalive
OFFLINE KAL-AP Probe Count	Number of KAL-AP probes sent to the answer that returned an Offline state for the keepalive
SUSPENDED KAL-AP Probe Count	Number of KAL-AP probes sent to the answer that returned a Suspended state for the keepalive
INIT KAL-AP Probe Count	Number of KAL-AP probes sent to the answer that returned an Init state for the keepalive
CRA Probe Success Count	Number of CRA queries sent to the answer that resulted in a successful response
CRA Probe Failure Count	Number of CRA queries sent to the answer that resulted in a failure
CRA packets sent	Number of CRA packets sent to the answer
CRA packets received	Number of CRA packets received by the GSS from the answer
Configured CRA Probe Count	Number of configured CRA probes sent to the answer
ONLINE CRA Probe Count	Number of CRA probes sent to the answer that returned an Online state for the keepalive
OFFLINE CRA Probe Count	Number of KAL-AP probes sent to the answer that returned an Offline state for the keepalive
SUSPENDED CRA Probe Count	Number of KAL-AP probes sent to the answer that returned a Suspended state for the keepalive
INIT CRA Probe Count	Number of KAL-AP probes sent to the answer that returned an Init state for the keepalive
HTTP-HEAD Probe Success Count	Number of HTTP-HEAD queries sent to the answer that resulted in a successful response
HTTP-HEAD Probe Failure Count	Number of HTTP-HEAD queries sent to the answer that resulted in a failure
HTTP-HEAD packets sent	Number of HTTP-HEAD packets sent to the answer
HTTP-HEAD packets received	Number of HTTP-HEAD packets received by the GSS from the answer
Configured HTTP-HEAD Probe Count	Number of configured HTTP-HEAD probes sent to the answer
ONLINE HTTP-HEAD Probe Count	Number of HTTP-HEAD probes sent to the answer that returned an Online state for the keepalive
OFFLINE HTTP-HEAD Probe Count	Number of HTTP-HEAD probes sent to the answer that returned an Offline state for the keepalive
SUSPENDED HTTP-HEAD Probe Count	Number of HTTP-HEAD probes sent to the answer that returned a Suspended state for the keepalive
INIT HTTP-HEAD Probe Count	Number of HTTP-HEAD probes sent to the answer that returned an Init state for the keepalive
TCP Probe Success Count	Number of TCP queries sent to the answer that resulted in a successful response
TCP Probe Failure Count	Number of TCP queries sent to the answer that resulted in a failure
TCP packets sent	Number of TCP packets sent to the answer
TCP packets received	Number of TCP packets received by the GSS from the answer
Configured TCP Probe Count	Number of configured TCP probes sent to the answer
ONLINE TCP Probe Count	Number of TCP probes sent to the answer that returned an Online state for the keepalive
OFFLINE TCP Probe Count	Number of TCP probes sent to the answer that returned an Offline state for the keepalive
SUSPENDED TCP Probe Count	Number of TCP probes sent to the answer that returned a Suspended state for the keepalive
INIT TCP Probe Count	Number of TCP probes sent to the answer that returned an Init state for the keepalive
Total Configured Probe Count	Total number of configured keepalive probes

Displaying HTTP HEAD Keepalive Statistics

Use the show statistics keepalive http-head command to display statistics for configured HTTP HEAD keepalive types managed by the GSS and used with VIP-type answers.

The syntax for the command is:

show statistics keepalive http-head {ip_address | all | list}

The options and variables are:

•ip_address—Specifies the IP address to display keepalive statistics.

•all—Displays all configured HTTP HEAD-type keepalives.

•list—Lists all available IP addresses.

Table 12-13 describes the fields in the show statistics keepalive http-head all command output.

Table 12-13 Field Descriptions for show statistics keepalive http-head all Command

Field	Description
IP	IP address of the answer resource probed by the GSS.
Keepalive	IP address of the keepalive target.
Status	State of the keepalive. The possible states are Online, Offline, Init, and Suspended.
Keepalive Type	The Standard or Fast KAL-AP keepalive transmission rate used to define the failure detection time for the GSS.
Destination Port	Port on the remote device receiving the HTTP HEAD-type keepalive request from the GSS.
HTTP Path	Default path that is relative to the server website being queried in the HTTP HEAD request.
Host Tag	Domain name that is sent to the VIP as part of the HTTP HEAD query in the Host tag field of the shared keepalive configuration.
Packets Sent	Total number of keepalive packets sent to the answer by the GSS.
Packets Received	Total number of keepalive packets received by the GSS from the answer.
Positive Probe	Total number of keepalive probes sent to the answer that resulted in a positive (OK) response.
Negative Probe	Total number of keepalive probes sent to the answer that resulted in a negative response.
Transitions	Total number of keepalive transitions (for example, from Init to Online state) experienced by the keepalive.
GID	Global ID number used by the GSS.
LID	Local ID number used by the GSS.

Displaying ICMP Keepalive Statistics

Use the show statistics keepalive icmp command to display statistics for configured ICMP keepalive types managed by the GSS and used with VIP-type answers.

The syntax for the command is:

show statistics keepalive icmp {ip_address | all | list}

The options and variables are:

•ip_address—Specifies the IP address to display keepalive statistics.

•all—Displays all configured ICMP-type keepalives.

•list—Lists all available IP addresses.

Table 12-14 describes the fields in the show statistics keepalive icmp all command output.

Table 12-14 Field Descriptions for show statistics keepalive icmp all Command

Field	Description
IP	IP address of the answer resource probed by the GSS.
Keepalive	IP address of the keepalive target.
Status	State of the keepalive. The possible states are Online, Offline, Init, and Suspended.
Keepalive Type	The Standard or Fast KAL-AP keepalive transmission rate used to define the failure detection time for the GSS.
Packets Sent	Total number of keepalive packets sent to the answer by the GSS.
Packets Received	Total number of keepalive packets received by the GSS from the answer.
Positive Probe	Total number of keepalive probes sent to the answer that resulted in a positive (OK) response.
Negative Probe	Total number of keepalive probes sent to the answer that resulted in a negative response.
Transitions	Total number of keepalive transitions (for example, from Init to Online state) experienced by the keepalive.
GID	Global ID number used by the GSS.
LID	Local ID number used by the GSS.

Displaying KAL-AP Keepalive Statistics

Use the show statistics keepalive kalap command to display statistics for configured KAL-AP keepalive types managed by the GSS and used with VIP-type answers.

The syntax for the command is:

show statistics keepalive kalap {ip_address | all | list}

The options and variables are:

•ip_address—Specifies the IP address to display keepalive statistics.

•all—Displays all configured KAL-AP-type keepalives.

•list—Lists all available IP addresses.

Table 12-15 describes the fields in the show statistics keepalive kalap all command output.

Table 12-15 Field Descriptions for show statistics keepalive kalap all
Command

Field	Description
IP	IP address of the answer resource probed by the GSS.
Keepalive	IP address of the keepalive target.
Status	State of the keepalive. The possible states are Online, Offline, Init, and Suspended.
Keepalive Type	The Standard or Fast KAL-AP keepalive transmission rate used to define the failure detection time for the GSS.
Tag	Alphanumeric tag associated with the VIP in the KAL-AP request.
Primary Circuit	Primary (master) IP address.
Secondary Circuit	Secondary (backup) IP address.
Load	Load threshold value used to determine whether an answer is available, regardless of the balance method used.
Circuit Transitions	Number of times the circuit changed state.
VIP Failovers	Number of times the VIP switched to or from the primary DNS server and the secondary DNS server.
Packets Sent	Total number of keepalive packets sent to the answer by the GSS.
Packets Received	Total number of keepalive packets received by the GSS from the answer.
Positive Probe	Total number of keepalive probes sent to the answer that resulted in a positive (OK) response.
Negative Probe	Total number of keepalive probes sent to the answer that resulted in a negative response.
Transitions	Total number of keepalive transitions (for example, from Init to Online state) experienced by the keepalive.
GID	Global ID number used by the GSS.
LID	Local ID number used by the GSS.

Displaying Name Server Keepalive Statistics

Use the show statistics keepalive ns command to display statistics for configured name server (NS) keepalive types managed by the GSS and used with name server type answers.

The syntax for the command is:

show statistics keepalive ns {ip_address | all | list}

The options and variables are:

•ip_address—Specifies the IP address to display keepalive statistics.

•all—Displays all configured name server-type keepalives.

•list—Lists all available IP addresses.

Table 12-16 describes the fields in the show statistics keepalive ns all command output.

Table 12-16 Field Descriptions for show statistics keepalive ns all
Command

Field	Description
IP	IP address of the answer resource probed by the GSS.
Keepalive	IP address of the keepalive target.
Status	State of the keepalive. The possible states are Online, Offline, Init, and Suspended.
Domain	Globally defined domain name that the GSS queries when utilizing the NS keepalive.
Packets Sent	Total number of keepalive packets sent to the answer by the GSS.
Packets Received	Total number of keepalive packets received by the GSS from the answer.
Positive Probe	Total number of keepalive probes sent to the answer that resulted in a positive (OK) response.
Negative Probe	Total number of keepalive probes sent to the answer that resulted in a negative response.
Transitions	Total number of keepalive transitions (for example, from Init to Online state) experienced by the keepalive.
GID	Global ID number used by the GSS.
LID	Local ID number used by the GSS.

Displaying TCP Keepalive Statistics

Use the show statistics keepalive tcp command to display statistics for configured TCP keepalive types managed by the GSS and used with VIP-type answers.

The syntax for the command is:

show statistics keepalive tcp {ip_address | all | list}

The options and variables are:

•ip_address—Specifies the IP address to display keepalive statistics.

•all—Displays all configured TCP-type keepalives.

•list—Lists all available IP addresses.

Table 12-17 describes the fields in the show statistics keepalive tcp all command output.

Table 12-17 Field Descriptions for show statistics keepalive tcp all
Command

Field	Description
IP	IP address of the answer resource probed by the GSS.
Keepalive	IP address of the keepalive target.
Status	State of the keepalive. The possible states are Online, Offline, Init, and Suspended.
Keepalive Type	The Standard or Fast KAL-AP keepalive transmission rate used to define the failure detection time for the GSS.
Destination Port	Port on the remote device receiving the TCP keepalive request.
Packets Sent	Total number of keepalive packets sent to the answer by the GSS.
Packets Received	Total number of keepalive packets received by the GSS from the answer.
Positive Probe	Total number of keepalive probes sent to the answer that resulted in a positive (OK) response.
Negative Probe	Total number of keepalive probes sent to the answer that resulted in a negative response.
Transitions	Total number of keepalive transitions (for example, from Init to Online state) experienced by the keepalive.
GID	Global ID number used by the GSS.
LID	Local ID number used by the GSS.

Displaying Keepalive Answer Type Statistics

Use the show statistics keepalive answer type command to display statistics for configured keepalive answers of type CRA, NS, and VIP, managed by the GSS. The list also displays statistics for multiple keepalives if assigned for a single VIP answer.

The syntax for the command is:

show statistics keepalive answer type {cra | ns | vip {ip_address | all | list}}

The options and variables are:

•cra—Specifies keepalive type CRA.

•ns—Specifies keepalive type NS.

•vip—Specifies keepalive type VIP.

•ip_address—Specifies the IP address to display keepalive statistics.

•all—Displays all configured TCP-type keepalives.

•list—Lists all available IP addresses.

Table 12-18 describes the fields in the show statistics keepalive answer type command output.

Table 12-18 Field Descriptions for show statistics keepalive answer type
Command

Field	Description
IP	IP address of the answer resource probed by the GSS.
GID	Global ID number used by the GSS.
Keepalive	IP address of the keepalive target.
Status	State of the keepalive. The possible states are Online, Offline, Init, and Suspended.
Keepalive Type	The keepalive type (ICMP, TCP, HTTP HEAD, or KAL-AP) and the Standard or Fast KAL-AP keepalive transmission rate used to define the failure detection time for the GSS.
Destination Port	Port on the remote device receiving the keepalive request.
Termination method	The method that the GSS used to initiates closing of a connection (graceful or reset).
Packets Sent	Total number of keepalive packets sent to the answer by the GSS.
Packets Received	Total number of keepalive packets received by the GSS from the answer.
Positive Probe	Total number of keepalive probes sent to the answer that resulted in a positive (OK) response.
Negative Probe	Total number of keepalive probes sent to the answer that resulted in a negative response.
Transitions	Total number of keepalive transitions (for example, from Init to Online state) experienced by the keepalive.

Displaying Network Proximity Statistics on a GSS

The proximity component displays statistics about the network proximity operation of your GSS device. Network proximity statistics include information about the proximity database on the GSS device, individual zones, probing requests, and RTT coverage.

This section contains the following procedures:

•Displaying DNS Rule Proximity Statistics

•Displaying Proximity Database Statistics

•Displaying Proximity Group Statistics

•Displaying Proximity Lookup Statistics

•Displaying Proximity Probe Transfer Statistics

•Displaying Proximity Status

•Displaying Proximity Group Configuration

•Displaying Proximity Database Status

Displaying DNS Rule Proximity Statistics

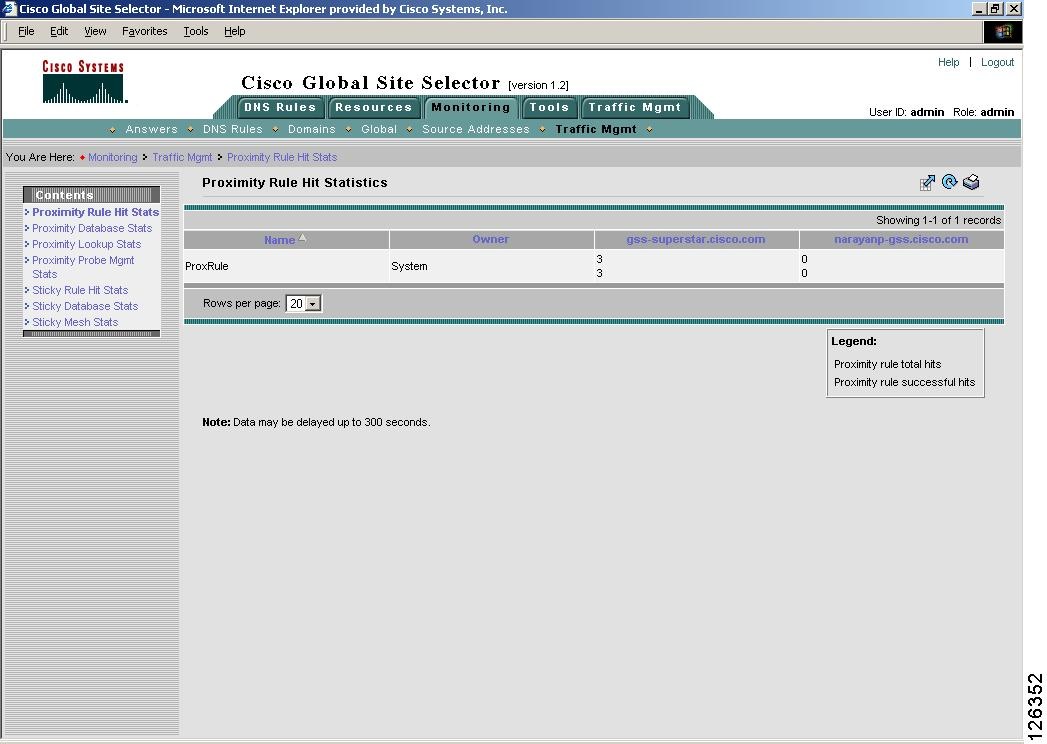

Use the show statistics dns proximity rule command to display all proximity lookups by DNS rule name.

The syntax for the command is:

show statistics dns proximity rule

Table 12-19 describes the fields in the show statistics dns proximity rule command output.

Table 12-19 Field Descriptions for show statistics dns proximity rule Command

Field	Description
ProxRule	Name of the matched DNS rule
Proximity Hit Count	Number of DNS requests that match the DNS rule
Proximity Success Count	Number of DNS responses successfully returned with a proximate answer for the DNS rule

Displaying Proximity Database Statistics

Use the show statistics proximity database command to display the overall statistics on the proximity database, such as number of entries currently in the proximity database, the number of entries dropped, and the rate of lookups.

The syntax for the command is:

show statistics proximity database

Table 12-20 describes the fields in the show statistics proximity database command output.

Table 12-20 Field Descriptions for show statistics proximity database
Command

Field	Description
Number of Entries in Use	Number of entries currently in the proximity database
Number of Add Entries Dropped	Number of entry creation requests that the GSS dropped because the proximity database limit had been reached
Max Number of Entries Used	Maximum number of entries used in the proximity database
Max Number of Entries Allowed	Maximum number of entries that the proximity database can hold (500,000 entries)
Number of Database Dump Started	Number of times the GSS initiated a proximity database dump, including user-initiated database dumps and periodic system-initiated database dumps
Number of Database Dump Completed	Number of times the GSS completed a proximity database dump, including user-initiated database dumps and periodic system-initiated database dumps
Number of Database Dump Failed	Number of times the GSS failed to perform a proximity database dump, including user-initiated database dumps and periodic system-initiated database dumps
Last Database Dump Started Time	The last time the GSS started a proximity database dump
Last Database Dump Failed Time	The last time the GSS failed to complete a proximity database dump
Number of Database Cleanup Started	Number of times the GSS initiated a database cleanup to remove the least recently used entries from the proximity database
Number of Database Cleanup Completed	Number of times the GSS completed a database cleanup to remove the least recently used entries from the proximity database
Number of Database Cleanup Failed	Number of times the GSS failed to cleanup the least recently used entries from the proximity database
Last Database Cleanup Started Time	The last time the GSS started the database cleanup process
Last Database Cleanup Failed Time	The last time the GSS failed to complete the database cleanup process

Displaying Proximity Group Statistics

Use the show statistics proximity group-summary command to display a summary of statistics for all configured proximity groups.

The syntax for the command is:

show statistics proximity group-summary

Table 12-21 describes the fields in the show statistics proximity group-summary command output.

Table 12-21 Field Descriptions for show statistics proximity group-summary Command

Field	Description
Group Name	Unique alphanumeric name of the proximity group.
Target IP	Probe target IP address used by the proximity group, displayed in dotted-decimal notation.
Total Entries	The total number of D-proxy IP address and subnet mask pairs contained in the proximity group.
Total Hits	Accumulated hit count for all entries in the proximity group. Increments when a match occurs for any proximity group entry in the group

Use the show statistics proximity group-name command to display statistics for a specific proximity group.

The syntax for the command is:

show statistics proximity group-name {groupname}

Enter the exact name of a proximity group to display all proximity database entries related to that group.

Table 12-22 describes the fields in the show statistics proximity group-name command output.

Table 12-22 Field Descriptions for show statistics proximity group-name Command

Field	Description
Group Name	Unique alphanumeric name of the proximity group
Total Entries	The total number of D-proxy IP addresses or block of IP addresses included in the proximity group
Target IP	Probe target IP address used by the proximity group, displayed in dotted-decimal notation.
Address	D-proxy IP address included in the proximity group
Prefix	Subnet mask used to specify the block of IP addresses included in the proximity group, displayed as an integer (for example, 24 or 32)
Hit Counts	Increments when a match occurs for this proximity group entry
Last Hit Time	The last time the hit count incremented due to an entry match

Displaying Proximity Lookup Statistics

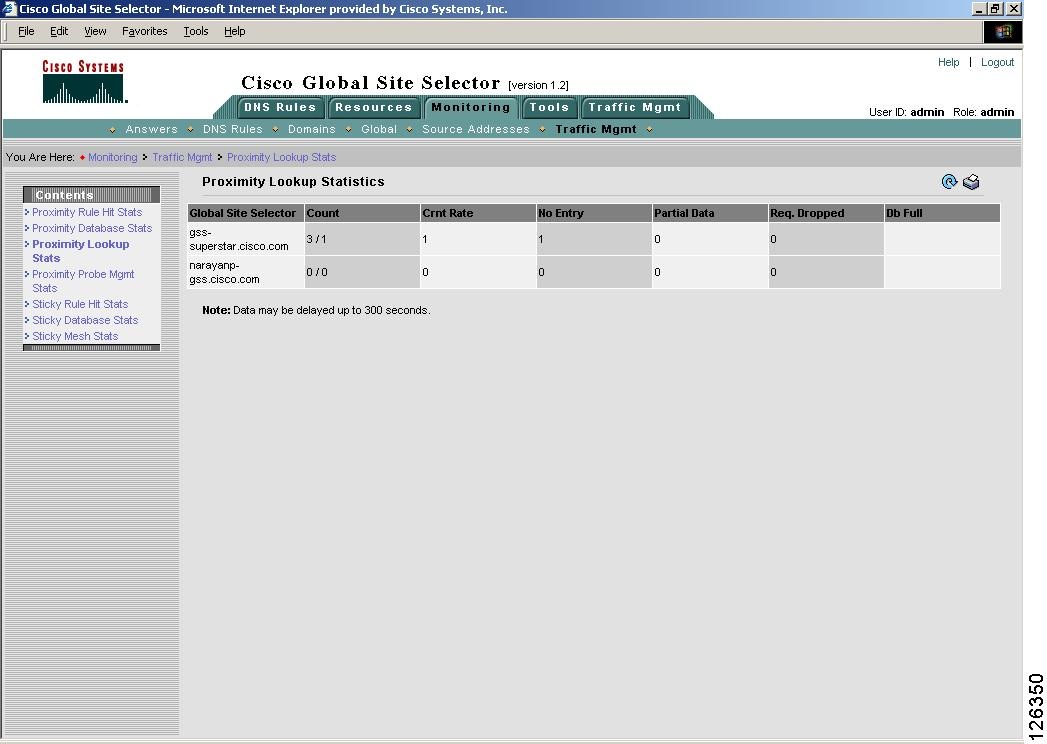

Use the show statistics proximity lookup command to display statistics about the proximity lookups that have occurred on this GSS.

The syntax for the command is:

show statistics proximity lookup

Table 12-23 describes the fields in the show statistics proximity lookup command output.

Table 12-23 Field Descriptions for show statistics proximity lookup
Command

Field	Description
Total lookup requests	Total number of proximity lookup requests made to the proximity database
Database entry not found	Number of times the GSS was unable to locate a proximate answer in the database
Partial RTT data returned	Number of times only partial round-trip time (RTT) data was returned to the DNS service by the proximity subsystem
Current lookup request rate	Current request rate per second that requests are made by the DNS service to perform a proximity lookup in the database
Peak lookup request rate	Peak request rate per second that requests are made by the DNS service to perform a proximity lookup in the database
Lookup failed due to database full	Number of times the GSS was unable to complete a proximity lookup because the database exceeded the maximum number of entries
Last database full happened	Last time the proximity database was full

Displaying Proximity Probe Transfer Statistics

Use the show statistics proximity probes command to display general probe success and failure counts.

The syntax for the command is:

show statistics proximity probes

Table 12-24 describes the fields in the show statistics proximity probes command output.

Table 12-24 Field Descriptions for show statistics proximity probes Command

Field	Description
Authentication	Indicates whether the GSS performs DRP authentication when exchanging packets with the DRP agent in a probing device. States are Enabled and Disabled.
Echo Rx	Number of DRP echo responses received by the GSS from all configured probing devices.
Echo Tx	Number of DRP echo requests sent by the GSS to all configured probing devices.
Measure Rx	Number of DRP measured requests received by the GSS from all configured probing devices.
Measure Tx	Number of DRP measured requests sent by the GSS to all configured probing devices.
Pkts Rx	Total number of DRP packets received by the GSS from all configured probing devices.
Pkts Tx	Number of DRP packets sent by the GSS to all configured probing devices.

Use the show statistics proximity probes detailed command to display detailed statistics for the ICMP and TCP probes relative to all configured zones. This command also displays the operating status of the primary and secondary probing devices (ONLINE or OFFLINE).

The syntax for the command is:

show statistics proximity probes detailed

Table 12-25 describes the fields in the show statistics proximity probes detailed command output.

Table 12-25 Field Descriptions for show statistics proximity probes detailed Command

Field	Description
Zone ID	Numerical identifier of the proximity zone
Zone Name	Name of the proximity zone
Authentication	Indicates if the GSS performs DRP authentication when exchanging packets with the DRP agent in a probing device
Primary	Identifies the IP address of the primary probing device servicing this zone and the status of the probing device (ONLINE or OFFLINE)
Secondary	Identifies the IP address of the backup probing device servicing this zone and the status of the probing device (ONLINE or OFFLINE)
Echo Rx	Number of DRP echo responses received by the GSS from all configured probing devices
Echo Tx	Number of DRP echo requests sent by the GSS to all configured probing devices
Measure Rx	Number of DRP measured requests received by the GSS from all configured probing devices
Measure Tx	Number of DRP measured requests sent by the GSS to all configured probing devices
Pkts Rx	Total number of DRP packets received by the GSS from the probing device in the proximity zone
Pkts Tx	Number of DRP packets sent by the GSS to the probing device in the proximity zone
Pkts Rx Rate	Current received request rate per second
Pkts Tx Rate	Current transmitted request rate per second
Peak Rx Rate	Peak received request rate per second
Peak Tx Rate	Peak transmitted request rate per second

Displaying Proximity Status

Use the show proximity command to display general status information about the proximity subsystem.

The syntax for the command is:

show proximity

Table 12-26 describes the fields in the show proximity command output.

Table 12-26 Field Descriptions for show proximity Command

Field	Description
Proximity subsystem status	Current operating status of the Proximity subsystem component
Proximity database dump interval	Time period between automatic proximity database dumps performed by the GSS
Proximity database age-out interval	Time period between checks by the GSS to verify when the user-configured entry inactivity timeout value elapses

Displaying Proximity Group Configuration

Use the show proximity group-summary command to display a summary of all configured proximity groups.

Table 12-27 describes the fields in the show proximity group-summary command output.

Table 12-27 Field Descriptions for show proximity group-summary Command

Field	Description
Name	Unique alphanumeric name of the proximity group
Address Blocks	IP address block of the proximity group, specified in dotted-decimal notation

Use the show proximity group-name command to display the configuration of a specific proximity group.

The syntax for the command is:

show proximity group-name {groupname}

Enter the exact name of a proximity group to display all proximity entries related to that group.

Table 12-28 describes the fields in the show proximity group-name command output.

Table 12-28 Field Descriptions for show proximity group-name Command

Field	Description
Name	Unique alphanumeric name of the proximity group
Address Blocks	IP address block of the proximity group, specified in dotted-decimal notation

Displaying Proximity Database Status

Use the show proximity database command to display proximity the database entries by specifying one or more entry matching criteria.

The syntax for this command is:

show proximity database {all | assigned | group {name} | inactive minutes | ip {ip-address} netmask {netmask} | no-rtt | probed}

The options and variables are:

•all—Displays all entries in the proximity database.

•assigned—Displays all static entries in the proximity database.

•group name—Displays all entries that belong to a named proximity group. Specify the exact name of a previously created proximity group.

•inactive minutes—Displays all dynamic entries that have been inactive for a specified time. Valid values are 0 to 43200 minutes.

•ip ip-address netmask netmask—Displays all proximity entries related to a D-proxy IP address and subnet mask. Specify the IP address of the requesting client's D-proxy in dotted-decimal notation (for example, 192.168.9.0) and specify the subnet mask in dotted-decimal notation (for example, 255.255.255.0).

•no-rtt—Displays all entries in the PDB that do not have valid RTT values.

•probed—Displays all dynamic entries in the PDB.

For example, to display entries related to the D-proxy IP address 192.168.8.0 and subnet mask 255.255.255.0, enter:

gss1.example.com# show proximity database ip 192.168.8.0 255.255.255.0

Displaying DNS Sticky Statistics on a GSS

The sticky component displays statistics about the sticky operation of your GSS device. Sticky statistics include information about DNS sticky lookups by DNS rule name, entries in the sticky database on the GSS device, global sticky status and statistics, operating status and statistics on GSS peers in the sticky mesh, and sticky group status.

This section contains the following procedures:

•Displaying DNS Rule Sticky Statistics

•Displaying Sticky Statistics

•Displaying Global Sticky Statistics

•Displaying Global Sticky Mesh Statistics

•Displaying Sticky Group Statistics

•Displaying Sticky Status

•Displaying Sticky Database Status

•Displaying Global Sticky Operating Status

•Displaying Global Sticky Mesh Operating Status

•Displaying Sticky Group Configuration

Displaying DNS Rule Sticky Statistics

Use the show statistics dns sticky rule command to display all DNS sticky lookups by DNS rule name.

The syntax for the command is:

show statistics dns sticky rule

Table 12-29 describes the fields in the show statistics dns sticky rule command output.

Table 12-29 Field Descriptions for show statistics dns sticky rule
Command

Field	Description
Rule	Name of the matched DNS rule
Hits	Total number of successful lookups in the sticky database for the sticky database entry
Misses	Total number of failed lookups in the sticky database for the DNS rule
Additions	Total number of times that a request matched on a DNS rule, resulting in the GSS adding an entry to the sticky database

Displaying Sticky Statistics

Use the show statistics sticky command to display general statistics about the sticky database, such as the total number of hits and misses in the sticky database, number of entries in the sticky database, and total number of lookups.

The syntax for the command is:

show statistics sticky

Table 12-30 describes the fields in the show statistics sticky command output.

Table 12-30 Field Descriptions for show statistics sticky Command

Field	Description
Current entry count	Current number of entries in the sticky database.
Highest entry count	Maximum number of entries in the sticky database since the last time sticky was enabled or the sticky statistics were cleared.
Total Lookups	Total number of lookups in the sticky database.
Hits	Number of successful lookups in the sticky database.
Misses	Number of failed lookups in the sticky database.
Addition success	Number of addition requests for the sticky database that succeeded.
Addition fail	Number of addition requests for the sticky database that failed. The sticky database will not accept further addition requests when the database is full, you stop DNS sticky through the sticky stop CLI command, or there has been an internal error.
Modification success	Number of answer modification requests that succeeded.
Modification fail	Number of answer modification requests that failed.
Timeouts	Number of entries removed from the sticky database because the answer exceeded the user-configured Entry Inactivity Timeout value.
Reclaimed	Number of entries removed from the sticky database due to overflow.
CLI deletions local	Number of entries manually deleted from the sticky database through the sticky database delete CLI command, entered on the local GSS node.
CLI deletions remote	Number of entries manually deleted from the sticky database through the sticky database delete CLI command, entered on a GSS peer.

Displaying Global Sticky Statistics

Use the show statistics sticky global command to display a summary of counter statistics for global sticky messaging between the local GSS node and its GSS peers.

The syntax for the command is:

show statistics sticky global

The show statistics sticky global command output is divided into two sets of global sticky message statistics:

•Individual sticky database entry operations performed by the local GSS node

•Sticky database messages sent or received by the local GSS node to or from its GSS peers.

Table 12-31 describes the fields in the show statistics sticky global command output.

Table 12-31 Field Descriptions for show statistics sticky global
Command

Field	Description
Entry Type	Statistics on sticky database entry operations performed by the local GSS node.
Send OK	Sticky database entry messages transmitted by the local GSS node without a failure.
Send Fail	Sticky database entry messages transmitted by the local GSS node with errors.
Received	Sticky database entry messages received by the local GSS node from GSS peers.
Add	Number of new entries added to the sticky database of the local GSS node.
Modify	Number of sticky database entries modified by the local GSS node due to a keepalive failure.
Lookup Fast	Number of sticky database entries in the local GSS node that had their sticky inactivity time reset to an initial value because the GSS performed a fast lookup. A GSS performs a fast lookup when adding new entries to the sticky database, deleting entries from the sticky database, or when the sticky expiration time is less than five minutes.
Lookup Slow	Number of sticky database entries in the local GSS node that had their sticky inactivity time reset to an initial value because the GSS performed a slow lookup. A GSS performs a slow lookup when the sticky expiration time is greater than five minutes.
Remove	Number of entries removed from the sticky database of the local GSS node through the sticky database delete command. Entries removed by the sticky database delete all command are reflected in the Remove All field (see below).
Add Sync	Number of entries added to the sticky database of the local GSS node due to the result of a peer synchronization, not due to a normal DNS client request.
Message Type	Statistics on sticky database messages sent or received by the local GSS node.
Send OK	Messages transmitted by the local GSS node without a failure.
Send Fail	Messages transmitted by the local GSS node with errors.
Received	Messages received by the local GSS node from GSS peers.
Add	Number of Add entry type messages sent or received by the local GSS node.
Modify	Number of Modify entry type messages sent or received by the local GSS node.
Lookup Fast	Number of Lookup Fast entry type messages sent or received by the local GSS node.
Lookup Slow	Number of Lookup Slow entry type messages sent or received by the local GSS node.
Remove	Number of Remove messages sent or received by the the local GSS node.
Add Sync	Number of Add Sync entry type messages sent or received by the local GSS node.
Remove All	Number of times the sticky database delete all command has been entered on the local GSS node to delete all entries from the sticky database. The Remove All count includes the number of Remove All messages sent and received by the local GSS node.
Request Db	Number of times the local GSS node sent a Request Db message to a GSS peer, or received a Request Db message from a GSS peer, requesting to share the contents of its sticky database upon startup.
Ack RequestDb	Number of times the local GSS node sent an Ack RequestDb message to a GSS peer, or received an Ack RequestDb message from a GSS peer, to acknowledge that it received a request to share the contents of its sticky database upon startup.
Refuse Db Req	Number of times the local GSS node sent a Refuse Db Req message to a GSS peer, or received a Refuse Db Req message from a GSS peer, indicating a refusal to share the contents of its sticky database upon startup. A GSS, typically, refuses to share the contents of its local database while in the process of performing a database synchronization.
Sync Start	Number of times the Sync Start message has been sent or received by the local GSS node. The GSS uses the Sync Start message to lock out certain critical functions (such as the use of the sticky database delete command) while any GSS within the mesh is performing a synchronization. When the Sync Start message arrives, the GSS blocks all sticky database entry deletions until it either receives the Sync Done message or an internal timer expires.
Sync Done	Number of times the Sync Done message has been sent or received by the local GSS node. The GSS uses the Sync Done message to lock out certain critical functions (such as the use of the sticky database delete command) while any GSS within the mesh is performing a synchronization.
Version mis-match	Error message indicating the number of times the local GSS node was unable to communicate with a peer due to different versions of GSS software.
Clock Out Of Sync	Error message indicating the number of times the local GSS node was unable to communicate with a peer due to clock synchronization issues. A GSS that has a system clock that is out of synchronization by greater than three minutes with the other GSS peers ignores update messages from all peers until you re-synchronize its system clock (see Chapter 8, Configuring DNS Sticky, for details).
Mask mis-match	Error message indicating the number of times the local GSS node was unable to communicate with a peer due to a difference in global subnet mask values. A GSS will drop all global sticky messages received from a GSS with a different subnet mask. A difference in global sticky masks on a peer would occur only if a configuration change was made on the primary GSSM GUI and the peer did not receive the change due to a network failure. You globally configure the subnet mask of all GSS devices in the mesh from the primary GSSM GUI Global Sticky Configuration details page (see Chapter 8, Configuring DNS Sticky, for details).

Displaying Global Sticky Mesh Statistics

Use the show statistics sticky mesh CLI command to display detailed statistics for each GSS peer in the global sticky mesh.

Table 12-32 describes the fields in the show statistics sticky mesh command output.

Table 12-32 Field Descriptions for show statistics sticky mesh
Command

Field	Description
Mesh Information for application sticky	Status and statistics about the global sticky mesh
Transmit Pkts	Total number of application data packets transmitted by the local GSS node to GSS peers in the mesh
Transmit Bytes	Total number of application data bytes transmitted by the local GSS node to GSS peers in the mesh
Receive Pkts	Total number of application data packets received by the local GSS node from GSS peers in the mesh
Receive Bytes	Total number of application data bytes received by the local GSS node from GSS peers in the mesh
Dropped Tx Pkts	Total number of packets to be transmitted by the local GSS node but were dropped due to buffer errors
Dropped Rx Pkts	Total number of packets received by the local GSS node but were dropped due to buffer errors
Current TxQueue	Total number of packets in the buffer transmit queue of the local GSS node that are waiting to be transmitted
Maximum TxQueue	Maximum number of packets that have been in the buffer transmit queue of the local GSS node
Current RxQueue	Total number of packets in the buffer receive queue of the local GSS node that are waiting to be received
Maximum RxQueue	Maximum number of packets that have been in the buffer receive queue of the local GSS node
Buffers Alloc'd	Number of optimal-sized frames allocated for the buffer transmit and buffer receive data
Buffers Free	Number of buffers currently free in the local GSS node
Session Information for GSS peer	Status and statistics for a specific GSS peer in the mesh
GSS ID	Unique identifier of the GSS peer in the mesh.
CurTx Data Pkts	Number of data packets sent by the local GSS node to the GSS peer during the current session
CurTx Data Bytes	Number of data bytes sent by the local GSS node to the GSS peer during the current session
TtlTx Data Pkts	Number of application data packets sent by the local GSS node to the GSS peer for the total duration of the mesh
TtlTx Data Bytes	Number of application data bytes sent by the local GSS node to the GSS peer for the total duration of the mesh
Transmit Pkts	Total number of packets transmitted from the local GSS node to the GSS peer (including application packets, control packets, RTT packets, and keepalive packets)
Transmit Bytes	Total number of bytes transmitted from the local GSS node to the GSS peer (including application bytes, control bytes, RTT bytes, and keepalive bytes)
CurRx Data Pkts	Number of data packets received by the local GSS node from the GSS peer during the current session
CurRx Data Bytes	Number of data bytes received by the local GSS node from the GSS peer during the current session
TtlRx Data Pkts	Number of application data packets received by the local GSS node from the GSS peer for the total duration of the mesh
TtlRx Data Bytes	Number of application data bytes received by the local GSS node from the GSS peer for the total duration of the mesh
Receive Pkts	Total number of packets received by the local GSS node from the GSS peer (including application packets, control packets, RTT packets, and keepalive packets)
Receive Bytes	Total number of bytes received by the local GSS node from the GSS peer (including application bytes, control bytes, RTT bytes, and keepalive bytes)
ConnectFailures	Number of times that the connection attempt failed between the local GSS node and the GSS peer
CurConnAttempts	Number of current connection attempts between the local GSS node and the GSS peer
ConnectRejects	Number of connections rejected by the GSS peer
ConnectDeclines	Number of connections declined by the local GSS node.

Displaying Sticky Group Statistics

Use the show statistics sticky group-summary command to display a summary of statistics for all configured sticky groups.

Table 12-33 describes the fields in the show statistics sticky group-summary command output.

Table 12-33 Field Descriptions for show statistics sticky group-summary Command

Field	Description
Group Name	Unique alphanumeric name of the DNS sticky group.
Group Number	IP address block of the sticky group, specified in dotted-decimal notation.
Total Entries	The total number of D-proxy IP address and subnet mask pairs contained in the sticky group.
Total Hits	Accumulated hit count for all entries in the sticky group. Increments when a match occurs for each sticky group entry

Use the show statistics sticky group-name command to display statistics for a specific sticky group.

The syntax for the command is:

show statistics sticky group-name {groupname}

Enter the exact name of a sticky group to display all sticky entries related to that group.

Table 12-34 describes the fields in the show statistics sticky group-name command output.

Table 12-34 Field Descriptions for show statistics sticky group-name Command

Field	Description
Group Name	Unique alphanumeric name of the DNS sticky group
Group Number	IP address block of the sticky group, specified in dotted-decimal notation
Total Entries for Group	The total number of D-proxy IP addresses included in the sticky group
Address	D-proxy IP address included in the sticky group
Prefix	Subnet mask included in the sticky group, displayed as an integer (for example, 24 or 32)
Hit Count	Increments when a match occurs for this sticky group entry
Last Time Hit	The last time the hit count incremented due to an entry match

Displaying Sticky Status

Use the show sticky command to display general status information about the sticky subsystem.

The syntax for the command is:

show sticky

Table 12-35 describes the fields in the show sticky command output.

Table 12-35 Field Descriptions for show sticky Command

Field	Description
Sticky Manager status	Current operating status of the Sticky Manager component. The Sticky Manager is responsible for maintaining and managing the sticky database in the GSS. Status messages include: •Initializing—Appears only during boot time or after entering the gss start CLI command. •Disabled via GUI—Appears after you disable sticky from the primary GSSM GUI. •Stopped via CLI—Appears after you enter the sticky stop CLI command. •Ready in Local mode—Appears when the GSS is configured for sticky Local mode from the primary GSSM GUI and the GSS software is running. •Ready in Global mode—Appears when the GSS is configured for sticky Global mode from the primary GSSM GUI and the GSS software is running.
Database entry count	Current number of entries in the sticky database.
Dump status	Current sticky database dump subsystem status of the GSS. The GSS automatically dumps sticky database entries to a backup file on disk approximately every 20 minutes. The Dump status messages include: Initialized, Disabled, Waiting, and In Progress.
Dump interval	Time period between automatic sticky database dumps performed by the GSS.
Reclaim status	Current operating status of the overflow recovery subsystem. The Reclaim status messages include: Initialized, Disabled, Waiting, and In Progress.
Timeout status	Current operating status of the entry inactivity timeout subsystem. The Timeout status messages include: Initialized, Disabled, Waiting, and In Progress.
Timeout interval	Time period between checks by the GSS to verify when the user-configured sticky inactivity timeout value elapses.
Mesh status	Current operating status of the sticky global mesh. Status messages include: •Running—The GSS is operating properly in the sticky mesh. •Failed—The GSS is unable to operate properly in the sticky mesh. •Waiting—The GSS is waiting for mesh configuration information. •Enabled—Global sticky is enabled on the local GSS node. •Disabled—Global sticky is disabled on the local GSS node (either from the primary GSSM GUI or through the sticky stop CLI command).

Displaying Sticky Database Status

Use the show sticky database command to display sticky database entries by specifying one or more entry matching criteria.

The syntax for the command is:

show sticky database {all | answer {name/ip_address} | domain {name} | domain-list {name} | group {name} | inactive minimum {minutes} maximum {minutes} | ip {ip_address} netmask {netmask} | rule {rule_name}}

The options and variables are:

•all—Displays all sticky entries in the sticky database.

•answer name/ip_address—Displays all sticky entries related to a particular answer. Specify the name of the answer. If there is no name for the answer, specify the IP address of the sticky answer in dotted-decimal notation (for example, 192.168.9.0).

•domain name—Displays all sticky entries related to a domain. Specify the exact name of a previously created domain.

•domain-list name—Displays all sticky entries related to a domain list. Specify the exact name of a previously created domain list.

•group name—Displays all sticky entries related to a sticky group. Specify the exact name of a previously created sticky group.

•inactive minimum minutes maximum minutes—Displays all sticky entries that have not received a client hit in the time interval between the specified minimum and maximum values, entered in minutes. Enter a value from 0 to 10100 minutes (seven days) as the specified minimum value and maximum value.

•ip ip_address netmask netmask—Displays all sticky entries related to a D-proxy IP address and subnet mask. Specify the IP address of the requesting client's D-proxy in dotted-decimal notation (for example, 192.168.9.0) and specify the subnet mask in dotted-decimal notation (for example, 255.255.255.0).

•rule rulename—Displays all sticky entries related to a DNS rule. Specify the exact name of a previously created DNS rule.

Table 12-36 describes the fields in the show sticky database all command output.

Table 12-36 Field Descriptions for show sticky database Command

Field	Description
Client/Group	IP address of client D-proxy or name of sticky group
Domain/DL	Name of the hosted domain (including wildcards) or the name of a matched domain list (DL)
Rule	Name of the DNS rule that was matched to add this entry
Answer	VIP address of the answer (VIP-type answer)
SIT	User-specified sticky interval timeout (SIT) value
TTL	The remaining time that the entry in the sticky database is valid
Hits	Total number of successful lookups in the sticky database for the sticky database entry

Displaying Global Sticky Operating Status

Use the show sticky global command to display the most recent sticky database message identifiers sent by the local GSS node and received from its GSS mesh peers. Message identifiers can be helpful when you need to verify the most recent sticky database messages sent from and received by the local GSS node.

To display a more detailed listing of recent global sticky message identifiers, specify the verbose option.

The syntax for the command is:

show sticky global [verbose]

Table 12-37 describes the fields in the show sticky global command output.

Table 12-37 Field Descriptions for show sticky global Command

Field	Description
Mesh Peer Count	Total number of GSS peers in a sticky mesh (not including the local GSS node).
Last Message ID Sent for Each Mesage Type	Summary of the unique global sticky message identifiers last sent by the local GSS node.
Add	Unique identifier of the last Add entry-type message sent by the local GSS node.
Modify	Unique identifier of the last Modify entry-type message sent by the local GSS node.
Lookup Fast	Unique identifier of the last Lookup Fast entry-type message sent by the local GSS node.
Details of Most Recently Received Messages by Peer	Status summary of the global sticky message identifiers last received by the local GSS node.
Peer Name	Host name of the GSS peer in the mesh.
Peer ID	Unique identifier of the GSS peer in the mesh.
Last Type	Type of the message last received from the peer.
Last Status	Status of the last message received from the peer. Status messages include: •Received OK—Message was received and processed •Version mismatch—Message dropped because the local GSS node was unable to communicate with a peer due to different versions of GSS software. •Clock out of sync—The local GSS node was unable to communicate with a peer due to clock synchronization issues. A GSS that has a system clock that is out of synchronization by greater than three minutes with the other GSS peers ignores update messages from all peers until you re-synchronize its system clock (see Chapter 8, Configuring DNS Sticky, for details). •Mask mismatch—The local GSS node was unable to communicate with a peer due to a difference in global subnet mask values. A GSS will drop all global sticky messages received from a GSS with a different subnet mask. A difference in global sticky masks on a peer would occur only if a configuration change was made on the primary GSSM GUI and the peer did not receive the change due to a network failure. Refer to Chapter 8, Configuring DNS Sticky, for details about globally configuring the subnet mask of all GSS devices in the mesh from the primary GSSM GUI.
Last MessageID Received for each Message Type...	Summary of the unique global sticky messages last received by the local GSS node from each GSS mesh peer.
Add	Unique identifier of the last Add entry-type message received by the local GSS node from the GSS peer.
Modify	Unique identifier of the last Modify entry-type message received by the local GSS node from the GSS peer.
Lookup Fast	Unique identifier of the last Lookup Fast entry-type message received by the local GSS node from the GSS peer.

Table 12-38 describes the fields in the show sticky global verbose command output.

Table 12-38 Field Descriptions for show sticky global verbose
Command

Field	Description
Mesh Peer Count	Total number of GSS peers in a sticky mesh (not including the local GSS node).
Last Message ID Sent for Each Mesage Type	Summary of the unique global sticky message identifiers last sent by the local GSS node.
Add	Unique identifier of the last Add entry-type message sent by the local GSS node.
Modify	Unique identifier of the last Modify entry-type message sent by the local GSS node.
Lookup Fast	Unique identifier of the last Lookup Fast entry-type message sent by the local GSS node.
Lookup Slow	Unique identifier of the last Lookup Slow entry-type message sent by the local GSS node.
Remove	Unique identifier of the last Remove entry-type message sent by the local GSS node.
Add Sync	Unique identifier of the last Add Sync entry-type message sent by the local GSS node.
Remove All	Unique identifier of the last Remove All message sent by the local GSS node.
Request Db	Unique identifier of the last Request Db message sent by the local GSS node.
Ack ReqDb	Unique identifier of the last Ack ReqDb message sent by the local GSS node.
Refuse ReqDb	Unique identifier of the last Refuse ReqDb message sent by the local GSS node.
Sync Start	Unique identifier of the last Sync Start message sent by the local GSS node.
Sync Done	Unique identifier of the last Sync Done message sent by the local GSS node.
Details of Most Recently Received Messages by Peer	Status summary of the global sticky message identifiers last received by the local GSS node.
Peer Name	Host name of the GSS peer in the mesh.
Peer ID	Unique identifier of the GSS peer in the mesh.
Last Type	Type of the message last received from the peer
Last Status	Status of the last message received from the peer. Status messages include: •Received OK—Message was received and processed •Version mismatch—Message dropped because the local GSS node was unable to communicate with a peer due to different versions of GSS software. •Clock out of sync—The local GSS node was unable to communicate with a peer due to clock synchronization issues. A GSS that has a system clock that is out of synchronization by greater than three minutes with the other GSS peers ignores update messages from all peers until you re-synchronize its system clock (see Chapter 8, Configuring DNS Sticky, for details). •Mask mismatch—The local GSS node was unable to communicate with a peer due to a difference in global subnet mask values. A GSS will drop all global sticky messages received from a GSS with a different subnet mask. A difference in global sticky masks on a peer would occur only if a configuration change was made on the primary GSSM GUI and the peer did not receive the change due to a network failure. Refer to Chapter 8, Configuring DNS Sticky, for details about globally configuring the subnet mask of all GSS devices in the mesh from the primary GSSM GUI .
Last MessageID Received for each Message Type...	Summary of the unique global sticky messages last received by the local GSS node from each GSS mesh peer.
Add	Unique identifier of the last Add entry-type message received by the local GSS node from the GSS peer.
Modify	Unique identifier of the last Modify entry-type message received by the local GSS node from the GSS peer.
Lookup Fast	Unique identifier of the last Lookup Fast entry-type message received by the local GSS node from the GSS peer.
Lookup Slow	Unique identifier of the last Lookup Slow entry-type message received by the local GSS node from the GSS peer.
Remove	Unique identifier of the last Remove entry-type message received by the local GSS node from the GSS peer.
Add Sync	Unique identifier of the last Add Sync entry-type message received by the local GSS node from the GSS peer.
Remove All	Unique identifier of the last Remove All message received by the local GSS node from the GSS peer.
Request Db	Unique identifier of the last Request Db message received by the local GSS node from the GSS peer.
Ack ReqDb	Unique identifier of the last Ack RegDb message received by the local GSS node from the GSS peer.
Refuse Db	Unique identifier of the last Refuse ReqDb message received by the local GSS node from the GSS peer.
Sync Start	Unique identifier of the last Sync Start message received by the local GSS node from the GSS peer.
Sync Done	Unique identifier of the last Sync Done message received by the local GSS node from the GSS peer.

Displaying Global Sticky Mesh Operating Status

To display sticky mesh status information locally from the CLI of a GSS, use the show sticky mesh CLI command.This command displays the operating status of the individual GSS peers in the sticky mesh and their connection status to the local GSS node.

The syntax and options for this command are:

•show sticky mesh—Displays a summary of the GSS devices in the sticky mesh and their operating status.

•show sticky mesh session session_ID—Displays operating status information for a specific session ID, which is the point-to-point connection between the local GSS node and a sticky mesh peer. To locate the session ID for a specific GSS peer in the mesh, use the show sticky mesh command.

•show sticky mesh session session_ID verbose—Displays more detailed operating status information for a specific session ID. To locate the session ID for a specific GSS peer in the mesh, use the show sticky mesh command.

•show sticky mesh verbose—Displays detailed operating status information for the sticky mesh and for all GSS peers in the mesh.

Table 12-39 describes the fields in the show sticky mesh command output.

Table 12-39 Field Descriptions for show sticky mesh Command

Field	Description
My GSS ID	Unique identifier of the local GSS node in the mesh.
Mesh ID	Unique identifier of the global sticky mesh.
Port	TCP port used by all GSS devices connected in the sticky mesh. This parameter is not user-configurable.
Remote GSS IP Address/Host Name	IP address or host name of the GSS peer in the mesh.
Session ID	Unique identifier of the point-to-point connection between the local GSS node and the mesh peer.
State	State of the communication link between the local GSS node and the mesh peer. The possible states include: •SESSION_STOP—Indicates that the session is dead •SESSION_INIT—Indicates that the session is initializing •SESSION_OPEN—Indicates that the connection to the peer has been made •SESSION_AUTH—Indicates that authentication is occurring •SESSION_UP—Indicates that the session is up •SESSION_DOWN—Indicates that the session is down or failing

Table 12-40 describes the fields in the show sticky mesh session command output.

Table 12-40 Field Descriptions for show sticky mesh session
Command

Field	Description
Session Information for GSS peer	Identifies the host name of the GSS peer in the mesh.
Session ID	Unique identifier of the point-to-point connection between the local GSS node and the mesh peer.
RTT	Application-level round-trip time (RTT) between the local GSS node and the mesh peer. If the GSS has not yet made an RTT measurement, the GSS displays "--" in the field.
State	State of the communication link between the local GSS node and the mesh peer. The possible states include: •SESSION_STOP—Indicates that the session is dead •SESSION_INIT—Indicates that the session is initializing •SESSION_OPEN—Indicates that the connection to the peer has been made •SESSION_AUTH—Indicates that authentication is occurring •SESSION_UP—Indicates that the session is up •SESSION_DOWN—Indicates that the session is down or failing
IP Address	IP address of the GSS peer.
GSS ID	Unique identifier of the GSS peer in the mesh.

Table 12-41 describes the fields in the show sticky mesh session verbose command output.

Table 12-41 Field Descriptions for show sticky mesh session verbose
Command

Field	Description
Session Information for GSS peer	Identifies the host name of the GSS peer in the mesh.
Session ID	Unique identifier of the point-to-point connection between the local GSS node and the mesh peer.
Session State	State of the communication link between the local GSS node and the mesh peer. The possible states include: •SESSION_STOP—Indicates that the session is dead •SESSION_INIT—Indicates that the session is initializing •SESSION_OPEN—Indicates that the connection to the peer has been made •SESSION_AUTH—Indicates that authentication is occurring •SESSION_UP—Indicates that the session is up •SESSION_DOWN—Indicates that the session is down or failing
RTT	Application-level round-trip time (RTT) between the local GSS node and the mesh peer. If the GSS has not yet made an RTT measurement, the GSS displays "--" in the field.
Encrypt Type	Encryption method performed on the data packets. The method is either: •md5hash—MD5-based hashing encryption method •none—No encryption Refer to Chapter 8, Configuring DNS Sticky for details.
Authentication	Authentication method performed by the GSS peer to prevent unauthorized access. The method is either: •challenge—Challenge Handshake Authentication Protocol (CHAP) •none—No secret string used for authentication Refer to Chapter 8, Configuring DNS Sticky for details.
KalFreq	Time in seconds between sending keepalive messages from the local GSS node to this GSS peer. This parameter is not user-configurable.
Max FrameSize	The maximum frame size allowed for communication between GSS devices in the mesh. This parameter is not user-configurable.
OptmlFrameSize	Optimal frame size for communication between GSS devices in the mesh. This parameter is not user-configurable.
PrePend	Allocated header size in the buffer. The header size is always eight bytes.
IP Address	IP address of the GSS peer in the mesh.
GSS ID	Unique identifier of the GSS peer in the mesh.
Connect from IP	Actual IP network address of the GSS peer in the mesh.
My Local Address Via Peer	IP address of the local GSS node as seen by the GSS peer.
Last Up Event	The day and time of the most recent Up event.
Last Down Event	The day and time of the most recent Down event.
FSM Events	Finite State Machine events as related to the Session State field.
STOP	Number of SESSION_STOP events.
INIT	Number of SESSION_INIT events.
OPEN	Number of SESSION_OPEN events.
AUTH	Number of SESSION_AUTH events.
UP	Number of SESSION_UP events.
DOWN	Number of SESSION_DOWN events.

Table 12-42 describes the fields in the show sticky mesh verbose command output.

Table 12-42 Field Descriptions for show sticky mesh verbose
Command

Field	Description
Mesh Information for application sticky	Status and statistics about the global sticky mesh.
My GSS ID	Unique identifier of the local GSS node in the mesh.
Mesh ID	Unique identifier of the global sticky mesh.
Port	TCP port used by all GSS devices connected in the sticky mesh. This parameter is not user-configurable.
Encrypt Type	Encryption method performed on the data packets. The method is either: •md5hash—MD5-based hashing encryption method •none—No encryption Refer to Chapter 8, Configuring DNS Sticky for details.
Authentication	Authentication method performed by GSS peers to prevent unauthorized access. The method is either: •challenge—Challenge Handshake Authentication Protocol (CHAP) •none—No secret string used for authentication Refer to Chapter 8, Configuring DNS Sticky for details.
KalFreq	Time in seconds between sending keepalive messages to GSS peers. This parameter is not user-configurable and always displays "default".
MaxFrameSize	The maximum frame size allowed for communication between GSS devices in the mesh. This parameter is not user-configurable.
OptmlFrameSize	Optimal frame size for communication between GSS devices in the mesh. This parameter is not user-configurable.
Max Rate	Maximum rate that the local GSS node can transmit packets to GSS peers in the mesh.
Favored Peer	Identifies the favored GSS peer for the local GSS node, specified on the Global Sticky Configuration details page of the primary GSSM GUI. A favored peer enables you to force a faster synchronization of sticky database entries with a specific GSS peer upon reentry into the sticky mesh. If you did not specify a favored peer, the GSS displays "No Favored Peer configured".
Session Information for GSS peer	Status and statistics for a specific GSS peer in the mesh.
Session ID	Unique identifier of the point-to-point connection between the local GSS node and the mesh peer.
Session State	State of the communication link between the local GSS node and the mesh peer. The possible states include: •SESSION_STOP—Indicates that the session is dead •SESSION_INIT—Indicates that the session is initializing •SESSION_OPEN—Indicates that the connection to the peer has been made •SESSION_AUTH—Indicates that authentication is occurring •SESSION_UP—Indicates that the session is up •SESSION_DOWN—Indicates that the session is down or failing
RTT	Application-level round-trip time (RTT) between the local GSS node and this GSS peer. If the GSS has not yet made an RTT measurement, the GSS displays "--" in the field.
Encrypt Type	Encryption method performed on the data packets. The method is either: •md5hash—MD5-based hashing encryption method •none—No encryption Refer to Chapter 8, Configuring DNS Sticky for details.
Authentication	Authentication method performed by GSS peers to prevent unauthorized access. The method is either: •challenge—Challenge Handshake Authentication Protocol (CHAP) •none—No secret string used for authentication Refer to Chapter 8, Configuring DNS Sticky for details.
KalFreq	Time in seconds between sending keepalive messages from the local GSS node to this GSS peer. This parameter is not user-configurable.
Max FrameSize	The maximum frame size allowed for communication between GSS devices in the mesh. This parameter is not user-configurable.
OptmlFrameSize	Optimal frame size for communication between GSS devices in the mesh. This parameter is not user-configurable.
PrePend	Allocated header size in the buffer. The header size is always eight bytes.
IP Address	IP address of the GSS peer in the mesh.
GSS ID	Unique identifier of the GSS peer in the mesh.
Connect from IP	Actual IP network address of the GSS peer in the mesh.
My Local Address Via Peer	IP address of the local GSS node as seen by the GSS peer.
Last Up Event	The day and time of the most recent Up event.
Last Down Event	The day and time of the most recent Down event.
FSM Events	Finite State Machine events as related to the Session State field.
STOP	Number of SESSION_STOP events.
INIT	Number of SESSION_INIT events.
OPEN	Number of SESSION_OPEN events.
AUTH	Number of SESSION_AUTH events.
UP	Number of SESSION_UP events.
DOWN	Number of SESSION_DOWN events.

Displaying Sticky Group Configuration

Use the show sticky group-summary command to display a summary of all configured sticky groups.

Table 12-43 describes the fields in the show sticky group-summary command output.

Table 12-43 Field Descriptions for show sticky group-summary Command

Field	Description
Name	Unique alphanumeric name of the DNS sticky group
Address Blocks	IP address block of the sticky group, specified in dotted-decimal notation

Use the show sticky group-name command to display the configuration of a specific sticky group.

The syntax for the command is:

show sticky group-name {groupname}

Enter the exact name of a sticky group to display all sticky entries related to that group.

Table 12-44 describes the fields in the show sticky group-name command output.

Table 12-44 Field Descriptions for show sticky group-name Command

Field	Description
Name	Unique alphanumeric name of the DNS sticky group
Address Blocks	IP address block of the sticky group, specified in dotted-decimal notation

Clearing GSS Global Server Load-Balancing Statistics

Use the clear statistics command to reset global server load-balancing statistics for one or more of your GSS components. Clearing the statistics for a GSS component erases all record of routing activity and performance for that device.

The syntax for the clear statistics command is:

clear statistics {boomerang | dns | keepalive {all | cra | http-head | icmp | kalap | ns | tcp} | proximity | sticky {mesh}}

The options are:

•statistics—Resets load-balancing statistics about the GSS

•boomerang—Resets statistics relating to the Boomerang server component of the GSS

•dns—Resets statistics relating to the DNS server component of the GSS, including proximity and sticky DNS rule statistics

•keepalive—Resets statistics relating to the keepalive function of the GSS software

•all—Resets statistics for all keepalive types maintained by the GSS

•cra—Resets statistics for only CRA-type keepalives maintained by the GSS

•http-head—Resets statistics for only the VIP HTTP-HEAD type keepalive maintained by the GSS

•icmp—Resets statistics for only the VIP ICMP-type keepalive maintained by the GSS

•kalap—Resets statistics for only the VIP KAL-AP-type keepalive maintained by the GSS

•ns—Resets statistics for the Name Server-type keepalive maintained by the GSS

•tcp—Resets statistics for the IP and port TCP-type keepalive maintained by the GSS

•proximity—Resets statistics for the network proximity function

•sticky—Resets statistics for the DNS sticky function

•mesh—Resets sticky global mesh and session statistics for the local GSS node of the mesh

For example:

gss1.yourdomain.com# clear statistics keepalive tcp

Are you sure? (yes/no) yes

tcp keepalive statistics cleared

or

gss1.yourdomain.com# clear statistics proximity

Are you sure? (yes/no) yes

proximity statistics cleared

Displaying Global Server Load-Balancing Statistics from the GUI

From the Monitoring tab of the primary GSSM GUI, you can display the status of global load balancing on your GSS network using a variety of functions that filter and condense GSS traffic and statistics. These statistics provide you with an overview of the online status of your resources (such as answers, keepalives, DNS rules, hosted domains, and source addresses). You can also display advanced traffic management functions such as DNS sticky and network proximity for the GSS network.

This section includes the following procedures:

•Displaying Answer Status and Statistics

•Displaying DNS Rule Statistics

•Displaying Domain Hit Counts

•Displaying Global Statistics

•Displaying Source Address Statistics

•Displaying Traffic Management Statistics

Displaying Answer Status and Statistics

The Answers section of the Monitoring tab displays statistics for the answer resources in your GSS network. Answer resources also include statistics about keepalive probes directed to the answer resource.

This section contains the following procedures:

•Displaying Answer Hit Counts

•Displaying Answer Keepalive Statistics

•Displaying Answer Status

Displaying Answer Hit Counts

The Answer Hit Counts list page displays statistics about the GSS answer resources and the number of times that user requests have been directed to each answer resource. Answer hit counts allow you to gauge how well your GSS resources respond to user requests.

To display the number of hits recorded by each answer:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the Answers navigation link.

3. Click the Answer Hit Counts navigation link (located in the Contents list). The Answer Hit Counts list page appears (Figure 12-1).

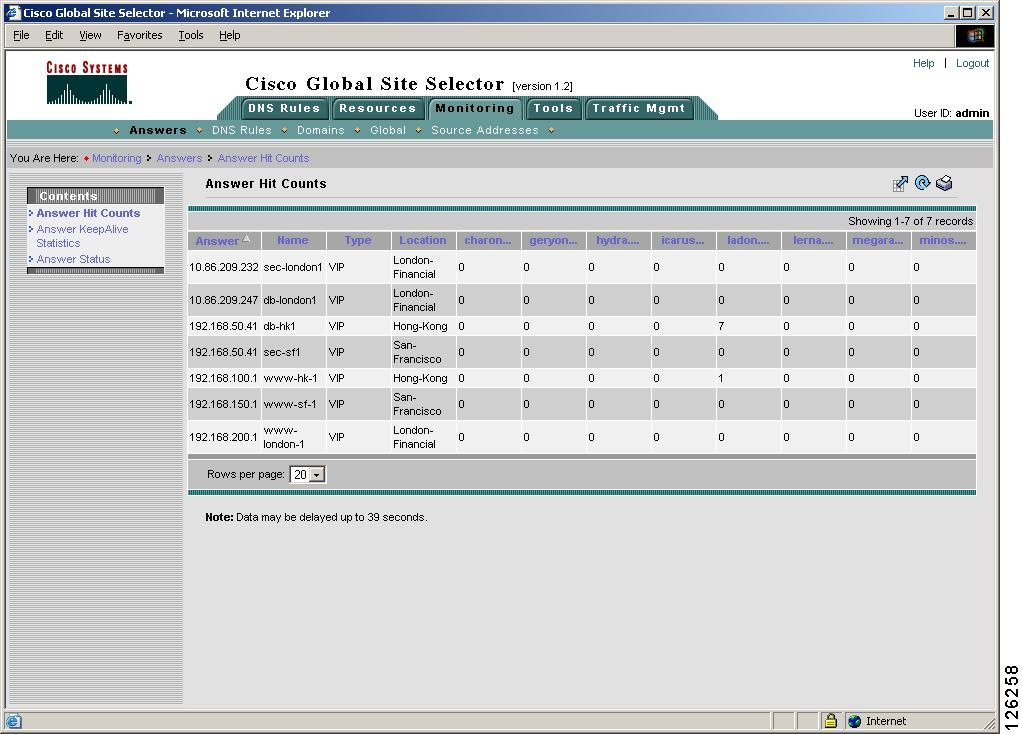

Figure 12-1 Answer Hit Counts List Page

Table 12-45 describes the fields on the Answer Hit Counts list page.

Table 12-45 Field Descriptions for Answer Hit Counts List Page

Field	Description
Answer	IP address of the answer resource
Name	Name assigned to the answer using the primary GSSM GUI
Type	Resources to which the GSS resolves DNS requests. The answer types include: VIP, CRA, or Name Server.
Location	GSS network location of the answer
Name of the GSS or GSSM	Number of requests directed to the answer by each GSS device

4. Click the column header of any of the displayed columns to sort your answers by a particular property.

Displaying Answer Keepalive Statistics

The Answer Keepalive Statistics list page displays statistics about keepalive probes sent to the answer resource by each GSS in the network. For each answer configured on your GSS, the Answer Keepalive Statistics list page displays the number of keepalive probes directed to that answer by the primary and the standby GSSM as well as information about how that keepalive probe was handled.The Answer Keepalive Statistics list page also displays multiple keepalives if assigned for a single VIP answer.

You may discover that certain answers may be offline or have problems staying online if a large number of keepalive probes are rejected or encounter transition conditions.

To display the keepalive statistics for each answer:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the Answers navigation link.

3. Click the Answer KeepAlive Statistics navigation link (located in the Contents list). The Answer KeepAlive Statistics list page appears (Figure 12-2).

Figure 12-2 Answer Keepalive Statistics List Page

Table 12-46 describes the fields on the Answer KeepAlive Statistics list page.

Table 12-46 Field Descriptions for Answer Keepalive Statistics List Page

Field	Description
Answer	IP address of the answer resource probed by the GSS.
Type	Resources to which the GSS resolves DNS requests. The answer types include: VIP, CRA, or Name Server.
Name	Name assigned to the answer using the primary GSSM GUI.
Keepalive	Address assigned to the remote device, CRA, or name server that the GSS is to forward requests.
Method	The keepalive method used by the answer: VIP (virtual IP address), NS (name server), or CRA (content routing agent)
Location	GSS network location of the answer
Name of the GSS or GSSM	The number of keepalive probes directed to the answer by each GSS device, as well as the record of how those probes were handled. Statistics are presented in the following order: •Keepalive packets sent—Total number of keepalive probes sent to the answer by each GSS on the network •Keepalive packets received—Total number of keepalive probes returned from the answer •Keepalive positive probe count—Total number of keepalive probes received by the GSS to which a positive (OK) response was returned •Keepalive negative probe count—Total number of keepalive probes received by the GSS to which a negative response was returned •Keepalive transition count—Total number of keepalive probe transitions (for example, from the INIT to the ONLINE state) experienced by the keepalive

4. Click the column header of any of the displayed columns to sort your answers by a particular property.

Displaying Answer Status

The Answer Status list page displays statistics about the GSS answer resources. Answers can be sorted by IP address, name, type, location, or online status according to a particular device.

To display the status of your GSS answers:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the Answers navigation link.

3. Click the Answer Status navigation link (located in the Contents list). The Answer Status list page appears (Figure 12-3).

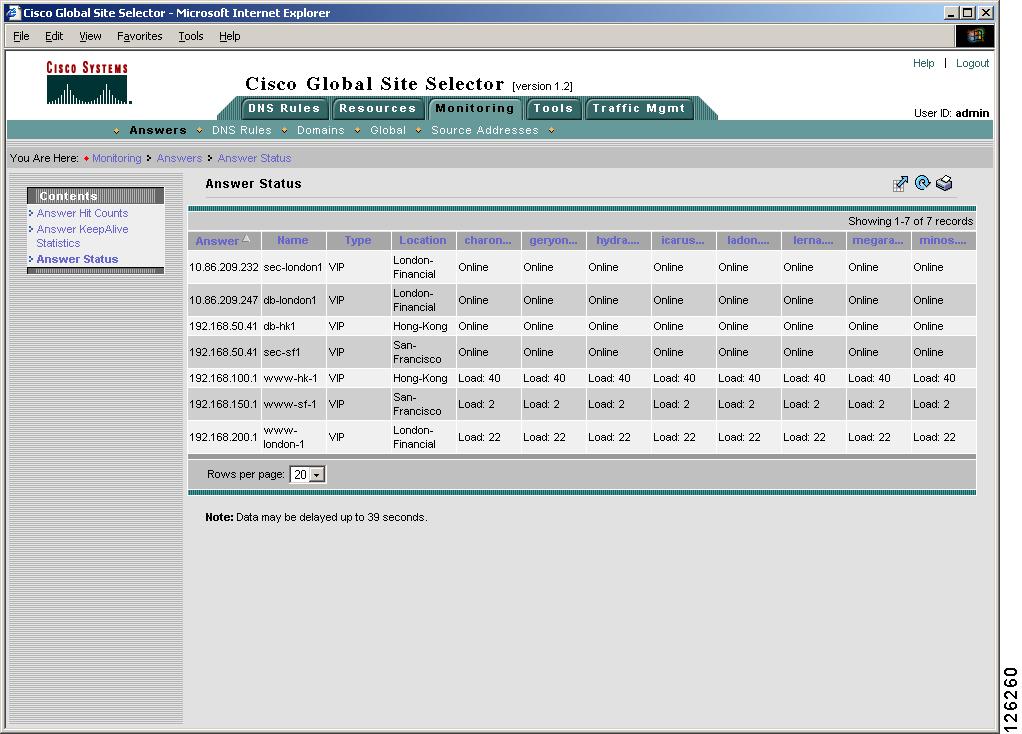

Figure 12-3 Answer Status List Page

Table 12-47 describes the fields on the Answer Status list page.

Table 12-47 Field Descriptions for Answer Status List Page

Field	Description
Answer	IP address of the answer resource
Name	Name assigned to the answer using the primary GSSMGUI
Type	Resources to which the GSS resolves DNS requests. The answer types include: VIP, CRA, or Name Server.
Location	GSS network location of the answer
Name of the GSS or GSSM	Online status of the answer according to the named device

4. Click the column header of any of the displayed columns to sort your answers by a particular property.

Displaying DNS Rule Statistics

The DNS Rule Statistics list page displays statistics about the DNS rules, such as how many queries were processed by each DNS rule and how many of those processed queries were successfully matched with answers.

To display the status of your DNS rules:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the DNS Rules navigation link. The DNS Rule Statistics list page appears (Figure 12-4).

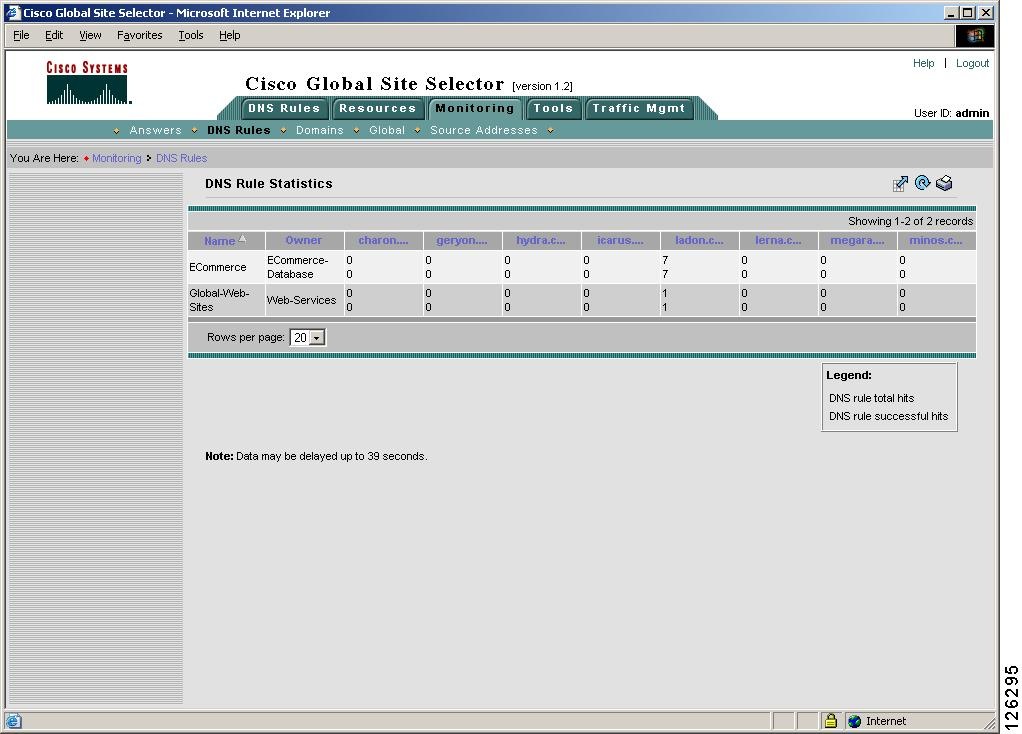

Figure 12-4 DNS Rule Statistics List Page

Table 12-48 describes the fields on the DNS Rule Statistics list page.

Table 12-48 Field Descriptions for DNS Rule Statistics List Page

Field	Description
Name	Name assigned to the answer using the primary GSSM.
Owner	GSS owner to whom the DNS rule has been assigned.
Name of the GSS or GSSM	Total hit count and successful hit count for the DNS rule from the listed GSS device. Refer to the legend that appears below the listed DNS rules for information about identifying which value represents total hits and which value represents successful DNS requests served.

3. Click the column header of any of the displayed columns to sort your DNS rules by a particular property.

Displaying Domain Hit Counts

The Domain Hot Counts list page displays statistics about the hosted domains that the GSS serves, as well as information about how many queries were directed to each domain by each DNS rule. The domain hit counts function tracks the traffic directed to the individual domains, not GSS domain lists, which may include one or more domains.

To display the status of your hosted domains:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the Domains navigation link. The Domain Hit Counts list page appears (Figure 12-5).

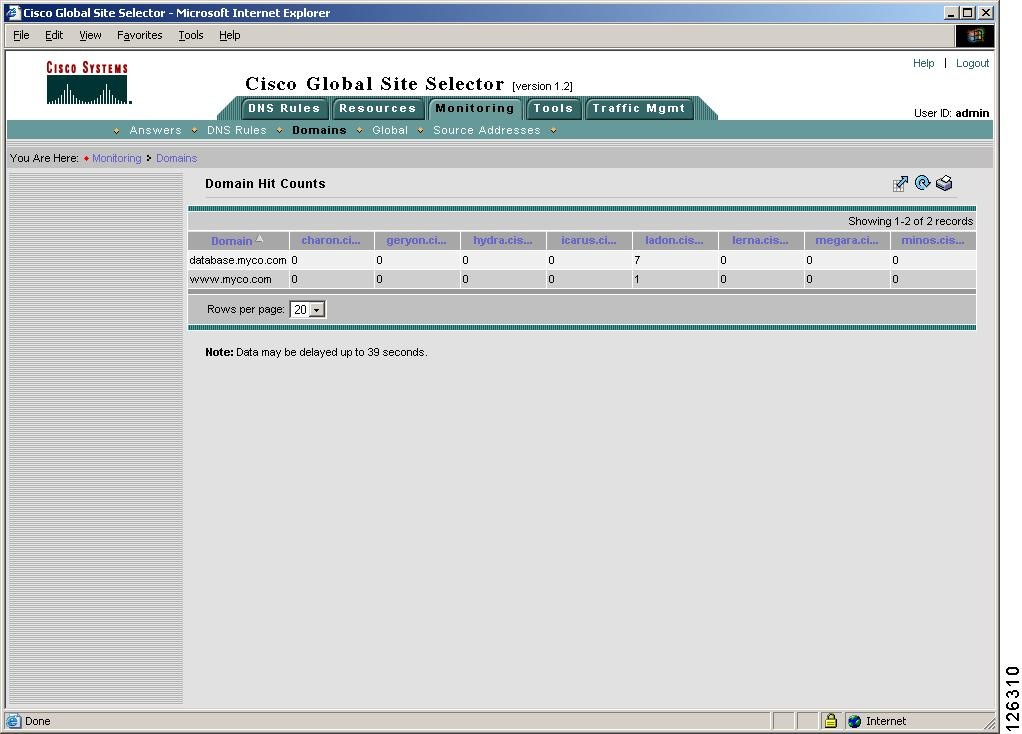

Figure 12-5 Domain Hit Counts List Page

Table 12-49 describes the fields on the Domain Hit Counts list page.

Table 12-49 Field Descriptions for Domain Hit Counts List Page

Field	Description
Domain	DNS domains that the GSS is responsible. These are the domains contained in your domain lists.
Name of the GSS or GSSM	Total number of requests for the listed domain from each GSS device

3. Click the column header of any of the displayed columns to sort the listed domains by a particular property.

Displaying Global Statistics

The Global Statistics list page displays statistics about the GSS network. Global statistics include the average number of DNS requests received by each GSS device and keepalive probes sent to your answers, as well as the online status of each GSS device.

To display the status of your GSS network:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the Global navigation link. The Global Statistics list page (Figure 12-6) appears.

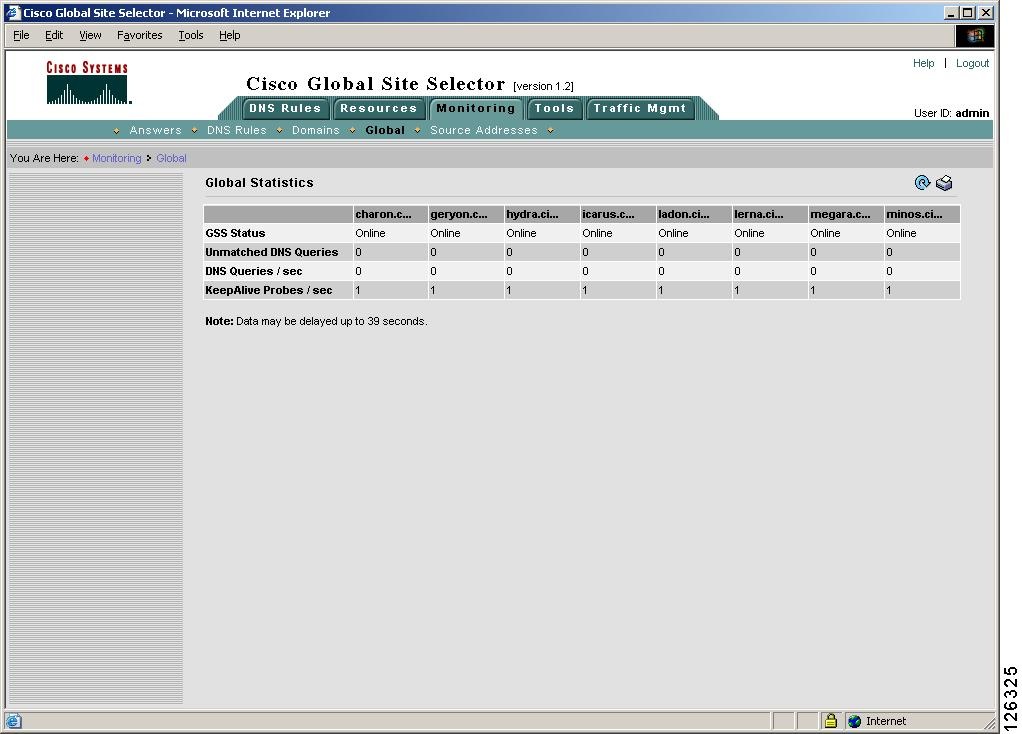

Figure 12-6 Global Statistics List Page

Table 12-50 describes the fields on the Global Statistics list page.

Table 12-50 Field Descriptions for Global Statistics List Page

Field	Description
GSS Status	Online status of each GSS device in your GSS network
Unmatched DNS Queries	Total number of DNS queries received by each listed device for which no answer could be found
DNS Queries/sec	Average number of DNS queries received, per second, by each listed GSS device
Keepalive Probes/sec	Average number of keepalive probes received by each listed GSS device each second

3. Click the column header of any of the displayed columns to sort the listed domains by a particular property.

Displaying Source Address Statistics

The Source Address Statistics list page displays statistics about the incoming requests received from each source address (the addresses that transmit DNS queries to a GSS). The source address hit counts feature tracks requests from individual address blocks, not from GSS source address lists, which may contain one or more address blocks.

To display the statistics for your source address lists:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the Source Addresses navigation link. The Source Address Statistics list page appears (Figure 12-7).

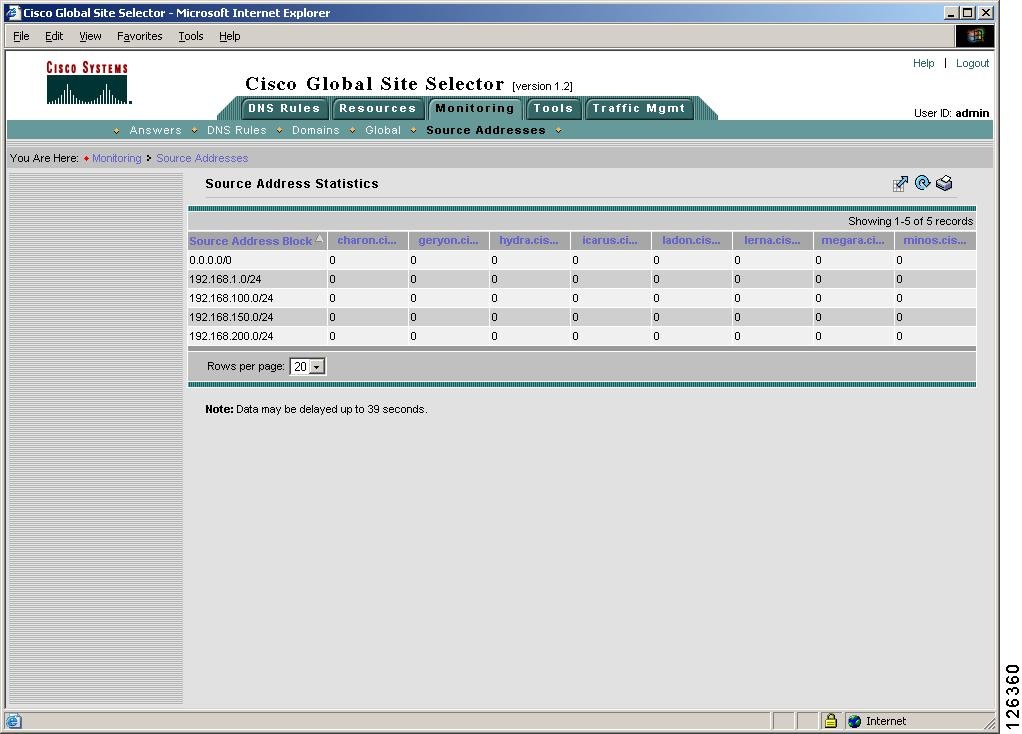

Figure 12-7 Source Address Statistics List Page

Table 12-51 describes the fields on the Source Address Statistics list page.

Table 12-51 Field Descriptions for Source Address Statistics List Page

Field	Description
Source Address Block	Address or range of addresses that originate the DNS queries. Source address blocks make up GSS source address lists.
Name of the GSS or GSSM	Total number of requests received by the listed GSS device from each source address or address block.

3. Click the column header of any of the displayed columns to sort the listed domains by a particular property.

Displaying Traffic Management Statistics

The Traffic Mgmt section of the Monitoring tab displays global statistics about network proximity and DNS sticky operation in your GSS network. Network proximity statistics include information about the proximity DNS rule hit counts, statistics about the number of entries in the proximity database of each GSS device, and statistics about probing requests. Sticky statistics include information about the sticky DNS rule hit counts and statistics about the number of entries in the sticky database of each GSS device.

This section contains the following procedures:

•Displaying Proximity Rule Hit Count Statistics

•Displaying Proximity Database Statistics

•Displaying Proximity Lookup Statistics

•Displaying Proximity Probe Management Statistics

•Displaying Sticky Rule Hit Statistics

•Displaying Sticky Database Statistics

•Displaying Global Sticky Mesh Statistics

Displaying Proximity Rule Hit Count Statistics

Use the Proximity Rule Hit Count Statistics list page to display how many times a DNS rule provides an answer for a zone determined to be the most proximate.

To display statistics about proximity hits for a DNS rule:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the Traffic Mgmt navigation link.

3. Click the Proximity Rule Hit Counts navigation link (located in the Contents list). The Proximity Rule Hit Statistics list page appears (Figure 12-8).

Figure 12-8 Proximity Rule Hit Statistics List Page

Table 12-52 describes the fields on the Proximity Rule Hit Statistics list page.

Table 12-52 Field Descriptions for Proximity Rule Hit Statistics List Page

Field	Description
Name	Name of the matched DNS rule.
Owner	GSS owner to whom the DNS rule has been assigned.
Name of the GSS or GSSM	For each GSS or GSSM: •The number of DNS requests that match the DNS rule. •The number of DNS responses successfully returned with a proximate answer for the DNS rule. Refer to the legend that appears below the listed DNS rules for information about identifying which value represents the proximity hit count and which value represents the number of successful matches.

Displaying Proximity Database Statistics

Use the Proximity Database Statistics list page to display the number of entries in the proximity database and the number of entries dropped because the proximity database reached the maximum database limit of 500,000 entries.

To display the number of entries in the proximity database:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the Traffic Mgmt navigation link.

3. Click the Proximity Database Stats navigation link (located in the Contents list). The Proximity Database Statistics list page appears (Figure 12-9).

Figure 12-9 Proximity Database Statistics List Page

Table 12-53 describes the fields on the Proximity Database Statistics list page.

Table 12-53 Field Descriptions for Proximity Database Statistics List Page

Field	Description
Global Site Selector	Name of the GSS or GSSM device
Entries in Use	Number of entries currently in the proximity database, out of a maximum of 500,000 entries
Last Cleanup	Last time the GSS removed the least recently used entries from the proximity database
Number of Cleanups	Number of entries removed during the cleanup process

Displaying Proximity Lookup Statistics

Use the Proximity Lookup Statistics list page to display statistics about the number of entries in the proximity database:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the Traffic Mgmt navigation link.

3. Click the Proximity Lookup Stats navigation link (located in the Contents list). The Proximity Lookup Statistics list page appears (Figure 12-10).

Figure 12-10 Proximity Lookup Statistics List Page

Table 12-54 describes the fields on the Proximity Lookup Statistics list page.

Table 12-54 Field Descriptions for Proximity Lookup Statistics List Page

Field	Description
Global Site Selector	Name of the GSS or GSSM device
Count	Total number of proximity lookup requests made to the GSS
Crnt Rate	Current request rate per second that requests are made to the GSS to perform a proximity lookup in the database
No Entry	Number of times the GSS was unable to locate a proximate answer from the proximity database
Partial Data	Number of times only round-trip time (RTT) data for a partial set of zones was available in the proximity database
Req. Dropped	Number of proximity lookup queries dropped by the GSS
Db Full	Number of times the GSS was unable to perform a proximity add because the database exceeded the maximum number of entries

Displaying Proximity Probe Management Statistics

Use the Proximity Probe Management Statistics list page to display statistics about the ICMP and TCP probes transmitted from the probing devices.

To display statistics about the probing requests and responses:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the Traffic Mgmt navigation link.

3. Click the Proximity Probe Mgmt Stats navigation link (located in the Contents list). The Proximity Probe Mgmt Statistics list page appears (Figure 12-11).

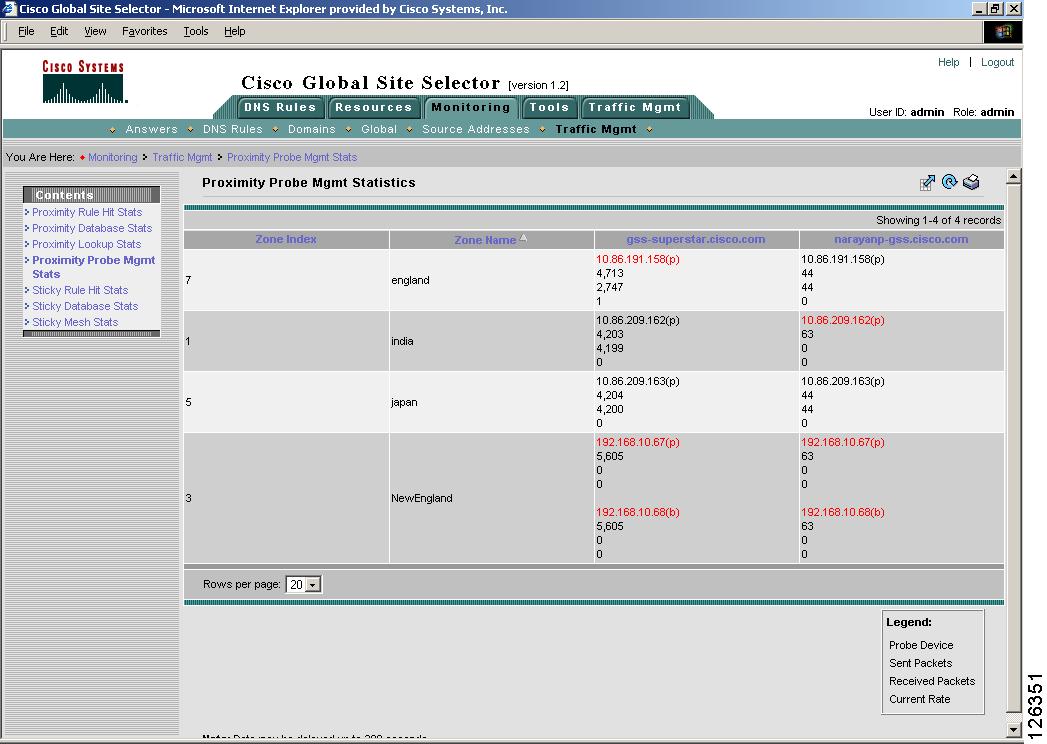

Figure 12-11 Proximity Probe Mgmt Statistics List Page

Table 12-55 describes the fields on the Proximity Probe Mgmt Statistics list page.

Table 12-55 Field Descriptions for Proximity Probe Mgmt Statistics List Page

Field	Description
Zone Index	The numerical identifier of the proximity zone.
Zone Name	The name of the proximity zone.
Name of the GSS or GSSM	For each GSS or GSSM: •The IP address of the probe device. •The total number of DRP echo and measurement packets sent by the GSS to the probing device in the proximity zone. •The total number of DRP echo and measurement packets received by the GSS from the probing device in the proximity zone. •The current packet send rate per second. Refer to the legend that appears below the listed zones for information about identifying which value represents sent echo and measurement packets, which value represents received echo and measurement packets, and which value represents the current packet send rate.

Displaying Sticky Rule Hit Statistics

Use the Sticky Rule Hit Statistics list page to display how many times the GSS accesses a DNS rule and makes a best effort to provide identical A-record responses to the requesting client D-proxy.

To display statistics about sticky hits for a DNS rule:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the Traffic Mgmt navigation link.

3. Click the Sticky Rule Stats navigation link (located in the Contents list). The Sticky Rule Hit Statistics list page appears (Figure 12-12).

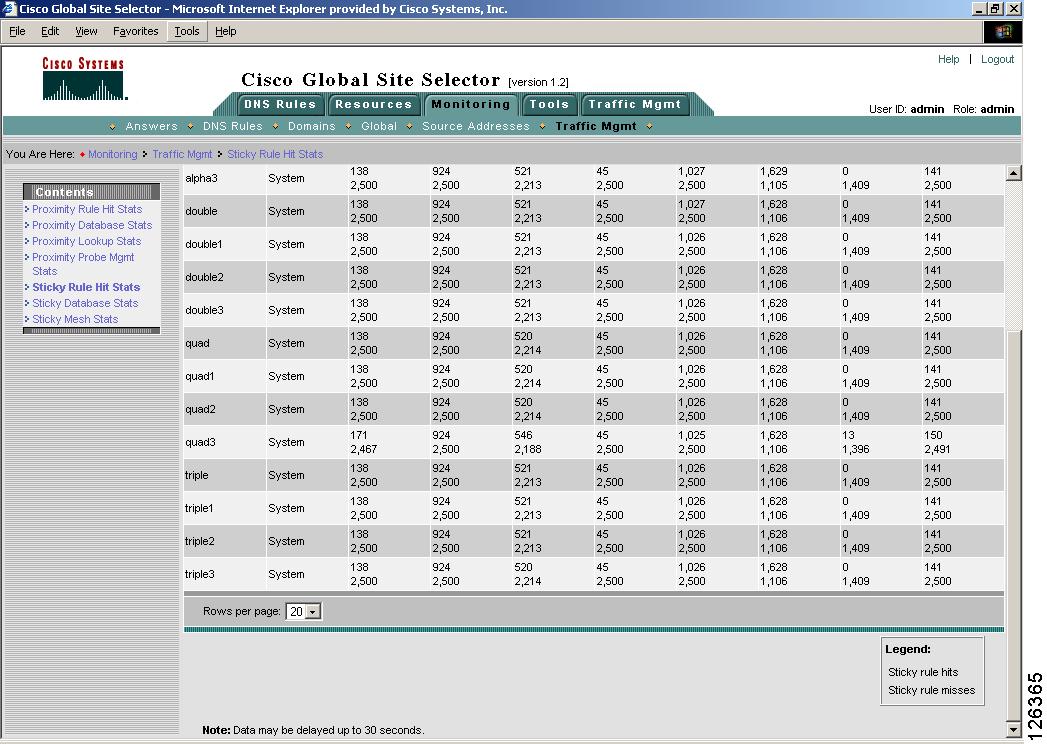

Figure 12-12 Sticky Rule Hit Statistics List Page

Table 12-56 describes the fields on the Sticky Rule Hit Statistics list page.

Table 12-56 Field Descriptions for Sticky Rule Hit Statistics List Page

Field	Description
Name	Name of the matched DNS rule.
Owner	GSS owner to whom the DNS rule has been assigned.
Name of the GSS or GSSM	For each GSS or GSSM: •The total number of successful sticky answer matches in the sticky database for the DNS rule. •The total number of failed sticky answer lookups in the sticky database for the DNS rule. Refer to the legend that appears below the listed DNS rules for information about identifying which value represents successful matches and which value represents failed lookups.

Displaying Sticky Database Statistics

Use the Sticky Database Statistics list page to display the number of entries in the sticky database.

To display the number of entries in the sticky database:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the Traffic Mgmt navigation link.

3. Click the Sticky Database Stats navigation link (located in the Contents list). The Sticky Database Statistics list page appears (Figure 12-13).

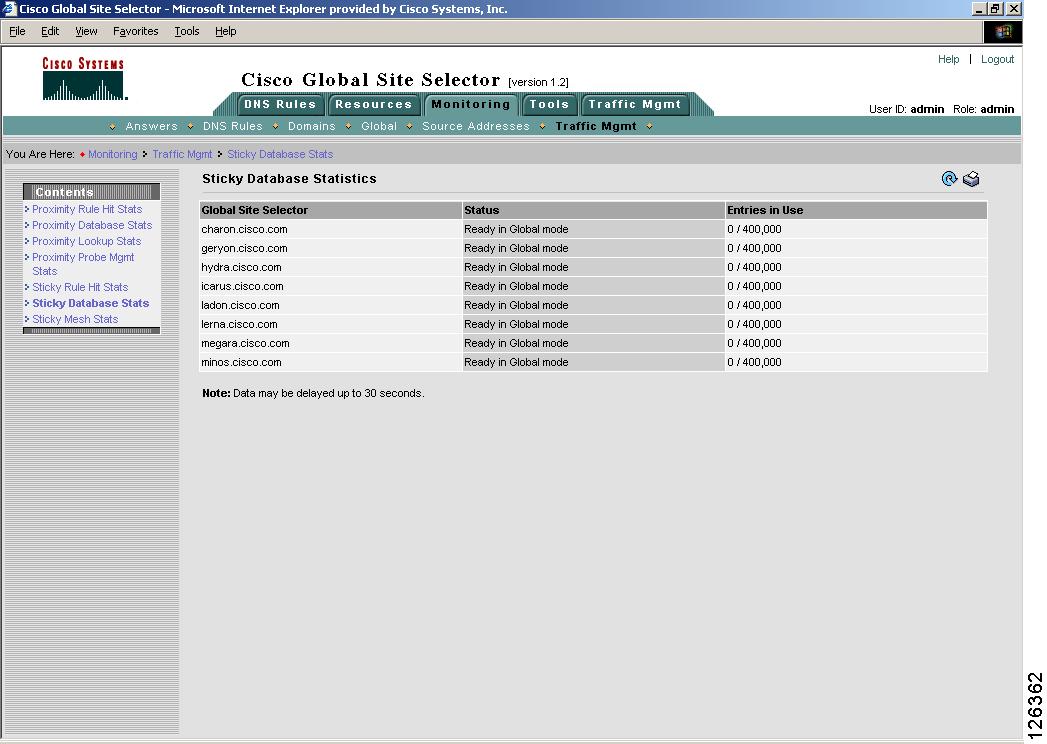

Figure 12-13 Sticky Database Statistics List Page

Table 12-57 describes the fields on the Sticky Database Statistics list page.

Table 12-57 Field Descriptions for Sticky Database Statistics List Page

Field	Description
Global Site Selector	Name of the GSS device (GSSM or GSS).
Status	Sticky status of the named device and sticky mode. Status conditions can include Disabled, Local, Global, and Stopped.
Entries in Use	Number of entries currently in the sticky database out of a maximum of 400,000 entries.

Displaying Global Sticky Mesh Statistics

Use the Sticky Mesh Statistics list page to display the global mesh statistics for all GSS devices in the mesh. This list page identifies all of the GSS devices in the mesh in an X by Y matrix, with each cell displaying the device online status, packets received, packets sent, and any connection down events encountered between the nodes. The statistics appear from the local GSS node's view (X) of the session to each mesh peer (Y).

To display the global mesh statistics:

1. From the primary GSSM GUI, click the Monitoring tab.

2. Click the Traffic Mgmt navigation link.

3. Click the Sticky Mesh Stats navigation link (located in the Contents list). The Sticky Mesh Statistics list page appears (Figure 12-14).

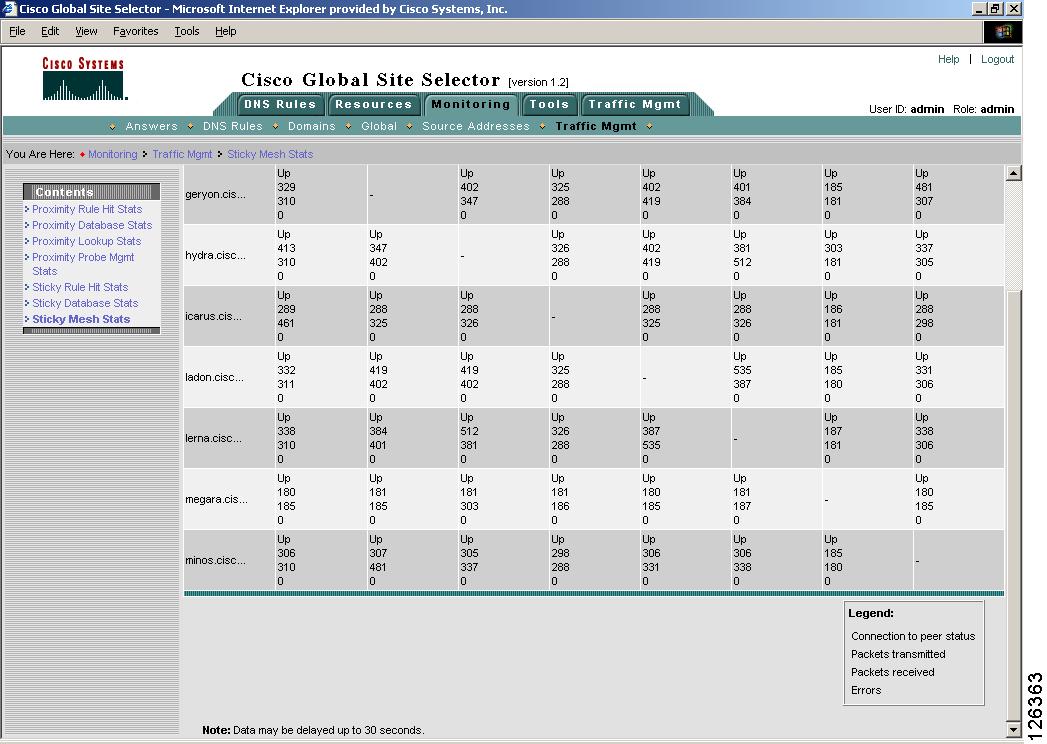

Figure 12-14 Sticky Mesh Stats List Page

Table 12-58 describes the fields on the Sticky Mesh Statistics list page.

Table 12-58 Field Descriptions for Sticky Mesh Statistics List Page

Field	Description
GSS/Peer	Name of the GSS device (GSSM or GSS) in the mesh along with its peers.
Name of the GSS or GSSM in the mesh	For each GSS peer in the mesh, each column lists the following statistics: •Connection to peer status—Online status of each peer in the mesh. The possible states are Stopped, Init, Opened, Authentication, Up, and Down. •Packets transmitted—Number of packets transmitted from the GSS or GSSM to each peer in the mesh. •Packets received—Number of packets received by the GSS or GSSM from each peer in the mesh. •Down Events—The number of down events encountered for the session between the peers in the mesh. Refer to the legend that appears below the listed peer GSS or GSSM in the mesh for information about identifying which statistic represents the online peer status, packets transmitted, packets received, and session down events.
