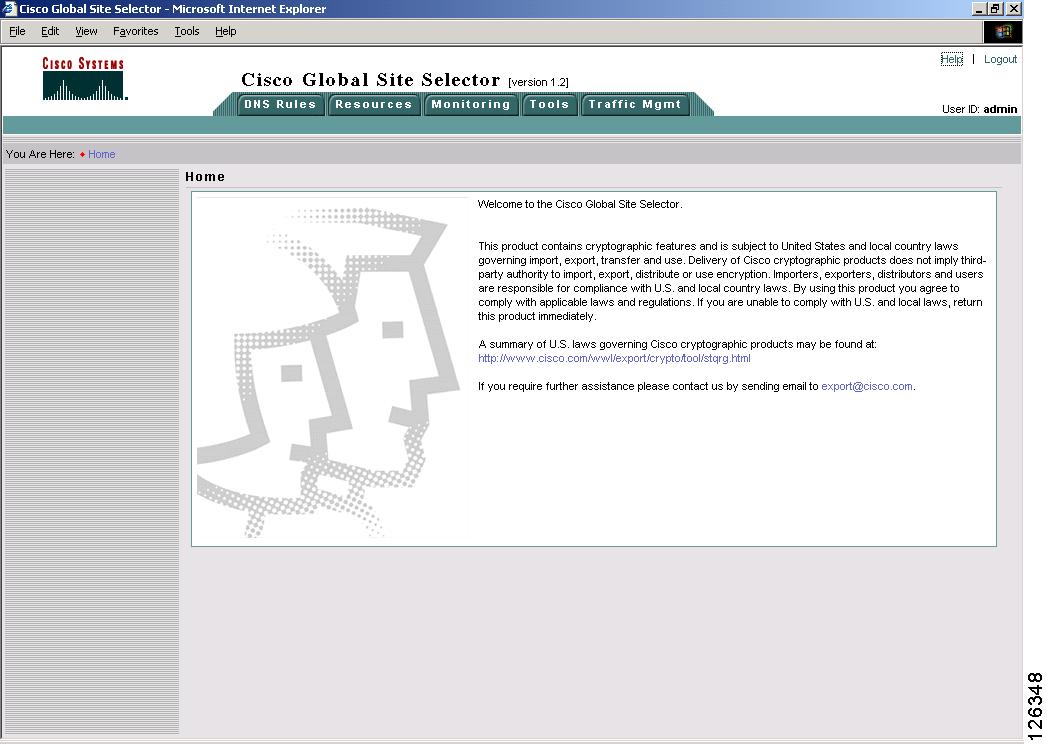

GUI-Based Primary GSSM Management

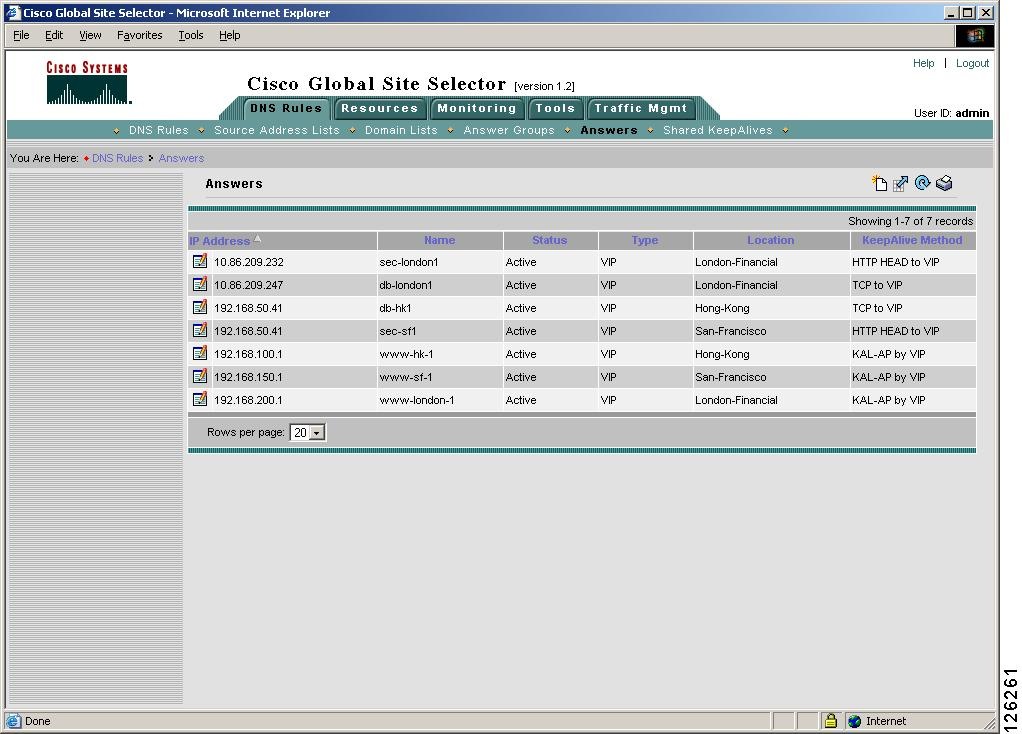

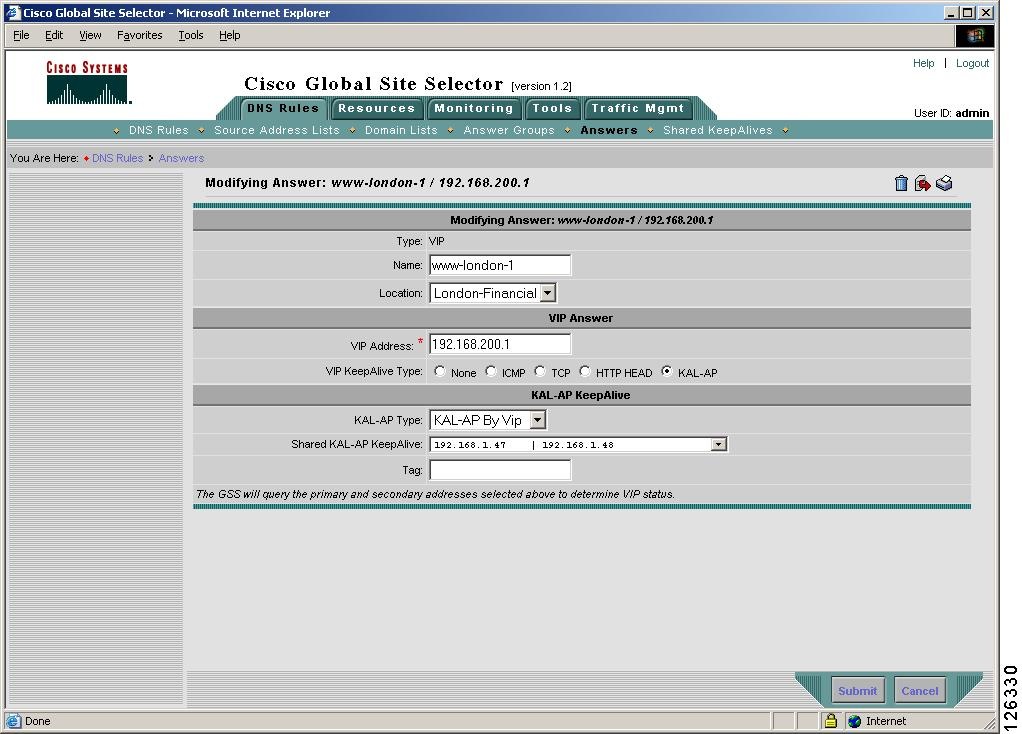

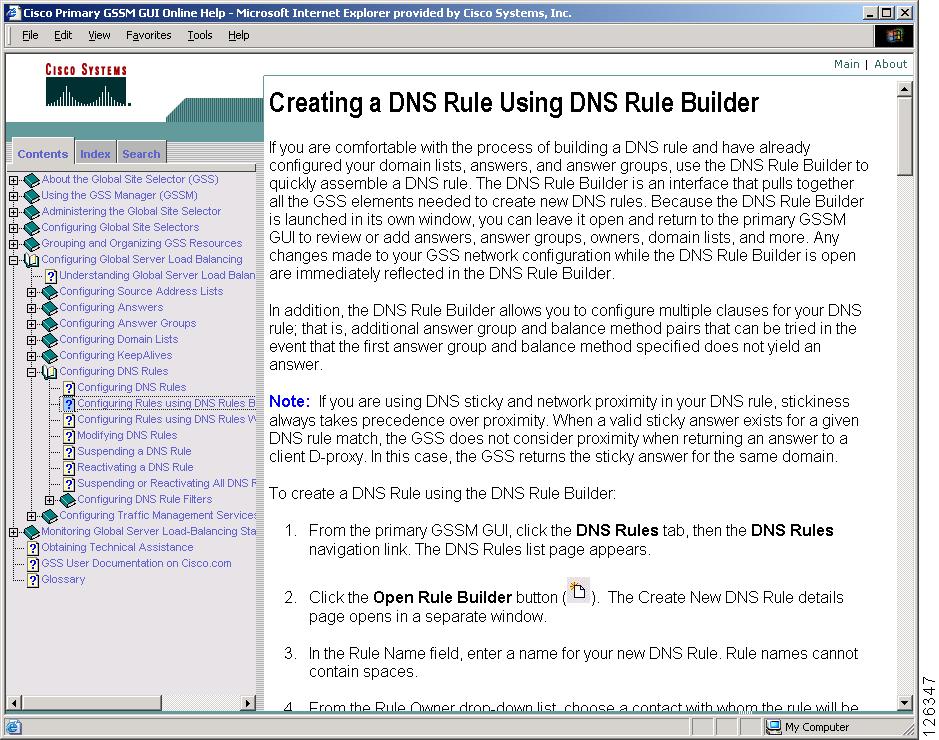

Understanding the Primary GSSM GUI
Primary GSSM GUI Icons and Symbols
Global Server Load-Balancing Summary
Introducing the Global Site Selector
This chapter describes the Cisco Global Site Selector (GSS) and introduces you to the terms and concepts necessary to help you understand and operate the GSS device.
This chapter contains the following major sections:
•
Understanding the Primary GSSM GUI
•
GSS Overview
Global load-balancing devices, such as the Cisco Content Services Switch (CSS) and Cisco Content Switching Module (CSM), can balance content requests among two or more servers containing the same content that are connected to a corporate LAN or the Internet. Server load-balancing devices ensure that the content consumer is directed to the host that is best suited to handle that consumer's request.
Organizations with a global reach or businesses that provide web and application hosting services require network devices that can perform complex request routing to two or more redundant, geographically dispersed data centers, improving response times while also providing disaster recovery and failover protection through global server load balancing, or GSLB.
The Cisco Global Site Selector (GSS) platform allows customers to leverage global content deployment across multiple distributed and mirrored data locations, optimizing site selection, improving Domain Name System (DNS) responsiveness, and ensuring data center availability.
The GSS is inserted into the traditional DNS routing hierarchy and is closely integrated with the Cisco CSS, Cisco CSM, or third-party server load balancers (SLBs) to monitor the health and load of the SLBs in your data centers. The GSS uses this information and user-specified routing algorithms, to select the best-suited and least-loaded data center in real time.
The GSS can detect site outages, ensuring that web-based applications are always online and that customer requests to data centers that suddenly go offline are quickly rerouted to available resources.
The GSS offloads tasks from traditional DNS servers by taking control of the domain resolution process for parts of your domain name space. The GSS improves DNS responsiveness to those subdomains because it can respond to requests at a rate of thousands of requests per second.
DNS Routing
This section explains some of the key DNS routing concepts behind the GSS product.
Since the early 1980s, content routing on the Internet has been handled using the Domain Name System (DNS), a distributed database of host information that maps domain names to IP addresses. Almost all transactions that occur across the Internet rely on DNS, including electronic mail, remote terminal access such as Telnet, file transfers using FTP, and web surfing. DNS uses easy-to-remember alphanumeric host names instead of numeric IP addresses that bear no relationship to the content on the host.
With DNS, you can manage a nearly infinite number of host names referred to as the domain name space (Figure 1-1). DNS allows local administration of segments (individual domains) of the overall database, but allows for data in any segment to be available across the entire network. This process is referred to as delegation.
Figure 1-1 Domain Name Space
DNS Name Servers
Information about the domain name space is stored on name servers that are distributed throughout the Internet. Each server stores the complete information about its small part of the total domain name space. This space is referred to as a DNS zone. A zone file contains DNS information for one domain ("mycompany.com") or subdomain ("gslb.mycompany.com"). The DNS information is organized into lines of information called resource records.
End users requiring data from a particular domain or machine generate a recursive DNS request on their client that is sent first to the local name server (NS), also referred to as the D-proxy. The D-proxy returns the IP address of the requested domain to the end user.
The DNS structure is based on a hierarchical tree structure that is similar to common file systems. The key components in this infrastructure are as follows:
•
•
•
•
•
Request Resolution
If the local D-proxy does not have the information requested by the end user, it sends out iterative requests to the name servers that it knows are authoritative for the domains close to the requested domain. For example, a request for www.cisco.com causes the local D-proxy to check first for another name server that is authoritative for www.cisco.com.
The process outlined below summarizes the sequence performed by the DNS infrastructure to return an IP address when a client tries to access the www.cisco.com website. Figure 1-2 illustrates how the DNS request resolution process works.
Figure 1-2 DNS Request Resolution
1.
2.
•
•
3.
4.
5.
GSLB Using the GSS
The GSS series platform addresses critical disaster recovery requirements by globally load-balancing distributed data centers. The GSS coordinates the efforts of geographically dispersed SLBs in a global network deployment for the following Cisco products:
•
•
•
•
•
•
•
•
The GSS supports up to 256 unique SLBs and over 4000 separate virtual IP (VIP) addresses. It coordinates the activities of SLBs by acting as the authoritative DNS server for those devices under its control.
Once the Cisco GSS becomes responsible for GSLB services, the DNS process migrates to the GSS. The DNS configuration is the same process as described in the "Request Resolution" section. The only exception is that the NS-records point to the GSSs located at each data center. The Cisco GSS device determines which data center site should receive the client traffic.
As the authoritative name server for a domain or subdomain, the GSS considers additional information about the resources under its control when it receives requests from client name servers. The GSS considers the following additional factors when responding to a DNS request:
•
•
•
•
•
This type of global server load balancing helps to ensure that the end users are always directed to resources that are online, and that requests are forwarded to the most suitable device, resulting in increased response time for users.
When resolving DNS requests, the Cisco GSS performs a series of distinct operations that take into account the resources under its control and return the best possible answer to the requesting client's D-proxy.
The following process outlines how the GSS interacts with various clients as part of the website selection process to return the IP address of the requested content site. Figure 1-3 illustrates how this process works.
1.
2.
3.
4.
5.
Figure 1-3 GLSB Using the Cisco Global Site Selector
6.
GSS Architecture
This section describes the following key components of a GSS deployment, including hardware and software, as well as GSS networking concepts:
•
•
•
•
Global Site Selectors and Global Site Selector Managers
The Global Site Selector solution relies on three distinct but closely related devices:
•
•
•
GSS
The GSS is the Cisco Global Site Selector platform running GSS software and performing routing of DNS queries based on DNS rules and conditions configured using the GSSM.
Each GSS is known to and synchronized with the primary GSSM, but individual GSSs do not report their presence or status to one another. Each GSS on your network delegates authority to the parent domain GSS DNS server that addresses the DNS requests.
Each GSS is individually managed through its CLI. Graphical user interface (GUI) support is not available on a GSS device or on a standby GSSM.
Primary GSSM
The primary GSSM is the Cisco Global Site Selector platform running Cisco GSS software and performing content routing in addition to centralized management functions for the GSS network.
The primary GSSM serves as the organizing point of the GSS network, hosting the embedded GSS database that contains configuration information for all your GSS resources, such as individual GSSs and DNS rules. All connected GSS devices report their status to the primary GSSM.
You use a graphical user interface (GUI) on the primary GSSM to monitor and administer the GSS devices. All configuration changes are automatically communicated to each device managed by the primary GSSM.
Any GSS device can serve as a GSSM.
In addition to content routing configuration, the primary GSSM GUI supports a subset of device-monitoring and logging features. Additional device configuration may require access to the CLI of an individual GSS device.
Communication between administrators and the primary GSSM uses secure HTTP (HTTPS). Access to the primary GSSM graphical user interface is password protected.
Standby GSSM
The standby GSSM is the Cisco Global Site Selector platform running Cisco GSS software and performing GSLB functions for the GSS network. You can configure the standby GSSM to function as the primary GSSM should the designated primary GSSM go offline or become unavailable to communicate with other GSS devices.
When the standby GSSM operates as the interim primary GSSM, it contains a duplicate copy of the embedded GSS database currently installed on the primary GSSM. GUI support is also available on the standby GSSM once you configure it as the interim primary GSSM. While operating as the primary GSSM, you can monitor GSS behavior and make configuration changes, if necessary.
Any configuration or network changes affecting the GSS network are synchronized between the primary and the standby GSSM so that the two devices are never out of sequence.
You enable the standby GSSM as the primary GSSM through the gssm standby-to-primary CLI command. Ensure that your original primary GSSM is offline before you attempt to enable the standby GSSM as the new primary GSSM. Having two primary GSSMs active at the same time may result in the inadvertent loss of configuration changes for your GSS network. If this dual primary GSSM configuration occurs, the two primary GSSMs revert to standby mode and you must reconfigure one of the GSSMs as the primary GSSM.
The standby GSSM can temporarily take over the role as the primary GSSM is the event that the primary GSSM is unavailable (for example, you need to move the primary GSSM or you want to take it offline for repair or maintenance). The switching of roles between the designated primary GSSM and the standby GSSM is intended to be a temporary GSS network configuration until the original primary GSSM can be brought back online. Once the original primary GSSM is available, reassign the two GSSMs to their original roles in the GSS network as described in the Cisco Global Site Selector Administration Guide.
DNS Rules
The GSS uses DNS rules, as configured by the administrator through the primary GSSM GUI to perform the following:
•
•
•
Each DNS rule determines how the GSS responds to each query it receives by matching requests received from a known source, or D-proxy, to the most suitable member of a collection of name servers or virtual IP addresses (VIPs).
Each DNS rule takes into account the following variables:
•
•
•
•
•
A DNS rule defines how a request is handled by the GSS by answering the following question:
When traffic arrives from a DNS proxy, querying a specific domain name, what resources should be considered for the response, and how should they be balanced?
Each GSS network supports a maximum of 4000 DNS rules.
Up to three possible response answer group and balance method clauses are available for each DNS rule. Each clause specifies that a particular answer group serve the request and a specific balance method be used to select the best resource from that answer group. These clauses are evaluated in order, with parameters established to determine when one clause should be skipped if the first answer group and balance method specified does not yield an answer, and the next clause is used.
Refer to Chapter 7, Building and Modifying DNS Rules, for procedures about constructing the DNS rules that govern all global server load balancing on your GSS network.
Locations and Regions
As your GSS network grows, the job of organizing and administering your GSS resources—answers and answer groups, domain lists, and DNS rules—becomes a more complex problem. For that reason, the GSS makes the following features available to help you make sense of and organize your resources:
•
•
In addition to allowing you to easily sort and navigate long lists of answers and DNS rules, the use of logical groupings such as locations and regions makes it easier to perform bulk administration of GSS resources. For example, from the primary GSSM, you can suspend or activate all answers linked to a particular GSS data center, shutting down a site for scheduled maintenance and then bringing it back online with only a few mouse clicks.
Refer to Chapter 2, Configuring Resources, for information on configuring locations and regions.
Owners
Owners serve a similar purpose to locations and regions in the GSS by providing a simple way to organize and identify groups of related GSS resources. However, when you use regions and locations to make geographical sense of your GSS network, you use owners to group resources according to other organizational schemes.
For example, a service provider using the GSS to manage multiple hosting sites might create an owner for each web or application hosting customer. With this organizational scheme, domain lists containing that customer's hosted content as well as DNS rules, answer groups, and source address lists that specify how traffic to those domains should be processed, can all be associated with and managed through the owner.
Deployed on a corporate intranet, owners can be used to segregate GSS resources on a department-by-department basis, or to allocate specific resources to IT personnel. For example, you can create an owner for the finance, human resources, and sales departments so that resources corresponding to each can be viewed and managed together.
Refer to Chapter 2, Configuring Resources, for information on configuring owners.
Source Address and Source Address Lists
The term source address refers to the source of DNS queries received by the GSS. Source addresses typically point to an IP address or block of addresses that represent client D-proxies from which the queries originate.
Using a DNS rule, the GSS matches source addresses to domains hosted by the GSS using one of a number of different balance methods.
Source addresses are taken from the D-proxy (the local name server) to which a requesting client issued a recursive request. The D-proxy sends the client queries to multiple name servers, eventually querying the GSS, which matches the D-proxy address against its list of configured source addresses.
DNS queries received by the GSS do not have to match a specific D-proxy in order to be routed; default routing can be performed on requests that do not emanate from a known source address. By default, the GSS provides a fail-safe "Anywhere" source address list. Incoming queries that do not match your configured source address lists are matched to this list.
In addition to specific IP addresses, source addresses can also be set up to represent address blocks using variable-prefix-length classless interdomain routing (CIDR) block masking. The following examples illustrate acceptable GSS source addresses:
192.168.1.110192.168.1.110/32192.168.1.0/24192.168.0.0/16Source addresses are grouped into lists, referred to as source address lists, for the purposes of routing requests. Source address lists can contain between 1 and 30 source addresses or unique address blocks. Each GSS supports up to 60 source address lists.
Refer to Chapter 3, Configuring Source Address Lists, for information on configuring source address lists.
Hosted Domains and Domain Lists
A hosted domain (HD) is any domain or subdomain that has been delegated to the GSS and configured using the primary GSSM GUI for DNS query responses. A hosted domain is a DNS domain name for which the GSS is authoritative.
All DNS queries must match a domain that belongs to a configured domain list, or the GSS denies the query. Queries that do not match domains on any GSS domain lists can also be forwarded by the GSS to an external DNS name server for resolution.
Hosted domains can correspond to standard third-level domain names but cannot exceed 128 characters in length. The GSS supports domain names that use wildcards. The GSS also supports POSIX 1003.2-extended regular expressions when matching wildcards.
The following examples illustrate domain or subdomain names configured on the GSS:
cisco.comwww.cisco.comwww.support.cisco.com.*\.cisco\.comDomain lists are groups of hosted domains that have been delegated to the GSS. Each GSS can support a maximum of 2000 hosted domains and 2000 hosted domain lists, with a maximum of 500 hosted domains supported for each domain list.
By using a DNS rule, requests for any member of a domain list are matched to an answer, a resource hosting the content being requested, through one of a number of balance methods.
Refer to Chapter 4, Configuring Domain Lists, for information on configuring domain lists.
Answers and Answer Groups
In a GSS network, the term answers refers to resources to which the GSS resolves DNS requests that it receives. The three types of possible answers on a GSS
network are as follows
•
•
•
As with domains and source addresses, answers are configured using the primary GSSM GUI by identifying the IP address to which queries can be directed.
Once created, you group answers together as resource pools called answer groups. From the available answer groups, the GSS can use up to three possible response answer group and balance method clauses in a DNS rule to select the most appropriate resource to serve a user request. Each balance method provides a different algorithm for selecting one answer from a configured answer group. Each clause specifies that a particular answer group serve the request and a specific balance method be used to select the best resource from that answer group.
Depending on the type of answer, further intelligence can be applied to DNS queries to choose the best host. For example, a request that is routed to a VIP associated with a Cisco CSS is routed to the best resource based on load and availability, as determined by the CSS. A request that is routed to a content routing agent (CRA) is routed to the best resource based on proximity, as determined in a DNS race conducted by the GSS.
Refer to Chapter 6, Configuring Answers and Answer Groups, for information on configuring GSS answers and answer groups.
VIP Answers
SLBs use VIP answers to represent content hosted on one or more servers under their control. The use of VIP answers allows for traffic to be balanced among multiple origin servers, application servers, or transaction servers in a way that results in faster response times for users and less network congestion for the host.
When queried by a client's D-proxy for a domain associated with a VIP answer type, the GSS responds with the VIP address of the SLB best suited to handle that request. The requesting client then contacts the SLB, which load balances the request to the server best suited to respond to the request.
Name Server Answers
A name server answer specifies the IP address of a DNS name server to which DNS queries are forwarded from the GSS.
Using the name server forwarding feature, queries are forwarded to an external (non-GSS) name server for resolution, with the answer passed back to the GSS name server and from there to the requesting D-proxy. The name server answer type can act as a guaranteed fallback resource, a way to resolve requests that the GSS cannot resolve itself, for the following reasons:
•
•
•
•
•
CRA Answers
The CRA answer relies on content routing agents and the GSS to choose a suitable answer for a given query based on the proximity of two or more possible hosts to the requesting D-proxy.
With the CRA answer, requests received from a particular D-proxy are served by the content server that responds first to the request. Response time is measured using a DNS race, coordinated by the GSS and content routing agents running on each content server. In the DNS race, multiple hosts respond simultaneously to an A-record request. The server with the fastest response time (the shortest network delay between itself and the client's D-proxy) is chosen to serve the content.
The GSS requires these two pieces of information so that it can initiate a DNS race:
•
•
The boomerang balance method uses the DNS race to determine the best site. See the "Boomerang (DNS Race)" section for more information on this balance method.
Keepalives
In addition to specifying a resource, each answer also provides you with the option of specifying a keepalive for that resource. A keepalive is the method by which the GSS periodically checks to determine if a resource is still active. A keepalive is a specific interaction (handshake) between the GSS and another device using a commonly supported protocol. A keepalive is designed to test if a specific protocol on the device is functioning properly. If the handshake is successful, then the device is available, active, and able to receive traffic. If the handshake fails, then the device is considered to be unavailable and inactive. All answers are validated by configured keepalives and are not returned by the GSS to the D-proxy if the keepalive indicates that the answer is not viable.
The GSS uses keepalives to collect and track information on everything from the simple online status of VIPs to services and applications running on a server. You can configure a keepalive to continually monitor the online status of a resource and report that information to the primary GSSM. Routing decisions involving that resource consider the reported online status information.
The GSS also supports the use of shared keepalives to minimize traffic between the GSS and the SLBs that it is monitoring. A shared keepalive identifies a common address or resource that can provide status for multiple answers. Shared keepalives are not used with name server or CRA answers.
The following sections explain the various keepalive types supported by the GSS:
•
•
•
•
•
Refer to Chapter 5, Configuring Keepalives, for information on modifying global keepalive parameters and creating shared keepalives.
ICMP
Use an ICMP keepalive when testing a GSS answer that is a VIP address, IP address, or a virtual server IP address. The Internet Control Message Protocol (ICMP) keepalive type monitors the health of resources by issuing queries containing ICMP packets to the configured VIP address (or a shared keepalive address) for the answer. Online status is determined by a response from the targeted address, indicating simple connectivity to the network. The GSS supports up to 500 ICMP keepalives when using the standard detection method and up to 100 ICMP keepalives when using the fast detection method. See the "Adjusting Failure Detection Time for Keepalives" section for details.
TCP
Use a TCP keepalive when testing a GSS answer that is a GSLB device that may be something other than a CSS or CSM. These GSLB remote devices could include webservers, LocalDirectors, WAP gateways, and other devices that can be checked using a TCP keepalive. The TCP keepalive initiates a TCP connection to the remote device by performing the three-way handshake sequence.
Once the TCP connection is established, the GSS terminates the connection. You can choose to terminate the connection from two termination methods: Reset (immediate termination using a hard reset) or Graceful (standard three-way handshake termination).
The GSS supports up to 500 TCP keepalives when using the standard detection method and up to 100 TCP keepalives when using the fast detection method. Refer to the "Adjusting Failure Detection Time for Keepalives" section for details.
HTTP HEAD
Use an HTTP HEAD keepalive when testing a GSS answer that is an HTTP web server acting as a standalone device or managed by an SLB device such as a Cisco CSS, Cisco CSM, Cisco IOS-compliant SLB, or Cisco LocalDirector. The HTTP HEAD keepalive type sends a TCP-formatted HTTP HEAD request to a web server at an address that you specify, returning the online status of the device in the form of an HTTP Response Status Code of 200 (for example, HTTP/1.0 200 OK).
Once the HTTP HEAD connection is established, the GSS terminates the connection. You can choose to terminate the connection from two termination methods: Reset (immediate termination using a hard reset) or Graceful (standard three-way handshake termination).
The GSS supports up to 500 HTTP HEAD keepalives when using the standard detection method and up to 100 HTTP HEAD keepalives when using the fast detection method. Refer to the "Adjusting Failure Detection Time for Keepalives" section for details.
KAL-AP
Use a KAL-AP (KeepAlive-Appliance Protocol) keepalive when testing a GSS answer that is a VIP associated with a Cisco CSS or a Cisco CSM. The KAL-AP keepalive type sends a detailed query to both a primary (master) and an optional secondary (backup) circuit address that you specify, returning the online status of each interface as well as information on load.
Depending on your GSS network configuration, the KAL-AP keepalive can be used to either query a VIP address directly (KAL-AP By VIP) or query an address with f an alphanumeric tag (KAL-AP By Tag). Using a KAL-AP By Tag keepalive query can be particularly useful in the following cases:
•
•
The GSS supports up to 128 primary and 128 secondary KAL-AP keepalives when using the standard detection method and up to 40 primary and 40 secondary KAL-AP keepalives when using the fast detection method. See the "Adjusting Failure Detection Time for Keepalives" section for details.
CRA
Use the CRA keepalive when testing a CRA answer that responds to DNS race requests. The CRA keepalive type tracks the time required (in milliseconds) for a packet of information to reach the CRA and return to the GSS. The GSS supports up to 200 CRA keepalives.
Name Server
Use the name server keepalive to send a query to the IP address of the name server for a specified query domain (for example, www.cisco.com). The online status for the name server answer is determined by the ability of the name server or D-proxy for the query domain to respond to the query and assign the domain to an address. The GSS supports up to 100 name server keepalives.
None
With the keepalive set to None, the GSS assumes that the named answer is always online. Setting the keepalive type to None prevents your GSS from taking online status or load into account when routing. However, a keepalive of None can be useful under certain conditions, such as when adding devices to your GSS network that are not suited to other keepalive types. ICMP is a simple and flexible keepalive type that works with most devices. Using ICMP is preferable to using the None option.
Adjusting Failure Detection Time for Keepalives
Failure detection time, as it relates to the GSS, is the amount of time between when a device failure occurred (the answer resource goes offline) and when the GSS realized the failure occurred. The failure detection window is the window of time that the GSS may wait, once initiating a keepalive cycle, before determining that an answer has failed. If a response packet fails to arrive back to the GSS within this window, the answer is marked offline.
The GSS supports two failure detection modes: standard and fast.
With standard mode, the failure detection time is typically 60 seconds before the GSS detects that a failure has occurred. Standard mode allows adjustment of the following parameters:
•
•
With fast mode, the GSS controls the failure detection time by using the following keepalive transmission interval formula:
(# Ack'd Packets * (Response TO + (Retry TO * # of Retries))) + Timed Wait
where:
# Ack'd Packets = Number of packets that require some form of acknowledgement (how many packets require acknowledgement)
Response TO = Response Timeout (how long to wait for a reply for a packet that requires acknowledgement)
Retry TO = Retry Timeout (how long to wait for a reply for a retransmitted packet)
# of Retries = Number of Retries (how many times the GSS retransmits packets to a potentially failed device before declaring the device offline)
Timed Wait = Time for the remote side of the connection to close (TCP-based keepalive only)
Table 1-1 summarizes how the GSS calculates the fast keepalive transmission rates.
In the case of a TCP (RST) connection, the default transmission interval for a TCP keepalive is as follows:
(1 * (2 + (2 * 1))) + 0 = 4 seconds
You can adjust the number of retries for the ICMP, TCP, HTTP HEAD, and KAL-AP keepalive types. The number of retries defines how many times the GSS retransmits packets to a potentially failed device before declaring the device offline. The GSS supports a maximum of 10 retries, with a default of 1. As you adjust the number of retries, you change the detection time determined by the GSS. By increasing the number of retries, you increase the detection time. Reducing the number of retries has the reverse effect on the detection time.
The GSS associates the number of retries value with every packet requiring some form of acknowledgement before continuing with a keepalive cycle (ICMP requests, TCP SYN, or TCP FIN). For example, to fully complete a TCP-based keepalive cycle, the TCP-based keepalive retries the SYN packet for the specified number of retries and then retries the FIN packet for the specified number of retries.
In the above example of a TCP (RST) connection, if you change the number of retries from the default value of 1 to a setting of 5, the transmission interval would be as follows:
(1 * (2 + (2 * 5))) + 0 = 12 seconds
Figure 1-4 illustrates the effect on the keepalive transmission interval as you increase the number of retries value.
Figure 1-4 Effect of the Number of Retries Value on the Keepalive Transmission Interval
You can also define the number of consecutive successful keepalive attempts (probes) that must occur before the GSS identifies that an offline answer is now online. The GSS monitors each keepalive attempt to determine if the attempt was successful. The number of successful probes parameter identifies how many consecutive successful keepalive attempts must be recognized by the GSS before bringing an answer back online and reintroducing it back into the GSS network.
Balance Methods
The GSS supports six unique balance methods that allow you to specify how a GSS answer should be selected to respond to a given DNS query. Each balance method provides a different algorithm for selecting one answer from a configured answer group. The following sections explain the balance methods supported by the GSS:
Ordered List
When the GSS uses the ordered list balance method, each resource within an answer group (for example, an SLB VIP or a name server) is assigned a number that corresponds to the rank of that answer within the group. The number you assign represents the order of the answer on the list. Subsequent VIPs or name servers on the list will only be used if preceding VIPs or name servers on the list are unavailable. The GSS supports gaps in numbering in an ordered list.
Note
Using the ranking of each answer, the GSS tries each resource in the order that has been prescribed, selecting the first available ("live") answer to serve a user request. List members are given precedence and tried in order, and a member is not used unless all previous members fail to provide a suitable result.
The ordered list method is useful in managing resources across multiple content sites in which a deterministic method for selecting answers is required.
See the "Balance Method Options for Answer Groups" section for information on how the GSS determines which answer to select when using the ordered list balance method.
Round-Robin
When the GSS uses the round-robin balance method, each resource within an answer group is tried in turn. The GSS cycles through the list of answers, selecting the next answer in line for each request. In this way, the GSS can resolve requests by evenly distributing the load among possible answers.
The round-robin balance method is useful when balancing requests among multiple, active data centers that are hosting identical content; for example, between SLBs at a primary and at an "active standby" site that serves requests.
See the "Balance Method Options for Answer Groups" section for information on how the GSS determines which answer to select when using the round-robin balance method.
Weighted Round-Robin
As performed by the round-robin balance method, the weighted round-robin method also cycles through a list of defined answers to choose each available answer in turn. However, with weighted round-robin, an additional "weight" factor is assigned to each answer, biasing the GSS toward certain servers, so that they are used more often.
See the "Balance Method Options for Answer Groups" section for information on how the GSS determines which answer to select when using the weighted round-robin balance method.
Least Loaded
When the GSS uses the least-loaded balance method, the GSS resolves requests to the least loaded of all resources, as reported by the KAL-AP keepalive process, which provides the GSS with detailed information on the SLB load and availability.
The least-loaded balance method resolves the request by determining the least number of connections on a CSM or the least-loaded CSS.
See the "Balance Method Options for Answer Groups" section for information on how the GSS determines which answer to select when using the least loaded balance method.
Hashed
When the GSS uses the hashed balance method, elements of the client's DNS proxy IP address and the requesting client's domain are extracted to create a unique value, referred to as a hash value. The unique hash value is attached to and used to identify a VIP that is chosen to serve the DNS query.
The use of hash values makes it possible to "stick" traffic from a particular requesting client to a specific VIP, ensuring that future requests from that client are routed to the same VIP. This type of continuity can be used to facilitate features, such as online shopping baskets, in which client-specific data is expected to persist even when client connectivity to a site is terminated or interrupted.
The GSS supports the following two hashed balance methods. You can apply one or both hashed balance methods to the specified answer group.
•
•
Boomerang (DNS Race)
The GSS supports the boomerang (DNS race) method of proximity routing, which is a type of DNS resolution initiated by the GSS to load balance between 2 and 20 sites.
The boomerang method is based on the concept that instantaneous proximity can be determined if a CRA within each data center sends an A-record (IP address) at the exact same time to the client's D-proxy. The DNS race method of DNS resolution gives all CRAs (Cisco content engines or content services switches) a chance at resolving a client request and allows for proximity to be determined without probing the client's D-proxy. Whatever A-record is received first by the D-proxy is, by default, considered to be the most proximate.
For the GSS to initiate a DNS race, it needs to establish the following two pieces of information for each CRA:
•
•
The boomerang server on the GSS gathers this information by sending keepalive messages at predetermined intervals. The boomerang server uses this data, along with the IP addresses of the CRAs, to request the exact start time of the DNS race.
If the CRA response is to be accepted by the D-proxy, each CRA must spoof the IP address of the GSS to which the original DNS request was sent.
Balance Method Options for Answer Groups
For most balance methods supported by the GSS, there are additional configuration options when you group specific answers in an answer group. These configuration options ensure the GSS properly applies the balance method for answers, and that you receive the best possible results from your GSS device.
Table 1-2 describes the available balance method options for each answer type (VIP, CRA, or NS).
The following sections explain each of the balance method options available for the answers in an answer group.
Order
Use the Order option when the balance method for the answer group is Ordered List. Answers on the list are given precedence based upon their position in the list in responding to requests.
Weight
Use the Weight option when the balance method for the answer group is weighted round-robin or least loaded. You specify a weight by entering a value from 1 and 10. This value indicates the capacity of the answer to respond to requests. The weight creates a ratio that the GSS uses when directing requests to each answer. For example, if Answer A has a weight of 10 and Answer B has a weight of 1, Answer A receives 10 requests for every 1 directed to Answer B.
When you specify a weight for the weighted round-robin balance method, the GSS creates a ratio of the number of times that the answer is used to respond to a request before trying the next answer on the list.
When you specify a weight for the least-loaded balance method, the GSS uses that value as the divisor for calculating the load number associated with the answer. The load number creates a bias in favor of answers with a greater capacity.
Load Threshold
Use the load threshold when the answer type is VIP and the keepalive method is KAL-AP to determine whether an answer is available, regardless of the balance method used. The load threshold is a number from n 2 and 254 that is compared to the load being reported by the answer device. If the answer's load is greater than the specified threshold, the answer is considered offline and unavailable to serve further requests.
The load threshold value can also be used with the weight assigned to an answer. The weight acts as a divisor for the load threshold in a calculating capacity. When the GSS has multiple answers to choose from, it compares the load threshold to the load reported by the answer device to determine if the answer is available and then selects the answer.
Traffic Management Load Balancing
The GSS includes DNS sticky and network proximity traffic management functions to provide advanced global server load-balancing capabilities in a GSS network.
DNS sticky ensures that e-commerce sites provide undisrupted services and remain open for business by supporting persistent sticky network connections between customers and e-commerce servers. Persistent network connections ensure that active connections are not interrupted and shopping carts are not lost before purchase transactions are completed.
Network proximity selects the closest or most proximate server based on measurements of round-trip time to the requesting client's D-proxy location. Network proximity load balancing improves the efficiency of delivering GSLB services within a GSS network by providing a high degree of global persistence. The proximity calculation is typically identical for all requests from a given location (D-proxy) as long as the network topology remains constant. This approach selects the best server based on a combination of site health (availability and load) and the network distance between a client and a server zone.
This section includes the following topics:
DNS Sticky GSLB
Stickiness, also known as persistent answers or answer caching, enables a GSS to remember the DNS response returned for a client D-proxy and to later return that same answer when the client D-proxy makes the same request. When you enable stickiness in a DNS rule, the GSS makes a best effort to always provide identical A-record responses to the requesting client D-proxy, assuming that the original VIP continues to be available.
DNS sticky on a GSS ensures that e-commerce clients remain connected to a particular server for the duration of a transaction even when the client's browser refreshes the DNS mapping. While some browsers allow client connections to remain for the lifetime of the browser instance or for several hours, other browsers impose a connection limit of 30 minutes before requiring a DNS re-resolution. This time may not be long enough for a client to complete an e-commerce transaction.
With local DNS sticky, each GSS device attempts to ensure that subsequent client D-proxy requests to the same domain name to the same GSS device will be "stuck" to the same location as the first request. DNS sticky guarantees that all requests from a client D-proxy to a particular hosted domain or domain list are given the same answer by the GSS for the duration of a user-configurable sticky inactivity time interval, assuming the answer is still valid.
With global DNS sticky enabled, each GSS device in the network shares answers with the other GSS devices in the network, operating as a fully connected peer-to-peer mesh. Each GSS device in the mesh stores the requests and responses from client D-proxies in its own local database, as well as shares this information with the other GSS devices in the network. As a result, subsequent client D-proxy requests to the same domain name to any GSS in the network causes the client to be "stuck".
The DNS sticky selection process is initiated as part of the DNS rule balance method clause.
Refer to Chapter 8, Configuring DNS Sticky, for information on configuring local and global DNS sticky for GSS devices in your network.
Network Proximity GSLB
The GSS responds to DNS requests with the most proximate answers (resources) relative to the requesting D-proxy. In this context, proximity refers to the distance or delay in terms of network topology, not geographical distance, between the requesting client's D-proxy and its answer.
To determine the most proximate answer, the GSS communicates with a probing device, a Cisco IOS-based router, located in each proximity zone to gather round-trip time (RTT) metric information measured between the requesting client's D-proxy and the zone. Each GSS directs client requests to an available server with the lowest RTT value
The proximity selection process is initiated as part of the DNS rule balance method clause. When a request matches the DNS rule and balance clause with proximity enabled, the GSS responds with the most proximate answer.
Refer to Chapter 9, Configuring Network Proximity, for information on configuring proximity for GSS devices in your network.
GSS Network Deployment
A typical GSS deployment may contain a maximum of eight GSS devices deployed on a corporate intranet or the Internet. At least one GSS, and no more than two GSSs, must be configured as a primary GSSM and a standby GSSM. The primary GSSM monitors the other GSS devices on the network and offers features for managing and monitoring request routing services using a GUI accessible through secure HTTP. Only one GSSM can be "active" at any time, with the second GSSM serving as a "standby," or backup device.
The GSSM functionality is embedded on each GSS, and any GSS device can be configured to act as a primary GSSM or a standby GSSM.
You can configure additional GSS devices on the GSS network to respond to DNS requests and transmit periodic keepalives to provide resource state information about devices. The GSS devices do not perform primary GSSM network management tasks.
This section describes a typical network deployment of the GSS and includes the following topics:
•
•
•
Locating GSS Devices
Although it is your organization that determines where your GSS devices are deployed in your network, you should observe the following guidelines when deploying these devices.
Because the GSS serves as the authoritative name server for one or more domains, each GSS must be publicly or privately addressable on your enterprise network. That way, the D-proxy clients that are requesting content can find the GSSs assigned to handle content requests.
Options are available for delegating responsibility for your domain to your GSS devices, depending on traffic patterns to and from your domain. For example, given a network containing five GSS devices, you might choose to modify your parent domain DNS servers so that all traffic sent to your domain is directed to each of your GSS devices. Or you might choose to have a subset of your traffic delegated to one or more of your GSSs, with other devices handling other segments of your traffic.
Refer to Chapter 7, Building and Modifying DNS Rules for information on modifying your network's DNS configuration to accommodate the addition of GSS devices to your network.
Locating GSS Devices Behind Firewalls
Deploying a firewall can prevent unauthorized access to your GSS network and thwart common denial of service (DoS) attacks on your GSS devices. In addition to being deployed behind your corporate firewall, the GSS packet-filtering features can enable GSS administrators to permit and disallow traffic to any GSS device.
When positioning your GSS behind a firewall or enabling packet filtering on the GSS itself, you must properly configure each device (the firewall and the GSS) to allow valid network traffic to reach the GSS device on specific ports. In addition to requiring HTTPS traffic to access the primary GSS graphical user interface, you may want to configure your GSSs to allow FTP, Telnet, and SSH access through certain ports. In addition, GSSs must be able to communicate their status to and receive configuration information from the GSSM. Finally, primary and standby GSSMs must be able to communicate and synchronize with one another.
Refer to the Cisco Global Site Selector Administration Guide for information about access lists to limit incoming traffic. See the "Deploying GSS Devices Behind Firewalls" section for information on which ports must be enabled and left open for the GSS to function properly.
Communication Between GSS Nodes
The primary GSSM serves as the organizing point of the GSS network. It performs DNS queries and hosts the embedded GSS database that contains configuration information for all your GSS resources, such as individual GSSs and DNS rules. You use the primary GSSM GUI to make configuration changes, which are automatically communicated to each registered GSS device that the primary GSSM manages.
The standby GSSM performs GSLB functions for the GSS network. The standby GSSM can act as the interim primary GSSM for the GSS network should the designated primary GSSM suddenly goes offline or become unavailable to communicate with other GSS devices. If the primary GSS goes offline, the GSS network continues to function and does not impact global server load balancing.
The GSS performs routing of DNS queries based on the DNS rules and conditions created from the primary GSSM. Each GSS device on the network delegates authority to the parent domain GSS DNS server that serves the DNS requests.
Each GSS is known to and synchronized with the primary GSSM; individual GSSs do not report their presence or status to one another. If a GSS unexpectedly goes offline, the other GSSs on the network that are responsible for the same resources remain unaffected.
With both a primary and a standby GSSM deployed on your GSS network, device configuration information and DNS rules are automatically synchronized between the primary GSSM and a data store maintained on the standby GSSM.
Synchronization occurs automatically between the two devices whenever the GSS network configuration changes. Updates are packaged and sent to the standby GSSM using a secure connection between the two devices.
Refer to the Cisco Global Site Selector Administration Guide for instructions on enabling each GSS device in the GSS network and also for details about changing the GSSM role in the GSS network.
Deployment Within Data Centers
A typical GSS network consists of multiple content sites, such as data centers and server farms. Access to a data center or server farm is managed by one or more SLBs, such as the Cisco CSS or Cisco CSM. One or more virtual IP addresses, or VIPs, represent each SLB. Each VIP acts as the publicly addressable front end of the data center. Behind each SLB are transaction servers, database servers, and mirrored origin servers offering a wide variety of content, from websites to applications.
The GSS communicates directly with the SLBs representing each data center by collecting statistics on availability and load for each SLB and VIP. The GSS uses the data to direct requests to the most optimum data centers and the most available resources within each data center.
In addition to SLBs, a typical data center deployment may also contain DNS name servers that are not managed by the GSS. These DNS name servers can resolve requests, through name server forwarding, that the GSS is unable to resolve.
GSS Network Management
Management of your GSS network is divided into two types:
•
CLI-Based GSS Management
You can use the CLI to configure the following installation and management tasks for your GSS:
•
•
•
In addition, you can use the CLI for the following network configuration tasks:
•
•
•
You can also use the CLI for local status monitoring and logging for each GSS device.
Refer to the Cisco Global Site Selector Command Reference for an alphabetical list of all GSS Command Line Interface (CLI) commands including syntax, options, and related commands. This publication also describes how to use the CLI interface.
GUI-Based Primary GSSM Management
The primary GSSM offers a single, centralized graphical user interface (GUI) for monitoring and administering your entire GSS network. You can use the primary GSSM GUI to perform the following tasks:
•
•
•
For more information about the GUI, see the "Understanding the Primary GSSM GUI" section.
Understanding the Primary GSSM GUI
The primary GSSM graphical user interface is a web-based tool that you access using any standard web browser such as Microsoft Internet Explorer Version 5.0 and later releases and Netscape Navigator Version 4.79 or later releases. Basic authentication is used to restrict GUI access. All GUI traffic is encrypted using secure HTTP (HTTPS).
The primary GSSM GUI serves as a centralized management point for your entire GSS network. Using the primary GSSM GUI, you can add GSS devices to your network and build DNS rules that match groups of source addresses to hosted domains using one of a number of possible load-balancing methods. In addition, using the GSSM monitoring feature, you can obtain real-time statistics on the performance of your GSS network or of individual devices on that network.
When you first log on to the primary GSSM, you see a Welcome window (Figure 1-5). The current login account information appears in the User ID (upper right) area of the Welcome window.
Figure 1-5 Primary GSSM Welcome Window
The following sections describe the organization and structure of the primary GSSM GUI:
•
Review this information before using the primary GSSM GUI to define global load balancing for your GSS network.
GUI Organization
The primary GSSM GUI is organized into five main functional areas. Each area is divided by tabs, that you click to navigate to a particular section of the primary GSSM. These functional areas are as follows:
•
•
•
•
•
You access specific pages within each functional area by choosing from a series of navigation links in the upper left corner of the GUI. The navigation links vary according to the selected tab. Navigation links are available on all GUI pages.
Once you select a page, information is further organized into two areas: list pages and details page. List pages and details pages are described in the sections that follow.
List Pages
List pages provide you with a feature-specific overview. For example, you click the Answers tab (located on the DNS Rules tab) to display the Answers list page. This list page shows all of the answers currently configured on the listed GSS network.
List pages display all data in tabular format to provide you with a detailed view of the resources available on your GSS network. In addition, you can use list pages to add new resources (for example, DNS rules or answer groups) or modify existing resources.
List pages enable you to sort resources by any one of a number of properties listed on the page. You can quickly locate a particular resource by using an identifying characteristic such as a name, owner, or type. You can sort information in ascending or descending order by any column. To sort the information in a list page, click the column header for the column containing the information that you wish to sort.
The GSS software temporarily retains information that you modify for a list page, allowing you to navigate to any of the details pages associated with the active list page while retaining the list page settings. The sort field, sort order, and rows per page are temporarily stored in memory for the active list page. Once you navigate to another list page, the GSS software discards the modifications for the previous list page.
Figure 1-6 shows an example of a primary GSSM Answers list page.
Figure 1-6 Answers List Page
Details Pages
Details pages provide specific configuration information for a specific GSS function, enabling you to define or to modify those properties. You access a details page from a list page.
For example, click the Answers navigation link to display the Answers list page (see Figure 1-6). Next to each answer is an icon that show a pad and pencil, called the Modify icon. Click the Modify icon to display the details page for that answer (Figure 1-7). From the Modifying Answer details page, modify the properties of an answer or delete the answer.
Figure 1-7 Modifying Answer Details Page
Navigation
The primary GSSM GUI is viewed as a series of web pages using a standard browser. However, navigating between primary GSSM GUI pages is not the same as moving around different websites or even within a single site. Instead, you navigate from one content area of the GUI using the tabs for each of the major functional areas: DNS Rules, Resources, Monitoring, Tools, and Traffic Mgmt. Online Help is located as a navigation link at the top of each page.
Once you are located within a major content area, you can then access a particular feature or move between features using the navigation links. Choosing a feature from the navigation links immediately transfers you to that page in the graphical user interface. To move back from a details page to the corresponding list page, click another navigation link, or click either the Submit or Cancel buttons from the details page.
For example, to return to the Global Site Selectors list page after viewing the details for one of your GSS devices, click a different navigation link (or click the Cancel button). If you made configuration changes to a GSS that you wish to retain, click the Submit button. Any of these actions returns you to the Global Site Selectors list page.
Note
Primary GSSM GUI Icons and Symbols
Table 1-3 lists and explains some common icons and graphical symbols in the primary GSSM GUI. These icons are referenced throughout this publication to explain how to use the features of the primary GSSM GUI.
Primary GSSM GUI Online Help
The Help navigation link in the upper right corner of each primary GSSM GUI page launches the Online Help system (Figure 1-8), which contains information on using that page as well as the features of the primary GSSM GUI. The Online Help topic associated with the form displays in a separate child browser window.
Each page in the primary GSSM GUI has a context-sensitive online Help file associated with it. These Help files (in HTML format) contain detailed information related to the form that you are using. Online Help also includes a series of quick start procedures to assist you in navigating through the specific forms in the user interface and performing specific configuration procedures (for example, using the DNS Rules wizard to create a DNS rule).
Figure 1-8 Primary GSSM GUI Online Help
The GSS Online Help system contains several navigational aids to assist you in finding the information that you need quickly and easily. The navigation frame is contained in the left frame of each Help topic. The navigation frame contains the following three tabs:
•
•
•
Global Server Load-Balancing Summary
After you create your GSSM (primary and standby) and GSS devices and configure them to connect to your network, you are ready to begin configuring request routing and global server load balancing on your GSS network. Refer to the Cisco Global Site Selector Getting Started Guide for procedures on getting your GSSM (primary and standby) and GSS devices set up, configured, and ready to perform global server load-balancing.
You use the centralized GUI on the primary GSSM to configure global server load balancing for your GSS network. Using this interface, you identify your network resources (GSSs) through the use of keepalives and create the DNS rules to process incoming content requests.
Because you create DNS rules that route incoming DNS requests to the most available data centers and resources on your network, you must configure the elements that constitute your DNS rules before creating the rules themselves.
Use the following order when configuring your GSS devices and resources from the primary GSSM for global server load balancing:
1.
2.
3.
4.
5.
6.
7.
Where to Go Next
Chapter 2, Configuring Resources describes how to organize resources on your GSS network as locations, regions, and owners.
