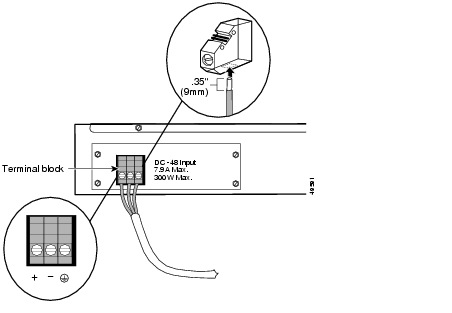

Connecting a CSS 11150 DC Power Cord
Connecting a CSS 11800 Power Cord
Connecting a CSS 11800 AC Power Cord

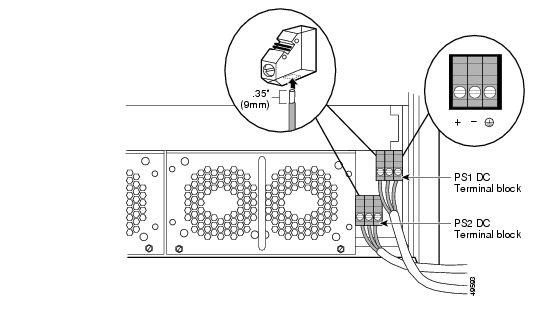

Connecting a CSS 11800 DC Power Cord
Connecting the Console to the CSS
Powering Up the CSS
Powering Down the CSS
Troubleshooting CSS Hardware Components
Troubleshooting the Console Interface
Troubleshooting the CSS Power Supply
Troubleshooting the CSS 11800 Modules
Cabling the CSS
This chapter describes the individual CSS interfaces, how to cable the CSS and its interfaces, how to attach a console for console management, and how to connect the AC or DC power cord. This chapter also describes the CSS LEDs and connectors. The information in this chapter applies to the CSS 11050, CSS 11150, and CSS 11800 except where noted.
This chapter contains the following major sections:
•
Cabling the CSS 11050 and CSS 11150
•Cabling the CSS 11800 Modules
•Connecting Power Cords
•Connecting the Console to the CSS
•Powering Up the CSS
•Powering Down the CSS
•Troubleshooting CSS Hardware Components
Cabling the CSS 11050 and CSS 11150
The CSS 11050 and CSS 11150 are fixed configuration devices designed for small Web sites or remote satellite Web sites. Each of these devices provide 5 Gbps of switch bandwidth and integrated LANports. They feature all of the networking software capabilities necessary for connecting remote Web sites to the Internet or the home Web site.

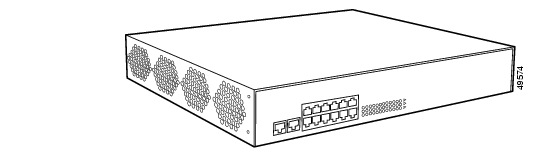

Figure 2-1 illustrates a CSS 11151with 12 auto-sensing 10/100-Mbps Ethernet (10BASE-T/100BASE-TX) interfaces.
Figure 2-1 CSS 11151 Content Services Switch
The CSS 11050 configuration supports:
•Eight auto-sensing 10/100-Mbps Ethernet (10BASE-T/100BASE-TX) interfaces
•Optional integrated Gigabit Ethernet Network Interface Card (GENIC) with one uplink port
The CSS 11150 configuration supports:
•12 auto-sensing 10/100-Mbps Ethernet (10BASE-T/100BASE-TX) interfaces
•Optional integrated Gigabit Ethernet Network Interface Card (GENIC) with two GBIC ports, in either 4 MB or 8 MB per port versions
•Optional integrated Fast Ethernet Network Interface Card (FENIC) with four SC connectors for uplinks
•Optional integrated Fast Ethernet Network Interface Card (FENIC) with four additional auto-sensing 10/100-Mbps Ethernet (10BASE-T/100BASE-TX) interfaces for a total of 16 interfaces
CSS 11050 and CSS 11150 Rear Panel Connectors and LEDs
The CSS 11050 and CSS 11150 have connectors and LEDs on their front and rear panels. The rear panel has an AC connector (or DC connector on a CSS 11150), an Ethernet management RJ-45 connector, and the associated Ethernet Link/Activity, 10/100 (Mbps), and Duplex (Half or Full) LEDs, as shown in Figure 2-2.
Figure 2-2 CSS 11050 and CSS 11150 Rear Panel Connectors and LEDs
Table 2-1 describes the LEDs on the rear panel.
Table 2-1 CSS 11050 and CSS 11150 Ethernet Management Port LED Descriptions
LED Name
|
Color
|
State
|
Indicates
|
Link/Act
|
Green
|
Off
|
No link established
|
On
|
Link established
|
Blinking
|
Link established and activity
|
Duplex
|
Green
|
Off
|
Half duplex
|
On
|
Full duplex
|
10/100
|
Green
|
Off
|
Port is operating at 10 Mbps
|
On
|
Port is operating at 100 Mbps
|
CSS 11050 Front Panel Connectors and LEDs
All front panels of the CSS 11050 models contain connectors and LEDs that vary according to their model number. For example, the CSS 11051 in Figure 2-3 has:
•One RS-232 Console connector (9600 baud)
•One RS-232 Diag connector, reserved for field service use only (115,200 baud)
•Eight auto-sensing 10/100-Mbps Fast Ethernet connectors and associated Link/Activity status, 10/100 (Mbps), and Duplex (Half or Full) LEDs
•Power, Status, and Ready LEDs
Figure 2-3 CSS 11051 Front Panel Connectors and LEDs

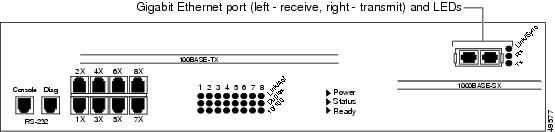

The CSS 11052 (shown in Figure 2-4) also has one Gigabit Ethernet connection using a Gigabit Interface Converter (GBIC), and associated Transmit, Receive, and Link LEDs. The GBIC complies with Revision 5.1 of the GBIC specification for Class 4 GBICs. The GBIC network interface complies with the IEEE 1000BASE-SX specification for short laser wavelength of 850 nm and use SC-type fiber connectors.
Figure 2-4 CSS 11052 Front Panel Connectors and LEDs
Table 2-2 CSS 11050 Front Panel LED Descriptions
LED Name
|
Color
|
State
|
Indicates
|
Link/Act
(Fast Ethernet ports)
|
Green
|
Off
|
No link established
|
On
|
Link established
|
Blinking
|
Link established and activity
|
Duplex
(Fast Ethernet ports)
|
Green
|
Off
|
Half duplex
|
On
|
Full duplex
|
10/100
(Fast Ethernet ports)
|
Green
|
Off
|
Port is operating at 10 Mbps
|
On
|
Port is operating at 100 Mbps
|
Power
|
Green
|
Off
|
CSS does not have power
|
On
|
CSS has power
|
Status
|
Yellow
|
Off
|
CSS is operational
|
Blinking
|
CSS detects an error during offline or online testing, or the boot diagnostic failed and the system cannot boot
|
Ready
|
Green
|
Off
|
CSS is booting
|
On
|
CSS is operational
|
Blinking
|
CSS is accessing the disk
|
Tx (Transmit)
(Gigabit port on the CSS 11052)
|
Green
|
Off
|
No transmit packet activity
|
Blinking
|
Transmit activity detected
|
Rx (Receive)
(Gigabit port on the CSS 11052)
|
Green
|
Off
|
No receive packet activity
|
Blinking
|
Receive activity detected
|
Link/Sync
(Gigabit port on the CSS 11052)
|
Green
|
Off
|
No link
|
On
|
Link exists and synchronization achieved
|
Blinking
|
Link exists but not synchronized
|
CSS 11150 Front Panel Connectors and LEDs
All front panels of the CSS 11150 models front panels contain connectors and LEDs that vary according to their model number. For example, the CSS 11151 front panel in Figure 2-5 has:
•One RS-232 Console connector (9600 baud)
•One RS-232 Diag connector, reserved for field service use only (115,200 baud)
•12 auto-sensing 10/100-Mbps Fast Ethernet connectors and associated Link/Activity status, 10/100 (Mbps), and Duplex (Half or Full) LEDs
•Power, Status, and Ready LEDs

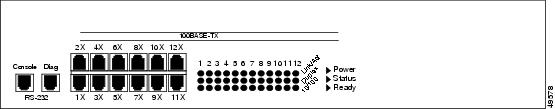

Figure 2-5 CSS 11151 Front Panel Connectors and LEDs
The CSS 11152 (shown in Figure 2-6) has four additional Fast Ethernet TX connectors and their associated Link/Activity status, 10/100 (Mbps), and Duplex (Half or Full) LEDs.
Figure 2-6 CSS 11152 Front Panel Connectors and LEDs

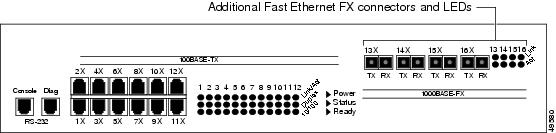

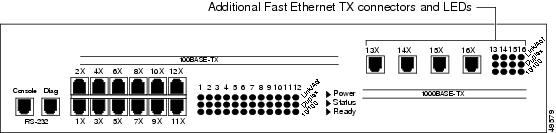

The CSS 11153 (shown in Figure 2-7) has four additional Fast Ethernet 100BASE-FX SC fiber connectors and their associated Link and Activity LEDs.
Figure 2-7 CSS 11153 Front Panel Connectors and LEDs

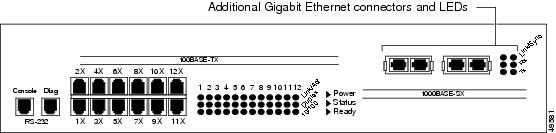

The CSS 11154 (shown in Figure 2-8) has two 1000-Mbps Gigabit Ethernet connections using Gigabit Interface Converters (GBICs) and their associated Transmit, Receive, and Link LEDs. The GBICs comply with Revision 5.1 of the GBIC specification for Class 4 GBICs. The GBIC network interfaces comply with the IEEE 1000BASE-SX specification for short laser wavelength of 850 nm and use SC-type fiber connectors.
Figure 2-8 CSS 11154 Front Panel Connectors and LEDs
Note The CSS 11155 has a similar appearance to the CSS 11154, but its memory size per port is 8 MB instead of 4 MB.
Table 2-3 describes the LEDs on the CSS 11150.
Table 2-3 CSS 11150 Front Panel LED Descriptions
LED Name
|
Color
|
State
|
Indicates
|
Link/Act
(Fast Ethernet TX ports)
|
Green
|
Off
|
No link established
|
On
|
Link established
|
Blinking
|
Link established and activity
|
Duplex
(Fast Ethernet TX ports)
|
Green
|
Off
|
Half duplex
|
On
|
Full duplex
|
10/100
(Fast Ethernet TX ports)
|
Green
|
Off
|
Port is operating at 10 Mbps
|
On
|
Port is operating at 100 Mbps
|
Power
|
Green
|
Off
|
CSS does not have power
|
On
|
CSS has power
|
Status
|
Yellow
|
Off
|
CSS is operational
|
Blinking
|
CSS detects an error during offline or online testing, or the boot diagnostic failed and the system cannot boot
|
Ready
|
Green
|
Off
|
CSS is booting
|
On
|
CSS is operational
|
Blinking
|
CSS is accessing the disk
|
Tx (Transmit)
(Gigabit ports on the CSS 11154 or CSS 11155)
|
Green
|
Off
|
No transmit packet activity
|
Blinking
|
Transmit activity detected
|
Rx (Receive)
(Gigabit ports on the CSS 11154 or CSS 11155)
|
Green
|
Off
|
No receive packet activity
|
Blinking
|
Receive activity detected
|
Link/Sync
(Gigabit ports on the CSS 11154 or CSS 11155)
|
Green
|
Off
|
No link
|
On
|
Link exists and synchronization achieved
|
Blinking
|
Link exists but not synchronized
|
Link
(Fast Ethernet FX ports on the CSS 11153)
|
Green
|
Off
|
No link established
|
On
|
Link established
|
Act
(Fast Ethernet FX ports on the CSS 11153)
|
Green
|
Blinking
|
Link established and activity
|
Cabling the CSS 11800 Modules
The CSS 11800 modules has connectors and LEDs on their front panels. The following sections describe:
•CSS 11800 Product Description
•Switch Control Module Connectors and LEDs
•Fast Ethernet Module Connectors and LEDs
•Gigabit Ethernet Module Connectors and LEDs
•Switch Fabric Module (SFM and SFM2) Connectors and LEDs
•Internal Disk Module LEDs
CSS 11800 Product Description
The CSS 11800 is a 15-slot modular switching chassis with a high speed switching fabric. The CSS 11800 offers LANconnectivity and scalable switch capacity. Designed for larger, mission-critical Web sites, the CSS 11800 provides 20 Gbps of switching bandwidth and high port density LAN ports interfaces. The CSS 11800 CSS is a Carrier Class platform with high performance and scalability and no single point of failure. In case of a disk failure, traffic is still passed in and out of the CSS.
The CSS 11800 configuration provides:
•20 Gbps of switching bandwidth (with support for an optional redundant 20-Gbps switch fabric)
•128 MB Switch Control Module (SCM), model CSS8-SCM (with support for an optional passive SCM)
•10-Gbps Switch Fabric Module 2 (SFM2), model CSS8-SFM2 (with support for an optional passive SCM2)
•Hard drive-based Internal Disk Module (IDM), model CSS8-IDM-MEM-HD, for logging and off-line system files
•Eight slots configurable with either:
–Fast Ethernet modules providing eight auto-sensing 10/100-Mbps Ethernet (10BASE-T/100BASE-TX) RJ-45 ports or six 10BASE-T/100BASE-TX ports and two 100BASE-FX ports
–Gigabit Ethernet modules providing up to four 1000-Mbps Ethernet (1000BASE-SX) Gigabit Interface Converter (GBIC) interfaces with either 8 megabytes of flow connection memory supporting up to 64,000 simultaneous flows or 16 megabytes of flow connection memory supporting up to 128,000 simultaneous flows
•Optional flash-based Internal Disk Module (IDM), model CSS8-IDM-MEM-HD, in place of the hard drive-based IDM

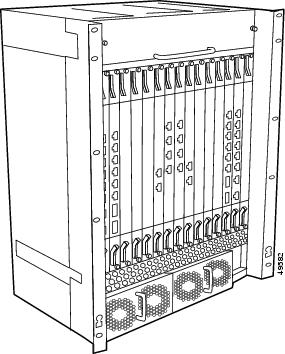

Figure 2-9 illustrates a CSS 11800.
Figure 2-9 CSS 11800 Content Services Switch
Switch Control Module Connectors and LEDs
The Switch Control Module (SCM) provides master control and packet memory storage and is responsible for the following functions:
•System powerup and boot control
•Centralized routing table management
•System-wide connection management
•Interface to external Network Management Station
•Disk management (internal disk module)
•Provides two external RS-232 interfaces
•Building Integrated Timing Service support
While only one SCM is required in a configuration, you can install and configure a passive SCM for redundancy. A maximum of two SCMs are allowed in a chassis.
Note The SCM contains a small lithium battery. Some jurisdictions restrict the ways in which items containing lithium batteries may be disposed. In particular, lithium batteries or products containing lithium batteries may never be disposed of in an unregulated fire. Other restrictions might apply. See Appendix A, Specifications for lithium battery disposal warnings.
Warning Ultimate disposal of the lithium battery should be handled according to all national laws and regulations.
Switch Control Module Connectors
The Switch Control Module (model CSS8-SCM) contains the following connectors and LEDs:
•One RJ-45 10/100-Mbps Fast Ethernet management connector
•One RJ-45 RS-232 Console connector
•One RJ-45 RS-232 Diag connector (reserved for field service diagnostic use only)
•One RJ-45 Building Integrated Timing Supply (BITS) Clock RS-422 connector
•Power, Status, and Active module LEDs
•Duplex, 10/100, and Active LEDs for the Fast Ethernet port
•Power Supply 1 and 2 LEDs
Figure 2-10 illustrates the SCM front panel connectors and LEDs.

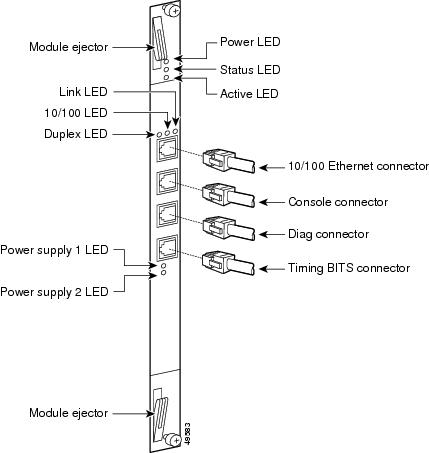

Figure 2-10 Switch Control Module Connectors and LEDs
Switch Control Module LEDs
The SCM front panel LEDs indicate module and configuration status. Table 2-4 describes the SCM LEDs and their indications.
Table 2-4 Switch Control Module LED Descriptions
LED Name
|
Color
|
LED Status
|
Indicates
|
Power
|
Green
|
Off
|
Module does not have power
|
On
|
Module has power
|
Status
|
Yellow
|
Off
|
Module is operational
|
On
|
Module is experiencing an error (only when the SCM is active; the LED is normally yellow when the SCM is passive)
|
Active
|
Green
|
Off
|
SCM is passive
|
On
|
SCM is active
|
Duplex
(Ethernet Management Port)
|
Green
|
Off
|
Port is operating at half duplex
|
On
|
Port is operating at full duplex
|
10/100
(Ethernet Management Port)
|
Green
|
Off
|
Port is operating at 10 Mbps
|
On
|
Port is operating at 100 Mbps
|
Link
(Ethernet Management Port)
|
Green
|
Off
|
No link
|
On
|
Link established
|
Blinking
|
Link established and constant activity
|
PS 1
(Power Supply 1)
|
Green
|
Off
|
Power supply is not functioning
|
On
|
Power supply is functioning
|
PS 2
(Power Supply 2)
|
Green
|
Off
|
Power supply is not functioning
|
On
|
Power supply is functioning
|
Configuring a Terminal to the SCM Console Port
This section describes how to configure a terminal connected to the SCM console port. Initially, the terminal settings must match the CSS default settings as specified in Table 2-5.
Table 2-5 CSS Console Port Default Settings
Parameter
|
Default Setting
|
Baud Rate
|
9600
|
Data Bits
|
8
|
Flow Control
|
none
|
Parity
|
none
|
Stop Bits
|
1
|
Terminal Type
|
VT100/ANSI
|
Fast Ethernet Module Connectors and LEDs
The FEM is available in two models:
•Model CSS8-IOM-8FE contains eight auto-sensing RJ-45 Fast Ethernet 10/100-Mbps 10BASE-T/100BASE-TX connectors
•Model CSS8-IOM-6/2FE contains six auto-sensing RJ-45 Fast Ethernet 10/100-Mbps 10BASE-T/100BASE-TX connectors and two 100BASE-FX SC fiber connectors
Each model contains Power, Status, and Ready LEDs for module status and Duplex, Speed, and Link LEDs for each of the eight connectors. Figure 2-11 illustrates the LEDs and connectors on the 8-port FEM.
Figure 2-11 8-Port Fast Ethernet Module Connectors and LEDs
Figure 2-12 illustrates the LEDs and connectors on the FEM model CSS8-IOM-6/2/FE.

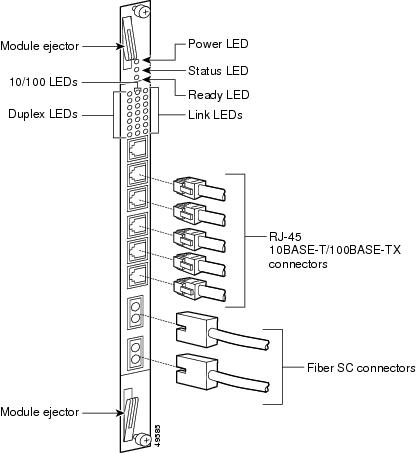

Figure 2-12 Fast Ethernet Module with 6 10BASE-T/100BASE-TX Connectors, Two 100BASE-FX SC Fiber Connectors, and LEDs
Fast Ethernet Module LEDs
The FEM front panel LEDs indicate module and network status. Table 2-6 describes the FEM LEDs.
Table 2-6 Fast Ethernet Module LED Descriptions
LED Name
|
Color
|
LED Status
|
Indicates
|
Power
|
Green
|
Off
|
Module does not have power
|
On
|
Module has power
|
Status
|
Yellow
|
Off
|
Module is operational
|
On
|
Module is experiencing an error
|
Ready
|
Green
|
Off
|
Module not initialized
|
On
|
Module initialized and ready
|
Duplex
(FES Ports 1 to 8)
|
Green
|
Off
|
Port is operating at half duplex
|
On
|
Port is operating at full duplex
|
10/100
(FES Ports 1 to 8)
|
Green
|
Off
|
Port is operating at 10 Mbps
|
On
|
Port is operating at 100 Mbps
|
Link
(FES Ports 1 to 8)
|
Green
|
Off
|
No link established
|
On
|
Link established
|
Blinking
|
Link established and activity detected
|
Gigabit Ethernet Module Connectors and LEDs
The GEM is available in two models:
•Model CSS8-IOM-4GE/8 contains four Gigabit Interface Converter (GBIC) slots and 8 MB Flow Cache SRAM memory supporting up to 64,000 simultaneous flows. CSS8-GBIC-SX is sold separately.
•Model CSS8-IOM-4GE/16 contains four GBIC slots and 16 MB Flow Cache SRAM memory supporting up to 128,000 simultaneous flows. CSS8-GBIC-SX is sold separately.
Figure 2-13 illustrates the LEDs and connectors on a GEM.

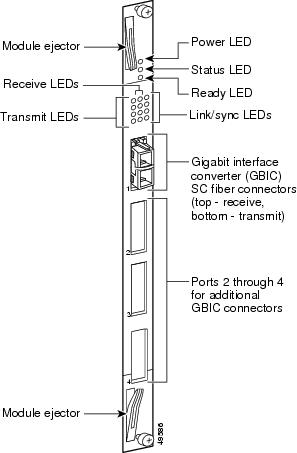

Figure 2-13 Gigabit Ethernet Module Connectors and LEDs
Gigabit Ethernet Module LEDs
The GEM front panel LEDs indicate module status (Power, Status, and Ready LEDs) and network status for each of the connectors (Transmit, Receive, and Link LEDs). Table 2-7 describes the GEM LEDs.
Table 2-7 Gigabit Ethernet Module LED Descriptions
LED Name
|
Color
|
LED Status
|
Indicates
|
Power
|
Green
|
Off
|
Module does not have power
|
On
|
Module has power
|
Status
|
Yellow
|
Off
|
Module is operational
|
On
|
Module is experiencing an error
|
Ready
|
Green
|
Off
|
Module not initialized
|
On
|
Module initialized and ready
|
Tx (Transmit)
(Ports 1 to 4)
|
Green
|
Off
|
No transmit packet activity
|
Blinking
|
Transmit activity detected
|
Rx (Receive)
(Ports 1 to 4)
|
Green
|
Off
|
No receive packet activity
|
Blinking
|
Receive activity detected
|
Link/Sync
(Ports 1 to 4)
|
Green
|
Off
|
No link
|
On
|
Link exists and synchronization achieved
|
Blinking
|
Link exists but not synchronized
|
Switch Fabric Module (SFM and SFM2) Connectors and LEDs
The Switch Fabric Module (SFM or SFM2) sets up and tears down flow connections, monitors switch operation, and performs switch functions. The I/O modules use the SFM processors to perform routing functions, including resolution of unknown addresses, route determinations, protocol processing, and other exception events.
Each module provides 10-Gbps switch control element for switching functionality and flow processing for four I/O modules. You can install a second active module to service four additional I/O modules. Both active modules are on simultaneously in the CSS 11800. The chassis enables you to configure two additional passive modules for redundancy. Therefore, you can configure a total of four SFMs or SFM2s in a chassis, of which only two would be active at any time.
Note When the CSS 11800 contains two passive SFMs and an active SFM switchover occurs, both passive SFMs switchover to become active SFMs.
You can mix SFMs with SFM2s in the same CSS 11800 chassis. However, you must use the same type module as the active SFM and as the passive SFM.
The Switch Fabric Module (SFM and SFM2) contains Power, Status, and Active LEDs. The SFM has four RJ-45 RS-232 Console and Diag connectors (all of these connectors are reserved for field service diagnostic use only).
Figure 2-14 illustrates the SFM front panel LEDs and connectors.

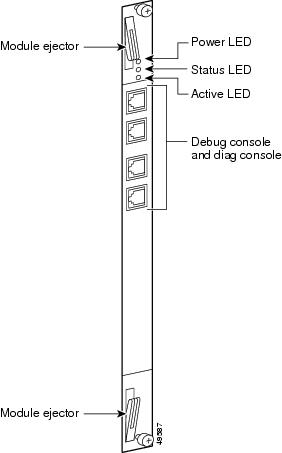

Figure 2-14 Switch Fabric Module Connectors and LEDs
The SFM2 contains two RJ-45 RS-232 Diag1 and Diag 2 connectors, combining both Console and Diag functions on each connector (all of these connectors are reserved for field service diagnostic use only).
Note These connectors are for serial data only and are not compatible with Ethernet RJ-45 cable connectors.

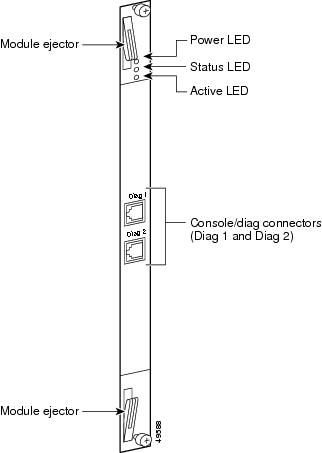

Figure 2-15 illustrates the SFM2 (model CSS8-SFM2) front panel LEDs and connectors.
Figure 2-15 Switch Fabric Module 2 Connectors and LEDs
SFM and SFM2 LEDs
The SFM and SFM2 front panel LEDs indicate operating and configuration status. Table 2-8 describes the SFM LEDs.
Table 2-8 Switch Fabric Module LED Descriptions
LED Name
|
Color
|
LED Status
|
Indicates
|
Power
|
Green
|
Off
|
Module does not have power
|
On
|
Module has power
|
Status
|
Yellow
|
Off
|
Module is operational
|
On
|
Module is experiencing an error (only when the SFM is active; the LED is normally yellow when the SFM is passive)
|
Active
|
Green
|
Off
|
SFM is passive
|
On
|
SFM is active
|
Internal Disk Module LEDs
The Internal Disk Module (IDM) in slot 15 contains Power, Status, and Active LEDs. Figure 2-16 illustrates the IDM front panel LEDs. The LEDs apply to both the flash-based (model CSS8-IDM-MEM-FD) or hard drive-based (model CSS8-IDM-MEM-HD) IDM.
Figure 2-16 Internal Disk Module LEDs
Internal Disk Module LEDs
The CSS 11800 IDM front panel LEDs indicate operating and activity status. Table 2-9 describes the IDM LEDs.
Table 2-9 CSS 11800 Internal Disk Module LED Descriptions
LED Name
|
Color
|
LED Status
|
Indicates
|
Power
|
Green
|
Off
|
IDM does not have power
|
On
|
IDM has power
|
Status
|
Green
|
Off
|
IDM device 0 is selected
|
On
|
Reserved for future use
|
Active
|
Green
|
Off
|
No activity
|
On
|
Constant activity
|
Blinking
|
Activity
|
Connecting Power Cords
The CSS 11050 models are powered by an AC power supply. The CSS 11150 and CSS 11800 are powered by either an AC or DC power supply. Before you install the AC or DC power cord, ensure that you have read Appendix A, Specifications for electrical specifications. The following sections describe:
•Connecting a CSS 11050 or CSS 11150 Power Cord
•Connecting a CSS 11800 Power Cord
Connecting a CSS 11050 or CSS 11150 Power Cord
The following sections provide information on:
•Connecting a CSS 11050 or CSS 11150 AC Power Cord
•Connecting a CSS 11150 DC Power Cord
Note The CSS 11050 is only available in an AC version.
Connecting a CSS 11050 or CSS 11150 AC Power Cord
To connect an AC power cord to a CSS 11050 or CSS 11150:
1. Ensure that the CSS power switch is in the 0 (off) position.
2. Attach the power cord to the CSS by plugging the AC power cord connector into the power receptacle at the rear panel, as shown in Figure 2-17.
Figure 2-17 Connecting a CSS 11050 or CSS 11150 AC Power Cord
3. Plug the power cord into a dedicated 3-wire grounding receptacle.
4. Switch on the power on the CSS.
Connecting a CSS 11150 DC Power Cord
Before you install a DC power cord, see Appendix A, Specifications for DC power supply safety warnings.
Warning The DC power supply cord requires 18 AWG wire. The CSS 11150 draws a maximum of 25 amps.
Warning DC systems do not have a power switch. A chassis configured for DC power requires an external power disconnect device (such as an external circuit breaker).
Warning Before performing the DC installation procedure, ensure that power is removed from the DC circuit. To ensure that all power is off, locate the circuit breaker that services the DC circuit and switch it off.
To connect the CSS 11150 DC power supply to a power source:
1. Locate the DC terminal block on the front of the chassis as shown in
Figure 2-18.
Figure 2-18 Location of CSS 11150 DC Power Supply Connectors
2. Using a flat-head screwdriver, loosen the captive screws on the three DC connectors (labeled from left to right, +, -, and
, respectively).
Warning Before installing a wire, ensure that the polarity of the DC connections is correct. Reversed polarity causes damage to the DC power supply and can create a dangerous shock hazard.
3. Install the wires into the appropriate connector. Make sure that the uninsulated part of each wire is 9mm (0.35 in.) in length.
When installing the wires, always connect the ground wire first. When disconnecting the wires, always disconnect the ground wire last.
The proper power cable wiring between the CSS 11150 and DC power source is illustrated in Table 2-10.
Table 2-10 CSS 11150 to DC Power Source Cabling
CSS 11150
|
DC Power Source
|
(Ground)
|
(Ground)
|
+
|
+
|
-
|
-
|
4. Tighten the captive screws to 5 to 7 inch-pounds (.6 to .8 Nm) of torque to secure the wires in the connectors. Ensure the wires are held firmly in place.
Connecting a CSS 11800 Power Cord
The following sections provide information for connecting an AC or DC power cord to a CSS 11800.
Note For information on installing a redundant AC or DC power supply, consult the reference sheet included with the power supply.
Connecting a CSS 11800 AC Power Cord
To connect an AC power cord to a CSS 11800:
1. Ensure that the CSS power switch is in the 0 (off) position.
2. Attach the power cord to the CSS by plugging the AC power cord connector into the power receptacle at the front of the chassis as shown in Figure 2-19.
Figure 2-19 Connecting a CSS 11800 AC Power Cord
3. Plug the power cord into a dedicated 3-wire grounding receptacle.
4. Switch on the power on the CSS.
Connecting a CSS 11800 DC Power Cord
Before you install a DC power cord, see Appendix A, Specifications for DC power supply safety warnings.
Warning The DC power supply cord requires 12 AWG wire. The CSS 11800 draws a maximum of 25 amps.
Warning DC systems do not have a power switch. A chassis configured for DC power requires an external power disconnect device (such as an external circuit breaker).
Warning Before performing the DC installation procedure, ensure that power is removed from the DC circuit. To ensure that all power is off, locate the circuit breaker that services the DC circuit and switch it off.
To connect the CSS 11800 DC power supply to a power source:
1. Locate the DC terminal block on the front of the chassis as shown in
Figure 2-20.
Figure 2-20 Location of CSS 11800 DC Power Supply Connectors
2. Using a flat-head screwdriver, loosen the captive screws on the three DC connectors (labeled from left to right, +, -, and, respectively).
Warning Before installing a wire, ensure that the polarity of the DC connections is correct. Reversed polarity can cause damage to the DC power supply and can create a dangerous shock hazard.
3. Install the wires into the appropriate connector. Make sure that the uninsulated part of each wire is 9mm (0.35 in.) in length.
When installing the wires, always connect the ground wire first. When disconnecting the wires, always disconnect the ground wire last.
The proper power cable wiring between the CSS 11800 and DC power source is illustrated in Table 2-11.
Table 2-11 CSS 11800 to DC Power Source Cabling
CSS 11800
|
DC Power Source
|
(Ground)
|
(Ground)
|
+
|
+
|
-
|
-
|
4. Tighten the captive screws to 5 to 7 inch-pounds (.6 to .8 Nm) of torque to secure the wires in the connectors. Ensure the wires are held firmly in place.
Connecting the Console to the CSS
To connect a console to the CSS, attach the console cable (provided in the accessory kit) to the Console port on the CSS 11050 or CSS 11150 front panel, or to the CSS 11800 SCM panel. Your terminal settings must match the following CSS default settings:
•Baud Rate: 9600
•Data Bits: 8
•Flow Control: none
•Parity: none
•Stop Bits: 1
On the CSS 11050 or 11150 console cable, you must attach two snap-on ferrites provided in the Accessory kit. The ferrites guarantee proper console operation.
To attach the snap-on ferrites (see Figure 2-21):
1. Position and attach the first ferrite .75 inches from the RJ-45 connector to the Console port.
2. Attach the second ferrite behind the first ferrite.

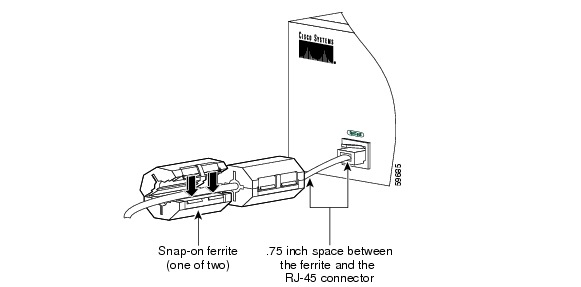

Figure 2-21 Attaching Ferrites to a CSS 11050 or 11150 Console Cable
Powering Up the CSS
To power up the AC on a CSS 11050, CSS 11150, or CSS 11800:
1. Attach the power cord to the CSS 11050 or CSS 11150 rear panel AC connector, or to the CSS 11800 AC connector (see the "Connecting Power Cords" section earlier in this chapter).
2. Power on the CSS by toggling the power switch to the 1 (on) position.
For DC power on a CSS 11150 or CSS 11800, set the external disconnect device to the 1 (on) position.
For information concerning the boot process on an 11000 series CSS, refer to the Content Services Switch Administration Guide. For general hardware troubleshooting information, see the following section.
Powering Down the CSS
To shutdown a CSS gracefully and avoid introducing lost or fragmented files, always use the shutdown command prior to removing power from the CSS. This command is available in boot mode.
For example:
Once the CSS shuts down all processes, you may remove power from the CSS.
Troubleshooting CSS Hardware Components
This section provides general troubleshooting information for the CSS components. It includes the following sections:
•Troubleshooting the Console Interface
•Troubleshooting the CSS Power Supply
•Troubleshooting the CSS 11800 Modules
Troubleshooting the Console Interface
Table 2-12 lists common communications problems that may exist between the CSS and a console. Ensure the console settings are configured to:
•Baud Rate - 9600
•Data Bits - 8
•Flow Control - none
•Parity - none
•Stop Bits -1
For information on console cable pinouts, see Appendix B, Cable Pinouts.
Table 2-12 Troubleshooting the Console Interface
Possible Problem
|
Recommended Action
|
Nothing appears on the screen.
|
Ensure the RS-232 cable is securely connected to the console port.
|
Characters appear on the screen, but are garbled.
|
Verify that the CSS and the console settings match for baud rate, data bits, stop bits, and parity.
|
Abbreviated input is used, but pressing the tab key does not enter the command you want.
|
Ensure that you enter enough characters for the CSS to distinguish between different commands and options.
|
Random characters are lost.
|
Set the flow command on the console to XON/XOFF.
|
Troubleshooting the CSS Power Supply
Power supply status is indicated by the:
•Power LED on the CSS 11050 and CSS 11150
•PS1 and PS2 LEDs on the SCM in the CSS 11800
Table 2-13 provides suggestions for correcting problems that may occur with the CSS 11050 or CSS 11150 power supply.
Table 2-13 Troubleshooting the CSS 11050 or CSS 11150 CSS Power Supply
LED Name
|
LED Status
|
Possible Problem
|
Recommended Action
|
Power
|
Off
|
No power to power supply.
|
Ensure unit has power. Check power switch, power cord, and power source.
|
Fault in power supply.
|
Replace unit.
|
Table 2-14 provides suggestions for correcting problems that may occur with the CSS 1800 power supplies (AC or DC). The power supply status LED is on the SCM.
Table 2-14 Troubleshooting the CSS 11800 Power Supply
LED Name
|
LED Status
|
Possible Problem
|
Recommended Action
|
PS 1
PS 2
|
Off
|
No power to primary power supply.
|
Ensure unit has power. Check power switch, power cord, and power source.
|
Fault in power supply.
|
Replace the power supply.
|
The power outputs are out of limits (possibly caused by a low input line).
|
Replace the power supply or rectify the deficient line condition.
|
Note Installing a second CSS 11800 power supply provides power load balancing between the two power supplies. When you install a second power supply, it powers on and begins to share the power load automatically.
Troubleshooting the CSS 11800 Modules
Each CSS 11800 module is equipped with a temperature sensor that detects an over- or under-temperature condition. If the module detects that its temperature is out of range, it generates a log message.
Module status is indicated by the Status LED on the module front panel. For information about the module LEDs, see the module information earlier in this chapter.
Table 2-15 provides suggestions for correcting problems that may occur with the modules.
Table 2-15 Troubleshooting the CSS 11800 Modules
Symptom
|
Recommended Action
|
System cannot identify module type.
|
Remove the module and re-install it to reseat the module in the backplane connector.
|
Reload the ADI file.
|
System cannot find an image for the module.
|
Reload the ADI file.
|
Module failed diagnostic (according to the information in the Boot.log file).
|
Replace the module.
|
You cannot access log or archive files on the CSS disk but traffic is still passed in and out of the CSS.
|
Replace the Internal Disk Module. Remove the module and re-install it to reseat the module in the backplane connector.
|
Replacement IDM does not initialize.
|
If the replacement IDM does not contain the same version of the software that the CSS is currently running, the SCM will not initialize the IDM for use. You must reboot the CSS and configure a primary boot record. You can select the CSS software currently on the disk or instruct the CSS where to locate the CSS software ADI file to install on the disk. If you archived an offline version of your CSS running-config file, copy it back onto the CSS.
|
