Configuring Caching
This chapter provides an overview of the Content Services Switch (CSS) Caching feature and describes how to configure it for operation. Information in this chapter applies to all CSS models, except where noted.
The chapter includes the following sections:
•
Caching Overview
•Caching Configuration Quick Start
•Configuring Caching
•Configuring Network Address Translation for Transparent Caches
Caching Overview
Increasing demand for information on the Internet causes congestion and long delays in retrieving information. Because much of the same information is retrieved over and over again, saving and storing this information can satisfy subsequent requests with more efficiency and less bandwidth.
Saving and storing information locally is known as caching. With Web caching, copies of recently requested content are stored temporarily on a cache server in locations that are topologically closer to the client. The content is then readily available to be reused for subsequent client requests for the same content.
By storing content locally, you:
•Optimize network resources
•Conserve network bandwidth
•Reduce Internet congestion
•Improve network response time and overall service quality
Content Caching
You can make Web caching cost-effective and more reliable by deploying Content Caching in your network. Content Caching employs all the features and functions of Content Services Switching. By creating content rules to utilize your cache servers, the CSS acts as a cache front end device by:
•Examining network traffic for Web content requests
•Bypassing the cache automatically for non-cacheable content
•Distributing content requests to maximize cache hits on services
•Bypassing the cache or redistributing content requests among the remaining cache services if a cache service fails
When a client requests content, the CSS:
•Intercepts the request for content
•Applies content intelligence by parsing the HTTP request header to distribute content requests to the cache servers
The CSS then either:
•Directs the request to the appropriate cache based on the load balancing method you specify in the content rule (for example, destination IP address)
•Bypasses the cache servers and forwards the request to the origin server if the content is deemed non-cacheable
When the CSS directs the request to the cache server, the cache server either returns the requested content (if it has a local copy) or sends a new request for the content through the CSS to the origin server hosting the content. When the cache sends a new request for content and receives a reply from the origin server, it returns the response to the client. If the content is cacheable, the cache saves a copy of the content for future requests.
When the requested content is found on a local cache server, the request is known as a cache hit. When the requested content is not local and the cache initiates a new request for the content, the request is known as a cache miss.
The following sections provide CSS examples of:
•Using Proxy Caching
•Using Reverse Proxy Caching
•Using Transparent Caching
•Using Cache Clustering
Using Proxy Caching
With proxy caching, each client is configured with the IP address of the proxy cache to which clients send content requests. You may also configure an URL for browsers to identify the location of the proxy configuration file for automatic proxy configuration. Each client's content request is sent directly to the proxy cache IP address. The cache either returns the requested content if it has a local copy or sends a new request to the origin server for the information.
If all cache servers are unavailable in a proxy cache configuration, the client request does not pass to the origin server because clients are configured with the proxy cache VIP.
shows an example of using a CSS 11800 in a proxy cache configuration.

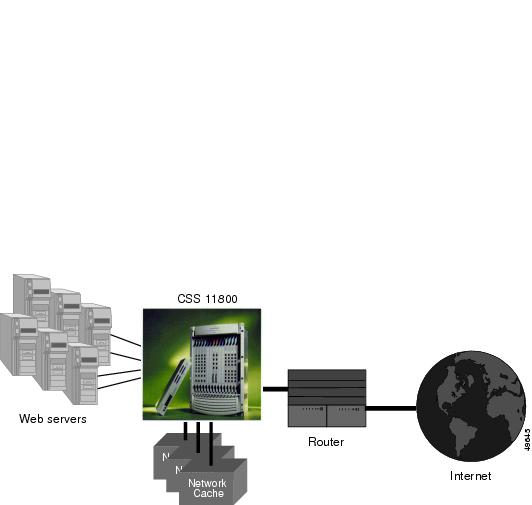

Figure 6-1 Proxy Cache Configuration Example
Using Reverse Proxy Caching
In a reverse proxy cache configuration, the proxy server is configured with an Internet-routable IP address. Clients are directed to the proxy server based on a Domain Name Server (DNS) resolution of a domain name. To a client, the reverse proxy server appears like a Web server.
In a regular proxy cache configuration, the proxy server acts as a proxy for the client. In the reverse proxy configuration, the reverse proxy server acts as a proxy for the server. Also, a reverse proxy cache caches specific content, whereas proxy and transparent caches cache frequently requested content. Reverse proxy caches serve two primary functions:
•Replication of content to geographically dispersed areas
•Replication of content for load balancing
shows an example of a CSS 11800 and CSS 11150s in a reverse proxy cache configuration.

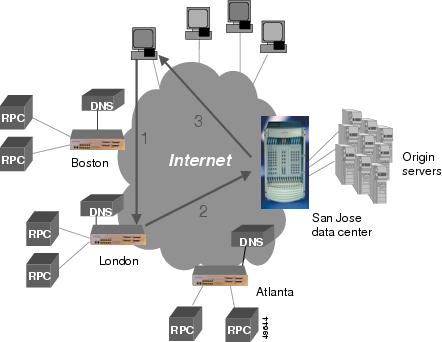

Figure 6-2 Reverse Proxy Cache Configuration Example
Using Transparent Caching
Transparent caching deploys cache servers that are transparent to the browsers. You do not have to configure browsers to point to a cache server. Cache servers duplicate and store inbound Internet data previously requested by clients.
When you configure transparent caching on the CSS, the CSS intercepts and redirects outbound client requests for Internet data to the cache servers on your network. The cache either returns the requested content if it has a local copy or sends a new request to the origin server for the information.
If all cache servers are unavailable in a transparent cache configuration, the CSS allows all client requests to progress to the origin servers.
A transparent caching configuration:
•Reduces network congestion caused by HTTP traffic
•Increases network efficiency
•Decreases the time required to fulfill a client request by accessing locally stored information rather than obtaining the same information across the Internet
shows an example of a typical transparent cache configuration.

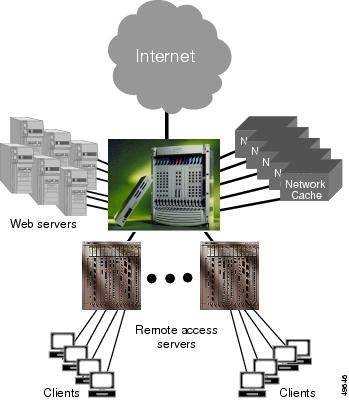

Figure 6-3 Transparent Cache Configuration Example
Using Cache Clustering
Multiple caches deployed at a single location is referred to as cache clustering. Cache clustering provides:
•Scalability
•Redundancy
•Transparency
•Simplified administration
shows an example of using Content Caching in a cache cluster configuration.

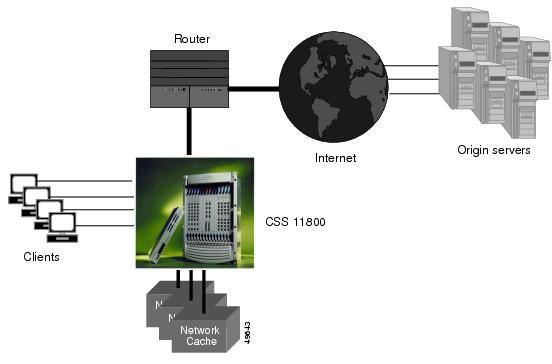

Figure 6-4 Cache Cluster Configuration Example
Caching Configuration Quick Start
Table 6-1 provides the steps to configure service serv1 as a caching service. Each step includes the CLI command required to complete the task. Ensure that you have configured services, owners, and content rules prior to configuring CSS caching. Refer to the Content Services Switch Basic Configuration Guide for further information.
Note When using Content Caching, the keepalive type must be ICMP (default setting).
For a complete description of each caching command, refer to the sections following Table 6-1.
Table 6-1 Caching Configuration Quick Start
Task and Command Example
|
1. Specify a service type (type local, type proxy-cache, type redirect,
type transparent-cache). Default is local.
(config-service[serv1])# type transparent-cache
|
2. Create an Extension Qualifier List (EQL) in which you specify which content types the CSS caches.
|
3. Describe the EQL by entering a quoted text string with a maximum length of 63 characters.
(config-eql[graphics])# description "This EQL specifies cacheable
graphic files"
|
4. Specify the extension for content you want the CSS to cache. Enter a text string from 1 to 8 characters.
(config-eql[graphics])# extension jpeg
Optionally, you may provide a description of the extension type. Enter a quoted text string with a maximum length of 64 characters.
(config-eql[graphics])# extension gif "This is a graphics file"
(config-eql[graphics])# exit
(config)#
|
5. Specify the EQL in a content rule to match all content requests with the desired extensions.
(config-owner-content[arrowpoint.com-rule1])# url "/*" eql
graphics
|
6. Configure the load balancing method for the cache content rule. The default is roundrobin.
(config-owner-content[arrowpoint.com-rule1])# balance domain
|
7. Specify a failover type to define how the CSS handles content requests when a service fails (bypass, next). The default is linear.
(config-owner-content[arrowpoint.com-rule1])# failover bypass
|
8. Display the EQL configuration.
(config-owner-content[arrowpoint.com-rule1])# show eql
|
9. Display the content rule to show the cache configuration.
(config-owner-content[arrowpoint.com-rule1])# show rule
|
Configuring Caching
Configure caching using content rules. When creating caching content rules, the additional configuration requirements involve:
•Specifying a service type that supports caching
•Specifying a failover type for the cache servers
•Configuring a load balancing algorithm that supports caching
•Configure EQLs to identify file extensions that the CSS should direct to the cache services
Specifying a Service Type
The CSS enables you to specify the following cache-specific service types using the type command. A service is configured to local by default.
•type nci-direct-return - Specify the service is NAT Channel indication for direct return. Use with reverse proxy cache and NAT peering.
•type nci-info-only - Specify the service is NAT Channel indication for information only. Use with reverse proxy cache and NAT peering.
•type proxy-cache -Specify the service is a proxy cache. This option bypasses content rules for requests coming from the cache server. In this case, bypassing content rules prevents a loop between the cache and the CSS.
•type rep-cache - Specify the service is a replication cache.
•type rep-cache-redir - Specify the service is a replication cache with redirect.
•type transparent-cache - Specify the service as a transparent cache. No content rules are applied to requests from this service type. Bypassing content rules in this case prevents a loop between the cache and the CSS.
For example, to specify service serv1 as a proxy cache, enter:
(config-service[serv1])# type proxy-cache
Note To enable the CSS to redirect a request to a remote service when a request for content matches the rule, you must specify a URL for the content rule.
Specifying a Failover Type
To define how the CSS handles content requests when a cache service fails or is suspended, use the failover command. For the CSS to use this setting, ensure that you configure a keepalive for each service; that is, do not set keepalive type to none (default keepalive is ICMP). The CSS uses the keepalive settings to monitor the cache services to determine server health and availability. Refer to the Content Services Switch Basic Configuration Guide for more information on the keepalive command.
By default, the CSS uses a linear failover method, which distributes the content requests to the failed service evenly among the remaining services.
Note If you remove a service (using the remove service command) the CSS rebalances the remaining services. The CSS does not use the failover setting.
This command supports the following options:
•failover bypass - Bypass content requests directed to the failed service and send them directly to the origin server.
•failover next - Send the content requests to the cache service next to the failed service. The CSS selects the service to redirect content requests to by referring to the order in which you configured the services.
For example:
(config-owner-content[arrowpoint.com-rule1])# failover bypass
To restore the default failover method of linear, enter:
(config-owner-content[arrowpoint.com-rule1])# no failover
shows three cache services configured for failover next. If ServerB fails, the CSS sends ServerB content requests to ServerC, which was configured after ServerB in the content rule.
Figure 6-5 Cache Services Configured for Failover Next
As shown in , if ServerC fails, the CSS sends ServerC content requests to ServerA because no other services were configured after ServerC.
Figure 6-6 Cache Services Configured for Failover Next
shows three cache services configured for failover linear (the default). If you suspend ServerB or if it fails, the CSS does not rebalance the services. It evenly distributes ServerB cache workload between servers A and C.
Note that and use the alphabet to illustrate division balance.
Figure 6-7 Suspended or Failed Cache Service Configured for Failover Linear
also shows three cache services configured for failover linear, but in this example, you remove ServerB using the remove service command from owner-content mode. Because the CSS does not apply the failover setting when you remove a service, it rebalances the remaining services.
Figure 6-8 Removing a Cache Service Configured for Failover Linear
Configuring Load Balancing
To specify the load-balancing algorithm for a content rule, use the balance command. This command is available in content configuration mode. The options are:
•balance aca - ArrowPoint Content Awareness algorithm. The CSS uses the normalized response time from client to server to determine the load on each service. ACA balances the traffic over the services based on load.
•balance destip - Destination IP address division algorithm. The CSS directs all client requests with the same destination IP address to the same service. This option is typically used in a caching environment.
•balance domain - Domain name division algorithm. The CSS divides the alphabet evenly across the number of caches. It parses the host tag for the first four letters following the first dot and then uses these characters of the domain name to determine to which server it should forward the request. This option is typically used in a caching environment.
•balance domainhash - Internal CSS hash algorithm based on the domain string. The CSS parses the host tag and does an XOR hash across the entire host name. It then uses the XOR hash value to determine to which server to forward the request. This method guarantees that all requests with the same host tag will be sent to the same server in order to increase the probability of a cache hit. This option is typically used in a caching environment.
•balance leastconn - Least connection algorithm. This balance method chooses a running service that has the least number of connections.
•balance roundrobin - Roundrobin algorithm (default).
•balance srcip - Source IP address division algorithm. The CSS directs all client requests coming from the same source IP address to the same service. This option is generally used in a caching configuration.
•balance url - URL division algorithm. The CSS divides the alphabet evenly across the number of caches. It then parses the URL for the first four characters located after the portion of the URL matched on by the rule. For example, if the URL in a content rule is configured for "/news/*", the CSS it will balance on the first four characters following "/news/". This option is typically used in a caching environment.
•balance weightedrr - Weighted roundrobin algorithm. The CSS uses roundrobin but weighs some services more heavily than others depending on the server's configured weight. All servers have a default weight of 1. To set a server weight, use the add service weight command in owner-content mode.
•balance urlhash - Internal CSS hash algorithm based on the URL string. The CSS parses the URL and performs an XOR hash across the URL. It then uses the XOR hash value to determine to which server to forward the request. This method guarantees that all requests for the same URL will be sent to the same server in order to increase the probability of a cache hit. This option is typically used in a caching environment.
For example, to specify weightedrr load balancing, enter:
(config-owner-content[arrowpoint-rule1])# balance weightedrr
To revert the balance type to the default of roundrobin, enter:
(config-owner-content[arrowpoint-rule1])# no balance
Enabling Content Requests to Bypass Caches
Using the param-bypass Command
Use the param-bypass command to enable content requests to bypass transparent caches when the CSS detects special terminators in the requests. These terminators include "#" and "?" which indicate that the content is dependent on the arguments that follow the terminators. Because the content returned by the server is dependent on the content request itself, the returned content is not cacheable.
This command contains the following options:
•param-bypass disable (default) - Content requests with special terminators do not bypass transparent caches.
•param-bypass enable - Content requests with special terminators bypass transparent caches and are forwarded to the origin server.
For example, to enable the param-bypass command, enter:
(config-owner-content[arrowpoint-rule1])# param-bypass enable
Using the cache-bypass Command
By default, a CSS does not apply content rules to requests from a proxy or transparent-cache type service going to the origin server when the cache does not contain the requested content. Use the no cache-bypass command to allow the application of content rules to requests originating from a proxy or transparent cache. Use the cache-bypass command to restore the default behavior of the CSS after you have issued the no cache-bypass command.
For example, to allow the CSS to apply content rules to requests from a proxy or transparent-cache type service, enter:
(config-service[serv1])# no cache-bypass
To restore the CSS default behavior after issuing the no cache-bypass command, enter:
(config-service[serv1])# cache-bypass
Using the bypass-hosttag Command
Use the bypass-hosttag command to allow a CSS configured as a Client Side Accelerator (CSA) to bypass a cache farm and establish a connection with the origin server to retrieve non-cacheable content. The domain name from the host tag field is used to look up the origin IP address on the CSA.
Note Use the bypass-hosttag command only with a CSS operating in a CSA environment. For details on CSA, refer to Chapter 7, Configuring the CSS Domain Name Service, in the section "Configuring Client Side Accelerator".
For example:
(config-service[serv1])# bypass-hosttag
To disable bypassing cache for non-cacheable content, enter:
(config-service[serv1])# no bypass-hosttag
Configuring Network Address Translation for Transparent Caches
Use the transparent-hosttag command to enable destination Network Address Translation (NAT) for the transparent cache service type.
Note You can use the transparent-hosttag command only with a CSS operating in a Client Side Accelerator (CSA) environment. For details on CSA, refer to the Content Service Switch Advanced Configuration Guide, Chapter 7, Configuring the CSS Domain Name Service.
For example:
(config-service[serv1])# transparent-hosttag
To disable destination NATing for the transparent cache service type, enter:
(config-service[serv1])# no transparent-hosttag
Configuring Network Address Translation Peering
Network Address Translation (NAT) peering allows clients to connect to remote Web sites through CSSs and have the return traffic use the shortest network path back to the client. The forward path from the client to the server is through TCP connections between two CSSs, but the reverse path from the server to the client may take the shortest network route rather than traversing back through the CSSs.
Note Network Address Translation peering is part of the CSS Enhanced feature set.
NAT peering allows the CSS to:
•Forward client connections to a remote CSS
•Perform the final translation at the remote CSS, which allows return traffic packets to flow to the client through any network path
•Preserve the client IP address when forwarding traffic to the origin server
To perform NAT transformations on a TCP flow, the client-side CSS forwards traffic to the server-side CSS through a NAT channel. This channel uses a special TCP option called the NAT Channel Indication (NCI) option. This option indicates to the server-side CSS that NAT parameters are in use, and contains the original source and destination IP addresses, and TCP port numbers. This option also has a spoof bit to indicate that part of the flow has been spoofed and the rest of the forward path must be established before the destination CSS can use the information in the packet to perform the NAT transformations for the reverse path.
Note Spoofing occurs when a CSS requires information from the HTTP request, (such as host tag, file name, file extension) in order to make a load balancing decision.
The server-side CSS preserves the client address and port. This allows the origin server to maintain statistics based on the original traffic source addressing data, and allows the return path to be independent of the forwarding path.
shows an example of NAT peering. The steps that follow describe this example.

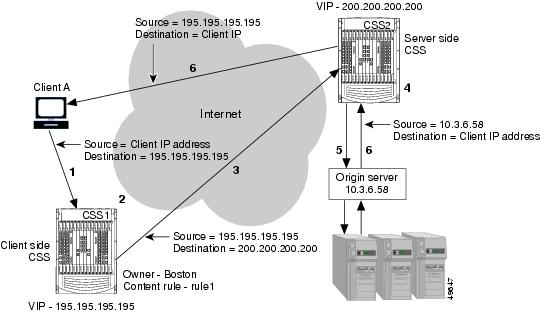

Figure 6-9 NAT Peering Configuration Example
1. Client A sends a content request for /bostonInfo.html from CSS1
(VIP 195.195.195.195).
2. CSS1 matches the request to its content rule, which specifies a service located on CSS2 (VIP2 200.200.200.200). The CSS2 service is configured for service type nci-direct-return. This service type informs CSS1 to include the NCI option in the TCP packet sent to CSS2. If a Layer 5 rule is matched, the spoof bit in the NCI option is set.
3. CSS1 sends the TCP packet to CSS2. Source address group mapping maps the Client A source address and port to those from CSS1. The TCP packet contains the CSS1 source information, CSS2 destination information, and the original source and destination information from Client A.
4. CSS2 determines whether or not the spoof bit has been set in the packet. If the bit is set, the CSS stores the NAT information until the connection is spoofed. CSS2 sets up the forward and return paths. CSS2 then matches the request from CSS1 on a content rule.
Note The server-side CSS (CSS2 in ) would use the NCI option in a packet if the VIP rule is directed at a local, proxy-cache, or transparent cache service.
5. CSS2 sends the request to the origin server with the destination IP address translated to the origin server IP address and the source IP address translated to the client IP address.
6. The origin server responds directly back to Client A. As the packet flows through CSS2, CSS2 translates the source IP address to the CSS1 VIP. The destination IP address is the client IP address.
Configuring NAT Peering
All NAT peering configuration occurs on the client-side CSS. During the configuration consider the following:
•When you configure the NCI service as nci-direct-return, the service must be directed to the VIP on the server-side CSS to indicate an endpoint for the connection. The server-side CSS always uses the nci-direct-return option to modify the source address and port that the server sees. When the nci-direct-return service is used on the client side, the return path is modified to directly return to the client.
•When you are specifying an NCI service type, you must specify:
–type nci-direct-return to represent a VIP on another CSS
–type nci-info-only for any Web server
Table 6-2 describes the steps necessary to configure NAT peering using command examples based on the configuration in . Because NAT peering applies to Layer 3 as well as Layer 5 rules, the port, protocol, and URL rule examples shown in Table 6-2 are optional.
Table 6-2 NAT Configuration Quick Start
Task and Command Example
|
1. On CSS1, create content rules to configure CSS2 as a service.
a. Create service CSS2.
CSS1 (config)# service CSS2
b. Configure CSS2 VIP as the service IP address.
CSS1 (config-service[CSS2])# ip address 200.200.200.200
c. Configure CSS2 as a service type nci-direct-return.
CSS1 (config-service[CSS2])# type nci-direct-return
d. Activate the content rule.
CSS1 (config-service[CSS2])# active
|
2. On CSS1, create content rules with the criteria required for CSS1 to forward traffic to CSS2.
a. Create an owner.
CSS1 (config)# owner boston.com
b. Name the content rule and assign it the owner.
CSS1 (config-owner[boston.com])# content rule1
c. Configure the CSS1 VIP.
CSS1 (config-owner-content[boston.com-rule1])# vip
195.195.195.195
d. Configure port and protocol.
CSS1 (config-owner-content[boston.com-rule1])# port 80
CSS1 (config-owner-content[boston.com-rule1])# protocol tcp
e. Define the URL.
CSS1 (config-owner-content[boston.com-rule1])# url
"//bostoninfo.html/"
f. Add CSS2 as the service.
CSS1 (config-owner-content[boston.com-rule1])# service CSS2
g. Activate the rule.
CSS1 (config-owner-content[boston.com-rule1])# active
|
3. On CSS1, create a source group for the client traffic. CSS1 will translate the Client A IP address to the IP address defined in the source group. To configure a source group:
a. Create the source group.
CSS1 (config)# group boston
CSS1 (config-group[boston])#
b. Define the CSS1 VIP as the IP address into which the Client A IP address will be translated.
CSS1 (config-group[boston])# vip 195.195.195.195
c. Activate the source group.
CSS1 (config-group[boston])# active
|
4. On CSS1, create an Access Control List (ACL) clause to specify which source IP addresses use the source group. Note that clause 20 is a required clause that permits all other traffic. Without clause 20, all traffic not defined in clause 10 is denied.
CSS1 (config)# acl 1
CSS1 (config-acl[1])# clause 10 permit tcp any destination
content boston.com/rule1 sourcegroup boston
CSS1 (config-acl[1])# clause 20 permit any any destination
any apply circuit-(VLAN1)
|
5. On CSS2, configure the origin server connected to CSS2.
a. Create origin server serv1.
CSS2 (config)# service serv1
b. Configure an IP address for serv1.
CSS2 (config-service[serv1])# ip address 10.3.6.58
c. Activate the server.
CSS2 (config-service[serv1])# active
|
6. On CSS2, configure content rules with the criteria required to forward content requests to serv1.
a. Create an owner.
CSS2 (config)# owner boston.com
b. Name the content rule and assign it the owner.
CSS2 (config-owner[boston.com])# content rule1
c. Configure the CSS2 VIP.
CSS2 (config-owner-content[boston.com-rule1])# vip
200.200.200.200
d. Configure port and protocol.
CSS2 (config-owner-content[boston.com-rule1])# port 80
CSS2 (config-owner-content[boston.com-rule1])# protocol tcp
e. Add serv1 as the service.
CSS2 (config-owner-content[boston.com-rule1])# service serv1
f. Define an URL.
CSS2 (config-owner-content[boston.com-rule1])# url "/*"
g. Activate the rule.
CSS2 (config-owner-content[boston.com-rule1])# active
|
