Using Hardware-Backed Keys for Administrative Communication

Overview

Installing Hardware-Backed Certificates

Before You Begin

Gateway-to-Manager Authentication

Manager-to-Gateway Authentication

Testing Hardware-Based Certificates

Changing the Audit Log Signing Credential

Using Hardware-Backed Keys for Administrative Communication

This chapter describes how to replace the default key with hardware-backed keys to secure administrative communications between the Cisco ACE XML Gateway and Manager. It covers these topics:

•Overview

•Installing Hardware-Backed Certificates

•Changing the Audit Log Signing Credential

Overview

When the ACE XML Manager establishes an SSL connection with a managed gateway to deploy the policy or perform other administrative functions, it presents an X.509 client certificate and expects the gateway to present its own server certificate in response. The ACE XML Manager also uses a certificate to sign the ACE XML Manager Audit Log, ensuring the integrity of logged information.

For enhanced security, you should replace the default certificates used for these purpose with your own. Each X.509 certificate's unique identity is based on a set of PKI keys. In addition to installing new certificates at initial configuration time, you may choose to install new keys periodically or in response to a possible security breach.

Your certificates can use software- or hardware-based cryptographic keys. The ACE XML system uses software-based keys by default. For greater security, it is recommended that you use a hardware-based keystore to generate and protect your keys.

To use hardware-based keys, your ACE XML appliances must be equipped with nCipher hardware-based keystores and you must configure the appliances to use them, as described in Chapter 7, "Using Hardware Keystores and Security Worlds."

While hardware-backed keys are recommended for best security, you can also replace the built-in keys with software-backed key if desired. In general, the procedures for replacing the built in keys with hardware backed keys and software backed keys are very similar. Where the instructions differ, the procedure in this chapter notes differences for installing software-backed keys.

Installing Hardware-Backed Certificates

Configuring ACE XML appliances to use hardware-based keys for bilateral authentication is a two-part process:

•You must install a new server certificate on each ACE XML Gateway in a cluster and inform the ACE XML Manager that the ACE XML Gateway presents this certificate for bilateral authentication.

•You must install a new client certificate on the ACE XML Manager and inform each ACE XML Gateway that the ACE XML Manager presents that certificate for bilateral authentication.

Although the installation procedures are parallel in concept, the details pertinent to each vary slightly. To ensure successful installation, be sure to follow each section's step-by-step instructions carefully.

Note Installation of each hardware-backed certificate requires you to execute certain commands on the ACE XML Manager appliance, and others on the gateway appliance. When installing bilateral authentication certificates on a Gateway cluster, you must execute the gateway-based commands on each gateway appliance in the cluster.

Before You Begin

Before you begin changing the keys used by administrative certificates, make sure you have met the following prerequisites:

•One or more trusted Certificate Authorities (CAs) must be available for signing administrative certificates. Note that the Manager and Gateway are not required to use the same CA.

•You must already have configured each ACE XML appliance as a Gateway, Manager, or standalone machine.

•You must already have configured each ACE XML appliance to use an nCipher security world, as described in Chapter 7, "Using Hardware Keystores and Security Worlds."

•You must already have already enabled the use of a hardware-based SSL engine. For details, see "Enabling SSL Acceleration" section on page 9-53.

Gateway-to-Manager Authentication

To configure an ACE XML Gateway to use hardware-backed keys in bilateral authentication, complete the following tasks:

•Inform the ACE XML Manager of the CA that signed the certificate that the gateway presents in bilateral authentication.

•On the ACE XML Gateway, generate a certificate signing request (CSR).

•Send the CSR to the gateway's trusted CA for transformation into the gateway's server certificate.

•Install the server certificate on the gateway.

The following procedures provide details on these steps

Caution Before continuing, make sure that message traffic is diverted away from the gateways that are to be configured. To do so, take the gateways offline at the load-balancer that precedes them in your network. If you do not take the gateways offline, in-progress transactions may be cut off when you perform these steps. Also, stop all Gateway services by setting it to inactive from the appliance shell (that is, from Network Configuration > Cluster Configuration menu item).

To install a hardware-backed certificate on the ACE XML Gateway, follow these steps:

Step 1 On the ACE XML Manager machine, run bash as the root user.

Step 2 Place a copy of the self-signed root certificate of the gateway's trusted Certificate Authority (CA) in the ACE XML Manager machine's /usr/local/reactivity/private directory.

You can use any means you prefer to copy the file. For example, you can ssh to the ACE XML Manager machine from the gateway's bash shell and then use the scp command to copy the CA certificate. These instructions refer to this certificate as the gateway CA certificate.

Note All Gateways this Manager controls must present the same Gateway CA certificate. If you need to configure your systems differently, contact Cisco support for assistance. The Manager and Gateway are not required to use the same CA. However, if you choose not to use the same CA for both sides of bilateral certificate exchange, be sure to install the correct CA certificate on each machine.

Step 3 In the ACE XML Manager shell, change directories to the following directory:

cd /usr/local/reactivity

Step 4 Execute the following command to back up the ACE XML Manager's current database of trusted CAs:

mv private/trustkeystore private/trustkeystore.bak

This command renames the trustkeystore file as the trustkeystore.bak file. The trustkeystore file is the list of CAs the ACE XML Manager trusts. In the next step, you generate a new trustkeystore file.

Note In the next example and in the rest of this chapter, commands longer than a single line wrap to the next line. The backslash character ("\") indicates a line that wraps in this way. When typing these examples (or your own commands) into the bash shell, do not include the backslash characters.

Step 5 In the ACE XML Manager shell, execute the following command to generate a new trusted CA database that contains an entry for the newly installed Gateway CA certificate:
/usr/java/j2sdk1.4.2_04/bin/keytool \
    -import -trustcacerts -alias ca_cert \
    -keystore private/trustkeystore \
     -storetype jks -file GCACERT.CRT \
    -storepass approuter
Where GCACERT.CRT is the filename of the local copy of the gateway CA certificate you installed previously.

Step 6 Enter yes in response to the Trust this certificate? prompt.

The new certificate is added to the keystore and the Certificate was added to keystore message appears.

Step 7 On the gateway machine, run bash as the root user.

The command prompt appears. Subsequent instructions refer to this terminal session as the gateway shell.

Step 8 In the shell, change directories to:

cd /usr/local/reactivity

Step 9 Execute the following command to back up the gateway's current administrative server certificate:

mv private/server.pem private/server.pem.bak

Note To install certificates on a Gateway cluster, you must execute Gateway-based commands (such as this one) on each Gateway machine in the cluster.

Step 10 In the gateway shell, generate a key and corresponding CSR using one of the following steps, depending on if you are using a hardware-backed or software backed key:

•For a hardware-backed key, execute the generatekey command to generate a new nCipher-protected private key and corresponding certificate-signing request (CSR) for the gateway, as follows:

/opt/nfast/bin/generatekey --batch embed \ protect=module recovery=1 size=1024 \ embedsavefile=private/server.pem \ x509dnscommon="gatewayhost" \ x509org="OrganizationName" x509locality="Belmont" \ x509province="California" x509country="US"

In your command, replace italicized text with values appropriate for your site. It is suggested that the value of the x509dnscommon parameter be the fully-qualified hostname the ACE XML Manager uses to contact the gateway, although this is not a hard requirement.

The system writes the CSR into private/server_req.pem and the shell displays information about the key generation operation. If successful, Key successfully generated appears at the bottom of the listing.

•For a software-backed key, enter the following two commands instead of the generatekey command:

$ openssl genrsa -out server.pem 1024
$ openssl req -key server.pem \ -out server_req.pem -new -subj \ "/CN=gatewayhost/OU=myorgunit/O=MyCompany/L=Belmont/ST=California/C=US"

In your command, replace italicized text with values appropriate for your site. It is suggested that the CN value be the fully-qualified hostname the Manager uses to contact the gateway, although this is not a hard requirement.

Step 11 Send the CSR data (the server_req.pem file) to the gateway's trusted CA for transformation into a signed X.509 certificate.

The CA sends a signed certificate in reply. This certificate is the gateway's server certificate; in other words, it is the certificate the gateway presents to the ACE XML Manager.

Step 12 If you receive the signed certificate from the CA as the body of an email, place only the certificate contents in a text file:

•Include the entire BEGIN CERTIFICATE line, the entire END CERTIFICATE line, and everything in between.

•On your local file system, save the file using a valid Linux filename, that is, don't use spaces, apostrophes, ampersands, and other unusual characters in this filename.

Step 13 In the gateway shell, execute the following command to install the signed certificate on the gateway:

$ cat GCERT.CRT >> private/server.pem

In your command, replace the GCERT.CRT with the filename of the signed certificate.

Note Be sure to use the >> output redirection operator to append the signed certificate to the server.pem file rather than replacing it. If the file is replaced, the private key that the generatekey tool placed in this file will be lost, and the keystore will not recognize the certificate as valid. To recover from this error, you must repeat all the instructions in this section to generate a new key, a new CSR, and a new certificate to install.

If you completed all of these steps successfully, this Gateway is now configured to use hardware-backed keys for bilateral certificate exchange: the gateway's hardware-backed administrative certificate is installed, and the gateway has been informed of the CA to use to validate the certificate the ACE XML Manager presents.

You can now configure other Gateways in the cluster similarly.

Manager-to-Gateway Authentication

To configure a ACE XML Manager to use hardware-backed keys in bilateral authentication, you must complete these tasks:

•Inform the ACE XML Gateways of the CA that signed the certificate the ACE XML Manager presents in bilateral authentication. You must perform this particular step on each ACE XML Gateway in the cluster.

•Generate a certificate signing request (CSR) that utilizes hardware-based keys on the ACE XML Manager.

•Send the CSR to the Manager's trusted CA for transformation into the Manager's client certificate.

•Install the client certificate on the ACE XML Manager.

To install a hardware-backed administrative client certificate on the ACE XML Manager, take the following steps:

Step 1 Before continuing, make sure you have met the prerequisites in "Before You Begin" section.

Step 2 Place a copy of the self-signed root certificate of the ACE XML Manager's trusted Certificate Authority (CA) in the following directory of each Gateway machine this Manager controls:

/usr/local/reactivity/private

Use scp or the secure file transfer mechanism you prefer to copy the file. The scp utility would be run from the ACE XML Manager's bash shell to copy the ACE XML Manager's CA certificate onto the gateway machine as follows

ssh gatewaymachine -l root cd /usr/local/reactivity/private scp root@manangername:/pathToMCACert/MCAERT.CRT .

In this example, MCACERT.CRT file is the self-signed root certificate of the CA who signed the certificate the ACE XML Manager presents to the gateway. Subsequent instructions refer to this certificate as the ACE XML Manager CA certificate. In the example code, this file resides on the managername computer in the pathToMCACert directory. The scp command copies this file into the /usr/local/reactivity/private directory on the gatewaymachine Gateway appliance.

The MCACERT.CRT file must be the PEM-format, self-signed, root certificate of the CA that signs the certificate the ACE XML Manager presents in bilateral certificate exchanges. The Gateway and Manager need not both use the same CA to verify the respective certificates presented to them. However, if you choose not to use the same CA for both sides of the bilateral certificate exchange, be sure to install the correct CA certificate on each machine.

Step 3 On the gateway machine, run bash as the root user.

Step 4 In the gateway shell, execute the following command to set the working directory to the top-level directory:

cd /usr/local/reactivity

Step 5 In the gateway shell, execute the following command to back up the Manager CA certificate currently installed on the gateway:

mv private/ca.crt private/ca.crt.bak

This command line renames the ca.crt file as the ca.crt.bak file. Shortly, you'll install a new ca.crt file.

Step 6 In the gateway shell, execute the following command to install a new Manager CA certificate on the gateway:

cp MCACERT.CRT private/ca.crt

Replace MCACERT.CRT with the filename of the local copy of the CA certificate you installed previously.

Step 7 On the Manager appliance, run bash as the root user.

Step 8 On the Manager shell, change directories as follows:

cd /usr/local/reactivity

Step 9 In the shell, execute the following command to back up the Manager's current hardware key database:

mv private/client.ncipher private/client.ncipher.bak

This command renames the client.ncipher file as client.ncipher.bak. This file contains hardware-based private keys the Manager uses to connect to the gateways it manages. In the next step, you generate a new client.ncipher file.

Step 10 In the Manager shell, execute the following command to generate a new nCipher-protected private key for use with the certificate the Manager's Web-based interface presents:

bin/ncipherkeytool -genkey -keystore private/client.ncipher -alias mykey -keyalg RSA -keysize 1024 -dname "CN=managerhostname, O=CompanyName,L=Belmont,ST=California,C=US"

Replace the italicized values for the CN,O,L, and ST fields with values that are appropriate for your site. In particular, the CN= value must be the fully-qualified hostname of the Manager machine on which you are installing the certificate.

Step 11 In the Manager shell, enter the following command to generate a CSR based on the new nCipher-protected private key:

bin/ncipherkeytool -certreq -keystore private/client.ncipher -alias mykey -file client.req

The system writes the CSR into the client.req file. If you like, you can inspect this file to ensure that it contains a valid certificate signing request.

Step 12 Send the CSR data (the client.req file) to the Manager's trusted CA for transformation into a signed X.509 certificate.

Keep in mind that this certificate is the Manager's client certificate, that is, the one the Manager presents to Gateways.

Step 13 When you receive the signed certificate from the CA as an email, paste only the certificate contents into a text file:

•Include the entire BEGIN CERTIFICATE line, the entire END CERTIFICATE line, and everything in between.

•On your local file system, save the file using a valid Linux filename: don't use spaces, apostrophes, ampersands, and other unusual characters in this filename.

Step 14 In the Manager shell, execute the following command to install the Manager's trusted CA certificate in the Manager's nCipher-protected keystore:

bin/ncipherkeytool -import -trustcacerts \ -keystore private/client.ncipher -alias ca_cert -fileMCACERT.CRT

When you type this command, replace the MCACERT.CRT parameter with the filename of the local copy of the Manager CA certificate you installed previously.

The Shell prompts you to confirm the operation. Its output looks similar to the following:

Owner: EMAILADDRESS=name@example.com, CN=Some CA, OU=Engineering, O="Beagle, Inc.", L=Belmont, ST=California, C=US Issuer: EMAILADDRESS=name@example.com, CN=Some CA, OU=Engineering, O="Beagle, Inc.", L=Belmont, ST=California, C=US Serial number: 0 Valid from: Thu Dec 09 20:31:59 UTC 2004 until: Wed Dec 09 20:31:59 UTC 2009 Certificate fingerprints: MD5: XX: hellip :XX SHA1: XX: hellip :XX Trust this certificate? [no]:

The Manager and Gateway are not required to use the same CA to verify the certificates presented to them. However, if you choose not to use the same CA for both sides of the bilateral certificate exchange, be sure to install the correct CA certificate on each machine.

Step 15 In the Manager shell, enter yes to trust this certificate.

The shell adds the new certificate to the keystore and displays the Certificate was added to keystore message.

Step 16 In the Manager shell, enter the following command to install the new Manager client certificate in the Manager's nCipher keystore:

bin/ncipherkeytool -import \ -keystore private/client.ncipher \ -alias mykey -fileMCERT.CRT

When you type this command, replace the MCERT.CRT parameter with the filename of a local copy of the signed X.509 certificate the Manager's trusted CA returned in response to your certificate signing request.

If the ncipherkeytool command installed the manager's client certificate successfully, the shell displays the Certificate reply was installed in keystore message.

Step 17 To have the Manager's present the new certificate for browser connections to the web console:

a. Open for editing the following Manager properties file: /usr/local/reactivity/config/webapp.properties

b. Change the following line:

ssl.client.keystore=/usr/local/reactivity/private/client.p12

to:

ssl.client.keystore=/usr/local/reactivity/private/client.ncipher

c. Change the following line:

ssl.client.storetype=pkcs12

to:

ssl.client.storetype=ncipher.sworld

Step 18 In the Manager shell, execute the following command to set agateway as the owner and group of the webapp.properties file:

chown agateway:agateway /usr/local/reactivity/config/webapp.properties

Step 19 Verify the ownership change by typing the following command:

ls -la /usr/local/reactivity/config

The shell lists the contents of the config directory. In the listing, the owner and group assigned to the webapp.properties file should be agateway, as displayed in the following:

-rw-r--r-- 1 agateway agateway 2874 Feb 8 00:34 webapp.properties

Once you complete these steps, the Manager uses hardware-backed keys for bilateral certificate exchange. If you also configured all Gateways that this Manager controls, the Manager and Gateways can now use their newly installed hardware-backed certificates for bilateral authentication.

Testing Hardware-Based Certificates

After configuring the Manager and Gateways as previously described, you can test the installation by viewing the event log in the Manager web console. Navigating to the event log requires the Manager to perform bilateral certificate exchange with each managed Gateway to retrieve the entries in the log.

Once you log into the Manager's web console, make sure that the Dashboard does not display warnings indicating that the Manager cannot contact any Gateway cluster members, such as the one in Figure 8-1.

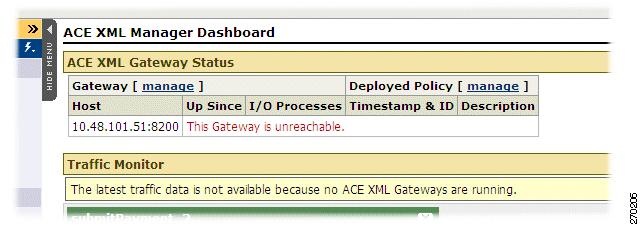

Figure 8-1 Unreachable Gateway

If you replace the certificates without completing other parts of the installation process correctly, you may be able to log into the Manager web console or establish terminal sessions with the Manager or Gateways while still not having a fully functional installation. Assuming the gateway was configured correctly prior to installation of the hardware-based keys, errors loading a certificate or reading the keystore may prevent the gateway from starting successfully. If you see this message, you may be able to discern the problem by examining the Event Log.

While viewing the Event Log, look for Notice, Warning or Alert messages that indicate problems with the hardware keystore or other problems starting up.

In order to populate the Event Log with entries, the Manager must perform bilateral certificate exchange with each of the gateways in its cluster as a prerequisite to polling them for new events to enter in the log. Therefore, if you can view an Event Log configured at Notice level or higher, and it contains no errors related to certificates, hardware keystores, or communications between the Manager and its Gateway cluster, the hardware-backed certificates used for bilateral certificate exchange are installed correctly.

Changing the Audit Log Signing Credential

The Console Audit Log is a ACE XML Manager web console page that shows the administrative-level changes affecting the system, such as policy deployment, changes to the current policy, changes to the user privileges of administrative accounts, and so on. In addition to the change made, the audit log shows who made the changes.

The audit log uses a PKI credential to authenticate processes before allowing them to edit and sign the audit log. This section describes how to substitute hardware-backed keys in place of the software-based keys that this credential uses normally.

Before completing these procedures, you must:

•Enable the use of the hardware-based SSL engine. For details, see "Enabling SSL Acceleration" section on page 9-53.

•Add the ACE XML appliance to an nCipher security world.

To change the audit log signing credential:

Step 1 On the Manager machine, log into the appliance shell as the root user.

Step 2 Choose the Manage ACE XML Gateway Processes menu item.

Step 3 In the Manage ACE XML Gateway Processes menu, choose Stop ACE XML Manager.

The ACE XML appliance shuts down the Manager process and displays a status screen indicating the success of this operation.

Step 4 Press the Enter key to dismiss the status screen.

Step 5 In the Manage ACE XML Gateway Processes menu, choose Return to Main Menu.

Step 6 Choose the Advanced Options item from the Main Menu.

Step 7 Choose the Run bash item from the Advanced Options menu.

Step 8 At the bash command prompt, change directories to the following directory:

cd /usr/local/reactivity

Step 9 To generate a new nCipher-protected keystore and self-signed certificate for audit log signing, execute the following command:

$ bin/ncipherkeytool -genkey -keystore private/auditlog.ncipher -alias client -keyalg RSA -keysize 1024 -dname "CN=auditlog"

To verify success of this command, list the contents of the /usr/local/reactivity/private directory to verify the presence of a newly-created auditlog.ncipher file. For example, you might use the following command to do so:

ls -lt private

Step 10 Back up the current audit log certificate by entering the command:

$ mv private/auditlog.crt private/auditlog.crt.bak

This command renames auditlog.crt as auditlog.crt.bak. To verify the operation, list the contents of the private directory. If the rename operation succeeded, this directory contains an auditlog.crt.bak file and no auditlog.crt file.

Step 11 Execute the following command to extract the new audit log certificate from the keystore for log verification utility use:

$ bin/ncipherkeytool -export -rfc -keystore private/auditlog.ncipher -alias client -file private/auditlog.crt

The shell displays the Certificate stored in file <private/auditlog.crt> message.

Step 12 Edit /usr/local/reactivity/config/webapp.properties as follows:

a. Change p12 to ncipher in the following line.

audit.log.private.key.pcks12= /usr/local/reactivity/private/auditlog.p12

to:

audit.log.private.key.pcks12= /usr/local/reactivity/private/auditlog.ncipher

b. Change pkcs12 to ncipher.sworld in the following line:

audit.log.signing.keystore.type=pkcs12

to:

audit.log.signing.keystore.type=ncipher.sworld

Step 13 In the Manager shell, execute the following command to set agateway as the owner and group of webapp.properties:

chown agateway:agateway /usr/local/reactivity/config/webapp.properties

Step 14 Confirm the file ownership change by executing the following command to view the owner and group assigned to the webapp.properties file:

ls -la /usr/local/reactivity/config

The shell lists the contents of the config directory. In this listing, the owner and group assigned to the webapp.properties file should be agateway, as in following example:

-rw-r--r-- 1 agateway agateway 2874 Feb 8 00:34 webapp.properties

Step 15 Reset the audit log signing state by entering the following command:

$ rm auditlogs/audit.console.current

This command removes the current audit log. In a subsequent step, you'll generate a new audit log signed with the hardware-based certificate.

Step 16 Exit the bash shell.

Step 17 In the Advanced Options menu, choose the Return to Main Menu item.

Step 18 Choose the Manage ACE XML Gateway Processes menu item.

Step 19 Choose Start ACE XML Manager.

The ACE XML appliance attempts to restart the Manager process and displays a status screen indicating the status of the operation.

Step 20 Press the Enter key to dismiss the status screen.

The Manage ACE XML Gateway Processes menu reappears.

Step 21 Log into the ACE XML Manager web console (not the appliance shell) as a user with administrator role.

The Dashboard appears.

Step 22 Click the Reports and Tools > Event Log link.

The Event Log should display the following message:

A "/usr/local/reactivity/auditlogs/audit.console.current" not found. This file should only be missing on newly installed ACE XML Manager web consoles.

In the previous step, you removed the audit.console.current file, so this error message is to be expected. The ACE XML Manager writes a new log file in place of the file you removed, so you won't see this message on subsequent logins.

	Cisco ACE XML Gateway Administration Guide (Software Version 5.2)
	Using Hardware-Backed Keys for Administrative Communication
Cisco ACE XML Gateway Administration Guide (Software Version 5.2) Preface Introduction Planning the Installation Setting Up the Appliance Accessing the bash Shell Performing the Initial Configuration Configuring a Gateway Cluster Using Hardware Keystores and Security Worlds Using Hardware-Backed Keys for Administrative Communication Configuring Advanced Options Separating Traffic on Network Interfaces Miscellaneous Administrative Tasks Monitoring the ACE XML Gateway Remotely Using the Command Line Interface (CLI) Shell Menu Reference	Download this chapter Using Hardware-Backed Keys for Administrative Communication Download the complete book Cisco ACE XML Gateway Administration Guide Book-Length PDF (PDF - 2 MB) Feedback Table Of Contents Using Hardware-Backed Keys for Administrative Communication Overview Installing Hardware-Backed Certificates Before You Begin Gateway-to-Manager Authentication Manager-to-Gateway Authentication Testing Hardware-Based Certificates Changing the Audit Log Signing Credential Using Hardware-Backed Keys for Administrative Communication This chapter describes how to replace the default key with hardware-backed keys to secure administrative communications between the Cisco ACE XML Gateway and Manager. It covers these topics: •Overview •Installing Hardware-Backed Certificates •Changing the Audit Log Signing Credential Overview When the ACE XML Manager establishes an SSL connection with a managed gateway to deploy the policy or perform other administrative functions, it presents an X.509 client certificate and expects the gateway to present its own server certificate in response. The ACE XML Manager also uses a certificate to sign the ACE XML Manager Audit Log, ensuring the integrity of logged information. For enhanced security, you should replace the default certificates used for these purpose with your own. Each X.509 certificate's unique identity is based on a set of PKI keys. In addition to installing new certificates at initial configuration time, you may choose to install new keys periodically or in response to a possible security breach. Your certificates can use software- or hardware-based cryptographic keys. The ACE XML system uses software-based keys by default. For greater security, it is recommended that you use a hardware-based keystore to generate and protect your keys. To use hardware-based keys, your ACE XML appliances must be equipped with nCipher hardware-based keystores and you must configure the appliances to use them, as described in Chapter 7, "Using Hardware Keystores and Security Worlds." While hardware-backed keys are recommended for best security, you can also replace the built-in keys with software-backed key if desired. In general, the procedures for replacing the built in keys with hardware backed keys and software backed keys are very similar. Where the instructions differ, the procedure in this chapter notes differences for installing software-backed keys. Installing Hardware-Backed Certificates Configuring ACE XML appliances to use hardware-based keys for bilateral authentication is a two-part process: •You must install a new server certificate on each ACE XML Gateway in a cluster and inform the ACE XML Manager that the ACE XML Gateway presents this certificate for bilateral authentication. •You must install a new client certificate on the ACE XML Manager and inform each ACE XML Gateway that the ACE XML Manager presents that certificate for bilateral authentication. Although the installation procedures are parallel in concept, the details pertinent to each vary slightly. To ensure successful installation, be sure to follow each section's step-by-step instructions carefully. Note Installation of each hardware-backed certificate requires you to execute certain commands on the ACE XML Manager appliance, and others on the gateway appliance. When installing bilateral authentication certificates on a Gateway cluster, you must execute the gateway-based commands on each gateway appliance in the cluster. Before You Begin Before you begin changing the keys used by administrative certificates, make sure you have met the following prerequisites: •One or more trusted Certificate Authorities (CAs) must be available for signing administrative certificates. Note that the Manager and Gateway are not required to use the same CA. •You must already have configured each ACE XML appliance as a Gateway, Manager, or standalone machine. •You must already have configured each ACE XML appliance to use an nCipher security world, as described in Chapter 7, "Using Hardware Keystores and Security Worlds." •You must already have already enabled the use of a hardware-based SSL engine. For details, see "Enabling SSL Acceleration" section on page 9-53. Gateway-to-Manager Authentication To configure an ACE XML Gateway to use hardware-backed keys in bilateral authentication, complete the following tasks: •Inform the ACE XML Manager of the CA that signed the certificate that the gateway presents in bilateral authentication. •On the ACE XML Gateway, generate a certificate signing request (CSR). •Send the CSR to the gateway's trusted CA for transformation into the gateway's server certificate. •Install the server certificate on the gateway. The following procedures provide details on these steps Caution Before continuing, make sure that message traffic is diverted away from the gateways that are to be configured. To do so, take the gateways offline at the load-balancer that precedes them in your network. If you do not take the gateways offline, in-progress transactions may be cut off when you perform these steps. Also, stop all Gateway services by setting it to inactive from the appliance shell (that is, from Network Configuration > Cluster Configuration menu item). To install a hardware-backed certificate on the ACE XML Gateway, follow these steps: Step 1 On the ACE XML Manager machine, run `bash` as the `root` user. Step 2 Place a copy of the self-signed root certificate of the gateway's trusted Certificate Authority (CA) in the ACE XML Manager machine's `/usr/local/reactivity/private` directory. You can use any means you prefer to copy the file. For example, you can `ssh` to the ACE XML Manager machine from the gateway's `bash` shell and then use the `scp` command to copy the CA certificate. These instructions refer to this certificate as the gateway CA certificate. Note All Gateways this Manager controls must present the same Gateway CA certificate. If you need to configure your systems differently, contact Cisco support for assistance. The Manager and Gateway are not required to use the same CA. However, if you choose not to use the same CA for both sides of bilateral certificate exchange, be sure to install the correct CA certificate on each machine. Step 3 In the ACE XML Manager shell, change directories to the following directory: `cd /usr/local/reactivity` Step 4 Execute the following command to back up the ACE XML Manager's current database of trusted CAs: `mv private/trustkeystore private/trustkeystore.bak` This command renames the `trustkeystore` file as the `trustkeystore.bak` file. The `trustkeystore` file is the list of CAs the ACE XML Manager trusts. In the next step, you generate a new `trustkeystore` file. Note In the next example and in the rest of this chapter, commands longer than a single line wrap to the next line. The backslash character ("`\`") indicates a line that wraps in this way. When typing these examples (or your own commands) into the `bash` shell, do not include the backslash characters. Step 5 In the ACE XML Manager shell, execute the following command to generate a new trusted CA database that contains an entry for the newly installed Gateway CA certificate: /usr/java/j2sdk1.4.2_04/bin/keytool \ -import -trustcacerts -alias ca_cert \ -keystore private/trustkeystore \ -storetype jks -file GCACERT.CRT \ -storepass approuter Where GCACERT.CRT is the filename of the local copy of the gateway CA certificate you installed previously. Step 6 Enter yes in response to the Trust this certificate? prompt. The new certificate is added to the keystore and the Certificate was added to keystore message appears. Step 7 On the gateway machine, run bash as the root user. The command prompt appears. Subsequent instructions refer to this terminal session as the gateway shell. Step 8 In the shell, change directories to: `cd /usr/local/reactivity` Step 9 Execute the following command to back up the gateway's current administrative server certificate: `mv private/server.pem private/server.pem.bak` Note To install certificates on a Gateway cluster, you must execute Gateway-based commands (such as this one) on each Gateway machine in the cluster. Step 10 In the gateway shell, generate a key and corresponding CSR using one of the following steps, depending on if you are using a hardware-backed or software backed key: •For a hardware-backed key, execute the `generatekey` command to generate a new nCipher-protected private key and corresponding certificate-signing request (CSR) for the gateway, as follows: `/opt/nfast/bin/generatekey --batch embed \ protect=module recovery=1 size=1024 \ embedsavefile=private/server.pem \ x509dnscommon="`gatewayhost`" \ x509org="`OrganizationName`" x509locality="`Belmont`" \ x509province="`California`" x509country="`US`"` In your command, replace italicized text with values appropriate for your site. It is suggested that the value of the `x509dnscommon` parameter be the fully-qualified hostname the ACE XML Manager uses to contact the gateway, although this is not a hard requirement. The system writes the CSR into `private/server_req.pem` and the shell displays information about the key generation operation. If successful, Key successfully generated appears at the bottom of the listing. •For a software-backed key, enter the following two commands instead of the `generatekey` command: `$ openssl genrsa -out server.pem 1024` `$ openssl req -key server.pem \ -out server_req.pem -new -subj \ "/CN=`gatewayhost`/OU=`myorgunit`/O=`MyCompany`/L=`Belmont`/ST=`California`/C=`US`"` In your command, replace italicized text with values appropriate for your site. It is suggested that the CN value be the fully-qualified hostname the Manager uses to contact the gateway, although this is not a hard requirement. Step 11 Send the CSR data (the `server_req.pem` file) to the gateway's trusted CA for transformation into a signed X.509 certificate. The CA sends a signed certificate in reply. This certificate is the gateway's server certificate; in other words, it is the certificate the gateway presents to the ACE XML Manager. Step 12 If you receive the signed certificate from the CA as the body of an email, place only the certificate contents in a text file: •Include the entire `BEGIN CERTIFICATE` line, the entire `END CERTIFICATE` line, and everything in between. •On your local file system, save the file using a valid Linux filename, that is, don't use spaces, apostrophes, ampersands, and other unusual characters in this filename. Step 13 In the gateway shell, execute the following command to install the signed certificate on the gateway: `$ cat` GCERT.CRT `>> private/server.pem` In your command, replace the GCERT.CRT with the filename of the signed certificate. Note Be sure to use the >> output redirection operator to append the signed certificate to the `server.pem` file rather than replacing it. If the file is replaced, the private key that the `generatekey` tool placed in this file will be lost, and the keystore will not recognize the certificate as valid. To recover from this error, you must repeat all the instructions in this section to generate a new key, a new CSR, and a new certificate to install. If you completed all of these steps successfully, this Gateway is now configured to use hardware-backed keys for bilateral certificate exchange: the gateway's hardware-backed administrative certificate is installed, and the gateway has been informed of the CA to use to validate the certificate the ACE XML Manager presents. You can now configure other Gateways in the cluster similarly. Manager-to-Gateway Authentication To configure a ACE XML Manager to use hardware-backed keys in bilateral authentication, you must complete these tasks: •Inform the ACE XML Gateways of the CA that signed the certificate the ACE XML Manager presents in bilateral authentication. You must perform this particular step on each ACE XML Gateway in the cluster. •Generate a certificate signing request (CSR) that utilizes hardware-based keys on the ACE XML Manager. •Send the CSR to the Manager's trusted CA for transformation into the Manager's client certificate. •Install the client certificate on the ACE XML Manager. To install a hardware-backed administrative client certificate on the ACE XML Manager, take the following steps: Step 1 Before continuing, make sure you have met the prerequisites in "Before You Begin" section. Step 2 Place a copy of the self-signed root certificate of the ACE XML Manager's trusted Certificate Authority (CA) in the following directory of each Gateway machine this Manager controls: `/usr/local/reactivity/private` Use scp or the secure file transfer mechanism you prefer to copy the file. The scp utility would be run from the ACE XML Manager's `bash` shell to copy the ACE XML Manager's CA certificate onto the gateway machine as follows `ssh gatewaymachine -l root cd /usr/local/reactivity/private scp root@manangername:/pathToMCACert/MCAERT.CRT .` In this example, MCACERT.CRT file is the self-signed root certificate of the CA who signed the certificate the ACE XML Manager presents to the gateway. Subsequent instructions refer to this certificate as the ACE XML Manager CA certificate. In the example code, this file resides on the managername computer in the pathToMCACert directory. The `scp` command copies this file into the `/usr/local/reactivity/private` directory on the gatewaymachine Gateway appliance. The MCACERT.CRT file must be the PEM-format, self-signed, root certificate of the CA that signs the certificate the ACE XML Manager presents in bilateral certificate exchanges. The Gateway and Manager need not both use the same CA to verify the respective certificates presented to them. However, if you choose not to use the same CA for both sides of the bilateral certificate exchange, be sure to install the correct CA certificate on each machine. Step 3 On the gateway machine, run `bash` as the `root` user. Step 4 In the gateway shell, execute the following command to set the working directory to the top-level directory: `cd /usr/local/reactivity` Step 5 In the gateway shell, execute the following command to back up the Manager CA certificate currently installed on the gateway: `mv private/ca.crt private/ca.crt.bak` This command line renames the `ca.crt` file as the `ca.crt.bak` file. Shortly, you'll install a new `ca.crt` file. Step 6 In the gateway shell, execute the following command to install a new Manager CA certificate on the gateway: `cp MCACERT.CRT private/ca.crt` Replace MCACERT.CRT with the filename of the local copy of the CA certificate you installed previously. Step 7 On the Manager appliance, run `bash` as the `root` user. Step 8 On the Manager shell, change directories as follows: `cd /usr/local/reactivity` Step 9 In the shell, execute the following command to back up the Manager's current hardware key database: `mv private/client.ncipher private/client.ncipher.bak` This command renames the `client.ncipher` file as `client.ncipher.bak`. This file contains hardware-based private keys the Manager uses to connect to the gateways it manages. In the next step, you generate a new `client.ncipher` file. Step 10 In the Manager shell, execute the following command to generate a new nCipher-protected private key for use with the certificate the Manager's Web-based interface presents: `bin/ncipherkeytool -genkey -keystore private/client.ncipher -alias mykey -keyalg RSA -keysize 1024 -dname "CN=`managerhostname`, O=`CompanyName`,L=`Belmont`,ST=`California`,C=`US`"` Replace the italicized values for the `CN,O,L, and ST` fields with values that are appropriate for your site. In particular, the `CN=` value must be the fully-qualified hostname of the Manager machine on which you are installing the certificate. Step 11 In the Manager shell, enter the following command to generate a CSR based on the new nCipher-protected private key: `bin/ncipherkeytool -certreq -keystore private/client.ncipher -alias mykey -file client.req` The system writes the CSR into the `client.req` file. If you like, you can inspect this file to ensure that it contains a valid certificate signing request. Step 12 Send the CSR data (the `client.req` file) to the Manager's trusted CA for transformation into a signed X.509 certificate. Keep in mind that this certificate is the Manager's client certificate, that is, the one the Manager presents to Gateways. Step 13 When you receive the signed certificate from the CA as an email, paste only the certificate contents into a text file: •Include the entire `BEGIN CERTIFICATE` line, the entire `END CERTIFICATE` line, and everything in between. •On your local file system, save the file using a valid Linux filename: don't use spaces, apostrophes, ampersands, and other unusual characters in this filename. Step 14 In the Manager shell, execute the following command to install the Manager's trusted CA certificate in the Manager's nCipher-protected keystore: `bin/ncipherkeytool -import -trustcacerts \ -keystore private/client.ncipher -alias ca_cert -file`MCACERT.CRT When you type this command, replace the MCACERT.CRT parameter with the filename of the local copy of the Manager CA certificate you installed previously. The Shell prompts you to confirm the operation. Its output looks similar to the following: `Owner: EMAILADDRESS=name@example.com, CN=Some CA, OU=Engineering, O="Beagle, Inc.", L=Belmont, ST=California, C=US Issuer: EMAILADDRESS=name@example.com, CN=Some CA, OU=Engineering, O="Beagle, Inc.", L=Belmont, ST=California, C=US Serial number: 0 Valid from: Thu Dec 09 20:31:59 UTC 2004 until: Wed Dec 09 20:31:59 UTC 2009 Certificate fingerprints: MD5: XX: hellip :XX SHA1: XX: hellip :XX Trust this certificate? [no]:` The Manager and Gateway are not required to use the same CA to verify the certificates presented to them. However, if you choose not to use the same CA for both sides of the bilateral certificate exchange, be sure to install the correct CA certificate on each machine. Step 15 In the Manager shell, enter `yes` to trust this certificate. The shell adds the new certificate to the keystore and displays the Certificate was added to keystore message. Step 16 In the Manager shell, enter the following command to install the new Manager client certificate in the Manager's nCipher keystore: `bin/ncipherkeytool -import \ -keystore private/client.ncipher \ -alias mykey -file`MCERT.CRT When you type this command, replace the MCERT.CRT parameter with the filename of a local copy of the signed X.509 certificate the Manager's trusted CA returned in response to your certificate signing request. If the ncipherkeytool command installed the manager's client certificate successfully, the shell displays the Certificate reply was installed in keystore message. Step 17 To have the Manager's present the new certificate for browser connections to the web console: a. Open for editing the following Manager properties file: `/usr/local/reactivity/config/webapp.properties` b. Change the following line: `ssl.client.keystore=/usr/local/reactivity/private/client.p12` to: `ssl.client.keystore=/usr/local/reactivity/private/client.ncipher` c. Change the following line: `ssl.client.storetype=pkcs12` to: `ssl.client.storetype=ncipher.sworld` Step 18 In the Manager shell, execute the following command to set agateway as the owner and group of the webapp.properties file: `chown agateway:agateway /usr/local/reactivity/config/webapp.properties` Step 19 Verify the ownership change by typing the following command: `ls -la /usr/local/reactivity/config` The shell lists the contents of the `config` directory. In the listing, the owner and group assigned to the `webapp.properties` file should be agateway, as displayed in the following: `-rw-r--r-- 1 agateway agateway 2874 Feb 8 00:34 webapp.properties` Once you complete these steps, the Manager uses hardware-backed keys for bilateral certificate exchange. If you also configured all Gateways that this Manager controls, the Manager and Gateways can now use their newly installed hardware-backed certificates for bilateral authentication. Testing Hardware-Based Certificates After configuring the Manager and Gateways as previously described, you can test the installation by viewing the event log in the Manager web console. Navigating to the event log requires the Manager to perform bilateral certificate exchange with each managed Gateway to retrieve the entries in the log. Once you log into the Manager's web console, make sure that the Dashboard does not display warnings indicating that the Manager cannot contact any Gateway cluster members, such as the one in Figure 8-1. Figure 8-1 Unreachable Gateway If you replace the certificates without completing other parts of the installation process correctly, you may be able to log into the Manager web console or establish terminal sessions with the Manager or Gateways while still not having a fully functional installation. Assuming the gateway was configured correctly prior to installation of the hardware-based keys, errors loading a certificate or reading the keystore may prevent the gateway from starting successfully. If you see this message, you may be able to discern the problem by examining the Event Log. While viewing the Event Log, look for Notice, Warning or Alert messages that indicate problems with the hardware keystore or other problems starting up. In order to populate the Event Log with entries, the Manager must perform bilateral certificate exchange with each of the gateways in its cluster as a prerequisite to polling them for new events to enter in the log. Therefore, if you can view an Event Log configured at Notice level or higher, and it contains no errors related to certificates, hardware keystores, or communications between the Manager and its Gateway cluster, the hardware-backed certificates used for bilateral certificate exchange are installed correctly. Changing the Audit Log Signing Credential The Console Audit Log is a ACE XML Manager web console page that shows the administrative-level changes affecting the system, such as policy deployment, changes to the current policy, changes to the user privileges of administrative accounts, and so on. In addition to the change made, the audit log shows who made the changes. The audit log uses a PKI credential to authenticate processes before allowing them to edit and sign the audit log. This section describes how to substitute hardware-backed keys in place of the software-based keys that this credential uses normally. Before completing these procedures, you must: •Enable the use of the hardware-based SSL engine. For details, see "Enabling SSL Acceleration" section on page 9-53. •Add the ACE XML appliance to an nCipher security world. To change the audit log signing credential: Step 1 On the Manager machine, log into the appliance shell as the r`oot` user. Step 2 Choose the Manage ACE XML Gateway Processes menu item. Step 3 In the Manage ACE XML Gateway Processes menu, choose Stop ACE XML Manager. The ACE XML appliance shuts down the Manager process and displays a status screen indicating the success of this operation. Step 4 Press the Enter key to dismiss the status screen. Step 5 In the Manage ACE XML Gateway Processes menu, choose Return to Main Menu. Step 6 Choose the Advanced Options item from the Main Menu. Step 7 Choose the Run bash item from the Advanced Options menu. Step 8 At the `bash` command prompt, change directories to the following directory: `cd /usr/local/reactivity` Step 9 To generate a new nCipher-protected keystore and self-signed certificate for audit log signing, execute the following command: `$ bin/ncipherkeytool -genkey -keystore private/auditlog.ncipher -alias client -keyalg RSA -keysize 1024 -dname "CN=auditlog"` To verify success of this command, list the contents of the `/usr/local/reactivity/private` directory to verify the presence of a newly-created `auditlog.ncipher` file. For example, you might use the following command to do so: `ls -lt private` Step 10 Back up the current audit log certificate by entering the command: `$ mv private/auditlog.crt private/auditlog.crt.bak` This command renames `auditlog.crt` as `auditlog.crt.bak`. To verify the operation, list the contents of the `private` directory. If the rename operation succeeded, this directory contains an `auditlog.crt.bak` file and no `auditlog.crt` file. Step 11 Execute the following command to extract the new audit log certificate from the keystore for log verification utility use: `$ bin/ncipherkeytool -export -rfc -keystore private/auditlog.ncipher -alias client -file private/auditlog.crt` The shell displays the Certificate stored in file <private/auditlog.crt> message. Step 12 Edit `/usr/local/reactivity/config/webapp.properties` as follows: a. Change `p12` to `ncipher` in the following line. `audit.log.private.key.pcks12= /usr/local/reactivity/private/auditlog.p12` to: `audit.log.private.key.pcks12= /usr/local/reactivity/private/auditlog.ncipher` b. Change `pkcs12` to `ncipher.sworld` in the following line: `audit.log.signing.keystore.type=pkcs12` to: `audit.log.signing.keystore.type=ncipher.sworld` Step 13 In the Manager shell, execute the following command to set `agateway` as the owner and group of `webapp.properties`: `chown agateway:agateway /usr/local/reactivity/config/webapp.properties` Step 14 Confirm the file ownership change by executing the following command to view the owner and group assigned to the `webapp.properties` file: `ls -la /usr/local/reactivity/config` The shell lists the contents of the `config` directory. In this listing, the owner and group assigned to the `webapp.properties` file should be agateway, as in following example: `-rw-r--r-- 1 agateway agateway 2874 Feb 8 00:34 webapp.properties` Step 15 Reset the audit log signing state by entering the following command: `$ rm auditlogs/audit.console.current` This command removes the current audit log. In a subsequent step, you'll generate a new audit log signed with the hardware-based certificate. Step 16 Exit the `bash` shell. Step 17 In the Advanced Options menu, choose the Return to Main Menu item. Step 18 Choose the Manage ACE XML Gateway Processes menu item. Step 19 Choose Start ACE XML Manager. The ACE XML appliance attempts to restart the Manager process and displays a status screen indicating the status of the operation. Step 20 Press the Enter key to dismiss the status screen. The Manage ACE XML Gateway Processes menu reappears. Step 21 Log into the ACE XML Manager web console (not the appliance shell) as a user with administrator role. The Dashboard appears. Step 22 Click the Reports and Tools > Event Log link. The Event Log should display the following message: A "/usr/local/reactivity/auditlogs/audit.console.current" not found. This file should only be missing on newly installed ACE XML Manager web consoles. In the previous step, you removed the `audit.console.current` file, so this error message is to be expected. The ACE XML Manager writes a new log file in place of the file you removed, so you won't see this message on subsequent logins.
	Terms & Conditions \| Privacy Statement \| Cookie Policy \| Trademarks
