本文档介绍向思科安全管理器(CSM)调配安全防火墙自适应安全设备(ASA)的过程。
Cisco 建议您了解以下主题:
本文档中的信息基于以下软件和硬件版本:
本文档中的信息都是基于特定实验室环境中的设备编写的。本文档中使用的所有设备最初均采用原始(默认)配置。如果您的网络处于活动状态,请确保您了解所有命令的潜在影响。
CSM有助于实现一致的策略实施,并快速排除安全事件的故障,从而提供整个安全部署的汇总报告。借助其集中式界面,组织可以高效扩展和管理各种思科安全设备,同时提高可视性。
在下一个示例中,虚拟ASA调配到CSM进行集中管理。
步骤1:创建具有所有权限的用户。
命令行(CLI)语法:
configure terminal
username < user string > password < password > privilege < level number >
这会转换为下一个命令示例,该示例具有用户csm-user和密码cisco123,如下所示:
ciscoasa# configure terminal
ciscoasa(config)# username csm-user password cisco123 privilege 15
提示:此集成也接受外部身份验证的用户。
第二步:启用HTTP服务器。
命令行(CLI)语法:
configure terminal
http server enable
第三步:允许CSM服务器IP地址进行HTTPS访问。
命令行(CLI)语法:
configure terminal
http < hostname > < netmask > < interface name >
这转换为下一个命令示例,该示例允许任何网络通过外部接口(GigabitEthernet0/0)上的HTTPS访问ASA:
ciscoasa# configure terminal
ciscoasa(config)# http 0.0.0.0 0.0.0.0 outside
第四步:验证从CSM服务器是否可以访问HTTPS。
打开任何Web浏览器并键入下一个语法:
https://< ASA IP address >/
这转换为上一步中允许HTTPS访问的外部接口IP地址的下一个示例:
https://10.8.4.11/

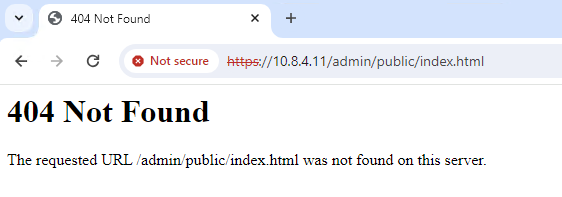

提示:此步骤中预期会出现“Error 404 Not Found”,因为此ASA未安装思科自适应安全设备管理器(ASDM),但页面重定向到URL /admin/public/index.html时,会出现HTTPS响应。

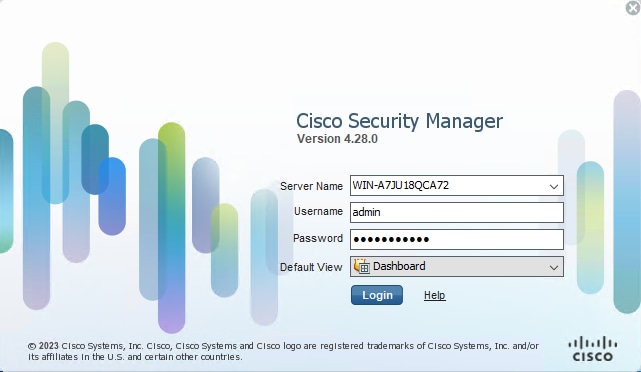

步骤1:打开并登录CSM客户端。
第二步:打开Configuration Manager。

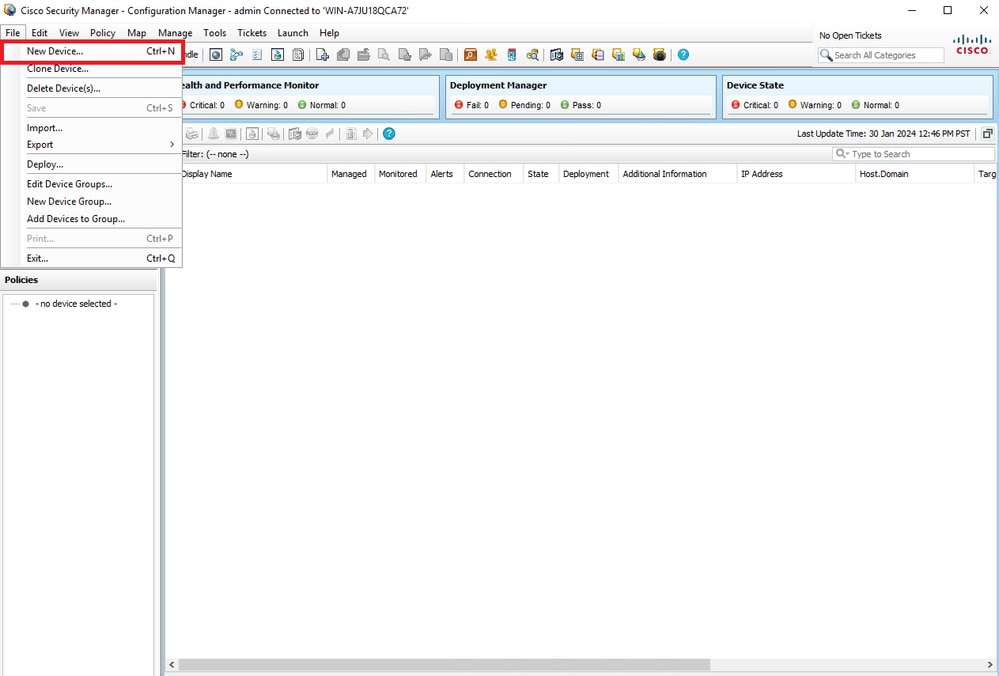

第三步:导航到设备>新设备。

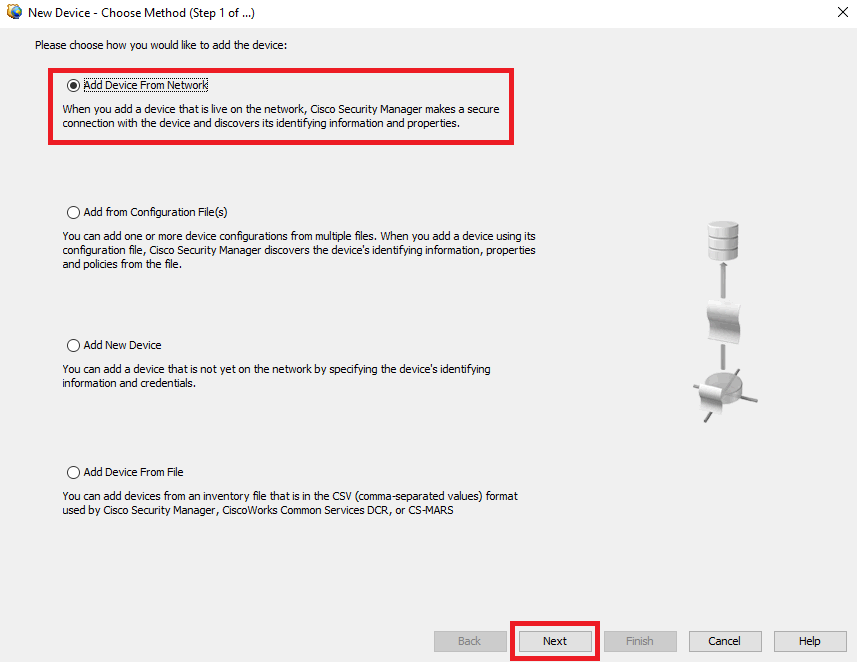

第四步:选择根据所需结果满足需求的添加选项。由于网络中已设置已配置的ASA,因此此示例的最佳选项是Add Device From Network,然后单击Next。

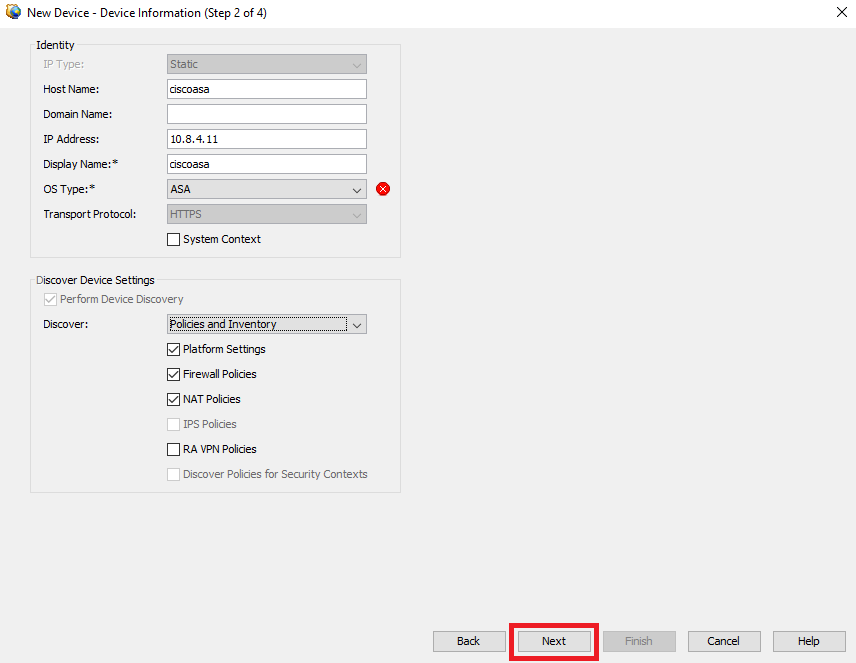

第五步:根据安全防火墙ASA上的配置和发现设置完成所需数据。然后,单击Next。

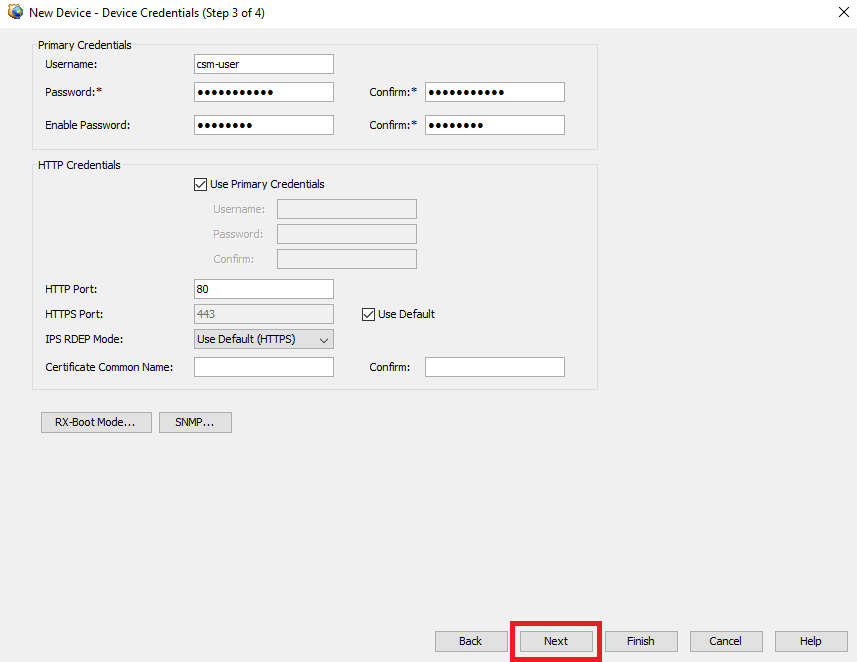

第六步:从ASA上配置的CSM用户和enable密码中完成所需的凭证。

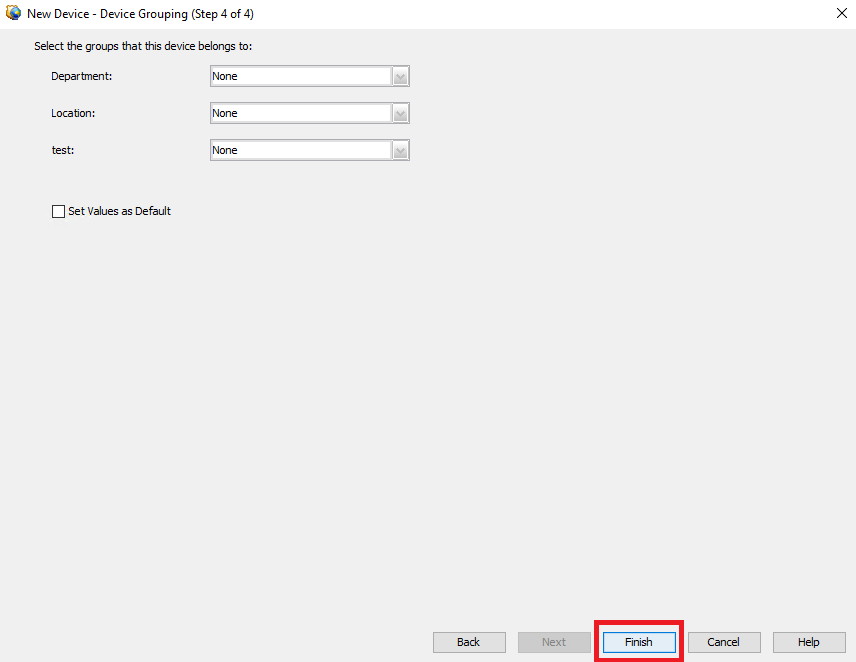

步骤 7.选择所需的组或跳过此步骤(如果不需要任何组),然后单击Finish。

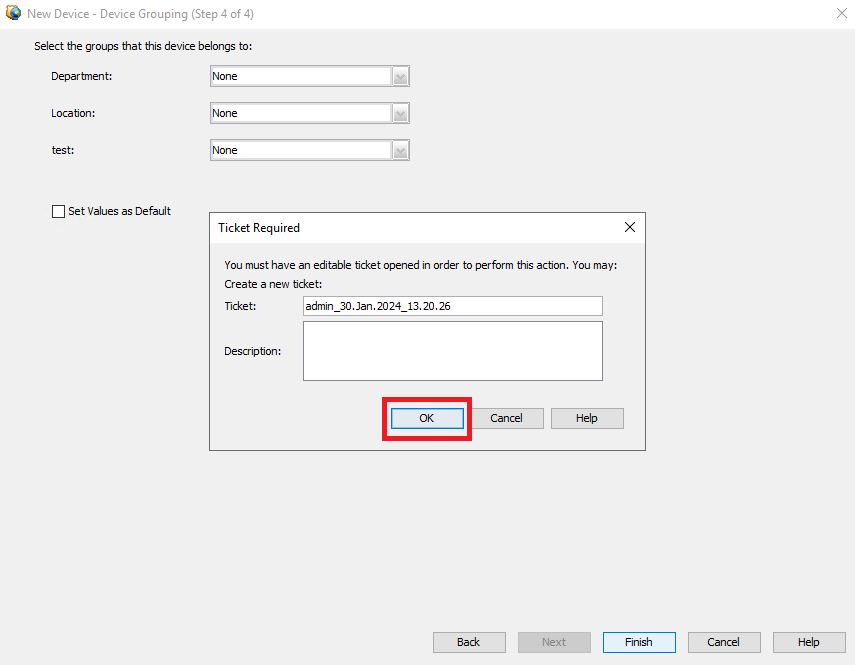

步骤 8出于控制目的生成票证请求,请点击确定。
步骤 9验证发现过程是否没有错误,然后单击Close。
提示:警告被接受为成功输出,因为CSM并不支持所有ASA功能。

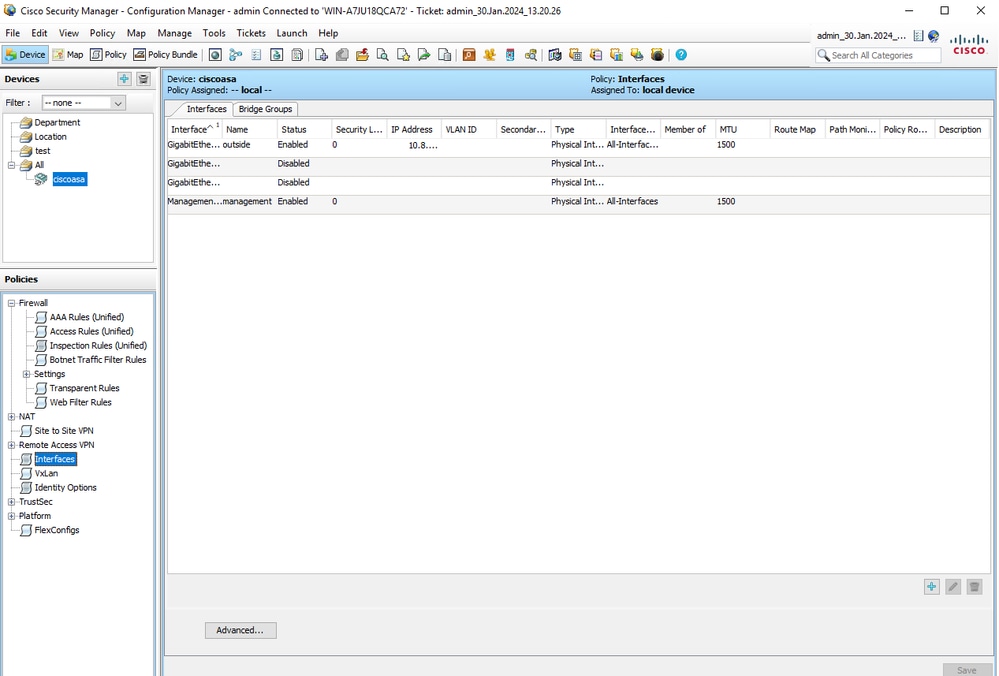

步骤 10验证ASA现在显示在CSM客户端上已注册并显示正确的信息。
ASA上提供HTTPS调试用于排除故障。使用下一个命令:
debug http
以下是CSM注册调试成功的示例:
ciscoasa# debug http
debug http enabled at level 1.
ciscoasa# HTTP: processing handoff to legacy admin server [/admin/exec//show%20version]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20version HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒^^u
HTTP: processing GET URL '/admin/exec//show%20version' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/config]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/config HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒e
HTTP: processing GET URL '/admin/config' from host 10.8.4.12
HTTP: Authentication username = ''
HTTP: processing handoff to legacy admin server [/admin/exec//show%20version]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20version HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒^^u
HTTP: processing GET URL '/admin/exec//show%20version' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//sh%20module%20%7c%20in%20(CX%20Security%20Services%20Processor-%7ccxsc%20ASA%20CX5)]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//sh%20module%20%7c%20in%20(CX%20Security%20Services%20Processor-%7ccxsc%20ASA%20CX5) HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒^2▒^aware_123▒
HTTP: processing GET URL '/admin/exec//sh%20module%20%7c%20in%20(CX%20Security%20Services%20Processor-%7ccxsc%20ASA%20CX5)' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//sh%20module%20%7c%20in%20(FirePOWER)]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//sh%20module%20%7c%20in%20(FirePOWER) HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒▒▒▒
HTTP: processing GET URL '/admin/exec//sh%20module%20%7c%20in%20(FirePOWER)' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//sh%20cluster%20info]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//sh%20cluster%20info HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒^
HTTP: processing GET URL '/admin/exec//sh%20cluster%20info' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//sh%20inventory]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//sh%20inventory HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒^^u
HTTP: processing GET URL '/admin/exec//sh%20inventory' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//sh%20vm]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//sh%20vm HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒
2▒^^^u
HTTP: processing GET URL '/admin/exec//sh%20vm' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/config]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/config HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒e
HTTP: processing GET URL '/admin/config' from host 10.8.4.12
HTTP: Authentication username = ''
HTTP: processing handoff to legacy admin server [/admin/exec//show%20version]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20version HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒^^u
HTTP: processing GET URL '/admin/exec//show%20version' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20inventory]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20inventory HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒u
HTTP: processing GET URL '/admin/exec//show%20inventory' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20password%20encryption]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20password%20encryption HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒^^
HTTP: processing GET URL '/admin/exec//show%20password%20encryption' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20running-config%20all%20tunnel-group]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20running-config%20all%20tunnel-group HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒2▒^▒^e
HTTP: processing GET URL '/admin/exec//show%20running-config%20all%20tunnel-group' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20running-config%20all%20group-policy]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20running-config%20all%20group-policy HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒2▒^▒^e
HTTP: processing GET URL '/admin/exec//show%20running-config%20all%20group-policy' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20crypto%20ca%20trustpool%20detail]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20crypto%20ca%20trustpool%20detail HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒2▒^2▒^▒^e
HTTP: processing GET URL '/admin/exec//show%20crypto%20ca%20trustpool%20detail' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20snmp-server%20engineID]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20snmp-server%20engineID HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒^P_▒
HTTP: processing GET URL '/admin/exec//show%20snmp-server%20engineID' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20version]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20version HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒▒^u
HTTP: processing GET URL '/admin/exec//show%20version' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20failover]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20failover HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒^u
HTTP: processing GET URL '/admin/exec//show%20failover' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//dir%20%2frecursive%20all-filesystems]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//dir%20%2frecursive%20all-filesystems HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒2▒^2▒^2▒^▒^e
HTTP: processing GET URL '/admin/exec//dir%20%2frecursive%20all-filesystems' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20asdm%20image]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20asdm%20image HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒^
2▒^^^
HTTP: processing GET URL '/admin/exec//show%20asdm%20image' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20running-config%20webvpn]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20running-config%20webvpn HTTP/1.1
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
Cache-Control: no-cache
Pragma: no-cache
Host: 10.8.4.11
Accept: text/html, image/gif, image/jpeg, *; q=.2, */*; q=.2
Connection: keep-alive
▒▒▒P_▒
HTTP: processing GET URL '/admin/exec//show%20running-config%20webvpn' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20vpn-sessiondb%20full%20webvpn]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20vpn-sessiondb%20full%20webvpn HTTP/1.1
Host: 10.8.4.1110.8.4.11
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
▒▒▒^2▒^1
HTTP: processing GET URL '/admin/exec//show%20vpn-sessiondb%20full%20webvpn' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20vpn-sessiondb%20full%20ra-ikev1-ipsec]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20vpn-sessiondb%20full%20ra-ikev1-ipsec HTTP/1.1
Host: 10.8.4.1110.8.4.11
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
▒▒▒
HTTP: processing GET URL '/admin/exec//show%20vpn-sessiondb%20full%20ra-ikev1-ipsec' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20vpn-sessiondb%20full%20ra-ikev2-ipsec]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20vpn-sessiondb%20full%20ra-ikev2-ipsec HTTP/1.1
Host: 10.8.4.1110.8.4.11
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
▒▒▒
HTTP: processing GET URL '/admin/exec//show%20vpn-sessiondb%20full%20ra-ikev2-ipsec' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
HTTP: processing handoff to legacy admin server [/admin/exec//show%20vpn-sessiondb%20full%20anyconnect]
HTTP: admin session verified = [0]
HTTP MSG: GET /admin/exec//show%20vpn-sessiondb%20full%20anyconnect HTTP/1.1
Host: 10.8.4.1110.8.4.11
Authorization: Basic OmNpc2NvMTIz
User-Agent: CSM
▒▒▒1
HTTP: processing GET URL '/admin/exec//show%20vpn-sessiondb%20full%20anyconnect' from host 10.8.4.12
HTTP: Authentication username = ''
Exited from HTTP Cli Exec
版本 | 发布日期 | 备注 |
---|---|---|
1.0 |
12-Feb-2024 |
初始版本 |
