    简介

    本文档介绍如何使用思科身份服务引擎(ISE)配置FlexVPN以验证身份并执行属性组映射。

    先决条件

    要求

    Cisco 建议您了解以下主题：

    • 通过CLI在Cisco IOS® XE路由器上配置具有IKEV2/IPsec的远程访问虚拟专用网络(RAVPN)
    • 思科身份服务引擎(ISE)配置
    • 思科安全客户端(CSC)
    • RADIUS协议

    使用的组件

    本文档基于以下软件和硬件版本：

    • 思科CSR1000V(VXE)- 17.03.04a版本
    • 思科身份服务引擎(ISE)- 3.1
    • 思科安全客户端(CSC)- 5.0.05040版
    • Windows 11

    本文档中的信息都是基于特定实验室环境中的设备编写的。本文档中使用的所有设备最初均采用原始（默认）配置。如果您的网络处于活动状态，请确保您了解所有命令的潜在影响。

    配置

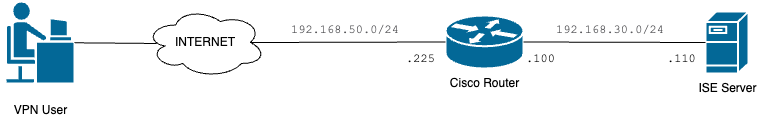

    网络图

    Basic Network Diagram基本网络图

    配置

    路由器配置

    步骤1:在设备上配置RADIUS服务器进行身份验证和本地授权：

    aaa new-model
    aaa group server radius FlexVPN-Authentication-Server
    server-private 192.168.30.110 key Cisco123
    aaa authentication login FlexVPN-Authentication-List group FlexVPN-Authentication-Server
    aaa authorization network FlexVPN-Authorization-List local

    aaa authentication login <list_name> 命令是指身份验证、授权和记帐(AAA)组（用于定义RADIUS服务器）。

    aaa authorization network <list_name> local命令表明要使用本地定义的用户/组。

    步骤2.配置一个信任点以存储路由器证书。由于路由器的本地身份验证类型为RSA，设备要求服务器使用证书进行自我身份验证：

    crypto pki trustpoint FlexVPN-TP
    enrollment url http://192.168.50.230:80
    subject-name CN=192.168.50.225
    revocation-check none
    rsakeypair FlexVPN_KEY

    第三步：为每个不同的用户组定义IP本地池：

    ip local pool group1 172.16.10.1 172.16.10.50
    ip local pool group2 172.16.20.1 172.16.20.50

    第四步： 配置本地授权策略：

    crypto ikev2 authorization policy FlexVPN-Local-Policy

    由于身份验证服务器负责根据用户所属的组发送相关值（DNS、池、受保护路由等），因此无需对授权策略进行配置。但是，必须对其进行配置以在本地授权数据库中定义用户名。

    第 5 步（可选）：创建IKEv2建议和策略（如果未配置，则使用智能默认值）：

    crypto ikev2 proposal IKEv2-prop
     encryption aes-cbc-256
     integrity sha256
     group 14

    crypto ikev2 policy IKEv2-pol
     proposal IKEv2-prop

    第 6 步（可选）：配置转换集（如果未配置，则使用智能默认值）：

    crypto ipsec transform-set TS esp-aes 256 esp-sha256-hmac
     mode tunnel

    步骤 7. 使用正确的本地和远程身份、身份验证方法（本地和远程）、信任点、AAA和用于连接的虚拟模板接口配置IKEv2配置文件：

    crypto ikev2 profile FlexVPN-IKEv2-Profile
    match identity remote key-id cisco.example
    identity local dn
    authentication local rsa-sig
    authentication remote eap query-identity
    pki trustpoint FlexVPN-TP
    aaa authentication eap FlexVPN-Authentication-List
    aaa authorization group eap list FlexVPN-Authorization-List FlexVPN-Local-Policy
    aaa authorization user eap cached
    virtual-template 100

    命令aaa authorization user eap cached指定必须缓存EAP身份验证期间接收的属性。 此命令对于配置至关重要，因为如果没有此命令，则不使用身份验证服务器发送的数据，从而导致连接失败。

    note-icon

    注：远程密钥ID必须与XML文件中的密钥ID值匹配。如果未在XML文件中进行修改，则使用默认值(*$AnyConnectClient$*)，且必须在IKEv2配置文件中进行配置。

    步骤 8 配置IPsec配置文件并分配转换集和IKEv2配置文件：

    crypto ipsec profile FlexVPN-IPsec-Profile
    set transform-set TS
    set ikev2-profile FlexVPN-IKEv2-Profile

    步骤 9 配置一个环回接口。虚拟访问接口从它借用IP地址：

    interface Loopback100
    ip address 10.0.0.1 255.255.255.255

    步骤 10 创建将用于创建不同虚拟访问接口的虚拟模板，并链接在第8步中创建的IPSec配置文件：

    interface Virtual-Template100 type tunnel
    ip unnumbered Loopback100
    tunnel mode ipsec ipv4
    tunnel protection ipsec profile FlexVPN-IPsec-Profile-1

    步骤 11在路由器上禁用基于HTTP-URL的证书查找和HTTP服务器：

    no crypto ikev2 http-url cert
    no ip http server
    no ip http secure-server

    身份服务引擎(ISE)配置

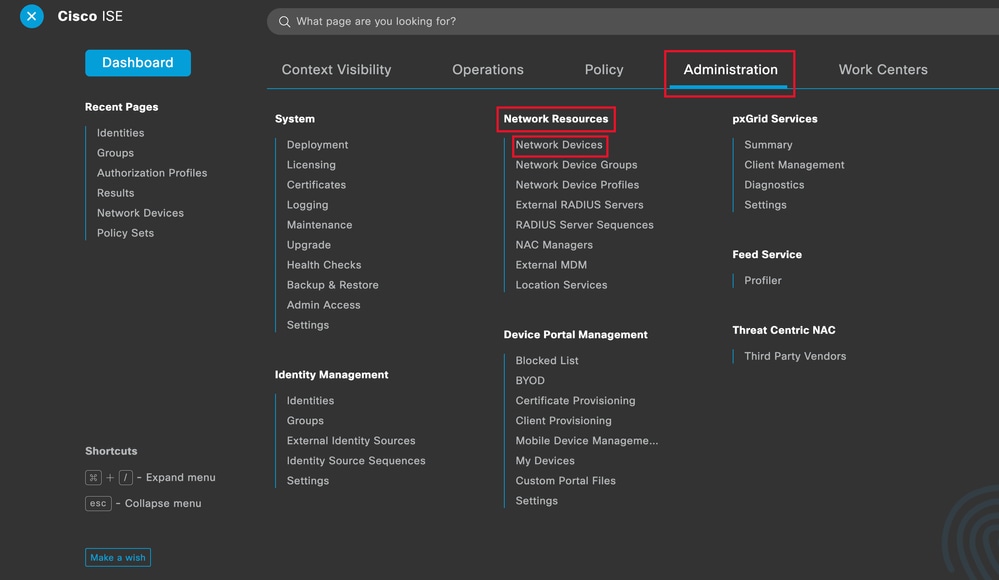

    步骤1:登录ISE服务器并导航到管理>网络资源>网络设备:

    ISE General MenuISE常规菜单

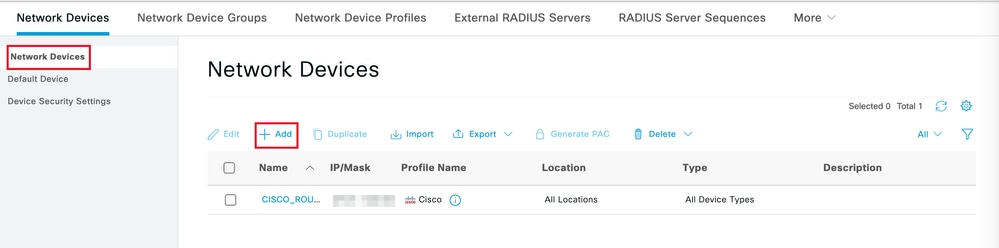

    第二步：点击 Add（添加） 要将路由器配置为AAA客户端，请执行以下操作：

    Adding a New Network Device添加新网络设备

    输入网络设备 名称 和 IP Address 字段，然后检查 RADIUS身份验证设置 框并添加Shared Secret，该值必须相同 在路由器上创建RADIUS服务器对象时使用的。

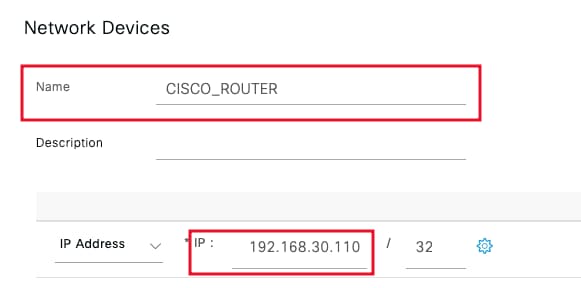

    Name and IP Address名称和IP地址

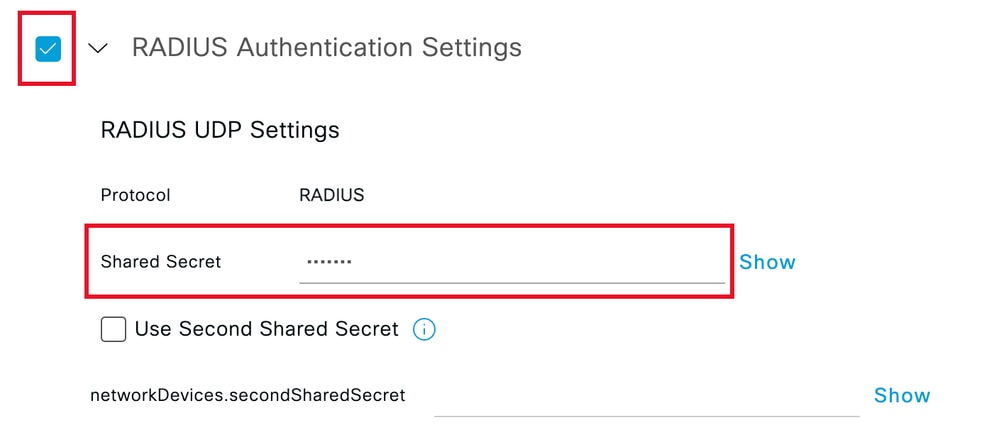

    Radius PasswordRadius密码

    Click Save.

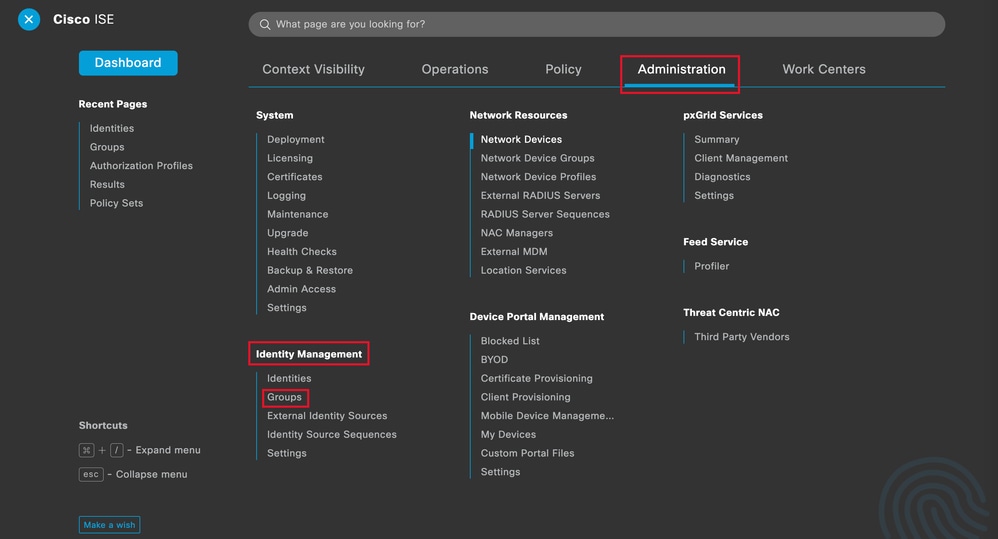

    第三步：导航到Administration > Identity Management > Groups:

    ISE General MenuISE常规菜单

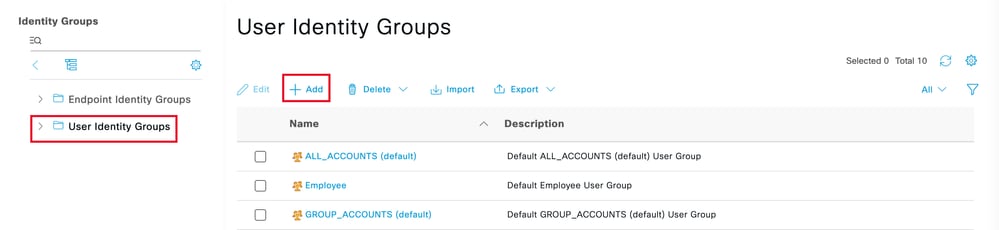

    第四步：单击User Identity Groups，然后单击Add:

    Add a New Group添加新组

    输入组Name，然后单击Submit。

    Group Information组信息

    note-icon

    注意：重复步骤3和4，根据需要创建多个组。

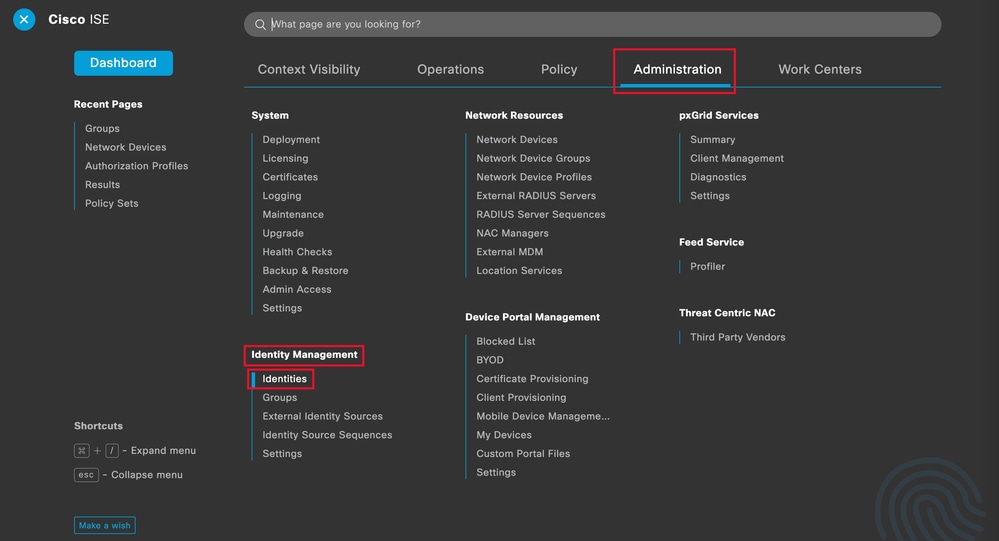

    第五步： 导航到管理>身份管理>身份:

    ISE General MenuISE常规菜单

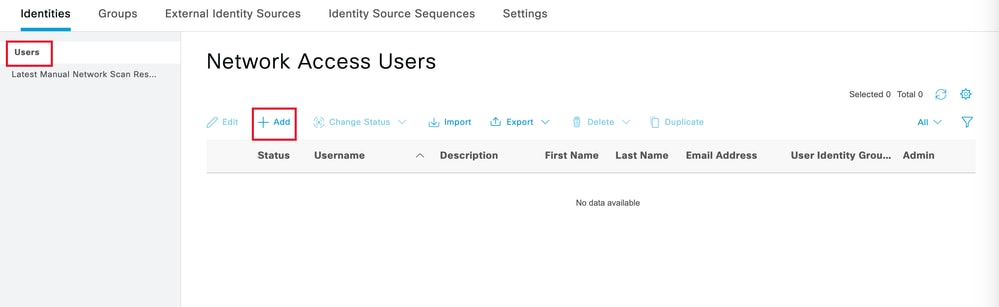

    第六步：单击Add以在服务器本地数据库中创建新用户：

    Add a User添加用户

    输入用户名和登录密码.然后，导航到此页面末尾并选择User Group:

    Username and Password用户名和密码

    Assign the Correct Group to the User为用户分配正确的组

    Click Save.

    note-icon

    注意：重复步骤5和6，创建所需的用户并将其分配到相应的组。

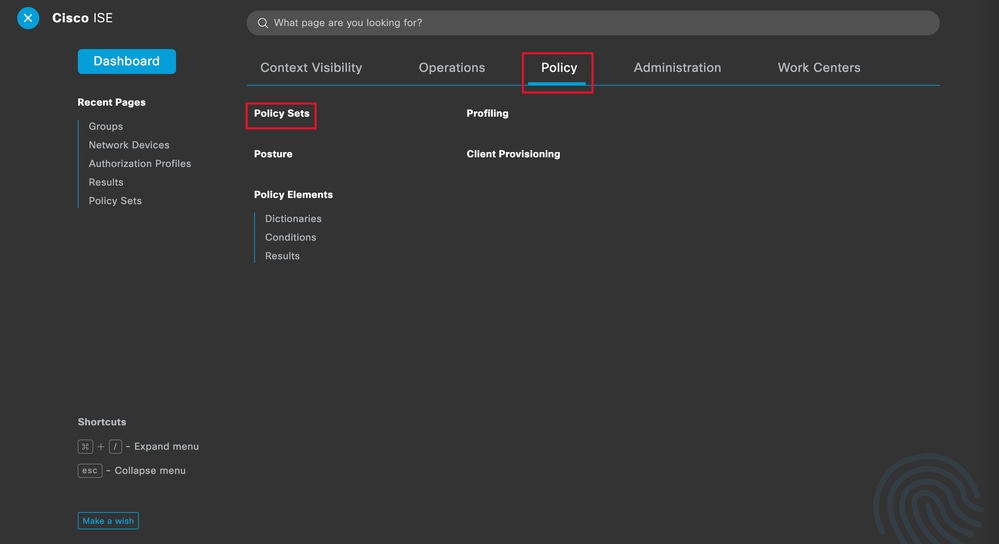

    步骤7.导航到策略>策略集:

    ISE General MenuISE常规菜单

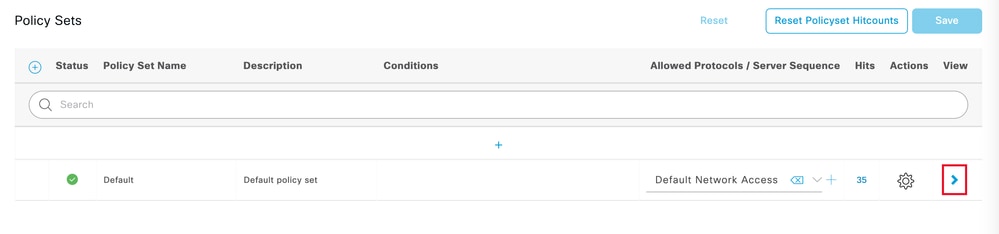

    通过点击箭头选择默认授权策略在屏幕右侧：

    Select the Authorization Policy选择授权策略

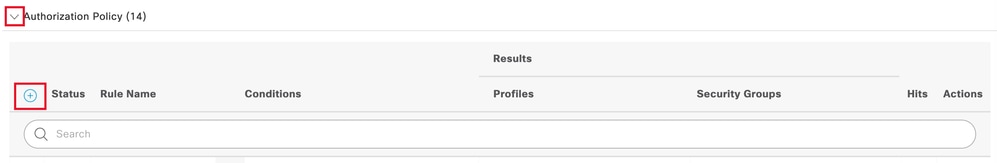

    步骤 8 点击Authorization Policy旁边的下拉菜单箭头以展开它。然后，单击add(+)图标以添加新规则：

    Add a New Authorization Rule添加新的授权规则

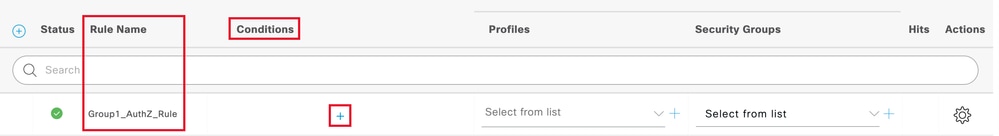

    输入规则的名称，并在Conditions列下选择add(+)图标：

    Add a Condition添加条件

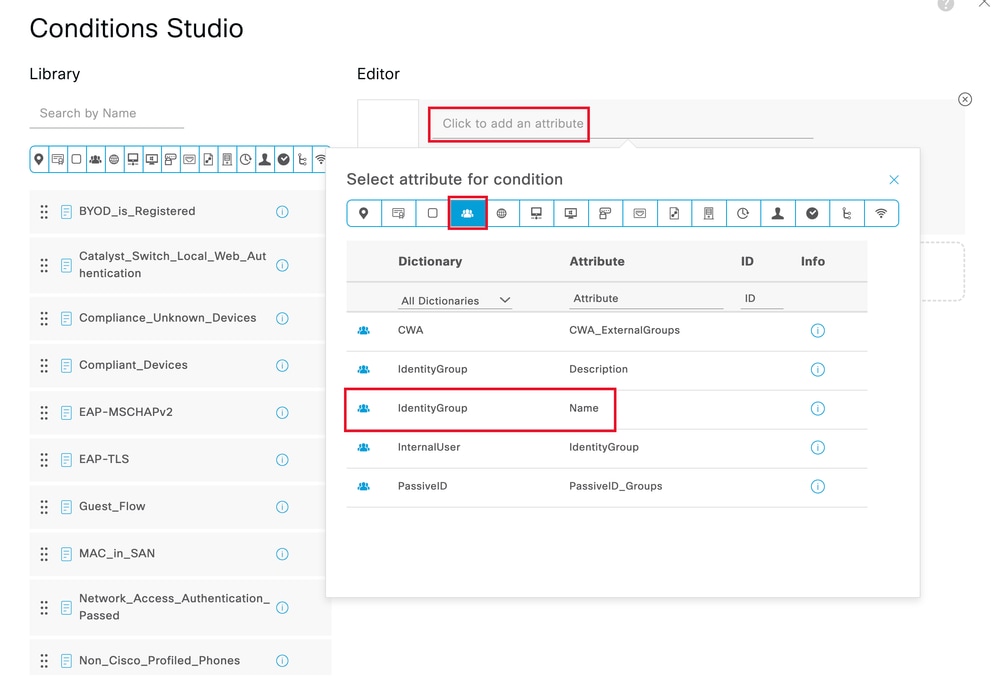

    步骤 9 在“属性编辑器”(Attribute Editor)文本框中单击，然后单击身份(Identity)组。选择Identity group - Name属性：

    Select the Condition选择条件

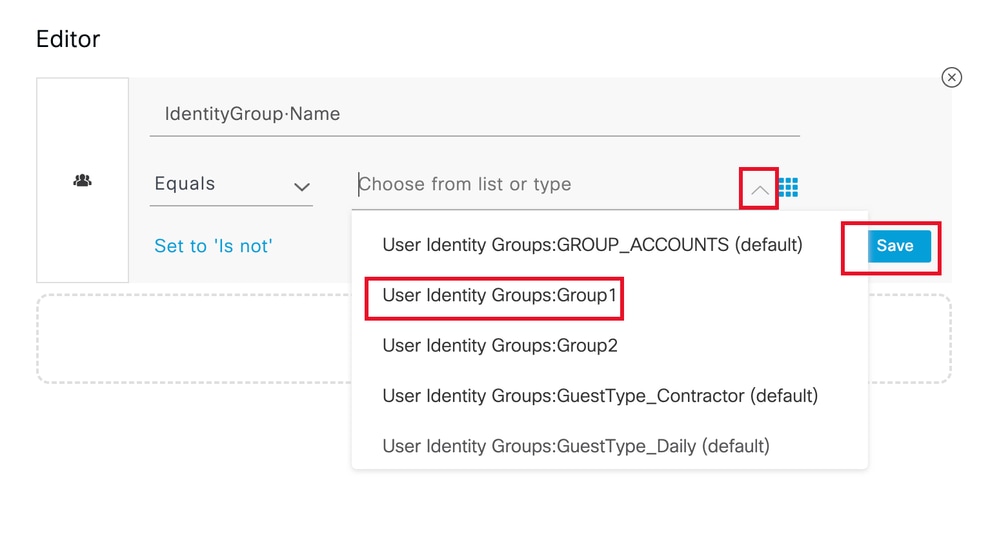

    选择等于然后，作为运算符，点击下拉菜单箭头以显示可用选项，然后选择User Identity Groups:<GROUP_NAME>。

    Select the Group选择组

    Click Save.

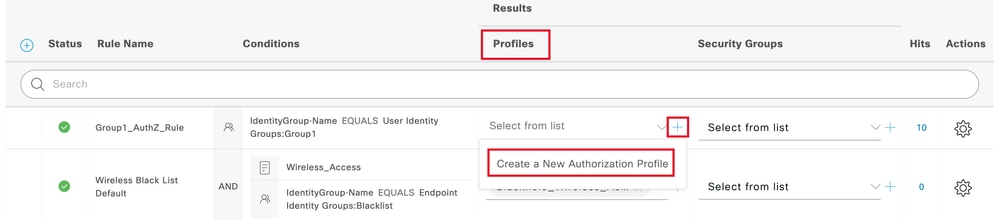

    步骤10.在Profiles列中，点击add(+)图标，然后选择Create a New Authorization Profile:

    Create the Authorization Profile创建授权配置文件

    输入配置文件 名称

    Profile Information配置文件信息

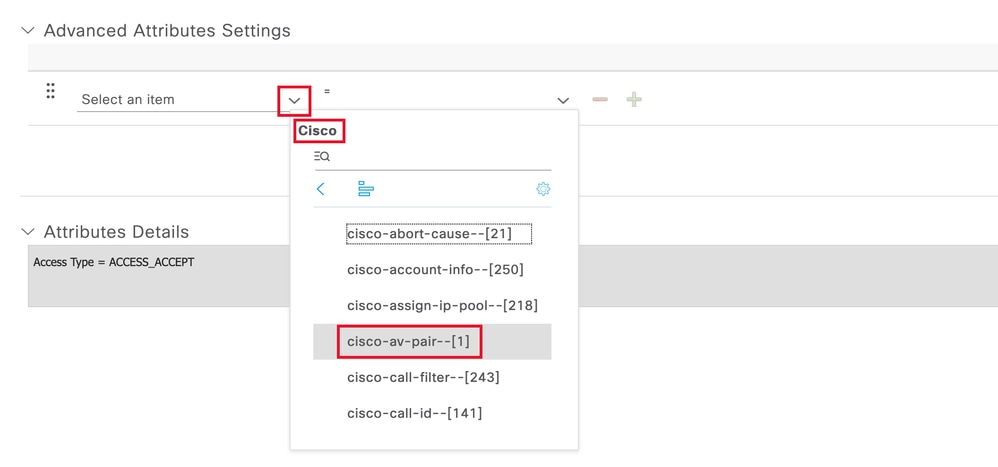

    导航到此页面末尾的Advanced Attribute Settings，然后点击下拉菜单箭头。然后单击Cisco并选择cisco-av-pair—[1]:

    Select the Attribute Type选择属性类型.

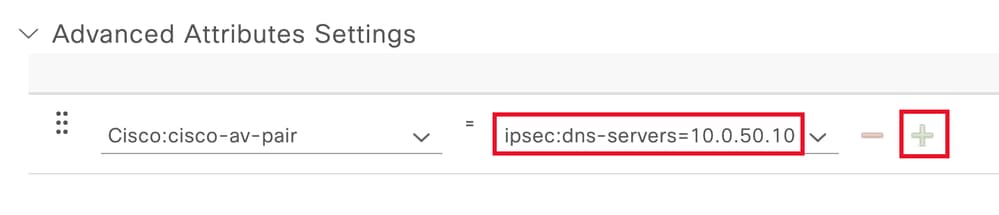

    添加要配置的cisco-av-pair属性，然后点击add(+)图标以添加其他属性：

    Configure the Attribute配置属性

    note-icon

    注：有关属性规范（名称、语法、说明、示例等），请参阅FlexVPN RADIUS属性配置指南：

    FlexVPN和互联网密钥交换版本2配置指南，Cisco IOS XE Fuji 16.9.x — 支持的RADIUS属性

    note-icon

    注意：重复上一步以创建必要的属性。

    Click Save.

    后面的属性分配给每个组：

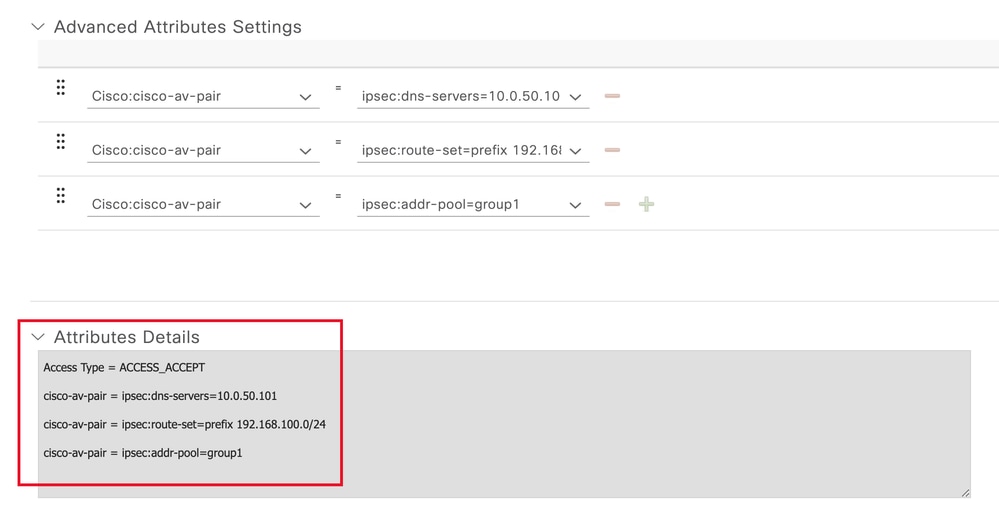

    • 组1属性：

    Group1 AttributeGroup1属性

    • 组2属性：

    Group2 AttributesGroup2属性

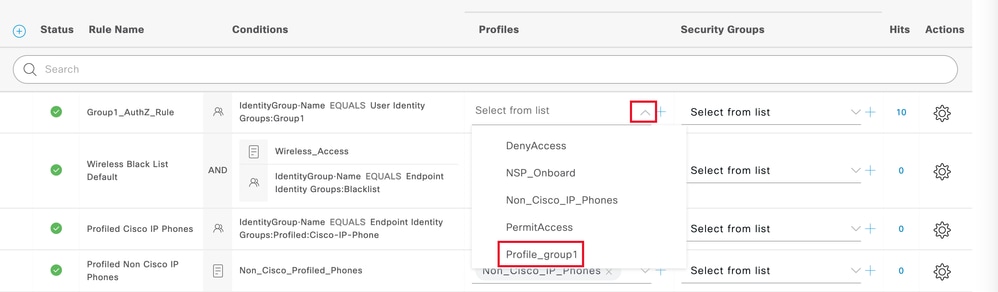

    步骤11.点击下拉菜单箭头并选择在第10步中创建的授权配置文件：

    Assign Authorization Profile分配授权配置文件

    Click Save.

    note-icon

    注意：重复步骤8到11为每个组创建必要的授权规则。

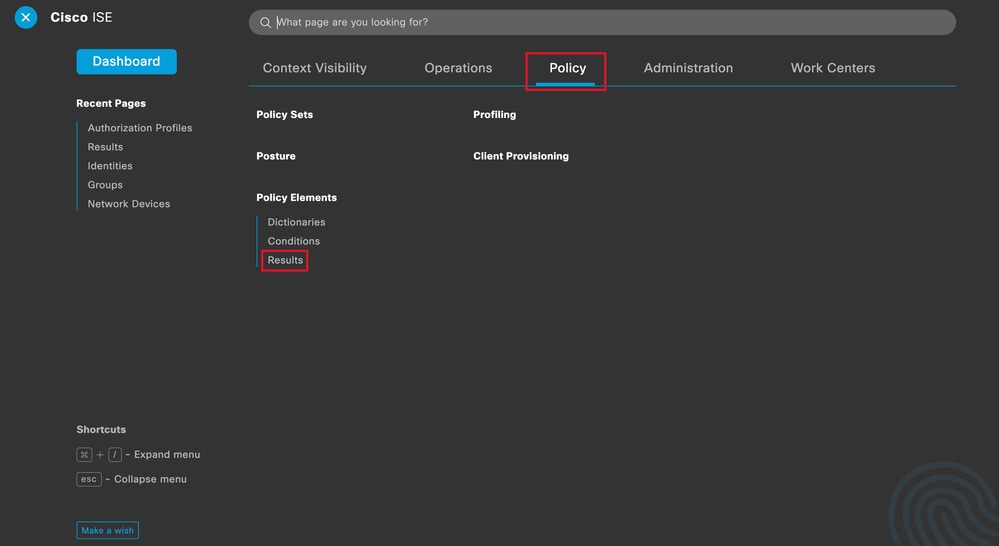

    第 12 步（可选）： 如果需要编辑授权配置文件，请导航到Policy > Results:

    ISE General MenuISE常规菜单

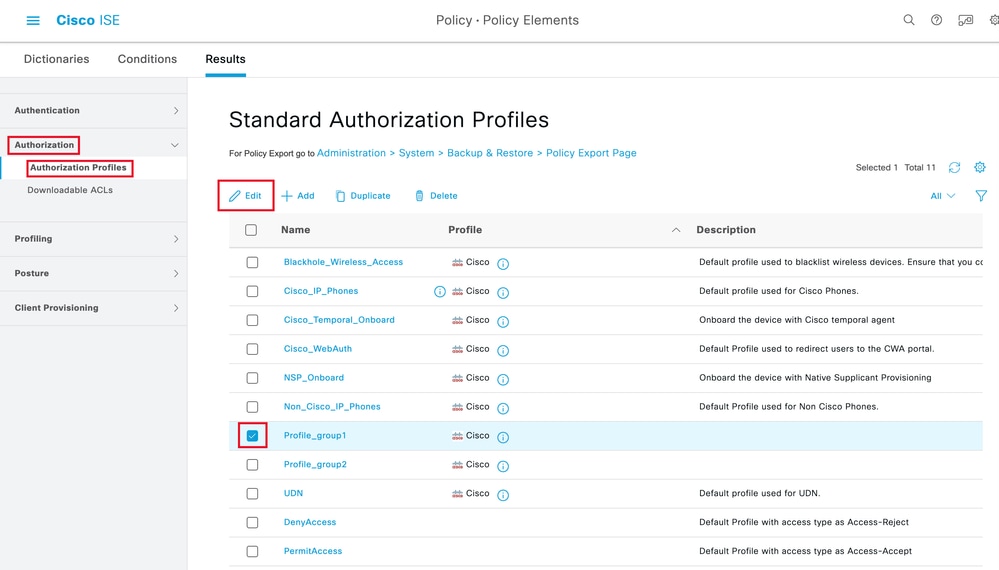

    导航到授权>授权配置文件。点击要修改的配置文件的复选框，然后点击编辑:

    Edit the Authorization Profile编辑授权配置文件

    客户端配置

    步骤1:使用XML配置文件编辑器创建XML配置文件。此示例是用于创建本文档的示例：


    <AnyConnectProfile xmlns="http://schemas.xmlsoap.org/encoding/" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://schemas.xmlsoap.org/encoding/ AnyConnectProfile.xsd">
    <ClientInitialization>
    <UseStartBeforeLogon UserControllable="true">true</UseStartBeforeLogon>
    <AutomaticCertSelection UserControllable="false">true</AutomaticCertSelection>
    <ShowPreConnectMessage>false</ShowPreConnectMessage>
    <CertificateStore>All</CertificateStore>
    <CertificateStoreMac>All</CertificateStoreMac>
    <CertificateStoreLinux>All</CertificateStoreLinux>
    <CertificateStoreOverride>true</CertificateStoreOverride>
    <ProxySettings>Native</ProxySettings>
    <AllowLocalProxyConnections>true</AllowLocalProxyConnections>
    <AuthenticationTimeout>30</AuthenticationTimeout>
    <AutoConnectOnStart UserControllable="true">false</AutoConnectOnStart>
    <MinimizeOnConnect UserControllable="true">true</MinimizeOnConnect>
    <LocalLanAccess UserControllable="true">false</LocalLanAccess>
    <DisableCaptivePortalDetection UserControllable="true">false</DisableCaptivePortalDetection>
    <ClearSmartcardPin UserControllable="false">true</ClearSmartcardPin>
    <IPProtocolSupport>IPv4,IPv6</IPProtocolSupport>
    <AutoReconnect UserControllable="false">
    true
    <AutoReconnectBehavior UserControllable="false">ReconnectAfterResume</AutoReconnectBehavior>
    </AutoReconnect>
    <SuspendOnConnectedStandby>false</SuspendOnConnectedStandby>
    <AutoUpdate UserControllable="false">true</AutoUpdate>
    <RSASecurIDIntegration UserControllable="false">Automatic</RSASecurIDIntegration>
    <WindowsLogonEnforcement>SingleLocalLogon</WindowsLogonEnforcement>
    <LinuxLogonEnforcement>SingleLocalLogon</LinuxLogonEnforcement>
    <WindowsVPNEstablishment>AllowRemoteUsers</WindowsVPNEstablishment>
    <LinuxVPNEstablishment>LocalUsersOnly</LinuxVPNEstablishment>
    <AutomaticVPNPolicy>false</AutomaticVPNPolicy>
    <PPPExclusion UserControllable="false">
    Disable
    <PPPExclusionServerIP UserControllable="false"/>
    </PPPExclusion>
    <EnableScripting UserControllable="false">false</EnableScripting>
    <EnableAutomaticServerSelection UserControllable="false">
    false
    <AutoServerSelectionImprovement>20</AutoServerSelectionImprovement>
    <AutoServerSelectionSuspendTime>4</AutoServerSelectionSuspendTime>
    </EnableAutomaticServerSelection>
    <RetainVpnOnLogoff>false </RetainVpnOnLogoff>
    <CaptivePortalRemediationBrowserFailover>false</CaptivePortalRemediationBrowserFailover>
    <AllowManualHostInput>true</AllowManualHostInput>
    </ClientInitialization>
    <ServerList>
    <HostEntry>
    <HostName>FlexVPN HUB</HostName>
    <HostAddress>192.168.50.225</HostAddress>
    <PrimaryProtocol>
    IPsec
    <StandardAuthenticationOnly>
    true
    <AuthMethodDuringIKENegotiation>EAP-MD5</AuthMethodDuringIKENegotiation>
    <IKEIdentity>cisco.example</IKEIdentity>
    </StandardAuthenticationOnly>
    </PrimaryProtocol>
    </HostEntry>
    </ServerList>
    </AnyConnectProfile>

    • <HostName> — 用于指代主机、IP地址或完全限定域名(FQDN)的别名。这显示在CSC框中。
    • <HostAddress> - FlexVPN集线器的IP地址或FQDN。
    • <PrimaryProtocol> — 必须设置为IPsec以强制客户端使用IKEv2/IPsec而不是SSL。
    • <AuthMethodDuringIKENegotiation> — 必须设置为在EAP中使用EAP-MD5。这是根据ISE服务器进行身份验证所必需的。
    • <IKEIdentity> — 此字符串由客户端作为ID_GROUP类型ID负载发送。这可用于将客户端与中心上的特定IKEv2配置文件进行匹配。

    验证

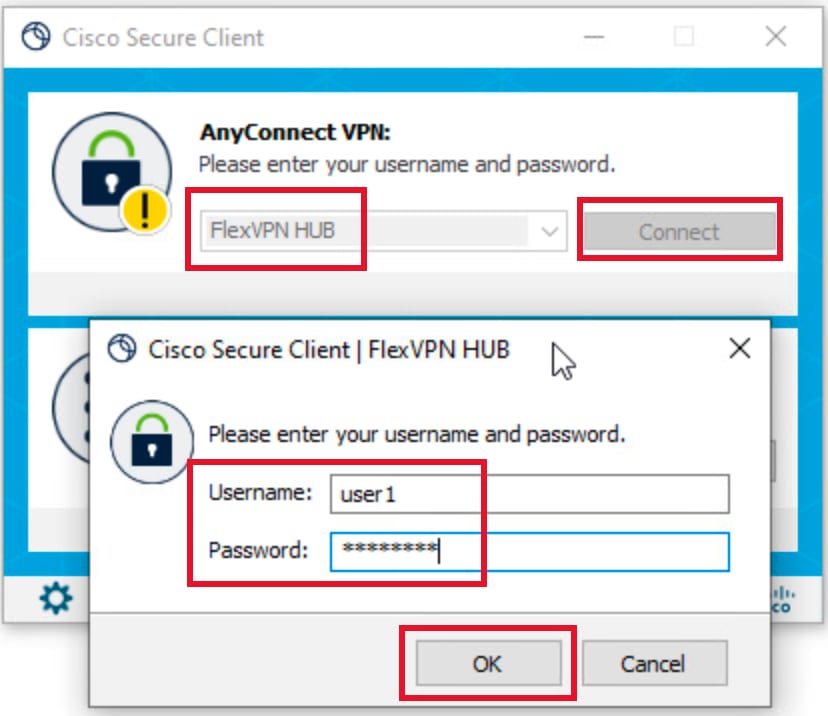

    步骤1:导航到安装CSC的客户端。连接到FlexVPN集线器并输入user1凭证：

    User1 CredentialsUser1凭证

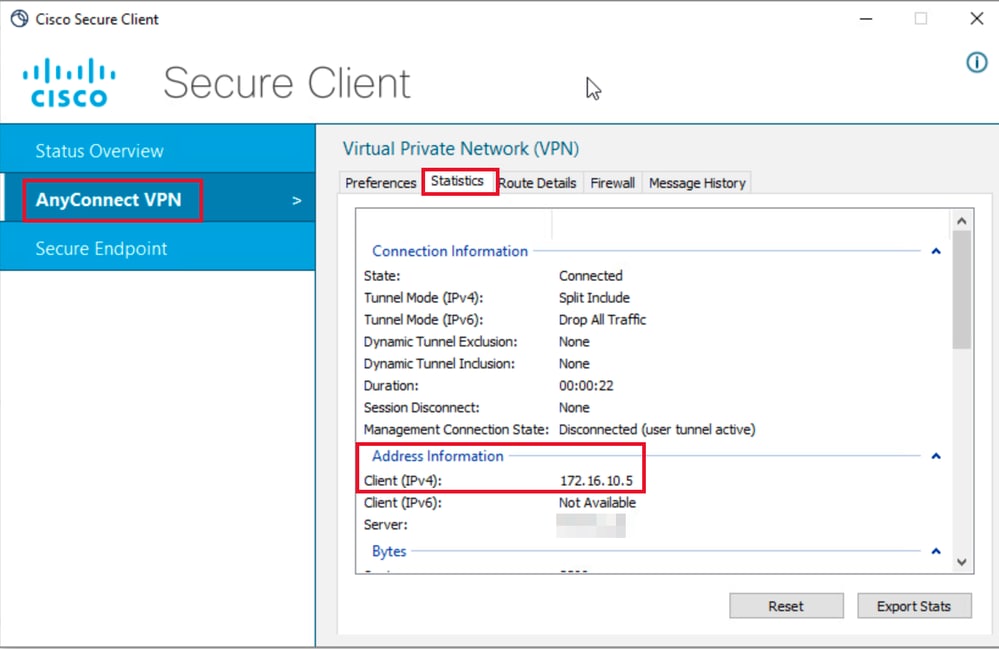

    第二步：建立连接后，点击齿轮图标（左下角）并导航到AnyConnectVPN > Statistics(AnyConnectVPN >统计信息)。 在Address Information部分中确认所分配的IP地址属于为group1配置的池：

    User1 StatisticsUser1统计信息

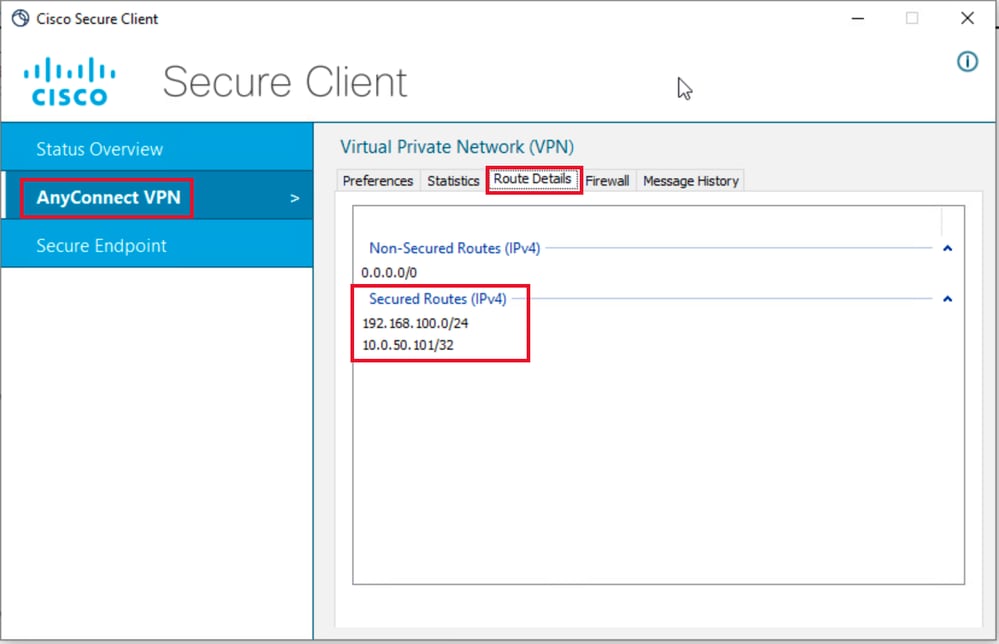

    导航到AnyConnectVPN > Route details，并确认所显示的信息与为group1配置的安全路由和DNS相对应：

    User1 Route Details用户1路由详细信息

    第三步：对user2凭证重复第1步和第2步，检查信息是否与此组的ISE授权策略中配置的值匹配:

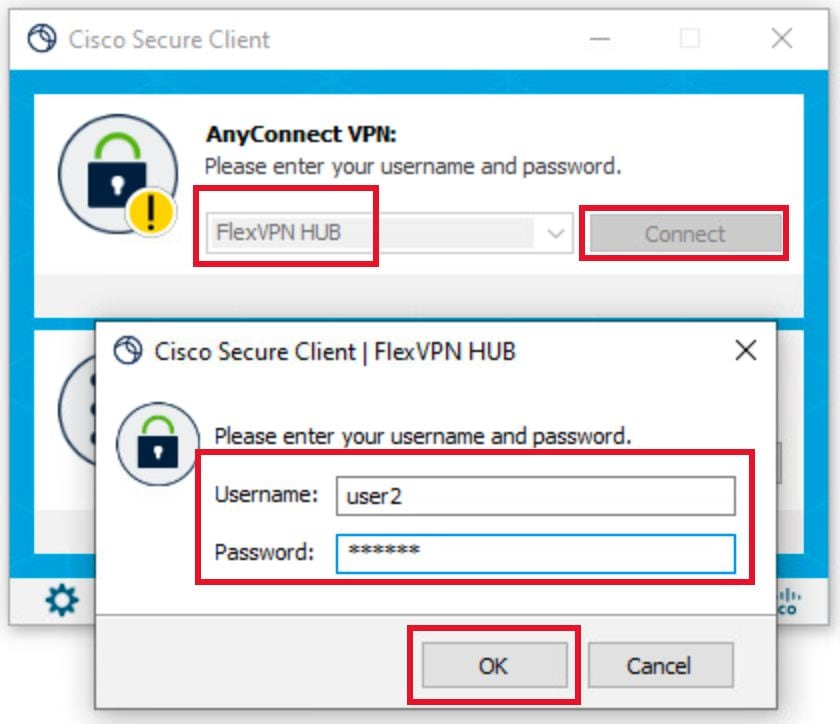

    User2 Credentials用户2凭证

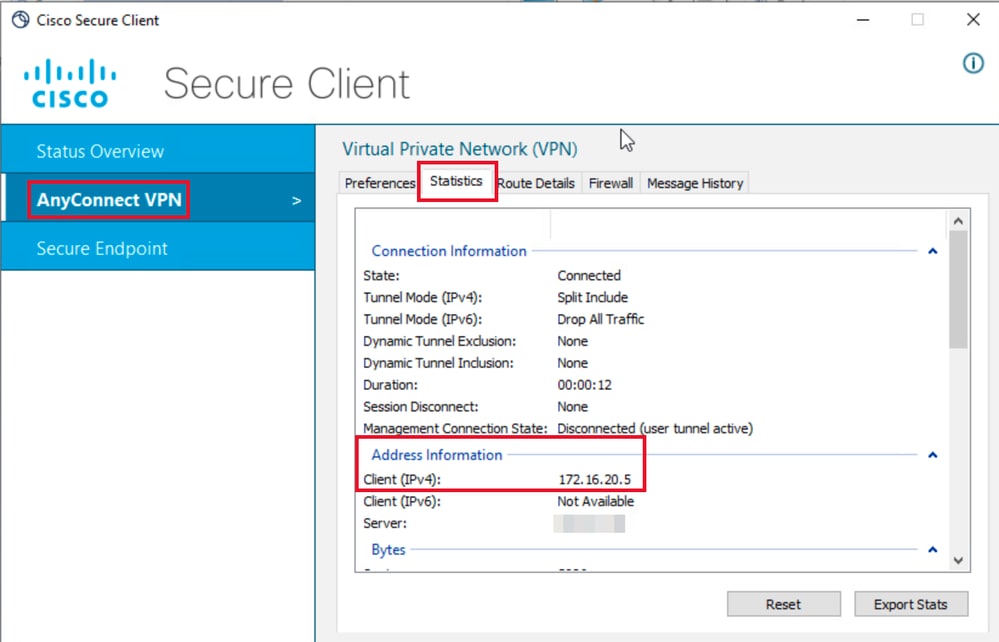

    User2 Statistics用户2统计信息

    User2 Route Details用户2路由详细信息

    故障排除

    调试和日志

    在Cisco路由器上:

    1.  使用IKEv2和IPSec调试验证头端和客户端之间的协商：

      debug crypto ikev2
      debug crypto ikev2 packet
      debug crypto ikev2 error
      debug crypto ikev2 internal
      debug crypto ipsec
      debug crypto ipsec error
    2.  使用AAA调试验证本地和/或远程属性的分配：

      debug aaa authorization
      debug aaa authentication
      debug radius authentication

    在ISE上：

    • RADIUS实时日志

    工作场景

    以下输出是成功连接的示例：

    • User1调试输出：

    Jan 30 02:57:21.088: AAA/BIND(000000FF): Bind i/f
    Jan 30 02:57:21.088: AAA/AUTHEN/LOGIN (000000FF): Pick method list 'FlexVPN-Authentication-List'
    Jan 30 02:57:21.088: RADIUS/ENCODE(000000FF):Orig. component type = VPN IPSEC
    Jan 30 02:57:21.088: RADIUS/ENCODE(000000FF): dropping service type, "radius-server attribute 6 on-for-login-auth" is off
    Jan 30 02:57:21.088: RADIUS(000000FF): Config NAS IP: 0.0.0.0
    Jan 30 02:57:21.088: vrfid: [65535] ipv6 tableid : [0]
    Jan 30 02:57:21.088: idb is NULL
    Jan 30 02:57:21.088: RADIUS(000000FF): Config NAS IPv6: ::
    Jan 30 02:57:21.089: RADIUS/ENCODE(000000FF): acct_session_id: 4245
    Jan 30 02:57:21.089: RADIUS(000000FF): sending
    Jan 30 02:57:21.089: RADIUS/ENCODE: Best Local IP-Address 192.168.30.100 for Radius-Server 192.168.30.110
    Jan 30 02:57:21.089: RADIUS: Message Authenticator encoded
    Jan 30 02:57:21.089: RADIUS(000000FF): Send Access-Request to 192.168.30.110:1645 id 1645/85, len 229
    RADIUS: authenticator C9 82 15 29 AF 4B 17 61 - 27 F4 5C 27 C2 C3 50 34
    Jan 30 02:57:21.089: RADIUS: Service-Type [6] 6 Login [1]
    Jan 30 02:57:21.089: RADIUS: Vendor, Cisco [26] 26
    Jan 30 02:57:21.089: RADIUS: Cisco AVpair [1] 20 "service-type=Login"
    Jan 30 02:57:21.089: RADIUS: Vendor, Cisco [26] 36
    Jan 30 02:57:21.089: RADIUS: Cisco AVpair [1] 30 "isakmp-phase1-id=cisco.example"
    Jan 30 02:57:21.089: RADIUS: Calling-Station-Id [31] 13 "192.168.50.130"
    Jan 30 02:57:21.089: RADIUS: Vendor, Cisco [26] 64
    Jan 30 02:57:21.089: RADIUS: Cisco AVpair [1] 58 "audit-session-id=L2L42F2F0116ZO2L42F2F016FZH1194CAE2ZN1F"
    Jan 30 02:57:21.089: RADIUS: User-Name [1] 7 "user1"
    Jan 30 02:57:21.089: RADIUS: Vendor, Cisco [26] 21
    Jan 30 02:57:21.089: RADIUS: Cisco AVpair [1] 15 "coa-push=true"
    Jan 30 02:57:21.089: RADIUS: EAP-Message [79] 12
    RADIUS: 02 3B 00 0A 01 75 73 65 72 31 [ ;user1]
    Jan 30 02:57:21.089: RADIUS: Message-Authenticato[80] 18
    RADIUS: E7 22 65 E0 DC 03 3A 49 0B 01 49 2A D5 3F AD 4F [ "e:II*?O]
    Jan 30 02:57:21.089: RADIUS: NAS-IP-Address [4] 6 192.168.30.100
    Jan 30 02:57:21.089: RADIUS(000000FF): Sending a IPv4 Radius Packet
    Jan 30 02:57:21.090: RADIUS(000000FF): Started 5 sec timeout
    Jan 30 02:57:21.094: RADIUS: Received from id 1645/85 192.168.30.110:1645, Access-Challenge, len 137
    RADIUS: authenticator 67 2B 9D 9C 4D 1F F3 E8 - F6 EC 9B EB 8E 49 C8 A5
    Jan 30 02:57:21.094: RADIUS: State [24] 91
    RADIUS: 35 32 43 50 4D 53 65 73 73 69 6F 6E 49 44 3D 4C [52CPMSessionID=L]
    RADIUS: 32 4C 34 32 46 32 46 30 31 31 36 5A 4F 32 4C 34 [2L42F2F0116ZO2L4]
    RADIUS: 32 46 32 46 30 31 36 46 5A 48 31 31 39 34 43 41 [2F2F016FZH1194CA]
    RADIUS: 45 32 5A 4E 31 46 3B 33 31 53 65 73 73 69 6F 6E [E2ZN1F;31Session]
    RADIUS: 49 44 3D 49 53 45 2D 44 49 41 4E 2F 34 39 33 30 [ID=ISE-SERVER/4930]
    RADIUS: 38 30 30 31 38 2F 32 39 3B [ 80018/29;]
    Jan 30 02:57:21.094: RADIUS: EAP-Message [79] 8
    RADIUS: 01 52 00 06 0D 20 [ R ]
    Jan 30 02:57:21.094: RADIUS: Message-Authenticato[80] 18
    RADIUS: 38 8A B1 31 72 62 06 40 4F D4 58 48 E8 36 E7 80 [ 81rb@OXH6]
    Jan 30 02:57:21.094: RADIUS(000000FF): Received from id 1645/85
    RADIUS/DECODE: EAP-Message fragments, 6, total 6 bytes
    Jan 30 02:57:21.097: AAA/AUTHEN/LOGIN (000000FF): Pick method list 'FlexVPN-Authentication-List'
    Jan 30 02:57:21.097: RADIUS/ENCODE(000000FF):Orig. component type = VPN IPSEC
    Jan 30 02:57:21.097: RADIUS/ENCODE(000000FF): dropping service type, "radius-server attribute 6 on-for-login-auth" is off
    Jan 30 02:57:21.097: RADIUS(000000FF): Config NAS IP: 0.0.0.0
    Jan 30 02:57:21.097: vrfid: [65535] ipv6 tableid : [0]
    Jan 30 02:57:21.097: idb is NULL
    Jan 30 02:57:21.097: RADIUS(000000FF): Config NAS IPv6: ::
    Jan 30 02:57:21.097: RADIUS/ENCODE(000000FF): acct_session_id: 4245
    Jan 30 02:57:21.097: RADIUS(000000FF): sending
    Jan 30 02:57:21.097: RADIUS/ENCODE: Best Local IP-Address 192.168.30.100 for Radius-Server 192.168.30.110
    Jan 30 02:57:21.097: RADIUS: Message Authenticator encoded
    Jan 30 02:57:21.097: RADIUS(000000FF): Send Access-Request to 192.168.30.110:1645 id 1645/86, len 316
    RADIUS: authenticator 93 07 42 CC D1 90 31 68 - 56 D0 D0 5A 35 C3 67 BC
    Jan 30 02:57:21.097: RADIUS: Service-Type [6] 6 Login [1]
    Jan 30 02:57:21.097: RADIUS: Vendor, Cisco [26] 26
    Jan 30 02:57:21.098: RADIUS: Cisco AVpair [1] 20 "service-type=Login"
    Jan 30 02:57:21.098: RADIUS: Vendor, Cisco [26] 36
    Jan 30 02:57:21.098: RADIUS: Cisco AVpair [1] 30 "isakmp-phase1-id=cisco.example"
    Jan 30 02:57:21.098: RADIUS: Calling-Station-Id [31] 13 "192.168.50.130"
    Jan 30 02:57:21.098: RADIUS: Vendor, Cisco [26] 64
    Jan 30 02:57:21.098: RADIUS: Cisco AVpair [1] 58 "audit-session-id=L2L42F2F0116ZO2L42F2F016FZH1194CAE2ZN1F"
    Jan 30 02:57:21.098: RADIUS: User-Name [1] 7 "user1"
    Jan 30 02:57:21.098: RADIUS: Vendor, Cisco [26] 21
    Jan 30 02:57:21.098: RADIUS: Cisco AVpair [1] 15 "coa-push=true"
    Jan 30 02:57:21.098: RADIUS: EAP-Message [79] 8
    RADIUS: 02 52 00 06 03 04 [ R]
    Jan 30 02:57:21.098: RADIUS: Message-Authenticato[80] 18
    RADIUS: E0 67 24 D3 BB CF D9 E0 EE 44 98 8A 26 64 AC C9 [ g$D&d]
    Jan 30 02:57:21.098: RADIUS: State [24] 91
    RADIUS: 35 32 43 50 4D 53 65 73 73 69 6F 6E 49 44 3D 4C [52CPMSessionID=L]
    RADIUS: 32 4C 34 32 46 32 46 30 31 31 36 5A 4F 32 4C 34 [2L42F2F0116ZO2L4]
    RADIUS: 32 46 32 46 30 31 36 46 5A 48 31 31 39 34 43 41 [2F2F016FZH1194CA]
    RADIUS: 45 32 5A 4E 31 46 3B 33 31 53 65 73 73 69 6F 6E [E2ZN1F;31Session]
    RADIUS: 49 44 3D 49 53 45 2D 44 49 41 4E 2F 34 39 33 30 [ID=ISE-SERVER/4930]
    RADIUS: 38 30 30 31 38 2F 32 39 3B [ 80018/29;]
    Jan 30 02:57:21.098: RADIUS: NAS-IP-Address [4] 6 192.168.30.100
    Jan 30 02:57:21.098: RADIUS(000000FF): Sending a IPv4 Radius Packet
    Jan 30 02:57:21.099: RADIUS(000000FF): Started 5 sec timeout
    Jan 30 02:57:21.101: RADIUS: Received from id 1645/86 192.168.30.110:1645, Access-Challenge, len 161
    RADIUS: authenticator 42 A3 5F E0 92 13 51 13 - B2 80 56 A3 91 36 BD A1
    Jan 30 02:57:21.101: RADIUS: State [24] 91
    RADIUS: 35 32 43 50 4D 53 65 73 73 69 6F 6E 49 44 3D 4C [52CPMSessionID=L]
    RADIUS: 32 4C 34 32 46 32 46 30 31 31 36 5A 4F 32 4C 34 [2L42F2F0116ZO2L4]
    RADIUS: 32 46 32 46 30 31 36 46 5A 48 31 31 39 34 43 41 [2F2F016FZH1194CA]
    RADIUS: 45 32 5A 4E 31 46 3B 33 31 53 65 73 73 69 6F 6E [E2ZN1F;31Session]
    RADIUS: 49 44 3D 49 53 45 2D 44 49 41 4E 2F 34 39 33 30 [ID=ISE-SERVER/4930]
    RADIUS: 38 30 30 31 38 2F 32 39 3B [ 80018/29;]
    Jan 30 02:57:21.101: RADIUS: EAP-Message [79] 32
    RADIUS: 01 53 00 1E 04 10 D7 61 AE 69 3B 88 A1 83 E4 EC 0F B6 EF 68 58 16 49 53 45 2D 44 49 41 4E [ Sai;hXISE-SERVER]
    Jan 30 02:57:21.101: RADIUS: Message-Authenticato[80] 18
    RADIUS: 3E C9 C1 E1 F2 3B 4E 4C DF CF AC 21 AA E9 C3 F0 [ >;NL!]
    Jan 30 02:57:21.101: RADIUS(000000FF): Received from id 1645/86
    RADIUS/DECODE: EAP-Message fragments, 30, total 30 bytes
    Jan 30 02:57:21.103: AAA/AUTHEN/LOGIN (000000FF): Pick method list 'FlexVPN-Authentication-List'
    Jan 30 02:57:21.103: RADIUS/ENCODE(000000FF):Orig. component type = VPN IPSEC
    Jan 30 02:57:21.103: RADIUS/ENCODE(000000FF): dropping service type, "radius-server attribute 6 on-for-login-auth" is off
    Jan 30 02:57:21.103: RADIUS(000000FF): Config NAS IP: 0.0.0.0
    Jan 30 02:57:21.103: vrfid: [65535] ipv6 tableid : [0]
    Jan 30 02:57:21.104: idb is NULL
    Jan 30 02:57:21.104: RADIUS(000000FF): Config NAS IPv6: ::
    Jan 30 02:57:21.104: RADIUS/ENCODE(000000FF): acct_session_id: 4245
    Jan 30 02:57:21.104: RADIUS(000000FF): sending
    Jan 30 02:57:21.104: RADIUS/ENCODE: Best Local IP-Address 192.168.30.100 for Radius-Server 192.168.30.110
    Jan 30 02:57:21.104: RADIUS: Message Authenticator encoded
    Jan 30 02:57:21.104: RADIUS(000000FF): Send Access-Request to 192.168.30.110:1645 id 1645/87, len 332
    RADIUS: authenticator 89 35 9C C5 06 FB 04 B7 - 4E A3 B2 5F 2B 15 4F 46
    Jan 30 02:57:21.104: RADIUS: Service-Type [6] 6 Login [1]
    Jan 30 02:57:21.104: RADIUS: Vendor, Cisco [26] 26
    Jan 30 02:57:21.104: RADIUS: Cisco AVpair [1] 20 "service-type=Login"
    Jan 30 02:57:21.104: RADIUS: Vendor, Cisco [26] 36
    Jan 30 02:57:21.104: RADIUS: Cisco AVpair [1] 30 "isakmp-phase1-id=cisco.example"
    Jan 30 02:57:21.104: RADIUS: Calling-Station-Id [31] 13 "192.168.50.130"
    Jan 30 02:57:21.104: RADIUS: Vendor, Cisco [26] 64
    Jan 30 02:57:21.104: RADIUS: Cisco AVpair [1] 58 "audit-session-id=L2L42F2F0116ZO2L42F2F016FZH1194CAE2ZN1F"
    Jan 30 02:57:21.104: RADIUS: User-Name [1] 7 "user1"
    Jan 30 02:57:21.104: RADIUS: Vendor, Cisco [26] 21
    Jan 30 02:57:21.104: RADIUS: Cisco AVpair [1] 15 "coa-push=true"
    Jan 30 02:57:21.104: RADIUS: EAP-Message [79] 24
    RADIUS: 02 53 00 16 04 10 B0 BB 3E D5 B1 D6 01 FC 9A B7 4A DB AB F7 2F B6 [ S>J/]
    Jan 30 02:57:21.104: RADIUS: Message-Authenticato[80] 18
    RADIUS: 79 43 97 A7 26 17 3E 3B 54 B4 90 D4 76 0F E0 14 [ yC&>;Tv]
    Jan 30 02:57:21.104: RADIUS: State [24] 91
    RADIUS: 35 32 43 50 4D 53 65 73 73 69 6F 6E 49 44 3D 4C [52CPMSessionID=L]
    RADIUS: 32 4C 34 32 46 32 46 30 31 31 36 5A 4F 32 4C 34 [2L42F2F0116ZO2L4]
    RADIUS: 32 46 32 46 30 31 36 46 5A 48 31 31 39 34 43 41 [2F2F016FZH1194CA]
    RADIUS: 45 32 5A 4E 31 46 3B 33 31 53 65 73 73 69 6F 6E [E2ZN1F;31Session]
    RADIUS: 49 44 3D 49 53 45 2D 44 49 41 4E 2F 34 39 33 30 [ID=ISE-SERVER/4930]
    RADIUS: 38 30 30 31 38 2F 32 39 3B [ 80018/29;]
    Jan 30 02:57:21.104: RADIUS: NAS-IP-Address [4] 6 192.168.30.100
    Jan 30 02:57:21.105: RADIUS(000000FF): Sending a IPv4 Radius Packet
    Jan 30 02:57:21.105: RADIUS(000000FF): Started 5 sec timeout
    Jan 30 02:57:21.170: RADIUS: Received from id 1645/87 192.168.30.110:1645, Access-Accept, len 233
    RADIUS: authenticator 75 F6 05 85 1D A0 C3 EE - F8 81 F9 02 38 AC C1 B6
    Jan 30 02:57:21.170: RADIUS: User-Name [1] 7 "user1"
    Jan 30 02:57:21.170: RADIUS: Class [25] 68
    RADIUS: 43 41 43 53 3A 4C 32 4C 34 32 46 32 46 30 31 31 [CACS:L2L42F2F011]
    RADIUS: 36 5A 4F 32 4C 34 32 46 32 46 30 31 36 46 5A 48 [6ZO2L42F2F016FZH]
    RADIUS: 31 31 39 34 43 41 45 32 5A 4E 31 46 3A 49 53 45 [1194CAE2ZN1F:ISE]
    RADIUS: 2D 44 49 41 4E 2F 34 39 33 30 38 30 30 31 38 2F [-DIAN/493080018/]
    RADIUS: 32 39 [ 29]
    Jan 30 02:57:21.170: RADIUS: EAP-Message [79] 6
    RADIUS: 03 53 00 04 [ S]
    Jan 30 02:57:21.170: RADIUS: Message-Authenticato[80] 18
    RADIUS: 8A A9 CC 07 61 A2 6D BA E4 EB B5 B7 73 0E EC 28 [ ams(]
    Jan 30 02:57:21.170: RADIUS: Vendor, Cisco [26] 37
    Jan 30 02:57:21.170: RADIUS: Cisco AVpair [1] 31 "ipsec:dns-servers=10.0.50.101"
    Jan 30 02:57:21.170: RADIUS: Vendor, Cisco [26] 47
    Jan 30 02:57:21.170: RADIUS: Cisco AVpair [1] 41 "ipsec:route-set=prefix 192.168.100.0/24"
    Jan 30 02:57:21.170: RADIUS: Vendor, Cisco [26] 30
    Jan 30 02:57:21.170: RADIUS: Cisco AVpair [1] 24 "ipsec:addr-pool=group1"
    Jan 30 02:57:21.171: RADIUS(000000FF): Received from id 1645/87
    RADIUS/DECODE: EAP-Message fragments, 4, total 4 bytes
    Jan 30 02:57:21.175: AAA/BIND(00000100): Bind i/f
    Jan 30 02:57:21.175: AAA/AUTHOR (0x100): Pick method list 'FlexVPN-Authorization-List'
    Jan 30 02:57:21.176: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access1, changed state to down
    Jan 30 02:57:21.192: %SYS-5-CONFIG_P: Configured programmatically by process Crypto INT from console as console
    Jan 30 02:57:21.376: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access1, changed state to up
    • 用户2调试输出：
    Jan 30 03:28:58.102: AAA/BIND(00000103): Bind i/f
    Jan 30 03:28:58.102: AAA/AUTHEN/LOGIN (00000103): Pick method list 'FlexVPN-Authentication-List'
    Jan 30 03:28:58.103: RADIUS/ENCODE(00000103):Orig. component type = VPN IPSEC
    Jan 30 03:28:58.103: RADIUS/ENCODE(00000103): dropping service type, "radius-server attribute 6 on-for-login-auth" is off
    Jan 30 03:28:58.103: RADIUS(00000103): Config NAS IP: 0.0.0.0
    Jan 30 03:28:58.103: vrfid: [65535] ipv6 tableid : [0]
    Jan 30 03:28:58.103: idb is NULL
    Jan 30 03:28:58.103: RADIUS(00000103): Config NAS IPv6: ::
    Jan 30 03:28:58.103: RADIUS/ENCODE(00000103): acct_session_id: 4249
    Jan 30 03:28:58.103: RADIUS(00000103): sending
    Jan 30 03:28:58.103: RADIUS/ENCODE: Best Local IP-Address 192.168.30.100 for Radius-Server 192.168.30.110
    Jan 30 03:28:58.103: RADIUS: Message Authenticator encoded
    Jan 30 03:28:58.103: RADIUS(00000103): Send Access-Request to 192.168.30.110:1645 id 1645/88, len 229
    RADIUS: authenticator 71 99 09 63 19 F7 D7 0B - 1D A9 4E 64 28 6F A5 64
    Jan 30 03:28:58.103: RADIUS: Service-Type [6] 6 Login [1]
    Jan 30 03:28:58.103: RADIUS: Vendor, Cisco [26] 26
    Jan 30 03:28:58.103: RADIUS: Cisco AVpair [1] 20 "service-type=Login"
    Jan 30 03:28:58.103: RADIUS: Vendor, Cisco [26] 36
    Jan 30 03:28:58.104: RADIUS: Cisco AVpair [1] 30 "isakmp-phase1-id=cisco.example"
    Jan 30 03:28:58.104: RADIUS: Calling-Station-Id [31] 13 "192.168.50.130"
    Jan 30 03:28:58.104: RADIUS: Vendor, Cisco [26] 64
    Jan 30 03:28:58.104: RADIUS: Cisco AVpair [1] 58 "audit-session-id=L2L42F2F0116ZO2L42F2F016FZH1194E444ZN20"
    Jan 30 03:28:58.104: RADIUS: User-Name [1] 7 "user2"
    Jan 30 03:28:58.104: RADIUS: Vendor, Cisco [26] 21
    Jan 30 03:28:58.104: RADIUS: Cisco AVpair [1] 15 "coa-push=true"
    Jan 30 03:28:58.104: RADIUS: EAP-Message [79] 12
    RADIUS: 02 3B 00 0A 01 75 73 65 72 32 [ ;user2]
    Jan 30 03:28:58.104: RADIUS: Message-Authenticato[80] 18
    RADIUS: 12 62 2F 51 12 FC F7 EC F0 87 E0 34 1E F1 AD E5 [ b/Q4]
    Jan 30 03:28:58.104: RADIUS: NAS-IP-Address [4] 6 192.168.30.100
    Jan 30 03:28:58.104: RADIUS(00000103): Sending a IPv4 Radius Packet
    Jan 30 03:28:58.105: RADIUS(00000103): Started 5 sec timeout
    Jan 30 03:28:58.109: RADIUS: Received from id 1645/88 192.168.30.110:1645, Access-Challenge, len 137
    RADIUS: authenticator 98 04 01 EA CD 9B 1E A9 - DC 6F 2F 17 1F 2A 5F 43
    Jan 30 03:28:58.109: RADIUS: State [24] 91
    RADIUS: 35 32 43 50 4D 53 65 73 73 69 6F 6E 49 44 3D 4C [52CPMSessionID=L]
    RADIUS: 32 4C 34 32 46 32 46 30 31 31 36 5A 4F 32 4C 34 [2L42F2F0116ZO2L4]
    RADIUS: 32 46 32 46 30 31 36 46 5A 48 31 31 39 34 45 34 [2F2F016FZH1194E4]
    RADIUS: 34 34 5A 4E 32 30 3B 33 31 53 65 73 73 69 6F 6E [44ZN20;31Session]
    RADIUS: 49 44 3D 49 53 45 2D 44 49 41 4E 2F 34 39 33 30 [ID=ISE-SERVER/4930]
    RADIUS: 38 30 30 31 38 2F 33 30 3B [ 80018/30;]
    Jan 30 03:28:58.110: RADIUS: EAP-Message [79] 8
    RADIUS: 01 35 00 06 0D 20 [ 5 ]
    Jan 30 03:28:58.110: RADIUS: Message-Authenticato[80] 18
    RADIUS: E3 A6 88 B1 B6 3D 93 1F 39 B3 AE 9E EA 1D BB 15 [ =9]
    Jan 30 03:28:58.110: RADIUS(00000103): Received from id 1645/88
    RADIUS/DECODE: EAP-Message fragments, 6, total 6 bytes
    Jan 30 03:28:58.112: AAA/AUTHEN/LOGIN (00000103): Pick method list 'FlexVPN-Authentication-List'
    Jan 30 03:28:58.112: RADIUS/ENCODE(00000103):Orig. component type = VPN IPSEC
    Jan 30 03:28:58.112: RADIUS/ENCODE(00000103): dropping service type, "radius-server attribute 6 on-for-login-auth" is off
    Jan 30 03:28:58.112: RADIUS(00000103): Config NAS IP: 0.0.0.0
    Jan 30 03:28:58.112: vrfid: [65535] ipv6 tableid : [0]
    Jan 30 03:28:58.113: idb is NULL
    Jan 30 03:28:58.113: RADIUS(00000103): Config NAS IPv6: ::
    Jan 30 03:28:58.113: RADIUS/ENCODE(00000103): acct_session_id: 4249
    Jan 30 03:28:58.113: RADIUS(00000103): sending
    Jan 30 03:28:58.113: RADIUS/ENCODE: Best Local IP-Address 192.168.30.100 for Radius-Server 192.168.30.110
    Jan 30 03:28:58.113: RADIUS: Message Authenticator encoded
    Jan 30 03:28:58.113: RADIUS(00000103): Send Access-Request to 192.168.30.110:1645 id 1645/89, len 316
    RADIUS: authenticator 56 BD F0 9A 4B 16 5C 6C - 4E 41 00 56 8D C0 3A 8C
    Jan 30 03:28:58.113: RADIUS: Service-Type [6] 6 Login [1]
    Jan 30 03:28:58.113: RADIUS: Vendor, Cisco [26] 26
    Jan 30 03:28:58.113: RADIUS: Cisco AVpair [1] 20 "service-type=Login"
    Jan 30 03:28:58.113: RADIUS: Vendor, Cisco [26] 36
    Jan 30 03:28:58.113: RADIUS: Cisco AVpair [1] 30 "isakmp-phase1-id=cisco.example"
    Jan 30 03:28:58.113: RADIUS: Calling-Station-Id [31] 13 "192.168.50.130"
    Jan 30 03:28:58.113: RADIUS: Vendor, Cisco [26] 64
    Jan 30 03:28:58.113: RADIUS: Cisco AVpair [1] 58 "audit-session-id=L2L42F2F0116ZO2L42F2F016FZH1194E444ZN20"
    Jan 30 03:28:58.113: RADIUS: User-Name [1] 7 "user2"
    Jan 30 03:28:58.113: RADIUS: Vendor, Cisco [26] 21
    Jan 30 03:28:58.113: RADIUS: Cisco AVpair [1] 15 "coa-push=true"
    Jan 30 03:28:58.113: RADIUS: EAP-Message [79] 8
    RADIUS: 02 35 00 06 03 04 [ 5]
    Jan 30 03:28:58.113: RADIUS: Message-Authenticato[80] 18
    RADIUS: 47 1F 36 A7 C3 9B 90 6E 03 2C B8 D7 FE A7 13 44 [ G6n,D]
    Jan 30 03:28:58.113: RADIUS: State [24] 91
    RADIUS: 35 32 43 50 4D 53 65 73 73 69 6F 6E 49 44 3D 4C [52CPMSessionID=L]
    RADIUS: 32 4C 34 32 46 32 46 30 31 31 36 5A 4F 32 4C 34 [2L42F2F0116ZO2L4]
    RADIUS: 32 46 32 46 30 31 36 46 5A 48 31 31 39 34 45 34 [2F2F016FZH1194E4]
    RADIUS: 34 34 5A 4E 32 30 3B 33 31 53 65 73 73 69 6F 6E [44ZN20;31Session]
    RADIUS: 49 44 3D 49 53 45 2D 44 49 41 4E 2F 34 39 33 30 [ID=ISE-SERVER/4930]
    RADIUS: 38 30 30 31 38 2F 33 30 3B [ 80018/30;]
    Jan 30 03:28:58.114: RADIUS: NAS-IP-Address [4] 6 192.168.30.100
    Jan 30 03:28:58.114: RADIUS(00000103): Sending a IPv4 Radius Packet
    Jan 30 03:28:58.114: RADIUS(00000103): Started 5 sec timeout
    Jan 30 03:28:58.116: RADIUS: Received from id 1645/89 192.168.30.110:1645, Access-Challenge, len 161
    RADIUS: authenticator 84 A3 30 3D 80 BC 71 42 - 1B 9B 49 EF 0B 1B 02 02
    Jan 30 03:28:58.116: RADIUS: State [24] 91
    RADIUS: 35 32 43 50 4D 53 65 73 73 69 6F 6E 49 44 3D 4C [52CPMSessionID=L]
    RADIUS: 32 4C 34 32 46 32 46 30 31 31 36 5A 4F 32 4C 34 [2L42F2F0116ZO2L4]
    RADIUS: 32 46 32 46 30 31 36 46 5A 48 31 31 39 34 45 34 [2F2F016FZH1194E4]
    RADIUS: 34 34 5A 4E 32 30 3B 33 31 53 65 73 73 69 6F 6E [44ZN20;31Session]
    RADIUS: 49 44 3D 49 53 45 2D 44 49 41 4E 2F 34 39 33 30 [ID=ISE-SERVER/4930]
    RADIUS: 38 30 30 31 38 2F 33 30 3B [ 80018/30;]
    Jan 30 03:28:58.116: RADIUS: EAP-Message [79] 32
    RADIUS: 01 36 00 1E 04 10 EB 9F A5 AC 70 1F 4D D6 48 05 9D EC 1F 29 67 AE 49 53 45 2D 44 49 41 4E [ 6pMH)gISE-SERVER]
    Jan 30 03:28:58.116: RADIUS: Message-Authenticato[80] 18
    RADIUS: 08 5E BC EF E5 38 50 CD FB 3C B3 E9 99 0A 51 B3 [ ^8P<Q]
    Jan 30 03:28:58.116: RADIUS(00000103): Received from id 1645/89
    RADIUS/DECODE: EAP-Message fragments, 30, total 30 bytes
    Jan 30 03:28:58.118: AAA/AUTHEN/LOGIN (00000103): Pick method list 'FlexVPN-Authentication-List'
    Jan 30 03:28:58.118: RADIUS/ENCODE(00000103):Orig. component type = VPN IPSEC
    Jan 30 03:28:58.118: RADIUS/ENCODE(00000103): dropping service type, "radius-server attribute 6 on-for-login-auth" is off
    Jan 30 03:28:58.118: RADIUS(00000103): Config NAS IP: 0.0.0.0
    Jan 30 03:28:58.118: vrfid: [65535] ipv6 tableid : [0]
    Jan 30 03:28:58.118: idb is NULL
    Jan 30 03:28:58.118: RADIUS(00000103): Config NAS IPv6: ::
    Jan 30 03:28:58.118: RADIUS/ENCODE(00000103): acct_session_id: 4249
    Jan 30 03:28:58.118: RADIUS(00000103): sending
    Jan 30 03:28:58.118: RADIUS/ENCODE: Best Local IP-Address 192.168.30.100 for Radius-Server 192.168.30.110
    Jan 30 03:28:58.119: RADIUS: Message Authenticator encoded
    Jan 30 03:28:58.119: RADIUS(00000103): Send Access-Request to 192.168.30.110:1645 id 1645/90, len 332
    RADIUS: authenticator A1 62 1A FB 18 58 7B 47 - 5C 8A 64 FA B7 23 9B BE
    Jan 30 03:28:58.119: RADIUS: Service-Type [6] 6 Login [1]
    Jan 30 03:28:58.119: RADIUS: Vendor, Cisco [26] 26
    Jan 30 03:28:58.119: RADIUS: Cisco AVpair [1] 20 "service-type=Login"
    Jan 30 03:28:58.119: RADIUS: Vendor, Cisco [26] 36
    Jan 30 03:28:58.119: RADIUS: Cisco AVpair [1] 30 "isakmp-phase1-id=cisco.example"
    Jan 30 03:28:58.119: RADIUS: Calling-Station-Id [31] 13 "192.168.50.130"
    Jan 30 03:28:58.119: RADIUS: Vendor, Cisco [26] 64
    Jan 30 03:28:58.119: RADIUS: Cisco AVpair [1] 58 "audit-session-id=L2L42F2F0116ZO2L42F2F016FZH1194E444ZN20"
    Jan 30 03:28:58.119: RADIUS: User-Name [1] 7 "user2"
    Jan 30 03:28:58.119: RADIUS: Vendor, Cisco [26] 21
    Jan 30 03:28:58.119: RADIUS: Cisco AVpair [1] 15 "coa-push=true"
    Jan 30 03:28:58.119: RADIUS: EAP-Message [79] 24
    RADIUS: 02 36 00 16 04 10 73 B7 F2 42 09 5B AB 21 D8 77 96 A2 F7 C7 83 AD [ 6sB[!w]
    Jan 30 03:28:58.119: RADIUS: Message-Authenticato[80] 18
    RADIUS: B1 68 3C 25 9E FE 52 13 10 69 E6 BB 17 67 6F 18 [ h<?Rigo]
    Jan 30 03:28:58.119: RADIUS: State [24] 91
    RADIUS: 35 32 43 50 4D 53 65 73 73 69 6F 6E 49 44 3D 4C [52CPMSessionID=L]
    RADIUS: 32 4C 34 32 46 32 46 30 31 31 36 5A 4F 32 4C 34 [2L42F2F0116ZO2L4]
    RADIUS: 32 46 32 46 30 31 36 46 5A 48 31 31 39 34 45 34 [2F2F016FZH1194E4]
    RADIUS: 34 34 5A 4E 32 30 3B 33 31 53 65 73 73 69 6F 6E [44ZN20;31Session]
    RADIUS: 49 44 3D 49 53 45 2D 44 49 41 4E 2F 34 39 33 30 [ID=ISE-SERVER/4930]
    RADIUS: 38 30 30 31 38 2F 33 30 3B [ 80018/30;]
    Jan 30 03:28:58.119: RADIUS: NAS-IP-Address [4] 6 192.168.30.100
    Jan 30 03:28:58.119: RADIUS(00000103): Sending a IPv4 Radius Packet
    Jan 30 03:28:58.119: RADIUS(00000103): Started 5 sec timeout
    Jan 30 03:28:58.186: RADIUS: Received from id 1645/90 192.168.30.110:1645, Access-Accept, len 233
    RADIUS: authenticator 48 A5 A0 11 ED B8 C2 87 - 35 30 17 D5 6D D7 B4 FD
    Jan 30 03:28:58.186: RADIUS: User-Name [1] 7 "user2"
    Jan 30 03:28:58.186: RADIUS: Class [25] 68
    RADIUS: 43 41 43 53 3A 4C 32 4C 34 32 46 32 46 30 31 31 [CACS:L2L42F2F011]
    RADIUS: 36 5A 4F 32 4C 34 32 46 32 46 30 31 36 46 5A 48 [6ZO2L42F2F016FZH]
    RADIUS: 31 31 39 34 45 34 34 34 5A 4E 32 30 3A 49 53 45 [1194E444ZN20:ISE]
    RADIUS: 2D 44 49 41 4E 2F 34 39 33 30 38 30 30 31 38 2F [-DIAN/493080018/]
    RADIUS: 33 30 [ 30]
    Jan 30 03:28:58.186: RADIUS: EAP-Message [79] 6
    RADIUS: 03 36 00 04 [ 6]
    Jan 30 03:28:58.186: RADIUS: Message-Authenticato[80] 18
    RADIUS: 9E A6 D9 56 40 C8 EB 08 69 8C E1 35 35 53 18 83 [ V@i55S]
    Jan 30 03:28:58.187: RADIUS: Vendor, Cisco [26] 37
    Jan 30 03:28:58.187: RADIUS: Cisco AVpair [1] 31 "ipsec:dns-servers=10.0.50.202"
    Jan 30 03:28:58.187: RADIUS: Vendor, Cisco [26] 47
    Jan 30 03:28:58.187: RADIUS: Cisco AVpair [1] 41 "ipsec:route-set=prefix 192.168.200.0/24"
    Jan 30 03:28:58.187: RADIUS: Vendor, Cisco [26] 30
    Jan 30 03:28:58.187: RADIUS: Cisco AVpair [1] 24 "ipsec:addr-pool=group2"
    Jan 30 03:28:58.187: RADIUS(00000103): Received from id 1645/90
    RADIUS/DECODE: EAP-Message fragments, 4, total 4 bytes
    Jan 30 03:28:58.190: AAA/BIND(00000104): Bind i/f
    Jan 30 03:28:58.190: AAA/AUTHOR (0x104): Pick method list 'FlexVPN-Authorization-List'
    Jan 30 03:28:58.192: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access2, changed state to down
    Jan 30 03:28:58.209: %SYS-5-CONFIG_P: Configured programmatically by process Crypto INT from console as console
    Jan 30 03:28:58.398: %LINEPROTO-5-UPDOWN: Line protocol on Interface Virtual-Access2, changed state to up

    相关信息

    修订历史记录

    版本 发布日期 备注
    1.0
    06-Feb-2024
    初始版本
    TAC Authored

    由思科工程师提供

    • 戴安娜·阿吉拉尔·马丁内斯
      思科安全技术咨询工程师

    此文档是否有帮助?

    Feedback反馈

    联系我们

    本文档适用于以下产品
