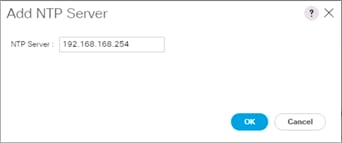

Synchronize Cisco UCS to NTP.. 32

Configure Cisco UCS Servers. 34

Edit Chassis Discovery Policy. 34

Enable Port Auto-Discovery Policy. 34

Enable Info Policy for Neighbor Discovery. 35

Configure Unified Ports. 36

Enable Server and Uplink Ports. 38

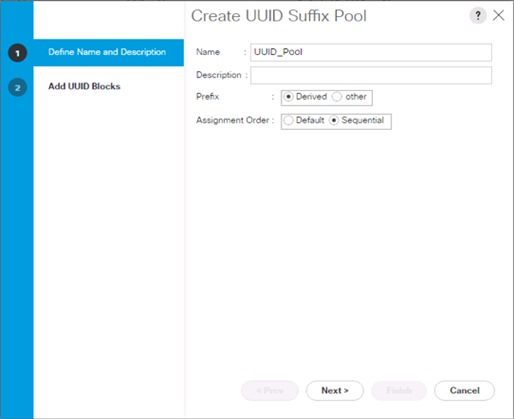

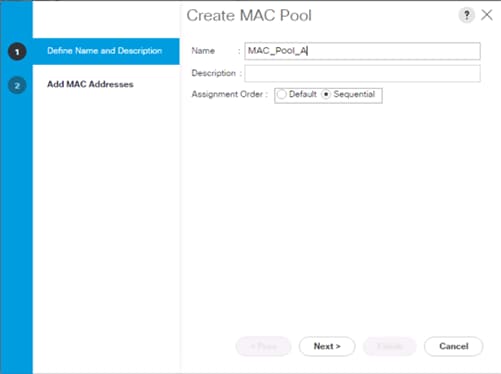

Create Pools. 39

Set Packages and Policies. 51

Configure Cisco UCS LAN Connectivity. 63

Create Uplink Port Channels. 63

Create VLANs. 66

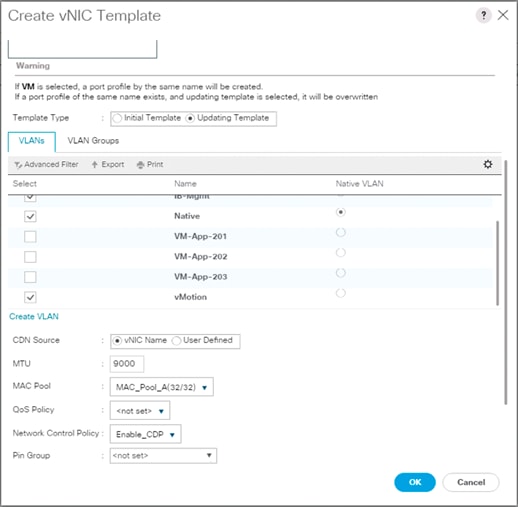

Create vNIC Templates. 70

Set Jumbo Frames in Cisco UCS Fabric. 78

Create LAN Connectivity Policy. 79

Configure FC SAN Connectivity. 83

Create VSANs. 83

Assign VSANs to FC Storage Ports. 85

Create vHBA Templates. 86

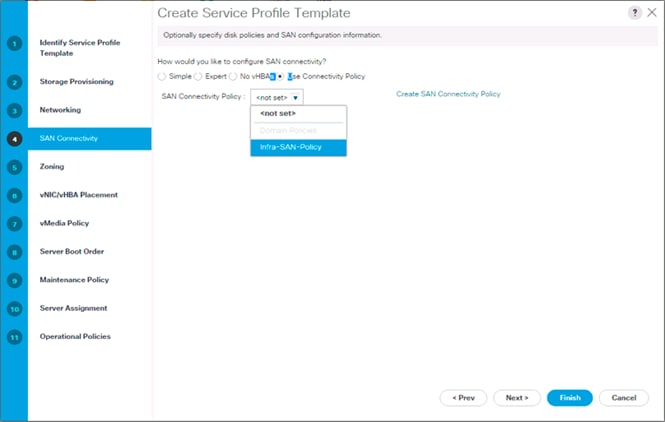

Create SAN Connectivity Policy. 88

Create Boot Policy. 91

Create Service Profile Template. 99

Configure Storage Provisioning. 100

Configure Networking Options. 101

Configure Zoning Options. 103

Configure vNIC/HBA Placement. 103

Configure vMedia Policy. 103

Configure Server Boot Order. 103

Configure Maintenance Policy. 104

Configure Server Assignment. 105

Configure Operational Policies. 106

Create vMedia Service Profile Template. 107

Create Service Profiles. 108

Configuring Host Connectivity and Presentation of Storage on Hitachi Virtual Storage Platform... 109

Create a Hitachi Dynamic Provisioning Pool for UCS Server Boot LDEVs. 109

Create a Hitachi Dynamic Provisioning Pool for UCS Server VMFS Volume LDEVs. 113

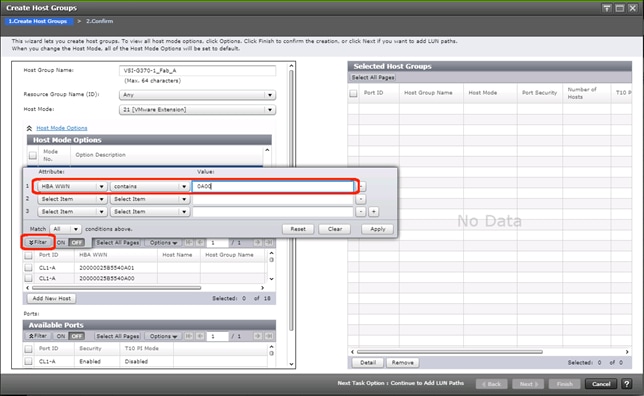

Create Host Groups for Cisco UCS Server vHBAs on Each Fabric. 113

Create Boot LDEVs for Each UCS Service Profile and Add LDEV Paths. 118

Create Shared VMFS LDEVs and Add LDEV Paths. 125

ESXi Installation. 132

Download Cisco Custom Image for ESXi 6.7 U1. 132

Log into Cisco UCS 6454 Fabric Interconnect. 132

Set Up VMware ESXi Installation. 132

Install ESXi 133

Set Up Management Networking for ESXi Hosts. 133

Log into VMware ESXi Hosts by Using VMware Host Client. 135

Set Up VMkernel Ports and Virtual Switch. 135

Create the VSI Datacenter. 137

Add the VMware ESXi Hosts Using the VMware vSphere Web Client. 137

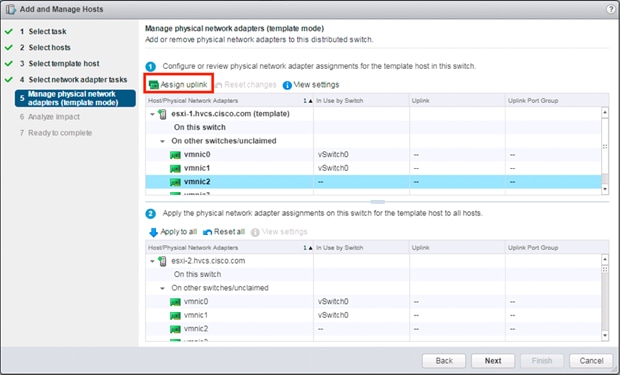

Create VMware vDS for Application Traffic. 140

Add Datastores to Hosts. 150

Configure NTP on ESXi Hosts. 155

Create and Apply Patch Baselines with VUM... 156

vSphere nfnic and nenic Baseline Creation through VUM... 165

Remediation of L1 Terminal Fault – VMM (L1TF) Security Vulnerability (Optional). 175

Planning and Utilization of the HTAware Mitigation Tool 175

Configuration of VMware Round Robin Path Selection Policy IOPS Limit. 179

Change the Round Robin Path Selection Policy through PowerCLI for Multiple Hosts in a Cluster. 179

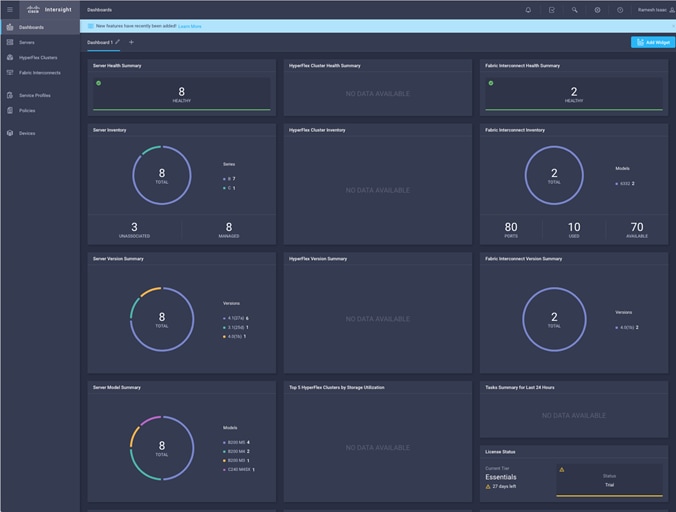

Cisco Intersight Registration. 186

Prerequisites. 186

Setup Information. 187

Cisco Intersight Licensing. 187

Deployment Steps. 187

About the Authors. 192

Appendix: References. 193

Cisco. 193

Hitachi 193

Appendix: Bill of Materials. 194

Bill of Materials. 194

Appendix: Nexus A Configuration Example. 197

Appendix: Nexus B Configuration Example. 201





Cisco Validated Designs consist of systems and solutions that are designed, tested, and documented to facilitate and improve customer deployments. These designs incorporate a wide range of technologies and products into a portfolio of solutions that have been developed to address the business needs of our customers.

Cisco and Hitachi are working together to deliver a converged infrastructure solution that helps enterprise businesses meet the challenges of today and position themselves for the future. Leveraging decades of industry expertise and superior technology, this Cisco CVD offers a resilient, agile, and flexible foundation for today’s businesses. In addition, the Cisco and Hitachi partnership extends beyond a single solution, enabling businesses to benefit from their ambitious roadmap of evolving technologies such as advanced analytics, IoT, cloud, and edge capabilities. With Cisco and Hitachi, organizations can confidently take the next step in their modernization journey and prepare themselves to take ad-vantage of new business opportunities enabled by innovative technology.

This document explains the deployment of the Cisco and Hitachi Adaptive Solutions for Converged Infrastructure as a Virtual Server Infrastructure (VSI). The recommended solution architecture is built on Cisco Unified Computing System (Cisco UCS) using the unified software release to support the Cisco UCS hardware platforms for Cisco UCS B-Series Blade Servers, Cisco UCS 6400 or 6300 Fabric Interconnects, Cisco Nexus 9000 Series switches, and Hitachi Virtual Storage Platform (VSP).

Introduction

Modernizing your data center can be overwhelming, and it’s vital to select a trusted technology partner with proven expertise. With Cisco and Hitachi as partners, companies can build for the future by enhancing systems of record, supporting systems of innovation, and growing their business. Organizations need an agile solution, free from operational inefficiencies, to deliver continuous data availability, meet SLAs, and prioritize innovation.

Hitachi and Cisco Adaptive Solutions for Converged Infrastructure as a Virtual Server Infrastructure (VSI) is a best practice datacenter architecture built on the collaboration of Hitachi Vantara and Cisco to meet the needs of enterprise customers utilizing virtual server workloads.  This architecture is composed of the Hitachi Virtual Storage Platform (VSP) connecting directly to Cisco Unified Computing System (Cisco UCS), and further enabled with the Cisco Nexus family of switches.

These deployment instructions are based on the buildout of the Cisco and Hitachi Adaptive Solutions for Converged Infrastructure validated reference architecture that was added to cover a direct attached storage configuration. The reference architecture covers specifics of products utilized within the Cisco validation lab, but the solution is considered relevant for equivalent supported components listed within Cisco and Hitachi Vantara’s published compatibility matrixes.  Supported adjustments from the example validated build must be evaluated with care as their implementation instructions may differ.

Audience

The audience for this document includes, but is not limited to; sales engineers, field consultants, professional services, IT managers, partner engineers, and customers who want to modernize their infrastructure to meet SLAs and their business needs at any scale.

Purpose of this Document

This document provides a step by step configuration and implementation guide for the Cisco and Hitachi Adaptive Solutions for Converged Infrastructure solution. This solution features a validated reference architecture composed of:

·         Cisco UCS Compute

·         Cisco Nexus Switches

·         Hitachi Virtual Storage Platform

For the design decisions and technology discussion of the solution, please refer to the Cisco and Hitachi Adaptive Solutions for Converged Infrastructure Design Guide:

https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/UCS_CVDs/cisco_hitachi_adaptivesolutions_ci_design.html

Architecture

Cisco and Hitachi Adaptive Solutions for Converged Infrastructure is a validated reference architecture targeting Virtual Server Infrastructure(VSI) implementations.  The architecture is built around the Cisco Unified Computing System (Cisco UCS) and the Hitachi Virtual Storage Platform (VSP) connected directly for storage traffic, and further enabled with Cisco Nexus Switches.  The Cisco MDS is removed in this design, giving a slightly easier configuration, but adopters should consider that scaling options will be impacted when removing the MDS from the solution.  Within this direct attached model, these components are brought together to form a powerful and scalable design, built on the best practices of both companies to create an ideal environment for virtualized systems.

The solution is built and validated featuring the direct connection of the Cisco UCS Fabric Interconnect to the Hitachi VSP Storage System, using the Nexus switching infrastructure to further extend the infrastructure.

The topology shown in Figure 1 leverages:

·         Cisco Nexus 9336C-FX2 – 100Gb capable, LAN connectivity to the UCS compute resources.

·         Cisco UCS 6454 Fabric Interconnect – Unified management of UCS compute, and the compute’s access to storage and networks.

·         Cisco UCS B200 M5 – High powered, versatile blade server, conceived for virtual computing.

·         Hitachi VSP G370 – Mid-range, high-performance storage system with optional all-flash configuration.

Figure 1  Cisco and Hitachi Adaptive Solution for CI with Hitachi VSP G370 and Cisco UCS 6454 Directly Attached

The Cisco UCS B200 M5 blade servers in this topology are hosted within a Cisco UCS 5108 Chassis and connect into the fabric interconnects from the chassis using Cisco UCS 2208XP I/O Modules (IOM). The 2208XP IOM supports 10G connections into the 10/25G ports of the Cisco UCS 6454 FIs, delivering a high port availability that may fit well in a branch office setting.

Management components for the architecture additionally include:

·         Cisco UCS Manager – Management delivered through the Fabric Interconnect, providing stateless compute, and policy driven implementation of the servers managed by it.

·         Cisco Intersight (optional) – Comprehensive unified visibility across UCS domains, along with proactive alerts and enablement of expedited Cisco TAC communications.

The direct attached architecture was validated for vSphere 6.7 U1, with the MDS based topology additionally validated with vSphere 6.5 U2 to accommodate a larger range of expected customer deployments.  Previous, and newer versions of vSphere, as well as other vendor hypervisors may be supported.  These additional hypervisors must be within the compatibility and interoperability matrices listed at the start of the next section but are not included in this validated design.

Hardware and Software Versions

Table 1  lists the validated hardware and software versions used for this solution. Configuration specifics are given in this deployment guide for the devices and versions listed in the following tables. Component and software version substitution from what is listed is considered acceptable within this reference architecture, but substitution will need to comply with the hardware and software compatibility matrices from both Cisco and Hitachi.

Cisco UCS Hardware Compatibility Matrix:

https://ucshcltool.cloudapps.cisco.com/public/

Cisco Nexus and MDS Interoperability Matrix:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/interoperability/matrix/intmatrx/Matrix1.html

Cisco Nexus Recommended Releases for Nexus 9K:

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/recommended_release/b_Minimum_and_Recommended_Cisco_NX-OS_Releases_for_Cisco_Nexus_9000_Series_Switches.html

Hitachi Vantara Interoperability:

https://support.hitachivantara.com/en_us/interoperability.html sub-page -> (VSP G1X00, F1500, Gxx0, Fxx0, VSP, HUS VM VMWare Support Matrix)

Any substituted hardware or software may have different configurations from what is detailed in this guide and will require a thorough evaluation of the substituted product reference documents.

Table 1       Validated Hardware and Software

(1) Hardware Version 13 was kept for initial transfer support between vSphere 6.5 and vSphere 6.7 of the VM test harness used.

Configuration Guidelines

This document provides details for configuring a fully redundant, highly available configuration for the Cisco and Hitachi Converged Infrastructure. References are made to which component is being configured with each step, either “-1” or “-2”. For example, AA19-9336-1 and AA19-9336-2 are used to identify the two Nexus switches that are provisioned with this document, with AA19-9336-1 and 2 used to represent a command invoked on both Nexus switches. The Cisco UCS fabric interconnects are similarly configured. Additionally, this document details the steps for provisioning multiple Cisco UCS hosts, and these examples are identified as: VM-Host-Infra-01, VM-Host-Infra-02 to represent hosts deployed to each of the fabric interconnects in this document.  Finally, to indicate that you should include information pertinent to your environment in a given step, <text> appears as part of the command structure.

See the following example of a configuration step for both Nexus switches:

AA19-9336-1&2  (config)# ntp server <<var_oob_ntp>> use-vrf management

This document is intended to enable you to fully configure the customer environment. In this process, various steps require you to insert customer-specific naming conventions, IP addresses, and VLAN schemes, as well as to record appropriate MAC addresses.  The tables provided can be copied or printed for use as a reference to align the appropriate customer deployed values for configuration specifics used within the guide.

Table 2  lists the VLANs necessary for deployment as outlined in this guide.

Table 2       VLANs Used in the Deployment

Table 3  lists additional configuration variables are used throughout the document as pointers to where a customer provided name, or reference for relevant existing information will be used.

Table 3       Variables for Information Used in the Design

Physical Cabling

This section explains the cabling examples used for the validated topology in the environment.  To make connectivity clear in this example, the tables include both the local and remote port locations.

This document assumes that out-of-band management ports are plugged into an existing management infrastructure at the deployment site.  The upstream network from the Nexus 9336C-FX2 switches is out of scope of this document, with only the assumption that these switches will connect to the upstream switch or switches with a virtual Port Channel (vPC).

Physical Cabling for the Cisco UCS 6454 with the VSP G370 Topology

Figure 2 shows the cabling configuration used in the design featuring the Cisco UCS 6454 with the VSP G370.

Figure 2  Cabling Diagram for Cisco and Hitachi Converged Infrastructure Featuring Cisco UCS 6454 with the VSP G370



The following tables list the specific port connections with the cables used in the deployment of the Cisco UCS 6454 and the VSP G370.

Table 4       Cisco Nexus 9336C-FX2 A Cabling Information for Cisco UCS 6454 to VSP G370

Table 5       Cisco Nexus 9336C-FX2 B Cabling Information for Cisco UCS 6454 to VSP G370

Table 6       Cisco UCS 6454 A Cabling Information for Cisco UCS 6454 to VSP G370

Table 7       Cisco UCS 6454 B Cabling Information for Cisco UCS 6454 to VSP G370 Topology

Table 8       Hitachi VSP G370 Cabling Information for Cisco UCS 6454 to VSP G370 Topology

The Nexus switch configuration will explain the basic L2 and L3 functionality for the application environment used in the validation environment hosted by the UCS domains. The application gateways are hosted by the pair of Nexus switches, but primary routing is passed onto an existing router that is upstream of the converged infrastructure. This upstream router will need to be aware of any networks created on the Nexus switches, but configuration of an upstream router is beyond the scope of this deployment guide.

Physical Connectivity

Physical cabling should be completed by following the diagram and table references found in section Deployment Hardware and Software.

Initial Nexus Configuration Dialogue

Complete this dialogue on each switch, using a serial connection to the console port of the switch, unless Power on Auto Provisioning is being used.

Enable Features and Settings

To enable IP switching features, run the following commands on each Cisco Nexus:

Additionally, configure the spanning tree and save the running configuration to start-up:

Create VLANs

Run the following commands on both switches to create VLANs:

Continue adding VLANs as appropriate to your environment.

Add Individual Port Descriptions for Troubleshooting

To add individual port descriptions for troubleshooting activity and verification for switch A, enter the following commands from the global configuration mode:

To add individual port descriptions for troubleshooting activity and verification for switch B, enter the following commands from the global configuration mode:

Create the vPC Domain

The vPC domain will be assigned a unique number from 1-1000 and will handle the vPC settings specified within the switches. To set the vPC domain configuration on 9336C-FX2 A, run the following commands:

On the 9336C-FX2 B switch run these slightly differing commands, noting that role priority and peer-keepalive commands will differ from what was previously set:

Configure Port Channel Member Interfaces

On each switch, configure the Port Channel member interfaces that will be part of the vPC Peer Link and configure the vPC Peer Link:

Configure Virtual Port Channels

On each switch, configure the Port Channel member interfaces and the vPC Port Channels to the Cisco UCS Fabric Interconnect and the upstream network switches:

Nexus Connection vPC to Cisco UCS 6454 A

Nexus Connection vPC to Cisco UCS 6454 B

Nexus Connection vPC to Upstream Network Switch A

Nexus Connection vPC to Upstream Network Switch B

Create Hot Standby Router Protocol (HSRP) Switched Virtual Interfaces (SVI)

These interfaces can be considered optional if the subnets of the VLANs used within the environment are managed entirely by an upstream switch, but if that is the case, all managed VLANs will need to be carried up through the vPC to the Upstream switches.

More advanced Cisco routing protocols can be configured within the Nexus switches but are not covered in this design.  Routing between the SVIs is directly connected between them as they reside in the same Virtual Routing and Forwarding instance (VRF), and traffic set to enter and exit the VRF will traverse the default gateway set for the switches.

For 9336C-FX2 A:

Nexus A IB-Mgmt SVI

Nexus A Web SVI

Nexus A App SVI

Nexus A DB SVI



For 9336C-FX2 B:

Nexus B IB-Mgmt SVI

Nexus B Web SVI

Nexus B App SVI

Nexus B DB SVI

Set Global Configurations

Run the following commands on both switches to set global configurations:





In order for Hitachi Virtual Storage Platform fibre channel ports to be exposed properly to the Cisco UCS components, modification of the ports from their default values must be performed. Prior to beginning this section, ensure that you have credentials on the Hitachi Virtual Storage Platform that have at least the Administrator role permissions within Hitachi Storage Navigator. Your partner or Hitachi services personnel provide credentials to your Hitachi Virtual Storage Platform after initial setup and configuration of the storage system.

To configure the fibre channel ports within the VSP storage system, follow these steps:

1.        Access Hitachi Storage Navigator through a web browser.

2.       VSP Fx00 Models and VSP Gx00 Models: https://<IP of Storage System SVP>/dev/storage/886000<Serial Number of Storage System>/emergency.do – for example, if Storage System SVP IP address is 10.0.0.2 and Serial Number of Storage System is 451200, the URL would be:

https://10.0.0.2/dev/storage/88600451200/emergency.do

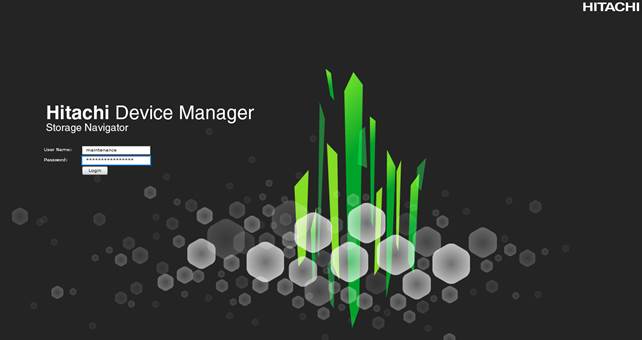

3.        Log into Hitachi Storage Navigator.

4.       From the left Explorer pane, select the Storage Systems tab.

5.        Expand the storage system being configured. Highlight the Ports/Host Groups/iSCSI Targets element in the navigation tree, then click on the Ports tab in the main configuration pane.

6.       Select the checkboxes for the ports being used within the solution, then click the Edit Ports button to instantiate the Edit Ports dialog box.

7.         Select checkboxes to edit the following settings to modify the selected ports:

-        Port Attribute: Target

-        Port Security: Enable

-        Port Speed: Auto

-        Fabric: ON

-        Connection Type: P-to-P

8.       Example ports used in the Cisco UCS 6454 to VSP G370 used in this design are listed in Table 9  .

Table 9       VSP G370 to UCS Ports

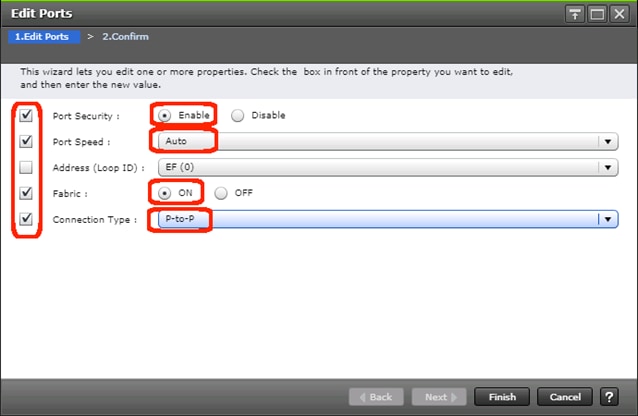

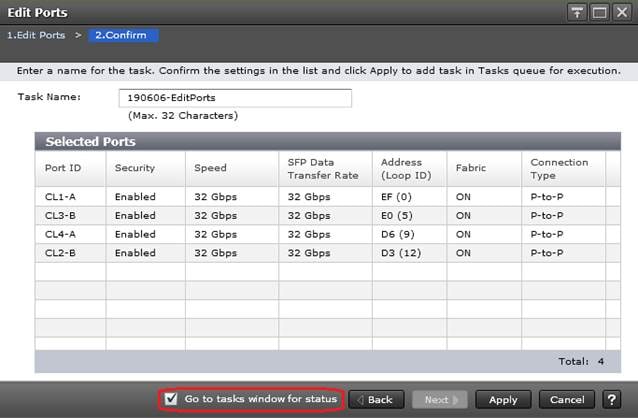

Figure 3  VSP G370 Edit Ports Pop-Up Window

9.       Click OK for any warning that appears.

10.    Click Finish.

11.     Review the changes to be made and check the Go to tasks window for status box, then click the Apply button.

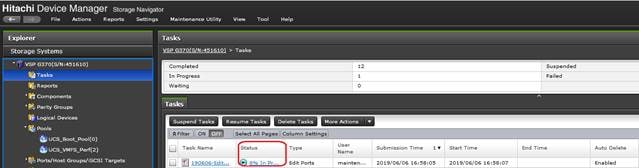

12.    The Task view window will appear and show the completion status of the Edit Ports task. Wait until the task status shows Complete and proceed to the next section.

This section explains the configuration of the Cisco UCS 6454 Fabric Interconnects used in this UCP solution.  As with the Nexus explained beforehand, some changes may be appropriate for a customer’s environment, but care should be taken when stepping outside of these instructions as it may lead to an improper configuration.

Physical Connectivity

Physical cabling should be completed by following the diagram and table references in section Deployment Hardware and Software.

Upgrade Cisco UCS Manager Software to Version 4.0(2b)

This document assumes the use of Cisco UCS 4.0(2b). To upgrade the Cisco UCS Manager software and the Cisco UCS Fabric Interconnect software to version 4.0(2b), go to Cisco UCS Manager Install and Upgrade Guides.

Cisco UCS Base Configuration

The initial configuration dialogue for the Cisco UCS 6454 Fabric Interconnects will be provide the primary information to the first fabric interconnect, with the second taking on most settings after joining the cluster.

To start on the configuration of the Fabric Interconnect A, connect to the console of the fabric interconnect and step through the Basic System Configuration Dialogue:

Continue the configuration on the console of the Fabric Interconnect B:

Cisco UCS Manager Setup

Log into Cisco UCS Manager

To log into the Cisco Unified Computing System (Cisco UCS) environment and Cisco UCS Manager (UCSM), follow these steps:

1.        Open a web browser and navigate to the Cisco UCS fabric interconnect cluster address.

2.       Click the Launch UCS Manager link within the opening page.

3.        If prompted to accept security certificates, accept as necessary.

4.       When the Cisco UCS Manager login is prompted, enter admin as the user name and enter the administrative password.

5.        Click Login to log into Cisco UCS Manager.

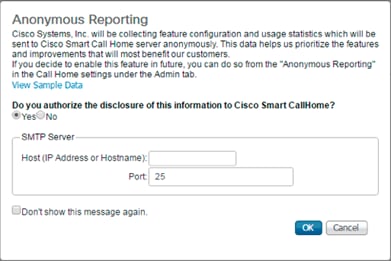

Anonymous Reporting

During the first connection to the Cisco UCS Manager GUI, a pop-up window will appear to allow for the configuration of Anonymous Reporting to Cisco on use to help with future development.  To create anonymous reporting, follow this step:

1.        In the Anonymous Reporting window, select whether to send anonymous data to Cisco for improving future products, and provide the appropriate SMTP server gateway information if configuring:

Place Cisco UCS Fabric Interconnects in Fiber Channel Switching Mode

In order to use Fiber Channel Storage Ports for storage directly connected to the Cisco UCS fabric interconnects, the fabric interconnects must be changed from fiber channel end host mode to fiber channel switching mode.

To place the fabric interconnects in fiber channel switching mode, follow these steps:

1.        In Cisco UCS Manager, click Equipment.

2.       Select Equipment > Fabric Interconnects > Fabric Interconnect A (primary).

3.        In the center pane, select set FC Switching Mode.  Click Yes and OK for the confirmation message.

The standby FI will reboot, after completion the primary will be prompted for a reboot as a pending activity.

4.       Select Reboot now under Actions.  Click Yes at the confirmation prompt.

5.        Wait for both Fabric Interconnects to reboot by monitoring the console ports and log back into Cisco UCS Manager.

Synchronize Cisco UCS to NTP

To synchronize the Cisco UCS environment to the NTP server, follow these steps:

1.        In Cisco UCS Manager, click the Admin tab in the navigation pane.

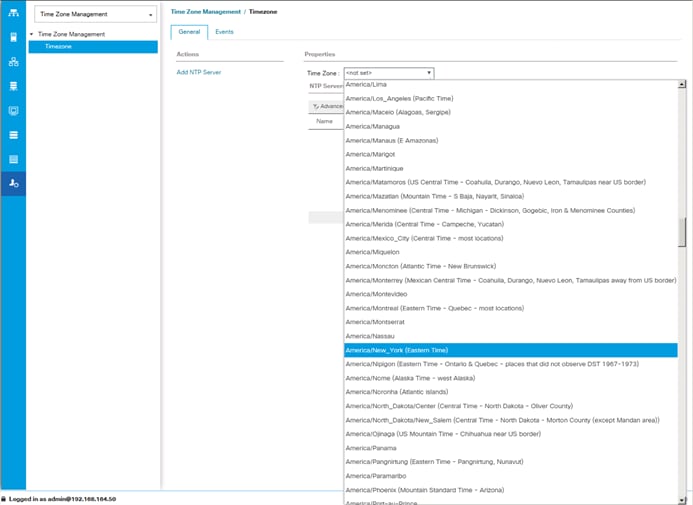

2.       Select Timezone Management drop-down list and click Timezone.

3.        In the Properties pane, select the appropriate time zone in the Timezone menu.

4.       Click Save Changes, and then click OK.

5.        Click Add NTP Server.

6.       Enter <<var_oob_ntp>> and click OK.

7.        Click OK.

Configure Cisco UCS Servers

Edit Chassis Discovery Policy

Setting the discovery policy simplifies the addition of B-Series Cisco UCS chassis. To modify the chassis discovery policy, follow these steps:

1.        In Cisco UCS Manager, click the Equipment tab in the navigation pane and select Policies in the list from the drop-down list.

2.       Under Global Policies, set the Chassis/FEX Discovery Policy to match the minimum number of uplink ports that should be cabled between the chassis or fabric extenders (FEXes) and the fabric interconnects.

3.        Set the Link Grouping Preference to Port Channel.

4.       Leave other settings alone or change if appropriate to your environment.

5.        Click Save Changes.

6.       Click OK.

Enable Port Auto-Discovery Policy

Setting the port auto-discovery policy enables automatic discovery of Cisco UCS B-Series chassis server ports. To modify the port auto-discovery policy, follow these steps:

1.        In Cisco UCS Manager, click Equipment, select All > Equipment in the Navigation Pane, and select the Policies tab.

2.       Under Port Auto-Discovery Policy, set Auto Configure Server Port to Enabled.

3.        Click Save Changes and then click OK.

Enable Info Policy for Neighbor Discovery

Enabling the info policy enables Fabric Interconnect neighbor information to be displayed. To modify the info policy, follow these steps:

1.        In Cisco UCS Manager, click Equipment, select All > Equipment in the Navigation Pane, and select the Policies tab.

2.       Within the Global Policies sub-tab, scroll down to Info Policy and select Enabled for Action.

3.        Click Save Changes and then click OK.

4.       Under Equipment, select Fabric Interconnect A (primary). Select the Neighbors tab. CDP information is shown under the LAN tab and LLDP information is shown under the LLDP tab.

Configure Unified Ports

The Cisco UCS 6454 Fabric Interconnects will have a slider mechanism within the Cisco UCS Manager GUI interface that will control the first 8 ports starting from the first port, allowing the selection of the first 4, or all 8 of the unified ports.

To enable the fibre channel ports, follow these steps:

1.        In Cisco UCS Manager, click the Equipment tab in the navigation pane.

2.       Select Equipment > Fabric Interconnects > Fabric Interconnect A (primary)

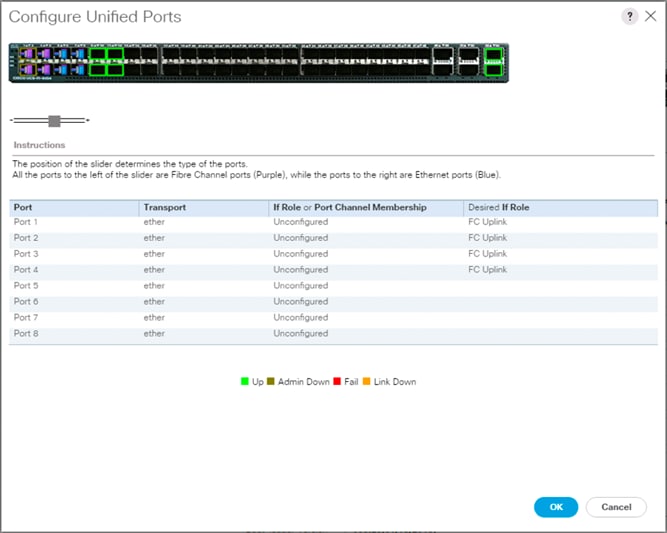

3.        Select Configure Unified Ports.

4.       Click Yes on the pop-up window warning that changes to the fixed module will require a reboot of the fabric interconnect and changes to the expansion module will require a reboot of that module.

5.        Within the Configured Fixed Ports pop-up window move the gray slider bar from the left to the right to select either the first 4 or all 8 of the ports to be set as FC Uplinks.

6.       Click OK to continue

7.        Click Yes within the subsequent warning pop-up and wait for reboot to complete.

8.       Log back into UCSM when available.

9.       Select Equipment > Fabric Interconnects > Fabric Interconnect B (primary).

10.    Select Configure Unified Ports.

11.     Click Yes on the pop-up window warning that changes to the fixed module will require a reboot of the fabric interconnect and changes to the expansion module will require a reboot of that module.

12.    Within the Configured Fixed Ports pop-up window move the gray slider bar from the left to the right to select the same 4 or 8 ports to be set as FC Uplinks.

13.     Click OK to continue.

14.    Click Yes within the subsequent warning pop-up and wait for reboot to complete.

Enable Server and Uplink Ports

To enable server and uplink ports, follow these steps:

1.        In Cisco UCS Manager, click the Equipment tab in the navigation pane.

2.       Select Equipment > Fabric Interconnects > Fabric Interconnect A (primary) > Fixed Module.

3.        Expand FC Ports

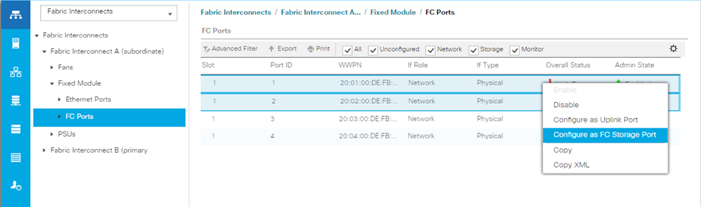

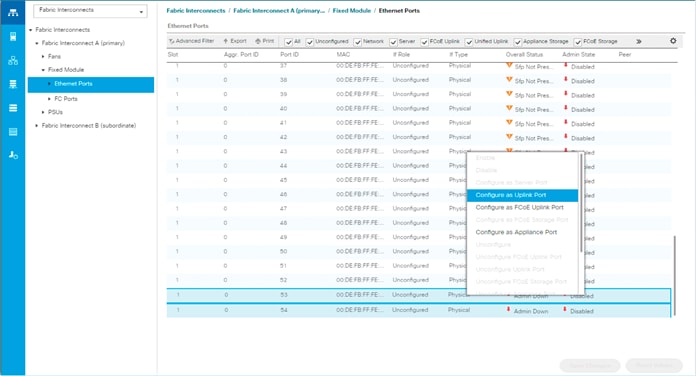

4.       Select the ports that are connected to the VSP, right-click them, and select “Configure as FC Storage Port.”

5.        Select ports 53 and 54 that are connected to the Cisco Nexus switches, right-click them, and select Configure as Uplink Port.

6.       Click Yes to confirm uplink ports and click OK.

7.        Repeat steps 1-6 for Fabric B ports.

Create Pools

Create MAC Address Pools

To configure the necessary MAC address pools for the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select Pools > root.

3.        Right-click MAC Pools under the root organization.

4.       Select Create MAC Pool to create the MAC address pool.

5.        Enter MAC_Pool_A as the name of the MAC pool.

6.       Optional: Enter a description for the MAC pool.

7.        Select Sequential as the option for Assignment Order.

8.       Click Next.

9.       Click Add.

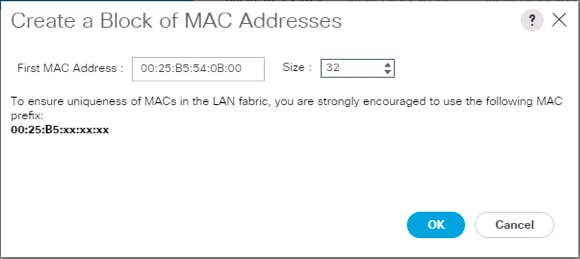

10.    Specify a starting MAC address.

11.     Specify a size for the MAC address pool that is sufficient to support the available blade or server resources.

12.    Click OK.

13.     Click Finish.

14.    In the confirmation message, click OK.

15.     Right-click MAC Pools under the root organization.

16.    Select Create MAC Pool to create the MAC address pool.

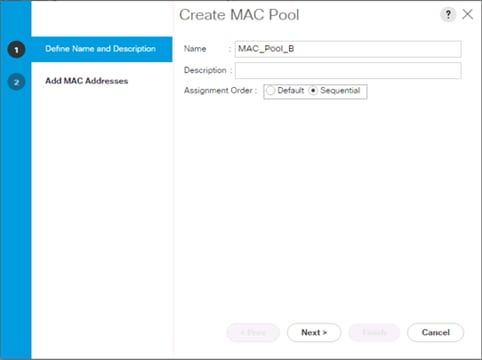

17.     Enter MAC_Pool_B as the name of the MAC pool.

18.    Optional: Enter a description for the MAC pool.

19.    Click Next.

20.    Click Add.

21.    Specify a starting MAC address.

22.    Specify a size for the MAC address pool that is sufficient to support the available blade or server resources.

23.    Click OK.

24.    Click Finish.

25.    In the confirmation message, click OK.

Create UUID Suffix Pool

To configure the necessary universally unique identifier (UUID) suffix pool for the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Pools > root.

3.        Right-click UUID Suffix Pools.

4.       Select Create UUID Suffix Pool.

5.        Enter UUID_Pool as the name of the UUID suffix pool.

6.       Optional: Enter a description for the UUID suffix pool.

7.        Keep the prefix at the derived option.

8.       Select Sequential for the Assignment Order.

9.       Click Next.

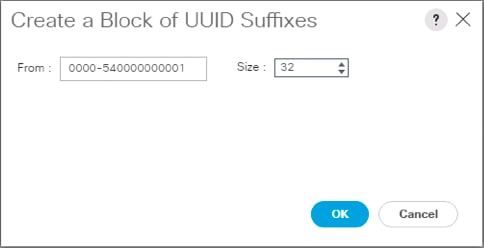

10.    Click Add to add a block of UUIDs.

11.     Specify a size for the UUID block that is sufficient to support the available blade or server resources.

12.    Click OK.

13.     Click Finish.

14.    Click OK.

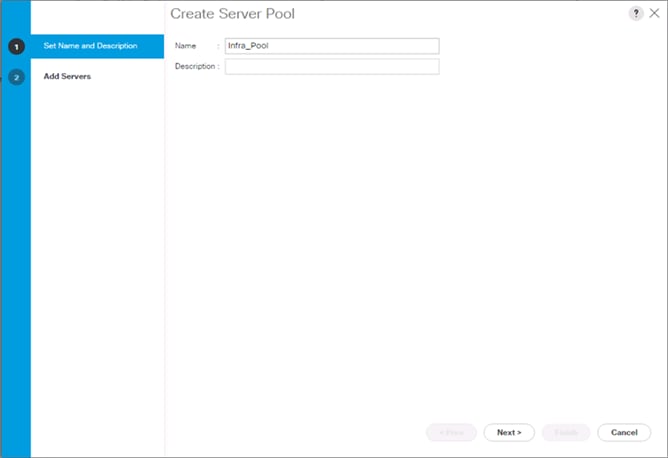

Create Server Pool

To configure the necessary server pool for the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Pools > root.

3.        Right-click Server Pools.

4.       Select Create Server Pool.

5.        Enter Infra_Pool as the name of the server pool.

6.       Optional: Enter a description for the server pool.

7.        Click Next.

8.       Select two (or more) servers to be used for the VMware cluster and click >> to add them to the Infra_Pool server pool.

9.       Click Finish.

10.    Click OK.

Add a Block of IP Addresses for KVM Access

To create a block of IP addresses for in band server Keyboard, Video, Mouse (KVM) access in the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select Pools > root > IP Pools.

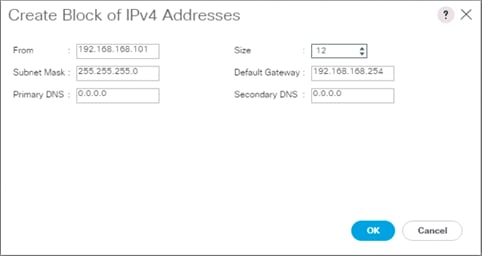

3.        Right-click IP Pool ext-mgmt and select Create Block of IPv4 Addresses.

4.       Enter the starting IP address of the block and the number of IP addresses required, and the subnet and gateway information.

5.        Click OK to create the block of IPs.

6.       Click OK.

Create a WWNN Pool

To configure the necessary WWNN pool for the Cisco UCS environment, follow these steps on Cisco UCS Manager:

1.        Select the SAN tab.

2.       Select Pools > root.

3.        Right-click WWNN Pools under the root organization.

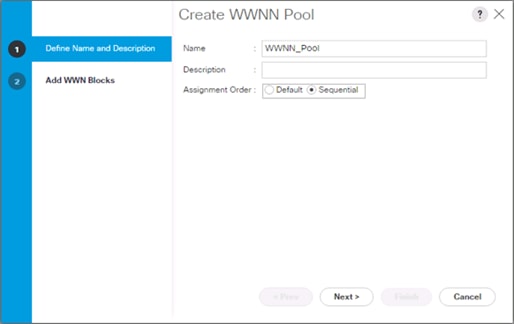

4.       Select Create WWNN Pool to create the WWNN pool.

5.        Enter WWNN_Pool for the name of the WWNN pool.

6.       Optional: Enter a description for the WWNN pool.

7.        Select Sequential for Assignment Order.

8.       Click Next.

9.       Click Add.

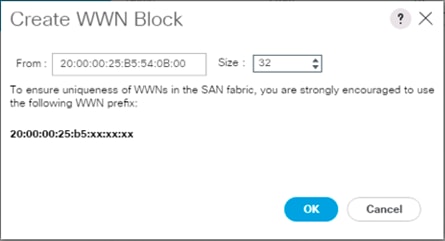

10.    Modify the From field as necessary for the UCS Environment.



11.     Specify a size of the WWNN block sufficient to support the available server resources.

12.    Click OK.

13.     Click Finish to create the WWNN Pool.

14.    Click OK.

Create WWPN Pools

To configure the necessary WWPN pools for the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click the SAN tab in the navigation pane.

2.       Select Pools > root.

3.        In this procedure, two WWPN pools are created, one for each switching fabric.

4.       Right-click WWPN Pools under the root organization.

5.        Select Create WWPN Pool to create the WWPN pool.

6.       Enter WWPN_Pool_A as the name of the WWPN pool.

7.        Optional: Enter a description for the WWPN pool.

8.       Select Sequential for Assignment Order.

9.       Click Next.

10.    Click Add.

11.     Specify a starting WWPN.

12.    Specify a size for the WWPN pool that is sufficient to support the available blade or server resources.

13.     Click OK.

14.    Click Finish.

15.     In the confirmation message, click OK.

16.    Right-click WWPN Pools under the root organization.

17.     Select Create WWPN Pool to create the WWPN pool.

18.    Enter WWPN_Pool_B as the name of the WWPN pool.

19.    Optional: Enter a description for the WWPN pool.

20.    Select Sequential for Assignment Order.

21.    Click Next.

22.    Click Add.

23.    Specify a starting WWPN.

24.    Specify a size for the WWPN address pool that is sufficient to support the available blade or server resources.

25.    Click OK.

26.    Click Finish.

27.    In the confirmation message, click OK.

Set Packages and Policies

Create Host Firmware Package

Firmware management policies allow the administrator to select the corresponding packages for a given server configuration. These policies often include packages for adapter, BIOS, board controller, FC adapters, host bus adapter (HBA) option ROM, and storage controller properties.

To create a firmware management policy for a given server configuration in the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Policies > root.

3.        Expand Host Firmware Packages.

4.       Select default.

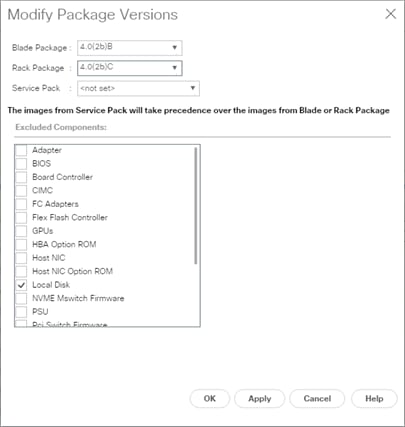

5.        In the Actions pane, select Modify Package Versions.

6.       Select the version 4.0(2b)B for the Blade Package, and optionally set version 4.0(2b)C for the Rack Package.

7.        Leave Excluded Components with only Local Disk selected.

8.       Click OK to modify the host firmware package and OK again to acknowledge the changes.

Create Server Pool Qualification Policy (Optional)

To create an optional server pool qualification policy for the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Policies > root.

3.        Right-click Server Pool Policy Qualifications.

4.       Select Create Server Pool Policy Qualification.

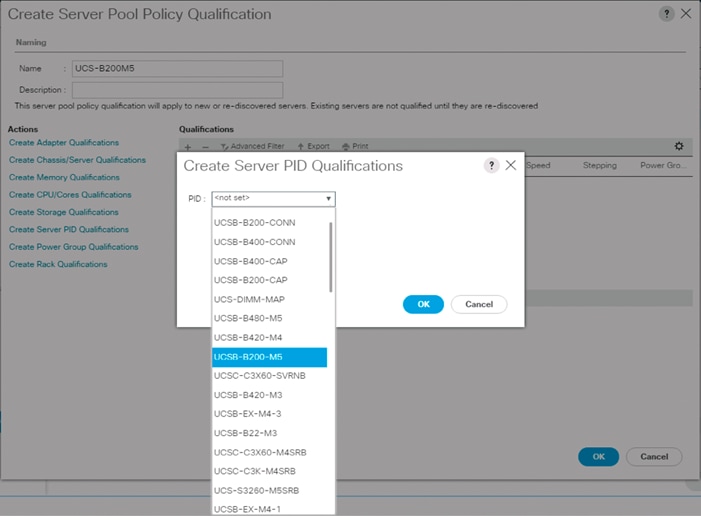

5.        Name the policy UCS-B200M5.

6.       Select Create Server PID Qualifications.

7.        Select Cisco UCS-B200-M5 from the PID drop-down list.

8.       Click OK.

9.       Optionally, select additional qualifications to refine server selection parameters for the server pool.

10.    Click OK to create the policy then click OK for the confirmation.

Download the Image for ESXi 6.7 U1

The VMware Cisco Custom Image will need to be downloaded for use during installation by manual access to the UCS KVM vMedia, or through a vMedia Policy explained in the following subsection.

To download the Cisco Custom Image, follow these steps:

1.        Click the following link: VMware vSphere Hypervisor Cisco Custom Image (ESXi) 6.7 U1.

2.       You will need a user id and password on vmware.com to download this software.

3.        Download the .iso file.

Create vMedia Policy for VMware ESXi 6.7 U1 Install Boot (optional, if manually attaching ISO through KVM)

A separate HTTP web server is required to automate the availability of the ESXi image to each Service Profile on first power on. The creation of this web server is not included in this document but can be any existing web server capable of serving files through HTTP that are accessible on the OOB network that the ESXi image can be placed upon.

To create a vMedia Policy,place the Cisco Custom Image VMware ESXi 6.7 U1 ISO on the HTTP server and follow these steps:

1.        In Cisco UCS Manager, select Servers.

2.       Select Policies > root.

3.        Right-click vMedia Policies.

4.       Select Create vMedia Policy.

5.        Name the policy ESXi-6.7U1-HTTP.

6.       Enter “Mounts ISO for ESXi 6.7 U1” in the Description field.

7.        Click Add.

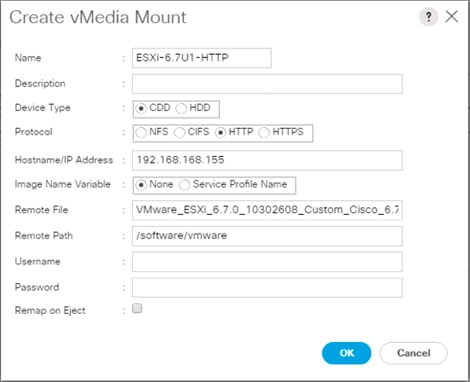

8.       Name the mount ESXi-6.7U1-HTTP.

9.       Select the CDD Device Type.

10.    Select the HTTP Protocol.

11.     Enter the IP Address of the web server.

12.    Leave “None” selected for Image Name Variable.

13.     Enter VMware_ESXi_6.7.0_10302608_Custom_Cisco_6.7.1.1.iso as the Remote File name.

14.    Enter the web server path to the ISO file in the Remote Path field.

15.     Click OK to create the vMedia Mount.

16.    Click OK then click OK again to complete creating the vMedia Policy.

Create Server BIOS Policy

To create a server BIOS policy for the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click Servers.

2.       Select Policies > root.

3.        Right-click BIOS Policies.

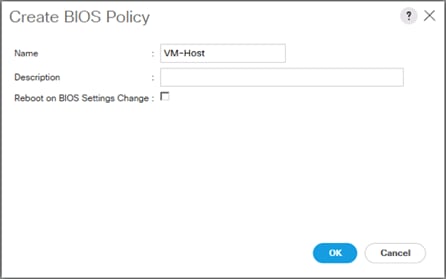

4.       Select Create BIOS Policy.

5.        Enter VM-Host as the BIOS policy name.

6.       Select and right-click the newly created BIOS Policy.

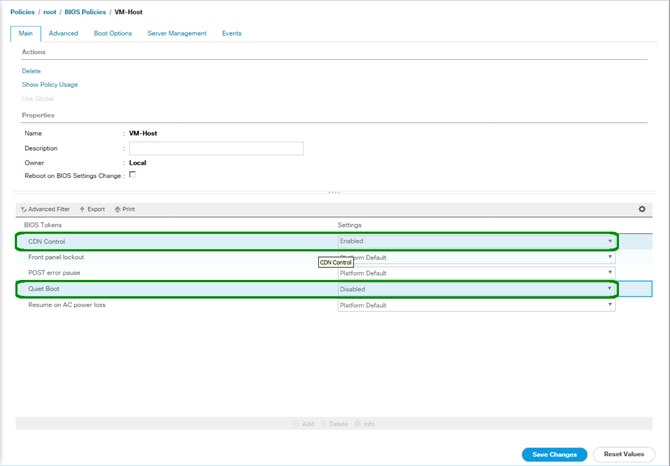

7.        Within the Main tab of the Policy:

                          a.      Change CDN Control to enabled.

                         b.      Change the Quiet Boot setting to disabled.

8.       Click the Advanced tab, leaving the Processor tab selected within the Advanced tab.

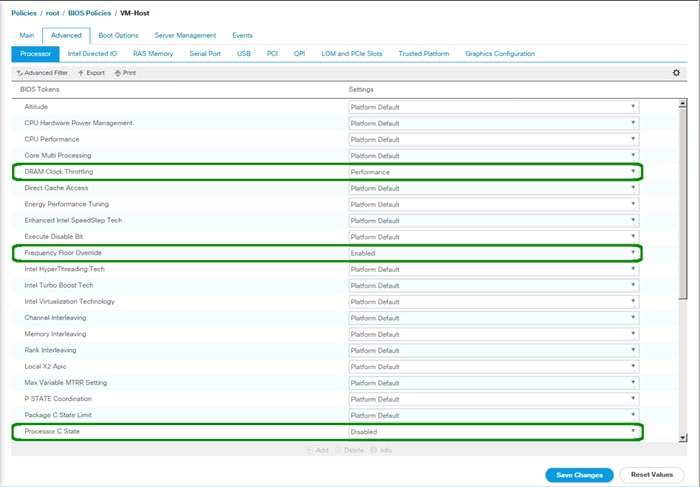

9.       Set the following within the Processor tab:

                          a.      DRAM Clock Throttling -> Performance

                         b.      Frequency Floor Override -> Enabled

                          c.      Processor C State -> Disabled

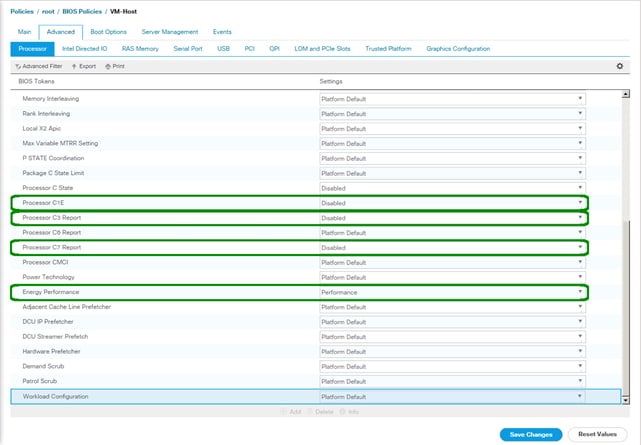

10.    Scroll down to the remaining Processor options and select:

                          a.      Processor C1E -> disabled

                         b.      Processor C3 Report -> disabled

                          c.      Processor C7 Report -> disabled

                         d.      Energy Performance -> performance

11.     Click the RAS Memory tab and select:

                          a.      LV DDR Mode -> performance-mode

12.    Click Save Changes.

13.     Click OK.

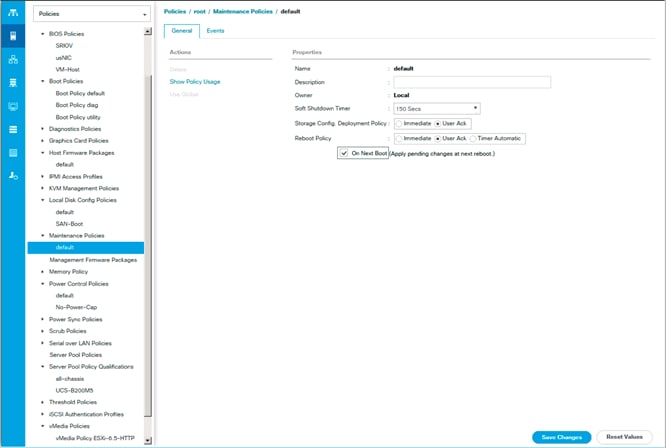

Update the Default Maintenance Policy

To update the default Maintenance Policy, follow these steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Policies > root.

3.        Select Maintenance Policies > default.

4.       Change the Reboot Policy to User Ack.

5.        (Optional: Click “On Next Boot” to delegate maintenance windows to server owners).

6.       Click Save Changes.

7.        Click OK to accept the change.

Create Local Disk Configuration Policy

A local disk configuration for the Cisco UCS environment is necessary if the servers in the environment do not have a local disk.

To create a local disk configuration policy, follow these steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Policies > root.

3.        Right-click Local Disk Config Policies.

4.       Select Create Local Disk Configuration Policy.

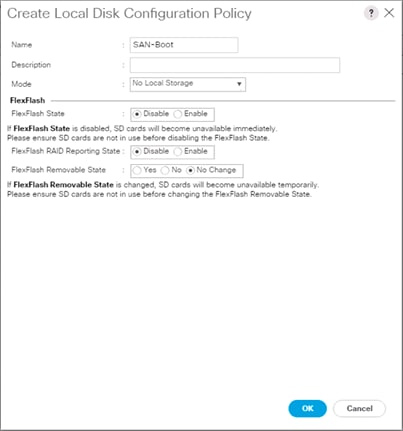

5.        Enter SAN-Boot as the local disk configuration policy name.

6.       Change the mode to No Local Storage.

7.        Click OK to create the local disk configuration policy.

8.       Click OK.

Create Power Control Policy

To create a power control policy for the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Policies > root.

3.        Right-click Power Control Policies.

4.       Select Create Power Control Policy.

5.        Enter No-Power-Cap as the power control policy name.

6.       Change the power capping setting to No Cap.

7.        Click OK to create the power control policy.

8.       Click OK.

Create Network Control Policy for Cisco Discovery Protocol

To create a network control policy that enables Cisco Discovery Protocol (CDP) on virtual network ports, follow these steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select Policies > root.

3.        Right-click Network Control Policies.

4.       Select Create Network Control Policy.

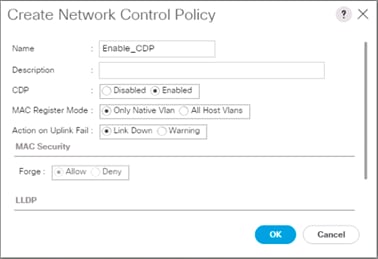

5.        Enter Enable_CDP as the policy name.

6.       For CDP, select the Enabled option.

7.        Click OK to create the network control policy.



8.       Click OK.

Configure Cisco UCS LAN Connectivity

Create Uplink Port Channels

To configure the necessary port channels out of the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Under LAN > LAN Cloud, expand the Fabric A tree.

3.        Right-click Port Channels.

4.       Select Create Port Channel.

5.        Enter a unique ID for the port channel, (15 in our example to correspond with the upstream Nexus port channel).

6.       With 15 selected, enter vPC-15-Nexus as the name of the port channel.

7.        Click Next.

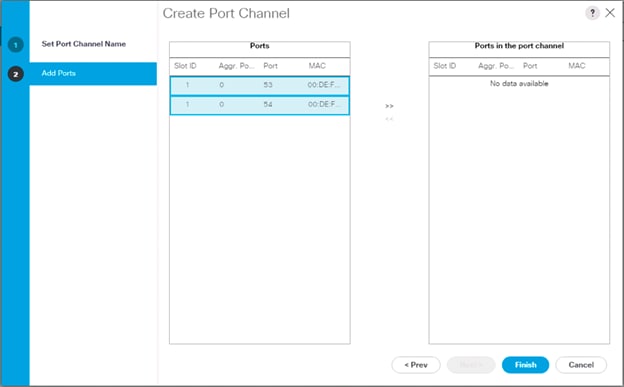

8.       Select the following ports to be added to the port channel:

                          a.      Slot ID 1 and port 53

                         b.      Slot ID 1 and port 54

9.       Click >> to add the ports to the port channel.

10.    Click Finish to create the port channel.

11.     Click OK.

12.    In the navigation pane, under LAN > LAN Cloud, expand the fabric B tree.

13.     Right-click Port Channels.

14.    Select Create Port Channel.

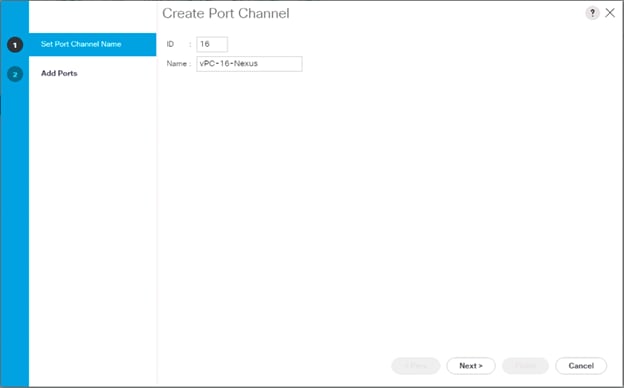

15.     Enter a unique ID for the port channel, (16 in our example to correspond with the upstream Nexus port channel).

16.    With 16 selected, enter vPC-16-Nexus as the name of the port channel.

17.     Click Next.

18.    Select the following ports to be added to the port channel:

                          a.      Slot ID 1 and port 53

                         b.      Slot ID 1 and port 54

19.    Click >> to add the ports to the port channel.

20.    Click Finish to create the port channel.

21.    Click OK.

Create VLANs

To configure the necessary virtual local area networks (VLANs) for the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select LAN > LAN Cloud.

3.        Right-click VLANs.

4.       Select Create VLANs.

5.        Enter Native as the name of the VLAN to be used as the native VLAN.

6.       Keep the Common/Global option selected for the scope of the VLAN.

7.        Enter the native VLAN ID.

8.       Keep the Sharing Type as None.

9.       Click OK and then click OK again.

10.    Expand the list of VLANs in the navigation pane, right-click the newly created Native VLAN and select Set as Native VLAN.

11.     Click Yes and then click OK.

12.    Right-click VLANs.

13.     Select Create VLANs.

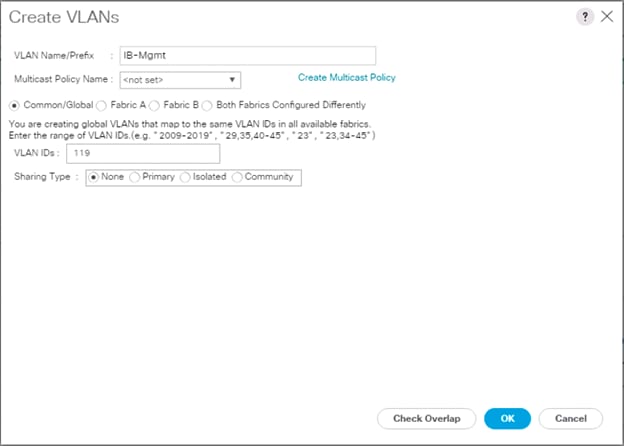

14.    Enter IB-Mgmt as the name of the VLAN to be used for management traffic.

15.     Keep the Common/Global option selected for the scope of the VLAN.

16.    Enter the In-Band management VLAN ID.

17.     Keep the Sharing Type as None.

18.    Click OK and then click OK again.

19.    Right-click VLANs.

20.    Select Create VLANs.

21.    Enter vMotion as the name of the VLAN to be used for vMotion.

22.    Keep the Common/Global option selected for the scope of the VLAN.

23.    Enter the vMotion VLAN ID.

24.    Keep the Sharing Type as None.

25.    Click OK and then click OK again.

26.    Right-click VLANs.

27.    Select Create VLANs.

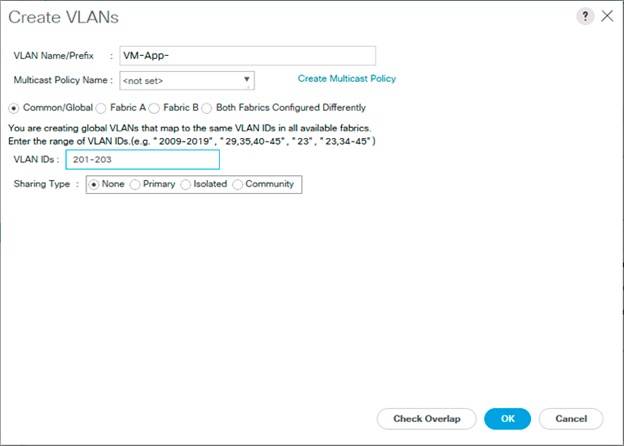

28.    Enter VM-App- as the prefix of the VLANs to be used for VM Traffic.

29.    Keep the Common/Global option selected for the scope of the VLAN.

30.    Enter the VM-Traffic VLAN ID range.

31.     Keep the Sharing Type as None.

32.    Click OK and then click OK again.

33.     Repeat as needed for any additional VLANs created on the upstream Nexus switches.

Create vNIC Templates

To create the multiple virtual network interface card (vNIC) templates for the Cisco UCS environment, follow the steps in this section.

Create Management vNICs

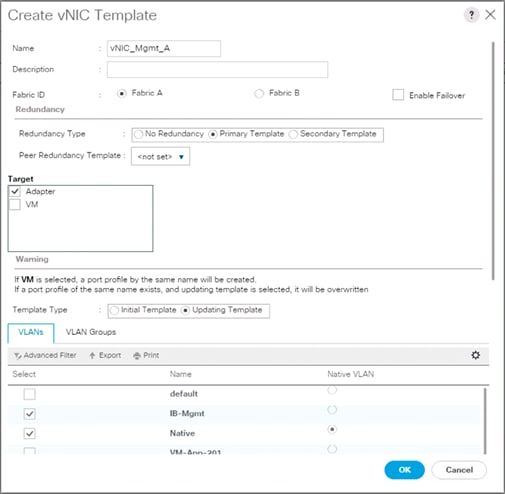

For the vNIC_Mgmt_A Template, follow these steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select Policies > root.

3.        Right-click vNIC Templates.

4.       Select Create vNIC Template.

5.        Enter vNIC_Mgmt_A as the vNIC template name.

6.       Keep Fabric A selected.

7.        Select Primary Template for the Redundancy Type.

8.       Leave Peer Redundancy Template as <not set>

9.       Under Target, make sure that the VM checkbox is not selected.

10.    Select Updating Template as the Template Type.

11.     Under VLANs, select the checkboxes for IB-Mgmt, vMotion, and Native VLANs.

12.    Set Native as the native VLAN.

13.     Leave vNIC Name selected for the CDN Source.

14.    For MTU, enter 9000.

15.     In the MAC Pool list, select MAC_Pool_A.

16.    In the Network Control Policy list, select Enable_CDP.

17.     Click OK to create the vNIC template.

18.    Click OK.

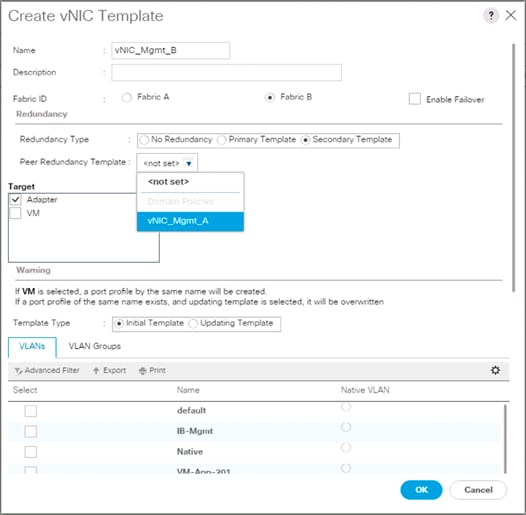

For the vNIC_Mgmt_B Template, follow these steps:

1.        In the navigation pane, select the LAN tab.

2.       Select Policies > root.

3.        Right-click vNIC Templates.

4.       Select Create vNIC Template

5.        Enter vNIC_Mgmt_B as the vNIC template name.

6.       Select Fabric B.

7.        Select Secondary Template for Redundancy Type.

8.       For the Peer Redundancy Template drop-down, select vNIC_Mgmt_A.

9.       Under Target, make sure the VM checkbox is not selected.

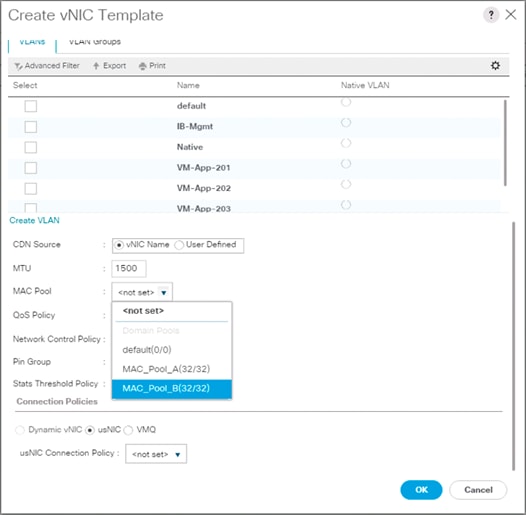

10.    In the MAC Pool list, select MAC_Pool_B.

11.     Click OK to create the vNIC template.

12.    Click OK.

Create Application vNICs

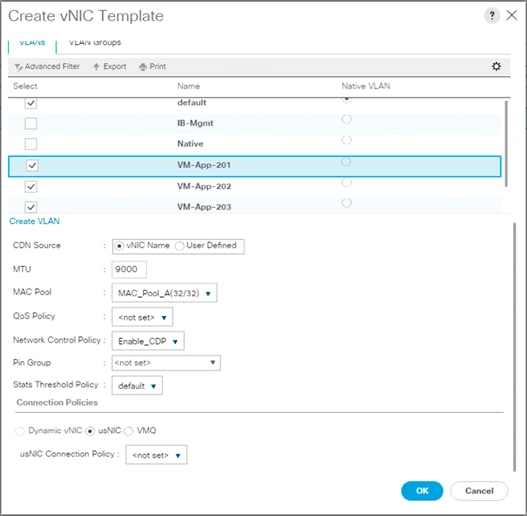

For the vNIC_App_A Template, follow these steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select Policies > root.

3.        Right-click vNIC Templates.

4.       Select Create vNIC Template.

5.        Enter vNIC_App_A as the vNIC template name.

6.       Keep Fabric A selected.

7.        Select Primary Template for the Redundancy Type.

8.       Leave Peer Redundancy Template as <not set>

9.       Under Target, make sure that the VM checkbox is not selected.

10.    Select Updating Template as the Template Type.

11.      Set default as the native VLAN.

12.    Under VLANs, select the checkboxes for any application or production VLANs that should be delivered to the ESXi hosts.

13.     For MTU, enter 9000.

14.    In the MAC Pool list, select MAC_Pool_A.

15.     In the Network Control Policy list, select Enable_CDP.

16.    Click OK to create the vNIC template.

17.     Click OK.

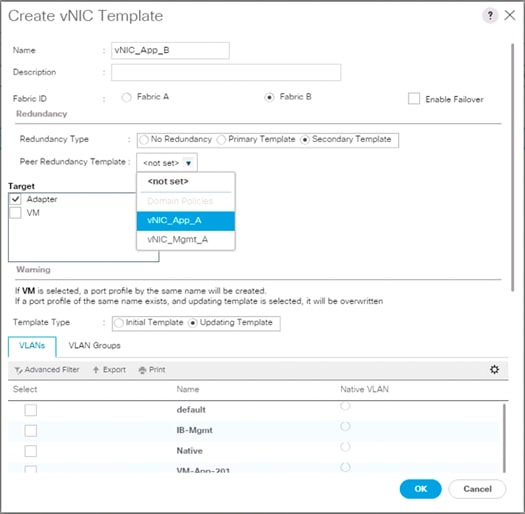

For the vNIC_App_B Template, follow these steps:

1.        In the navigation pane, select the LAN tab.

2.       Select Policies > root.

3.        Right-click vNIC Templates.

4.       Select Create vNIC Template

5.        Enter vNIC_App_B as the vNIC template name.

6.       Select Fabric B.

7.        Select Secondary Template for Redundancy Type.

8.       For the Peer Redundancy Template drop-down, select vNIC_App_A.

9.       Under Target, make sure the VM checkbox is not selected.

10.    In the MAC Pool list, select MAC_Pool_B.

11.     Click OK to create the vNIC template.

12.    Click OK.

Set Jumbo Frames in Cisco UCS Fabric

To configure jumbo frames and enable quality of service in the Cisco UCS fabric, follow these steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

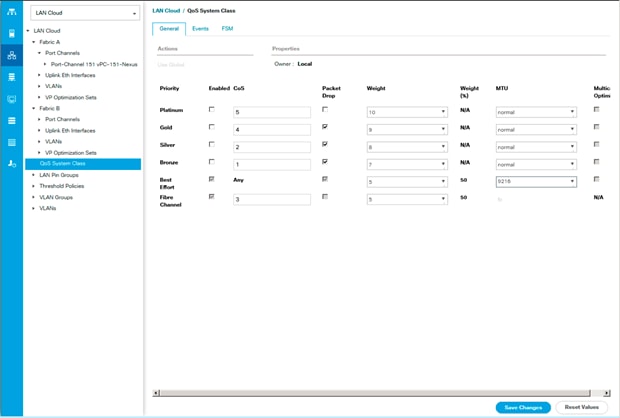

2.       Select LAN > LAN Cloud > QoS System Class.

3.        In the right pane, click the General tab.

4.       On the Best Effort row, enter 9216 in the box under the MTU column.

5.        Click Save Changes in the bottom of the window.

6.       Click OK

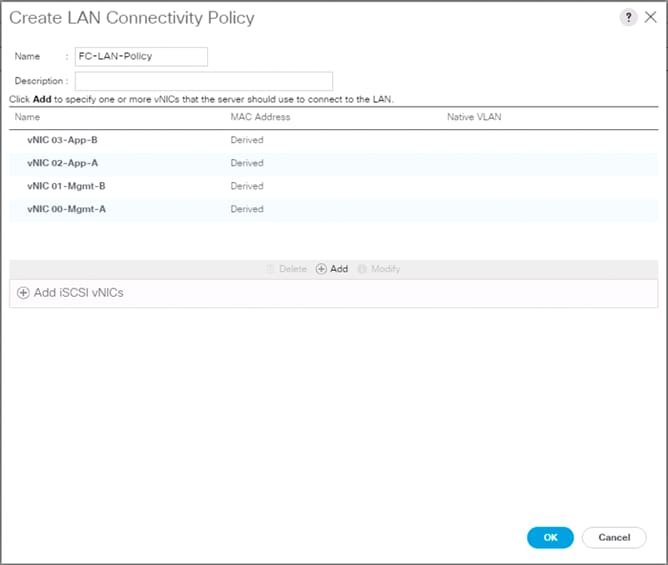

Create LAN Connectivity Policy

To configure the necessary Fibre Channel Infrastructure LAN Connectivity Policy, follow these steps:

1.        In Cisco UCS Manager, click the LAN tab in the navigation pane.

2.       Select LAN > Policies > root.

3.        Right-click LAN Connectivity Policies.

4.       Select Create LAN Connectivity Policy.

5.        Enter FC-LAN-Policy as the name of the policy.

6.       Click the upper Add button to add a vNIC.

7.        In the Create vNIC dialog box, enter 00-Mgmt-A as the name of the vNIC.

8.       Select the Use vNIC Template checkbox.

9.       In the vNIC Template list, select vNIC_Mgmt_A.

10.    In the Adapter Policy list, select VMWare.

11.     Click OK to add this vNIC to the policy.

12.    Click the upper Add button to add another vNIC to the policy.

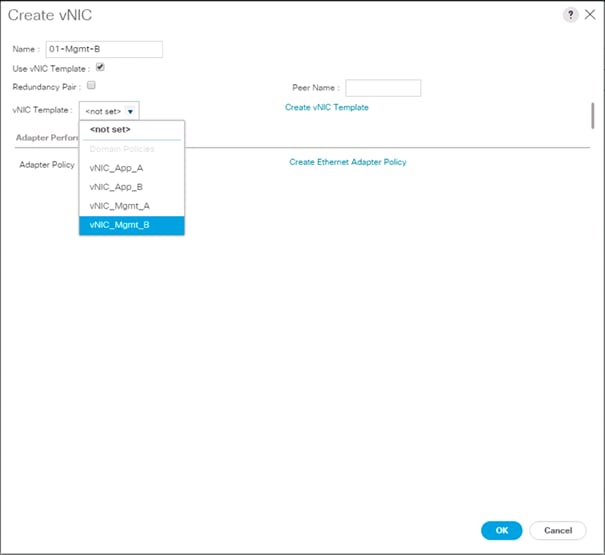

13.     In the Create vNIC box, enter 01-Mgmt-B as the name of the vNIC.

14.    Select the Use vNIC Template checkbox.

15.     In the vNIC Template list, select vNIC_Mgmt_B.

16.    In the Adapter Policy list, select VMWare.

17.     Click OK to add the vNIC to the policy.

18.    Click the upper Add button to add a vNIC.

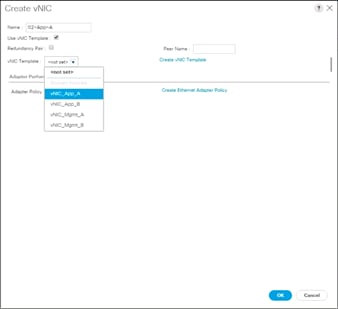

19.    In the Create vNIC dialog box, enter 02-App-A as the name of the vNIC.

20.    Select the Use vNIC Template checkbox.

21.    In the vNIC Template list, select vNIC_App_A.

22.    In the Adapter Policy list, select VMWare.

23.    Click OK to add this vNIC to the policy.



24.    Click the upper Add button to add a vNIC to the policy.

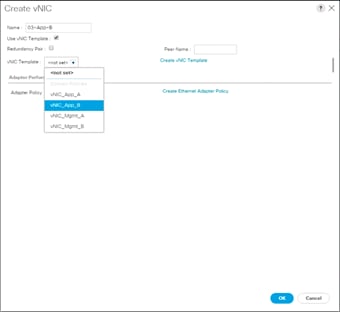

25.    In the Create vNIC dialog box, enter 03-App-B as the name of the vNIC.

26.    Select the Use vNIC Template checkbox.

27.    In the vNIC Template list, select vNIC_App_B.

28.    In the Adapter Policy list, select VMWare.

29.    Click OK to add this vNIC to the policy.

30.    Click OK to create the LAN Connectivity Policy.

31.     Click OK.

Configure FC SAN Connectivity

These Fibre Channel configuration steps will enable the provisioning of volumes to be used as datastores by the vSphere hosts, and the creation of Cisco UCS Service Profiles that will be configured to boot from Fibre Channel LUNs.

Create VSANs

To configure the necessary virtual storage area networks (VSANs) for the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click the SAN tab in the navigation pane.

2.       Select SAN > Storage Cloud.

3.        Right-click VSANs.

4.       Select Create Storage VSAN.

5.        Enter VSAN_A as the name of the VSAN to be used for Fabric A

6.       Select Enabled for FC Zoning.

7.        Select Fabric A.

8.       Enter a unique VSAN ID and a corresponding FCoE VLAN ID.  It is recommended use the same ID for both parameters and to use something other than 1.

9.       Click OK and then click OK again.

10.    Under Storage Cloud, right-click VSANs.

11.     Select Create Storage VSAN.

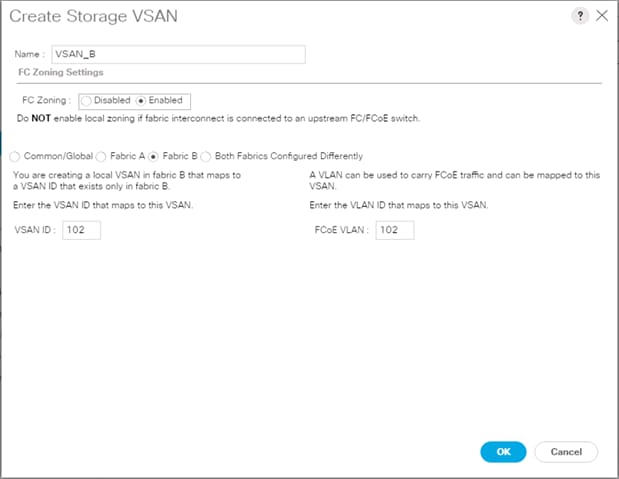

12.    Enter VSAN_B as the name of the VSAN to be used for Fabric B.

13.     Select Enabled for FC Zoning.

14.    Select Fabric B.

15.     Enter a unique VSAN ID and a corresponding FCoE VLAN ID.  It is recommended use the same ID for both parameters and to use something other than 1.

16.    Click OK and then click OK again.

Assign VSANs to FC Storage Ports

To assign storage VSANs to FC Storage Ports, follow these steps:

1.        In Cisco UCS Manager, click SAN.

2.       Select SAN > Storage Cloud.

3.        Expand Fabric A and Storage FC Interfaces.

4.       Select the first FC Interface.

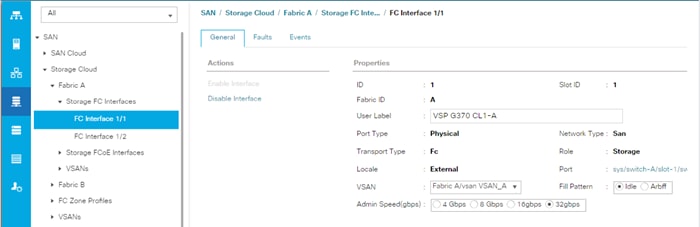

5.         For User Label, enter the storage controller name and port.

6.       From the drop-down list select VSAN VSAN_A.

7.        Adjust Admin Speed as appropriate for connections.

8.       Click Save Changes and OK.

9.       Repeat steps 5-8 for the second FC Interface.

10.    Within Storage Cloud, expand Fabric B and Storage FC Interfaces.

11.     Repeat steps 4 through 9 for the Fabric B interfaces, using VSAN_B.

Create vHBA Templates

To create the necessary virtual host bus adapter (vHBA) templates for the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click the SAN tab in the navigation pane.

2.       Select Policies > root.

3.        Right-click vHBA Templates.

4.       Select Create vHBA Template.

5.        Enter vHBA_Template_A as the vHBA template name.

6.       Keep Fabric A selected.

7.        Leave Redundancy Type as No Redundancy.

8.       Select VSAN_A.

9.       Leave Initial Template as the Template Type.

10.    Select WWPN_Pool_A as the WWPN Pool.

11.     Click OK to create the vHBA template.

12.    Click OK.

13.     Right-click vHBA Templates.

14.    Select Create vHBA Template.

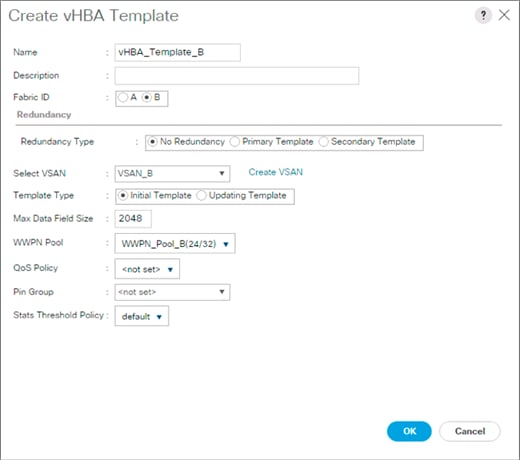

15.     Enter vHBA_Template_B as the vHBA template name.

16.    Select Fabric B as the Fabric ID.

17.     Leave Redundancy Type as No Redundancy.

18.    Select VSAN_B.

19.    Leave Initial Template as the Template Type.

20.    Select WWPN_Pool_B as the WWPN Pool.

21.    Click OK to create the vHBA template.

22.    Click OK.

Create SAN Connectivity Policy

To configure the necessary Infrastructure SAN Connectivity Policy, follow these steps:

1.        In Cisco UCS Manager, click the SAN tab in the navigation pane.

2.       Select SAN > Policies > root.

3.        Right-click SAN Connectivity Policies.

4.       Select Create SAN Connectivity Policy.

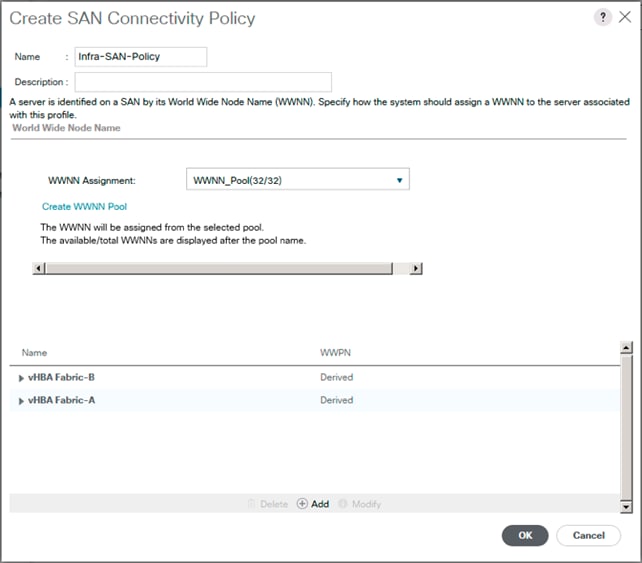

5.        Enter Infra-SAN-Policy as the name of the policy.

6.       Select the previously created WWNN_Pool for the WWNN Assignment.

7.        Click the Add button at the bottom to add a vHBA.

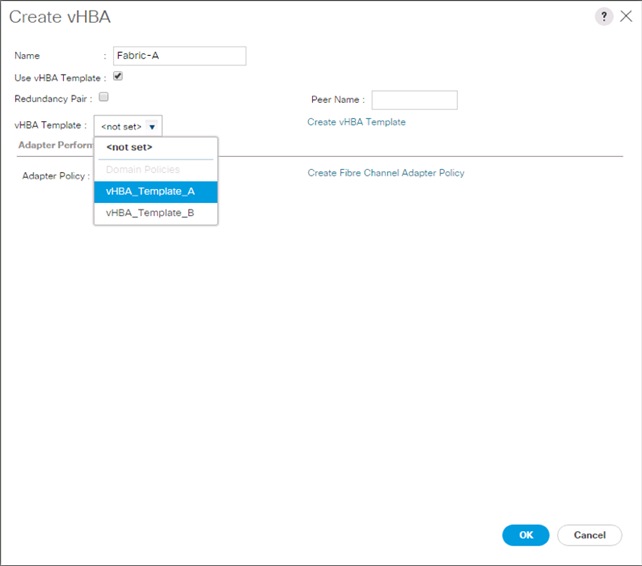

8.       In the Create vHBA dialog box, enter Fabric-A as the name of the vHBA.

9.       Select the Use vHBA Template checkbox.

10.    Leave Redundancy Pair unselected.

11.     In the vHBA Template list, select vHBA_Template_A.

12.    In the Adapter Policy list, select VMWare.

13.     Click OK.

14.    Click Add to add a second vHBA.

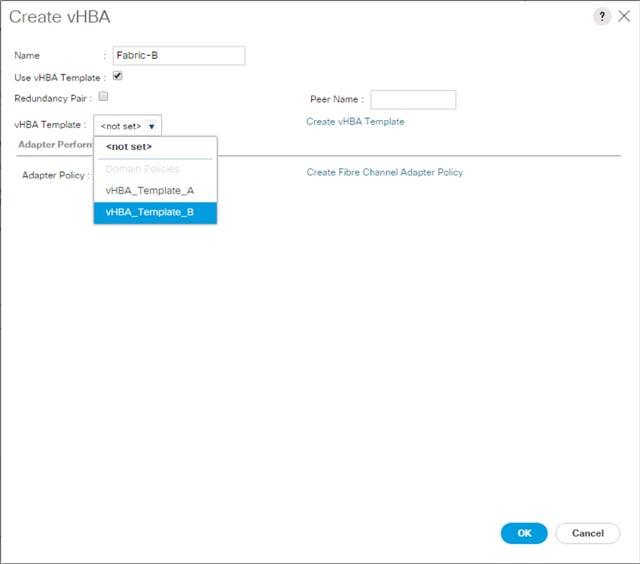

15.     In the Create vHBA dialog box, enter Fabric-B as the name of the vHBA.

16.    Select the Use vHBA Template checkbox.

17.     Leave Redundancy Pair unselected.

18.    In the vHBA Template list, select vHBA_Template_B.

19.    In the Adapter Policy list, select VMWare.

20.    Click OK.

21.    Click OK to create the SAN Connectivity Policy.

22.    Click OK to confirm creation.

Create Boot Policy

The VSP G370 target WWPN will need to be collected to provide the Cisco UCS Boot Policy.

These target WWPN can be collected directly from the VSP but running the show flogi database command from each FI will be fairly quick provided there is clear identification of the port cabling from the VSP ports to the FI ports.

Table 10   VSP G370 to FI Port Information Carried Forward

Using this table, it is possible to get the expected local port (VSP) to the FI port values.  With this information, the WWPN can be pulled out of the flogi to port connections on the respective FI.

Running the sh flogi database command on UCS FI A:

Running the sh flogi database command on UCS FI B:

Find the appropriate VSP G370 local ports for each fabric and record the values to be used for Primary and Secondary Boot Targets.  In the example lab environment flogi output, the FI Interface (FI Port) values in the previous table for this fabric have been cross referenced, and the WWPN(Port Name) for these interfaces are recorded.

Table 11   Fabric A Boot Targets for the VSP G370

Repeat these steps for the VSP G370 Fabric B Primary and Secondary Boot Targets:

Table 12   Fabric B Boot Targets for the VSP G370

To create boot policies for the Cisco UCS environment, follow these steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Policies > root.

3.        Right-click Boot Policies.

4.       Select Create Boot Policy.

5.        Enter Boot-FC-G370-A as the name of the boot policy.

6.       Optional: Enter a description for the boot policy.

7.        Expand the Local Devices drop-down list and select Add Remote CD/DVD.

8.       Expand the vHBAs drop-down list and select Add SAN Boot.

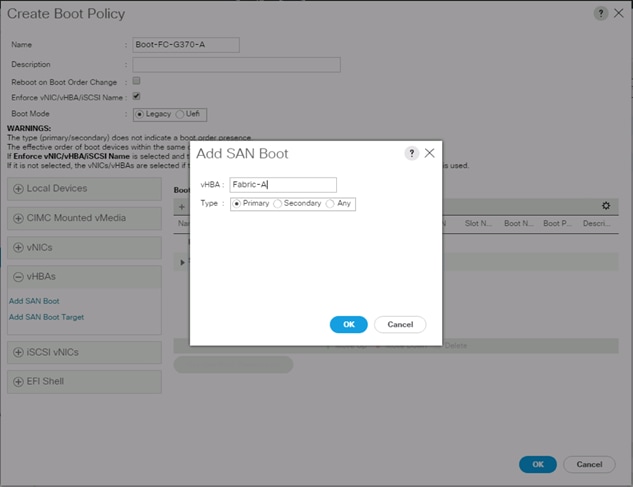

9.       In the Add SAN Boot dialog box, enter Fabric-A in the vHBA field.

10.    Confirm that Primary is selected for the Type option.

11.     Click OK to add the SAN boot initiator.

12.    From the vHBA drop-down list, select Add SAN Boot Target.

13.     Leave 0 as the value for Boot Target LUN.

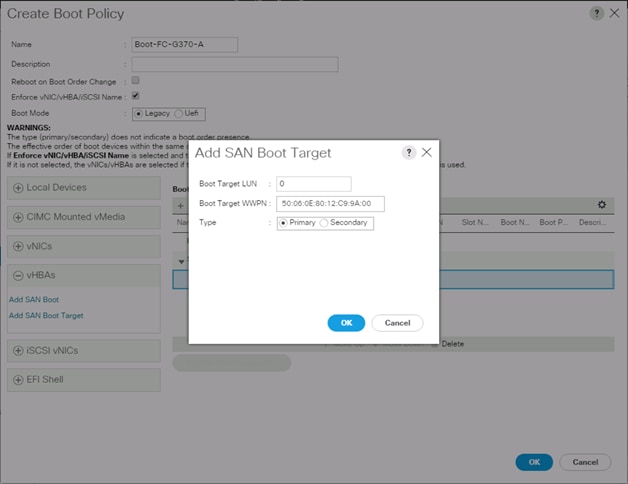

14.    Enter the WWPN for Controller1 (CL 1A) recorded in Table 11.

15.     Select Primary for the SAN boot target type.

16.    Click OK to add the SAN boot target.

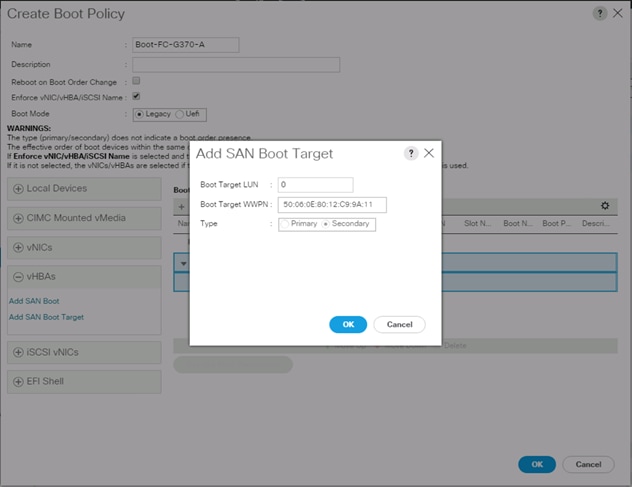

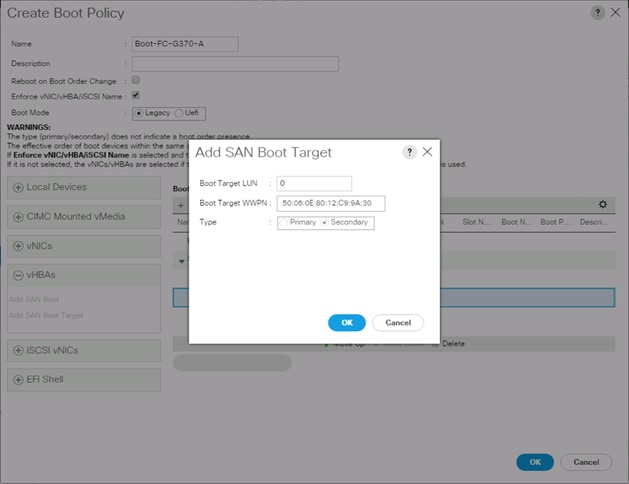

17.     From the vHBA drop-down list, select Add SAN Boot Target.

18.    Leave 0 as the value for Boot Target LUN.

19.    Enter the WWPN for Controller2 (CL 2B) recorded in Table 11  .

20.    Click OK to add the SAN boot target.

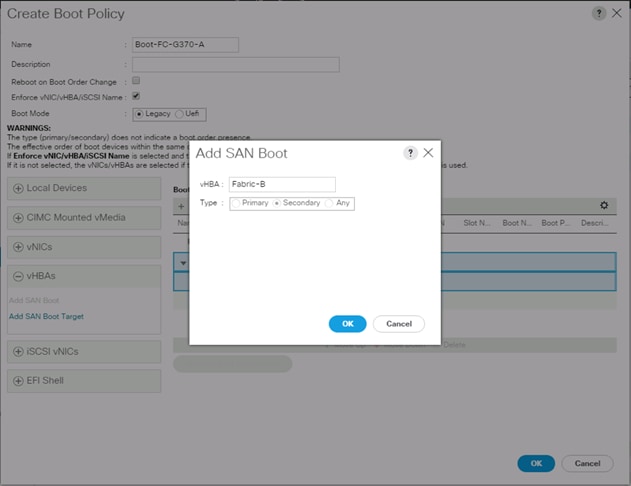

21.    From the vHBA drop-down list, select Add SAN Boot.

22.    In the Add SAN Boot dialog box, enter Fabric-B in the vHBA box.

23.    Click OK to add the SAN boot initiator.

24.    From the vHBA drop-down list, select Add SAN Boot Target.

25.    Leave 0 as the value for Boot Target LUN.

26.    Enter the WWPN for Controller1 (CL 3B) recorded in Table 12  .

27.    Select Primary for the SAN boot target type.



28.    Click OK to add the SAN boot target.

29.    From the vHBA drop-down list, select Add SAN Boot Target.

30.    Enter 0 as the value for Boot Target LUN.

31.     Enter the WWPN for Controller2 (CL 4A) recorded in Table 12.

32.    Click OK to add the SAN boot target.

33.     Expand CIMC Mounted vMedia and select Add CIMC Mounted CD/DVD.

34.    Click OK, then click OK again to create the boot policy.

Create Service Profile Template

In this procedure, one service profile template for Infrastructure ESXi hosts is created for fabric A boot.

To create the service profile template, follow these steps:

1.        In Cisco UCS Manager, click the Servers tab in the navigation pane.

2.       Select Service Profile Templates > root.

3.        Right-click root.

4.       Select Create Service Profile Template to open the Create Service Profile Template wizard.

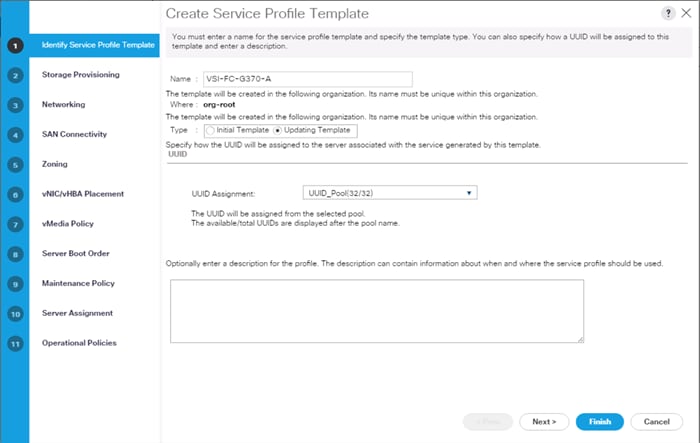

5.        Enter VSI-FC-G370-A as the name of the service profile template. This service profile template is configured to boot from VSP G370 controller 1 on fabric A.

6.       Select the “Updating Template” option.

7.        Under UUID, select UUID_Pool as the UUID pool.

8.       Click Next.

Configure Storage Provisioning

To configure the storage provisioning, follow these steps:

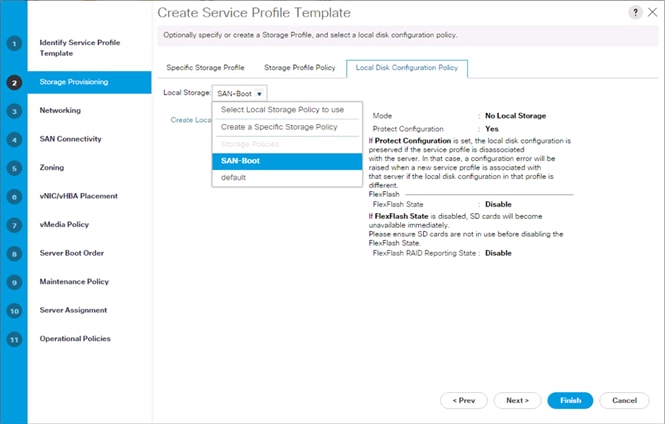

1.        If you have servers with no physical disks, click the Local Disk Configuration Policy tab and select the SAN-Boot Local Storage Policy. Otherwise, select the default Local Storage Policy.

2.       Click Next.

Configure Networking Options

To configure the network options, follow these steps:

1.        Keep the default setting for Dynamic vNIC Connection Policy.

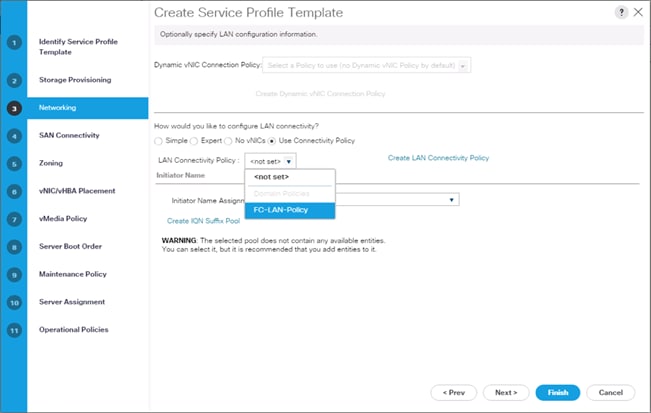

2.       Select the “Use Connectivity Policy” option to configure the LAN connectivity.

3.        Select FC-LAN-Policy from the LAN Connectivity Policy drop-down list.

4.       Click Next.

Configure Storage Options

To configure the storage options, follow these steps:

1.        Select the Use Connectivity Policy option for the “How would you like to configure SAN connectivity?” field.

2.       Pick the Infra-SAN-Policy option from the SAN Connectivity Policy drop-down list.

3.        Click Next.

Configure Zoning Options

1.        Leave Zoning configuration unspecified unless VSP ports exceed the number of boot targets created and a Storage Connection Policy has been created, click Next.

Configure vNIC/HBA Placement

1.        In the “Select Placement” list, leave the placement policy as “Let System Perform Placement.”

2.       Click Next.

Configure vMedia Policy

1.        Do not select a vMedia Policy.

2.       Click Next.

Configure Server Boot Order

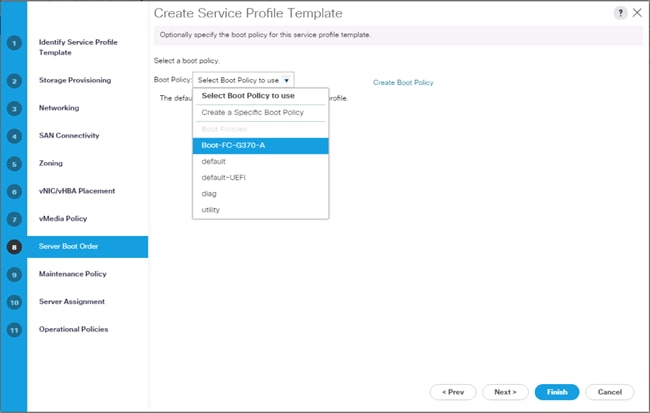

1.        Select Boot-FC-G370-A for Boot Policy.

2.       Click Next to continue to the next section.

Configure Maintenance Policy

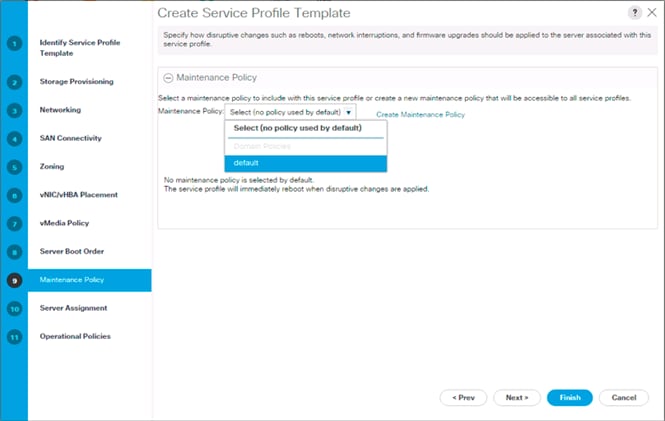

1.        Change the Maintenance Policy to default.

2.       Click Next.

Configure Server Assignment

To configure server assignment, follow these steps:

1.        In the Pool Assignment list, select Infra_Pool.

2.       Optional: Select a Server Pool Qualification policy.

3.        Select Up as the power state to be applied when the profile is associated with the server.

4.       Optional: Select “UCS-B200M5” for the Server Pool Qualification.

5.        Click Next.

Configure Operational Policies

To configure the operational policies, follow these steps:

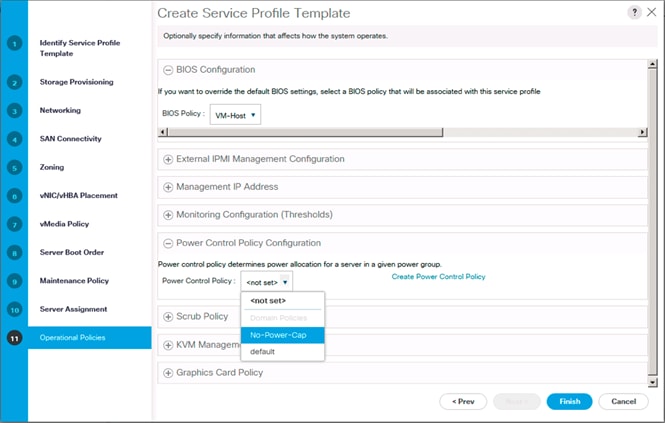

1.        In the BIOS Policy list, select VM-Host.

2.       Expand Power Control Policy Configuration and select No-Power-Cap in the Power Control Policy list.



3.        Click Finish to create the service profile template.

4.       Click OK in the confirmation message.

Create vMedia Service Profile Template

If the optional vMedia Policy is being used, a clone of the service profile template created above will be made to reference this vMedia Policy in these steps.  The clone of the service profile template will have the vMedia Policy configured for it, and service profiles created from it, will be unbound and re-associated to the original service profile template after ESXi installation.

To create a clone of the VSI-FC-G370-A service profile template, and associate the vMedia Policy to it, follow these steps:

1.        Connect to Cisco UCS Manager, click Servers.

2.       Select Service Profile Templates > root > Service Template VSI-FC-G370-A.

3.        Right-click Service Template VM-Host-FC-A and select Create a Clone.

4.       Name the clone VSI-FC-G370-A-vM and click OK.

5.        Select Service Template VSI-FC-G370-A-vM.

6.       Select the vMedia Policy tab.

7.        Under Actions, select Modify vMedia Policy.

8.       From the drop-down list, select the ESXi-6.7U1-HTTP vMedia Policy.

9.       Click OK then click OK again to complete modifying the Service Profile Template.

Create Service Profiles

To create service profiles from the service profile template, follow these steps:

1.        Connect to the UCS 6454 Fabric Interconnect UCS Manager, click the Servers tab in the navigation pane.

2.       Select Service Profile Templates > root > Service Template VSI-FC-G370-A-vM.

3.        Right-click VSI-FC-G370-A-vM and select Create Service Profiles from Template.

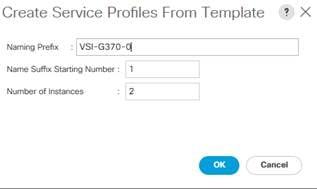

4.       Enter VSI-G370-0 as the service profile prefix.

5.        Leave 1 as “Name Suffix Starting Number.”

6.       Leave 2 as the “Number of Instances.”

7.        Click OK to create the service profiles.

8.       Click OK in the confirmation message to provision two Service Profiles.

Configuration steps in this section assume that parity groups and LDEVs have been configured on the Hitachi VSP as part of the solution build/configuration by a partner or Hitachi professional services. If parity groups have not been configured on the Hitachi VSP, please reference the Hitachi Storage Virtualization Operating System documentation for creating parity groups before continuing with this section.

Create a Hitachi Dynamic Provisioning Pool for UCS Server Boot LDEVs

To begin the provisioning process to create the Boot LDEVs that will be used as boot LUNs, follow these steps:

1.        Log into Hitachi Storage Navigator.

2.       From the left Explorer pane select the Storage Systems tab.

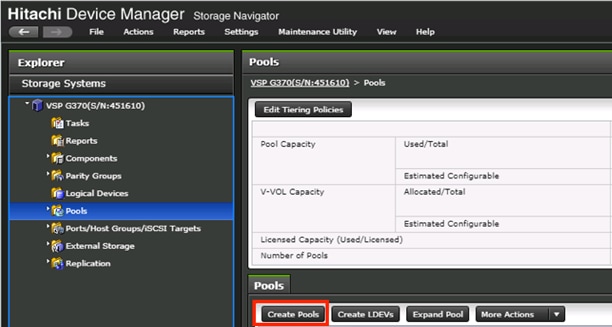

3.        Expand the storage system being configured. Highlight the Pools element in the navigation tree and click Create Pools to instantiate the Create Pools dialog box.

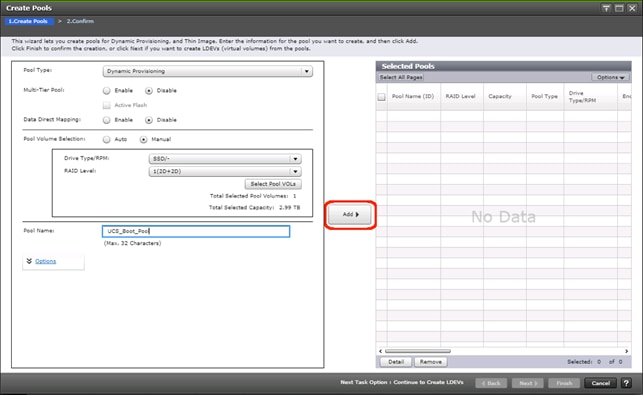

4.       Configure the following items in the left pane of the Create Pools dialog box:

                          a.      Pool Type: Dynamic Provisioning

                         b.      System Type: Open  [Only an option when configuring the G1500]

                          c.      Multi-Tier Pool: Disable

                         d.      Data Direct Mapping: Disable

                         e.      Pool Volume Selection: Manual

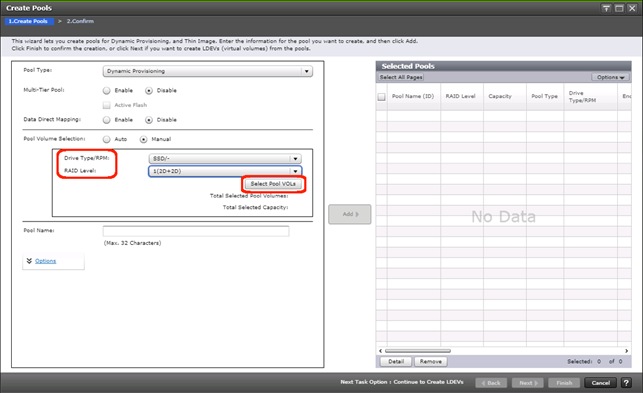

5.        Select the Drive Type/RPM and RAID Level desired for the UCS server boot LDEV backing pool using the drop-down lists and click Select Pool VOLs to instantiate the Select Pool VOLs dialog box.

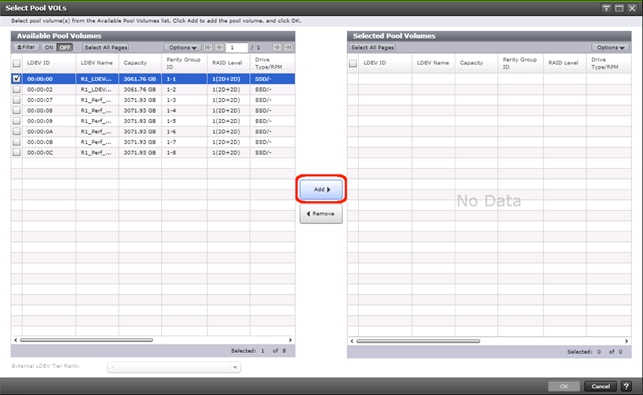

6.       Within the left pane of the Select Pool VOLs dialog box, select the checkbox next to the LDEVs to be used for the UCS server boot LDEV dynamic provisioning pool.

7.        Click Add to move the selected LDEV to the right pane of the dialog, then click OK to return to the Create Pools dialog box.

8.       You should now see values for Total Selected Pool Volumes and Total Selected Capacity shown under the Select Pool VOLs button. Give the dynamic provisioning pool a descriptive Pool Name, then click Add to add the pool to be created to the Selected Pools pane in the dialog.

9.       Click Finish.

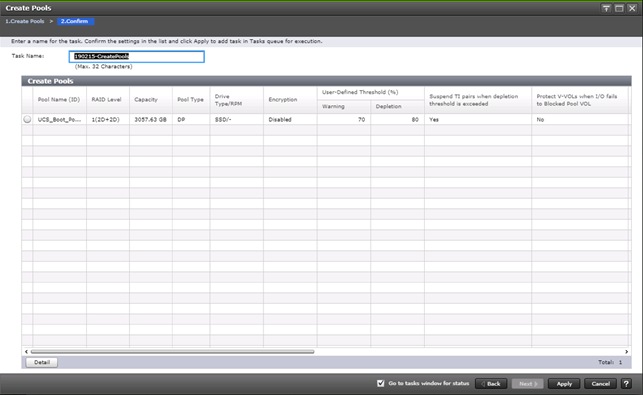

10.    Review the configuration for the pool to be created in the Create Pools confirmation dialog box and ensure the Go to tasks window for status checkbox is checked, then click Apply.

11.     The tasks status window will appear, wait for the task status to show complete before moving onto the next step.

Create a Hitachi Dynamic Provisioning Pool for UCS Server VMFS Volume LDEVs

Follow the steps in section Create a Hitachi Dynamic Provisioning Pool for UCS Server Boot LDEVs to create the dynamic provisioning pool for the UCS Server VMFS volume LDEVs, selecting the Drive Type/RPM, RAID Level, and number of Pool VOLs desired for the pool backing the VMFS volumes in the solution.

Create Host Groups for Cisco UCS Server vHBAs on Each Fabric

An individual host group must be created on each physical fibre channel port on the VSP for each vHBA attached to its respective fabric. The number of host groups created will depend on the number of paths per LDEV. Ensure you have documented the specific ports on each fabric being used on the VSP, their WWNs, and each vHBA WWPN before you proceed with this section and ensure that all initiators for the UCS Service Profiles you will be creating host groups for are showing as logged into the respective VSP fibre channel ports by following the steps below.

To create Host Groups for UCS server vHBAs on each fabric, follow these steps:

1.        From the Explorer pane within Hitachi Storage Navigator, select the Storage Systems tab and expand the storage system being configured.

2.       Highlight the Ports/Host Groups/iSCSI Targets element in the navigation tree and select the Login WWNs/iSCSI Names tab.

3.        Review the list of WWNs and associated ports. You should be able to see each vHBA assigned to each fabric associated with each port on the VSP that it is zoned to.

4.       Click the column names to sort the information to make this task easier or utilize the Filter feature to limit the number of records displayed. If any vHBA WWNs do not show in the list, go back and double check the zoning configuration on the FI.

5.        With the Ports/Host Groups/iSCSI Targets element in the navigation tree still selected, click the Host Groups/iSCSI Targets tab.

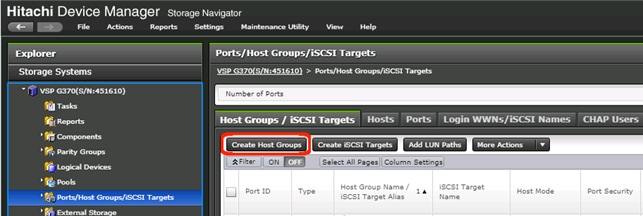

6.       Click Create Host Groups to instantiate the Create Host Groups dialog box.

7.        Host groups will be created separately for fabric A and fabric B vHBAs. Start with the fabric A host group for an individual UCS Service Profile and modify the following within the Create Host Groups dialog box:

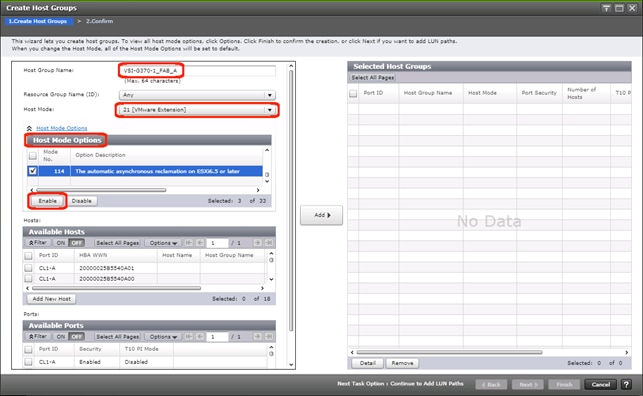

                          a.      Host Group Name: Provide a descriptive name for the host and ensure there is an identifier for the fabric you are configuring (i.e., VSI-G370-1_Fab_A)

                         b.      Host Mode: Select 21 [VMware Extension] from the drop-down list.

                          c.      Host Mode Options: For each of the following Host Mode Options, find the Mode Number in the pane, select the checkbox, and click the Enable button:

                                        i.     54 – (VAAI) Support Option for the EXTENDED COPY command

                                       ii.     63 – (VAAI) Support option for vStorage APIs based on T10 standards

                                     iii.     114 – The automatic asynchronous reclamation on ESXi6.5 or later

8.       Write down the WWN information from Table 11  and Table 12  in the previous Create Device Aliases section:

Table 13   Fabric A Targets and Initiators

Table 14   Fabric B Targets and Initiators

9.       Scroll down in the Create Host Groups dialog.

10.    Within the Available Hosts section, click Filter.

11.     Create an Attribute/Value filter of:

-        HBA WWN

-        Using “contains” as a qualifier

-        Using the last four characters of the Fabric A initiator for the host

12.    Click Apply.

13.     Click Filter again to hide the filter rules dialog box.

14.    Select the checkbox for the first port shown in the filtered list within the Available Hosts section.

15.     Within the Available Ports section, check the checkboxes for all ports zoned to the host within Fabric A only.

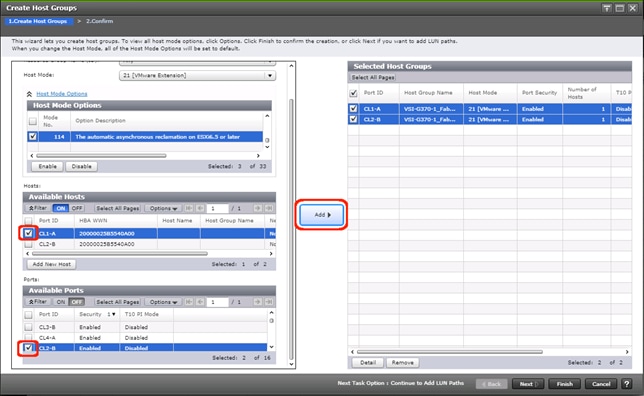

16.    Click Add, then click Finish.

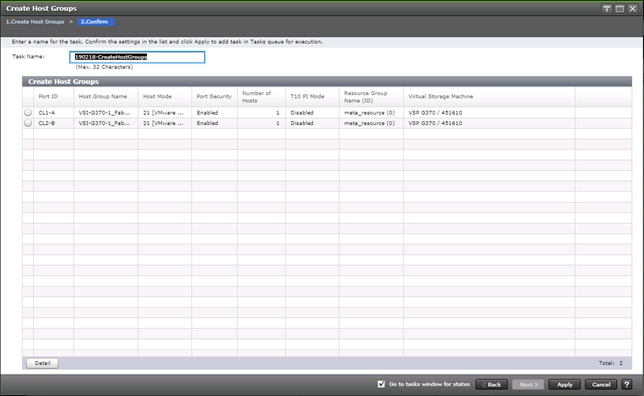

17.     Review the host group configuration for the Fabric A host groups for the UCS Service Profile being configured.

18.    Click Apply.

19.    Repeat steps 1-18 to create the host groups for all remaining initiator WWN from the Fabric A and Fabric B tables above, using a descriptive name for the host on Fabric A/B, the vHBA WWN on Fabric A/B for the UCS Service Profile, and the associated Fabric A/B ports on the Hitachi VSP.

Create Boot LDEVs for Each UCS Service Profile and Add LDEV Paths

Individual boot LDEVs must be created for each UCS Service Profile for the ESXi hypervisor to be installed onto. Prior to beginning these steps, ensure you have identified the fibre channel ports on the Hitachi VSP that will be used for presentation of the boot LDEVs to the UCS servers. Please note that a maximum of four paths can be used within the UCS Service Profile (two on each fabric) as boot targets.

To create boot LDEVs for each UCS service profile and add LDEV paths, follow these steps:

1.        From the left Explorer pane within Hitachi Storage Navigator, select the Storage Systems tab and expand the storage system being configured.

2.       Expand the Pools element in the navigation tree and highlight the UCS Boot pool previously created for use as the backing storage for the UCS boot LDEVs.

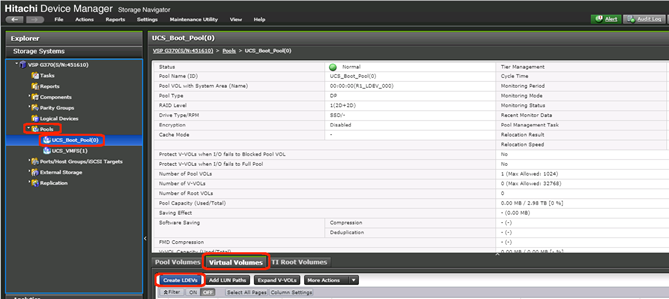

3.        Select the Virtual Volumes tab and click Create LDEVs to instantiate the Create LDEVs dialog.

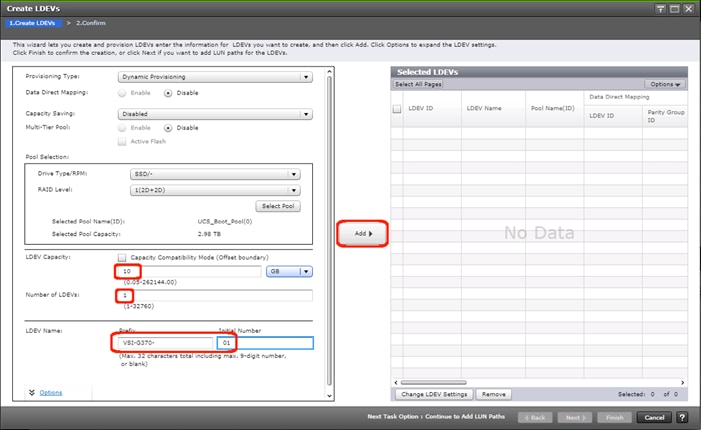

4.       Modify the following within the Create LDEVs dialog:

-        LDEV Capacity: Enter the capacity desired for the UCS Service Profile boot LDEV. Note that ESXi requires a minimum of 5.2GB for a boot LDEV as documented by VMware.

-        Number of LDEVs: 1

-        LDEV Name: Provide a descriptive name and numeric identifier for the boot LDEV. For ease of identification, it is recommended that the server name or other identifier specific to the service profile being configured be entered in the Prefix field.

5.        Click Add and verify that the boot LDEV is listed in the right-hand Selected LDEVs pane, then click Next.

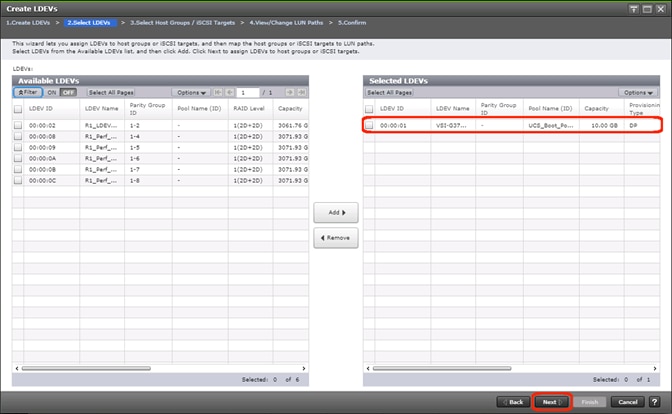

The Select LDEVs screen shows the selected LDEVs to which the paths will be added.

6.       Ensure the newly created boot LDEV is the only LDEV in the Selected LDEVs pane, then click Next.

7.        The Select Host Groups/iSCSI Targets screen shows all of the host groups that can be assigned to the boot LDEV as a path.

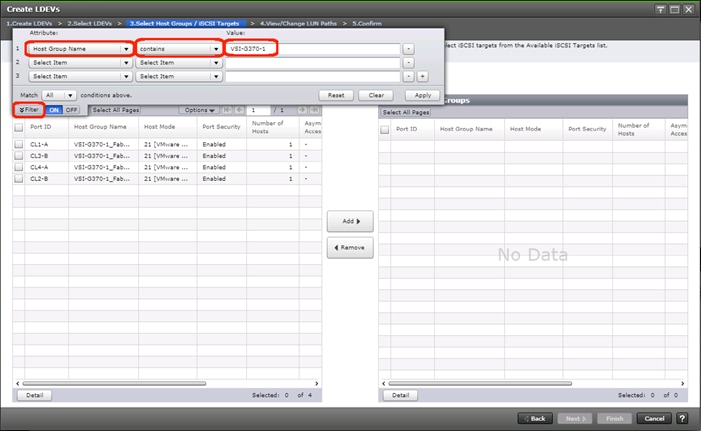

8.       Click Filter, then create an Attribute/Value filter:

-        Host Group Name

-        Using “contains” as a qualifier

-        <value which contains text unique to UCS server profile>

9.       Click Apply.

10.    Click Filter again to hide the filter rules dialog box.

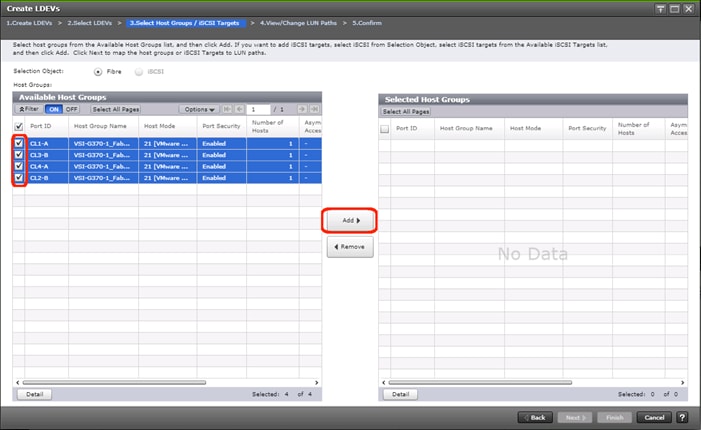

11.     Select the checkboxes for the ports being used as boot LDEV paths in your configuration. Depending on the pathing design used, you may have fewer than four paths for the boot LDEV, but there should be a minimum of one path per fabric used.

12.    Click the Add to populate the Selected Host Groups pane with the selected host groups, then click Next.

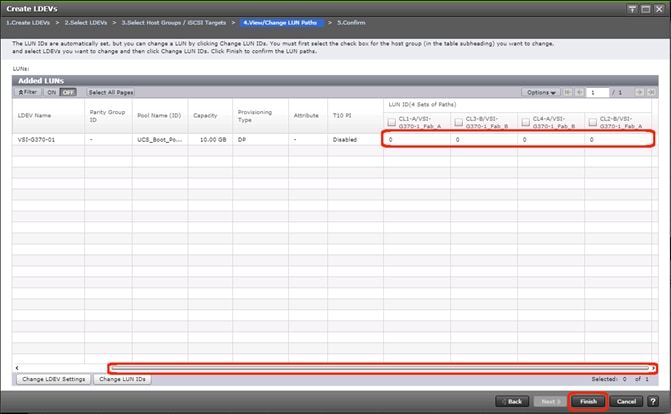

13.     The View/Change LUN Paths screen shows the LDEV you are adding paths to and the associated host LUN ID that will be presented to the host on a per path basis.

14.    Use the scrollbar at the bottom of this screen to review the LUN ID assigned and ensure that all LUN IDs are set to zero, then click Finish.

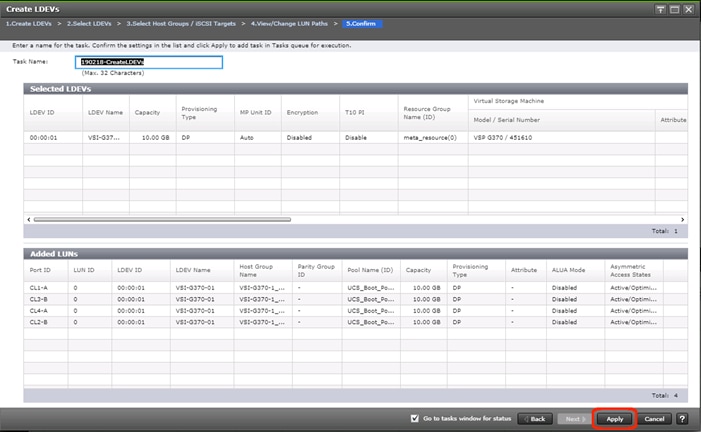

15.     Review the LDEV details and LUN ID configuration of the boot LDEV being created, then click Apply to create the LDEV and add paths to the UCS Service Profile.

16.    Repeat steps 1-15 to create the boot LDEVs and to assign paths for all other UCS Service Profiles, using a unique LDEV name and associated Host Group Name associated to each UCS Service Profile.

Create Shared VMFS LDEVs and Add LDEV Paths

VMFS LDEVs need to be created for shared VMFS volumes used for virtual machine storage across multiple ESXi servers which share resources within a vSphere cluster. Prior to beginning these steps, ensure you have identified the fibre channel ports on the Hitachi VSP that will be used for presentation of the VMFS LDEVs to the UCS servers. Depending on the pathing design you are using, additional or fewer paths may be configured as compared to the steps below.

To create shared VMFS LDEVs and add LDEV paths, follow these steps:

1.        From the left Explorer pane within Hitachi Storage Navigator, select the Storage Systems tab and expand the storage system being configured.

2.       Expand the Pools element in the navigation tree and highlight the pool previously created for use as the backing storage for VMFS volumes, select the Virtual Volumes tab and click Create LDEVs to instantiate the Create LDEVs dialog.

3.        Modify the following within the Create LDEVs dialog:

-        LDEV Capacity: Enter the capacity desired for the VMFS LDEV.

-        Number of LDEVs: 1

-        LDEV Name: Provide a descriptive name and numeric identifier for the VMFS LDEV. For ease of identification, it is recommended that the cluster name or other identifier specific to the VMFS volume being configured be entered in the Prefix field.

4.       Click Add and verify that the VMFS LDEV is listed in the right-hand Selected LDEVs pane, then click Next.

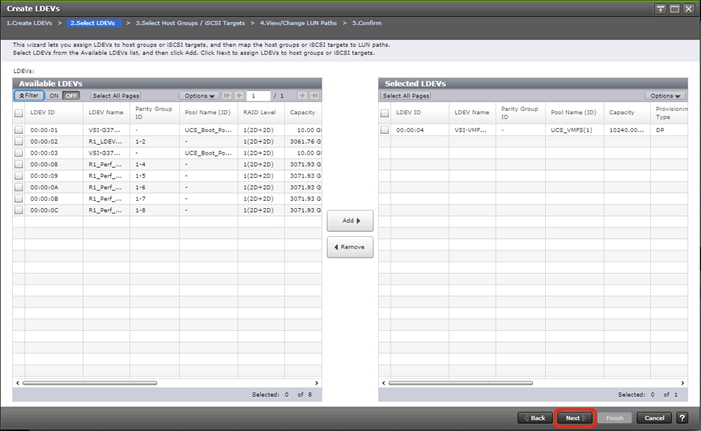

5.        The Select LDEVs screen shows the selected LDEVs to which the paths will be added.

6.       Ensure the newly created VMFS LDEV is the only LDEV in the Selected LDEVs pane, then click Next.

7.        The Select Host Groups/iSCSI Targets screen shows all of the host groups that can be assigned to the VMFS LDEV as a path.

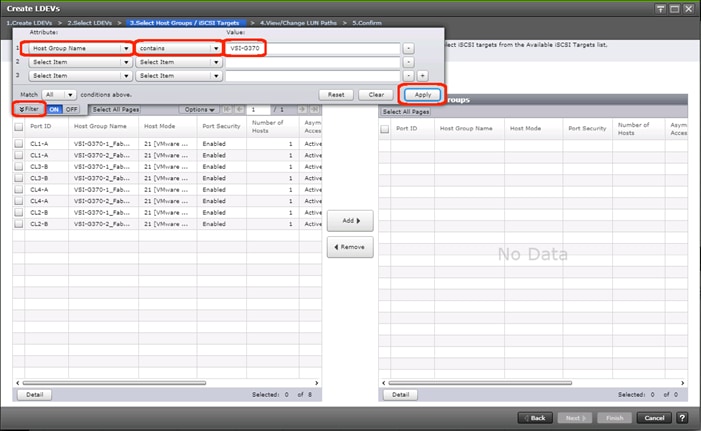

8.       Click Filter, then create multiple Attribute/Value:

-        Host Group Name

-        Using “contains” as a qualifier

-        <value which contains text unique to UCS server profiles to use the VMFS volume>

9.       Click Apply.

10.    Click Filter again to hide the filter rules dialog box.

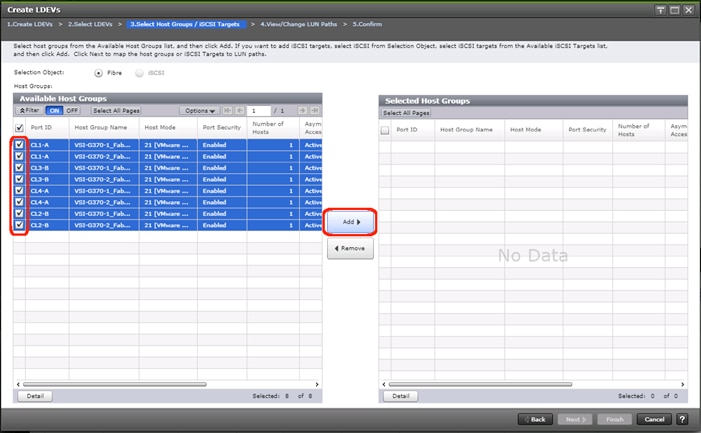

11.     Select the checkboxes for the ports being used as VMFS LDEV paths in your configuration.

12.    Click Add to populate the Selected Host Groups pane with the selected host groups, then click Next.

13.     The View/Change LUN Paths screen shows the LDEV you are adding paths to and the associated host LUN ID that will be presented to the host on a per path basis.

14.    Use the scrollbar at the bottom of this screen to review the LUN ID assigned and ensure that all LUN IDs are set to a consistent value other than zero for all paths.

15.     Ensure you use the scrollbar at the bottom of the dialog to double-check that all Host LUN IDs are set consistently across all paths.

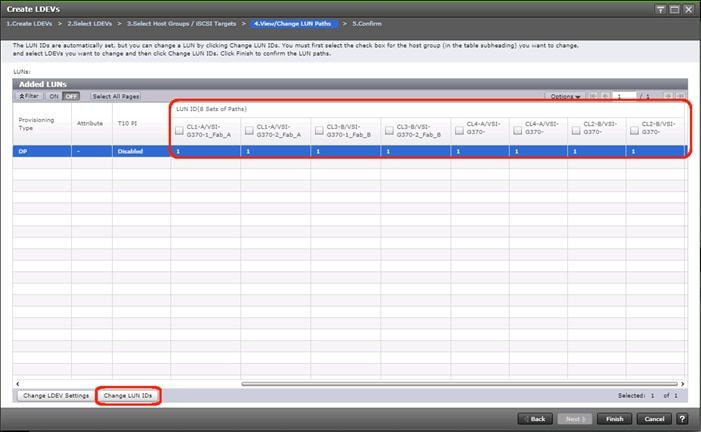

16.    To do this, select the checkbox for all ports/paths listed, select the checkbox for the LDEV ID, then click Change LUN IDs.

17.     The Change LUN IDs dialog will appear; enter the next Host LUN ID available across all paths, then click Finish.

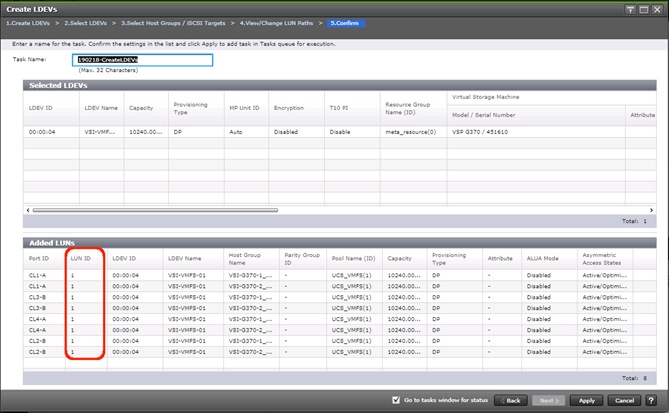

18.    Review the LDEV details and LUN ID configuration of the VMFS LDEV being created.

19.    Click Apply to create the LDEV and add paths to the UCS Service Profiles which will share this LDEV as a VMFS volume.

20.    Repeat steps 1-18 to create additional shared VMFS LDEVs and to assign paths for all UCS Service Profiles which will share access to the VMFS LDEVs used for VMFS volumes.

This section explains how to install VMware ESXi 6.7 U1 in the environment.

Several methods exist for installing ESXi in a VMware environment. These procedures focus on how to use the built-in keyboard, video, mouse (KVM) console and virtual media features in Cisco UCS Manager to map remote installation media to individual servers and connect to their boot logical unit numbers (LUNs).

Download Cisco Custom Image for ESXi 6.7 U1

The VMware Cisco Custom Image is required during the installation by manual access to the UCS KVM vMedia, or through a vMedia Policy covered in a previous subsection.  If the Cisco Custom Image was not downloaded during the vMedia Policy setup, download it by following these steps:

1.        To download the image, click this link: VMware vSphere Hypervisor Cisco Custom Image (ESXi) 6.7 U1.

2.       You will need a user id and password on vmware.com to download this software.

3.        Download the .iso file.

Log into Cisco UCS 6454 Fabric Interconnect

The IP KVM enables the administrator to begin the installation of the operating system (OS) through remote media. It is necessary to log in to the UCS environment to run the IP KVM.

To log into the Cisco UCS environment, follow these steps:

1.        Open a web browser to https:// <<var_ucs_mgmt_vip>>

2.       Select the Launch UCS Manager Section in the HTML section to pull up the UCSM HTML5 GUI.

3.        Enter admin for the Username, and provide the password used during setup.

4.       Click Servers -> Service Profiles and select the first host provisioned, which should be named VSI-FC-G370-1.

5.        Click Reset to ensure that the boot LUN is properly recognized by the UCS Service Profile.

6.       Click the KVM Console option within Actions and accept the KVM server certificate in the new window or browser tab that is spawned for the KVM session.

7.        Click the link within the new window or browser tab to load the KVM client application.

Set Up VMware ESXi Installation

To prepare the server for the OS installation, follow these steps on each ESXi host:

1.        In the KVM window, click Virtual Media icon  in the upper right of the screen.

2.       Click Activate Virtual Devices

3.        Click Virtual Media again and select Map CD/DVD.

4.       Browse to the ESXi installer ISO image file and click Open.

5.        Click Map Device.

6.       Click the KVM tab to monitor the server boot.

7.        Boot the server by selecting Boot Server and clicking OK, then click OK again.

Install ESXi

To install VMware ESXi to the FC bootable LUN of the hosts, follow these steps on each host:

1.        On reboot, the machine detects the presence of the ESXi installation media. Select the ESXi installer from the boot menu that is displayed.

2.       After the installer is finished loading, press Enter to continue with the installation.

3.        Read and accept the end-user license agreement (EULA). Press F11 to accept and continue.

4.       Select the Boot LUN (10.00 GiB) that was previously set up as the installation disk for ESXi and press Enter to continue with the installation.

5.        Select the appropriate keyboard layout and press Enter.

6.       Enter and confirm the root password and press Enter.

7.        The installer issues a warning that the selected disk will be repartitioned. Press F11 to continue with the installation.

8.       After the installation is complete, if using locally mapped Virtual Media, click the Virtual Media tab and clear the checkmark next to the ESXi installation media. Click Yes.

9.       From the KVM window, press Enter to reboot the server.

Set Up Management Networking for ESXi Hosts

Adding a management network for each VMware host is necessary for managing the host. To add a management network for the VMware hosts, follow these steps on each ESXi host:

1.        After the server has finished rebooting, press F2 to customize the system.

2.       Log in as root, enter the corresponding password, and press Enter to log in.

3.        (Optional)Select Troubleshooting Options and press Enter.

4.       (Optional)Press Enter for Enable ESXi Shell.

5.        (Optional)Scroll to Enable SSH and press Enter.

6.       (Optional)Press Esc to return to the main menu.

7.        Select the Configure Management Network option and press Enter.

8.       Select Network Adapters option leave vmnic0 selected, arrow down to vmnic1 and press space to select vmnic1 as well and press Enter.

9.       Select the VLAN (Optional) option and press Enter.

10.    Enter the <<var_ib_mgmt_vlan_id>> and press Enter.

11.     From the Configure Management Network menu, select IPv4 Configuration and press Enter.

12.    Select the Set Static IP Address and Network Configuration option by using the space bar.

13.     Enter <<var_vm_host_infra_01_ip>> for the IPv4 Address for managing the first ESXi host.

14.    Enter <<var_ib_mgmt_vlan_netmask_length>> for the Subnet Mask for the first ESXi host.

15.     Enter <<var_ib_gateway_ip>> for the Default Gateway for the first ESXi host.

16.    Press Enter to accept the changes to the IPv4 configuration.

17.     Select the DNS Configuration option and press Enter.

18.    Enter the IP address of <<var_nameserver_ip>> for the Primary DNS Server.

19.    Optional: Enter the IP address of the Secondary DNS Server.

20.    Enter the fully qualified domain name (FQDN) for the first ESXi host.

21.    Press Enter to accept the changes to the DNS configuration.

22.    Select the IPv6 Configuration option and press Enter.

23.    Using the spacebar, select Disable IPv6 (restart required) and press Enter.

24.    Press Esc to exit the Configure Management Network submenu.

25.    Press Y to confirm the changes and return to the main menu.

26.    The ESXi host reboots. After reboot, press F2 and log back in as root.

27.    Select Test Management Network to verify that the management network is set up correctly and press Enter.

28.    Press Enter to run the test.

29.    Press Enter to exit the window, and press Esc to log out of the VMware console.

30.    Repeat steps 1-29 for additional hosts provisioned, using appropriate values.

Log into VMware ESXi Hosts by Using VMware Host Client

To log into the esxi-x (x is server number 1-8) ESXi host by using the VMware Host Client, follow these steps:

1.        Open a web browser on the management workstation and navigate to the esxi-x management IP address. Respond to any security prompts.

2.       Enter root for the user name.

3.        Enter the root password.

4.       Click Login to connect.

5.        Repeat steps 1-4 to log into all the ESXi hosts in a separate browser tabs or windows.

Set Up VMkernel Ports and Virtual Switch

To set up the VMkernel ports and the virtual switches on all the ESXi hosts, follow these steps:

1.        From the Host Client, select Networking within the Navigator window.

2.       In the center pane, select the Port groups tab.

3.        Right-click the VM Network port group and select the Remove option.

4.       Right-click the Management Network and select Edit Settings.

5.        Expand NIC teaming and select vmnic1 within the Failover order section.

6.       Click the Mark standby option.

7.        Click Save.

8.       Click on the Add port group option.

9.       Name the port group IB-Mgmt.

10.    Set the VLAN ID to <<IB-Mgmt VLAN ID>>.

11.     Click Add.

12.    Right-click the IB-Mgmt port group and select the Edit Settings option.

13.     Expand NIC teaming and select Yes within the Override failover order section.

14.    Select vmnic1 within the Failover order section.

15.     Click on the Mark standby option.

16.    Click Save.

17.     Select the Virtual switches tab.

18.    Right-click vSwitch0 and select Edit settings.

19.    Change the MTU to 9000.

20.    Expand NIC teaming and highlight vmnic1. Select Mark active.

21.    Click Save.

22.    Select the VMkernel NICs tab in the center pane.

23.    Select Add VMkernel NIC.

24.    Enter vMotion within the New port group section.

25.    Set the VLAN ID to <<vMotion VLAN ID>>

26.    Change the MTU to 9000.

27.    Click the Static option within IPv4 settings and expand the section.

28.    Enter the Address and Subnet mask to be used for the ESXi vMotion IP.

29.    Change the TCP/IP stack to vMotion stack.

30.    Click Create.

31.     Select the Port groups tab.

32.    Right-click the vMotion port group and select the Edit settings option.

33.     Expand the NIC Teaming section and select Yes for Override failover order.

34.    Highlight vmnic0 and select Mark standby.

35.     Highlight vmnic1 and select Mark active.

36.    Click Save.

37.     Repeat steps 32-36 if additional vMotion port groups were created.

Create the VSI Datacenter

If a new datacenter is needed, follow these steps on the vCenter:

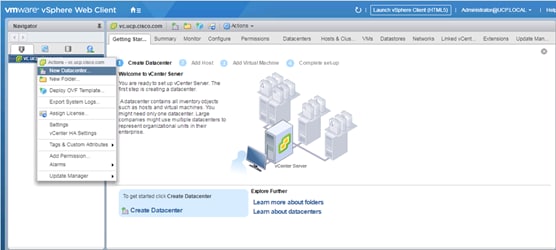

1.        Connect to the vSphere Web Client and right-click the vCenter icon in the top left under the Hosts and Clusters tab, selecting the New Datacenter option from the drop-down list, or directly connect the Create Datacenter from the Getting Started page.

2.       From the New Datacenter pop-up dialogue enter in a datacenter name and click OK.

Add the VMware ESXi Hosts Using the VMware vSphere Web Client

To add the VMware ESXi Hosts using the VMware vSphere Web Client, follow these steps:

1.        From the Hosts and Clusters tab, right-click the new or existing Datacenter within the Navigation window and select New Cluster… from the drop-down list.



2.       Enter a name for the new cluster, select the DRS and HA checkboxes, leaving all other options with the defaults.

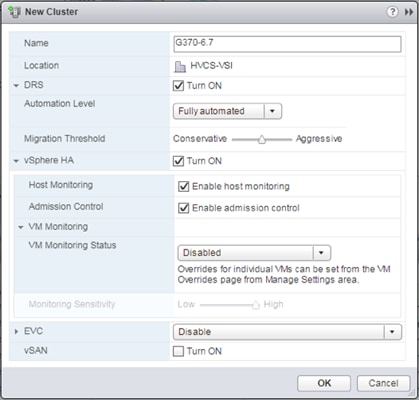

3.        Click OK to create the cluster.

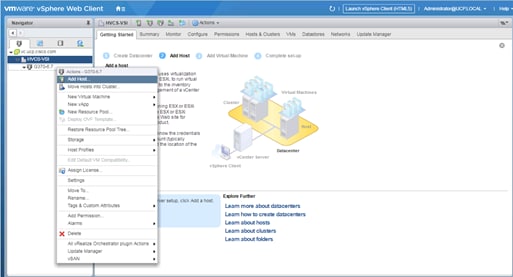

4.       Right-click the newly created cluster and select the Add Host… drop-down option.

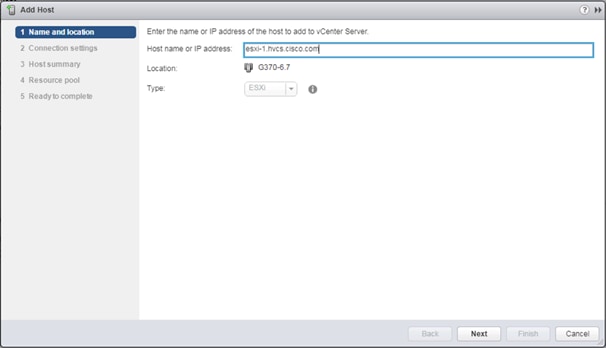

5.        Enter the IP or FQDN of the first ESXi host and click Next.

6.       Enter root for the User Name, provide the password set during initial setup and click Next.

7.        Click Yes in the Security Alert pop-up to confirm the host’s certificate.

8.       Click Next past the Host summary dialogue.

9.       Provide a license by clicking the green + icon under the License title, select an existing license or skip past the Assign license dialogue by clicking Next.

10.    Leave the lockdown mode Disabled within the Lockdown mode dialogue window and click Next.

11.     Skip past the Resource pool dialogue by clicking Next.

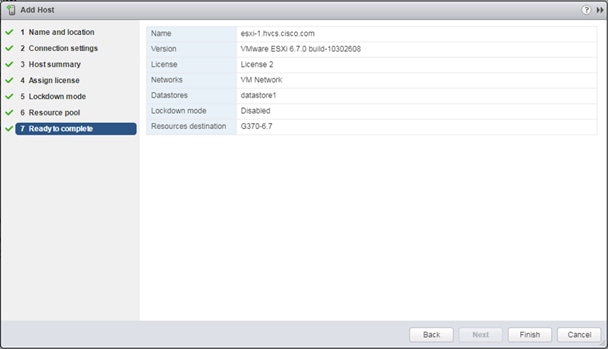

12.    Confirm the Summary dialogue and add the ESXi host to the cluster by clicking Next.

13.     Repeat steps 1-12 for each ESXi host to be added to the cluster.

Create VMware vDS for Application Traffic

The VMware vDS setup will consist a single vDS for Application traffic.

To configure the first VMware vDS, follow these steps:

1.        Right-click the HVCS-VSI datacenter and select Distributed Switch > New Distributed Switch…

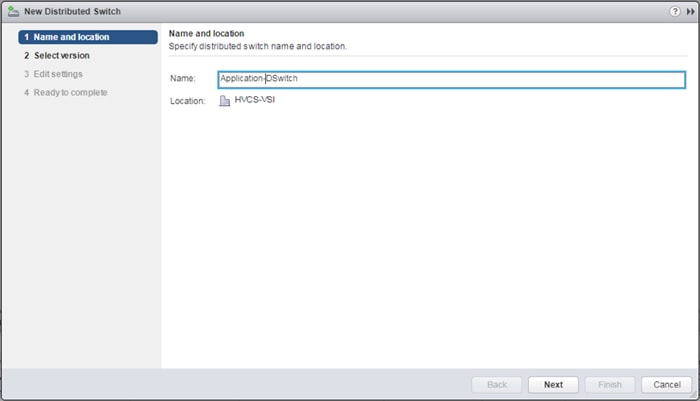

2.       Give the Distributed Switch a descriptive name and click Next.

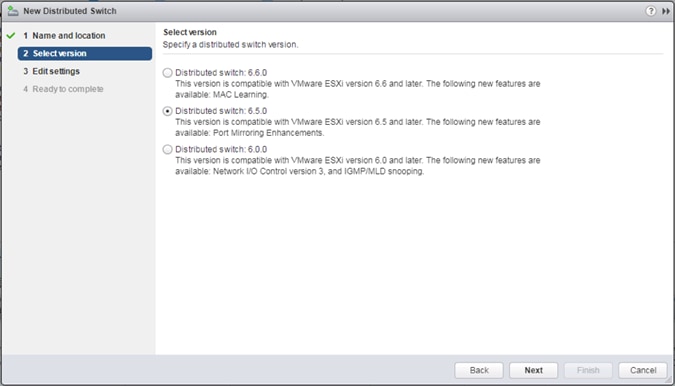

3.        Make sure Distributed switch: 6.5.0 is selected if supporting vSphere 6.5 hosts and click Next.

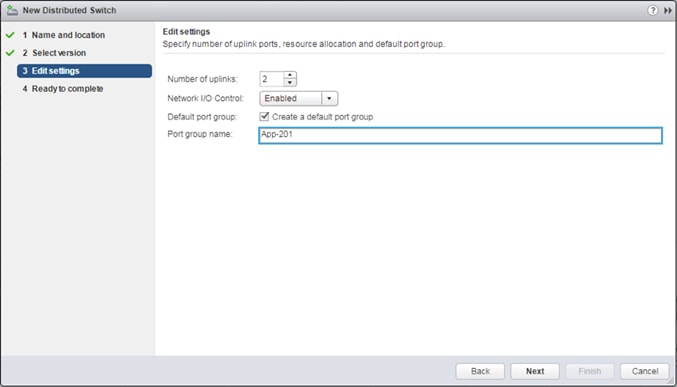

4.       Change the Number of uplinks to 2.  If VMware Network I/O Control is to be used for Quality of Service, leave Network I/O Control Enabled.  Otherwise, Disable Network I/O Control. Enter App-201 for the name of the default Port group to be created. Click Next.

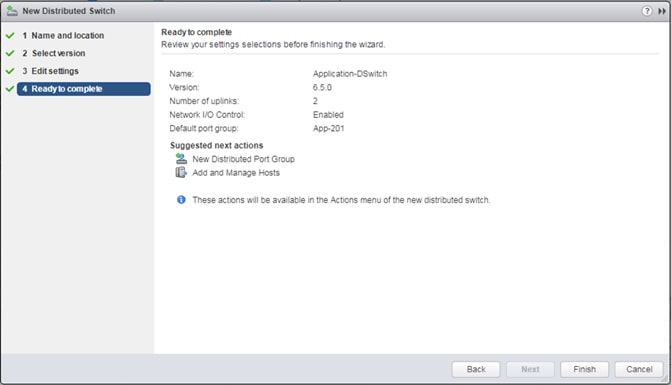

5.        Review the information and click Finish to complete creating the vDS.

6.       Right-click the newly created App-DSwitch vDS, and select Settings -> Edit Settings…

7.        Click the Advanced option for the Edit Settings window and change the MTU from 1500 to 9000.

8.       Click OK to save the changes.

9.       Right-click the App-201 Distributed Port Group, and select Edit Settings…

10.    Click VLAN, changing VLAN type from None to VLAN, and enter in the appropriate VLAN number for the first application network.

11.     Click OK to save the changes.

12.    Right-click the Application-DSwitch, selecting Distributed Port Group -> New Distributed Port Group… for any additional application networks to be created, setting the appropriate VLAN for each new Distributed Port Group.

Add Hosts to Application-DSwitch

To add the hosts to the newly created vDS from the Navigator, follow these steps:

1.        Select the newly created Application-DSwitch.

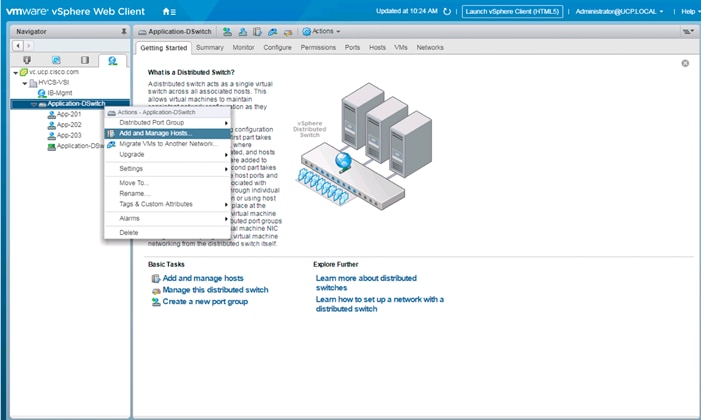

2.       Right-click it and select the Add and Manage Hosts… option.

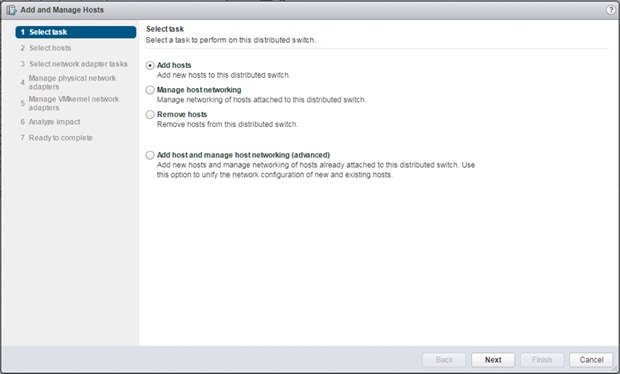

3.        Leave Add hosts selected and click Next.

4.       Click the + New hosts… option.

5.        Select the Hosts checkbox near the top of the pop-up window to select all hosts and click OK.

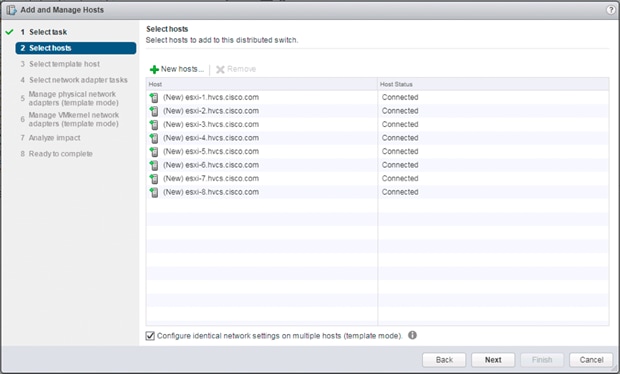

6.       Select the Configure identical network settings on multiple hosts (template mode) checkbox.

7.        Click Next.

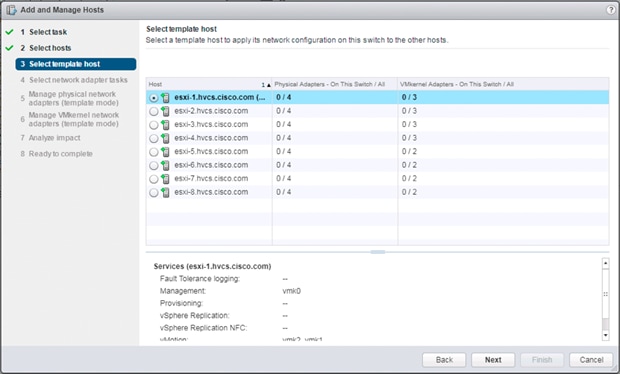

8.       Select one of the hosts from the list shown below.

9.       Click Next.

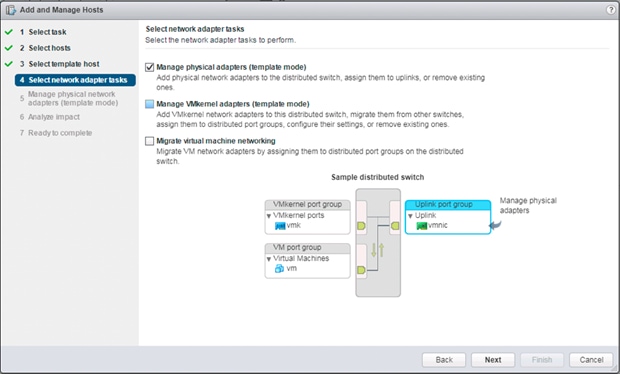

10.    Deselect the Manage VMkernel adapters (template mode) option.

11.     Click Next.

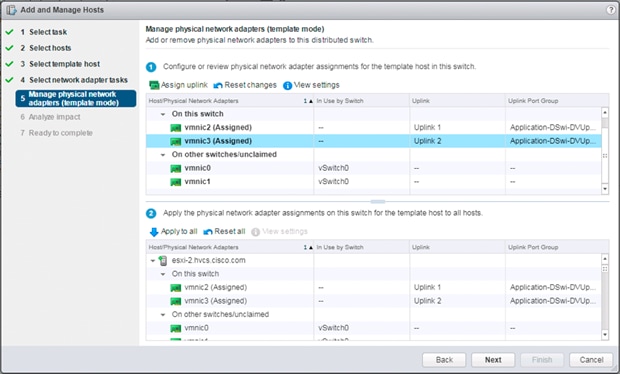

12.    Select vmnic2.

13.     Click the Assign uplink option.

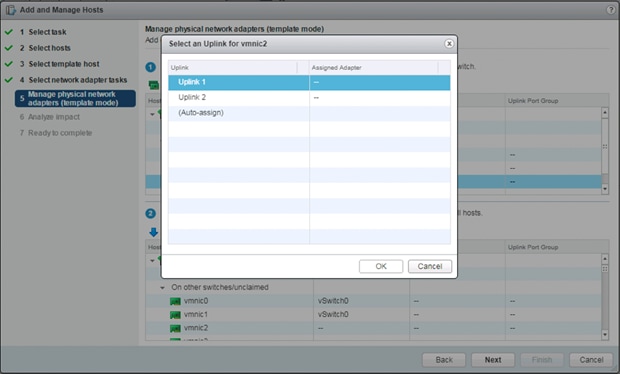

14.    Leave Uplink 1 selected.

15.     Click OK.

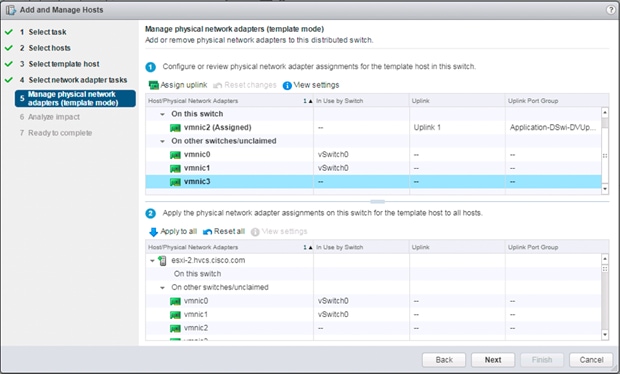

16.    Select vmnic3 and click Assign uplink to select Uplink 2.

17.     Click Apply to all.

18.    Click Next.

19.    Click Next past Analyze Impact.

20.    Verify the summary in the Ready to complete screen.

21.    Click Finish to add the hosts.

Add Datastores to Hosts

Datastores have been provisioned and zoned for the associated clusters.  To add the datastores to the clusters, follow these steps:

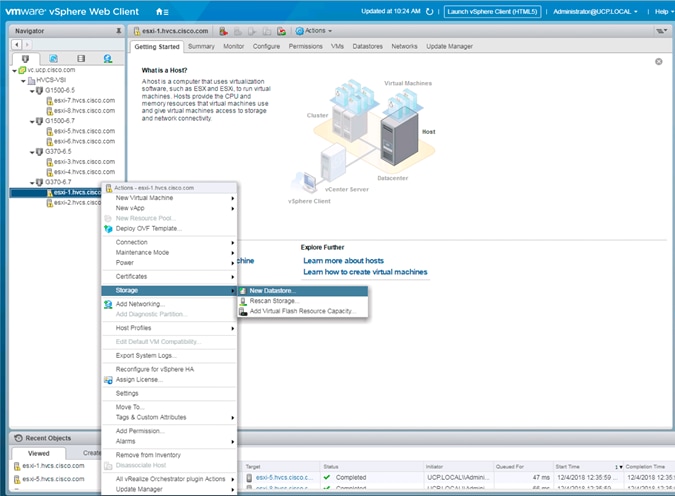

1.        From the Hosts tab of the Navigator. Right-click one of the hosts and select Storage -> New Datastore…

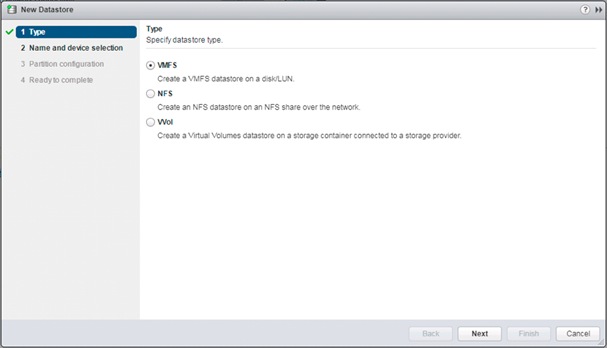

2.       Leave VMFS selected and click Next.

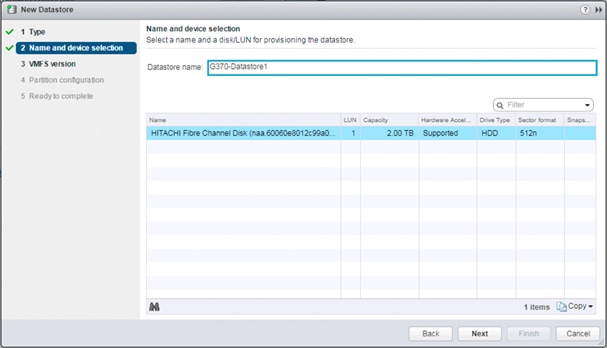

3.        Provide an appropriate Datastore name and select the appropriate LUN.

4.       Click Next.

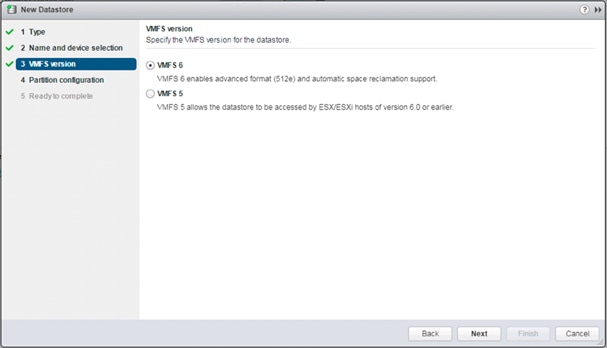

5.        Leave VMFS 6 selected.

6.       Click Next.

7.        Leave the defaults for Partition configuration.

8.       Click Next.

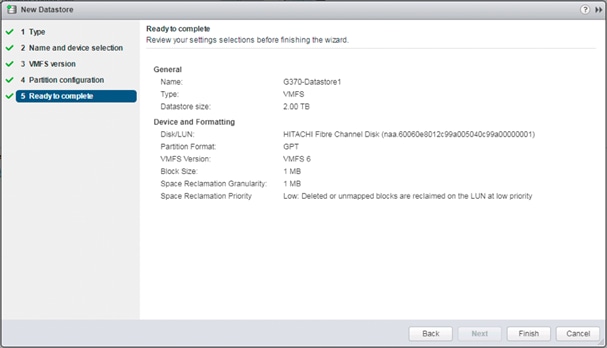

9.       Review the settings.

10.    Click Finish to create.

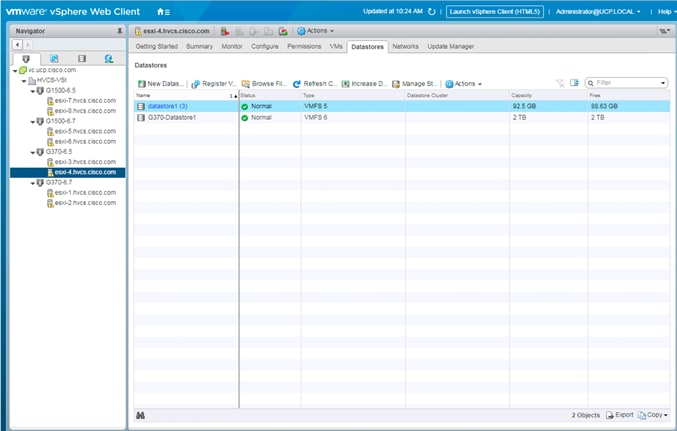

11.     Check each host in the clusters associated to the same VSP the datastore was provisioned from; all should show the configured datastore as available:

12.    If multiple VMFS datastore LUNs were deployed, repeat these steps on a host they are associated to by a Hitachi Host Group.

Configure NTP on ESXi Hosts

To configure Network Time Protocol (NTP) on the ESXi hosts, follow these steps on each host:

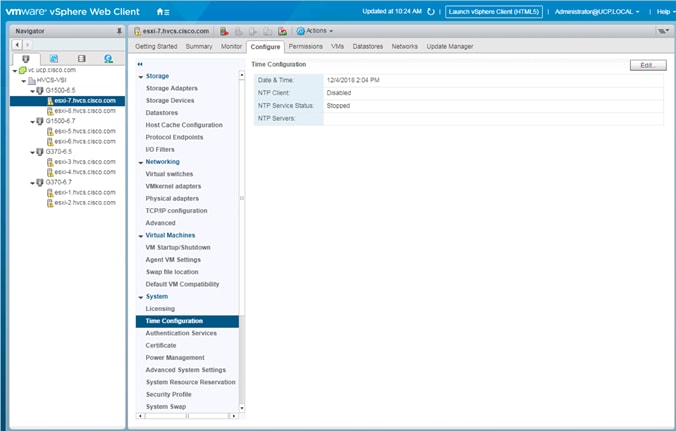

1.        From the Configure tab, select the Time Configuration section under System.

2.       Click Edit.

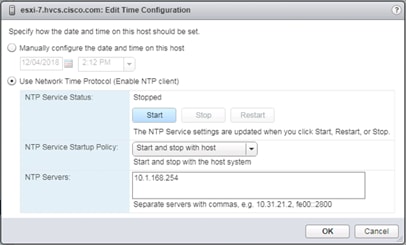

3.        Select the Use Network Time Protocol (Enable NTP client) option.

4.       Enter an appropriate NTP server within the NTP Servers box, change NTP Service Startup Policy to Start and stop with host, and click Start.

5.        Verify that NTP service is now running and the clock is now set to approximately the correct time.

Create and Apply Patch Baselines with VUM

Critical patches are automatically available within VMware Update Manager (VUM) when using current versions of vCenter Server.  A Patch Baseline will be made for the deployed vSphere release(s) and applied to each host to install appropriate patches.

To create the baselines and patch the new ESXi hosts, follow these steps:

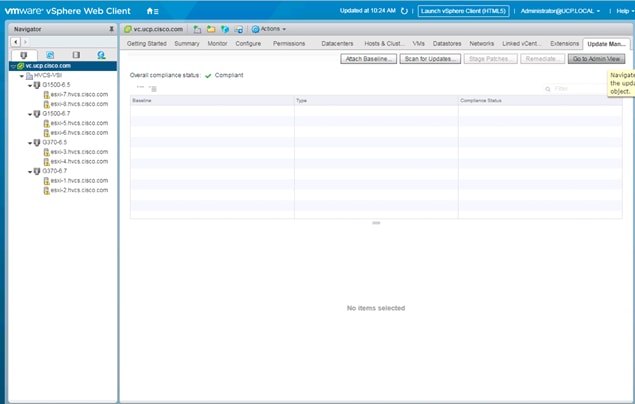

1.        From the Hosts tab select the vCenter and go to the Update Manager tab.

2.       Click Go to Admin View.

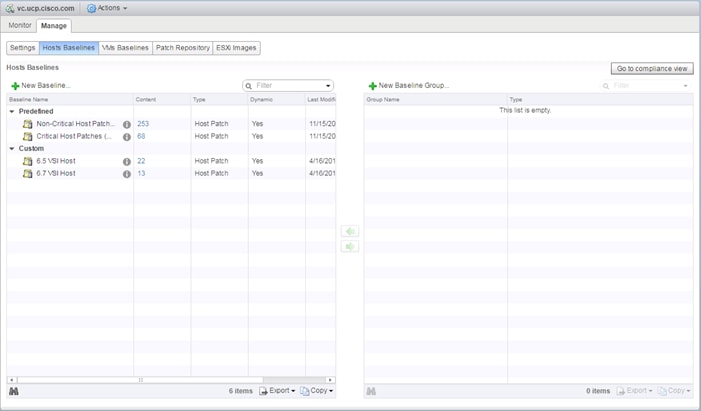

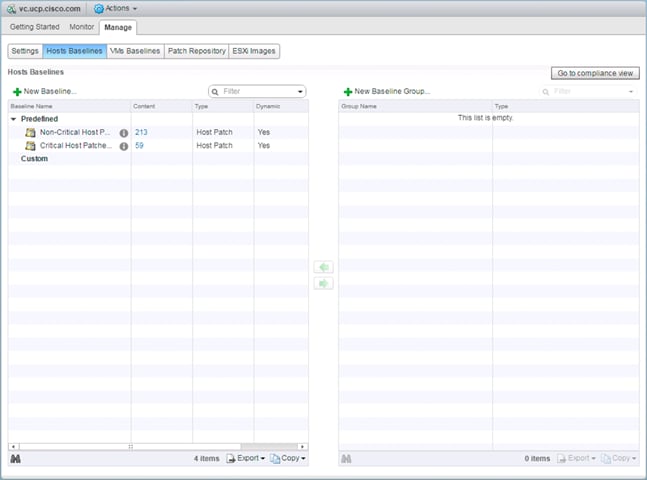

3.        From the Manage tab select Hosts Baselines.

4.       Click +New Baseline…

5.        Provide a name for the Baseline, leave the Baseline type selected as Host Patch, and click Next.

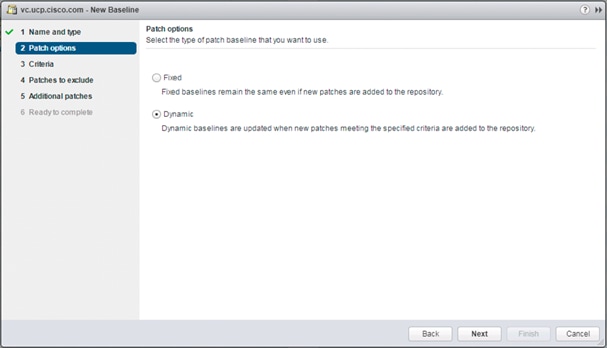

6.       Leave the Patch options set as Dynamic and click Next.

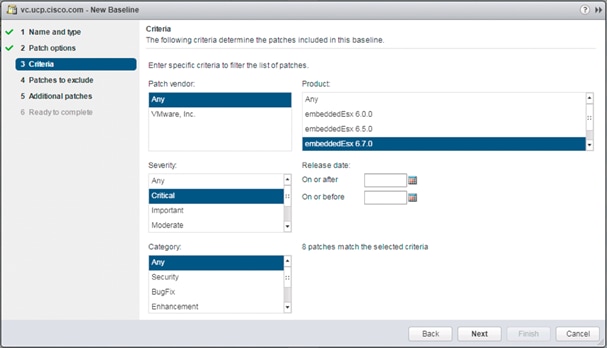

7.        Under Product, select the target vSphere release, and under Severity select Critical.

8.       Click Next.

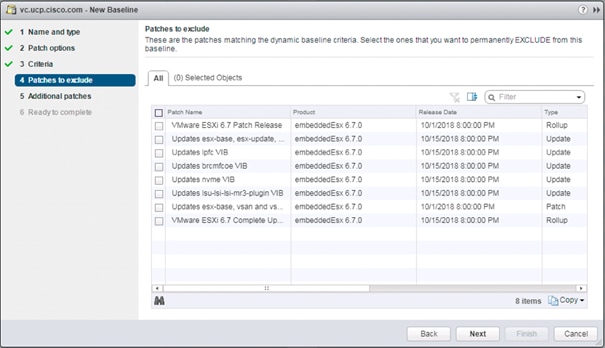

9.       Exclude any patches if appropriate and click Next.

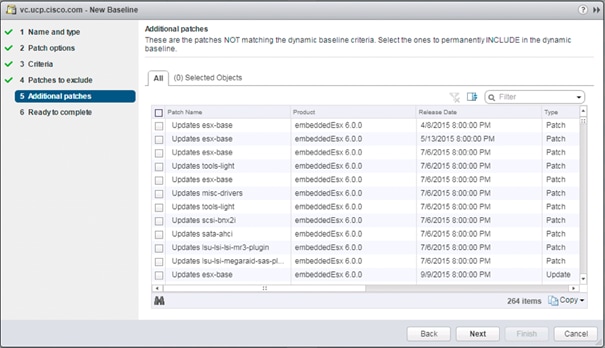

10.    Select any additional patches if appropriate and click Next.

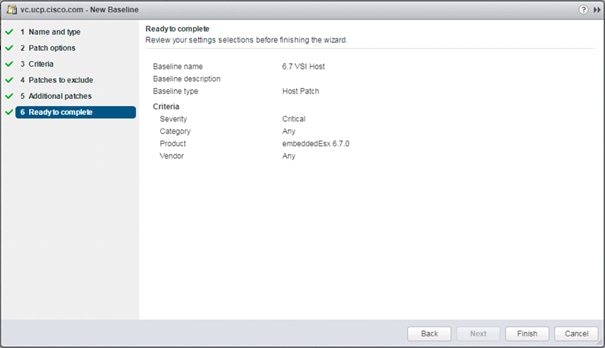

11.     Review the selections and click Finish.

12.    Go back to the Hosts view within Navigator.

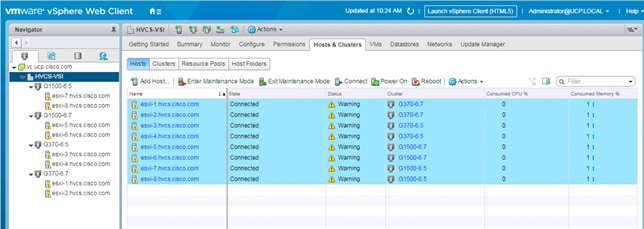

13.     Select the Datacenter level of HVCS-VSI and within Hosts of the Hosts and Clusters tab select all hosts and click Enter Maintenance Mode.

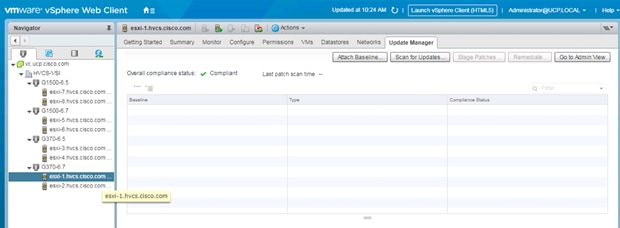

14.    For the first host associated with the vSphere release of the baseline, select the host and the Update Manager tab for that host.

15.     Click Attach Baseline….

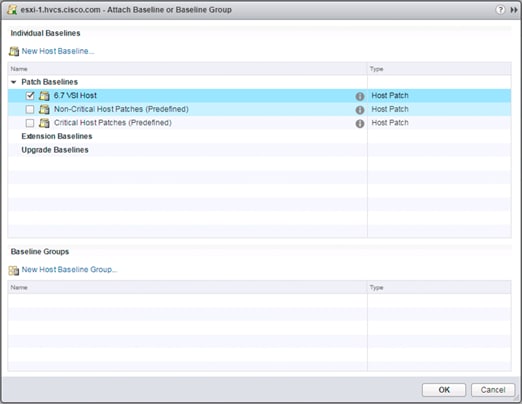

16.    Select the appropriate Patch Baseline and click OK.

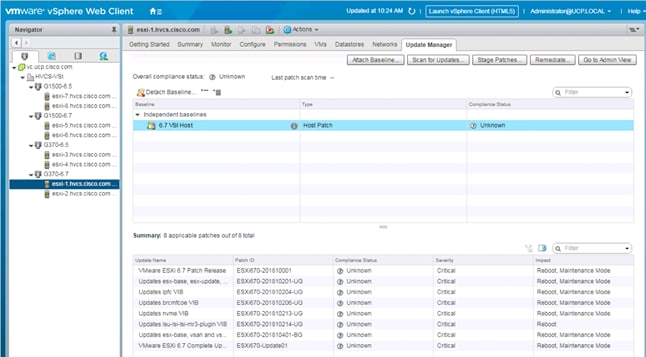

17.     Click Remediate.

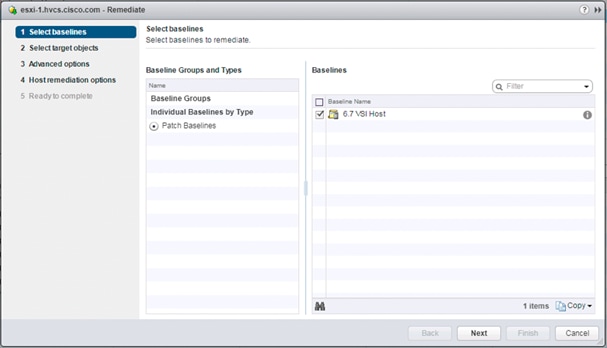

18.    Leave the baseline selected and click Next.

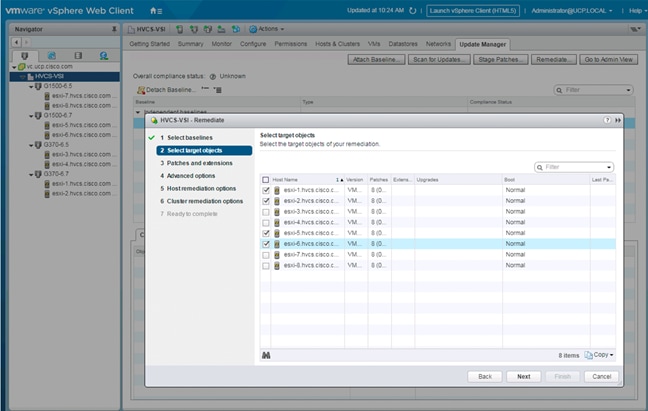

19.    Select the hosts appropriate to the vSphere release specified for the baseline and click Next.

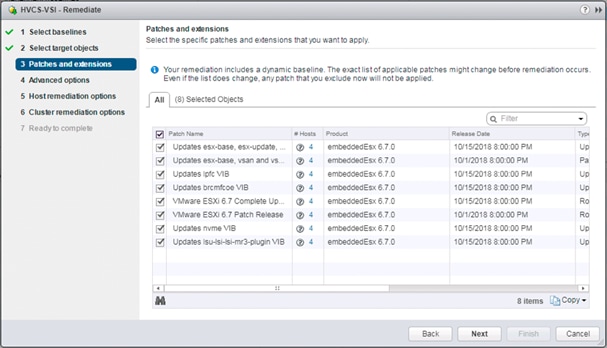

20.    Deselect any patches that should not be applied and click Next.

21.    Click Next past the Advanced options screen.

22.    Click Next past the Host remediation options screen.

23.    Click Next past the Cluster remediation options.

24.    Review the settings and click Finish to run the patch baseline.

vSphere nfnic and nenic Baseline Creation through VUM

With the current Cisco custom ISO for 6.7 U1 and the 4.0(2b) UCSM code, there may be some FC path inconsistencies if a newer nfnic driver is not applied to the ESXi hosts.  The following steps will show the creation of a baseline within VUM for these updated drivers, and the CLI update option will be explained as well following this section.

The two drivers updated within this validation can be downloaded from the VMware site:

nfnic - https://my.vmware.com/group/vmware/details?downloadGroup=DT-ESXI67-CISCO-NFNIC-40033&productId=742

nenic - https://my.vmware.com/group/vmware/details?downloadGroup=DT-ESXI67-CISCO-NENIC-10270&productId=742

Each of these downloads will come as a zip file to be extracted:

·         VMW-ESX-6.7.0-nfnic-4.0.0.33-13031113.zip

·         VMW-ESX-6.7.0-nenic-1.0.27.0-11271332.zip

The folders created from each extracted bundle will contain an offline_bundle zip file that will stay compressed:

·         VMW-ESX-6.7.0-nfnic-4.0.0.33-offline_bundle-13031113.zip

·         VMW-ESX-6.7.0-nenic-1.0.27.0-offline_bundle-11271332.zip

To create the driver baselines and patch the new ESXi hosts within VUM, follow these steps:

1.        From the Hosts tab select the vCenter and go to the Update Manager tab.

2.       Click Go to Admin View.

3.        From the Manage tab select Hosts Baselines.

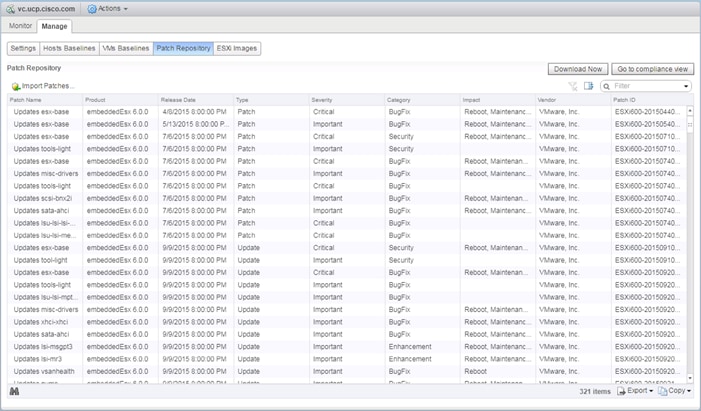

4.       Click the Import Patches… under the Patch Repository heading.

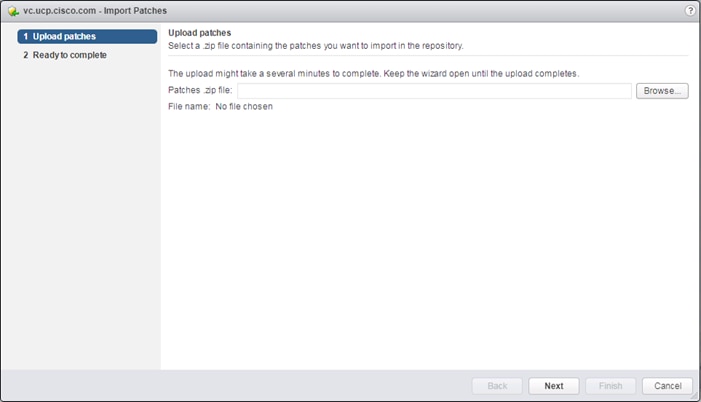

5.        Click the Browse… button and find the first offline_bundle zip file to be uploaded.

6.       Click Next after the file has uploaded.

7.        Review the summary from the Ready to complete screen and click Finish.

8.       Repeat steps 4-7 for the second offline_bundle zip.

9.       From the Manage tab select Hosts Baselines.

10.    Click +New Baseline…

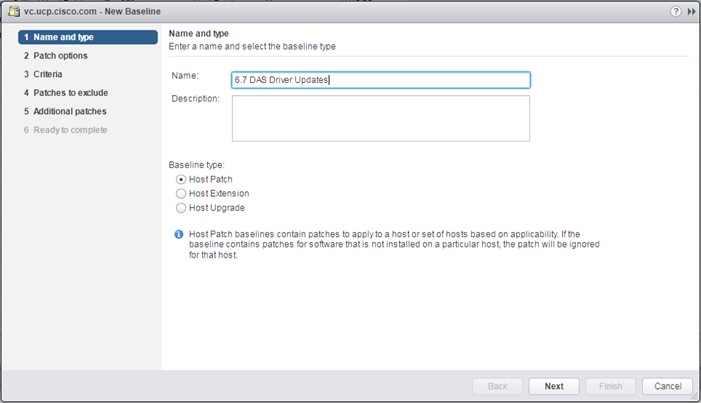

11.     Provide a name for the baseline and leave Host Patch selected for Baseline type.

12.    Click Next.

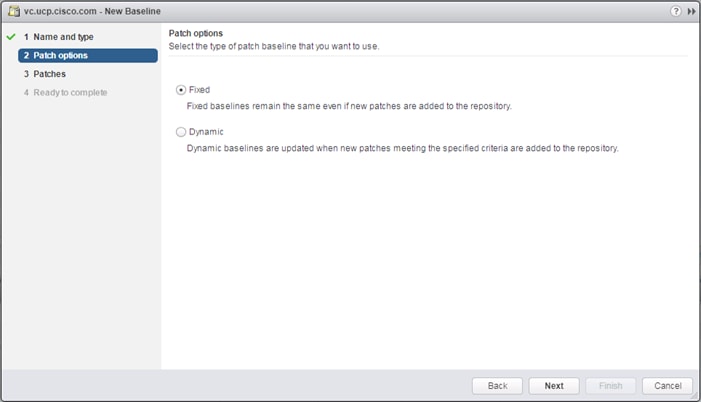

13.     Select Fixed for the Patch options.

14.    Click Next.

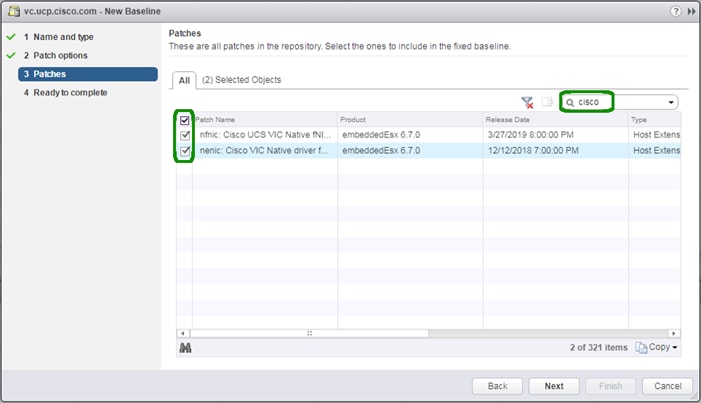

15.     Enter “cisco” in the search filter and select the appropriate patches that come up in the results.

16.    Click Next.

17.     Review the Ready to complete summary and click Finish.

18.    Return to the Datacenter host view and select the host(s) to patch.

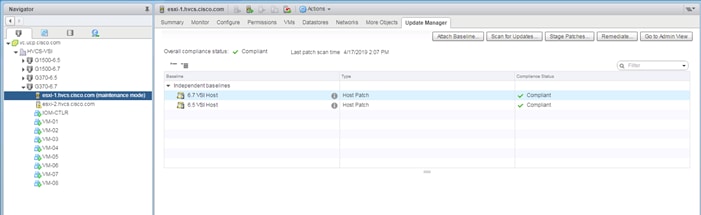

19.    Place the hosts in maintenance mode and select the Update Manager tab for the host.

20.    Click the Attach Baseline… button.

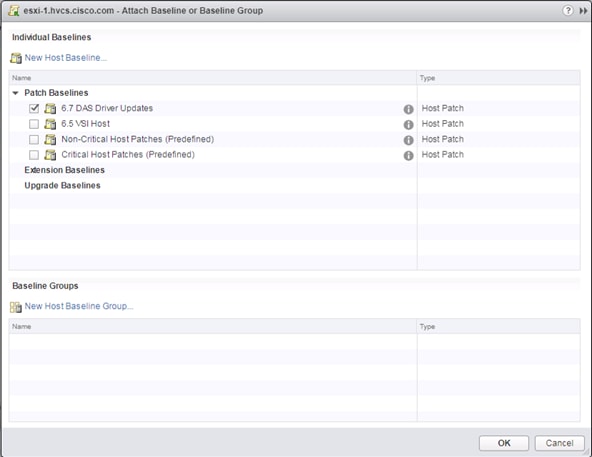

21.    Select the created driver update baseline.

22.    Click OK to attach the baseline.

23.    Click the Remediate… button.

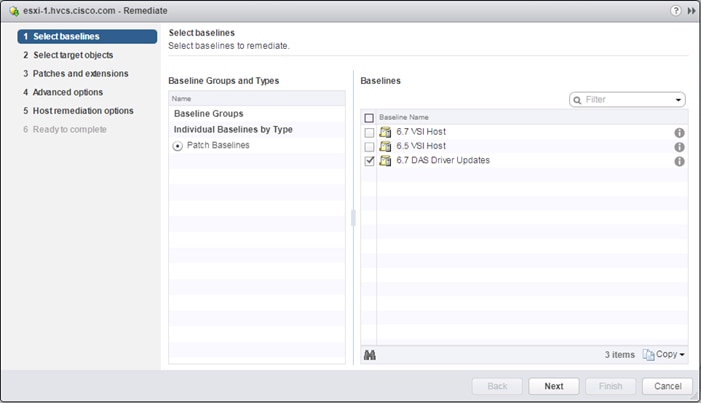

24.    Select the driver updates baseline.

25.    Click Next.

26.    Click Next past the Select target objects screen.

27.    Click Next past the Patches and extensions screen.

28.    Click Next past the Advanced options screen.

29.    Click Next past the Host remediation options.

30.    Click Next past the Cluster remediation options.

31.     Review the Ready to complete summary and click Finish to apply the patches.

32.    Repeat steps 19 to 31 for each additional host.

vSphere nfnic and nenic Patching through esxcli

With the current Cisco custom ISO for 6.7 U1 and the 4.0(2b) UCSM code, there may be some FC path inconsistencies if a newer nfnic driver is not applied to the ESXi hosts.  The following steps will show the installation of these updated drivers using the CLI update option.

The two drivers updated within this validation can be downloaded from the VMware site:

nfnic - https://my.vmware.com/group/vmware/details?downloadGroup=DT-ESXI67-CISCO-NFNIC-40033&productId=742

nenic - https://my.vmware.com/group/vmware/details?downloadGroup=DT-ESXI67-CISCO-NENIC-10270&productId=742

Each of these downloads will come as a zip file to be extracted:

·         VMW-ESX-6.7.0-nfnic-4.0.0.33-13031113.zip

·         VMW-ESX-6.7.0-nenic-1.0.27.0-11271332.zip

The folders created from each extracted bundle will contain an offline_bundle zip file that will stay compressed:

·         VMW-ESX-6.7.0-nfnic-4.0.0.33-offline_bundle-13031113.zip

·         VMW-ESX-6.7.0-nenic-1.0.27.0-offline_bundle-11271332.zip

To install VMware VIC Drivers on the ESXi hosts using the esxcli, follow these steps:

1.        Upload the offline_bundles to a commonly accessible datastore using the vSphere Web Client.

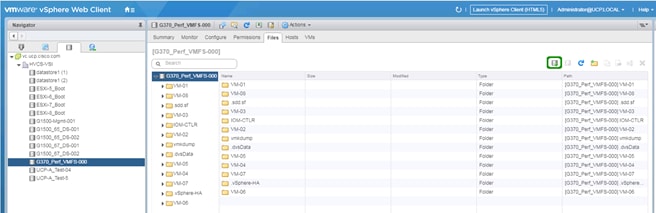

2.       Within the vSphere Web Client, select one of the datastore and click on the Files tab.

3.        Click the Upload a file to the Datastore button.

4.       Select and upload the nfnic offline_bundle (VMW-ESX-6.7.0-nfnic-4.0.0.33-offline_bundle-13031113.zip) from the extracted driver download.

5.        Select and upload the nenic offline_bundle (VMW-ESX-6.7.0-nenic-1.0.27.0-offline_bundle-11271332.zip) from the extracted driver download.

6.       Place all hosts in Maintenance mode requiring update.

7.        Connect to each ESXi host through ssh from a shell connection or putty terminal.

8.       Login as root with the root password.

9.       Run the following commands (substituting the appropriate datastore directory as needed) on each host:

10.    Reboot each host by typing reboot from the SSH connection after the command has been run.

Remediation of L1 Terminal Fault – VMM (L1TF) Security Vulnerability (Optional)

CVE-2018-3646 describes a new class of CPU speculative-execution vulnerabilities on Intel processors manufactured from 2009 to 2018. While optional, it is strongly recommended that these vulnerabilities be patched.

Multiple attack vectors are exposed through these vulnerabilities, and separate mitigation steps for each attack vector are necessary for complete mitigation. For more information about the specific impact and VMware’s recommendations for remediation of these vulnerabilities in a VMware vSphere environment, refer to this VMware Knowledge Base article: https://kb.vmware.com/s/article/55806.

The mitigation for L1TF-VMM as recommended by VMware is broken up into three distinct phases:

1.        Updating VMware vCenter and VMware ESXi software.

2.       Planning and Utilization of the HTAware Mitigation Tool (if analyzing existing workloads).

3.        Enablement of the ESXi Side-Channel-Aware Scheduler.

Update VMware vCenter and VMware ESXi Software

VMware vCenter must be running at specific patch levels prior to mitigation of the L1TF-VMM vulnerabilities. Table 15  lists the release version of VMware vCenter and the specific patch level that needs to be running on the vCenter managing the environment.

Table 15   VMware vCenter Versions Required for L1TF-VMM Mitigation

VMware ESXi must also be running at specific patch levels prior to mitigation of the L1TF-VMM vulnerabilities. If you use the Cisco custom ISOs for VMware vSphere 6.5 and 6.7 described in this guide to install the hypervisor, no action is necessary to update the ESXi servers in the environment. Table 16  lists the minimum Cisco ISO version that must be used to ensure no patching of the ESXi servers is necessary.

Table 16   Minimum Cisco ISO Versions Required for L1TF-VMM Mitigation

Planning and Utilization of the HTAware Mitigation Tool

It is important to understand the impact to maximum performance on a host when comparing L1TF-VMM non-mitigated and mitigated environments. You must take these impacts into consideration whether you are deploying a greenfield environment, or simply adding capacity to an existing environment. VMware provides an article regarding capacity planning considerations and tested performance degradation when the L1TF-VMM vulnerabilities are remediated: https://kb.vmware.com/s/article/55767.

Consider using the PowerShell HTAware Mitigation Tool from VMware to analyze existing non-mitigated environments that you may be migrating virtual infrastructure from. This allows you to understand if there are any virtual machine configurations that may be impacted when moved to a mitigated environment.

Enablement of the ESXi Side-Channel-Aware Scheduler (vSphere Web Client Method)

When a non-mitigated host is running a patched version of ESXi, a suppressible warning message is displayed in the host Summary tab as shown below:

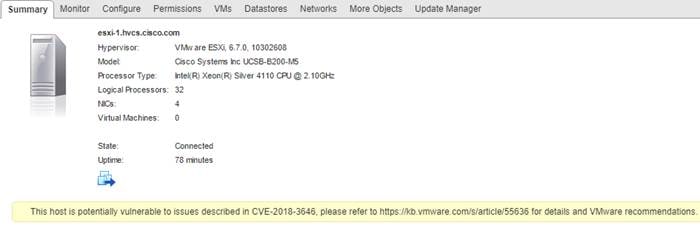

To use the vSphere Web Client to remediate a host, follow these steps:

1.        Place the host to be mitigated into Maintenance Mode.

2.       Select the ESXi host from the inventory, click the Configure tab, then click System-> Advanced System Settings.

3.        Click Edit in the Advanced System Settings pane, then use the Filter box to search for VMkernel.Boot.hyperthreadingMitigation. Check the Enabled checkbox for the VMkernel.Boot.hyperthreadingMitigation system setting and click OK.

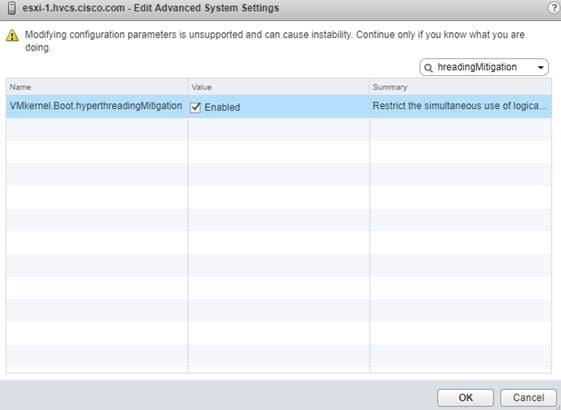

4.       Reboot the host and exit Maintenance Mode. The warning message for CVE-2018-3646 should no longer appear in the host Summary tab.

Enablement of the ESXi Side-Channel-Aware Scheduler (PowerShell HTAware Mitigation Tool Method)

Additional benefits of the HTAware Mitigation Tool are its capabilities to analyze and mitigate hosts in a batch fashion on a per-cluster or per-host basis. This is particularly convenient if you have just deployed multiple hosts that have not been put into production and are not yet servicing workloads.

To use the HTAware Mitigation Tool to remediate an idle cluster of hosts, follow these steps:

1.        Place all hosts in the cluster into maintenance mode.

2.       If you have not already installed the HTAware Mitigation Tool PowerShell cmdlets, follow the instructions within VMware KB 56931 to setup and import them.

3.        Open a Windows PowerShell command window as Administrator and connect to your vCenter server managing the cluster to be remediated with the “Connect-VIServer” cmdlet.

4.       Query the remediation status of the hosts in a specific cluster by using the “Get-HTAwareMitigationConfig -ClusterName <name of cluster>” cmdlet. ConfiguredHTAMSetting and RuntimeHTAMSetting should both be false on non-remediated hosts.

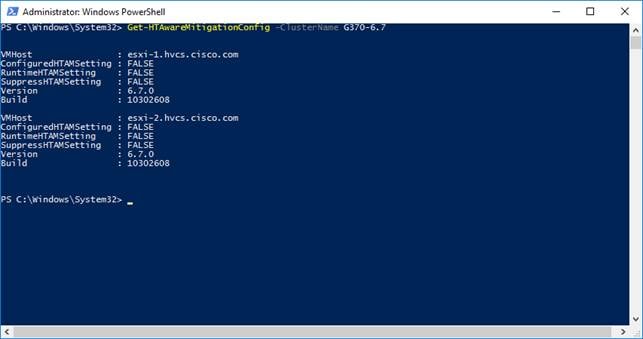

5.        Enable the ESXi Side-Channel-Aware Scheduler by using the “Set-HTAwareMitigationConfig -ClusterName <name of cluster> -Enable” cmdlet.

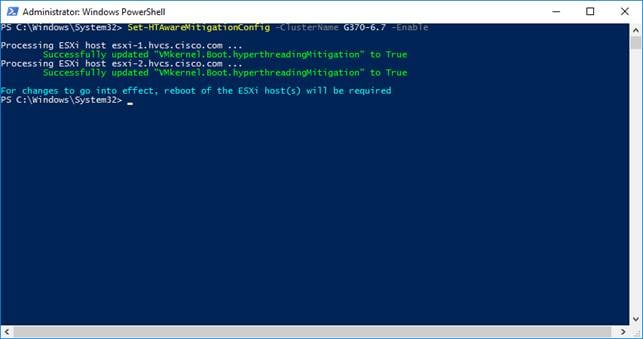

6.       Reboot the hosts and exit Maintenance Mode. The warning message for CVE-2018-3646 should no longer appear in the host Summary tabs.

Configuration of VMware Round Robin Path Selection Policy IOPS Limit

Hitachi best practices show that performance and total IOPS throughput can be increased by 3-5 percent on Hitachi Virtual Storage Platform by setting the IOPS limit for the VMware Round Robin Path Selection Policy (RR PSP) from the default value of 1,000 to 20. This causes ESXi to switch to the next available path for a LUN after 20 IO instead of after 1,000 IO. This setting is configurable via ESXCLI on a host-by-host basis, or PowerCLI may be used to apply this setting across multiple hosts in a cluster.

Change the Round Robin Path Selection Policy through PowerCLI for Multiple Hosts in a Cluster

This method will allow you to configure the RR PSP IOPS limit through PowerCLI on a per-cluster basis within your environment. Perform the following steps to change the IOPS limit value from 1,000 to 20 on all Hitachi-presented LUNs.

To change the round robin path selection policy through PowerCLI for multiple hosts in a cluster, follow these steps:

1.        Open a Windows PowerShell command window as Administrator and connect to your vCenter server managing the cluster to be modified with the “Connect-VIServer” cmdlet.

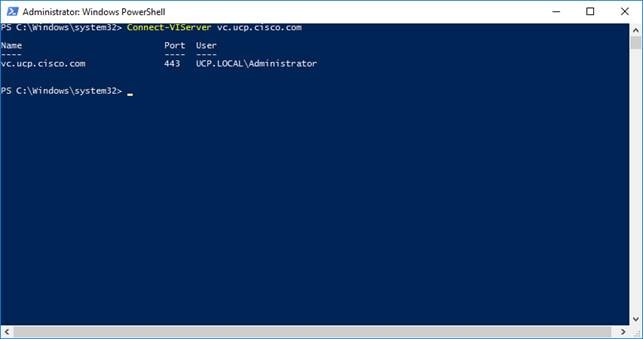

2.       Create a variable which will contain all of the ESXi hosts within the cluster you are targeting. In the example shown below, we are creating a variable named “UCSHosts” which contains the host objects within the cluster G1500-6.7 by running the PowerShell command “$UCSHosts = Get-Cluster “G1500-6.7” | Get-VMHost”. Replace G1500-6.7 with the name of the cluster you are targeting.

3.        To verify that the UCSHosts variable contains the host objects within your cluster, you may issue the command “echo $UCSHosts”. You should see your individual hosts listed in the PowerShell output similar to what is shown below.

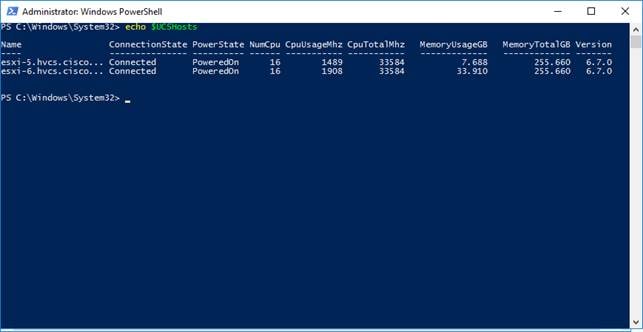

4.       To list all Hitachi LUNs presented to the cluster hosts and show the current RR PSP IOPS limit, you may issue the command “foreach ($UCS in $UCSHosts) {Get-VMHost $UCS | Get-ScsiLun -LunType Disk | Where-Object {$_.CanonicalName -like ‘naa.60060e80*’ -and $_.MultiPathPolicy -like ‘RoundRobin’} | Select-Object VMHost, CanonicalName, MultipathPolicy, CommandsToSwitchPath}”. Note that we are filtering on the wildcarded NAA ID “naa.60060e80*” so that only Hitachi-presented LUNs are listed in the output, which should look similar to what is shown below.

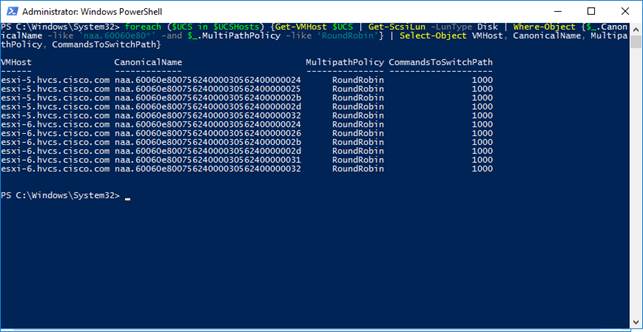

5.        To set the RR PSP IOPS limit to 20 on all Hitachi LUNs presented to the cluster hosts, you may issue the command “foreach ($UCS in $UCSHosts) {Get-VMHost $UCS | Get-ScsiLun -LunType Disk | Where-Object {$_.CanonicalName -like ‘naa.60060e80*’ -and $_.MultipathPolicy -like ‘RoundRobin’} | Set-ScsiLun -CommandsToSwitchPath 20 | Select-Object VMHost, CanonicalName, CommandsToSwitchPath}”. You should see the CommandsToSwitchPath item change to 20 for each Hitachi-presented LUN, similar to the output shown below.

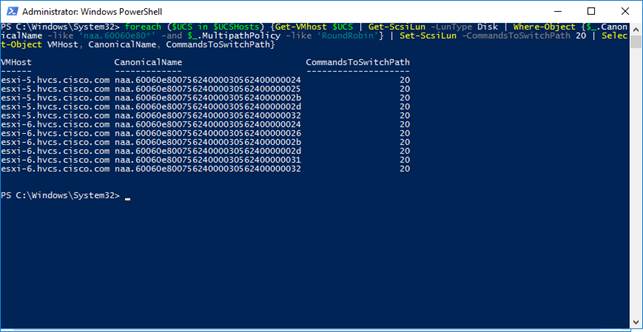

6.       Repeat steps 1-5 for each cluster that you would like to change the VMware Round Robin Path Selection Policy IOPS limit.

Change the Round Robin Path Selection Policy through ESXCLI for a Single Host

This method will allow you to configure the RR PSP IOPS limit through ESXCLI on a per-host basis within your environment. Perform the following steps to change the IOPS limit value from 1,000 to 20 on all Hitachi-presented LUNs.

To change the round robin path selection policy through ESXCLI for a single host, follow these steps:

1.        Enable ESXi shell and/or SSH for the host to be configured. Follow the instructions in VMware KB 2004746 if not already enabled in your environment and login to the ESXi shell either locally on the host or through SSH.

2.       To list all Hitachi LUNs presented to the cluster hosts and show the current RR PSP IOPS limit, you may issue the command “esxcli storage nmp device list | grep HITACHI -A4 -B1”. This will show all Hitachi-presented LUNs and the current Path Selection Policy Device Config which includes the IOPS limit, as shown in the example below.

3.        To set the RR PSP IOPS limit to 20 on all Hitachi LUNs presented to the host, you may issue the command “for i in `esxcfg-scsidevs -c | awk '{print $1}' | grep naa.60060e80`; do esxcli storage nmp psp roundrobin deviceconfig set --type=iops --iops=20 --device=$i; done” as shown in the example shown below.

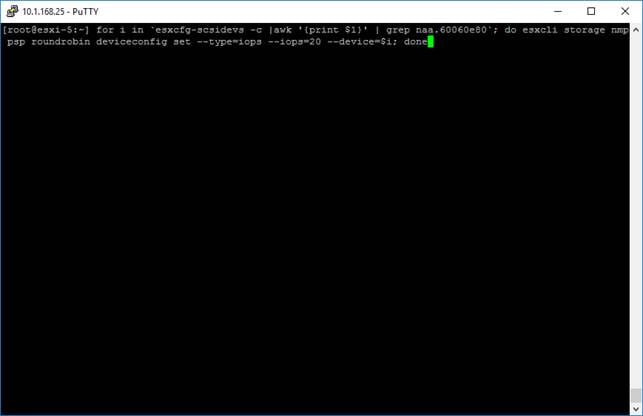

4.       Run the command “esxcli storage nmp device list | grep HITACHI -A4 -B1” and ensure the IOPS limit has changed to 20 for Hitachi-presented LUNs as shown in the example below.

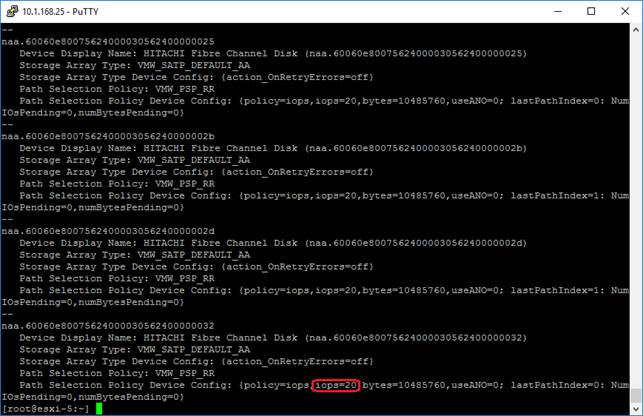

5.        Repeat steps 1-4 on each host that you would like to change the VMware Round Robin Path Selection Policy IOPS limit.

Cisco Intersight gives manageability and visibility to multiple UCS domains through a common interface, regardless of location. The Base addition is available for UCSM starting at release 3.2(1) at no additional cost.

To add the Cisco UCS Fabric Interconnects into Intersight, follow these steps:

1.        Connect to https://www.intersight.com.

Prerequisites

The following prerequisites are necessary to setup access to Cisco Intersight:

1.        An account on cisco.com.

2.       A valid Cisco Intersight account. This can be created by navigating to https://intersight.com and following the instructions for creating an account. The account creation requires at least one device to be registered in Intersight and requires Device ID and Claim ID information from the device. See Collecting Information From Cisco UCS Domain for an example of how to get Device ID and Claim ID from Cisco UCS Fabric Interconnect devices.

3.        Valid License on Cisco Intersight – see the Cisco Intersight Licensing section for more information.

4.       Cisco UCS Fabric Interconnects must be able to do a DNS lookup to access Cisco Intersight.

5.        Device Connectors on Fabric Interconnects must be able to resolve svc.ucs-connect.com.

6.       Allow outbound HTTPS connections (port 443) initiated from the Device Connectors on Fabric Interconnects to Cisco Intersight. HTTP Proxy is supported.

Setup Information

To setup access to Cisco Intersight, the following information must be collected from the Cisco UCS Domain. The deployment steps provided below will show how to collect this information.

·         Device ID

·         Claim Code

Cisco Intersight Licensing

Cisco Intersight is offered in two editions:

·         Base license which is free to use, and offers a large variety of monitoring, inventory and reporting features.

·         Essentials license, at an added cost but provides advanced monitoring, server policy and profile configuration, firmware management, virtual KVM features, and more. A 90-day trial of the Essentials license is available for use as an evaluation period.

New features and capabilities will be added to the different licensing tiers in future release.

Deployment Steps

To setup access to Cisco Intersight from a Cisco UCS domain, complete the steps outlined in this section.

Connect to Cisco Intersight

To connect and access Cisco Intersight, follow these steps:

1.        Use a web browser to navigate to Cisco Intersight at https://intersight.com/.

2.       Login with a valid cisco.com account or single sign-on using your corporate authentication.

Collect Information from UCS Domain

To collect information from Cisco UCS Fabric Interconnects to setup access to Cisco Intersight, follow these steps:

1.        Use a web browser to navigate to the UCS Manager GUI. Login using the admin account.

2.       From the navigation menu, select the Admin icon.

3.        Select All > Device Connector.

4.       From the Intersight Management pane, click Enabled to enable Intersight management.

5.        From the Connection pane, copy the Device ID and Claim ID information. This information will be required to add this device to Cisco Intersight.

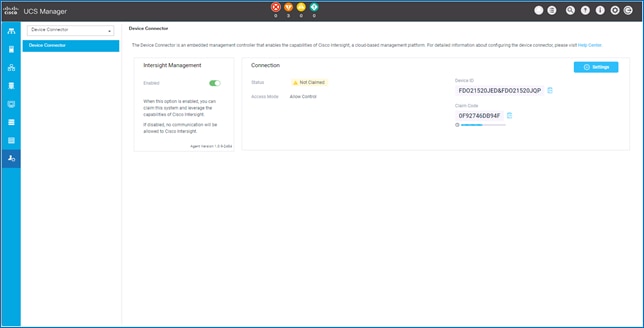

6.       (Optional) Click Settings to change Access Mode and to configure HTTPS Proxy.

Add Cisco UCS Domain to Cisco Intersight

To add Cisco UCS Fabric Interconnects to Cisco Intersight to manage the UCS domain, follow these steps:

1.        From Cisco Intersight, in the navigation menu, select Devices.

2.       Click Claim a New Device.

3.        In the Claim a New Device  pop-up window, paste the Device ID and Claim Code collected in the previous section.

4.       Click Claim.

On Cisco Intersight, the newly added UCS domain should now have a Status of Connected.

On Cisco UCS Manager, the Device Connector should now have a Status of Claimed.

The Dashboard will present an overview of the managed UCS domains:

Ramesh Isaac, Technical Marketing Engineer, Cisco Systems, Inc.

Ramesh Isaac is a Technical Marketing Engineer in the Cisco UCS Data Center Solutions Group. Ramesh has worked in the data center and mixed-use lab settings since 1995. He started in information technology supporting UNIX environments and focused on designing and implementing multi-tenant virtualization solutions in Cisco labs before entering Technical Marketing where he has supported converged infrastructure and virtual services as part of solution offerings as Cisco.  Ramesh has certifications from Cisco, VMware, and Red Hat.

Tim Darnell, Master Solutions Architect and Product Owner, Hitachi Vantara

Tim Darnell is a Master Solutions Architect and Product Owner in the Hitachi Vantara Converged Product Engineering Group. Tim has worked on data center and virtualization technologies since 1997. He started his career in systems administration and has worked in a multitude of roles since, from technical reference authoring to consulting in large, multi-national corporations as a technical advisor. He is currently a Product Owner at Hitachi Vantara, responsible for the Unified Compute Platform Converged Infrastructure line of products that focus on VMware vSphere product line integrations. Tim holds multiple VCAP and VCP certifications from VMware and is a RedHat Certified Engineer.

Cisco

Nexus vPC Best Practices: https://www.cisco.com/c/dam/en/us/td/docs/switches/datacenter/sw/design/vpc_design/vpc_best_practices_design_guide.pdf

Cisco Nexus 9000 Series NX-OS Interfaces Configuration Guide, Release 7.x: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus9000/sw/7-x/interfaces/configuration/guide/b_Cisco_Nexus_9000_Series_NX-OS_Interfaces_Configuration_Guide_7x.html

Cisco UCS Best Practices: https://www.cisco.com/c/en/us/products/collateral/servers-unified-computing/ucs-manager/whitepaper_c11-697337.html

Cisco UCS Performance and Tuning: https://www.cisco.com/c/dam/en/us/products/collateral/servers-unified-computing/ucs-b-series-blade-servers/whitepaper_c11-740098.pdf

Cisco UCS 6454 Spec Sheet https://www.cisco.com/c/dam/en/us/products/collateral/servers-unified-computing/ucs-b-series-blade-servers/ucs-6454-fab-int-specsheet.pdf

Cisco UCS 6300 Spec Sheet https://www.cisco.com/c/dam/en/us/products/collateral/servers-unified-computing/ucs-b-series-blade-servers/6332-specsheet.pdf

Hitachi

Hitachi Provisioning Guide for VSP G130, G/F350, G/F370, G/F700, G/F900: https://knowledge.hitachivantara.com/@api/deki/files/55795/SVOS_RF_v8_3_1_Provisioning_Guide_VSP_Gx00_Fx00_MK-97HM85026-03.pdf?revision=1

Hitachi Provisioning Guide for Open Systems for VSP G1x00 and F1500: https://knowledge.hitachivantara.com/@api/deki/files/50437/SVOS_RF_v8_3_Provisioning_Guide_VSP_G1x00_F1500_MK-92RD8014-20.pdf?revision=1

Bill of Materials

For each design tested in this solution, a bill of materials (BOM) was generated. Please note that the following are not included in the BOMs below and will need to be identified separately depending on your specific configuration:

·         Racks for both Cisco and Hitachi components

·         Power distribution units (PDUs)

·         Multi-mode Fibre (MMF) cabling between Cisco Fabric Interconnects and Hitachi VSP storage systems

·         Power cables and rail kits for Hitachi VSP storage systems

·         Services, Maintenance, and Support plans for each component

Table 17  lists the BOM for Cisco UCS 6454 Fabric Interconnect with Hitachi VSP G370 design.

Table 17   Bill of Materials for Direct Attached UCS 6454 and Hitachi VSP G370 Design

NOTE: Available paragraph styles are listed in the Quick Styles Gallery in the Styles group on the Home tab. Alternatively, they can be accessed via the Styles window (press Alt + Ctrl + Shift + S).
