The Cisco Community College reference design is a multi-campus design where a campus consists of multiple buildings and services. The campuses are interconnected through various WAN transports as shown in Figure 4-1.

Figure 4-1 Community College WAN Design Diagram

Within the Community College reference design, the service fabric network provides the foundation on which all the solutions and services are built upon to solve the business challenges facing community colleges. These challenges include virtual learning, secure connected classrooms, and safety and security. This service fabric consists of four distinct components as shown in Figure 4-2.

Figure 4-2 The Service Fabric Design Model

This chapter discusses the WAN design component of the community college service fabric design. This section discusses how the WAN design is planned for community colleges, the assumptions made, the platforms chosen, and the justification for choosing a platform. The WAN design is highly critical to provide network access for remote campus locations to the main campus site, as well as connectivity between community colleges, and general Internet access for the entire college. The WAN design should not be viewed merely for providing access, but mainly to see how the business requirements can be met. In today's collaborative learning environment, it is important for communication to exist between students and teachers. This communication could be with voice, video, or data applications. Moreover, the video applications, may possess, flavors ranging from desktop video to real-time video. To provide this collaborative environment, highly resilient and, highly performing WAN designs are required.

The main components of Community College WAN design are as follows:

WAN transport

WAN devices

Network Foundation services—Routing, QoS, and multicast

WAN Transport

This section discusses the different WAN transports present in the community college.

Private WAN Service

One of the main requirements for community colleges is the ability to collaborate with other colleges within North America and globally. To achieve the inter connectivity between the colleges, the network should be connected to certain providers, such as Lambda rail, Internet2. The community colleges need to connect to Gigapops—regional networks, which provide access to these private WAN networks. The following sections provide a brief description on these two network types:

Internet2 is a not-for-profit advanced networking consortium comprising more than 200 U.S. universities in cooperation with 70 leading corporations, 45 government agencies, laboratories, and other institutions of higher learning as well over 50 international partner organizations. Internet2 provides its members both leading-edge network capabilities and unique partnership opportunities that together facilitate the development, deployment and use of revolutionary Internet technologies. The Internet2 network's physical implementation is comprised of an advanced IP network, virtual circuit network and core optical network. It provides the necessary scalability for member institutions to efficiently provision resources to address bandwidth-intensive requirements of their campuses such as, collaborative applications, distributed research experiments, grid-based data analysis and social networking. For more information on the Internet2 network, refer to the following URL:

http://www.internet2.edu/network/

National LambdaRail (NLR) is a high-speed, fiber-optic network infrastructure linking over 30 cities in 21 states. It is owned by the U.S. research and education community and is dedicated to serving the needs of researchers and research groups. NLR's high-performance network backbone offers unrestricted usage and bandwidth, a choice of cutting-edge network services and applications, and customized service for individual researchers and projects. NLR services include high-capacity 10Gb Ethernet LAN-PHY or OC-192 lambdas, point-to-point or multipoint Ethernet-based transport, routed IP-based services, and TelePresence video-conference services. For more information on the NLR network and its services, refer to the following URL:

http://www.nlr.net/

This design assumes that community colleges are connected to one of these networks using either Layer 2 or Layer 3 networks for WAN connectivity, using WAN speeds of 100Mbs. The physical connection is assumed to be one connection to the service provider, but there will be two logical connections—one for accessing private networks, and the second one for Internet access. Figure 4-3 depicts how community college would connect to different colleges, universities, and research networks using either NLR or Internet2 service.

Figure 4-3 Community College Connection to Other Colleges Using Private WAN

Internet Service

The physical connection for reaching the Internet and the private WAN network is same; however, both circuits are logically separated using different sub-interfaces. Therefore, it is similar to a situation where a customer is connected to different service providers. See Figure 4-4.

Figure 4-4 Community College Internet Service

Metro Service

Metro Ethernet is one of the fastest growing WAN transport technologies in the telecommunications industry. The advantages of using this WAN transport are as follows:

Scalability and reachability

The services offered would scale from 1Mbps to 10Gbps, and beyond in granular increments, which makes this transport highly scalable.

Service providers worldwide are migrating their networks to provide metro services; thereby, it is available at large number of places.

Performance, QoS, and suitability for convergence

Inherently Ethernet networks require less processing to operate and manage and operate at higher bandwidth than other technologies.

The granular options in bandwidth, ability to provide different SLA based on voice, video, and data applications that provide QoS service to customers.

Low latency and delay variation make it the best solution for video, voice, and data.

Cost savings

Metro Ethernet brings the cost model of Ethernet to the WAN.

Expediting and enabling new applications

Accelerates implementations with reduced resources for overburdened IT departments.

Enables new applications requiring high bandwidth, and low latency that were previously not possible or prohibited by high cost.

There are two popular methods of service for Metro Ethernet:

1. E-line, which is also known as Ethernet Virtual Private Line (EVPL) provides a point-to-point service.

2. E-LAN which provides multipoint or any-to-any connectivity.

EVPL, like Frame Relay, provides for multiplexing multiple point-to-point connections over a single physical link. In the case of Frame Relay, the access link is a serial interface to a Frame Relay switch with individual data-link connection identifiers (DLCIs), identifying the multiple virtual circuits or connections. In the case of EVPL, the physical link is Ethernet, typically FastEthernet or Gigabit Ethernet, and the multiple circuits are identified as VLANs by way of an 802.1q trunk.

E-LAN, also known as Virtual Private LAN Services (VPLS), provides any-to-any connectivity within the Metro area, which allows flexibility. It passes 802.q trunks across the SP network known as Q-in-Q.

Figure 4-5 shows the difference between these services.

Figure 4-5 Different Services Available

This section discusses how the Metro service is designed in the Community College reference design. The Metro service is used to provide connectivity between the remote campuses to the main campus site. The key reasons for recommending Metro service for community college are as follows:

Centralized administration and management—E-line service provides point-to-point connectivity, where as, E-LAN provides point-to-multipoint connectivity. Having a point-to-point connectivity mandates that all the remote campus sites need to traverse the main campus site to reach the other, making the centralized administration applicable.

Performance—Since all the application services are centrally located at main campus site, the WAN bandwidth required for remote campus sites to main campus site should be at least 100 Mbps. The Metro transport can provide 100Mbps, and more if needed in the future.

Therefore, in this design, it is recommended that the remote large and remote medium campus locations use E-line service to connect to the main campus site. Figure 4-6 shows how the remote campus locations are connected to main campus site using Metro service.

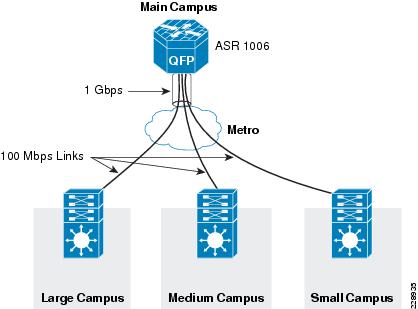

Figure 4-6 The Metro Transport Deployment in Community College WAN Design

Leased-Line Service

The WAN bandwidth requirement for a small remote site is assumed to be 20Mbps. Cisco recommends that the remote small campus site connect to the main campus site using a private leased-line service. The leased-line service is more readily available for these type of locations and the bandwidth is sufficient for the remote small campus application requirements.

WAN Aggregation Platform Selection in the Community College Reference Design

In addition to selecting the WAN service for connectivity between college campus locations and access to the Internet, choosing the appropriate WAN aggregation router is essential. For each location in the Community College reference design, various WAN aggregation platforms are selected based on the requirements.

Main Campus WAN Aggregation Platform Selection

A WAN aggregation router aggregates all the incoming WAN circuits from various locations in the network as well as the Internet and also provides the proper QoS required for application delivery. Cisco recommends the Cisco ASR family of routers as the WAN aggregation platform for the main campus location.

The Cisco ASR 1000 Series Router family consists of three different models:

The Cisco ASR 1002 Router is a 3-SPA, 2-rack-unit (RU) chassis with one Embedded Services Processor (ESP) slot that comes with an integrated Router Processor (RP), integrated Cisco ASR 1000 Series Shared Port Adapter Interface Processor (SIP), and integrated four Gigabit Ethernet ports.

The Cisco ASR 1004 Router is an 8-SPA, 4-RU chassis with one ESP slot, one RP slot, and two SIP slots.

The Cisco ASR 1006 Router is a 12-SPA, 6-RU, hardware redundant chassis with two ESP slots, two RP slots and three SIP slots.

In community college WAN design, there are two places where the WAN aggregation occurs in the main campus location. The first place is where the main campus location connects to outside world using private WAN and Internet networks. The second place is where all the remote campus locations connect to the main campus sites. Figure 4-7 shows the two different WAN aggregation devices.

Figure 4-7 The WAN Aggregation Points in Community College

WAN Aggregation 1

Cisco ASR 1004 Series router is recommended as WAN aggregation platform for private WAN/Internet connectivity. This choice was made considering the cost and required features—performance, QoS, routing, and resiliency, which are essential requirements for WAN aggregation router. Moreover, this platform contains built-in resiliency capabilities such as ISSU and IOS-based redundancy.

WAN Aggregation 2

The second WAN aggregation device provides connectivity to the large and medium remote community college campuses. To perform this aggregation, the Cisco ASR 1006 router with redundant route processors and redundant ESP's has been recommended for the following reasons:

Performance—Up to 20 Gbps throughput

Port density—Up to 12 shared port adapters (SPAs), the highest port density solution of the three Cisco ASR 1000 routers

Resiliency—Cisco ASR 1006 router supports hardware redundancy and in-service software upgrades (ISSU). This chassis would support dual route processors, and dual ESP modules to support the hardware redundancy. Moreover, this router would also support EtherChannel load balancing feature.

Remote Large Campus WAN Aggregation Platform Selection

The WAN connectivity between the large remote campus sites to the main campus site is fairly simpler because of the lack of requirements of advanced encryption technologies. Therefore, the main idea is to reduce the cost and try to consolidate the WAN functionality into the distribution device at the large campus site. However, at the large campus site, as per the campus LAN design document VSS has been chosen as distribution switch, and it does not support WAN functionality. Therefore, a dedicated WAN aggregation device needed to perform that functionality, and the choice can be an ASR, 7200, or 3750ME switches. Out of these choices, considering the cost/performance criteria, the Cisco 3750ME switch was selected to perform the WAN aggregation. The Cisco 3750 Metro switch has the following features/capabilities to adequately meet the requirements:

Hierarchical QoS

Routing support: OSPF, EIGRP, BGP

Multicast support: PIM

Redundant power supply

Remote Medium Campus WAN Aggregation Platform Selection

As discussed in Chapter 3, "Community College LAN Design," the remote medium campus collapses the WAN edge and core-layer LAN functionality into a single switch to provide cost effectiveness to meet the budget needs for this size location. The remote medium campus location is connected to the main campus location through Metro service. At the remote medium campus location, the WAN and LAN aggregation platform is the Cisco Catalyst 4507 switch. This switch has necessary features to perform as WAN router. However, if there is the need for advanced WAN features such as MPLS, the Cisco Catalyst 3750 ME or Cisco ISR Series router or upgrading to the Cisco Catalyst 6500 series could be explored as an option. For this design, the Cisco Catalyst 4500 Series switches has been chosen to perform the dual functionality as WAN router, in addition to its role as core-layer LAN switch.

Remote Small Campus WAN Aggregation Platform Selection

The remote small campus is connected to main campus using a private leased-line service. The WAN speed between the remote small campus and the main campus location is assumed to be around 20Mbps, and this service is provided by a traditional leased line. Since it is a leased-line circuit, WAN devices such as Cisco 3750 Metro or 4507 switch can not be used. Therefore, an integrated services router is needed to meet the requirement. For this reason, the Cisco 3845 Series router is chosen as WAN platform for remote small campus. The main advantages of using the Cisco 3845 Series router are as follows:

Enhanced Network Module Slot

Support for over 90 existing and new modules

Voice Features: Analog and digital voice call support and optional voice mail support

Support for majority of existing AIMs, NMs, WICs, VWICs, and VICs

Integrated GE ports with copper and fiber support

Implementation of Community College WAN Reference Design

The following section would discuss on the implementation details for Community College WAN Reference design. The major components of the implementation are the following:

WAN infrastructure design

Routing

QoS

Resiliency

Multicast

WAN Infrastructure Design

As explained in the design considerations, the Community College WAN design uses two different services to connect remote campus locations to main campus location. The remote large campus site, and remote medium campus sites would connect to main campus site using Metro services. The remote small campus site uses leased-line service to connect to the main campus location. The remote large campus site, due to its size, is recommended to have 1Gbps Metro service to the main campus site where as the remote small campus location is recommended to have at least 20Mbps of bandwidth to main campus site. The following section provides the configuration details of all the WAN devices needed to establish the WAN connectivity.

Configuration of WAN interfaces at WAN Aggregation router 2

The following is configuration of WAN interfaces on WAN aggregation router 2, which aggregates all the connections from the remote campus locations to main campus site.

interface GigabitEthernet0/2/0
 description Connected to cr11-3750ME-RLC
 ip address 10.126.0.1 255.255.255.254
!
interface GigabitEthernet0/2/1
 description Connected to cr11-4507-RMC
 dampening
 no ip address
 load-interval 30
 carrier-delay msec 0
 negotiation auto
 cdp enable
 service-policy output PARENT_POLICY
 hold-queue 2000 in
 hold-queue 2000 out
!

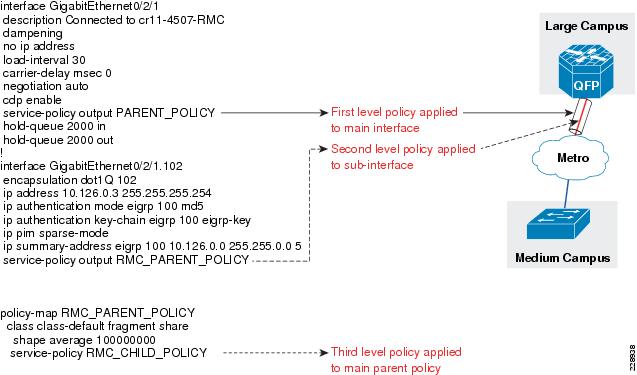

interface GigabitEthernet0/2/1.102
 encapsulation dot1Q 102
 ip address 10.126.0.3 255.255.255.254
!
!

Configuration of WAN Interface at 3750 Remote Large Campus

The following is configuration of WAN interface at 3750 remote large campus switch, which is connected to main campus site:

interface GigabitEthernet1/1/1
 description Connected to cr11-ASR-WE
 no switchport
 dampening
 ip address 10.126.0.0 255.255.255.254

Configuration of WAN interface at 4500 Remote Medium Campus

The following is the configuration of WAN interface at remote medium campus connected to main campus site:

interface GigabitEthernet4/1
 description link connected to  cr13-6500-pe2 gi3/2
 switchport trunk native vlan 802
 switchport trunk allowed vlan 102
 switchport mode trunk
 logging event link-status
 load-interval 30
 carrier-delay msec 0
 no cdp enable
 spanning-tree portfast trunk
 spanning-tree guard root
!
interface Vlan102
 description Connected to cr11-ASR-WE
 dampening
 ip address 10.126.0.2 255.255.255.254
 load-interval 30
 carrier-delay msec 0

Leased-Line Service

The WAN bandwidth requirement for a small remote site is assumed to be 20Mbps. Cisco recommends that the remote small campus site connect to the main campus site using a private leased-line service. The leased-line service is more readily available for these type of locations and the bandwidth is sufficient for the remote small campus application requirements. To implement this design, a serial SPA is needed on the ASR 1006 WAN aggregation router at the main campus site and this SPA needs to be enabled for T3 interface type. The following configuration illustrates how to enable and configure the T3 interface:

The following configuration steps are needed to build the lease-line service between the main campus and remote small campus:


Step 1 Enable the T3 interface on the SPA on ASR1006

card type t3 0 3

Step 2 Configure the WAN interface

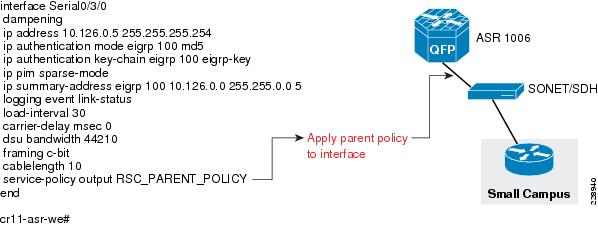

interface Serial0/3/0
 dampening
 ip address 10.126.0.5 255.255.255.254

Configuration of WAN Interface at Remote Small Campus Location

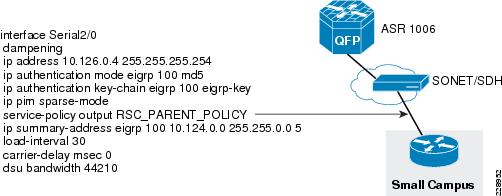

The following is configuration of WAN interface at remote small campus location:

interface Serial2/0
 dampening
 ip address 10.126.0.4 255.255.255.254
 ip authentication mode eigrp 100 md5
 ip authentication key-chain eigrp 100 eigrp-key
 ip pim sparse-mode
 service-policy output RSC_PARENT_POLICY
 ip summary-address eigrp 100 10.124.0.0 255.255.0.0 5
 load-interval 30
 carrier-delay msec 0
 dsu bandwidth 44210

Routing Design

This section discusses how routing is designed and implemented in the Community College reference WAN design. As indicated in the WAN transport design, the Community College reference design has multiple transports—NLR or I2 networks, Internet, Metro Service, and leased-line services. The NLR or I2 networks would provide access to reach other community colleges, universities, and research networks globally. Internet service would help the Community College to reach Internet. Metro/leased-line service would help to connect remote campus locations to the main campus. To provide connectivity using these transport services we have designed two distinct routing domains - external and internal. The external routing domain is where the Community College would connect with external autonomous system, and the internal routing domain is where the entire routing domain is within single autonomous system. The following section would discuss about the external routing domain design, and the internal routing domain design.

External Routing Domain

As indicated above, the external routing domain would connect with different service providers, NLR or I2, and the Internet service. This is applicable only to the WAN aggregation router 1, which interfaces with both NLR or I2, and the Internet service, because it the only router which interfaces with the external domain.

The main design considerations for routing for the Internet/private WAN edge router are as follows:

Scale up to large number of routes

Support for multi-homing—connection to different service providers

Ability to implement complex polices—Have separate policies for incoming and outgoing traffic

To meet the above requirements, BGP has been chosen as the routing protocol because of the following reasons:

Scalability—BGP is far superior when routing table entries is quite large.

Complex policies—IGP protocol is better in environments where the neighbors are trusted, whereas when dealing with different service providers' complex policies are needed to deal with incoming entries, and outgoing entries. BGP supports having different policies for incoming and outgoing prefixes. Figure 4-8 shows the BGP design.

Figure 4-8 BGP Design in Community College

For more information on designing and configuring BGP on the Internet border router, refer to the SAFE Reference Design at the following link:

http://www.cisco.com/en/US/netsol/ns954/index.html#~five

Internal Routing Domain

EIGRP is chosen as the routing protocol for designing the internal routing domain, which is basically connecting all the devices in the campus network. EIGRP is a balanced hybrid routing protocol that builds neighbor adjacency and flat routing topology on per autonomous-system (AS)-basis. It is important to design EIGRP routing domain in college infrastructure with all the design principles defined earlier in this section. CCVE SRA network infrastructure must be deployed in recommended EIGRP protocol design to secure, simplify, and optimize the network performance. Figure 4-9 depicts the design of EIGRP for internal network.

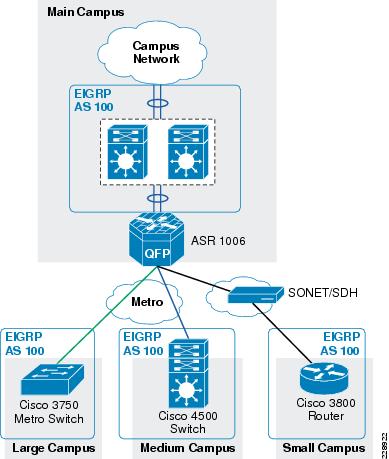

Figure 4-9 EIGRP Design Diagram

EIGRP Configuration on WAN Aggregation Router2 -ASR1006

The EIGRP is used on the following links:

1. Port-channel link, which is link between the ASR1006 router and the core.

2. The 1Gbps Metro link to remote large campus location.

3. The 100Mpbs Metro link to remote medium campus location.

4. 20Mbps leased-line service to remote small campus location.


Step 1 Configure the neighbor authentication on interface links:

interface Port-channel1
 ip address 10.125.0.23 255.255.255.254
 ip authentication mode eigrp 100 md5
 ip authentication key-chain eigrp 100 eigrp-key
!
interface GigabitEthernet0/2/0
 description Connected to cr11-3750ME-RLC
 ip address 10.126.0.1 255.255.255.254
 ip authentication mode eigrp 100 md5
 ip authentication key-chain eigrp 100 eigrp-key
!
interface GigabitEthernet0/2/1
 description Connected to cr11-4507-RMC
 dampening
 no ip address
 load-interval 30
 carrier-delay msec 0
 negotiation auto
 cdp enable
 hold-queue 2000 in
 hold-queue 2000 out
!
interface GigabitEthernet0/2/1.102
 encapsulation dot1Q 102
 ip address 10.126.0.3 255.255.255.254
 ip authentication mode eigrp 100 md5
 ip authentication key-chain eigrp 100 eigrp-key
!
interface Serial0/3/0
 dampening
 ip address 10.126.0.5 255.255.255.254
 ip authentication mode eigrp 100 md5
 ip authentication key-chain eigrp 100 eigrp-key

Step 2 Configure the summarization on the member links:

interface Port-channel1
 ip address 10.125.0.23 255.255.255.254
 ip summary-address eigrp 100 10.126.0.0 255.255.0.0 5
!
interface GigabitEthernet0/2/0
 description Connected to cr11-3750ME-RLC
 ip address 10.126.0.1 255.255.255.254
 ip summary-address eigrp 100 10.126.0.0 255.255.0.0 5
!
interface GigabitEthernet0/2/1
 description Connected to cr11-4507-RMC
!
interface GigabitEthernet0/2/1.102
 encapsulation dot1Q 102
 ip address 10.126.0.3 255.255.255.254
 ip summary-address eigrp 100 10.126.0.0 255.255.0.0 5
!
interface Serial0/3/0
 ip address 10.126.0.5 255.255.255.254
 ip summary-address eigrp 100 10.126.0.0 255.255.0.0 5

Step 3 Configure EIGRP routing process:


router eigrp 100
 network 10.0.0.0
 eigrp router-id 10.125.200.24
 no auto-summary
 passive-interface default
 no passive-interface GigabitEthernet0/2/0
 no passive-interface GigabitEthernet0/2/1.102
 no passive-interface Serial0/3/0
 no passive-interface Port-channel1
 nsf

The ASR1006 router is enabled with non-stop forwarding feature. The following command is used to verify the status:

cr11-asr-we#show ip protocols
*** IP Routing is NSF aware ***

Routing Protocol is "eigrp 100"
  Outgoing update filter list for all interfaces is not set
  Incoming update filter list for all interfaces is not set
  Default networks flagged in outgoing updates
  Default networks accepted from incoming updates
  EIGRP metric weight K1=1, K2=0, K3=1, K4=0, K5=0
  EIGRP maximum hopcount 100
  EIGRP maximum metric variance 1
  Redistributing: eigrp 100
  EIGRP NSF-aware route hold timer is 240s
  EIGRP NSF enabled
     NSF signal timer is 20s
     NSF converge timer is 120s
     Time since last restart is 2w1d
  Automatic network summarization is not in effect
  Address Summarization:
    10.126.0.0/16 for Port-channel1, GigabitEthernet0/2/0, GigabitEthernet0/2/1.102
      Serial0/3/0
      Summarizing with metric 2816
  Maximum path: 4
  Routing for Networks:
    10.0.0.0
  Passive Interface(s):
    GigabitEthernet0/2/1
    GigabitEthernet0/2/2
    GigabitEthernet0/2/3
    GigabitEthernet0/2/4
    Serial0/3/1
    Group-Async0
    Loopback0
    Tunnel0
  Routing Information Sources:
    Gateway         Distance      Last Update
    (this router)         90      2w1d
    10.125.0.22           90      1d17h
    10.126.0.4            90      1d17h
    10.126.0.0            90      1d17h
    10.126.0.2            90      1d17h
  Distance: internal 90 external 170

cr11-asr-we#

EIGRP Configuration on 3750 Remote Large Campus Switch

The EIGRP configuration at 3750 remote large campus site also has similar steps compared to Main campus site.


Step 1 Enable authentication on the link:

interface GigabitEthernet1/1/1
 description Connected to cr11-ASR-WE
 no switchport
 dampening
 ip address 10.126.0.0 255.255.255.254
 ip authentication mode eigrp 100 md5
 ip authentication key-chain eigrp 100 eigrp-key
 router eigrp 100
 network 10.0.0.0
 passive-interface default
 no passive-interface Port-channel1
 no passive-interface GigabitEthernet1/1/1
 eigrp router-id 10.122.200.1

Step 2 Configure summarization on the link:

interface GigabitEthernet1/1/1
 description Connected to cr11-ASR-WE
 no switchport
 dampening
 ip address 10.126.0.0 255.255.255.254
 ip summary-address eigrp 100 10.122.0.0 255.255.0.0

Step 3 Configure EIGRP routing process:

router eigrp 100
 network 10.0.0.0
 passive-interface default
 no passive-interface Port-channel1
 no passive-interface GigabitEthernet1/1/1
 eigrp router-id 10.122.200.1
!

EIGRP Configuration at 4750 Medium Campus Switch


Step 1 Enable authentication on the WAN link

interface Vlan102
 description Connected to cr11-ASR-WE
 dampening
 ip address 10.126.0.2 255.255.255.254
 ip authentication mode eigrp 100 md5
 ip authentication key-chain eigrp 100 eigrp-key
Step2) Enable summarization on the WAN links
interface Vlan102
 ip summary-address eigrp 100 10.123.0.0 255.255.0.0 5
 load-interval 30
 carrier-delay msec 0

Step 2 Enable EIGRP routing process

router eigrp 100
 passive-interface default
 no passive-interface Vlan102
 no auto-summary
 eigrp router-id 10.123.200.1
 network 10.98.0.1 0.0.0.0
 network 10.123.0.0 0.0.255.255
 network 10.126.0.0 0.0.255.255
 nsf
!

EIGRP Configuration at 3800 Remote Small Campus Router


Step 1 Configure link authentication:

interface Serial2/0
 dampening
 ip address 10.126.0.4 255.255.255.254
 ip authentication mode eigrp 100 md5
 ip authentication key-chain eigrp 100 eigrp-key

Step2) Configure Summarization
 interface Serial2/0
 dampening
 ip summary-address eigrp 100 10.124.0.0 255.255.0.0 5
 load-interval 30
 carrier-delay msec 0
 dsu bandwidth 44210

Step 2 Configure EIGRP process:


router eigrp 100
 network 10.0.0.0
 no auto-summary
 eigrp router-id 10.124.200.1
!


To obtain more information about EIGRP design, refer to the "Deploying Community College Network Foundation Services" section on page 3-25.

QoS

QoS is a part of foundation services, which is very critical to the application performance. Today's networks are rapidly converging into IP network. The traditional applications, which used the networks, were voice, video, and data. However, broadcast video, real-time video, video surveillance, and many other applications have all converged into IP networks. Moreover, each of these applications require different performance characteristics on the network. For example, data applications may need only high throughput, but are tolerant to delay and loss. Similarly, voice applications need constant low bandwidth and low delay performance. To cater to these performance characteristics, Cisco IOS has several rich QoS tools such as classification and marking, queuing, WRED, policing, shaping, and many other tools to effect the traffic characteristics. Before discussing the QoS design, the following subsection provides a brief introduction on these characteristics.

Traffic Characteristics

The main traffic characteristics are bandwidth, delay, loss, and jitter.

Bandwidth—Lack of proper bandwidth can cause applications from performing poorly. This problem would be exacerbated if there were more centralized applications. The bandwidth constraint occurs because of the difference between the bandwidth available at LAN and the WAN. As shown in Figure 4-10, the bandwidth of the WAN transport dictates the amount of traffic received at each remote site. Applications are constrained by the amount of WAN bandwidth.

Figure 4-10 Bandwidth Constraint Due to Difference in Speeds

Jitter—Occurs when there are bandwidth mismatches between the sender and receiver, which could result in poor performance of delay sensitive applications like voice and video.

Loss—occurs when the queues become full, and there is not enough bandwidth to send the packets.

Delay—Is an important characteristic, which plays a large role in determining the performance of the applications. For a properly designed voice network the one-way delay must be less then 150 msec.

QoS Design for WAN Devices

For any application regardless of whether it is video, voice, or data the traffic characteristics just mentioned need to be fully understood before making any decisions on WAN transport or the platforms needed to deploy these services. Cisco QoS tools help to optimize these characteristics so that voice, video, and data applications performance is optimized. The voice and video applications are highly delay-and drop-sensitive, but the difference lies in the bandwidth requirement. The voice applications have a constant and low bandwidth requirement, but the video applications have variable bandwidth requirements. Therefore, it is important to have a good QoS policy to accommodate these applications.

Regardless of the WAN transport chosen, QoS design is the most significant factor in determining the success of network deployment. There are number of benefits in deploying a consistent, coherent QoS scheme across all network layers. It helps not only in optimizing the network performance, it helps to mitigate network attacks, and also manage the control plane traffic. Therefore, when the platforms are selected at each network layer, QoS must always be considered in the design choice.

In the WAN links the congestion can occur when there are speed mismatches. This may occur because there is significant difference between LAN speeds and WAN speeds. To prevent that from occurring, the following two major tools can be used:

Low-Latency Queuing (LLQ), which is used for highest-priority traffic (voice/ video).

Class-based Weighted-Fair Queuing (CBWFQ), which can be used for guaranteeing bandwidth to data applications.

The general guidelines for deploying the WAN edge device considerations are as follows:

For WAN speeds between 1Mpbs to 100Mbps, use hierarchical policies for sub-line-rate Ethernet connections to provide shaping and CBWFQ/LLQ.

For WAN speeds between 100Mbps to 10Gbps, use ASR1000 with QFP or hardware queuing via Cisco Catalyst 3750-Metro and 6500/7600 WAN modules.

When designing the QoS for WAN architecture, there are two main considerations to start with:

Whether the service provider will provide four classes of traffic.

The service provider will only provide one class of traffic.

This document assumes that the service provider will support at least 4 classes of traffic such as REAL_TIME, GOLD, SILVER, and DEFAULT. The community college campus LAN supports 12 classes of traffic, which will be mapped to 4 classes of traffic on the WAN side. Figure 4-11 illustrates the recommended markings for different application traffic.

Figure 4-11 Mapping of 12-Class Model to 4-classes

Once the QoS policy is designed the next pertinent question is the appropriate allocation of bandwidth for the 4 classes of traffic. Table 4-1 describes the different classes, and the percentage, and actual bandwidth allocated for each class of traffic.

Table 4-1 Classes of Traffic

Class of Traffic
4-class SP Model
Bandwidth Allocated
Actual Bandwidth

Voice, Broadcast Video, Real Time Interactive

SP- Real-Time

30%

33 Mbps

Network Control

Signaling

Transactional Data

SP-Critical 1

20%

36 Mbps

Multi-media Conferencing

Multimedia streaming

OAM

SP-Critical 2

20%

25 Mbps

Bulk data

Scavenger

Best Effort

SP-Best Effort

30%

6 Mbps


QoS Implementation

This section discusses how QoS is implemented in community college WAN design network. As explained in the QoS design considerations, the main objective of the QoS implementation is to ensure that the 12 classes of LAN traffic is mapped into 4 classes of WAN traffic. Each class should receive the adequate bandwidth, and during congestion, each class must received the guaranteed minimum bandwidth. To accomplish this objective, the following methods are used to implement QoS policy:

Three-layer hierarchical design—This is needed when multiple sites need to share a common bandwidth, and each site needs dedicated bandwidth, and queuing within the reserved policy.

Two-layer hierarchical design—This design is needed when the interface bandwidth is higher than the SLA bandwidth allocated by the service provider. For example, if the physical link is 100Mbs, but the service provider has only allocated 50 Mbps. In this scenario we need two policies. The first policy, which is parent policy would shape the entire traffic to 50Mbs then the child policy would queue and allocated bandwidth for each class.

Single-layer design—If the interface bandwidth, and the SLA bandwidth of the provider are equal then we can use a single QoS policy to share the bandwidth among the classes of traffic, which is four in our design.

This section describes detailed implementation of QoS policies at various parts of the network. The devices that need QoS design are as follows:

WAN aggregation router 1 for connection to the Internet and NLR network

WAN aggregation router 2 for connection to remote campus sites

Cisco 3750 Metro switch at the remote large campus

Cisco 4500 switch at the remote medium campus

Cisco 3800 router at the remote small campus

QoS Implementation at WAN Aggregation Router 1

The WAN aggregation router1 connects to two different providers: NLR network and Internet. It is assumed that the aggregate bandwidth is 100Mbps that should be shared between both services—50Mbps is dedicated for NLR network and 50Mbps is dedicated for Internet traffic. As explained in the previous section, to implement this granular policy, a three-layer hierarchical QoS design needs to be implemented.

Figure 4-12 depicts the bandwidth allocation at the WAN aggregation router 1.

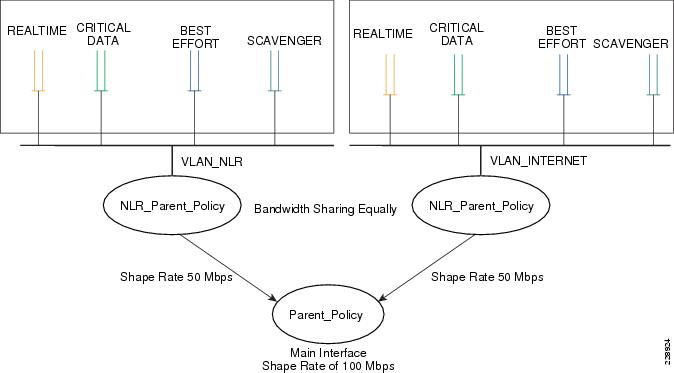

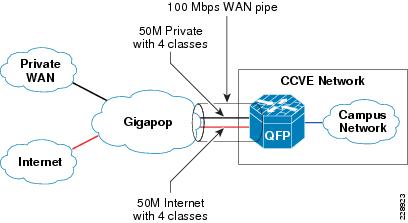

Figure 4-12 The Bandwidth Allocation at WAN Aggregation Router 1

To implement a three-layer hierarchical QoS policy on the WAN aggregation1 router, a higher-level parent policy is defined that would shape the aggregate WAN speed to 100Mbps, then sub-parent policies are defined, which would further shape it to 50Mbps. Within each of the sub-parent policies, there are four defined classes: REALTIME, CRITICAL_DATA, BEST_EFFORT, and SCAVENGER classes. Figure 4-13 depicts this hierarchical QoS design.

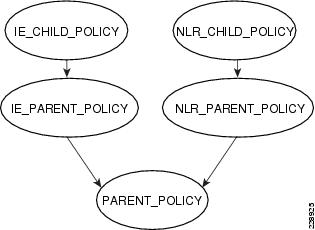

Figure 4-13 Hierarchical QoS Design

The hierarchical three-layer QoS policy is implemented in three steps as follows:

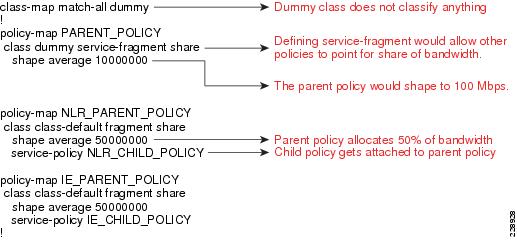

Step 1 Define Parent policy—Enforces the aggregate bandwidth policy for the entire interface. This is like a Grandfather of policy.

Step 2 Define the individual sub-parent policies—These would be specific to each service type. For example, NLR_PARENT is a policy dedicated for NLR traffic, and NLR_Internet is specific to Internet traffic.

Step 3 Define the child policies—Classifies, queues, and allocate bandwidth within each sub-parent policy. For example, NLR_PARENT would have a NLR_Child policy that would classify, queue, and allocate the bandwidth within each allocated bandwidth. The following diagram shows the hierarchical allocation.

Implementation Steps for Qos Policy at WAN Aggregation Router 1

This section would describes the detailed steps needed to implement the three-layer QoS policy in the WAN_Aggregation_router1.


Step 1 Define class-maps.

Step 2 Define child policy maps.

Step 3 Define parent policy maps.

Step 4 Apply the policy maps created in Steps 1 to 3.

QoS Policy Implementation for WAN Aggregation Router 2

QoS configuration at WAN aggregation router 2 is more complex than the QoS configuration of WAN aggregation router 1 because of different speeds connected to the router. Figure 4-14 depicts the different types of WAN speeds

Figure 4-14 WAN Link Speeds at WAN Aggregation Router 2 Device

The requirements of the QoS design at the WAN aggregation router 2 are as follows:

The link speed between the main campus, and large campus is 1Gbps. Therefore; a single-layer QoS policy can be defined on the link.

The SLA between the main campus, and medium campus is assumed to be 100Mbps; however, link speed is assumed to be 1Gbps. In addition, there is an assumption that there could be more than one medium campus present in this design. Therefore, each remote medium campus would connect to the main campus using these 100Mbps links, requiring a three-layer hierarchical QoS policy is needed.The link between the main campus and remote small campus is 20Mbps. The physical link speed is 44Mbps, requiring a two-level hierarchical QoS policy is needed.

The Ether channel link between the ASR router and the core is 2Gbps, which contains two links of 1Gbps link speeds. Since the physical link speed and the actual WAN speed is 1Gbps, a single-level QoS policy can be applied on each of the links.

Table 4-2 describes the different QoS policy names applied at the WAN aggregation router 2.

Table 4-2 QoS Policy for WAN Aggregation Route 2

Qos Policy Name
Description
WAN Speed

RLC_POLICY

Applied on link between main campus, and remote large campus

1Gbps

PARENT_POLICY

RMC_PARENT_POLICY

RMC_CHILD_POLICY

Hierarchical Qos Policy between the main campus, and remote medium campus location.

100 Mbps

WAN_Upstream

Applied on link between main campus, and core

2Gbps

RSC_PARENT_POLICY

RSC_POLICY

Applied on link between main campus and small campus

20Mbps


Figure 4-15 depicts the various points where QoS policies are applied.

Figure 4-15 The allocation of QoS Policy at Different Places on WAN Aggregation Router 2

QoS Policy Between the Main Campus and Large Campus

The WAN physical link speed is 1Gbs. Also, the actual SLA between the main campus and large campus is assumed to be 1Gbps. Therefore, a single-layer QoS policy is implemented in this scenario.


Step 1 Define the class-maps.

Step 2 Define the policy map.

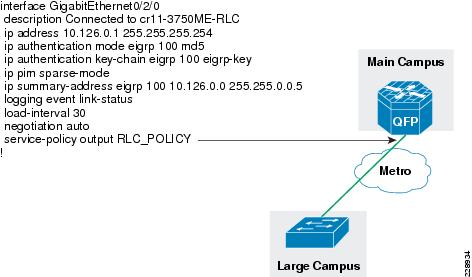

Step 3 Apply the class-maps and policy map defined in Steps 1 and 2 on the interface connected between main campus to the large campus site.

QoS Policy Between the Main Campus and Medium Campus Location

A three-layer QoS design is needed between the main campus site and large medium campus location because there could be couple of medium campus locations connected on a single metro link to the main campus site. Figure 4-16 shows how this design looks like when there are more than one medium campus site.

Figure 4-16 The WAN Link Design for Connectivity Between Main Campus and Remote Medium Campus

Here, the implementation details are provided for only a single medium campus location; however, more medium campus locations could be added, if desired. The following are implementation steps for this QoS policy:


Step 1 Define the child policy maps.

Step 2 Define the parent policy maps.

Step 3 Apply the policy maps.

QoS Policy Between Main Campus and Remote Small Campus Location

The following is the QoS policy implementation steps between main campus and remote small campus location. The actual WAN speed is 44Mbps; however, the SLA is assumed to be 20Mbps. Therefore, a two-layer hierarchical QoS design is needed to implement the above policy.

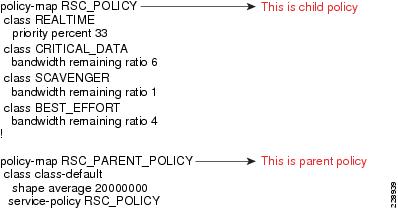

Step 1 Define the policy map.

Step 2 Apply the policy map to the interface.

QoS Policy Implementation Between the Main Campus and Core

The following is the QoS policy implementation between main campus and core. There are two links between the ASR 1006 and core, which is VSS. QoS policy needs to be configured on both links.


Step 1 Define of policy-map.

Step 2 Apply the policy-map on both interfaces going up to the core.

QoS Policy Between Large Campus and Main Campus Location

The WAN interface between the large campus and main campus site is 1 Gbps, which is also equal to the link speed; therefore, a single-layer QoS policy map can be created.


Step 1 Define the class-maps.

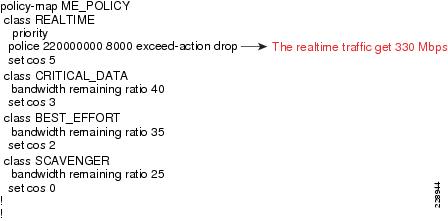

Step 2 Define the policy-map.

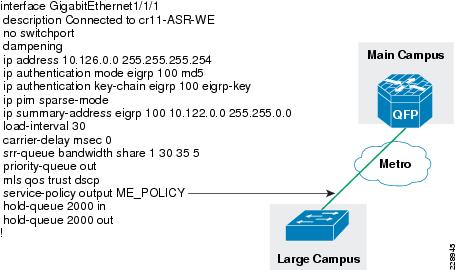

Step 3 Apply the QoS policy-map to the WAN interface.

QoS Policy Between Medium Campus and Main Campus Location

The medium campus location uses 4500 as WAN device, which uses 4500-E supervisor. The physical link speed is 100Mbps and the actual SLA is also 100Mbps. Therefore, a single-layer QoS policy meets the requirement.


Step 1 Define the class-maps.

Step 2 Define the policy-maps.

Step 3 Apply the defined class and policy maps to the interface.

QoS Policy Implementation Between Remote Small Campus and Main Campus Location

The following section describes the QoS policy implementation between the remote small campus location and main campus. The physical link speed is T3, which is 45Mbps, but the SLA is 20 Mbps. Therefore, a hierarchical two-layer QoS policy is implemented. The parent policy shapes the link speed to 20Mbps and the child policy would queue and allocate the bandwidth within the 20Mbps.


Step 1 Define the class-maps.

Step 2 Define the child policy map.

Step 3 Define the parent policy map.

Step 4 Apply the policy map to interface.

Redundancy

Redundancy must be factored into the WAN design for a number of reasons. Since the WAN may span across several service provider networks, it is likely that network will be subjected to different kinds of failures occurring all the time. One of the following failures can occur over a period of time: route flaps, brownouts, fibers being cut, and device failures. The probability of these occurring over a short period of time is low, but the occurrence is highly likely over a long period of time. To meet these challenges, different kind of redundancy should be planned. The following are the some of the ways to support redundancy:

NSF/SSO—For networks to obtain 99.9999% of availability, technologies such as NSF/SSO are needed. The NSF would route packets until route convergence is complete, where as SSO allows standby RP to take immediate control and maintain connectivity protocols.

Service Software Upgrade (ISSU) allows software to be updated or modified while packet forwarding continues with minimal interruption.

Ether channel load balancing—Enabling this feature provides link resiliency and load balancing of traffic. This feature is enabled on the WAN aggregation 2 device. Figure 4-17 shows where this feature is enabled.

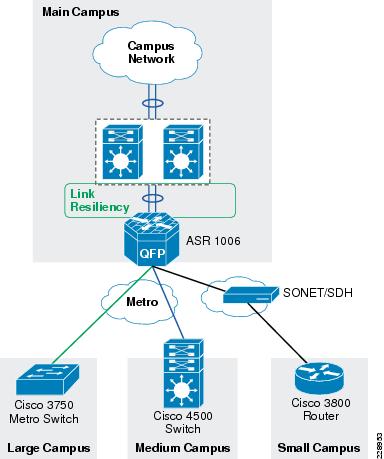

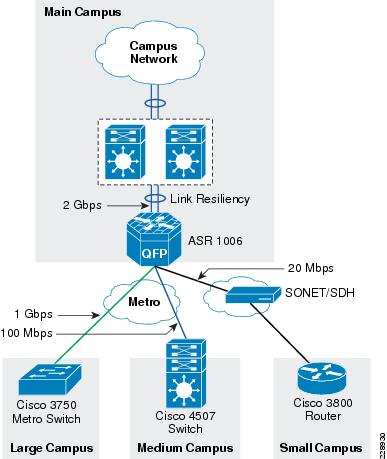

Figure 4-17 Link Resiliency

Table 4-3 shows the various WAN devices that are designed for resiliency.

Table 4-3 WAN Devices

Device

WAN transport

Resiliency feature

WAN aggregation 1

Private WAN/Internet

ISSU, IOS based redundancy

WAN aggregation 2

Metro

Redundant ESP, RP'


This section discusses how to incorporate the resiliency principle in Cisco Community College reference design for the WAN design. To enable resiliency adds cost and complexity to the design. Therefore, resiliency has been added at certain places where it is absolutely critical to the network architecture rather than designing redundancy at every place of the network.

In the Cisco Community College reference design the redundancy is planned at both WAN aggregation router1, and WAN aggregation router 2 in the main campus location. As explained in the WAN aggregation platform selection for the main campus location discussion ASR routers have been selected at both WAN aggregation locations places. However, we have different models, at both WAN aggregation places. When the ASR router interfaces with the private WAN, Internet networks the ASR 1004 with IOS-based redundancy has been chosen. Similarly, for the ASR router that interfaces with Metro connections, the ASR 1006 with dual RP, and dual ESP to provide for hardware-based redundancy has been chosen. Both of these models support In Service Software Upgrade (ISSU) capabilities to allow a user to upgrade Cisco IOS XE Software while the system remains in service. To obtain more information on ASR resiliency capabilities, see the ASR page at following URL: http://www.cisco.com/go/asr1000

Implementing IOS-based Redundancy at WAN Aggregation Router 1

They key requirement for implementing software-based redundancy on the ASR1004 is you must have 4GB DRAM on ASR1004. The following are steps for implementing the IOS based redundancy:


Step 1 Check the memory on ASR 1004 router.

CR11-ASR-IE#show version
Cisco IOS Software, IOS-XE Software (PPC_LINUX_IOSD-ADVENTERPRISE-M), Version
12.2(33)XND3, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2010 by Cisco Systems, Inc.
Compiled Tue 02-Mar-10 09:51 by mcpre


Cisco IOS-XE software, Copyright (c) 2005-2010 by cisco Systems, Inc.
All rights reserved.  Certain components of Cisco IOS-XE software are
licensed under the GNU General Public License ("GPL") Version 2.0.  The
software code licensed under GPL Version 2.0 is free software that comes
with ABSOLUTELY NO WARRANTY.  You can redistribute and/or modify such
GPL code under the terms of GPL Version 2.0.  For more details, see the
documentation or "License Notice" file accompanying the IOS-XE software,
or the applicable URL provided on the flyer accompanying the IOS-XE
software.


ROM: IOS-XE ROMMON

 CR11-ASR-IE uptime is 3 weeks, 6 days, 2 hours, 4 minutes
Uptime for this control processor is 3 weeks, 6 days, 2 hours, 6 minutes
System returned to ROM by SSO Switchover at 14:41:38 UTC Thu Mar 18 2010
System image file is "bootflash:asr1000rp1-adventerprise.02.04.03.122-33.XND3.bin"
Last reload reason: redundancy force-switchover


cisco ASR1004 (RP1) processor with 736840K/6147K bytes of memory.
5 Gigabit Ethernet interfaces
32768K bytes of non-volatile configuration memory.
4194304K bytes of physical memory.
937983K bytes of eUSB flash at bootflash:.
39004543K bytes of SATA hard disk at harddisk:.
15641929K bytes of USB flash at usb1:.

Configuration register is 0x2102

CR11-ASR-IE#

Step 2 Enable the redundancy:

redundancy
 mode sso
!


Step 3 Verify that redundancy is enabled:

CR11-ASR-IE#show redun
CR11-ASR-IE#show redundancy
Redundant System Information :
------------------------------
       Available system uptime = 3 weeks, 6 days, 2 hours, 11 minutes
Switchovers system experienced = 3
              Standby failures = 0
        Last switchover reason = active unit removed

                 Hardware Mode = Duplex
    Configured Redundancy Mode = sso
     Operating Redundancy Mode = sso
              Maintenance Mode = Disabled
                Communications = Up

Current Processor Information :
-------------------------------
               Active Location = slot 7
        Current Software state = ACTIVE
       Uptime in current state = 3 weeks, 6 days, 2 hours, 0 minutes
                 Image Version = Cisco IOS Software, IOS-XE Software
(PPC_LINUX_IOSD-ADVENTERPRISE-M), Version 12.2(33)XND3, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2010 by Cisco Systems, Inc.
Compiled Tue 02-Mar-10 09:51 by mcpre
                          BOOT =
bootflash:asr1000rp1-adventerprise.02.04.03.122-33.XND3.bin,1;
                   CONFIG_FILE =
        Configuration register = 0x2102

Peer Processor Information :
----------------------------
              Standby Location = slot 6
        Current Software state = STANDBY HOT
       Uptime in current state = 3 weeks, 6 days, 1 hour, 59 minutes
                 Image Version = Cisco IOS Software, IOS-XE Software
(PPC_LINUX_IOSD-ADVENTERPRISE-M), Version 12.2(33)XND3, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2010 by Cisco Systems, Inc.
Compiled Tue 02-Mar-10 09:51 by mcpre
                          BOOT =
bootflash:asr1000rp1-adventerprise.02.04.03.122-33.XND3.bin,1;
                   CONFIG_FILE =
        Configuration register = 0x2102


CR11-ASR-IE#


Implementation of Hardware-based Redundancy at WAN Aggregation Router 2

As explained in the design considerations documents, the WAN aggregation router 2 has redundant RPs and redundant ESPs. Therefore, with this configuration, we can achieve non-stop forwarding of data even when there failures with either ESP or RPs. The following steps are needed to enable hardware redundancy on WAN aggregation router 2:


Step 1 Configuration of SSO redundancy:


redundancy
 mode sso

Step 2 Verify the redundancy information:

cr11-asr-we#show redundancy
Redundant System Information :
------------------------------
       Available system uptime = 3 weeks, 6 days, 3 hours, 32 minutes
Switchovers system experienced = 4
              Standby failures = 0
        Last switchover reason = active unit removed

                 Hardware Mode = Duplex
    Configured Redundancy Mode = sso
     Operating Redundancy Mode = sso
              Maintenance Mode = Disabled
                Communications = Up

Current Processor Information :
-------------------------------
               Active Location = slot 6
        Current Software state = ACTIVE
       Uptime in current state = 2 weeks, 1 day, 19 hours, 3 minutes
                 Image Version = Cisco IOS Software, IOS-XE Software
(PPC_LINUX_IOSD-ADVENTERPRISEK9-M), Version 12.2(33)XND2, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2009 by Cisco Systems, Inc.
Compiled Wed 04-Nov-09 18:53 by mcpre
                          BOOT =
                   CONFIG_FILE =
        Configuration register = 0x2102

Peer Processor Information :
----------------------------
              Standby Location = slot 7
        Current Software state = STANDBY HOT
       Uptime in current state = 2 weeks, 1 day, 18 hours, 52 minutes
                 Image Version = Cisco IOS Software, IOS-XE Software
(PPC_LINUX_IOSD-ADVENTERPRISEK9-M), Version 12.2(33)XND2, RELEASE SOFTWARE (fc1)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2009 by Cisco Systems, Inc.
Compiled Wed 04-Nov-09 18:53 by mcpre
                          BOOT =
                   CONFIG_FILE =
        Configuration register = 0x2102


cr11-asr-we#

Implementation of Link Resiliency Between the WAN Aggregation Router 2 and VSS Core

The following are implementation steps to deploy link resiliency:


Step 1 Configure the ether channel between the ASR1006 and the VSS core:

interface GigabitEthernet0/2/3
 dampening
 no ip address
 load-interval 30
 carrier-delay msec 0
 negotiation auto
 cdp enable
 service-policy output WAN_Upstream
 channel-group 1 mode active
 hold-queue 2000 in
 hold-queue 2000 out
!
interface GigabitEthernet0/2/4
 dampening
 no ip address
 load-interval 30
 carrier-delay msec 0
 negotiation auto
 cdp enable
 service-policy output WAN_Upstream
 channel-group 1 mode active
 hold-queue 2000 in
 hold-queue 2000 out
!
Step 2) Configure the port-channel interface
interface Port-channel1
 ip address 10.125.0.23 255.255.255.254
 ip authentication mode eigrp 100 md5
 ip authentication key-chain eigrp 100 eigrp-key
 ip pim sparse-mode
 ip summary-address eigrp 100 10.126.0.0 255.255.0.0 5
 logging event link-status
 load-interval 30
 carrier-delay msec 0
 negotiation auto
!



Multicast

The main design considerations for multicast are as follows:

The number of groups supported by the WAN edge device. This is scalability factor of the WAN edge device. The platform chosen must support the number of required groups.

The placement of the RP—There are couple of options available with RP placement, which include Anycast with Static, Anycast with Auto-RP, or Anycast with BSR.

Multicast protocols—PIM-Sparse mode, IGMP

QoS policy must be configured for multicast traffic, so that this traffic does not affect the unicast traffic.

In the Community College Reference design, we are assuming that multicast traffic would be present only within the campus, and not between the community colleges. Therefore, the multicast design looks at only between the main campus, and remote small campus locations. The implementation section in the document shows how to enable multicast on the WAN device only. Therefore, to obtain more information about multicast design for campus, refer to "Multicast for Application Delivery" section on page 3-63.

Multicast Configuration on WAN Aggregation Router 2

This section shows how to enable multicast routing, and what interfaces to be enabled with PIM-Sparse mode on the WAN aggregation router2 that connects to different remote campus sites.


Step 1 Enable multicast routing:

ip multicast-routing distributed

Step 2 Enable PIM-Spare mode on the following WAN interfaces:

Port-channel—Connects to the VSS core

Gi0/2/0—Connects to remote large campus site

Gi0/2/1—Connects to remote medium campus site

S0/3/0—Connects to remote small campus site

interface Port-channel1
 ip address 10.125.0.23 255.255.255.254
 ip pim sparse-mode
  negotiation auto
!
interface GigabitEthernet0/2/0
 description Connected to cr11-3750ME-RLC
 ip address 10.126.0.1 255.255.255.254
 ip pim sparse-mode
 logging event link-status
 load-interval 30
 negotiation auto
!
interface GigabitEthernet0/2/1
 description Connected to cr11-4507-RMC
 dampening
 no ip address
 load-interval 30
 carrier-delay msec 0
 negotiation auto
 cdp enable
 hold-queue 2000 in
 hold-queue 2000 out
!
interface GigabitEthernet0/2/1.102
 encapsulation dot1Q 102
 ip address 10.126.0.3 255.255.255.254
 ip pim sparse-mode
 !
!
interface Serial0/3/0
 dampening
 ip address 10.126.0.5 255.255.255.254
 ip pim sparse-mode
 load-interval 30
 carrier-delay msec 0
 dsu bandwidth 44210
 framing c-bit
 cablelength 10
!
Step 3) Configure the RP location
ip pim rp-address 10.100.100.100


Configuration of Multicast on Remote Large campus

This section discusses how to implement multicast on remote large campus site. The following are implementation steps:


Step 1 Enable multicast routing:

ip multicast-routing distributed

Step 2 Enable pim sparse mode on the WAN interface that connects to main campus site.

interface GigabitEthernet1/1/1
 description Connected to cr11-ASR-WE
 no switchport
 dampening
 ip address 10.126.0.0 255.255.255.254
 ip pim sparse-mode
 hold-queue 2000 in
 hold-queue 2000 out
!

Configuration of Multicast on Remote Medium Campus

This section discusses on how to implement multicast on remote medium campus site.


Step 1 Enable multicast routing:

ip multicast-routing

Step 2 Enable PIM Spare mode on the WAN interface:

interface Vlan102
 description Connected to cr11-ASR-WE
 dampening
 ip address 10.126.0.2 255.255.255.254
 ip pim sparse-mode
 load-interval 30
 carrier-delay msec 0

Configuration of Multicast on Remote Small Campus Site

This section discusses on how to implement multicast on remote small campus site.


Step 1 Enable multicast routing:

ip multicast-routing

Step 2 Enable PIM Spare mode on the WAN interface:

interface Serial2/0
 dampening
 ip address 10.126.0.4 255.255.255.254
 ip pim sparse-mode
 load-interval 30
 carrier-delay msec 0
 dsu bandwidth 44210

Step 3 Configure the RP location:

ip pim rp-address 10.100.100.100 Allowed_MCAST_Groups override

Step 4 Configure the Multicast security:

ip pim spt-threshold infinity
ip pim accept-register list PERMIT-SOURCES
!
ip access-list standard Allowed_MCAST_Groups
 permit 224.0.1.39
 permit 224.0.1.40
 permit 239.192.0.0 0.0.255.255
 deny   any
ip access-list standard Deny_PIM_DM_Fallback
 deny   224.0.1.39
 deny   224.0.1.40
 permit any
!
ip access-list extended PERMIT-SOURCES
 permit ip 10.125.31.0 0.0.0.255 239.192.0.0 0.0.255.255
 deny   ip any any
!

Summary

Designing the WAN network aspects for the Cisco Community College reference design interconnects the various LAN locations as well as lays the foundation to provide safety and security, operational efficiencies, virtual learning environments, and secure classrooms.

This chapter reviewed the WAN design models recommended by Cisco and where to apply these models within the various locations within a community college network. Key WAN design principles such as WAN aggregation platform selection, QoS, multicast and redundancy best practices were discussed for the entire community college design. Designing the WAN network of a community college using these recommendations and best practices will establish a network that is resilient in case of failure, scalable for future grown, simplified to deploy and manage and cost efficient to meet the budget needs of a community college.
