Introduction

The Cisco Virtualized Multi-Tenant Data Center (VMDC) solution 2.x provides design and implementation guidance for enterprises planning to deploy private cloud services and service providers building virtual private and public cloud services. The Cisco VMDC 2.x solution integrates various Cisco and third-party products that are part of the cloud computing ecosystem.

This document includes the following topics:

Architecture Overview

Compact and Large PoD Details

Solution Validation

Further Reading

About Cisco Validated Design (CVD) Program

Solution Overview

Cisco VMDC 2.x is a validated architecture that delivers a highly available, secure, flexible, and efficient data center infrastructure. It provides the following benefits:

Reduced time to deployment—Provides a fully tested and validated architecture that accelerates technology adoption and rapid deployment.

Reduce risk—Enables enterprises and service providers to deploy new architectures and technologies with confidence.

Increased flexibility—Rapid, on-demand, workload deployment in a multi-tenant environment due to a comprehensive automation framework with portal-based resource provisioning and management capabilities

Improved operational efficiency—Integrates automation with multi-tenant resource pool (compute, network, and storage), improves asset use, reduces operational overhead, and mitigates operational configuration errors.

Differences between Cisco VMDC 2.x and VMDC 1.1

Cisco VMDC 2.x is the second phase of Cisco's Virtualized Multi-Tenant Data Center solution. The details of the first phase of the solution (VMDC 1.1) are described at:

http://www.cisco.com/en/US/solutions/ns340/ns414/ns742/ns743/ns1050/landing_vmdc.html

Table 1 summarizes the high level differences:

Table 1 Comparison of VMDC 1.1 and 2.x

VMDC 1.1
VMDC 2.x

Generic virtualized multi-tenant data center architecture

Standardized data center architecture employing pre-integrated compute stacks, such as Vblock and FlexPod

Focus on design for infrastructure components of data center (compute, storage, network)

Focus on infrastructure components and automation (including service orchestration)

Single design applicable for various data center sizes

Two standardized designs based on data center size (compact and large)


Architecture Overview

Modular Design

Cisco VMDC 2.x provides a scalable solution that can address the needs of smaller, as well as larger, enterprise and service provider data centers. This architectural consistency enables providers to select the design that best suits their immediate needs, while providing a solution that can scale to meet future needs without re-tooling or re-training staff. This scalability with a hierarchical design based on two modular building blocks: PoD and ICS.

Point of Delivery (PoD)

The modular design starts with a basic infrastructure module called a PoD. A PoD allows providers to add network, compute, and storage resources incrementally. The Cisco VMDC 2.x architecture specifies two PoD designs: Compact and Large.

The PoD concept offers a number of benefits:

Predefined logical units

Simplified capacity planning

Ease of new technology adoption

Fault isolation

Consistent and efficient operation

Integrated Compute Stack (ICS)

The second building block in Cisco VMDC 2.x is a generic Integrated Compute Stack (network, storage, and compute) based on existing models, such as the VCE Vblock and Cisco-NetApp FlexPod offerings. The VMDC 2.x architecture is not limited to a specific ICS definition but can be extended to include other compute and storage stacks. Both enterprises and service providers can build and deploy their ideal cloud platform using the ICS design, implementation, and operational best practices described in the Cisco VMDC 2.x documentation.

The ICS benefits include the following:

Pre-validated physical units

Simplified capacity planning

Ease of new technology adoption

Fault isolation

Consistent build out and operation

Flexible and efficient resource allocation

Multi-Tenant Support, Separation, and Security

Multi-tenancy refers to the virtualization of network, storage, and compute resources across the data center for each tenant. In VMDC 2.x, logical separation is used instead of requiring dedicated physical resources for each tenant. This separation is a critical attribute of any cloud deployment, as it differentiates cloud computing from co-location and dedicated infrastructure for each application.

Some of the virtualization technologies are Multi-VRF, multi-context Cisco Application Control Engine (ACE) and Cisco Catalyst 6500 Series Firewall Service Module (FWSM), and the Nexus 1000V. Table 2 presents the features and technologies that enable a layered security strategy in Cisco VMDC.

Table 2 Layered Security Strategy

Layer
Security Options

Data Center Edge

Secured access and perimeter firewall

Multiprotocol Label Switching (MPLS) Layer 2 and 3 VPNs

SSL and IP Security (IPsec) VPNs

Infrastructure security to protect device, traffic plane, and control plane

Core and Aggregation

Device virtualization for control-, data-, and management-plane segmentation

Infrastructure security to protect device, traffic plane, and control plane

Services

Server load balancing to mask servers and applications

Infrastructure security to protect device, traffic plane, and control plane

Aggregation and Access

Secure, authenticated connections

Dynamic Address Resolution Protocol (ARP) inspection

Dynamic Host Configuration Protocol (DHCP) snooping

IP source guard

Zone security (private VLANs, port switching, and port profiles with access control lists [ACLs])

Infrastructure security to protect device, traffic plane, and control plane

Virtual Access

Policy-based virtual machine connectivity

Mobile virtual machine security and network policies

Virtual firewall integration with Cisco Nexus 1000V Switch

Compute

Application security

Storage and storage aggregation

Virtual service domains plus NetApp vFilers (NAS)

Zoning


Differentiated Services

The Cisco VMDC architecture allows providers to build service level agreements (SLAs) that support their tenant or application requirements. Figure 1 is not meant to be a strict definition of resource allocation, but to demonstrate how differentiated service tiers could be built.

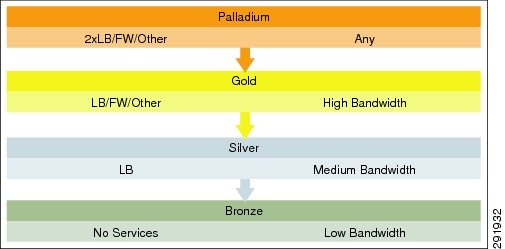

Figure 1 Example VMDC Service Tiers

VMDC extends service policies across the data center infrastructure allowing cloud administrators to create virtual data center addressing the specific business and application requirements of each tenant. Figure 2 is an example of two tenant virtual data centers and the possible combination of infrastructure services.

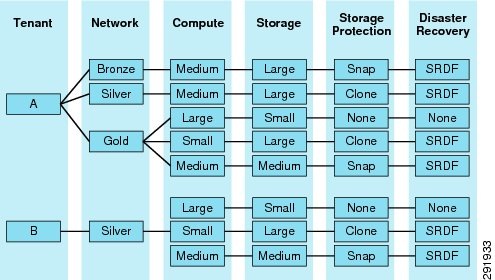

Figure 2 Example Virtual Data Center Service Policies

Service Orchestration Integration

The Cisco VMDC 2.x architecture includes an open management framework that enables provisioning of resources through service orchestration. A provider can deploy orchestration tools that provide a portal-based configuration model where a tenant can select from a defined number of service options.

Service orchestration offers a number of benefits:

Significantly reduces the OpEx associated with administering and monitoring virtualized resources

Decreasse provisioning time

Provides an audit trail for fulfillment assurance and billing

Connects and automates work flows when applicable to deliver a defined service

The service orchestrator used in the Cisco VMDC 2.x architecture is BMC Atrium Orchestrator. The overall components that enable orchestration in Cisco VMDC version 2.0 are listed in Table 3.

Table 3 Example Service Orchestration Components

Layer
Functional Element
Description
Orchestration


BMC AO

End-to-end service provisioning

Resource


BMC Atrium

Central repository for all inventory and resource details

Element management


UCS Manager

Configuration/monitoring tool for USC components and service profiles



BMC BBSA

Server provisioning tool



WMware vCenter

Virtual server provisioning tool

Network Management



CA NetQoS

Performance management



CIC(NetCool)

Fault management and service visibility



NaviSphere

Storage management

Service Management


CIC(NetCool)

Service impact and root cause determination



BMC BBNA

Network change management and compliance



NetQoS

Service performance



P-NET/SLM

Monitoring



API

Integration through multiple APIs



BMC Remedy

Service Desk Function



BMC Service Catalog

Central repository for all service definitions and instances



BMC Service Portal

The user portal for ordering and administering services



BMC Atrium CMDB

Atrium Configuration Management Database

Security


Cisco ACS

Authentication, authentication, and accounting

Identity


Active Directory

Identity repository


Cisco VMDC 2.1 uses the BMC Cloud Lifecycle Management (CLM) solution to provide a comprehensive set of capabilities for orchestrating and managing cloud environments. Table 4 describes the BMC components validated with the VMDC 2.1 architecture.

Table 4 VMDC 2.1 Validated BMC CLM Components

CLM Component

BMC Cloud Lifecycle Management

BMC Remedy Action Request System

BMC Atrium CMDB

BMC Atrium Core

BMC Bladelogic Server Automation

BMC Bladelogic Network Automation


Workload Mobility and Disaster Recovery Capability

The VMDC architecture facilitates movement of workloads from ICS to ICS within a PoD, from ICS to ICS in different PoDs, and to an ICS in a different data center. VMware Site Recovery Manager provides disaster recovery by enabling movement of workloads from one data center site to another. On the storage side, different service tiers are provided disaster recovery and data protection with customized remote replication, such as recovery-point objective (RPO) or recovery-time objective (RTO).

Compact and Large PoD Details

VMDC 2.x provides two PoD design models: Compact and Large PoDs. Each model addresses different scale, growth, and cost points. The Compact PoD targets small to medium data centers and Large PoD targets data centers with higher scale requirements. In each of the designs, multiple ICSs scale the PoDs. The data center can scale to a larger number of tenants, applications, or workloads by adding PoDs.

Table 5 highlights differences between the PoD designs.

Table 5 Differences Between Compact and Large PoD Designs

Compact PoD
Large PoD

Applicable for small to medium data centers

Top of Rack (ToR) access design

Split VDC design (VMDC 2.0)

Single VDC design (VMDC 2.1)

10-Gbps and 1-Gbps ICS

Applicable for medium to larger data centers

End of Row (EoR) access design

10-Gbps ICS


Components

Table 6 lists the components of the Cisco VDMC architecture.

Table 6 Components of the Cisco VDMC 2.x Architecture

Features
Compact PoD
Large PoD

Network

Cisco Nexus 5020, and 7010 Switches

Cisco Catalyst 6500 Series Switches and Catalyst 6509-E (WAN edge)

Data center services node: Cisco Catalyst 6509-E Switch (Virtual Switching System [VSS])

Cisco Nexus 2148T Fabric Extender

Cisco Nexus 7010 , and 7018 Switches

Cisco Catalyst 6500 Series Switches and Cisco CRS-1 Modules (WAN edge)

Data center services node: Cisco Catalyst 6509-E Switch (Virtual Switching System [VSS])

Compute

Cisco Unified Computing System

Cisco UCS 5108 Blade Server Chassis

Cisco UCS B200 M1 Blade Server

Cisco UCS M71KR-E Emulex Converged Network Adapter

Cisco UCS M81KR Virtual Interface Card

Cisco UCS 6120XP 20-Port Fabric

Cisco UCS C200-M1

Cisco UCS 6120XP 20-Port Fabric Interconnect and Cisco UCS 6140XP 40-Port Fabric Interconnect

Cisco Unified Computing System

Cisco UCS 5108 Blade Server Chassis

Cisco UCS B200 M1 Blade Server

Cisco UCS M71KR-E Emulex Converged Network Adapter

Cisco UCS M81KR Virtual Interface Card

Cisco UCS 6120XP 20-Port Fabric Interconnect and Cisco UCS 6140XP 40-Port Fabric Interconnect

Virtualization

VMware vSphere

VMware ESXi 4.x Hypervisor

Cisco Nexus 1000V (virtual access switch)

VMware vSphere

VMware ESXi 4.x Hypervisor

Cisco Nexus 1000V (virtual access switch)

Security

Cisco Catalyst 6500 Series FWSM and Cisco ACE

VMware vShield

NetApp vFiler and Virtual Service Domains

Cisco Nexus 1000V Switch

Cisco Catalyst 6500 Series FWSM and Cisco ACE

Cisco ASA 5580-40

VMware vShield

NetApp vFiler and Virtual Service Domains

Cisco Nexus 1000V Switch

Storage fabric and arrays

Cisco MDS 9506 and MDS 9513 Multilayer Directors and Cisco MDS 9148 and 9134 Multilayer Fabric Switches

EMC Symmetrix V-Max with virtual provisioning

NetApp FAS3170 and NetApp FAS6080

Cisco MDS 9506 and MDS 9513 Multilayer Directors

EMC Symmetrix V-Max with virtual provisioning

NetApp FAS3170 and NetApp FAS6080

Orchestration and management

BMC Atrium Orchestrator

VMware vCenter

Cisco UCS Manager

BMC BladeLogic for server and network

BMC Remedy IT Service Management Suite

BMC Atrium Orchestrator

VMware vCenter

Cisco UCS Manager

BMC BladeLogic for server and network

BMC Remedy IT Service Management Suite


Solution Validation

Testing Scope

Table 7 Solution Validation Scope

Use Case
Details

Data center end-to-end functionality verification for SAN and NAS designs

End-to-end feature/integration validation including QoS for all data center network layers from access to WAN edge on all platforms. ESX/VM provisioning, boot up and maintenance, as well as SAN/NAS storage design verification.

Disaster recovery scenario validation

Transparent movement of data center workloads for business continuance (active-backup scenario).

Automation validation

Validation of service orchestration, portal, service catalog validation with element manager integration for compute and network.

Data center services functionality validation

Validation of Service Tier offerings with Data Center Services Node (firewall, load balancing)

Failover scenario validation

Validation of redundancy designs (with Baseline Steady State traffic)—Routing, vPC/MEC, ECMP, VSS, HSRP, Active-Active service modules, Clustering.

Security validation

End-to-end security validation on various components

Scalability verification

Multi-dimensional scalability (VLAN, MAC, HSRP, routes, contexts, VM) within scope of architecture


Compact and Large PoD Scale

Table 8 Validated Scalability

Feature
Compact PoD
Large PoD

Tenants

32

152

Servers per PoD

64

512

Virtual machines per PoD

1,440

11,520

VLANs per PoD

180

520

Virtual firewall contexts

6

8

Virtual load balancers

16

24

Server VLANs

180

200

MAC addresses

12,000

24,000

HSRP gateway instances

196

504

Routing protocol scale

256 OSPF neighbors

480 BGP peers


Further Reading

This document introduces the VMDC 2.02.x design. For the detailed design and implementation guides for this solution, please visit:

Cisco Virtualized Multi-Tenant Data Center, Version 2.1 Design Guide

http://www.cisco.com/en/US/docs/solutions/Enterprise/Data_Center/VMDC/2.1/design_guide/vmdc21DesignGuide.html

Cisco Virtualized Multi-Tenant Data Center, Version 2.1 Implementation Guide

http://www.cisco.com/en/US/docs/solutions/Enterprise/Data_Center/VMDC/2.1/implementation_guide/vmdc21ImplementationGuide.html

Cisco Virtualized Multi-Tenant Data Center, Version 2.0, Large Pod Design Guide

http://www.cisco.com/en/US/docs/solutions/Enterprise/Data_Center/VMDC/2.0/large_pod_design_guide/Large_Pod_Design_Guide.pdf

Cisco Virtualized Multi-Tenant Data Center, Version 2.0, Compact Pod Design Guide

http://www.cisco.com/en/US/docs/solutions/Enterprise/Data_Center/VMDC/2.0/design_guide/vmdcDesignGuideCompactPoD20.html

Cisco Virtualized Multi-Tenant Data Center, Version 2.0, Compact Pod Implementation Guide (Login Required)

http://www.cisco.com/en/US/partner/docs/solutions/Enterprise/Data_Center/VMDC/2.0/implementation_guide/vmdcImplementationGuideCompactPod20.html

Cisco Virtualized Multi-Tenant Data Center, Version 1.1

http://www.cisco.com/en/US/docs/solutions/Enterprise/Data_Center/VMDC/1.1/vmdcDg11.html

About Cisco Validated Design (CVD) Program

The CVD program consists of systems and solutions designed, tested, and documented to facilitate faster, more reliable, and more predictable customer deployments. For more information, visit www.cisco.com/go/designzone.

ALL DESIGNS, SPECIFICATIONS, STATEMENTS, INFORMATION, AND RECOMMENDATIONS (COLLECTIVELY, "DESIGNS") IN THIS MANUAL ARE PRESENTED "AS IS," WITH ALL FAULTS. CISCO AND ITS SUPPLIERS DISCLAIM ALL WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE. IN NO EVENT SHALL CISCO OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THE DESIGNS, EVEN IF CISCO OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

THE DESIGNS ARE SUBJECT TO CHANGE WITHOUT NOTICE. USERS ARE SOLELY RESPONSIBLE FOR THEIR APPLICATION OF THE DESIGNS. THE DESIGNS DO NOT CONSTITUTE THE TECHNICAL OR OTHER PROFESSIONAL ADVICE OF CISCO, ITS SUPPLIERS OR PARTNERS. USERS SHOULD CONSULT THEIR OWN TECHNICAL ADVISORS BEFORE IMPLEMENTING THE DESIGNS. RESULTS MAY VARY DEPENDING ON FACTORS NOT TESTED BY CISCO.
